CD54
Vibratory Asphalt Compactor
Cat®3054C DIT Engine
Max. Gross Power 74.5 kW/101 hp
Operating Weight w/ROPS/FOPS Cab
Operating Weight 9500 kg/10 900 kg
Compaction Width
Drum Width 1700 mm
Max. Compaction Width 3000 mm
Page 2
CD54 Features
Reliable Water Spray System
Spray bar operation with continuous or
intermittent mode gives the operator
flexibility to conserve water, yet perform
well in the most unfavorable operating
conditions.
Application Versatility
The combination of the versatile Cat
v
v
ibratory system and wide offset drum
lets you configure your machine to
precisely match job requirements.
Smooth Working Powertrain
The liquid cooled Cat®3054C DIT engine
offers more power, while responsive
controls and smooth operation build
operator confidence.
Comfortable Operation
Low operator sound levels, cool
operating environment and good visibility
provide a high level of comfort.
Ease of Operation
The unique steering control provides
sensitive to the touch operation that
enhances operator control and reaction
to obstructions.
Simplified Services
The Electronic Control Modules (ECMs)
provide easy diagnostic capability.
Contents
Performance . . . . . . . . . . . . . . . . . . . . . . . . 3
Vibratory System . . . . . . . . . . . . . . . . . . . . . 4
W
ater Spray System . . . . . . . . . . . . . . . . . 4
Split Drums . . . . . . . . . . . . . . . . . . . . . . . . . 5
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Train . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating Environment . . . . . . . . . . . . . . . 7
Serviceability . . . . . . . . . . . . . . . . . . . . . . . . 8
Customer Support . . . . . . . . . . . . . . . . . . . . 8
Specifications . . . . . . . . . . . . . . . . . . . . 9,10
Standard Equipment . . . . . . . . . . . . . . . . .10

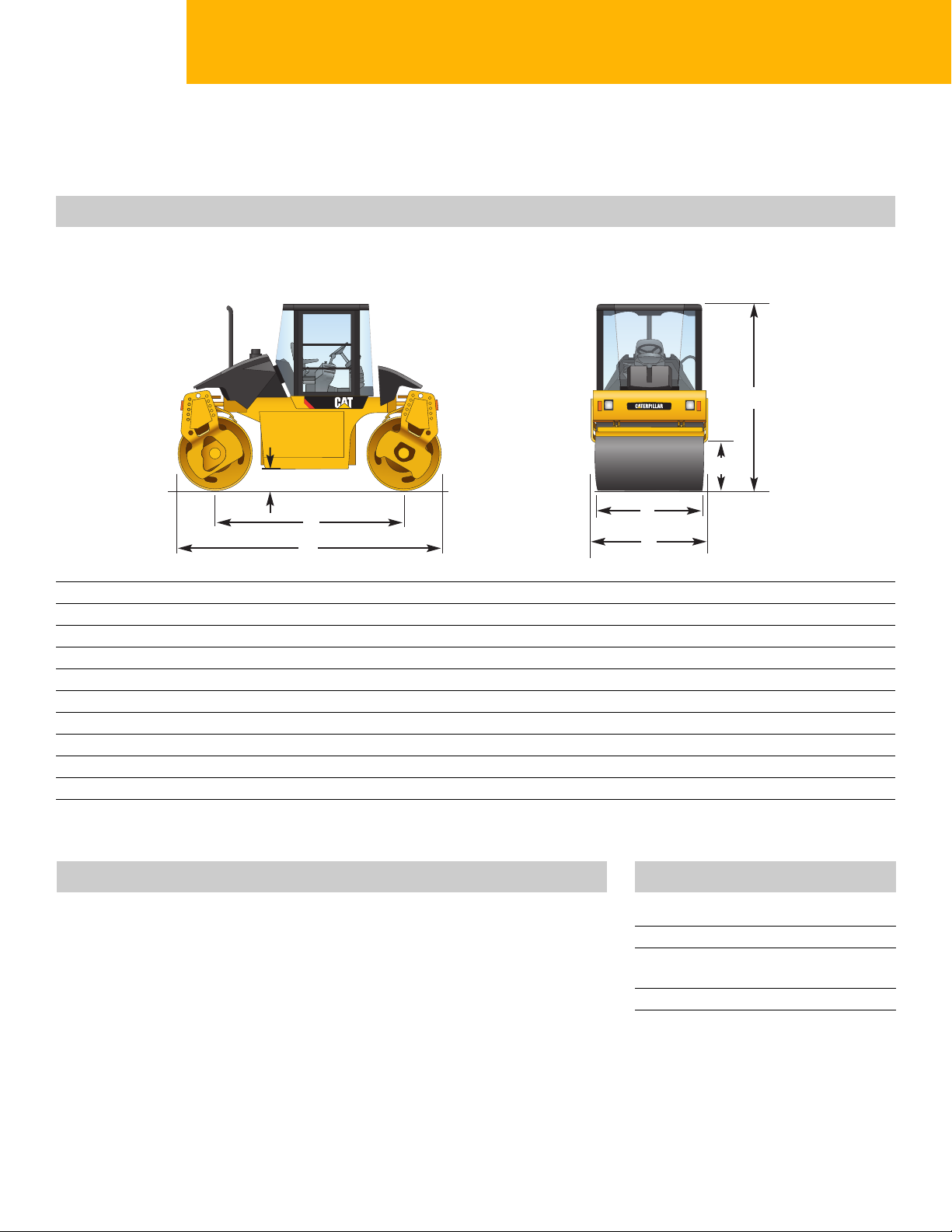

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional Equipment . . . . . . . . . . . . . . . . . 11
2

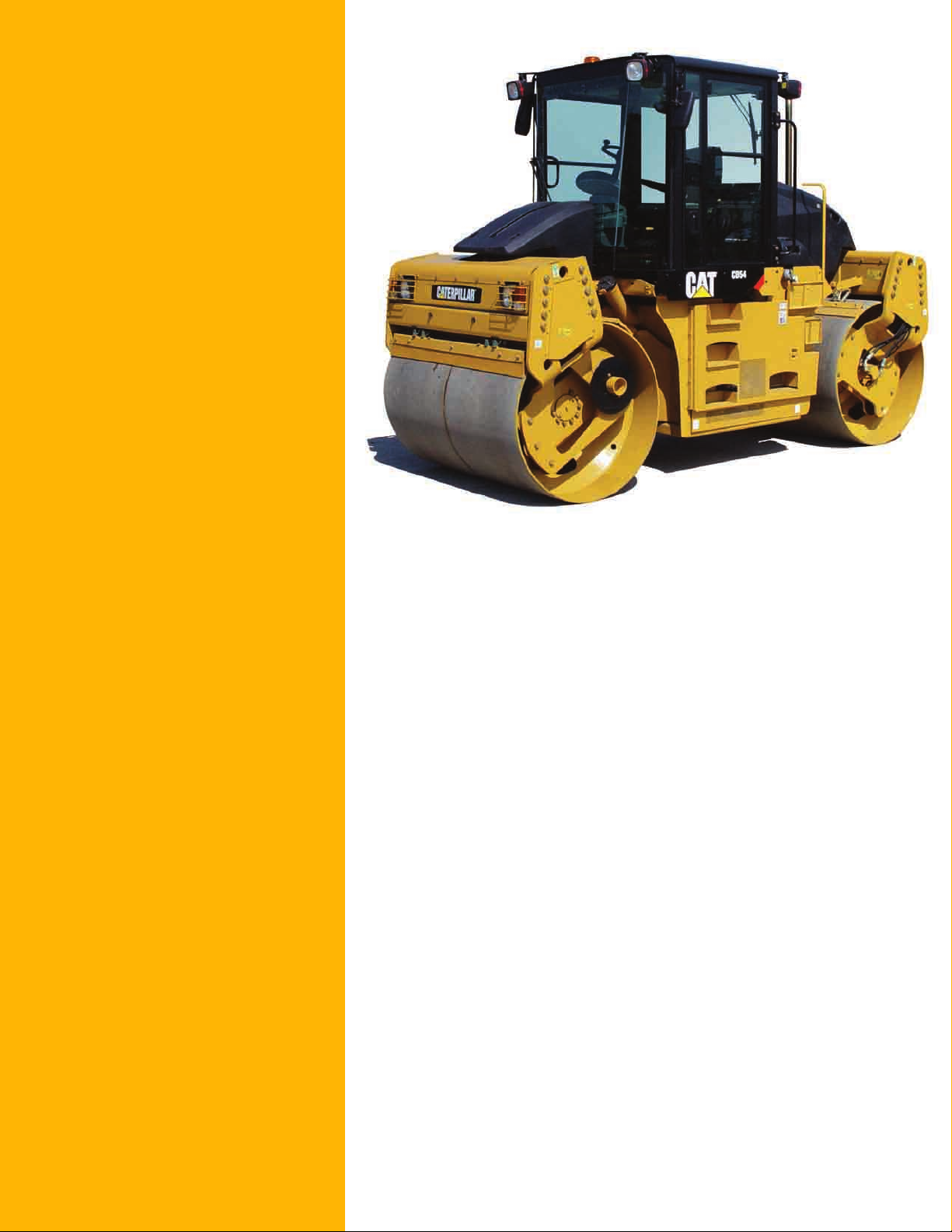

The Cat®CD54 Drum Steer Asphalt Compactor offers a
versatile vibratory system that produces results on all
types of asphalt mix. From tender to harsh mixes, this Cat
asphalt compactor delivers the right amount of force to get
density without compromising smoothness or productivity.
The front and rear split drums, wide offset feature,
optimum maneuverability, power, and reliable water spray
system deliver unmatched performance in adverse
conditions. The operating station provides the comforts
and all-around visibility that you’ve come to expect from
Caterpillar. Excellent visibility to the drum edges for
precise control when operating against obstacles and
matching joints.
Page 3
Performance
Compactor design delivers unmatched versatility.
Meeting density and smoothness specifications can often be
challenging. Caterpillar®understands this, and designs asphalt
compactors that simplify operation, yet provide versatility to
perform in all types of applications. Having the right equipment
and understanding its capability will help you meet those
performance requirements for every situation that you encounter.
Superior Mat Finish
Maneuverability and dealing with tight corners is a common
challenge for all asphalt compactors. Maneuvering on the mat to
finish a pass or follow a radius can often result in tearing the
surface. The Cat®CD54 with split drum design, permits tight
turns and significantly reduces tearing so the operator is free to
concentrate on pattern accuracy and keeping up with the paver.
Vibratory Selection
Selecting the amplitude that provides the correct force and
selecting the frequency that matches paving speed are critical to
successful asphalt compaction. Cat®asphalt compactors offer
vibratory systems with dual amplitudes and frequencies.
Vibratory versatility and the knowledge to use it are fundamental
and part of the Caterpillar solution.
Keeping the Drum Surface Wet
Keeping the drum wet is critical to all asphalt compactors.
The high capacity water spray system offers triple filtration and
optimum flow for excellent performance.
Power and Efficiency
Having enough power to perform on inclines and maintaining
the desired impact spacing when changing directions is essential
to asphalt compaction. The Cat®3054C DIT engine combines
the power to excel in tough conditions with the fuel efficiency to
continue operating throughout the day.
Matching Paving Speed
Keeping pace with the paver ensures that compaction takes place
in the desired temperature zone. Choosing the right drum width
that effectively covers the mat, while matching the vibratory
frequency with the speed of the paver, leads to consistent mat
quality.
33
Page 4
Vibratory System
Effective performance on a variety of applications.

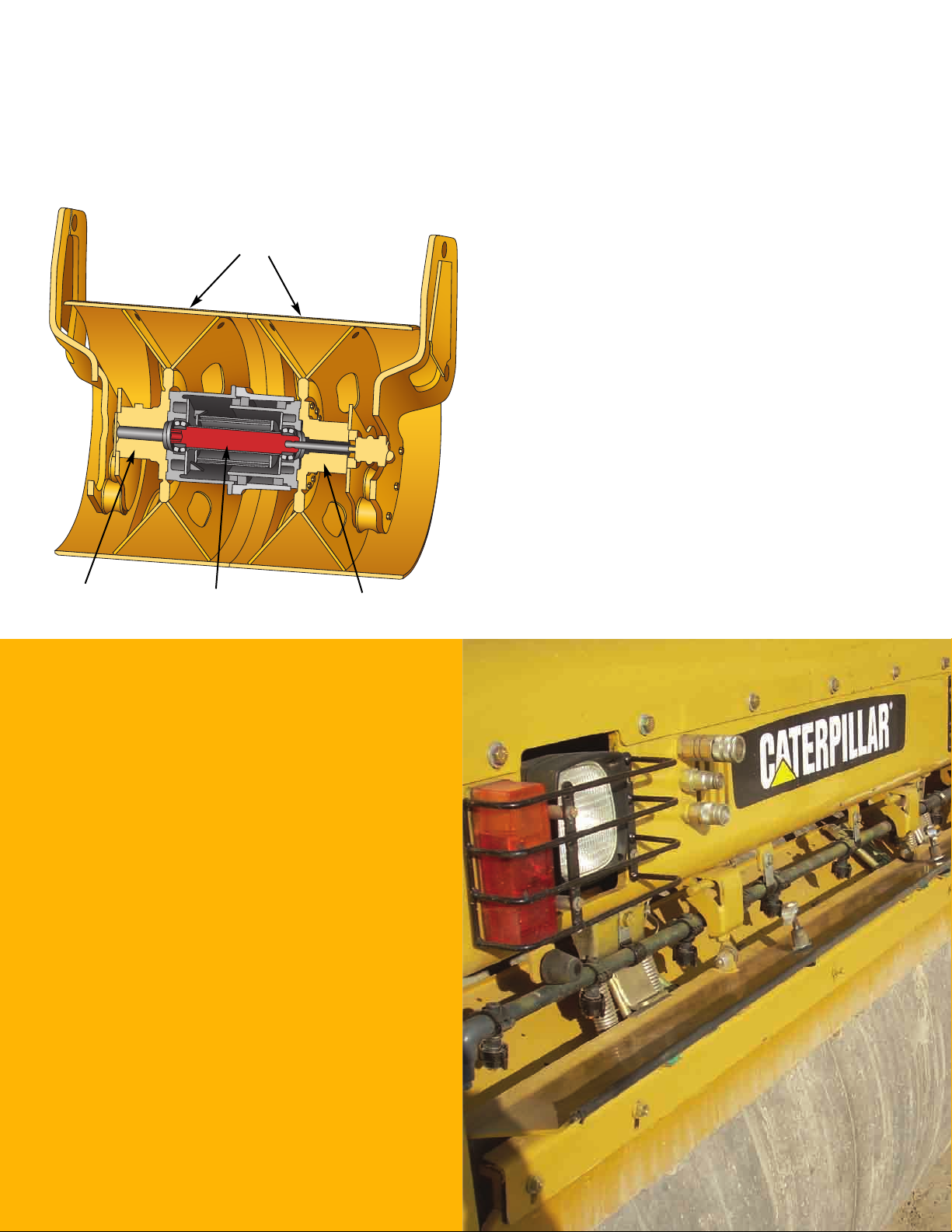

Exclusive Pod Design
The exclusive axle-type pod design utilises tapered roller
1
2
3
2
bearings that support each drum half and eliminates any
potential for contact between the two halves. Dual seals provide
two layers of protection that prevent contamination and ensure
long-term performance. Oil bath lubrication delivers continuous
recirculation of oil inside the sealed housing, leading to longer
service intervals and lower operating costs.
Dual Amplitude/Dual Frequency
Dual amplitude settings work efficiently in a wider range of
applications. Aswitch at the operator station changes amplitude
and frequency is adapted. This simple setup eliminates the
guess-work associated with vibratory selection.
Automated Vibratory Control
An auto-vibe function allows the operator to determine when the
vibratory system should engage upon starting out or when
changing direction. Automatic vibration start-up and shut-off
helps produce smooth, flawless mats. This function also has a
manual control for start-and-stop work.
1 Split Drum
2 Propel Hydraulic Motor
3 Vibratory System
Water Spray System
The Cat spray system provides redundancy in the system,
ensuring reliable performance that keeps the machine on the
mat.
Hours of Operation
The single, 750 liter water tank provides hours of operation
between refills. Spray can be set on continuous for maximum
wetting action or intermittent for maximum duration between
fill-ups. The sloping design provides excellent machine
visibility to the drum while the single fill point can be
accessed from the left side of the machine.
Excellent Filtration
Keeping the spray nozzles free of foreign particles is essential
to asphalt compaction. The Cat system provides triple
filtration that minimizes clogs. The filters are highly
accessible and can be quickly removed for cleaning without
the use of special tools, limiting machine downtime.
Long-Life Pumps
Dual water pumps provide the necessary flow to the spray
nozzles. During operation the pump usage alternates with the
direction of travel so that only one pump operates at a time.
Alternating pump usage extends the operational life, while
lowering replacement costs.
4
Page 5
Split Drums
Superior mat finish with Caterpillar split drums
Tight Turning Without Tearing
An inside turning radius of 2.8 meters significantly increases the
maneuverability of this high production asphalt compactor. An
effective split drum propel system lets you use the tight turning
radius without damaging the hot mat.
Wide Drum Offset
The 1.3 meter drum offset provides more coverage for higher
production on thin mats while minimizing heat loss prior to
compaction. Ease of operation is provided through fingertip
control at the propel lever for one handed operation. An audio
alarm alerts the operator when the drums are aligned, allowing
the operator to concentrate on mat conditions.
Heavy-duty Design
The thick steel fabrication used in production provides a strong,
solid frame that resists flexing and holds up to the tough
operating conditions of asphalt compaction. The heavy-duty
construction optimizes vibratory efficiency by directing vibration
into the mat, not through the machine frame as wasted energy.
The frame features a unique center beam design that provides
easy access to engine and other main components. The robust
front and rear hitch articulation include maintenance free tapered
roller bearings that are sealed and greased for life, leading to
reduced service requirements and lower life-time operating
costs.
Steering
Wide offset capability provides high production work.

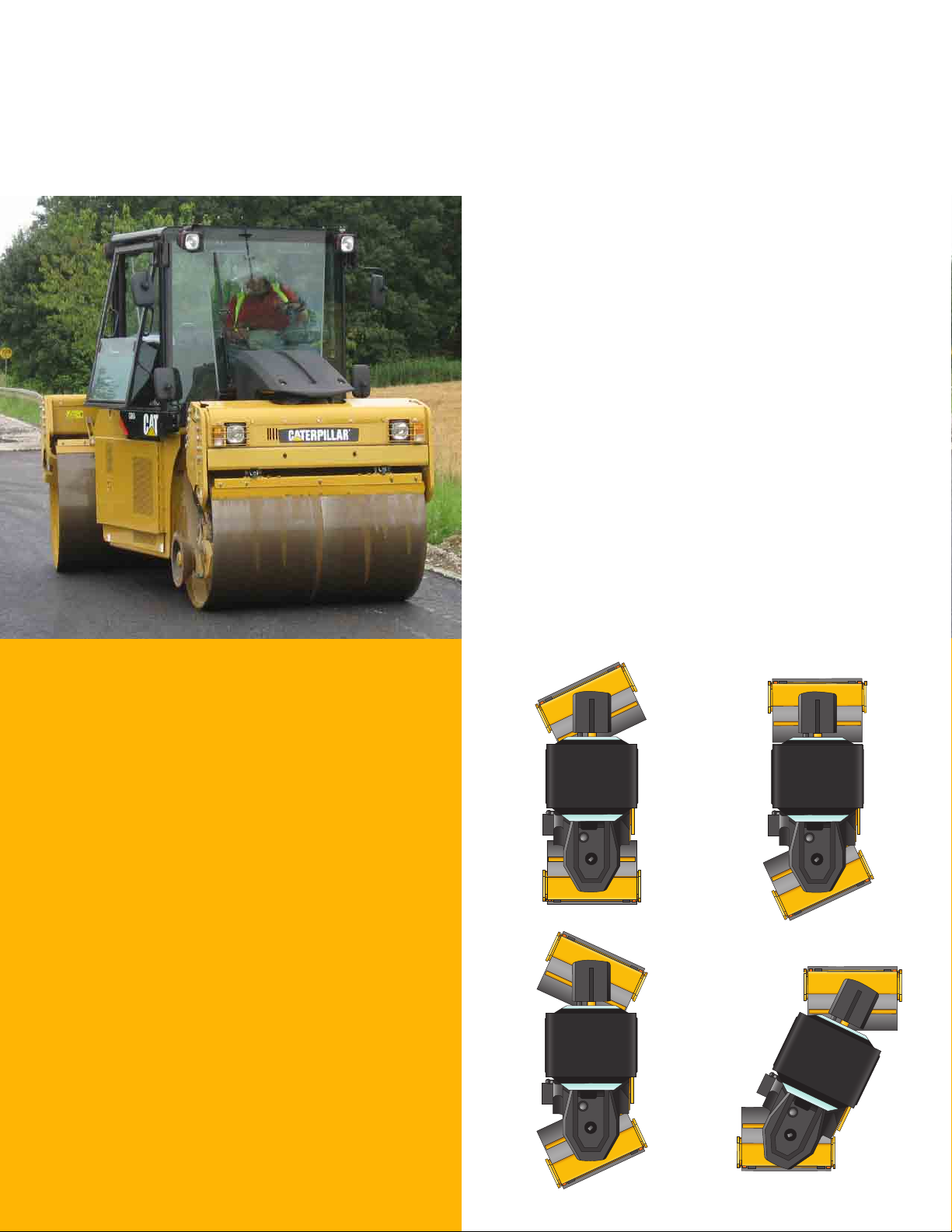

Four Steering Modes
The CD54 features four steering modes: front, rear,
coordinated front and rear and crab operation. Coordinated
steering produces a 2.8 meter inside turning radius for
maximum jobsite maneuverability.
Sensitive To The Touch Steering
The benefit of electronic steering is combined with the feel of
hydraulic steering. When the drum encounters resistance,
friction to the steering wheel increases, providing an intuitive
feel that is extremely beneficial when operating adjacent to
vertical barriers and curbs or when the drum articulation
reaches the end of travel during tight turns.
1 Front Steering
2 Rear Steering
3 Coordinated Steering
4 Crab Operation (when in the maximum drum offset position
the front drum still has a ±5% steering angle).
12
34
5
Page 6
Powertrain
Smooth control and quiet operation leads to higher productivity.
Cat Engine
The 4-cylinder Cat 3054C Direct Injection Turbo (DIT) engine
provides clean, quiet operation while delivering superior
performance and durability. The 74.5 kW (101 hp) rated gross
power engine meets EU directive 97/68/EC Stage II emission
requirements.

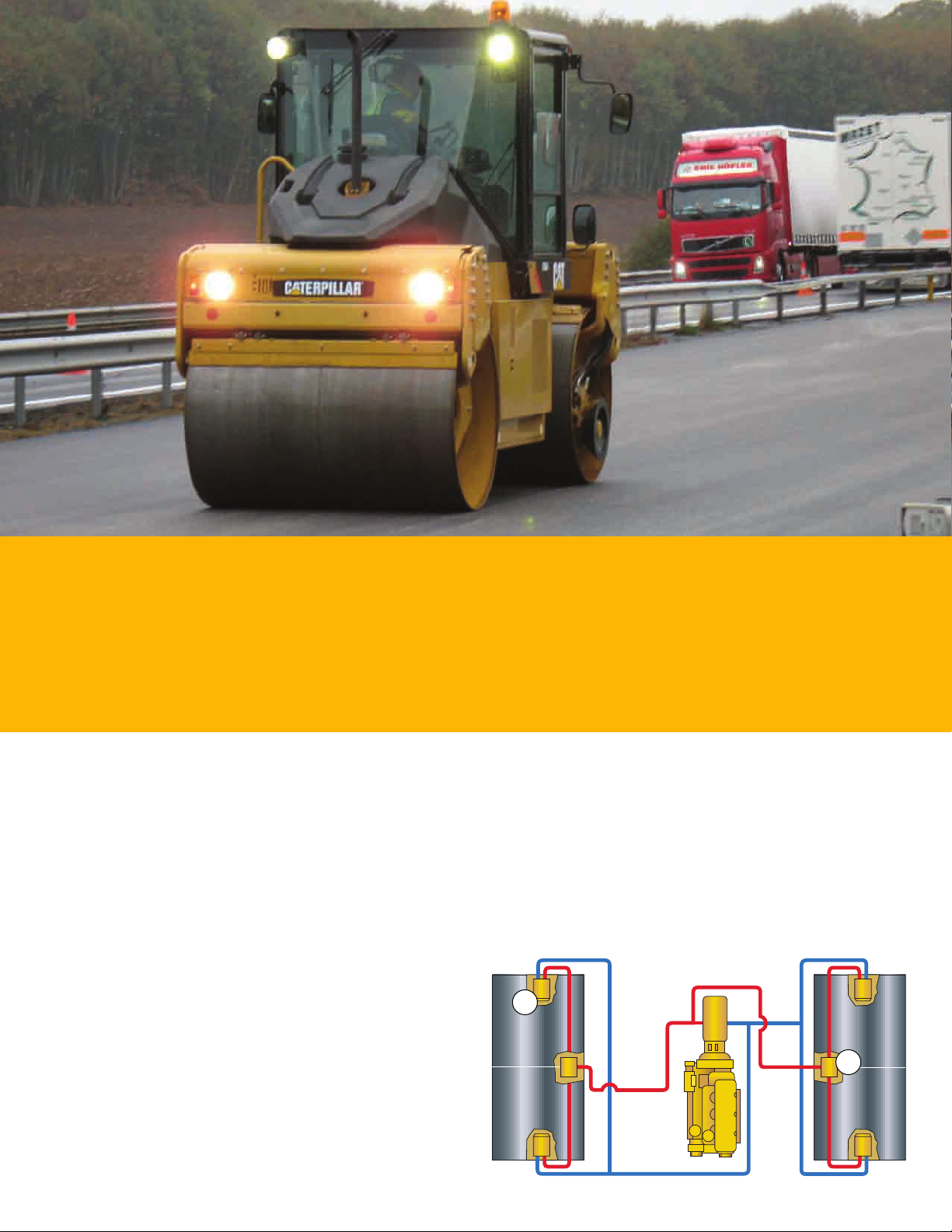

Balanced Torque and Proportional Speed Control
The split drum drive system features an electronically actuated
traction control that prevents unequal rotation of the drum halves
and assures balanced torque when going straight. To avoid
tearing the mat in tight turns, the drum halves need to rotate at
different speeds. The split drum drive system utilizes
maintenance-free tapered roller bearings, for excellent reliability.
The system also features speed sensing propel motors that allow
additional flow to the outside drum drive, ensuring proportional
speed between the drum halves. The proportional speed is
controlled by the steering angle and the ECM controller to
ensure balanced torque when turning.
1 Four hydraulic motors with integrated parking brakes.
2 Hydraulic flow divider valves providing balanced flow to
front and rear motors.
666
Smooth Operation
Responsive controls generate operator confidence and improve
productivity. When in control, operators are able to stay focused
on mat conditions, allowing them to make the necessary
adjustments throughout the day. To accomplish this, the machine
uses an electronic control module (ECM) that monitors the
propel system in order to optimise performance.
1
2
Page 7

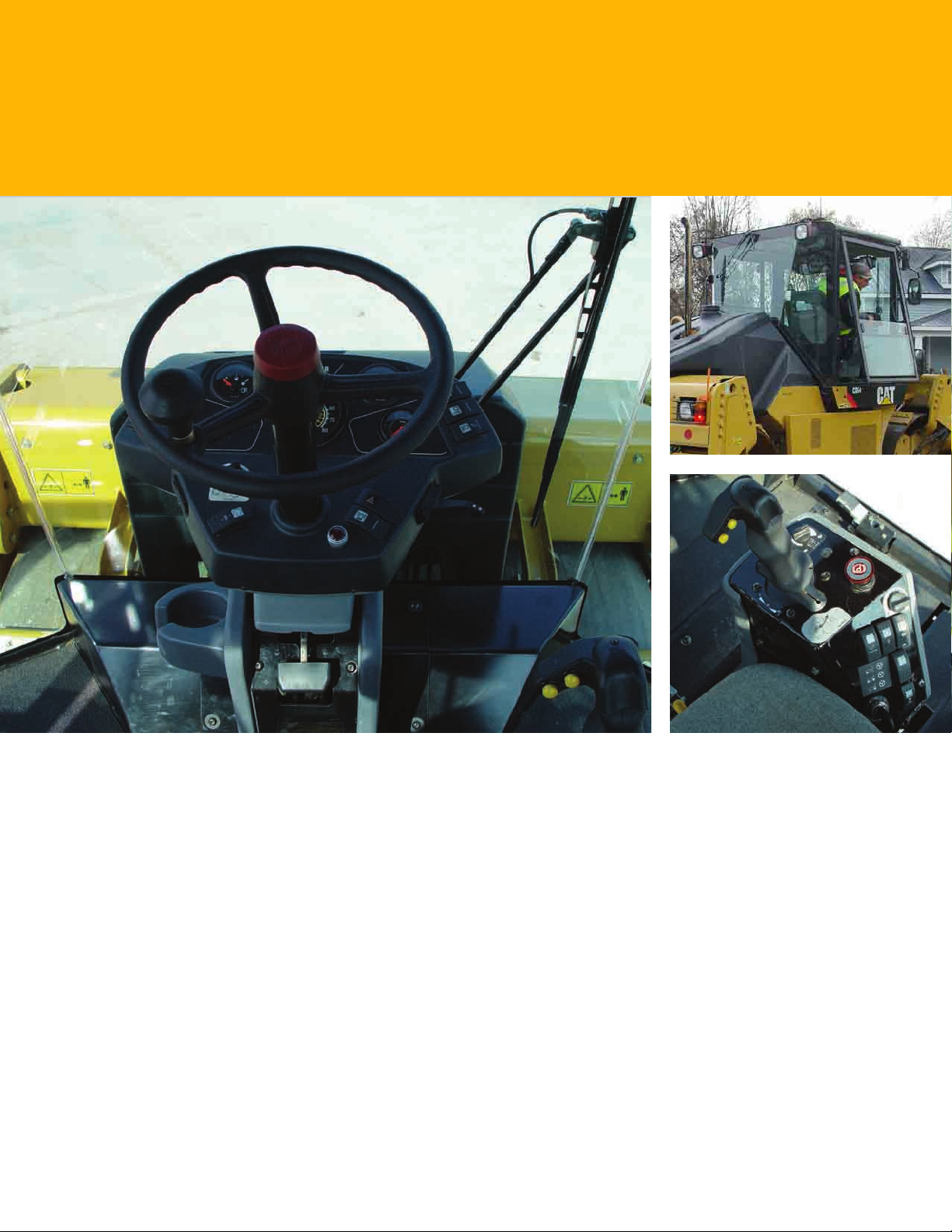

Operating Environment
Superior comfort keeps you productive all day long.
All-Around Visibility
Keeping operators alert of their surroundings and aware of the
machine and mat conditions is a focus of the operating station.
The ROPS/FOPS cab with full floor-to-ceiling glass on the front
and rear corners provides an unobstructed line of sight to the
drum edges, drum surfaces, and both sides of the machine. The
right hand window can be easily opened for additional side
visibility when required. Good all-around visibility enables the
operator to optimizes water spray performance and compaction
coverage when operating in the offset steering mode.
Comfortable Seating
Keeping the job site in clear view is important when working
close to the paver. The multi-position seating provides a variety
of adjustments that help the operator stay focused and in control.
A tilting steering column and multiple seat adjustments allow the
operator to customize weight, height, armrests, and the backrest
to suit their individual needs.
Automatic Speed Control (ASC)
A speed control dial used in conjunction with the propel lever
provides a cruise control type feature that allows the operator to
meet the required speed to keep pace with the paver. By moving
the propel lever to full forward or to full reverse allows the
machine to travel at the speed determined by the adjustable dial.
Convenient Controls
At Caterpillar, we strive to build machines that accommodate
operators with all types of skill level. We understand that
providing machines that perform well regardless of skill level
can lead to greater productivity. Convenient layout and easy-tounderstand controls build operator confidence. Being able to
locate controls and understand their function allows operators to
work more effectively, leading to better performance and higher
productivity.
7
Page 8

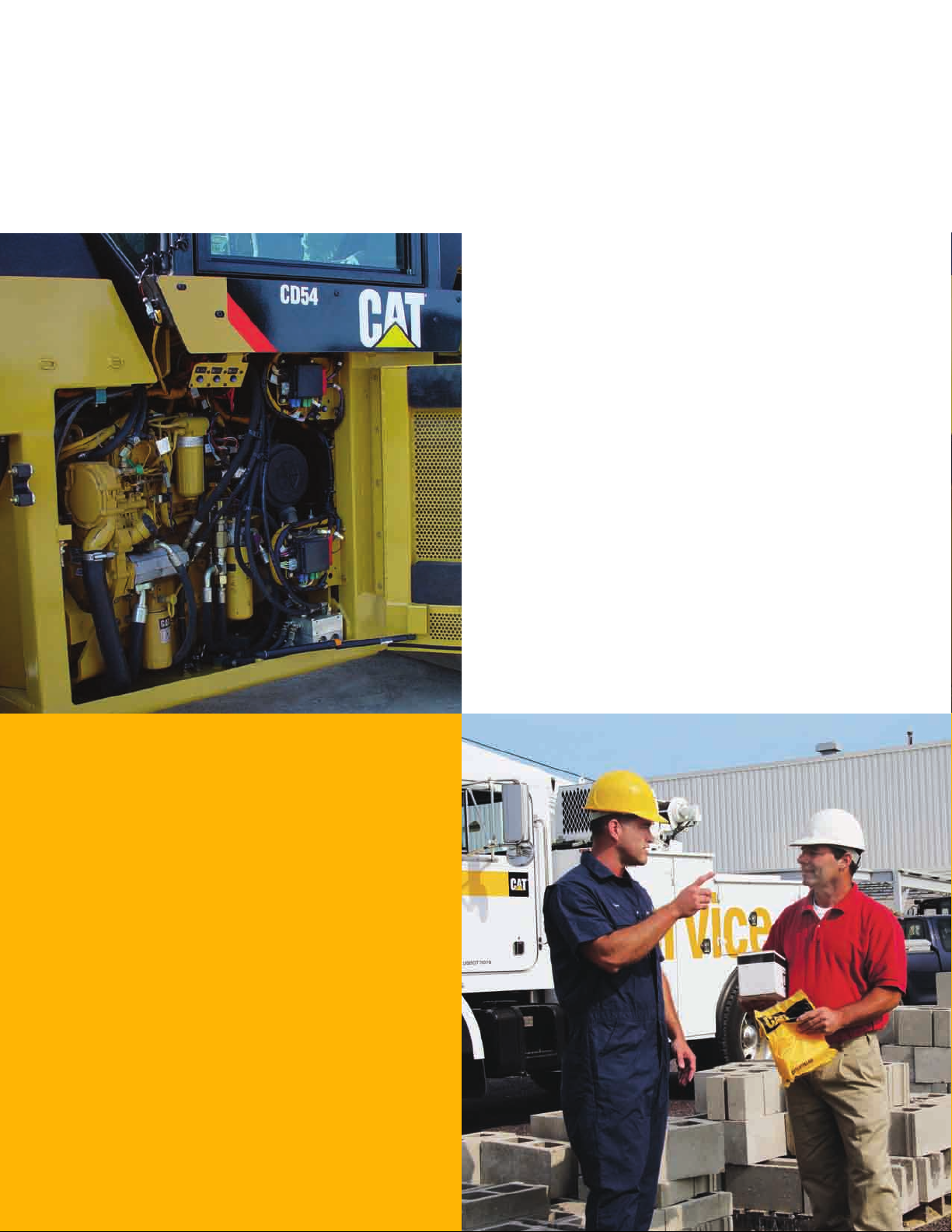

Serviceability
Easy access and minimal maintenance requirements keep
your machine on the job.
Convenient features make service easy
• Routine service points are accessible from ground level.
• Swing-out doors provide access to filters and components.
• Extended service intervals reduce downtime and increase
machine availability.
• Access to cab and water spray fill with three-point contact and
anti-slip steps.
• Maintenance-free hitch design provides unmatched reliability.
• Tapered roller bearings in the split drum and articulation joints
are sealed for life requiring no grease or service.
• Electronic control modules (ECM) for the propel and
vibratory systems are compatible with other Cat compactors,
making diagnostic efforts quick and easy.
• Electrical system uses Deutch connectors and colour-coded
and numbered wiring for easy reference when troubleshooting.
• Sight gauges let you easily check radiator coolant and
hydraulic oil levels as-well-as engine air filter restriction.
• Standard pressure ports allow quick diagnosis of the entire
hydraulic system.
• Optional bio-oil capability offers an environmentally friendly
alternative to standard oil.
Customer Support
Unmatched support makes the
difference!
Your Cat dealer is ready to assist you with your
purchase decision and everything after.
• Make comparisons of machines with estimates of
component life, preventative maintenance and cost of
production.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost to repair, rebuild and
replace your machine, helping you can make the right
choice.
• For more information on Cat products, dealer services and
industry solutions, visit us at www.cat.com.
8
Page 9
CD54 Asphalt Vibratory Compactor Specifications
Engine
Model: Cat®3054C DIT, 4 cylinder liquid
cooled engine rated at 2200 rpm
Rated Power
Net: ISO 9249 and
80/1269/EEC 72 kW / 98 hp
Gross: ISO 14396 74.5 kW / 101 hp
Max. Power
Net: ISO 9249 and
80/1269/EEC 72 kW / 98 hp
Gross: ISO 14396 and
SAE J1995 74.5 kW / 101 hp
Bore 105 mm
Stroke 127 mm
Displacement 4.4 L
• Net Power ratings are tested at the
reference conditions for the specified
standard.
• Net power shown is the power
available at the flywheel when the
engine is equipped with alternator, air
cleaner, muffler and fan at minimum
speed.
• No derating required up to 3000 m
altitude. Auto derate protects hydraulic
and transmission systems.
• The Cat 3054C DIT engine meets
Stage II off-highway emission
regulations.
ROPS/FOPS
• Cat cab with integrated Rollover
Protective Structure (ROPS/FOPS) is
standard.
• ROPS meets ISO 3471:1994.
• FOPS meets ISO 3449:1992 Level II.
Transmission
Variable displacement piston pump
supplies pressure flow to single speed
hydraulic motors driving each of the four
split drums. Asingle propel lever located
besides the operator seat provides smooth
hydrostatic control of the machine’s
infinitely variable speed in both forward
and reverse.
The Automatic Speed Control (ASC)
system is a hydraulic control device
allowing precise operating speed to be
preset and maintained without further
adjustment. ASC system also makes
machine starts and stops smoother.
Three propel modes can be selected from
the operator console; work, roading and
high.
Speeds
Work 0-7 km/h
Travel 0-9 km/h
Sound
Operator Sound
The operator sound pressure level
measured according to the procedures
specified in ISO 6394:1998 is 83 dB(A),
for cab offered by Caterpillar, with doors
and windows closed.
Exterior Sound
As manufactured by Caterpillar, this
machine’s exterior sound power level at
107 dB(A) meets the criteria spelled out
in the European Directives noted on the
certificate of conformance and the
accompanying labeling.
Steering
Electric over hydraulic with active
steering feedback feature. This feature
provides a unique operation sensitivity
when at end of stroke or maneuvering
close to vertical obstacles.
Minimum turning radius
Inside drum edge 2800 mm
Outside drum edge 4500 mm
Articulation angle (at each drum) 25°
Oscillation angle ± 8°
Max drum offset 1300 mm
Brakes
Service Brake Feature
Closed-loop hydrostatic drive system
provides dynamic braking during
operation.
Secondary and Parking Brake Features
Spring-applied/hydraulically released
brake on front and rear drums. Actuated
by switch on console or automatically
when pressure is lost in brake circuit or
when engine is shut off or in the event of
a major fault detection by the machine
ECM. Amanual release pump is
included.
Braking system meets EN 500.
9
Page 10
CD54 Asphalt Vibratory Compactor Specifications
Instrumentation
The instrument panel is located in front
of the operator and contains the
speedometer, vibe tachometer, vibration
mode selector, water spray system
controls, light switches, hour meter,
alternator indicator light, fuel gauge,
warning lights and horn. An audible
alarm sounds and warning light
illuminates if abnormal conditions occur
in engine oil pressure, engine coolant
temperature or charge pressure.
Operational lights are also positioned on
the instrument panel. They illuminate if
the vibratory system, drum spray system,
neutral or parking brake are engaged.
Machine controls are also located to the
operator’s right on the control console.
These controls include the start switch
with cold-start aid, electric throttle,
propel lever, speed selector switch,
automatic speed control (ASC) dial, drum
steering selector switch, horn and
secondary/parking brake switch. Drum
spray switch and vibration switch are on
propel handle. Offset steering controlled
by thumb switch located on propel handle
for simple operation.
Drum Spray System
Entire drum spray system is corrosionproof and includes a large water tank
with a single fill port and drain valve.
Self-adjusting spring-loaded scrapers
located on the front of each split drum
and two scrapers fitted behind the split
drums prevent material build-up and keep
the drums clean. The heavy-duty springs
and molded polyurethane design maintain
consistent pressure across the entire drum
width in order to maximize scraper wear.
Spray can be set on continuous for
maximum wetting action or intermittent
for maximum duration between fill-ups.
The “Auto” selection pulls water from
one pump traveling forward and from the
other pump while traveling backward.
The water spray system automatically
shuts off when the machine is in neutral.
Water capacity 750 l
Vibratory System
Drum width 1700 mm
Drum diameter 1200 mm
Drum shell thickness 17 mm
Weight at front drum
(ROPS cab) 4655 kg
Weight at rear drum
(ROPS cab) 4845 kg
Eccentric weight drive Hydraulic direct
Weight distribution front/rear 50/50 %
Vibratory frequency 53/42 Hz
Amplitudes
High 0.62 mm
Low 0.34 mm
Centrifugal force per drum
High 84 kN
Low 74.5 kN
Service Refill Capacities
liter
Fuel tank 160
Cooling system 28
Engine oil w/filter 9
Hydraulic system (including hoses) 82
Hydraulic tank 49
Vibratory bearing lubrication
(per drum) 8
10
Standard Equipment
• Front and Rear Split Drum
• Dual Amplitude and Frequency
Vibratory System
• Sealed Pod Style Vibratory System
• 1300 mm Drum Offset
• ROPS/FOPS Cab
• Two-speed Hydrostatic Transmission
• Automatic Traction Control
• Locking Engine Compartment and Cab
• Vandalism Guard on Lights
• Triple Filtered Water System
• 750 L Water Capacity
• 12V Electrical System
• 80 A Alternator
Page 11
Dimensions
CD54
All dimensions are approximate.
CD54 Asphalt Vibratory Compactor Specifications
7
10
9
8
1
3
2
mm
1 Overall length 4270
2 Overall width 1873
3 Drum width 1700
Drum offset 1300
Drum shell thickness 17
Drum diameter 1200
7 Overall height at ROPS/FOPS 3042
8 Wheelbase 3070
9 Curb clearance 777
10 Ground clearance 372
Optional Equipment
• Air Conditioning
• Bio-Degradable Oil
• Freeze Protection Kit (Water Supply)
• Mirrors
• Sunscreen
• Warning Beacon
• Water Distribution Mats (Cocoa)
• Water Distribution Mats (Rubber)
• Product Link
• Recording Module
• Edge Cutter
• Chip Spreader Ready
• Weight Kit (Maximum Operating
Weight 10 900 kg)
• EC Certificate
Operating Weights
Standard weight (CECE) 9500 kg
Maximum machine weight (CECE)
10 900 kg
Static linear load (at drum) 28 kg/cm
Maximum static linear load (at drum)
32 kg/cm
(*)
Meets NFP 98736 class: VT1
(*)
Maximum machine weight includes all attachments, full fluids and an 80 kg operator.
Standard operating weights include lubricants, coolant, 80 kg operator, half full fuel tank, full hydraulic system and half full water tank.
11
Page 12
CD54 Asphalt Vibratory Compactor
®
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
www.cat.com
Materials and specifications are subject to change without notice. Featured machines in photos
may include additional equipment. See your Caterpillar dealer for available options.
© 2009 Caterpillar – All rights reserved
Cat, Caterpillar, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
HEHG3908-1 (11/2009) hr
Loading...
