Page 1
Cat®3054C Diesel Engine
Gross Power (SAE J1995) at 2200 rpm 62 kW/84 hp
Drum Width
CB434D 1500 mm
CB434D XW 1700 mm
Operating Weight (with ROPS cab)
CB434D 7380 kg
CB434D XW 7580 kg
CB434D
CB434D
XW
Vibratory Asphalt
Compactors
®
Page 2
Productivity and Reliability in a Durable Package
The CB400 D-Series Asphalt Compactors offer compaction performance, application versatility
and operator comfort to maximize productivity while providing exceptional product quality.
Vibratory System
Pod-style eccentric weights with more
amplitude selections ensure peak
compaction performance and minimal
service. High dynamic force helps
achieve density in the fewest number
of passes. The standard dual amplitude
system provides excellent versatility for
the contractor with a flip of the switch
from the operator’s console. pg. 5
CB434D XW
The CB434D XW asphalt compactor
includes a 1.70 m drum for increased
lane coverage. This versatile machine
can be equipped with the optional 5Amplitude vibratory system or the
standard dual amplitude system. pg. 4
Engine
Cat 3054C diesel engine delivers
62 kW (84 hp) and is built for
performance and reliability without
sacrificing fuel economy.
The cooling system delivers fresh air
from above the engine for clean and
efficient operation. pg. 4
Water Spray System
The large capacity 800 liter water tank
provides increased working time and
a single point to fill and drain.
Caterpillar’s exclusive dual pump spray
system provides the operator an efficient,
easy access drum watering system.
The tank contains triple water filtration
and infinitely variable spray settings
are additional benefits of the system.
An optional overnight freeze protection
kit is also available. pg. 9
Performance and reliability you can depend on.
Based upon the industry-proven reputation of
the Caterpillar
®
Asphalt Soil Compactors,
the CB400 D-Series establish innovative standards
for productivity and reliability in the asphalt
compaction industry.
Durable Cat powertrain, field-proven hydraulic
systems and vibratory systems, and the world’s
largest and most dedicated dealer support system
ensures that the CB400 D-Series Asphalt Compactors
will provide maximum productivity.
2
Page 3
Serviceability
The one-piece fiberglass hood opens
upward and rearward to allow access to
the engine and daily maintenance
points. Daily check points are
accessible from ground level. Ground
level service is also provided on the
water spray system with pumps, filters,
and drain valves grouped together and
centrally located.
Rear mounted cooling system with fresh
air intake reduces the need for cleaning.
The engine oil change interval is 500
hours. Vibratory bearing lube service
interval of 3 year/3000 hour keeps
maintenance to a minimum and
maximizes production. The articulation
hitch area features sealed-for-life
bearings that reduce the need for
maintenance. pg. 10
Visibility
The one-piece hood design and vertical
folded drum supports provide excellent
operator visibility to important areas
of the machine including drum edges,
drum surfaces, and overall visibility
around the machine. Angled supports
provide high clearance and visibility
for work against barriers and walls.
pg. 8
Operator’s Station
The operator station features excellent
operator comfort and visibility. A tilting
steering column, propel lever wrist rest,
and conveniently located and grouped
control switches and gauges enhance
operator productivity. Heavy-duty
isolation mounts provide
a smooth ride. Machines with the
ROPS/FOPS platform include quick
release handrails that can be
individually adjusted to accommodate
multiple operator positions. For FOPS
protection to be effective, the operator
must be seated under the canopy. pg. 6
Comfort and serviceability you deserve.
The operator’s station provides a comfortable and user friendly
environment that promotes productive operation. Simplified service
access and extended service intervals minimize maintenance time
and increase machine production.
3
Page 4
4
Caterpillar 3054C Diesel Engine
High-tech four cylinder engine provides outstanding performance and reliability.
Direct-injection. Direct-injection of fuel for
maximum efficiency.
Oil pump. Low-mounted oil pump for quick start-up
lubrication.
Fuel efficiency. The 3054C engine produces a gross
power of 62 kW (84 hp) at 2200 rpm providing
excellent fuel efficiency.
Emission requirements. This engine meets EU
directive 97/68/EC Stage II emission requirements.
Propel and Vibratory Circuits. The Propel and
Vibratory Circuits use horsepower efficiently,
but not at the sacrifice of performance.
POR valve. It balances horsepower demands.
Responsive vibratory system. Provides plenty of
power and a responsive vibratory system when
starting and stopping the machine on each pass.
CB434D XW
The CB434D XW offers a wider drum for increased production and versatility.
Wider drum width. The CB434D XW incorporates a
drum width of 1.70 m providing increased lane
coverage resulting in fewer passes.
Operating weight. The operating weight of the
CB434D XW equipped with ROPS cab is 7580 kg
providing a centrifugal force of 78 kN.
Vibratory systems. The CB434D XW can be
equipped with the optional 5-Amplitude vibratory
system or the standard dual amplitude vibratory
system.

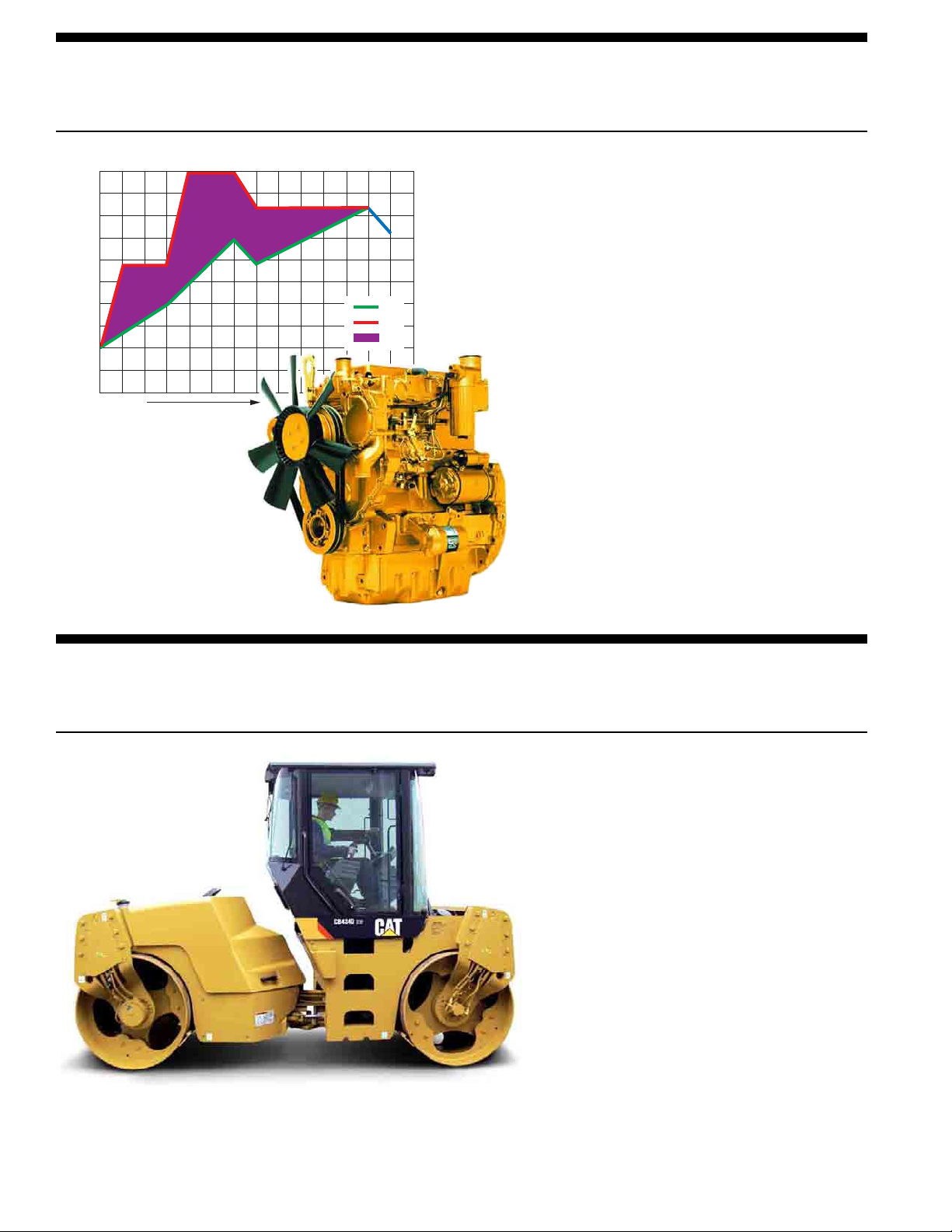

Horsepower Draw Comparison
% Max hp
Time
A With POR Valve -
CB434D
B Without POR Valve -
Competition
C Horsepower Saved
With POR Valve
100
90
80
70
60
50
40
30
20
10
0
A
B
C
Page 5
5

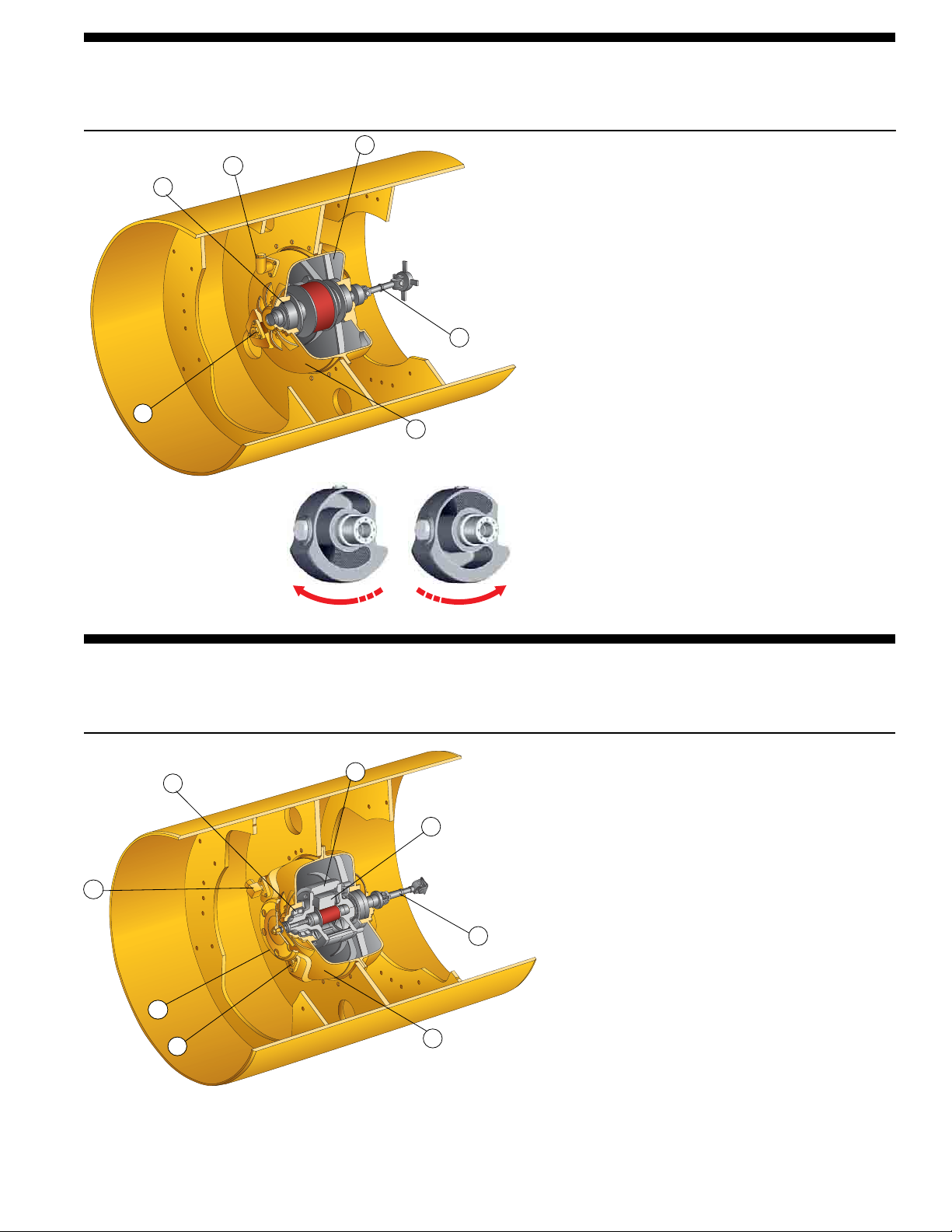

Optional Five-Amplitude Vibratory System
The pod-style vibratory system delivers optimum compactive force while offering
serviceability advantages.
Amplitude selections. Five amplitude selections
for working more efficiently in a wider range of
applications.
Vibratory frequency. Vibratory frequency of 53 Hz
for high compaction results.
Weight locking system. Positive weight locking
system ensures position of variable amplitude setting.
Eccentric weight and drum rotation. Automatic
matching of eccentric weight and drum rotation
direction are good for mat quality.
Vibration start-up and shut-off. Automatic vibration
start-up and shut-off helps produce smooth, flawless
mats and also has a manual control for start-and-stop
work.
Clean oil and long bearing life. Moving parts are
separated from lubricating oil helping to keep oil
clean and ensuring long bearing life. Bearing oil has
a 3 year/3000 hour service interval.
1 Oil Level Sight Gauge
2 Eccentric Weight Housing
3 Eccentric Weight Shaft Bearings
4 Weight Drive Shaft to Motor
5 Fixed Eccentric Weight
6 Amplitude Selection Wheel
7 5-Position Counterweight
8 Oil Drain
3
5
7
8
6
1
2
4
Standard Two-Amplitude Vibratory System
Reliable two-amplitude selection and innovative design ensure precise performance.
Vibratory frequency. Two amplitudes and vibratory
frequency of 53 Hz for high compaction results.
Vibratory amplitude is selected from the control console.
Amplitude selections. Positive amplitude selection
is accomplished when the steel shot is repositioned
inside the hollow eccentric weight. Direction of weight
shaft rotation determines the amplitude level.
Vibration start-up and shut-off. Automatic vibration startup and shut-off helps produce smooth, flawless mats and
also has a manual control for start-and-stop work.
Clean oil and long bearing life. Moving parts are
separated from lubricating oil helping to keep oil
clean and ensuring long bearing life. Bearing oil has
a 3 year/3000 hour service interval.
Isolation mounts. Improved Isolation mounts allow
more force to be transmitted to the ground and less
vibration to the operator.
1 Oil Level Sight Gauge
2 Eccentric Weight Housing
3 Eccentric Weight Shaft Bearings
4 Weight Drive Shaft to Motor
5 Fixed Eccentric Weight
6 Oil Drain
3
5
6
1
2
4
High/Low Amplitude
Page 6
6

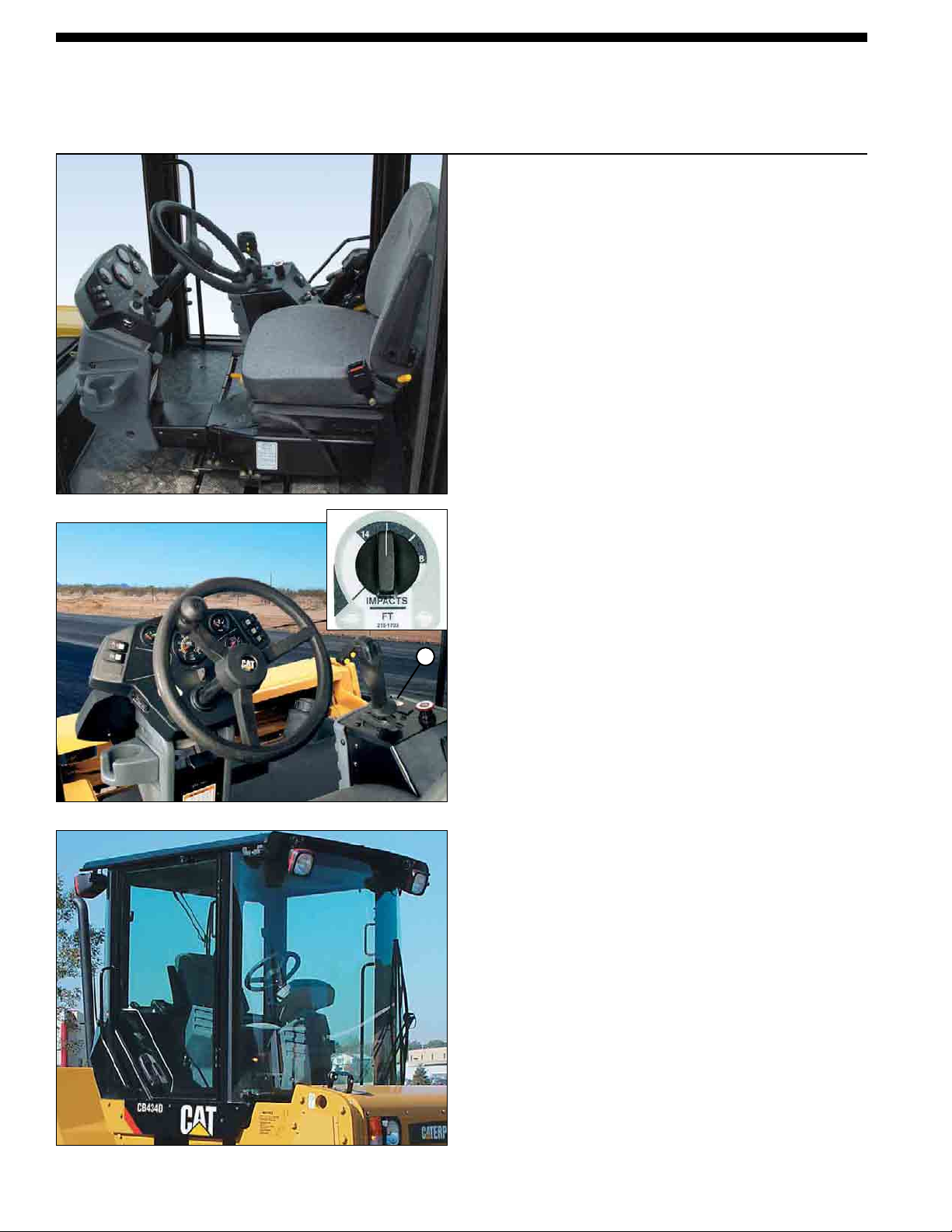

Operator’s Station
Ergonomically designed for maximum operator productivity while offering excellent
visibility and unmatched comfort.
Seat. The comfortable and durable seat has adjustable fore/aft
position, suspension stiffness and flip-up arm rests with
a 76 mm wide retractable seat belt.
Operator’s station. The isolated operator’s station with four
heavy-duty rubber mounts limits machine vibration transmitted to
the operator’s station. Rubber floor mat provides sure footing and
helps further isolate the operator from machine vibration and
noise.
Operational gauges. Steering console and instrumentation gauges
are infinitely adjustable within the tilt range to the desired
position of the operator. Entire console tilts for simple entrance
and exit.
Instrument panel. Machine gauges are located on the adjustable
front steering column for easy reference during machine
operation. The instrument panel contains the fuel gauge,
vibrations per minute (VPM) meter (optional) and a nine-light
LED fault indication panel. Gauges and controls move with
console keeping them in same relative position to the operator.
Indication panel. Fault indication panel is a three-level warning
system to alert the operator to abnormal machine conditions with
a visual warning and action alarm.
Propel handle. The multifunction ergonomic propel handle
simplifies operation with the following controls: propel speed,
vibe on/off, water spray on/off, horn and drum offset (optional).
ASC control. Standard ASC control greatly simplifies operation
by allowing the operator to preset machine speed or impact
spacing. The operator can easily match travel speed with
vibrations per minute, ensuring consistent and repeatable
rolling patterns with effective compaction results.
1 Automatic Speed Control Dial
Cab option. The optional cab is a spacious and comfortable
work environment with more interior room, better ergonomics
and a dramatic reduction in interior sound levels.
Windshield. Full-length glass windshield provides exceptional
visibility to the drums.
Wipers. Windshield wipers on front and rear windows
allow clear vision in adverse conditions.
Working lights. Front and rear working lights are included.
Climate control. The climate control with standard heater
and defroster for maximum operator comfort. Optional air
conditioning helps keep the cab cool and comfortable.
1
Page 7

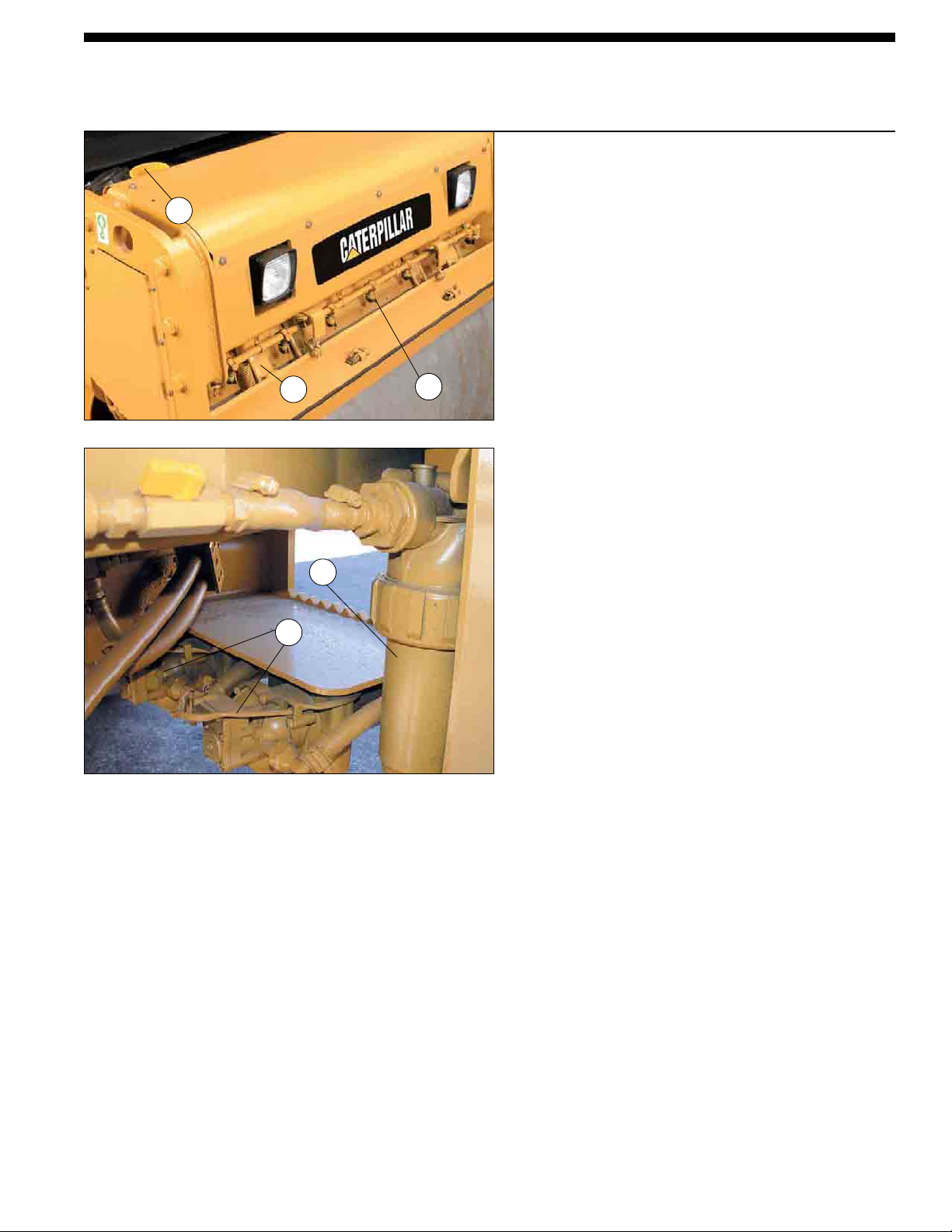

1 Single Water Fill Port
2 Spray Nozzle with Filter
3 Water Distribution Mat
4 Water Filter
5 Water Pumps
Water Spray System
Corrosion-proof system and long-life components for reliable operation.
Back-up water spray pump. Complete back-up system
controlled from the operator’s station.
Spray capabilities. Constant or intermittent spray
capabilities for longer operation between fill-ups.
The intermittent spray is infinitely variable allowing
fine-tuning for any condition.
Water nozzles. High flow water nozzles deliver more water
to the drum for unusually dry conditions.
Ground level service. Water distribution mats and cocoa
mats feature ground level service and are available as
options.
Water filtration. Triple water filtration reduces machine
downtime caused by system clogs.
Spray bar cover. Quick-release spray bar cover protects
spray from wind (shown open).
Spray control. On/off spray control is provided on
the propel lever to simplify operation.
Pump system. Two pump system but only one pump
operates at a time, doubling pump life in terms of machine
hours.
Pump control setting. Auto pump control setting selects
water from one pump while traveling forward and water
from the other pump while traveling rearward.
The pumps will turn off when the propel lever is in neutral.
The system maintains even pump usage for uniform life.
Manual override control is provided.
Water pumps and in-line filters. Water pumps and in-line
filters are conveniently grouped and located in the hitch
area for easy service.
Long-life water pumps. Long-life water pumps are self
priming and pressure regulating to provide optimum spray
and flow.
Polyethylene tank. One single high-capacity polyethylene
tank is enclosed within the machine frame, and provides
extended operation, a single fill point and drain port.
Antifreeze. Overnight Freeze Kit (optional) includes
an in-line antifreeze bottle that allows the operator to pump
antifreeze into the system (not available with cab).
3
5
2
1
4
7
Page 8
8

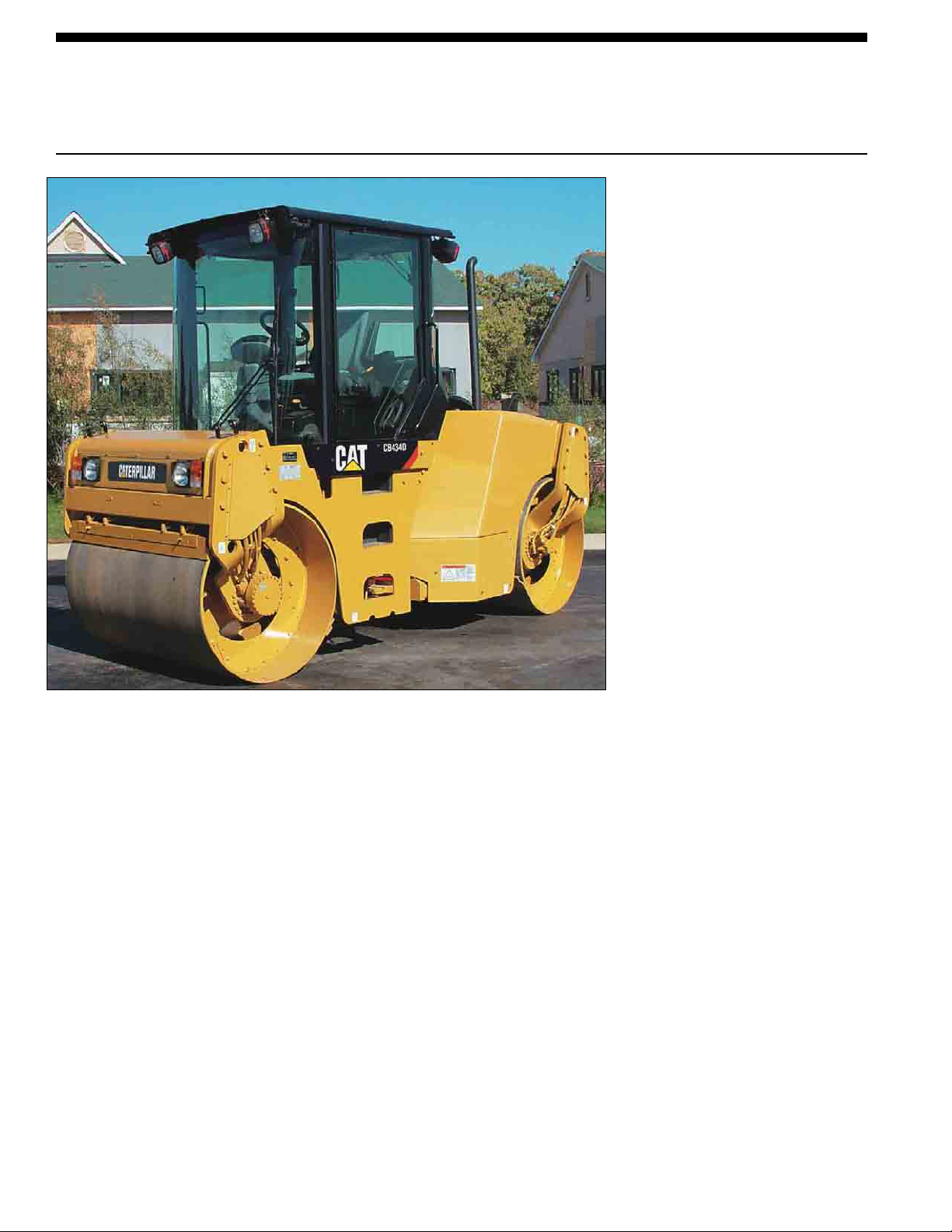

Reliability and Serviceability
The CB400 D-Series Asphalt Compactors provide exceptional reliability
and serviceability that you’ve come to expect from Caterpillar.
Hood arrangement. Vertical-lift hood
arrangement allows routine service
when parked close to other machines
and structures.
Ground level servicing. The ground
level servicing simplifies routine
maintenance with hydraulic components
designed for easy access.
Machine maintenance. Sealed-for-life
hitch simplifies overall machine
maintenance.
Oil bath lubrication. Oil bath lubrication
of eccentric weight bearings reduces
routine maintenance to 3 year/3000 hour
intervals.
Spray nozzles and filters. Water spray
nozzles and filters are easily removed
by hand without the need of special
tools.
Easy access. Water system pumps,
filters and tank drain are centrally
located at ground level for easy
access.
Product Link. Machine is Product Link
ready. The Caterpillar Product Link
System (CPLS) ensures maximum
uptime and minimum repair costs by
simplifying tracking of equipment
fleets. Provides automatic machine
location and hour updates. Can be
obtained through your local
Caterpillar dealer.
Self-adjusting scrapers. Self-adjusting
scrapers are designed for even wear
without the need for maintenance.
To reduce scraper wear, the scrapers
are located for easy ground level
access to replace the blades. Scrapers
flip up while roading the machine.
Remote mounted fittings. Remote
mounted fittings simplify draining
hydraulic and fuel tanks.
Hydraulic test ports. Quick-connect
hydraulic test ports simplify system
diagnosis.
Quick start post. Remote mounted
quick start post for easy jump starts.
Side panels. Removable side panels
on the engine compartment allows
easy access to hydraulic components.
Page 9
9
Engine
Four-stroke cycle, four cylinder
Caterpillar 3054C diesel engine
meets EU directive 97/68/EC Stage II
emission requirements.
Gross Power at 2200 rpm
SAE J1995 62 kW/84 hp
Net Power
EEC 80/1269 59 kW/80 hp
ISO 9249 59 kW/80 hp
Bore 105 mm
Stroke 127 mm
Displacement 4.4 liters
All engine horsepower (hp) are metric
including front page.
Net power advertised is the power
available at the flywheel when the
engine is equipped with fan, air
cleaner, muffler and alternator.
Derating is not required up to an
altitude of 2134 m.
Dual-element, dry-type air cleaner
with visual restriction indicator.
12-volt electrical starting system with
80 amp alternator and one 12-volt,
950 cold cranking amp maintenance-
free Cat battery.
Engine throttle is two-position
electric control.
Steering
Priority-demand hydraulic power-assist
steering system provides smooth, firm
machine handling. The automotive-type
steering wheel and column are integral
with the operator’s swivel platform and
allow steering from multiple positions.
Minimum turning radius
Inside drum edge
CB434D 3500 mm
CB434D XW 3400 mm
Outside drum edge
CB434D 5000 mm
CB434D XW 5100 mm
Steering angle
(each direction) ± 40°
Hydraulic system
One 76 mm bore,
double-acting cylinders
powered by a gear-type pump.
Output at 2200 rpm 51 l/min
Brakes
Service brake features
Closed-loop hydrostatic drive system
provides dynamic braking during
operation.
Secondary and parking brake features*
Spring-applied/hydraulically released
brake on front and rear drums. Actuated
by switch on console or automatically
when pressure is lost in brake circuit or
when engine is shut off. A manual
release tool is included.
* All machines sold within European Union are
equipped with a brake release tool which
allows the manual release of the secondary
brake system for towing the machine.
Braking system meets EN 500.
Transmission
Variable displacement piston pump
supplies pressure flow to single speed
hydraulic motors driving the front and
rear drums through planetary gearboxes.
A single propel lever located on the
control console provides smooth
hydrostatic control of the machine’s
infinitely variable speeds in both
forward and reverse.
Speeds
Forward and reverse 0-11.6 km/h
Frame
Fabricated from heavy gauge steel plate
and rolled sections. The frame is joined
at the articulation pivot. 50% of the
machine is rear of the articulation pivot
and 50% is in front of the pivot. The
two sections are joined by two hardened
steel pins that are supported by heavyduty roller bearings. A vertical pin
provides a ±40° steering angle and the
frame/yoke provides ±4° oscillation for
a smooth ride, uniform drum loading
and no maintenance interval.
CB434D and CB434D XW specifications
Page 10
10
CB434D and CB434D XW specifications
Instrumentation
The instrument panel is located in front
of the operator and contains the
speedometer, vibe tachometer, vibration
mode selector, light switches, hour
meter, alternator indicator light, fuel
gauge, water tank gauge and warning
lights. An audible alarm sounds and
warning light illuminates if abnormal
conditions occur in engine oil pressure,
engine coolant temperature or charge
pressure. Operational lights are also
positioned on the instrument panel.
They illuminate if the vibratory system,
drum spray system, neutral or parking
brake are engaged.
Machine controls are also located to the
operator’s right on the control console.
These controls include the start switch
with cold-start aid, electric throttle,
propel lever, speed selector switch,
automatic speed control (ASC) dial,
drum spray switch, vibration switch,
horn and secondary/parking brake
switch. Electrical system fuses and
relays are located on the side of the
control console.
Service Refill Capacities
Liters
Fuel tank 132
Cooling system 18
Engine oil with filter 9
Vibratory bearing lubrication 20
Hydraulic tank 50
Filtration system 10 micron absolute
Water (spray) tank 800
Operating and Shipping Weights
Weights shown are approximate and include lubricants, coolant, 80 kg operator,
full fuel tank, full hydraulic system and half-full water tanks.
CB434D CB434D XW
Operating weight
with ROPS cab 7380 kg 7580 kg
with ROPS 7500 kg 7700 kg
without ROPS 7150 kg 7350 kg
Shipping weight
with ROPS cab 6500 kg 6700 kg
with ROPS 6620 kg 6820 kg
without ROPS 6270 kg 6470 kg
Average static linear load (at drum)
with ROPS cab 25.2 kg/cm
with ROPS 24.7 kg/cm
without ROPS 23.5 kg/cm
Vibratory System
Drum width
CB434D 1500 mm
CB434D XW 1700 mm
Drum diameter 1100 mm
Drum shell thickness 17 mm
Weight at front drum (ROPS cab)
CB434D 3690 kg
CB434D XW 3790 kg
Weight at rear drum (ROPS cab)
CB434D 3690 kg
CB434D XW 3790 kg
Eccentric weight drive
Hydraulic direct, auto reversing
Weight distribution front/rear 50/50%
Vibratory frequency 53 Hz
Nominal amplitude
CB434D/CB434D XW mm
Amplitudes Two Five
High 0.69/0.62 0.68/0.61
Medium-high – 0.58/0.52
Medium – 0.47/0.42
Medium-low – 0.36/0.32
Low 0.33/0.29 0.25/0.22
Centrifugal force per drum kN
Amplitudes Two Five
High 79.4 78
Medium-high – 66
Medium – 54
Medium-low – 42
Low 38.2 29
Drum Spray System
Entire drum spray system is corrosionproof and includes a large water tank
with a single fill port and drain valve.
The system consists of two diaphragm
pumps driven by electric motors. Only
one pump operates at time, supplying
pressurized water to both sets of drum
spray bars. Pump operation is controlled
from operator’s station. System
provides complete back-up capability
controlled from operator’s station.
Spray can be set on continuous for
maximum wetting action or intermittent
for maximum duration between fill-ups.
The “Auto” selection pulls water from
one pump traveling forward and from
the other pump while traveling
backward. The water spray system
automatically shuts off when the
machine is in neutral. Nine spray
nozzles per drum are easily removed for
replacement or cleaning without the
need for tools.
Water capacity 800 Liters
Page 11
11
CB434D and CB434D XW specifications

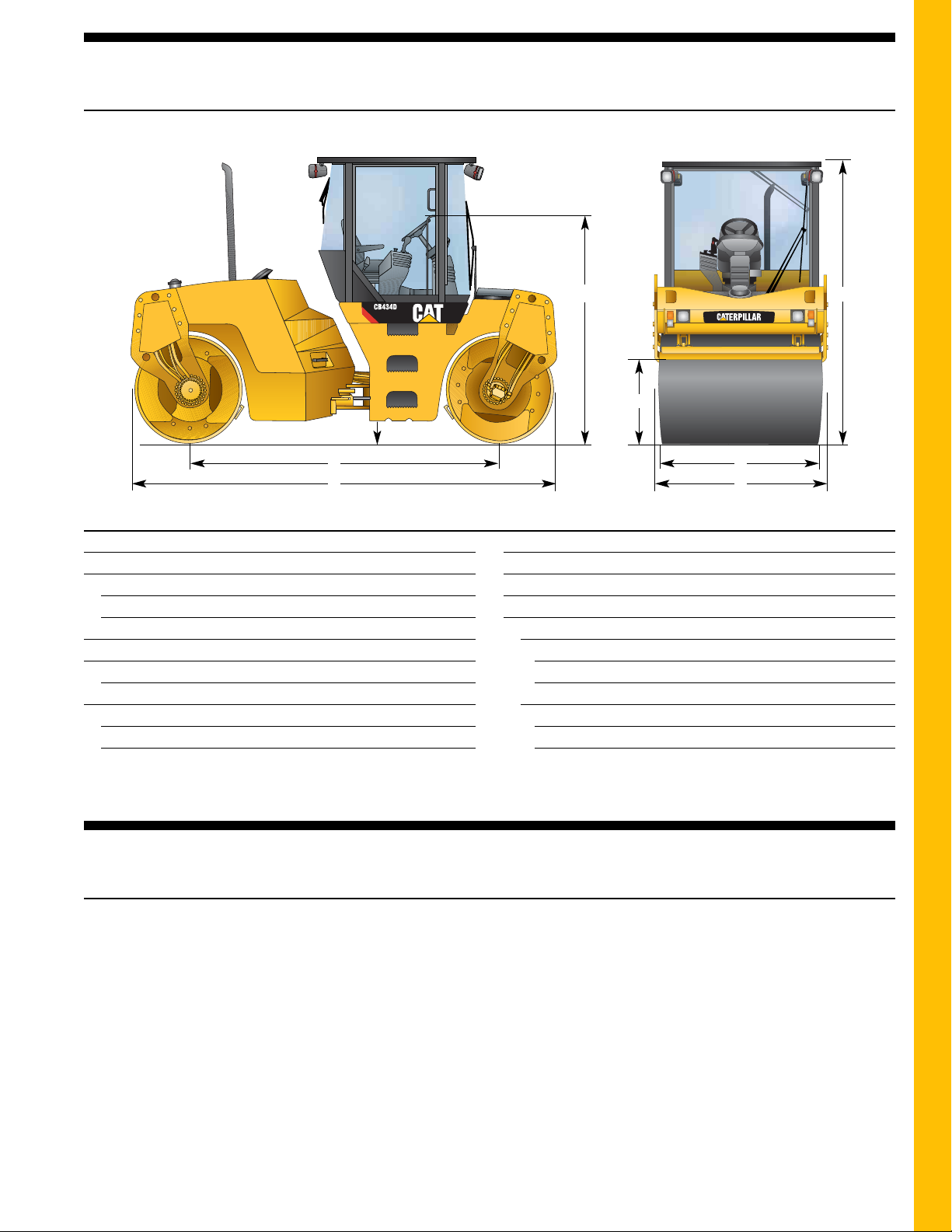

Dimensions
All dimensions are approximate.
mm
A Length 4200
B Width
CB434D 1670
CB434D XW 1870
C Height at steering wheel 2265
D Height at top of ROPS 3010
Height at top of ROPS cab 3055
E Drum width
CB434D 1500
CB434D XW 1700
mm
F Wheelbase 3100
G Curb Clearance (vertical) 720
H Ground Clearance 255
Minimum turning radius:
Inside drum edge
CB434D 3500
CB434D XW 3400
Outside drum edge
CB434D 5000
CB434D XW 5100
Roll Over Protective Structure/
Falling Object Protective Structure
(ROPS/FOPS) Canopy
ROPS/FOPS Cab
Sun Visor
Rear View Mirrors
Cocoa Mats
Water Didtribution Mats
Rotating Amber Beacon
Water Spray System Freeze
Protection Kit
Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for specifics.
High Intensity Discharge Lights
Drum Covers
Offset Hitch
Rear-facing Mirrors
Five Amplitude Vibratory System
A
F
B
E
D
G
H
C
CB-434D
Page 12
CB434D and CB434D XW Vibratory Asphalt Compactors
HEHG1025-2 (11/2007) hr
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
www.cat.com
Materials and specifications are subject to change without notice. Featured machines in photos
may include additional equipment. See your Caterpillar dealer for available options.
© 2007 Caterpillar -- All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
®
Loading...
