CB22/CB24 CB32

Utility Compactors

CC24

Utility Combi Compactor

CB22 CB24 CB32 CC24

Combi

Cat®C1.5 Diesel Engine

Gross power (ISO 14396) at 2800 rpm 24.4 kW/33.2 hp 24.4 kW/33.2 hp 24.4 kW/33.2 hp 24.4 kW/33.2 hp

Net power (ISO 9249) at 2800 rpm 23.7 kW/33 hp 23.7 kW/33 hp 23.7 kW/33 hp 23.7 kW/33 hp Compaction width 1000 mm 1200 mm 1300 mm 1200 mm Operating weight (with ROPS) 2500 kg 2700 kg 3230 kg 2390 kg

Page 2

Caterpillar®C1.5 Engine

The C1.5 engine provides efficient power while meeting EU Stage IIIa engine emission requirements.

Power. The liquid cooled, three cylinder C1.5 engine provides a gross power of 24.4 kW (33.2 hp) for good performance and reliability in all working conditions.

Large Cooling Package. The large cooling package with integrated water and oil coolers keep engine temperatures low in order to maximize fuel efficiency and minimize emissions.

Reduced Sound Levels. Low sound levels are achieved in both operating speeds. An intermediate throttle position enables even quieter operation for optimum operator comfort.

Traction Control Option. The optional traction control system transfers torque between front and rear drums (CB22, CB24 and CB32) or between the two sets of rear tyres (CC24), when slippage occurs.

Vibratory System

The dual-frequency vibratory system provides good balance between frequency and amplitude in order to meet various job site conditions.

Dual Frequency Vibratory System. The standard vibratory system incorporates two frequencies of 63 Hz and 55 Hz in order to provide increased application versatility.

Vibration Selection. A vibratory selection switch provides standard front and both drum vibratory capabilities.

1 Fixed Eccentric Weights 2 Self-Lubricating Bearings 3 Dual-Frequency Vibratory

Selection

Vibration selection for the rear drum is optional. Automatic Vibratory Control. The vibratory system

includes an automatic start feature that activates whenever the propel lever is moved from the neutral position.

Rear Drum Vibe Delay Option. The vibe delay function controls the start of the rear drum in order to assist power management on slopes.

Pod-style Eccentric Weights. They time tested design of the eccentric weights are enclosed in a pod-style housing providing cleanliness that extends bearing life.

Page 3

Operator’s Station

The convenient, comfortable operating environment with three-position seating and a propel system that offers good control in tight quarters both promote day-long productivity.

Operator’s Station. The operator’s station incorporates a fully-equipped console and an adjustable sliding suspension seat. Arm and wrist rests provide better operator comfort for day-long productivity. The steering wheel includes a steering knob for easy maneuverability in turns. A 12-volt outlet for plugging in personal electronic devices is also included.

Instrument Panel. The easy-to-understand instrument panel cluster integrates a fuel level indicator, hour meter and light indicators for machine functions.The key switch includes an automatic engine pre-heat feature in order to assist in cold-weather starting.

Smooth Operation. The hydraulic propel lever’s two step

Hydraulic Propel Lever’s

Regulating Curve

regulating curve provides smooth and precise control at low speed. Machine speed increases gradually in the first half of lever stroke for optimum control in confined areas. The second half of lever stroke enables maximum transfer speed to be reached rapidly.

Foldable ROPS (Optional). The foldable ROPS folds

A Maximum Speed

B Low Speed C Half Stroke D Maximum Stroke

forward or backward without the use of special tools. Unobstructed Visibility. Sloped engine enclosure, low

profile rear end and sliding operator's station provide unobstructed visibility to the drum edges or wheel contact points.

Water Spray System

Corrosion-proof system and extended-life components provide reliable operation, while the large water capacity extends operating intervals.

Water Tank. A 150 liter high-capacity polyethylene water tank is enclosed within the machine frame, providing extended operation. An additional tank with a 90 L capacity provides a total water capacity of 240 L. A newly designed drain allows the entire system to be drained quickly.

Extended Operating Intervals. The standard 150 L tank provides an operating interval of 1.5 hours between refills. An additional 90 L tank extends the interval by an additional hour, while the intermittent spray mode doubles the operating time.

Water Pump and Filters. The extended life water pump and filters are conveniently located for easy access while providing optimum spray and flow. Triple water filtration

1 Drop Stop Spray Nozzle

increases machine uptime, leading to higher productivity. Spray Nozzles and Filters. The retractable, self-adjusting

scrapers utilize a hardened compound that provides durability. The ability to retract the scrapers when moving between job sites extends the service life and lowers owning and operating costs.

Page 4

Versatile Machines

The CB22, CB24, CB32 and CC24 utility compactors offer versatility for a variety of applications.

CB22. The CB22 is equipped with a 1.00 meter drum that provides a good balance of weight and power for good performance in tough applications.

CB24. The dimensions of the CB24 provide excellent maneuverability for working in tight areas, while the drum width and high static force perform well on larger job sites. This model is also available with an XT (eXtra Tonnage) option that features a higher static linear load (13.45 kg/cm) than the standard CB24.

CB32. The 1.30 meter drums make this machine an excellent choice for thin asphalt lifts and larger job sites. The wider drum evenly distributes the weight across the entire width for better results on tender mixes.

CC24. The CC24 incorporates a steel, front drum with rear, pneumatic tires. The pneumatic tires provide even compaction on uneven surfaces. Four, 6-ply rubber tires generate high contact pressures that penetrate deep into the lift.

Application Profile

The following chart provides a guide to choosing the utility compactor that best fits your everyday needs.

Material

Asphalt

Soil

Application

Walking Paths, Driveways,

Patchwork

Parking Lots, City Streets

Roads, Highways

Landscaping

Small Area

Medium Area

Layer Thickness

25-50

50-100

25-50

50-100

25-50

50-100

<100 <100 <100

CB22 CB24 CC24 CB32

Good Better Best

Page 5

Serviceability

These machines provide the reliability and serviceability that you’ve come to expect from Caterpillar. Time tested features ensure that machine uptime is maximized.

Easy Access. The vertical lift engine enclosure allows easy access to the engine oil filter, hydraulic filter, vibe block, radiator and propel pumps, making routine service quicker than ever.

Water Spray System. The filters in the water spray system can be easily removed without the use of special tools.

Extended Life Oils. Extended-life oils increase maintenance intervals for the vibratory system, hydraulic system and engine oil. Engine oil change interval has been extended to 500 hours. An oil-bath lubricates the eccentric weight bearings, extending routine maintenance to 3 year/3000 hour intervals. Remote-mounted drains for engine provide simplified collection of fluids.

Hydraulic Test Ports. Quick-connect hydraulic test ports simplify system diagnosis.

Electrical System. Electrical wiring is color-coded and numbered for simple troubleshooting. Nylon-braided wrap and all-weather connectors ensure electrical system integrity.

Engine

Four-stroke cycle, three cylinder Caterpillar C1.5 diesel engine meets European Stage IIIa emission requirements.

Gross Power 2800 rpm

ISO 14396 24.4 kW/33.2 hp Net Power 2800 rpm

ISO 9249 23.7 kW/33 hp Bore 84 mm Stroke 90 mm Displacement 1.5 L

All engine horsepowers are metric

including front cover.

Net power ratings are tested at the

reference conditions for the specified

standard.

Net power advertised is the power

available at the flywheel when the

engine is equipped with fan, air

cleaner, muffler and alternator.

Transmission

CB22, CB24 and CB32 – Variable-

displacement piston pump supplies pressure flow to fixed-displacement hydraulic motors that drive the front and rear drums.

CC24 – Variable-displacement piston pump supplies pressure flow to a fixeddisplacement hydraulic motor that drives the front drum. The pump also supplies pressure flow to two, fixed-displacement motors that drive the rear wheels.

Speed

Forward and reverse 0-10.5 km/h

Steering

Priority-demand hydraulic power-assist steering system provides smooth machine handling.

Minimum turning radius CB22

Inside drum edge 2640 mm Outside drum edge 3640 mm

CB24/CC24

Inside drum edge 2540 mm Outside drum edge 3740 mm

CB32

Inside drum edge 2490 mm Outside drum edge 3790 mm Steering angle 32°

CB22, CB24, CB32 and CC24 specifications

Page 6

Instrumentation

The control console includes: steering

wheel with knob, water spray system

switch, vibratory drum selector

switch, horn, hazard flasher control,

turn signals, warning and working

light switches, engine start switch

with preheat and the secondary brake.

The instrument panel cluster

integrates the fuel level indicator,

service hour meter and also the light

indicators for: roading lights,

secondary brake, hydraulic oil

temperature, engine coolant

temperature, alternator, engine oil

pressure, vibration on, engine preheat

and the turn signals.

The vibratory system is actuated with a switch on the top of the propel lever.

When the vibratory system is activated, a vibration indicator light illuminates.

The engine throttle control is operated via a three-position lever for low, intermediate and high engine speed.

The control console, the hood and the literature compartment are equipped with lockable covers.

Brakes

Brake systems meet EN500-4. The braking system will automatically engage if a pressure drop in the hydraulic system occurs.

Service

Closed-loop hydrostatic drive system provides dynamic braking during machine operation.

Secondary and Parking

Spring-applied/hydraulically released brake on front and rear drums. Actuated by switch on console or automatically when pressure is lost in brake circuit or when engine is shut off.

Water Spray System

Spray bars are constructed of stainless

steel for corrosion resistance. The

water tank is reinforced polyethylene.

An electric water pump provides

either continuous or intermittent

spray. Intermittent spray setting

increases spray time by 50 percent

over continuous setting.

Triple filtration includes a filter in the

tank fill spout, an in-line filter at the

water pump and filters on each spray

nozzle. Spray nozzles are easily

removed without tools for cleaning.

Tyre Spray System Option

Tyre Spray System allows a solvent to be sprayed on the tire surfaces, helping prevent asphalt from adhering to the tyres.

One spray nozzle is positioned above each tyre.

The system is controlled with an on/off switch on the control console.

Electrical System

The 12-volt electrical system includes one maintenance-free Cat battery and color-coded and numbered wiring wrapped in nylon braid. The system includes a 65-amp alternator.

Wheels and Tyres

CC24 – 9.5/65 - 15 6-ply tyres are

standard. Each tyre is equipped with a replaceable scraper.

The scrapers help clean asphalt or soil off the tyres. The scrapers can be retracted when they are not needed.

Frame

Fabricated from heavy gauge steel plate and rolled sections. The two sections are joined by two hardened steel pins that are supported by heavy-duty roller bearings. A vertical pin provides a ±35° steering angle and the frame/yoke provides ±10° oscillation for a smooth ride and uniform drum loading.

CB22, CB24, CB32 and CC24 specifications

Final Drives

CB22, CB24 and CB32 – High-torque,

low-speed hydraulic motors directly drive each drum.

CC24 – High-torque, low-speed hydraulic motor directly drives the front drum, and two high-torque, low-speed hydraulic motors directly drive the rear wheels.

Service Refill Capacities

Liters

Fuel Tank 56 Engine oil with filter 6 Hydraulic fluid tank 36.6 Water spray system 150

additional tank 90

Tyre spray system 90

Page 7

Compaction Characteristics

Vibration selections

CB22/CB24 Front and both*

CB32 Front nd both*

CC24 Front Eccentric weight drive Hydraulic Frequency

CB22/CB24/CC24 63/55 Hz

CB32 63/55 Hz Nominal amplitude

CB22/CB24/CC24 0.5 mm

CB24 XT/CB32 0.3 mm Centrifugal force per drum

CB22 27.6/21 kN

CB24/CC24/CB32 31.3/23.9 kN Static linear load

CB22 12.5 kg/cm

CB24** 11.25 kg/cm

CB32 12.5 kg/cm

CC24 10 kg/cm

* Rear vibration is optional ** Static Linear Load for CB24 XT is 13.45 kg/cm

Optional Equipment

Roll Over Protective Structure (ROPS) Foldable ROPS Sun Canopy Traction Control Roading and Working Light Package Lights Protection Rotating Beacon Battery Disconnect Switch Engine Tachometer Suspension Seat with Seat Switch Coco Mats Spark Arrestor Muffler Non-Machined Drum Edges Tyre Wetting System (CC24 only) Italian Road Homologation

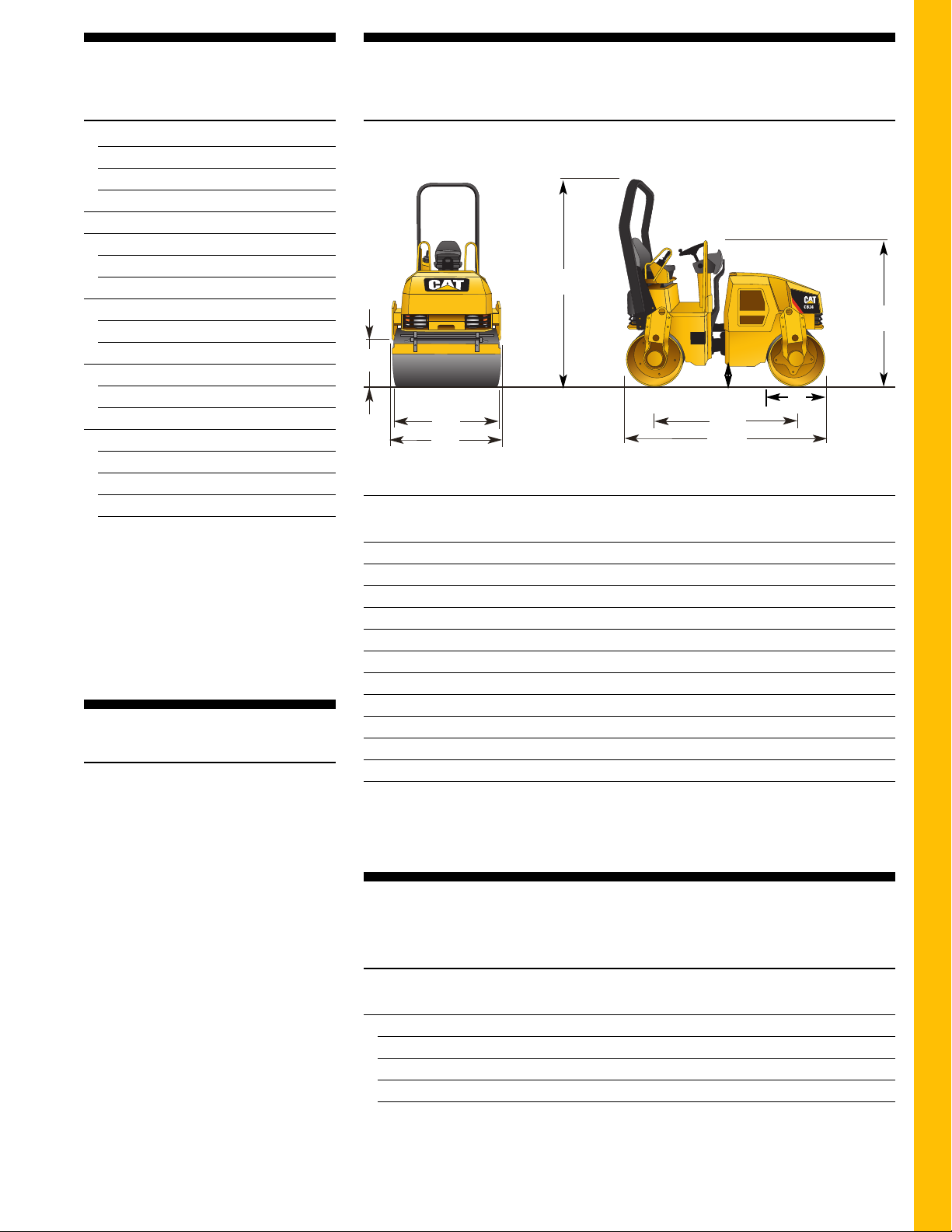

Dimensions

All dimensions are approximate.

J K

A Length 2500 2500 2513 B Wheelbase 1800 1800 1827 C Drum diameter 700 700/717 700

Drum shell thickness 13.5 13.5/22 13.5 Tyre diameter (CC24) – – 671

E Height at steering wheel 1800 1800 1800 F Height at ROPS 2680 2680/2688 2673

Height with ROPS folded 1800 1800 1800

G Ground clearance 262 262 262 H Curb clearance 520 520 520 J Compaction width 1000 1200/1300 1200 K Machine width 1098 1298/1398 1298

B A

CB22 CB24/32 CC24

mm mm mm

Weights

Operating weights include lubricants, 80 kg operator, half-full fuel tank, full hydraulic system and half-full water tanks (all weights are approximate).

CB22 CB24/32 CC24

kg kg kg

Operating weight with ROPS 2500 2700/3230 2390

at front drum 1210 1280/1570 1340 at rear drum 1290 1420/1660 – at rear wheels – – 1050 weight per rear wheel – – 262

CB22, CB24, CB32 and CC24 specifications

Page 8

CB22, CB24 and CB32 Utility Compactors

CC24 Combi Utility Compactor
