AS2302C

VERS-A-MAT

™

VibratoryScreed

AS2302C Screed Weight 3084 kg 6,800 lb Paving Ranges:

Hydraulically extendable 3.0 m - 5.5 m 10' - 18' w/Bolt-on extensions 3.0 m - 6.7 m 10' - 22' w/Cutoff shoes 2.4 m 8'

Page 2

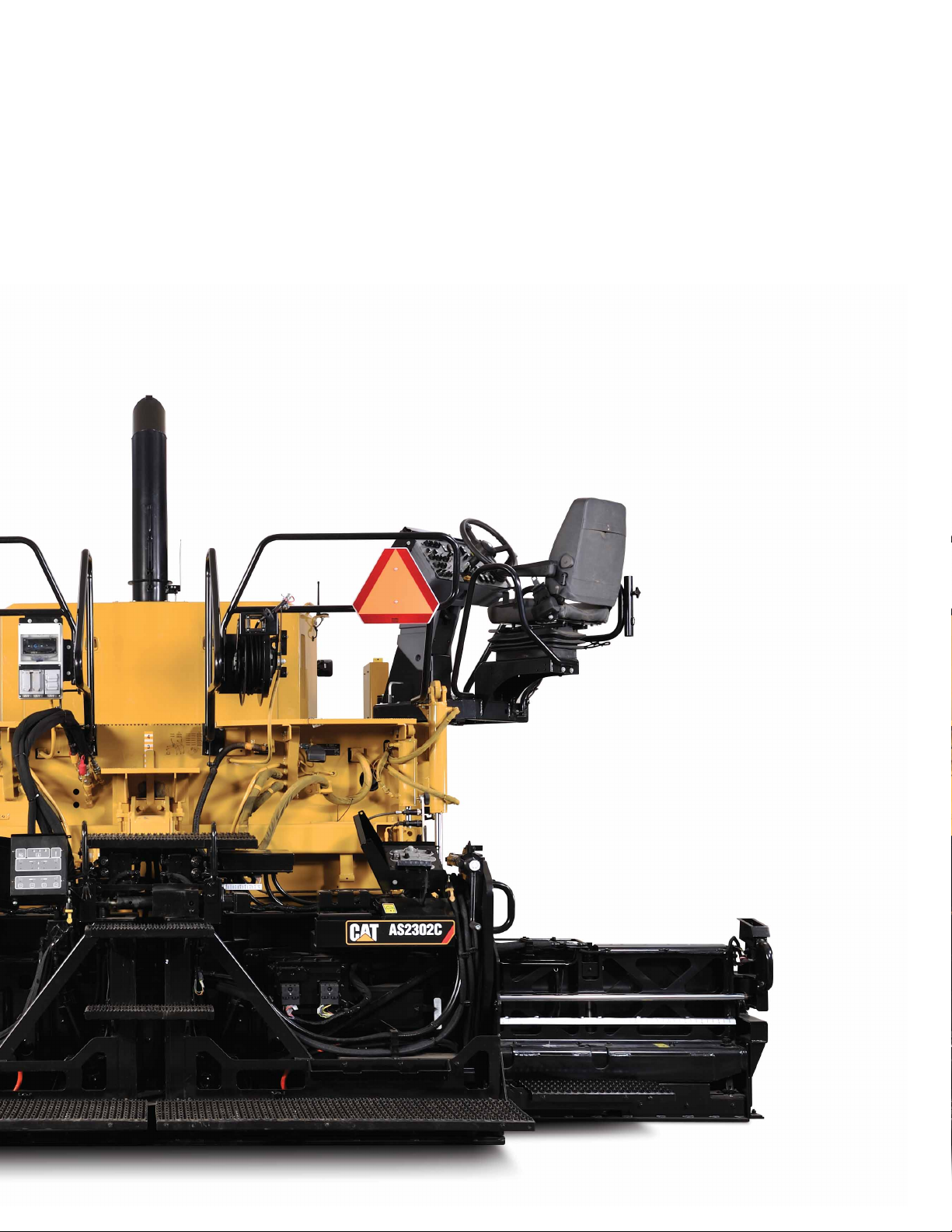

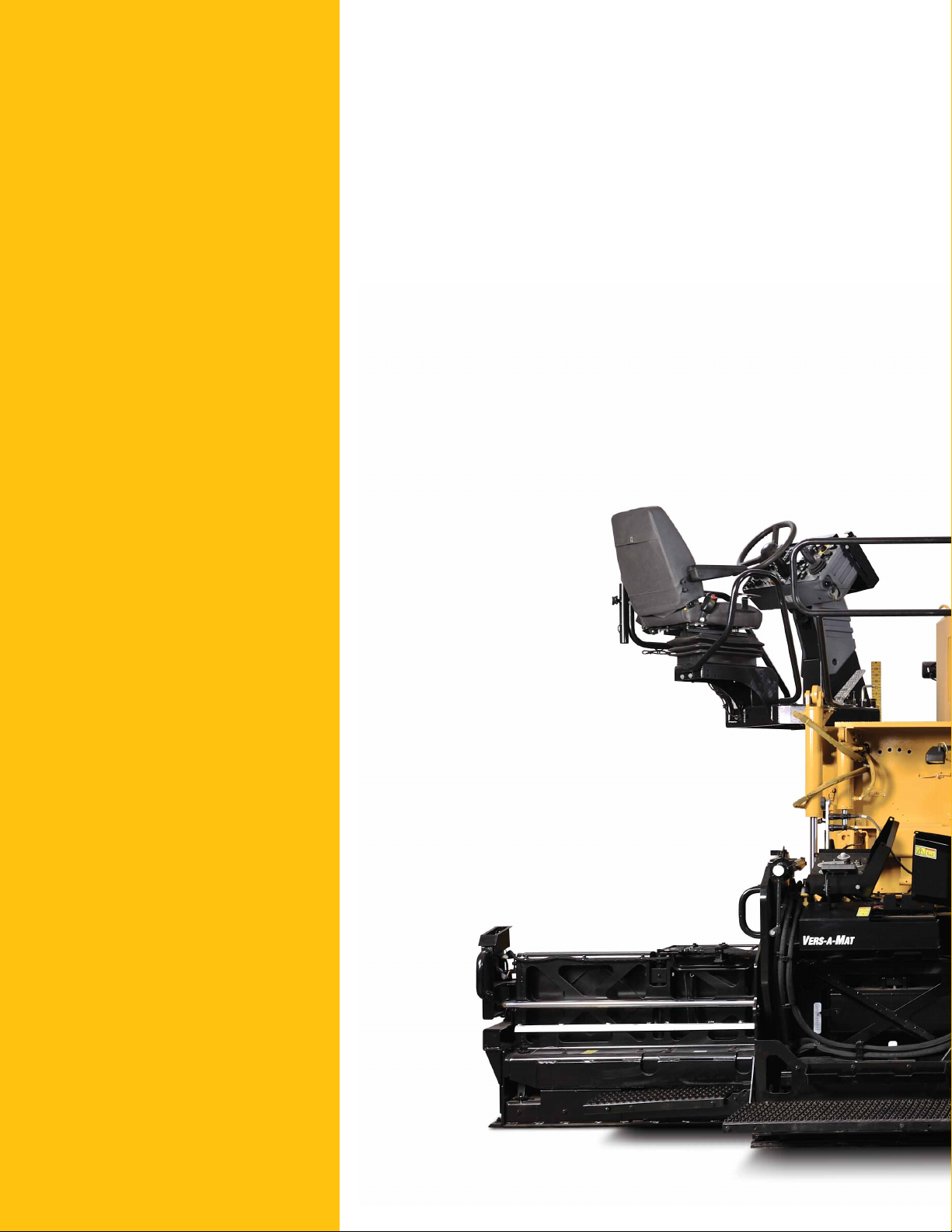

AS2302C VERS-A-MAT

™

SCREED

The AS2302C vibratory screed features front-mounted extenders, CANbus electrical system, and electrically heated screed plates, making it a perfect fit for parking areas, business developments and other applications that require variable width paving.

This highly mobile screed with narrow front-mounted extenders easily maintains the proper mix height with less material, enabling quick reaction and less handwork when moving to a new starting position.

APPLICATIONS

– Interstates – Airports – Highways – Residential streets – City streets – Parking lots – Variable width paving

CONTENTS

Smoothness Features . . . . . . . . . . . . . 4

Operating Environment . . . . . . . . . . . . 5

Quick Adjustments . . . . . . . . . . . . . . . . 6

Service and Reliability . . . . . . . . . . . . . 7

Cat Grade and Slope . . . . . . . . . . . . 8, 9

Electric Screed Heat . . . . . . . . . . . . . 10

Paving Widths . . . . . . . . . . . . . . . . . . . 11

Specifications . . . . . . . . . . . . . . . . . . . 11

--SMOOTH RESULTS

– Rigid frame and balanced weight design prevents flexing for optimal mat quality – Maximum paving range of 2.44 m - 6.7 m (8' - 22') – Narrow extender screed plates are 229 mm (9") wide providing optimal smoothness – Spring-loaded end gates deliver downward pressure to contain mix for tight edges

and smooth joints

LEADING-EDGE TECHNOLOGY

– Cat®Grade and Slope Automation offers more precise control and a visual display

with multiple language options – CANbus electrical system reduces wiring requirements for increased reliability – Electronic Control Module (ECM) is compatible with Cat ET for fast and easy

diagnostics

Page 3

ADVANCED SCREED CONTROL

– Main screed controls equipped with adjustable wrist rests are

ergonomically located for optimal efficiency – Mix height dial easily maintains head of material – Remote extender controls provide easy access for efficient

operation – Power controls simplify adjustments for crown, height, and slope – Thickness control screws are equipped with spinner handles for

fast, easy adjustment – Integrated sonic sensor harnesses increase reliability, minimize

potential damage –

FAST HEATING ELECTRIC SCREED

– Quick and even screed plate heating at low idle – User-friendly touch pad technology simplifies operation – Three pre-set temperature settings for each screed section – Manual override capability

EXCELLENT SERVICE AND RELIABILITY

– Electronic Control Module (ECM) simplifies troubleshooting

procedures – Easy component access simplifies routine service – Well-designed hydraulic routings are protected with kevlar braid – Color-coded electrical wiring simplifies troubleshooting procedures – O-ring face seals (ORFS) offer durability and prevent leaks

Page 4

FRONT-MOUNTED EXTENDER DESIGN

– Extenders are mounted in front of the main screed plate, require

less material to maintain a consistent head of material

– Narrow extenders enable quicker reaction when maneuvering

around obstacles – Visual width indicators keep operators informed of paving width – Extenders are equipped with vibration and heat – Angle of attack adjusters enable the extenders to match the main

screed texture

SCREED PLATES

– Main plates are 457 mm (18") wide (front to back) – Extender plates are 229 mm (9") wide (front to back) – Standard hardened alloy steel plates resist abrasion – Optional high strength plates for increased durability – Curved screed plate design ensures smooth flow

VIBRATOR SYSTEM

– Provides initial compaction – Located on main screed and extenders – Adjustable range of 0 - 3000 vpm – Vibration on extenders is synchronized to match the main screed

SPRING-LOADED END GATES

– Delivers an adjustable force allowing the end gates to follow the

paving surface – Ensures contact with the mat to create a confined joint – Eliminates protrusions, enabling the extender to pave close to curbs

and obstructions – Replaceable wear strip ensures performance

SMOOTHNESS FEATURES

QUICK ADJUSTMENTS, EFFICIENT OPERATION.

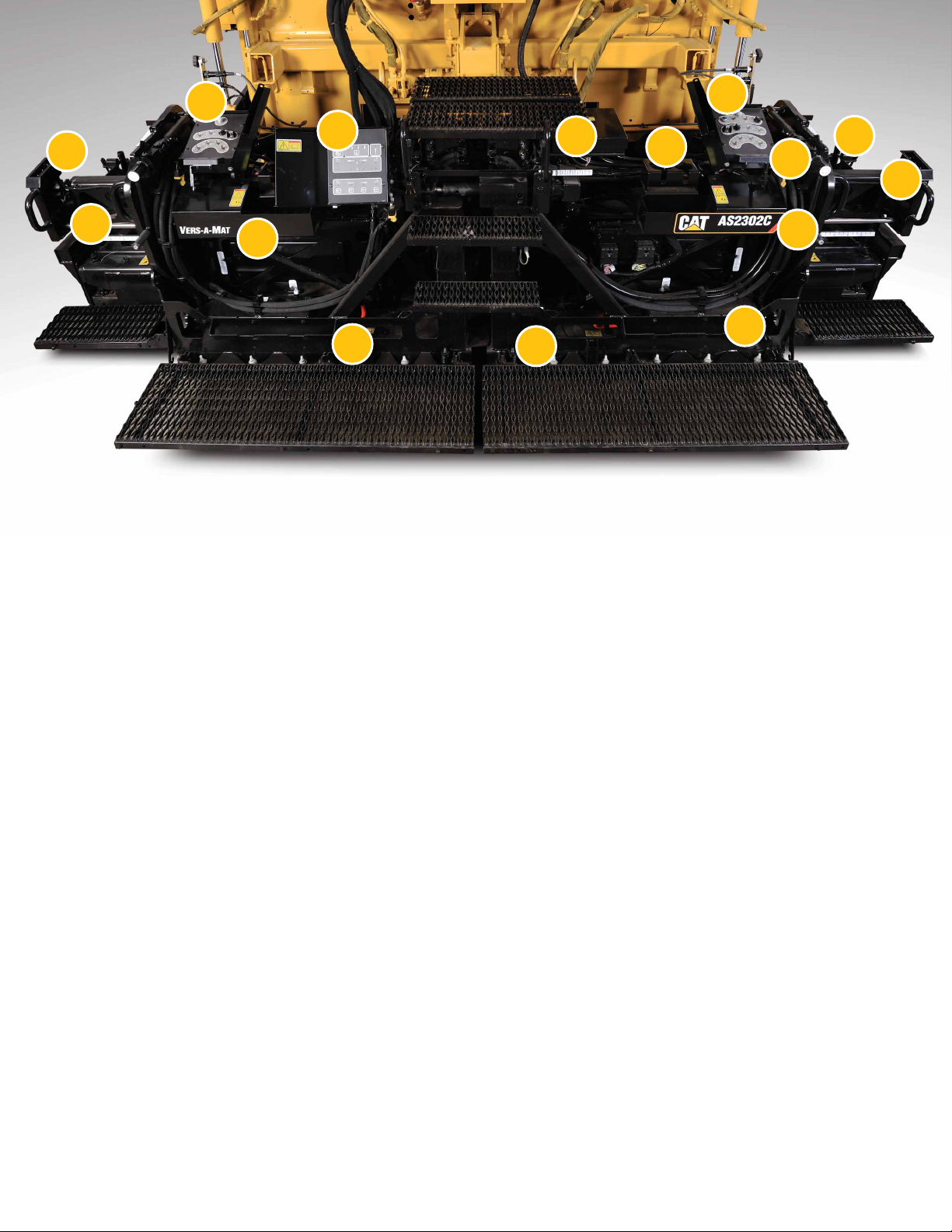

1. Remote Extender Controls

2. Rigid Support Tubes

3. Power Screed Controls

4. Tool Box

5. Electric Heat Control Panel

6. Threaded-Bolt Screed Plate Adjusters

7. Electrically Heated Screed Plates

8. CANbus Electrical System

9. Cup Holder

10. Main Screed Controls

11. Shovel Holder

12. Spinner Handles on Depth Cranks

13. Adjustable Wrist Rest

14. Angle of Attack Adjuster (extender)

15. Integrated Sonic Sensor Wiring

Page 5

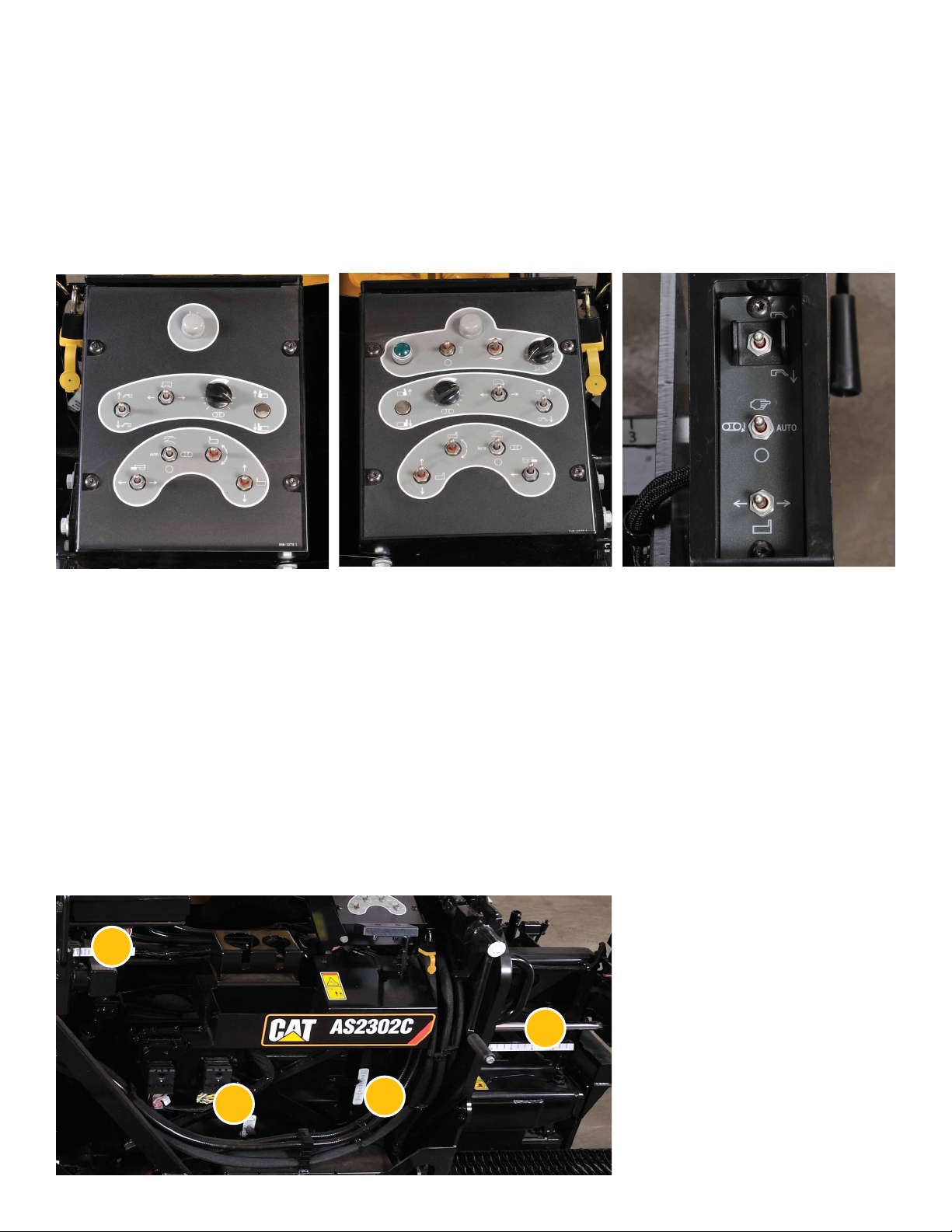

LEFT MAIN SCREED CONTROLS

– Tow-point height – Power mainframe extension (option) – Mix height control dial – Extender width – Feed system override – Extender slope – Extender height

RIGHT MAIN SCREED CONTROLS

– Eco-washdown switch – Power crown control – Vibratory frequency control – Power berm (option) – Mix height dial – Power mainframe extension (option) – Tow-point height – Extender height – Extender slope – Feed system override – Extender width

REMOTE EXTENDER CONTROL

– Tow-point height – Feed system override – Extender width

OPERATING ENVIRONMENT

DESIGNED WITH EFFICIENCY IN MIND.

1. Crown Indicator

2. Extender Slope Indicator

3. Extender Height Indicator

4. Extender Width Indicator

Page 6

FRONT-MOUNTED EXTENDERS

– Narrow front-mounted extenders easily draw in material when

paving around obstacles and quickly extend when increasing paving widths, prevents mix from being trapped in front of the main screed

THICKNESS CONTROL SCREWS

– Equipped with spinner handles for quick, easy adjustment – An adjustment of 25.4 mm (1") requires 8 turns – Choice of left or right hand depth control threads to suit

operator preferences

POWER CONTROLS

– Crown angle, +10% to -3% – Extender slope percent, +3% to -10% – Extender height, 6.4 mm (0.25") increments

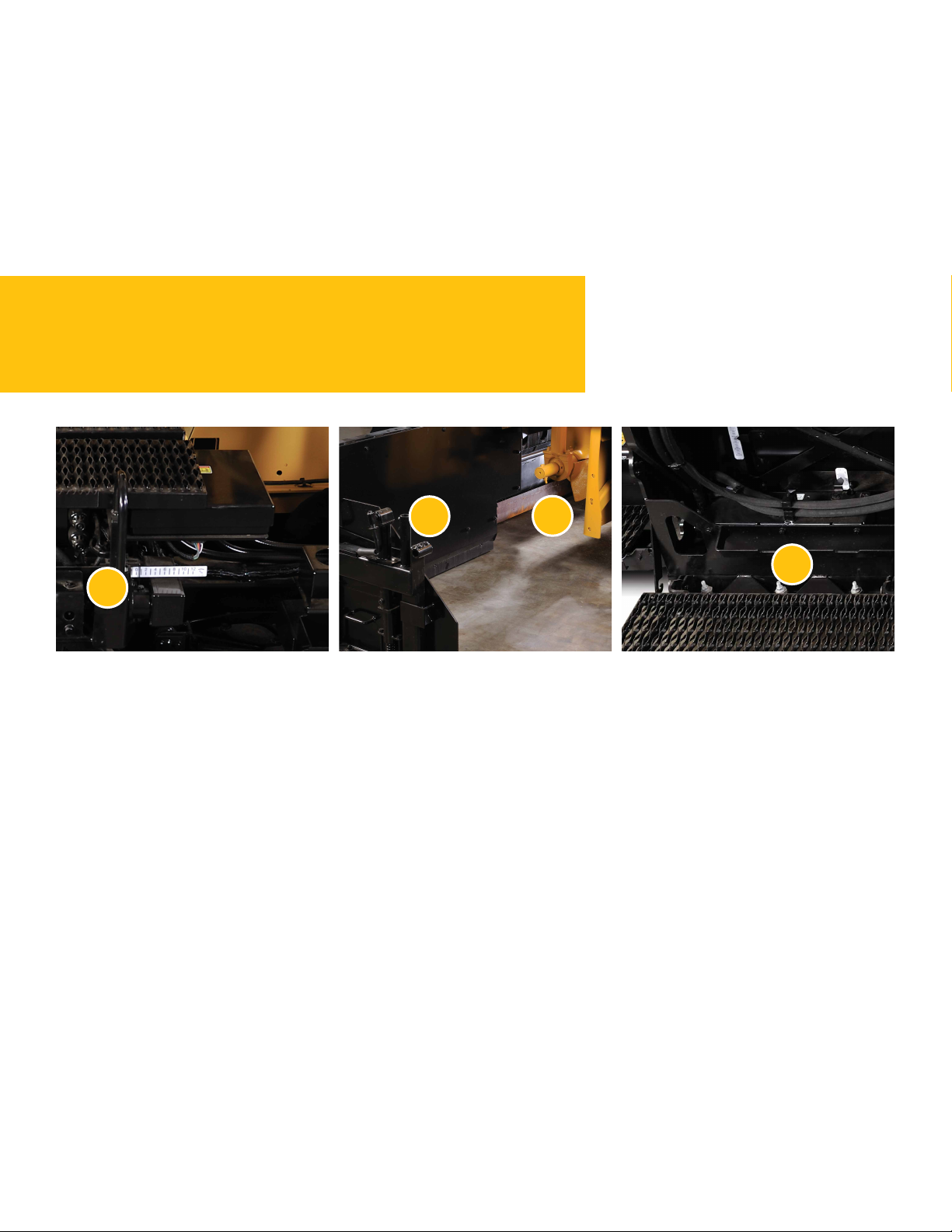

EXTENDER ANGLE OF ATTACK ADJUSTMENT

– Extenders are equipped with angle of attack adjusters – Easily match mat texture and quality of the main screed

QUICK ADJUSTMENTS

AUTOMATED OPERATION INCREASES EFFICIENCY.

1. Extender Angle of Attack Adjustment

Page 7

SERVICE AND RELIABILITY

OPTIMIZE PERFORMANCE, MAXIMIZE SERVICE LIFE.

ELECTRONIC CONTROL MODULE (ECM)

– ECM is compatible with Cat ET for fast and easy diagnostics – Simplifies/reduces wiring requirements – Controls screed electrical functions

SCREED PLATE ADJUSTMENT

– Front and rear threaded-bolt adjusters simplify screed plate leveling

and eliminate shims – Saves time when installing new screed plates – Adjustment hardware is plated to resist corrosion

PROTECTED ROUTINGS

– Hydraulic hoses and electrical wiring are strategically routed,

clamped in place, and wrapped with kevlar braid to ensure

reliability and prevent abrasion

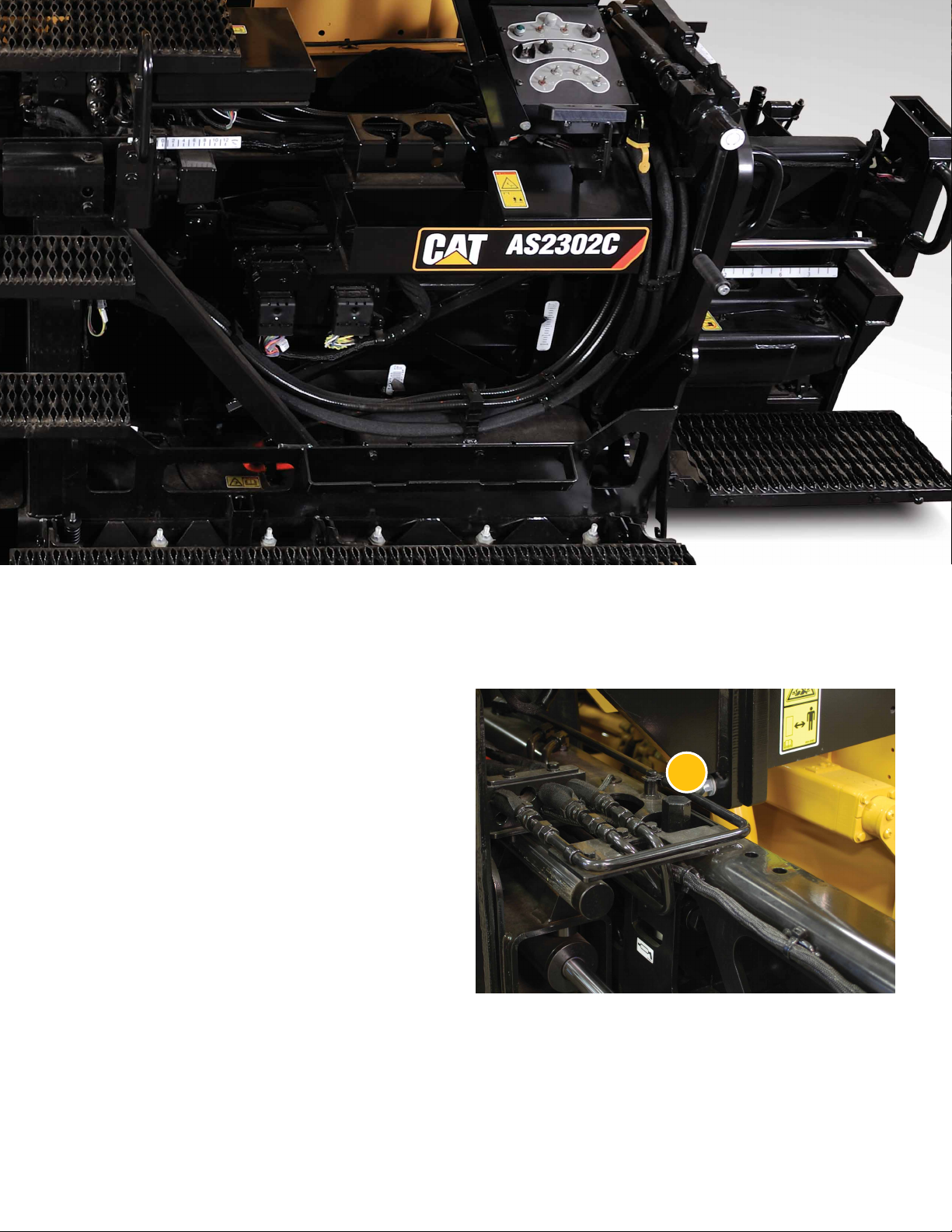

REMOTE GREASE FITTINGS

– Vibrator bearings are equipped with easy to access grease fittings

that enable simplified service

O-RING FACE SEALS

– O-ring face seals and couplings optimize contact to ensure

performance and prevent leaks

RELIABLE ELECTRICAL SYSTEM

– Color-coded, numbered, and soldered electrical system simplifies

service and delivers reliability

Simplified leveling and easy diagnostics leads to higher productivity and increased profits.

2. Electronic Control Module (ECM)

3. Front-Mounted Extender

4. Main Screed Plate

5. Threaded-Bolt Screed Plate Adjusters

Page 8

Cat Grade and Slope is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability. It is entirely supported by Caterpillar; ensuring the control system and paver are setup to optimize performance and meet job site requirements.

Cat Dealers offer exceptional knowledge of the grade and slope system, as well as paver and screed operation, providing a single source that meets all your paving needs.

CAT GRADE AND SLOPE SYSTEM

FACTORY INTEGRATION, EASIER TO USE, MORE ACCURATE.

Page 9

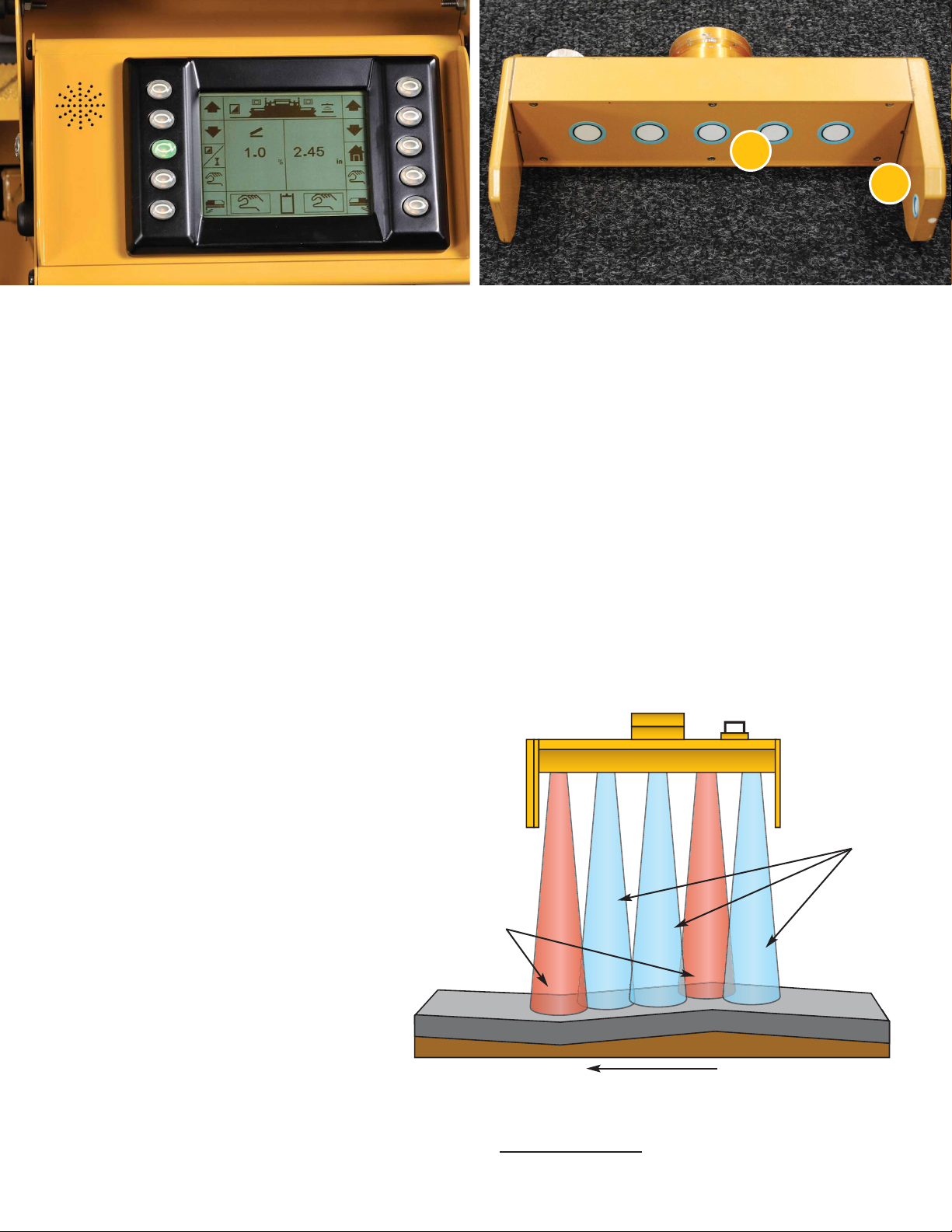

SINGLE OR DUAL DISPLAYS – EASY VISUALIZATION

– Each LCD display is able to control one or both sides of the screed – Text-based menus offer multiple languages – Equipped with brightness and contrast controls for good visibility

in various lighting conditions

DURABLE ENCLOSURE

– Swivel capability enables visibility from a various positions – Heavy-duty design provides overnight protection

SONIC GRADE SENSORS

– Sonic sensor is equipped with five ceramic transducers in each

sensor, two readings are discarded, three are averaged – 457 mm (18") optimal height – Built-in temperature sensor accounts for temperature variation;

sealed, reliable

CONTACTING GRADE SENSORS

– Two designs; ground contacting ski, wand-type for string lines – Effective for curbs and joints

SLOPE SENSOR

– Range of ±10 degrees (17.6%) – Effective on super elevations

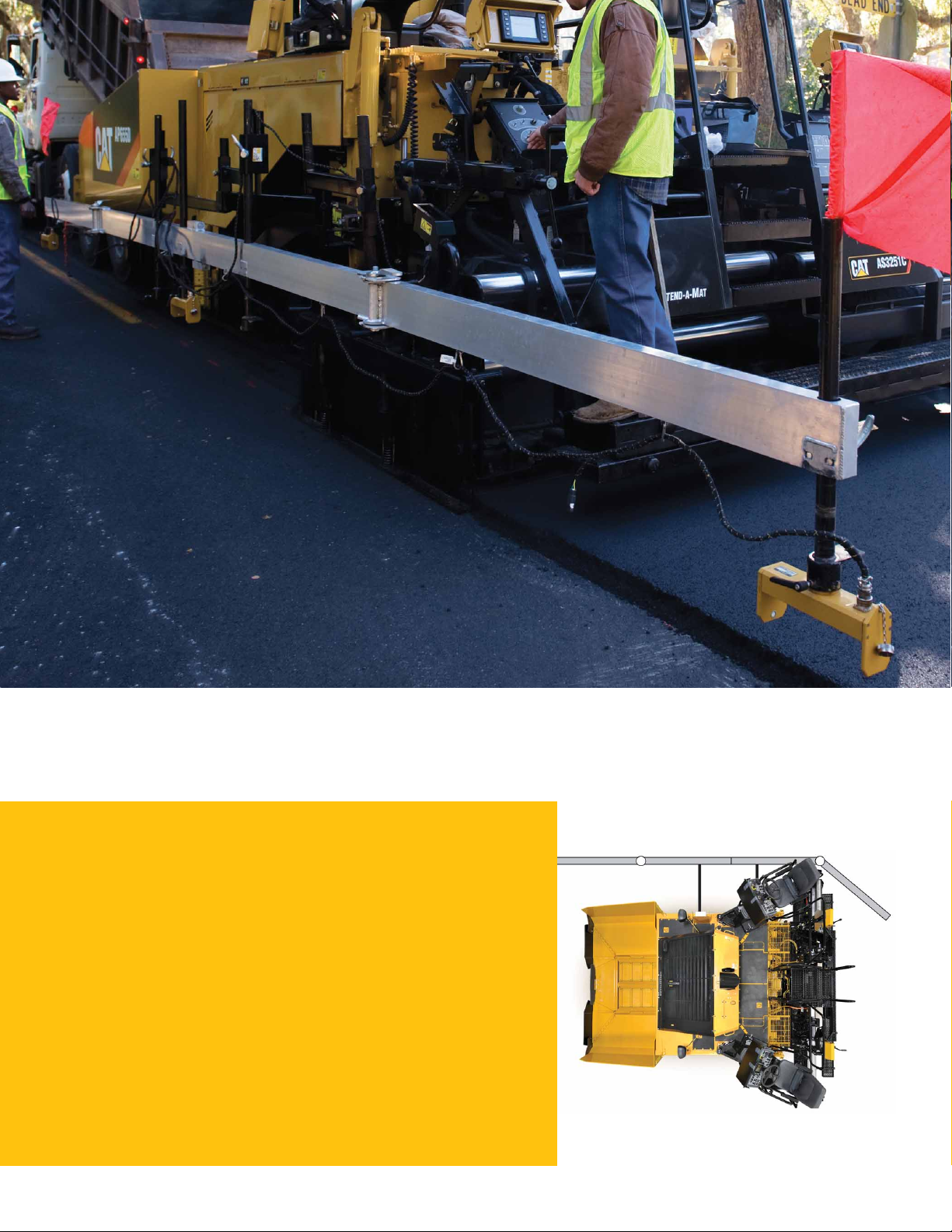

SONIC AVERAGING BEAM

– Equipped with up to three sensors; when paving super elevations,

the front and rear sensor can be turned off for better control of mat thickness

– Averages total deviations and adjusts tow-point by 1/3 for true

averaging; Note: When utilizing two grade sensors, tow-point is

adjusted by 1/2 of the total deviation. – Sensor height can be individually adjusted – Easily move to the next starting point without disassembly.

1. Sealed Sonic Sensor

2. Temperature Sensor

GRADE AND SLOPE FEATURES

Discarded

Averaged

Travel Direction

S1+S2+S3

= Tow-point Movement

(True Averaging)

Page 10

106

ELECTRIC HEAT FEATURES

– Touch-pad technology and LED indicator lights create a

user-friendly interface.

– Three pre-set temperature settings for each screed section ensure

even heat distribution – Manual adjustments provide override capability – Flattened bar type heating elements deliver reliability – Temperature sensors in each screed section, including extensions – On-board diagnostics enable operator to verify fault indicators

TRACTOR-MOUNTED GENERATOR

– GFCI circuit breaker protection – Fast heat-up at low idle. – Manual breaker reset – 25 kW generator

- supplies 25 kW at 60 Hz with engine speed 1275 or higher

- provides power to the electric screed and auxiliary power panel

- utilized for normal lighting packages

– 35 kW generator

- supplies 35 kW with engine speed at 1500 rpm or higher

- provides power to the electric screed and two auxiliary power panels

- utilized for large lighting packages and wide width tamper bar screed

AUXILIARY POWER

– 7 kW of available power – Six, 120-volt receptacles – One, 240-volt receptacle – Supports high intensity discharge lighting (HID), power tools

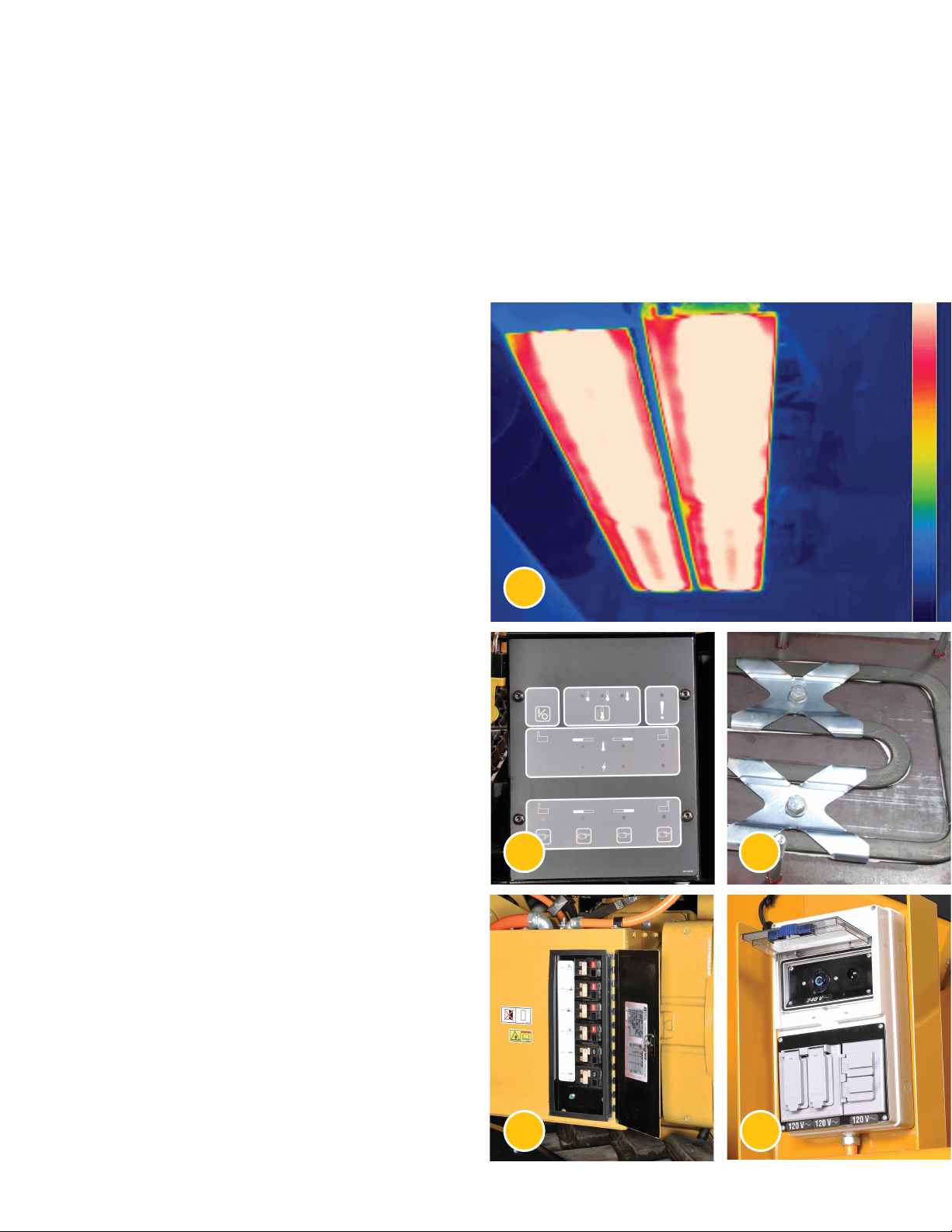

1. Even Heat Distribution

2. Electric Heat Panel

3. Heating Element

4. Generator

5. Auxiliary Panel

ADVANCED ELECTRIC SCREED HEAT

TOUCH-PAD TECHNOLOGY WITH MULTI-ZONE HEATING AND EVEN-HEAT DISTRIBUTION.

Page 11

ERS-A-MAT

6.7 m (22')

6.1 m (20')

5.5 m (18')

3.0 m (10')

AS2302C SCREED EXTENSIONS

These extensions are available in 305 mm (1') and 610 mm (2') lengths. Screed extensions are electrically heated with vibration.

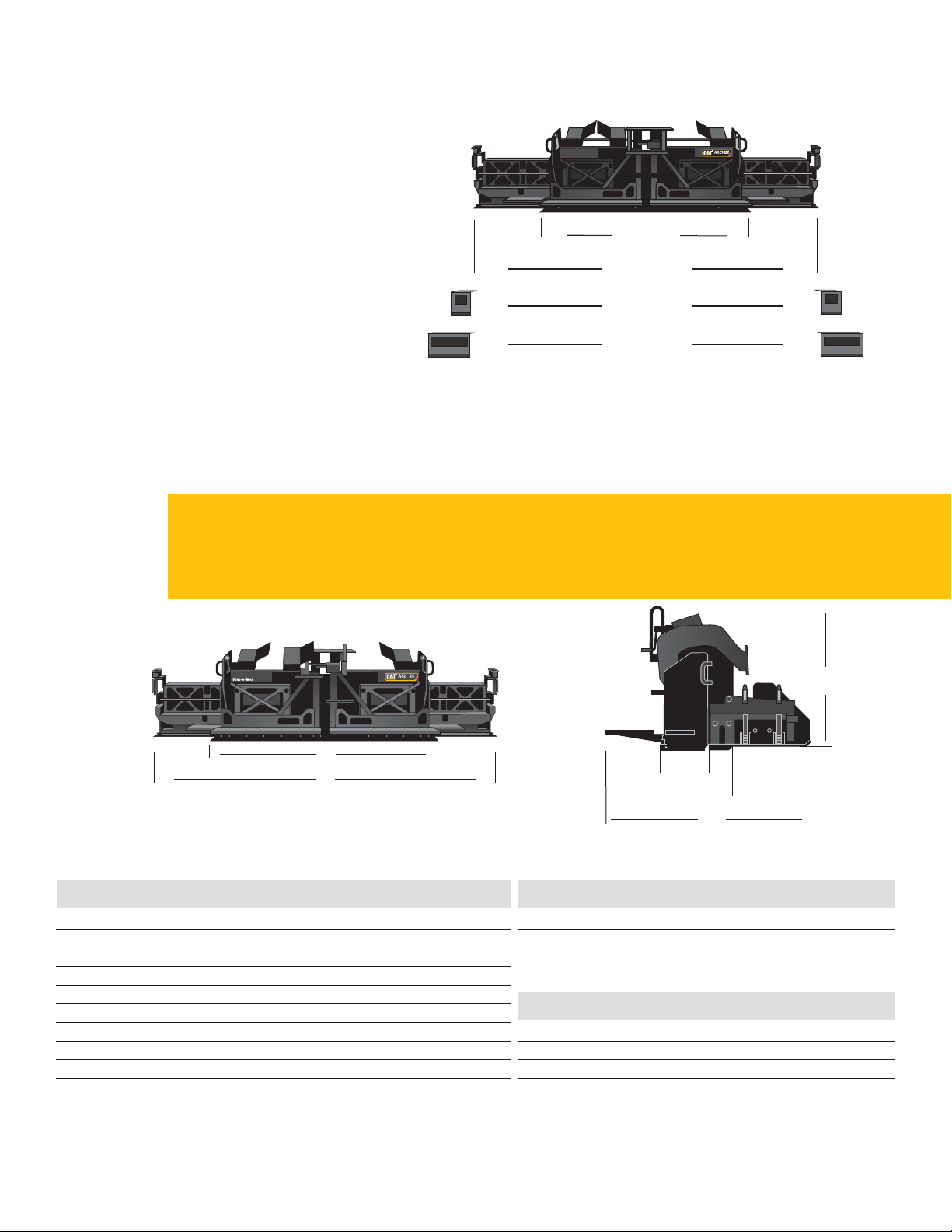

AS2302C Screed Specifications

PAVING WIDTHS

EXTENSIONS MAXIMIZE VERSATILITY

A Width with end gates 3.31 m (10' 10")

Width without end gates 3.29 m (10' 9")

B Hydraulically extendable width 5.5 m (18') C Walkway width (main) 476 mm (18.75") D Main screed plate width (front to back) 457 mm (18") E Extender screed plate width (front to back) 229 mm (9") F Length without end gates (front to rear) 1.3 m (4' 4") G Length with end gates (front to rear) 2.06 m (6' 9")

Screed plate thickness 13 mm (0.5")

H Height 1.4 m (4' 7")

Dimensions

Screed 3084 kg (6,800 lb) 305 mm (12") extension 45 kg (100 lb) 610 mm (24") extension 84 kg (185 lb)

Weights

Crown range +10% to -3% Height indicator increment 6.4 mm (0.25") Slope (horizontal) 10% below to 3% above Vibrator speed 0 - 3000 vpm

Screed Adjustments

Page 12

AS2302C VERS-A-MAT™Screed
