Caterpillar 992K BROCHURE

Page 1

992K

Wheel Loader

Engine Operating Specications

Engine Model Cat Gross Power 674 kW 904 hp Rated Payload High Lift 19.1 tonnes 21 tons Net Power 597 kW 801 hp Operating Weight Standard Lift 97 295 kg 214,948 lb Buckets Operating Weight High Lift 102 625 kg 226,249 lb Bucket Capacities 10.7-12.3 m

C32 ACERT™ Rated Payload Standard Lift 21.7 tonnes 24 tons

14-16 yd

Page 2

992K Features

Safety

The 992K offers world class safety to those operating the machine, those working around itand on it.

Productivity

Designed for quick response to operator input, the992K excels at face loading, truck loading andload and carry applications.

Reliable Performance

The 992K is constructed of proven designs, all integrated to provide you with a reliable loader.

Operator Comfort

The 992K offers an ergonomically designed cab with adjustable controls and excellent visibility tothe job site.

Simpli ed Service

Conveniently grouped service centers make short work of maintenance. VIMS and Cat Product Link keep you informed and up-to-date on machine health.

Sustainability

Like most Cat equipment, the 992K is designed to use fuel wisely and incorporates emissions and sound reduction technologies.

Contents

Quality ...................................................................3

Long Life, Reliable Components .......................4

Operator Comfort ................................................5

Safety ....................................................................6

Service Made Simple .........................................7

Buckets .................................................................8

Bucket Ground Engaging Tools ........................9

Sustainability .....................................................10

High Lift Arrangement

Optional Attachment.........................................11

992K Speci cations ..........................................12

992K Standard Equipment................................16

992K Optional Equipment .................................17

992K Mandatory Equipment ............................18

Notes ...................................................................19

Caterpillar rst introduced the 992 in 1968. This large wheel loader has been aglobal leader ever since, building a reputation as a face loader that’s both safe to operate, productive anddurable. With the introduction of the K Series™, we’veenhanced the operator’s experience and the safety of those working on and around the machine. We’ve reduced operating costs with fuel saving efciencies that reduce your cost per ton.

With both standard and high lift con gurations, thismachine willpass match with eets of 775, 777and785trucks. Ifyour operations revolve around the992asaloading tool, you’ll nd everything that’s important to your business inthe 992K; safety, productivity, cost control and comfortfor your people.

Page 3

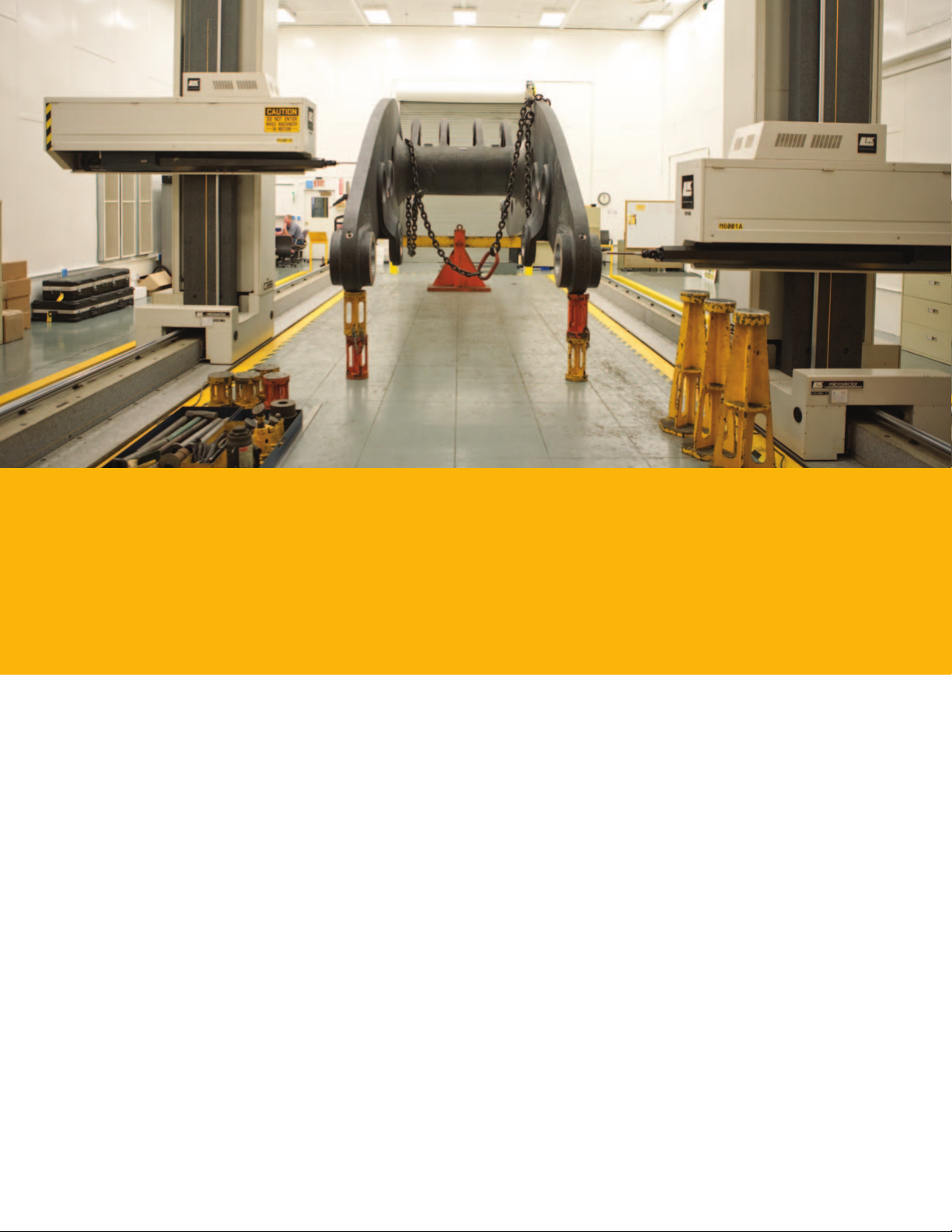

Quality

Second only to Safety

Caterpillar’s commitment to quality is profound. We design to a higher standard so that your business can prosper.

• All of our parts are subject to quality and conformance checks. We collaborate with suppliers early inthe design phase for their knowledge and manufacturing experience.

• New designs undergo Finite Element Analysis telling us where stresses congregate under loads typicalof the machine’s application. New castings are virtually monitored to evaluate  ll quality andtemperature exchange.

• A shake table simulates thousands of hours of use in days – allowing engineers to validate durability. Further analysis on airow, ergonomics, performance, and ISO standard compliance are performed onprototype and eld follow machines.

• Further tests are performed by operators and technicians for comfort, ergonomics and serviceability either in 3D virtual environments or on the iron.

• You should know that all new product introductions at Caterpillar are guided by your voice and input, the voice of our dealer organization and their mechanics, and on our ability to physically manufacture anew design. These are just some of the criteria that make Cat products leaders in the industry, and help us ensure long life, reliable machines for your business.

Page 4

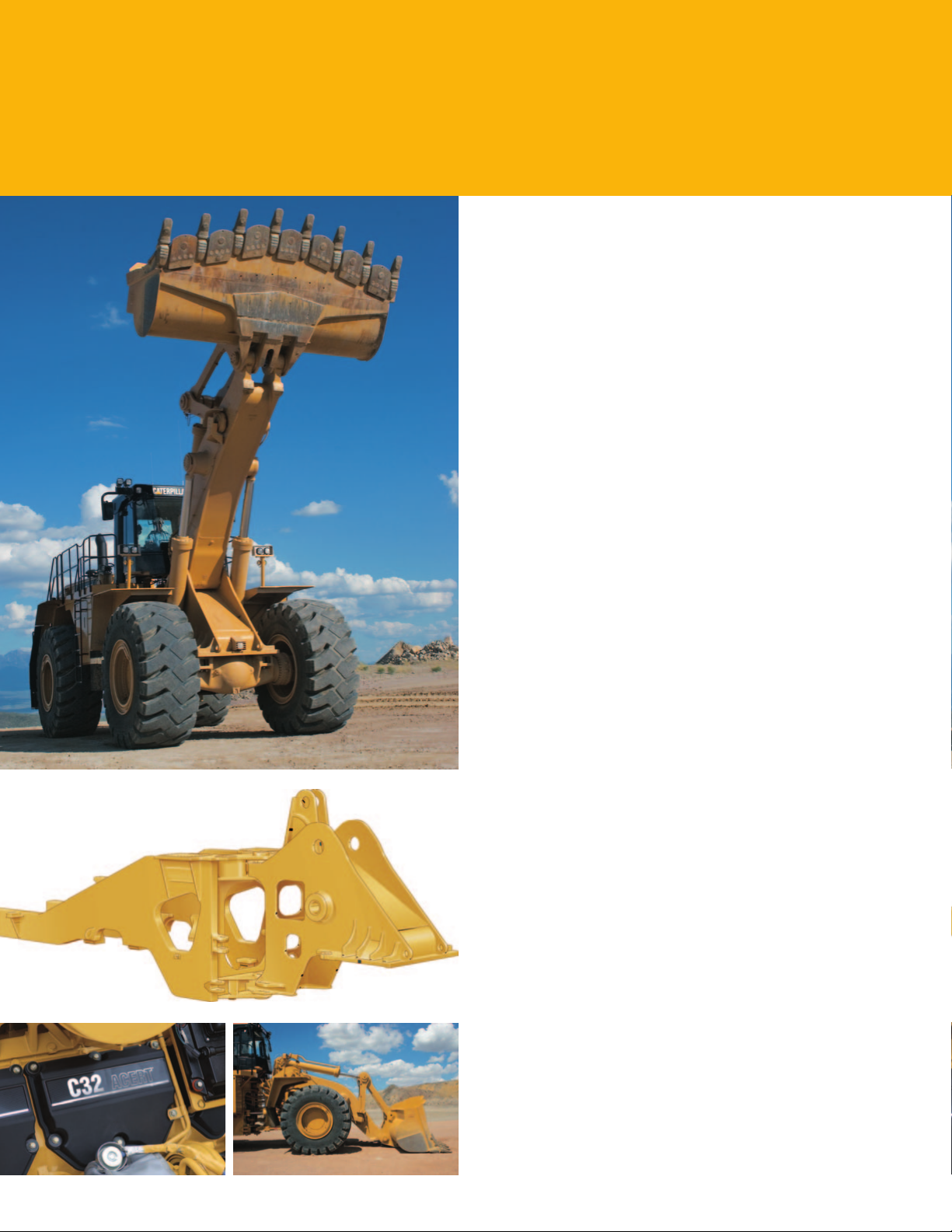

Long Life, Reliable Components

We value your success and build our machines to support your business

Linkage and Frames

We combine 40+ years of design and eld experience – aswell as new validation technologies – to ensure 992Kframes, castings, welds and fabrications are the best in the industry. Our unique box section rear and front frame designs combine plates and castings to manage torsion loads and provide longer lasting alignment for hitch and pin life. Sleeve bearing pins in the linkage are more predictable in their wear and limit daily greasing. For load and carry applications, optional Ride Control further reduces shock loads to the frame while giving the operator a much smoother ride.

Cat C32 Engine

The Cat C32 diesel engine with ACERT™ Technology is common to other Cat products – like the 777F off-highway truck – butit will not be identical to the C32 found in the 992K. Inthe process of integrating a power train into a machine, Cat product groups develop unique power curves and ratings as well as fuel maps unique to that machine andits applications. The C32 in the 992K has starters, oil coolers and turbochargers chosen for its applications. It has mechanically-actuated, electronically controlled (MEUI) fuelinjection that meters out fuel in just the right quantity tomeet demand. The quality of our Cat fuel injectors ensures ultra ne mists and higher quality combustion from every liter of fuel burned. The C32 is built on a strong core that’s smelted at Caterpillar’s foundry. The quality of the core is highly scrutinized before further assembly. Even gaskets arecarefully designed to reduce leaks while controlling vibrationand noise.

Cat Planetary Powershift Transmission

Nobody builds a better transmission than Caterpillar for earthmoving applications. Everything from gear geometry, heat treatment and metallurgy are Caterpillar design controlled, including the electronics that allow it to integrate with the C32 engine and Impeller Clutch Torque Converter of the 992K. The Cat Planetary Powershift Transmission in the 992K offers three forward and three reverse speeds. The planetary gear group is common with the 993K and 994F large wheel loaders.

Page 5

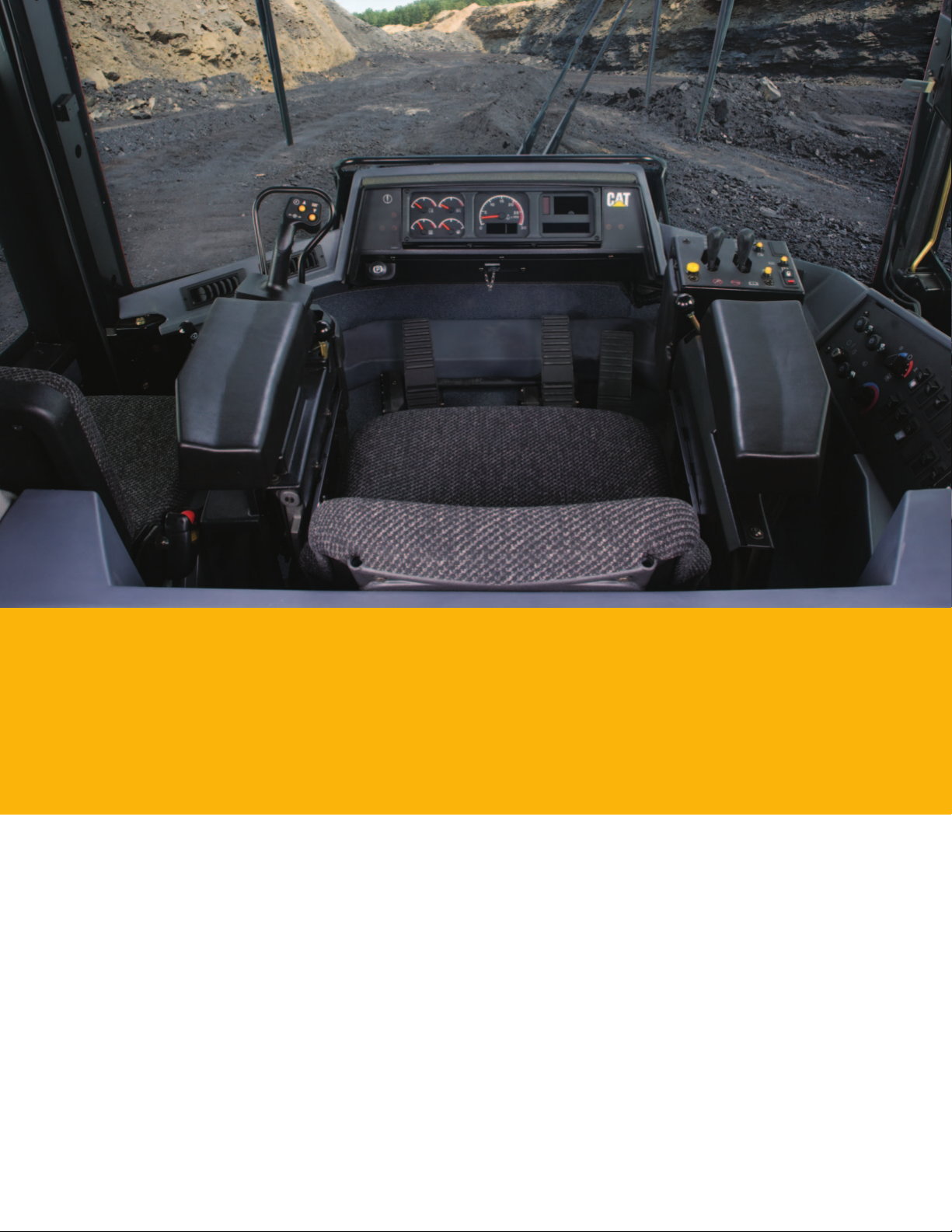

Operator Comfort

Leading the industry in design and ergonomics

The 992K offers a world-class cab, a well-built and designed machine and performance that compliments the operator’s skill.

The 992K cab has room to think, is comfortable on long shifts and adjusts arm height, lumbar support, seat position and mirror coverage.

A retractable seat belt is available for both the operator and trainer seat. For added safety, a rear vision camera option is available, and Ride Control, that adds accumulators

tothe loader linkage, dampens loping on the haul road. Two doors offer access and ingress options, andthe operator is protected from falling objects and rollovers with ROPS/FOPS structures.

Operators can set automatic bucket heights for easier truck loading or feeding a crusher. The implement controls are nger tip controlled and low effort.

The cab is sound suppressed, has vibration dampening and air is ltered to keep dust out. An optional precleaner can extend lter life in extreme applications.

Page 6

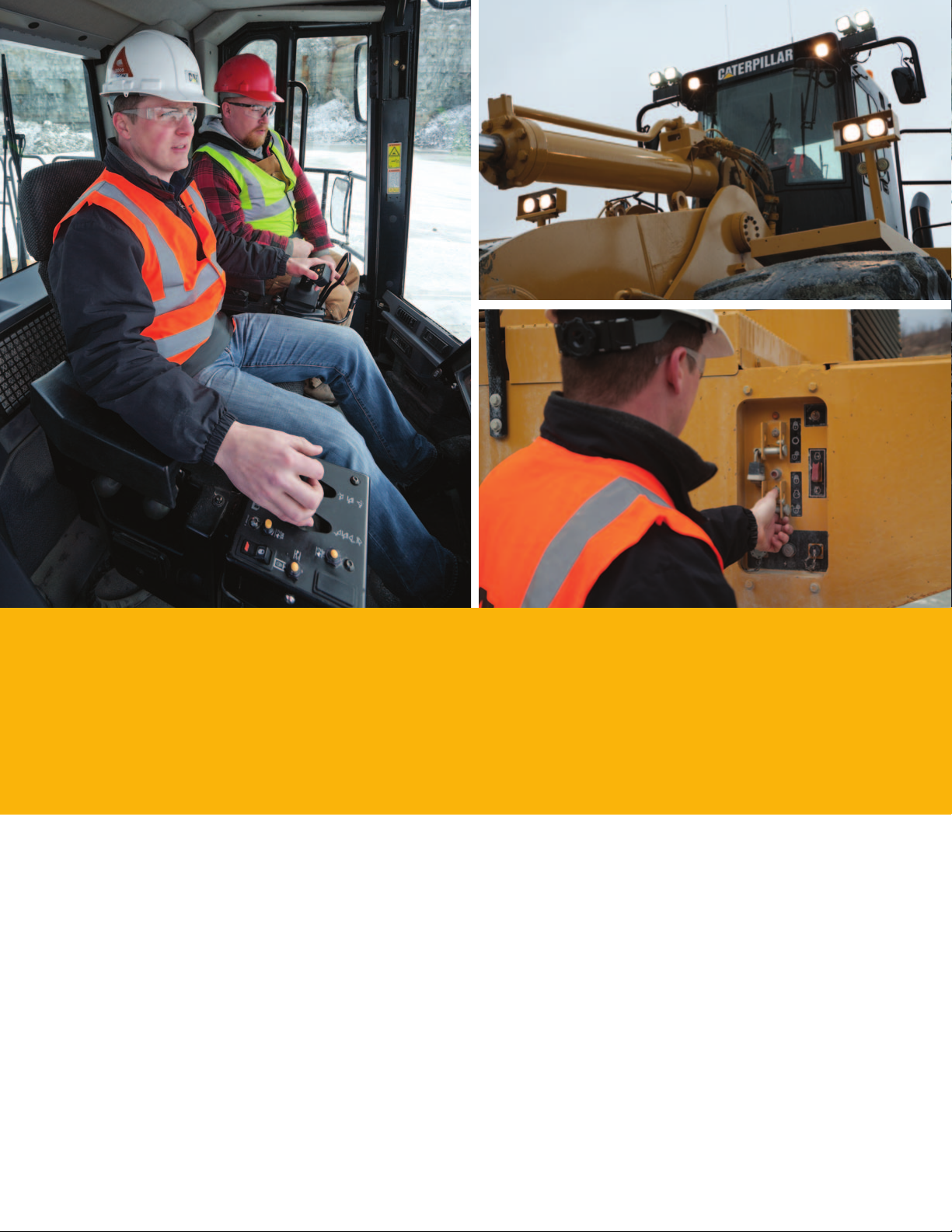

Safety

Safety is always our  rst priority

We are constantly improving our products in an effort to provide a safe work environment for the operator and those who work on your job site. Here are just a few of the safety features found on the 992K.

• The 992K features wide, easy to climb stairs with hand holds at critical locations.

• Walkways offer non-skid surfaces and integrated lock out/tag out points are designed into the service areas.

• Extensive glass in the cab and optional heated mirrors extend visibility. A rearview camera option and incab display can be installed along with HID lights.

• A backup alarm is standard, and operators receive three levels of warning when the machine requiresattention.

• An operator trainer seat allows your seasoned professionals to guide new operators. Safety belts are available on both seats.

• Roll over and falling object protection (ROPS/FOPS) is integrated around the cab.

Page 7

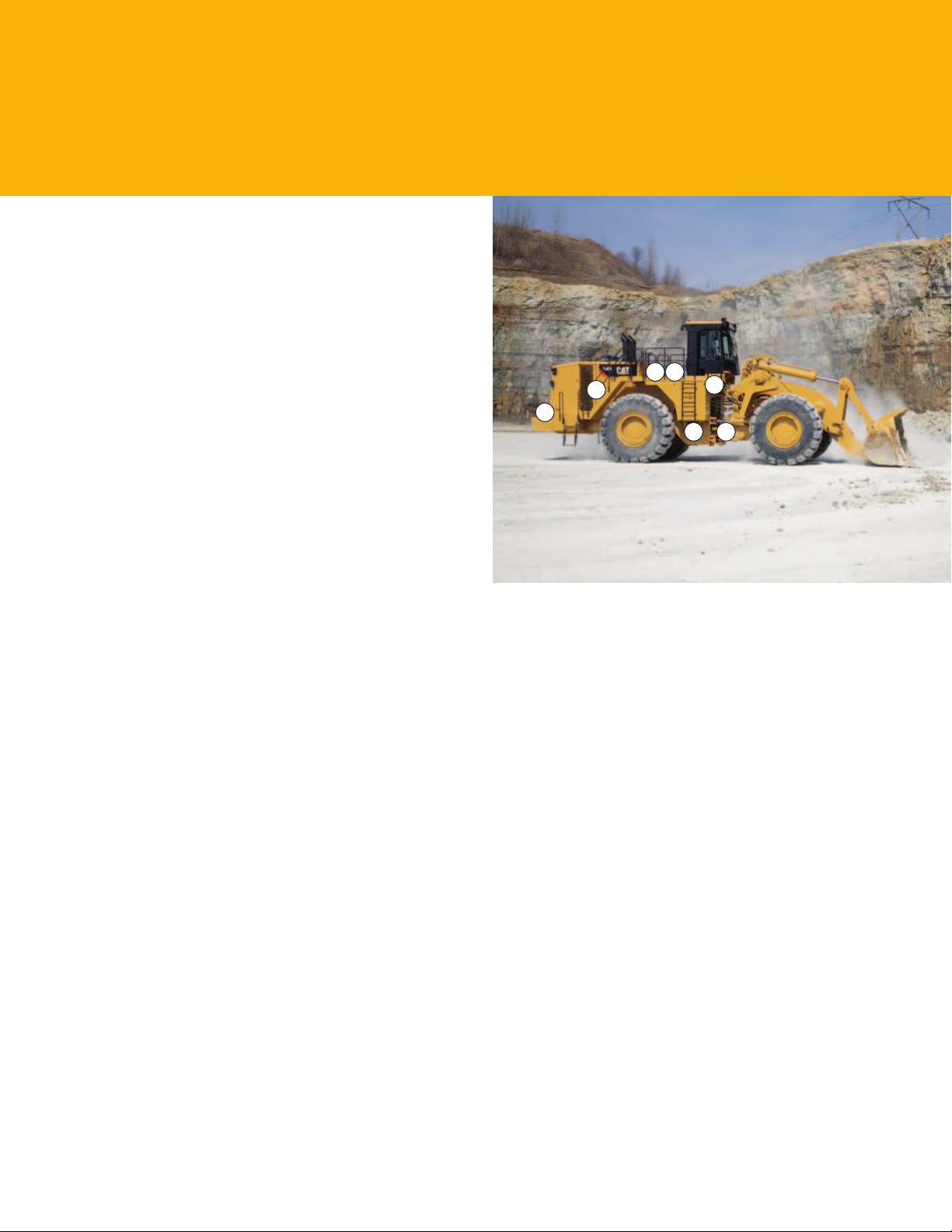

Service Made Simple

Organized to reduce your costs

The 992K is organized into individual service centers. Combined with the diagnostics available through VIMS, Product Link and Electronic Technician, servicing the 992K can be simple and ef cient.

1 Optional Service Center

• Ground level

• Oil renewal system (if equipped) tank  ll port

• Oil renewal system full light

• Radiator  ll port

• Implement  ll port

• Steering tank  ll port

• Transmission  ll port

• Engine oil  ll port

• Autolube (if equipped)  ll port

• Autolube tank full light

2 Hydraulic Service Center

• Hydraulic pilot  lters

• Hydraulic pumps

• Hydraulic case drain  lters

3 Bumper Service Center (left side bumper)

• Auxiliary emergency shutdown switch

• VIMS port

• Power on switch

• Electronic Technician “ET” Com-II port

• Stairway light switch

• Starter lockout switch

• Transmission lockout switch

4 Remote Diagnostic Pressure Ports Front Frame

• Lift and lower circuit

• Dump and rackback circuit

• Right and center implement pump relief pressures

• Ride control (optional)

• Pilot supply

• Manual lower valve

5 Remote Diagnostic Pressure Ports Rear Frame

• Steering left

• Steering right

• Steering pump discharge

• Fan drive

• Brake accumulator – front and rear

• Impeller clutch

• Lock-up clutch

• Transmission lube

• Brake pump discharge

• Axle oil cooler motor supply

• Axle oil cooler pump – front and rear

• Service brakes – front and rear

6 Electrical Service Center

7 Engine Service Area

• Breakers

• ECMs

• Fuse

• Primary fuel  lter

• Engine oil  lter

• Water separator

• Air  lters

• Secondary fuel  lter

2 5

Page 8

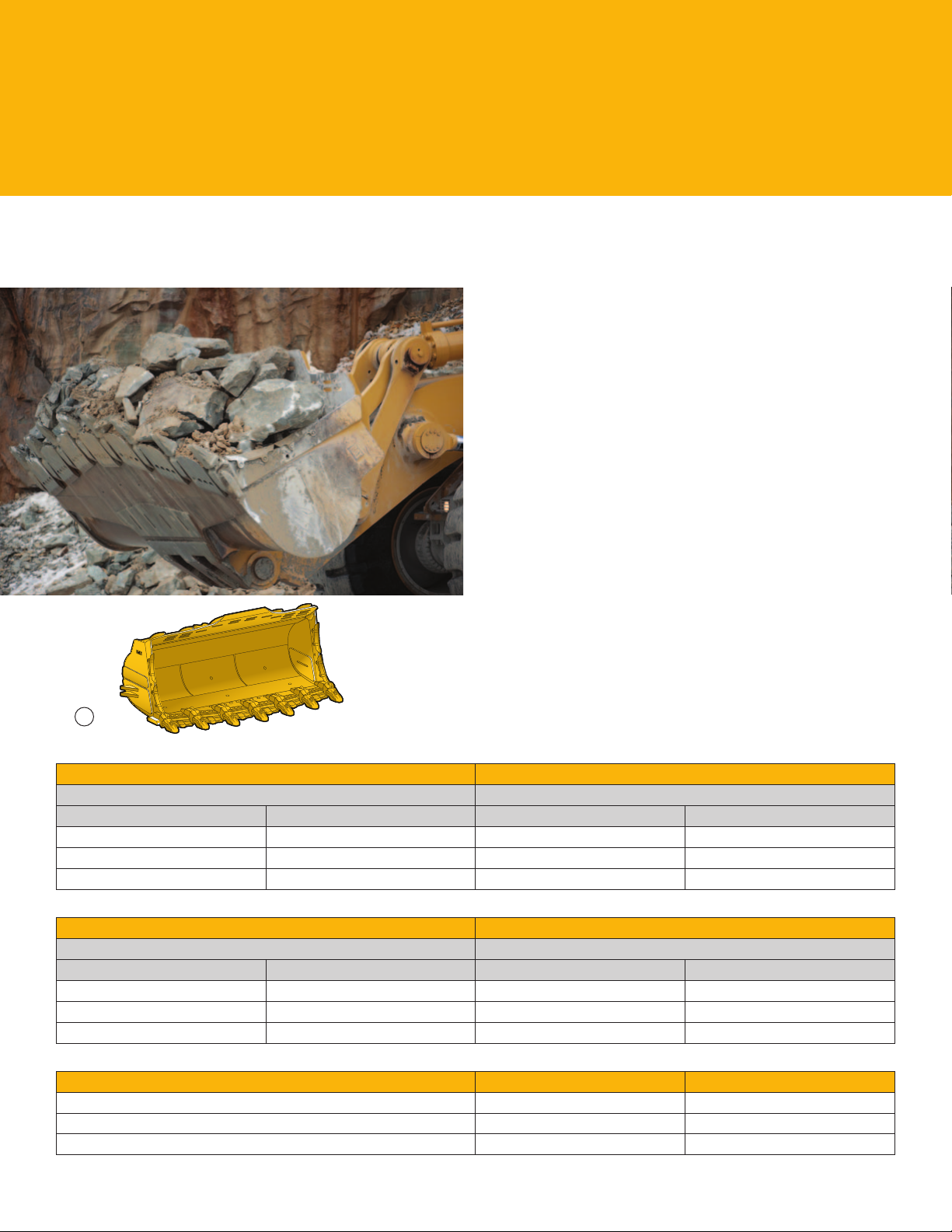

Buckets

Options to reduce your cost per ton

Selecting the right bucket will dictate the productivity of your loader. The process of selection starts with knowing the density of the material you load. From there, you can select the size and appropriate protection strategies that will suit the rated payload targets of your machine. With a large selection of ground engaging tools, your Cat dealer can helpyou build a bucket that best suits your application. Custombuckets are an option, however many 992K customers will choose one of the following:

Heavy Duty Rock Bucket

Applications: Face loading tightly compacted pit materials. Moderate abrasion factors and high impact loads are suitable for this bucket.

High Abrasion Rock Bucket

Applications: Face loading iron ore. High abrasion and moderate impact loads are suitable for this bucket. A smooth  oor is also desirable.

992K – Standard

Bucket Volume Material Density

12.2 16 1780 3,000

11.5 15 1890 3,200

10.7 14 2030 3,430

992K – High Lift Bucket Volume Material Density

12.2 16 1560 2,630

11.5 15 1660 2,800

10.7 14 1780 3,000

992K Dump Clearance Std HL

12.8 m (14 yd) with teeth @ 45 4622 mm (15'2") 5232 mm (17'2")

13.7 m (15 yd) with teeth @ 45 4546 mm (14'11") 5156 mm (16'11")

14.6 m (16 yd) with teeth @ 45 4495 mm (14'9") 5105 mm (16'9")

1) High Abrasion Rock Bucket

Up to specied density for 100 % ll factor

kg/m

Up to specied density for 100 % ll factor

kg/m

lb/yd

Page 9

1 2

5 64

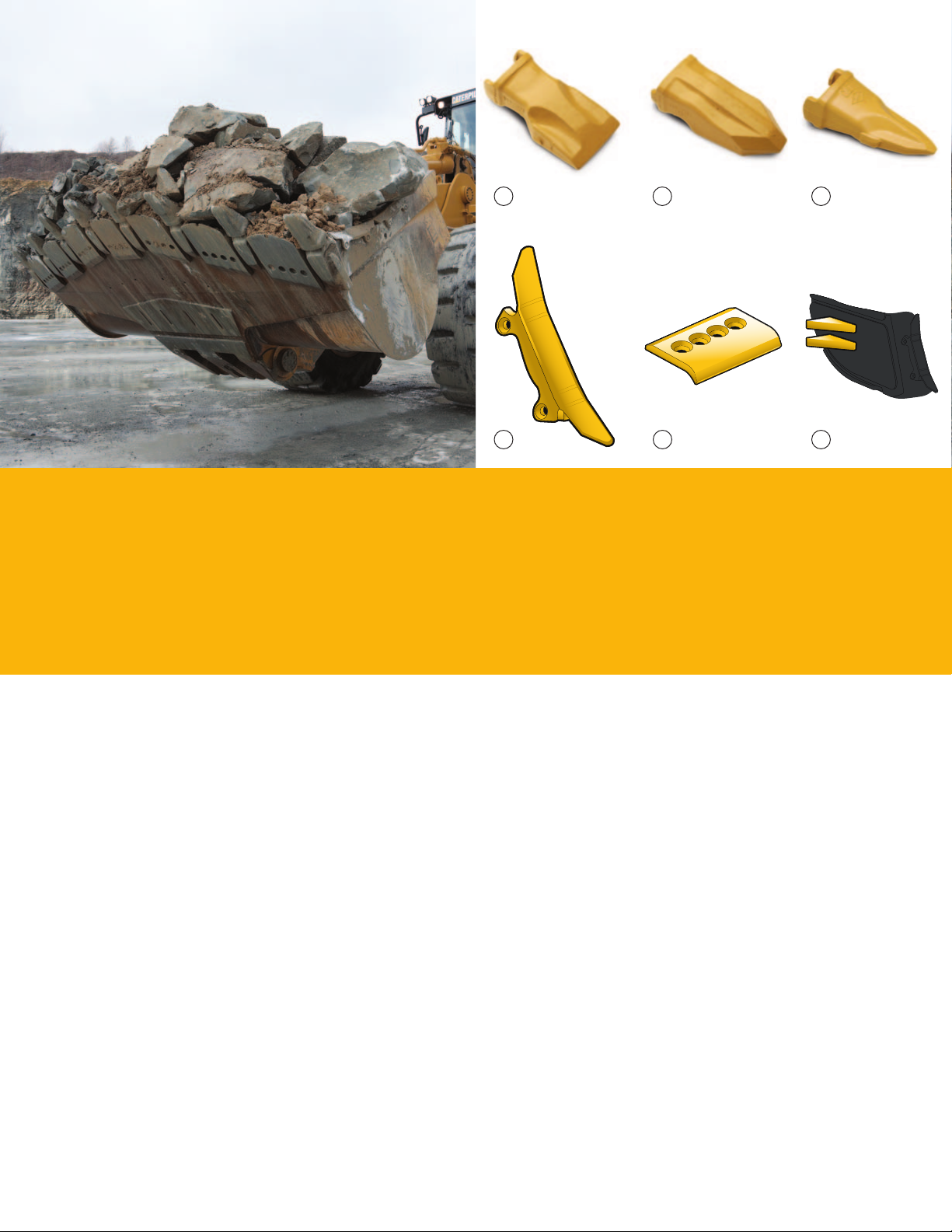

Bucket Ground Engaging Tools

Protect your investment

You can’t buy a better performing or longer lasting tip than Cat K Series ground engaging tools. Shortof a missing operator, nothing affects the productivity of your loader more, so consult your Catdealer if your current system isn’t living up to expectations. When worn beyond use by such materials as iron ore, K Series are easy to change out – no hammer required. A full list of Cat GET canbe found on http://www.Cat.com/get.

Typical 992K Ground Engaging Tools include: Adapters and Tips: Heavy Penetration – Heavy Abrasion – Penetration Side Bar Protectors Base Edges Bucket Wings

Adapters and Tips: 1) Heavy Penetration 2) Heavy Abrasion 3) Penetration

4) Side Bar Protectors

5) Base Edges

6) Bucket Wings

Page 10

Sustainability

Our commitment to you, your business and future generations is as strong as the machines we build. Our effort to build machines that live longer, use fewer resources, and produce fewer emissions is only

the start. Our plants, like the Aurora facility where the 992K is built, are conserving precious energy andresources with solar power, roof top gardens, and comprehensive recycle programs.

Sustainability is protable. Our cleaner environment helps us control quality on the assembly line andbuild better products. It reduces our energy demand and our output to the land ll.

We can similarly help your business with machines that lead the industry in balancing fuel use with productivity demands. Each generation of Cat product is more emissions friendly than the last, helpingreduce the carbon foot print of your eet. We can also offer people and technologies that train your operators to be more efcient, help you build better haul roads, and protect the environment at service time. Technologies like Cat Product Link let your Cat dealer know what machines are coming due for service and what parts are required. This allows your dealer to optimize the mileage and fuel useof their service eet – while providing you with more efcient and timely service.

We welcome the opportunity to support your business and its sustainable growth.

Page 11

992K Speci cations

Engine

Engine Model Cat® C32

with ACERT™ Technology

Gross Power – 674 kW 904 hp SAEJ1995

Net Power 597 kW 801 hp Bore 145 mm 5.7 in Stroke 162 mm 6.4 in Displacement 32.1 L 8.5 gal

• Cat engine with ACERT™ Technology –

EPA Tier 2, EU Stage II Compliant

• These ratings apply at 1,750 rpm when

tested under the speci ed standard conditions.

• Rating for net power advertised is based

onpower available when the engine is equipped with alternator, air cleaner, mufer, and on-demand hydraulic fan driveat maximum fan speed.

Weights

Operating Weight – 97 295 kg 214,948 lb Standard Lift

Operating Weight – 102 626 kg 226,249 lb High Lift

• For 10.7 m

(14.0 yd3) bucket

Buckets

Bucket Capacities 10.7-

12.3 m

14-16 yd

Operating Specications – Standard Lift

Breakout Force 573.3 kN 128,895 lb Static Tipping Load, 51 328 kg 113,159 lb

at 35° articulation Standard Lift 58 465 kg 128,895 lb

Breakout Force High Lift 57 958 kg 127,775 lb

BreakoutForce

• For 10.7 m

(14.0 yd3) bucket

Operating Specications – HighLift

Breakout Force 577 kN 129,777 lb Static Tipping Load 43 932 kg 96,853 lb

at35°articulation

• For 10.7 m

(14.0 yd3) bucket

Transmission

Converter Drive – Forward 1

Converter Drive – Forward 2

Converter Drive – Forward 3

Converter Drive – 7.4 km/h 4.6 mph Reverse 1

Converter Drive – Reverse 2

Converter Drive – 22.4 km/h 13.9 mph Reverse 3

Direct Drive – Lock-up Disabled Forward 1

Direct Drive – 12.9 km/h 8.0 mph Forward 2

Direct Drive – 22.8 km/h 14.2 mph Forward 3

Direct Drive – 7.9 km/h 4.9 mph Reverse 1

Direct Drive – 14.2 km/h 8.8 mph Reverse 2

Direct Drive – 24.8 km/h 15.4 mph Reverse 3

• With 45/65-45 L-5 46 Ply Tires

7.1 km/h 4.4 mph

12.2 km/h 7.6 mph

20.6 km/h 12.8 mph

13.0 km/h 8.1 mph

Loader Hydraulic System

Relief Valve Setting 31 000 kPa 4,500 psi Lift Cylinders, 279.4 mm 11 in

Double Acting: Bore

Stroke 1148 mm 45.2 in

Tilt Cylinder, 266.7 mm 10.5 in DoubleActing: Bore

Stroke 2055 mm 80.9 in

• Pumps (2), fully variable E/H displacement control – 250 cc

Hydraulic Cycle Times

Raise* 9.4 seconds Dump* 1.8 seconds Lower Float Down 3.7 seconds

(Empty) Total Hydraulic 14.9 seconds

Cycle Time *With rate load

Brakes

Brakes Meets SAE J1473,

OCT90 and ISO3450:1992

Page 12

992K Speci cations

Tires Cab Service Rell Capacities

Tires Choose from a variety

of tires to match your application.

• Choice of: 45/65-R45, L-4 1 STAR Michelin 45/65-R45, L-5 1 STAR Michelin 45/65-R45, L-5 58 PR Goodyear 45/65-R45, L-5 58 PR Bridgestone 1150/65-R45, RL-5K 2 STAR Goodyear

• NOTE: In certain applications (such as load and carry) the loader’s productive capabilities might exceed the tires’ tonneskm/h (ton-mph) capabilities. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

ROPS/FOPS Meets SAE and

ISOstandards

• ROPS meets SAE J1040 APR88 and ISO3471:1994 criteria.

• Falling Objects Protective Structure (FOPS) meets SAE J231 JAN81 and ISO 3449:1992 Level II criteria.

• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Fuel Tank – Standard 1562 L 413 gal Cooling System 290 L 77 gal Crankcase 120 L 32 gal Transmission 169 L 45 gal Differentials and 360 L 95 gal

Final Drives – Front Differentials and 345 L 91 gal

Final Drives – Rear Hydraulic Tank

Implement 326 L 86 gal Steering/Brake 159 L 42 gal

Windshield 18.6 L 4.9 gal WasherFluid

Page 13

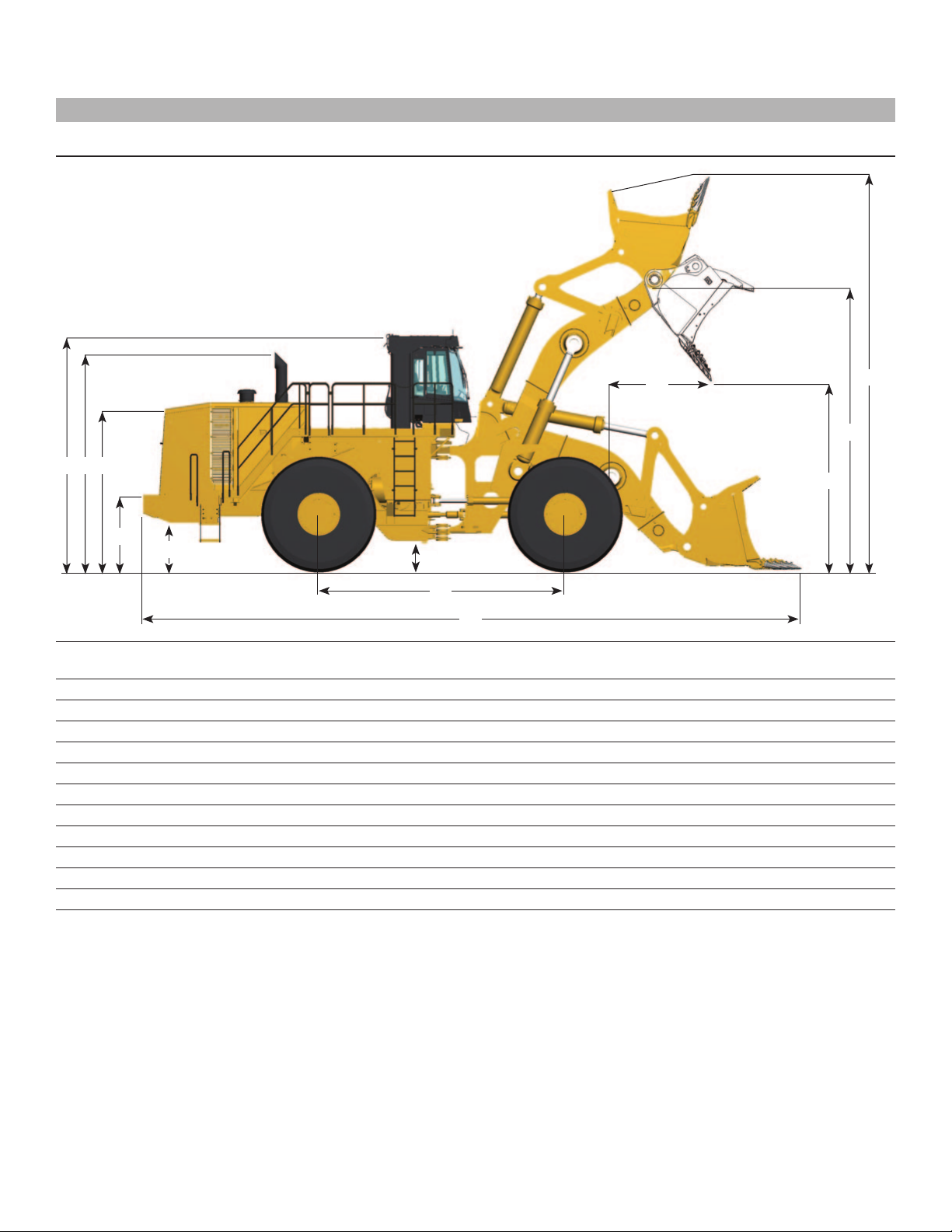

Dimensions

All dimensions are approximate.

992K* Standard Lift 992K High Lift***

45/65-45 58 45/65-45 58

Height to top of ROPS 5678 mm 18'7" 5678 mm 18'7"

Height to top of stack 5248 mm 17'2" 5248 mm 17'2"

Height to top of hood 4043 mm 13'4" 4043 mm 13'4"

Height to top of bumper 1830 mm 6'0" 1830 mm 6'0"

Bumper clearance 1176 mm 3'11" 1176 mm 3'11"

Ground clearance** 682 mm 2'2" 682 mm 2'2"

Reach at 50° (Std) 45° (HL) dump (tooth tip) 2118 mm 6'11" 2092 mm 6'9"

Clearance at 50° (Std) 45° dump (HL) dump (tooth tip) 4480 mm 14'8" 4574 mm 15'1"

Bucket pin height at full lift 6927 mm 22'8" 7544 mm 24'7"

Maximum overall height – bucket raised 9313 mm 30'6" 10 109 mm 33'1"

Wheel base 5890 mm 19'4" 5890 mm 19'4"

Maximum overall length 15 736 mm 52'0" 16 095 mm 52'8"

*Dimensions are based on the 45/65-45 58 Tire (Free State). **Measured to lowest point in hitch area. ***High Lift clearances are for High Abrasion Rock Bucket.

Page 14

992K Speci cations

Operation/Bucket Specications – Standard Lift

Bucket Type Rock Rock Rock Rock Rock Rock Rock Ground Engaging Tools Teeth & Teeth & Teeth & Teeth & Teeth & Teeth & Teeth &

Cutting Edge Type Spade Spade Spade Spade Spade Spade Spade Bucket Part No. (Group Level) 305-5790 305-5720 294-8980 307-9440 307-9430 294-9010 307-9450

Heaped capacity (§) m

Struck capacity (§) m

Width (§) mm 4824 4884 4824 5068 4824 5165 5068

(ft/in) (15'10") (16'0") (15'10") (16'7") (15'10") (16'11") (16'7")

Dump Clearance at Full Lift SAE mm 4607 4548 4495 4612 4545 4699 4699 45° discharge – with tips (§)

(ft/in) (15'1") (14'11") (14'8") (15'1") (14'11") (15'5") (15'5")

Reach at Full Lift SAE 45° discharge – mm 2326 2378 2427 2322 2385 2292 2292 with tips (§)

(ft/in) (7'7") (7'10") (8'0") (7'7") (7'10") (7'6") (7'6")

Reach with lift arms horizontal mm 5114 5193 5265 5108 and bucket level

(ft/in) (16'10") (17'0") (17'4") (16'10") (17'1") (16'6") (16'6")

Digging depth (segment) (§) mm 196 201 201 196 198 175 175

(in) (7.7) (7.9) (7.9) (7.7) (7.8) (6.9) (6.9)

Overall length – bucket level ground (§) mm 15 729 15 818 15 890 15 736 15 823 15 632 15 632

(ft/in) (51'7") (51'11") (52'1") (51'7") (51'11") (51'4") (51'4")

Overall height with bucket at full raise (§) mm 9313 9313 9492 9313 9313 9392 9313

(ft/in) (30'7") (30'7") (31'1") (30'7") (30'7") (30'10") (30'7")

Loader clearance circle with bucket in mm 11 097 11 121 11 131 11 096 11 122 11 085 11 085 carry position (§)

(ft/in) (36'5") (36'6") (36'6") (36'5") (36'6") (36'5") (36'5")

Static tipping load straight (§) kg 57 096 56 402 56 093 55 615 56 662 53 564 55 194

(lb) (125,896) (124,366) (123,684) (122,631) (124,939) (118,109) (121,702)

Static tipping load at full 43° turn (§) † kg 48 527 47 863 47 544 47 047 48 123 44 996 46 625

(lb) (107,003) (105,537) (104,835) (103,738) (106,110) (99,216) (102,809)

Static tipping load – tire deflection kg 45 201 44 546 44 185 43 735 44 803 41 681 43 316 at full 43° turn (§) †

Static tipping load at full 40° turn (§) †

(lb) (99,651) (98,207) (97,411) (96,419) (98,773) (91,890) (95,495) kg 49 634 48 965 48 648 48 153 49 225 46 102 47 732 (lb) (109,443) (107,968) (107,269) (106,177) (108,542) (101,655) (105,249)

Static tipping load – tire deflection kg 46 440 45 780 45 422 44 972 46 037 42 919 44 554 at full 40° turn (§) †

(lb) (102,382) (100,927) (100,138) (99,146) (101,494) (94,620) (98,224)

Static tipping load at full 35° turn (§) † kg 51 328 50 653 50 338 49 847 50 913 47 796 49 426

(lb) (113,178) (111,691) (110,995) (109,912) (112,264) (105,390) (108,984)

Static tipping load – tire deflection kg 48 361 47 695 47 341 46 893 47 953 44 839 46 474 at full 35° turn (§) †

(lb) (106,617) (105,149) (104,369) (103,381) (105,718) (98,853) (102,457)

Breakout force (§) † kg 58 466 55 998 54 249 57 842 56 147 59 381 60 218

(lb) (128,917) (123,475) (119,619) (127,541) (123,803) (130,935) (132,781)

Operating weight (§) † kg 97 295 97 688 98 068 98 674 97 469 100 844 99 050

(lb) (214,535) (215,402) (216,240) (217,576) (214,919) (222,361) (218,405)

Segments Segments Segments Segments Segments Segments Segments

10.7 11.5 12.3 10.7 11.5 10.7 10.7 (14) (15) (16) (14) (15) (14) (14)

8.9 9.5 10.2 8.9 9.5 8.9 8.9

(11.6) (12.4) (13.3) (11.6) (12.4) (11.6) (11.6)

5200 5025 5025

(§) Specications and ratings conform to all applicable standards recommended by the Society for Automotive Engineers. SAE Standards J732C govern loader ratings

and are denoted in the text by (§).

† Static tipping load and operating weight shown are based on standard machine congurations with a full fuel tank, coolant, lubricants, and operator.

Page 15

Operation/Bucket Specications – High Lift

Bucket Type Rock Rock Rock Rock Rock Rock Rock Ground Engaging Tools Teeth & Teeth & Teeth & Teeth & Teeth & Teeth & Teeth &

Cutting Edge Type Spade Spade Spade Spade Spade Spade Spade Bucket Part No. (Group Level) 305-5790 305-5720 294-8980 307-9440 307-9430 294-9010 307-9450

Heaped capacity (§) m

Struck capacity (§) m

Width (§) mm 4824 4884 4824 5068 4824 5165 5068

(ft/in) (15'10") (16'0") (15'10") (16'7") (15'10") (16'11") (16'7")

Dump Clearance at Full Lift SAE mm 5224 5166 5112 5229 5162 5316 5316 45° discharge – with tips (§)

(ft/in) (17'1") (16'11") (16'8") (17'2") (17'0") (17'4") (17'4")

Reach at Full Lift SAE 45° discharge – mm 2193 2246 2294 2189 2252 2159 2159 with tips (§)

(ft/in) (7'2") (7'4") (7'5") (7'2") (7'4") (7'1") (7'1")

Reach with lift arms horizontal mm 5504 5583 5655 5498 5590 and bucket level – with teeth

(ft/in) (18'0") (18'3") (18'6") (18'0") (18'3") (17'8") (17'8")

Digging depth (segment) – bucket level (§) mm 176 181 181 176 178 155 155

(in) (7.0) (7.1) (7.1) (7.0) (7.0) (6.1) (6.1)

Overall length – bucket level ground – mm 16 197 16 279 16 351 16 191 16 284 16 095 16 095 with tips (§)

(ft/in) (53'1") (53'4") (53'6") (53'1") (53'4") (52'8") (52'8")

Overall height with bucket at full raise (§) mm 9930 9930 10 109 9930 9930 10 109 9930

(ft/in) (32'6") (32'6") (33'2") (32'6") (32'6") (33'2") (32'6")

Loader clearance circle with bucket in mm 11 326 11 352 11 349 11 324 11 352 11 313 11 313 carry position – with tips (§)

(ft/in) (37'1") (37'2") (37'2") (37'1") (37'2") (37'1") (37'1")

Static tipping load straight kg 53 044 52 396 52 099 51 567 52 653 49 505 51 149 (at operating weight) (§)

(lb) (116,942) (115,513) (114,858) (113,685) (116,079) (109,139) (112,764)

Static tipping load at full 43° turn (§) † kg 44 766 44 143 43 834 43 289 44 400 41 227 42 871

(lb) (98,692) (97,318) (96,637) (95,435) (97,885) (90,890) (94,514)

Static tipping load – tire deflection kg 41 753 41 135 40 789 40 288 41 390 38 224 39 873 at full 43° turn (§) †

(lb) (92,049) (90,687) (89,924) (88,819) (91,249) (84,269) (87,904)

Static tipping load at full 40° turn (§) † kg 42 946 42 325 41 981 41 481 42 580 39 417 41 065

(lb) (94,679) (93,310) (92,552) (91,449) (93,872) (86,899) (90,532)

Static tipping load – tire deflection kg 42 946 42 325 41 981 41 481 42 580 39 417 41 065 at full 40° turn (§) †

(lb) (94,679) (93,310) (92,552) (91,449) (93,872) (86,899) (90,532)

Static tipping load at full 35° turn (§) † kg 44 798 44 172 43 833 43 332 44 427 41 268 42 916

(lb) (98,762) (97,382) (96,635) (95,530) (97,944) (90,980) (94,613)

Static tipping load – tire deflection kg 44 798 44 172 43 833 43 332 44 427 41 268 42 916 at full 35° turn (§) †

(lb) (98,762) (97,382) (96,635) (95,530) (97,944) (90,980) (94,613)

Breakout force (§) † kg 57 958 55 505 53 769 57 334 55 656 58 866 59 703

(lb) (127,775) (122,367) (118,540) (126,399) (122,700) (129,777) (131,622)

Operating weight (§) † kg 99 076 99 469 99 849 100 455 99 250 102 625 100 831

(lb) (218,425) (219,291) (220,129) (221,465) (218,808) (226,249) (222,294)

Segments Segments Segments Segments Segments Segments Segments

10.7 11.5 12.3 10.7 11.5 10.7 10.7 (14) (15) (16) (14) (15) (14) (14)

8.9 9.5 10.2 8.9 9.5 8.9 8.9

(11.6) (12.4) (13.3) (11.6) (12.4) (11.6) (11.6)

5415 5415

(§) Specications and ratings conform to all applicable standards recommended by the Society for Automotive Engineers. SAE Standards J732C govern loader ratings

and are denoted in the text by (§).

† Static tipping load and operating weight shown are based on standard machine congurations with a full fuel tank, coolant, lubricants, and operator.

Page 16

992K Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, back-up Alternator, (150-amp) Batteries, low maintenance Deutsch & Amp Seal terminal connectors ECM diagnostic connector Lighting system, halogen (front and rear) Lighting, access stairway Starter, electric (heavy duty) Starting and charging system (24-volt) Starting receptacle for emergency start

OPERATOR ENVIRONMENT

Action alert system, three category Air conditioner Cab, sound suppressed, pressurized,

rollover protective structure (ROPS/FOPS) Radio ready for(entertainment) includes antenna, speakers, and 1 x 12V converters (24-volt, 10 amp) for use with laptop/

cellphone Cigar lighter and ashtray Coat hook Electro-hydraulic tilt and lift control

systemlocks Heater and defroster Horn, electric Instrumentation, gauges:

Engine coolant temperature

Fuel level

Hydraulic oil temperature

Tachometer

Transmission oil temperature Intermittent front wipers Light, dome (cab) Lunchbox and beverage holders Mirrors, rearview (externally mounted)

Monitoring system (VIMS) with gauges Seat belt, retractable, 76 mm (3 in) wide Seat, Cat Comfort (cloth) air suspension STIC control system Tinted glass Trainer seat with lap belt Transmission gear indicator Wet-arm wipers/washer

(front, rear, and corners)

POWER TRAIN

Axle oil coolers (front and rear) Brakes, fully hydraulic, enclosed,

wetmultiple disc service brakes and

dryparking/secondarybrake Demand fan Electric fuel priming pump Engine Cat Ground level engine shutdown Ground level transmission lockout Ground level starter lockout Implement and steering lockouts Precleaner, engine air intake Next Generation Modular Radiator

(NGMR) Starting aid (ether) automatic Throttle lock Transmission, 533 mm (21 in) planetary,

powershift with 3F/3R, electronic control

OTHER STANDARD EQUIPMENT

Autolube Automatic bucket lift/tilt kickouts,

electronically adjustable from cab Bumper service center Couplings, Cat O-ring face seals Doors, service access (locking)

C32 ACERT

Fenders, steel (front and rear) Grouped hydraulic pressure ports Guards, power train and crankcase Hitch, drawbar with pin Hoses, Cat XT and XT-ES Hydraulic oil cooler Impeller clutch Implement and steering ecology drains Mufers, under hood Oil sampling valves Piston pump case drain  lters Positive Flow Control implement valve

andpumps

Sight gauges:

Steering oil level Implement oil level Transmission oil level

Coolant level Starter lockout, bumper Stairway, left rear access Steering and transmission lock lever, cab Steering, load sensing Transmission lockout, bumper Vandalism protection caplocks Venturi stack

TIRES, RIMS, AND WHEELS

A tire must be selected from the mandatory

attachments section. Base machine price

includes a tire allowance.

ANTIFREEZE

Premixed 50 percent concentration

of extended life coolant with freeze

protection to 34° C (–29° F)

Page 17

Optional equipment may vary. Consult your Cat dealer for details.

992K Optional Equipment

ELECTRICAL

10A converter HID lights Rear vision camera – WAVES Warning beacon light

OPERATOR ENVIRONMENT

AM/FM, CD basic radio Cab precleaner Satellite radio ready Satellite Sirius radio Satellite XM radio

STARTING AIDS MISCELLANEOUS ATTACHMENTS

Engine coolant 120V heater Oil renewal system Engine coolant 240V heater Roading fenders

Service center

MACHINE CONTROL

ANDGUIDANCE CAES attachment ready option

Page 18

992K Mandatory Equipment

Must choose from each category. Consult your Cat dealer for details.

AXLES

Standard front and rear (NC) Standard front and no-spin rear

CAB

Standard glass Rubber mounted glass

LIFT

Standard High

LUBE ARRANGEMENTS

Centromatic AutoLube arrangement Line, grease, standard lubrication Quicklube AutoLube arrangement

ELECTRONICS

VIMS display software

(selectlanguagegroup)

OPERATOR SEAT

Seat, heated Seat, standard

MIRROR ARRANGEMENT

Mirror, heated Mirror, standard

TORQUE CONVERTER

ICTC with housing and lock-up clutch Standard ICTC with housing

ENGINE ARRANGEMENTS

Engine, standard Engine, standard, sound suppression Engine, brake and engine, brake, sound

suppression

FUEL ARRANGEMENTS

Fuel arrangement, fast  ll Fuel arrangement, fast  ll, heated

(fuelheater) Fuel arrangement, heated (fuel heater) Fuel arrangement, standard

COOLING ARRANGEMENTS

High Ambient – for ambient temperatures

55ºC (131º F), standard  ltration Standard – for ambient temperatures

43ºC (109ºF), standard  ltration

STEERING AND FILTRATION SYSTEMS

Secondary steering, deluxe  ltration Secondary steering, standard  ltration Standard steering, deluxe  ltration Standard steering, standard  ltration

OPERATION AND

MAINTENANCEMANUAL English version French version German version Greek version Hebrew version Italian version Japanese version Norwegian version Portuguese version Russian version Spanish version Swedish version Thai version Turkish version

TIRES

Consult your Cat dealer for current options

PRODUCT LINK

Required for NACD, LACD, Europe,

Turkey, Australia, and New Zealand

Page 19

Notes

Page 20

992K Wheel Loader

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ5939-01 (02-2011)
