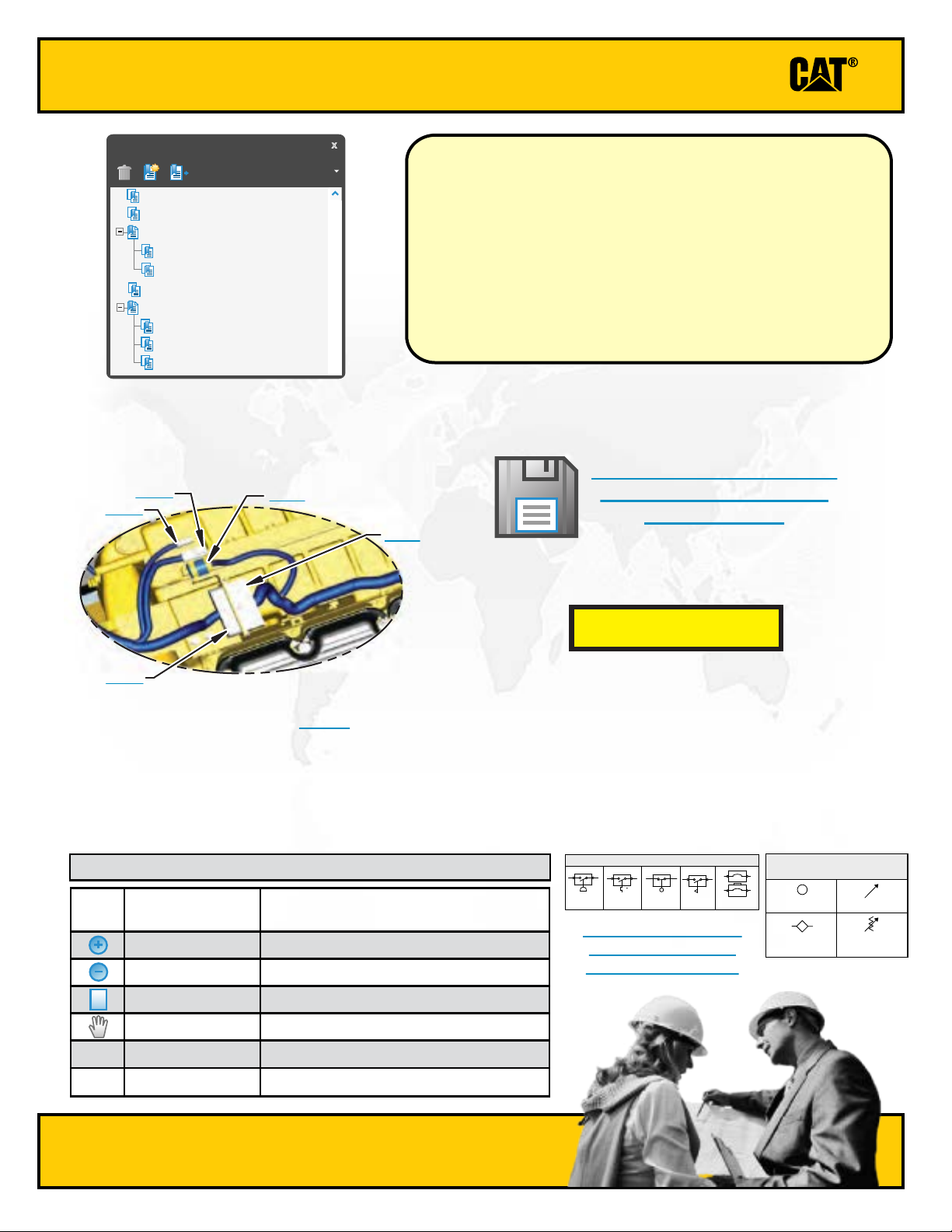

Page 1
INTERACTIVE SCHEMATIC
ELECTRICAL SYMBOLS
Bookmarks
Features
Cover Page
Tables
Component
Connector
Schematic

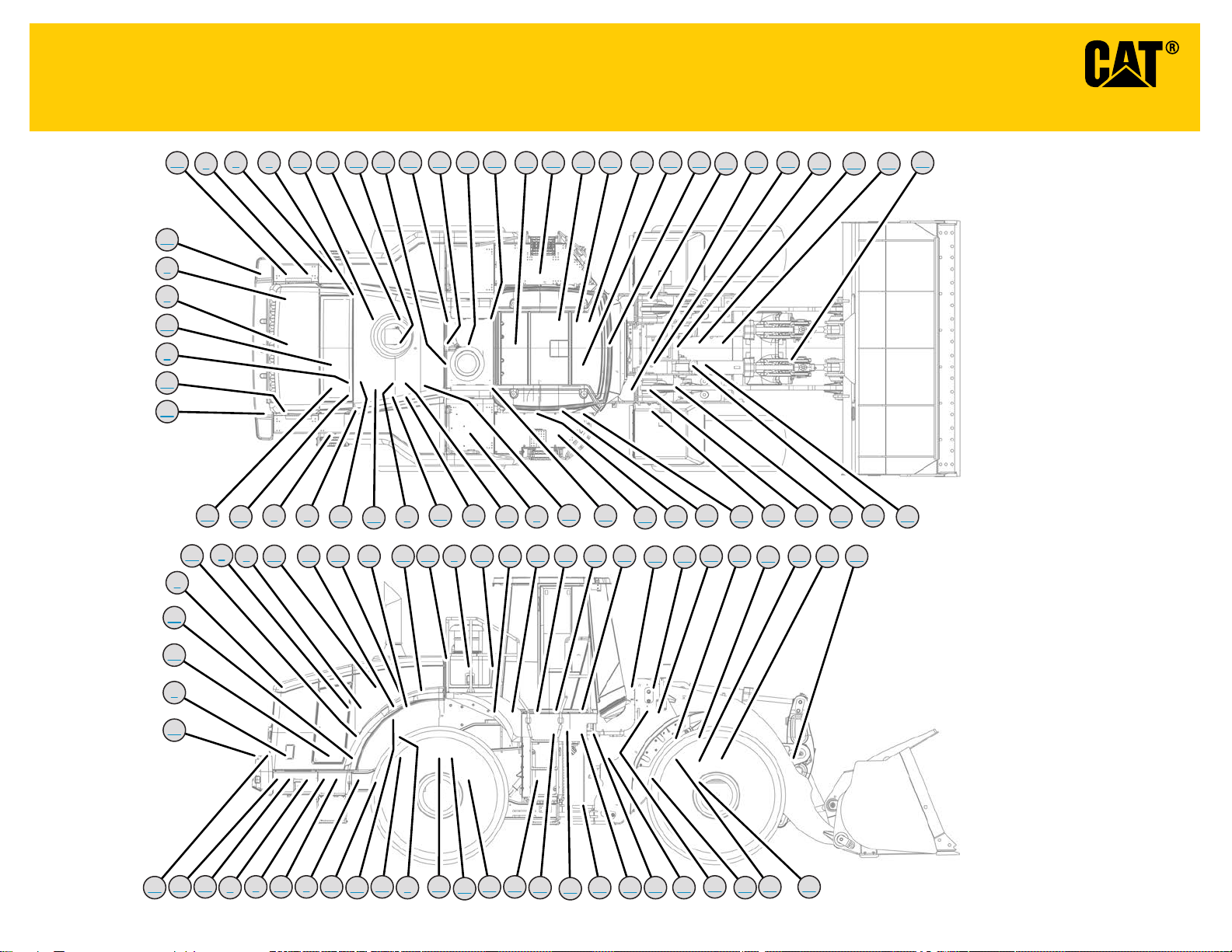

Machine Views
Chassis View
Cab View
Engine View
X
Options
The Bookmarks panel will allow you to
quickly navigate to points of interest.
EC-C2
EC-C3
E-C60
E-C61
*This document is best viewed at a
screen resolution of 1024 X 768.
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
*Due to different monitor sizes and PDF reader preferences
there may be some variance in linked schematic locations
Click here to save a copy of
this interactive schematic
to your desktop
EC-C1
Click on any text that is BLUE and
underlined. These are hyperlinks
that can be used to navigate the
schematic and machine views.
HOTKEYS (Keyboard Shortcuts)
FUNCTION
Zoom In
Zoom Out
Fit to Page
Hand Tool
Find
“CTRL” / “+”
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
“CTRL” / “F”
KEYS
VIEW ALL CALLOUTS
When only one callout is showing on a
machine view, clicking on this button will
make all of the callouts visible. This
button is located in the top right corner
of every machine view page.
BASIC HYDRAULIC
COMPONENT SYMBOLS
Pressure
Switch
T
Temperature
Switch
Level
Switch
Flow
Switch
Circuit Breaker
Click here to view the
Schematic Symbols
and Definitions page
Pump
or Motor
Fluid
Conditioner
(Adjustable)
Variability
Spring
Search
“CTRL” / “SHIFT” / “F”
Page 2

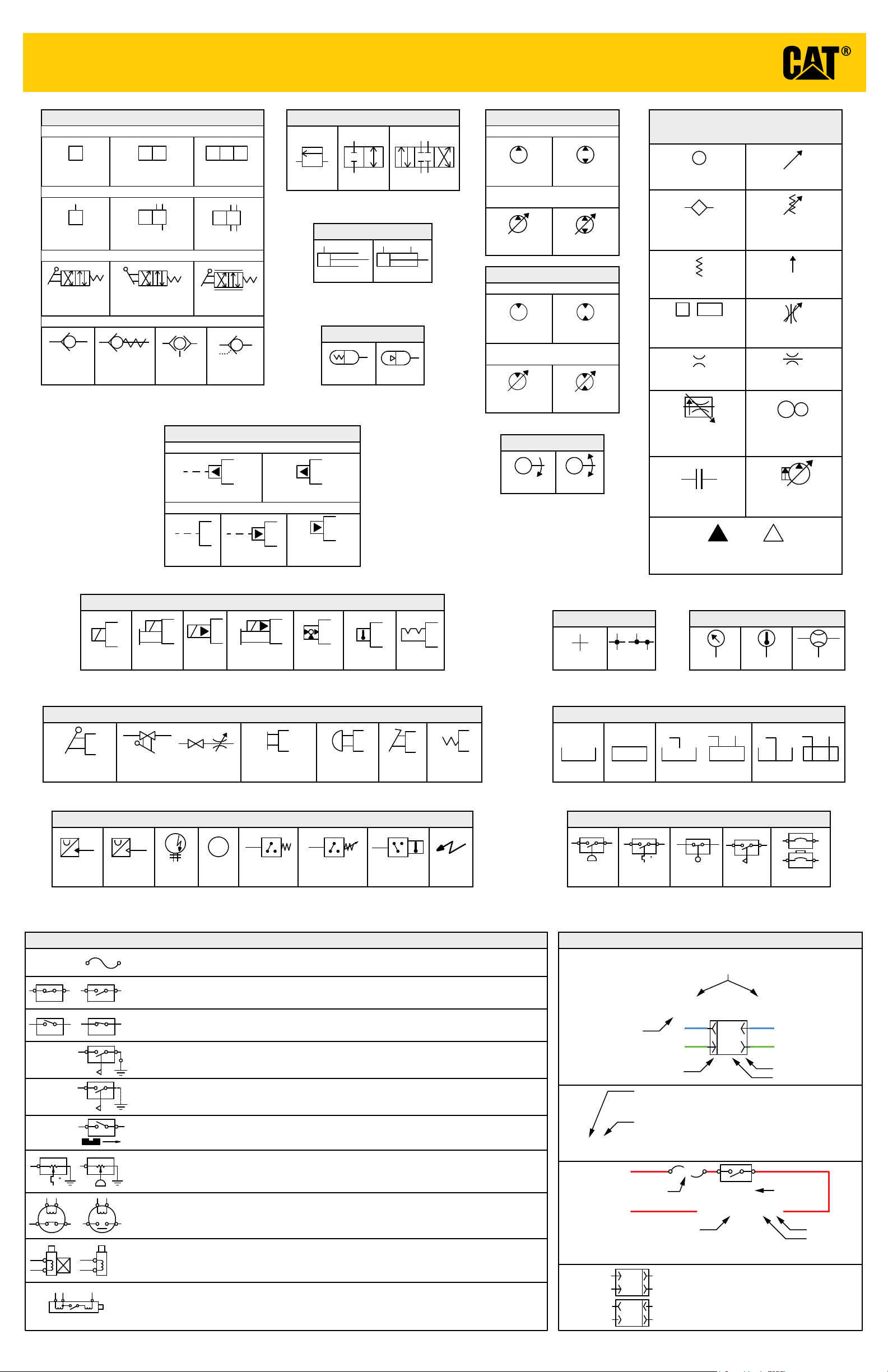

SCHEMATIC SYMBOLS AND DEFINITIONS
One Position
Two-way
A B
P T
Normal Position
Basic
Symbol
VALVES
ENVELOPES
Two Position
PORTS
Three-Way
CONTROL
A B
P T
Shifted Position
CHECK
Spring
Loaded
Shuttle
Three Position
Four-Way
Infinite Position
Pilot
Controlled
PILOT CONTROL
RELEASED PRESSURE
INTERNAL PASSAGEWAYS
FLOW IN ONE
DIRECTION
Infinite
Positioning
FLOW ALLOWED IN
EITHER DIRECTION
Two
Position
CYLINDERS
Single Acting
Double Acting
ACCUMULATORS
Spring Loaded
Gas Charged
PARALLEL
FLOW
Three
Position
CROSS
FLOW
PUMPS
FIXED DISPLACEMENT
Unidirectional
Bidirectional
VARIABLE DISPLACEMENT
NON- COMPENSATED
Unidirectional
Bidirectional
MOTORS
FIXED DISPLACEMENT
Unidirectional
Bidirectional
VARIABLE DISPLACEMENT
NON- COMPENSATED
Unidirectional
Bidirectional
ROTATING SHAFTS
BASIC HYDRAULIC
COMPONENT SYMBOLS
Pump
or Motor
Fluid
Conditioner
Spring
Control
Valves
Restriction
Line Restriction
Variable and Pressure
Compensated
Variability
Spring
(Adjustable)
Pressure
Compensation
Line Restriction
(Variable)
Line Restriction
(Fixed)
AUX.
MAIN
2-Section
Pump
External Return
Simplified
Solenoid
Solenoid
or Manual
Solenoid
and Pilot
Push-pull Lever PedalGeneral Manual Push Button SpringManual Shutoff
Internal Return
REMOTE SUPPLY PRESSURE
Complete
Internal
Supply Pressure
COMBINATION CONTROLS
Solenoid and
Pilot or Manual
Servo
MANUAL CONTROL
Thermal
Detent
Unidirectional
Bidirectional
Attachment
Pump: Variable and
Pressure Compensated
Hydraulic Pneumatic
Energy Triangles
MEASUREMENT
Pressure
Temperature
Flow
Crossing
LINES
Joining
FLUID STORAGE RESERVOIRS
Vented Pressurized Return Above Fluid Level Return Below Fluid Level
Transducer
(Fluid)
T
HYDRAULIC SYMBOLS - ELECTRICAL
Transducer
(Gas / Air)
G
Generator
M
Electric
Motor
Pressure
Switch
Pressure Switch
(Adjustable)
Temperature
Switch
Electrical
Wire
BASIC ELECTRICAL COMPONENT SYMBOLS
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.).
Ground (Wired): This indicates that the component is connected to a grounded wire.
The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground.
It is grounded by being fastened to the machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of
a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender:
A component that is used with a temperature or pressure gauge.
The sender measures the temperature or pressure.
Its resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity.
Solenoid: A solenoid is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: An electrical component that is activated by electricity and held latched by a
that the component has screw terminals and a wire can be disconnected from it.
No circle indicates that the wire cannot be disconnected from the component.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close the switch part of the relay.
permanent magnet. It has two coils (latch and unlatch) that make electromagnet
when current flows through them. It also has an internal switch that places
the latch coil circuit open at the time the coil latches.
ELECTRICAL SYMBOLS
Pressure
Switch
T
Temperature
Switch
Switch
HARNESS AND WIRE SYMBOLS
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
AG-C4
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, AA, AB, AC, ...)
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...)
L-C12
3E-5179
Fuse (5 Amps)
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
*Wire gauge is shown in AWG (American Wire Gauge)
but could also be shown in metric denoted with mm
1
2
1
2
111-7898
Plug
5A
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Level
Flow
Switch
L-C12
3E-5179
1
2
9X-1123
325-AG135 PK-14
Circuit Breaker
Receptacle
Pin or Socket Number
Component
Part Number
Wire Gauge*
Wire Color
Page 3
RENR8682-06
December 2019
980H Wheel Loader
Electrical System
MHG1-UP
A8J1-UP
JMS1-UP
Volume 1 of 2: Cab
Volume 2 of 2: Chassis and Engine
© 2019 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Yellow,” the “Power Edge”
and Cat “Modern Hex” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
Page 4
COMPONENT LOCATION
Volume 1 of 2 - CAB
Component Component
Alarm - Action F-11
Alarm - Implement Audible Alert F-11 A Sensor - Lift Lever Position H-5 15
Arc Suppressor - Implement POD I-6 D Sensor - Throttlle Position F-3 17
Breaker - HVAC Blower Power B-11 A Sensor - Tilt Lever Position H-5 15
Bulkhead Passthrough A-8 A
Control - Caterpillar Monitoring System C-3 1
Control - Dimmer B-5 2
Control - Implement Control System C-14 B
Control - Machine Security System F-12 B
Control - Payload Control System C-4 3
Control - Product Link (Gateway) J-8 4
Control - Transmission Control System I-14 A
Converter - Voltage (10A) G-12 2
Display - Groeneveld Autolube D-3 5
Filter - Machine Security System F-12 6
Flasher - 24V E-11 2
Fuse - Block C-11 7
Fuse - Thermal Cut Out I-12 C
Guage - Quad F-3 8
Indicator - Center Dash G-3 9
Indicator - Left Hand Panel G-3 10
Indicator - Right Hand Panel G-3 11
Joystick - Implement Control J-5 D
Keypad - WLPCS B-4 11
Monitor - Rear Vision A-4 12 Switch - Implement Lockout H-6 D
Motor - Blend Door Actuator I-12 C Switch - Key Start D-2 D
Motor - Blower I-12 C Switch - Lift Tilt Kickout Set C-6 D
Motor - Front Wiper E-3 13 Switch - Neutral Override C-6 D
Motor - Rear Wiper J-11 14 Switch - Rear Wiper/Washer D-6 D
Radio - Product Link J-8 4 Switch - Reversing Fan B-6 D
Relay - Axle Cooler D-11 B Switch - Ride Control C-6 D
Relay - Forward Cab Floodlamp D-11 B Switch - Running Lamp G-1 D
Relay - Forward Horn D-11 B Switch - Stop Lamp D-3 D
Relay - Heated Mirrors Timer E-11 B Switch - Transmission Shifter E-1 D
Relay - Rear Floodlamp D-11 B Switch - Turn Signal F-1 D
Resistor - Blower Motor I-12 C Switch - Variable Shift Control B-7 D
Resistor 1 I-11 C Tach/Speedometer F-3 8
Resistor 2 I-11 C Thermostat I-12 C
Schematic
Location
Machine
Location
A Sensor - Left Hand Brake Pedal E-3 16
Sensor - 3rd Lever Position
Solenoid - Lift Lever Lift Detent I-6 D
Solenoid - Lift Lever Lower Detent I-6 D
Solenoid - Rackback Detent I-6 D
Switch - Auto/Manual Gear Select C-6 D
Switch - Autodig Kickout Set B-6 D
Switch - Autodig Mode B-7 D
Switch - Autodig Mode Select B-6 D
Switch - Autodig Trigger H-5 D
Switch - Beacon E-2 D
Switch - Blower Fan Speed E-6 D
Switch - Cat Mon Sys Mode E-6 D
Switch - Fine Modulation G-6 D
Switch - Forward Horn E-2 D
Switch - Forward Horn 2 H-5 D
Switch - Front Intermittent Wiper/ D-6 D
Switch - Hazard Lamp E-2 D
Switch - Heated Mirror D-6 D
Switch - HID Lamp H-2 D
Switch - HVAC Temperature D-6 D
Schematic
Location
G-5
Machine
Location
15
Page 5
COMPONENT LOCATION
Volume 2 of 2 - CHASSIS AND ENGINE
Component
Alarm - Backup B-6
Alternator F-12 2 Sensor - Torque Converter Temperature D-12 22
Arc Suppressor C-12 2 Sensor - Trans. Output Speed F-4 23
Arc Suppressor H-13 3 Sensor - Transmission Input Speed F-4 23
Batteries E-11 4 Sensor - Transmission Oil Temperature F-4 24
Block Asm. F-11 5 Sensor - Turbo Inlet Pressure F-7 25
Breaker - Alternator G-13 3 Sensor - Turbo Outlet Pressure D-10 26
Breaker - Belly Guard Actuator H-13 3 Solenoid - A/C Clutch B-12 17
Breaker - Hood G-13 3 Solenoid - Aux Lift Prop F-1 27
Breaker - Main G-13 3 Solenoid - Aux Lower Prop F-1 27
Breaker - Running Lamp H-13 3 Solenoid - Axle Oil Cooler Clutch H-7 27
Breaker - Start H-13 3 Solenoid - Dump Prop F-1 27
Breaker - Unswitched Bus (Cab) H-13 3 Solenoid - Lift Prop F-1 27
Camera - Rear View A-8 6 Solenoid - Lower Prop F-1 27
Control - Engine A-14 7 Solenoid - On / Off Pilot F-1 27
Diode - Hood Actuator Control H-9 8 Solenoid - Rack Back Prop F-1 27
Motor - Autolube Pump B-4 9 Solenoid - Reversing Fan D-7 17
Motor - Front Washer C-7 10 Solenoid - Start Aid F-7 25
Motor - Fuel Priming Pump B-10 11 Solenoid - Variable Speed Fan C-12 17
Motor - Hood Actuator H-9 8 Solenoids - Belly Actuator G-11 28
Motor - Rear Washer C-7 10 Solenoids - Cylinder Head (1) B-11 29
Motor - Starter E-12 12 Solenoids - Ride Control H-2 30
Relay - Main G-13 3 Solenoids - Trans. Clutch F-5 31
Relay - Start H-13 3 Switch - A/C Refrigerant C-12 17
Sender - Front Axle Oil Temperature F-2 13 Switch - Autolube Pressure C-4 9
Sender - Fuel Level H-3 14 Switch - Belly Guard Actuator G-11 32
Sender - Rear Axle Oil Temp. H-7 15 Switch - Brake Oil Pressure C-7 33
Sensor - Atmospheric Pressure C-10 7 Switch - Differential Pressure A-10 11
Sensor - Cam Shaft Speed Timing D-10 2 Switch - Disconnect E-11 34
Sensor - Coolant Temperature D-10 16 Switch - Fuel Priming Pump A-10 11
Sensor - Crank Shaft Speed Timing C-10 17 Switch - Ground Level Shutdown I-3 14
Sensor - Fuel Pressure A-10 11 Switch - Hood Actuator H-9 35
Sensor - Fuel Temperature A-10 11 Switch - Hydraulic Filter Bypass C-7 36
Sensor - Hydraulic Oil Temperature D-7 18 Switch - Hydraulic Oil Level C-7 18
Sensor - Intake Manifold Air Temp C-10 11 Switch - Park Brake Pressure C-7 33
Sensor - Lift Cylinder Head End Press. H-1 19 Switch - Supplemental Steering H-3 37
Sensor - Lift Cylinder Rod End Pressure H-1 19 Switch - Trans Filter Bypass B-6 38
Sensor - Lift Position I-2 20 Sensor - Oil Pressure D-10 7
Schematic
Location
Machine
Location
1 Sensor - Tilt Position I-1 21
Component
Schematic
Location
Machine
Location
Page 6
CONNECTOR LOCATION
Volume 1 of 2 - CAB
Connector Number
Schematic
Location
CONN 1 E-14
CONN 2 F-14 A
CONN 3 F-14 A
CONN 4 G-14 A
CONN 5 E-11 B
CONN 6 Service Mode Plug F-11 7
CONN 7 F-11 32
CONN 8 G-11 2
CONN 9 I-11 C
CONN 10 I-10 4
CONN 11 Groeneveld Autolube Service E-9 33
CONN 12 J-7 34
CONN 13 J-7 34
Schematic
Location
A
CONN 14 G-7 4
CONN 15 B-6 36
CONN 16 PCS Customer Data CONN B-3 3
CONN 17 B-3 3
CONN 18 D-3 5
CONN 19 D-3 37
CONN 20 E-3 38
CONN 21 I-3
CONN 22 I-3 40
CONN 23 F-2 41
CONN 24 E-2 13
CONN 25 D-2 15
CONN 26 Service Tool CONN D-1 15
CONN 27 E-2 13
The connectors shown in this chart are for harness to
39
harness connectors. Connectors that join a harness to a
component are generally located at or near the
component. See the Component Location Chart.
Page 7
CONNECTOR LOCATION
Volume 2 of 2 - CHASSIS AND ENGINE
Connector Number
CONN 1 C-3
CONN 2 E-3 50
CONN 28 Aux. Start Receptacle F-10 51
CONN 29 A-10 11
CONN 3 E-3 50
CONN 30 A-10 11
CONN 31 B-10 52
CONN 32 Timing / Calibration Probe C-10 7
CONN 33 C-10 17
CONN 34 D-8 53
CONN 35 D-8 53
CONN 36 A-7 54
CONN 37 B-7 54
CONN 38 B-7 55
CONN 39 B-7 55
CONN 4 F-3 50
CONN 40 C-7 10
CONN 41 H-7 56
CONN 42 H-7 57
CONN 43 C-6 33
CONN 44 C-5 9
CONN 45 G-4 58
CONN 46 H-2 59
CONN 47 H-2 30
CONN 48 H-2 30
CONN 49 H-2 60
CONN 50 G-2 61
CONN 51 G-2 62
CONN 52 F-2 63
CONN 53 F-2 64
CONN 54 H-2 59
CONN 55 C-5 9
CONN 56 C-5 9
CONN 57 H-4 37
Schematic
Location
Schematic
Location
50
The connectors shown in this chart are for harness to
harness connectors. Connectors that join a harness to a
component are generally located at or near the
component. See the Component Location Chart.
Page 8

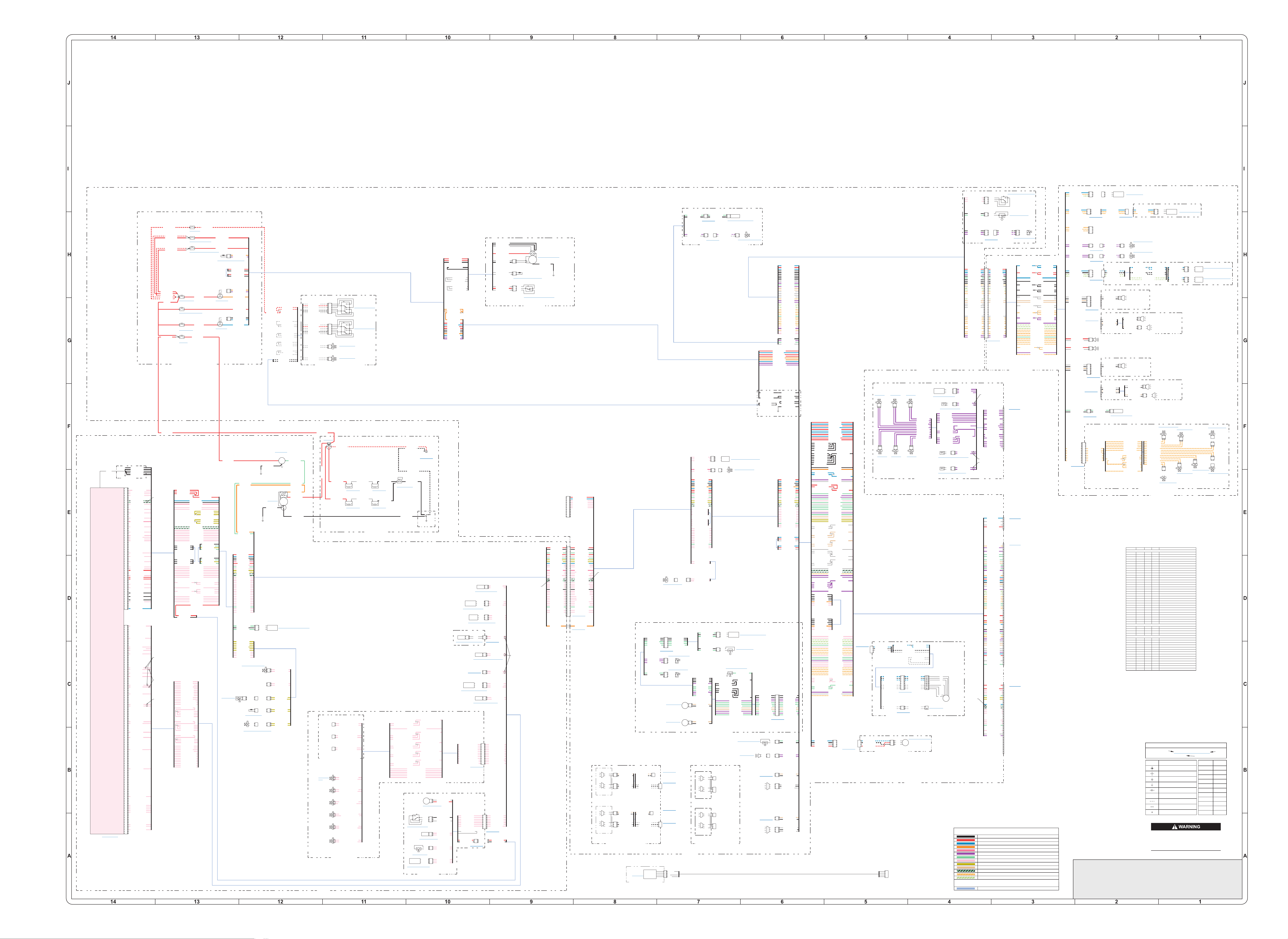

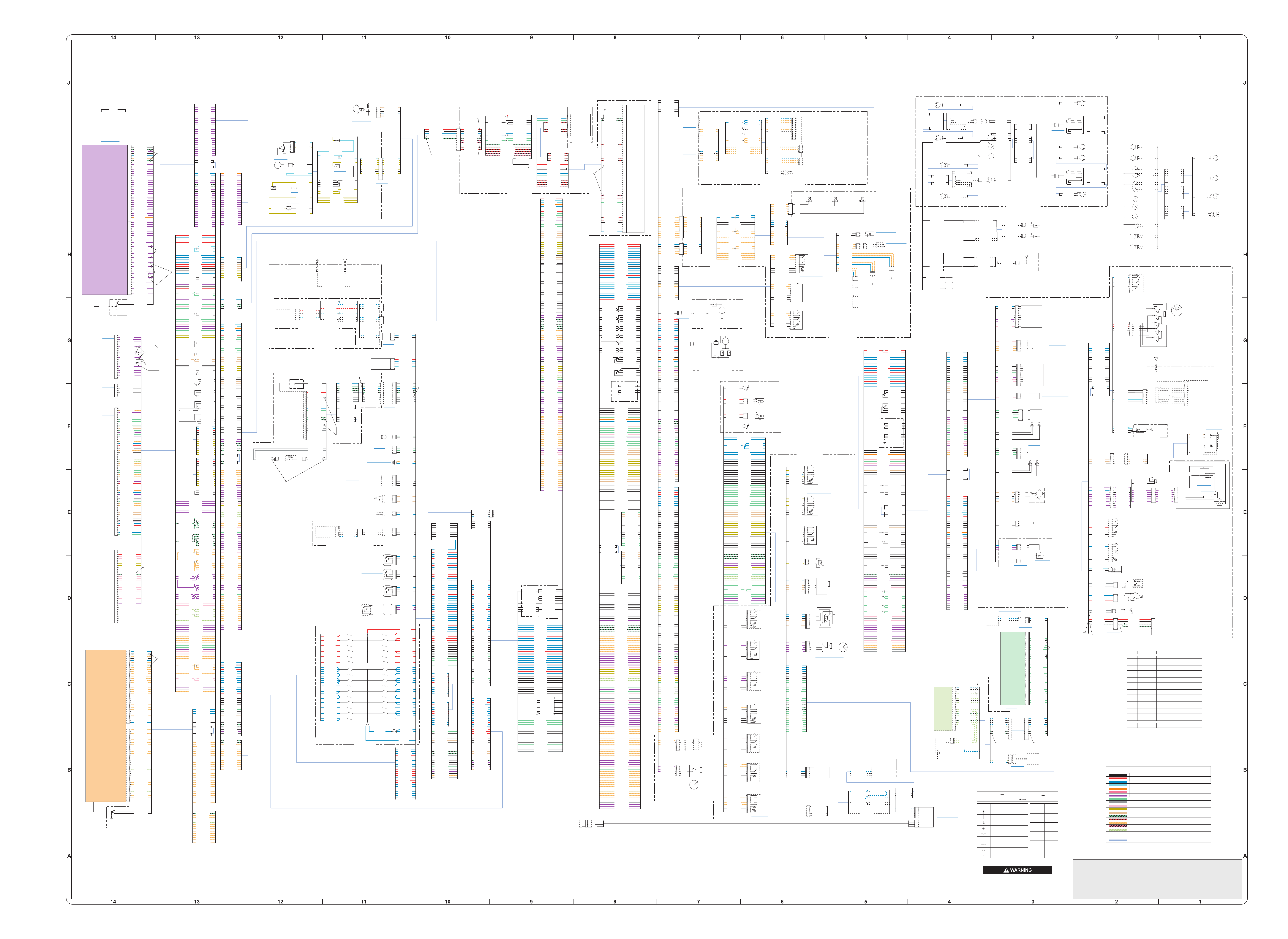

GND STRAP
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
8X-5804
TO INSURE PROPER GROUND
REMOVE PAINT AND
CORROSION BEFORE
CONNECTING GROUND STRAP
(A) TRANSMISSION ECM
172-9389
BATTERY+
CAT DATA LINK (CDL-)
AXLE COOLER CLUTCH
SOLENOID AND INDICATOR RETURN
VARIABLE SHIFT CONTROL (ECONOMY)
SECONDARY STEERING TEST SWITCH
SECONDARY STEERING PRESS SWITCH (N/C)
VARIABLE SHIFT CONTROL (POWER)
PRIMARY STEERING PRESS SWITCH (N/C)
PRIMARY STEERING PRESS SWITCH (N/O)
SECONDARY STEERING PRESSURE SWITCH (N/O)
SENSOR/INDICATOR SUPPLY +8 VOLTS
START RELAY COIL+
CAT DATA LINK (CDL+)
CLUTCH 2 SOLENOID (FORWARD)
RIDE CONTROL SOLENOID 2 (OFF)
CLUTCH 1 SOLENOID (REVERSE)
RIDE SOLENOID 1 (ON)
AUTO/MANUAL SWITCH (MANUAL)
NEUTRALIZER OVERRIDE SWITCH
NEUTRAL SWITCH
REVERSE SWITCH
SENSOR RETURN
SENSOR RETURN
UPSHIFT SWITCH (N/C)
RIDE CONTROL SWITCH (AUTO)
RIDE CONTROL SWITCH (ON)
UPSHIFT SWITCH (N/O)
VARIABLE SHIFT CONTROL (MID)
DOWNSHIFT SWITCH (N/C)
DOWNSHIFT SWITCH (N/O)
PARK BRAKE SWITCH (ON)
FORWARD SWITCH
AUTO/MAN SW (AUTO 4)
AUTO/MAN SW (AUTO 2)
AUTO/MAN SW (AUTO 3)
AUTO/MAN SW (AUTO 1-4)
PARK BRAKE SWITCH (OFF)
KEY SWITCH POSITION (START)
CLUTCH 4 SOLENOID 3RD
CLUTCH 6 SOLENOID 1ST
SOLENOID/INDICATOR RETURN
LH PEDAL POSITION SENSOR
CLUTCH 3 SOLENOID 4TH
CLUTCH 5 SOLENOID 2ND
XMSN OUTPUT SPEED -
XMSN OIL TEMPERATURE
XMSN OUTPUT SPEED +
RIDE CONTROL INDICATOR
XMSN INPUT SPEED -
XMSN OUTPUT SPD TRAIL +
XMSN FILTER INDICATOR
XMSN INPUT SPEED +
XMSN OUTPUT SPD TRAIL -
NEUTRALIZER DISABLE INDICATOR
BACKUP (+24 VOLTS)
ENGINE SPEED (RPM) FROM ADEM
FUEL LEVEL LOW INDICATOR
STRAP AS.
CONNECTS TO AT-C10
ON THE CHASSIS AND
ENGINE DIAGRAM
FOR PART NUMBERS
SEE THE TITLE BLOCK
CONNECTS TO CJ-C11
ON THE CHASSIS AND
ENGINE DIAGRAM
FOR PART NUMBERS
SEE THE TITLE BLOCK
CONNECTS TO CJ-C4
ON THE CHASSIS AND
ENGINE DIAGRAM
FOR PART NUMBERS
SEE THE TITLE BLOCK
CONNECTS TO CJ-C13
ON THE CHASSIS AND
ENGINE DIAGRAM
FOR PART NUMBERS
SEE THE TITLE BLOCK
RACKBACK PROPORTIONAL SOLENOID
IMPLEMENT FUNCTION SEL SW (N/O)
IMPLEMENT FUNCTION SEL SW (N/C)
AUTODIG OPERATOR MODE SW (N/O)
AUTODIG OPERATOR MODE SW (N/C)
7X-6315
(B) IMPLEMENT ECM
172-9391
LOWER PROPORTIONAL SOLENOID
PILOT SUPPLY ON/OFF SOLENOID
DUMP PROPORTIONAL SOLENOID
AUTODIG OPERATION MODE SW S1
AUTODIG OPERATION MODE SW S2
CAB GND
ECM MOUNT BOLT
1
CONN 4
CONN 3
CONN 2
CONN 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
CAT DATA LINK -
SOLENOID RETURN
LIFT PROPORTIONAL SOLENOID
IMPLEMENT LOCKOUT SW (N/O)
IMPLEMENT LOCKOUT SW (N/C)
CAT DATA LINK +
LOWER KO DETENT SOLENOID
DIGITAL RETURN
DIGITAL RETURN
LIFT KO DETENT SOLENOID
KO SET SW LIFT
KO SET SW TILT
AUTODIG DIG MODE SW S1
AUTODIG DIG MODE SW S2
AUTODIG DIG MODE SW S3
AUTODIG DIG MODE SW S4
FINE MODULATION SW(N/C)
FINE MODULATION SW(N/O)
3RD FUNCTION LIFT PROPORTIONAL SOLENOID
SOLENOID RETURN
LIFT LEVER POSITION SENSOR
TILT LEVER POSITION SENSOR
3RD FUNCTION LOWER PROPORTIONAL SOLENOID
3RD LEVER POS SENSOR
+10 VOLT SENSOR SUPPLY
AUTODIG KO POSITION SET SW (N/O)
AUTODIG KO POSITION SET SW (N/C)
SIDE DUMP DETENT SOLENOID
TILT LINKAGE POSITION SENSOR
AUTODIG RECORD INDICATOR
LIFT HEAD END PRESSURE SENSOR
AUTODIG AUTO INDICATOR
JOYSTICK LIFT POSITION SENSOR
JOYSTICK TILT POSTION SENSOR
AUTODIG AUDIBLE INDICATOR
LIFT LINKAGE POSITION SENSOR
JOYSTICK THIRD FUNCTION POSITION SENSOR
RACKBACK DETENT SOLENOID
AUTODIG OPERATOR MODE INDICATOR
STRAP AS.
7X-6315
ECM MOUNT BOLT
CAB GND 2
CAB GROUND 4ENG END FRAME GND
GROUND
GROUND
BATTERY+
C-C26
9X0145
962-C273 OR-18
709-C34 OR-18
751-C115 GN-18
752-C111 YL-18
E900-C207 WH-18
E906-C221 OR-18
E908-C227 BR-18
754-C142 BU-18
E901-C203 GN-18
E907-C246 GY-18
E909-C218 WH-18
755-C120 OR-18
900-C147 PU-18
901-C121 WH-18
975-C286 WH-18
K977-C205 PK-18
C-C2
8N1532
112-C1 PU-4
611-C32 PU-14
619-C40 GN-14
174-C2 RD-10
C-C3
2144208
T997-C303 OR-18
962-C4
419-C118 YL-18
432-C6
442-C7
496-C9
506-C10 PU-18
507-C11 WH-18
E455-C12 BR-18
G764-C117 PK-18
K933-C14 GN-18
484-C140 YL-18
H718-C44 GY-18
106-C18 WH-18
114-C41 RD-18
138-C20 GN-18
251-C146 BK-18
953-C22 GY-18
322-C39 GY-18
976-C116 OR-18
C529-C48 GY-18
C530-C49 BU-18
E416-C36 PU-18
E919-C51 YL-18
E920-C52 BR-18
E921-C53 PK-18
E922-C54 GN-18
G485-C55 BU-18
G486-C56 GN-18
H713-C57 PK-18
H714-C58 OR-18
416-C184 OR-18
102-C69 RD-14
199-C72 RD-18
306-C109 GN-18
308-C87 YL-18
453-C119 PK-18
201-C101 BK-18
417-C183 GY-18
447-C64 PK-18
H716-C66 WH-14
H717-C67 BR-18
N939-C112 GN-18
321-C249 BR-18
604-C78 OR-18
605-C79 YL-18
606-C80 GY-18
608-C81 GN-14
614-C82 PU-18
617-C83 BR-18
975-C84 WH-18
136-C269 GN-18
147-C270 RD-18
439-C464 YL-18
136-C75 GN-18
426-C85 BR-18
C-C35
1835785
110-C76 RD-14
326-C287 RD-18
450-C263 YL-18
H702-C387 PU-18
H703-C388 YL-18
403-C123 GN-18
521-C124 YL-18
522-C125 WH-18
150-C126 OR-18
944-C127 OR-18
945-C128 BR-18
A307-C129 GY-18
A982-C130 BR-18
H795-C38 PK-18
430-C313 BU-18
E759-C315 WH-18
G479-C33 WH-18
443-C104 YL-18
G850-C29 BU-18
P739-C458 BU-18
975-C106 WH-18
+BATTERY
GROUND
GROUND
+BATTERY
+BATTERY
C-C31
1010205
J1
1
164-C70 WH-18
2
A273-C27 BK-18
3
945-C105 BR-18
4
J887-C456 PU-18
5
A273-C19 BK-18
6
164-C107 WH-18
7
975-C108 WH-18
8
306-C109 GN-18
9
944-C110 OR-18
10
11
752-C111 YL-18
12
N939-C112 GN-18
13
G763-C185 PU-18
14
G755-C186 GY-18
15
962-C113 OR-18
16
962-C114 OR-18
17
751-C115 GN-18
18
976-C116 OR-18
19
G768-C187 GN-18
20
21
G766-C189 GN-18
22
G767-C190 WH-18
23
G760-C191 WH-18
24
X973-C192 BU-18
25
G761-C193 YL-18
26
G762-C194 BR-18
27
G764-C117 PK-18
28
29
973-C195 BR-18
30
G750-C196 BU-18 G750-C196 BU-18
31
977-C197 YL-18
32
H729-C63 WH-18
33
H728-C198 GN-18
34
720-C234 PU-18
35
H730-C201 BR-18
36
419-C118 YL-18
37
38
453-C119 PK-18
39
X972-C188 GN-18
40
307-C3 OR-18
C-C33
3E6287
1
755-C120 OR-18
2
901-C121 WH-18
3
975-C135 WH-18
4
G746-C13 WH-18
5
6
484-C140 YL-18
7
754-C142 BU-18
8
900-C147 PU-18
9
10
417-C183 GY-18
11
416-C184 OR-18
12
709-C34 OR-18
13
14
E901-C203 GN-18
15
16
17
18
K977-C205 PK-18
19
20
E900-C207 WH-18
21
22
E701-C229 PK-18
23
E909-C218 WH-18
24
25
E906-C221 OR-18
26
27
28
436-C47 OR-18
29
E908-C227 BR-18
30
31
E907-C246 GY-18
32
33
34
910-C15 YL-18
35
36
37
321-C249 BR-18
38
450-C263 YL-18
39
40
G480-C316 GN-18
J2
A273-C19 BK-18
A273-C27 BK-18
A273-C35 BK-18
TWISTED WIRES
TWISTED
WIRES
TWISTED WIRES
TWISTED WIRES
102-C69 RD-14
106-C18 WH-18
110-C76 RD-14
112-C1 PU-4
114-C41 RD-18
136-C75 GN-18
136-C269 GN-18
138-C20 GN-18
147-C270 RD-18
150-C126 OR-18
174-C2 RD-10
199-C72 RD-18
201-C101 BK-18
251-C146 BK-18
306-C109 GN-18
308-C87 YL-18
321-C249 BR-18
322-C39 GY-18
326-C287 RD-18
403-C123 GN-18
416-C184 OR-18
417-C183 GY-18
419-C118 YL-18
426-C85 BR-18
430-C313 BU-18
432-C6 PK-18
439-C464 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
450-C263 YL-18
453-C119 PK-18
484-C140 YL-18
496-C9 WH-18
506-C10 PU-18
507-C11 WH-18
521-C124 YL-18
522-C125 WH-18
TWISTED
WIRES
604-C78 OR-18
605-C79 YL-18
606-C80 GY-18
OR-18
PK-18
GY-18
TWISTED
WIRES
TWISTED
WIRES
608-C81 GN-14
611-C32 PU-14
614-C82 PU-18
614-C425 PU-18
614-C378 PU-18
614-C372 PU-18
614-C50 PU-18
WH-18
617-C83 BR-18
619-C40 GN-14
709-C34 OR-18
751-C115 GN-18
752-C111 YL-18
754-C142 BU-18
755-C120 OR-18
900-C147 PU-18
901-C121 WH-18
944-C127 OR-18
945-C128 BR-18
953-C466 GY-18
953-C22 GY-18
TWISTED WIRES
962-C273 OR-18
962-C4 OR-18
962-C348 OR-18
975-C84 WH-18
975-C106 WH-18
975-C286 WH-18
976-C116 OR-18
A307-C129 GY-18
A982-C130 BR-18
C529-C48 GY-18
C530-C49 BU-18 C530-C61 BU-18
E416-C36 PU-18
E455-C12 BR-18
E759-C315 WH-18
E900-C207 WH-18
E901-C203 GN-18
E906-C221 OR-18
E907-C246 GY-18
E908-C227 BR-18
E909-C218 WH-18
E919-C51 YL-18
E920-C52 BR-18
E921-C53 PK-18
E922-C54 GN-18
G479-C33 WH-18
J1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
J2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
C-C7
1010205
C-C8
3E6287
146-C133 GY-18
A272-C148 BK-18
945-C134 BR-18
H714-C58 OR-18
A272-C149 BK-18
146-C150 GY-18
H716-C98 WH-18
H717-C67 BR-18
944-C141 OR-18
H713-C57 PK-18
E922-C54 GN-18
H715-C151 PU-18
E917-C152 WH-18
E918-C153 GN-18
953-C25 GY-18
953-C26 GY-18
E921-C53 PK-18
H719-C154 OR-18
T856-C155 WH-18
T857-C156 GN-18
H708-C157 OR-18
H709-C158 BU-18
G943-C159 BU-18
G944-C160 YL-18
T860-C161 OR-18
T861-C162 YL-18
T852-C163 GY-18
T853-C164 OR-18
T854-C165 YL-18
T855-C166 BU-18
T870-C167 BR-18
T869-C168 WH-18
146-C170 GY-18
E919-C51 YL-18
H716-C97 WH-18
H710-C171 PK-18
H711-C172 GN-18
G942-C173 OR-18
E920-C52 BR-18
T997-C303 OR-18
T858-C175 GY-18
T859-C176 WH-18
T865-C178 GY-18
H718-C44 GY-18
T863-C179 PU-18
C529-C60 GY-18
T864-C180 BR-18
H723-C226 PU-18
H721-C225 OR-18
T866-C174 YL-18
C530-C62 BU-18
H720-C181 BU-18
H722-C301 GN-18
T862-C182 BU-18
A272-C148 BK-18
A272-C149 BK-18
A272-C233 BK-18
TWISTED WIRES
G485-C55 BU-18
G486-C56 GN-18
G764-C117 PK-18
G850-C29 BU-18
H702-C387 PU-18
H703-C388 YL-18
H713-C57 PK-18
H714-C58 OR-18
H716-C66 WH-14
H717-C67 BR-18
H718-C44 GY-18
H795-C38 PK-18
K933-C14 GN-18
K977-C205 PK-18
N939-C112 GN-18
P739-C458 BU-18
T997-C303 OR-18
306-C109 GN-18
321-C249 BR-18
416-C184 OR-18
417-C183 GY
419-C118 YL-18
450-C263 YL-18
453-C119 PK-18
484-C140 YL-18
709-C34 OR-18
751-C115 GN-18
752-C111 YL-18
754-C142 BU-18
755-C120 OR-18
900-C147 PU-18
901-C121 WH-18
962-C113 OR-18
962-C114 OR-18
975-C108 WH-18
975-C135 WH-18
976-C116 OR-18
E900-C207 WH-18
E901-C203 GN-18
E906-C221 OR-18
E907-C246 GY-18
E908-C227 BR-18
E909-C218 WH-18
G764-C117 PK-18
K977-C205 PK-18
N939-C112 GN-18
A273-C19 BK-18
A273-C27 BK-18
A273-C19 BK-18
A273-C27 BK-18
164-C70 WH-18
164-C107 WH-18
307-C3 OR-18
436-C47 OR-18
720-C234 PU-18X974-C200 BR-18
910-C15 YL-18
944-C110 OR-18
945-C105 BR-18
973-C195 BR-18
977-C197 YL-18
A273-C35 BK-18
E701-C229 PK-18
G480-C316 GN-18
G746-C13 WH-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G766-C189 GN-18
G767-C190 WH-18
G768-C187 GN-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
J887-C456 PU-18
X972-C188 GN-18
X973-C192 BU-18
X974-C200 BR-18
135-C8 BU-18
135-C202 BU-18
135-C399 BU-18
135-C272 BU-18
320-C319 OR-18
320-C317 OR-18
320-C390 OR-18
403-C86 GN-18
403-C248 GN-18
403-C260 GN-18
439-C454 YL-18
439-C459 YL-18
439-C460 YL-18
567-C362 WH-14
567-C338 WH-14
567-C231 WH-14
567-C359 WH-14
605-C90 YL-18
605-C91 YL-18
606-C88 GY-18
606-C89 GY-18
614-C468 PU-18
614-C310 PU-18
614-C376 PU-18
614-C96 PU-18
614-C385 PU-18
614-C199 PU-18
614-C320 PU-18
614-C92 PU-18
614-C402 PU-18
614-C360 PU-18
614-C379 PU-18
614-C68 PU-18
614-C361 PU-18
614-C380 PU-18
614-C363 PU-18
614-C324 PU-18
614-C357 PU-18
614-C94 PU-18
614-C364 PU-18
614-C373 PU-18
614-C368 PU-18
614-C367 PU-18
614-C347 PU-18
104-C30 YL-18
118-C274 GY-18
170-C215 RD-18
200-C209 BK-14
200-C210 BK-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
608-C294 GN-14
A274-C304 BK-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
104-C30 YL-18
118-C274 GY-18
170-C215 RD-18
200-C209 BK-14
200-C210 BK-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
608-C294 GN-14
A274-C304 BK-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
615-C298 YL-14
615-C318 YL-18
615-C291 YL-14
944-C110 OR-18
944-C144 OR-18
944-C145 OR-18
944-C143 OR-18
944-C141 OR-18
944-C28 OR-18
944-C401 OR-18
945-C17 BR-18
945-C400 BR-18
945-C105 BR-18
945-C137 BR-18
945-C134 BR-18
945-C136 BR-18
945-C138 BR-18
953-C169 GY-18
953-C366 GY-18
953-C93 GY-18
953-C77 GY-18
953-C25 GY-18
953-C365 GY-18
953-C26 GY-18
953-C65 GY-18
953-C314 GY-18
953-C325 GY-18
953-C24 GY-18
962-C31 OR-18
962-C421 OR-18
962-C381 OR-18
962-C113 OR-18
962-C114 OR-18
962-C351 OR-18
962-C350 OR-18
962-C358 OR-18
975-C457 WH-18
975-C108 WH-18
975-C135 WH-18
C529-C59 GY-18
C529-C60 GY-18
C530-C62 BU-18
H716-C97 WH-18
H716-C217 WH-18
H716-C99 WH-18
H716-C98 WH-18
H795-C71 PK-18
H795-C222 PK-18
146-C133 GY-18
146-C150 GY-18
146-C170 GY-18
A272-C233 BK-18
A272-C149 BK-18
A272-C148 BK-18
A272-C148 BK-18
A272-C149 BK-18
E917-C152 WH-18
E918-C153 GN-18
G942-C173 OR-18
G943-C159 BU-18
G944-C160 YL-18
H708-C157 OR-18
H709-C158 BU-18
H710-C171 PK-18
H711-C172 GN-18
H715-C151 PU-18
H719-C154 OR-18
H720-C181 BU-18
H721-C225 OR-18
H722-C301 GN-18
H723-C226 PU-18
T852-C163 GY-18
T853-C164 OR-18
T854-C165 YL-18
T855-C166 BU-18
T856-C155 WH-18
T857-C156 GN-18
T858-C175 GY-18
T859-C176 WH-18
T860-C161 OR-18
T861-C162 YL-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
T865-C178 GY-18
T866-C174 YL-18
T869-C168 WH-18
T870-C167 BR-18
944-C141 OR-18
945-C134 BR-18
953-C25 GY-18
953-C26 GY-18
C529-C60 GY-18
C530-C62 BU-18
E919-C51 YL-18
E920-C52 BR-18
E921-C53 PK-18
E922-C54 GN-18
H713-C57 PK-18
H714-C58 OR-18
H716-C97 WH-18
H716-C98 WH-18
H717-C67 BR-18
H718-C44 GY-18
T997-C303 OR-18
H-C2
WA-C3
(4) GATEWAY A4N1
L
GND
MOTOR
-18
(C) BLEND DOOR ACTUATOR MOTOR
306-C109 GN-18
321-C249 BR-18
416-C184 OR-18
417-C183 GY-18
419-C118 YL-18
450-C263 YL-18
453-C119 PK-18
484-C140 YL-18
709-C34 OR-18
751-C115 GN-18
752-C111 YL-18
754-C142 BU-18
755-C120 OR-18
900-C147 PU-18
901-C121 WH-18
962-C113 OR-18
962-C114 OR-18
975-C108 WH-18
975-C135 WH-18
976-C116 OR-18
E900-C207 WH-18
E901-C203 GN-18
E906-C221 OR-18
E907-C246 GY-18
E908-C227 BR-18
E909-C218 WH-18
G764-C117 PK-18
K977-C205 PK-18
N939-C112 GN-18
177-6727
+
-
(C) BLOWER MOT
268-8792
MOTOR
550-AH11 GY-14
LO MED HI RES
9G-1950
522-AH12 WH-14
1
2
3
4
5
6
AH-C2
1552269
2
RD-14
1
BK-14
(C) FUSE
133-9012
(C) THERMOSTAT
3E-5464
T°
AH-C3
2470281
135-AH18 BU-18
200-AH5 BK-18
A524-AH14 BR-18
200-AH3 BK-14
515-AH7 GY-14
135-AH17 BU-18
516-AH9 GN-14
515-AH8 GY-14
TC
517-AH10 BU-14
200-AH4 BK-14
522-AH12 WH-14
6.2K OHMS 1W
135-AH18 BU-18
135-AH17 BU-18
2.4K OHMS 1W
200-AH2 BK-18
200-AH3 BK-14
200-AH4 BK-14
200-AH5 BK-18
515-AH7 GY-14
515-AH8 GY-14
HVAC UNIT
(NOTE A)
A523-AH13 PU-18
(C) RESISTOR 1
9G-1950
135-AH17 BU-18
(C) RESISTOR 2
9G-1950
200-AH2 BK-18
516-AH9 GN-14
517-AH10 BU-14
522-AH12 WH-14
A524-AH14 BR-18
100 OHMS 1W
H
(14) REAR WIPER MOTOR
155-5789
(NOTE A)
135-AH16 BU-18
A525-AH15 GN-18
2K OHMS 1W
200-AH1 BK-14
515-AH6 GY-14
P
T
B+
A525-AH15 GN-18
A524-AH14 BR-18
A523-AH13 PU-18
517-AH10 BU-14
516-AH9 GN-14
515-AH6 GY-14
200-AH1 BK-14
522-AH12 WH-14
H3
H2
H1
118-C274 GY-18
135-C399 BU-18
200-C209 BK-14
200-C210 BK-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
522-C125 WH-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
104-C30 YL-18
170-C215 RD-18
403-C86 GN-18
944-C401 OR-18
945-C400 BR-18
A274-C304 BK-18
102-C69 RD-14
135-C8 BU-18
135-C202 BU-18
307-C3 OR-18
308-C87 YL-18
320-C317 OR-18
320-C319 OR-18
326-C287 RD-18
403-C248 GN-18
426-C85 BR-18
430-C313 BU-18
432-C6 PK-18
436-C47 OR-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
506-C10 PU-18
507-C11 WH-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
521-C124 YL-18
567-C231 WH-14
567-C338 WH-14
567-C359 WH-14
567-C362 WH-14
604-C78 OR-18
605-C91 YL-18
606-C89 GY-18
608-C81 GN-14
608-C294 GN-14
611-C32 PU-14
614-C68 PU-18
614-C92 PU-18
614-C94 PU-18
614-C96 PU-18
614-C199 PU-18
614-C310 PU-18
614-C320 PU-18
614-C324 PU-18
614-C347 PU-18
614-C357 PU-18
614-C360 PU-18
614-C361 PU-18
614-C363 PU-18
614-C364 PU-18
614-C367 PU-18
614-C368 PU-18
614-C373 PU-18
614-C376 PU-18
614-C379 PU-18
614-C380 PU-18
614-C385 PU-18
614-C402 PU-18
614-C468 PU-18
615-C298 YL-14
615-C318 YL-18
617-C83 BR-18
619-C40 GN-14
720-C234 PU-18
910-C15 YL-18
944-C28 OR-18
944-C143 OR-18
945-C136 BR-18
945-C137 BR-18
944-C144 OR-18
944-C110 OR-18
945-C105 BR-18
944-C110 OR-18
945-C105 BR-18
945-C17 BR-18
953-C24 GY-18
953-C65 GY-18
953-C77 GY-18
953-C93 GY-18
953-C169 GY-18
953-C314 GY-18
953-C325 GY-18
953-C365 GY-18
953-C366 GY-18
962-C31 OR-18
962-C350 OR-18
962-C351 OR-18
962-C358 OR-18
962-C381 OR-18
962-C421 OR-18
BR-18
973-C195
977-C197 YL-18
A272-C233 BK-18
A274-C304 BK-18
A307-C129 GY-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
A982-C130 BR-18
C529-C59 GY-18
C530-C61 BU-18
E416-C36 PU-18
E455-C12 BR-18
E701-C229 PK-18
E759-C315 WH-18
E917-C152 WH-18
E918-C153 GN-18
G479-C33 WH-18
G480-C316 GN-18
G485-C55 BU-18
G486-C56 GN-18
G746-C13 WH-18
G750-C196 BU-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G766-C189 GN-18
G767-C190 WH-18
G768-C187 GN-18
G850-C29 BU-18
G942-C173 OR-18
G943-C159 BU-18
G944-C160 YL-18
H702-C387 PU-18
H703-C388 YL-18
H708-C157 OR-18
H709-C158 BU-18
H710-C171 PK-18
H711-C172 GN-18
H715-C151 PU-18
H716-C99 WH-18
H716-C217 WH-18
H719-C154 OR-18
H720-C181 BU-18
H721-C225 OR-18
H722-C301 GN-18
H723-C226 PU-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
H795-C71 PK-18
H795-C222 PK-18
K933-C14 GN-18
T852-C163 GY-18
T853-C164 OR-18
T854-C165 YL-18
T855-C166 BU-18
T856-C155 WH-18
T857-C156 GN-18
T858-C175 GY-18
T859-C176 WH-18
T860-C161 OR-18
T861-C162 YL-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
T865-C178 GY-18
T869-C168 WH-18
T870-C167 BR-18
X972-C188 GN-18
X973-C192 BU-18
X974-C200 BR-18
104-C30 YL-18
106-C18 WH-18
110-C76 RD-14
112-C1 PU-4
114-C41 RD-18
118-C274 GY-18
135-C272 BU-18
136-C75 GN-18
136-C269 GN-18
138-C20 GN-18
146-C133 GY-18
146-C150 GY-18
146-C170 GY-18
147-C270 RD-18
150-C126 OR-18
164-C70 WH-18
164-C107 WH-18
170-C215 RD-18
174-C2 RD-10
199-C72 RD-18
200-C209 BK-14
200-C210 BK-18
201-C101 BK-18
251-C146 BK-18
320-C390 OR-18
322-C39 GY-18
403-C260 GN-18
439-C454 YL-18
439-C459 YL-18
605-C90 YL-18
-18
606-C88 GY
608-C294 GN-14
615-C291 YL-14
944-C145 OR-18
945-C138 BR-18
975-C457 WH-18
A273-C35 BK-18
J887-C456 PU-18
P739-C458 BU-18
T866-C174 YL-18
944-C141 OR-18
945-C134 BR-18
953-C25 GY-18
953-C26 GY-18
C529-C60 GY-18
C530-C62 BU-18
E919-C51 YL-18
E920-C52 BR-18
E921-C53 PK-18
E922-C54 GN-18
H713-C57 PK-18
H714-C58 OR-18
H716-C97 WH-18
H716-C98 WH-18
H717-C67 BR-18
H718-C44 GY-18
T997-C303 OR-18
ANTENNA 1 (CB/RADIO)
9U-2332
H3
H2
EG-C1
1552273
GROUND
GROUND
1
2
3
4
5
6
121-EG1 RD-18
115-EG4 PK-18
200-EG5 BK-18
+24 V BATTERY IN
+24 V SWITCHED IN
+12 V MEMORY OUT
+12 V SWITCHED OUT
(2) 10A V CONVERTER ATCH
209-0381
ANTENNA MT 1 (CB/RADIO)
9U-4431
CBL AS 1 COAX (CB/RADIO)
191-5114
115-EG4 PK-18
121-EG1 RD-18
142-EG8 BU-18
200-EG5 BK-18
V CONVERTER (CB/RADIO)
RADIO (CB)
INSTL GP
H1
T901-EH12 YL-18
T902-EH13 PK-18
STRAP AS.
7K-1181
TIRIS INTERFACE SIGNAL
ALTERNATOR R TERM INPUT
TIRIS GROUND RETURN
LED SOURCING DRIVER
LED SOURCING DRIVER
(B) MACHINE SECURITY SYSTEM ECM
156-6155
EH-C3
1552269
WH-18
BK-18
2
(6) MSS FILTER
222-3870
TWISTED WIRES
ECM MOUNT BOLT
GROUND
LED RETURN
KEYSWITCH INPUT
CAT DATA LINK +
CAT DATA LINK -
WH-181
BK-18
+V
A275-EH1 BK-18
EH-C1
1506766
1
105-EH6 RD-18
3
A275-EH14 BK-18
5
7
T901-EH12 YL-18
9
11
13
18
19
951-EH11 PK-18
24
104-EH3 YL-18
26
403-EH2 GN-18
29
31
40
42
944-EH5 OR-18
45
945-EH4 BR-18
47
52
53
T902-EH13 PK-18
58
60
F846-EH10 PU-18
62
G836-EH9 WH-18
64
66
68
70
T902-EH13 PK-18
T901-EH12 YL-18
EH-C4
1552269
1
T901-EH8 YL-18
2
T902-EH7 PK-18
MACHINE SECURITY SYSTEM
(B) HEATED MIRRORS TIMER RELAY
173-7004
122-C278 RD-18
122-C279 RD-18
120-C281 RD-18
130-C5 RD-18
139-C277 RD-18
121-C282 RD-18
110-C76 RD-14
115-C280 PK-18
115-C283 PK-18
115-C103 PK-18
118-C274 GY-18
118-C275 GY-18
118-C258 GY-14
146-C150 GY-18
146-C133 GY-18
146-C276 GY-18
146-C170 GY-18
106-C18 WH-18
104-C30 YL-18
104-C74 YL-18
141-C396 PK-18
141-C285 PK-18
141-C397 PK-18
150-C126 OR-18
108-C271 BU-14
168-C21 GN-18
126-C284 PK-18
126-C465 PK-18
ANTENNA 2 (CB/RADIO)
9U-2332
ANTENNA MT 2 (CB/RADIO)
9U-4431
CBL AS 2 COAX (CB/RADIO)
191-5114
115-EG9 PK-18
115-EG12 PK-18
115-EG2 PK-18
142-EG11 BU-18
142-EG7 BU-18
200-EG10 BK-18
200-EG6 BK-18
200-EG3 BK-18
115-EG9 PK-18
142-EG11 BU-18
200-EG10 BK-18
115-EG12 PK-18142-EG8 BU-18
142-EG7 BU-18
200-EG6 BK-18
121-EG1 RD-18
115-EG2 PK-18
200-EG3 BK-18
10A V CONVERTER
209-0381
TWISTED WIRES
951-EH11 PK-18
A275-EH1 BK-18
403-EH2 GN-18
104-EH3 YL-18
945-EH4 BR-18945-EH4 BR-18
944-EH5 OR-18
105-EH6 RD-18
T902-EH7 PK-18
T901-EH8 YL-18
G836-EH9 WH-18
F846-EH10 PU-18
TWISTED
WIRES
104-EH3 YL-18
105-EH6 RD-18A275-EH14 BK-18
403-EH2 GN-18
944-EH5 OR-18
951-EH11 PK-18
A275-EH1 BK-18
F846-EH10 PU-18
G836-EH9 WH-18
T901-EH8 YL-18
T902-EH7 PK-18
A275-EH14 BK-18
T901-EH12 YL-18
T902-EH13 PK-18
A275-EH14 BK-18
T901-EH12 YL-18
T902-EH13 PK-18
TWISTED WIRES
(A) IMPLEMENT AUDIBLE ALERT
123-9694
OUT TO CHASSIS LIGHTS
OUT TO DASH BUCKET IND
TURN SIGNAL DIODES
172-9200
TURN SIGNAL DIODE
189-3158
141-M4 PK-18
200-M1 BK-18
C583-M2 PU-18
C542-M3 GN-18
GROUND
OUTPUT
INPUT
+ BATTERY
M-C2
1918332
1
2
3
4
5
6
(2) 24V FLASHER
217-8166
200-M1 BK-18
C542-M3 GN-18
C583-M2 PU-18
141-M4 PK-18
HEATED MIRROR TIMER RELAY
(B) REAR FLOODLAMP RELAY
(B) FORWARD HORN RELAY
(B) FORWARD CAB FLOODLAMP RELAY
3E-5239
(7) FUSE-BLK
UNSWITCHED BUS
SWITCHED BUS
87a
30
87
32 31
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
FUSE PART NUMBERS
10 AMP (9W-1442)
15 AMP (9W-1441)
20 AMP (9W-1446)
(B) AXLE COOLER RLY
10A 10A
DOME LAMPS
10A 10A
VOLTAGE CONVERTOR MEMORY (STANDARD)
10A 10A
STOP LAMPS HOOD ACTUATOR
10A 10A
LH TAIL/CLEARANCE LAMPS
10A 10A
VOLTAGE CONVERTER MEMORY (ATTACHMENT)
15A 10A
ENGINE ECM
10A 10A
VOLTAGE CONVERT0RS/24V RADIO
10A 10A
FRONT/REAR WIPER/WASH
10A 10A
IMPLEMENT ECM/LEVER SENSORS
10A 10A
TILT/LIFT POSITION SENSORS
10A 10A
MSS/PRODUCT LINK
10A 15A
BEACON/HEATED MIRRORS
10A 10A
ENGINE ECM ADEMIII
15A 15A
AIR/HEATED SEAT
10A 10A
QUICK COUPLER/AUTODIG AUDIBLE
10A
NEUTRALIZER OVERRIDE SW
C-C30
1886253
FUSE PANEL
OUT TO DASH T/S IND
86
85
EMS/(QUAD GAUGE/SPD TACH BACKLIGHTS)
TRANSMISSION ECM/LH BRAKE PEDAL SENSOR
LH/RH DASH INDICATOR PNL
TS FLASHER/FRNT/REAR FLOOD RELAYS
SECONDARY STEERING (NOT USED ON 980G)
C-C45
1552273
4
GN-16
1
2
BK-16
6
GY-16
3
BR-16
5
OR-16
C-C21
AH-C1
1552252
3E5179
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
CONN 9
EG-C3
1552272
1
1
2
2
3
3
4
4
EG-C4
1552272
1
1
2
2
3
3
4
4
EG-C2
3E3376
1
2
3
4
CONN 8
+24 V BATTERY IN
+24 V SWITCHED IN
+12 V MEMORY OUT
+12 V SWITCHED OUT
EH-C2
3E5178
1
2
3
4
5
6
7
8
9
10
11
12
(A) ACTION ALARM
3E-6328
CONN 6
HAZ SW INPUT
KEY SW INPUT
GROUND
M-C1
3E3376
1
2
3
4
3E-5239
3E-5239
1
5
2
4
KEY START SW/MSS
HORN
ECAP/AUTOLUBE
PRODUCT LINK
CENTER DASH INDICATOR PNL
FRONT CAB FLOODLAMPS
REAR CAB FLOODLAMPS
AXLE OIL COOL/AUTOLUBE
124-F1 GN-10
504-C255 YL-18
200-C210 BK-18
118-C274 GY-18
503-C256 BR-18
505-C254 BU-18
135-C399 BU-18135-AH16 BU-18
A525-C238 GN-18
A524-C237 BR-18
A523-C236 PU-18
517-C240 BU-14
516-C241 GN-14
515-C235 GY-14
200-C209 BK-14
522-C125 WH-18
EG-C5
3E3376
CONN FOR COMMUNICATIONS RADIO
EG-C6
115 PK IS A 24 VOLT CIRCUIT
3E3376
142 BU IS A 12 VOLT CIRCUIT
C-C24
C-C32
1552272
3E3376
1
1
121-C282 RD-18
2
2
115-C103 PK-18
3
3
200-C312 BK-18
4
4
C-C22
1552273
1
120-C281 RD-18
2
3
4
5
6
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
115-C283 PK-18
200-C219 BK-18
125-C339 RD-18
135-C272 BU-18
C-C27
1552252
951-C288 PK-18
A275-C216 BK-18
403-C260 GN-18
104-C74 YL-18
945-C138 BR-18
944-C145 OR-18
105-C261 RD-18
T902-C334 PK-18
T901-C335 YL-18
G836-C336 WH-18
F846-C337 PU-18
GROUND
GROUND
C-C25
3E5179
CONN 7
C-C9
1552269
BK-18
1
2
C-C11
1965330
1
1
2
2
3
3
4
4
C-C28
1552273
1
1
2
2
3
3
4
4
5
5
6
6
C-C34
1552272
1
1
2
2
3
3
4
4
C-C12
1552269
1
1
2
2
C-C87
1552272
1
1
2
2
3
3
4
4
410-C242
201-C224
290-C16
291-C100
E735-C45
201-C102
T866-C174
168-C21
518-C329
537-C445
691-C326
A541-C327
633-C328
200-C213
606-C88 GY-18
538-C331 BR-18
605-C90 YL-18
691-C326 GY-18
131-C266 BR-18
141-C397 PK-18
200-C394 BK-18
C583-C395 GN-18
C542-C393 GN-14
BK-18
C-C4
1552272
SERVICE
MODE
PLUG
C-C17
3E3382
C-C58
3E3376
C-C86
3E3364
C-C36
3E3376
CONN 5
C-C29
9X1054
30
1
134-C268 YL-14
86
5
647-C290 GN-18
2
200-C220 BK-18
85
4
87
87a
30
87
87a
3E-5239
30
87
87a
2469371
PCS
C-C64
608-C294 GN-14
C-C13
9X1054
1
322-C39 GY-18
86
5
114-C42 RD-18
2
320-C390 OR-18
85
4
200-C211 BK-18
C-C5
9X1054
1
127-C267 OR-18
86
5
646-C293 OR-18
2
200-C212 BK-18
85
4
615-C291 YL-14
C-C63
1195094
1
151-C95 GN-18
5
J887-C456 PU-18
2
975-C457 WH-18
4
P739-C458 BU-18
174-C2 RD-10
105-C261 RD-18
105-C259 RD-18
114-C42 RD-18
29
114-C41 RD-18
27
199-C72 RD-18
25
147-C73 RD-18
147-C270 RD-18
23
170-C215 RD-18
21
132-C177 RD-18
138-C43 GN-18
19
138-C20 GN-18
138-C37 GN-18
113-C262 OR-18
17
113-C245 OR-18
164-C107 WH-18
15
164-C264 WH-18
164-C70 WH-18
133-C427 OR-18
13
133-C428 OR-18
131-C266 BR-18
11
131-C265 BR-18
127-C267 OR-18
9
127-C408 OR-14
127-C375 OR-14
7
136-C75 GN-18
136-C269 GN-18
5
134-C268 YL-14
151-C95 GN-18
3
151-C461 GN-18
151-C453 GN-18
1
124-C23 GN-14
124-C292 GN-14
15A
(A) HVAC BLOWER POWER
6T-3643
112-C1 PU-4
104-C30 YL-18
104-C74 YL-18
106-C18 WH-18
108-C271 BU-14
110-C76 RD-14
115-C103 PK-18
115-C280 PK-18
115-C283 PK-18
118-C258 GY-14
118-C274 GY-18
118-C275 GY-18
120-C281 RD-18
121-C282 RD-18
122-C278 RD-18
122-C279 RD-18
126-C284 PK-18
126-C465 PK-18
130-C5 RD-18
139-C277 RD-18
141-C285 PK-18
141-C396 PK-18
141-C397 PK-18
146-C133 GY-18
146-C150 GY-18
146-C170 GY-18
146-C276 GY-18
150-C126 OR-18
168-C21 GN-18
H3
H3
WH-18
BK-18
BK-18
BK-18
PU-18
BK-18
YL-18
GN-18
OR-18
GN-18
GY-18
PU-18
BU-18
BK-18
H2
H2
TWISTED WIRES
170-C215 RD-18
A274-C304 BK-18
104-C30 YL-18
403-C86 GN-18
944-C401 OR-18
945-C400 BR-18
TWISTED WIRES
H1
200-C209 BK-14
200-C210 BK-18
200-C426 BK-18
201-C101 BK-18
251-C146 BK-18
439-C454 YL-18
439-C459 YL-18
A273-C35 BK-18
151-C453 GN-18
151-C453 GN-18
104-C30 YL-18
105-C259 RD-18
106-C18 WH-18
108-C271 BU-14
110-C76 RD-14
112-C1 PU-4
113-C245 OR-18
113-C262 OR-18
114-C41 RD-18
115-C280 PK-18
118-C258 GY-14
118-C274 GY-18
118-C275 GY-18
122-C278 RD-18
122-C279 RD-18
124-C23 GN-14
124-C292 GN-14
125-C339 RD-18
126-C284 PK-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
135-C272 BU-18
136-C75 GN-18
136-C269 GN-18
138-C20 GN-18
138-C37 GN-18
138-C43 GN-18
139-C277 RD-18
141-C285 PK-18
141-C396 PK-18
146-C133 GY-18
146-C150 GY-18
146-C170 GY-18
146-C276 GY-18
147-C73 RD-18
147-C270 RD-18
150-C126 OR-18
151-C461 GN-18
164-C70 WH-18
164-C107 WH-18
164-C264 WH-18
170-C215 RD-18
174-C2 RD-10
199-C72 RD-18
200-C211 BK-18
200-C212 BK-18
200-C213 BK-18
200-C219 BK-18
200-C220 BK-18
200-C312 BK-18
200-C394 BK-18
201-C102 BK-18
201-C224 BK-18
290-C16 BK-18
291-C100 BK-18
320-C390 OR-18
322-C39 GY-18
403-C260 GN-18
104-C74 YL-18
105-C261 RD-18
114-C42 RD-18
115-C103 PK-18
115-C283 PK-18
120-C281 RD-18
121-C282 RD-18
127-C267 OR-18
131-C266 BR-18
134-C268 YL-14
141-C397 PK-18
151-C95 GN-18
168-C21 GN-18
691-C326 GY-18
104-C74 YL-18
105-C261 RD-18
114-C42 RD-18
115-C103 PK-18
115-C283 PK-18
120-C281 RD-18
121-C282 RD-18
127-C267 OR-18
131-C266 BR-18
134-C268 YL-14
141-C397 PK-18
151-C95 GN-18
168-C21 GN-18
691-C326 GY-18
410-C242 WH-18
518-C329 OR-18
537-C445 GN-18
538-C331 BR-18
605-C90 YL-18
606-C88 GY-18
608-C294 GN-14
615-C291 YL-14
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
944-C145 OR-18
945-C138 BR-18
951-C288 PK-18
975-C457
A275-C216 BK-18
A541-C327 PU-18
C542-C393 GN-14
C583-C395 GN-18
E735-C45 PU-18
F846-C337 PU-18
G836-C336 WH-18
J887-C456 PU-18
P739-C458 BU-18
T866-C174 YL-18
T901-C335 YL-18
T902-C334 PK-18
WH-18
C-C37
1552252
CONN 10
WA-C1
3E5179
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
TWISTED WIRES
125-WA18 RD-18
200-WA20 BK-18
308-WA22 YL-18
403-WA24 GN-18
944-WA1 OR-18
945-WA2 BR-18
Y795-WA8 GN-18
Y794-WA9 OR-18
N981-WA14 GN-18
N963-WA12 OR-18
N959-WA13 PK-18
TWISTED WIRES
439-C454 YL-18
439-C459 YL-18
200-C426 BK-18
151-C453 GN-18
200-C209 BK-14
200-C210 BK-18
201-C101 BK-18
251-C146 BK-18
A273-C35 BK-18
105-C259 RD-18
108-C271 BU-14
113-C245 OR-18
113-C262 OR-18
115-C280 PK-18
118-C258 GY-14
118-C275 GY-18
122-C278 RD-18
122-C279 RD-18
124-C23 GN-14
124-C292 GN-14
125-C339 RD-18
126-C284 PK-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
138-C37 GN-18
138-C43 GN-18
139-C277 RD-18
141-C285 PK-18
141-C396 PK-18
146-C276 GY-18
147-C73 RD-18
151-C461 GN-18
164-C264 WH-18
200-C211 BK-18
200-C212 BK-18
200-C213 BK-18
200-C219 BK-18
200-C220 BK-18
200-C312 BK-18
200-C394 BK-18
200-C426 BK-18
201-C102 BK-18
201-C224 BK-18
290-C16 BK-18
291-C100 BK-18
410-C242 WH-18
518-C329 OR-18
537-C445 GN-18
538-C331 BR-18
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
951-C288 PK-18
A275-C216 BK-18
A541-C327 PU-18
C542-C393 GN-14
C583-C395 GN-18
E735-C45 PU-18
F846-C337 PU-18
G836-C336 WH-18
T901-C335 YL-18
T902-C334 PK-18
104-C30 YL-18
106-C18 WH-18
110-C76 RD-14
112-C1 PU-4
114-C41 RD-18
118-C274 GY-18
135-C272 BU-18
136-C75 GN-18
136-C269 GN-18
138-C20 GN-18
146-C133 GY-18
146-C150 GY-18
146-C170 GY-18
147-C270 RD-18
150-C126 OR-18
164-C70 WH-18
164-C107 WH-18
170-C215 RD-18
174-C2 RD-10
199-C72 RD-18
200-C209 BK-14
200-C210 BK-18
201-C101 BK-18
251-C146 BK-18
320-C390 OR-18
322-C39 GY-18
403-C260 GN-18
439-C454 YL-18
439-C459 YL-18
605-C90 YL-18
606-C88 GY-18
608-C294 GN-14
615-C291 YL-14
944-C145 OR-18
945-C138 BR-18
975-C457 WH-18
A273-C35 BK-18
J887-C456 PU-18
P739-C458 BU-18
T866-C174 YL-18
125-WA18 RD-18 125-WA17 RD-18
A1 OR-18
200-WA19 BK-18
200-WA15 BK-18
200-WA25 BK-16
308-WA16 YL-18
403-WA11 GN-18
200-WA20 BK-18
308-WA22 YL-18 308-WA21 YL-18
403-WA24 GN-18 403-WA23 GN-18
944-W
945-WA2 BR-18
N959-WA13 PK-18
N963-WA12 OR-18
N981-WA14 GN-18
Y794-WA9 OR-18
Y795-WA8 GN-18
200-WA25 BK-16
PRODUCT LINK
C-C46
C-C48
3E3376
1552272
1
1
CONN 11
2
2
GROENEVELD AUTOLUBE
3
3
SERVICE TOOL
4
4
CAB GND 1
ECM MOUNT BOLT
A273-C35 BK-18
A275-C216
BK-18
251-C146 BK-18
201-C224 BK-18
201-C101 BK-18
201-C102 BK-18
CAB GROUND 2
H1
A274-C304 BK-18
A272-C233 BK-18
201-C419 BK-18
201-C420 BK-18
201-C418 BK-18
251-C346 BK-18
201-C139 BK-18
CAB GROUND 1
105-C259 RD-18
108-C271 BU-14
113-C245 OR-18
113-C262 OR-18
115-C280 PK-18
118-C258 GY-14
118-C275 GY-18
122-C278 RD-18
122-C279 RD-18
124-C23 GN-14
124-C292 GN-14
125-C339 RD-18
126-C284 PK-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
138-C37 GN-18
138-C43 GN-18
139-C277 RD-18
141-C285 PK-18
141-C396 PK-18
146-C276 GY-18
147-C73 RD-18
151-C461 GN-18
164-C264 WH-18
200-C209 BK-14
200-C210 BK-18
200-C211 BK-18
200-C212 BK-18
200-C213 BK-18
200-C219 BK-18
200-C220 BK-18
200-C312 BK-18
200-C394 BK-18
200-C426 BK-18
200-C449
200-C450
200-C435
200-C448
200-C384
200-C434
290-C16 BK-18
291-C100 BK-18
410-C242 WH-18
518-C329 OR-18
537-C445 GN-18
538-C331 BR-18
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
951-C288 PK-18
A541-C327 PU-18
C542-C393 GN-14
C583-C395 GN-18
E735-C45 PU-18
F846-C337 PU-18
G836-C336 WH-18
T901-C335 YL-18
T902-C334 PK-18
125-WA17 RD-18125-WA10 RD-18
200-WA19 BK-18
308-WA21 YL-18
403-WA23 GN-18
N957-WA3 PK-18
N960-WA4 OR-18
N979-WA7 GN-18
N970-WA5 YL-18
N973-WA6 BR-18
N957-WA3
N960-WA4 OR-18
N970-WA5
125-WA10 RD-18
200-WA15 BK-18
200-WA25 BK-16
308-WA16 YL-18
403-WA11 GN-18
944-WA1 OR-18
945-WA2 BR-18
N959-WA13 PK-18
N963-WA12 OR-18
N981-WA14 GN-18
Y794-WA9 OR-18
Y795-WA8 GN-18
102-C69 RD-14
135-C8 BU-18
135-C202 BU-18
307-C3 OR-18
308-C87 YL-18
320-C317 OR-18
320-C319 OR-18
326-C287 RD-18
403-C248 GN-18
426-C85 BR-18
430-C313 BU-18
432-C6 PK-18
436-C47 OR-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
506-C10 PU-18
507-C11 WH-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
521-C124 YL-18
567-C231 WH-14
567-C338 WH-14
567-C359 WH-14
567-C362 WH-14
604-C78 OR-18
605-C91 YL-18
606-C89 GY-18
608-C81 GN-14
608-C294 GN-14
611-C32 PU-14
614-C68 PU-18
614-C92 PU-18
614-C94 PU-18
614-C96 PU-18
614-C199 PU-18
614-C310 PU-18
614-C320 PU-18
614-C324 PU-18
614-C347 PU-18
614-C357 PU-18
614-C360 PU-18
614-C361 PU-18
614-C363 PU-18
614-C364 PU-18
614-C367 PU-18
614-C368 PU-18
614-C373 PU-18
614-C376 PU-18
614-C379 PU-18
614-C380 PU-18
614-C385 PU-18
614-C402 PU-18
614-C468 PU-18
615-C298 YL-14
615-C318 YL-18
617-C83 BR-18
619-C40 GN-14
720-C234 PU-18
910-C15 YL-18
944-C28 OR-18
944-C143 OR-18
944-C144 OR-18
945-C17 BR-18
945-C136 BR-18
945-C137 BR-18
953-C24 GY-18
953-C65 GY-18
953-C77 GY-18
953-C93 GY-18
953-C169 GY-18
953-C314 GY-18
953-C325 GY-18
953-C365 GY-18
953-C366 GY-18
962-C31 OR-18
962-C350 OR-18
962-C351 OR-18
962-C358 OR-18
962-C381 OR-18
962-C421 OR-18
973-C195 BR-18
977-C197 YL-18
BK-18
A272-C233
BK-18
A274-C304
A307-C129
GY-18
A523-C236
PU-18
A524-C237
BR-18
A525-C238
GN-18
A982-C130
BR-18
C529-C59 GY-18
C530-C61 BU-18
E416-C36 PU-18
E455-C12 BR-18
E701-C229
PK-18
WH-18
E759-C315
E917-C152
WH-18
E918-C153
GN-18
G479-C33 WH-18
G480-C316
GN-18
G485-C55 BU-18
G486-C56 GN-18
G746-C13 WH-18
G750-C196
BU-18
GY-18
G755-C186
WH-18
G760-C191
G761-C193
YL-18
BR-18
G762-C194
PU-18
G763-C185
GN-18
G766-C189
G767-C190
WH-18
G768-C187
GN-18
G850-C29 BU-18
G942-C173
OR-18
G943-C159
BU-18
G944-C160
YL-18
H702-C387
PU-18
H703-C388
YL-18
H708-C157
OR-18
H709-C158
BU-18
H710-C171
PK-18
H711-C172
GN-18
H715-C151
PU-18
H716-C99 WH-18
WH-18
H716-C217
H719-C154
OR-18
H720-C181
BU-18
OR-18
H721-C225
H722-C301
GN-18
H723-C226
PU-18
H728-C198
GN-18
H729-C63 WH-18
H730-C201
BR-18
H795-C71 PK-18
PK-18
H795-C222
K933-C14 GN-18
T852-C163
GY-18
T853-C164
OR-18
T854-C165
YL-18
T855-C166
BU-18
T856-C155
WH-18
T857-C156
GN-18
T858-C175
GY-18
T859-C176
WH-18
T860-C161
OR-18
T861-C162
YL-18
T862-C182
BU-18
T863-C179
PU-18
T864-C180
BR-18
T865-C178
GY-18
T869-C168
WH-18
T870-C167
BR-18
X972-C188
GN-18
X973-C192
BU-18
X974-C200
BR-18
BK-18
BK-18
BK-18
BK-18
BK-14
BK-14
WA-C2
1552252
PK-18
YL-18
BR-18
(4) GEN2 RADIO
263-9088
1
BATT +
2
BATT -
3
KEYSWITCH ON
4
R-TERM
5
RS-232 TXD
6
-
7
RS-232 RXD
8
RS-232 GND
9
RS-232 DTR
10
RS-232 DCD
11
-
12
-
GEN2 RADIO
TWISTED WIRES
(A) BULKHEAD PASSTHROUGH
251-4243
200-C212 BK-18
200-C21
200-C450 BK-18
200-C449 BK-18
200-C219 BK-18
200-C220 BK-18
200-C213 BK-18
200-C448 BK-18
200-C435 BK-18
200-C394 BK-18
200-C455 BK-18
200-C312 BK-18
200-C426 BK-18
200-C209 BK-14
200-C210 BK-18
200-C434 BK-14
200-C384 BK-14
A272-C233 BK-18
A274-C304 BK-18
A272-C233 BK-18
A274-C304 BK-18
COAX CORE
COAX SAFEGUARD
RED
WHITE
TWISTED WIRES
944-WA1 OR-18
945-WA2 BR-18
N957-WA3 PK-18
N960-WA4 OR-18
N970-WA5 YL-18
N973-WA6 BR-18N973-WA6
N979-WA7 GN-18N979-WA7 GN-18
Y795-WA8 GN-18
Y794-WA9 OR-18
125-WA10 RD-18
403-WA11 GN-18
N963-WA12 OR-18
N959-WA13 PK-18
N981-WA14 GN-18
200-WA15 BK-18
308-WA16 YL-18
1607690
102-C69 RD-14
105-C259 RD-18
108-C271 BU-14
113-C245 OR-18
113-C262 OR-18
115-C280 PK-18
118-C258 GY-14
118-C275 GY-18
122-C278 RD-18
122-C279 RD-18
124-C23 GN-14
124-C292 GN-14
125-C339 RD-18
126-C284 PK-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
135-C8 BU-18
135-C202 BU-18
138-C37 GN-18
138-C43 GN-18
139-C277 RD-18
141-C285 PK-18
141-C396 PK-18
146-C276 GY-18
147-C73 RD-18
151-C461 GN-18
164-C264 WH-18
1 BK-18
UPPER CAB GROUND
201-C139 BK-18
201-C418 BK-18
201-C419 BK-18
201-C420 BK-18
251-C346 BK-18
290-C16 BK-18
291-C100 BK-18
307-C3 OR-18
308-C87 YL-18
320-C317 OR-18
320-C319 OR-18
326-C287 RD-18
403-C248 GN-18
410-C242 WH-18
426-C85 BR-18
430-C313 BU-18
432-C6 PK-18
436-C47 OR-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
506-C10 PU-18
507-C11 WH-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
518-C329 OR-18
521-C124 YL-18
537-C445 GN-18
538-C331 BR-18
567-C231 WH-14
567-C338 WH-14
567-C359 WH-14
567-C362 WH-14
604-C78 OR-18
605-C91 YL-18
606-C89 GY-18
608-C81 GN-14
608-C294 GN-14
611-C32 PU-14
614-C68 PU-18
614-C92 PU-18
614-C94 PU-18
614-C96 PU-18
614-C199 PU-18
614-C310 PU-18
614-C320 PU-18
614-C324 PU-18
614-C347 PU-18
614-C357 PU-18
614-C360 PU-18
614-C361 PU-18
614-C363 PU-18
614-C364 PU-18
614-C367 PU-18
614-C368 PU-18
614-C373 PU-18
614-C376 PU-18
614-C379 PU-18
614-C380 PU-18
614-C385 PU-18
614-C402 PU-18
614-C468 PU-18
615-C298 YL-14
615-C318 YL-18
617-C83 BR-18
619-C40 GN-14
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
720-C234 PU-18
910-C15 YL-18
944-C28 OR-18
944-C143 OR-18
944-C144 OR-18
945-C17 BR-18
945-C136 BR-18
945-C137 BR-18
951-C288 PK-18
953-C24 GY-18
953-C65 GY-18
953-C77 GY-18
953-C93 GY-18
953-C169 GY-18
953-C314 GY-18
953-C325 GY-18
953-C365 GY-18
953-C366 GY-18
962-C31 OR-18
962-C350 OR-18
962-C351 OR-18
962-C358 OR-18
962-C381 OR-18
962-C421 OR-18
973-C195 BR-18
977-C197 YL-18
A307-C129 GY-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
A541-C327 PU-18
A982-C130 BR-18
C529-C59 GY-18
C530-C61 BU-18
C542-C393 GN-14
C583-C395 GN-18
E416-C36 PU-18
E455-C12 BR-18
E701-C229 PK-18
E735-C45 PU-18
E759-C315 WH-18
E917-C152 WH-18
E918-C153 GN-18
F846-C337 PU-18
G479-C33 WH-18
G480-C316 GN-18
G485-C55 BU-18
G486-C56 GN-18
G746-C13 WH-18
G750-C196 BU-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G766-C189 GN-18
G767-C190 WH-18
G768-C187 GN-18
G836-C336 WH-18
G850-C29 BU-18
G942-C173 OR-18
G943-C159 BU-18
G944-C160 YL-18
H702-C387 PU-18
H703-C388 YL-18
H708-C157 OR-18
H709-C158 BU-18
H710-C171 PK-18
H711-C172 GN-18
H715-C151 PU-18
H716-C99 WH-18
H716-C217 WH-18
H719-C154 OR-18
H720-C181 BU-18
H721-C225 OR-18
H722-C301 GN-18
H723-C226 PU-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
H795-C71 PK-18
H795-C222 PK-18
K933-C14 GN-18
T852-C163 GY-18
T853-C164 OR-18
T854-C165 YL-18
T855-C166 BU-18
T856-C155 WH-18
T857-C156 GN-18
T858-C175 GY-18
T859-C176 WH-18
T860-C161 OR-18
T861-C162 YL-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
T865-C178 GY
T869-C168 WH-18
T870-C167 BR-18
T901-C335 YL-18
T902-C334 PK-18
X972-C188 GN-18
X973-C192 BU-18
X974-C200 BR-18
239-9954
1
2
3
4
5
6
7
8
CDL +
9
CDL -
10
11
12
13
RS232 PORT1-TXD
14
15
16
17
18
19
20
21
22
RS232 PORT1-RXD
23
RS232 PORT1-DTR
24
25
26
27
28
29
30
RS232 PORT1-DCD
31
RS232 PORT1-GND
32
33
34
CAN LOW
35
36
37
38
39
40
41
42
CAN SHIELD
43
44
45
46
47
48
49
50
CAN HIGH
51
52
BATT+
53
54
R-TERM
55
56
57
58
59
60
61
62
RS232 PORT3-TXD
63
RS232 PORT3-RXD
64
RS232 PORT3-GND
65
BATT-
66
67
68
69
70
KEYSWITCH ON
200-C311 BK-18
200-C377 BK-18
200-C409 BK-18
200-C343 BK-18
200-C467 BK-18
200-C389 BK-18
200-C46 BK-18
200-C417 BK-18
200-C214 BK-18
200-C356 BK-18
200-C374 BK-18
200-C392 BK-18
200-C349 BK-18
200-C371 BK-18
200-C398 BK-18
200-C370 BK-18
200-C391 BK-18
200-C345 BK-18
200-C342 BK-18
200-C289 BK-18
200-C383 BK-18
200-C344 BK-18
200-C321 BK-18
200-C322 BK-18
200-C386 BK-18
200-C463 BK-14
200-C462 BK-18
200-C204 BK-14
200-C309 BK-18
200-C228 BK-14
200-C230 BK-12
200-C403 BK-12
200-C208 BK-18
200-C206 BK-18
411-C243 PK-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
603-C299 PK-14
651-C239 PK-14
661-C296 GN-18
662-C295 YL-18
663-C297 GY-18
A629-C300 BU-14
C413-C251 YL-18
C414-C244 BU-18
C542-C323 GN-14
E707-C250 GN-18
E708-C247 PK-18
411-C243 PK-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
603-C299 PK-14
651-C239 PK-14
661-C296 GN-18
662-C295 YL-18
663-C297 GY-18
A629-C300 BU-14
C413-C251 YL-18
C414-C244 BU-18
C542-C323 GN-14
E707-C250 GN-18
E708-C247 PK-18
-18
200-C230 BK-12
200-C403 BK-12
603-C299 PK-14
608-C81 GN-14
608-C294 GN-14
615-C298 YL-14
651-C239 PK-14
A629-C300 BU-14
C542-C323 GN-14
C542-C393 GN-14
H710-C171 PK-18
H711-C172 GN-18
H715-C151 PU-18
H716-C99 WH-18
H719-C154 OR-18
H720-C181 BU-18
H721-C225 OR-18
H722-C301 GN-18
G942-C173 OR-18
H723-C226 PU-18
H716-C217 WH-18
T865-C178 GY-18
146-C276 GY-18
200-C309 BK-18
953-C314 GY-18
320-C317 OR-18
T860-C161 OR-18
T861-C162 YL-18
200-C311 BK-18
200-C321 BK-18
200-C322 BK-18
200-C386 BK-18
200-C467 BK-18
614-C96 PU-18
614-C199 PU-18
614-C320 PU-18
614-C385 PU-18
614-C468 PU-18
953-C24 GY-18
953-C65 GY-18
953-C325 GY-18
E917-C152 WH-18
E918-C153 GN-18
G943-C159 BU-18
G944-C160 YL-18
T869-C168 WH-18
T870-C167 BR-18
1552269
108-C271 BU-14
200-C204 BK-14
102-C69 RD-14
105-C259 RD-18
115-C280 PK-18
118-C275 GY-18
125-C339 RD-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
135-C8 BU-18
135-C202 BU-18
139-C277 RD-18
141-C285 PK-18
147-C73 RD-18
164-C264 WH-18
200-C228 BK-14
201-C419 BK-18
201-C420 BK-18
307-C3 OR-18
308-C87 YL-18
320-C319 OR-18
326-C287 RD-18
411-C243 PK-18
430-C313 BU-18
436-C47 OR-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
518-C329 OR-18
537-C445 GN-18
538-C331 BR-18
603-C299 PK-14
604-C78 OR-18
605-C91 YL-18
606-C89 GY-18
611-C32 PU-14
614-C376 PU-18
615-C318 YL-18
617-C83 BR-18
619-C40 GN-14
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
651-C239 PK-14
661-C296 GN-18
662-C295 YL-18
663-C297 GY-18
910-C15 YL-18
944-C28 OR-18
945-C17 BR-18
951-C288 PK-18
962-C31 OR-18
962-C421 OR-18
A307-C129 GY-18
A541-C327 PU-18
A629-C300 BU-14
A982-C130 BR-18
C413-C251 YL-18
C414-C244 BU-18
E701-C229 PK-18
E707-C250 GN-18
E708-C247 PK-18
E759-C315 WH-18
F846-C337 PU-18
G479-C33 WH-18
G480-C316 GN-18
G746-C13 WH-18
G750-C196 BU-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G768-C187 GN-18
G836-C336 WH-18
G850-C29 BU-18
H795-C222 PK-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
T901-C335 YL-18
T902-C334 PK-18
113-C245 OR-18
113-C262 OR-18
118-C258 GY-14
122-C278 RD-18
122-C279 RD-18
124-C23 GN-14
124-C292 GN-14
126-C284 PK-18
138-C37 GN-18
138-C43 GN-18
141-C396 PK-18
151-C461 GN-18
200-C46 BK-18
200-C206 BK-18
200-C208 BK-18
200-C214 BK-18
200-C289 BK-18
200-C342 BK-18
200-C343 BK-18
200-C344 BK-18
200-C345 BK-18
200-C349 BK-18
200-C356 BK-18
200-C370 BK-18
200-C371 BK-18
200-C374 BK-18
200-C377 BK-18
200-C383 BK-18
200-C389 BK-18
200-C391 BK-18
200-C392 BK-18
200-C398 BK-18
200-C409 BK-18
200-C417 BK-18
200-C462 BK-18
201-C139 BK-18
201-C418 BK-18
251-C346 BK-18
290-C16 BK-18
291-C100 BK-18
403-C248 GN-18
410-C242 WH-18
411-C243 PK-18
426-C85 BR-18
432-C6 PK-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
506-C10 PU-18
507-C11 WH-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
521-C124 YL-18
567-C231 WH-14
567-C338 WH-14
567-C359 WH-14
567-C362 WH-14
614-C68 PU-18
614-C92 PU-18
614-C94 PU-18
614-C347 PU-18
614-C310 PU-18
614-C324 PU-18
614-C357 PU-18
614-C360 PU-18
614-C361 PU-18
614-C363 PU-18
614-C364 PU-18
614-C367 PU-18
614-C368 PU-18
614-C373 PU-18
614-C379 PU-18
614-C380 PU-18
614-C402 PU-18
661-C296 GN-18
662-C295 YL-18
663-C297 GY-18
720-C234 PU-18
944-C143 OR-18
944-C144 OR-18
945-C136 BR-18
945-C137 BR-18
953-C77 GY-18
953-C93 GY-18
953-C365 GY-18
953-C366 GY-18
962-C350 OR-18
962-C358 OR-18
962-C381 OR-18
973-C195 BR-18
977-C197 YL-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
C413-C251 YL-18
C414-C244 BU-18
C529-C59 GY-18
C530-C61 BU-18
C542-C323 GN-14
C583-C395 GN-18
E416-C36 PU-18
E455-C12 BR-18
E707-C250 GN-18
E708-C247 PK-18
E735-C45 PU-18
G485-C55 BU-18
G486-C56 GN-18
G766-C189 GN-18
G767-C190 WH-18
H702-C387 PU-18
H703-C388 YL-18
H708-C157 OR-18
H709-C158 BU-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
H795-C71 PK-18
K933-C14 GN-18
T856-C155 WH-18
T857-C156 GN-18
T858-C175 GY-18
T859-C176 WH-18
C-C55
1552273
953-C169 GY-18
T852-C163 GY-18
T853-C164 OR-18
T854-C165 YL-18
T855-C166 BU-18
C-C57
1552273
962-C351 OR-18
X972-C188 GN-18
X973-C192 BU-18
X974-C200 BR-18
CONN 12
CONNECT TO C-C20
CONN 13
CONNECT TO C-C19
E-C2
C-C20
1552252
3E5179
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
E-C3
C-C19
1552273
3E3382
1
1
2
2
3
3
4
4
5
5
6
6
C-C23
C-C39
3E3364
1
1
2
2
CONN 14
CONN 14
C-C56
3E3382
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
(D) AUTODIG DIG MODE SW
106-0107
1
BK-16
2
BK-16
3
BK-16
4
BK-16
5
6
LOC J-9
LOC J-9
H710-E1 PK-18
H711-E2 GN-18
H715-E3 PU-18
H716-E4 WH-18
H719-E5 OR-18
G942-E9 OR-18
CONN 12
146-E7 GY-18
200-E8 BK-18
953-E11 GY-18
320-E12 OR-18
T860-E13 PK-18
T861-E14 GY-18
CONN 13
AT-C1
3E3364
1
108-AT1 RD-16
2
200-AT2 BK-16
AU-C1
3E3364
1
2
BK-18
COM
PK-18
S1
BU-18
S2
GN-18
S3
BR-18 S4
2
3
4
POWER
G-C2
1552252
1
2
3
4
5
6
7
H721-G13 GN-18
8
H722-G3 OR-18
9
10
H723-G10 PK-18
11
12
G-C3
1552273
1
146-G14 GY-18
2
200-G4 BK-18
3
953-G15 GY-18
4
320-G7 OR-18
5
T860-G5 PK-18
6
T861-G6 GY-18
IMPLEMENT POD
AIR SEAT COMPR GP
237-3970
AIR SEAT
108-AU1 RD-16
200-AU2 BK-16
AIR SEAT GP (HEATED)
248-6193
AIR SEAT (HEATED)
1
(D) VAR SHIFT CONT SW
185-6335
MID
ECONOMY
146-G14 GY-18
200-G4 BK-18
320-G7 OR-18
953-G15 GY-18
146-G1 GY-18
146-G11 GY-18
146-G8 GY-18
200-G16 BK-18
200-G17 BK-18
320-G18 OR-18
320-G19 OR-18
953-G9 GY-18
953-G2 GY-18
953-G12 GY-18
H721-G13 GN-18
H722-G3 OR-18
T860-G5 PK-18
T861-G6 GY-18
IMPLEMENT POD (JOYSTICK)
146-E7 GY-18
953-E11 GY-18
H716-E4 WH-18
MOTOR
MOTOR
511-C306 BR-18
512-C223 GN-18
122-C279 RD-18
200-C206 BK-18
122-C278 RD-18
200-C208 BK-18
508-C302 PU-18
509-C340 WH-18
118-C258 GY-14
E735-C45 PU-18
141-C396 PK-18
C583-C395 GN-18
614-C360 PU-18
200-C392 BK-18
200-C417 BK-18
C542-C323 GN-14
126-C284 PK-18
720-C234 PU-18
614-C361 PU-18
200-C389 BK-18
962-C358 OR-18
G766-C189 GN-18
G767-C190 WH-18
962-C381 OR-18
614-C68 PU-18
200-C377 BK-18
200-C46 BK-18
614-C379 PU-18
H709-C158 BU-18
953-C365 GY-18
H708-C157 OR-18
614-C94 PU-18
200-C374 BK-18
200-C342 BK-18
614-C364 PU-18
H703-C388 YL-18
H795-C71 PK-18
H702-C387 PU-18
614-C402 PU-18
200-C409 BK-18
T859-C176 WH-18
953-C93 GY-18
T858-C175 GY-18
614-C363 PU-18
200-C391 BK-18
953-C77 GY-18
T857-C156 GN-18
953-C366 GY-18
T856-C155 WH-18
614-C380 PU-18
200-C289 BK-18
200-C383 BK-18
614-C310 PU-18
146-E19 GY-18
146-E20 GY-18
146-E21 GY-18
200-E8 BK-18
320-E12 OR-18
953-E15 GY-18
953-E16 GY-18
953-E17 GY-18
953-E18 GY-18
G942-E9 OR-18 G942-E9 OR-18
H710-E1 PK-18 H710-E1 PK-18
H711-E2 GN-18 H711-E2 GN-18
H715-E3 PU-18
H716-E23 WH-18
H716-E25 WH-18
H716-E24 WH-18
H719-E5 OR-18
H720-E6 BU-18
T860-E13 PK-18
T861-E14 GY-18
237-3970
RH REAR SPEAKER
+
-
168-8772
C-C18
1552267
A
RD-16
C
WH-16
B
BK-16
C-C6
1552267
A
RD-16
C
WH-16
B
BK-16
+
LH REAR SPEAKER
-
168-8772
113-C245 OR-18
113-C262 OR-18
124-C23 GN-14
124-C292 GN-14
138-C37 GN-18
138-C43 GN-18
151-C461 GN-18
200-C214 BK-18
200-C343 BK-18
200-C344 BK-18
200-C345 BK-18
200-C349 BK-18
200-C356 BK-18
200-C370 BK-18
200-C371 BK-18
200-C398 BK-18
200-C462 BK-18
201-C139 BK-18
201-C418 BK-18
251-C346 BK-18
290-C16 BK-18
291-C100 BK-18
403-C248 GN-18
410-C242 WH-18
411-C243 PK-18
426-C85 BR-18
432-C6 PK-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
503-C256 BR-18
504-C255 YL-18
505-C254 BU-18
506-C10 PU-18
507-C11 WH-18
515-C235 GY-14
516-C241 GN-14
517-C240 BU-14
521-C124 YL-18
567-C231 WH-14
567-C338 WH-14
567-C359 WH-14
567-C362 WH-14
614-C92 PU-18
614-C324 PU-18
614-C347 PU-18
614-C357 PU-18
614-C367 PU-18
614-C373 PU-18
614-C368 PU-18
661-C296 GN-18
662-C295 YL-18
663-C297 GY-18
944-C143 OR-18
944-C144 OR-18
945-C136 BR-18
945-C137 BR-18
962-C350 OR-18
973-C195 BR-18
977-C197 YL-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
C413-C251 YL-18
C414-C244 BU-18
C529-C59 GY-18
C530-C61 BU-18
E416-C36 PU-18
E455-C12 BR-18
E707-C250 GN-18
E708-C247 PK-18
G485-C55 BU-18
G486-C56 GN-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
K933-C14 GN-18
C-C99
2234778
118-C355 GY-18
118-C354 GY-18
118-C352 GY-18
118-C353 GY-18
E735-C369 PU-18
E735-C382 PU-18
1
2
3
4
5
6
MOM
7
8
9
10
236-4630
C-C62
2234778
1
2
3
4
5
6
7
8
9
10
(D) NEUT OVRD SW
236-4609
C-C60
2234778
1
ON
2
OFF
3
4
5
6
AUTO
7
8
9
10
(D) RIDE CONTROL SW
236-4612
C-C67
2234778
1
2
3
4
5
6
7
8
9
10
(D) LIFT TILT KICKOUT SET SW
236-4619
C-C65
2234778
1
2
3
4
5
6
MOM
7
8
9
10
(D) REVERSING FAN SW
236-4623
C-C61
2234778
1
2
3
4
5
6
MOM
7
8
9
10
(D) AUTODIG KICKOUT SET SW
236-4621
C-C59
2234778
1
2
3
4
5
6
7
8
9
10
(D) MODE SELECT SW
236-4620
CABLE AS CAB (5M)
251-8248
146-G1 GY-18
953-G2 GY-18
H722-G3 OR-18
200-G17 BK-18
T860-G5 PK-18
T861-G6 GY-18
320-G18 OR-18
146-G8 GY-18
953-G9 GY-18
H723-G10 PK-18H723-G10 PK-18
146-G11 GY-18
953-G12 GY-18
H721-G13 GN-18
G-C6
1552269
320-G19 OR-18
200-G16 BK-18
1552273
H715-E3 PU-18
H719-E5 OR-18
H720-E6 BU-18
H716-E24 WH-18
H716-E23 WH-18
H716-E25 WH-18
146-E19 GY-18
146-E20 GY-18
146-E21 GY-18
200-E8 BK-18H720-E6 BU-18
320-E12 OR-18
953-E15 GY-18
953-E16 GY-18
953-E17 GY-18
953-E18 GY-18
T860-E13 PK-18
T861-E14 GY-18
E918-C153 GN-18
953-C325 GY-18
E917-C152 WH-18
614-C385 PU-18
200-C467 BK-18
200-C311 BK-18
614-C468 PU-18
G944-C160 YL-18
953-C65 GY-18
G943-C159 BU-18
614-C199 PU-18
200-C321 BK-18
200-C322 BK-18
614-C320 PU-18
T870-C167 BR-18
953-C24 GY-18
T869-C168 WH-18
614-C96 PU-18
200-C386 BK-18
RH DOME LAMP
3E-6389
LH DOME LAMP
3E-6389
WHEN USING HARNESS 263-2166
(UNPLUG DIMMER CONT AND
CONNECT RC-C3 TO C-C16
(PLUG DIMMER CONT INTO RC-C2).
G-C1
1552252
1
OR-20
2
BK-20
3
BU-20
4
GY-20
5
PU-20
6
WH-20
7
BR-20
8
GN-20
9
PK-20
10
WH-20
11
YL-20
12
G-C4
1733047
G-C5
1733047
1
2
(D) ARC SUPRESSOR
218-4935
E-C4
3E-3382
BK-18
1
BK-18
2
3
BK-18
4
BK-18
5
BK-18
6
BK-18
C-C98
2234778
1
2
3
4
5
6
7
8
9
10
C-C95
2234778
1
2
3
4
5
6
7
8
9
10
THIRD FUNC SW CAP
228-6089
C-C94
2234778
1
2
3
4
5
6
7
8
9
10
(D) FINE MODULATION SW
236-4622
PANEL GROUP B
2234778
567-C231 WH-14
124-C23 GN-14
567-C338 WH-14
124-C292 GN-14
521-C124 YL-18
614-C324 PU-18
200-C356 BK-18
200-C349 BK-18
614-C357 PU-18
2234778
517-C240 BU-14
567-C359 WH-14
516-C241 GN-14
567-C362 WH-14
515-C235 GY-14
614-C367 PU-18
200-C370 BK-18
200-C371 BK-18
614-C368 PU-18
2234778
E735-C382 PU-18
201-C139 BK-18
614-C373 PU-18
200-C398 BK-18
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
118-C354 GY-18
118-C353 GY-18
200-C344 BK-18
502-C253 OR-18
501-C257 GN-18
500-C252 BR-18
506-C10 PU-18
118-C355 GY-18
118-C352 GY-18
200-C343 BK-18
505-C254 BU-18
504-C255 YL-18
503-C256 BR-18
507-C11 WH-18
962-C350 OR-18
973-C195 BR-18
977-C197 YL-18
H728-C198 GN-18
H729-C63 WH-18
H730-C201 BR-18
113-C245 OR-18
138-C37 GN-18
138-C43 GN-18
151-C461 GN-18
200-C345 BK-18
200-C462 BK-18
201-C418 BK-18
251-C346 BK-18
290-C16 BK-18
291-C100 BK-18
403-C248 GN-18
410-C242 WH-18
411-C243 PK-18
426-C85 BR-18
432-C6 PK-18
439-C460 YL-18
442-C7 GY-18
443-C104 YL-18
447-C64 PK-18
496-C9 WH-18
614-C347 PU-18
944-C143 OR-18
944-C144 OR-18
945-C136 BR-18
945-C137 BR-18
C413-C251 YL-18
C414-C244 BU-18
C529-C59 GY-18
C530-C61 BU-18
E416-C36 PU-18
E455-C12 BR-18
E707-C250 GN-18
E708-C247 PK-18
E735-C369 PU-18
G485-C55 BU-18
G486-C56 GN-18
K933-C14 GN-18
1552273
200-C214 BK-18
614-C92 PU-18
113-C262 OR-18
662-C295 YL-18
661-C296 GN-18
663-C297 GY-18
CONN 15
+ BATTERY
GROUND
THIRD FUNCTION SIGNAL
CALIBRATION
SWITCH COMMON
N/O LEFT PUSHBUTTON
N/C LEFT PUSHBUTTON
N/O RIGHT PUSHBUTTON
N/C RIGHT PUSHBUTTON
1
+ BATTERY
2
RETURN
3
LIFT SIGNAL
4
CALIBRATION
1
+ BATTERY
2
RETURN
3
TILT SIGNAL
4
CALIBRATION
(D) IMPLEMENT JOYSTICK1
208-6060
220-6102 3RD FNCTN REMD
226-8665 AUTODIG TRIGGER SW REMD
226-8664 3RD FCTN AND AUTODIG TRIGGER SW REMD
(D) LIFT LVR LIFT DETENT MAG(D) LIFT LVR LOWER DETENT MAG
188-0955188-0955
(D) RACKBACK DETENT MAG
188-0955
WIRE EACH OF THE DETENT MAGNETS TO THE SIX PIN CONNECTOR AS SHOWN
E-C11
1552269
320-E12 OR-18
200-E8 BK-18
E-C13
1552267
T861-E14 GY-18
T860-E13 PK-18
953-E18 GY-18
H710-E1 PK-18
953-E17 GY-18
146-E21 GY-18
H711-E2 GN-18
953-E15 GY-18
146-E19 GY-18
G942-E9 OR-18
953-E16 GY-18
(D) IMPLEMENT LOCKOUT SW
251-1197
146-E20 GY-18
ABC
ABC
RD-18
+V
(15) 3RD LVR POS SNSR
214-4862
IMPLEMENT POD
HVAC SELECT SW
C-C43
236-4610
1
2
3
4
5
6
7
8
9
10
(D) HVAC BLOWER FAN SPD SW
C-C49
236-4611
1
2
3
4
5
6
7
8
9
10
C-C50
1
2
3
4
5
6
7
8
9
10
C-C51
1552267
A
B
C
C-C52
1552264
1
2
3
4
5
6
7
8
C-C53
1552264
1
2
3
4
5
6
7
8
C-C54
1552273
1
2
3
4
5
6
C-C16
1
2
3
4
5
6
1
2
3
4
5
6
HEAT
A/C
HIGH
MED
LOW
(D) EMS MODE SELECT SW
236-4608
RD-14
BK-14
BR-14
(D) HVAC TEMP SELECT POTENT
127-4540
RD-16
WIPER B+
RD-16
WASHER B+
BK-16
GROUND
WH-16
YL-16
BU-16
BR-16
(2) DIMMER
103-5526
HIGH
LOW
PARK
WASH
UNUSED
(D) FRONT INTER WIPER WASHER SW
110-7886
H
B
RD-16
RD-16
WH-16
YL-16
BU-16
BR-16
(D) REAR WIPER WASHER SW(D) HEATED MIRROR SW
112-6174
BK-16
BK-16
BK-16
BK-16
BK-16
BK-16
(D) AUTO MANUAL GEAR SELECT SW
201-7952
GROUND
LIGHTS
+ BATTERY
SPEEDOMETER LAMP
TACHOMETER LAMP
GAGE LAMP
B
L
WP
2
3
1
4
5
6
MANUAL
AUTO 1-4
AUTO 4
AUTO 3
AUTO 2
200-RC100 BK-18
614-RC101 PU-18
113-RC102 OR-18
662-RC103 YL-18
661-RC104 GN-18
663-RC105 GY-18
113-RC108 OR-18
RC-C3
3E3382
200-RC109 BK-18
614-RC101 PU-18 614-RC101 PU-18
113-RC108 OR-18
661-RC104 GN-18
663-RC105 GY-18
200-RC109 BK-18
1
BK-18
2
BK-18
E-C1
3E3370
A
A
B
B
C
C
E-C10
1552267
E-C5
3E3370
YL-18
BK-18
SIGNAL
GROUND
661-RC104 GN-18
662-RC103 YL-18662-RC103 YL-18
663-RC105 GY-18
(D) FORWARD HORN SW 2
170-1821
MOM
(D) AUTODIG TRIGGER SW
A
B
C
200-C228 BK-14
1 2
WH-18
3 4
BR-18
MOM
BK-18
E-C9
1552267
ABC
YL-18
BK-18
RD-18
SIGNAL
GROUND
+V
(15) TILT LVR POS SNSR
214-4862
102-C69 RD-14
105-C259 RD-18
115-C280 PK-18
118-C275 GY-18
125-C339 RD-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
130-C5 RD-18
131-C265 BR-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
135-C8 BU-18
135-C202 BU-18
139-C277 RD-18
141-C285 PK-18
147-C73 RD-18
164-C264 WH-18
175-2209
E-C7
1552267
ABC
YL-18
BK-18
RD-18
SIGNAL
GROUND
+V
(15) LIFT LVR POS SNSR
214-4862
102-C431 RD-14
102-C131 RD-18
200-C451 BK-18
200-C416 BK-18
200-C308 BK-18
200-C404 BK-18
200-C422 BK-18
200-C410 BK-18
200-C411 BK-18
200-C412 BK-18
200-C406 BK-18
200-C452 BK-18
200-C447 BK-18
200-C451 BK-18
200-C405 BK-18
200-C452 BK-18
200-C407 BK-18
200-C414 BK-18
200-C415 BK-18
200-C413 BK-18
DASH GROUND
201-C419 BK-18
201-C420 BK-18
307-C3 OR-18
308-C87 YL-18
320-C319 OR-18
326-C287 RD-18
411-C243 PK-18
430-C313 BU-18
436-C47 OR-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
518-C329 OR-18
537-C445 GN-18
538-C331 BR-18
611-C32 PU-14
614-C376 PU-18
663-C297 GY-18
C413-C251 YL-18
C414-C244 BU-18
537-C444 GN-18
537-C305 GN-18
538-C446 BR-18
538-C132 BR-18
603-C299 PK-14
604-C78 OR-18
605-C91 YL-18
606-C89 GY-18
611-C423 PU-14
611-C424 PU-18
614-C330 PU-18
614-C232 PU-18
614-C307 PU-18
614-C332 PU-18
615-C318 YL-18
617-C83 BR-18
619-C40 GN-14
633-C328 BU-18
646-C293 OR-18
647-C290 GN-18
651-C239 PK-14
661-C296 GN-18
662-C295 YL-18
663-C432 GY-18
663-C433 GY-18
910-C15 YL-18
944-C28 OR-18
945-C17 BR-18
951-C288 PK-18
962-C421 OR-18
962-C31 OR-18
A307-C129 GY-18
A541-C327 PU-18
A629-C300 BU-14
A982-C130 BR-18
C413-C436 YL-18
C413-C437 YL-18
C414-C438 BU-18
C414-C439 BU-18
539-C429 BU-18
540-C430 WH-18
610-C333 OR-14
539-C429 BU-18
540-C430 WH-18
610-C333 OR-14
E701-C229 PK-18
E707-C250 GN-18
E708-C247 PK-18
RC-C2
1552273
1
2
3
4
5
6
113-RC102 OR-18 200-RC100 BK-18
113-RC110 OR-18
113-RC111 OR-18
113-RC107 OR-18
200-RC106 BK-18
200-RC100 BK-18
E707-C440 GN-18
E707-C441 GN-18
E708-C442 PK-18
E708-C443 PK-18
E759-C315 WH-18
F846-C337 PU-18
G479-C33 WH-18
G480-C316 GN-18
G746-C13 WH-18
G750-C196 BU-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G768-C187 GN-18
G836-C336 WH-18
G850-C29 BU-18
H795-C222 PK-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
T901-C335 YL-18
T902-C334 PK-18
CONNECTOR TO
DIMMER CONTROL
B-7
113-RC102 OR-18
614-RC101 PU-18
661-RC104 GN-18
662-RC103 YL-18
663-RC105 GY-18
1552273
113-RC111 OR-18
200-RC106 BK-18
113-RC107 OR-18
RC-C1
LH RR CAB FLOOD 2
219-6485
LH RR CAB FLOOD
219-6487
RH RR CAB FLOOD
RH RR CAB FLOOD 2
200-C403 BK-12
A629-C300 BU-14
651-C239 PK-14
(3) PCS ECM
283-1604
PANEL LAMP 5
7N-5876
+12V SPLY
1
GROUND
2
TRIGGER #1
3
TRIGGER #2
4
TRIGGER #3
5
6
STANDBY
VIDEO SIG
VIDEO GND
+12 VDC
FEED GND
C542-C393 GN-14
C542-C323 GN-14
603-C299 PK-14
3T3158
L-C2
1552269
1
608-L3 GN-14
2
200-L4 BK-14
608-L3 GN-14 608-L5 GN-14
200-L4 BK-14
608-L5 GN-14
L-C3
1552269
1
2
608-L3 GN-14
200-L4 BK-14
200-L6 BK-14200-L6 BK-14
608-L5 GN-14
200-L6 BK-14
608-L1 GN-14
200-L2 BK-14
200-C230 BK-12
WHEN NEEDED CAN CONNECT TO 615-AE11,9
615-C298 YL-14
WHEN NEEDED CAN CONNECT TO 608-AE15,13
608-C294 GN-14
608-C81 GN-14
219-6487
200-P4 BK-14
608-P3 GN-14
200-P6 BK-14
608-P5 GN-14
219-6485
P-C2
1552269
1
608-P3 GN-14
2
200-P4 BK-14
608-P5 GN-14
608-P3 GN-14
200-P4 BK-14
200-P6 BK-14
P-C3
1552269
1
608-P5 GN-14
2
200-P6 BK-14
WHEN IN USE CONNECT TO 200AC 2,4 AND/OR 200-J2
COULD CONNECT TO 200-AE2,3,4,8 AND/OR 200-AE16,10,12,14
WHEN NEEDED CONNECT TO A629-AE5,6
WHEN IN USE CONNECT TO 651-AE1,7
ELECTRICAL STUDS CONNECT
THE CAB ROOF HARNESS TO THE
MAIN CAB HARNESS (PWR AND GND)
SHEET 1 (K-2)
ONE ELECTRICAL STUD IS
PROVIDED FOR EACH OF
THE FOLLOWING CIRCUITS
(THE HEATED MIRRORS, BEACON
AND HID LIGHT HARNESSES}
ARE ATTACHMENTS)
603
608
615
651
A629
C542
TWO ELECTRICAL STUDS ARE
PROVIDED FOR THE FOLLOWING
CIRCUIT
200
118-C275 GY-18
130-C5 RD-18
132-C177 RD-18
133-C427 OR-18
133-C428 OR-18
164-C264 WH-18
200-C406 BK-18
200-C410 BK-18
200-C411 BK-18
200-C412 BK-18
200-C413 BK-18
200-C414 BK-18
200-C415 BK-18
200-C416 BK-18
201-C419 BK-18
201-C420 BK-18
411-C243 PK-18
430-C313 BU-18
436-C47 OR-18
500-C252 BR-18
501-C257 GN-18
502-C253 OR-18
538-C446 BR-18
539-C429 BU-18
540-C430 WH-18
604-C78 OR-18
610-C333 OR-14
611-C423 PU-14
611-C424 PU-18
615-C318 YL-18
619-C40 GN-14
633-C328 BU-18
661-C296 GN-18
662-C295 YL-18
663-C432 GY-18
663-C433 GY-18
910-C15 YL-18
962-C421 OR-18
A307-C129 GY-18
A982-C130 BR-18
C413-C436 YL-18
C413-C437 YL-18
C414-C438 BU-18
C414-C439 BU-18
E701-C229 PK-18
E707-C440 GN-18
E707-C441 GN-18
E708-C442 PK-18
E708-C443 PK-18
E759-C315 WH-18
G479-C33 WH-18
G480-C316 GN-18
G746-C13 WH-18
G850-C29 BU-18
H795-C222 PK-18
T862-C182 BU-18
T863-C179 PU-18
T864-C180 BR-18
200-C451 BK-18
200-C452 BK-18
200-C451 BK-18
200-C452 BK-18
102-C131 RD-18
102-C431 RD-14
105-C259 RD-18
115-C280 PK-18
125-C339 RD-18
126-C465 PK-18
127-C375 OR-14
127-C408 OR-14
131-C265 BR-18
135-C8 BU-18
135-C202 BU-18
139-C277 RD-18
141-C285 PK-18
147-C73 RD-18
200-C308 BK-18
200-C404 BK-18
200-C405 BK-18
200-C407 BK-18
200-C422 BK-18
200-C447 BK-18
307-C3 OR-18
308-C87 YL-18
320-C319 OR-18
326-C287 RD-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
518-C329 OR-18
537-C305 GN-18
537-C444 GN-18
538-C132 BR-18
539-C429 BU-18
540-C430 WH-18
603-C299 PK-14
605-C91 YL-18
606-C89 GY-18
610-C333 OR-14
614-C232 PU-18
614-C307 PU-18
614-C330 PU-18
614-C332 PU-18
617-C83 BR-18
646-C293 OR-18
647-C290 GN-18
651-C239 PK-14
944-C28 OR-18
945-C17 BR-18
951-C288 PK-18
962-C31 OR-18
A541-C327 PU-18
A629-C300 BU-14
F846-C337 PU-18
G750-C196 BU-18
G755-C186 GY-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
G768-C187 GN-18
G836-C336 WH-18
T901-C335 YL-18
T902-C334 PK-18
N-C1
7X6222
1
+24V (IN)
2
GROUND
3
4
RX IN
5
6
GROUND
TX OUT
GROUND
(11) PCS KEYPAD
297-1398
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
N-C2
1698669
A
B
C
188-N16
+24V SUPPLY
LIFT PRESS SENS
KEYPAD DATA
CAT DATA LINK -
ROD END PRES SNSR
CAT DATA LINK +
LIFT POS SENS
+V DISPLAY
GROUND
DATA
c
1
2
N-C5
(12) REAR VISION MONITOR
261-3224
3E3364
608-P1 GN-14
200-P2 BK-14
138-N5 GN-18
251-N6 BK-18
819-N13 GY-18
188-N16 WH-18
250-N14 BK-18
818-N12 BR-18
C529-N8 GY-18
E955-N10 OR-18
945-N2 BR-18
E416-N7 PU-18
944-N1 OR-18
C530-N9 BU-18
251-N15 BK-18
WH-18
251-N15 BK-18
E955-N10 OR-18
138-N11 GN-18
614-N3 PU-18
200-N4 BK-18
PCS
L-C1
3E3364
LH REAR FLOOD
1
2
P-C1
Y-C1
219-6487
1552269
1
2
RH REAR FLOOD
219-6487
1
2
C542-AC3 GN-14
C542-AC1 GN-14
200-AC2 BK-14
200-AC4 BK-14
608-Y1 GN-14
200-Y2 BK-14
200-Y4 BK-14
200-Y2 BK-14
200-Y7 BK-14
200-Y10 BK-14
615-Y6 PK-14
615-Y9 PK-14
608-Y3 GN-14
608-Y1 GN-14
Y-C6
1552269
1
608-Y3 GN-14
2
200-Y4 BK-14
HEATED OUTSIDE MIRRORS
200-J2 BK-14
603-J1 PK-14
BEACON
133-C428 OR-18
200-C415 BK-18
540-C430 WH-18
538-C446 BR-18
910-C15 YL-18
G480-C316 GN-18
430-C313 BU-18
615-C318 YL-18
G479-C33 WH-18
132-C177 RD-18
200-C413 BK-18
T864-C180 BR-18
T862-C182 BU-18
T863-C179 PU-18
133-C427 OR-18
200-C414 BK-18
633-C328 BU-18
411-C243 PK-18
539-C429 BU-18
E701-C229 PK-18
G850-C29 BU-18
E759-C315 WH-18
611-C424 PU-18
436-C47 OR-18
A982-C130 BR-18
H795-C222 PK-18
A307-C129 GY-18
E707-C440 GN-18
201-C419 BK-18
E708-C443 PK-18
C413-C436 YL-18
C414-C438 BU-18
661-C296 GN-18
200-C411 BK-18
662-C295 YL-18
200-C412 BK-18
E707-C441 GN-18
201-C420 BK-18
E708-C442 PK-18
C413-C437 YL-18
C414-C439 BU-18
663-C433 GY-18
200-C406 BK-18
663-C432 GY-18
200-C410 BK-18
501-C257 GN-18
200-C416 BK-18
118-C275 GY-18
500-C252 BR-18
502-C253 OR-18
610-C333 OR-14
619-C40 GN-14
611-C423 PU-14
164-C264 WH-18
962-C421 OR-18
G746-C13 WH-18
130-C5 RD-18
604-C78 OR-18
(5) GROENEVELD AUTOLUBE
TWIN DISPLAY
TWIN DISPLAY
221-6803
TWISTED
WIRES
138-N5 GN-18
200-N4 BK-18
251-N6 BK-18
138-N11 GN-18
C529-N8 GY-18
C530-N9 BU-18
614-N3 PU-18
944-N1 OR-18
945-N2 BR-18
E416-N7 PU-18
TWISTED
WIRES
250-N14 BK-18
819-N13 GY-18
818-N12 BR-18
138-N11 GN-18

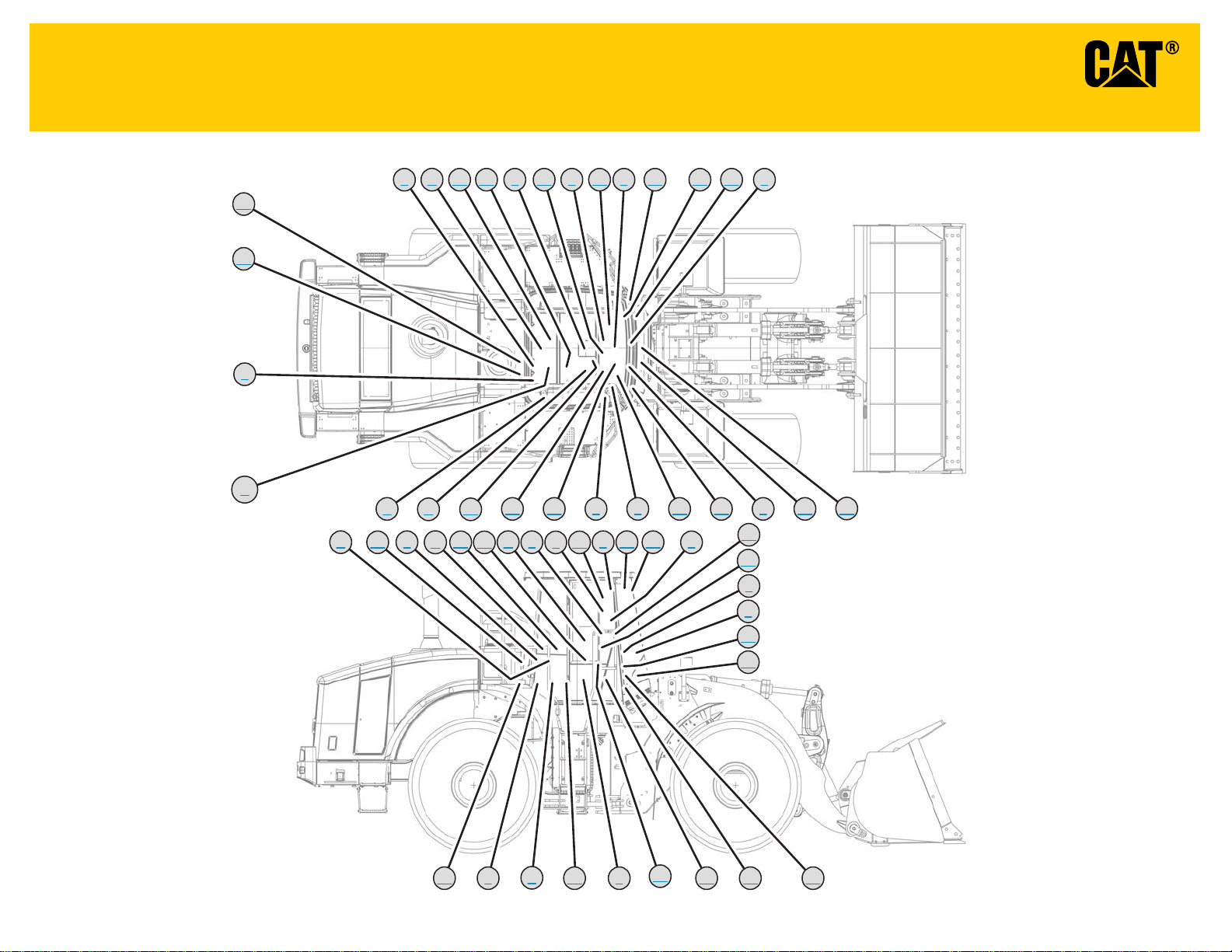

CALLOUT FORMAT IF APPLICABLE
Callout Number
(Machine Location from
Component Locations Table)
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
H#
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW
TERMINAL
200-Y7 BK-14
200-Y10 BK-14
615-Y6 PK-14
615-Y9 PK-14
200-Y2 BK-14
200-Y4 BK-14
608-Y1 GN-14
608-Y3 GN-14
200-Y2 BK-14
200-Y4 BK-14
608-Y1 GN-14
608-Y3 GN-14
CAB LIGHT HARNESS
LH HEATED MIRROR
AC-C1
200-1173
1552269
1
C542-AC1 GN-14
200-AC2 BK-14
C542-AC3 GN-14
200-AC4 BK-14
1552269
603-J1 PK-14
200-J2 BK-14
1552252
1552273
1552267
J-C1
C-C73
C-C93
1552273
C-C44
1552253
C-C77
1552267
C-C14
1552273
C-C15
1552273
C-C10
C-C74
BK-18
2
BK-18
RH HEATED MIRROR
AC-C2
200-1173
1552269
1
BK-18
2
BK-18
RDBK1
BEACON
2
235-3937
1
+24 VOLTS
2
GROUND
3
4
LH TURN SIGNAL
5
HAZARDS
6
7
8
NEUTRALIZER OVERRIDE
9
FUEL LEVEL LOW
10
AIR FILTER
11
FLOOD LIGHTS
12
FUEL PRESSURE
(10) LH IND PANEL
249-2763
C-C66
3E3382
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
1
+24 VOLTS
2
GROUND
3
DIMMER CONTROL
4
BUCKET TURN
5
MSS
6
PRELUBE
7
ACTION LAMP
8
RIDE CONTROL
9
HIGH BEAM
10
RH TURN SIGNAL
11
START AID
12
XMSN FILTER BYPASS
RD-18
A
BK-18
B
C
YL-18
OR-18
1
BK-18
2
GN-18
3
WH-18
4
YL-18
5
BU-18
6
PANEL LAMP 4
7N-5876
C-C68
3T3158
(8) QUAD GAGE
166-6928
1
OR-18
+V DISPLAY
2
BK-18
GROUND
GN-18
3
CLOCK
WH-18
4
DATA
YL-18
5
LOAD
BU-18
6
7N-5876
3T3158
GN-16
BK-16
GY-16
BR-16
OR-16
X-C1
3E3370
200-X1 BK-14
HARNESS CODE
C-C70
PANEL LAMP 7
4
1
2
6
3
5
A
A
B
B
C
C
+24 VOLTSBK
GROUND
BK
DIMMER CONTROL
BK
BK
AUTODIG AUTO 1
BK
AUTODIG AUTO 2
BK
AUTODIG RECORD
+V
GROUND
SIGNAL
(8) TACH SPEEDOMETER
190-3730
+V DISPLAY
GROUND
CLOCK
DATA
LOAD
HARNESS CODE
1 2
1 2
1 2
GND
MOTOR
T
B+
CONN 20
C-C75
1552267
C-C76
3E3364
RD-18
A
BK-18
B
C
YL-18
T-C1
1552269
1
1
102-T2 RD-16
2
2
604-T1 OR-16
CONN 19
(16) LH BRAKE PEDAL SENSOR
214-4863
+V
GROUND
SIGNAL
(D) STOP LAMP SW
105-6117
LH BRAKE PEDAL (227-1107)
C-C101
C-C100
1552267
3E3370
147-C515
200-C516
439-C513
3E3370
ACTION ALARM
CAT DATA LINK +
FRONT AXLE OIL TEMP SW
FUEL LEVEL SENSOR
HYD TEMP SENSOR
ACTION LAMP
CAT DATA LINK -
MODULE LOAD
OPERATOR SW INPUT
BRK OIL PRESS
+8V SENSOR SUPPLY
MODULE CLOCK
TORQUE CONV OUTLET TEMP
HYD OIL LEVEL
ALTERNATOR
XMSN FILTER BYPASS SW
CLUSTER +V
MODULE DATA
REAR AXLE OIL TEMP SW
HYD FILTER BYPASS SW
(3) EMS III ECM
154-7443
N-C4
3E5178
1
2
3
4
5
6
7
CONN 17
8
9
10
11
12
N-C3
3E5136
A
B
C
D
E
CONN 16
(52) VALVE GP - CONTROL
138-1234
A
B
C
CONN 18
+ BATTERY
GROUND
SERVICE
CLEAR
C-C41
3E5179
CUSTOMER
DATA
CONNECTION
CABLE
233-5041
A
A
151-C461 GN-18
B
B
200-C462 BK-18
C
C
439-C460 YL-18
C-C42
8T9834
1
113-C245 OR-18
2
201-C418 BK-18
3
4
410-C242 WH-18
5
944-C143 OR-18
6
7
8
G485-C55 BU-18
9
447-C64 PK-18
10
442-C7 GY-18
11
12
13
411-C243 PK-18
14
945-C137 BR-18
15
C414-C244 BU-18
16
17
18
E735-C369 PU-18
19
20
432-C6 PK-18
21
22
23
290-C16 BK-18
24
K933-C14 GN-18
25
E708-C247 PK-18
26
27
28
443-C104 YL-18
29
496-C9 WH-18
30
403-C248 GN-18
31
32
426-C85 BR-18
33
291-C100 BK-18
34
E707-C250 GN-18
35
C413-C251 YL-18
36
37
38
G486-C56 GN-18
39
E455-C12 BR-18
40
C-C40
1552252
1
1
138-C43 GN-18
2
2
200-C345 BK-18
3
3
251-C346 BK-18
4
4
138-C37 GN-18
5
5
C529-C59 GY-18
6
6
C530-C61 BU-18
7
7
614-C347 PU-18
8
8
944-C144 OR-18
9
9
945-C136 BR-18
10
10
E416-C36 PU-18
11
11
12
12
PCS PRINTER
230-7137
Part Number
ABBREV
TWISTED
WIRES
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
Y-C2
H-C1
1552269
3E3364
1
615-Y9 PK-14
200-Y7 BK-14
1
2
2
CONN 21
Y-C5
K-C1
1552269
3E3364
1
615-Y6 PK-14
200-Y10 BK-14
1
2
2
CONN 22
(9) CENTER DASH IND
249-2775
(11) RH INDICATOR PANEL
249-2763
(17) THROTTLE POSITION SENSOR
266-1466
PANEL LAMP 3
7N-5876
1 2
C-C69
3T3158
PANEL LAMP 6
7N-5876
C-C71
3T3158
L
H
(13) FRONT WIPER MOTOR
189-8622
(NOTE A)
P
TWISTED WIRES
Component
Name
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
615-H6 YL-14
200-H2 BK-14
615-H4 YL-14
200-H1 BK-14
615-H5 YL-14
200-H3 BK-14
615-K5 YL-14
200-K2 BK-14
615-K4 YL-14
200-K1 BK-14
615-K6 YL-14
200-K3 BK-14
1552269
1
2
615-H5 YL-14
615-H6 YL-14
200-H2 BK-14
200-H3 BK-14
H-C3
1552269
1
2
K-C3
1552269
1
2
YL-14
615-K5
615-K6 YL-14
200-K2 BK-14
200-K3 BK-14
K-C2
1552269
1
2
TWISTED
WIRES
LH FR CAB FLOOD 2
219-6485
2
1
H-S2
2
1
H-S1
LH FR CAB FLOOD
219-6487
RH FR CAB FLOOD
219-6487
2
1
K-S2
2
1
K-S1
RH FR CAB FLOOD 2
219-6485
200-H2 BK-14
615-H6 YL-14
200-H3 BK-14
615-H5 YL-14
AE-C7
1552269
1
2
AE-C4
1552269
1
2
AE-C3
1552269
1
2
AE-C8
1552269
1
2
608-AE15 GN-14
200-AE16 BK-14
651-AE1 PK-14
200-AE2 BK-14
200-AE2 BK-14
200-AE3 BK-14
200-AE4 BK-14
200-AE8 BK-14
200-AE10 BK-14
200-AE16 BK-14
200-AE12 BK-14
200-AE14 BK-14
608-AE13 GN-14
608-AE15 GN-14
615-AE9 YL-14
615-AE11 YL-14
651-AE7 PK-14
651-AE1 PK-14
A629-AE5 BU-14
A629-AE6 BU-14
651-AE7 PK-14
200-AE8 BK-14
608-AE13 GN-14
200-AE14 BK-14
200-AE3 BK-14
200-AE4 BK-14
200-AE10 BK-14
200-AE12 BK-14
615-AE9 YL-14
615-AE11 YL-14
A629-AE5 BU-14
A629-AE6 BU-14
200-AE2 BK-14
200-AE8 BK-14
200-AE14 BK-14
200-AE16 BK-14
608-AE13 GN-14
608-AE15 GN-14
651-AE7 PK-14
200-AE2 BK-14
200-AE8 BK-14
200-AE14 BK-14
200-AE16 BK-14
608-AE13 GN-14
608-AE15 GN-14
651-AE1 PK-14
651-AE7 PK-14
200-K2 BK-14
615-K5 YL-14
200-K3 BK-14
615-K6 YL-14
LH REAR CAB FLOOD
219-6487
LH REAR HID FLOOD
210-8422
RH REAR HID FLOOD
210-8422
RH REAR CAB FLOOD
219-6487
CAB HID LIGHT HARNESS
C-C47
2234778
1
OFF
2
ON
3
ON
4
OFF
5
ON
6
ON
7
8
9
10
OR-14
1
BU-14
2
BR-14
3
YL-14
4
GY-14
5
PK-14
6
GN-14
7
PU-14
8
C-C81
1552264
1
2
537-AY1 GN-14
539-AY2 BU-18
540-AY3 WH-18
605-AY4 YL-14
606-AY5 GY-14
A541-AY6 PU-18
(D) HID LAMP SW
251-4339
1
2
3
4
5
ANTENNA (RADIO)
9U-2331
ANTENNA MT (AM/FM RADIO)
9U-4431
ER-C1
3E3387
C-C82
1
3E3388
HTR ELEMENT
198-6571
198-6570
2
3
4
5
6
7
8
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
12 VOLT CIGAR LIGHTER
ROADING
PARK
OFF
B1
(D) RUNNING LAMP SW
108-3320
B2
B3
COAX CBL (ANTENNA)
173-2200
WH/BK
GN/BK
WH
GN
BK
7A
YL YL
RD
PU/BK
GY/BK
PU
GY
RADIO
(NOTE A)
WORK1
WORK2
ANTENNA
2
FLH SP -
2
4
4
RLH SP -
1
FLH SP +
1
3
3
RLH SP +
5
5
GROUND
8
8
UNUSED
7
7
12 VDC CONSTANT
6
6
12 VDC IGN/ACC LEAD
9
9
FRH SP -
11
11
RRH SP -
10
10
FRH SP +
12
12
RRH SP +
ENTERTAINMENT RADIO
173-6532
606-AY5 GY-14
605-AY4 YL-14
539-AY2 BU-18
540-AY3 WH-18
A541-AY6 PU-18
537-AY1 GN-14
102-C431 RD-14
115-C280 PK-18
125-C339 RD-18
127-C375 OR-14
127-C408 OR-14
131-C265 BR-18
135-C202 BU-18
139-C277 RD-18
200-C308 BK-18
200-C405 BK-18
508-C302 PU-18
509-C340 WH-18
511-C306 BR-18
512-C223 GN-18
610-C333 OR-14
614-C232 PU-18
614-C307 PU-18
617-C83 BR-18
646-C293 OR-18
647-C290 GN-18
651-C239 PK-14
A629-C300 BU-14
135-C122 BU-18
200-C341 BK-18
135-C122 BU-18
200-C341 BK-18
1552273
537-C444 GN-18
539-C429 BU-18
540-C430 WH-18
605-C91 YL-18
606-C89 GY-18
A541-C327 PU-18
C-C83
127-C375 OR-14
A629-C300 BU-14
127-C408 OR-14
651-C239 PK-14
614-C232 PU-18
200-C308 BK-18
131-C265 BR-18
102-C431 RD-14
139-C277 RD-18
646-C293 OR-18
617-C83 BR-18
610-C333 OR-14
647-C290 GN-18
614-C307 PU-18
509-C340 WH-18
508-C302 PU-18
200-C341 BK-18
115-C280 PK-18
125-C339 RD-18
135-C122 BU-18
512-C223 GN-18
511-C306 BR-18
135-C122 BU-18
135-C202 BU-18
200-C405 BK-18
200-C341 BK-18
C-C84
3E3382
1
1
2
2
3
3
4
4
5
5
6
6
C-C78
1552264
AY-C1
3E3381
1
2
3
4
5
6
C-C97
7T5957
CONN 23
1552252
962-C31 OR-18
320-C319 OR-18
126-C465 PK-18
G750-C196 BU-18
G755-C186 GY-18
G768-C187 GN-18
G760-C191 WH-18
G761-C193 YL-18
G762-C194 BR-18
G763-C185 PU-18
CONN 24
2234778
537-C305 GN-18
538-C132 BR-18
102-C131 RD-18
518-C329 OR-18
614-C330 PU-18
200-C447 BK-18
2234778
141-C285 PK-18
603-C299 PK-14
614-C332 PU-18
200-C422 BK-18
135-C8 BU-18
200-C407 BK-18
7T5957
F846-C337 PU-18
G836-C336 WH-18
951-C288 PK-18
308-C87 YL-18
326-C287 RD-18
307-C3 OR-18
105-C259 RD-18
T902-C334 PK-18
T901-C335 YL-18
147-C73 RD-18
200-C404 BK-18
944-C28 OR-18
945-C17 BR-18
TWISTED WIRES
C-C85
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
C-C79
1
2
3
4
5
6
7
8
9
10
C-C80
1
2
3
4
5
6
7
8
9
10
1
2
C-C72
C-C88
1552267
C-C90
1552272
C-C91
1552269
C-C96
1552273
CONN 25
CR-C1
3E5179
202-CR1 BK-16
322-CR2 GY-16
200-CR14 BK-16
G750-CR3 BU-16
G755-CR4 GY-16
G768-CR5 GN-16
G760-CR6 WH-16
G761-CR7 YL-16
G762-CR8 BR-16
G763-CR9 PU-16
(D) HAZARD LAMPS SW
236-4616
(D) BEACON SWITCH
237-9736
12 VOLT ACCESSORY OUTLET
117-2311
C-C89
3E3370
A
A
A
B
B
B
C
C
C
YL-16
1
2
PU-16
3
OR-16
BR-16
4
C-C92
3E3364
1
1
2
2
A-C2
3E3381
1
1
2
2
3
3
4
4
5
5
6
6
TWISTED WIRES
322-CR2 GY-16
200-CR14 BK-16
G763-CR9 PU-16
202-CR1 BK-16
G750-CR3 BU-16
G755-CR4 GY-16
G768-CR5 GN-16
G760-CR6 WH-16
G761-CR7 YL-16
G762-CR8 BR-16
COMMAND CONTROL STEERING WHEEL (218-0654)
RD-18
RED
MACHINE SECURITY SYSTEM LED
GN-18
BK-18
R
C
S
B
BK-18
BK-1812
147-A1 RD-18
200-A2 BK-18
944-A3 OR-18
945-A4 BR-18
OFF
ON
ST
165-5655
GREEN
(D) KEY START SW
110-7887
MACHINE SECURITY SYSTEM ANTENNA
206-5208
(D) FORWARD HORN SW
2T-3360
CR-C3
CA-C2
1552264
3E3388
1
1
G763-CA1 PU-20
2
2
202-CA2 BK-20
3
3
G750-CA3 BU-20
4
4
G755-CA4 GY-20
5
5
G768-CA5 GN-20
6
6
G760-CA6 WH-20
7
7
G761-CA7 YL-20
8
8
G762-CA8 BR-20
CONN 27
A-C1
9W1951
CONN 26
A
B
SERVICE
C
TOOL CONNECTOR
D
E
CAP PART NUMBER
F
8C-6354
G
H
J
CA-C1
1711653
1
2
3
4
5
6
7
8
189-8846
NEUTRAL SW
GROUND
FORWARD SW
REVERSE SW
UPSHIFT
UPSHIFT
DN SHIFT
DN SHIFT
PU-20
BK-20
DASH
NOTE A: COMPONENTS IN THE FOLLOWING SYSTEMS ARE NOT OFFERED WITH OROPS CABS HVAC, RADIO READY, WINDSHIELD WIPER AND WASHER.
IDENT PART NO CHG NOTE DESCRIPTION
HARNESS AS.
A 197-4845 00 SERVICE TOOL JMPR (DASH)
C 235-5504 06 MAIN CAB
E 236-2525 01 ATCH IMPLEMENT CONTROLS
G 236-2526 00 ATCH JOYSTICK
H 280-1436 01 ATCH ADDITIONAL FRONT FLOOD LIGHTS
J 236-7775 01 ATCH BEACON
K 280-1436 01 ATCH ADDITIONAL LH FRONT FLOOD LIGHTS
L 280-1437 01 ATCH ADDITIONAL LH FLOOD REAR LIGHTS
M 236-7774 01 ATCH HEATED MIRRORS (TIMER RELAY)
N 188-1421 02 ATCH PCS
P 280-1437 01 ATCH ADDITIONAL RH REAR LIGHTS
Y 235-5506 04 FRONT & REAR FLOODS
AC 236-6207 01 ATCH HEATED MIRRORS
AE 236-7773 01 ATCH HID FLOODS
AF 124-8490 04 ATCH ROOF TOP A/C
AH 192-2823 02 HVAC
AT 192-7805 00 AIR SEAT
AU 192-7805 00 HEATED SEAT
AY 154-4563 01 ATCH TURN SIGNAL SW
CA 152-6432 06 STER WHL JMPR (XMSN SHIFTER SW)
CR 283-3367 01 STER WHL JMPR (FWD HORN SW)
EG 236-7772 01 ATCH COMM RADIO (CB)
EH 223-3913 00 ATCH MACHINE SECURITY SYSTEM (MSS)
ER 186-2741 00 ATCH RADIO
RC 263-2166 01 ATCH REAR DISPLAY/DIMMER JUMPER
T 146-1892 01 STOP LAMP (LH BK PEDAL)
WA 276-0031 01 ATCH PRODUCT LINK
WIRE AS.
F 283-4373 00 HVAC POWER
X 121-8038 02 DIMMER JMPR (DASH)
FOR THE WHEEL LOADER CHASSIS AND ENGINE SEE: 232-4948 CH 01
WITH ELECTRO-HYDRAULIC CONTROLLED IMPLEMENTS, COMMAND CONTROL
STEERING AND ELECTRONIC ENGINE CONTROL
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
VOLTAGE CONVERTER OUTPUT CIRCUIT
STARTING CIRCUIT
START AID CIRCUIT
TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT
MONITOR CIRCUIT
MACHINE SECURITY CONTROL CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL / WIPER WASHER CIRCUIT
CAT DATA LINK
RS-232 / RS-485 DATA LINK
IMPLEMENT / VALVE / TOOL CONTROL CIRCUIT
CAN DATA LINK A
PAYLOAD CONTROL CIRCUIT
OTHER COLOR DESCRIPTIONS
HIGHWAYS
1552269
615-AE9 YL-14
200-AE10 BK-14
1552269
A629-AE5 BU-14
200-AE3 BK-14
1552269
A629-AE6 BU-14
200-AE4 BK-14651-AE1 PK-14
1552269
615-AE11 YL-14
200-AE12 BK-14
2
3
6
5
REV
NEUT
GND
FWD
(D) XMSN SHF-SW
177-7582
BU-20
GY-20
(D) XMSN SHF-SW
218-0652
AE-C5
1
2
AE-C1
1
2
AE-C2
1
2
AE-C6
1
2
(D) TURN SIGNAL SW
134-9569
4
1
(D) XMSN SHF-SW
LH FRONT CAB FLOOD
219-6487
LH FWD HID HEAD
210-8423
RH FWD HID HEAD
210-8423
RH FRONT CAB FLOOD
219-6487
218-0653
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or
death. Proper care is your responsibility.
THIS SCHEMATIC IS FOR THE 980H WHEEL LOADER ELECTRICAL SYSTEM
VOLUME 1 of 2: CAB
MEDIA NUMBER: RENR8682-06
SCHEMATIC PART NUMBER: 232-4945, CHANGE: 02, VERSION: -
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
Page 9
GROUND
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
STRAP AS.
ECM MOUNT BOLT
ANALOG SENSOR POWER
ANALOG SENSOR RETURN
THROTTLE SENSOR POWER
DIGITAL SENSOR/SWITCH RETURN
CAT DATA LINK +
CAT DATA LINK -
REV FAN SOL ENGAGE
PRELUBE RELAY
TURBO INLET PRESSURE SENSOR SIG
REV FAN SOL RETURN
ETHER ON RELAY
GROUND LEVEL SHUTDOWN(N/C)
TRANSMISSION LUBE OIL SENSOR
AIR FILTER RESTRICTED INDICATOR
PRELUBE INDICATOR
START AID INDICATOR
FUEL PRES INDICATOR
ENGINE SPEED SIGNAL TO XMSN CONTROL
GROUND LEVEL SHUTDOWN(N/O)
DEMAND FAN SOL +
REV FAN SW NO
REV FAN SW NC
+ BATTERY
DEMAND FAN SOL -
+ BATTERY
+ BATTERY
{0QUICK EVAC ENABLED}
QUICK EVAC ON
- BATTERY
- BATTERY
THROTTLE PEDAL POSITION
- BATTERY
KEY SWITCH ON (B+)
ENGINE RETARDER SOL.
ENGINE RETARDER SOL.
ENGINE COOLANT TEMPERATURE SIGNAL
ENGINE RETARDER SOL. COMMON
TURBO OUTLET PRESSURE SIGNAL
PRESSURE SENSOR COMMON
CRANKSHAFT SPEED/TIMING SIGNAL
TIMING CALIBRATION (T/C) PROBE
ENGINE OIL PRESSURE SIGNAL
TEMP SENSOR COMMON
CRANKSHAFT SPEED/TIMING GROUND
TIMING CALIBRATION (T/C) PROBE
FUEL PRESSURE SIGNAL
CAM S/T +
CAM S/T -
INTAKE MANIFOLD AIR TEMPERATURE
ATMOSPHERIC PRESSURE SIGNAL
FUEL TEMPERATURE
FUEL DIFFERENTIAL PRESSURE SW
PRESSURE SENSOR +5V
FUEL DIFFERENTIAL PRESSURE SW
INJECTOR SOL.5 AND SOL.6 COMMON
INJECTOR SOL.1 AND SOL.2 COMMON
INJECTOR SOL.3 AND SOL.4 COMMON
INJECTOR SOL.6
INJECTOR SOL.3
INJECTOR SOL.5
INJECTOR SOL.4
INJECTOR SOL.1
INJECTOR SOL.2
(7) ENGINE CONTROL
226-7473
200-CH48 BK-18
229-CH30 BK-14
229-CH37 BK-14
229-CH36 BK-14
229-CH38 BK-14
CH-C2
1607689
J1
1
2
J844-CH25
3
J843-CH33 BK-18
4
A982-CH14 BR-18
5
H795-CH23 PK-18
6
7
8
944-CH11 OR-18
9
945-CH12 BR-18
10
H704-CH50 PK-18
11
12
13
X337-CH27 WH-18
14
15
F713-CH15 OR-18
16
17
18
J764-CH53 BR-18
19
20
317-CH55 YL-18
21
22
23
X919-CH29 WH-18
24
25
26
R971-CH47 YL-18
27
28
E759-CH17 WH-18
29
430-CH7 BU-18
30
G850-CH20 BU-18
31
G479-CH21 WH-18
32
33
34
35
36
37
38
450-CH8 YL-18
39
40
X918-CH28 PU-18
41
42
43
H746-CH43 YL-18
44
45
46
H702-CH22 PU-18
47
48
110-CH49 RD-14
49
50
51
H747-CH41 BR-18
52
110-CH34 RD-14
53
110-CH35 RD-14
54
55
56
G791-CH19 BR-18
57
58
G790-CH18 PK-18
59
60
61
229-CH36 BK-14
62
63
229-CH37 BK-14
64
65
229-CH38 BK-14
66
A307-CH13 GY-18
67
68
69
70
150-CH3 OR-18
K-C1
2274002
J2
J2
1
K738-K41 GN-16-HV
2
3
4
5
6
7
8
K737-K4 BR-16-HV
9
10
11
12
13
995-K11 BU-18
14
K739-K40 BU-16-HV
15
R746-K18 PK-18
16
17
G829-K2 GN-18
18
19
20
21
22
23
24
25
E963-K23 BK-18
26
G856-K8 WH-18
27
28
994-K10 GY-18
29
30
G833-K7 PK-18
31
32
33
34
35
E964-K22 WH-18
36
G857-K9 YL-18
37
38
39
40
C991-K6 PK-18
41
42
43
44
45
46
E966-K26 YL-18
47
E965-K27 BU-18
48
49
50
51
52
53
54
55
56
C967-K13 BU-18
57
R747-K5 GY-18
58
59
60
61
62
F421-K12 YL-18
63
64
65
T725-K44 WH-18
66
67
68
69
70
71
72
G828-K1 WH-18
73
74
75
76
77
78
79
80
81
82
83
N707-K43 PU-18
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
T860-K14 OR-16-HV
100
101
102
103
104
T858-K15 GY-16-HV
105
T962-K25 WH-16-HV
106
T959-K17 BR-16-HV
107
T961-K16 GN-16-HV
108
T960-K24 BU-16-HV
109
110
111
112
113
114
115
T859-K21 WH-16-HV
116
T957-K20 PU-16-HV
117
118
T958-K19 YL-16-HV
119
120
GY-18
101-GA3 RD-14
NOTE: GA HARNESS REPLACES
AH WITH ACTUATOR ATTACHMENT.
101-GA2 RD-14
101-AH2 RD-14
101-GA1 RD-12
101-AH1 RD-12
101-AH1 RD-12
101-AH2 RD-14
101-GA1 RD-12
101-GA2 RD-14
101-GA3 RD-14
BUSS BAR
237-3932
CBL-TT1 RD-2 CBL-RR1 RD-2
50A
(3) START BREAKER
171-2206
60A
(3) HOOD ACTUATOR BREAKER
171-2208
80A
(3) MAIN BREAKER
171-2210
105A
(3) ALT BKR
171-2212
POWER DISTRIBUTION PANEL
CBL-TT1 RD-2
110-CH34 RD-14
110-CH35 RD-14
110-CH49 RD-14
TWISTED WIRES
229-CH36 BK-14
229-CH37 BK-14
229-CH38 BK-14
229-CH38 BK-14
229-CH37 BK-14
229-CH36 BK-14
J843-CH33 BK-18
J764-CH53 BR-18
326-CH5 PU-18
200-CH48 BK-18
TWISTED WIRES
TWISTED WIRES
TWISTED WIRES
995-K11 BU-18
994-K10
C967-K13 BU-18
C991-K6 PK-18
E963-K23 BK-18
E964-K22 WH-18
E965-K27 BU-18
E966-K26 YL-18
F421-K12 YL-18
G856-K8 WH-18
G857-K9 YL-18
K737-K4 BR-16-HV
K738-K41 GN-16-HV
K739-K40 BU-16-HV
G828-K1 WH-18
G828-K31 WH-18
G828-K30 WH-18
G828-K29 WH-18
G828-K28 WH-18
G829-K2 GN-18
G829-K32 GN-18
G829-K33 GN-18
G829-K34 GN-18
G829-K35 GN-18
G833-K7 PK-18
G833-K36 PK-18
G833-K37 PK-18
G833-K38 PK-18
N707-K43 PU-18
R746-K18 PK-18
R747-K5 GY-18
T725-K44 WH-18
T957-K20 PU-16-HV
T858-K15 GY-16-HV
T958-K19 YL-16-HV
T859-K21 WH-16-HV
T959-K17 BR-16-HV
T860-K14 OR-16-HV
T960-K24 BU-16-HV
T961-K16 GN-16-HV
T962-K25 WH-16-HV
141-F1 RD-16
F-T2
GA-T1
15
(3) ACTUATOR
3T-2662
15A
(3) RUNNING LAMP BREAKER
3T-2662
20A
(3) UNSWITCHED FUSE BREAKER (CAB)
6T-3644
BUSS BAR
225-2600
BUSS BAR
237-3931
102-CJ45 RD-14
174-CJ4 RD-10
(3) START RELAY ARC SUPPRESSOR
218-4935
(3) START RELAY
125-1302
(3) MAIN RELAY
241-8368
110-CH1 RD-14
150-CH3 OR-18
229-CH30 BK-14
317-CH55 YL-18
430-CH7 BU-18
450-CH8 YL-18
944-CH11 OR-18
945-CH12 BR-18
A307-CH13 GY-18
A982-CH14 BR-18
E759-CH17 WH-18
F713-CH15 OR-18
G479-CH21 WH-18
G790-CH18 PK-18
G791-CH19 BR-18
G850-CH20 BU-18
H702-CH22 PU-18H703-CH31 YL-18
H703-CH31 YL-18
H704-CH50 PK-18
H746-CH43 YL-18
H747-CH41 BR-18
H795-CH23
J844-CH25 GY-18
R971-CH47 YL-18
X919-CH29 WH-18
X918-CH28 PU-18
X337-CH27 WH-18
513-CH40 OR-18
513-CH39 OR-18
513-CH44 OR-18
522-CH10 WH-18
522-CH46 WH-18
522-CH45 WH-18
201-CH2 BK-18
443-CH42 YL-18
521-CH9 YL-18
K933-CH26 GN-18
443-CH42 YL-18
521-CH9 YL-18
K933-CH26 GN-18
PK-18
J843-CH32 BK-18
J843-CH24 BK-18
J764-CH52 BR-18
J764-CH54 BR-18
J764-CH51 BR-18
326-CH5 PU-18
H2
GY-18
H1
H2
H1
CJ-C28
1552269
1
306-CJ88 GN-18
2
975-CJ107 WH-18
199-CJ47 RD-18
200-CJ85 BK-18
199-CJ47 RD-18
200-CJ85 BK- 18
CJ-C27
1552269
1
BK-18
306-CJ54 GN-18
2
BK-18
975-CJ74 WH-18
304-CJ90 WH-8
103-CJ109 RD-6
CJ-C26
3E3364
1
BK-16
200-CJ87 BK-18
2
BK-16
308-CJ49 YL-18
112-CJ1 PU-4 1
CBL-RR1 RD-2
(17) AC PRESS SW
114-5333
NORMALLY
OPEN BEFORE
REFRIGERANT
CHARGE
200-CJ110 BK-18
200-CJ85 BK-18
A300-CJ98 GN-14
103-CJ109 RD-6
141-F1 RD-16
141-F3 RD-14
141-F2 RD-14
838-F14 YL-16
838-F12 YL-16
839-F15 BU-18
839-F16 BU-18
839-F17 BU-18
897-F6 GN-16
897-F7 GN-16
897-F8 GN-16
898-F9 PU-16
898-F11 PU-16
898-F10 PU-16
200-F4 BK-16
200-F5 BK-16
898-F10 PU-16
141-F2 RD-14
897-F7 GN-16
897-F8 GN-16
200-F4 BK-16
898-F11 PU-16
839-F16 BU-18
141-F3 RD-14838-F13 YL-16
838-F13 YL-16
838-F14 YL-16
200-F5 BK-16
839-F17 BU-18
838-F12 YL-16
839-F15 BU-18
897-F6 GN-16
898-F9 PU-16
F-C1
1552273
F-C2
1552273
F-C4
1552269
F-C3
1552269
1
2
3
4
5
6
1
2
3
4
5
6
1
2
1
2
1
2
3
4
5
6
1
2
3
4
5
6
(28) BELLY ACT SOL 1
196-7329
(28) BELLY ACT SOL 2
255-0949
(32) BELLYGUARD ACT SW 1
157-1364
(32) BELLYGUARD ACT SW 2
157-1364
103-CJ109 RD-6
199-CJ47 RD-18
200-CJ85 BK-18
200-CJ110 BK-18
A300-CJ86 GN-18
A300-CJ7 GN-18
A300-CJ98 GN-14
A301-CJ108 WH-18
A301-CJ99 WH-18
A301-CJ96 WH-18
306-CJ88 GN-18
306-CJ54 GN-18
306-CJ48 GN-18
306-CJ48 GN-18
102-CJ45 RD-14
12-CJ1 PU-4
174-CJ4 RD-10
199-CJ47 RD-18
200-CJ87 BK-18
200-CJ85 BK-18
304-CJ90 WH-8
308-CJ49 YL-18
975-CJ107 WH-18
975-CJ74 WH-18
CJ-C29
A301-CJ99 WH-18
200-CJ110 BK-18
A300-CJ7 GN-18
A301-CJ108 WH-18
A301-CJ96 WH-18
199-CJ47 RD-18
A300-CJ86 GN-18
3E3364
CJ-C2
1552269
CJ-C12
1552267
1
2
1
2
(8) HOOD ACTUATOR CONTROL DIODE
189-3158
A
BK-18
B
C
2
RD-18
WH-18
(35) HOOD ACTUATOR CONTROL SWITCH
146-0240
(8) HOOD ACTUATOR MOTOR
MOTOR
236-8935
UP
200-NN1 BK-6
UP
1
3
DOWN
HOOD LIFT
HOOD ACTUATOR GROUND
WASTE ARRANGE BELLY GUARDS
CHASSIS
CBL-TT1 RD-2
(5) BLOCK AS
8C-6358
CBL-KK2 RD-00
CBL-KK1 BK-00
KK-C1
2374944
CONN 28
AUXILARY START
RECEPTACLE
CBL-PP1 BK-2
(2) ALTERNATOR
177-9953 80A STD
197-8820 95A ATCH
ALT
R
+
-
CBL-KK2 RD-00
403-CH6 GN-14
CBL-KK1 BK-00
ENGINE GROUND
403-CH6
304-CH4
GN-14
WH-8
(12) STARTER
237-1962
G S
MTR BAT
MOTOR
403-CH6 GN-14
304-CH4 WH-8
304-CH4 WH-8
CBL-LL1 RD-00
CBL-MM1 BK-2
CBL-JJ1 BK-00
ENGINE GROUND STARTER
304-CH4 WH-8
403-CH6 GN-14
110-CH1 RD-14
150-CH3 OR-18
201-CH2 BK-18201-CH2 BK-18
229-CH30 BK-14
317-CH55 YL-18
326-CH5 PU-18
430-CH7 BU-18
443-CH42 YL-18
450-CH8 YL-18
521-CH9 YL-18
522-CH10 WH-18
944-CH11 OR-18
945-CH12 BR-18
A307-CH13 GY-18
A982-CH14 BR-18
E759-CH17 WH-18
F713-CH15 OR-18
G479-CH21 WH-18
G790-CH18 PK-18
G791-CH19 BR-18
G850-CH20 BU-18
H702-CH22 PU-18
H703-CH31 YL-18 H702-CH22 PU-18
H795-CH23 PK-18
J764-CH54 BR-18
J764-CH52 BR-18
J764-CH51 BR-18
J843-CH24 BK-18
J844-CH25 GY-18
K933-CH26 GN-18
X337-CH27 WH-18
X918-CH28 PU-18 X918-CH28 PU-18
CH-C13
1552267
OR-18
K933-CH26 GN-18
201-CH2 BK-18
443-CH42 YL-18
513-CH40 OR-18
513-CH44 OR-18
513-CH39 OR-18
521-CH9 YL-18
522-CH45 WH-18
522-CH46 WH-18
H746-CH43 YL-18
H747-CH41 BR-18
J843-CH32 BK-18
R971-CH47 YL-18
A
B
C
(17) VARIABLE SPEED FAN SOL
XMSN LUBE SENSOR
(NOT USED)
BK-18
3
2
1
BK-18
(2) ARC SUPPRESSOR
218-4935
GN-16
GN-16
(17) AC COMPRESSOR (CLUTCH SOL)
218-0324
BK-18
WH-18
183-7595
CH-C14
3E3364
CH-C8
3E3364
CH-C9
3E3364
CH-C11
3E3364
+8 VOLTS
(22) TORQUE CONVERTOR TEMP SENSOR
GROUND
SIGNAL
134-2252
CH-C6
1552269
1
H746-CH43 YL-18
2
H747-CH41 BR-18
CH-C5
1552269
1
1
R971-CH47 YL-18
2
2
J843-CH32 BK-18
CH-C7
1552269
1
1
513-CH39 OR-18
2
2
521-CH9 YL-18
CH-C10
1552269
1
1
513-CH40 OR-18
2
2
522-CH46 WH-18
CH-C12
1552269
1
1
513-CH44 OR-18
2
2
522-CH45 WH-18
CBL-LL1 RD-00
CBL-AA1 RD-00
NEGPOS
(4) 12V BATTERY 1 (4) 12V BATTERY 2
263-9574
CBL-CC1 RD-00
NEGPOS
(4) 12V BATTERY 3 (4) 12V BATTERY 4
263-9574
CX-C8
1539693
1
K737-CX19 BR-16-KYNAR K737-CX20 BR-16-KYNAR
2
K739-CX21 BU-16-KYNAR
CX-C9
1539693
1
K738-CX11 GN-16-KYNAR
2
K739-CX22 BU-16-KYNAR
CX-C10
1539693
1
K737-CX20 BR-16-KYNAR
2
K739-CX23 BU-16-KYNAR
ENG RET WIRES: NOT USED
CX-C2
(29) CYL HEAD
SOL 1
253-0615
CYL HEAD
SOL 2
253-0615
CYL HEAD
SOL 3
253-0615
CYL HEAD
SOL 4
253-0615
CYL HEAD
SOL 5
253-0615
CYL HEAD
SOL 6
253-0615
7E6513
T858-CX13 GY-16-KYNAR
T957-CX1 PU-16-KYNAR
CX-C3
7E6513
T858-CX14 GY-16-KYNAR
T958-CX2 YL-16-KYNAR
CX-C4
7E6513
T859-CX16 WH-16-KYNAR
T959-CX3 BR-16-KYNAR
CX-C5
7E6513
T859-CX15 WH-16-KYNAR
T960-CX4 BU-16-KYNAR
CX-C6
7E6513
T860-CX17 OR-16-KYNAR
T961-CX5 GN-16-KYNAR
CX-C7
7E6513
T860-CX18 OR-16-KYNAR
T962-CX6 WH-16-KYNAR
FUEL INJECTORS
CBL-EE1 RD-00
CBL-FF1 RD-00
CBL-GG1 BK-00
NEGPOS
263-9574
CBL-WW1BK-00
NEGPOS
263-9574
BATTERY BOX
CBL-HH1 BK-00
(34) DISCONNECT SW
7N-0718
CBL-JJ1 BK-00
K737-CX19 BR-16-KYNAR
K738-CX11 GN-16-KYNAR
K739-CX22 BU-16-KYNAR
K739-CX21 BU-16-KYNAR
K739-CX23 BU-16-KYNAR
T858-CX14 GY-16-KYNAR
T858-CX13 GY-16-KYNAR
T859-CX15 WH-16-KYNAR
T859-CX16 WH-16-KYNAR
T860-CX18 OR-16-KYNAR
T860-CX17 OR-16-KYNAR
T957-CX1 PU-16-KYNAR
T958-CX2 YL-16-KYNAR
T959-CX3 BR-16-KYNAR
T960-CX4 BU-16-KYNAR
T961-CX5 GN-16-KYNAR
T962-CX6 WH-16-KYNAR
(11) FUEL PRIMING PUMP SW
165-5970
+5V
GROUND
SIGNAL
(11) FUEL PRESSURE SENSOR
194-6725
RH FRAME GND
K737-CX10 BR-16-KYNAR
K739-CX12 BU-16-KYNAR
T858-CX7 GY-16-KYNAR
T859-CX8 WH-16-KYNAR
T860-CX9 OR-16-KYNAR
FUEL INJECTORS
MOTOR
(11) FUEL PRIMING PUMP
162-2211
MOM
RD-18
WH-18
BK-18
SIGNAL
GROUND
(11) FUEL TEMP SENSOR
256-6453
BK-18
BK-18
(11) DIFF PRESS SW
275-1253
OR-18
YL-18
GN-18
AX-C6
1552269
2
1
AX-C7
1552267
B
C
A
AX-C5
2304011
1
2
AX-C4
2304012
1
2
AX-C2
3E3370
A
B
C
A893-AX11 OR-18
129-AX9 RD-18
200-AX10 BK-18
A893-AX11 OR-18
F421-AX4 YL-18
G833-AX5 PK-18
T725-AX6 WH-18
N707-AX7 PU-18
G828-AX1 WH-18
G829-AX2 GN-18
C991-AX3 PK-18
SIGNAL
GROUND
(16) COOLANT TEMP SENSOR
264-4297
+5V
GROUND
SIGNAL
(7) OIL PRESSURE SENSOR
194-6725
SIGSIG+
(2) CAMSHAFT SPEED TIMING SNSR
192-1562
+5V
GROUND
SIGNAL
(7) ATMOSPHERIC PRESS SENSOR
194-6722
T957-CX1 PU-16-KYNAR
T958-CX2 YL-16-KYNAR
T959-CX3 BR-16-KYNAR
T960-CX4 BU-16-KYNAR
T961-CX5 GN-16-KYNAR
T962-CX6 WH-16-KYNAR
T858-CX7 GY-16-KYNAR
T859-CX8 WH-16-KYNAR
T860-CX9 OR-16-KYNAR
K737-CX10 BR-16-KYNAR
K738-CX11 GN-16-KYNAR
K739-CX12 BU-16-KYNAR
F421-AX4 YL-18
G833-AX5 PK-18
T725-AX6 WH-18
N707-AX7 PU-18
G828-AX1 WH-18
G829-AX2 GN-18
C991-AX3 PK-18
OR-18
YL-18
GN-18
OR-18
+5 VOLTS
BK-18AB
GROUND
WH-18
SIGNAL
(26) TURBO OUTLET PRESS SENSOR
239-3478
TX-C1
TX-C2
1552269
3E3364
1
BK-18
2
WH-18
SIGNAL
GROUND
(17) CRANKSHAFT SPEED TIMING SNSR
191-8303
K-C12
3E3364
CONN 32
TIMING CAL
PROBE
OR-18
YL-18
GN-18
SIGNAL
GROUND
(11) INTAKE MAN AIR TEMP SNSR
264-4297
CX-C1
262-6073
CONN 31
HEUI
CONNECTOR
AX-C1
3E3388
A893-AX11 OR-18
AX-C3
AX-C8
3E3364
1552269
1
129-AX9 RD-18
200-AX10 BK-18
1
2
2
CONN 29
K-C10
1552269
1
2
K-C9
3E3370
A
B
C
K-C7
1552267
A
B
C
C
K-C8
1552269
1
1
2
2
CONN 33
K-C6
1552269
1
2
K-C2
1552269
1
1
2
2
K-C4
3E3370
A
B
C
K-C5
1552269
1
2
K-C13
1552252
1
T957-K20 PU-16-HV
2
2
T958-K19 YL-16-HV
3
3
T959-K17 BR-16-HV
4
4
T960-K24 BU-16-HV
5
5
T961-K16 GN-16-HV
6
6
T962-K25 WH-16-HV
7
7
T858-K15 GY-16-HV
8
8
T859-K21 WH-16-HV
9
9
T860-K14 OR-16-HV
10
10
K737-K4 BR-16-HV
11
11
K738-K41 GN-16-HV
12
12
K739-K40 BU-16-HV
K-C11
1552264
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
CONN 30
CH-C4
1552269
1
2
995-K11 BU-18
G833-K36 PK-18
G828-K29 WH-18
G829-K33 GN-18
994-K10 GY-18
G828-K30 WH-18
G829-K34 GN-18
R746-K18 PK-18
E965-K27 BU-18
E966-K26 YL-18
E963-K23 BK-18
E964-K22 WH-18
G856-K8 WH-18
G857-K9 YL-18
G828-K31 WH-18
G829-K32 GN-18
R747-K5 GY-18
C967-K13 BU-18
G833-K38 PK-18
F421-K12 YL-18
G833-K37 PK-18
T725-K44 WH-18
N707-K43 PU-18
G828-K28 WH-18
G829-K35 GN-18
C991-K6 PK-18
326-CH5 PU-18
200-CH48 BK-18
TWISTED WIRES
H1
H2
TWISTED WIRES
PRELUBE / QUICK
EVAC (NOT USED)
CH-C3
3E6286
110-CH1 RD-14
201-CH2 BK-18
443-CH42 YL-18
326-CH5 PU-18
450-CH8 YL-18
403-CH6 GN-14
521-CH9 YL-18
522-CH10 WH-18
A307-CH13 GY-18
A982-CH14 BR-18
J764-CH52 BR-18
430-CH7 BU-18
E759-CH17 WH-18
944-CH11 OR-18
945-CH12 BR-18
G850-CH20 BU-18
J844-CH25 GY-18
J843-CH24 BK-18
F713-CH15 OR-18
229-CH30 BK-14 229-CJ141 BK-14
H704-CH50 PK-18
H703-CH31 YL-18H704-CH50 PK-18
G790-CH18 PK-18
G791-CH19 BR-18
X337-CH27 WH-18
J764-CH51 BR-18
H795-CH23 PK-18
K933-CH26 GN-18
X919-CH29 WH-18X919-CH29 WH-18
CH-C1
1275486
304-CH4 WH-8
FUEL PRIMING
H2
H1
ENGINE
CJ-C17
3E5179
CJ-C20
1552252
1
1
326-CJ130 PU-18
2
2
308-CJ129 YL-18
3
3
G790-CJ136 PK-18
4
4
G791-CJ137 BR-18
5
5
X337-CJ138 WH-18
6
6
J764-CJ139 BR-18
7
7
H795-CJ116 PK-18
8
8
9
9
10
10
11
11
12
12
CJ-C7
1130580
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
CONN 34
40
CJ-C31
1275485
1
1
CONN 35
110-CJ140 RD-14
201-CJ62 BK-18
443-CJ121 YL-18
326-CJ131 PU-18
450-CJ81 YL-18
403-CJ132 GN-18
521-CJ89 YL-18
522-CJ95 WH-18
150-CJ100 OR-18150-CH3 OR-18
A307-CJ113 GY-18
A982-CJ114 BR-18
317-CJ80 YL-18317-CH55 YL-18
J764-CJ139 BR-18
G479-CJ123 WH-18G479-CH21 WH-18
430-CJ119 BU-18
E759-CJ120 WH-18
944-CJ111 OR-18
945-CJ112 BR-18
G850-CJ122 BU-18
J844-CJ97 GY-18
J843-CJ143 BK-18
F713-CJ142 OR-18
H704-CJ128 PK-18
H702-CJ126 PU-18
H703-CJ127 YL-18
G790-CJ136 PK-18
G791-CJ137 BR-18
X337-CJ138 WH-18
J764-CJ46 BR-18J764-CH54 BR-18
J764-CJ150 BR-18
H795-CJ133 PK-18
K933-CJ78 GN-18
X918-CJ93 PU-18
X919-CJ94 WH-18
304-CJ90 WH-8
TWISTED WIRES
TURN
YL-18
WH-18
BULB
9X-4493
RD-18
S
T
BU-18
BK-18
STOP/TAIL
BULB
9X-4492
LH STOP TAIL TURN LAMP
145-6929
TURN
YL-18
WH-18
BULB
9X-4493
RD-18
S
T
BU-18
BK-18
STOP/TAIL
BULB
9X-4492
RH STOP TAIL TURN LAMP
145-6929
STOP/TAIL/TURN ON HOOD
CE-C4
1552269
1
605-CE4 YL-18
2
200-CE5 BK-18
CE-C3
1552267
A
604-CE1 OR-18
B
200-CE3 BK-18
C
617-CE2 BR-18
CF-C4
1552269
1
606-CF4 GY-18
2
200-CF5 BK-18
CF-C3
1552267
A
604-CF1 OR-18
B
200-CF3 BK-18
C
614-CF2 PU-18
1552273
201-CG17 BK-18
201-CG16 BK-18
442-CG6 GY-18
496-CG10 WH-18
K933-CG12 GN-18
1552267
962-CG3 OR-18
419-CG4 YL-18
G764-CG11 PK-18
1552267
432-CG5 PK-18
201-CG15 BK-18
CE-C2
3E3364
CF-C2
3E3364
VIDEO GND
1
2
3E3370
1
2
3E3370
VIDEO SIG
+ 12 VDC
FEED GND
CE-C1
CF-C1
605-CE4 YL-18
200-CE5 BK-18
604-CE1 OR-18
200-CE3 BK-18
617-CE2 BR-18
606-CF4 GY-18
200-CF5 BK-18
604-CF1 OR-18
200-CF3 BK-18
614-CF2 PU-18
251-4160
(6) CAMERA GP
REAR VIEW CAMERA
GN-18
GN-18
(17) REVERSING FAN SOL
152-8340
CG-C3
AN-C3
3E3382
1
1
201-AN1 BK-18
2
2
201-AN2 BK-18
3
3
442-AN3 GY-18
4
4
496-AN4 WH-18
5
5
K933-AN5 GN-18
6
6
CONN 40
CG-C4
(33) PARK BRAKE PRESS SW
174-4312
BK-16
A
B
RD-16
C
BU-16
CG-C5
(33) BRAKE OIL PRESS SW
175-3244
BK-16
A
B
RD-16
C
BU-16
(10) FRONT WASHER
7T-8890
(NOTE A)
(10) REAR WASHER
7T-8890
(NOTE A)
CONN 39
CONNECTS TO
CJ-C33
B-7
CONN 38
A
CONNECTS TO
B
CJ-C8
C
B-7
CONN 37
CONNECTS TO
CJ-C35
B-7
CONN 36
A
B
CONNECTS TO
C
CJ-C37
B-7
COAX CORE
COAX SAFEGUARD
RED
WHITE
G486-CJ36 GN-18
201-CJ63 BK-18
975-CJ104 WH-18
P739-CJ3 BU-18
J844-CJ97 GY-18
J843-CJ143 BK-18
F713-CJ142 OR-18
317-CJ80 YL-18
J764-CJ46 BR-18
1
10-CJ140 RD-14 110-CJ140 RD-14
201-CJ62 BK-18 201-CJ62 BK-18
229-CJ141 BK-14
304-CJ90 WH-8
522-CJ95 WH-18 522-CJ95 WH-18
945-CJ112 BR-18 945-CJ112 BR-18
G790-CJ136 PK-18
G791-CJ137 BR-18
J764-CJ139 BR-18
X337-CJ138 WH-18
G790-CJ136 PK-18
G791-CJ137 BR-18
J764-CJ139 BR-18
X337-CJ138 WH-18
A307-CJ113 GY-18
A982-CJ114 BR-18
E759-CJ120 WH-18
G479-CJ123 WH-18
G850-CJ122 BU-18
H702-CJ126 PU-18
H703-CJ127 YL-18
H795-CJ133 PK-18
H795-CJ116 PK-18
K933-CJ78 GN-18
X918-CJ93 PU-18
X919-CJ94 WH-18
H704-CJ128 PK-18
J764-CJ150 BR-18
CJ-C41
CJ-C40
3E3364
1552269
1
1
H704-CJ128 PK-18
2
2
J764-CJ150 BR-18
SHOWN WITH PARKING
BRAKE ON
SHOWN WITH SERVICE
BRAKE OFF
MOTOR
MOTOR
201-CG16 BK-18
201-CG17 BK-18
201-CG15 BK-18
432-CG5 PK-18
442-CG6 GY-18
496-CG10 WH-18
962-CG3 OR-18
G764-CG11 PK-18
K933-CG12 GN-18
CG-C1
7T5957
1
506-CG8 PU-18
2
200-CG13 BK-18
CG-C2
7T5957
1
507-CG9 WH-18
2
200-CG14 BK-18
LH STOP TURN LAMP CNTWT
145-6929
RH STOP TURN LAMP CNTWT
145-6929
STOP/TAIL/TURN IN CNTWT
CHASSIS
CJ-C5
3E3364
CONN 42
CJ-C23
1552269
CA-C1
1552269
1
1
G486-CA3 GN-18
2
2
201-CA4 BK-18
CJ-C24
3E3364
1
1
2
2
CONN 41
EW-C1
3E3364
1
G454-EW2 PK-18
2
123-EW1 WH-18
CA-C3
1552269
SIGNAL
1
2
GROUND
(15) REAR AXLE OIL TEMP SENDER
130-9811
EW-C2
1552269
1
2
(27) AXLE OIL COOLER CLUTCH
168-6452
BK-18
BK-18
AXLE MONITORING AND COOLING
CJ-C32
3E3370
A
A
+5 VOLTS
CJ-C15
1552269
1552267
K933-AN5 GN-18
201-AN1 BK-18
442-AN3 GY-18
1552269
201-AN2 BK-18
496-AN4 WH-18
B
B
C
C
CJ-C21
3E3364
1
1
2
2
AN-C1
AN-C2
OR-18
YL-18
GN-18
A
B
C
1
2
(25) TURBO INLET PRESSURE SENSOR
GROUND
SIGNAL
194-6722
(25) ETHER INJECTOR SOL
239-1134
+8 VOLTS
(18) HYDRAULIC OIL TEMP SENSOR
GROUND
SIGNAL
134-2252
(18) HYD OIL LEVEL SW
172-8660
(36) HYD FILTER BYPASS SW
7X-8549
OR-18
BK-18
WH-18
BK-18
BK-18
BK-18
BK-18
E455-CG7 BR-18
200-CG1 BK-18
200-CG14 BK-18419-CG4 YL-18
200-CG13 BK-18
201-CG15 BK-18
201-CG16 BK-18
201-CG17 BK-18
496-CG10 WH-18
962-CG3 OR-18
K933-CG12 GN-18
HYD SERVICE CENTER
(38) XMSN FILTER BYPASS SW
164-7577
(1) BACKUP ALARM
213-9100
TURN
YL-18
WH-18
BULB
9X-4493
RD-18
S
T
BU-18
BK-18
STOP/TAIL
BULB
9X-4492
TURN
YL-18
WH-18
BULB
9X-4493
RD-18
S
T
BU-18
BK-18
STOP/TAIL
BULB
9X-4492
CONNECTS TO
CJ-C33
1
B-7
2
A
CONNECTS TO
B
CJ-C8
C
B-7
CONNECTS TO
1
CJ-C35
2
B-7
CONNECTS TO
A
CJ-C37
B
B-7
C
200-CJ85 BK-18
200-CJ87 BK-18
200-F5 BK-16
200-F4 BK-16
200-CG1 BK-18
201-CG2 BK-18201-CG2 BK-18
962-CG3 OR-18
419-CG4 YL-18419-CG4 YL-18
432-CG5 PK-18432-CG5 PK-18
442-CG6 GY-18442-CG6 GY-18
E455-CG7 BR-18
506-CG8 PU-18506-CG8 PU-18
507-CG9 WH-18507-CG9 WH-18
496-CG10 WH-18
G764-CG11 PK-18G764-CG11 PK-18
K933-CG12 GN-18
BK-18
BK-18
CJ-C39
3E3364
BK-18
BK-18
CJ-C34
3E3364
CONN 39
LH STOP TAIL LAMP
135-0426
RD-18
BK-18
WH-18ST
CJ-C36
3E3364
CONN 37
RH STOP TAIL LAMP
135-0426
RD-18
BK-18
WH-18ST
106-CJ20 WH-18
114-CJ21 RD-18
138-CJ22 GN-18
200-CJ18 BK-14
200-CJ17 BK-14
201-CJ61 BK-18
201-CJ60 BK-18
201-CJ65 BK-18
251-CJ23 BK-18
322-CJ25 GY-18
417-CJ40 GY-18
447-CJ41 PK-18
484-CJ16 YL-18
605-CJ66 YL-18
606-CJ69 GY-18
611-CJ101 PU-14
614-CJ70 PU-18
617-CJ72 BR-18
619-CJ102 GN-14
953-CJ24 GY-18
975-CJ76 WH-18
976-CJ27 OR-18
-18
C529-CJ28 GY
C530-CJ29 BU-18
E416-CJ30 PU-18
E919-CJ31 YL-18
E920-CJ32 BR-18
E921-CJ33 PK-18
E922-CJ34 GN-18
G485-CJ35 BU-18
H716-CJ42 WH-14 H716-CJ42
H718-CJ19 GY-18
H795-CJ134 PK-18
N939-CJ44 GN-18
T997-CJ26 OR-18
X918-CJ93 PU-18
X919-CJ94 WH-18
201-CJ63 BK-18
975-CJ104 WH-18
G486-CJ36 GN-18
P739-CJ3 BU-18
102-CJ45 RD-14
112-CJ1 PU-4
174-CJ4 RD-10
199-CJ47 RD-18
304-CJ90 WH-8
306-CJ48 GN-18
308-CJ49 YL-18
975-CJ74 WH-18
975-CJ107 WH-18
CHASSIS
RD-18
+V
BK-18
GROUND
SIGNAL
200-CJ103 BK-18
200-CJ79 BK-18
200-CJ144 BK-18
200-CJ18 BK-14
200-CJ17 BK-14
229-CJ141 BK-14
LEFT FRAME GROUND
150-CJ100 OR-18150-CJ100 OR-18
229-CJ141 BK-14
304-CJ90 WH-8
308-CJ129 YL-18308-CJ129 YL-18
326-CJ130 PU-18326-CJ130 PU-18
326-CJ131 PU-18326-CJ131 PU-18
430-CJ119 BU-18430-CJ119 BU-18
443-CJ121 YL-18443-CJ121 YL-18
450-CJ81 YL-18450-CJ81 YL-18
521-CJ89 YL-18521-CJ89 YL-18
944-CJ111 OR-18944-CJ111 OR-18
A307-CJ113 GY-18
A982-CJ114 BR-18
E759-CJ120 WH-18
G479-CJ123 WH-18
G850-CJ122 BU-18
H702-CJ126 PU-18
H703-CJ127 YL-18
H795-CJ133 PK-18
H795-CJ116 PK-18
K933-CJ78 GN-18
X918-CJ93 PU-18
X919-CJ94 WH-18
136-CJ83 GN-18
147-CJ125 RD-18
439-CJ124 YL-18
136-CJ83 GN-18
147-CJ125 RD-18
439-CJ124 YL-18
CJ-C10
CG-C6
1552252
3E5179
1
1
200-CJ144 BK-18
2
2
201-CJ64 BK-18
3
3
962-CJ5 OR-18
4
4
419-CJ6 YL-18
5
5
432-CJ8 PK-18
6
6
442-CJ9 GY-18
7
7
E455-CJ13 BR-18
8
8
506-CJ11 PU-18
9
9
507-CJ12 WH-18
10
10
496-CJ10 WH-18
11
11
G764-CJ14 PK-18
12
12
K933-CJ77 GN-18
CONN 43
CJ-C16
1552269
1
426-CJ58 BR-18
2
201-CJ59 BK-18
CJ-C38
1552269
1
1
321-CJ50 BR- 18
2
2
975-CJ75 WH- 18
CJ-C33
1552269
1
1
605-CJ67 YL-18
2
2
200-CJ146 BK-18
CJ-C8
1552267
A
604-CJ118 OR-18
B
200-CJ145 BK-18
C
617-CJ73 BR-18
CJ-C35
1552269
1
1
606-CJ68 GY-18
2
2
200-CJ147 BK-18
CJ-C37
1552267
A
604-CJ148 OR-18
B
200-CJ149 BK-18
C
614-CJ71 PU-18
200-CJ146 BK-18
200-CJ145 BK-18
200-CJ149 BK-18
200-CJ147 BK-18
200-CJ79 BK-18
201-CJ63 BK-18
201-CJ62 BK-18
201-CJ65 BK-18
201-CJ59 BK-18
201-CJ61 BK-18
201-CJ60 BK-18
201-CJ64 BK-18
308-CJ49 YL-18
308-CJ129 YL-18
326-CJ130 PU-18
326-CJ131 PU-18
604-CJ148 OR-18
604-CJ118 OR-18
605-CJ67 YL-18
605-CJ66 YL-18
606-CJ68 GY-18
606-CJ69 GY-18
614-CJ71 PU-18
614-CJ70 PU-18
617-CJ72 BR-18
617-CJ73 BR-18
975-CJ76 WH-18
975-CJ74 WH-18
975-CJ75 WH-18
975-CJ107 WH-18
200-CJ17 BK-14
200-CJ18 BK-14
200-CJ144 BK-18
229-CJ141 BK-14
304-CJ90 WH-8
X918-CJ93 PU-18
X919-CJ94 WH-18
200-CJ18 BK-14
200-CJ144 BK-18
200-CJ17 BK-14
229-CJ141 BK-14
304-CJ90 WH-8
X918-CJ93 PU-18
X919-CJ94 WH-18
H795-CJ133 PK-18
H795-CJ134 PK-18
H795-CJ116 PK-18
K933-CJ77 GN-18
K933-CJ78 GN-18
136-CJ83 GN-18
200-CJ103 BK-18
439-CJ124 YL-18
147-CJ125 RD-18
CABLE AS CAM (7.5M)
266-2116
102-CJ45 RD-14
106-CJ20 WH-18
110-CJ140 RD-14
112-CJ1 PU-4
114-CJ21 RD-18
136-CJ83 GN-18
138-CJ22 GN-18
147-CJ125 RD-18
150-CJ100 OR-18
174-CJ4 RD-10
199-CJ47 RD-18
251-CJ23 BK-18
306-CJ48 GN-18
321-CJ50 BR-18
322-CJ25 GY-18
403-CJ132 GN-18403-CJ132 GN-18403-CJ132 GN-18
417-CJ40 GY-18
419-CJ6 YL-18
426-CJ58 BR-18
430-CJ119 BU-18
432-CJ8 PK-18
439-CJ124 YL-18
442-CJ9 GY-18
443-CJ121 YL-18
447-CJ41 PK-18
450-CJ81 YL-18
484-CJ16 YL-18
496-CJ10 WH-18
506-CJ11 PU-18
507-CJ12 WH-18
521-CJ89 YL-18
522-CJ95 WH-18
604-CJ51 OR-18
605-CJ52 YL-18
606-CJ53 GY-18
611-CJ101 PU-14
614-CJ55 PU-18
617-CJ56 BR-18
619-CJ102 GN-14
944-CJ111 OR-18
945-CJ112 BR-18
953-CJ24 GY-18
962-CJ5 OR-18
975-CJ104 WH-18
975-CJ57 WH-18
976-CJ27 OR-18
A307-CJ113 GY-18
A982-CJ114 BR-18
C529-CJ28 GY-18
C530-CJ29 BU-18
E416-CJ30 PU-18
E455-CJ13 BR-18
E759-CJ120 WH-18
E919-CJ31 YL-18
E920-CJ32 BR-18
E921-CJ33 PK-18
E922-CJ34 GN-18
G479-CJ123 WH-18
G485-CJ35 BU-18
G486-CJ36 GN-18
G764-CJ14 PK-18
G850-CJ122 BU-18
H702-CJ126 PU-18
H703-CJ127 YL-18
H713-CJ37 PK-18
H714-CJ38 OR-18
H716-CJ42 WH-14
H717-CJ43 BR-18
H718-CJ19 GY-18
H795-CJ115 PK-18
K933-CJ15 GN-18
N939-CJ44 GN-18
P739-CJ3 BU-18
T997-CJ26 OR-18
CJ-C6
1552272
1
1
2
2
3
3
4
4
201-CJ39 BK-18
308-CJ135 YL-18
326-CJ2 PU-18
CJ-C14
3E3376
LINCOLN AUTOLUBE
CONN 44
CONN 44
CONNECT TO:
CJ-C6
(C-7)
LU-C1
3E3376
1
136-LU1 GN-18
2
200-LU2 BK-18
3
4
147-LU3 RD-18
2
AT-C5
1552269
AT-C6
1552269
1
2
136-AW6 GN-18
200-AW1 BK-18
136-AW7 GN-18
439-AW4 YL-18
124-AW3 GN-16
103-AW2 YL-16
124-AW3 GN-16
103-AW2 YL-16
(31) CL 2 FWD
244-3114
(31) CL 5 2ND
244-3114
(31) CL 1 REV
244-3114
AW-C2
3E3376
1
136-AW5 GN-18
2
200-AW1 BK-18
3
439-AW4 YL-18
4
1
(31) CL 4 3RD
244-3114
GROENEVELD AUTOLUBE
LU-C2
3E3370
A
B
C1
LINCOLN AUTOLUBE
BULKHEAD PASSTHROUGH
251-4243
1
2
AT-C4
1552269
AT-C7
1552269
1
2
136-AW5 GN-18
AW-C1
155-2264
1
2
3
4
5
6
7
8
CONN 56
AW-C3
155-2269
1
2
CONN 55
RD-18
BR-18
BK-18
(31) CL 3 4TH
244-3114
1
2
AT-C2
1552269
975-AT25 WH-18
754-AT8 BU-18
975-AT21 WH-18
752-AT4 YL-18
975-AT24 WH-18
751-AT3 GN-18
755-AT12 OR-18
975-AT22 WH-18
900-AT13 PU-18
975-AT23 WH-18
901-AT14 WH-18
975-AT26 WH-18
AT-C8
1552269
1
2
(31) CL 6 1ST
244-3114
TRANSMISSION
136-AW6 GN-18
200-AW1 BK-18
439-AW4 YL-18
136-AW7 GN-18
124-AW3 GN-16
103-AW2 YL-16
AY-C2
3E3388
AX-C2
3E3364
PUMP
146-4055
136-AY6 GN-18
200-AY1 BK-18
136-AY7 GN-18
439-AY4 YL-18
124-AY3 GN-16
103-AY2 YL-16
124-AX1 GN-16
103-AX2 YL-16
(9) AUTOLUBE LINCOLN PUMP
171-8823
CHASSIS
AY-C1
AX-C1
146-4073
(24) XSMN OIL TEMP SENSOR
118-7226
1
(9) PRESSURE SW.
177-3519
YL-18
BK-18
WH-18
(23) INPUT SPEED SENSOR
191-8304
751-AT3 GN-18
752-AT4 YL-18
754-AT8 BU-18
755-AT12 OR-18
900-AT13 PU-18
901-AT14 WH-18
975-AT26 WH-18
975-AT23 WH-18
975-AT24 WH-18
975-AT25 WH-18
975-AT22 WH-18
975-AT21 WH-18
1
BK-18
2
WH-18
(23) OUTPUT SPEED SENSOR (TRAILING)
193-2550
1
BK-18
2
WH-18
(23) OUTPUT SPEED SNSR (LEADING)
193-2550
GN
BK
GN
YL
GN
YL
PUMP
AUTOLUBE GROENEVELD PUMP
184-0704
AT-C14
1698670
A
709-AT2 BU-18
B
962-AT1 OR-18
C
K977-AT16 PK-18
AT-C13
1552269
1
E908-AT7 BR-18
2
E909-AT11 WH-18
975-AT15 WH-18
975-AT20 WH-18
AT-C9
1552269
E907-AT10 GY-18
E906-AT6 OR-18
AT-C1
1552269
E901-AT9 GN-18
E900-AT5 WH-18
1552272
X918-CJ93 PU-18
H795-CJ134 PK-18
X919-CJ94 WH-18
CJ-C18
1552269
201-CJ60 BK-18
447-CJ41 PK-18
CJ-C19
1552267
201-CJ61 BK-18
417-CJ40 GY-18
CJ-C9
CONN 57
1
2
3
4
1
2
CJ-C22
3E3370
A
A
B
B
C
C
BK-18
RD-18
WH-18
PK-18
BK-18
CK-C2
3E3370
A
B
C
(14) GROUND LEVEL SHUTDOWN SW
158-6634
(14) FUEL LEVEL SENDER
200-1138
CK-C1
1552267
201-CK1 BK-18
417-CK2 GY-18
484-CK3 YL-18484-CJ16 YL-18
A
B
C
(37) SUPPL STER PRESS. SW
230-5771
BK-16
RD-16
BU-16
MACHINE LEFT SIDE
CJ-C1
3E6286
114-CJ21 RD-18
138-CJ22 GN-18
106-CJ20 WH-18
N939-CJ44 GN-18
G485-CJ35 BU-18
200-CJ18 BK-14
200-CJ17 BK-14
251-CJ23 BK-18
953-CJ24 GY-18
322-CJ25 GY-18
PU-18
E416-CJ30
C529-CJ28 GY-18
H718-CJ19 GY-18
T997-CJ26 OR-18
C530-CJ29 BU-18
605-CJ66 YL-18
606-CJ69 GY-18
611-CJ101 PU-14
614-CJ70 PU-18
617-CJ72 BR-18
GN-14
619-CJ102
PK-18
H713-CJ37H713-CJ37 PK-18
OR-18
H714-CJ38H714-CJ38 OR-18
WH-14
BR-18
H717-CJ43H717-CJ43 BR-18
YL-18
E919-CJ31
BR-18
E920-CJ32
PK-18
E921-CJ33
GN-18
E922-CJ34
WH-18
975-CJ76
OR-18
976-CJ27
AG-C1
1130580
1
114-AG1 RD-18
2
138-AG4 GN-18
3
106-AG5 WH-18
4
N939-AG8 GN-18
5
201-AG44 BK-18201-CJ65 BK-18
6
G485-AG43 BU-18
7
200-AG9 BK-14
8
200-AG12 BK-14
9
251-AG15 BK-18
10
11
322-AG19 GY-18
12
E416-AG22 PU-18
13
C529-AG23 GY-18
14
H718-AG45 GY-18
15
T997-AG46 OR-18
16
17
18
C530-AG47 BU-18
19
20
21
22
23
24
25
26
27
28
619-AG27 GN-14
29
H713-AG30 PK-18
30
H714-AG31 OR-18
31
H716-AG32 WH-14
32
H717-AG33 BR-18
33
34
E919-AG35 YL-18
35
E920-AG36 BR-18
36
37
E921-AG37 PK-18
38
E922-AG38 GN-18
39
975-AG39 WH-18
40
976-AG42 OR-18
CONN 45
106-AG5 WH-18 106-AG7 WH-18
114-AG1 RD-18 114-AG3 RD-18
200-AG9 BK-14
200-AG12 BK-14 200-AG14 BK-14
322-AG19 GY-18 322-AG21 GY-18
619-AG27 GN-14
953-AG16 GY-18
975-AG39 WH-18 975-AG41 WH-18
H718-AG45 GY
FRONT FRAME
TWISTED WIRES
AT-C10
7X6222
1
CONN 4
962-AT1 OR-18
709-AT2 BU-18
751-AT3 GN-18
752-AT4 YL-18
E900-AT5 WH-18
E906-AT6 OR-18
E908-AT7 BR-18
754-AT8 BU-18
E901-AT9 GN-18
E907-AT10 GY-18
E909-AT11 WH-18
755-AT12 OR-18
900-AT13 PU-18
901-AT14 WH-18
975-AT15 WH-18
K977-AT16 PK-18
2
CONNECTS TO C-C26
3
ON THE CAB DIAGRAM
4
FOR PART NUMBER
5
SEE THE TITLE BLOCK
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TWISTED WIRES
TWISTED WIRES
CJ-C11
TWISTED WIRES
8N1533
112-CJ1 PU-4
611-CJ101 PU-14
619-CJ102 GN-14
174-CJ4 RD-10
CJ-C4
1607689
T997-CJ26 OR-18
962-CJ5 OR-18
419-CJ6 YL-18
432-CJ8 PK-18
442-CJ9 GY-18
496-CJ10 WH-18
506-CJ11 PU-18
507-CJ12 WH-18
E455-CJ13 BR-18
G764-CJ14 PK-18
K933-CJ15 GN-18
484-CJ16 YL-18
H718-CJ19 GY-18
106-CJ20 WH-18
114-CJ21 RD-18
138-CJ22 GN-18
251-CJ23 BK-18
953-CJ24 GY-18
322-CJ25 GY-18
976-CJ27 OR-18
C529-CJ28 GY-18
C530-CJ29 BU-18
E416-CJ30 PU-18
E919-CJ31 YL-18
E920-CJ32 BR-18
E921-CJ33 PK-18
E922-CJ34 GN-18
G485-CJ35 BU-18
G486-CJ36 GN-18
H713-CJ37 PK-18
H714-CJ38 OR-18
102-CJ45 RD-14
199-CJ47 RD-18
306-CJ48 GN-18
308-CJ135 YL-18
201-CJ39 BK-18
417-CJ40 GY-18
447-CJ41 PK-18
H716-CJ42 WH-14
H717-CJ43 BR-18
N939-CJ44 GN-18
321-CJ50 BR-18
604-CJ51 OR-18
605-CJ52 YL-18
606-CJ53 GY-18
614-CJ55 PU-18
617-CJ56 BR-18
975-CJ57 WH-18
136-CJ83 GN-18
147-CJ125 RD-18
439-CJ124 YL-18
426-CJ58 BR-18
CJ-C13
1835784
110-CJ140 RD-14
326-CJ2 PU-18
450-CJ81 YL-18
H702-CJ126 PU-18
H703-CJ127 YL-18
403-CJ132 GN-18
521-CJ89 YL-18
522-CJ95 WH-18
150-CJ100 OR-18
944-CJ111 OR-18
945-CJ112 BR-18
A307-CJ113 GY-18
A982-CJ114 BR-18
H795-CJ115 PK-18
430-CJ119 BU-18
E759-CJ120 WH-18
G479-CJ123 WH-18
443-CJ121 YL-18
G850-CJ122 BU-18
P739-CJ3 BU-18
975-CJ104 WH-18
CONN 3
1
2
CONNECTS TO C-C2
3
ON THE CAB DIAGRAM
4
FOR PART NUMBER
5
SEE THE TITLE BLOCK
6
7
1
CONN 2
2
CONNECTS TO C-C3
3
ON THE CAB DIAGRAM
4
FOR PART NUMBER
5
SEE THE TITLE BLOCK
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
CONN 1
2
CONNECTS TO C-C35
3
ON THE CAB DIAGRAM
4
FOR PART NUMBER
5
SEE THE TITLE BLOCK
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
STARTING CIRCUIT
START AID CIRCUIT
TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT
MONITOR CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL / WIPER WASHER CIRCUIT
CAT DATA LINK
IMPLEMENT / VALVE / TOOL CONTROL CIRCUIT
PAYLOAD CONTROL CIRCUIT
OTHER COLOR DESCRIPTIONS
HIGHWAYS
106-AG6 WH-18
114-AG2 RD-18
138-AG4 GN-18
251-AG15 BK-18
200-AG13 BK-14953-AG16 GY-18
200-AG10 BK-18
200-AG11 BK-18
201-AG44 BK-18
322-AG20 GY-18
605-AG25 YL-18605-AG25 YL-18
606-AG26 GY-18606-AG26 GY-18
619-AG28 GN-14
619-AG29 GN-14
953-AG18 GY-18
953-AG52 GY-18
953-AG17 GY-18
975-AG40 WH-18
976-AG42 OR-18
C529-AG23 GY-18
C530-AG47 BU-18
E416-AG22 PU-18
E919-AG35 YL-18
E920-AG36 BR-18
E921-AG37 PK-18
E922-AG38 GN-18
G485-AG43 BU-18
H713-AG30 PK-18
H714-AG31 OR-18
H716-AG32 WH-14
H717-AG33 BR-18
-18 H718-AG51 GY-18
N939-AG8 GN-18
T997-AG46 OR-18
H718-AG34 GY-18
AG-C12
AG-C11
3E3370
AG-C21
AG-C24
AG-C8
AG-C19
3E3370
A
A
B
B
C
C
AG-C18
1552267
A
A
B
B
C
C
CONN 46
AG-C23
3E3376
1
1
2
2
3
3
4
4
AG-C25
3E3364
1
1
2
2
CONN 47
AG-C10
3E3364
1
1
2
2
OR-18
BK-18
WH-18
AY-C1
1552267
A
106-AY1 WH-18
B
953-AY2 GY-18
C
H718-AY3 GY-18
TILT LINKAGE POS
SENSOR (NOT USED)
AR-C1
3E3364
1
975-AR1 WH-18
2
976-AR2 OR-18
AP-C1
3E3364
1
975-AP1 WH-18
2
N939-AP2 GN-18
+24V
GROUND
SIGNAL
AR-C2
1552269
AP-C2
1552269
(20) LIFT POS SENSOR
169-0417
AY-C2
3E3370
A
B
C
CONN 54
1
GN-18
2
GN-18
1
GN-18
2
GN-18
AM-C1
1552267
A
106-AM2 WH-18
B
953-AM7 GY-18
C
H718-AM8 GY-18
(30) RIDE CONTROL SOL 1
174-4913
(30) RIDE CONTROL SOL 2
174-4913
AM-C2
1552267
A
B
C
OR-18 +V
BK-18
WH-18
GROUND
SIGNAL
(21) TILT POSITION SENSOR
169-0417
106-AG7 WH-18
953-AG18 GY-18
C530-AG47 BU-18
106-AG6 WH-18
953-AG17 GY-18
H718-AG34 GY-18
T997-AG46 OR-18
953-AG52 GY-18
H718-AG51 GY-18
975-AG40 WH-18
976-AG42 OR-18
975-AG41 WH-18
N939-AG8 GN-18
1552267
1552272
1552269
1552269
CONN 48
AK-C2
3E3370
138-AK10 GN-18
251-AK7 BK-18
C529-AK5 GY-18
3E3370
138-AK9 GN-18
251-AK8 BK-18
E416-AK6 PU-18
AK-C1
A
A
POWER
OR-18
B
B
YL-18
C
C
GN-18
OR-18
A
A
YL-18
B
B
GN-18
C
C
(19) LIFT CYL HEAD END PRESS SNSR
GROUND
221-3416
SIGNAL
POWER
(19) LIFT CYL ROD END PRESS SNSR
GROUND
221-3416
SIGNAL
138-AG4 GN-18
251-AG15 BK-18
E416-AG22 PU-18
C529-AG23 GY-18
AG-C7
1552272
AG-C17
3E3376
1
1
2
2
3
3
4
4
CONN 49
AK-C3
3E3376
1
138-AK3 GN-18
2
251-AK4 BK-18 251-AK8 BK-18
3
E416-AK6 PU-18
4
C529-AK5 GY-18
138-AK3 GN-18
251-AK4 BK-18
C529-AK5 GY-18
E416-AK6 PU-18
138-AK9 GN-18
138-AK10 GN-18
251-AK7 BK-18
PCS
619-AG29 GN-14
200-AG14 BK-14
605-AG25 YL-18
200-AG11 BK-18
114-AG3 RD-18
322-AG21 GY-18
114-AG2 RD-18
322-AG20 GY-18
619-AG28 GN-14
200-AG13 BK-14
606-AG26 GY-18
200-AG10 BK-18
AG-C26
3E3382
CONN 50
CONN 50
AG-C9
1552269
AG-C6
1552269
AG-C27
3E3382
CONN 51
AG-C28
1552273
1
1
2
2
3
3
4
4
5
5
6
6
CONNECT TO
AG-C26 ON
J-3
1
2
1
2
AG-C29
1552273
1
1
2
2
3
3
4
4
5
5
6
6
CONN 51
AU-C1
1552273
1
2
3
4
5
6
AJ-C1
1552273
1
2
3
4
5
6
#1 FORWARD HORN
174-7875
#2 FORWARD HORN
163-1201
AV-C1
1552273
1
2
3
4
5
6
AL-C1
1552273
1
2
3
4
5
6
1552269
619-AU1 GN-14
200-AU2 BK-14
200-AJ2 BK-14
605-AJ3 YL-18
200-AJ4 BK-18
1552269
619-AV1 GN-14
200-AV2 BK-14
619-AL1 GN-14
200-AL4 BK-14
606-AL3 GY-18
200-AL2 BK-18
AU-C4
AV-C4
1
LH FRONT FLOOD LAMP STD
2
219-6485
619-AJ1 GN-14
200-AJ2 BK-14619-AJ1 GN-14
605-AJ3 YL-18
200-AJ4 BK-18
1
RH FRONT FLOOD LAMP STD
2
219-6485
619-AL1 GN-14
200-AL4 BK-14
606-AL3 GY-18
200-AL2 BK-18
AJ-C4
1552269
1
LH FRONT FLOOD LAMP
2
AJ-C2
1552269
219-6485
RD-18
1
BK-18
2
TURN SIGNAL
AL-C4
1552269
1
2
AL-C2
1552269
RD-18
1
BK-18
2
LH FRONT TURN LAMP
3E-6466
RH FRONT FLOOD LAMP
219-6485
RH FRONT TURN LAMP
3E-6466
TURN SIGNAL
HA-C2
1552269
1
SIGNAL
2
GROUND
(13) FR AXLE OIL TEMP SNDR
130-9811
H716-AE6 WH-14
H716-AE7 WH-14
(27) RACKBACK PROP SOL
174-4913
E919-AE16 YL-18
E920-AE17 BR-18
E921-AE18 PK-18
E922-AE19 GN-18 E922-AE19 GN-18
H716-AE10 WH-18
H716-AE8 WH-18
H716-AE9 WH-18
H716-AE12 WH-18
H716-AE11 WH-18 H716-AE14 WH-18
H716-AE13 WH-18
H716-AE14 WH-18
H716-AE11 WH-18
E921-AE18 PK-18
H716-AE10 WH-18
H716-AE9 WH-18
E919-AE16 YL-18
E920-AE17 BR-18
H716-AE12 WH-18
H716-AE8 WH-18
H714-AE5 OR-18
H716-AE13 WH-18
H713-AE4 PK-18
H717-AE15 BR-18
H717-AE15 BR-18
1
2
AE-C1
1552269
AE-C4
1552269
1
2
GN-18
GN-18
(27) ON OFF PILOT SOL
203-4157
(27) DUMP PROP SOL
174-4913
1
2
AE-C2
1552269
AE-C5
1552269
1
2
(27) RAISE PROP SOL
174-4913
AE-C6
1552269
1
2
(27) LOWER PROP SOL
174-4913
G485-AG43 BU-18
201-AG44 BK-18
AG-C2
1552252
H713-AG30 PK-18
H714-AG31 OR-18
H716-AG32 WH-14
H717-AG33 BR-18
E919-AG35 YL-18
E920-AG36 BR-18
E921-AG37 PK-18
E922-AG38 GN-18
CONN 53
HA-C1
AG-C13
1552269
3E3364
1
1
G485-HA1 BU-18
2
2
201-HA2 BK-18
CONN 52
AE-C12
3E5179
1
1
2
2
3
3
4
4
H713-AE4 PK-18 H713-AE4 PK-18
5
5
H714-AE5 OR-18 H714-AE5 OR-18
6
6
H716-AE6 WH-14
7
7
H717-AE15 BR-18
8
8
E919-AE16 YL-18
9
9
E920-AE17 BR-18
10
10
E921-AE18 PK-18
11
11
E922-AE19 GN-18
12
12
E/H CONTROL MANIFOLD
FRONT FRAME
NOTE A: COMPONENTS IN THE FOLLOWING SYSTEMS ARE NOT OFFERED WITH OROPS CABS
HVAC, RADIO READY, WINDSHIELD WIPER AND WASHER.
IDENT PART NO CHG NOTE DESCRIPTION
HARNESS AS.
F 248-5555 01 ATCH BELLYGUARD
K 239-5929 03 ENGINE
AE 238-5643 00 EH CONTROL
AG 232-4562 03 FRONT FRAME
AJ 263-4164
AK 263-4169 02 ATCH LIFT CYL. PRES.
AL 263-4165 00 ATCH RH FR FLOOD/TURN LAMP
AM 274-8054 00 TILT POS. SNSR
AN 232-4572 02 HYD TANK
AP 228-5071 00 ATCH RIDE CONTROL 2
AR 231-5130 00 ATCH RIDE CONTROL 1
AT 231-9379 03 XMSN
AU 263-4163 00 LH FR FLOOD LAMP2
AV 263-4163 00 RH FR FLOOD LAMP2
AX 276-3092 00 FUEL PRIMING
AY 274-8053 01 TILT POS. SENSOR
CA 249-9175 01 REAR AXLE OIL TEMP
CE 263-9191 01 ATCH LH STOP/TAIL/TURN LAMPS
CF 263-9184 01 ATCH RH STOP/TAIL/TURN LAMPS
CG 232-4570 01 BRAKE
CH 232-4561 04 ENGINE
CJ 232-4569 03 CHASSIS
CK 228-7287 01 ATCH SUPPL STER PRESS. SW
CX 234-5002 03 FUEL INJECTORS
EW 228-7290 01 ATCH AXLE OIL COOLER CLUTCH
AW 285-3765 00 GROENEVELD AUTOLUBE
HA 249-9174 01 FR AXLE OIL TEMP SNDR (JMPR)
LU 250-6890 01 ATCH LINCOLN AUTOLUBE
TX 189-0852 02 CAMSHAFT SPEED TIMING SNSR
AX 277-8271 01 GROENEVELD AUTOLUBE
AY 277-8272 01 GROENEVELD AUTOLUBE
WIRE AS.
AH 249-8928 00
GA 232-6174 01 ATCH START BKR TO ATC. BKR
NN 237-8366 02 HOOD ACT. MOTOR (-) TO HOOD ACT. GND
MM 262-7730 00 STARTER (-) TO ENG BLOCK
CABLE AS.
AA 236-6563 02 BAT1 (+) TO J-BLOCK
CC 236-6558 02 BAT3 (+) TO J-BLOCK
EE 116-0080 01 BAT1 (-) TO BAT2 (+)
FF 116-0080 01 BAT3 (-) TO BAT4 (+)
GG 236-6556 04 BAT2 (-) TO DISC SW
HH 236-6557 02 DISC SW TO RH FRAME GND
JJ 7Y-3948 01 STARTER (-) TO RH FRAME GND
KK1 237-4944 01 ATCH AUX START RECPT TO RH FRAME GND
KK2 237-4944 01 ATCH BLOCK AS. TO AUX START RECPT
LL 236-6559 02 STARTER (BAT) TO J-BLOCK
PP 236-6560 02 ALT (-) TO ENG BLOCK
RR 236-6561 02 ALT BREAKER TO ALT (+)
TT 263-4135 01 ALT BREAKER TO J-BLOCK
WW 236-6555 03 BAT4 (-) TO DISC SW
00 ATCH LH FR FLOOD/TURN LAMP
FOR THE WHEEL LOADER CAB SEE:232-4945 CHG 02
WITH ELECTRONIC ENGINE CONTROL ELECTRO-HYDRAULIC IMPLEMENT CONTROL AND COMMAND CONTROL STEERING
CALLOUT FORMAT IF APPLICABLE
Callout Number
(Machine Location from
Component Locations Table)
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
H#
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW
TERMINAL
(52) VALVE GP - CONTROL
138-1234
Part Number
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or
death. Proper care is your responsibility.
THIS SCHEMATIC IS FOR THE 980H WHEEL LOADER ELECTRICAL SYSTEM
VOLUME 2 of 2: CHASSIS AND ENGINE
MEDIA NUMBER: RENR8682-06
SCHEMATIC PART NUMBER: 232-4948, CHANGE: 01, VERSION: -
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
(27) AUX LIFT RAISE SOL
174-4913
AE-C10
3E3364
1
2
1
2
AE-C3
1552269
AE-C7
1552269
1
2
1
2
AE-C11
3E3364
(27) AUX LOWER PROP SOL
174-4913
Component
Name
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
Page 10
MACHINE HARNESS CONNECTOR AND COMPONENT
VIEW ALL CALLOUTS
LOCATIONS
33
36
7
C
2
A
B
D
7
33
A
C
14
14
32
34
34
D
12
10
9
11
16
3
12
1
3
4
9
5
39
39
1
15
40
41
10
11
41
13
8
6
17
13
8
6
37
40
5
36
B
2
32
15
4
16
37
17
Page 11
MACHINE HARNESS CONNECTOR AND COMPONENT
VIEW ALL CALLOUTS
LOCATIONS
55
28
32
54
58
58
10
59
28
18
37
33
20
22
11
17
29
26
57
52
25
26
7
25
16
3
34
4
8
445
51
2
16
3
22
35
1
6
2
51
6
53
12
24
15
56
11
50
9
24
31
23
38
52
14
50
33
9
14
31
62
61
64
36
59
63
62
30
60
20
19
27
64
13
21
60
27
21
63
54
17
34
55
1
32
35
8
28
5
57
29
56
12
7
53
15
18
10
23
28
36
38
37
61
30
19
13
Loading...
