Page 1
953D SH
963D SH
973D SH
Shiphold/Port Handling
Supplement
Note: For standard specications and features, refer to the standard Caterpillar® specalog for this machine.
Engine
Engine Model Cat
Net Flywheel Power 110 kW 148 hp 141 kW 189 hp 196 kW 263 hp
Buckets
Capacity – GP 1.85 m
Capacity – MP 1.60 m
Trim Blade
Capacity – All Material 2.3 m
Capacity – Coal 4 m
Weights
Operating Weight – GP Bucket with Teeth 15 526 kg 34,229 lb 21 426 kg 47,236 lb 28 058 kg 61,857 lb
Operating Weight – Trim Blade all material 15 298 kg 33,726 lb 21 201 kg 46,470 lb 28 161 kg 62,084 lb
953D SH 963D SH 973D SH
®
C6.6 ACERT™ Cat® C6.6 ACERT™ Cat® C9 ACERT™
3
3
3
2.42 yd
2.09 yd
3
3 yd
3
3
2.45 m
1.90 m
3.24 m
3
3
3
3
3.2 yd
2.48 yd
4.23 yd
5.25 yd
3
3
3
3
3.21 m
3.05 m
3.57 m
3
3
3
4.2 yd
3.92 yd
4.67 yd
3
3
3
Page 2
Track-Type Loaders Features
Cat® Engine with ACERT™
Fuel ef cient
Reliable
Durable
Low exhaust emissions
Compliant with world wide emission regulations
Hydraulic System
Powerful and fuel ef cient
Load sensing
Electro hydraulic controls
Automatic lift and tilt kick-outs
Operator Station
Excellent visibility
Quiet, comfortable, ergonomic and spacious cab
Seat mounted controls
Automatic air-conditioning
90° tiltable cab for easy maintenance
Tools
Multiple work tools available
Trim blades and buckets
Quick coupler
Contents
Track-Type Loaders ............................................3
Work Tools and Optional Equipment ................5
Machine Speci cations .....................................6
2

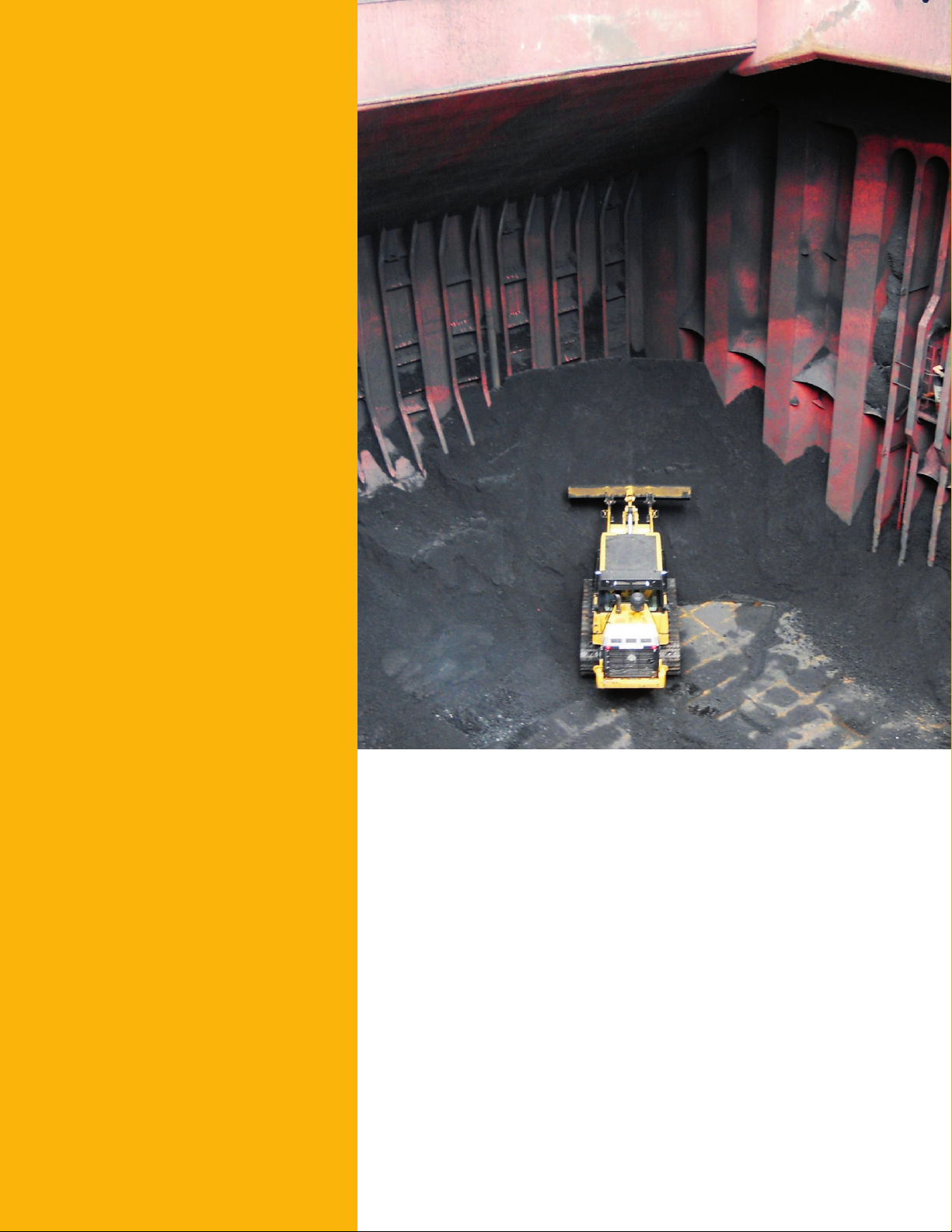

Time is money. Optimizing the unloading time is what
itisall about when it comes to machine selection.
You can load many types of machines inside a shiphold
but none would provide the perfect match for the application
as the Track-Type Loader can thanks to the combination
of tracks giving traction, loader arm for the reach
andengine at back for the machine balance.
Page 3
Track-Type Loaders
Shiphold/Port Handling
Innite Variable Speeds (hydrostatic transmission)
• Smooth controls, more operator comfort
• Increased operator productivity
Joysticks for Transmission and Work Tools
• Easy to maneuver
• Intuitive controls minimize training requirements

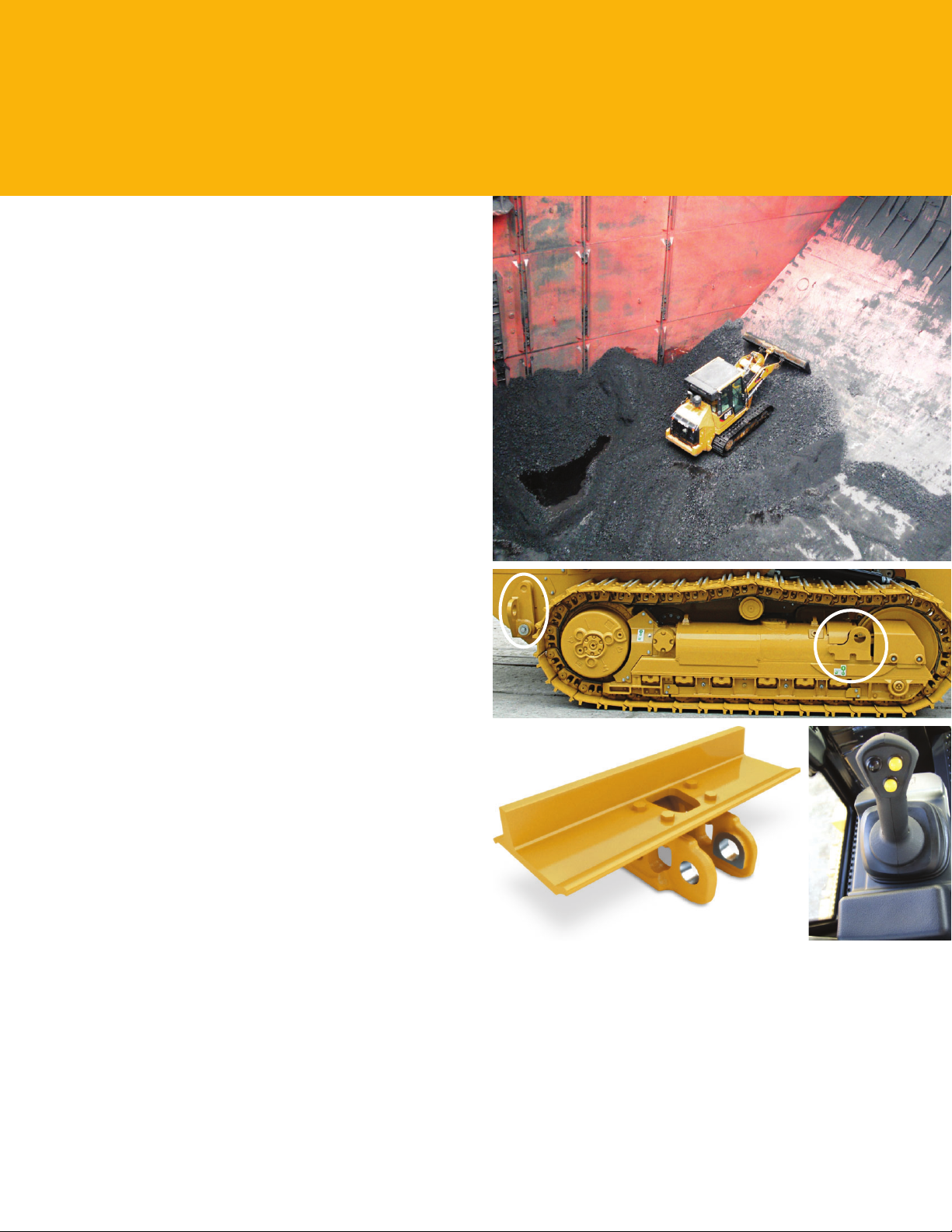

High Reach Work Tool
• Loader arm allows cleaning of the walls of the hold
• Increases versatility of the machine
Track-Type Undercarriage
• Low ground pressure for better traction in some
materials
• Several shoe widths available or can be manufactured
atorder to meet customer requirements
• Optional center hole shoes reduce track packing and
track chain tightening which extends undercarriage life
Lifting Eyes
• Front eyes welded on the Track Roller Frame (TRF)
• Rear eyes mounted on the main frame
• Wide spacing for good stability during lifting
Sound
• Sound suppressed cab and air suspended seat reduce
operator fatigue and increase concentration
• The sound levels measured per ISO 6396 reach 74 dB(A)
for 953D, 76 dB(A) for 963D and 77 dB(A) for 973D
Visibility
• Large windows all around operator and clipped engine
enclosure provide excellent view to the environment
andthe work tool
• Day and night operations are lighted with 8 halogen lights:
4 lights facing frontward, 2 lights facing rearward and
2facing sideways
3
Page 4
Track-Type Loaders
Shiphold/Port Handling

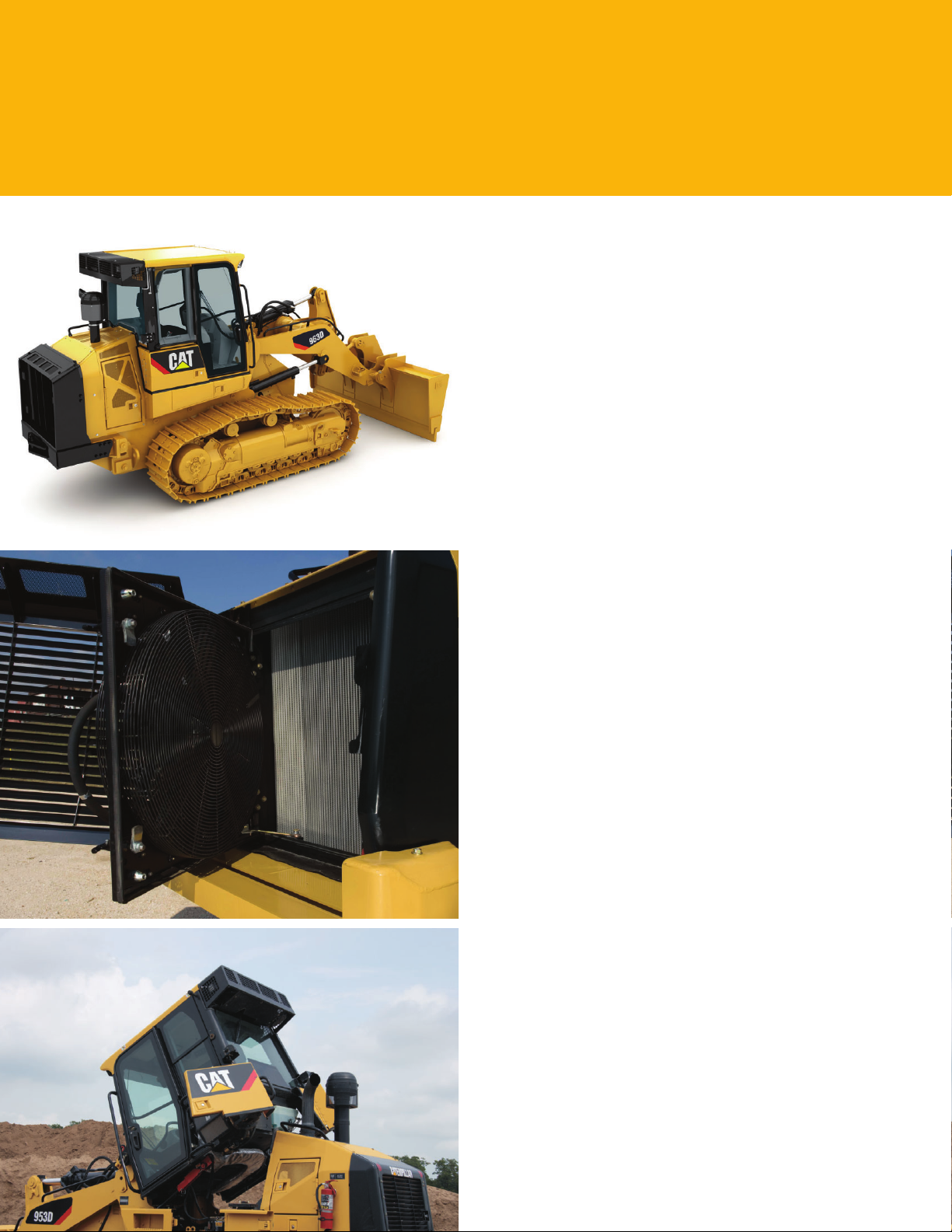

Rear Engine and Cooling System Location
• Improved machine balance
• Engine less exposed to dust, increase engine life
• Limit plugging of radiator core
• Better visibility at front
• Reduce O&O cost
Reversing Fan
• The air ow can be either automatically or manually
• The hinged radiator grill gives easy access to the cooling
• The hinged hydraulic fan makes the cleaning of the
reversed. Maintains proper heat transfer by blowing
material out of the radiator core.
system of the machine
radiator easy and faster (not available on 973D)
Heavy Duty Bumper (963D and 973D only)
• Gives outstanding protection for the rear of the machine
• Cooling system is well protected in case of accidental
impacts with a wall of the shiphold
Maintenance and Serviceability
• Filters and other systems are accessible from the ground
on each side of the machine
• Cab can be tilted 90° with a crane or 30° with a hydraulic
jack allowing job site repair
• Makes the maintenance of the machine easier for engine
or hydraulic components
Engine Air Precleaner
• Debris is centrifugally removed from the airstream
anddelivers cleaner air to the engine lter
• Air lter life is extended
4
Page 5

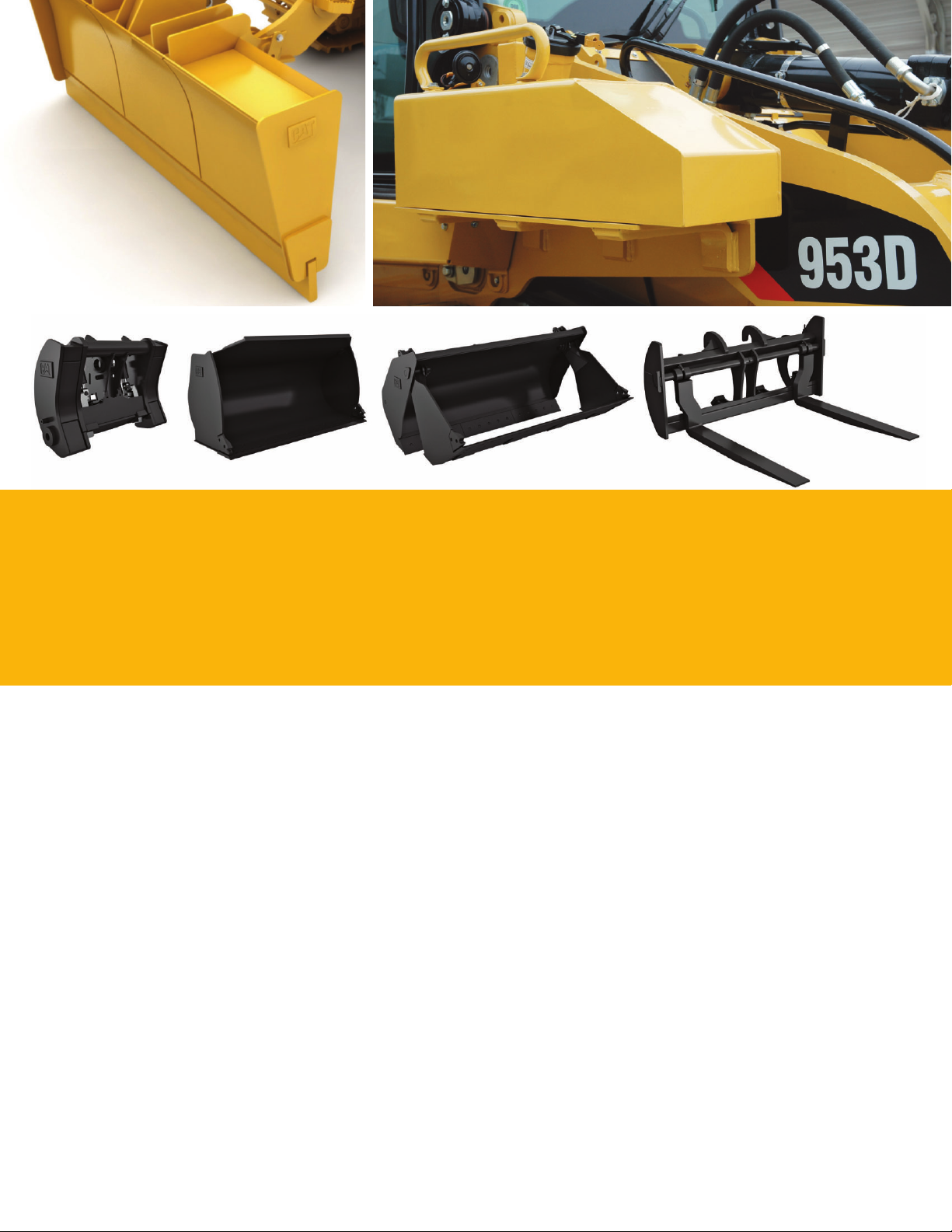

Work Tools and Optional Equipment
Designed to meet your needs
Work Tool Options
• Pin-on trim blade for all material
• Pin-on trim blade for coal
• Pin-on general purpose bucket
• Pin-on multi purpose bucket
The 963D can also be equipped with a Fusion™ quick coupler that allows to switch work tools easily.
• Fusion™ trim blade for all material
• Fusion™ GP bucket standard width and wide width (for lighter materials)
• Fusion™ MP bucket
• Fusion™ Forks
Other work tools from other products such as wheel loaders are compatible or can be made compatible
with the 963D Fusion quick coupler. Please contact your work tool representative for more information.
Additional Fuel Tank
Additional fuel tank increases the working time into the shiphold. The unloading process is simpli ed
and the ship unloading duration is optimized.
• The 953D can work 25 hours without re ll
• The 963D can work 20 hours without re ll
For additional information on the Track-Type Loader D series, please refer to the 953D, 963D and
973Dspecalogs.
5
Page 6
Machine Speci cations

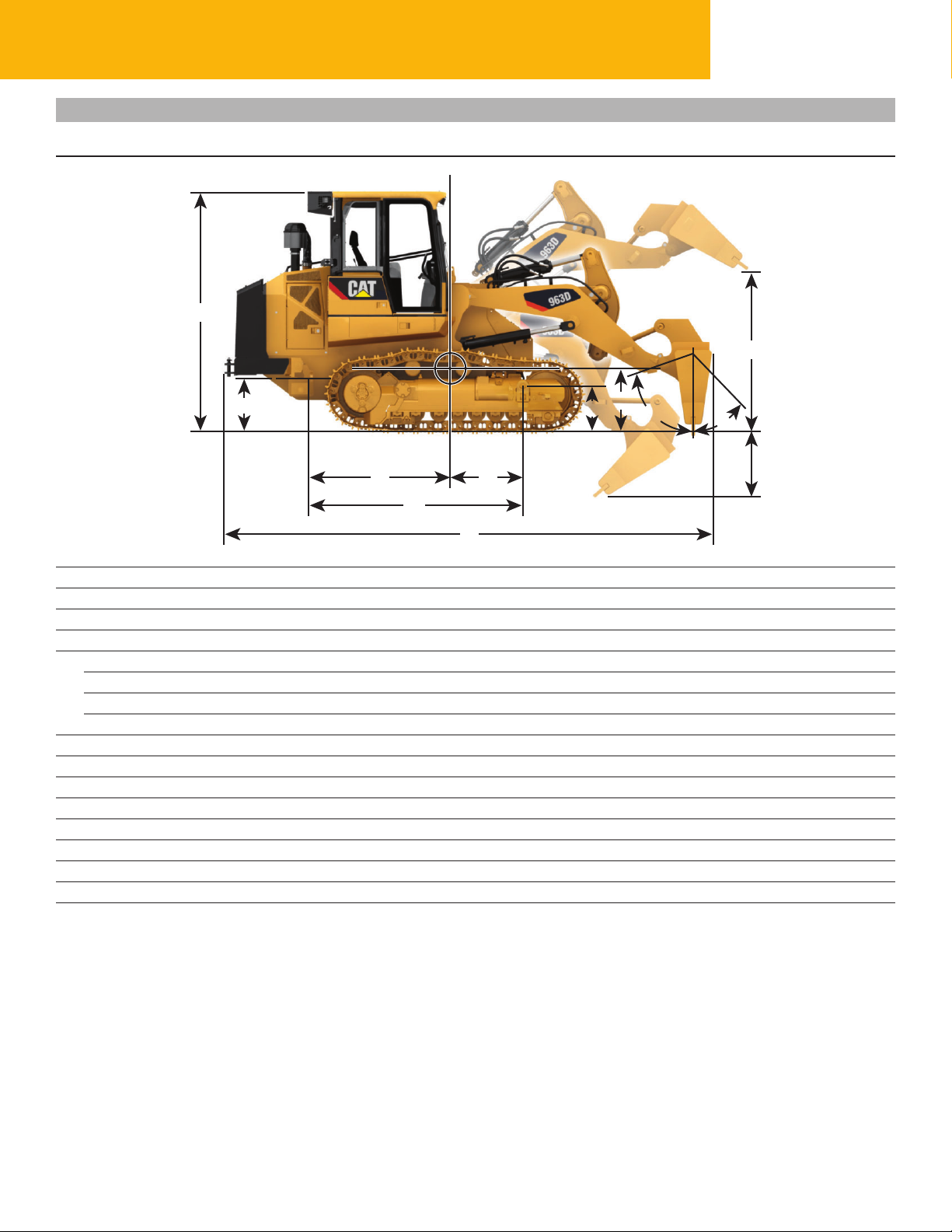

Dimensions
All dimensions are approximate.
1
3
5
7
6
12
11
4
9 8
10
2
953D 963D 973D
Overall Height 3099 mm 122.0 in 3335 mm 131.3 in 3510 mm 138.2 in
1
Overall Length 5513 mm 217.0 in 6687 mm 263.3 in 7200 mm 283.5 in
2
Work Tool Height 3495 mm 137.6 in 4359 mm 171.6 in 4420 mm 174.0 in
3
Digging Depth 560 mm 22.0 in 916 mm 36.1 in 977 mm 38.5 in
4
Overall Width – with 480mm/19.7in shoes 2280 mm 89.8 in
Overall Width – with 550mm/21.6in shoes 2400 mm 94.5 in 2710 mm 106.7 in
Blade Width 3148 mm 124.0 in 3150 mm 124.0 in 3469 mm 136.6 in
Rear Lifting Eye Height 700 mm 27.6 in 762 mm 30.0 in 1040 mm 40.9 in
5
Front Lifting Eye Height 600 mm 23.6 in 645 mm 25.4 in 885 mm 34.8 in
6
Center of Gravity Dimensions
Center of Gravity Height 902 mm 35.5 in 863 mm 34.0 in 863 mm 34.0 in
7
Center of Gravity to Front Eye 1027 mm 40.4 in 1034 mm 40.7 in 1207 mm 47.5 in
8
Center of Gravity to Rear Eye 1653 mm 65.1 in 1866 mm 73.5 in 1651 mm 65.0 in
9
Distance from Rear to Front Lifting Eyes 2680 mm 105.5 in 2900 mm 114.2 in 2960 mm 116.5 in
10
Trim Blade Pitch – Forward +44° +47° +43°
11
Trim Blade Pitch – Rearward –71° –61° –58°
12
6
Page 7
Engine Undercarriage Main Service Rells
Engine Model Track Shoe Type Fuel Tank
953D Cat C6.6 Acert 953D Double Grouser 953D 316 L 83.5 gal
963D Cat C6.6 Acert 963D Double Grouser with 963D 400 L 105.7 gal
973D Cat C9 Acert 973D 621 L 164 gal
Net Power Cooling System
973D Double Grouser with
953D 110 kW 148 hp 953D 31 L 8 gal
963D 141 kW 189 hp 963D 34 L 9 gal
973D 196 kW 263 hp 973D 44 L 11.6 gal
Bore Hydraulic Tank
953D 105 mm 4.13 in 953D 70 L 18.5 gal
963D 105 mm 4.13 in 963D 90 L 23.7 gal
973D 112 mm 4.41 in 973D 189 L 49.9 gal
Stroke
953D 127 mm 5 in
963D 127 mm 5 in
973D 149 mm 5.86 in
Displacement
953D 6.6 L 402.76 in
963D 6.6 L 402.76 in
973D 8.8 L 537 in
Regulations
953D Rating at 2,000 rpm
963D Rating at 2,000 rpm
973D Rating at 1,900 rpm
• Meets U.S. EPA Tier 3, EU Stage 3A and
Japan MOC
Track Shoe Width – Standard
953D 480 mm 18.9 in
963D 550 mm 21.6 in
973D 550 mm 21.6 in
Track Shoe Width – Optional
953D 380 mm 15 in
963D 480 mm 17.7 in
973D 675 mm 26.6 in
Ground Pressure – Standard Shoe
953D 65.8 kPa 9.5 psi
963D 75 kPa 10.9 psi
973D 85.5 kPa 12.4 psi
3
Ground Pressure – Optional Shoe
3
3
953D 84.1 kPa 12.3 psi
963D 91.3 kPa 13.2 psi
973D 69.5 kPa 10.1 psi
Ground Pressure –
Standard Shoe with TrimBlade
953D 67.4 kPa 9.8 psi
963D 74.2 kPa 10.7 psi
• Net power advertised is the power available 973D 85.7 kPa 12.4 psi
at the ywheel measured per ISO 9249 or
SAE J1349 when the engine is equipped
with fan, air cleaner, mufer and alternator
• For the 953D and 963D, no derating up to
3000 m (9,842ft) altitude
• For the 973D, no derating up to 1219m
(3,999ft) altitude
Grouser Height – Double Grouser
953D 35 mm 1.4 in
963D 42 mm 1.65 in
973D 49 mm 1.92 in
• Ground pressure is calculated using
operating weight of machine with
GPbucket, teeth and segments.
Weights
Operating Weight with GP Bucket and Teeth
953D 15 526 kg 34,229 lb
963D 21 426 kg 47,236 lb
973D 28 058 kg 61,857 lb
Operating Weight with Trim Blade (6.2 mph)
953D 15 298 kg 33,726 lb Drive Pump Two, variable963D 21 201 kg 46,740 lb
973D 28 161 kg 62,084 lb
Drive System
Type Drive System
or without center hole
or without center hole
Hydrostatic drive
with in nite machine
speeds to 10.0 km/h
displacement,
slipper-type axial
piston pumps
Buckets
Capacity – General Purpose
3
953D 1.85 m
963D 2.45 m
973D 3.21 m
2.42 yd
3
3.2 yd
3
4.2 yd
Bucket Width – General Purpose
953D 2485 mm 97.8 in
963D 2612 mm 102.8 in
973D 2910 mm 114.56 in
Capacity – Multi-Purpose
3
953D 1.60 m
963D 1.90 m
973D 3.05 m
2.09 yd
3
2.48 yd
3
3.92 yd
Bucket Width – Multi-Purpose
953D 2471 mm 97.3 in
963D 2575 mm 101.3 in
973D 2868 mm 112.91 in
Blade
Trim Blade Capacity – All Material
3
953D 1.6 m
963D 3.24 m
973D 3.57 m
Trim Blade Capacity – Coal
953D Can be designed
atorder
963D 4 m
3
973D Can be designed
atorder
2.09 yd
3
4.2 yd
3
4.67 yd
5.25 yd
Track Motor Two, variable
displacement,
bentaxis motors
Relief Valve Setting
953D, 963D 48 000 kPa 6,961.8 psi
973D 45 000 kPa 6,527 psi
3
3
3
3
3
3
3
3
3
3
7
Page 8
953D SH/963D SH/973D SH Shiphold/Port Handling
When the attachments are available a typical Track-Type Loader working in the shiphold/port handling application needs
tobeequipped with the following recommended features:
• Four lifting eyes
• Joystick for the transmission control
• Front guard for hydraulic tank
• Guards for lift and tilt cylinders
• Guard for the track rollers
• Heavy duty bumper
• Reversing fan
• Engine air precleaner
• E-SALT tracks equipped with center hole shoes
• Trim blade or bucket (with or without quick coupler)
• Lights facing forward, backward and sideways
• Windshield sealed
• Hydraulic tilt cab system
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2011 Caterpillar Inc.
All rights reserved
Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
AEHQ6314 (06-2011)
