Page 1
914G/IT14G
Compact Wheel Loaders/
Integrated Toolcarriers
Engine
Model Cat
Net Power 71 kW 95 hp
®
3054C DIT
Weights
Operating Weight – 914G 7950 kg 17,530 lb
Operating Weight – IT14G 8450 kg 18,632 lb
Buckets
Bucket Capacities 1.2 - 1.4 m
3
1.6 - 1.8 yd
3
Page 2

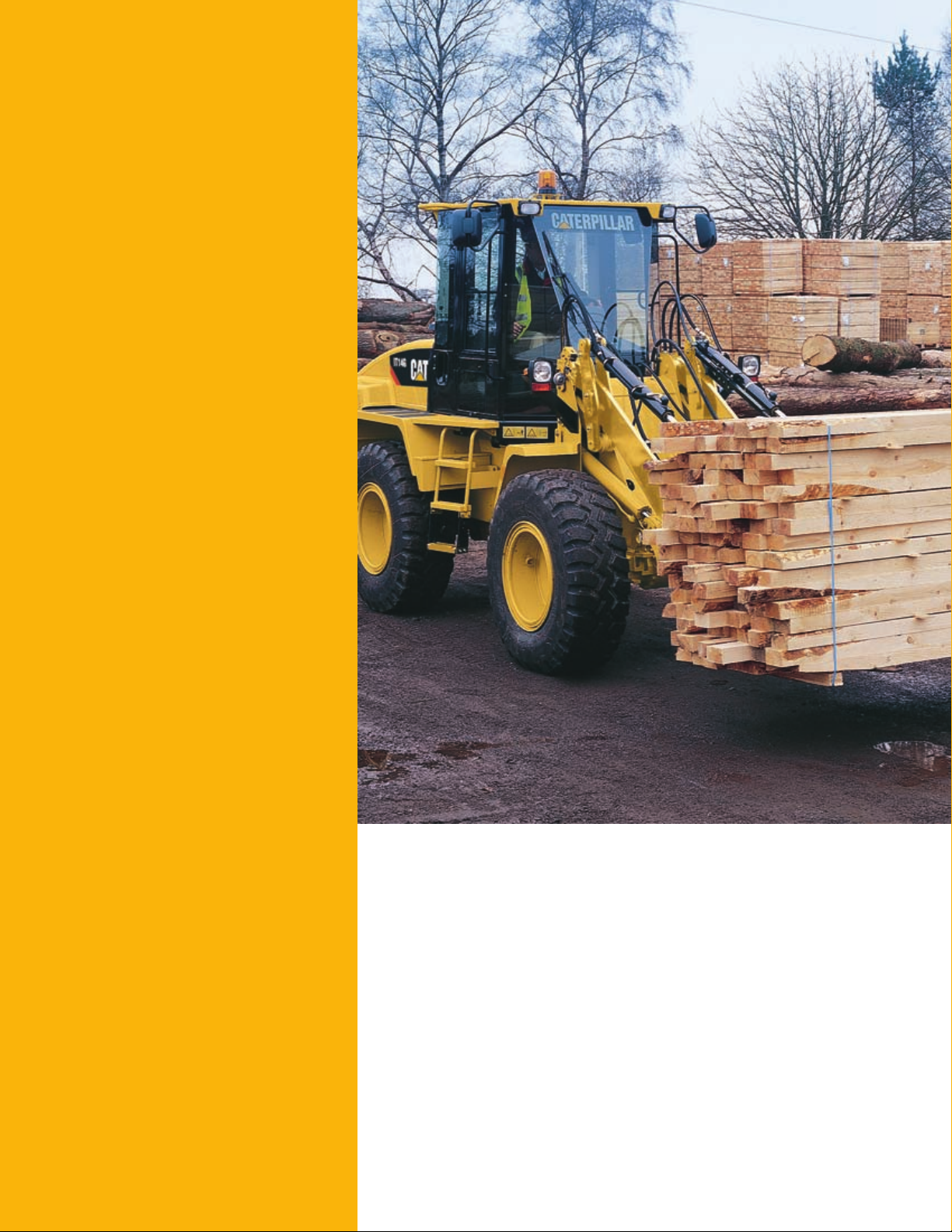

914G/IT14G Features
Comfortable Cab
Spacious cab and easy to use controls deliver all
day comfort so you can concentrate on your work.
High Performance Power Train
Aggressive performance helps you get more done.
Loader Linkage
Loader design is built for strength and durability.
Work Tools
Do more jobs with one machine with the variety
of Cat Work Tools.
Contents
Operator Station ..................................................3
Power Train ..........................................................4
Loader ...................................................................4
Work Tools ............................................................5
Serviceability .......................................................6
Customer Support ...............................................6
914G/IT14G Compact Wheel Loader/
Integrated Toolcarrier Specifications .............7
914G/IT14G Standard Equipment ....................18
914G/IT14G Optional Equipment .....................19
2
The Cat® 914G/IT14G delivers strong performance, high
productivity and proven reliability. Spacious cab with
joystick control keeps you comfortable throughout the
work day, allowing you to get more done. Loader design
provides strength and durability with superior control.
Expand your business with the 914G/IT14G.
Page 3

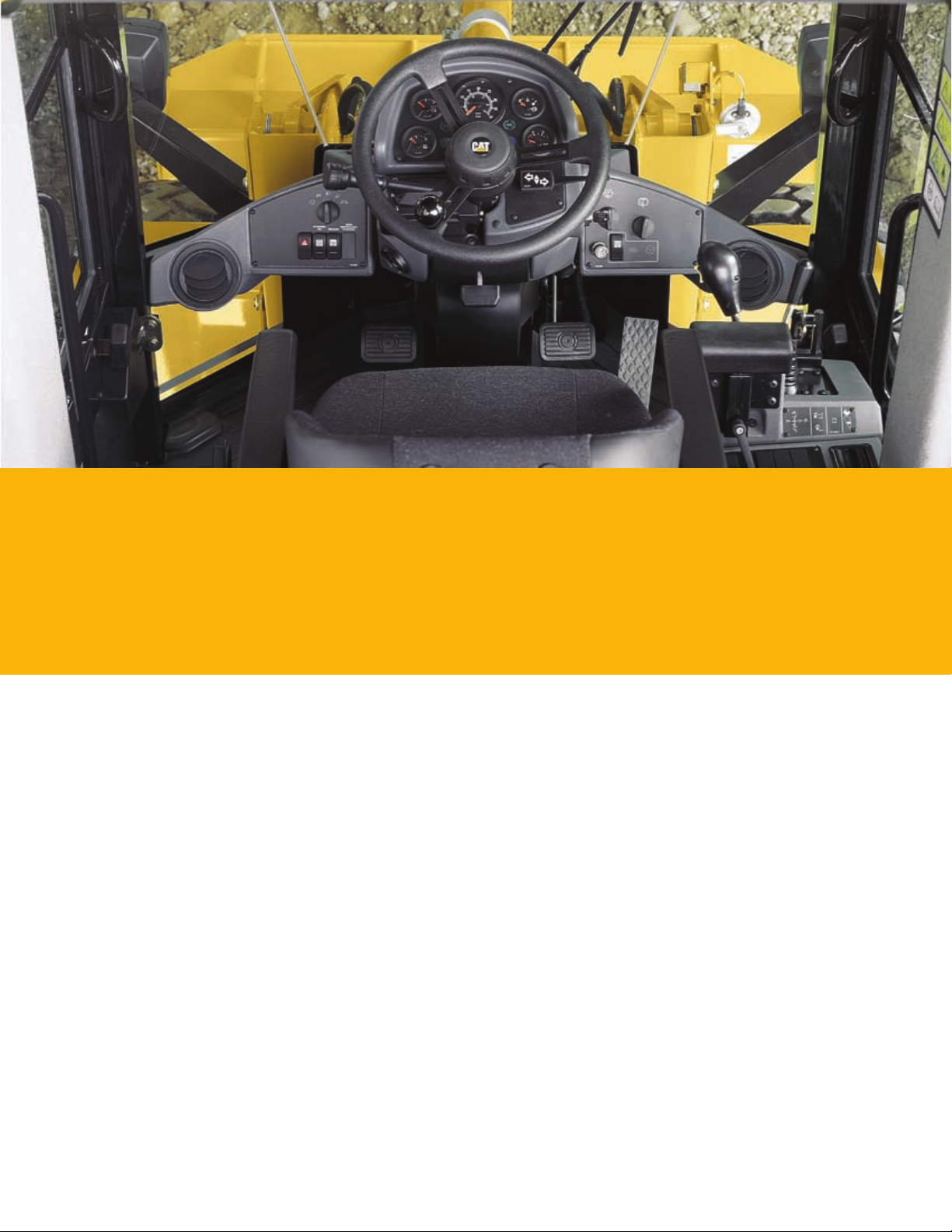

Operator Station
Superior comfort keeps you productive, all day long.
Cab
The ergonomic cab provides a comfortable work environment with large windows, spacious interior
room, generous storage areas and low interior sound levels. The two-door design allows easy entry
and exit. Both doors open fully and lock ush against the cab. Steps leading up to the cab are wide
and angled out for secure footing. The optional air suspension seat is designed for maximum comfort
and fully-adjustable support. Generous storage space includes a lockable compartment, coat hook
and compartments designed to hold a lunchbox/cooler, cup or can. A tool box is also provided.
Low Effort Controls
Hydraulic pilot controls provide easy operation of lift and tilt functions. A remote transmission control
option adds a forward/neutral/reverse control switch on the implement lever for easier operation and
enhanced productivity. Third and fourth function controls are also available for use with special work
tools. Hydrostatic, closed-center steering system with ow amplication provides fast or slow steering
response, depending on the operational requirement. With the optional Engine Speed Control, a specic
engine RPM can be set and maintained with a switch in the cab. The creeper control option allows
variable function of travel speeds with full engine RPM.
Visibility
The loader arms have been designed to provide excellent visibility throughout the production cycle.
3
Page 4
Power Train
Designed for power, durability and performance.
Cat Engine
The Cat 3054C DIT (Direct Injection Turbocharged) engine has a proven
reputation for rugged, reliable operation while providing peak performance in
a wide range of operating conditions. High horsepower and torque help you get
more work done in a day.
Transmission
The high-pressure closed-loop hydrostatic transmission delivers high performance
with a broad range of power to the ground.
Axles
Heavy-duty axle design features strong gears and bearings for durable
performance. The xed front, oscillating rear axle helps assure four-wheel ground
contact for optimum traction and stability. Patented Duo-Cone™ seals on the
axle and housing keep oil in and lock contaminants out. A choice of standard
conventional or Limited Slip Differentials adapts the machine to a wide range
of operating conditions.
Brakes
Hydraulically-actuated disc brakes are standard on both the front and rear axles
and provide low effort operation. The mechanical, shoe-type parking brake also
automatically neutralizes the transmission when applied.
Loader
Built for strength.
Z-Bar Linkage Design
The high performance Z-bar
loader linkage design on the 914G
is built for strength, visibility and
versatile attachment usage.
8-Bar Parallel Linkage Design
The 8-bar parallel linkage on
the IT14G simplies keeping forks
level throughout the range of lift,
without adjustment. Longer lift
arms, taller front tower and higher
pivot points offer more lift, height
and reach than conventional loaders.
Having more tilt capacity than lift
in almost every position provides
superior load control.
4
Page 5

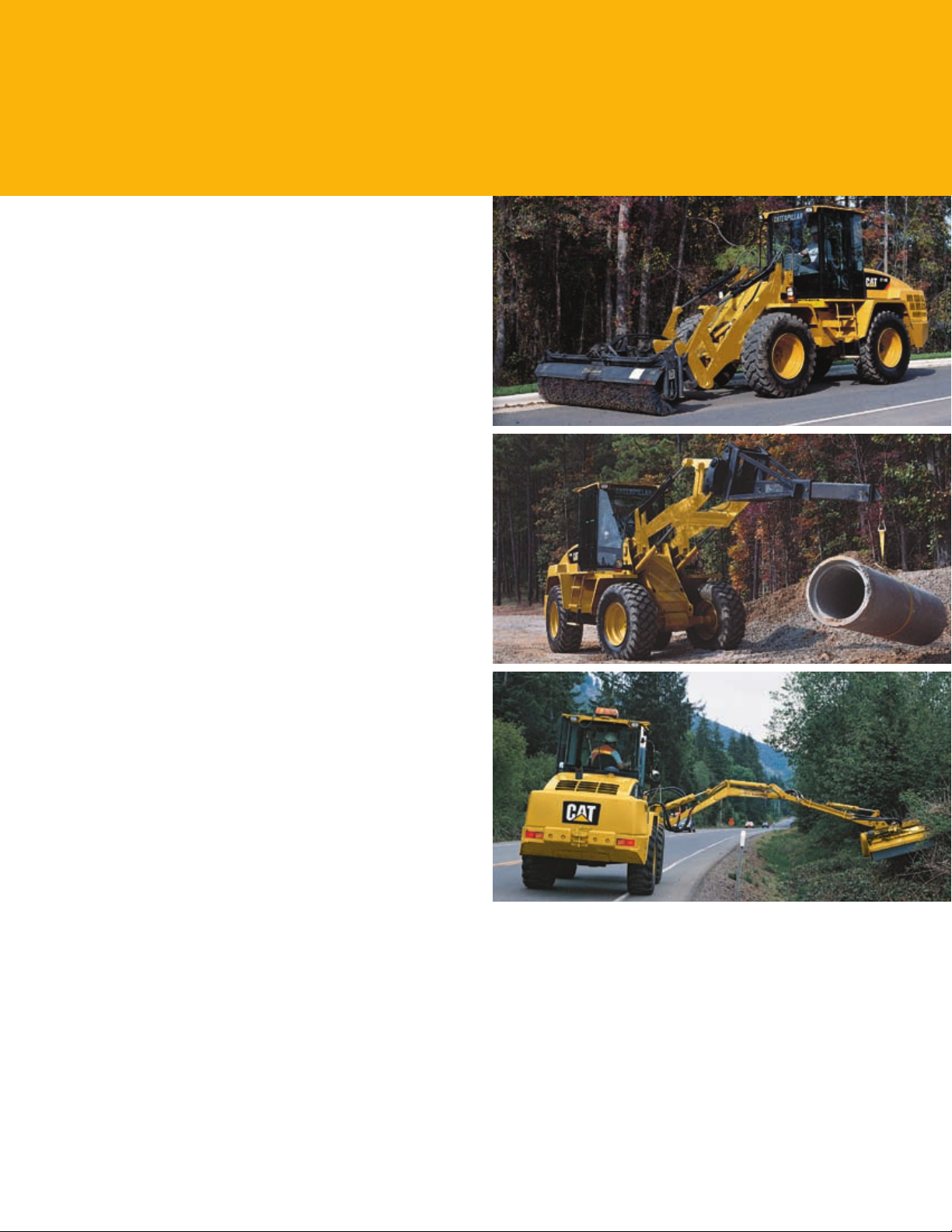

Work Tools
Do more jobs with one machine with Cat Work Tools.
The Right Tool for the Job
With a variety of Cat Work Tools, the 914G/IT14G is ideal
for a wide range of applications. Work tool controls feature
pilot operated lift and tilt circuits with low effort single-lever
control. Available work tools include:
Bucket (general purpose, multi purpose, light material, •
side dump, high dump, material handling)
Forks (pallet, lumber, log)•
Asphalt Cutter•
Blades•
Brooms•
Loader Rakes•
Material Handling Arm•
Snow Plows•
Quick Coupler
Work Tools can be changed quickly and easily with the integral
quick coupler system, standard on the IT14G and optional
on the 914G. A switch in the IT14G cab activates a hydraulic
cylinder for positive tool engagement or disengagement.
Auxiliary Hydraulics
Optional 3rd (standard on the IT14G) and 4th function
hydraulics are available for use with work tools that require
hydraulic power such as rotary brooms, high dump and side
dump buckets.
Brushcutter
The IT14G is the platform for the T-121C Little & Company
Brushcutter, offering maximum visibility to the mower, superior
machine balance, hystat transmission and versatility to
provide greater operator condence and higher productivity.
5
Page 6
Serviceability
Easy access and minimal maintenance requirements reduced downtime.
Convenient Service Features
One-piece engine enclosure hood with gas struts lifts for
exceptional access to lters and service points. All service
points are accessible from ground level.
Radiator and oil coolers are easily accessible for cleaning.•
Easily check radiator coolant and hydraulic oil levels •
with sight gauges.
Swing-out oil cooler allows quick, easy cleaning and •
service to the radiator.
S••O•SSM ports are factory installed for improved access
to engine, transmission and hydraulic oils. S•O•S ports
make oil sampling quicker, cleaner and provide the best
oil sample for analysis.
Spin-on lters for engine oil and hydraulic oil are •
vertically mounted for easier servicing.
Cat Extended Life Coolant/Antifreeze allows extended •
operation (up to 6,000 hours) between changes.
Customer Support
Support you can count on.
Superior Dealer Service
Your Cat dealer is ready to assist you with your purchase
decision and everything after.
Make comparisons of machines, with estimates of •
component life, preventative maintenance and cost
of production.
Financing packages are exible to meet your needs.•
Your Cat dealer can evaluate the cost to repair, •
rebuild and replace your machine, so you can make
the right decision.
For more information on Cat products, dealer services •
and industry solutions, visit us at www.cat.com.
6
Page 7
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
Engine
Model Cat® 3054C DIT
Gross Power 75 kW 101 hp
Net Power 71 kW 95 hp
SAE J1349 Rating 71 kW 95 hp
ISO 9249 Rating 72 kW 96 hp
EEC 80/1269 Rating 72 kW 96 hp
The Cat 3054C DIT engine meets U.S. EPA •
Tier 2 emissions regulations.
Ratings at 2,300 RPM.•
Engine Dimensions
Bore 105 mm 4.13 in
Stroke 127 mm 5 in
Displacement 4.4 L 268 in
Weights
Operating Weight
– 914G
Operating Weight
– IT14G
Optional
Counterweight*
Optional on 914G. Standard on IT14G.*
914G with 1.4 m•
bolt-on cutting edge and optional
counterweight.
IT14G with 1.4 m•
with bolt-on cutting edge, quick coupler
and counterweight.
7950 kg 17,530 lb
8450 kg 18,632 lb
150 kg 330 lb
3
(1.8 yd3) bucket with
3
(1.8 yd3) bucket
Operating Specifications
Tire Size 17.5-25
Rated Bucket
Capacity
Breakout force
– 914G
Breakout force
– IT14G
Full turn static
tipping load,
bucket – 914G
Full turn static
tipping load,
bucket – IT14G
Dump height @
3
Full Lift – 914G
Dump height @
Full Lift – IT14G
Articulation 40 Degrees
Oscillation +/– 11 Degrees
3
1.3 m
62 kN 14,007 lb
77 kN 17,342 lb
5323 kg 11,737 lb
4792 kg 10,566 lb
2659 mm 8 ft 9 in
2921 mm 9 ft 7 in
1.7 yd
3
Hydraulic System
Main relief 245.5 bar 3,560 psi
Flow 90 L/min 23.8 gal/min
Hydraulic cycle
time – lift
Hydraulic cycle
time – dump
Hydraulic cycle
time – lower, oat
Lift Cylinders,
double acting
– 914G
Lift Cylinders,
double acting
– IT14G
Tilt Cylinder,
double acting
– 914G
Tilt Cylinder,
double acting
– IT14G
5.6
2.1
3.2
89 ×
672 mm
89 ×
795 mm
102 ×
400 mm
76 ×
805 mm
3.5 ×
26.5 in
3.5 ×
31.3 in
4.0 ×
15.8 in
3.0 ×
31.7 in
Transmission
Service Refill Capacities
Travel Speed 1 9 km/h 5.6 mph
Travel Speed 2
– 914G
Travel Speed 2
– IT14G
35 km/h 22 mph
32 km/h 20 mph
Cab
ROPS SAE J394, SAE J1040,
ISO 3471
FOPS SAE J231, ISO 3449
Sound 74 dB(A)
Cooling System 23 L 6.1 gal
Fuel tank 150 L 39.6 gal
Hydraulic system 100 L 26.4 gal
Hydraulic tank 70 L 18.5 gal
Buckets
Bucket Capacities 1.2 -
1.4 m3
1.6 -
1.8 yd
Brakes
Meets SAE J1473 and ISO 3450 requirements.•
3
7
Page 8
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
914G Operating Specications
General
Purpose Buckets
Penetration
Buckets
With Bolt-On
Cutting Edge
With Bolt-On
Teeth and
Segments
With Bolt-On
Teeth
With Flush
Mounted Teeth
R ated bucket capacity (§) m
3
1.3 1.4 1.3 1.4 1.2 1.3 1.3 1.4
y d
3
1.7 1.8 1.7 1.8 1.6 1.7 1.7 1.8
Struck capacity (§) m
3
1.1 1.2 1.1 1.2 1.0 1.1 1.1 1.2
y d
3
1.4 1.5 1.4 1.5 1.3 1.5 1.5 1.5
W idth mm 2401 2401 2424 2424 2424 2424 2434 2434
f t/in 7'10.5" 7'10.5" 7'11.4" 7'11.4" 7'11.4" 7'11.4" 7'11.8" 7'11.8"
Dump clearance at full lift and 45° discharge (§) mm 2659 2623 2667 2632 2715 2680 2680 2680
f t/in 8'9" 8'7" 8'9" 8'7" 8'11" 8'10" 8'10" 8'10"
R each at full lift and 45° discharge (§) mm 973 1008 964 1000 944 979 979 979
f t/in 3'2" 3'4" 3'2" 3'3" 3'1" 3'3" 3'3" 3'3"
R each at 45° discharge and 2130 mm (7 ft)
clearance (§)
mm 1331 1348 1282 1297 1259 1275 1287 1249
f t/in 4'4" 4'5" 4'2" 4'3" 4'2" 4'2" 4'3" 4'1"
R each with lift arms horizontal and bucket level mm 1980 2030 1970 2020 1920 1970 1970 1970
f t/in 6'6" 6'8" 6'6" 6'8" 6'4" 6'6" 6'6" 6'6"
Digging depth (§) mm 89 89 89 89 70 70 70 70
in 3.5" 3.5" 3.5" 3.5" 2.8" 2.8" 2.8" 2.8"
O verall length mm 6229 6279 6328 6378 6310 6360 6358 6438
f t/in 20'5" 20'7" 20'9" 20'11" 20'8" 20'10" 20'10" 21'1"
O verall height with bucket at full raise (§) mm 4390 4442 4390 4442 4390 4442 4442 4442
f t/in 14'5" 14'7" 14'5" 14'7" 14'5" 14'7" 14'7" 14'7"
Loader clearance circle with bucket
in carry position
m 10.34 10.37 10.42 10.45 10.42 10.45 10.44 10.49
f t/in 33'11" 34'0" 34'2" 34'4" 34'2" 34'4" 34'3" 34'5"
Static tipping load straight * (§) kg 6098 6069 6059 6029 6169 6166 6183 6011
lb 13,446 13,382 13,360 13,294 13,603 13,602 13,634 13,254
Static tipping load full 40° turn * (§) kg 5323 5295 5284 5256 5415 5387 5404 5232
lb 11,737 11,675 11,651 11,589 11,940 11,878 11,916 11,537
B reakout force (§) kg 6367 5971 6415 6010 6929 6469 6484 6374
lb 14,007 13,136 14,113 13,222 15,246 14,232 14,265 14,055
Operating weight * kg 7378 7391 7409 7422 7336 7349 7336 7500
lb 16,262 16,297 16,337
16,366 16,176 16,205 16,176 16,538
* Static tipping and operating weights shown are for high-speed version 914G and include lubricants, full fuel tank, ROPS cab, 80 kg
(176 lb) operator and 17.5 - R25 (L2 equivalent) tires.
N OTE: Specications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers (SAE).
SAE Standards J732 and J742 govern loader rating, denoted in the text by (§).
8
Page 9
30°
41°
46°
9
8
4
1
2
3
10
60°
48°
56
7

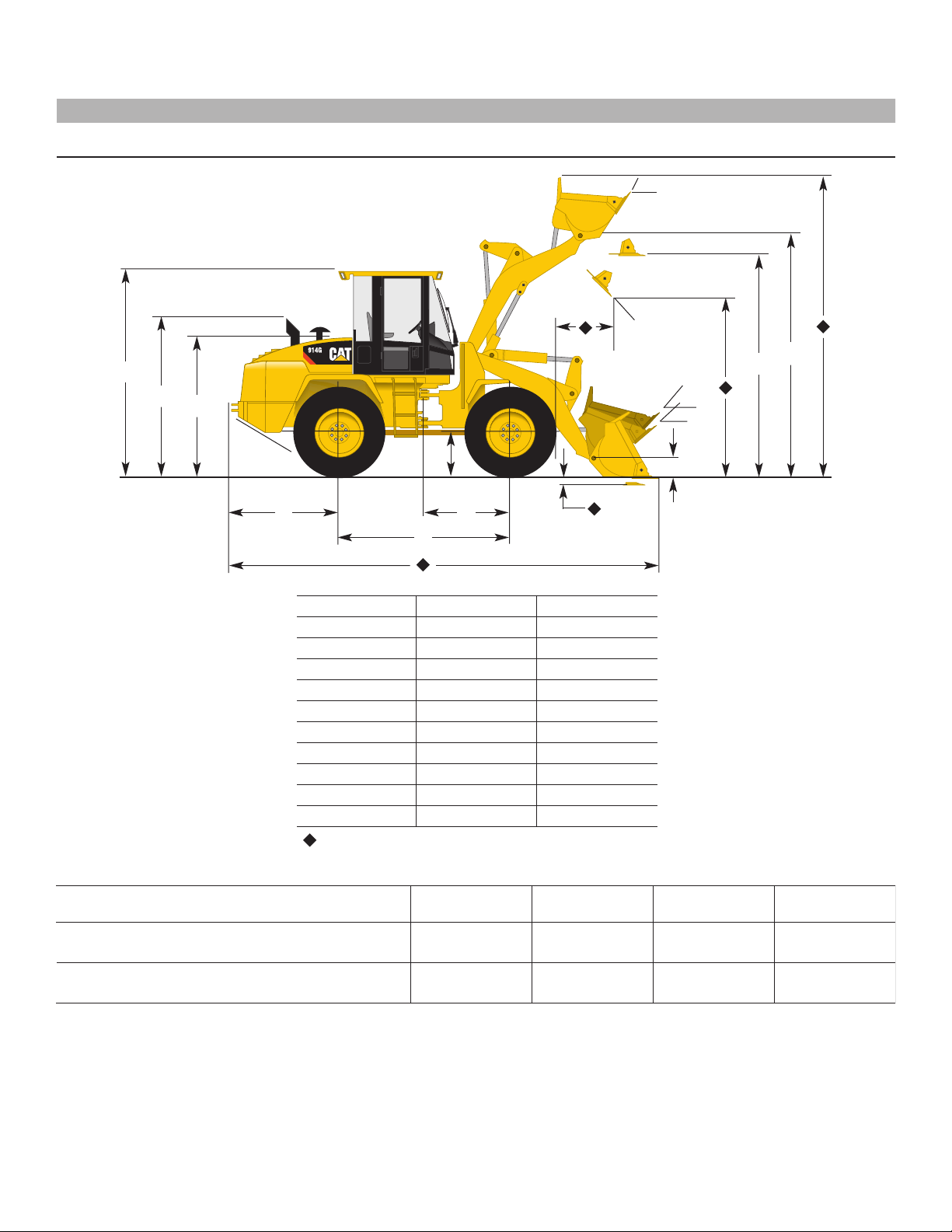

914G Dimensions with Bucket
All dimensions are approximate.
mm ft/in
1 3100 10'2"
2 2255 7'5"
3 2080 6'10"
4 620 2'0"
5 1658 5'5"
6 1300 4'3"
7 2600 8'6"
8 374 1'3"
9 3236 10'7"
10 3435 11'3"
Dimensions vary with bucket. Refer to Operating
Specications chart on previous page.
T read Width Width over Tires Ground Clearance
Change in vertical
dimensions
15.5 - 25, 12PR (L-2) mm 1800 2223 414 –42
in 70.9 87.5 16.3 –1.7
17.5 - R25 (L-2 equivalent) mm 1800 2258 456 —
in 70.9 88.9 18.0 —
9
Page 10
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
914G Supplemental Specications
Change in Operating Weight
Change in Articulated
Static Tipping Load
kg lb kg lb
Air conditioner +55 +121 +71 +156
Canopy, ROPS (less cab) –199 –438 –174 –383
C ounterweight, 150 kg (330 lb) +152 +334 +287 +631
Ride control +32 +70 +6 +13
Standard speed version machine –70 –154 –74 –163
Secondary steering +30 +66 +44 +97
Tires and rims, 15.5 - 25, 12PR (L-2) –159 –350 –99 –218
Tires and rims, 15.5 - 25, 12PR (L-3) –78 –172 –48 –106
Tires and rims, 17.5 - 25, 12PR (L-2) –126 –277 –78 –172
Tires and rims, 17.5 - 25, 12PR (L-3) +12 +26 +7 +15
Tires and rims, 17.5 - R25, radial (L-3 equivalent) +156 +343 +96 +211
Tires and rims, 17.5 - R25, radial (L-2/L-3 equivalent) +95 +209 +58 +128
10
Page 11
2,400 2,700 3,000 3,300 3,600 3,900 4,200
1.2 1.6
1.3 1.7
1.4 1.8
115% 100% 95%

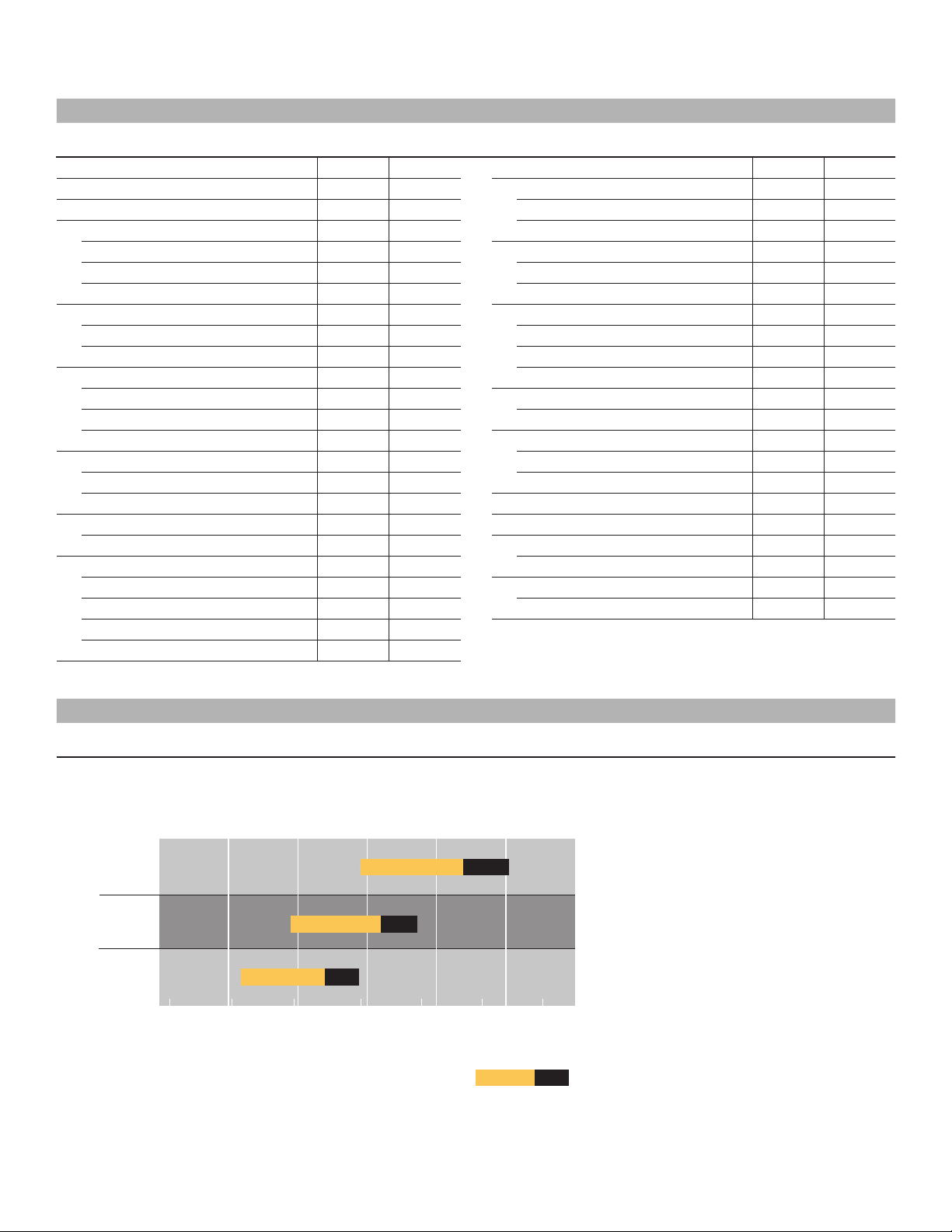

1400 1600 1800 2000 2200 2400 2600

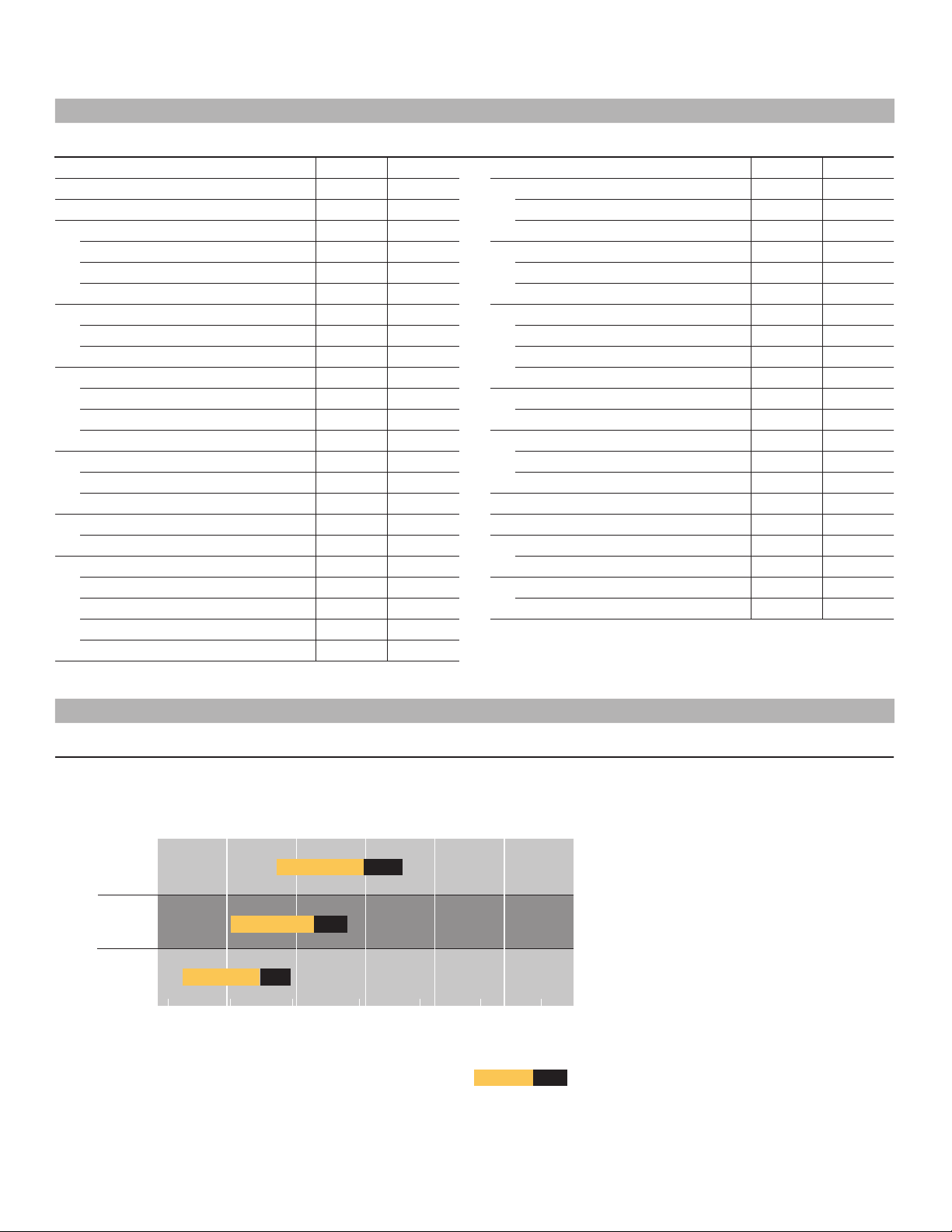

T ypical Material Densities – Loose
kg/m
3
lb/yd
3
kg/m
3
lb/yd
3
Basalt 1960 3,305 Gypsum
Bauxite, Kaolin 1420 2,394 broken 1810 3,052
Clay crushed 1600 2,698
natural bed 1660 2,799 Limestone
dry 1480 2,495 broken 1540 2,596
w et 1660 2,799 c rushed 1540 2,596
Clay and gravel Sand
dry 1420 2,394 dry, loose 1420 2,394
w et 1540 2,596 damp 1690 2,849
Decomposed rock wet 1840 3,102
75% rock, 25% earth 1960 3,305 Sand and clay
50% rock, 50% earth 1720 2,900 loose 1600 2,698
25% rock, 75% earth 1570 2,647 Sand and gravel
Earth dry 1720 2,900
dry, packed 1510 2,546 wet 2020 3,416
w et, excavated 1600 2,698 Sandstone 1510 2,546
Granite Shale 1250 2,107
broken 1660 2,799 Slag
Gravel broken 1750 2,950
pitrun 1930 3,254 Stone
dry 1510 2,546 c rushed 1600 2,698
dry, 6-50 mm (0.2-2 in) 1690 2,849
w et, 6-50 mm (0.2-2 in) 2020 3,406
914G Bucket Size Selector
Bucket Capacity
Material Density
m3 yd
3
kg/m
3
lb/yd
3
% = Bucket Fill Factor
11
Page 12
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
IT14G Operating Specications
General
Purpose Buckets
Penetration
Buckets
With Bolt-On
Cutting Edge
With Bolt-On
Teeth
With Bolt-On
Teeth and
Segments
With Flush
Mounted Teeth
R ated bucket capacity (§) m
3
1.3 1.4 1.2 1.3 1.3 1.4 1.3
y d
3
1.7 1.8 1.6 1.7 1.7 1.8 1.7
Struck capacity (§) m
3
1.1 1.2 1.0 1.1 1.1 1.2 1.1
y d
3
1.4 1.5 1.3 1.5 1.4 1.5 1.5
W idth mm 2401 2401 2424 2424 2424 2424 2434
f t/in 7'10.5" 7'10.5" 7'11.4" 7'11.4" 7'11.4" 7'11.4" 7'11.8"
Dump clearance at full lift and 45° discharge (§) mm 2921 2886 2977 2942 2930 2895 2942
f t/in 9'7" 9'6" 9'9" 9'8" 9'7" 9'6" 9'8"
R each at full lift and 45° discharge (§) mm 787 823 757 792 779 814 792
f t/in 2'7" 2'8" 2'6" 2'7" 2'7" 2'8" 2'7"
R each at 45° discharge and 2130 mm (7 ft)
clearance (§)
mm 1426 1443 1351 1368 1375 1390 1380
f t/in 4'8" 4'9" 4'5" 4'6" 4'6" 4'7" 4'6"
R each with lift arms horizontal and bucket level mm 2151 2201 2090 2140 2139 2189 2140
f t/in 7'1" 7'3" 6'10" 7'0" 7'0" 7'2" 7'0"
Digging depth (§) mm 174 174 155 155 174 174 155
in 6.9" 6.9" 6.1" 6.1" 6.9" 6.9" 6.1"
O verall length mm 6424 6474 6506 6556 6524 6574 6554
f t/in 21'1" 21'3" 21'4" 21'6" 21'5" 21'7" 21'6"
O verall height with bucket at full raise (§) mm 4802 4855 4802 4855 4802 4855 4855
f t/in 15'9" 15'11" 15'9" 15'11" 15'9" 15'11" 15'11"
Loader clearance circle with bucket
in carry position
m 10.40 10.42 10.47 10.50 10.47 10.50 10.49
f t/in 34'1" 34'2" 34'4" 34'5" 34'4" 34'5" 34'5"
Static tipping load straight * (§) kg 5541 5495 5637 5589 5503 5456 5605
lb 12,218 12,116 12,407 12,324 12,134 12,030 12,359
Static tipping load full 40° turn * (§) kg 4792 4750 4882 4840 4754 4712 4855
lb 10,566 10,474 10,765 10,672 10,483 10,390 10,705
B reakout force (§) kg 7865 7435 8456 7965 7920 7481 7979
lb 17,342 16,394 18,645 17,563 17,464 16,496 17,594
Operating weight * kg 8032 8044 7990 8003 8063 8076 7990
lb 17,771 17,737 17,618 17,647 17,779 17,808 17,618
* Static tipping and operating weights shown are for high-speed version IT14G and include lubricants, full fuel tank, ROPS cab, 80 kg
(176 lb) operator, standard 250 kg (550 lb) counterweight and 17.5 - R25 (L2 equivalent) tires.
N O
TE: Specications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers (SAE).
SAE Standards J732 and J742 govern loader rating, denoted in the text by (§).
12
Page 13
30°
1
2
3
5
7
6
4
8
9
10
49°
54°
57°
48°

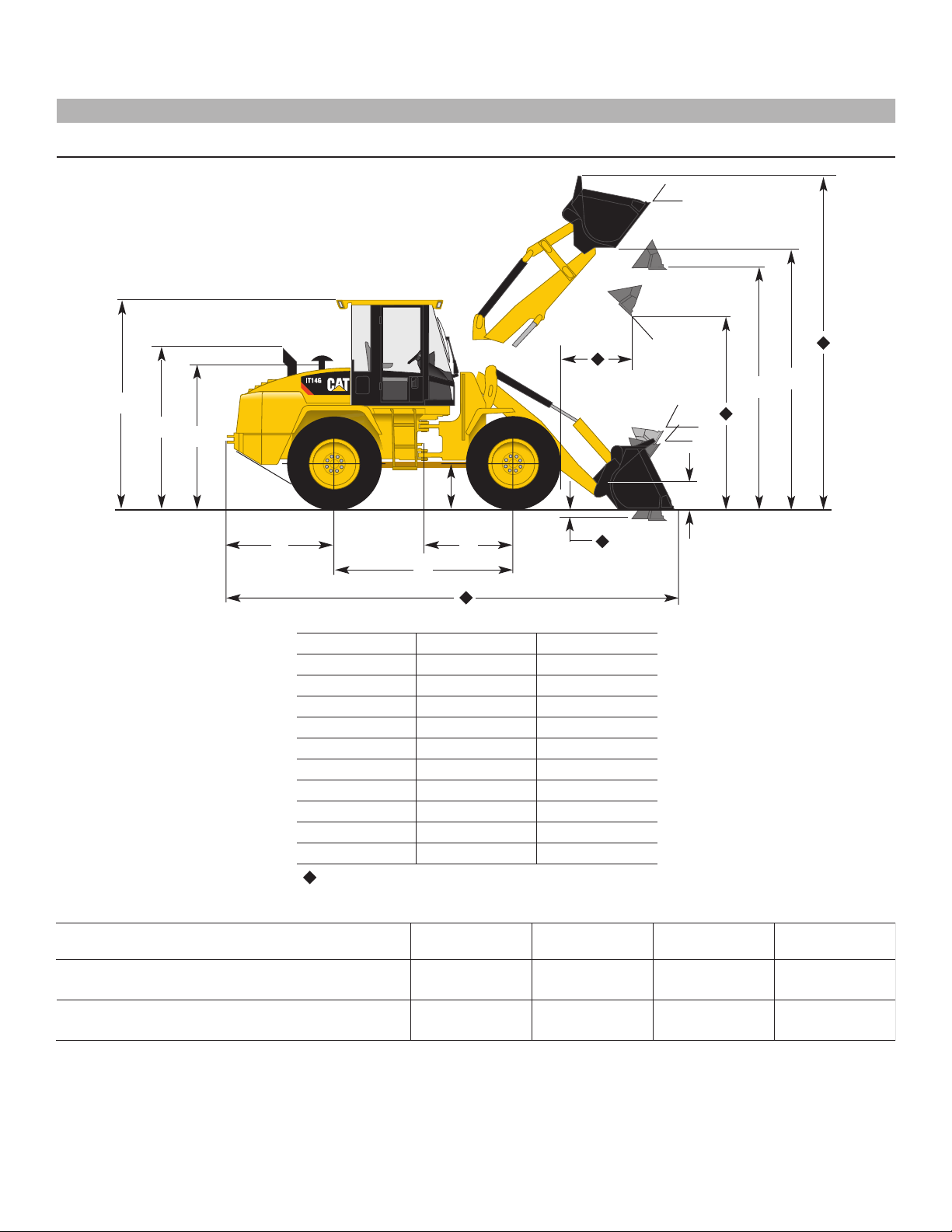

IT14G Dimensions with Bucket
All dimensions are approximate.
mm ft/in
1 3100 10'2"
2 2255 7'5"
3 2080 6'10"
4 620 2'0"
5 1658 5'5"
6 1300 4'3"
7 2600 8'6"
8 374 1'3"
9 3565 11'8"
10 3798 12'6"
Dimensions vary with bucket. Refer to Operating
Specications chart on previous page.
T read Width Width over Tires Ground Clearance
Change in vertical
dimensions
15.5 - 25, 12PR (L-2) mm 1800 2223 414 –42
in 70.9 87.5 16.3 –1.7
17.5 - R25 (L-2 equivalent) mm 1800 2298 456 —
in 70.9 90.5 18.0 —
13
Page 14
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
IT14G Supplemental Specications
Change in Operating Weight
Change in Articulated
Static Tipping Load
kg lb kg lb
Air conditioner +55 +121 +62 +137
Canopy, ROPS (less cab) –122 –269 –89 –196
Ride control +28 +62 +5 +11
Power train guard +17 +37 +15 +33
Secondary steering +30 +66 +38 +84
Tires and rims, 15.5 - 25, 12PR (L-2) –140 –309 –84 –185
Tires and rims, 15.5 - 25, 12PR (L-3) –76 –168 –46 –101
Tires and rims, 17.5 - 25, 12PR (L-2) –40 –88 –21 –46
Tires and rims, 17.5 - 25, 12PR (L-3) +32 +71 +17 +37
Tires and rims, 17.5 - 25, R25 (L-3 equivalent) +100 +220 +54 +119
Tires and rims, 17.5 - 25, R25 (L-2/L-3 equivalent) +76 +168 +41 +90
Static tipping load changes are for an IT14G with lubricants, full fuel tank, ROPS cab, 80 kg (176 lb) operator, standard 250 kg (550 lb)
counterweight, 17.5 R25 L-2 equivalent tires and a 1.3 m
3
(1.7 yd3) general purpose bucket with bolt-on cutting edge.
14
Page 15
1
3
2
4
5
6

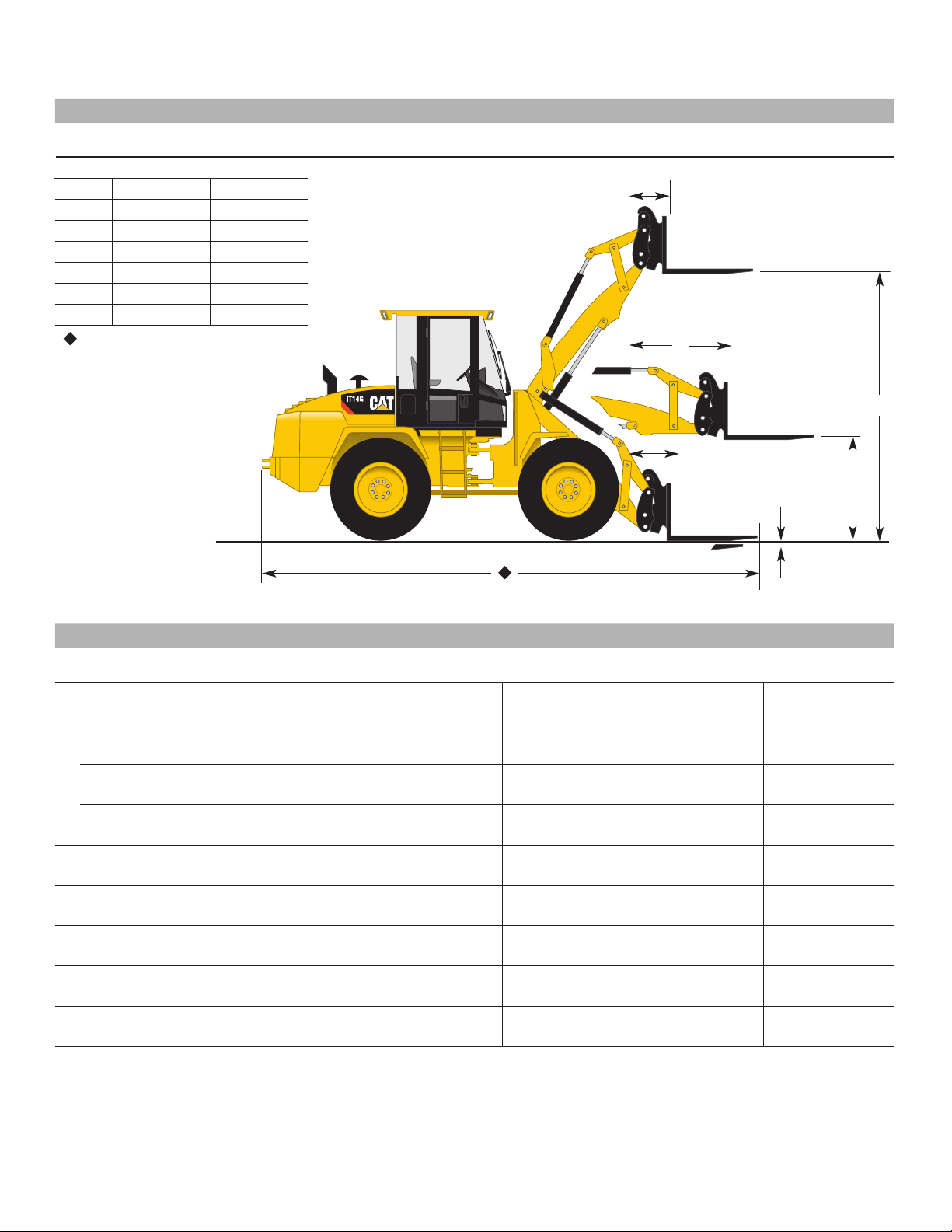

IT14G Dimensions with Forks
All dimensions are approximate.
mm ft/in
1
586 1'11"
2
1490 4'11"
3
745 2'5"
4
3708 12'2"
5
1808 5'11"
6
34 1.3"
Dimensions vary with fork length.
Refer to Operating Specications
chart below.
IT14G Operating Specications with Forks
Fork Tine Length 1050 mm (3'5") 1200 mm (3'11") 1350 mm (4'5")
Operating load:
P er SAE J1197 FEB91
(50% of full turn static tipping load)
kg 1927 1870 1810
lb 4,249 4,123 3,991
P er CEN 474-3, rough terrain
(60% of full turn static tipping load)
kg 2312 2244 2172
lb 5,098 4,948 4,789
P er CEN 474-3, r m and level ground
(80% of full turn static tipping load)
kg 3082 2992 2896
lb 6,796 6,597 6,386
Overall length mm 6723 6873 7023
ft/in 22'1" 22'7" 23'1"
Load center mm 525 600 675
in 21" 24" 27"
Static tipping load with level arms and forks,
600 mm (23.6 in) load center, straight*
kg 4447 4309 4179
lb 9,806 9,501 9,215
Static tipping load with level arms and forks,
600 mm (23.6 in) load center, full 40° turn*
kg 3853 3734 3620
lb 8,496 8,233 7,982
Operating weight * kg 7898 7915 7928
lb 17,415 17,453 17,481
* Static tipping and operating weights shown are for an IT14G with lubricants, full fuel tank, ROPS cab, 80 kg (176 lb) operator, standard
250 kg (550 lb) counterweight and 17.5 R25 (L2 equivalent) tires.
Tipping load is dened by SAE J732.
15
Page 16
914G/IT14G Compact Wheel Loader/Integrated Toolcarrier Specifications
1
3
4
5
6
7
8
9
10
11
14
15
16
12
13
2

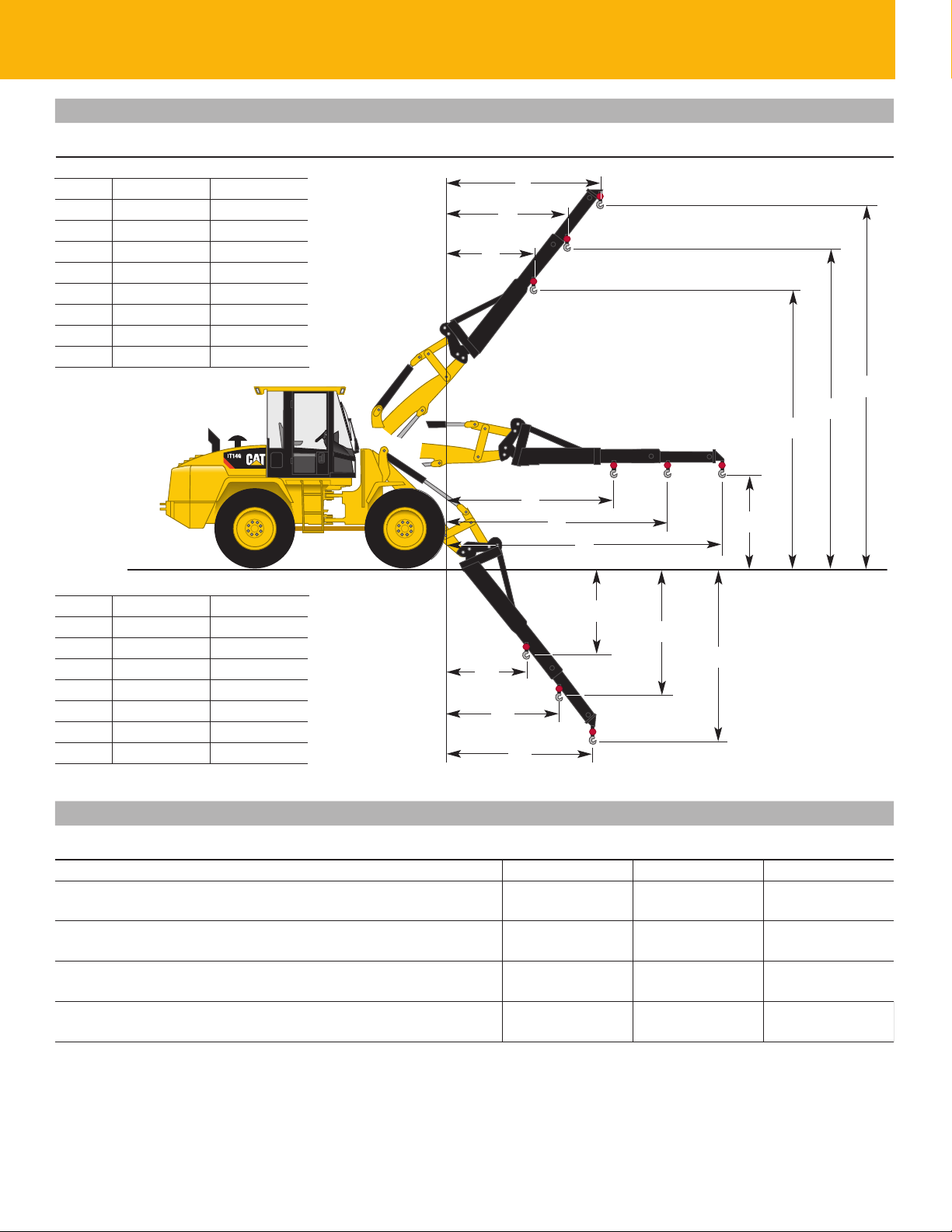

IT14G Dimensions with Material Handling Arm
All dimensions are approximate.
mm ft/in
1
2522 8'3"
2
1962 6'5"
3
1402 4'7"
4
3179 10'5"
5
4178 13'8"
6
5178 17'0"
7
6840 22'5'
8
6012 19'9"
9
5185 17'0"
10
1585 5'2"
11
1874 6'2"
12
2670 8'9"
13
3468 11'5"
14
1514 4'11"
15
2116 6'11"
16
2719 8'11"
IT14G Operating Specications with Material Handling Arm
Material Handling Arm Position Retracted Mid-Position Extended
Operating load at 40° full turn kg 1370 1076 888
lb 3,021 2,373 1,958
Static tipping load, straight * kg 3158 2484 2051
lb 6,963 5,477 4,522
Static tipping load, full 40° full turn * kg 2740 2153 1777
lb 6,042 4,747 3,918
Operating weight * kg 7770 7770 7770
lb 17,133 17,133 17,133
* Static tipping and operating weights shown include lubricants, full fuel tank, ROPS cab, 80 kg (176 lb) operator, standard 250 kg (550 lb)
counterweight and 17.5 - R25 (L2 equivalent) tires.
NOTE: Machine stability and operating weights are affected by tire size, tire ballast and other attachments.
16
Page 17
2,400 2,700 3,000 3,300 3,600 3,900 4,200
1.2 1.6
1.3 1.7
1.4 1.8
115% 100% 95%
1400 1600 1800 2000 2200 2400 2600
T ypical Material Densities – Loose
kg/m
3
lb/yd
3
kg/m
3
lb/yd
3
Basalt 1960 3,305 Gypsum
Bauxite, Kaolin 1420 2,394 broken 1810 3,052
Clay crushed 1600 2,698
natural bed 1660 2,799 Limestone
dry 1480 2,495 broken 1540 2,596
w et 1660 2,799 c rushed 1540 2,596
Clay and gravel Sand
dry 1420 2,394 dry, loose 1420 2,394
w et 1540 2,596 damp 1690 2,849
Decomposed rock wet 1840 3,102
75% rock, 25% earth 1960 3,305 Sand and clay
50% rock, 50% earth 1720 2,900 loose 1600 2,698
25% rock, 75% earth 1570 2,647 Sand and gravel
Earth dry 1720 2,900
dry, packed 1510 2,546 wet 2020 3,416
w et, excavated 1600 2,698 Sandstone 1510 2,546
Granite Shale 1250 2,107
broken 1660 2,799 Slag
Gravel broken 1750 2,950
pitrun 1930 3,254 Stone
dry 1510 2,546 c rushed 1600 2,698
dry, 6-50 mm (0.2-2 in) 1690 2,849
w et, 6-50 mm (0.2-2 in) 2020 3,406
IT14G Bucket Size Selector
Bucket Capacity
Material Density
m3 yd
3
kg/m
3
lb/yd
3
% = Bucket Fill Factor
17
Page 18
914G/IT14G Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
24V direct electric starting
Alarm, back-up
Alternator, 80-ampere
Batteries, two 900 CCA maintenance free
Battery disconnect switch
Glow plug starting aid
Horn, front, warning (electrical)
Ignition key start/stop switch
Lighting system: brake lights, interior
light, turn signals (front and rear), halogen
working lights (front and rear)
Power receptacles; internal and external
LOADER
Linkage, sealed Z-bar design loader
(914G only)
Linkage, 8-bar parallel lift linkage
with sealed pins (IT14G only)
Bucket/fork positioner, automatic
Lift kickout, automatic
Lift/tilt kickout neutralizer
HYDRAULICS
Hydraulic control, pilot-operated
implement, single lever, 2 valve
Hydraulics, third function
(standard on IT14G only)
Hydraulic oil cooler, tiltable
Hydraulic diagnostic connectors
•O•
SSM port – hydraulic oil
S
Standard hydraulic oil cooler
Steering, hydraulic
OPERATOR ENVIRONMENT
Bucket control, single lever, pilot
Cab, ROPS (sound suppressed
and pressurized)
•Adjustablesteeringcolumn
•Cigarlighter
•Cupholder
•Groundleveldoorrelease
•Heater/defroster
•Rearviewmirrors,inside(2)
•Storagespace,lockable
•Seat,adjustablefabricsuspension
•Seatbelt,75mm(3in),retractable
•Tintedsafetyglass
•Twodoors
•Wiperandwasher(frontandrear),
front intermittent
Defroster, rear window, wired glass
Indicators:
•Aircleaner
•Airlter
•Brakechargepressure
•Engineoilpressure
•Electricalsystemvoltage
•Hystatoillterbypass
•Parkingbrake
•Primarysteering
Instrumentation:
•Batteryvoltagegauge
•Enginecoolanttemperaturegauge
•Fuellevelgauge
•Digitalhourmeter
•Hydraulicoillevelsightgauge
•Hydraulicoiltemperaturegauge
Single lever transmission control
POWER TRAIN
Air cleaner, radial seal
Antifreeze (protected to –36° C/–33° F)
Extended life coolant antifreeze
Brakes, Service – inboard, oil-immersed,
enclosed, wet-disc full hydraulic
Brakes, Parking – mechanical on drive line,
secondary
Differentials, conventional (front and rear)
Driveshaft, lubed for life
Electric fuel pump
Engine: Cat 3054C DIT diesel,
turbocharged, Tier 2 emissions compliant
Engine enclosure, lockable
Mufer
Radiator, serviceable unit core
Radiator expansion bottle
•O•
SSM port – engine oil
S
Suction fan
Transmission, hydrostatic
OTHER
Counterweight
(IT14G with quick coupler only)
Fenders (front/rear)
Hitch, drawbar
Pressure test points
Vandalism protection-locked service points
18
Page 19
Optional equipment may vary. Consult your Cat dealer for details.
914G/IT14G Optional Equipment
ELECTRICAL
Electrical Accessories Package (12V
converter, accessory plug outlet, wiring)
Lighting, auxiliary front: 2 additional
cab-mounted halogen working lights
Machine Security System
Rotating beacon, magnetic
HYDRAULICS
Drain valves, ecological
Hydraulic third and fourth valves
(third valve standard on IT14G)
Hydraulic quick disconnects (IT14G only)
Steering, secondary
OPERATOR ENVIRONMENT
Air conditioner (R-134a refrigerant)
Canopy, ROPS
Mirrors, two external
Radio prep package (12V) includes
speakers, antenna, converter and mounts
(radio not included)
Ride Control System
Seats:
•Heated,fabric,withparkingbrakealarm
•CatComfortSeries,fabric,airsuspension
Sliding door window
Speedometer
Sun screen, rear window
Sun visor
POWER TRAIN
Antifreeze (protected to –50° C/–58° F)
Creeper control, transmission
Differential, Limited Slip
(front and/or rear axle)
Engine air lter precleaner, cyclone
Engine Speed Control (ESC)
Forward/Neutral/Reverse (FNR) remote
transmission control
Starting aid, engine block heater, 120V
OTHER
Bottom guard, hystat
Counterweight, 150 kg/330 lb (914G only)
Fenders, roading
Guard, windshield (optional 914G only)
Ground engaging tools, bucket
Low sound package
Quick coupler (standard on IT14G)
Tires:
•Biasply,15.5×25and17.5×25
•Radial,17.5×R25
Tire rims, 1- and 3-piece
Tool box, lockable
Tool kit
19
Page 20
914G/IT14G Compact Wheel Loaders/Integrated Toolcarriers
For more complete information on Cat products, dealer services, and industry solutions, visit
us on the web at www.cat.com
© 2009 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines in
photos may include additional equipment. See your Caterpillar dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
20
AEHQ6065 (12-2009)
Replaces AEHQ5560-02
Loading...
