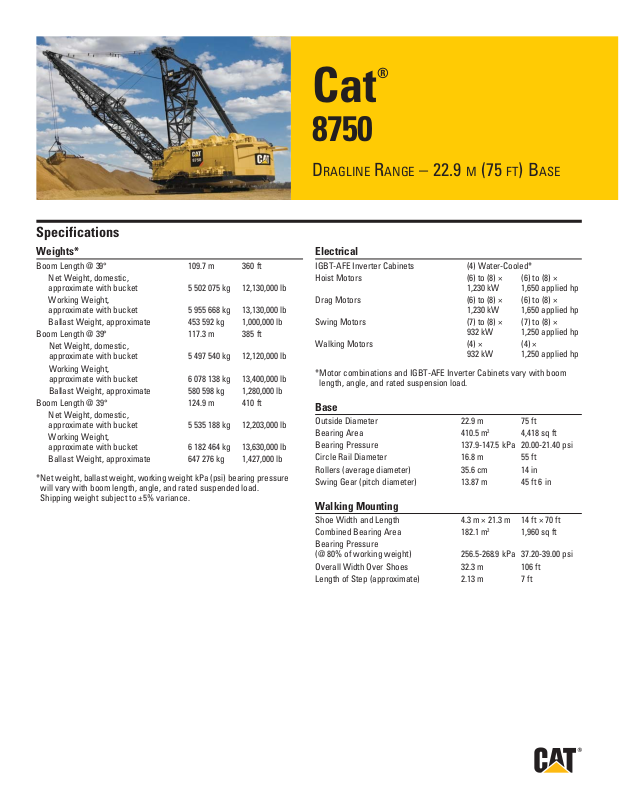

Cat
8750
DRAGLINE RANGE – 22.9 M (75 FT) BASE
Specifications
Weights* Electrical
Boom Length @ 39° 109.7 m 360 ft IGBT-AFE Inverter Cabinets (4) Water-Cooled*
Net Weight, domestic, Hoist Motors (6) to (8) × (6) to (8) ×
approximate with bucket 5 502 075 kg 12,130,000 lb 1,230 kW 1,650 applied hp
Working Weight, Drag Motors (6) to (8) × (6) to (8) ×
approximate with bucket 5 955 668 kg 13,130,000 lb 1,230 kW 1,650 applied hp
Ballast Weight, approximate 453 592 kg 1,000,000 lb Swing Motors (7) to (8) × (7) to (8) ×
Boom Length @ 39° 117.3 m 385 ft
Net Weight, domestic,
approximate with bucket 5 497 540 kg 12,120,000 lb
Working Weight,
approximate with bucket 6 078 138 kg 13,400,000 lb
Ballast Weight, approximate 580 598 kg 1,280,000 lb
Boom Length @ 39° 124.9 m 410 ft
Net Weight, domestic,
approximate with bucket 5 535 188 kg 12,203,000 lb
Working Weight,
approximate with bucket 6 182 464 kg 13,630,000 lb
Ballast Weight, approximate 647 276 kg 1,427,000 lb
*Net weight, ballast weight, working weight kPa (psi) bearing pressure
will vary with boom length, angle, and rated suspended load.
Shipping weight subject to ±5% variance.
Walking Motors (4) × (4) ×
*Motor combinations and IGBT-AFE Inverter Cabinets vary with boom
length, angle, and rated suspension load.
932 kW 1,250 applied hp
932 kW 1,250 applied hp
Base
Outside Diameter 22.9 m 75 ft
Bearing Area 410.5 m
Bearing Pressure 137.9-147.5 kPa 20.00-21.40 psi
Circle Rail Diameter 16.8 m 55 ft
Rollers (average diameter) 35.6 cm 14 in
Swing Gear (pitch diameter) 13.87 m 45 ft 6 in
2
Walking Mounting
Shoe Width and Length 4.3 m × 21.3 m 14 ft × 70 ft
Combined Bearing Area 182.1 m
Bearing Pressure
(@ 80% of working weight) 256.5-268.9 kPa 37.20-39.00 psi
Overall Width Over Shoes 32.3 m 106 ft
Length of Step (approximate) 2.13 m 7 ft
2
4,418 sq ft
1,960 sq ft
Page 2
Dragline – 8750, Dragline Range – 22.9 m (75 ft) Base
9
1
6
7
4
3
5
8
2

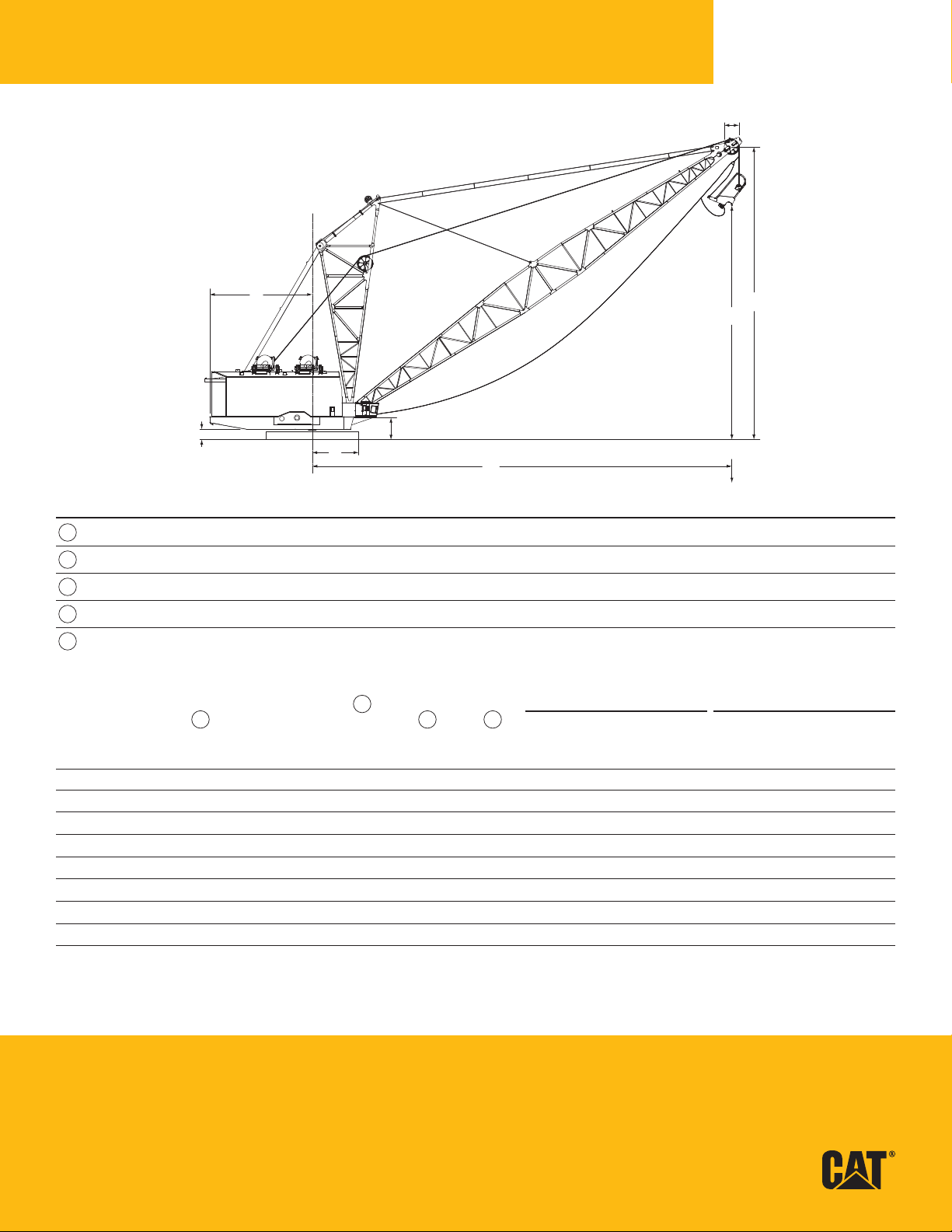

Dimensions (All dimensions are approximate.)
1
Clearance Radius 27.9 m 91 ft 8 in
3
Boom Foot Radius 7.3 m 24 ft
4
Clearance Height 4.1 m 13 ft 4 in
5
Boom Foot Height 5.1 m 16 ft 10 in
9
Point Sheave Pitch Diameter 353.1 cm 139 in
2 7 8
Rated Boom
6
Boom Boom Operating Suspension Point Dumping Digging Drum Rope Drum Rope
Length Angle Radius Load Height Height Depth Diameter Number Diameter Diameter Number Diameter
mft m ft kg lb mftmftmft cm in cm in cm in cm in
109.7 360 39 94.5 310 394 840 650,000 74.2 243.5 52.1 171 54.8 180 317.5 125 2 11.8 4.63 317.5 125 2 11.8 4.63
109.7 360 35 99.1 325 294 800 650,000 68.07 223.3 46.3 152 63.4 208 317.5 125 2 11.8 4.63 317.5 125 2 11.8 4.63
117.3 385 39 100.2 329 278 964 615,000 78.9 259.1 57.3 188 55.1 181 317.5 125 2 11.8 4.625 317.5 125 2 11.8 4.625
117.3 385 35 105.1 345 278 964 615,000 72.4 237.6 50.5 166 61.8 203 317.5 125 2 11.8 4.625 317.5 125 2 11.8 4.625
117.3 385 32 108.5 356 263 088 580,000 67.4 130.8 46.3 152 69.1 227 317.5 125 2 11.4 4.5 317.5 125 2 11.4 4.5
124.9 410 39 106.1 348 249 480 550,000 83.7 274.8 62.7 206 52.7 173 317.5 125 2 11.4 4.5 317.5 125 2 11.4 4.5
124.9 410 35 111.5 366 242 676 535,000 76.8 252.0 56.7 186 64.9 213 317.5 125 2 10.8 4.25 317.5 125 2 10.8 4.25
124.9 410 32 114.9 377 226 800 500,000 71.3 234.1 51.2 168 70.4 231 317.5 125 2 10.8 4.25 317.5 125 2 10.8 4.25
DRAG HOIST
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com
© 2012 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice. Featured machines in photos may include additional
equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as
well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
AEHQ6710-01 (07-12)
Replaces AEHQ6710 and AEHQ6711
