Page 1
Specifications
®
Cat
8200
Dragline Range
(Imperial Weights/Measurements)
Weights
Boom Length @ 39º, ft 328
Net Weight, domestic, approximate with bucket (lbs) 7,600,000
Working Weight, approximate with bucket (lbs) 8,457,000
Ballast Weight, approximate (lbs) 857,000
1
Net weight, ballast weight, working weight psi bearing pressure will vary with boom length, angle, and rated suspended load. Shipping weight
Boom Operating Suspension Boom Pt Dumping Digging Drum Rope Drum Rope
Length Boom Radius Load Height Height Depth Diam. Diam Diam. Diam
(ft) Angle (ft) (lbs) (ft) (ft) (ft) (in) Number (in) (in) Number (in)
328 39 281.0 400,000 226.8 158 130 100 2 3.75 100 2 3.75
328 35 295.5 400,000 205.4 137 152 100 2 3.75 100 2 3.75
328 32 304.0 380,000 192.7 125 163 100 2 3.75 100 2 3.75
328 39 281.0 300,000 226.8 158 130 100 2 3.75 100 2 3.75
328 35 295.2 300,000 205.4 137 152 100 2 3.75 100 2 3.75
328 32 304.0 300,000 192.7 125 163 100 2 3.75 100 2 3.75
1
subject to ±5% variance
B Rated F G H DRAG HOIST

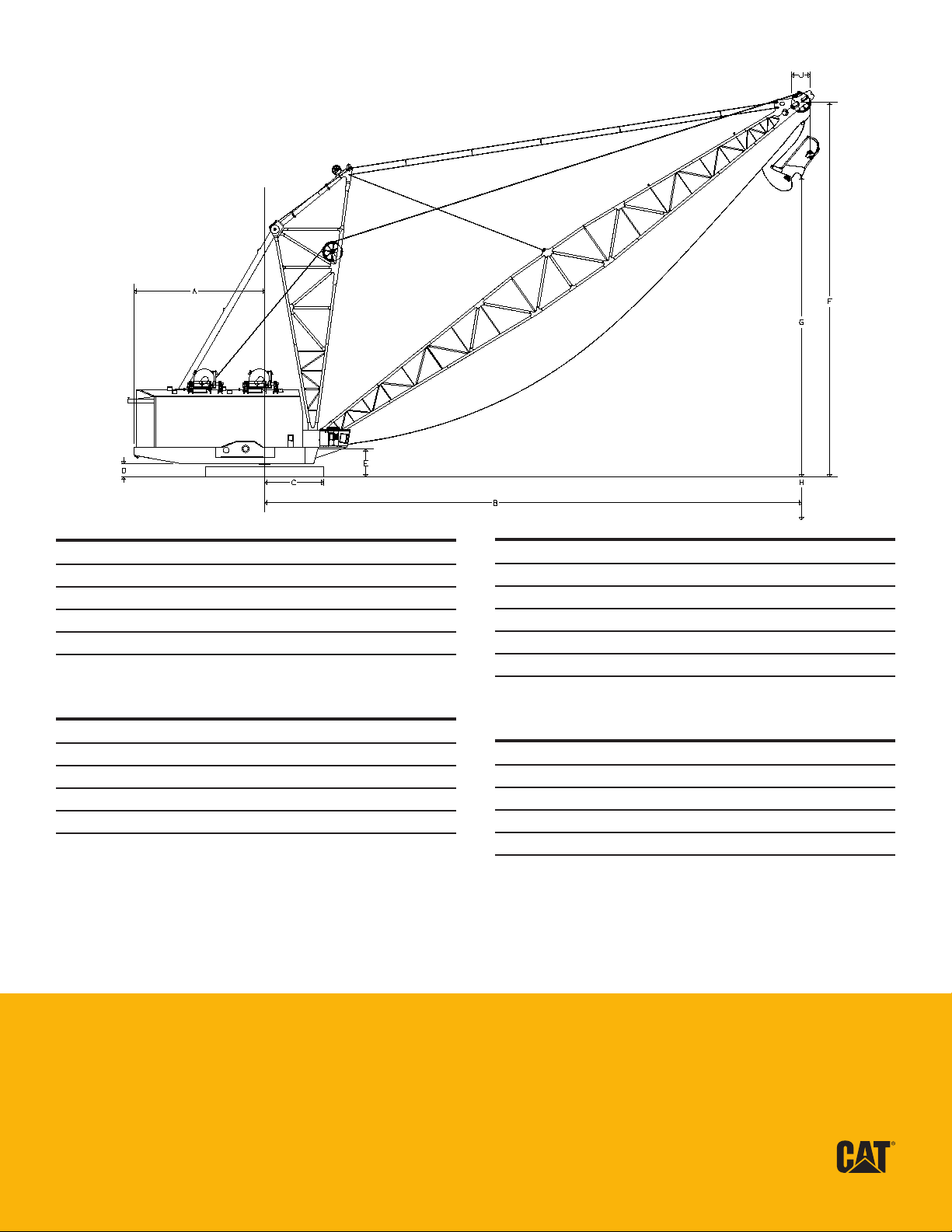

Page 2
Dragline—8200, Dragline Range (Imperial Weights/Measurments)
Dimensions/Working Ranges
A Clearance Radius 71 ft
C Boom Foot Radius 21 ft 6 in
D Clearance Height 7 ft 3 in
E Boom Foot Height 15 ft 6 in
J Point Sheave Pitch Dia. 120 in
Electrical
IGBT-AFE Inverter Cabinets 2 Water-Cooled*
Hoist Motors 3 or 4 x 1,650 applied hp
Drag Motors 3 or 4 x 1,650 applied hp
Swing Motors 3 or 4 x 1,250 applied hp
Walking Motors 2 x 1,250 applied hp
* Motor combinations and IGBT-AFE Inverter Cabinets vary with boom length,
angle, and rated suspension load.
Base
Outside Diameter 64 ft
Bearing Area 3,217 sq ft
Bearing Pressure 19 – 21 psi
Circle Rail Diameter 50 ft
Rollers (average diameter) 12 in
Swing Gear (pitch diameter) 42 ft 9 in
Walking Mounting
Shoe Width and Length 13 ft x 65 ft
Combined Bearing Area 1,690 sq ft
Bearing Pressure (@80% of working wt.) 27.80 – 30.24 psi
Overall Width Over Shoes 96 ft
Length of Step (approx.) 7 ft 5 in
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at mining.cat.com and www.cat.com
© 2012 Caterpillar Inc.
All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade
dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and
may not be used without permission.
AEHQ6712
