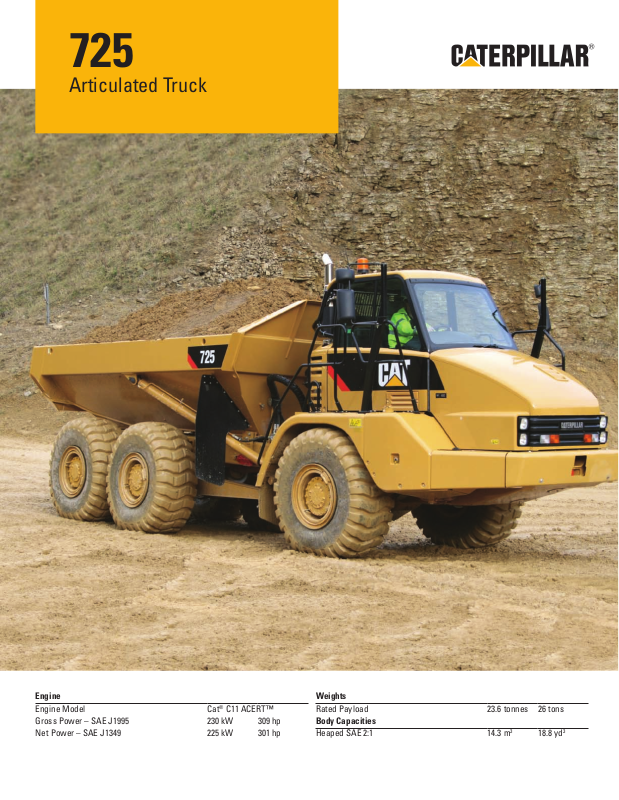

Page 1
725
Articulated Truck
Engine
Engine Model Cat
Gross Power – SAE J1995 230 kW 309 hp
Net Power – SAE J1349 225 kW 301 hp
®
C11 ACERT™
Weights
Rated Payload 23.6 tonnes 26 tons
Body Capacities
Heaped SAE 2:1 14.3 m
3
18.8 yd
3
Page 2
725 Features
New: Product Link
Satellite technology provides machine data via
the internet giving you critical information and
enabling Cat dealer World Class services.

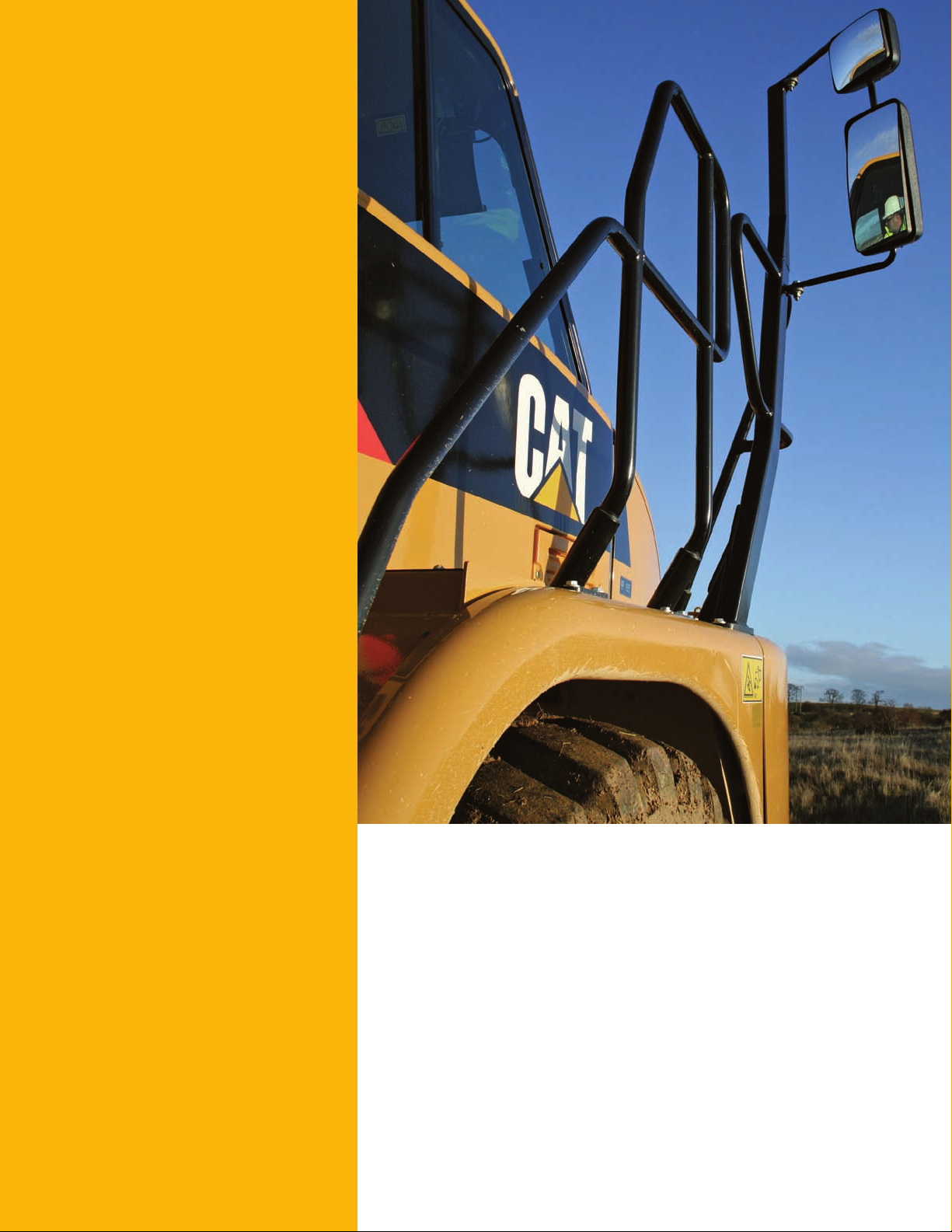

New: Improved Visibility
New mirror arrangement and rear view camera.
New: Rear suspension mounts
Caterpillar designed and manufactured rear
suspension mounts for improved durability.
Contents
Engine with ACERT™ Technology ....................3
Transmission ........................................................3
Suspension and Traction Control .....................4
Operator Comfort ................................................5
Ease of Operation................................................6
Durability and Reliability ....................................7
Serviceability .......................................................8
Product Link .........................................................9
Complete Customer Support ...........................10
Safety ..................................................................11
725 Articulated Truck Specifications .............12
725 Standard Equipment ..................................17
725 Optional Equipment....................................17
Notes ...................................................................18
2
Cat 725 with 26 ton (23.6 tonnes) rated payload offers
proven reliability and durability, high productivity,
superior operator comfort and lower operating costs.
Spacious two-person cab with forward facing
trainer/passenger seat and off-road oil/nitrogen front
suspension cylinders keep the operator comfortable
through out the working day.
True “on-the-go” differential locks with simple operation
improve cycle times and productivity.
Strong durable Cat ACERT engines and electronically
controlled transmissions deliver high productivity with
low fuel consumption.
Page 3

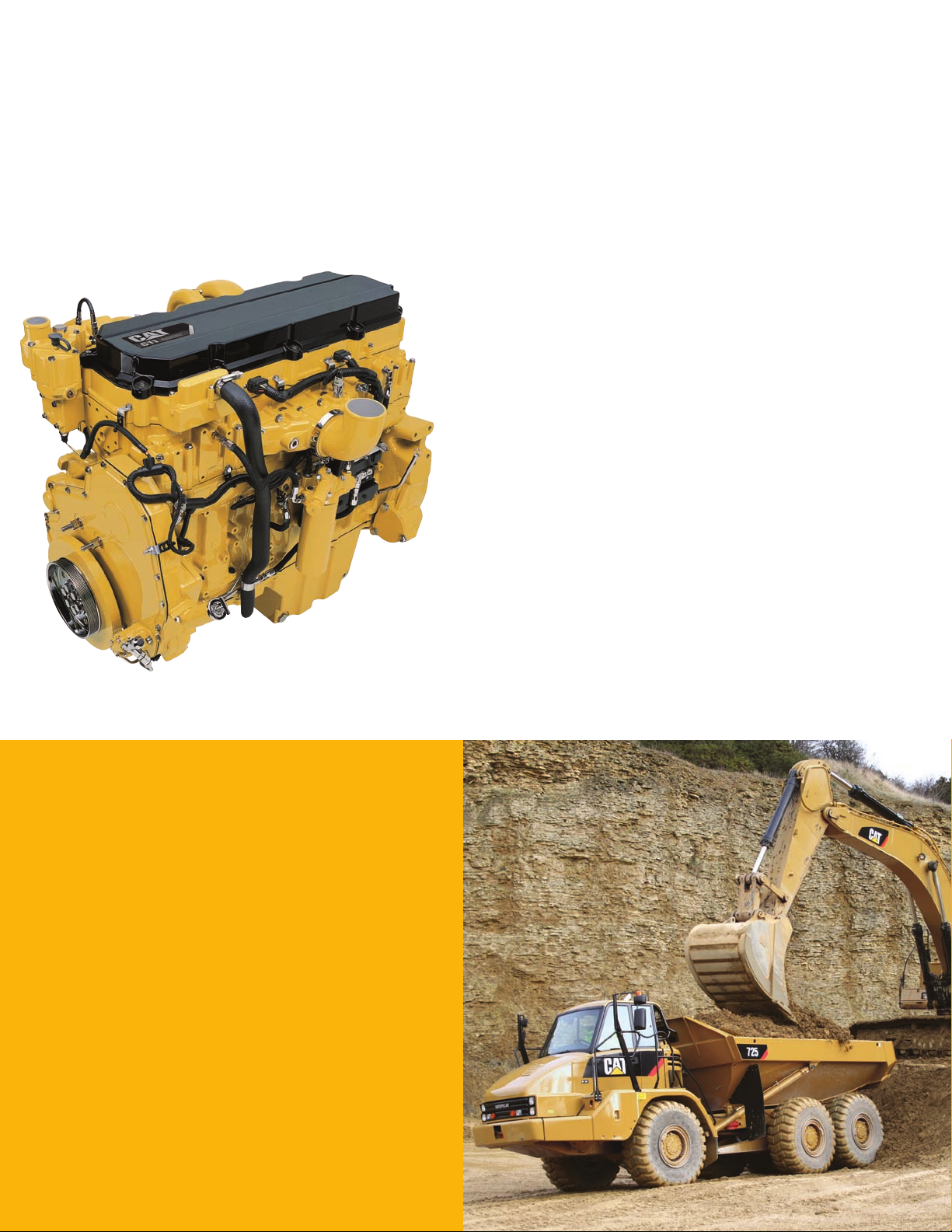

Engine with ACERT™ Technology
Innovative technologies optimize performance.
ACERT Technology
The Cat® C11 ACERT™ engine introduces a series of
evolutionary, incremental improvements that provide
breakthrough engine technology built on systems and
components developed by Caterpillar with proven reliability.
Advanced Diesel Engine Management (ADEM) A4 Engine
Controller
The ADEM™ A4 electronic control module manages fuel
delivery and provides exible fuel mapping, allowing the
engine to respond quickly to varying application needs.
Fuel Delivery
Multiple injection fuel delivery involves a high degree of
precision. Precisely shaping the combustion cycle lowers
combustion chamber temperatures, generating fewer
emissions and optimizing fuel combustion. This translates
into more work output for your fuel cost.
Transmission
Proven Reliability.
Electronic Transmission
The Caterpillar six-speed electronically controlled
transmission features anti-hunt shift strategy for speed
continuity.
Controlled Throttle Shifting (CTS)
Signicantly reduces power train stress and clutch wear
by controlling engine speed, torque converter lock-up and
transmission clutch engagements.
Noise Reduction Technologies
Noise reduction has been achieved through design changes
to the isolated top cover, oil pan, multiple injection strategy,
insulated timing case cover, sculpted crankcase and gear
train renements.
Engine Overspeed Inhibitor
Electronic Transmission Control (ETC) protects against
engine overspeeding.
3
Page 4

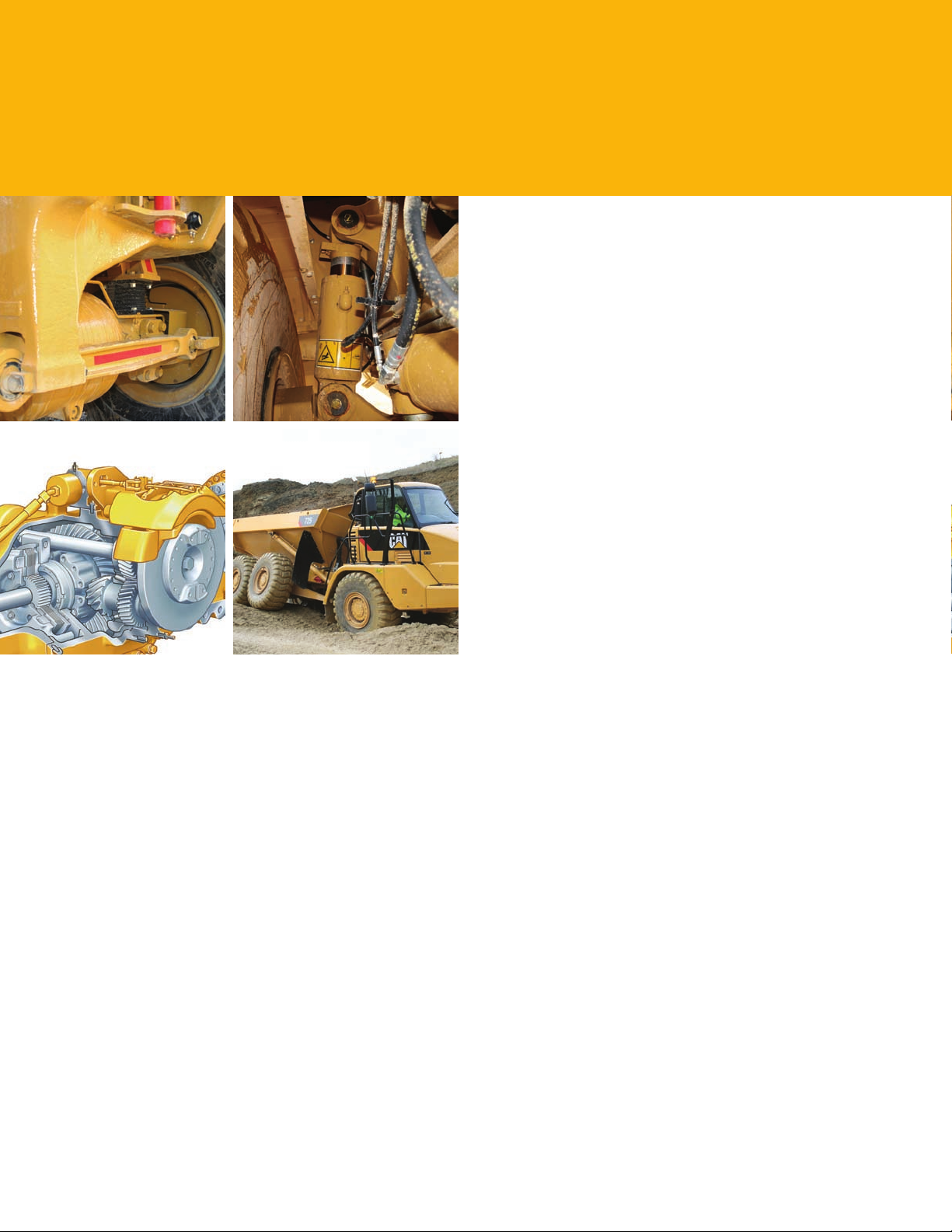

Suspension and Traction Control
Performance and Productivity.
Front Suspension
The three-point front suspension oscillates ±6° to provide
a smooth ride, allowing the operator to travel at speed over
rough terrain and softening impact loads on structures and
components. Large bore, low pressure cylinders are purpose
designed for tough applications and offer a soft, smooth ride.
A-Frame Construction
The front suspension uses an oscillating A-frame with a
lateral tie rod to control axle sideways movement.
Rear Suspension
Features a walking beam geometry with Caterpillar designed
rear suspension mounts which provide a reliable and stable
ride for excellent load retention.
Traction Control
The traction control system is comprised of a wet
clutched inter-axle differential and wet clutched cross-axle
differentials. All differentials can be engaged and disengaged
“on-the-go” for maximum versatility. When used together,
the differentials provide 100 percent driveline locking.
Inter-Axle Differential Lock
Locks all three axles in unison and modies torque
distribution for excellent traction in poor underfoot
conditions and on grades. It is operated by a switch located
at the footrest.
Cross-Axle Differential Locks
Provides full driveline locking – all three axles and all
six wheels – for maximum performance in the most adverse
conditions. Acts in unison with the inter-axle differential
lock when the footswitch is actuated and the dash-mounted
switch is selected.
Mounting Points
Suspension mounting points are integrated into the axle
housing, increasing reliability.
4
Page 5

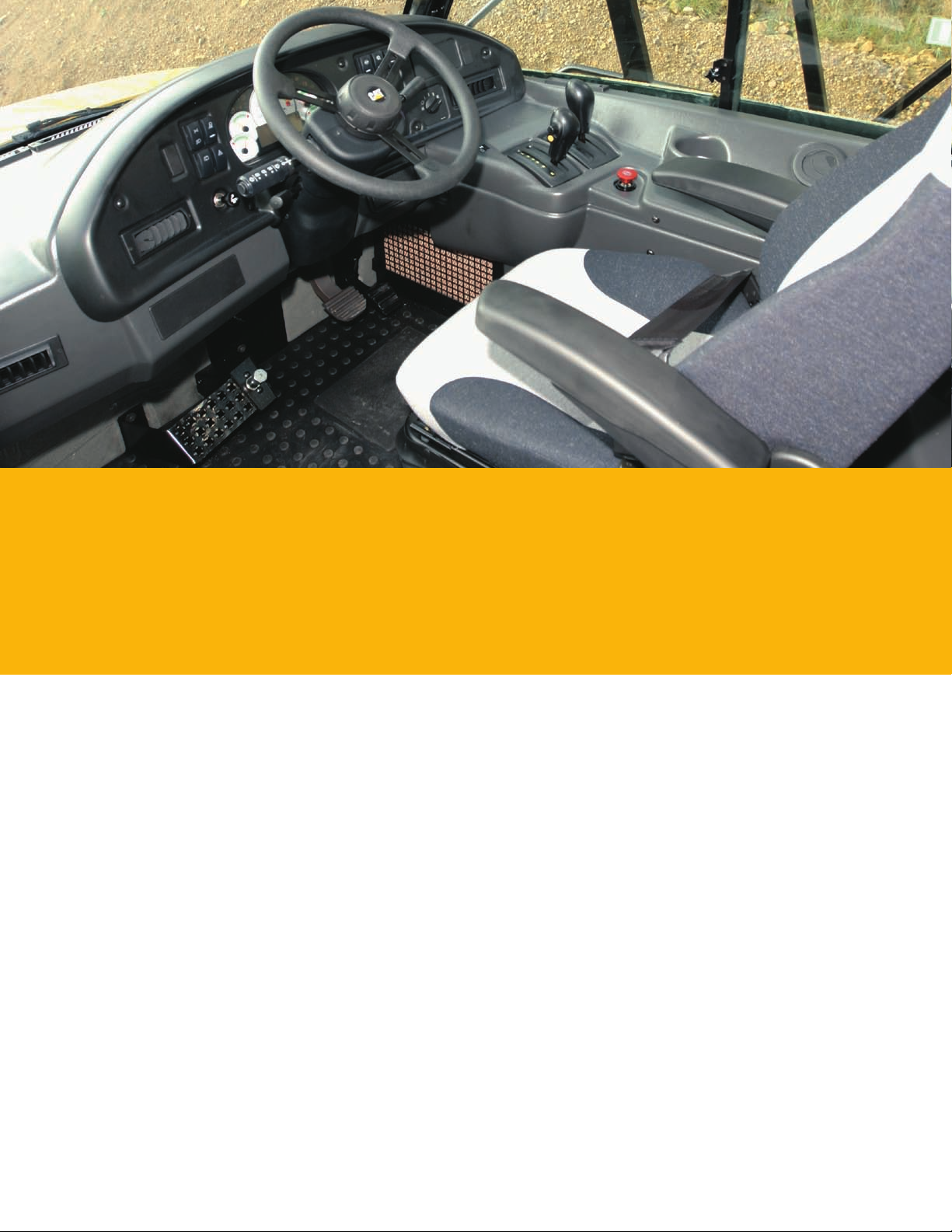

Operator Comfort
High productivity from a comfortable, confident operator.
Ride Comfort
The three-point front suspension with its oscillating axle and low-pressure ride struts, combined with
the center-mounted cab, offers unrivaled levels of ride comfort for the operator in all driving conditions.
The operator remains comfortable and productive throughout the day.
Spacious Two-Person Cab
The 725 features a large two-person cab, offering comfortable working space for both the operator and
trainer or trainee. All 700 Family articulated trucks use the same spacious cab design.
Air Suspension Seat
The air suspension seat enhances operator comfort with a cushioned upper high back, adjustable
damping with three settings, ride zone indicator and adjustable lumbar settings. It is fully adjustable
to provide the optimal driving position.
Trainer Seat
Full-size trainer seat features a fully padded seat with a backrest and a wide seat belt for a secure and
comfortable ride. The trainer seat is positioned next to the operator seat, giving both the operator and
trainer a clear view of the instrument panel, controls and the road.
Steering Column
A comfortable driving position is provided by a telescopic and tilt adjustable steering column.
5
Page 6
Ease of Operation
Designed for ease of use – allows the operator to focus on production.
Ergonomic Layout
The controls and layout of the cab are designed to make it
as easy to operate as your car. Quick, easy to read and simple
to operate, the controls and gauges on the 725 allow the
operator to concentrate on production.
Dash
The Generation II wrap-around dash puts all controls within
easy reach of the operator. Featuring LED illuminated
rocker switches, large LCD display and a rear wash wipe
rocker switch. It provides an automotive feel with the
industrial strength you would expect from Caterpillar.
Viewing Area
The low sloping hood and placement of the cooling package
behind the cab give the operator excellent all-around
visibility. The large glass area and central operator position
also provide excellent visibility.
Wipers
The wet arm wiper system cleans more glass area and is
bottom-mounted to keep it out of the operator’s line of
sight. Windows are tinted to reduce glare.

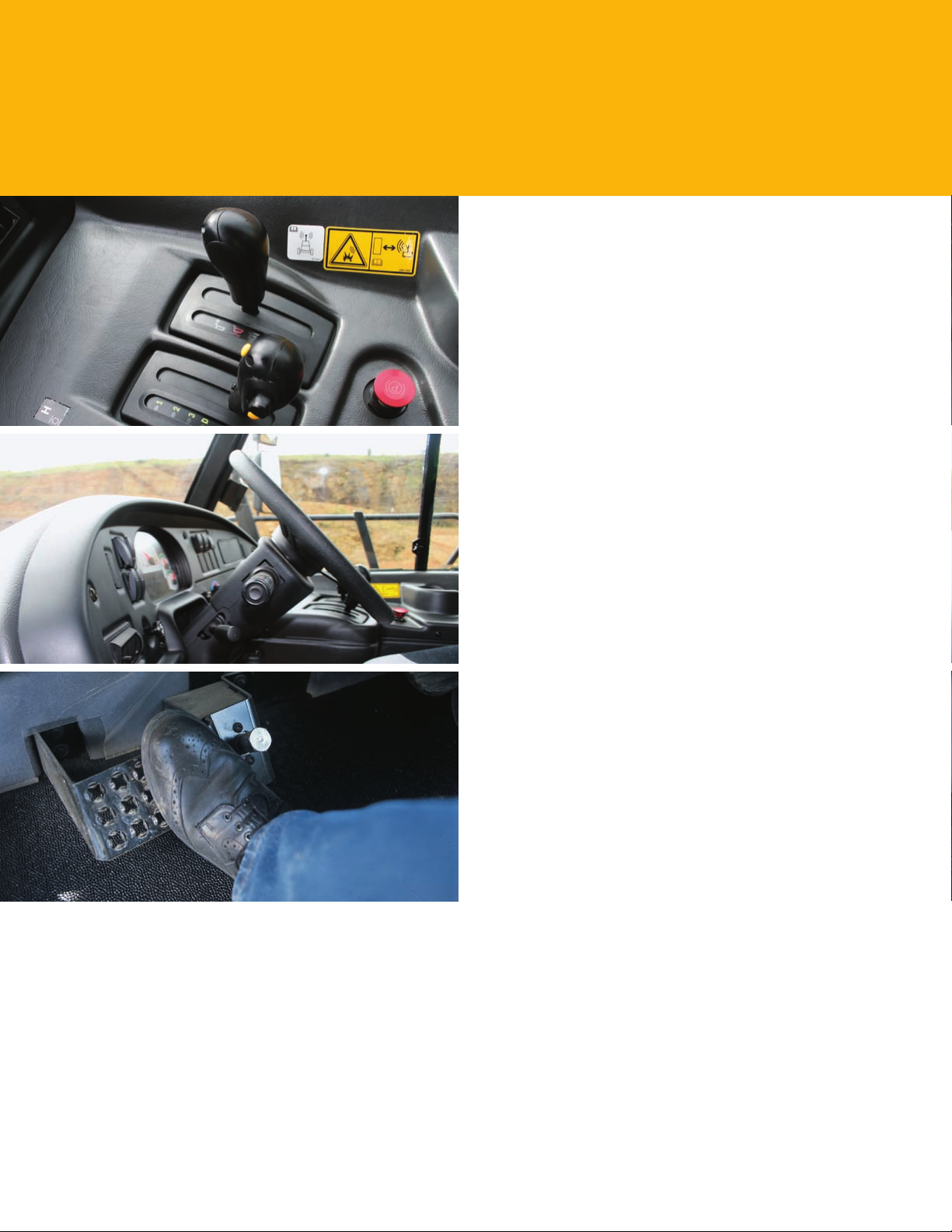

Differential Lock Controls
The inter-axle differential lock can be engaged/disengaged
“on-the-go” by using a raised switch incorporated into the
drivers foot rest, for ease of operation. For 100% lock up, all
three cross-axle differential locks act in unison with the interaxle differential lock when the foot switch is activated and a
dash mounted switch is selected. Disengaging the foot switch
opens all differential locks immediately.
Transmission and Hoist Levers
The hoist lever provides easy, comfortable operation.
The transmission lever offers excellent comfort, and control
for top gear limit, transmission hold and neutral lock.
Suspended Pedals
Easy to operate and reach with plenty of leg and foot room.
They also make for easier cleaning of the cab oor by
keeping the pedals out of the dirt.
Cat 2S Monitoring System
Provides an improved method of monitoring critical machine
functions and alerts the operator to an immediate or impending
problem. The system includes four levels of warning.
6
Page 7
Durability and Reliability
High machine availability maximizes productivity and lowers costs.

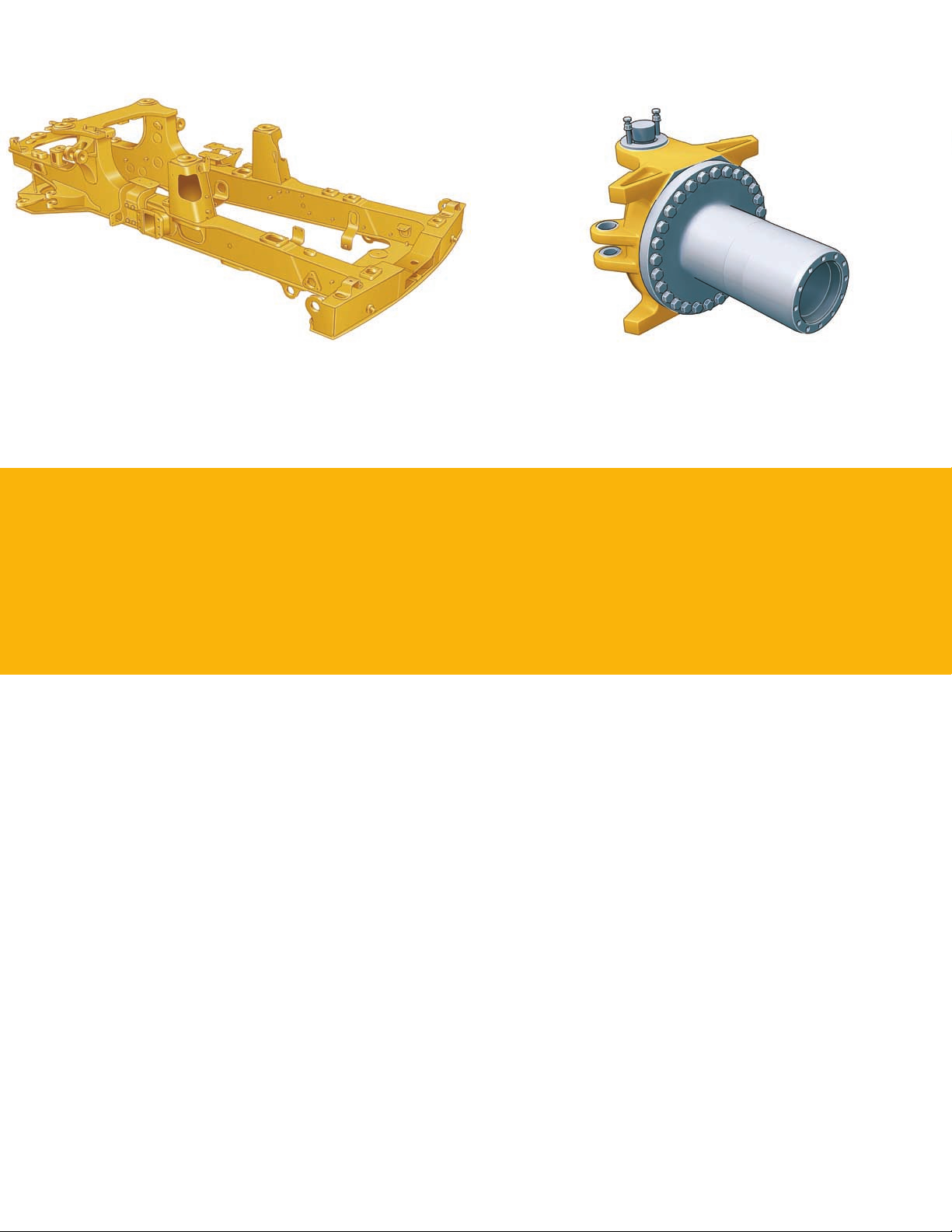

Front Frame
The front frame design features a large box section and wide, stiff frame beams to handle torque loads.
The divergent frame design decreases stress in the hitch area and optimizes suspension geometry.
The frame design makes maximum use of robotic welding for increased durability.
Rear Frame
Twin-box construction minimizes stress concentrations and provides low weight with long service life.
Suspension
The three-point oscillating axle front suspension provides unparalleled ride quality. It also protects the
truck from adverse road conditions by absorbing shock loads that would reach the frame.
Articulating/Oscillating Hitch
The articulating hitch provides the truck with steering articulation, and the oscillation ensures all-wheel
ground contact in rough terrain.
Hitch Construction
Two-piece construction features a durable cast steel head bolted to a hard-wearing forged steel tube.
Fast Hoist Cycle Times
Fast body raise and lower times mean less time spent in the dump area.
Load-Carrying Capacity
The 725 has a large target area to provide consistently high load-carrying capacity. Its diverging
ow design gives clean load ejection, which maximizes production and avoids the waste of material
carry-back.
7
Page 8
Serviceability
More time on production.
Long Service Intervals
Long engine oil change and hydraulic oil change intervals
lower maintenance costs and downtime. Wheel-bearing
adjustment is completely eliminated.
Lube Points
Lube points are grouped at the rear of the front frame and
the front of the rear frame. Universal joints are lubed for life,
eliminating servicing. Autolube is optional.
Service Points
Engine and transmission dipstick and ll caps, air and fuel
lters, and the fuel priming pump are all mounted on the left
side of the engine under the electrically raised hood. Coolant
level indicator and ll cap are outside the cab.
Radiator
The radiator package is located behind the cab, which
provides protection from frontal impacts and offers easy
access to the inlet and outlet sides of the radiator.
Extended Life Coolant
Extends the change interval and improves component life
by reducing aluminum corrosion.
Electrical Service Center
Located inside the cab, this service center provides a power
port, diagnostic connector and Cat Data Link connector.
Cat Data Link Connector
The Cat Data Link connector provides a plug-in using a
laptop computer with Electronic Technician (ET) software.
Service Access
The cab tilts to the side to provide easy access underneath,
which simplies access of the transmission, drive shafts and
hydraulic pumps. Machine electrical and hydraulic interfaces
are located on the right side of the cab, behind a removable
cab body panel for easy access.
Truck Transport
The suspension system eliminates the need to lower
the suspension when transporting the truck, reducing
maintenance and downtime.
Output Transfer Gear
Provides lubrication of all bearings and clutches using
a distributed-pressure lubricated and ltered system.
8
Page 9
Product Link
Equipment Manager is a secure and user-friendly application.
Equipment Manager – a better way to manage your fleet
Equipment Manager allows transmitted data to be searched and sorted by alert level, group, equipment
identication, make and model. Each new machine comes with Asset Watch. However, you can
subscribe to a higher level of service for any machine, at any time, through your Cat dealer. Depending
on your information needs, Equipment Manager will:
Report current equipment parameters (machine hours, location, fuel consumption, etc)•
Track all elements of machine maintenance and keep history•
Predict when a service is needed•
Facilitate maintenance scheduling and parts ordering•
Alert you to potential and immediate issues•
Asset Watch
Asset Watch manages your assets – enabling you to nd your machine quickly, and to control its
movement and work schedule.
Maintenance Watch
Maintenance Watch includes all the features of Asset Watch and will also help you plan, coordinate
and track your repairs and maintenance, allowing you to align maintenance with machine usage.
Health Watch
Health Watch includes all the features of Asset Watch and will track machine operational conditions
to help address potential issues before they become serious. You can also identify abuse, efciency and
training issues with individual operators.
9
Page 10
Complete Customer Support
Cat® dealer services help you operate longer with lower costs.
Selection
Make comparisons of the machines you are considering before you buy. Your Cat® dealer can help.
Purchase
Consider the resale value, compare productivity and day-to-day operating costs and fuel consumption.
Operation
For the best operating techniques to increase productivity and your prot, turn to your Cat dealer for
the latest training literature and trained staff.
Maintenance
Repairoptionprogramsguaranteethecostofrepairsupfront.DiagnosticprogramssuchasS•O•SSM
and Technical Analysis help you avoid unscheduled repairs.
Replacement
Repair or rebuild? Your Cat dealer can help you evaluate the costs so you can make the right choice.
Product Support
Your local Cat dealership will be with you every step of the way with its unsurpassed worldwide parts
support, trained technicians and customer support agreements.
cat.com
For more complete information on Cat products, dealer services and industry solutions, visit us on the
Web at www.cat.com
10
Page 11
Safety
Designed with safety as the first priority.
Product Safety
Caterpillar has been and continues to be proactive in
developing machines that meet or exceed safety standards.
Safety is an integral part of all machines and system designs.
Safety Features
CabintegralROPS(RollOverProtectionSystem)and•
FOPS(FallingObjectProtectionSystem)
Rear view camera system provides a continuous •
panoramic rear view or when reverse gear is selected
The secondary and parking brake functions are spring •
applied and hydraulic released
Electro-hydraulic secondary steering system, •
automatically activates in forward/reverse or when
stationary if low pressure is sensed. Can be manually
selected for machine recovery purposes
External engine fuel cut off switch for easy access from •
outside of the machine
External electrical system disconnect switch for easy •
access from outside of the machine
Slip resistant surfaces – punched steel plate•
75 mm (3 in) wide seat belts for operator/trainer and •
passenger
Wide angled mirrors for excellent rear visibility•
Sweeping hood design for panoramic forward visibility•
Extensive hand rails•
Body raised alarm•
Heated mirrors (optional)•
Xenon ashing beacon (optional)•
11
Page 12
725 Articulated Truck Specifications
Engine
Engine Model Cat® C11 ACERT™
Gross Power –
SAE J1995
Net Power –
SAE J1349
Net Power –
ISO9249
Net Power –
EEC 80/1269
Bore 130 mm 5.1 in
Stroke 140 mm 5.5 in
Displacement 11.15 L 680 in
The power ratings apply at rated speed of •
1800 rpm when tested under the conditions
for the specied standard.
The net power advertised is the power •
available at the ywheel when the engine
is equipped with alternator, air cleaner,
mufer and fan at minimum speed.
Net power when the fan is at maximum •
speed is 210 kW (282 hp) per the SAE
reference conditions.
The 725 meets EPA Tier 3/EU Stage 3a •
emission specications for the U.S. and
Europe through 2010.
230 kW 309 hp
225 kW 301 hp
227 kW 304 hp
227 kW 304 hp
3
Weights
Rated Payload 23.6
tonnes
26 tons
Body Capacities
15.3 m
3
18.8 yd
3
14.5 yd
3
3
20 yd
15 yd
3
3
Heaped SAE 2:1 14.3 m
Struck 11.1 m
Tailgate Heaped
SAE 2:1
Tailgate Struck 11.5 m
Transmission
Forward 1 8 km/h 5 mph
Forward 2 15 km/h 9 mph
Forward 3 23 km/h 14 mph
Forward 4 35 km/h 21 mph
Forward 5 48 km/h 30 mph
Forward 6 57 km/h 35 mph
Reverse 1 9 km/h 5 mph
Sound Levels
Interior Cab 76 dB(A)
The operator sound exposure Leq •
(equivalent sound pressure level) measured
according to the work cycle procedures
speciedinANSI/SAEJ1166OCT98is
76 dB(A), for the cab offered by Caterpillar,
when properly installed and maintained
and tested with the doors and windows
closed.
Hearing protection may be needed when •
operating with an open operator station
and cab (when not properly maintained or
doors/windows open) for extended periods
or in noisy environments.
Operating Weights
Front Axle – Empty 13 020 kg 28,705 lb
Center Axle – Empty 4830 kg 10,650 lb
Rear Axle – Empty 4410 kg 9,720 lb
Total – Empty 22 260 kg 49,075 lb
Front Axle – Rated
Load
Center Axle – Rated
Load
Rear Axle – Rated
Load
Total – Rated Load 23 590 kg 52,010 lb
Front Axle – Loaded 15 030 kg 33,135 lb
Center Axle
– Loaded
Rear Axle – Loaded 15 200 kg 33,510 lb
3
Total – Loaded 45 850 kg 101,085 lb
3
2010 kg 4,430 lb
10 790 kg 23,790 lb
10 790 kg 23,790 lb
15 620 kg 34,440 lb
Body Plate Thickness
Front 8 mm 0.31 in
Scow 14 mm 0.55 in
Side 12 mm 0.47 in
Base 14 mm 0.55 in
Service Refill Capacities
Fuel Tank 355 L 94 gal
Cooling System 67 L 18 gal
Hydraulic System 151 L 49 gal
Engine Crankcase 41 L 11 gal
Transmission 36 L 9.5 gal
Final Drives/
Differential
OutputTransfer
Gear Box
164 L 43.3 gal
18 L 4.8 gal
Body Hoist
Raise time 10 Seconds
Lower time 8 Seconds
Standards
Brakes ISO3450–1996
Cab/FOPS ISO3449LevelII–
2005
Cab/ROPS ISO3471–2008
Steering ISO5010–2007
12
Page 13

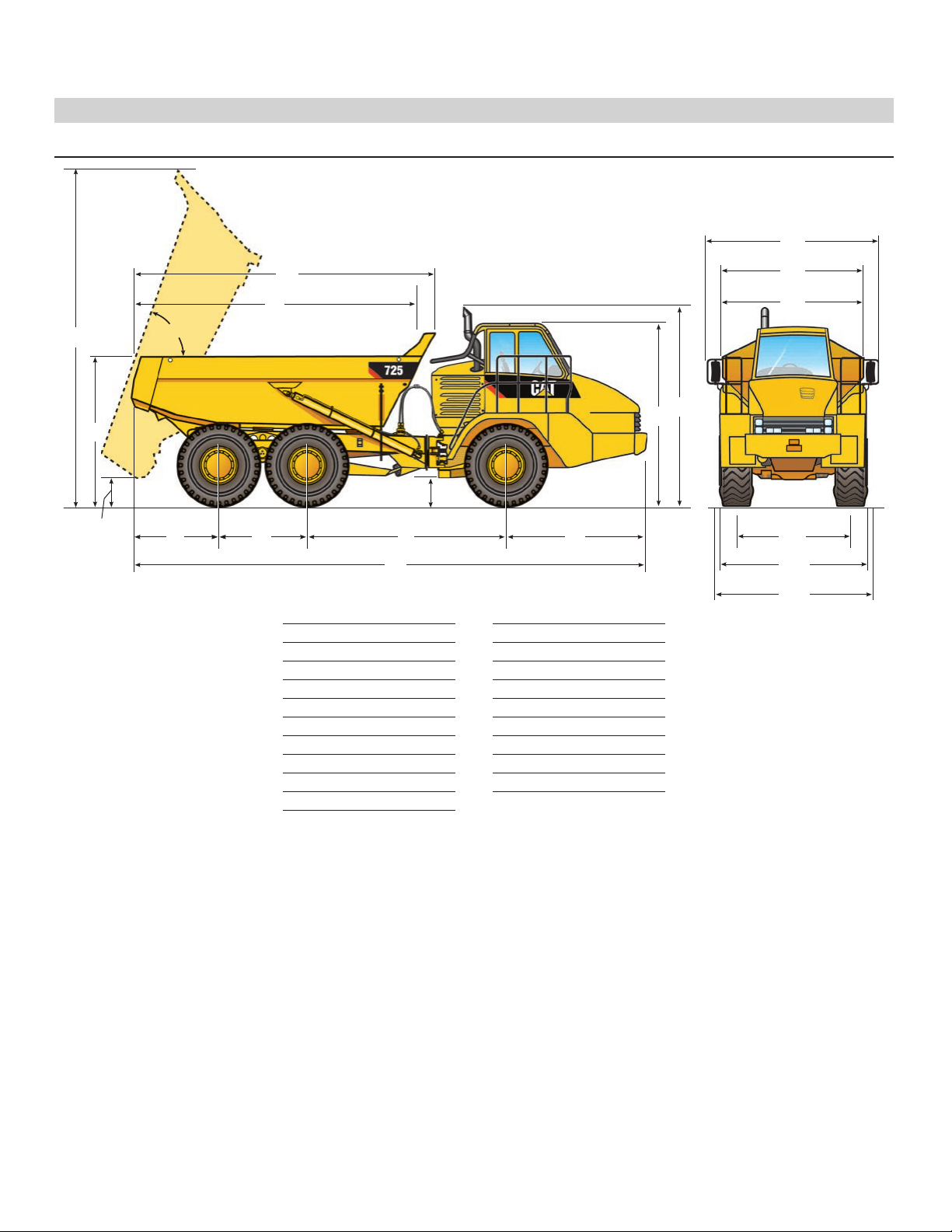

Dimensions
mm ft mm ft
1
6405 21.01
11
9920 32.55
2
2760 9.05
12
3440 11.29
3
555 1.82
13**
3744 12.28
4
5780 18.96
14
3544 11.63
5*
5430 17.81
15***
3138 10.30
6
495 1.62
16
2772 9.09
7
1680 5.51
17
2275 7.46
8
1700 5.58
18
2877 9.44
9
3819 12.53
19****
2950 9.68
10
2721 8.93
* Inside of body.
** Exhaust stack can be removed for transportation.
*** If equipped with a scissor tailgate.
**** Max-unladen over tire bulge.
70°
1
2
3
4
5
6
78 910
11
12
13
15
14
16
17
18
19
13
Page 14
725 Articulated Truck Specifications

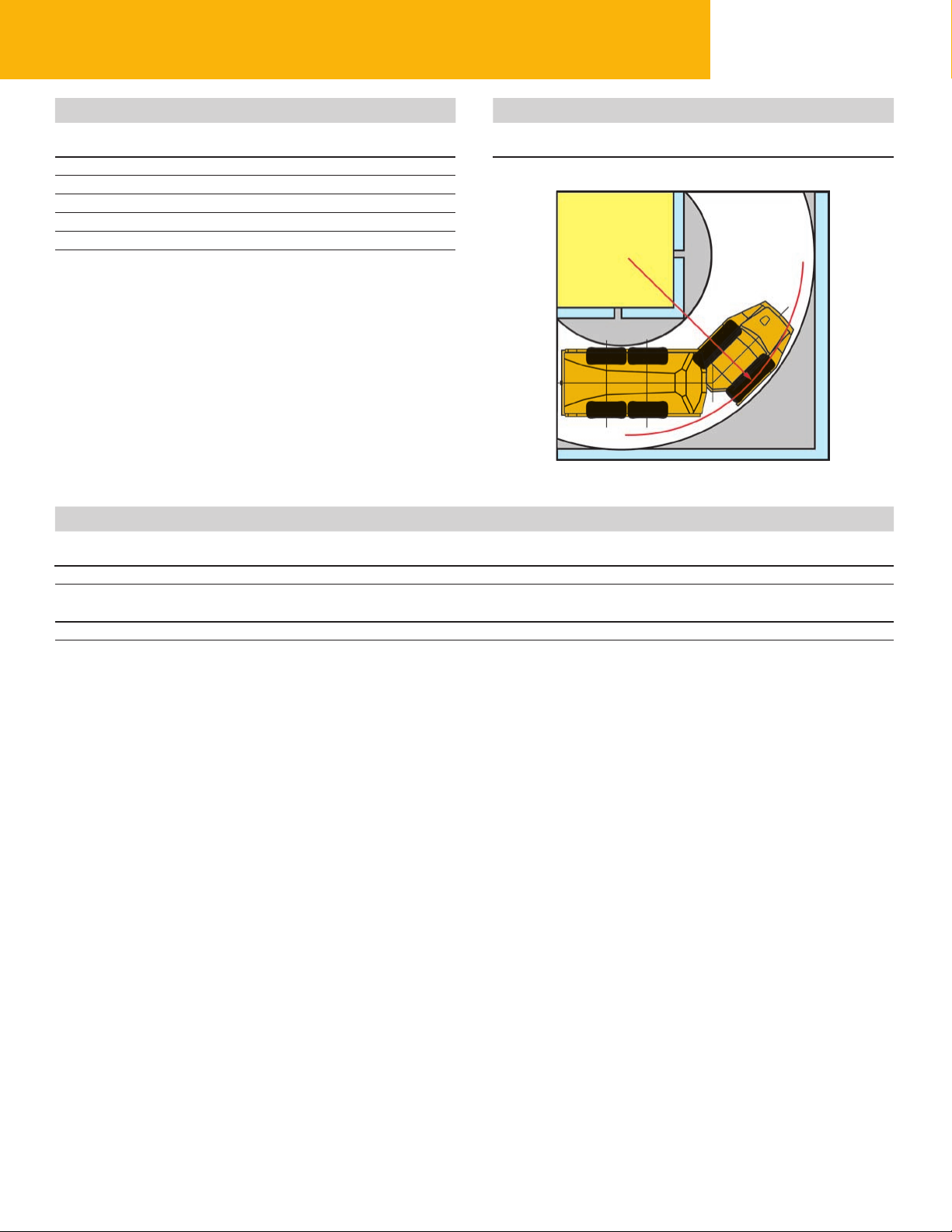

T urning Circle
Steering
Dimensions are for machines equipped with 23.5R25 tires.
T urning dimensions
Lock to Lock 4.75 seconds @ 60 rpm
Steer angle – left/right 45°
SAE turning radius 7254 mm 286 in
C learance radius 7605 mm 300 in
Inside radius 3710 mm 146 in
Aisle width 4980 mm 196 in
Optimal Loader/Truck Pass Matching
Hydraulic Excavators 345D 336D 329D
P asses 3-4 4-5 5-6
Wheel Loaders 972H 966H 962H 950H
P asses 3 3-4 3-4 4
An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 345D, 336D and 329D Hydraulic Excavators; and Cat 972H,
966H, 962H and 950H Wheel Loaders. This results in increased production and lower system costs per unit of volume moved.
14
Page 15
1A
1B
2
3
4
5
6
E
L
0510 15 20 25 30 35
0102030405060
mph
SPEED
1A – 1st Gear (Converter Drive) E – Empty 22 260 kg (49,075 lb)
1B – 1st Gear (Direct Drive) L – Loaded 45 850 kg (101,085 lb)
2 – 2nd Gear * at sea level
3 – 3rd Gear
4 – 4th Gear
5 – 5th Gear
6 – 6th Gear
40%
35%
30%
25%
20%
15%
10%
5%
TOTAL RESISTANCE %
(GRADE PLUS ROLLING RESISTANCE)
km/h
60
50
40
30
20
10
0
25
20
15
10
5
0
RIMPULL
30
0
20 40 60 80 100 120
0
510152025303540455055

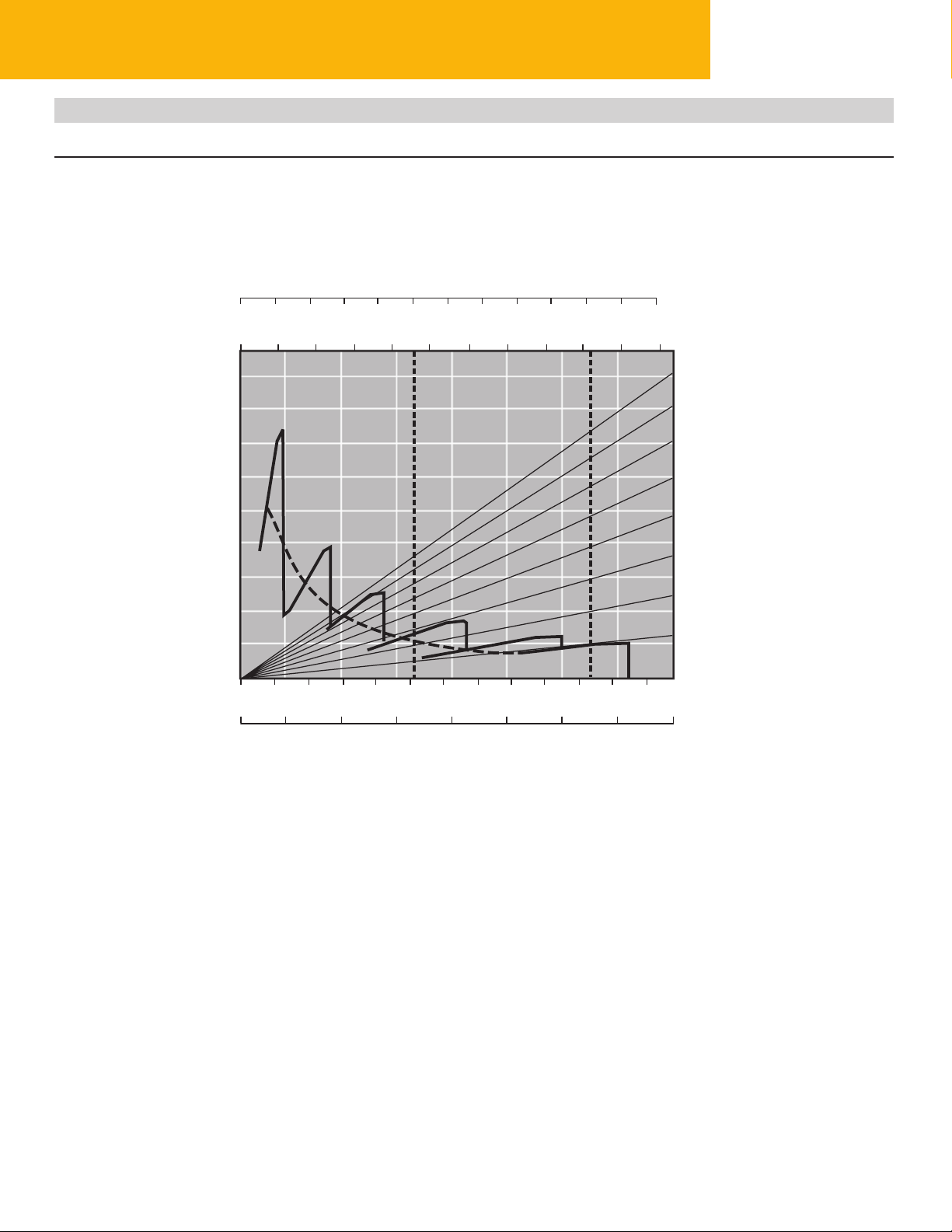

Gradeability/Speed/Rimpull
To determine performance, read from Gross Weight down to % Total Resistance. Total Resistance equals actual % grade plus 1% for each
10 kg/metric ton (20 lb/ton) of Rolling Resistance. From this point, read horizontally to the curve with the highest attainable speed range
Then, go down to Maximum Speed. Usable Rimpull depends on traction available.
STANDARD*
GROSS WEIGHT
lb x 1000
kg x 1000
lb x 1000
kg x 1000
.
15
Page 16
725 Articulated Truck Specifications
1
2
3
4
5
6
E
L
5010152025303540
0102030405060
km/h
mph
40%
35%
30%
25%
20%
15%
10%
5%
200
0
12010080
6040
10 20 30
40
50
lb x 1000
kg x 1000
% EFFECTIVE GRADE
(FAVORABLE)
GROSS WEIGHT
SPEED
1 – 1st Gear
E – Empty 22 260 kg (49,075 lb)
2 – 2nd Gear
L – Loaded 45 850 kg (101,085 lb)
3 – 3rd Gear
4 – 4th Gear
5 – 5th Gear
6 – 6th Gear

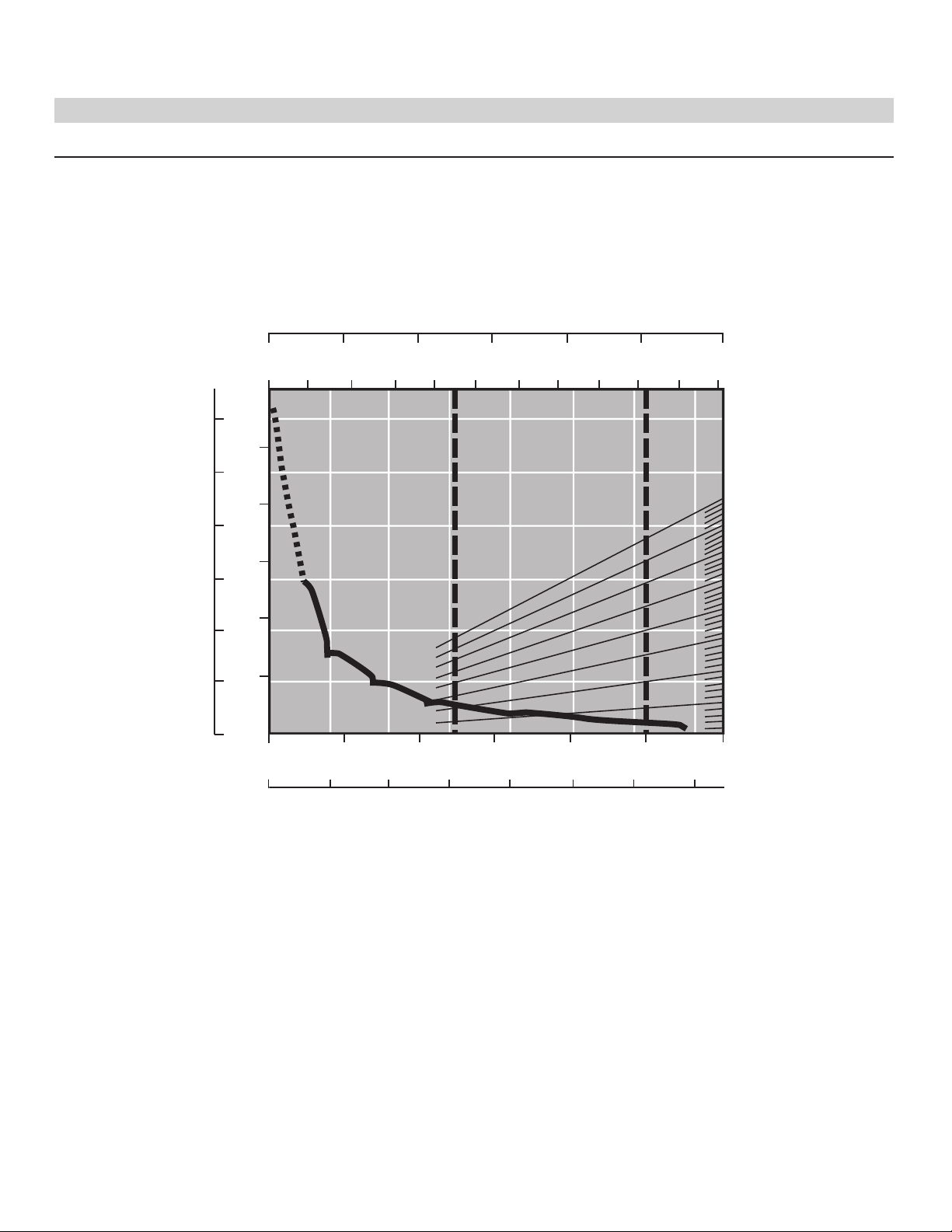

Retarding Performance
To determine performance, read from Gross Weight down to % Effective Grade. Effective Grade equals actual % favorable grade plus 1% for
each 10 kg/metric ton (20 lb/ton) of Rolling Resistance. From this point, read horizontally to the curve with the highest attainable speed range.
Then, go down to Maximum Speed. Retarding effect on these curves represents full application of the retarder.
16
Page 17
Standard equipment may vary. Consult your Caterpillar dealer for details.
725 Standard Equipment
Air conditioning with R134A refrigerant
Air vents, adjustable
Auto shift six-speed transmission
Back up alarm
Body, adapted for exhaust heat
Cat C11 engine with ACERT Technology
Caterpillar Work Area Vision System
(WAVS) rear-view camera
CD/Radio ready
Differentials, standard with clutched cross-
axle differential locks for all axles
Dual circuit caliper disc brakes – all wheels
Electrical system: 24 volt, 5A 24- to 12-volt
converter
Electro hydraulic hoist control
Ether starting aid
Glass windows, laminated and tinted
(front), toughened and tinted (rear)
Guards: rear window and radiator,
crankcase and axle
Headlights, four
Heater and defroster with four-speed fan
Horn, electric
Lights: cab interior, front, side, rear,
two reversing/working lights, two stop/tail
lights, front and rear direction indicators
Mirrors, main and auxiliary, left and right
Mud aps, wheel arch and body mounted,
with transportation tie backs
Product Link (US/Canada/Europe/Turkey/
Australia/New Zealand)
Retarder
ROPS/FOPScab,withfull
instrumentation, including:
– Instrument cluster display module
– Indicator lamps: left turn, secondary
Steering, primary steering loss, front and
rear brake temp (735/740 and 740 Ejector
only), brake oil pressure, action lamp,
transmission fault, park brake, charging
system status, differential lock, body not
in oat, right turn, high beam, transmission
hold, machine lter warning, retarder,
retarder up shift warning
– Gauges: engine oil pressure, engine
coolant temperature, torque converter
oil temperature, fuel level, and fuel tank
level gauge
– Meters: service hour meter, speedometer,
tachometer
Seat, fully adjustable, air suspension
Seat, padded companion/trainer
Secondary steering – electronic
SM
S•O•S
Spill guard, front, integral part of
fabricated body
Starting receptacle, electric, remote
Storage: two cup holders, ask receptacle
under seat storage, door pocket, behind
seat storage, coat hook
Sun visor
Three axle, six-wheel drive
Tilt and telescopic steering wheel
Tires, six 23.5R25, radial
Tow pins, front and rear
Two seat belts, operator’s retractable
Vandalism Protection: lockable caps for
fuel tank and hydraulic oil tank
Windows opening side, tinted
Windshield wiper and washer, two speed,
intermittent (front)
Windshield wiper and washer, two speed (rear)
sampling valves
Optional equipment may vary. Consult your Caterpillar dealer for details.
Autolube installation for automatic
greasing of bearings
Body liners
CD/Radio, heavy duty
Cold Weather Coolant –51° C (–60° F)
Cold weather start kit
Cycle counter/operator monitoring kit
Engine Block Heater
Exhaust heated body
Fast fuel ll
Flashing Xenon Beacon
Fuel Additive-Anti-Waxing
725 Optional Equipment
Heated rear-view mirrors
Product Link, Radio and Worldwide
(Where available)
Tailgate:
– Scissor-type
Tires, six 750/65
17
Page 18
Notes
18
Page 19
19
Page 20

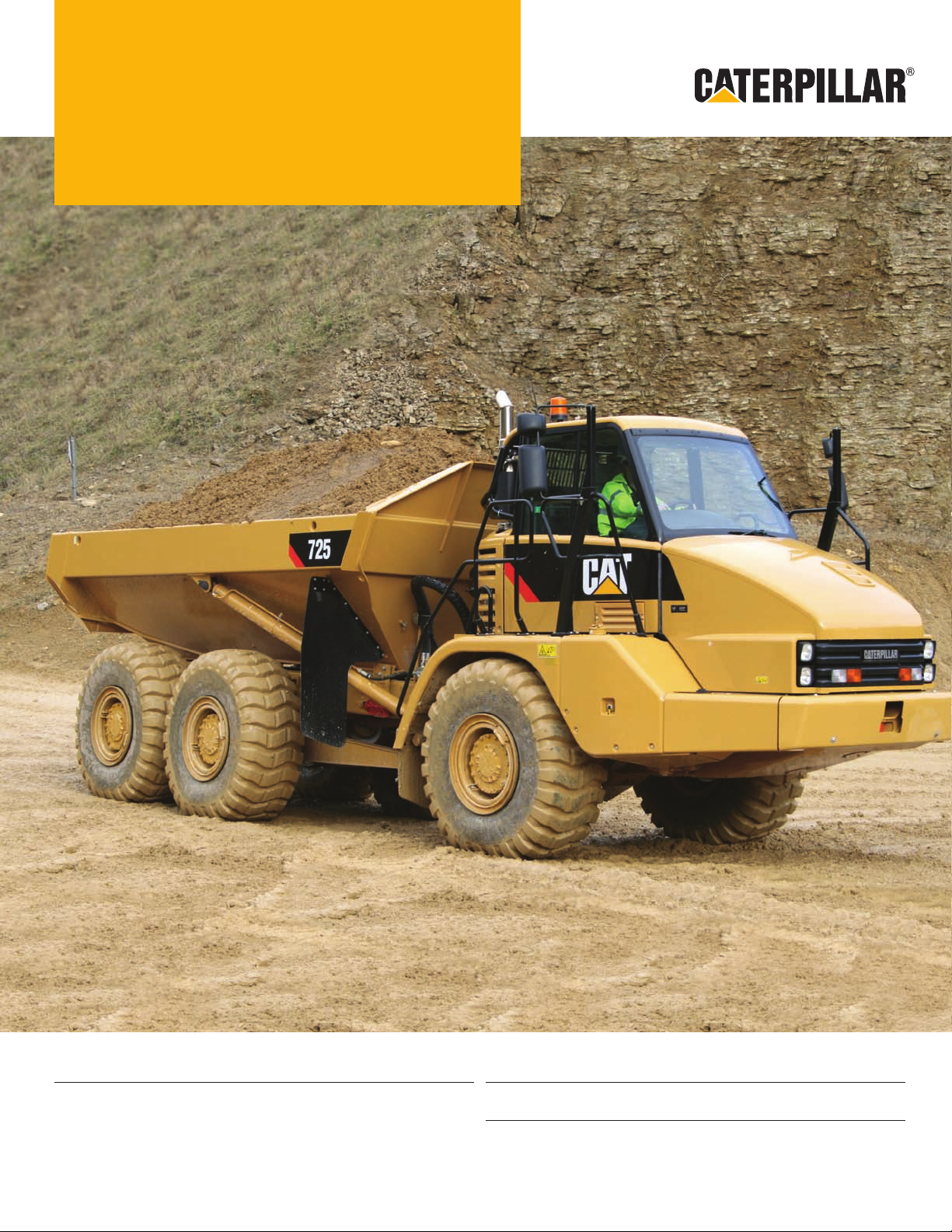

725 Articulated Truck
For more complete information on Cat products, dealer services, and industry solutions, visit
us on the web at www.cat.com
© 2009 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines in
photos may include additional equipment. See your Caterpillar dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the POWER EDGE trade dress, as well as corporate and product identity used herein, are
trademarks of Caterpillar and may not be used without permission.
20
AEHQ6048 (06-2009)
Replaces AEHQ5646-03
Loading...
