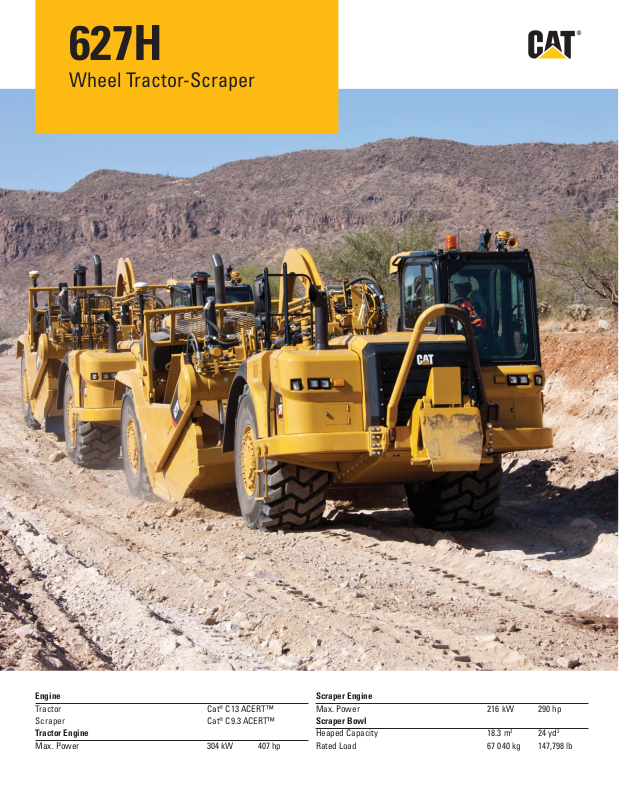

Caterpillar 627H BROCHURE

627H

Wheel Tractor-Scraper

Engine Scraper Engine

Tractor Cat
Scraper Cat
Tractor Engine Heaped Capacity 18.3 m
Max. Power 304 kW 407 hp Rated Load 67 040 kg 147,798 lb

®

C13 ACERT™ Max. Power 216 kW 290 hp

®

C9.3 ACERT™ Scraper Bowl

3

24 yd

3

627H Features

Economical Hauling System

The wheel tractor-scraper, with its ability to load
quickly, haul at high speeds and dump on the go,
has the potential to be the most profitable hauling
system on the job site. This efficiency can result in
fewer machines on the job, reduced operating costs
and jobs delivered in a shorter period of time.

Power Train

Caterpillar designed and manufactured power
train components deliver the power necessary
forfastloading and quick hauls.

Operator Station

Single joystick control of implements, adjustable
arm rests, seat, steering column and room to
maneuver all reduce fatigue and increase operator
comfort and productivity throughout the shift.

Cushion Hitch

The cushion hitch is a Caterpillar proven system
for protecting components of the hitch and improving
ride quality, dampening loads that might otherwise
be carried through the frame tothe operator.
Cushion hitch offers operators a more comfortable
haul portion of the work cycle.

Durability

Cat wheel tractor-scrapers have a history of robust
structural design, tested and validated to last in
the most rugged loading and hauling conditions.

Contents

Operator’s Station ...............................................3

Operator Comfort ................................................4

Power Train – Engine .........................................5

Power Train – Transmission ..............................6

Structures.............................................................7

Scraper Bowl .......................................................8

Loading Options...................................................9

Integrated Technologies ..................................10

Complete Customer Support ...........................11

Safety ..................................................................12

627H Wheel Tractor-Scraper Speci cations ...13

627H Standard Equipment ...............................18

627H Optional Equipment .................................19

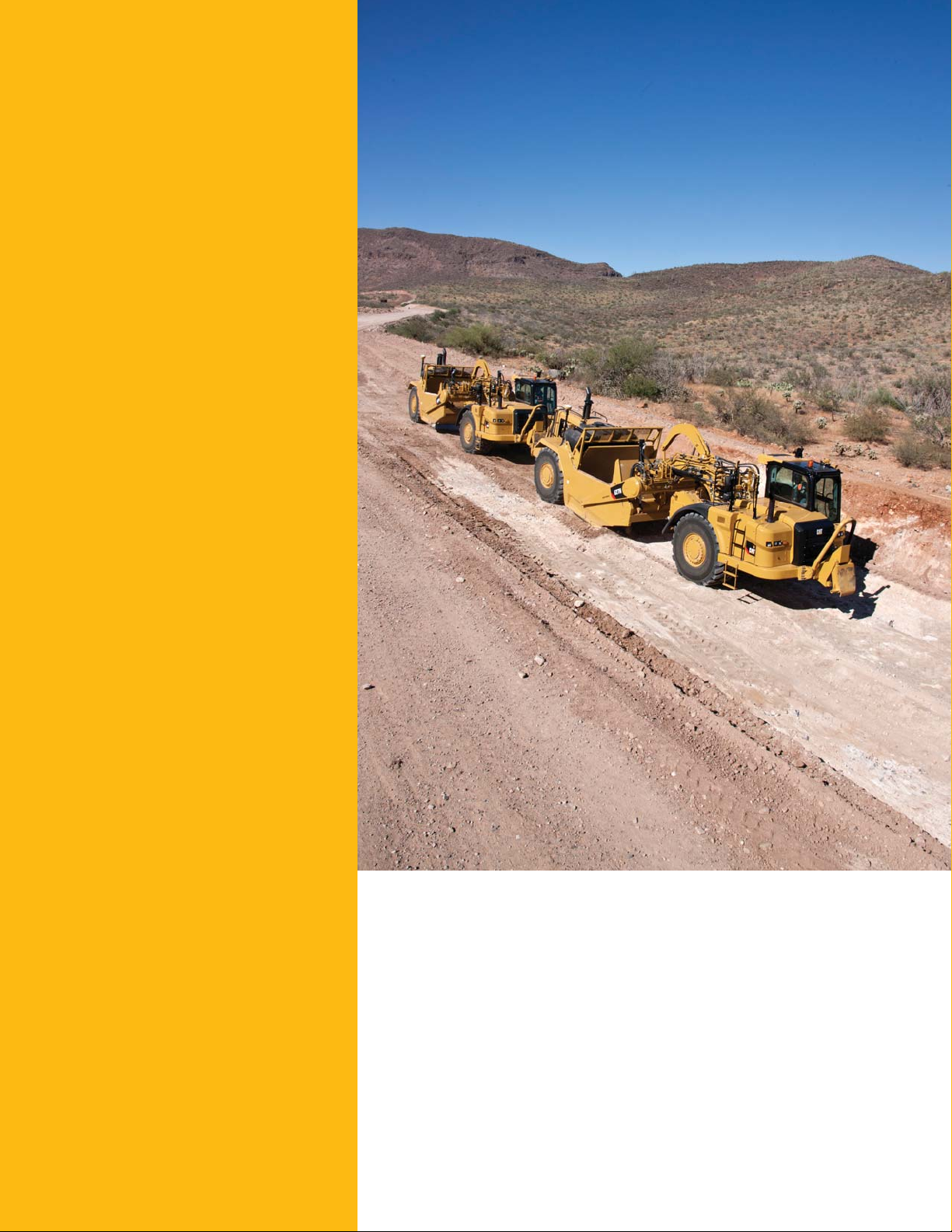

Quick loading, high travel speeds and the ability to load
and dump on the run yield fast cycle times, allowing
Cat Wheel Tractor-Scrapers to consistently deliver high
productivity at the lowest cost per ton.

Operator’s Station

Ergonomically designed for all-day comfort, control and productivity.

Ergonomic Layout

The all new H Series operator station is ergonomically designed for total machine control in a comfortable,
productive and safe environment. All controls, levers, switches and gauges are positioned to maximize
productivity and facilitate a reduction in operator fatigue.

Viewing Area

Designed for excellent all-around visibility and clear sight lines to the job site, the large viewing area offers
exceptional visibility to the front of the machine as well as to the cutting edge. The air conditioning unit
has been relocated to beneath the cab, allowing the operator enhanced visibility.

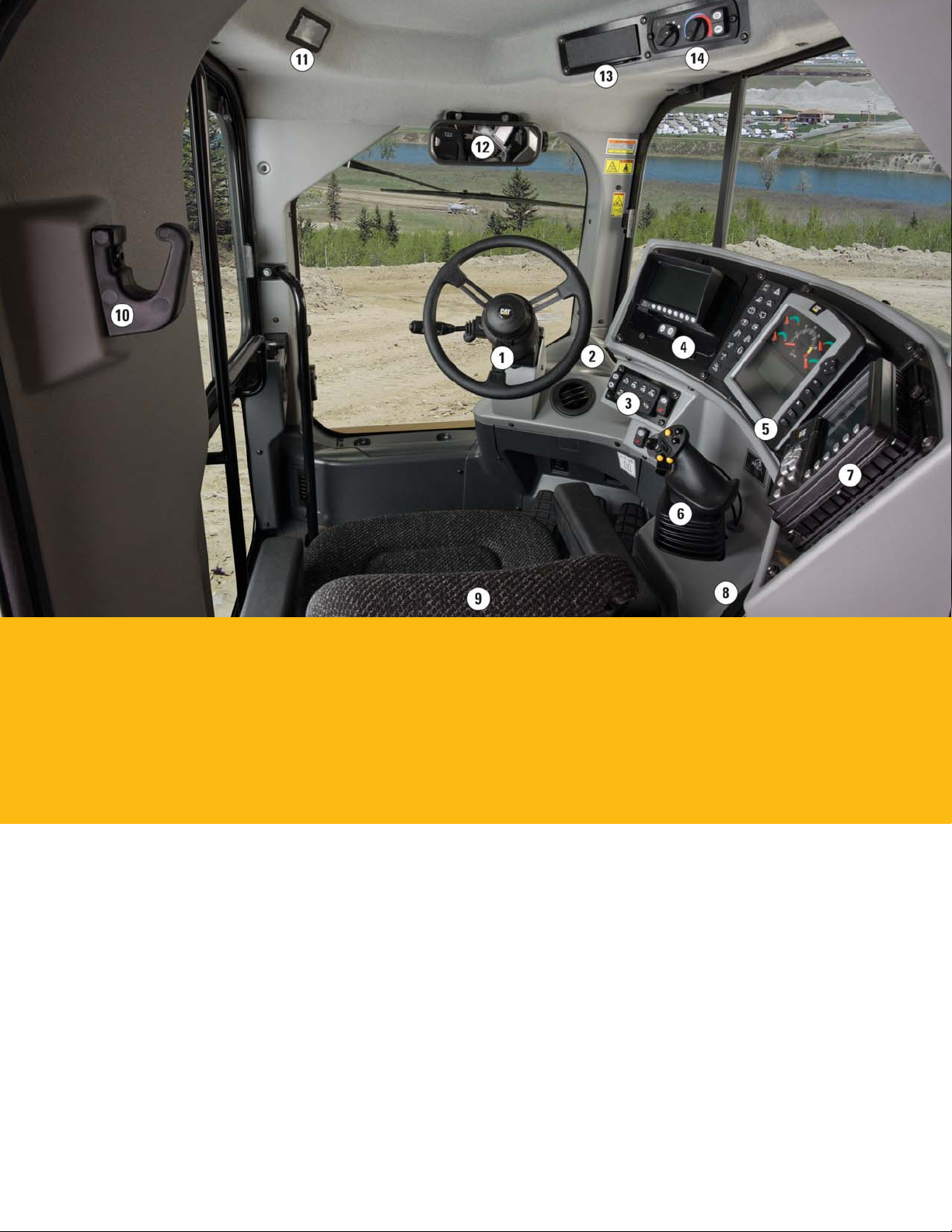

1) Angled Steering Wheel for enhanced comfort while loading. 2) Lunchbox Storage Platform with Strap.

3) Sequence Assist, Load Assist, and Cat® Grade Control Controls (optional). 4) Work Area Vision
System (WAVS) (optional). 5) Cat Messenger Display. 6) Implement Control Lever. 7) Cat Grade
Control Display (optional). 8) Transmission Controls. 9) Cat Comfort Seat. 10) Coat Hook.

11)DomeCourtesy Light. 12) Rearview Mirror. 13) Radio-Ready. 14) Heating and Air Conditioning.

3

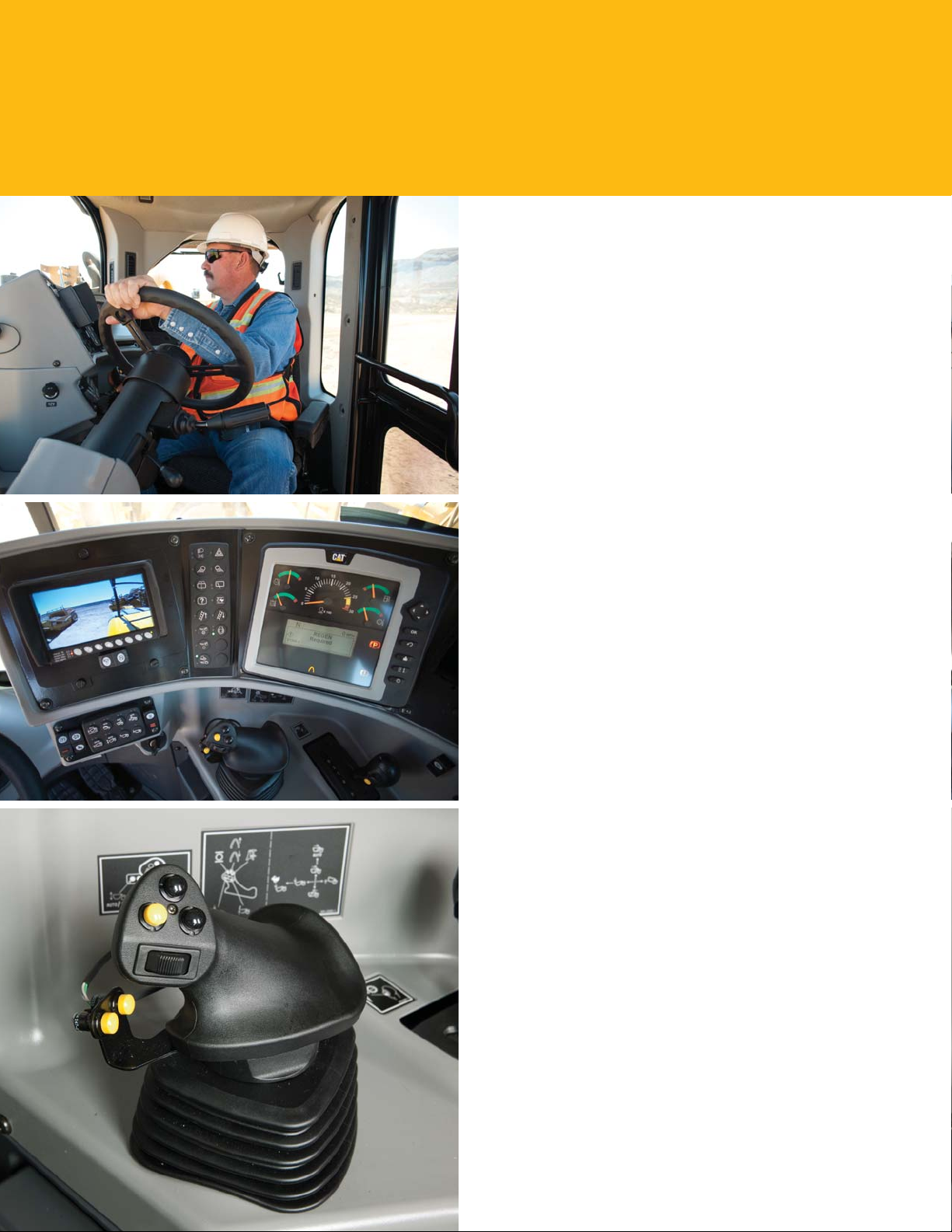

Operator Comfort

High productivity from a comfortable, confident operator.

Spacious Cab

With a 21% larger cab, H Series scrapers offer a comfortable
working space. The larger cab and wider door make getting
in and out of the cab easier. The increased glass area enhances
visibility around the machine.

Steering Column

The steering column and pedals have been relocated for
morecomfortable operation when the seat is angled during
machine operation. The telescopic and tilt adjustable steering
column maintains a comfortable driving position regardless
of operator size.

Standard Comfort Features

The H Series cab is equipped with features designed to
maintain operator comfort. Standard comfort features
include: coat hook, lunchbox storage platform with strap,
airconditioning, heat, and radio-ready.

Seat Options

H Series scrapers use the Cat Comfort Seat with additional
travel to allow the operator to position themselves for optimal
comfort and productivity. The seat rotates up to 30 degrees
to the right for a more comfortable position during loading
and 30 degrees to the left to make getting in and out of the
cab easier.

For unparalleled ride comfort, H Series scrapers are
equipped with the Cat Advanced Ride Management (ARM)
seat suspension which uses an active suspension to dampen
vibration and minimize end-of-stroke shock loads to
theoperator.

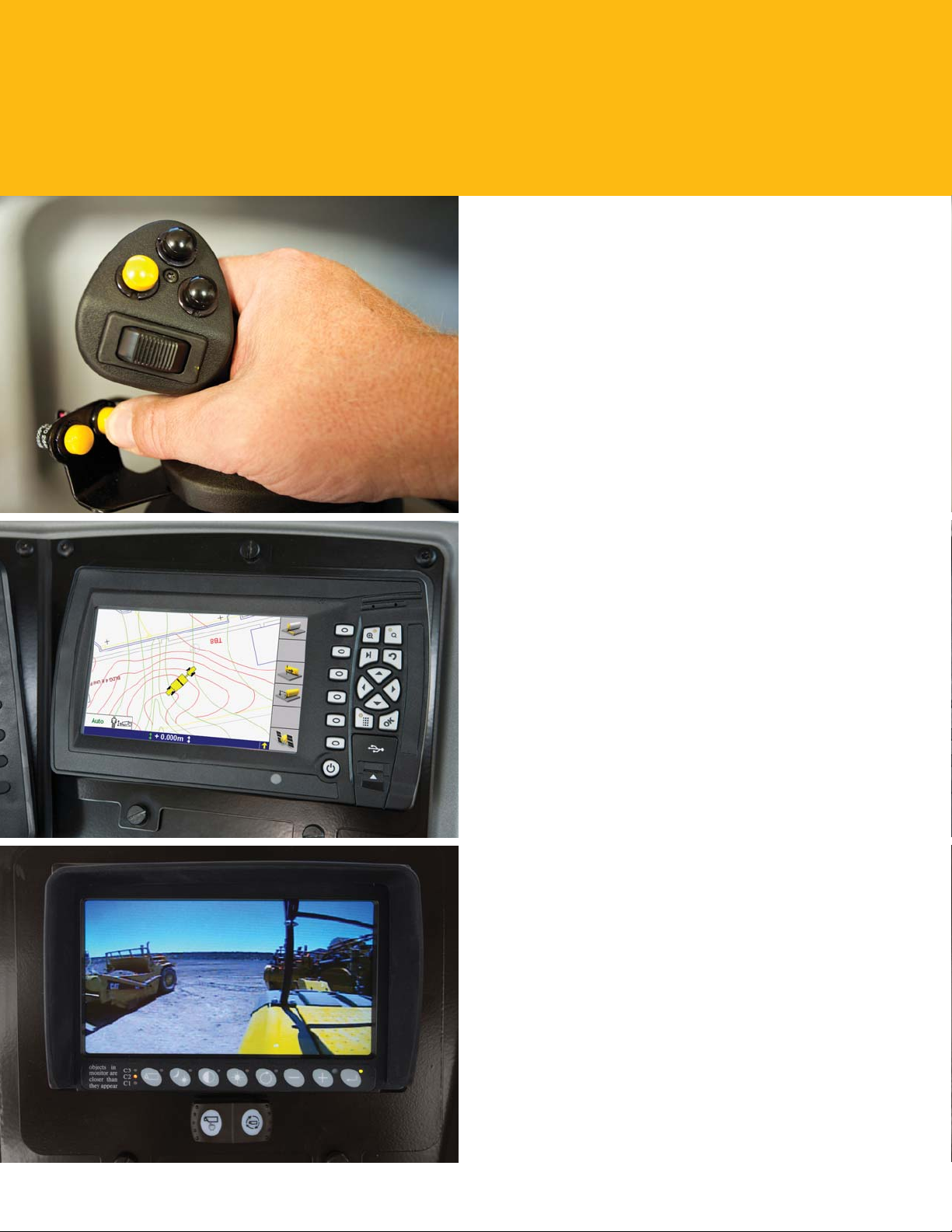

Integrated Technologies

The optional Sequence Assist, Load Assist, and Cat Grade
Control automate many repetitive operator tasks.

T-Handle Implement Control Lever

The redesigned control lever puts all of the scraper functions
in the palm of the operator’s hand. The low-effort lever and
convenient push-button and thumb wheel controls are
ergonomically placed for minimum arm movement.

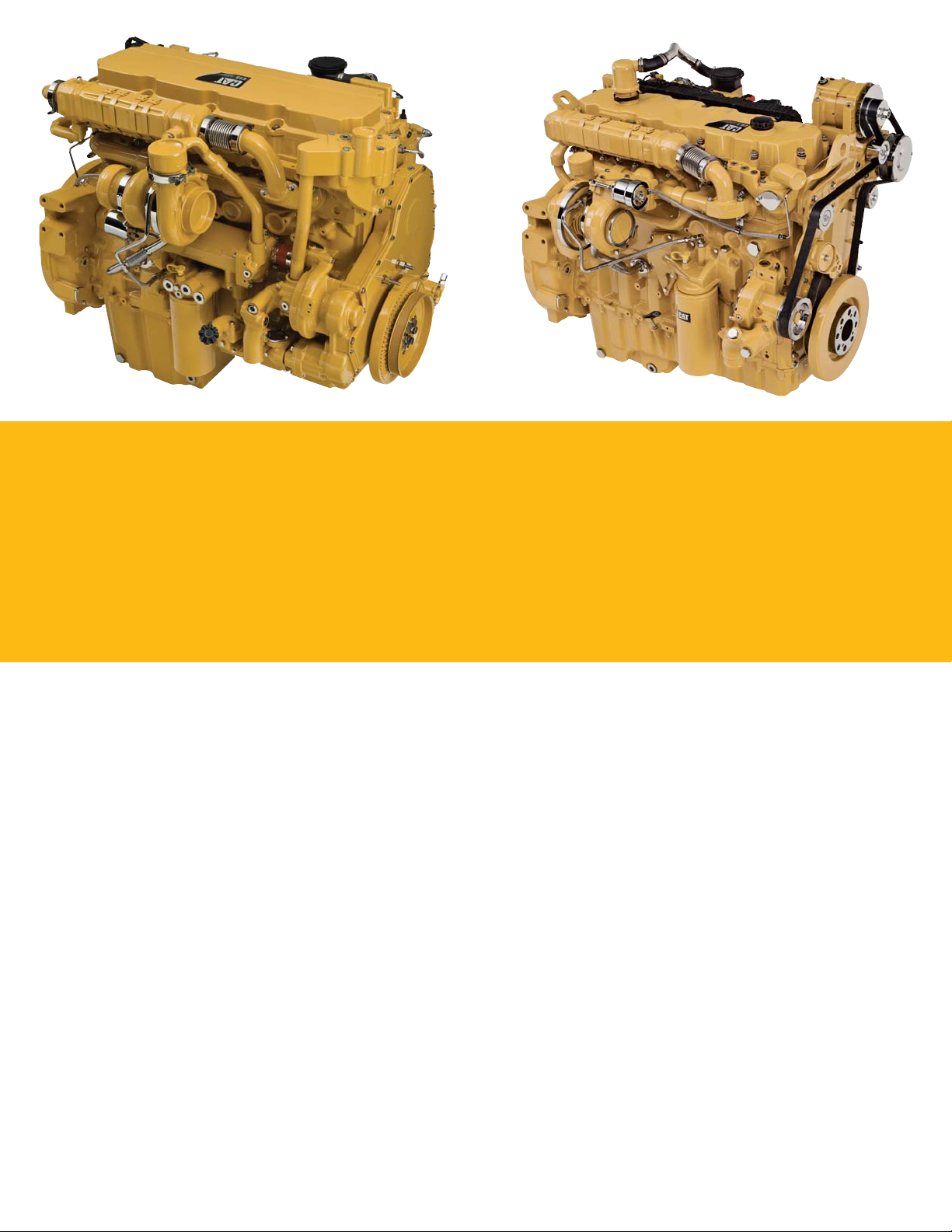

Power Train – Engine

The Cat® C13 ACERT™ and C9.3 ACERT engines are built for power,
reliabilityand efficiency.

ACERT Technology

The Cat® C13 ACERT™ engine in the tractor and C9.3 ACERT engine in the scraper continue the
evolutionary, incremental improvements that provide breakthrough engine technology built on systems
and components developed by Caterpillar with proven reliability. Both engines are available with either
U.S. EPA Tier 3/EU Stage IIIA equivalent emission configurations or U.S. EPA Tier 4 Interim/
EUStageIIIB certified emission configurations to meet the needs of contractors around the world.

Emissions

Machines equipped with engines meeting U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards are
equipped with a Cat Clean Emission Module to deliver the performance and efficiency that customers
demand while meeting emission requirements. Machines equipped with the U.S. EPA Tier 3/EU StageIIIA
equivalent engines are equipped with a muffler in place of the Cat Clean Emission Module.

Cat Clean Emission Module (CEM)

CEM is an exhaust aftertreatment package consisting of a diesel particulate filter, and control systems.
The CEM reduces particulate emissions using passive and active regeneration during normal engine operation.

Cat NOx Reduction System (NRS)

The Cat NOx Reduction System (NRS) captures and cools a small quantity of exhaust gas, then routes it
into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.

Diesel Particulate Filter Regeneration

Regeneration is the removal of soot from the Diesel Particulate Filter (DPF). The Aftertreatment
Regeneration Device (ARD) is used to regenerate the DPF. The DPF traps both particulates and ash,
the ash is removed at regular service intervals.

5

Power Train – Transmission

More power to the ground for greater productivity.

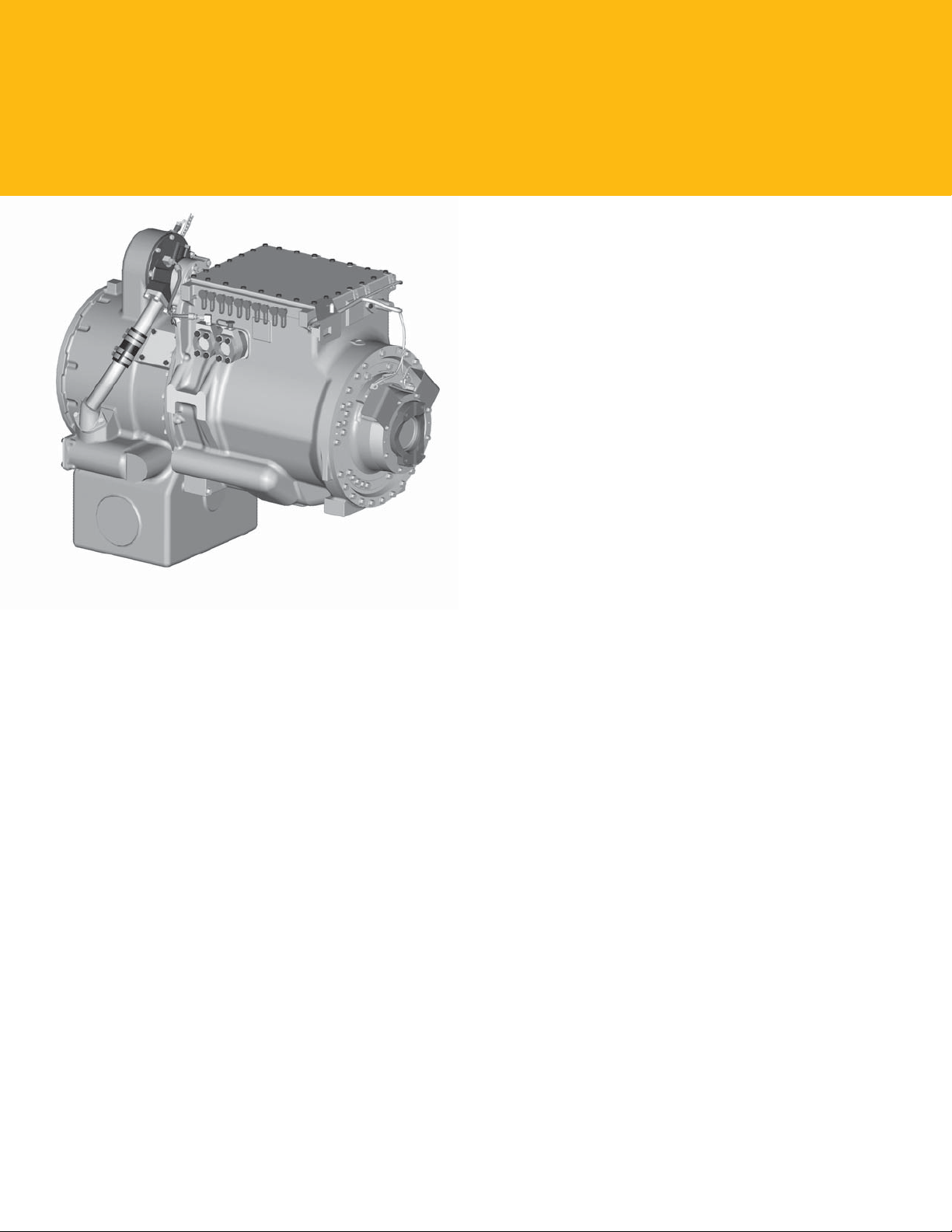

Electronic Transmission

The Cat eight-speed forward one-speed reverse Electronic
Clutch Pressure Controlled (ECPC) transmission features
enhanced shift control logic with anti-hunt shift strategy
forspeed continuity, and to ensure constant shift times.

• Tractor gears 1-2 – converter drive for increased torque,
gears 3-8 – direct-drive for drive train efficiency.
Scrapergears use converter drive for more torque
inthecut.

• Transmission Hold maintains converter drive for
maximum rimpull or holds current gear for best control.

• Programmable Top Gear manually sets top gear
available (3rd-8th) to match conditions or speed.

• Neutral Coast Inhibitor prevents transmission shifts
intoneutral while moving.

Smooth Transmission Gear Shifting

The 627H features ECPC Shift Torque Management (STM),
with improved Shift Control Logic (SCL) and Part Throttle
Shifting (PTS). These features allow smoother shifting and
greater acceleration on grades while torque is maintained
through the shift changes. SCL also provides automatic
shiftselection that is more specific to the desired machine
operation, and downshifts when needed for maximum
acceleration when increased throttle is applied. PTS allows
shifting at lower speeds during part throttle operation,
resulting in improved part throttle fuel economy, quieter
machine operation, and better maneuvering in reduced
speedoperating conditions.

Brake Performance

The 627H uses hydraulically-actuated wet disc brakes for
exceptional brake performance. The standard Cat Engine
Brake reduces brake wear and enhances machine control.

6

3

2

1

5

Structures

Superior design and construction delivers long term durability.

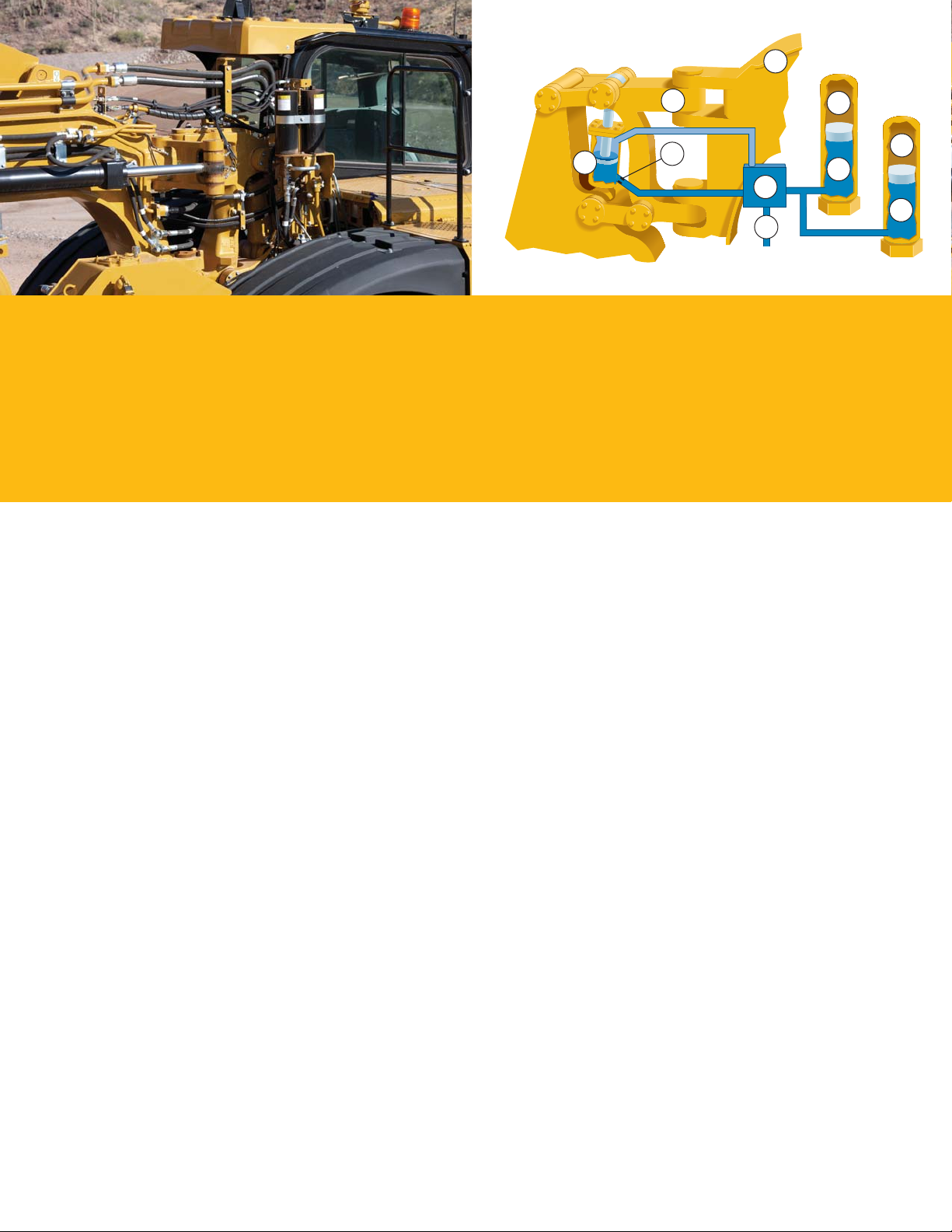

Cushion Hitch

Electronically actuated with parallelogram-type linkage for exceptional strength, with two nitrogen
accumulators (4) using free-floating pistons (8) to deliver a smooth ride for enhanced operator comfort
and machine durability.

• controlled oil flow (6) dampens rebound oscillation

• leveling valve (7) applies pressure via an orifice (5) to automatically center the piston in load
cylinder (1)

• steel castings are used to eliminate many welded joints and increase strength

• double-kingbolt design (2, 3) withstands high external forces, simplifies installation and removal

4

4

8

7

8

6

Lockout Switch

An operator-selectable lockout switch, located on the joystick, locks the cushion hitch down for
improved control of the cutting edge during loading and dumping.

Nitrogen Accumulator

Vertically mounted hydraulic cylinder transfers road shocks to nitrogen accumulators.
Nitrogenaccumulator absorbs and dampens road shocks, thus preventing the loads from
beingtransmitted to the hitch components or to the operator.

Non-Metallic Fenders and Fuel Tank

The new fuel tank is made of recyclable roto-milled polyethylene and keeps the fuel cleaner with
controlled filtration and cleanout access ports. The new fuel tanks have increased capacities,
providingoperators with 10 plus hour shifts depending on engine load factors.

The new tractor fenders are made of the same highly durable, roto-milled polyethylene.
The non-metallic fenders prevent material buildup when operating in sticky materials.

7

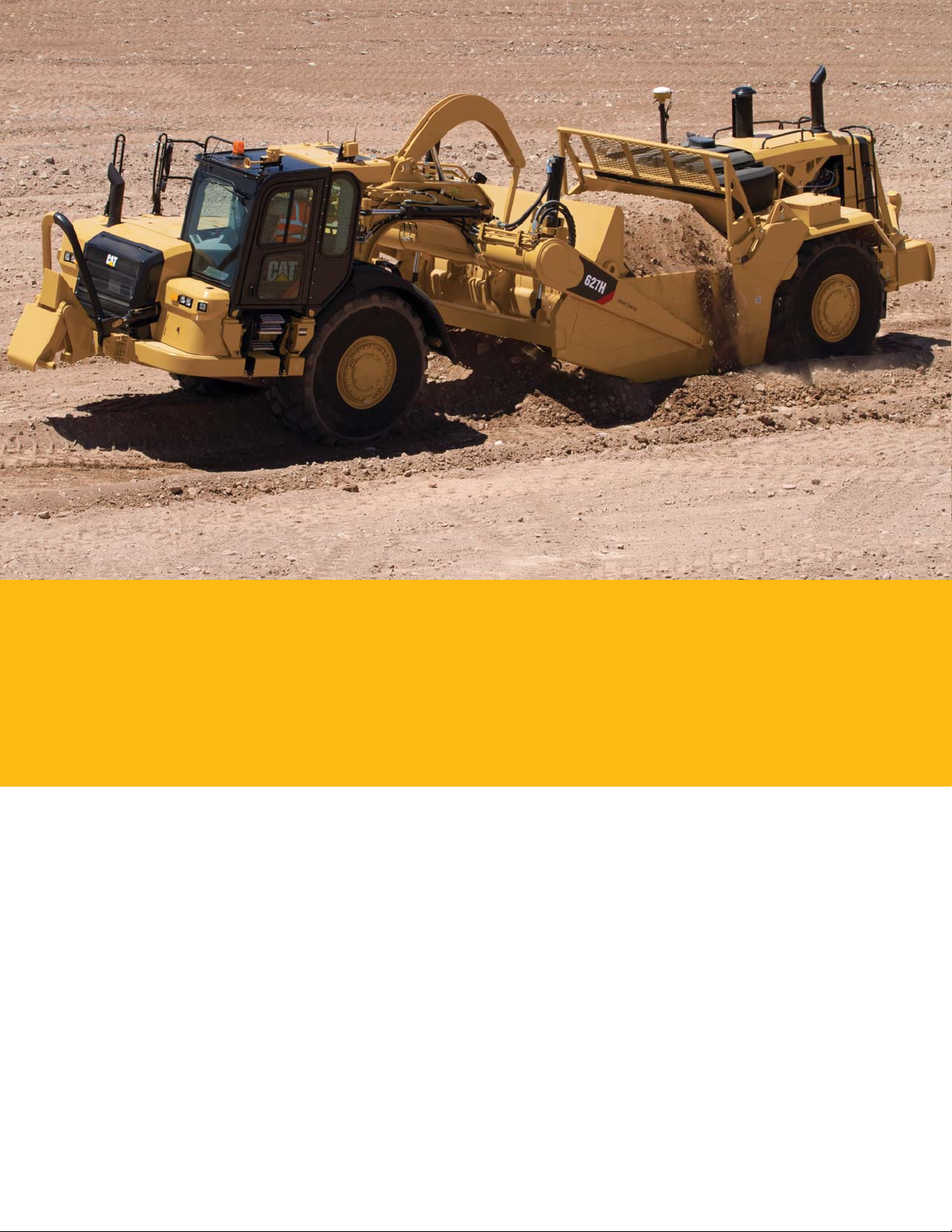

Scraper Bowl

Caterpillar designed and built for rugged performance and reliability.

Redesigned Bowl

The 627H uses a new bowl design than enhances productivity through a 9% increase in bowl capacity
over previous models. The low profile design offers low resistance to incoming materials, while cellular
constructions adds strength and dent resistance to the bowl sides and floor.

Hydraulic Lines Protection

Hydraulic lines durability is increased by routing them through the bowl sidewalls where they are
protected from damage on the job site.

Ejection System

The powerful ejection system provides constant spreading control while minimizing carryback material.
An overflow guard on the ejector helps retain material and keep it from spilling over onto the rear of
thescraper.

Cutting Edges and Cat Ground Engaging Tools (GET)

A variety of Ground Engaging Tools (G.E.T.) options are available to optimize the machine for
different material types and loading conditions. GET options include standard, serrated, and abrasion
resistant material (ARM). Most are reversible to provide long life and reduced operating costs.

8

Loading Options

Flexible loading options to adapt to changing job site conditions.

Self-Loading

The 627H is an excellent self-loading hauling system using the combined power of two engines
toquickly and efficiently load the bowl in most materials.

Push-Loading

To prevent tire wear in abrasive material, the 627H can be push-loaded with a D8- or D9-size
Track-Type Tractor.

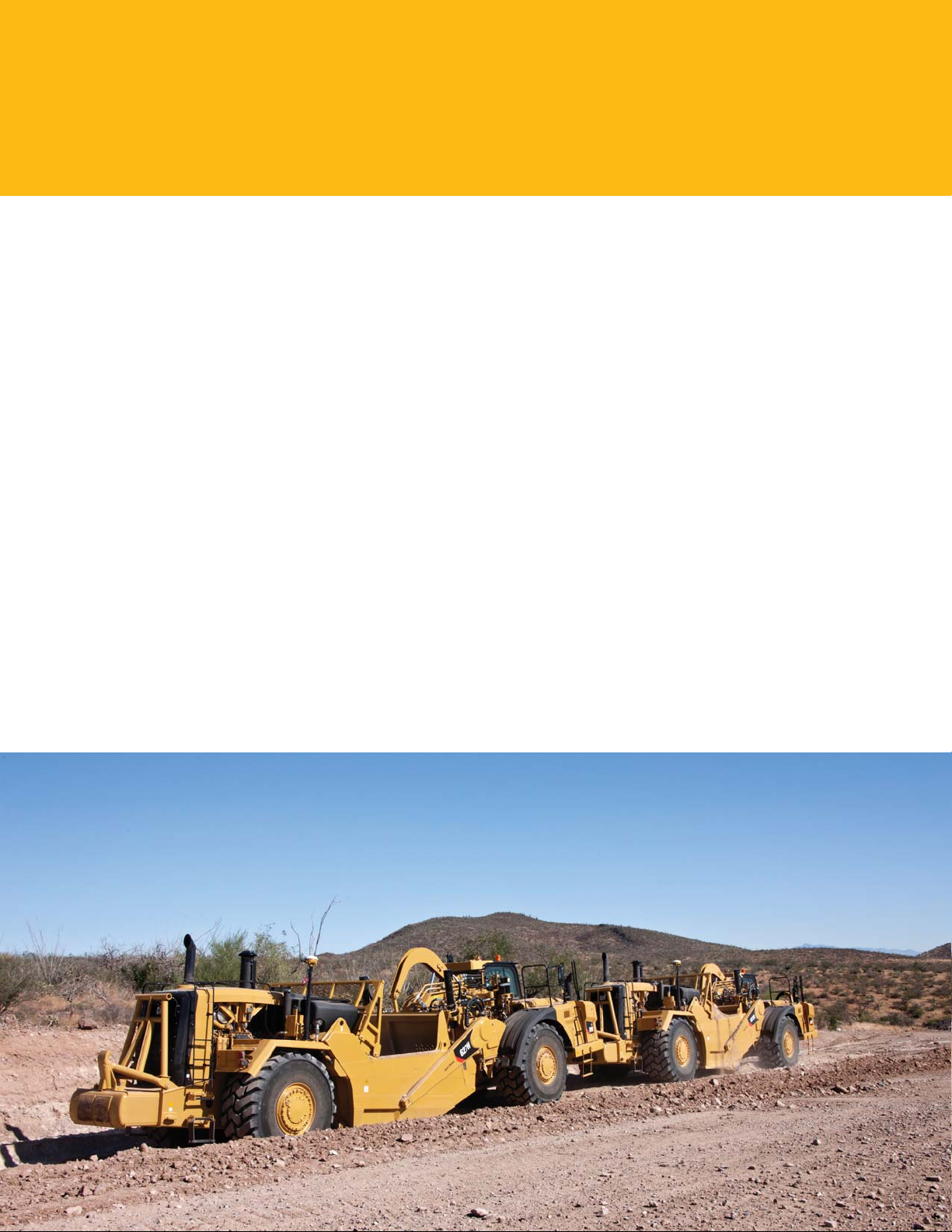

Push-Pull

The push-pull arrangement is recommended for applications that require a large amount of material
tobe moved very quickly at low cost per bank cubic meter (bank cubic yard). The push-pull arrangement
concentrates the combined power of two machines onto one cutting edge. Push-pull scrapers work in
pairs where the lead scraper is pushed through the cut by the trailing scraper. When the lead scraper
isfully loaded, the trailing scraper lowers its bowl and is pulled through the cut by the lead scraper.
Theresult is a self-loading system.

The push-pull arrangement features a hydraulically-actuated bail and cushioned plate, which are bolted
to the front of the tractor, and a hook that is attached to the rear of the scraper. Working together,
push-pull scrapers can provide the lowest cost per meter (yard) for many applications.

Integrated Technologies

Technology options to improve operator comfort and increase productivity.

Sequence Assist

Sequence Assist uses integrated software and position-sensing
cylinders to automate many of the tasks an operator performs
when loading, hauling and dumping. The operator simply
sets preferences for bowl and apron height and subsequently
pushes a button to ready the machine for loading, then
hauling, then dumping, and then the return to cut. The system
automatically sets the cushion hitch, bowl height, apron and
ejector. Sequence Assist comes with a convenient load
counter for tracking material moved.

With Sequence Assist, up to 14 individual implement and
machine commands are replaced by four touches of a button,
allowing the operator additional time to prepare for the
loading cycle and observation of the job site.

Load Assist

Load Assist builds on Sequence Assist by loading the bowl
with the push of a button. As the machine enters the cut,
theoperator can activate Load Assist so the system takes
over control of the cutting edge height, limiting tire spin
based on integrated sensors and GPS technology to ensure
consistent and full bowl loads. The operator is responsible
only for the throttle, steering, and operating the apron.
LoadAssist helps make inexperienced operators productive
very quickly.

10

Cat Grade Control

Cat Grade Control is an automatic system that helps you
control costs by moving the maximum amount of material
with the prime earthmover which often provides the lowest
cost per unit of material moved. Using satellite positioning
technology, the automatic system ensures cut protection by
limiting how deep the scraper will dig. The optional system
isavailable from the factory and fully integrated into the
machine and works seamlessly with Sequence Assist and
Load Assist.

Additional benefits of Cat Grade Control include putting the
site plan in front of the operator for increased efficiency and
elimination of rework and using the scraper for site mapping.

Work Area Vision System (WAVS)

Cameras on the machine provide views of the cutting edge,
right side and rear. The system enhances safety and provides
a new way to see the cutting edge during loading and to see
to the rear of the machine when performing push-load or
push-pull work with another scraper.

Complete Customer Support

Cat® dealer services help you operate longer with lower costs.

Selection

Make comparisons of the machines you are considering before you buy. Your Cat® dealer can help.

Purchase

Consider the resale value, compare productivity and day-to-day operating costs and fuel consumption.

Operation

For the best operating techniques to increase productivity and your profit, turn to your Cat dealer for
the latest training literature and trained staff.

Maintenance

Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as S·O·S
and Technical Analysis help you avoid unscheduled repairs.

Replacement

Repair or rebuild? Your Cat dealer can help you evaluate the costs so you can make the right choice.

Product Support

Your local Cat dealership will be with you every step of the way with its unsurpassed worldwide parts
support, trained technicians and customer support agreements.

SM

cat.com

For more complete information on Cat products, dealer services and industry solutions, visit us on the
web at www.cat.com

11

Safety

Safety is an integral part of all machine and system designs.

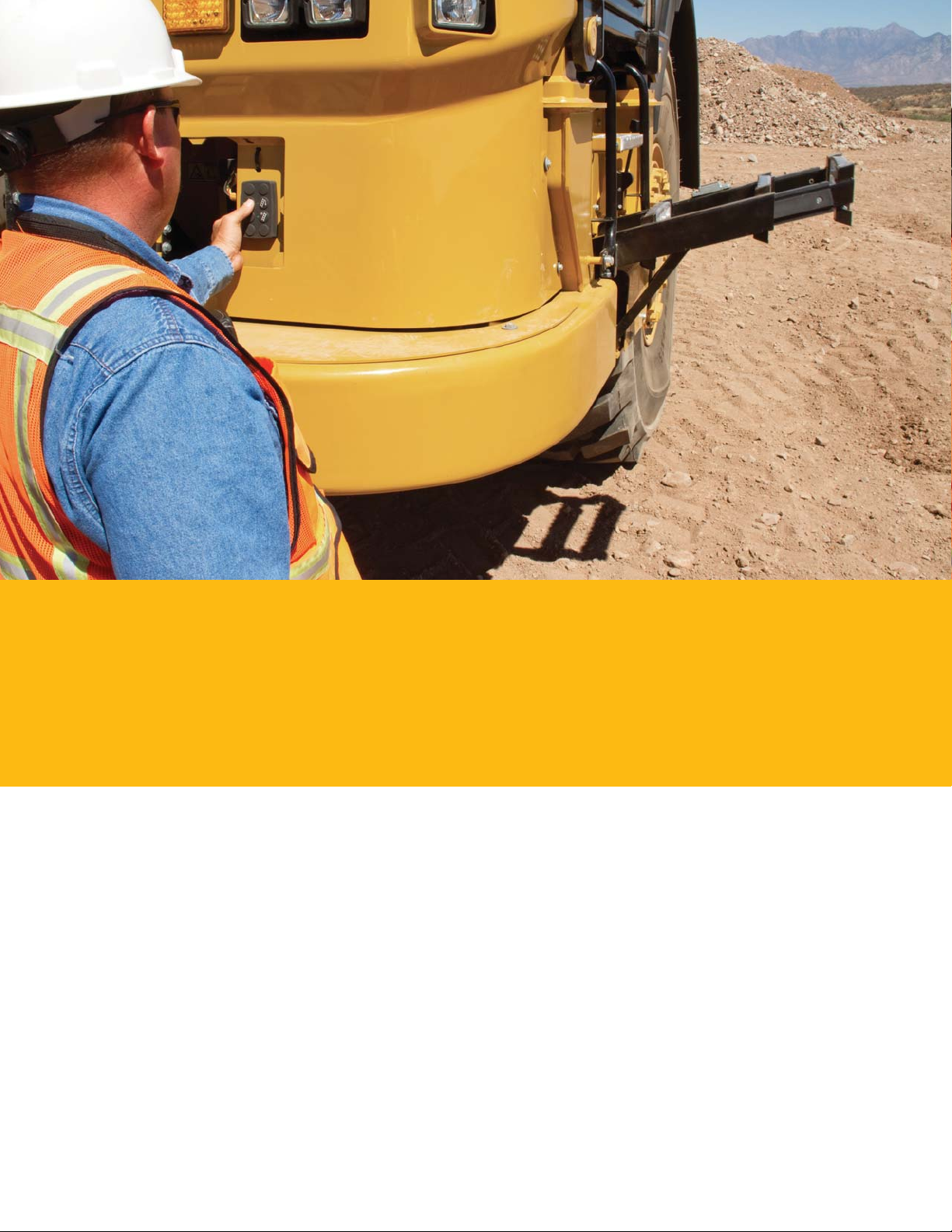

Powered Access Ladder

A new powered access system option significantly reduces the effort required to climb into the cab.
Thesystem is a solid, stable angled ladder that folds out from underneath the cab. It is activated from a
keypad located behind a service door at ground level. Controls are also located in the cab on a keypad.

The ladder provides a rigid and angled base of support for easier climbing and descent. For added safety,
the steps are illuminated by LED lights.

An actuator under the cab operates the step. When not in use, the ladder retracts under the cab. An audible
alarm sounds if the machine moves while the ladder is down. If power fails on the machine, the operator
can raise or lower the steps manually using a lever inside the cab or outside next to the ladder’s top step.

Access and Egress

Handrails and grab irons are provided for safe and secure entrance and exit of the cab as well as for
performing daily maintenance.

Work Area Vision System (WAVS)

Cameras on the machine provide views of the cutting edge, right side and rear. The system enhances
safety and provides a new way to see the cutting edge during loading and to see to the rear of the
machine when performing push-load or push-pull work with another scraper.

12

627H Wheel Tractor-Scraper Specifications

Tractor Engine – U.S. EPA Tier 4 Scraper Engine– U.S. EPA Tier 4 Scraper Bowl
Interim/EU Stage IIIB Interim/EU Stage IIIB

Tractor Engine Cat® C13 ACERT™ Tractor Engine Cat® C9.3 ACERT™

Max. Power 304 kW 407 hp Max. Power 216 kW 290 hp
(AllGears) (AllGears)
(ISO14396) (ISO14396)

Max. Power 1,700 rpm Max. Power 1,900 rpm
Reference Reference
EngineSpeed EngineSpeed

Displacement 12.5 L 763 in

Bore 130 mm 5.1 in Bore 115 mm 4.5 in

Stroke 157 mm 6.2 in

• Max. power advertised is the max. power

available at max. power reference engine
speed of 1,700 rpm, measured at the
ywheel when the engine is equipped with
air cleaner, alternator, and exhaust losses.

Tractor Engine – Prior U.S. EPA
Tier3/EU Stage IIIA configuration*

Tractor Engine Cat® C13 ACERT™

Max. Power 304 kW 407 hp
(AllGears)
(ISO14396)

Max. Power 1,700 rpm
Reference
EngineSpeed

Displacement 12.5 L 763 in

Bore 130 mm 5.1 in

Stroke 157 mm 6.2 in

• Max. power advertised is the max. power

available at max. power reference engine
speed of 1,700 rpm, measured at the
ywheel when the engine is equipped with
air cleaner, alternator, and exhaust losses.

* For jurisdictions other than the U.S.

andthe European Union.

3

Displacement 9.29 L 567 in

Stroke 149 mm 5.9 in

• Max. power advertised is the max. power
available at max. power reference engine
speed of 1,900 rpm, measured at the
ywheel when the engine is equipped with
air cleaner, alternator, and exhaust losses.

Scraper Engine – Prior U.S. EPA
Tier3/EU Stage IIIA configuration*

Tractor Engine Cat® C9 ACERT

Max. Power 216 kW 290 hp
(AllGears)
(ISO14396)

Max. Power 1,900 rpm
Reference
EngineSpeed

3

Displacement 9.29 L 567 in

Bore 115 mm 4.5 in

Stroke 149 mm 5.9 in

• Max. power advertised is the max. power
available at max. power reference engine
speed of 1,900 rpm, measured at the
ywheel when the engine is equipped with
air cleaner, alternator, and exhaust losses.

* For jurisdictions other than the U.S.

andthe European Union.

Heaped Capacity 18.4 m

Rated Load 26 127 kg 57,600 lb

Struck Capacity 13 m

Maximum Depth 315 mm 12.4 in
of Cut

Width of Cut, 3136 mm 123.5 in
Outside Router Bits

Maximum Ground 594 mm 23.4 in

3

Clearance at
Cutting Edge

Thickness of 22 mm 0.9 in
Cutting Edge

Maximum 580 kN 130,390 lbf
Hydraulic
Penetration Force

Maximum Depth 540 mm 21.3 in
ofSpread

Maximum Apron 1767 mm 69.6 in
Opening

Maximum Apron 225 kN 50,580 lbf
Closure Force

Transmission

1 Forward

2 Forward

3 Forward

3

4 Forward

5 Forward

6 Forward

7 Forward

8 Forward

Reverse

3

3

5.0 km/h

8.9 km/h

12.1 km/h

16.3 km/h

21.9 km/h

29.6 km/h

39.9 km/h

53.9 km/h

9.2 km/h

3

24 yd

3

17.1 yd

3.1 mph

5.5 mph

7.5 mph

10.1 mph

13.6 mph

18.4 mph

24.8 mph

33.5 mph

5.7 mph

13

627H Wheel Tractor-Scraper Specifications

Hydraulics Steering Standards

Bowl Cylinder Bore 140 mm 5.5 in

Bowl Cylinder
Stroke

Apron Cylinder
Bore

Apron Cylinder
Stroke

Ejector Cylinder
Bore

Ejector Cylinder
Stroke

Push/Pull Bail
Cylinder Bore

Push/Pull Bail 415 mm 16.3 in
Cylinder Stroke

Steering Circuit 234 61.8
Flow L/min gal/min

Secondary Steering 39.0 10.3
Circuit Flow L/min gal/min

Scraper Circuit 250 66.0
Flow L/min gal/min

Cushion Hitch 40.1 10.6
Circuit Flow L/min gal/min

845 mm 33.3 in

150 mm 5.9 in

565 mm 22.2 in

140 mm 5.5 in

1550 mm 61.0 in

90 mm 3.5 in

Service Refill Capacities – Tractor

Engine Crankcase 33 L 8.75 gal

Transmission 70 L 18.5 gal

Differential 173 L 45.8 gal

Final Drive 19 L 5.0 gal
(perside)

Cooling System 64 L 17.0 gal

Hydraulic Reservoir 83 L 22.0 gal

Windshield Washer 5 L 1.3 gal
Reservoir

Service Refill Capacities – Scraper

Engine Crankcase 28 L 7.5 gal

Transmission 49 L 13.0 gal

Differential 53 L 14.0 gal

Final Drive 19 L 5.0 gal
(perside)

Cooling System 72 L 19.0 gal

Fuel Tank 1272 L 336.0 gal

Steering Angle –
Right

Steering Angle –
Left

85º

82º

Weights

Machines meeting U.S. EPA Tier4 Interim/
EUStage IIIB emission standards

Standard

Shipping Weight– 39 899 kg 87,962 lb
10%Fuel

Operating Weight– 40 913 kg 90,198 lb
full fuel tanks

Loaded, based 67 040 kg 147,798 lb
ona rated load

Push-Pull

Shipping Weight– 41 154 kg 90,729 lb
10%Fuel

Operating Weight– 42 168 kg 92,964 lb
full fuel tanks

Loaded, based 68 295 kg 150,565 lb
ona rated load

Machines achieving prior U.S. EPA Tier 3/
EUStage IIIA emissions levels

Standard

Shipping Weight– 39 486 kg 87,052 lb
10%Fuel

Operating Weight– 40 500 kg 89,287 lb
full fuel tanks

Loaded, based 66 627 kg 146,887 lb
ona rated load

Push-Pull

Shipping Weight– 40 741 kg 89,818 lb
10%Fuel

Operating Weight–
full fuel tanks

Loaded, based
ona rated load

41 722 kg 91,981 lb

67 882 kg 149,654 lb

• Steering System meets ISO 5010:2007
forup to a maximum approved
operatingweight

• Brakes meet ISO 3450:1996 for up to a
maximum approved operating weight

• Rollover Protective Structure (ROPS) is
certied to a tractor only mass of 18800kg
(41,447 lb) as tractor portion of tractor­scrapers per Table 1 of ISO 3471:2008.
Thisexcludes scraper weight and payload.

• Falling Object Protective Structure (FOPS)
meets ISO 3449:2005 Level II

• Seat Belts meet SAE J386 June 1985

• Forward and Reverse Alarms meet
ISO9533:1989

• The dynamic operator sound pressure level
is 76 dB(A) when “ISO 6396:2008” is used
to measure the value for an enclosed cab.
The measurement was conducted at 100%
of the maximum engine cooling fan speed.
The sound level may vary at different
engine cooling fan speeds. Thecab was
properly installed and maintained.
Themeasurement was conducted with
thecab doors and the cab windows closed.
Thecab was properly installed and
maintained. Hearing protection may
beneeded when the machine is operated
with an open operator station for extended
periods or in a noisy environment.
Hearingprotection may be needed when
themachine is operated with a cab that
isnot properly maintained or when the
doors and windows are open for extended
periods or in a noisy environment.

• The average exterior sound pressure level
is80 dB(A) when the “SAE J88 FEB06–
Constant Speed Moving Test” procedure is
used to measure the value for the standard
machine. The measurement was conducted
under the following conditions: distance
of15 m (49.2 ft) and “the machine moving
forward in an intermediate gear ratio.”

• The exterior sound power level is 113 dB(A)
when the value is measured according to
thestatic pressure test procedures and
theconditions that are speci ed in
“ISO6393:2008.”

14

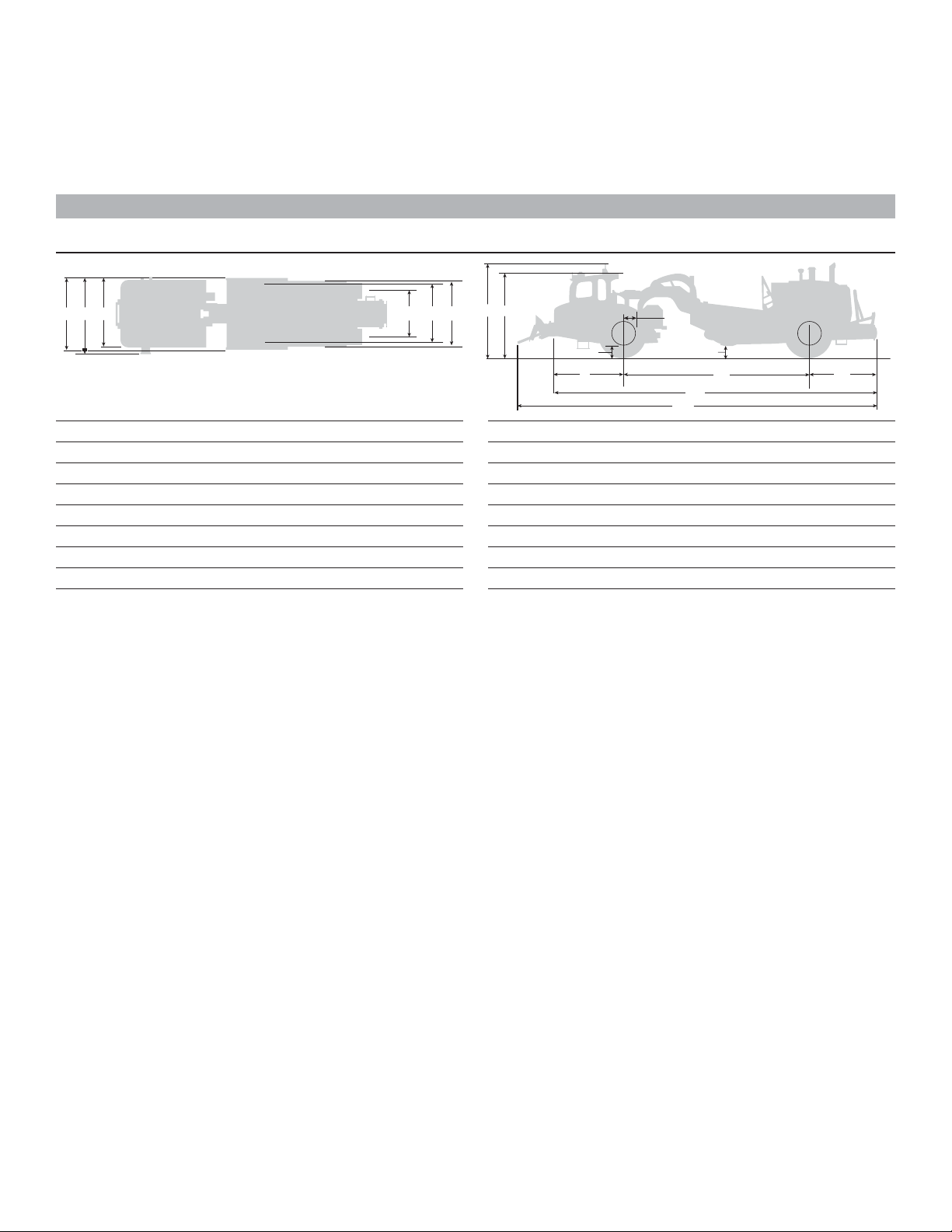

Dimensions

All dimensions are approximate.

1 32

8

5

4

7

6

11

mm in mm in

Width – overall machine 3565 140.4

1

Width – tractor (ladder down) 3688 145.2

2

Width – tractor 3381 133.1

3

Width – rear tire centers 2290 90.2

4

Width – inside bowl 3048 120.0

5

Width – outside rear tires 3165 124.6

6

Height – overall shipping 4029 158.6

7

Height – top of cab 3612 142.2

8

10

9

Front of tractor to front axle 3119 122.8

9

Ground clearance, tractor 557 21.9

10

Axle to vertical hitch pin 540 21.3

11

Height – scraper blade maximum 540 21.3

12

Wheelbase 7998 314.9

13

Length – overall machine (standard) 14 015 551.8

14

Length – maximum (push-pull) 15 575 613.2

15

Rear axle to rear of machine 2898 114.1

16

12

13

14

15

16

15

627H Wheel Tractor-Scraper Specifications

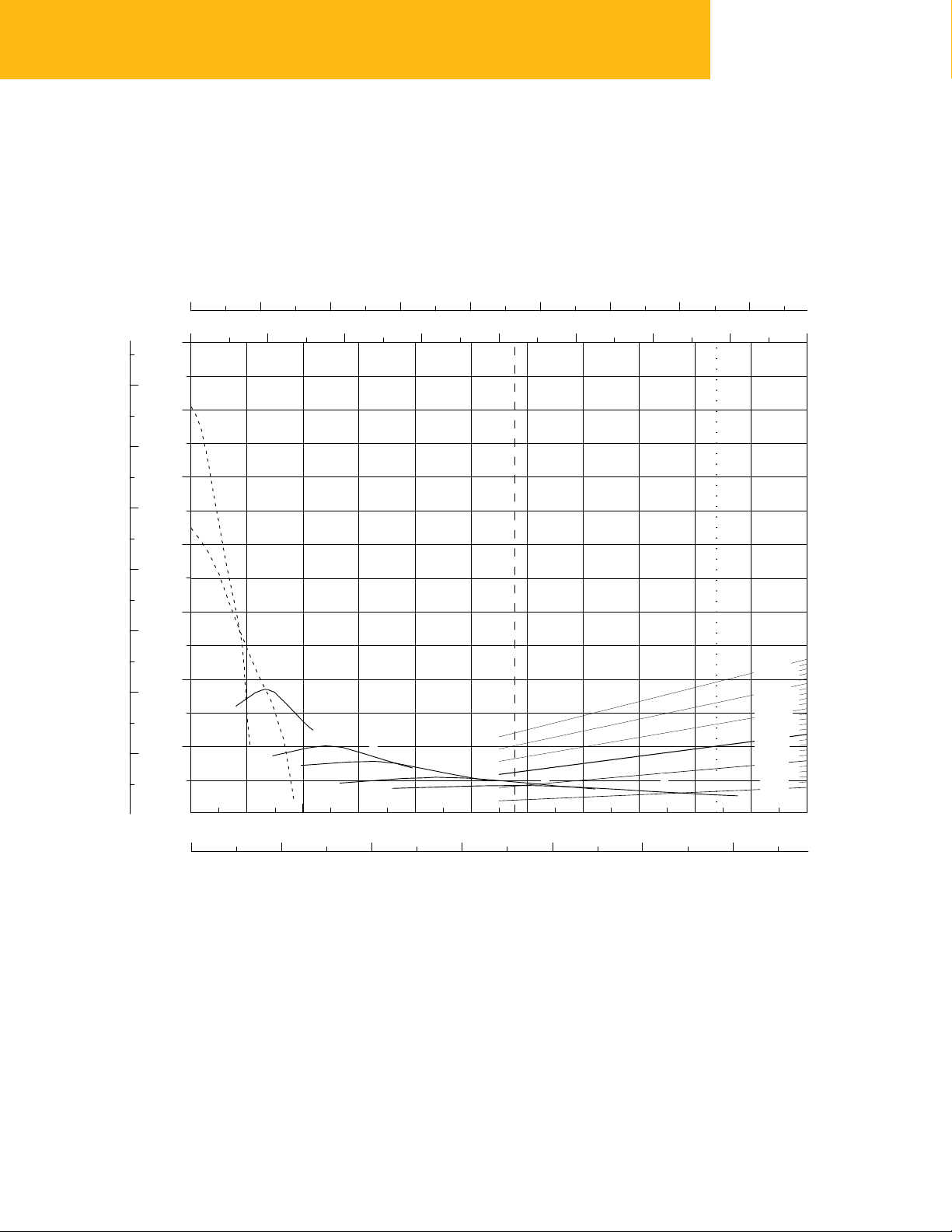

627H Rimpull

GROSS WEIGHT

lb X
1000

150

140

130

kg X
1000

0 20 40 60 80 100 120 140 160

010 20 30 40 50 60 70 80

70

65

60

E

lb X 1000

kg X 1000

L

120

110

100

90

80

70

RIMPULL

60

50

40

30

20

10

55

50

1

45

40

35

30

25

2

20

15

10

5

0 5 10 15 20 25 30 35 40 45 50 55

0 5 10 15 20 25 30

3

4

5

6

7

8

SPEED

30%
25%

20%

15%

10 %

5%

(Grade Plus Rolling)

TOTAL RESISTANCE

km/h

mph

16

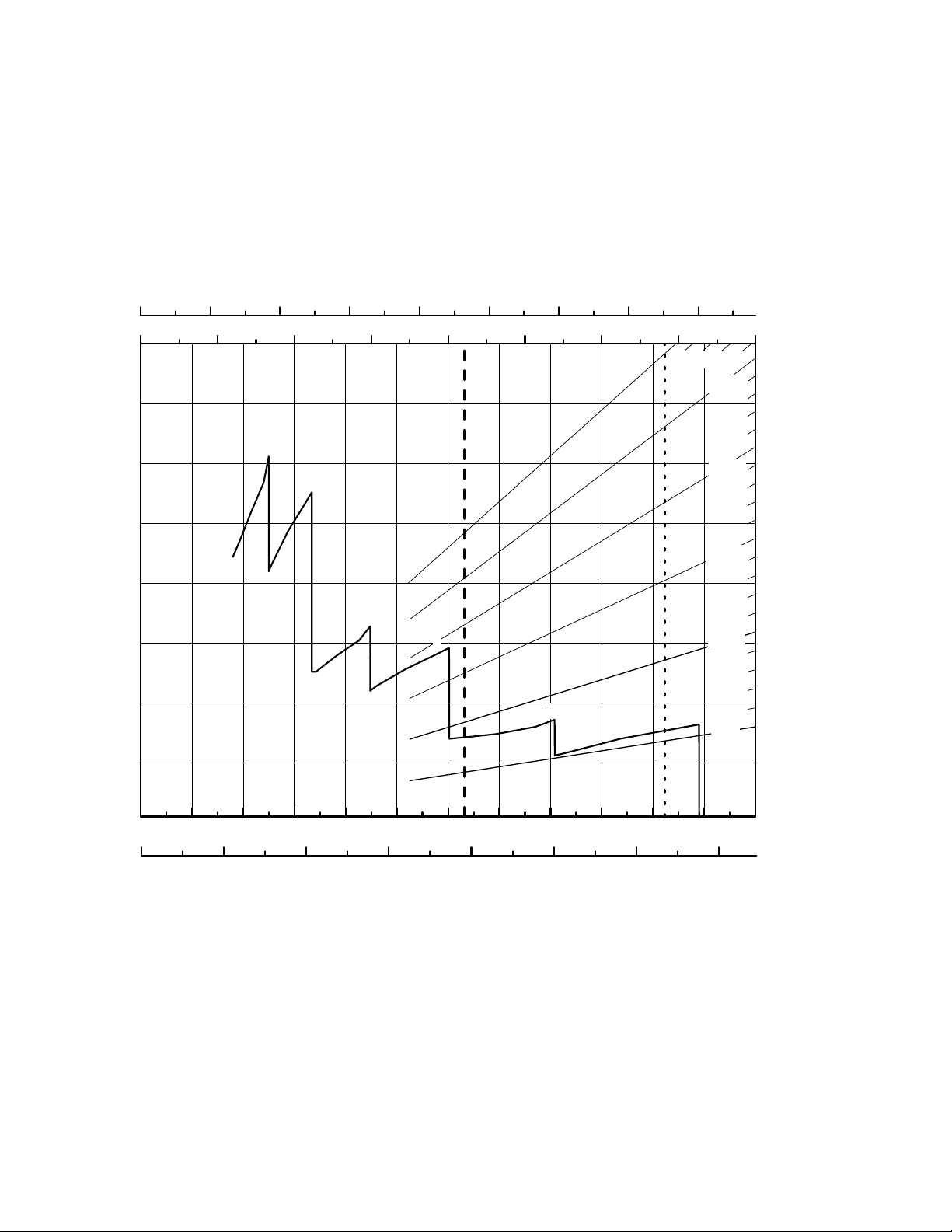

627H Retarding*

0 20 40 60

GROSS WEIGHT

80 100 120 140 160

lb X 1000

0 10 20 30 40 50 60 70 80

30%

E

L

kg X 1000

25%

3

20%

4

15%

5

6

7

10%

8

Effective Grade

(Grade minus Rolling Resistance)

5%

0 5 10 15 20 25 30 35 40 45 50 55 60

0 5 10 15 20 25 30 35

* at sea level on high setting

SPEED

km/h

mph

17

627H Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

TRACTOR:

C13 ACERT engine with MEUI
Cat Engine Brake
Electric start, 24 Volt
Air cleaner, dry type with precleaner
Fan, hydraulic
Diesel Particulate Filter (DPF)

aftertreatment (for engine meeting
U.S.EPA Tier 4 Interim/EU Stage IIIB

emission standards)
Ground level engine shutdown
Radiator, aluminum unit core,

9 ns per inch
Guard, crankcase
Mufer (for engines achieving U.S. EPA

Tier 3/EU Stage IIIA emission levels)
Starting aid, ether
Braking system:
Primary and Secondary, wet disc, hydraulic
Parking, hydraulically-released,

spring-applied
Throttle Lock
Transmission:
8-speed planetary powershift
ECPC Control
APECS software
Programmable top gear selection
Transmission hold
Differential lock
Guard, power train

SCRAPER:

C9.3 ACERT engine with high pressure

common rail fuel
Cat Engine Brake
DPF aftertreatment module (for engine

meeting U.S. EPA Tier 4 Interim/

EUStage IIIB emission standards)
Electric start, 24 volt
Fan, driveline
Ground engine shutdown
Mufer (for engines achieving prior

U.S.EPA Tier 3/EU Stage IIIA

emissionlevels)
Starting aid, ether
Braking system:

Primary and Secondary, wet disc, hydraulic

Parking, hydraulically-released,

spring-applied

4-speed (torque converter drive)

transmission, planetary powershift

ELECTRICAL

TRACTOR:

Alternator, 150 Amp
Batteries (4), 12 Volt, 1,000 CCA,

maintenance free, high output
Electrical system, 24V
Lighting system:

Headlights, halogen

Turn signals with hazard function

LED Floodlights, halogen (2), cutting

edge (1), bowl (2), side vision (2)

Starting/charging receptacle

SCRAPER:

Alarm, backup
Alternator, 65 Amp
Batteries (4), 12 Volt, 1,000 CCA,

maintenance free, high Output
Lighting system:

Brake lights, LED

Turn signals with hazard function, LED
Starting/charging receptacle

OPERATOR ENVIRONMENT

TRACTOR:

HVAC system, heat, AC, defrost
Thermostat control of HVAC system
Coat hook
Lunchbox platform with holding strap
Diagnostic connection (2)
12V power ports (2)
Differential lock (1)
Dome courtesy light
Horn, electric
T-Handle implement control
Mirror, rearview
Radio ready, 12V
ROPS/FOPS cab, pressurized
Keypad switches
Safety tab rocker switches
Parking brake
Seat belt, static two-piece
Seat, air suspension, Comfort Series 3,

rotates 30 degrees
Steering wheel, tilt, telescoping, padded
Storage in dash if WAVS or Cat Grade

Control is not equipped
Windows, right side emergency egress
Windows, sliding
Windows, laminated, zipped in
Windshield wipers, front and rear

windows, includes washers
Door lock

Messenger Display – gauges,

warningsinclude:
Coolant temp
Engine oil temp
Hydraulic oil temp
DPF temp
Fuel level
Park brake
Implement lockout
Brake system
Regeneration required
Throttle lock
System voltage
Secondary steering
Bail down
Differential lock
Apron  oat
Transmission hold
Cushion hitch
High beam lights
Action lamp
Engine speed, rpm
Gear selection out
DPF  ll levels

FLUIDS

Extended Life Coolant to –37° C (–34° F)

OTHER STANDARD EQUIPMENT

TRACTOR:

Cushion hitch
Accumulators (cushion hitch) with

Canadian Registration Number (CRN)
Fast oil change
Fenders, non metallic
Heater, engine coolant 120V
Tow pin, front
Vandalism locks

SCRAPER:

Quick drop bowl valve
Fast oil change
Vandalism locks
Guard, Over ow
Heater, engine coolant 120V
Extended push block

18

627H Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

Push-pull arrangement Fast fuel  ll External steering lock
Sequence Assist HID Work lights Cab precleaner
Load Assist Low ambient uids –51° C (–61° F) Cab rotating beacon
Cat Grade Control Work Area Vision System (WAVS) – Air horn
Secondary Steering
Powered access ladder
Cat Active Ride Management (ARM) seat

threecameras showing right side, cuttingedge
and directly behind machine, display in cab

19

627H Wheel Tractor-Scraper

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2012 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

AEHQ6716 (03-2012)
