Specifications
®
Cat
6090 FS
Hydraulic Shovel
General Data
Operating weight
Face Shovel 980 tonnes 1,080 tons
Engine Output
SAE J 1995 3 360 kW 4,500 HP
Standard Bucket Capacity
Face Shovel (SAE 2:1) 52.0 m
Features
• TriPower shovel attachment
• Independent oil-cooling system
• Spacious walk-through machine house
• 5-circuit hydraulic system
• Electronic-hydraulic servo control
• New Board Control System (BCS)
• Torque control in closed-loop swing circuit
• Automatic central lubrication system
• Xenon working lights
Operating Weight
Shovel
Standard track pads 2 000 mm (6 ft 7 in)
Operating weight 980 000 kg (2,160,510 lb)
Ground pressure 25.8 N/cm2 (37.4 psi)
Additional track pads available on request
3
68.0 yd
3
Electrical System (diesel drive)
System voltage 24 V
Batteries 6 x 210 Ah - 12 V each
in series / parallel
installation 630 Ah - 24 V in total
Alternators 2 X 175 A each
Working spot lights 12 x high brightness Xenon lights
• Battery isolation relays
• Emergency stop switches accessible from ground level,
• in engine module and in operator’s cab
Hydraulic Oil Cooling
Oil ow of cooling pumps
Diesel Version 4 x 975 l/min (4 x 258 US gal/min)
Electric Version
Diameter of fans 4 x 1 524 mm (4 x 60 in)
• Cooling system is fully independent of all main circuits,
i.e. controlled cooling capacity is avaiable whenever engine
is running
• Gear-type cooling pumps supplying high-volume, low-
pressure oil to aluminum coolers
• Fan speed is thermostatically controlled
• Extremely high cooling efciency to ensure optimum
oil temperature
4 x 1 000 l/min (4 x 264 US gal/min)
Page 2

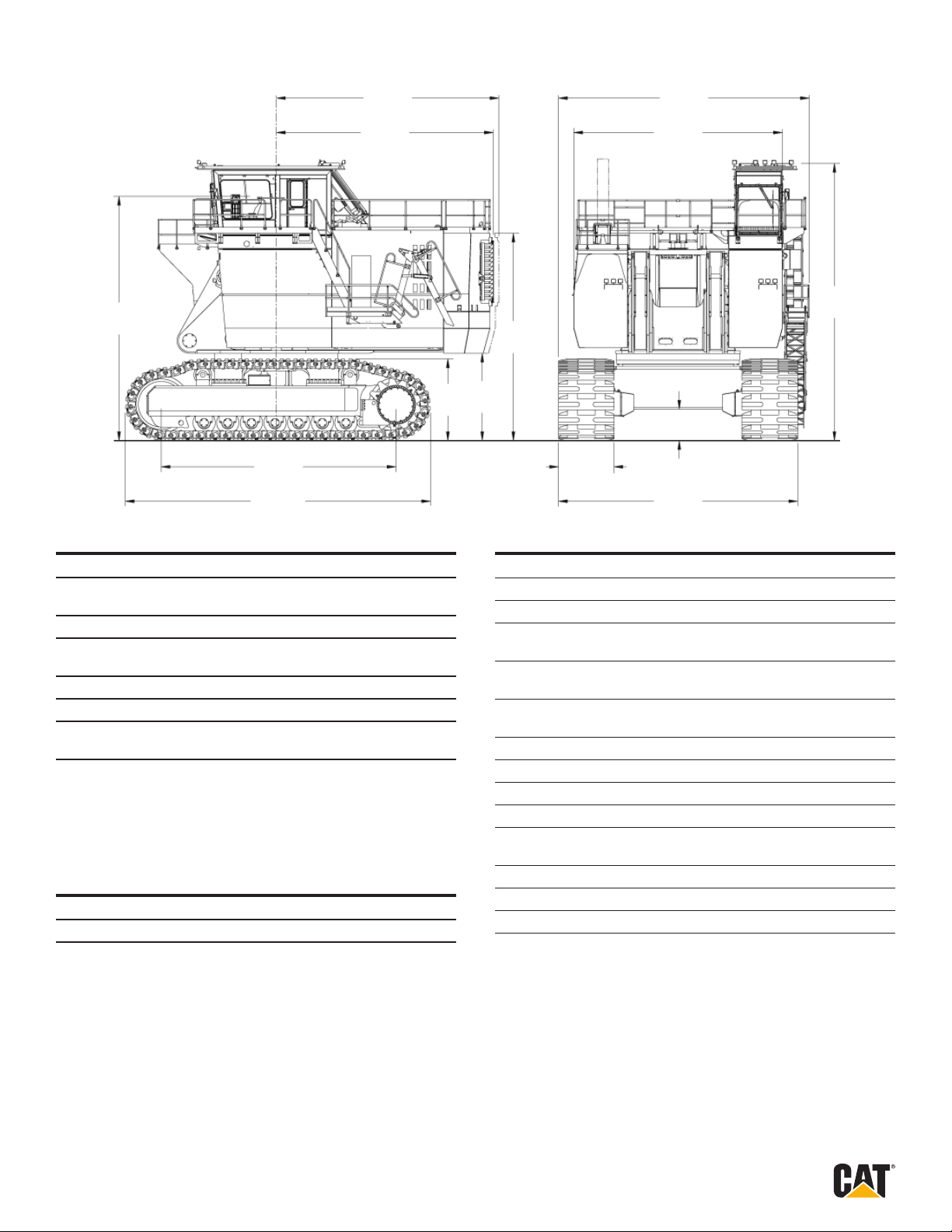

Hydraulic Shovel—6090 FS
8 800 mm
(28 ft 10 in)
8 445 mm
(27 ft 8 in)
10 980 mm
(36 ft)
8 050 mm
(26 ft 5 in)
7 800 mm
(25 ft 7 in)
2 945 mm
(9 ft 8 in)
3 150 mm
(10 ft 4 in)
7 470 mm
(24 ft 6 in)
2 000 mm
(6 ft 7 in)
9 070 mm
(29 ft 9 in)
7 600 mm
(24 ft 11 in)
1 135 mm
(3 ft 9 in)
8 600 mm
(28 ft 3 in)
9 990 mm
(32 ft 9 in)
Electric Motors (optional)
Type 2 x Squirrel cage induction
motors
Total Output 3 200 kW
Voltage 6.6 kV +/- 10%
(other on request)
Total Rated Current I
N
332 A
Frequency 50 Hz (60 Hz on request)
Revolutions 1,500 min
-1
(1,800 min-1 at 60 Hz)
Max. starting current 780 A
• Custom-made electric motors with increased gap between
rotor and stator to withstand severe mining conditions
• Power limit control by Pump Management System
Automatic Lubrication System
Capacity of grease container 1 000 l (264 US gal)
• Dual-circuit system with hydraulically driven heavy-duty
pump and electronic time relay control to adjust the pause /
lube times
• Connected to the lubrication system are the swing roller
bearing with internal gearing, and all pivot points of
attachment, bucket and cylinders
• System failures displayed by Board Control System
• Grease lters (200 μm) between service station and
container as well as directly behind grease pump
Diesel Engines
Cummins® QSK60 Tier 2
Make and model 2 x QSK60 2-stage
Total rated net power ISO 3046/1 3 360 kW (4,500 HP)
1,800 min
Total rated net power SAE J1349 3 360 kW (4,500 HP)
1,800 min
Total rated net power SAE J1995 3 360 kW (4,500 HP)
1,800 min
-1
-1
-1
No of cylinders (each engine) 16
Bore 159 mm (6.25 in)
Stroke 190 mm (7.48 in)
Displacement 60.2 l (3,674 in3)
Aspiration 2-stage turbocharged;
aftercooled and intercooled
Max. altitude without deration 4 880 m (16,000 ft) a.s.i.
Emission certication US EPA Tier 4i
Fuel tank capacity 15 100 l (4,000 US gal)
• Hydraulically driven radiator fan with electronically
controlled fan speed
• Microprocessed engine control
• Automatic rev. reduction
• Heavy-duty air lters with automatic dust evacuation
• Two-stage fuel lter incl. water separator
• Additional high-capacity water separator
• Pre-lube starting system
• Eliminator with centrifuge for engine oil ltration
• Engine-oil-change interval of 1,000 hrs
Page 3
Hydraulic Shovel—6090 FS
Hydraulic System with Pump Managing System
Main pumps 8 x variable ow axial piston pumps
Max. oil ow
Diesel version 8 x 936 l/min (8 x 247 US gal/min)
Electric version 8 x 943 l/min (8 x 249 US gal/min)
Max. pressure, attachment 31 MPa = 310 bar (4,495 psi)
Max. pressure, travel 36 MPa = 360 bar (5,220 psi)
Swing pumps 6 x reversible swash plate pumps
Max. oil ow
Diesel version 6 x 488 l/min (6 x 129 US gal/min)
Electric version 6 x 496 l/min (6 x 131 US gal/min)
Max. pressure,
swing circuit 33 MPa = 330 bar (4,790 psi)
Total volume of
hydraulic oil Approx. 13 000 l (3,450 US gal)
Hydraulic tank capacity Approx. 10 000 l (2,640 US gal)
• Pump Managing System contains:
- Electronic load limit control
- Flow on demand from main pumps depending on joystick
position
- Automatic regulation of main pumps to zero ow without
demand
- Automatic rpm reduction of engine speed during working
breaks
- Reduced oil ow of main pumps at high hydraulic oil
temperature or engine temperature
• Pressure cut-off for main pumps
• Cooling of pump transmission gear oil
• Filters:
- Full-ow high-pressure lters (100 μm) for the main pumps,
installed directly behind each pump
- High pressure lters (100 μm) for the closed swing circuit
- Full-ow lters (10 μm) for the complete return circuit
- Full-ow lters (10 μm) for the cooling return circuit
- Pressure lters (40 μm and 6 μm) for servo circuit
- Transmission oil lters (40 μm)
Undercarriage
Travel speed (2 stages) 1st stage Max. 1.6 km/h (0.99 mph)
2nd stage Max. 2.2 km/h (1.37 mph)
Max. tractive force 4 338 kN (442 t = 974,880 lb)
Gradability of travel drives Max. 44%
Track pads (each side) 48
Bottom rollers (each side) 7
Support rollers (each side) 2 plus a skid plate in between
Travel drives (each side) 1 planetary transmission with 2
two-stage axial piston motors
Parking brake Wet multiple disc brake, spring
applied / hydraulically released
• Cast double-grouser combined pad-links with bushings
connected by hardened full oating pins
• All running surfaces of sprockets, idlers, rollers and pad
links, as well as teeth contact areas of sprocket and pad links,
are hardened
• Fully hydraulic, self-adjusting track tensioning system
with membrane accumulator
• Automatic hydraulic retarder valve to prevent over-speed
on downhill travel
• Acoustic travel alarm
• Idlers, bottom rollers and support rollers are connected to the
automatic lubrication system
Page 4
Hydraulic Shovel—6090 FS
Retractable Service Station
Retractable service station installed underneath the engine
module and easily accessible from ground
Equipped with:
• Quick couplings for:
- Diesel fuel
- Engine coolant - left / right
- Pump transmission gear oil - left / right
- Engine oil (oil pan) - left / right
- Engine oil (additional tank - optional) - left / right
- Hydraulic oil tank
- Grease container
• Cat jump-start socket
• Indicator lights for fuel tanks left / right full and grease
container full
Attachments
• Boom and stick are torsion-resistant, welded box design of
high-tensile steel with massive steel castings at pivot areas
• Welding procedures allow for internal counter-welding
(double prep weld) wherever possible
• Boom and stick are stress-relieved after welding
• Inspection hole in boom and stick
• Catwalks with rails at boom
• Pressure-free lowering of boom and stick by means of a
oat valve
• Shovel attachment with unique TriPower kinematics ensuring
the following main features:
- Horizontal automatic constant-angle bucket guidance
- Vertical automatic constant-angle bucket guidance
- Automatic roll-back limiter to prevent material spillage
- Kinematic assistance to hydraulic forces
- Constant boom momentum throughout the entire lift arc
- Crowd force assistance
• All buckets are equipped with a universal wear package
suitable for all standard applications, which consists of:
- Special liner material covering main wear areas inside and
outside of bucket
- Lip shrouds between teeth
- Wing shrouds on side walls
- Heel shrouds at bottom edges
• Special wear packages for highly abrasive materials on request
Page 5
Hydraulic Shovel—6090 FS
Operator’s Cab
Operator’s eye level Approx. 8.8 m (28 ft 10 in)
Internal dimensions of cab Length: 2 200 mm (7 ft 3 in)
Width: 1 600 mm (5 ft 3 in)
Height: 2 150 mm (7 ft 1 in)
Internal dimensions of Length: 1 600 mm (5 ft 3 in)
amenity cab Width: 1 600 mm (5 ft 3 in)
Height: 2 150 mm (7 ft 1 in)
• Pneumatically cushioned and multi-adjustable comfort
seat with lumbar support, seat heating, safety belt, head
and armrests
• Safety switch in seat cushion to automatically neutralize the
hydraulic controls when operator leaves the seat
• Joystick controls integrated in independently adjustable
seat consoles
• Fold-away auxiliary seat with safety belt
• FOPS (rock guard; approved acc. to DIN ISO 3449)
integrated into cab structure
• All-round safety glass, armored windshield and sliding
side window
• Windshield with parallel intermittent wiper / washer
• Roller blind at windshield
• Robust instrument panel incl. large colored BCS screen with
transective technology
• Board Control System (BCS); electronic monitoring and data
logging system for vital signs and service data of engines,
hydraulic system and lubrication system
• Machine access via retractable boarding ladder,
hydraulically operated
Attachments
• Boom and stick are torsion-resistant, welded box design of
high-tensile steel with massive steel castings at pivot areas
• Welding procedures allow for internal counter-welding
(double prep weld) wherever possible
• Boom and stick are stress-relieved after welding
• Inspection hole in boom and stick
• Catwalks with rails at boom
• Pressure-free lowering of boom and stick by means of a
oat valve
• Shovel attachment with unique TriPower kinematics ensuring
the following main features:
- Horizontal automatic constant-angle bucket guidance
- Vertical automatic constant-angle bucket guidance
- Automatic roll-back limiter to prevent material spillage
- Kinematic assistance to hydraulic forces
- Constant boom momentum throughout the entire lift arc
- Crowd force assistance
• All buckets are equipped with a universal wear package
suitable for all standard applications, which consists of:
- Special liner material covering main wear areas inside and
outside of bucket
- Lip shrouds between teeth
- Wing shrouds on side walls
- Heel shrouds at bottom edges
• Special wear packages for highly abrasive materials on request
Retractable Service Station
Retractable service station installed underneath the engine
module and easily accessible from ground
Equipped with:
• Quick couplings for:
- Diesel fuel
- Engine coolant - left / right
- Pump transmission gear oil - left / right
- Engine oil (oil pan) - left / right
- Engine oil (additional tank - optional) - left / right
- Hydraulic oil tank
- Grease container
• Cat jump-start socket
• Indicator lights for fuel tanks left / right full and grease
container full
Page 6
Hydraulic Shovel—6090 FS
Swing System
Swing Drives 6 compact planetary transmissions
with axial piston motors
Parking Brakes Wet multiple disc brake, spring-
loaded / hydraulically released
Max. swing speed Diesel version 3.9 rpm
Electric version 4.1 rpm
Swing ring Triple race roller bearing with
sealed internal gearing
• Closed-loop swing circuit with torque control
• Hydraulic braking of the swing motion by
counteracting control
• All race ways of swing ring as well as grease bath
for internal gearing supplied by automatic central
lubrication system
Optional Equipment
General
• Export crating
• Finishing as per end user´s corporate colors
• Customizing of logos as per customer’s specification
Superstructure
• Hydraulic service crane on superstructure with auxiliary engine
• Mesabi radiators instead of standard radiators
• 2nd retractable boarding ladder on right-hand side of engine module
• Various cold-weather packages
• Additional lighting
Cab
• Various heating and air conditioning systems
• Outside-mounted sun shields
• Additional instrumentation
Undercarriage
• Track pad width 1 800 mm
Additional optional equipment available on request
Page 7
Hydraulic Shovel—6090 FS
TriPower Face Shovel Attachment (FS)

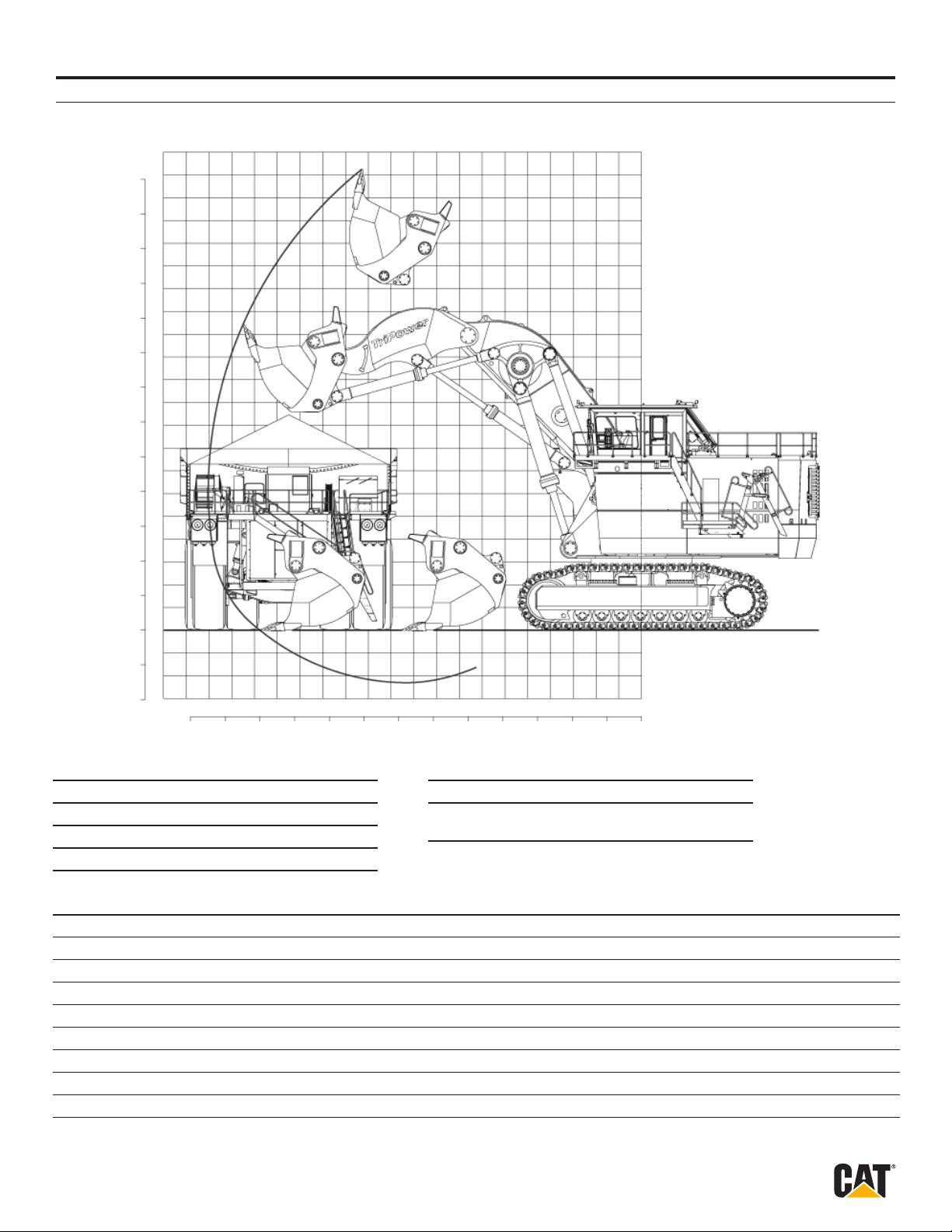

Working Diagram – Boom 9.5 m (31 ft 2 in) - Stick 5.8 m (19 ft)
ft
21
m
20
65
19
60
18
17
55
16
50
15
14
45
13
40
12
11
35
10
30
9
8
25
7
20
6
5
15
4
10
3
2
5
1
0
0
1
5
2
3
10
21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 m
65 60 55 50 45 40 35 30 25 20 15 10 5 0 ft
400 sht
Working Range
Max. digging height 20.2 m 66 ft 3 in
Max. digging reach 19.0 m 62 ft 4 in
Max. digging depth 2.3 m 7 ft 7 in
Max. dumping height 14.5 m 47 ft 7 in
Digging Forces
Max. crowd force 3 300 kN 741,610 lb
Max. crowd force at
ground level 3 200 kN 719,140 lb
Max. breakout force 2 400 kN 539,350 lb
Crowd distance on level 6.2 m 20 ft 4 in
Face Shovels
Type Iron ore shovel Heavy rock shovel Oil sand shovel Standard rock shovel
Tooth system on request on request on request on request
Capacity SAE / PCSA 1:1 43.5 m3 (56.9 yd3) 48.4 m3 (63.3 yd3) 52.0 m3 (68.0 yd3) 59.8 m3 (78.2 yd3)
Capacity SAE / CECE 2:1 37.0 m³ (48.4 yd³) 42.0 m³ (54.9 yd3) 45.0 m³ (58.9 yd3) 52.0 m³ (68.0 yd3)
Total width 5 600 mm (18 ft 4 in) 5 600 mm (18 ft 4 in) 5 610 mm (18 ft 5 in) 6 170 mm (20 ft 3 in)
Inner width 5 100 mm (16 ft 9 in) 5 100 mm (16 ft 9 in) 5 175 mm (17 ft) 5 600 mm (18 ft 4 in)
Opening width 2 700 mm (8 ft 10 in) 2 700 mm (8 ft 10 in) 2 560 mm (8 ft 5 in) 2 650 mm (8 ft 8 in)
No. of teeth 6 6 6 6
Weight incl. universal wear kit 77 000 kg (169,750 lb) 79 500 kg (175,270 lb) 82 000 mm (180,780 lb) 84 000 mm (185,190 lb)
Max. material density (loose) 2.6 t/m3 (4,380 lb/yd3) 2.2 t/m3 (3,710 lb/yd3) 2.0 t/m3 (3,370 lb/yd3) 1.8 t/m3 (3,030 lb/yd3)
Page 8
Hydraulic Shovel—6090 FS
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at mining.cat.com and www.cat.com
© 2012 Caterpillar Inc.
All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade
dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and
may not be used without permission.
AEHQ6528-01
Loading...
