Specifications
®
Cat
6060/6060 FS
Electric Drive
Hydraulic Shovel
Operating Weight
Shovel
Standard track pads 1 400 mm (4 ft 7 in)
Operating weight 542 300 kg (1,195,550 lb)
Ground Pressure 24.3 N/cm2 (35.1 psi)
Additional track pads available on request
Backhoe
Standard track pads 1 400 mm (4 ft 7 in)
Operating weight 545 500 kg (1,202,830 lb)
Ground Pressure 24.4 N/cm2 (35.4 psi)
Additional track pads available on request
Electric Motor
Type Squirrel cage induction motor
Output 1 800 kW
Voltage 6.6 kV +/- 10% (other on request)
Rated Current IN 185 A (at 6.6 kV)
Frequency 50 Hz (60 Hz optional)
Revolutions 1 500 min-1 (1,800 min-1 optional)
Starting current 450% of IN (350% of IN optional)
• Custom-made electric motor with increased gap between rotor and
stator to withstand severe mining conditions
• Motor protection relay
• Power limit control by Pump Management System
Medium Voltage Electrical System
Standard supply voltage 6.6 kV +/- 10% (other on request)
Voltage transformer 6 600 V / 400 V
Current transformer Ratio 200 : 5
• Load breaking switch for 6600 V (emergency stop)
• Voltage monitor for each phase
• Fuse for on-board transformer 6600 V
• Vacuum contactors for motor start stop
Low Voltage Electrical System
System voltage 4 V
Batteries 2 x 170 Ah - 12 V each
in series / parallel installation 170 Ah - 24 V in total
Working spot lights 8 x high brightness Xenon lights
• Emergency stop switch accessible from ground level and in
motor module
Page 2
Hydraulic Shovel—6060/6060 FS (Electric)

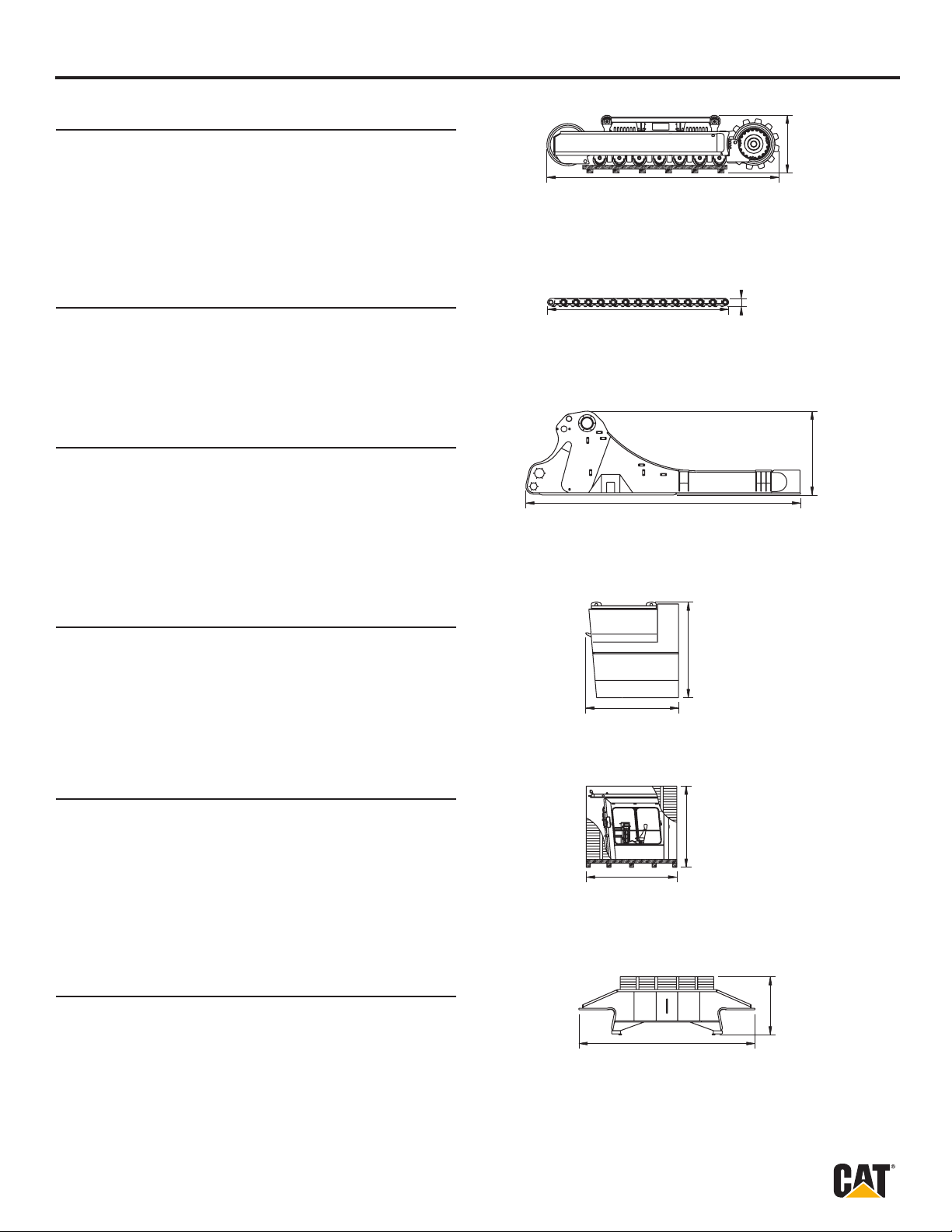

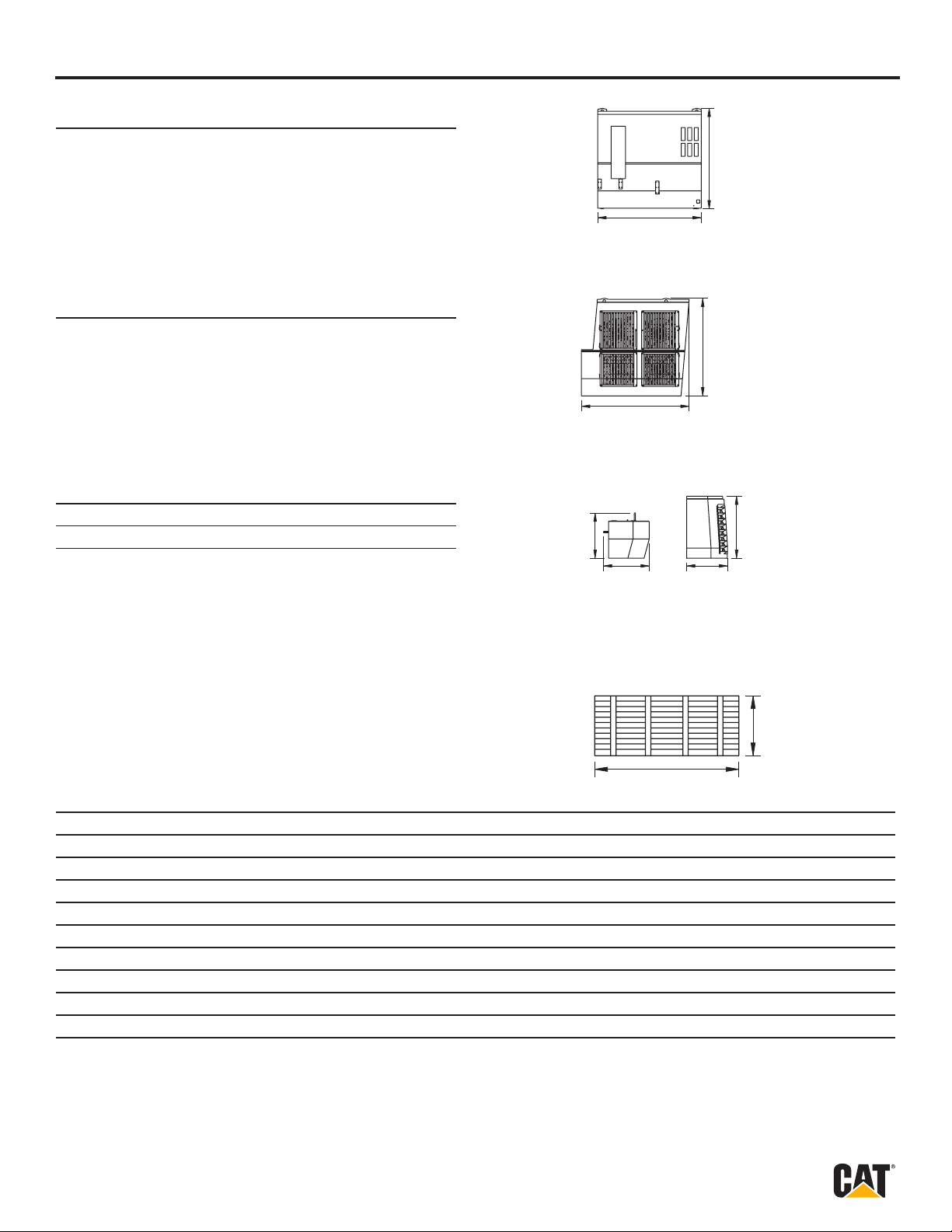

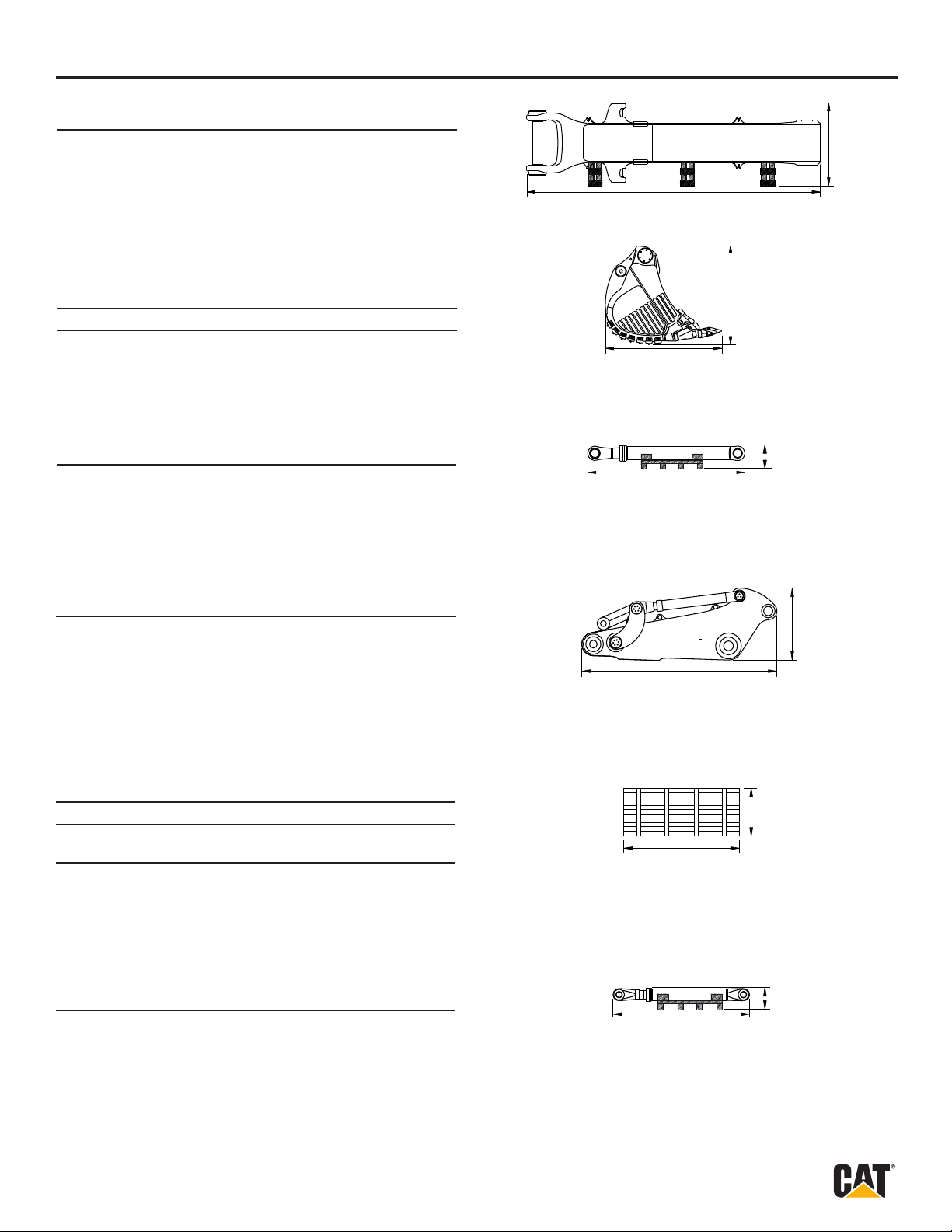

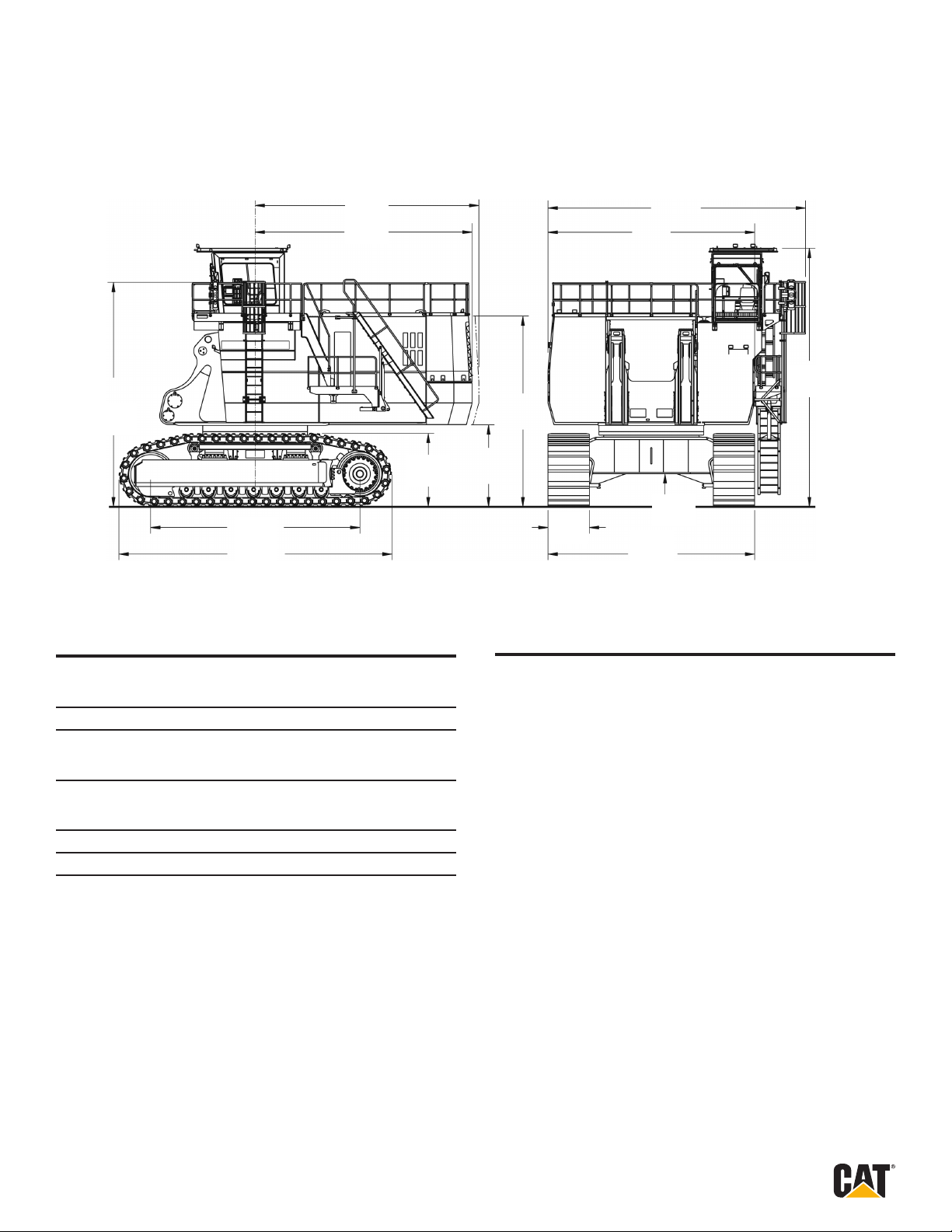

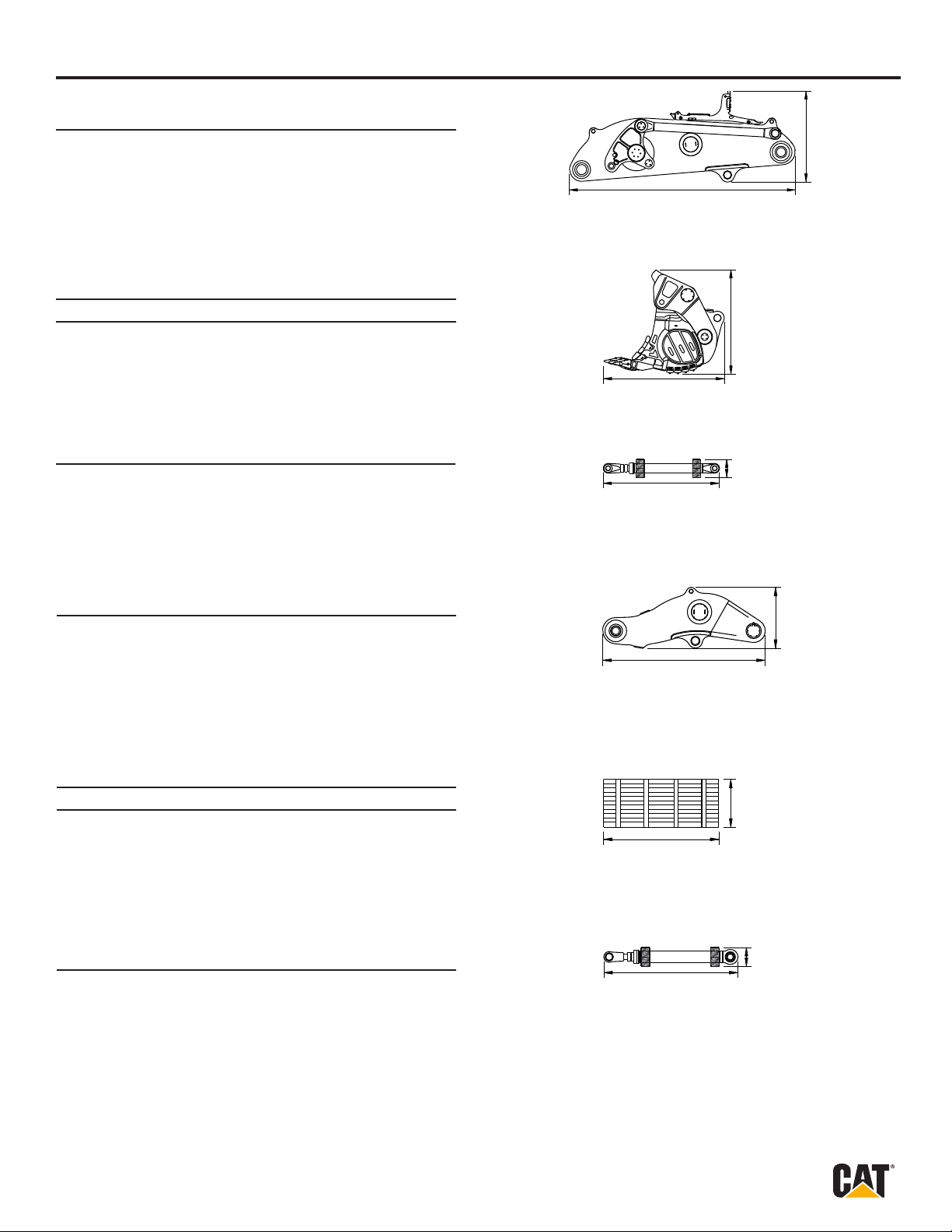

7 600 mm
(24 ft 11 in)
7 090 mm
(23 ft 3 in
9 230 mm
(30 ft 3 in)
7 580 mm
(24 ft 10 in)
7 350 mm
(24 ft 1 in)
2 500 mm
(8 ft 2 in)
2 790 mm
(9 ft 2 in)
6 490 mm
(21 ft 3 in)
1 400 mm
(4 ft 7 in)
7 000 mm
(23 ft)
7 000 mm
(23 ft )
8 730 mm
(26 ft 7 in)
1 120 mm
(3 ft 8 in)
8 770 mm
(28 ft 9 in)
General Data
Operating weight
Face Shovel 542 tonnes 597 tons
Backhoe 546 tonnes 602 tons
Electric Motor Output
Squirrel cage induction motor 1 800 kW
Standard bucket capacity
Face Shovel (SAE 2:1) 34.0 m3 44.5 yd
Backhoe (SAE 1:1) 34.0 m3 44.5 yd
Features
• TriPower shovel attachment
• Independent oil cooling system
• Spacious walk-through machine house
• 5-circuit hydraulic system
• Electronic-hydraulic servo control
• Board Control System (BCS)
• Torque control in closed-loop swing circuit
3
3
• Automatic central lubrication system
• Xenon working lights
Page 3
Hydraulic Shovel—6060/6060 FS (Electric)
Hydraulic System with Pump Managing System
Main pumps 4 x variable ow axial piston pumps
Max. oil ow 4 x 933 l/min (4 x 246 US galmin)
Max. pressure,
attachment 32 MPa = 320 bar (4,640 psi)
Max. pressure, travel 37 MPa = 370 bar (5,370 psi)
Swing pumps 3 x reversible swash plate pumps
Max. oil ow 3 x 491 l/min (3 x 131 US gal/min)
Max. pressure,
swing system 35 MPa = 350 bar (5,080 psi)
Total volume of
hydraulic oil approx. 7 300 l (1,930 US gal)
Hydraulic tank capacity approx. 5,100 l (1,320 US gal)
• Pump Managing Systems contain:
• Electronic load limit control
- Flow on demand from main pumps depending on joystick position
- Automatic regulation of main pumps to zero flow without demand
- Reduced oil flow of main pumps at high hydraulic oil temperature
• Pressure cut-off for main pumps
• Cooling of pump transmission gear oil
• Filters:
- Full-flow high-pressure filters (100 μm) for the main pumps, installed
directly behind each pump
- High pressure filters (200 μm) for the closed swing circuit
- Full-flow filters (10 μm) for the complete return circuit
- Pressure filters (40 μm and 6 μm) for servo circuit
- Pressure filters (40 μm) for the feed pumps of the closed
swing circuit
- Transmission oil filters (40 μm)
Hydraulic Oil Cooling
Oil ow of cooling pumps 4 x 491 l/min (4 x 130 US gal/min)
Diameter of fans 4 x 1 170 mm (4 x 46 in)
• Cooling system is fully independent of all main circuits, i.e. controlled
cooling capacity is available whenever engine is running
• Gear-type cooling pumps supplying high-volume, low-pressure oil to
fans and aluminium coolers
• Fan speed and flow of oil to the coolers are thermostatically
controlled
• Extremely high cooling efficiency to ensure optimum oil temperature
Undercarriage
Travel speeds 1st stage Max. 1.4 km/h (0.87 mph)
(2 stage) 2nd stage Max. 2.0 km/h (1.24 mph)
Max. tractive force 2 956 kN (301 t = 664,300 lb)
Gradability of travel drives Max. 48 %
Track pads (each side) 42
Bottom rollers (each side) 7
Support rollers (each side) 2 plus a skid plate in between
Travel drives (each side) 1 planetary transmission with 2
two-stage axial piston motors
Parking brakes Wet multiple-disc brake, spring-applied,
hydraulically released
• Cast double-grouser combined pad links with bushings connected by
hardened full floating pins
• All running surfaces of sprockets, idlers, rollers and pad links, as well
as teeth contact areas of sprocket and pad links, are hardened
• Fully hydraulic, self-adjusting track tensioning system with membrane
accumulator
• Automatic hydraulic retarder valve to prevent over-speed on downhill
travel
• Acoustic travel alarm
Operator’s Cab
Operator’s eye level approx. 7.6 m (24 ft 11 in)
Internal dimensions cab Length 2 200 mm (7 ft 3 in)
Width 1 600 mm (5 ft 3 in)
Height 2 150 mm (7 ft 1 in)
• Pneumatically cushioned and multi-adjustable comfort seat with
lumbar support, safety belt, head- and armrests
• Switch in seat cushion to automatically neutralize the hydraulic
controls when operator leaves the seat
• Joystick controls integrated in independently adjustable
seat consoles
• Fold-away auxiliary seat with safety belt
• FOPS (rock guard; approved acc. to DIN ISO 3449) integrated into cab
structure
• All-round safety glass, armored windshield and sliding side window
• Windshield with parallel intermittent wiper/washer
• Roller blind at windshield
• Robust instrument panel incl. large colored BCS screen with
transflective technology
• Board Control System (BCS) electronic monitoring and data logging
system for vital signs and service data of motor, hydraulic system and
lubrication system
• Machine access via retractable boarding ladder, hydraulically
operated
• Sliding emergency ladder (kick-down type) with ladder cage
Page 4
Hydraulic Shovel—6060/6060 FS (Electric)
Swing System
Swing Drives 4 compact planetary transmissions
with axial piston motors
Parking Brakes Wet multiple disc brake,
spring-loaded / hydraulically released
Max. swing speed 4.0 rpm
Swing ring Triple-race roller bearing
with sealed internal gearing
• Closed-loop swing circuit with torque control
• Hydraulic braking of the swing motion by counteracting control
• All raceways of swing ring as well as grease bath for internal gearing
supplied by automatic central lubrication system
Automatic Lubrication System
Capacity of grease container 1 000 l (264 US gal)
• Dual-circuit system with hydraulically driven heavy-duty pump and
electronic time relay control to adjust the pause/lube times
• Connected to the lubrication system are the swing roller bearing
with internal gearing and all pivot points of attachment, bucket
and cylinders
• System failures displayed by Board Control System
• Grease filters (200 μm) between service station and container as well
as directly behind grease pump
Attachments
• Booms and sticks are torsion-resistant, welded box design of
high-tensile steel with massive steel castings at pivot areas
• Welding procedures allow for internal counter-welding (double prep
weld) wherever possible
• Booms and sticks are stress-relieved after welding
• Catwalks with rails at booms
• Inspection holes in booms (FS & BH) and stick (FS only)
• Pressure-free lowering of boom (FS and BH) and stick (FS) by means
of a float valve
• Shovel attachment with patented TriPower kinematics ensuring the
following main features:
- Horizontal automatic constant-angle bucket guidance
- Vertical automatic constant-angle bucket guidance
- Automatic roll-back limiter to prevent material spillage
- Kinematic assistance to hydraulic forces
- Constant boom momentum throughout the whole lift arc
- Crowd force assistance
• All buckets (FS and BH) are equipped with a universal wear
package suitable for all standard applications, which consists of:
- Special liner material covering main wear areas inside and
outside of bucket
- Lip shrouds between teeth
- Wing shrouds on side walls
- Heel shrouds at bottom edges
• Special wear packages for highly abrasive materials on request
Retractable Service Station
Retractable service station installed underneath the engine
module and easily accessible from ground.
Equipped with:
• Quick couplings for:
- Pump transmission gear oil - left / right
- Hydraulic oil tank
- Grease container
• Indicator light for grease container full
Page 5
Hydraulic Shovel—6060/6060 FS (Electric)
TriPower Face Shovel Attachment (FS)

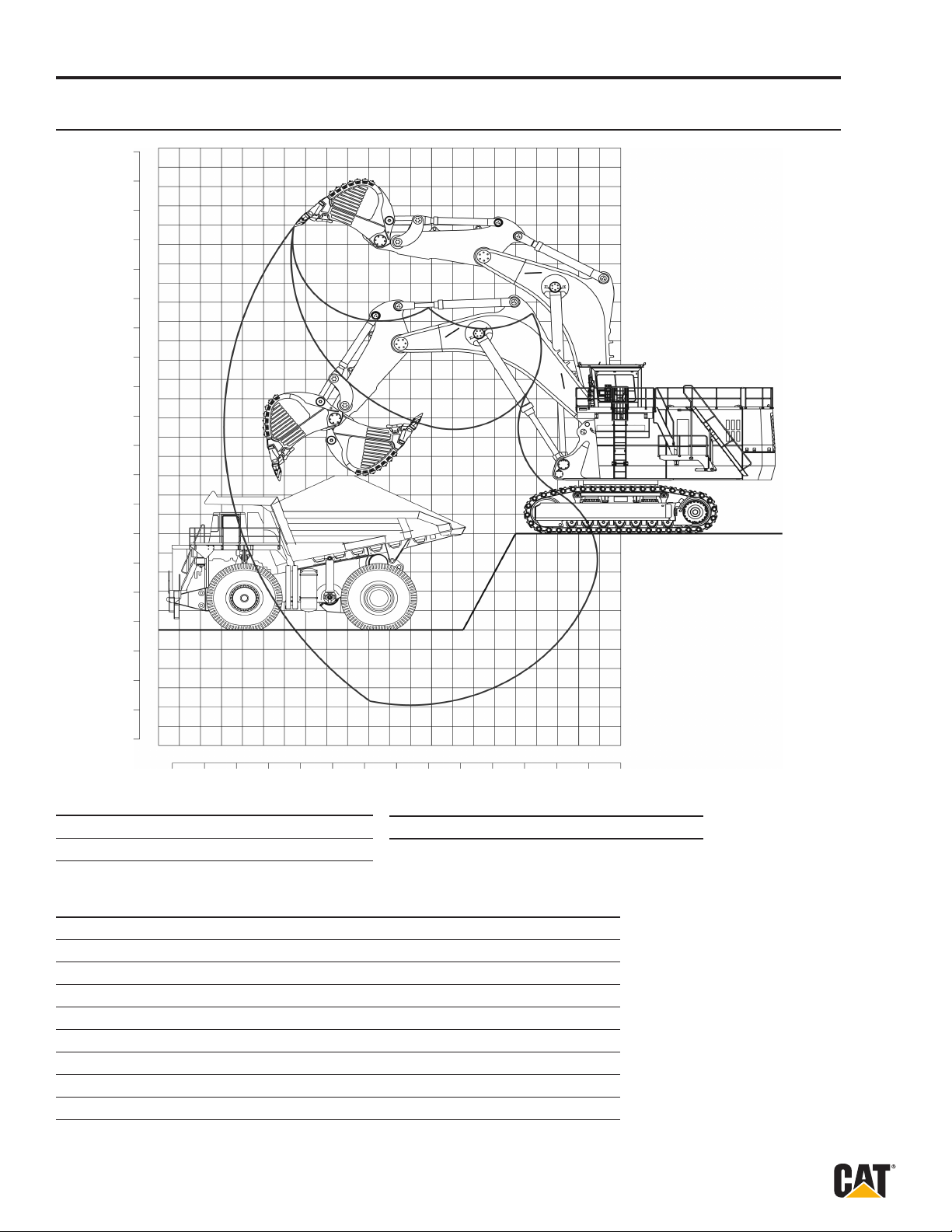

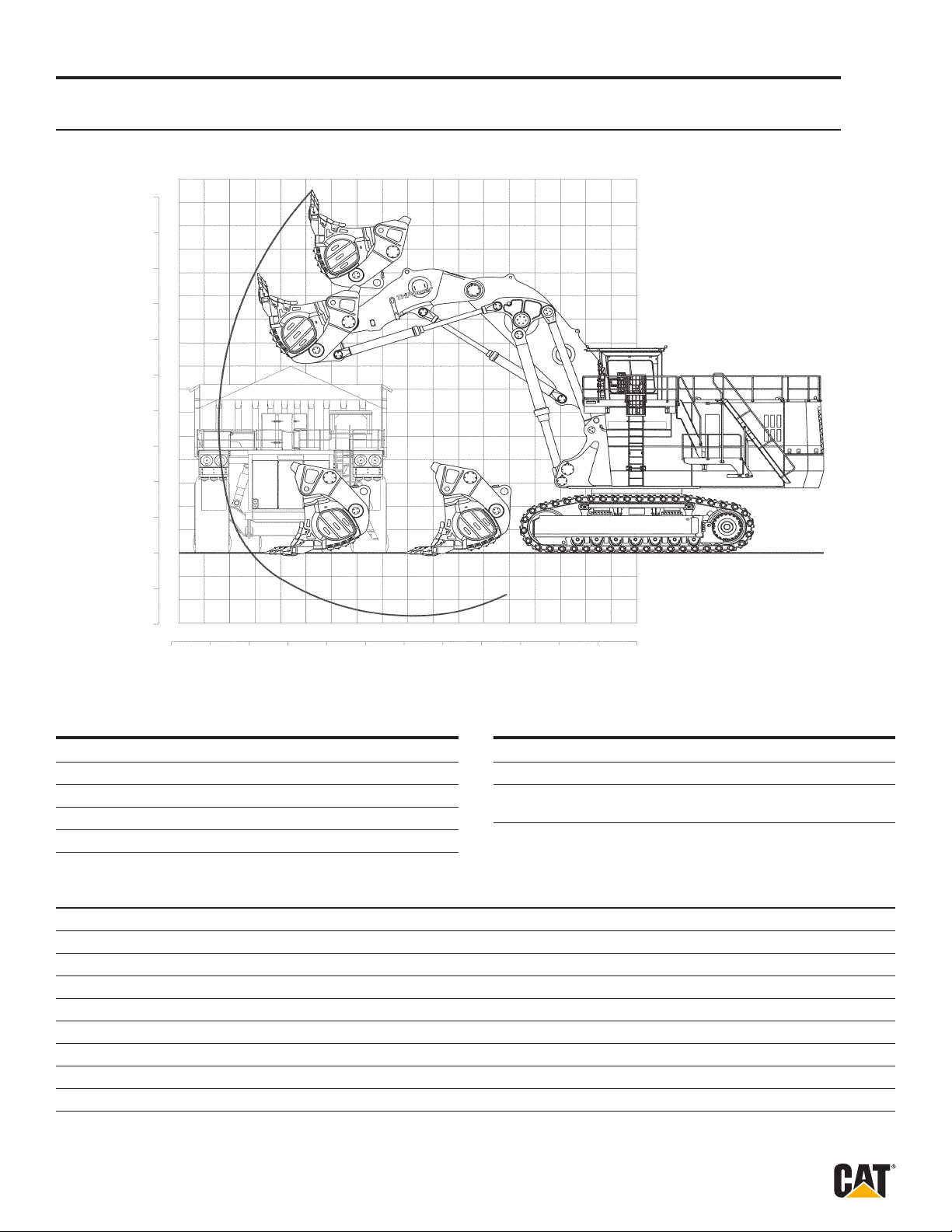

Working Diagram - Boom 8.0 m (26 ft 2 in) - Stick 5.1 m (16 ft 9 in)
m
16
ft
50
15
14
45
13
40
12
11
35
10
30
9
8
25
7
20
6
5
15
4
10
3
2
5
1
0
0
1
5
2
3
10
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 m
60 55 50 45 40 35 30 25 20 15 10 5 0 ft
240 sht
Working Range
Max. digging height 15.5 m 50 ft 10 in
Max. digging reach 16.4 m 53 ft 10 in
Max. digging depth 2.7 m 8 ft 10 in
Max. dumping height 11.6 m 38 ft 1 in
Digging Forces
Max. crowd force 2 240 kN 503,400 lb
Max. crowd force at
ground level 2 100 kN 471,930 lb
Max. breakout force 1 640 kN 368,560 lb
Crowd distance on level 5.5 m 18 ft 1 in
Face Shovels
Type Iron ore shovel Iron ore shovel Heavy rock shovel Heavy rock shovel Standard rock shovel
Tooth system ESCO S130 ESCO S130 ESCO S130 ESCO S130 ESCO S130
Capacity SAE / PCSA 1:1 24.5 m3 (32.0 yd3) 26.5 m3 (34.7 yd3) 32.5 m3 (42.5 yd3) 36.0 m3 (47.1 yd3) 39.5 m3 (51.7 yd3)
Capacity SAE / CECE 2:1 21.0 m3 (27.5 yd3) 23.0 m3 (30.1 yd3) 28.0 m3 (36.6 yd3) 31.0 m3 (40.5 yd3) 34.0 m3 (44.5 yd3)
Total width 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in) 5 600 mm (18 ft 4 in) 5 600 mm (18 ft 4 in)
Inner width 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in) 5 100 mm (16 ft 9 in) 5 100 mm (16 ft 9 in)
Opening width 2 600 mm (8 ft 6 in) 2 600 mm (8 ft 6 in) 2 600 mm (8 ft 6 in) 2 600 mm (8 ft 6 in) 2 600 mm (8 ft 6 in)
No. of teeth 6 6 6 6 6
Weight incl. wear kit 44 900 kg (98,990 lb) 44 300 kg (97,660 lb) 46 200 kg (100,530 lb) 50 100 kg (110,450 lb) 50 300 kg (110,450 lb)
Max. material density (loose) 3.0 t/m3 (5,060 lb/yd3) 2.6 t/m3 (4,380 lb/yd3) 2.2 t/m3 (3,710 lb/yd3) 2.0 t/m3 (3,370 lb/yd3) 1.8 t/m3 (3,030 lb/yd3)
Page 6
Hydraulic Shovel—6060/6060 FS (Electric)
Backhoe Attachment (BH)
Working Diagram - Boom 10.5 m (34 ft 5 in) - Stick 5.0 m (16 ft 5 in)
m
ft
20
65
19
60
18
17
66
16
50
15
14
45
13
40
12
11
35
10
30
9
8
25
7
20
6
5
15
4
10
3
2
5
1
0
0
1
5
2
3
10
4
15
5
6
20
7
25
8
9
30
10
35
11
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 m
70 65 60 55 50 45 40 35 30 25 20 15 10 5 0 ft
240 SHT
Working Range
Max. digging depth 8.9 m 29 ft 2 in
Max. digging reach 18.9 m 62 ft
Digging Forces
Max. crowd force 1 270 kN 285,410 lb
Max. breakout force 1 240 kN 278,670 lb
Max. digging height 15.9 m 52 ft 2 in
Backhoes
Type Heavy rock bucket Standard rock bucket
Tooth system ESCO Posilok S 110 ESCO Posilok S 110
Capacity SAE 1:1 28.0 m³ (36.6 yd³) 34.0 m³ (44.5 yd³)
Capacity CECE 2:1 24.6 m³ (32.3 yd³) 30.3 m³ (39.6 yd³)
Capacity struck 21.2 m³ (27.7 yd³) 26.5 m³ (34.7 yd³)
Total width 4 440 mm (14 ft 7 in) 4 700 mm (15 ft 5 in)
Inner width 4 040 mm (13 ft 3 in) 4 300 mm (14 ft 1 in)
No. of teeth 6 6
Weight incl. universal wear kit 31 600 kg (69,670 lb) 34 400 kg (75,180 lb)
Max. material density (loose) 2.2 t/m³ (3,710 lb/yd³) 1.8 t/m³ (3,030 lb/yd³)
Page 7
Hydraulic Shovel—6060/6060 FS (Electric)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
2 100 mm
(6 ft 11 in)
9 000 mm (29 ft 6 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
2 100 mm
(6 ft 11 in)
9 000 mm (29 ft 6 in)
330 mm (1 ft 1 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
6 900 mm (22 ft 8 in)
3 550 mm (11 ft 8 in)
3 800 mm (12 ft 6 in)
2 100 mm
(6 ft 11 in)
9 000 mm (29 ft 6 in)
330 mm (1 ft 1 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
6 900 mm (22 ft 8 in)
3 750 mm (12 ft 4 in)
3 450 mm (11 ft 4 in)
10 200 mm (33 ft 6 in)
4 000 mm (13 ft 1 in)
3 550 mm (11 ft 8 in)
3 800 mm (12 ft 6 in)
2 100 mm
(6 ft 11 in)
9 000 mm (29 ft 6 in)
330 mm (1 ft 1 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
6 900 mm (22 ft 8 in)
1 750 mm (5 ft 9 in)
2 360 mm (7 ft 9 in)
3 720 mm (12 ft 2 in)
3 700 mm (12 ft 2 in)
3 750 mm (12 ft 4 in)
3 450 mm (11 ft 4 in)
10 200 mm (33 ft 6 in)
4 000 mm (13 ft 1 in)
3 550 mm (11 ft 8 in)
3 800 mm (12 ft 6 in)
General Packing List
Crawler side frame (2 units)
Width 2 100 mm (6 ft 11 in) Gross weight 47 900 kg
(105,600 lb)
9 000 mm (29 ft 6 in)
2 100 mm
(6 ft 11 in)
6 tracks consisting of 14 pad links each:
Width 1 400 mm (4 ft 7 in) Gross weight (each) 11 500 kg
(25,350 lb)
Superstructure center frame
Width 3 600 mm (11 ft 10 in) Gross weight 63 400 kg
(136,690 lb)
Cab pedestal module
Width 2 700 mm (8 ft 10 in) Gross weight 7 500 kg
(16,530 lb)
Crate with cabin and FOPS
Width 2 610 mm (8 ft 7 in) Gross weight 3 500 kg
(7,720 lb)
6 900 mm (22 ft 8 in)
3 720 mm (12 ft 2 in)
330 mm (1 ft 1 in)
3 450 mm (11 ft 4 in)
10 200 mm (33 ft 6 in)
3 700 mm (12 ft 2 in)
3 500 mm (11 ft 6 in)
Undercarriage center frame with swing roller bearing
Width 3 800 mm (12 ft 6 in) Gross weight 43 100 kg
(95,020 lb)
6 750 mm (22 ft 2 in)
Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to
selected machine configuration and final packing list.
3 070 mm (10 ft 1 in)
2 250 mm (7 ft 5 in)
Page 8
Hydraulic Shovel—6060/6060 FS (Electric)
1 600 mm (5 ft 3 in)
2 900 mm (10 ft 2 in)
1 650 mm (5 ft 5 in)
2 600 mm (8 ft 6 in)
Length
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
3 550 mm (11 ft 8 in)
3 800 mm (12 ft 6 in)
6 750 mm (22 ft 2 in)
2 250 mm (7 ft 5 in)
3 750 mm (12 ft 4 in)
4 000 mm (13 ft 1 in)
3 550 mm (11 ft 8 in)
3 800 mm (12 ft 6 in)
General Packing List
Motor module with electric motor
Width 7 000 mm (23 ft) Gross weight 37 700 kg (83,110 lb)
Oil cooler module
Width 2 000 mm (6 ft 7 in) Gross weight 10 100 kg
(22,270 lb)
Counterweight
Width Gross weight
Lower part 7 000 mm (23 ft) 36 500 kg (80,470 lb)
Upper Part 7 000 mm (23 ft) 29 300 kg (64,590 lb)
3 800 mm (12 ft 6 in)
4 000 mm (13 ft 1 in)
1 750 mm (5 ft 9 in)
1 580 mm (5 ft 2 in)
3 550 mm (11 ft 8 in)
3 750 mm (12 ft 4 in)
2 360 mm (7 ft 9 in)
1 580 mm (5 ft 2 in)
Height
Crates
Content Length Width Height Gross Weight
Cable guide 3 270 mm (10 ft 9 in) 3 000 mm (9 ft 10 in) 900 mm (2 ft 11 in) 1 260 kg (2,780 lb)
Four swing gears 1 350 mm (4 ft 5 in) 1 350 mm (4 ft 5 in) 1 900 mm (6 ft 3 in) 5 340 kg (11,770 lb)
Swing ring cover 2 200 mm (7 ft 3 in) 1 300 mm (4 ft 3 in) 1 030 mm (3 ft 5 in) 390 kg (860 lb)
Bolts, tools, accessories, etc. 3 300 mm (10 ft 10 in) 1 600 mm (5 ft 3 in) 1 260 mm (4 ft 2 in) 3 500 kg (7,720 lb)
Catwalks and other parts 4 960 mm (16 ft 3 in) 1 900 mm (6 ft 3 in) 1 770 mm (5 ft 10 in) 3 400 kg (7,500 lb)
Grease container with pump 1 700 mm (5 ft 7 in) 1 300 mm (4 ft 3 in) 2 100 mm (6 ft 11 in) 1 050 kg (2,310 lb)
Retactable ladder (on pallet) 5 600 mm (18 ft 4 in) 1 000 mm (3 ft 3 in) 2 000 mm (6 ft 7 in) 740 kg (1,630 lb)
Emergency ladder (on pallet) 5 100 mm (16 ft 9 in) 1 000 mm (3 ft 3 in) 2 030 mm (6 ft 8 in) 500 kg (1,100 lb)
Barrels (hydraulic oil) 2 500 mm (8 ft 2 in) 1 300 mm (4 ft 3 in) 1 270 mm (4 ft 2 in) 1 900 kg (4,190 lb)
Barrels (oil; grease) 2 000 mm (6 ft 7 in) 1 350 mm (4 ft 5 in) 1 370 mm (4 ft 6 in) 1 100 kg (2,430 lb)
Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to
selected machine configuration and final packing list.
Page 9
Hydraulic Shovel—6060/6060 FS (Electric)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
Length
Height
9 000 mm (29 ft 6 in)
3 650 mm (13 ft)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
Length
Height
9 000 mm (29 ft 6 in)
3 650 mm (13 ft)
4 070 mm (13 ft 4 in)
4 700 mm (15 ft 5 in)
4 550 mm (14 ft 11 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
Length
Height
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
TriPower Shovel Attachment
Boom with main valve block, TriPower linkages and rods
Width 3 050 mm (10 ft) Gross weight 44 600 kg (88,180 lb)
Face shovel incl. pin for stick
Capacity (2:1) Width Gross Weight
34.0 m3 (44.5 yd3) 5 700 mm (18 ft 8 in) 51 600 kg (113,760 lb)
3 650 mm (13 ft)
9 000 mm (29 ft 6 in)
4 070 mm (13 ft 4 in)
4 700 mm (15 ft 5 in)
2 Bundles with 1 boom cylinder each
Width 500 mm (1 ft 8 in) Gross weight 4 140 kg (9,130 lb)
Stick
Width 2 300 mm (7 ft 7 in) Gross weight 16 300 kg (35,930 lb)
Crates with catwalks, railings and other parts
Length Width Height Gross weight
4 270 mm 1 900 mm 1 700 mm 3 260 kg
(14 ft) (6 ft 3 in) (5 ft 7 in) (7,190 lb)
5 100 mm (16 ft 9 in)
6 100 mm (20 ft)
Length
800 mm (2 ft 7 in)
Height
(7 ft 9 in)
2 350 mm
2 Bundles with 2 stick & 2 bucket cylinders each
Width 1 200 mm (3 ft 11 in) Gross weight 5 200 kg (11,460 lb)
Above values are approximate. Details may vary depending on scope of supply and destination.
Exact data subject to selected machine configuration and final packing list.
4 550 mm (14 ft 11 in)
Page 10
Hydraulic Shovel—6060/6060 FS (Electric)
Length
Height
9 000 mm (29 ft 6 in)
3 650 mm (13 ft)
4 070 mm (13 ft 4 in)
4 700 mm (15 ft 5 in)
5 100 mm (16 ft 9 in)
800 mm (2 ft 7 in)
4 550 mm (14 ft 11 in)
7 250 mm (23 ft 9 in)
2 850 mm (9 ft 4 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Length
Height
Length
Height
9 000 mm (29 ft 6 in)
3 650 mm (13 ft)
4 070 mm (13 ft 4 in)
4 700 mm (15 ft 5 in)
5 100 mm (16 ft 9 in)
800 mm (2 ft 7 in)
4 550 mm (14 ft 11 in)
11 500 mm (37 ft 9 in)
3 200 (10 ft 6 in)
7 250 mm (23 ft 9 in)
2 850 mm (9 ft 4 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Length
Height
Length
Height
9 000 mm (29 ft 6 in)
3 650 mm (13 ft)
4 070 mm (13 ft 4 in)
4 700 mm (15 ft 5 in)
5 100 mm (16 ft 9 in)
800 mm (2 ft 7 in)
4 550 mm (14 ft 11 in)
11 500 mm (37 ft 9 in)
3 200 (10 ft 6 in)
3 850 mm (12 ft 8 in)
4 750 mm (15 ft 7 in)
7 250 mm (23 ft 9 in)
2 850 mm (9 ft 4 in)
5 200 mm (17 ft 1 in)
930 mm (3 ft 1 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Length
Height
4 550 mm (14 ft 11 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Length
Height
Length
Height
4 550 mm (14 ft 11 in)
7 250 mm (23 ft 9 in)
2 850 mm (9 ft 4 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Length
Height
4 550 mm (14 ft 11 in)
7 250 mm (23 ft 9 in)
2 850 mm (9 ft 4 in)
2 350 mm
(7 ft 9 in)
6 100 mm (20 ft)
800 mm (2 ft 7 in)
Backhoe Attachment
Monoboom without main valve block
Width 5 000 mm (16 ft 5 in) Gross weight 42 800 kg (94,360 lb)
Backhoe bucket incl. pins for stick and linkage
Capacity (1:1) Width Gross Weight
34 m3 (44.5 yd3) 4 750 mm (15 ft 7 in) 36 000 kg (79,370 lb)
3 200 (10 ft 6 in)
11 500 mm (37 ft 9 in)
3 850 mm (12 ft 8 in)
4 750 mm (15 ft 7 in)
2 Pallets with 1 boom cylinder each
Width 800 mm (2 ft 7 in) Gross weight 6 700 kg (14,770 lb)
Stick with linkage and bucket cylinders
Width 2 350 mm (7 ft 9 in) Gross weight 28 800 kg (63,490 lb)
Crates with main valve blocks, catwalks, railings and
other parts
Length Width Height Gross weight
4 900 mm 2 400 mm 2 130 mm 5 900 kg
(16 ft 1 in) (7 ft 10 in) (7 ft) (13,010 lb)
4 270 mm 1 900 mm 1 700 mm 3 100 kg
(14 ft) (6 ft 3 in) (5 ft 7 in) (6,830 lb)
850 mm (2 ft 9 in)
6 250 mm (20 ft 6 in)
2 850 mm (9 ft 4 in)
7 250 mm (23 ft 9 in)
Height
Length
2 Pallets with 1 stick cylinder each
Width 800 mm (2 ft 7 in) Gross weight 4 200 kg (9,260 lb)
Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to
selected machine configuration and final packing list.
5 200 mm (17 ft 1 in)
930 mm (3 ft 1 in)
Page 11
Hydraulic Shovel—6060/6060 FS (Electric)
Optional Equipment
General
• Export crating
• Finishing as per end user´s corporate colors
• Customizing of logos as per customer’s specification
Superstructure
• Hydraulic service crane on superstructure with auxilliary engine
• Folding access stairway, stairway angle approx. 45°
• Round container with a standard 200 l grease barrel (instead of 1,000 l
grease container)
• Lubricated pinion for greasing of internal gearing of swing ring
• Various cold-weather packages
• 300 m trailing cable
• Power factor correction
• Starting aid transformer (soft-start)
Cab
• Various heating and air-conditioning systems
• Roller blinds at all windows
• Rear windscreeen wiper
• Additional instrumentation
Undercarriage
• Track pad width 1 600 mm (5 ft 3 in) or 1 800 mm (5 ft 11 in)
• Automatic lubrication of rollers by central lube system
• Cover plate under carbody (belly plate)
Attachment
• Guards for shovel cylinders of FS-attachment
• Xenon lighting on boom
• Special wear packages
Additional optional equipment available on request
Page 12
Hydraulic Shovel—6060/6060 FS (Electric)
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at mining.cat.com and www.cat.com
© 2012 Caterpillar Inc.
All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade
dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and
may not be used without permission.
AEHQ6527-01
Loading...
