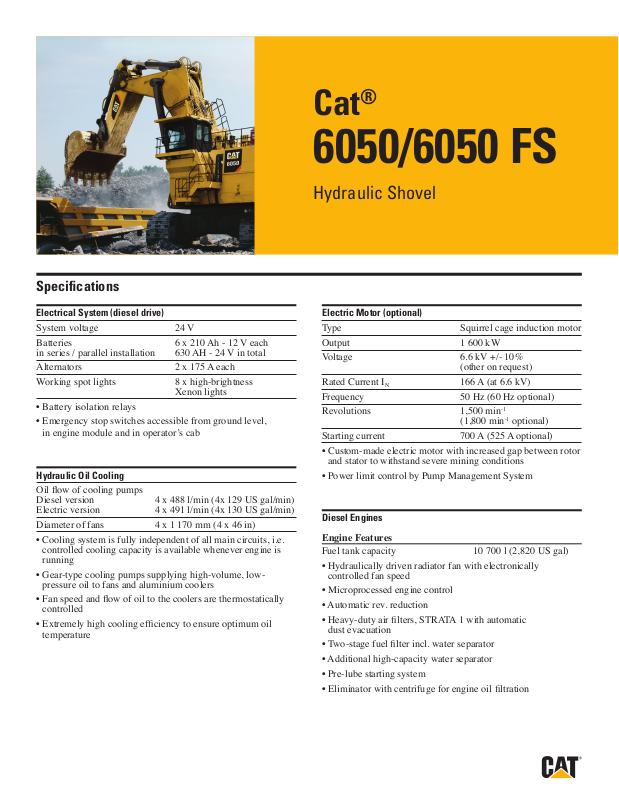

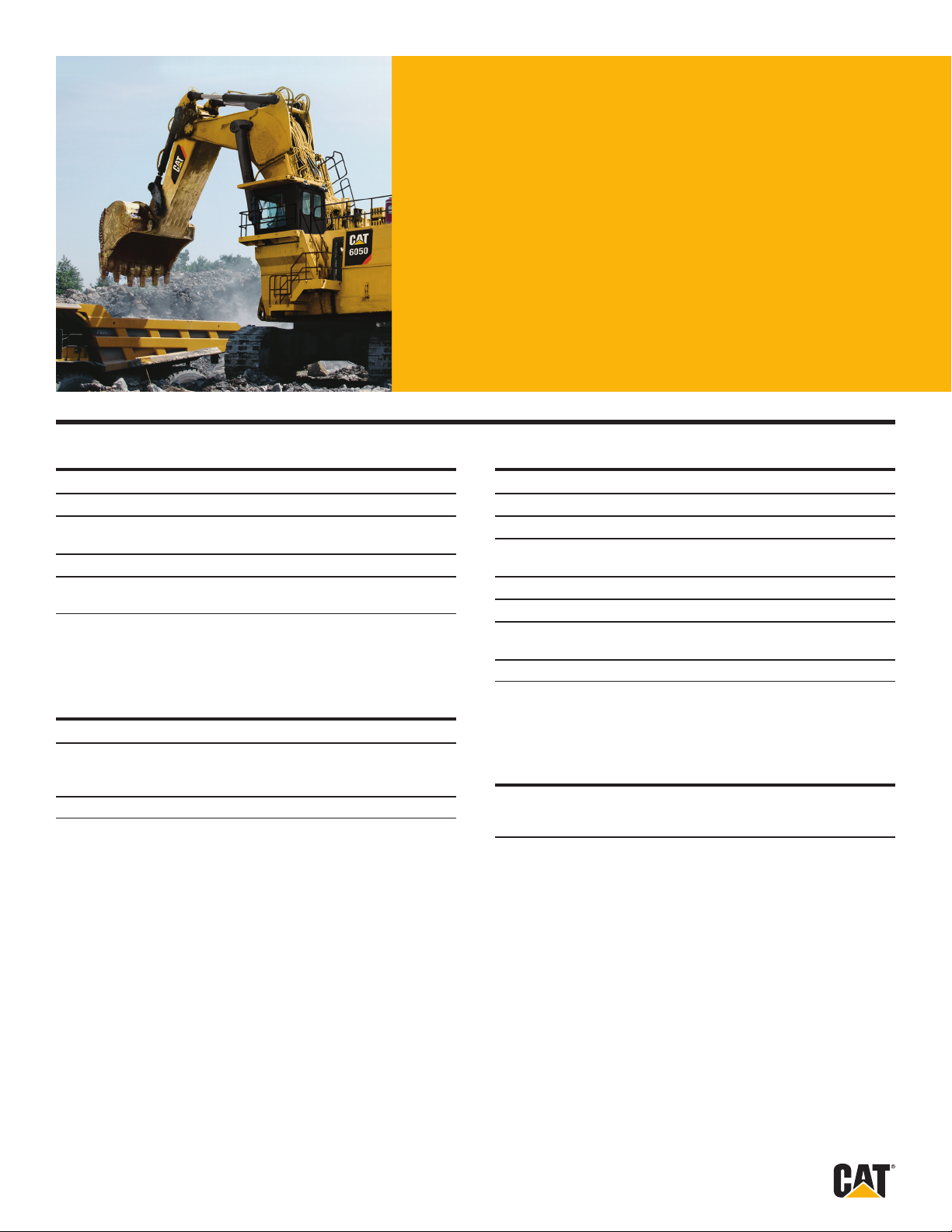

Cat

6050/6050 FS

Hydraulic Shovel

Electrical System (diesel drive)

System voltage 24 V

Batteries 6 x 210 Ah - 12 V each in series / parallel installation 630 AH - 24 V in total

Alternators 2 x 175 A each

Working spot lights 8 x high-brightness Xenon lights

• Battery isolation relays

• Emergency stop switches accessible from ground level, in engine module and in operator’s cab

Hydraulic Oil Cooling

Oil ow of cooling pumps Diesel version 4 x 488 l/min (4x 129 US gal/min) Electric version 4 x 491 l/min (4x 130 US gal/min)

Diameter of fans 4 x 1 170 mm (4 x 46 in)

• Cooling system is fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running

• Gear-type cooling pumps supplying high-volume, lowpressure oil to fans and aluminium coolers

• Fan speed and ow of oil to the coolers are thermostatically controlled

• Extremely high cooling efciency to ensure optimum oil temperature

Electric Motor (optional)

Type Squirrel cage induction motor

Output 1 600 kW

Voltage 6.6 kV +/- 10% (other on request)

Rated Current IN 166 A (at 6.6 kV)

Frequency 50 Hz (60 Hz optional)

Revolutions 1,500 min-1 (1,800 min-1 optional)

Starting current 700 A (525 A optional)

• Custom-made electric motor with increased gap between rotor and stator to withstand severe mining conditions

• Power limit control by Pump Management System

Diesel Engines

Engine Features

Fuel tank capacity 10 700 l (2,820 US gal)

• Hydraulically driven radiator fan with electronically controlled fan speed

• Microprocessed engine control

• Automatic rev. reduction

• Heavy-duty air lters, STRATA 1 with automatic dust evacuation

• Two-stage fuel lter incl. water separator

• Additional high-capacity water separator

• Pre-lube starting system

• Eliminator with centrifuge for engine oil ltration

Page 2

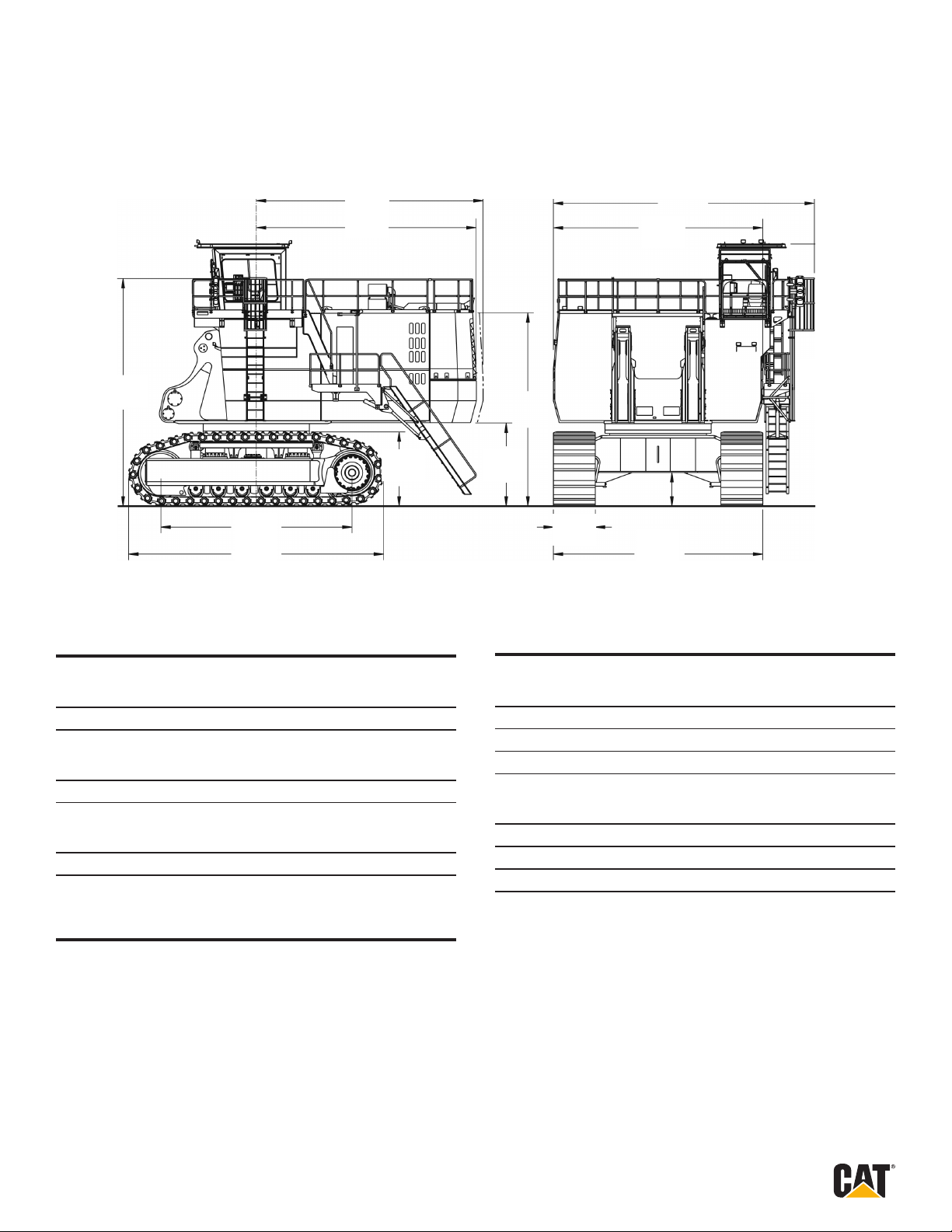

Hydraulic Shovel—6050/6050 FS

7 600 mm

(24 ft 11 in)

6 400 mm

(21 ft)

8 540 mm

(28 ft)

7 580 mm

(24 ft 10 in)

7 350 mm (24 ft 1 in)

2 480 mm

(8 ft 2 in)

2 780 mm

(9 ft 1 in)

6 460 mm (21 ft 3 in)

1 400 mm

(4 ft 7 in)

7 000 mm

1,120 mm

(3 ft 8 in)

7 000 mm

(23 ft )

8 730 mm (26 ft 7 in)

(23 ft)

8 760 mm (28 ft 9 in)

General Data

Operating Weight

Face Shovel 525 tonnes (579 tons)

Backhoe 534 tonnes (589 tons)

Engine Output SAE J 1995

Cummins® K1500E 1 880 kW 2,520 HP

Cummins® QSK38 1 880 kW 2,520 HP

Standard Bucket Capacity

Face Shovel (SAE 2:1) 26.0 m3 34.0 yd

Backhoe (SAE 1:1) 28.0 m3 36.6 yd

Features

• TriPower shovel attachment

• Independent oil cooling system

• Spacious walk-through machine house

• 5-circuit hydraulic system

• Electronic-hydraulic servo control

• Board Control System (BCS)

• Torque control in closed-loop swing circuit

• Automatic central lubrication system

• Xenon working lights

Operating Weight

Shovel

Standard track pads 1 400 mm (4 ft 7 in)

Operating weight 525 000 kg (1,157,420 lb)

Ground Pressure 25.7 N/cm2 (37.3 psi)

Additional track pads available on request

Backhoe

Standard track pads 1 400 mm (4 ft 7 in)

Operating weight 534 000 kg (1,177,260 lb)

Ground Pressure 25.7 N/cm2 (37.3 psi)

Additional track pads available on request

Page 3

Hydraulic Shovel—6050/6050 FS

Diesel Engines

Version 1 - Cummins® K1500E Tier 1

Make and model 2 x Cummins K1500E

Total rated net power ISO 3046/1 1 880 kW (2,520 HP) 1,800 min-1

Total rated net power SAE J1349 1 880 kW (2,520 HP) 1,800 min

Total rated gross power SAE J1995 1 880 kW (2,520 HP) 1,800 min

-1

No. of cylinders (each engine) 12

Bore 159 mm (6.25 in)

Stroke 159 mm (6.25 in)

Displacement 37.8 l (2,300 in3)

Aspiration Turbocharged and aftercooled

Max. altitude without deration 2 438 m (8,000 ft) a.s.l.

Version 2 - Cummins QSK38 Tier 2

Make and model 2 x Cummins QSK38

Total rated net power ISO 3046/1 1 880 kW (2,520 HP) 1,800 min-1

Total rated net power SAE J1349 1 880 kW (2,520 HP) 1,800 min

Total rated gross power SAE J1995 1 880 kW (2,520 HP) 1,800 min

-1

No. of cylinders (each engine) 12

Bore 159 mm (6.25 in)

Stroke 159 mm (6.25 in)

Displacement 37.8 l (2,300 in3)

Aspiration Turbocharged and aftercooled

Max. altitude without deration 3 300 m (10,800 ft) a.s.l.

Emission certication US EPA Tier 4i

Hydraulic System with Pump Managing System

Main pumps 4 x variable ow axial piston pumps (Diesel and electric versions)

Max. oil ow Diesel version 4 x 912 l/min (4 x 241 US gal/min) Electric version 4 x 933 l/min (4 x 246 US gal/min)

Max. pressure, attachment 30 MPa = 300 bar (4,350 psi)

Max. pressure, travel 37 MPa = 370 bar (5,370 psi)

Swing pumps Diesel version 4 x reversible swash plate pumps Electric version 3 x reversible swash plate pumps

Max. oil ow Diesel version 4 x 351 l/min (4 x 93 US gal/min) Electric version 3 x 491 l/min (3 x 131 US gal/min)

Max. pressure, swing system Diesel version 32 MPa = 320 bar (4,640 psi) Electric version 35 MPa = 350 bar (5,080 psi)

Total volume of hydraulic oil Diesel version Approx. 7 800 I (2,060 US gal) Electric version Approx. 7 300 I (1,930 US gal)

Hydraulic tank capacity Diesel version Approx. 5 500 l (1,450 US gal) Electric version Approx. 5 000 l (1,320 US gal)

• Pump Managing System contains:

- Electronic load limit control

- Flow on demand from main pumps depending on joystick position

- Automatic regulation of main pumps to zero ow without demand

- Automatic rpm reduction of engine speed during working breaks

- Reduced oil ow of main pumps at high hydraulic oil temperature or high engine temperature

• Pressure cut-off for main pumps

• Cooling of pump transmission gear oil

• Filters:

- Full-ow high-pressure lters (100 μm) for the main pumps, installed directly behind each pump

- High pressure lters (100 μm) for the closed swing circuit

- Full-ow lters (10 μm) for the complete return circuit

- Pressure lters (40 μm and 6 μm) for servo circuit

- Pressure lters (40 μm) for the feed pumps of the closed swing circuit

- Transmission oil lters (40 μm)

Undercarriage

Travel speeds (2 stages) 1st stage Max. 1.6 km/h (0.99 mph) 2nd stage Max. 2.3 km/h (1.44 mph)

Max. tractive force 2 576 kN (578,900 lb)

Gradability of travel drives Max. 50 %

Track pads (each side) 39

Bottom rollers (each side) 6

Support rollers (each side) 2 plus a skid plate in between

Travel drives (each side) 1 planetary transmission with 2 two-stage axial piston motors

Parking brakes Wet multiple disc brake, spring-applied/hydraulically released

• Cast double-grouser combined pad links with bushings connected by hardened full oating pins

• All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened

• Fully hydraulic, self-adjusting track tensioning system with membrane accumulator

• Automatic hydraulic retarder valve to prevent over-speed on downhill travel

• Acoustic travel alarm

Page 4

Hydraulic Shovel—6050/6050 FS

Operator’s Cab

Operator’s eye level approx. 7.6 m (24 ft 11 in)

Internal dimensions Length 2 200 mm (7 ft 3 in) Width 1 600 mm (5 ft 3 in) Height 2 150 mm (7 ft 1 in)

• Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests

• Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat

• Joystick controls integrated in independently adjustable seat consoles

• Fold-away auxiliary seat with safety belt

• FOPS (rock guard; approved acc. to DIN ISO 3449) integrated into cab structure

• All-round safety glass, armored windshield and sliding side window

• Windshield with parallel intermittent wiper / washer

• Roller blind at windshield

• Robust instrument panel incl. large colored BCS screen with transective technology

• Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic systems and lubrication systems

• Machine access via retractable boarding ladder, hydraulically operated

• Sliding emergency ladder (kick-down type) with ladder cage

Swing System

Swing Drives 4 compact planetary transmissions with axial piston motors

Parking Brakes Wet multiple disc brake, spring-loaded / hydraulically released

Max. swing speed Diesel version 3.8 rpm Electric version 4.0 rpm

Swing ring Triple-race roller bearing with sealed internal gearing

• Closed-loop swing circuit with torque control

• Hydraulic braking of the swing motion by counteracting control

• All raceways of swing ring, as well as grease bath for internal gearing, supplied by automatic central lubrication system

Automatic Lubrication System

Capacity of grease container 1 000 l (264 US gal)

• Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause / lube times

• Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders

• System failures displayed by Board Control System

• Grease lters (200 μm) between service station and container, as well as directly behind grease pump

Retractable Service Station

Retractable service station installed underneath the engine module and easily accessible from ground.

Equipped with:

• Quick couplings for:

- Diesel fuel

- Engine coolant - left / right

- Pump transmission gear oil - left / right

- Engine oil (oil pan) - left / right

- Engine oil (additional tank - optional) - left / right

- Hydraulic oil tank

- Grease container

• Cat jump-start socket

• Indicator lights for fuel tanks left/right full and grease container full

Attachments

• Booms and sticks are torsion-resistant, welded box design of high tensile steel with massive steel castings at pivot areas

• Welding procedures allow for internal counter-welding (double prep weld) wherever possible

• Booms and sticks are stress-relieved after welding

• Inspection hole in booms

• Catwalks with rails at booms

• Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a oat valve

• Shovel attachment with unique TriPower kinematics ensuring the following main features:

- Horizontal automatic constant-angle bucket guidance

- Vertical automatic constant-angle bucket guidance

- Automatic roll-back limiter to prevent material spillage

- Kinematic assistance to hydraulic forces

- Constant boom momentum throughout the entire lift arc

- Crowd force assistance

• All buckets (FS and BH) are equipped with a universal wear package suitable for all standard applications, which consists of:

- Special liner material covering main wear areas inside and outside of bucket

- Lip shrouds between teeth

- Wing shrouds on side walls

- Heel shrouds at bottom edges

• Special wear packages for highly abrasive materials on request

Page 5

Hydraulic Shovel—6050/6050 FS

TriPower Face Shovel Attachment (FS)

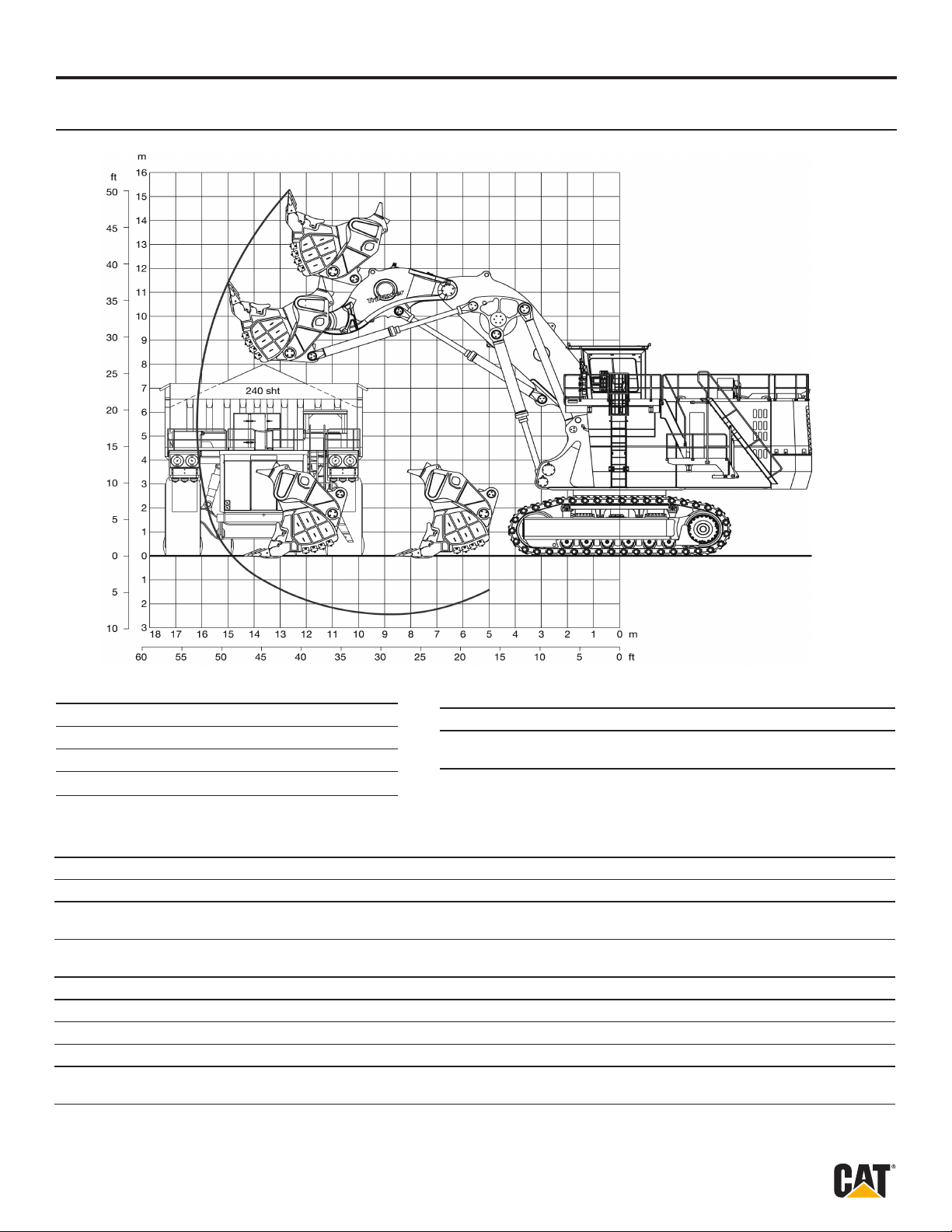

Working Diagram - Boom 8.0 m (26 ft 2 in) - Stick 5.1 m (16 ft 9 in)

Working Range

Max. digging height 15.3 m 50 ft 2 in

Max. digging reach 16.2 m 53 ft 2 in

Max. digging depth 2.4 m 7 ft 10 in

Max. dumping height 11.8 m 38 ft 9 in

Crowd distance on level 5.5 m 19 ft

Face Shovels

Type Iron ore shovel Heavy rock shovel Heavy rock shovel Standard rock shovel Light rock shovel

Tooth system ESCO S130 ESCO S130 ESCO S130 ESCO S130 ESCO S130

Capacity SAE / PCSA 1:1 21.0 m³ (27.5 yd³) 24.5 m³ (32.0 yd³) 26.5 m³ (34.7 yd³) 30.5 m³ (39.9 yd³) 32.3 m³ (42.2 yd³)

Capacity SAE / CECE 2:1 18.0 m³ (23.5 yd³) 21.0 m³ (27.5 yd³) 23.0 m³ (30.1 yd³) 26.0 m³ (34.0 yd³) 28.0 m³ (36.6 yd³)

Total width 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in) 4 800 mm (15 ft 9 in)

Inner width 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in) 4 300 mm (14 ft 1 in)

Opening width 2 250 mm (8 ft 2 in) 2 500 mm (8 ft 2 in) 2 500 mm (8 ft 2 in) 2 500 mm (8 ft 2 in) 2 500 mm (8 ft 2 in)

No. of teeth 6 6 6 6 6

Weight including wear kit 40 400 kg (89,070 lb) 42 400 kg (93,480 lb) 41 800 kg (92,150 lb) 42 900 kg (94,580 lb) 43 100 kg (95,020 lb)

Max. material density (loose) 2.6 t/m³ (4,380 lb/yd³) 2.2 t/m³ (3,710 lb/yd³) 2.0 t/m³ (3,370 lb/yd³) 1.8 t/m³ (3,030 lb/yd³) 1.65 t/m³ (2,780 lb/yd³)

Digging Forces

Max. crowd force 1 890 kN 424,740 lb

Max. crowd force at ground level 1 650 kN 370,800 lb

Max. breakout force 1 500 kN 337,100 lb

Page 6

Hydraulic Shovel—6050/6050 FS

Backhoe Attachment (BH)

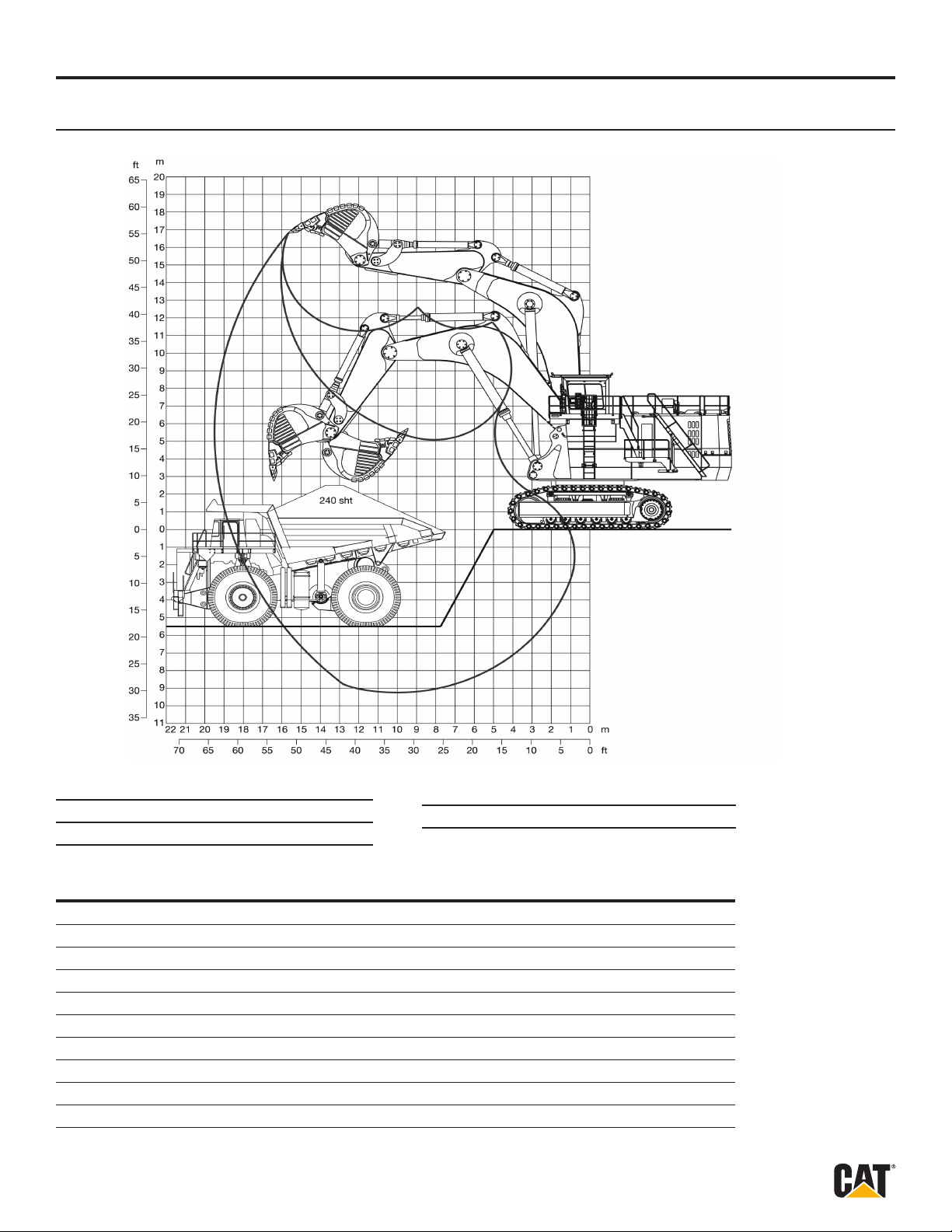

Working Diagram - Boom 10.5 m (34 ft 5 in) - Stick 5.5 m (18 ft 1 in)

Working Range

Max. digging depth 9.2 m 30 ft 2 in

Max. digging reach 19.5 m 64 ft

Max. digging height 16.8 m 55 ft 1 in

Backhoes

Type Standard rock bucket (Other buckets on request)

Tooth system ESCO size 110

Capacity SAE 1:1 28.0 m³ (36.6 yd³)

Capacity CECE 2:1 24.6 m³ (32.2 yd³)

Capacity struck 21.2 m³ (27.7 yd³)

Total width 4 440 mm (14 ft 7 in)

Inner width 4 040 mm (13 ft 3 in)

No. of teeth 6

Weight incl. universal wear kit 32 300 kg (72,210 lb)

Max. material density (loose) 1.8 t/m³ (3,030 lb/yd³)

Digging Forces

Max. crowd force 1 200 kN 269,680 lb

Max. breakout force 1 200 kN 269,680 lb

Page 7

Hydraulic Shovel—6050/6050 FS

2 750 mm

(7 ft 5 in)

8 400 mm (27 ft 7 in)

6 750 mm (22 ft 2 in)

2 100 mm

(6 ft 11 in)

2 750 mm

(7 ft 5 in)

10 200 mm (33 ft 6 in)

6 400 mm (23 ft)

8 400 mm (27 ft 7 in)

6 750 mm (22 ft 2 in)

4 000 mm (13 ft 1 in)

2 100 mm

(6 ft 11 in)

3 450 mm (11 ft 4 in)

3 750 mm (12 ft 4 in)

3 820 mm (12 ft 6 in)

330 mm (1 ft 1 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

3 720 mm (12 ft 2 in)

10 200 mm (33 ft 6 in)

6 400 mm (23 ft)

8 400 mm (27 ft 7 in)

6 750 mm (22 ft 2 in)

4 000 mm (13 ft 1 in)

1 580 mm (5 ft 2 in)

1 550 mm (5 ft 1 in)

2 100 mm

(6 ft 11 in)

3 450 mm (11 ft 4 in)

3 700 mm (12 ft 2 in)

3 750 mm (12 ft 4 in)

3 820 mm (12 ft 6 in)

2 360 mm

(7 ft 9 in)

1 750 mm

(5 ft 9 in)

330 mm (1 ft 1 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

6 400 mm (23 ft)

8 400 mm (27 ft 7 in)

6 750 mm (22 ft 2 in)

2 100 mm

(6 ft 11 in)

3 820 mm (12 ft 6 in)

330 mm (1 ft 1 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

General Packing List

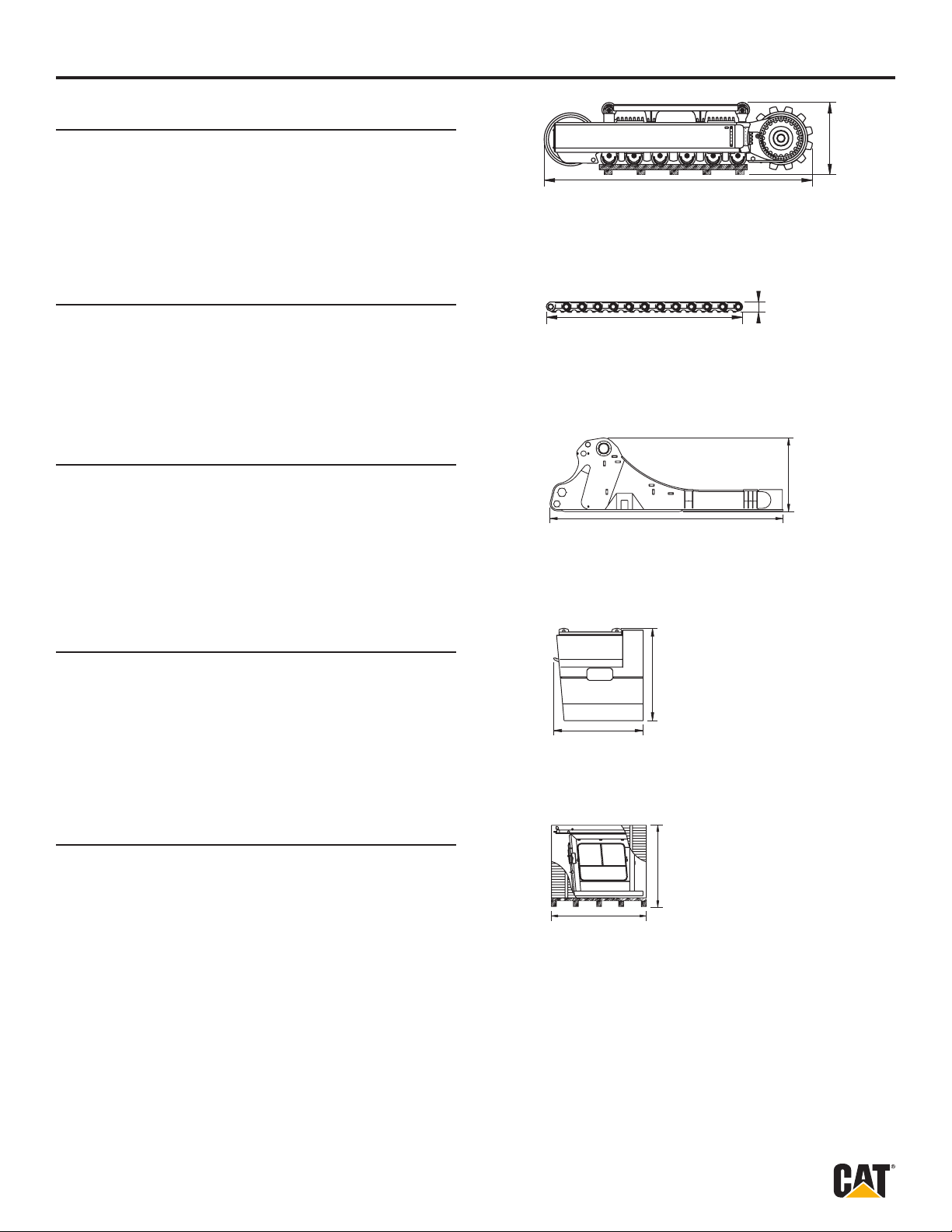

Crawler side frame (2 units)

Width 2 200 mm (7 ft 3 in) Gross weight 44 600 kg (98,330 lb)

8 400 mm (27 ft 7 in)

2 100 mm

(6 ft 11 in)

6 tracks consisting of 13 pad links each

Width 1 400 mm (4 ft 7 in) Gross weight (each) 10 700 kg (23,590 lb)

Superstructure Center Frame

Width 3 600 mm (11 ft 10 in) Gross weight 62 000 kg (136,690 lb)

Cab pedestal module

Width 2 500 mm (8 ft 2 in) Gross weight 7 100 kg (15,650 lb)

330 mm (1 ft 1 in)

6 400 mm (23 ft)

3 450 mm (11 ft 4 in)

10 200 mm (33 ft 6 in)

3 700 mm (12 ft 2 in)

3 720 mm (12 ft 2 in)

Crate with cabin and FOPS

Width 2 610 mm (8 ft 7 in) Gross weight 3 500 kg (7,720 lb)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

3 500 mm (11 ft 6 in)

3 070 mm (10 ft 1 in)

Page 8

Hydraulic Shovel—6050/6050 FS

6 750 mm (22 ft 2 in)

2 750 mm

(7 ft 5 in)

6 750 mm (22 ft 2 in)

3 820 mm (12 ft 6 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

6 750 mm (22 ft 2 in)

4 000 mm (13 ft 1 in)

3 750 mm (12 ft 4 in)

3 820 mm (12 ft 6 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

6 750 mm (22 ft 2 in)

4 000 mm (13 ft 1 in)

1 580 mm (5 ft 2 in)

1 550 mm (5 ft 1 in)

3 750 mm (12 ft 4 in)

3 820 mm (12 ft 6 in)

2 360 mm

(7 ft 9 in)

(5 ft 9 in)

4 000 mm (13 ft 1 in)

2 750 mm

(7 ft 5 in)

General Packing List

Undercarriage center frame with swing roller bearing

Width 3 800 mm (12 ft 6 in) Gross weight 42 300 kg

(93,250 lb)

Engine module with diesel engines

Width 7 000 mm (23 ft) Gross weight 42 000 kg

(92,590 lb)

6 750 mm (22 ft 2 in)

(7 ft 5 in)

2 750 mm

3 820 mm (12 ft 6 in)

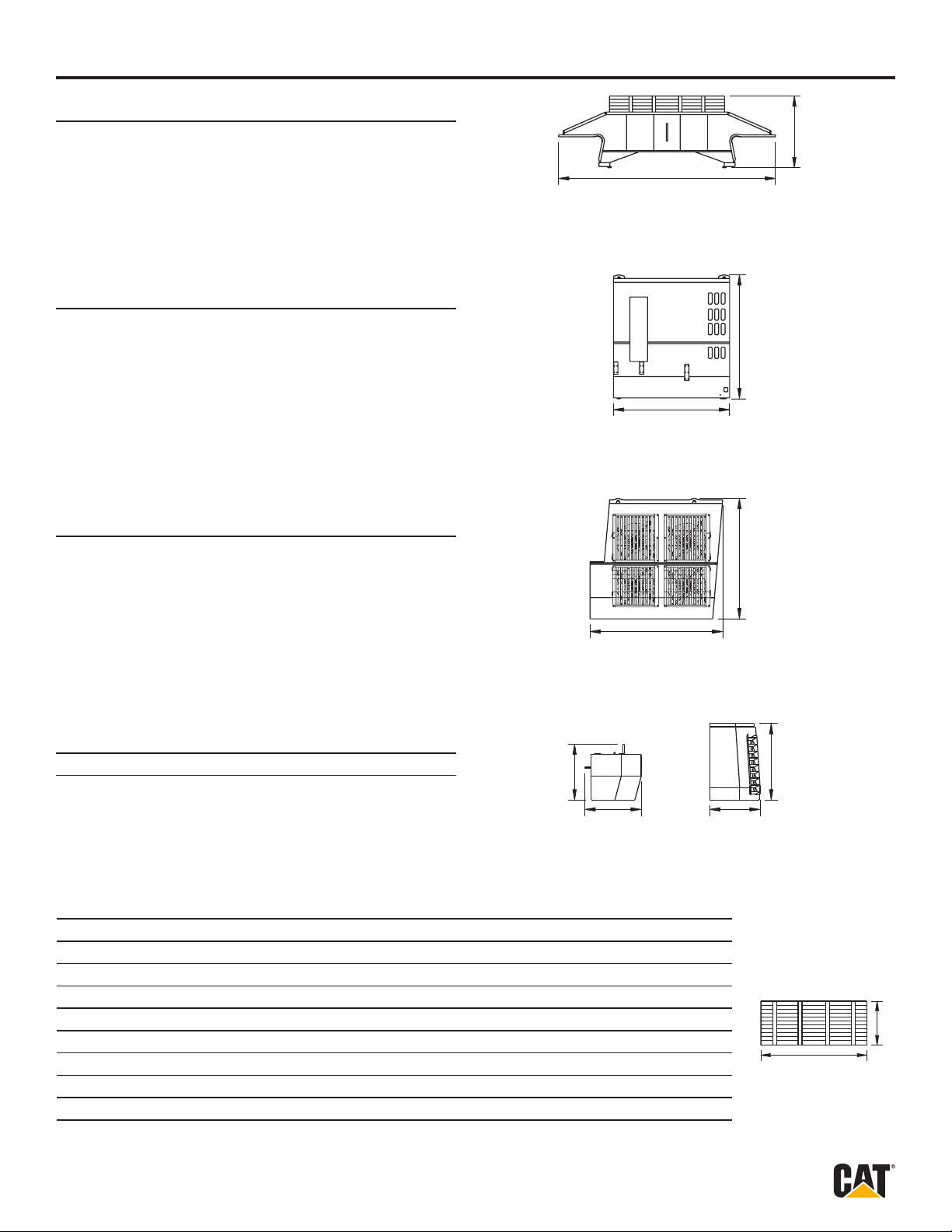

Oil cooler module

Width 2 000 mm (6 ft 7 in) Gross weight 9 750 kg

Counterweights

(21,490 lb)

Width Gross weight

Lower part 7 000 mm (23 ft) 36 000 kg (79,370 lb) Upper part 7 000 mm (23 ft) 19 300 kg (42,550 lb)

(5 ft 9 in)

1 750 mm

1 580 mm (5 ft 2 in)

4 000 mm (13 ft 1 in)

3 750 mm (12 ft 4 in)

1 550 mm (5 ft 1 in)

(7 ft 9 in)

2 360 mm

Crates

Content Length Width Height Gross Weight

Two radiators with fan 2 700 mm (8 ft 10 in) 1 950 mm (6 ft 5 in) 1 320 mm (4 ft 4 in) 2 460 kg (5,420 lb)

Four swing gears 1 350 mm (4 ft 5 in) 1 350 mm (4 ft 5 in) 2 100 mm (6 ft 7 in) 4 800 kg (10,580 lb)

Swing ring cover 2 200 mm (7 ft 3 in) 1 300 mm (4 ft 3 in) 1 030 mm (3 ft 5 in) 390 kg (860 lb)

Swing ring bolts, access ladder, etc. 3 300 mm (10 ft 10 in) 1 600 mm (5 ft 3 in) 1 260 mm (4 ft 2 in) 2 900 kg (6,390 lb)

Mufers and covers 3 300 mm (10 ft 10 in) 1 600 mm (5 ft 3 in) 1 780 mm (5 ft 10 in) 1 620 kg (3,570 lb)

Grease container with pump 1 700 mm (5 ft 7 in) 1 300 mm (4 ft 3 in) 2 100 mm (6 ft 11 in) 1 470 kg (3,240 lb)

Barrels (hydraulic oil; grease) 2 500 mm (8 ft 2 in) 1 300 mm (4 ft 3 in) 1 270 mm (4 ft 2 in) 1 700 kg (3,750 lb)

Barrels (hydraulic oil) 2 500 mm (8 ft 2 in) 1 300 mm (4 ft 3 in) 2 700 mm (8 ft 10 in) 1 900 kg (4,190 lb)

Retractable ladder 5 570 mm (18 ft 3 in) 1 100 mm (3 ft 7 in) 2 000 mm (6 ft 7 in) 740 kg (1,630 lb)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

Height

Length

Page 9

Hydraulic Shovel—6050/6050 FS

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

Length

Height

8 900 mm (29 ft 2 in)

3 600 mm (11 ft 10)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

Length

Height

8 900 mm (29 ft 2 in)

3 600 mm (11 ft 10)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

3 900 mm (12 ft 10 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

Length

Height

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

TriPower Shovel Attachment

Boom with main valve block, TriPower linkages and rods

Width 3 050 mm (10 ft) Gross weight 46 800 kg (103,180 lb)

Face shovel incl. pin for stick

Capacity (2:1) Width Gross Weight

26.0 m³ (34.0 yd³) 4 800 mm (15 ft 9 in) 43 900 kg (96,780 lb)

8 900 mm (29 ft 2 in)

4 400 mm (14 ft 5 in)

3 600 mm (11 ft 10)

3 900 mm (12 ft 10 in)

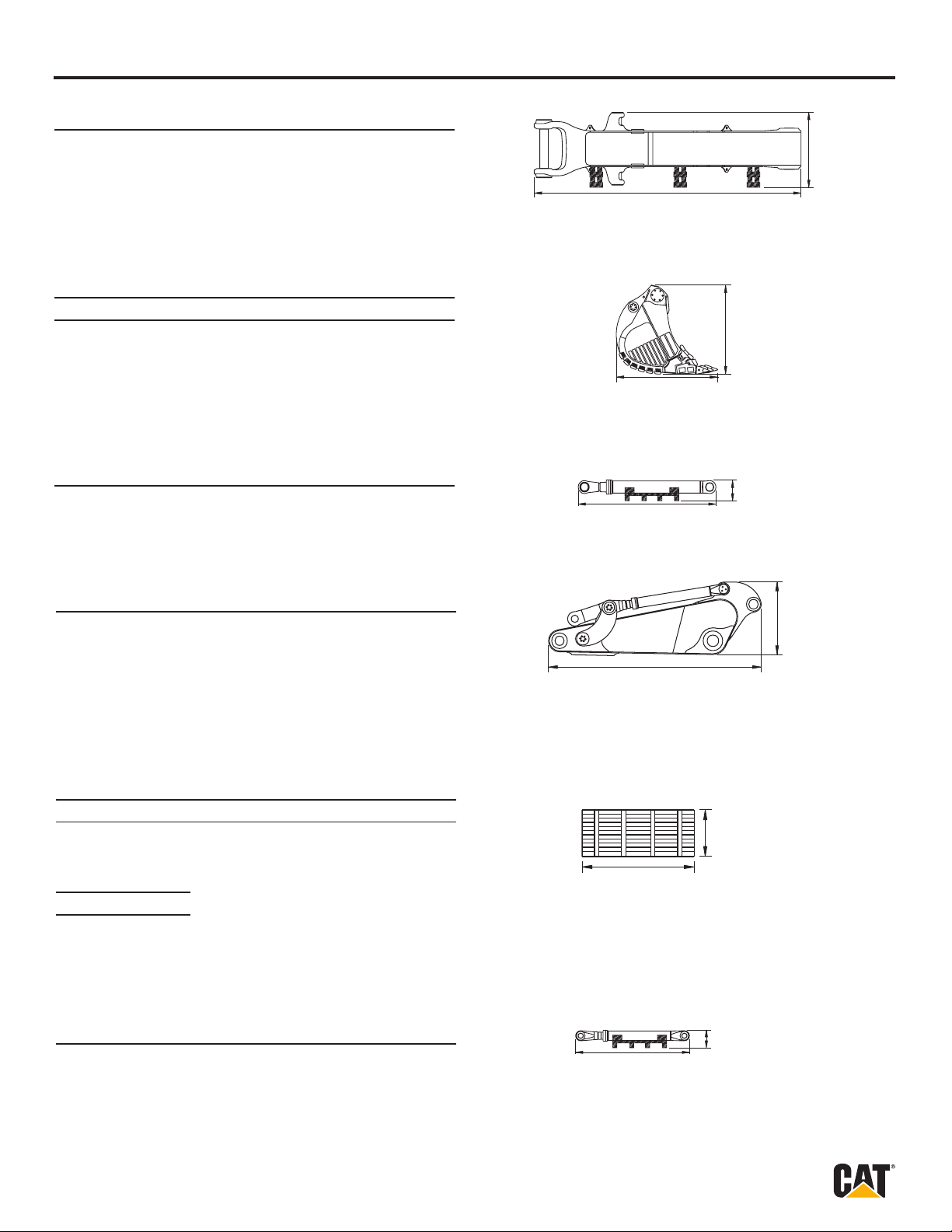

Bundle with 2 boom cylinders

Width 1 200 mm (3 ft 11 in) Gross weight 7 100 kg (15,650 lb)

Stick

Width 2 400 mm (7 ft 10 in) Gross weight 17 300 kg (38,140 lb)

Crates with catwalks, railings and other parts

Length Width Height Gross weight

4 270 mm 1 900 mm 1 700 mm 3 400 kg (14 ft) (6 ft 3 in) (5 ft 7 in) (7,500 lb)

5 100 mm (16 ft 9 in)

6 000 mm (19 ft 8 in)

Length

700 mm (2 ft 4 in)

2 000 mm (6 ft 7 in)

Height

2 Bundles with 2 stick cylinders and 2 bucket cylinders each

Width 1 200 mm (3 ft 11 in) Gross weight 5 200 kg (11,460 lb)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

Page 10

Hydraulic Shovel—6050/6050 FS

Length

Height

8 900 mm (29 ft 2 in)

3 600 mm (11 ft 10)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

3 900 mm (12 ft 10 in)

5 100 mm (16 ft 9 in)

700 mm (2 ft 4 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

7 700 mm (25 ft 3 in)

2 750 mm (9 ft)

Length

Height

Length

Height

8 900 mm (29 ft 2 in)

3 600 mm (11 ft 10)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

3 900 mm (12 ft 10 in)

5 100 mm (16 ft 9 in)

700 mm (2 ft 4 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

11 500 mm (37 ft 9 in)

3 200 mm (10 ft 6 in)

7 700 mm (25 ft 3 in)

2 750 mm (9 ft)

Length

Height

Length

Height

8 900 mm (29 ft 2 in)

3 600 mm (11 ft 10)

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

3 900 mm (12 ft 10 in)

5 100 mm (16 ft 9 in)

700 mm (2 ft 4 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

11 500 mm (37 ft 9 in)

3 200 mm (10 ft 6 in)

7 700 mm (25 ft 3 in)

2 750 mm (9 ft)

4 500 mm (14 ft 9 in)

3 750 mm (12 ft 4 in)

5 200 mm (17 ft 1 in)

860 mm (2 ft 10 in)

Length

Height

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

Length

Height

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

7 700 mm (25 ft 3 in)

2 750 mm (9 ft)

Length

Height

Length

Height

6 000 mm (19 ft 8 in)

2 000 mm (6 ft 7 in)

4 400 mm (14 ft 5 in)

700 mm (2 ft 4 in)

7 700 mm (25 ft 3 in)

2 750 mm (9 ft)

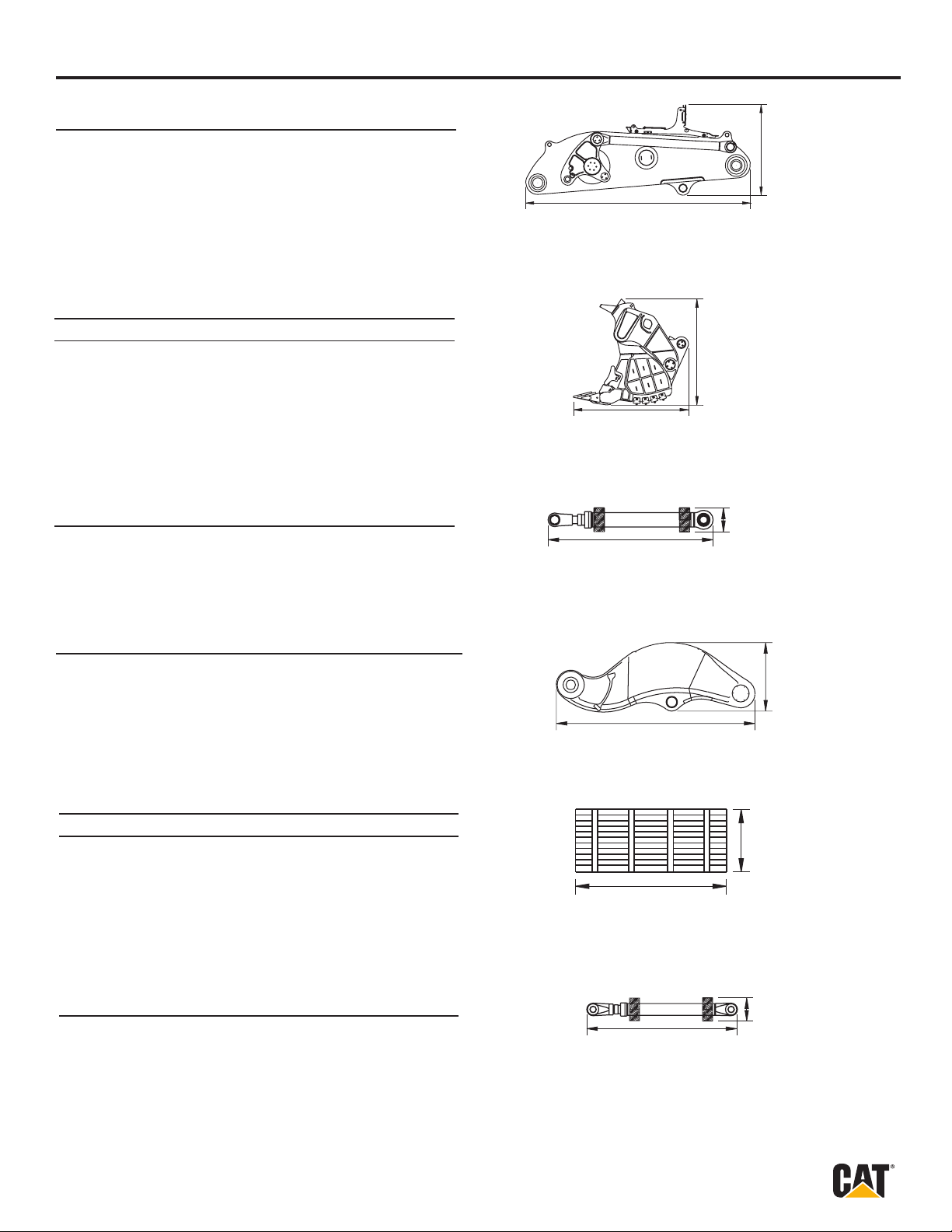

Backhoe Attachment

Monoboom without main valve block

Width 5 000 mm (16 ft 5 in) Gross weight 46 000 kg (101,410 lb)

Backhoe bucket incl. pins for stick and linkage

Capacity (2:1) Width Gross Weight

28 m³ (36.6 yd³) 4 440 mm (14 ft 7 in) 34 500 kg (76,060 lb)

3 200 mm (10 ft 6 in)

11 500 mm (37 ft 9 in)

3 750 mm (12 ft 4 in)

4 500 mm (14 ft 9 in)

2 pallets with boom cylinders each

Width 800 mm (2 ft 7 in) Gross weight 7 180 kg (15,830 lb)

Stick with linkage and bucket cylinder

Width 2 300 mm (7 ft 7 in) Gross weight 28 000 kg (61,730 lb)

Crates with main valve block, catwalks, railings & other parts

Length Width Height

3 650 mm (12 ft) 2 170 mm (7 ft 1 in) 1 520 mm (5 ft) 4 300 mm (14 ft 1 in) 1 900 mm (6 ft 3 in) 1 700 mm (5 ft 7 in) 4 960 mm (16 ft 3 in) 1 900 mm (6 ft 3 in) 1 900 mm (6 ft 3 in)

Gross weight

5 000 kg (11,020 lb) 3 260 kg (7,190 lb) 3 400 kg (7,500 lb)

2 pallets with stick cylinders each

Width 800 mm (2 ft 7 in) Gross weight 4 200 kg (9,260 lb)

6 250 mm (20 ft 6 in)

7 700 mm (25 ft 3 in)

Length

5 200 mm (17 ft 1 in)

900 mm (2 ft 11 in)

Height

860 mm (2 ft 10 in)

2 750 mm (9 ft)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

Page 11

Hydraulic Shovel—6050/6050 FS

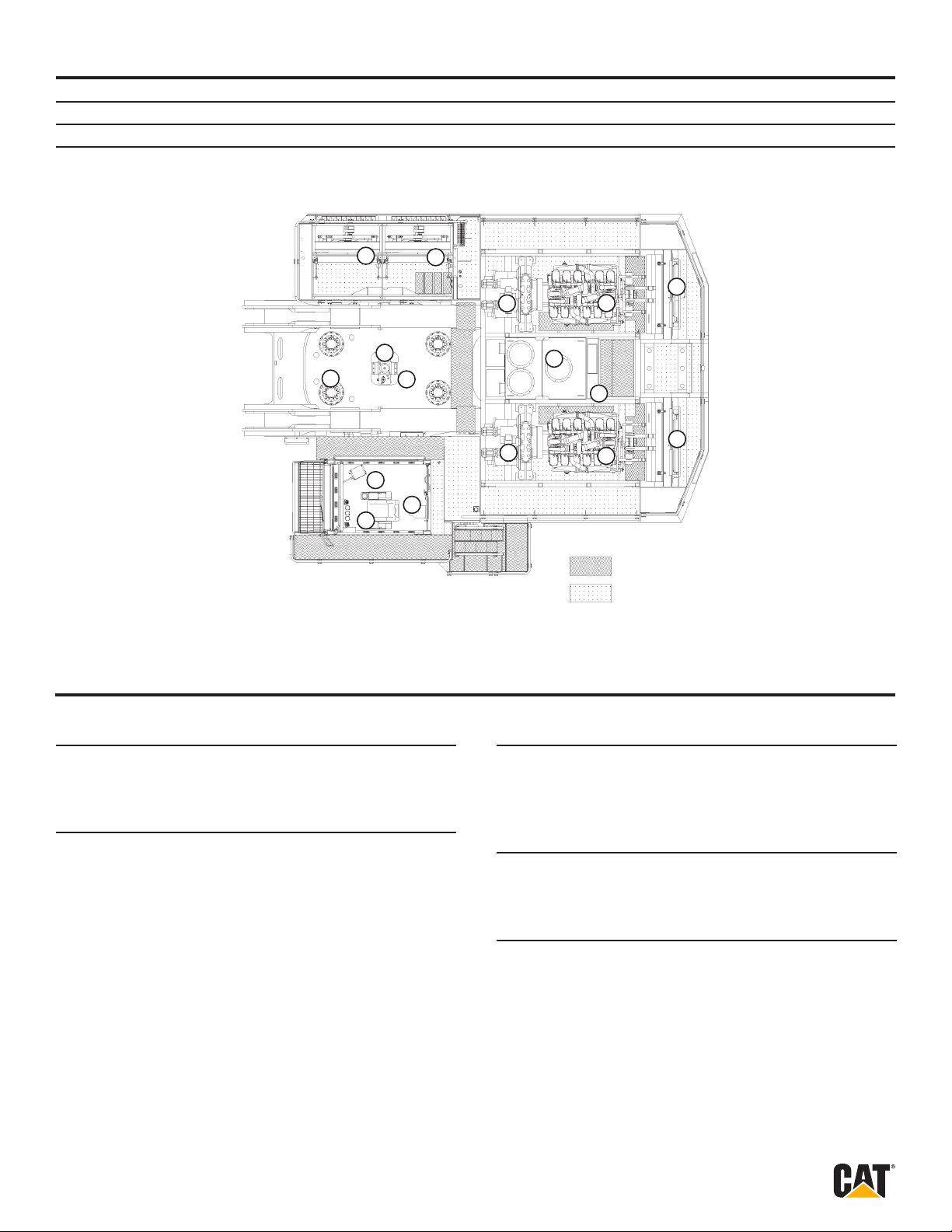

Component Accessibility on Superstructure

1. Diesel Engines 4. Oil coolers 7. Rotary distributor 10. Operator’s seat

2. Gearboxes with hydraulic pumps 5. Hydraulic tank 8. Travel valves 11. BCS tower

3. Engine radiators with hydraulically driven fan 6. Swing drives 9. Switch cabinet and battery box 12. Auxilliary seat

Anti-slip catwalks

Anti-slip walking areas

Optional Equipment

General

• Export crating

• Finishing as per end user´s corporate colors

• Customizing of logos as per customer’s speciﬁcation

Superstructure

• Hydraulic service crane on superstructure with auxilliary engine

• Mesabi radiators instead of standard radiators

• Oil change interval extension for engine oil up to 1,000 hrs

• Folding access stairway, stairway angle approx. 45°

• Round container with a standard 200 l grease barrel (instead of 1,000 l grease container)

• Lubricated pinion for greasing of internal gearing of swing ring

• Various cold-weather packages

Additional optional equipment available on request

Cab

• Various heating and air-conditioning systems

• Roller blinds at all windows

• Rear windscreen wiper

• Additional instrumentation

Undercarriage

• Track pad width 1 600 mm (5 ft 3 in) or 1,800 mm (5 ft 11 in)

• Automatic lubrication of rollers by central lube system

• Cover plate under carbody (belly plate)

Attachment

• Guards for shovel cylinders of FS-attachment

• Xenon lighting on boom

• Special wear packages

Page 12

Hydraulic Shovel—6050/6050 FS

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at mining.cat.com and www.cat.com

CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ6525-01
