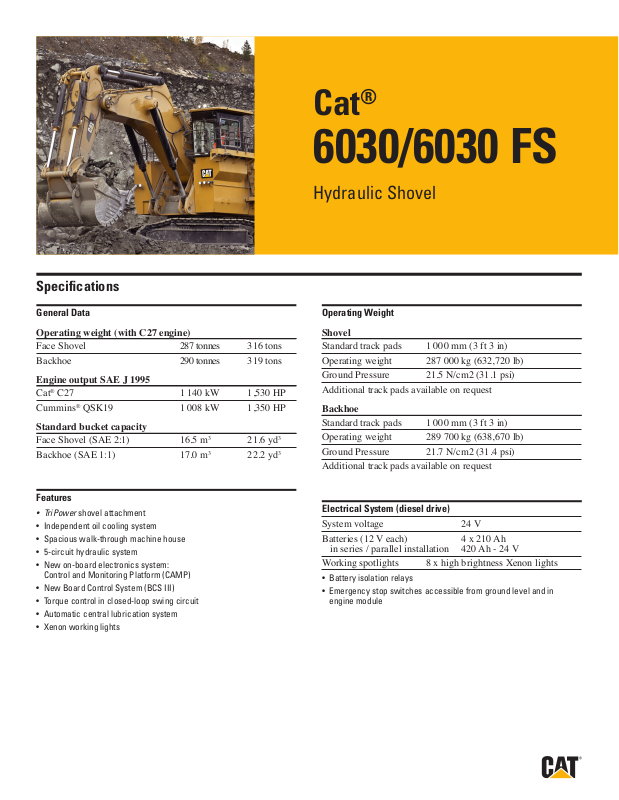

Page 1

Speciﬁcations

Cat

6030/6030 FS

Hydraulic Shovel

General Data

Operating weight (with C27 engine)

Face Shovel 287 tonnes 316 tons

Backhoe 290 tonnes 319 tons

Engine output SAE J 1995

Cat® C27 1 140 kW 1,530 HP

Cummins® QSK19 1 008 kW 1,350 HP

Standard bucket capacity

Face Shovel (SAE 2:1) 16.5 m3 21.6 yd

Backhoe (SAE 1:1) 17.0 m3 22.2 yd

Features

• TriPower shovel attachment

• Independent oil cooling system

• Spacious walk-through machine house

• 5-circuit hydraulic system

• New on-board electronics system: Control and Monitoring Platform (CAMP)

• New Board Control System (BCS III)

• Torque control in closed-loop swing circuit

• Automatic central lubrication system

• Xenon working lights

Operating Weight

Shovel

Standard track pads 1 000 mm (3 ft 3 in)

Operating weight 287 000 kg (632,720 lb)

Ground Pressure 21.5 N/cm2 (31.1 psi)

Additional track pads available on request

Backhoe

Standard track pads 1 000 mm (3 ft 3 in)

Operating weight 289 700 kg (638,670 lb)

Ground Pressure 21.7 N/cm2 (31.4 psi)

Additional track pads available on request

Electrical System (diesel drive)

System voltage 24 V

Batteries (12 V each) 4 x 210 Ah in series / parallel installation 420 Ah - 24 V

Working spotlights 8 x high brightness Xenon lights

• Battery isolation relays

• Emergency stop switches accessible from ground level and in engine module

Page 2

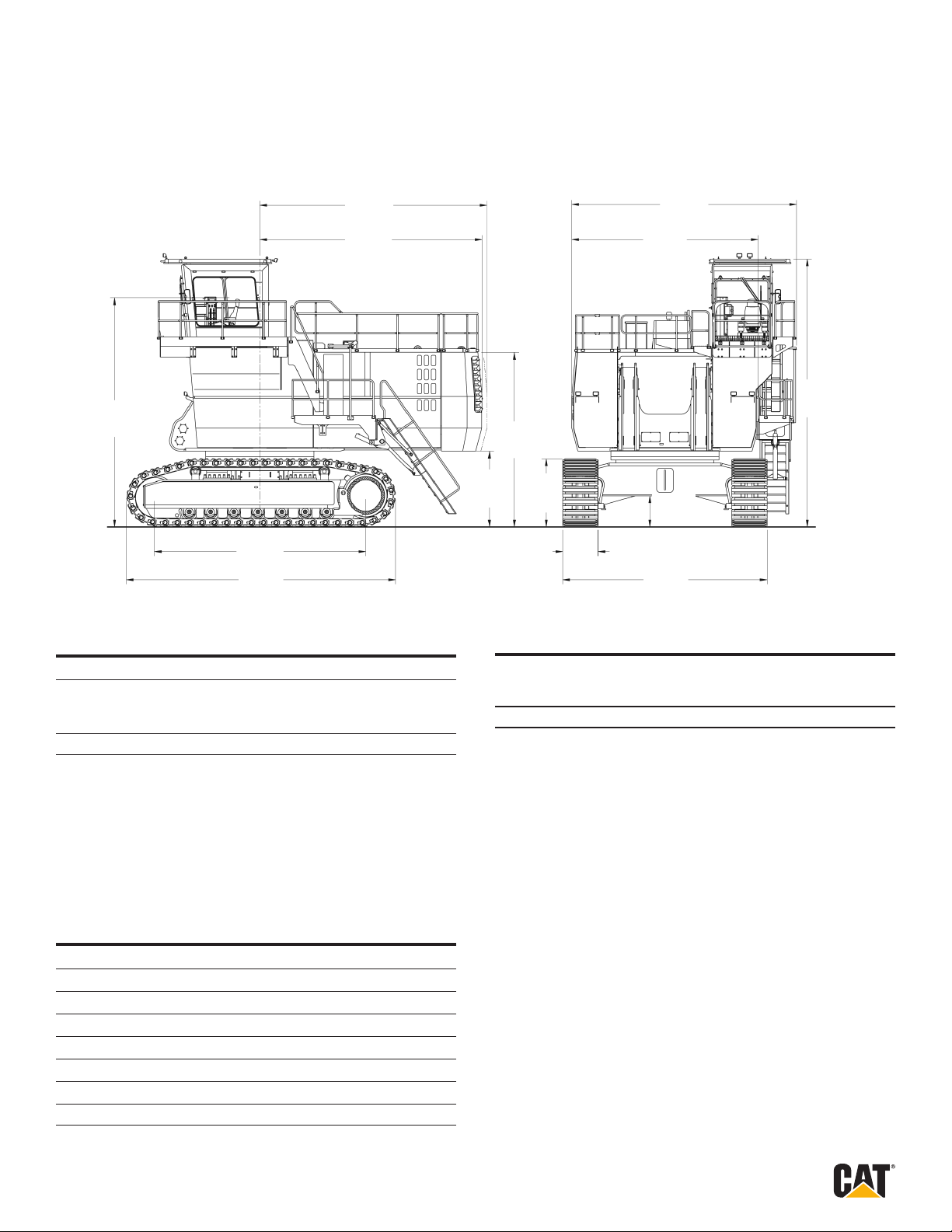

Hydraulic Shovel—6030/6030 FS

6 500 mm (21 ft 4 in)

6 000mm

(19 ft 8 in)

7 640 mm (25 ft 1 in)

6 450 mm (21 ft 2 in)

6 310 mm (20 ft 8 in)

2 150 mm

(7 ft 1 in)

4 950 mm (16 ft 3 in)

1 000 mm

(3 ft 3 in)

1 940 mm

(6 ft 4 in)

6 390 mm

5 300 mm (17 ft 5 in)

880 mm

(2 ft 11 in)

5 800 mm

(19 ft )

(23 ft)

7 600 mm

(24 ft 11 in)

Hydraulic Oil Cooling

Oil ow of cooling pumps Diesel version 2 x 467 l/min (2 x 123 US gal/min) Electric version 2 x 459 l/min (2 x 121 US gal/min)

Diameter of fans 2 x 1 220 mm (2 x 48 in)

• Cooling system is fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running

• Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminium coolers

• Variable axial piston pumps supplying low-volume, high-pressure oil to fans

• Fan speed is thermostatically controlled

• Extremely high cooling efﬁciency to ensure optimum oil temperature

Electric Motor (optional)

Type Squirrel cage induction motor

Output 1 000 kW

Voltage 6.3 kV +/- 10% (other on request)

Rated Current IN 109 A (at 6.3 kV)

Frequency 50 Hz (60 Hz on request)

Speed 1 500 min-1 (1,800 min-1 at 60 Hz)

Starting current 450% of IN (350% of IN optional)

• Custom-made electric motor with increased gap between rotor and stator to withstand severe mining conditions

• Power limit control by Pump Managing System

Diesel Engines

Engine Features

Fuel tank capacity 5 360 I (1,416 US gal)

• Hydraulically driven radiator fan with electronically controlled fan speed

• Microprocessed engine management

• Automatic rev. reduction

• Heavy-duty air ﬁlters

• Two-stage fuel ﬁlter, incl. water separator

• Additional high-capacity water separator

• Pre-lube starting system (Cummins engines only)

Page 3

Hydraulic Shovel—6030/6030 FS

Diesel Engines (continued)

Version 1 - Cat® C27 Tier 2

Make and model 2 x Cat C27

Total rated net power ISO 3046/1 1 140 kW (1,530 HP) 1,800 min

Total rated net power SAE J1349 1 140 kW (1,530 HP) 1,800 min

Total rated gross power SAE J1995 1 140 kW (1,530 HP) 1,800 min

-1

No. of cylinders (each engine) 12

Bore 137.7 mm (5.42 in)

Stroke 152.4 mm (6.0 in)

Displacement 27.0 I (1,648 in3)

Aspiration Turbocharged and charge air-cooled

Max. altitude without deration at 15°C 1,750 m (5,750 ft) a.s.l.

Emission certication US EPA Tier 2; Europe NRMM Tier 2

Alternators 2 x 150 A

Emission certication US EPA Tier 4i

Version 2 - Cummins® QSK19 Tier 2

Make and model 2 x Cummins QSK19

Total rated net power ISO 3046/1 1 008 kW (1,350 HP) 1,800 min

Total rated net power SAE J1349 1 008 kW (1,350 HP) 1,800 min

Total rated gross power SAE J1995 1 008 kW (1,350 HP) 1,800 min

-1

No. of cylinders (each engine) 6

Bore 159 mm (6.25 in)

Stroke 159 mm (6.25 in)

Displacement 19 I (1,159 in3)

Aspiration Turbocharged and charge air cooled

Max. altitude without deration 1 500 m (4,900 ft) a.s.l.

Alternators 2 x 175 A

Hydraulic System with Pump Managing System

Main pumps (Diesel and electric version) 4 x variable swash plate pumps

Max. oil ow Diesel version 4 x 552 I/min (4 x 146 US gal/min) Electric version 4 x 543 I/min (4 x 143 US gal/min)

Max. pressure, attachment 31 MPa = 310 bar (4,495 psi)

Max. pressure, travel 36 MPa = 360 bar (5,220 psi)

Swing pumps Diesel version 2 x revers. swash plate double pumps Electric version 2 x revers. swash plate double pumps

Max. oil ow Diesel version 2 x 394 I/min (2 x 104 US gal/min) Electric version 2 x 426 I/min (2 x 113 US gal/min)

Hydraulic System with PMS (continued)

Max. pressure, swing system 31 MPa = 310 bar (4,495 psi)

Total volume of hydraulic oil Approx. 3 500 I (925 US gal)

Hydraulic tank capacity Approx. 2 500 I (660 US gal)

• Pump Managing System contains:

- Electronic load limit control

- Flow on demand from main pumps depending on joystick position

- Automatic regulation of main pumps to zero ﬂow without demand

- Automatic rpm reduction of engine speed during working breaks

- Reduced oil ﬂow of main pumps at high hydraulic oil temperature

or at high engine temperature

• Pressure cut-off for main pumps

• Cooling of pump transmission gear oil

• Filters:

- Full-ﬂow high-pressure ﬁlters (100 μm) for the main pumps, installed directly behind each pump

- High pressure ﬁlters (100 μm) for the closed swing circuit

- Full-ﬂow ﬁlters (10 μm) for the complete return circuit

- Full-ﬂow ﬁlters (10 μm) for the cooling return circuit

- Pressure ﬁlters (40 μm and 6 μm) for servo circuit

- Transmission oil ﬁlters (40 μm)

Undercarriage

Travel speed (2 stages) 1st stage Max. 1.4 km/h (0.87 mph) 2nd stage Max. 2.7 km/h (1.68 mph)

Max. tractive force 1 637 kN (167 t = 367,880 lb)

Gradability of travel drives Approx 64 %

Track pads (each side) 47

Bottom rollers (each side) 7

Support rollers (each side) 2 plus a skid plate in between

Travel drives (each side) 1 planetary transmission with 2 two-stage axial piston motors

Parking brakes Wet multiple disc brake, spring loaded / hydraulically released

• Cast double-grouser combined pad-links with bushings connected by hardened full ﬂoating pins

• All running surfaces of sprockets, idlers, rollers and pad links, as

well as teeth contact areas of sprocket and pad links, are hardened

• Fully hydraulic self-adjusting track tensioning system with

membrane accumulator

• Automatic hydraulic retarder valve to prevent over-speed on

downhill travel

• Acoustic travel alarm

Page 4

Hydraulic Shovel—6030/6030 FS

Operator’s Cab

Operator’s eye level approx. 6.5 m (21 ft 4 in)

Internal dimensions of cab Length 2 200 mm (7 ft 3 in) Width 1 600 mm (5 ft 3 in) Height 2 150 mm (7 ft 1 in)

• Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests

• Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat

• Joystick controls integrated in independently adjustable seat consoles

• Fold-away auxiliary seat with safety belt

• FOPS (rock guard; approved acc. to DIN ISO 3449) integrated into cab structure

• All-round safety glass, armored windshield and sliding side window

• Windshield with parallel intermittent wiper / washer

• Roller blind at windshield

• New Board Control System (BCS III): Electronic monitoring, data logging and diagnostic system for vital signs and service data of engines, hydraulic and lubrication system, featuring:

- Robust instrument panel including large (12 in) colored touch screen for intuitive handling

- On-screen PDF documentation (e.g. operating instructions, technical handbook, spare parts catalog, electric circuit diagram)

- On-screen trouble shooting assistance

- Graphic charts of logged data

- Fault memory with storage of related conditions

- USB, Lan (TCP/IP) and CAN BUS interfaces for data export

• Machine access via retractable boarding ladder, hydraulically operated

• Emergency exit harness kit

Swing System

Swing Drives 2 compact planetary transmissions with axial piston motors

Parking Brake Wet multiple-disc brake, spring loaded / hydraulically released

Max. swing speed Diesel Version 4.6 rpm Electric Version 5.0 rpm

Swing ring Triple-race roller bearing with sealed internal gearing

• Closed-loop swing circuit with torque control

• Hydraulic braking of the swing motion by counteracting control

• All raceways of swing ring as well as grease bath for internal gearing supplied by automatic, central lubrication system

Attachments

• Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas

• Welding procedures allow for internal counter-welding (double prep weld) wherever possible

• Booms and sticks are stress-relieved after welding

• Catwalks with rails at boom (FS and BH)

• Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a ﬂoat valve

• Shovel attachment with unique TriPower kinematics ensuring the following main features:

- Horizontal automatic constant-angle bucket guidance

- Vertical automatic constant-angle bucket guidance

- Automatic roll-back limiter to prevent material spillage

- Kinematic assistance to hydraulic forces

- Constant boom momentum throughout the whole lift arc

- Crowd force assistance

• All buckets (FS and BH) are equipped with a universal wear package suitable for all standard applications, which consists of:

- Special liner material covering main wear areas inside and outside of bucket

- Lip shrouds between teeth

- Wing shrouds on side walls

- Heel shrouds at bottom edges

• Special wear packages for highly abrasive materials on request

Automatic Lubrication System

Capacity of grease container 450 l (120 US gal)

• Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause / lube times

• Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders

• System failures displayed by Board Control System

• Grease ﬁlters (200 μm) between service station and container as well as directly behind grease pump

Retractable Service Station

Retractable service station installed underneath the engine module and easily accessible from ground.

Equipped with:

• Quick couplings for

- Diesel fuel

- Engine coolant - left / right

- Pump transmission gear oil - left / right

- Engine oil (oil pan) - left / right

- Engine oil (additional tank - optional) - left / right

- Hydraulic oil tank

- Grease container

• Cat jump-start socket

• Indicator lights for fuel tanks left / right full and grease container full

Page 5

Hydraulic Shovel—6030/6030 FS

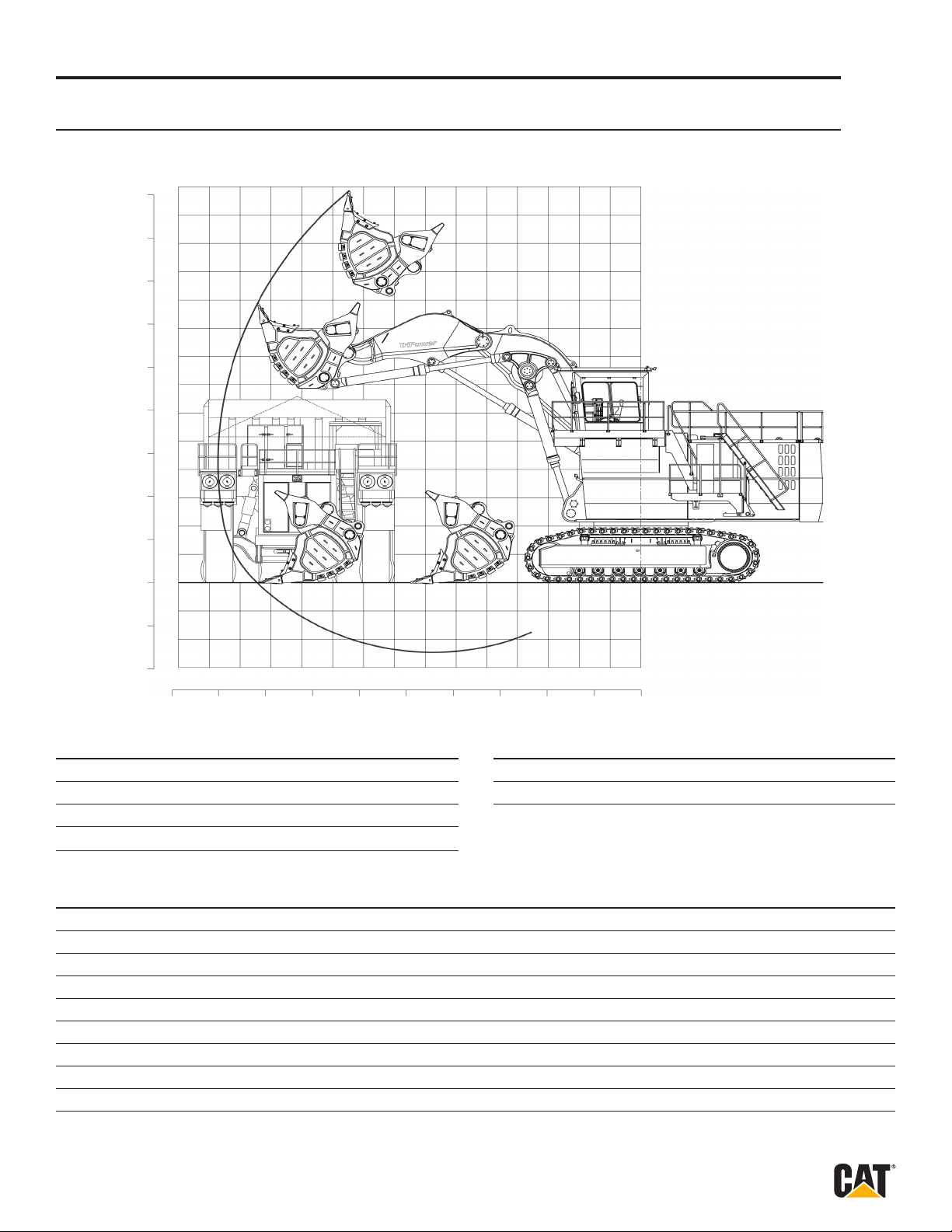

TriPower Face Shovel Attachment (FS)

Working Diagram - Boom 6.2 m (20 ft 4 in) - Stick 4.4 m (14 ft 5 in)

150 SHT

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 m

50 45 40 35 30 25 20 15 10 5 0 ft

Working Range

Max. digging height 13.9 m 45 ft 7 in

Max. digging reach 13.7 m 44 ft 11 in

Max. digging depth 2.5 m 8 ft 2 in

Digging Forces

Max. crowd force 1 370 kN 307,880 lb

Max. crowd force at ground level 1 210 kN 271,920 lb

Max. breakout force 920 kN 206,750 lb

Max. dumping height 10.7 m 35 ft 1 in

Crowd distance on level 4.9 m 16 ft 1 in

Face Shovels

Type Iron ore shovel Iron ore shovel Heavy rock shovel Heavy rock shovel Standard rock shovel

Tooth system ESCO S95 ESCO S95 ESCO S95 ESCO S95 ESCO S95

Capacity SAE/PCSA 1:1 11.6 m3 (15.2 yd3) 13.9 m3 (18.2 yd3) 15.4 m3 (20.1 yd3) 17.0 m3 (22.2 yd3) 19.0 m3 (24.9 yd3)

Capacity SAE/CECE 2:1 10.0 m³ (13.1 yd³) 12.0 m³ (15.7 yd³) 13.5 m³ (17.7 yd³) 15.0 m³ (19.6 yd³) 16.5 m³ (21.6 yd3)

Total width 3 620 mm (11 ft 11 in) 3 900 mm (12 ft 10 in) 3 900 mm (12 ft 10 in) 3 900 mm (12 ft 10 in) 3 900 mm (12 ft 10 in)

Inner width 3 220 mm (10 ft 7 in) 3 500 mm (11 ft 6 in) 3 500 mm (11 ft 6 in) 3 500 mm (11 ft 6 in) 3 500 mm (11 ft 6 in)

Opening width 1 680 mm (5 ft 6 in) 1 790 mm (5 ft 10 in) 1 790 mm (5 ft 10 in) 1 790 mm (5 ft 10 in) 1 790 mm (5 ft 10 in)

No. of teeth 5 6 6 6 6

Weight incl. wear kit 23 400 kg (51,590 lb) 26 700 kg (58,860 lb) 27 300 kg (60,190 lb) 27 500 kg (60,630 lb) 27 900 kg (61,510 lb)

Max. material density (loose) 3.2 t/m3 (5,390 lb/yd3) 2.6 t/m3 (4,210 lb/yd3) 2.2 t/m3 (3,710 lb/yd3) 2.0 t/m3 (3,370 lb/yd3) 1.8 t/m3 (3,030 lb/yd3)

Page 6

Hydraulic Shovel—6030/6030 FS

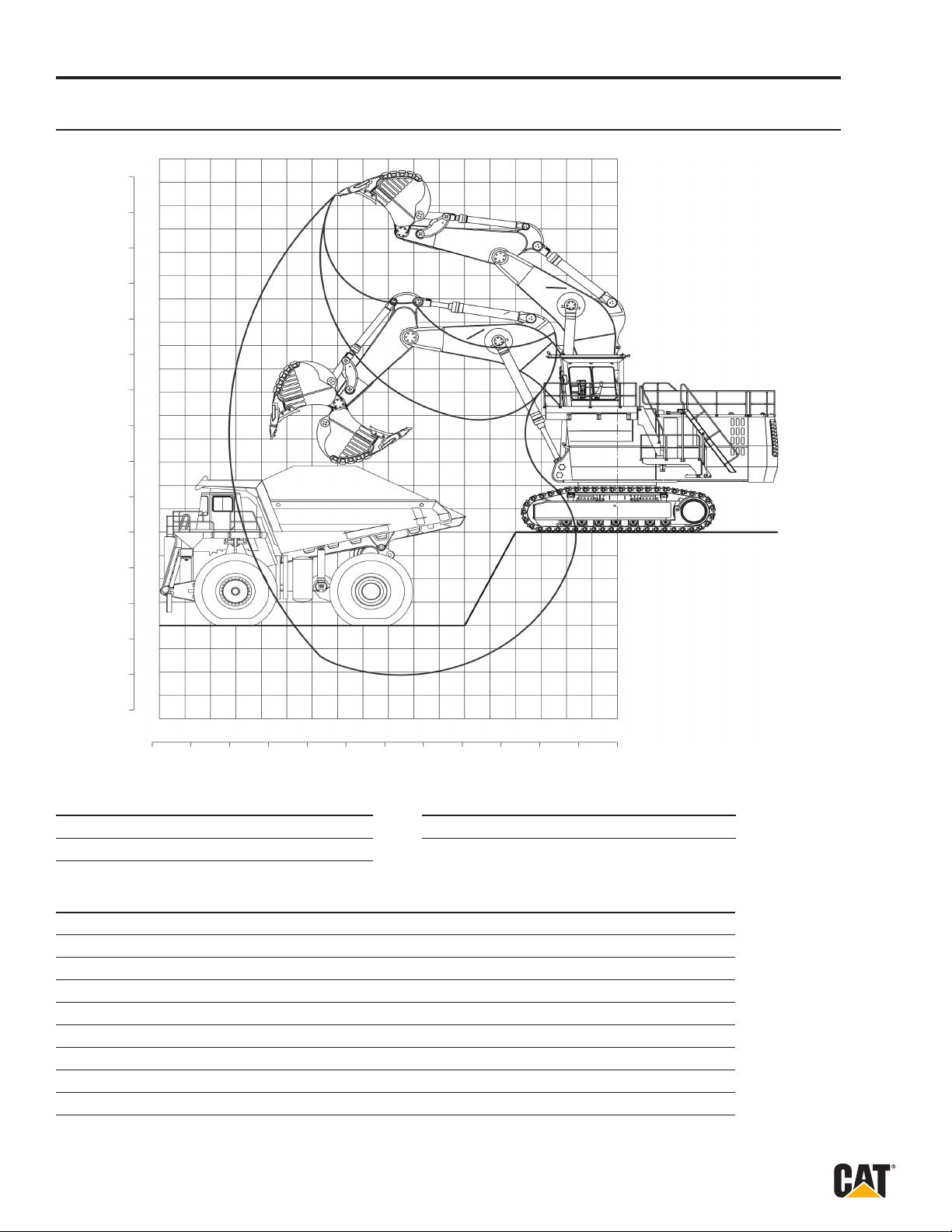

Backhoe Attachment (BH)

Working Diagram - Boom 8.5 m (27 ft 11 in) - Stick 4.0 m (13 ft 9 in)

18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 m

150 SHT

60 55 50 45 40 35 30 25 20 15 10 5 0 ft

Working Range

Max. digging depth 6.1 m 20 ft

Max. digging reach 15.1 m 49 ft 6 in

Digging Forces

Max. crowd force 880 kN 197,760 lb

Max. breakout force 870 kN 195,520 lb

Max. digging height 14.5 m 47 ft 7 in

Backhoes

Type Iron ore bucket Heavy rock bucket Standard rock bucket

Tooth system ESCO V81 ESCO V81 ESCO V81

Capacity SAE 1:1 12.0 m3 (15.7 yd3) 15.0 m3 (19.6 yd3) 17.0 m3 (22.2 yd3)

Capacity CECE 2:1 10.9 m3 (14.3 yd3) 13.6 m3 (17.8 yd3) 15.3 m3 (20.0 yd3)

Capacity struck 9 6 m3 (12.6 yd3) 12.3 m3 (16.1 yd3) 13.5 m3 (17.7 yd3)

Total width 3 450 mm (12 ft 2 in) 3 700 mm (12 ft 2 in) 4 080 mm (13 ft 5 in)

Inner width 3 000 mm (9 ft 10 in) 3 310 mm (10 ft 10 in) 3 690 mm (12 ft 1 in)

No. of teeth 5 5 6

Weight incl. universal wear kit 16 400 kg (36,160 lb) 16 900 kg (37,260 lb) 18 000 kg (39,680 lb)

Max. material density (loose) 2.6 t/m3 (4,380 lb/yd3) 2.0 t/m

(3,370 lb/yd3) 1.8 t/m3 (3,030 lb/yd3)

Page 7

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

1 950 mm (6 ft 5 in)

7 700 mm (25 ft 3 in)

3 700 mm (12 ft 2 in)

3 280 mm (10 ft 9 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

1 950 mm (6 ft 5 in)

7 700 mm (25 ft 3 in)

3 700 mm (12 ft 2 in)

3 280 mm (10 ft 9 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

3 900 mm (12 ft 10 in)

2 900 mm (9 ft 6 in)

8 520 mm (27 ft 11 in)

2,900 mm (9 ft 6 in)

1 950 mm (6 ft 5 in)

7 700 mm (25 ft 3 in)

3 700 mm (12 ft 2 in)

3 280 mm (10 ft 9 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

3 900 mm (12 ft 10 in)

2 900 mm (9 ft 6 in)

1 200 mm (3 ft 11 in)

3 000 mm (9 ft 10 in)

3 640 mm (11 ft 11 in)

3 150 mm (10 ft 4 in)

8 520 mm (27 ft 11 in)

2,900 mm (9 ft 6 in)

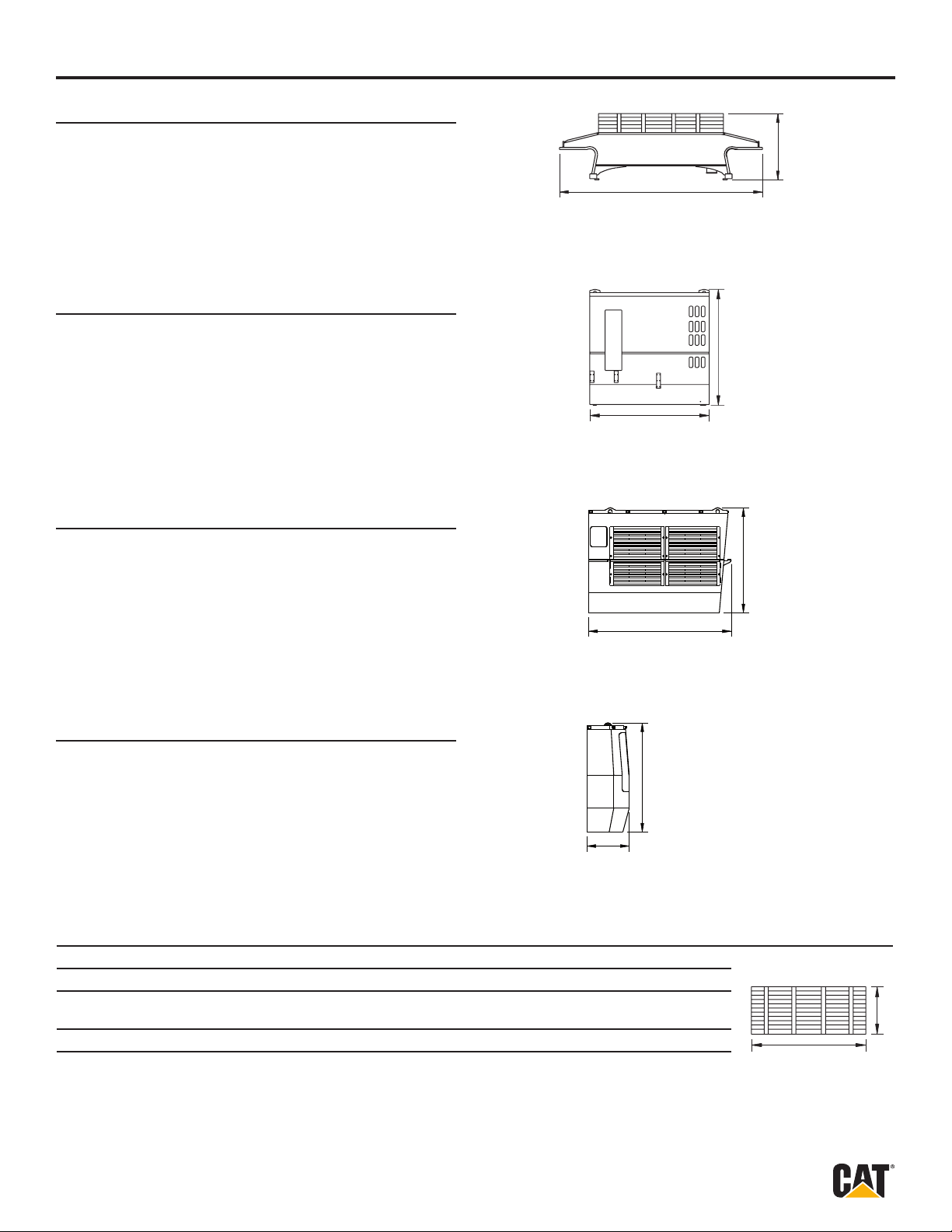

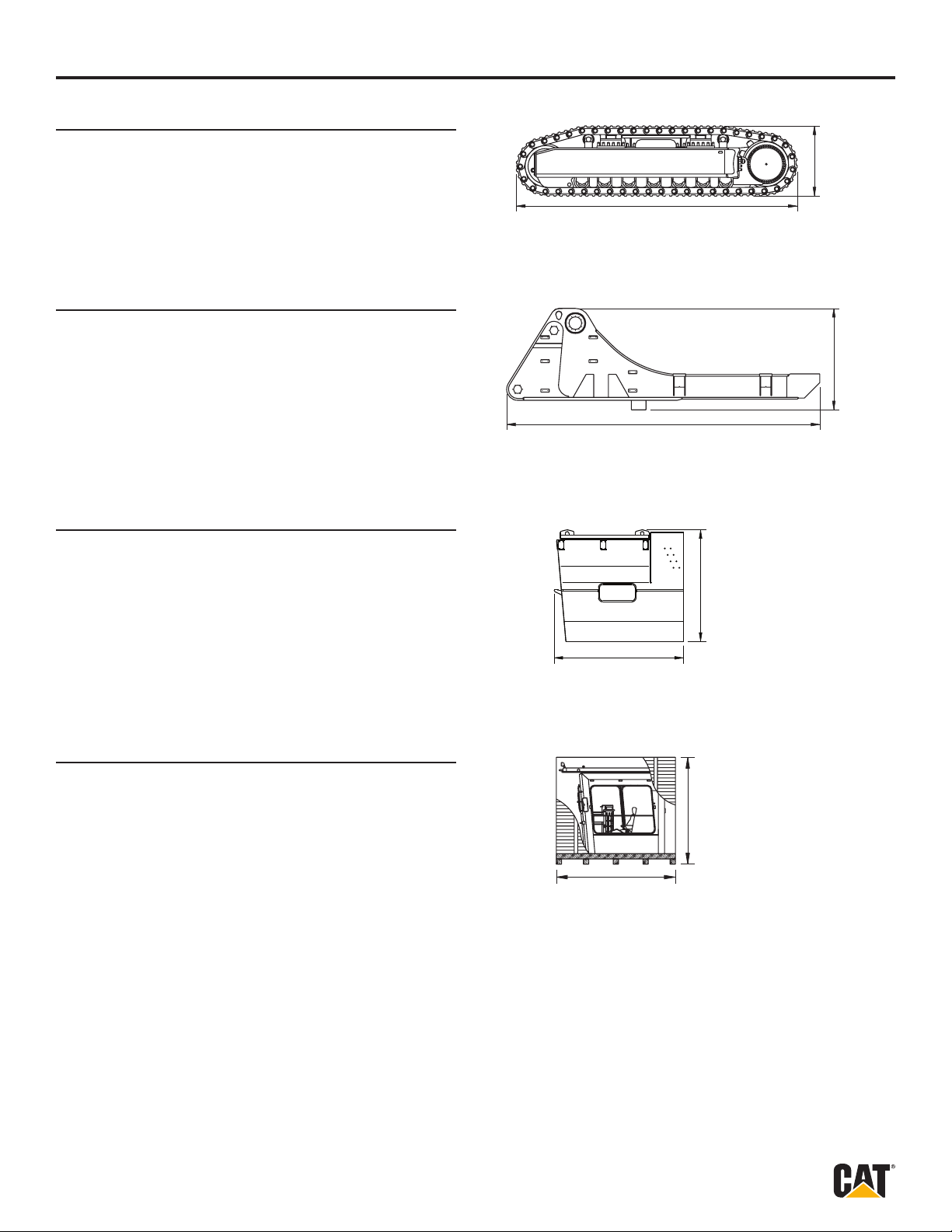

Hydraulic Shovel—6030/6030 FS

General Packing List

Crawler side frame with track pads (2 units)

Width 1 550 mm (5 ft 1 in) Gross weight 36 800 kg (81,130 lb)

Superstructure center frame

Width 3 120 mm (10 ft 3 in) Gross weight 37 300 kg (82,230 lb)

1 950 mm (6 ft 5 in)

7 700 mm (25 ft 3 in)

2,900 mm (9 ft 6 in)

8 520 mm (27 ft 11 in)

Cab pedestal module

Width 2 000 mm (6 ft 7 in) Gross weight 4 830 kg (10,650 lb)

Crate with cabin and FOPS

Width 2 610 mm (8 ft 7 in) Gross weight 3 800 kg (8,380 lb)

3 640 mm (11 ft 11 in)

3 500 mm (11 ft 6 in)

3 150 mm (10 ft 4 in)

3 070 mm (10 ft 1 in)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

Page 8

1 600 mm (5 ft 3 in)

2 900 mm (10 ft 2 in)

1 650 mm (5 ft 5 in)

2 600 mm (8 ft 6 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

3 700 mm (12 ft 2 in)

3 280 mm (10 ft 9 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

3 700 mm (12 ft 2 in)

3 280 mm (10 ft 9 in)

5 550 mm (18 ft 3 in)

1 850 mm (6 ft 1 in)

3 900 mm (12 ft 10 in)

2 900 mm (9 ft 6 in)

Hydraulic Shovel—6030/6030 FS

General Packing List

Undercarriage center frame with swing roller bearing

Width 3 400 mm (11 ft 2 in) Gross weight 25 000 kg (55,120 lb)

Engine module with diesel engines

Width 5 300 mm (17 ft 5 in) Gross weight C27 24 200 kg (53,350 lb) Gross weight QSK19 22 700 kg (50,040 lb)

1 850 mm (6 ft 1 in)

5 550 mm (18 ft 3 in)

3 280 mm (10 ft 9 in)

3 700 mm (12 ft 2 in)

Oil cooler module

Width 1 550 mm (5 ft 1 in) Gross weight 4 600 kg (9,480 lb)

Counterweight incl. radiators

3 900 mm (12 ft 10 in)

Width 5 300 mm (17 ft 5 in) Gross weight 33 500 kg (73,850 lb)

Crates

Content Length Width Height Gross Weight

Grease container with pump 1 380 mm (4 ft 6 in) 1 070 mm (3 ft 6 in) 2 060 mm (6 ft 9 in) 930 kg (2,050 lb)

Barrels (hydraulic oil; grease; antifreeze) 2 500 mm (8 ft 2 in) 1 300 mm (4 ft 3 in) 1 270 mm (4 ft 8 in) 2 200 kg (4,850 lb)

Swing ring cover 2 200 mm (7 ft 3 in) 1 300 mm (4 ft 3 in) 1 140 mm (3 ft 9 in) 370 kg (820 lb)

Retractable ladder 4 400 mm (14 ft 5 in) 1 100 mm (3 ft 7 in) 2 000 mm (6 ft 7 in) 620 kg (1,370 lb)

1 200 mm (3 ft 11 in)

2 900 mm (9 ft 6 in)

3 000 mm (9 ft 10 in)

Height

Length

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

Page 9

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

Length

Height

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

6 700 mm (21 ft 12 in)

2 850 mm (9 ft 4 in)

3 950 mm (13 ft)

Length

Height

3 600 mm (11 ft 10 in)

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

6 700 mm (21 ft 12 in)

2 850 mm (9 ft 4 in)

600 mm

(2 ft)

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

Length

Height

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

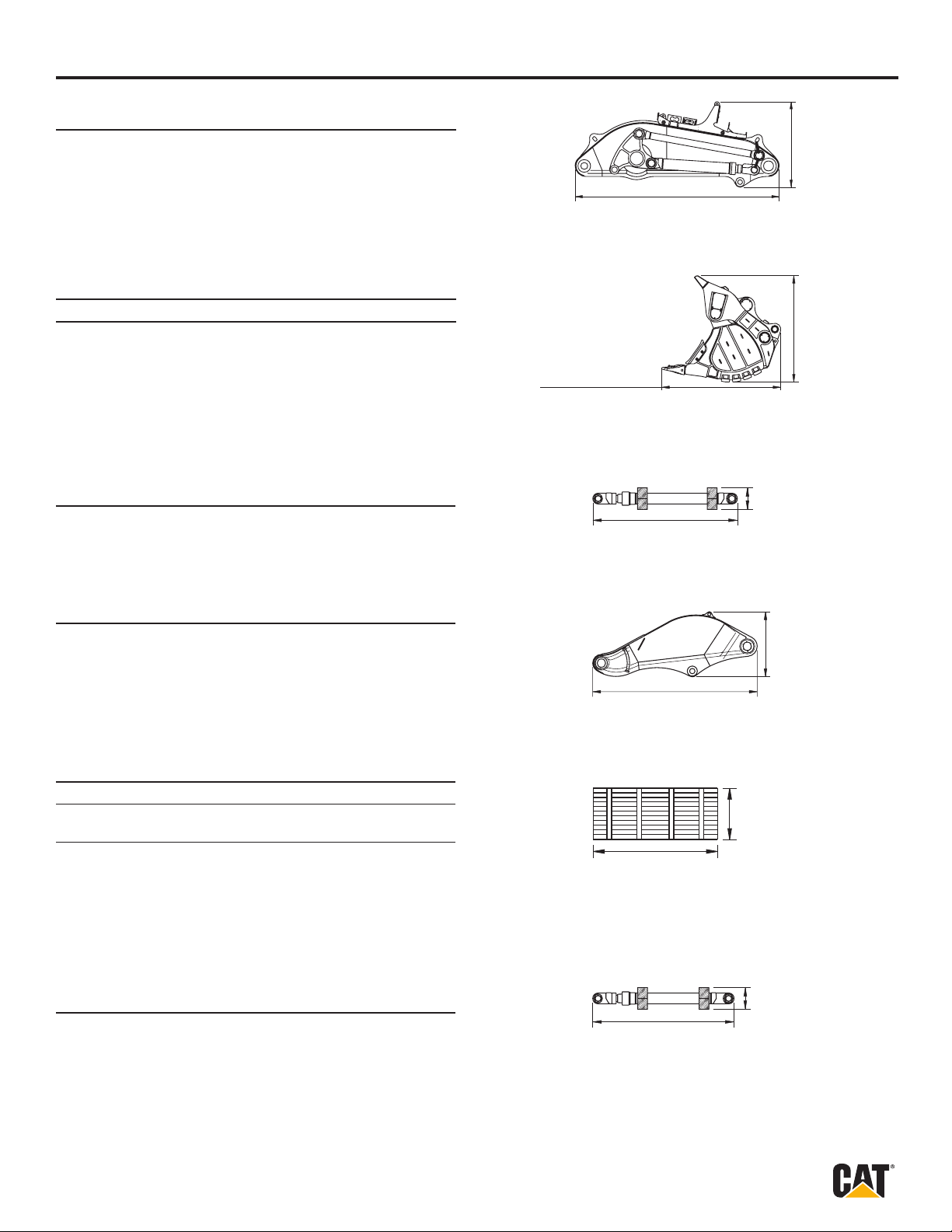

Hydraulic Shovel—6030/6030 FS

TriPower Shovel Attachment

Boom with main valve block, TriPower linkages and rods

Width 2 600 mm (8 ft 6 in) Gross weight 26 400 kg (58,200 lb)

Face shovel incl. pin for stick

Capacity (2:1) Width Gross Weight

15.0 m3 (19.6 yd3) 3 900 mm (12 ft 10 in) 28,200 kg (62,170 lb)

16.5 m3 (21.6 yd3) 3 900 mm (12 ft 10 in) 28,600 kg (63,050 lb)

6 700 mm (21 ft 12 in)

15.0 m³ = 3 650 mm (12 ft)

16.5 m³ = 3 900 mm (12 ft 10 in)

2 850 mm (9 ft 4 in)

3 600 mm (11 ft 10 in)

Bundle with 2 stick cylinders

Width 1 100mm (3 ft 7 in) Gross weight 3,800 kg (8,380 lb)

Stick

Width 1 840 mm (6 ft) Gross weight 9 000 kg (19,840 lb)

Crates with catwalks, railings and other parts

Length Width Height Gross weight

3 400 mm 1 250 mm 1 370 mm 1 300 kg (11 ft 2 in) (4 ft 1 in) (4 ft 6 in) (2,870 lb)

4 960 mm 1 900 mm 1 960 mm 4 760 kg (16 ft 3 in) (6 ft 3 in) (6 ft 5 in) (10,490 lb)

4 050 mm (13 ft 3 in)

4 950 mm (16 ft 3 in)

Length

(2 ft)

600 mm

1 900 mm (6 ft 3 in)

Height

Bundle with 2 bucket cylinders

Width 1 100 mm (3 ft 7 in) Gross weight 3 800 kg (8,380 lb)

3 950 mm (13 ft)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

(2 ft)

600 mm

Page 10

4 050 mm (13 ft 3 in)

6 000 mm (19 ft 8 in)

2 300 mm (7 ft 7 in)

3 950 mm (13 ft)

600 mm

(2 ft)

Length

Height

3 600 mm (11 ft 10 in)

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

6 700 mm (21 ft 12 in)

2 850 mm (9 ft 4 in)

600 mm

(2 ft)

Backhoe bucket including pins for stick and linkage Crates with catwalks, railings and other parts

4 050 mm (13 ft 3 in)

6 000 mm (19 ft 8 in)

Length

Height

2 300 mm (7 ft 7 in)

3 800 mm (12 ft 6 in)

9 400 mm (30 ft 10 in)

15.0 m³ = 3 650 mm (12 ft)

16.5 m³ = 3 900 mm (12 ft 10 in)

3 950 mm (13 ft)

600 mm

(2 ft)

Length

Height

3 600 mm (11 ft 10 in)

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

6 700 mm (21 ft 12 in)

2 850 mm (9 ft 4 in)

600 mm

(2 ft)

4 050 mm (13 ft 3 in)

6 000 mm (19 ft 8 in)

2 900 mm (9 ft 6 in)

Length

Height

2 300 mm (7 ft 7 in)

3 800 mm (12 ft 6 in)

9 400 mm (30 ft 10 in)

3 950 mm (13 ft)

600 mm

(2 ft)

Length

Height

3 600 mm (11 ft 10 in)

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

6 700 mm (21 ft 12 in)

2 850 mm (9 ft 4 in)

600 mm

(2 ft)

3 950 mm (13 ft)

Length

Height

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

600 mm

(2 ft)

6 000 mm (19 ft 8 in)

2 300 mm (7 ft 7 in)

3 950 mm (13 ft)

Length

Height

4 950 mm (16 ft 3 in)

1 900 mm (6 ft 3 in)

600 mm

(2 ft)

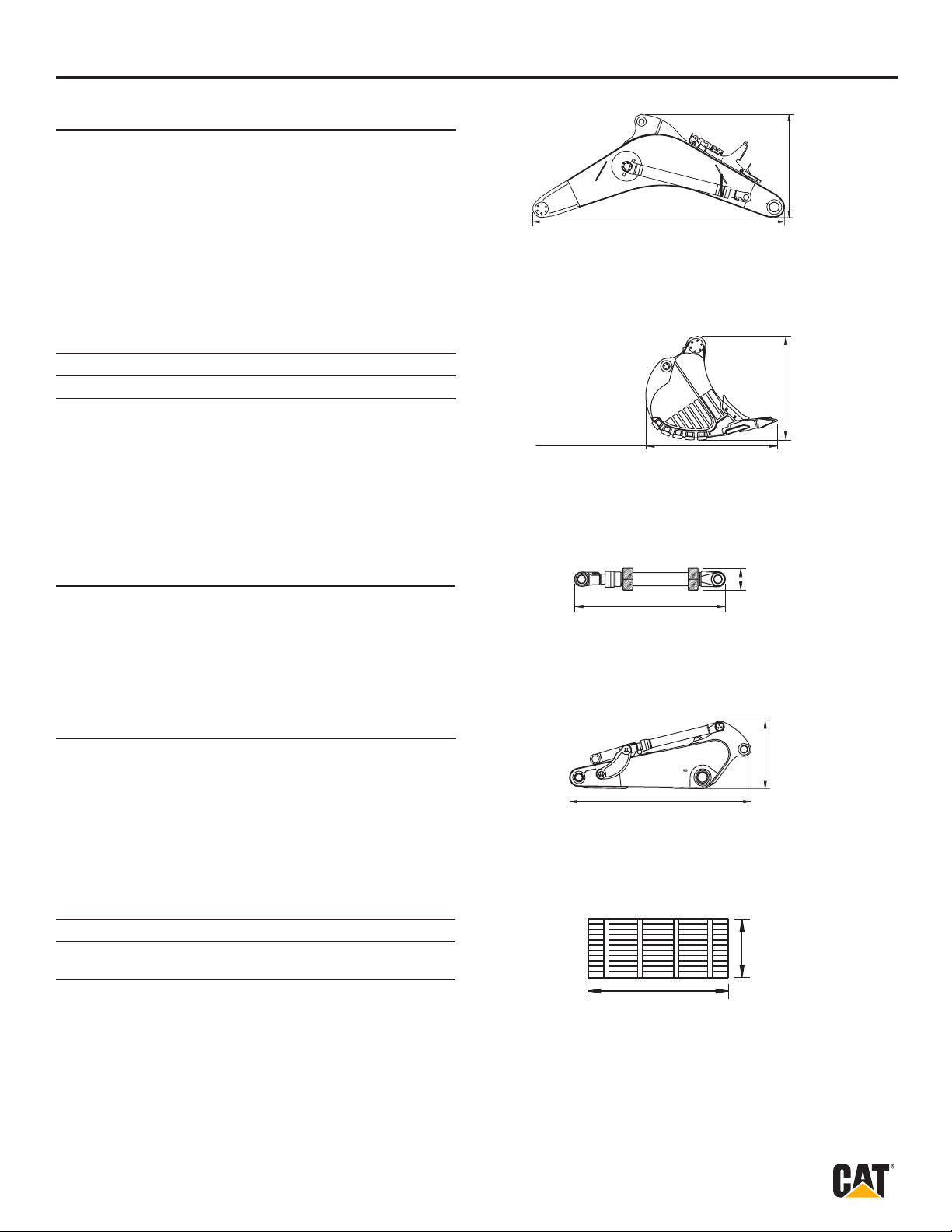

Hydraulic Shovel—6030/6030 FS

Backhoe Attachment

Monoboom with main valve block

Width 2 700 mm (8 ft 10 in) Gross weight 32 700 kg (72,090 lb)

3 800 mm (12 ft 6 in)

9 400 mm (30 ft 10 in)

Backhoe bucket incl. pins for stick and linkage

Capacity (1:1) Width Gross Weight

15.0 m3 (19.6 yd3) 3 700 mm (12 ft 2 in) 18 000 kg (39,680 lb)

17.0 m3 (22.2 yd3) 4 150 mm (13 ft 7 in) 19 100 kg (42,110 lb)

Bundle with 2 stick cylinders

Width 1 200mm (3 ft 11 in) Gross weight 6 350 kg (14,000 lb)

Stick with linkage and bucket cylinders

Width 2,100 mm (6 ft 11 in) Gross weight 16 200 kg (35,710 lb)

15 m³ = 3 800 mm (12 ft 6 in)

17 m³ = 3 850 mm (12 ft 8 in)

4 250 mm (13 ft 11 in)

(2 ft)

610 mm

2 900 mm (9 ft 6 in)

Crates with catwalks, railings and other parts

Length Width Height Gross weight

4 950 mm 1 900 mm 1 900 mm 2 500 kg (16 ft 3 in) (6 ft 3 in) (6 ft 3 in) (7,050 lb)

3 400 mm 1 250 mm 1 370 mm 1 550 kg (11 ft 2 in) (4 ft 1 in) (4 ft 6 in) (3,420 lb)

Above values are approximate. Details may vary depending on scope of supply and destination. Exact data subject to selected machine conﬁguration and ﬁnal packing list.

2 300 mm (7 ft 7 in)

6 000 mm (19 ft 8 in)

Height

Length

Page 11

Hydraulic Shovel—6030/6030 FS

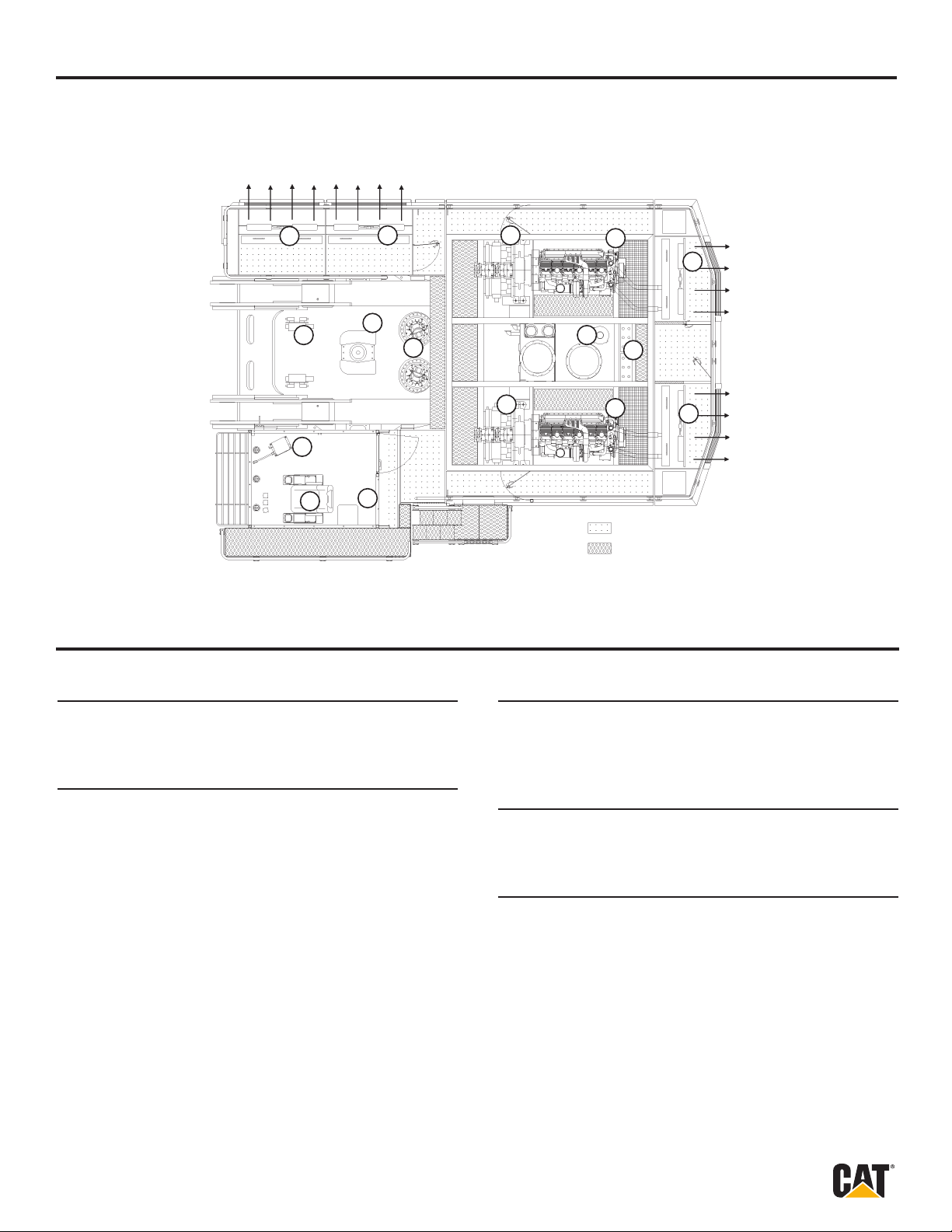

Component accessibility on superstructure

1. Diesel Engines 4. Oil coolers 7. Rotary distributor 10. Operator’s seat

2. Gearboxes with hydraulic pumps 5. Hydraulic tank 8. Travel valves 11. BCS tower

3. Engine radiators with hydraulically driven fan 6. Swing drives 9. Batteries 12. Auxilliary seat

Optional Equipment

4 2

Anti-slip walking areas

Anti-slip catwalks

General

• Export crating

• Finishing as per end user´s corporate colors

• Customizing of logos as per customer’s speciﬁcation

Superstructure

• Mechanical service crane on superstructure

• Hydraulic service crane on superstructure with auxilliary engine

• Oil change interval extension for engine oil up to 1000 hrs (Cummins engines only)

• Engine oil burn system (Cummins engines only)

• Centrifuges for engine oil ﬁltration (Cummins engines only)

• Folding access stairway, stairway angle approx. 45°

• Round container with a standard 200 l grease barrel (instead of 450 l grease container)

• Lubricated pinion for greasing of internal gearing of swing ring

• Various cold-weather packages

Cab

• Various heating and air-conditioning systems

• Roller blinds at all windows

• Outside-mounted sun shields

• Rear windscreeen wiper

Undercarriage

• Track pad width 800 mm (2 ft 7 in) or 1 200 mm (3 ft 11 in)

• Automatic lubrication of rollers by central lube system

• Cover plate under carbody (belly plate)

Attachment

• Guards for boom cylinders of FS-attachment

• Xenon lighting on boom

• Special wear packages

Additional optional equipment available on request

Page 12

Hydraulic Shovel—6030/6030 FS

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at mining.cat.com and www.cat.com

CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ6523-01
