Engine
Engine Model Cat®C15 ACERT™
Gross Power 259 kW 347 hp
Flywheel Power 231 kW 310 hp
• Engine ratings at 1,850 RPM
Weights
Operating Weight 45 359 kg 100,000 lb
Shipping Weight 44 906 kg 99,000 lb
• Operating weight includes all shipping weights plus full
fuel tank and operator.
• Shipping weight includes: lubricants, coolant, 10% fuel,
hydraulic controls and fluids, backup alarm, seat belt,
710 mm (28") grouser shoes, drawbar and counterweight.
Operating Specifications
Lifting Capacity 63 504 kg 140,000 lb
583T
Pipelayer
®
®
Page 2
2
583T Pipelayer
The 583T Pipelayer offers outstanding productivity.
Engineered for reliable production in the
toughest conditions.
The 583T’s high horsepower and rugged
components are designed for tough and
varied working conditions. This machine
offers the reliability and durability expected
from Cat
®
Pipelayers.
Serviceability and Customer Support
Combining easy to access, modular
components with your Caterpillar
®
Dealer’s advanced rebuild and repair
capabilities ensures rapid component
replacement and minimum downtime.
pg. 12
Undercarriage
The proven elevated sprocket
undercarriage isolates the drive train
components from ground-induced
impacts. Designed to optimize machine
balance for best possible performance
and extended component life. pg. 11
Operator Station
Designed for operator comfort,
convenience and productivity.
Machine control and vital information
is provided at the operator’s fingertips.
A full day of work is no problem in this
efficient work place. pg. 6
✔
Structure
Mainframe is heavy, strong and durable.
Full box sections, steel castings and
continuous rolled rails provide durable
support to the undercarriage, elevated
final drives and other integral frame
components. pg. 5
Pipelayer
Fully hydraulic load line and boom
winches provide excellent controllability
for precise pipe placement. Counterweight
and frame design provides excellent
stability. pg. 4
Page 3
✔ New Feature
3
Drive Train
The electronically controlled power
shift transmission, efficient differential
steering and durable planetary final
drives deliver outstanding power
transfer and long life to ensure maximum
productivity. pg. 10
✔
Power Train
The rugged, easy-to-service Cat®C15
engine with ACERT™ Technology has
a high torque rise and meets worldwide
emissions regulations. pg. 8
✔
Optional Enclosed Cab
The optional enclosed cab offers
operator comfort in any climate.
The operator enjoys excellent visibility
in all directions because the cab was
designed with maximum glass area and
includes a skylight window to view
the boom and upper block. pg. 7
✔
Page 4

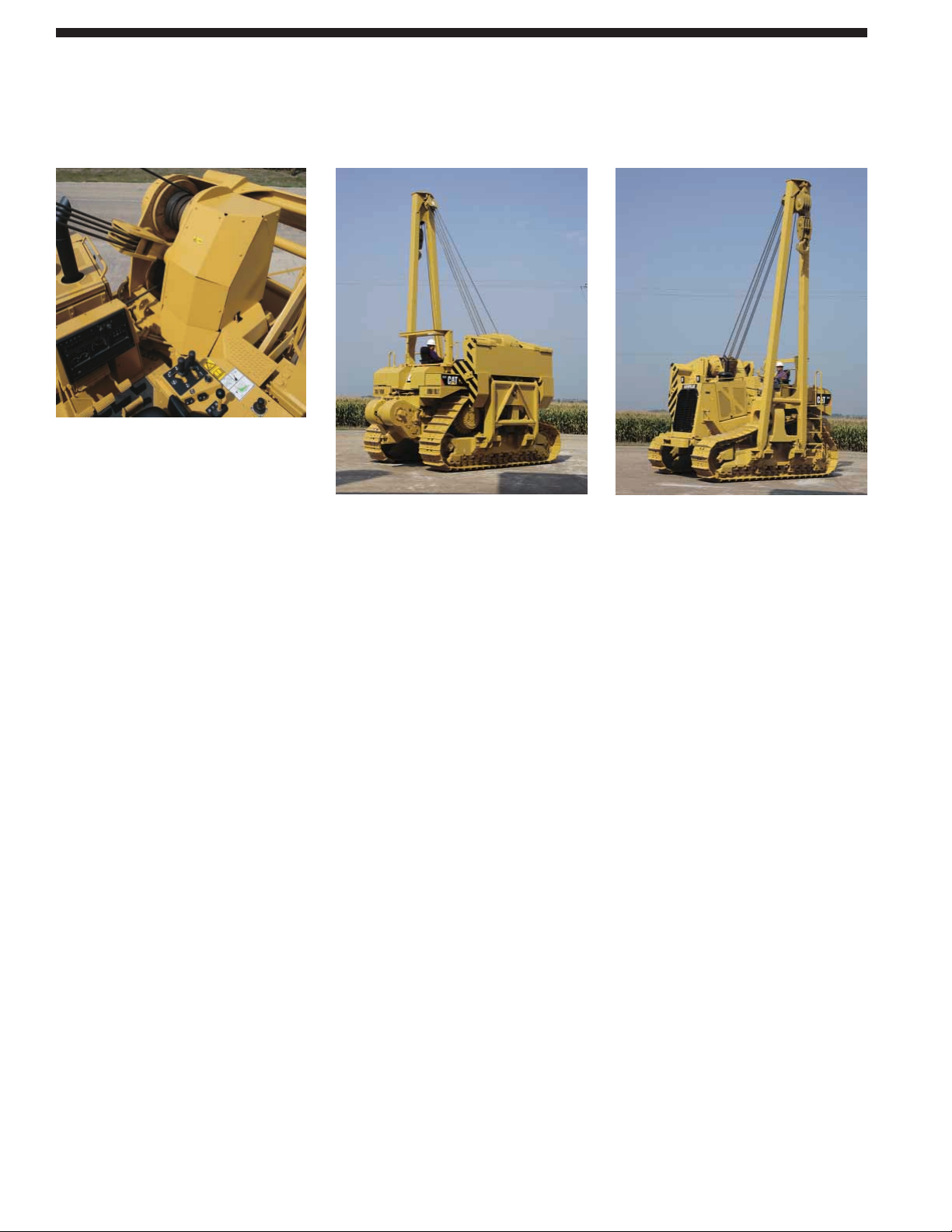

Winches.
• Boom and hook drawworks are
driven by independent hydraulic
winches.
• Oil-disc brakes provide smooth
operation and positive retention
of boom and hook positions.
• Modular design allows fast
replacement, easy field service
and testing.
• High parts interchangeability between
hook and boom winch assemblies.
• Infinitely variable speed controls
for both boom and hook allow
precise control.
• Quick drop function on hook line
control allows the operator to drop
the load quickly.
Counterweight and Frame.
• Counterweight is extended
hydraulically for improved load
balance and clearance.
• Counterweight segments are
contoured to provide a low center of
gravity and enhanced forward and
right side viewing area. Segments
are splined to the counterweight
assembly for ease of assembly
and disassembly.
Drawbar.
• Able to tow wide range of
attachments.
Blocks and Hook. Heavy-duty lifting
components include the following:
Load and boom blocks, forged hook with
latch, serviceable handle, roller bearings
and ductile iron sheaves with sealed
roller bearings. Also includes high
performance cable for improved life,
crush resistance, flexibility and strength.
Boom.
• 7.3 m (24 ft) Boom is standard
equipment with large box section.
• Replaceable, boom-mount bearings.
• High tensile strength steel
construction.
• Allows for smaller sections for
improved visibility.
• Lighter weight for increased payload.
• Durable for long life.
4
Pipelayer

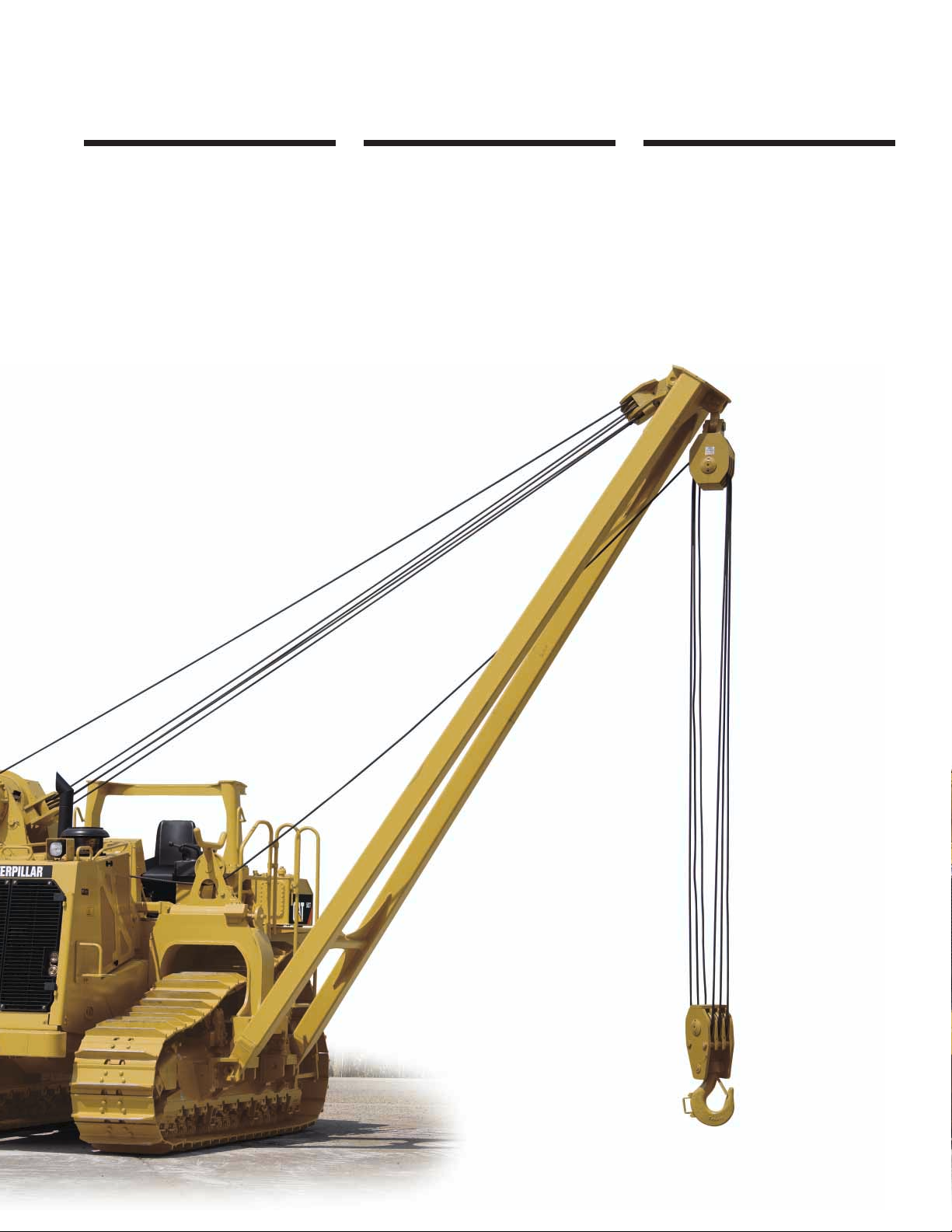

Caterpillar pipelayer system includes winch, boom, hook, counterweight and frame.
Page 5

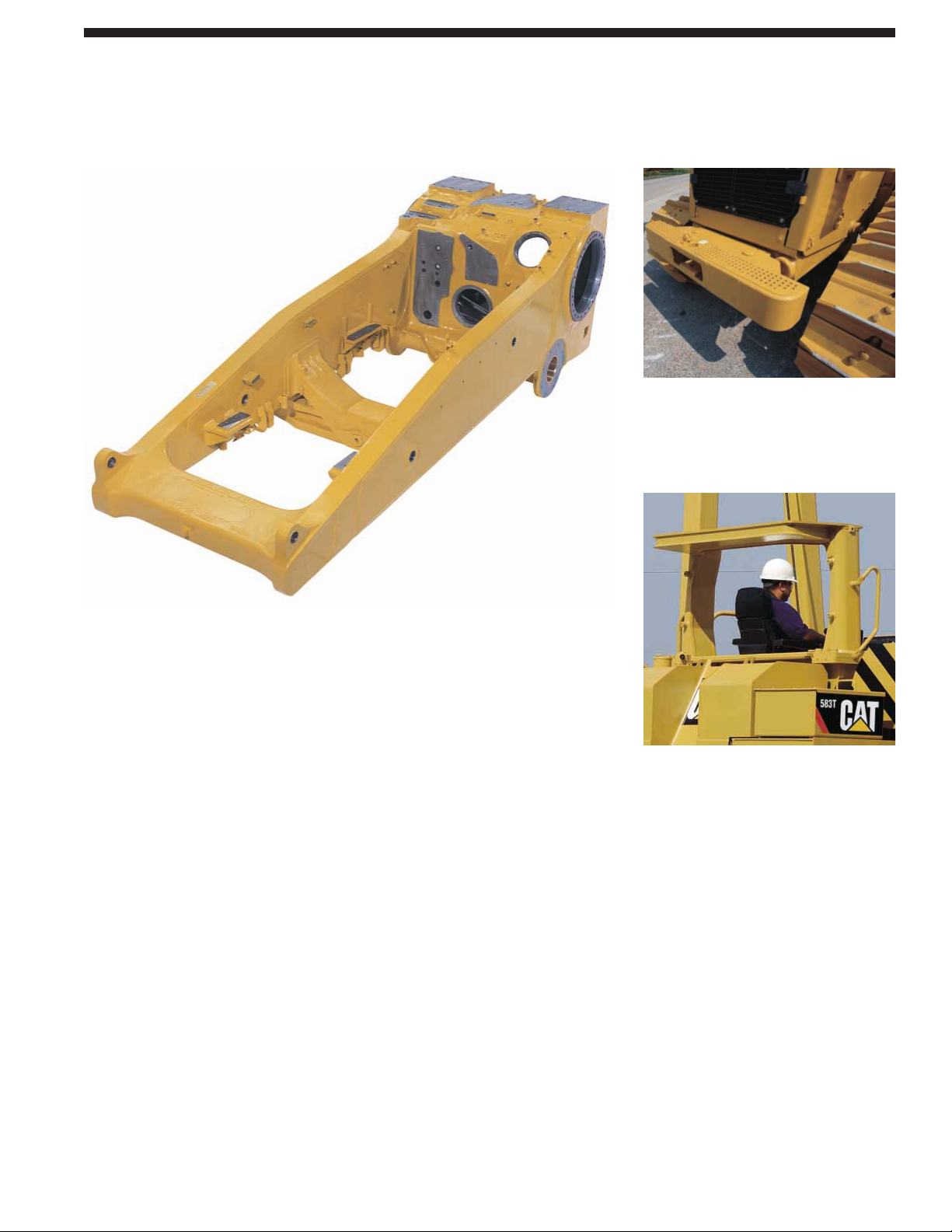

Mainframe Strength. The 583T
mainframe is built to absorb high
impact shock loads and twisting forces.
Frame Rails. Full box section, designed
to keep components rigidly aligned.
Heavy Steel Castings. Adds strength to
the main case, center saddle and front
cross member.
Top and Bottom Rails. Continuous
rolled sections, with no machining or
welding, to provide superior mainframe
durability.
Main Case. Elevates the final drives
well above the ground level work area
to protect them from impact loads,
abrasion and contaminants.
Robotic Welding. Caterpillar uses
robotic welding techniques in the
assembly of the case and frames.
This insures quality and reliability
throughout the structure. Robotic welding
provides deep penetration and consistency
for long life, and reduces the chance
for errors that may be made during
manual welding.
Roller Frames. Roller frames are tubular,
to resist bending and twisting, with
reinforcement where operating stresses
are the highest.
• Non-oscillating roller frames
for greater stability in pipelaying
applications.
• The recoil system is sealed
and lubricated.
Front Bumper. A front bumper is pinned
on the frame rails and provides both
protection and a towing device.
Pipelayer frame mounts are also
an integral part of the frame.
Optional Rollover Protective Structure.
Provides increased operator protection.
• Available with or without cab.
5
Structure
Engineered to provide durability and the solid support necessary for maximum production
and service life in the most demanding conditions.
Page 6
Clear Full-Circle View. A tapered hood
and “notched” fuel tank give the operator
a clear line of sight to the front, rear and
side work areas. The new streamlined
design of the Caterpillar 583T Pipelayer
offers several operator visibility
improvements for more precise
maneuvering and placement of pipe.

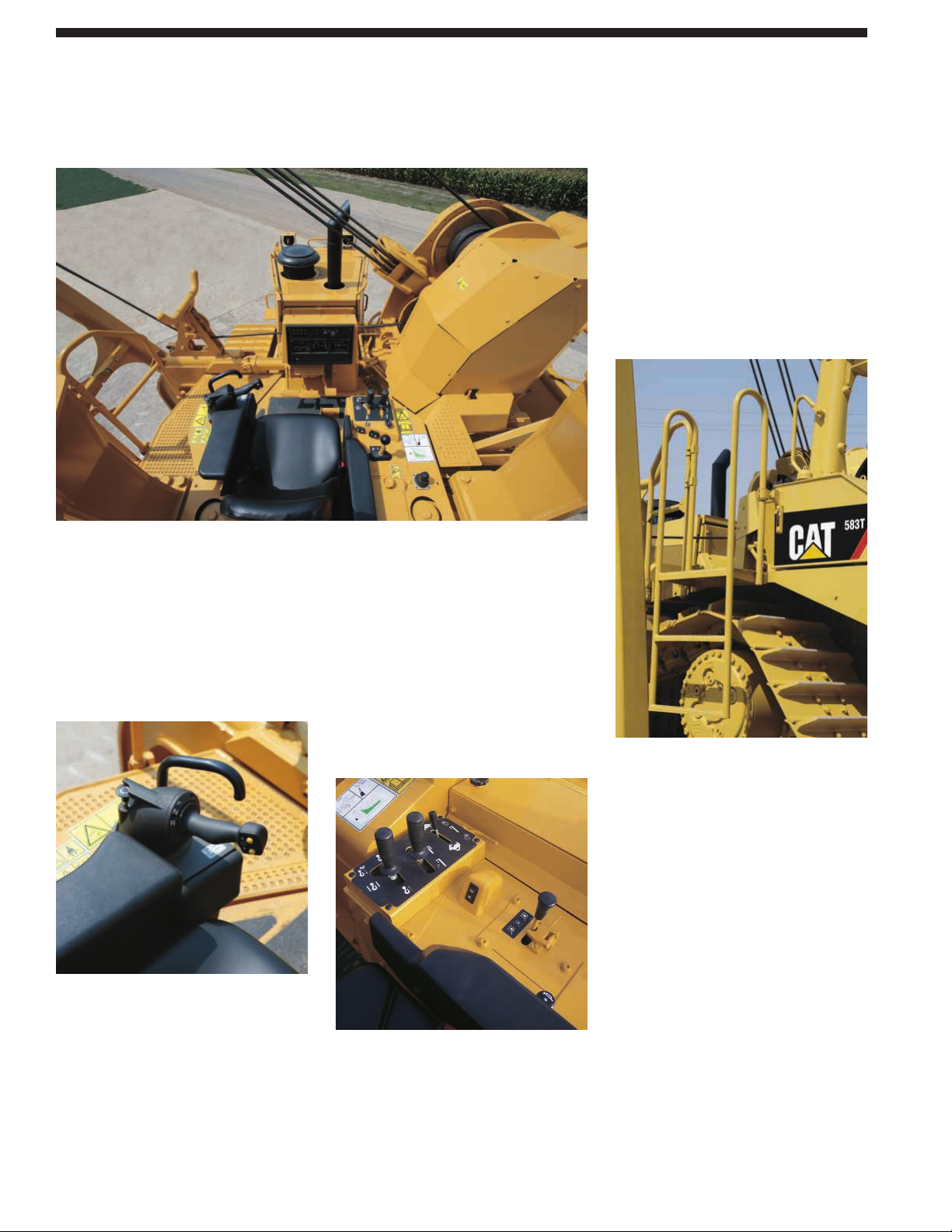

Steering Control. Dual-twist tiller control
with standard differential steering controls
direction and degree of turns, forwardreverse shifting, and gear selection in a
single control handle. One hand steering
enhances operator comfort.
Cat Comfort Series Seat. Ergonomically
designed and fully adjustable for
maximum comfort.
• Seat cushion reduces the pressure
on the lower back and thighs while
allowing unrestricted arm and leg
movement.
• Seat is raised and moved to the
left providing improved all
around visibility.
Ergonomic Work Tool Controls.
Pipelayer controls are low effort and
allow simultaneous, precise positioning
of the load line and boom with one hand.
Monitoring System. Provides the
operator instant feedback on the condition
of operating systems and records such
performance data as high/low gauge
readings to help diagnose problems and
manage undercarriage. Has gauges that
monitor the temperature of the engine
coolant, hydraulic oil and power train
oil, plus the fuel level. Also has a digital
and gauge type tachometer.
Access Ladder. Direct access to the
operator’s station utilizing ladder on
left side of the machine.
Variable Load Line Speed Range.
Allows the operator to regulate line speed.
Power Supply. The voltage converter
provides two 12-volt power supplies.
Counterweight Control. Adjusts the
position of the counterweight for added
machine stability.
Engine Speed Control. A rocker switch
and decelerator pedal control engine
speed. Idle can be set to desired level.
High or low idle is delivered with a
touch of the finger.
6
Operator Station
Excellent operator visibility with ergonomically designed operator station for maximum
comfort and productivity.
Page 7

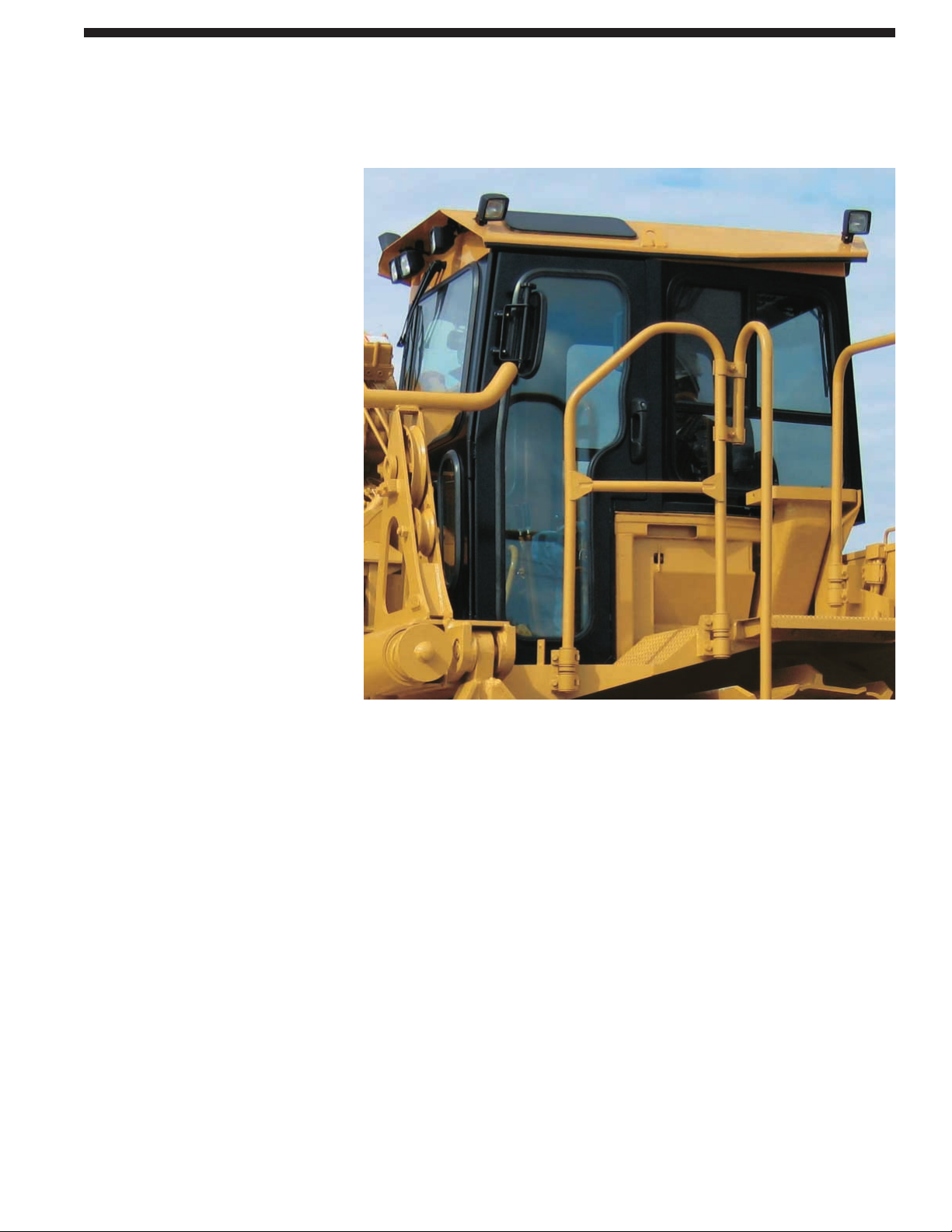

Optional Enclosed Cab. Designed for
operator comfort and productivity in
any climate. Fully insulated with a
heater. Air conditioning and ROPS
available as additional options.
Excellent Visibility. The optional cab
provides excellent visibility, designed
with the maximum glass area. There is
also an additional option of dual pane
windows available for cold weather
environments.
Skylight Window. The cab is equipped
with a skylight window to view the
boom and upper block.
Screened Side Windows. The side
windows are screened to allow better
ventilation and ground communication.
Wipers. The optional cab is equipped
with wipers on the front, rear and door
windows to provide a clearer view
during inclement weather.
Lights. Eight additional halogen
lights come with the cab arrangement,
3 facing forward, 2 to the rear, 2 to the
boom side and 1 to the winch side.
7
Optional Enclosed Cab
Caterpillar®offers an optional enclosed cab to maximize operator comfort in any climate.
Page 8

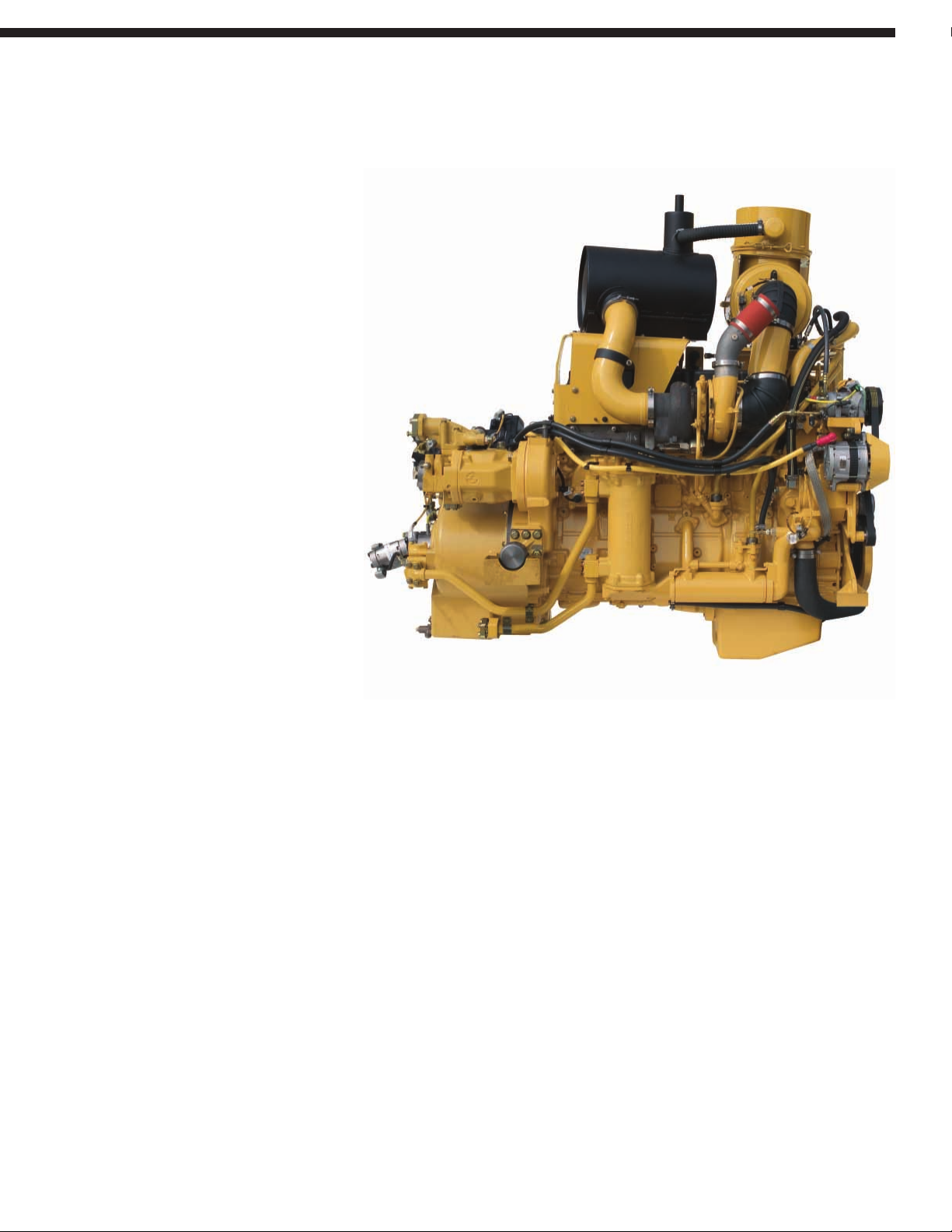

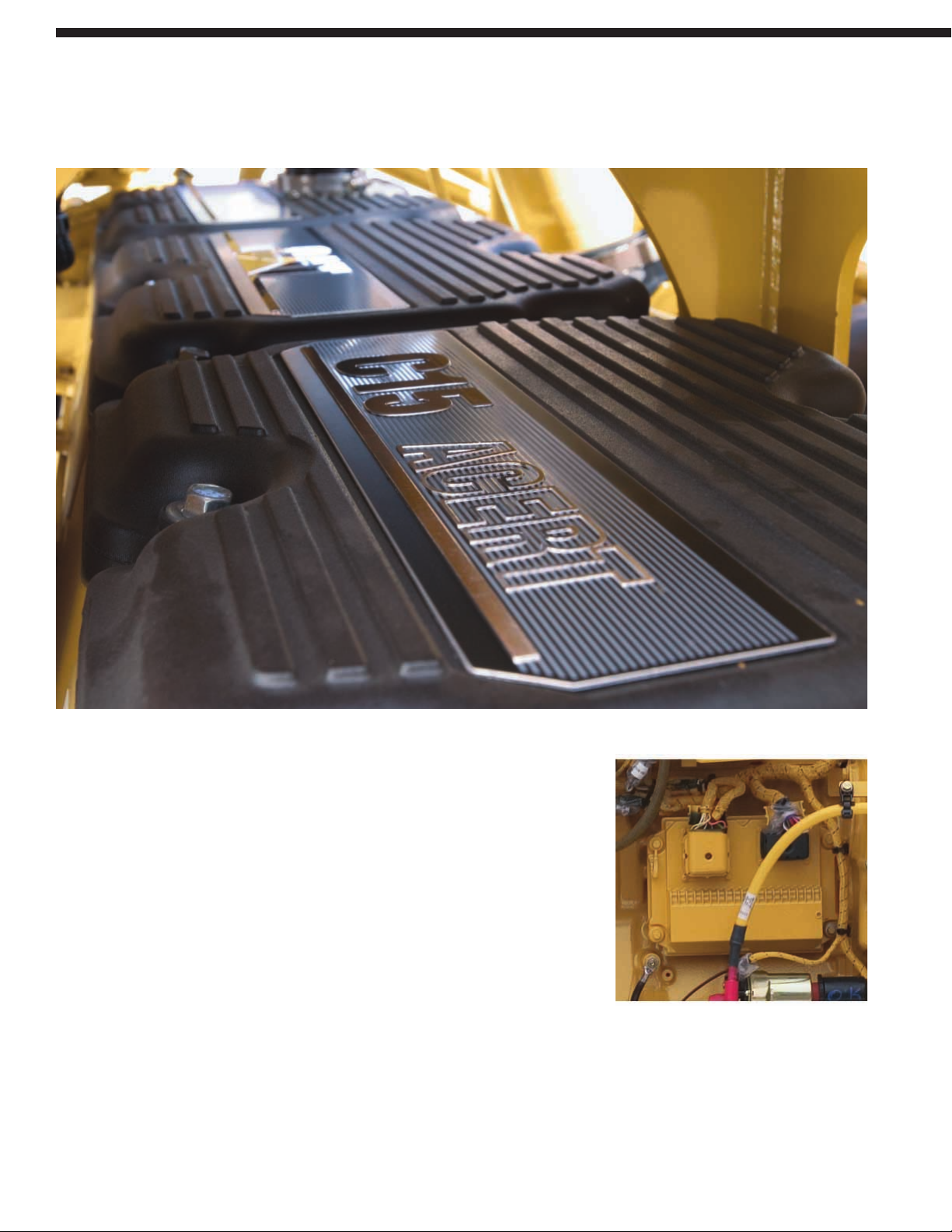

Engine. The Cat C15 engine with
ACERT™ Technology provides the
power for the 583T. Performing at
full-rated net power of 231 kW (310 hp)
at 1,850 rpm, the large displacement
and high torque rise provides the 583T
the power needed on challenging jobs.
Matched to the high-efficiency torque
divider and electronically controlled
power shift transmission, it will provide
years of dependable service.
C15 Block. The one-piece, grey iron
block features generous ribbing for
stiffness and heavy bearing bulkheads
for rigidity and strength. Incorporation
of straight o-ring connection points
reduces the loss of engine oil and fluids.
Constant Net Horsepower.
• Constant net horsepower allows the
operator to maintain high standards
of performance and response, even
when parasitic loads, such as the
on-demand cooling fan, are applied.
• Engine automatically adjusts to
maintain power output and conversely
lowers output when demands are low.
• Significant fuel savings in cooler
climates and during long engine idle
times typical of pipeline applications.
8
The rugged, easy-to-service Cat C15 engine with ACERT™ Technology has a high torque
rise and meets worldwide emissions regulations.
Power Train
Page 9
ADEM™ A4 Engine Controller.
The ADEM A4 electronic control
module manages fuel delivery to get
the best performance per liter (gal) of
fuel used. It provides flexible fuel
mapping, allowing the engine to respond
quickly to varying application needs.
It tracks engine and machine conditions
while keeping the engine operating at
peak efficiency.
Fuel Delivery. Multiple injection fuel
delivery involves a high degree of
precision. Precisely shaping the
combustion cycle lowers combustion
chamber temperatures generating
fewer emissions and optimizing fuel
combustion; translating into more
work output for your fuel cost.
MEUI Fuel System. A highly evolved
fuel system with a proven record of
reliability in the field. MEUI combines
the technical advancement of an
electronic control system with the
simplicity of direct mechanically
controlled unit fuel injection.
The MEUI system excels in its ability
to control injection pressure over the
entire engine operating speed range.
These features allow the C15 to have
complete control over injection timing,
duration, and pressure.
ATAAC and Turbocharging.
Air-to-air aftercooling keeps air intake
temperatures down and, in concert with
the tight tolerance combustion chamber
components, maximizes fuel efficiency
and minimizes emissions. Significant
improvements in air flow are generated
by a water-cooled turbocharger, unique
cross-flow head and single overhead cam.
Service. Easier maintenance and repair
through monitoring key functions and
logging critical indicators. Electronic
diagnostic access is possible with a
single tool, the Cat Electronic Technician.
9
Page 10

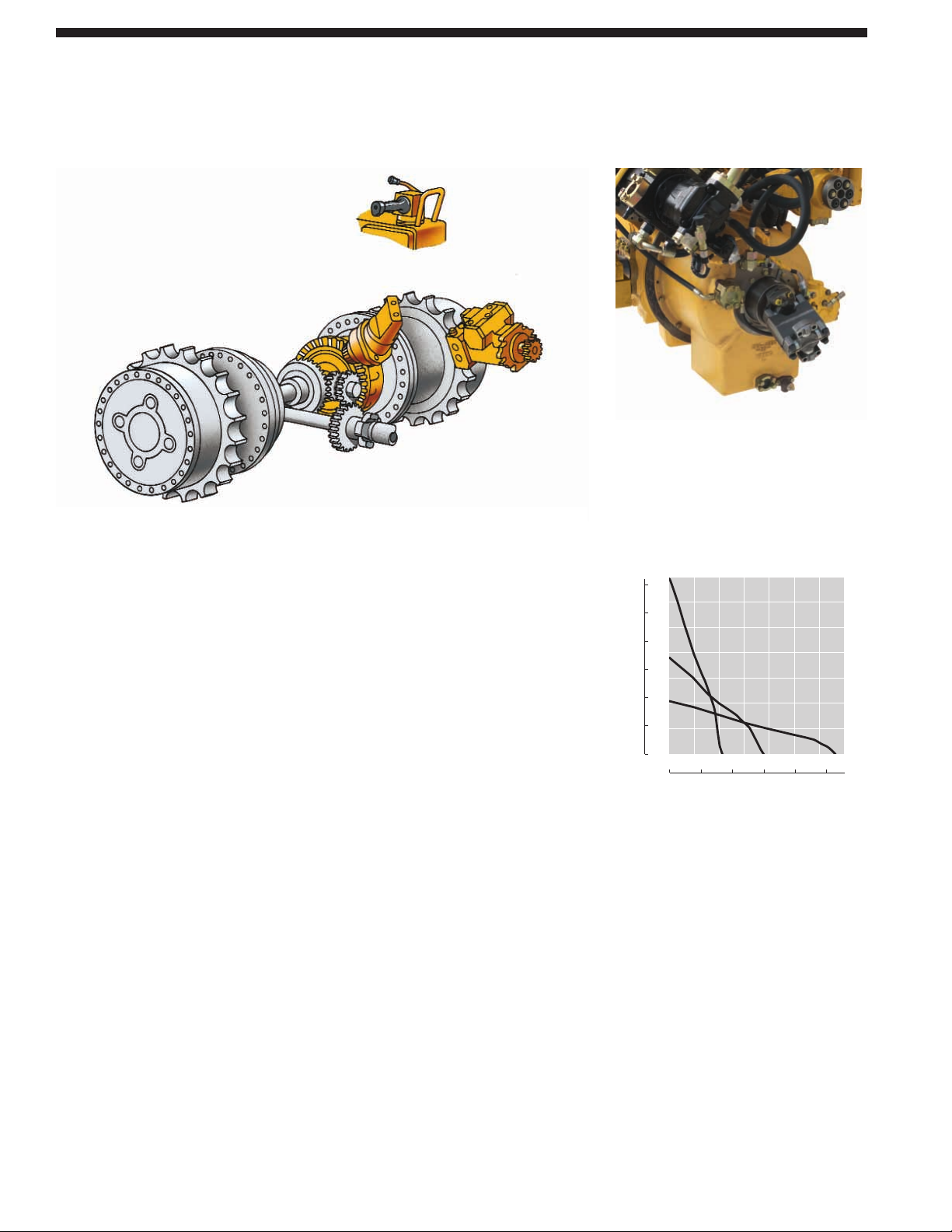

Differential Steering System. A planetary
differential turns the machine by speeding
up one track and slowing the other,
while maintaining full power to both.
The system consists of three planetary
gear sets.
• Provides enhanced side slope
capability.
• Two planetary gear sets
(steering and drive) make up
the “dual differential,” which
performs the traditional drive
function (forward or reverse).
Unlike competitive machines,
the differential also performs a
steering function with input from
the steering motor.
• A third planetary gear set, the
“equalizing planetary,” resides
inside the transmission case. It is
connected to the dual differential,
which provides a maximum speed
difference between the right and left
final drives during a turn.
• A dedicated variable-displacement
hydraulic pump.
• A bi-directional, fixed-displacement
steering motor.
• Heavy-duty steering drive gears.
Planetary Power Shift Transmission.
Three speeds forward and three speeds
reverse, utilizing large diameter, high
capacity, oil-cooled clutches.
• Modulation system permits fast
speed and direction changes.
• Modular transmission and
differential slide into rear case for
servicing ease.
• Oil-to-water cooler for maximum
cooling capacity.
• Forced oil flow lubricates and cools
clutch packs to provide maximum
clutch life.
Elevated Final Drives.
• Isolated from ground and equipment
induced impact loads for extended
power train life.
• Crown-shaved drive gears provide
smooth, quiet, low maintenance
operation.
• Splash lubrication and Duo-Cone™
Seals extend service life
Torque Divider. A high efficiency
torque divider with freewheel stator
provides high torque multiplication
while shielding the drive train from
sudden torque shocks and vibration.
Drawbar vs. Speed. As loads on the
tractor increase, the 583T offers
unmatched lugging capability and
smooth shifting as the need occurs
to change gears under varying loads.
The 3-speed forward, 3-speed reverse
transmission, backed by differential
steering, offers excellent runout
speeds and accurate steering capability
under load.
h
h
10
Drive Train
The drive train provides maximum efficiency in combination with the C15 engine with
ACERT™ Technology.
Power Shift with Differential Steer
lbs x
N x
1000
1000
140
600
120
500
400
300
Drawbar Pull
200
100
0
1F
100
80
60
40
20
0
01234567
024 6810
2F
3F
Speed
mp
km/
Page 11
Final Drives. Final drives and associated
power train components are raised
above the work area, isolating them
from ground induced impact loads,
as well as pipelayer loads, extending
power train component life.
Sprockets. Sprocket position keeps
sprocket teeth, bushings and final drives
away from the abrasive materials and
moisture, resulting in longer final drive
gear and seal life.
Rollers and Idlers. Feature symmetric
Duo-Cone seals for long sealing life
to prevent oil loss and dirt entry.
Toric rings maintain performance
over a wide range of temperatures.
Rollers and idlers are serviceable and
rebuildable to provide value.
Roller Frames. Roller frames are tubular
to resist bending and twisting, with
added reinforcement where operating
loads are highest.
Sprocket Segments. Made exclusively
of Caterpillar Tough Steel™ for longer
wear life and precision machined after
heat treat for proper fit. Segments can
be removed or replaced without
breaking the track.
Track Shoes. Track shoes are 710 mm
(28 in) single grouser design and made
from heat treated, rolled steel for added
strength. Wide track and clipped shoes
are available as an option to match
working conditions. Long track frame
and wide gauge enhance track contact
area, providing a stable working base.

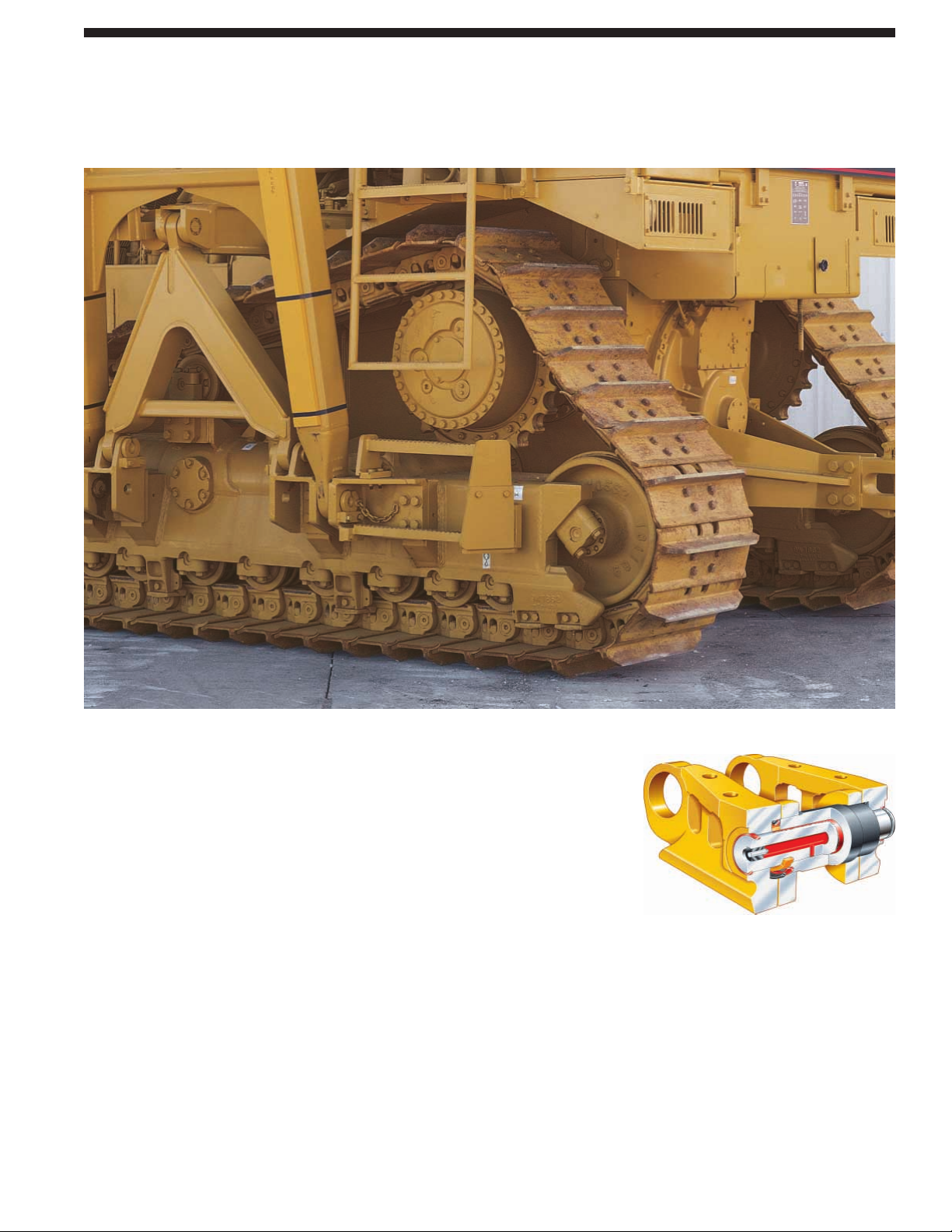

Positive Pin Retention (PPR) Sealed
and Lubricated Track. Designed for
high-impact and high load applications.
The PPR exclusive Caterpillar design
locks the link to the pin.
11
Undercarriage
The Caterpillar elevated sprocket undercarriage is designed for optimized machine balance
and best possible performance and extended component life.
Page 12
Serviceability. Minimizes maintenance
and repair downtime. New sight gauges,
filter locations, improved access to oil
and coolant sampling ports, and an
engine compartment mounted work
lamp, make daily and periodic service
faster and easier.
Engine Oil Filter. Engine oil filter
is located on the engine for easy servicing
access and minimal downtime.
Save further time with the optional
quick oil change attachments.
Water Separator and Fuel Filter.
Easily located just inside the engine
access panel, the water separator
functions as the primary fuel filter,
just ahead of the secondary fuel filter.
Quick Disconnect Fittings. Allow for
fast diagnosis of the power train,
hydraulics and attachment oil systems.
S
•O•
SSMAnalysis. Scheduled Oil
Sampling made easier through live
sampling ports for the engine oil,
hydraulics and coolant.
Caterpillar Product Link PL300 (optional).
This option allows the customer or
dealer to obtain machine diagnostics
and location information from their
offices. Product Link PL300 provides
updates on service meter hours, machine
condition and machine location, as well
is integrated mapping/route planning.
Built-in flexibility allows for future
technology development.
Purchase. Consider the financing
options available, as well as day-to-day
operating costs. This is also the time
to look at dealer services that can be
included in the cost of the machine
to yield lower equipment owning and
operating costs over the long run.
Product Support. Plan for effective
maintenance before buying equipment.
Choose from your dealer’s wide range
of maintenance services at the time you
purchase your machine. Programs such
as Custom Track Service (CTS),
S•O•S analysis, Technical Analysis
and guaranteed maintenance contracts
give peak life and performance to
your machine.
Parts Program. You will find nearly
all parts at your dealer parts counter.
Cat Dealers use a worldwide computer
network to find in-stock parts to minimize
machine downtime. Ask about your
Cat Dealer’s exchange program for
major components. This can shorten
repair time and lower costs.
Remanufactured Components.
Genuine Cat Remanufactured parts
save you money. You receive the same
warranty and reliability as new products
at cost savings of 40 to 70 percent.
Components available for the drive
train, engine, and hydraulics.
12
Serviceability and Customer Support
World-class product support. The most serviceable machines from the most committed
dealers. The Cat Dealer network trained experts keep your fleet up and running, maximizing
your equipment investments. Caterpillar. The difference counts.™
Page 13
13
583T Pipelayer specifications
Service Capacities
Fuel Tank 408.8 L 108 gal
Crankcase and filter 38 L 10 gal
Final drive (each side) 12.8 L 3.4 gal
Cooling system 77 L 20.3 gal
Hydraulic tank 96.5 L 25.5 gal
Power Train 155 L 41 gal
Roller Frames (each) 71.9 L 19 gal
Variable Fan Hub 3.1 L 0.82 gal
Operating Specifications
Lifting Capacity 63 504 kg 140,000 lb
Weights
Operating Weight 45 359 kg 100,000 lb
Shipping Weight 44 906 kg 99,000 lb
• Operating weight includes all shipping weights plus full fuel
tank and operator.
• Shipping weight includes: lubricants, coolant, 10% fuel,
hydraulic controls and fluids, backup alarm, seat belt,
710 mm (28") grouser shoes, drawbar and counterweight.
Transmission
1 Forward 3.4 km/h 2.1 mph
2 Forward 6.1 km/h 3.8 mph
3 Forward 10.6 km/h 6.6 mph
1 Reverse 4.5 km/h 2.8 mph
2 Reverse 8 km/h 5 mph
3 Reverse 14.2 km/h 8.8 mph
1F – Drawbar Pull 618.5 N 139 lbf
2F – Drawbar Pull 338.2 N 76 lbf
3F – Drawbar Pull 186.9 N 42 lbf
Standards
Brakes Brakes meet the standard
SAE J/ISO 10265 March99
ROPS Optional ROPS (Rollover
Protection Structure)
meets the standards
SAE J397 OCT95,
SAE J1040 MAY94,
ISO 3164 1995 and
ISO 3471-1
Engine
Engine Model Cat®C15 ACERT™
Gross Power 259 kW 347 hp
Flywheel Power 231 kW 310 hp
Net Power – Cat 231 kW 310 hp
Net Power – ISO 9249 231 kW 310 hp
Net Power – SAE J1349 229 kW 307 hp
Net Power – EU 80/1269 231 kW 310 hp
Bore 137 mm 5.4 in
Stroke 172 mm 6.75 in
Displacement 15.2 L 928 in
3
• Engine ratings at 1,850 RPM
• Net power advertised is the power available at the flywheel
when the engine is equipped with fan, air cleaner, muffler
and alternator
• No engine derating required up to 3658 m (12,000 ft).
Automatic derating occurs beyond that altitude.
Undercarriage
Shoe Type Moderate Service
Width of standard shoes 710 mm 28 in
Number of shoes (each side) 47
Grouser Height 78 mm 3 in
Track gauge 2337 mm 92 in
Length of track on ground 3587 mm 141 in
Ground contact area with 5.1 m
2
7,896 in
2
710 mm (28") shoes
Number of rollers (each side) 9
Number of Carrier Rollers 1 per side
• Positive pin retention track
Hydraulic System
Pump Type Piston-type,
Variable, two section
Pump output – max 540 L/min 142 gal/min
Relief Valve Setting – 17 225 kPa 3,000 psi
Counterweight
Pump output – steering 27.6 L/min 7.3 gal/min
Pump Output – 98 L/min 25.9 gal/min
Counterweight (gear)
Page 14
14
583T Pipelayer specifications
Pipelaying Equipment
Hydraulic Power – 540 L/min at 18 259 kPa/183 bar (143 gpm at 2,650 psi) and 2,100 rpm pump speed independent
of torque converter.
Planetary Hydraulic Winches
Hook Boom
Drum diameter 317 mm 12.5 in 317 mm 12.5 in
Flange diameter 610 mm 24 in 610 mm 24 in
Drum length 338 mm 13.3 in 338 mm 13.3 in
Capacity – 19 mm (3/4” diameter) 181 m 595 ft 181 m 595 ft
Wire rope installed – 19 mm (3/4” diameter) 102 m 336 ft 102 m 336 ft
Hook speed (raise) with 6 part line 22 m/min 72.1 ft/min
Boom – square section standard 7.32 m 24 ft
Removable counterweight 13 segments, 2 @ 300 kg 662 lb
6 @ 535 kg 1,180 lb
5 @ 430 kg 948 lb
Total weight extendible 9036 kg 19,920 lb

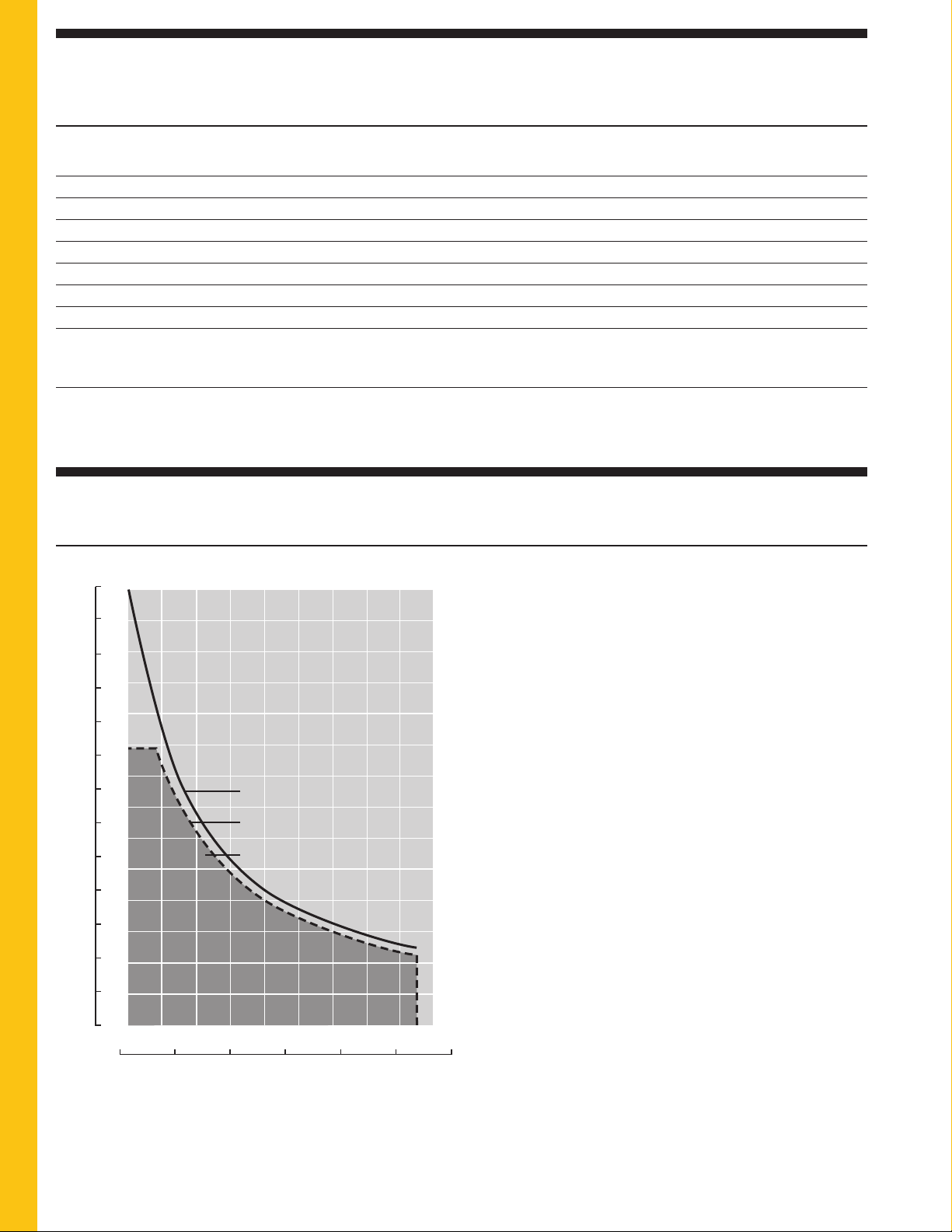

Lifting Capacity
lb x 1000kg x 1000
65
140
60
130
120
55
110
50
100
45
90
40
80
35
70
30
60
25
50
20
40
15
30
10
20
5
10
A
B
C
Specified Equipment:
19 mm (3/4”) diameter wire rope
26 672 kg (58,800 lb) minimum breaking strength
6 part load line
5 part boom line
9036 kg (19,920 lb) counterweight extended
boom 7.3 m (24 ft) standard
Total operating weight 45 359 kg (100,000 lb)
A Lift capacity at tipping point*
B Rated load capacity*
C Working range*
* Per ISO 8813:1992
0
0
4 6 8101214161820
23145 6 7
583T LIFT CAPACITY
22 Feet
Meters
Page 15
15
583T Pipelayer specifications

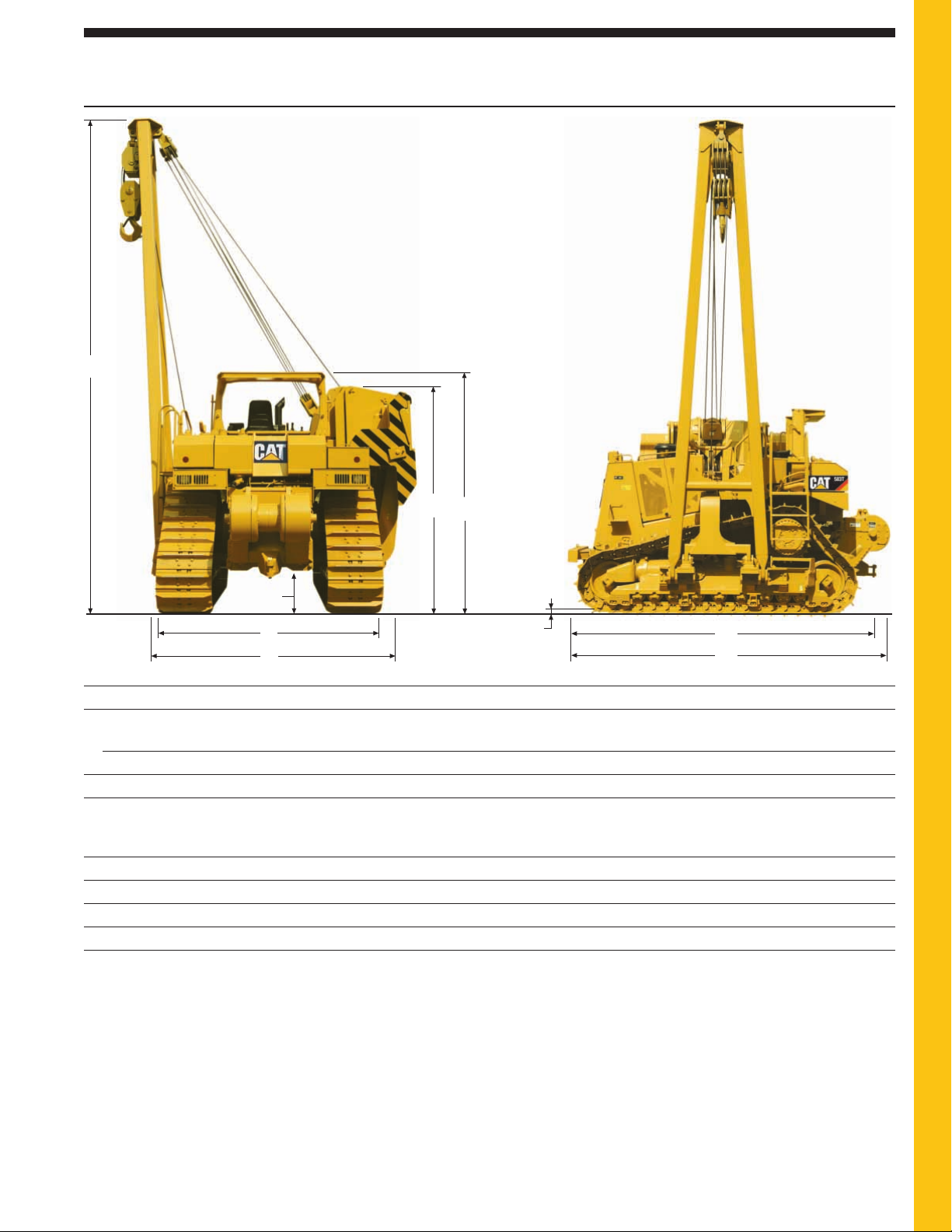

Dimensions
(approximate)
4
5
7
3
1
2
1 Width to outside of track 3047 mm
2 Minimum shipping width (counterweight frame, counterweight mounting brackets, 3070 mm
boom and boom mounting brackets removed)
Shipping width (boom and counterweight removed) 3598 mm
3 SAE ground clearance (face of shoe) 497 mm
4 Boom height – vertical
7.3 m (24') boom
8.5 m (28') boom
5 Height (ROPS and boom removed) 3520 mm
6 Grouser height 78 mm
7 Height to top of optional ROPS (boom removed) 3728 mm
8 Operating length (with rear drawbar) 5231 mm
9 Operating length (with optional winch) 5385 mm
6
8
9
8102 mm
9308 mm
(10'0")
(10'1")
(11'10")
(19.6")
(26'7")
(30'6")
(11'6")
(3.1")
(12'3")
(17'2")
(17'8")
Page 16
16
583T Pipelayer specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
POWER TRAIN
Advanced Modular Cooling System (AMOCS)
Aftercooler, air to air (ATAAC)
Engine, C15 with ACERT™ Technology
Coolant, extended life with protection to –37° C (–34° F)
Filter, air with electronic service indicator
Electric starting, 24 volt direct
Fan, hydraulically driven (suction)
Final drives, four planet, double-reduction planetary
Fuel priming pump, electric
Muffler
Parking brake, electronic
Precleaner with dust ejector
Prescreener
Ether starting aid
Torque divider
Transmission, electronically-controlled powershift, 3F/3R
Transmission control module, electronic
Turbocharger, wastegate
Water separator
UNDERCARRIAGE
Carrier roller
Undercarriage, non-suspended with 9-roller, tubular track
roller frame
Lifetime Lubricated rollers and idlers
Sprocket, segmented
Track:
Adjuster, hydraulic
Carrier rollers
Sealed and Lubricated with PPR, medium service,
single grouser track shoes, 47 section, 710 mm (28 in)
Two piece master link
OTHER STANDARD EQUIPMENT
Bumper, front with towing device
Drawbar, rigid
Ecology drains
Diagnostic pressure taps
Guards:
Crankcase
Power train, hinged
Radiator, hinged
Track guiding
Hydraulics, pilot operated, pipelayer system
Parts book, CD rom
Oil cooler, hydraulic
Product link ready
S•O•SSMsampling ports
Steering, electronically controlled power differential
Vandalism protection for fluid compartments
Enclosure, Perforated engine door
Hood, Perforated
ELECTRICAL
Alarm, Back up
Alternator, 95-amp
Batteries, 4, maintenance free
Converter, 12V, 10 amp with 1 outlet
Diagnostic connector (starting and charging system)
Horn, forward warning
Lights, halogen, 2 front – 2 rear
Starting receptacle
OPERATOR ENVIRONMENT
Armrest, adjustable
Deactivation switch, hydraulic controls
Pedal, Decelerator
Pedal, Dual brake
Horn
Hour meter
Monitoring System, electronic warning
Gauge package:
Coolant temperature
Power train oil temperature
Hydraulic oil temperature
Governor switch, electronic
Key start, single
Seat, vinyl suspension
Seat belt, retractable
Service indicator, air cleaner
Steering system, differential
Storage compartment
PIPELAYING EQUIPMENT
Block and Hook, Heavy duty with roller bearings
Boom, 7.3 m (24 ft)
Counter weight, extendible segmented 9036 kg (19,920 lb)
Drawworks, hydraulically actuated and controlled
Hook with latch
Page 17
17
583T Pipelayer specifications
Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for details.
UNDERCARRIAGE
Tracks, pair, Sealed and Lubricated:
762 mm (30 in), PPR Moderate Service
OTHER OPTIONAL EQUIPMENT
Cold weather arrangement
Guards:
Track roller
Radiator core protection grid
Vandalism Protection
Tool kit (dealer installed)
ROPS, roll over protection system
Product link, PL300
Drawbar, heavy duty
Parts Book, paper
ELECTRICAL
Alternator, 150 amp
Batteries, heavy duty
OPERATOR ENVIRONMENT
Air conditioning
Cab (includes)
Lights, 8 additional
Sliding windows
Heater
Roof window
Rear pop-out window
3 wipers, (front, rear, door)
Dual pane cab windows
PIPELAYING EQUIPMENT
Boom, 8.5 m (28 ft) and cables
Protection pads, boom and load
POWER TRAIN
Enclosures, arctic engine
Fan, auto reversible
Fast Fuel System
Heater, engine coolant, 120 volt
Heater, diesel fuel
Hood, solid
Starting, low temperature
Oil change system, quick
Prelube, engine, automatic
Coolant, Extended life –50° C (–58° F)
Page 18
583T Pipelayer specifications
18
Notes
Page 19
583T Pipelayer specifications
19
Notes
Page 20
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2006 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, their respective logos, ACERT, ADEM, “Caterpillar Yellow” and the
POWER EDGE trade dress, as well as corporate and product identity used herein, are
trademarks of Caterpillar and may not be used without permission.
AEHQ5645-02 (12-06)
Replaces AEHQ5645-01
583T Pipelayer
R
Loading...
