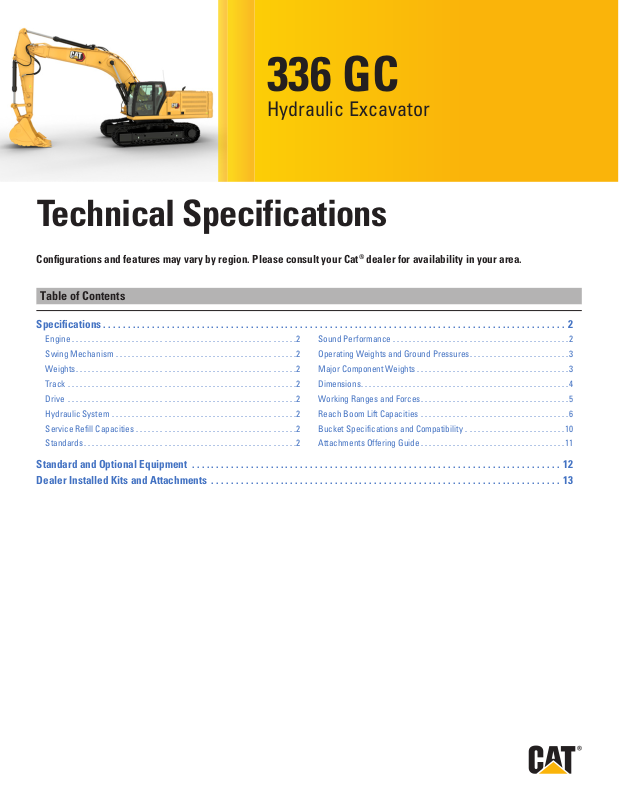

Cat 336 GC Technical Specifications

336 GC
Hydraulic Excavator

Technical Specifications

Congurations and features may vary by region. Please consult your Cat® dealer for availability in your area.

Table of Contents

Specications ..............................................................................................2
Standard and Optional Equipment ...........................................................................12
Dealer Installed Kits and Attachments .......................................................................13
336 GC Hydraulic Excavator Specifications
Engine
Engine Model Cat® C7.1
Net Power – ISO 9249 194 kW 259 hp
Engine Power – SAE J1349 194 kW 259 hp
Bore 105 mm 4 in
Stroke 135 mm 5 in
Displacement 7.1 L 433 in
• Equivalent to U.S. EPA Tier 3, EU Stage IIIA emission standards.
• Recommended for use up to 3300 m (10,830 ft) altitude with engine power derate above 2300 m (7,550 ft).
• Net power is tested per ISO 9249. Standards in effect at the time of manufacture.
• Net power advertised is the power available at the ywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
• Rated speed at 2,000 rpm.
Swing Mechanism
Swing Speed 8.74 rpm
Maximum Swing Torque 137 kN·m 101,168 lbf-ft
Weights
Operating Weight 34 800 kg 76,700 lb
• Long undercarriage, Reach boom, R3.2DB (10'6") stick, HD
1.88m³ (2.46 yd³) bucket, 600 mm (24") triple grouser shoes,
6.8mt(14,991 lb) counterweight.
Track
Standard Track Shoes Width 600 mm 24 in
Optional Track Shoes Width 700 mm 28 in
Optional Track Shoes Width 800 mm 31 in
Optional Track Shoes Width 850 mm 33 in
Number of Shoes (each side) 49
Number of Track Rollers (each side) 8
Number of Carrier Rollers (each side) 2
Drive
Hydraulic System
Main System – Maximum Flow – Implement
Maximum Pressure – Equipment – Implement
Maximum Pressure – Travel 35 000 kPa 5,076 psi
Maximum Pressure – Swing 28 000 kPa 4,061 psi
Boom Cylinder – Bore 145 mm 6 in
Boom Cylinder – Stroke 1440 mm 57 in
Stick Cylinder – Bore 160 mm 6 in
Stick Cylinder – Stroke 1738 mm 68 in
DB Bucket Cylinder – Bore 145 mm 6 in
DB Bucket Cylinder – Stroke 1151 mm 45 in
559 L/min (279 × 2pumps)
35 000 kPa 5,076 psi
148 gal/min (74 × 2pumps)
Service Refill Capacities
Fuel Tank Capacity 600 L 158.5 gal
Cooling System 19 L 4.9 gal
Engine Oil (with lter) 20 L 5.3 gal
Swing Drive (each) 18 L 4.8 gal
Final Drive (each) 8 L 2.1 gal
Hydraulic System (including tank) 373 L 98.5 gal
Hydraulic Tank 161 L 42.5 gal
Standards
Brakes ISO 10265:2008
Cab/ROPS ISO 12117-2:2008
FOGS (optional) ISO 10262-2:1998
Sound Performance
ISO 6395 (external) 105 dB(A)
ISO 6396 (inside cab) 72 dB(A)
• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/ windows open) for extended periods or in a noisy environment.
Gradeability 35°/70%
Maximum Travel Speed 4.7 km/h 3 mph
Maximum Drawbar Pull 297 kN 66,656 lbf
2
Operating Weights and Ground Pressures
336 GC Hydraulic Excavator Specifications
600 mm (24")
TripleGrouser Shoes
Weight
kg
(lb)
6.8 mt (14,991 lb) Counterweight + LongUndercarriage Base Machine
Reach Boom + R3.2 m (10'6") DB Stick +
1.88m (2.46 yd) HD Bucket
Reach Boom + R2.8 m (9'2") DB Stick +
1.88m(2.46 yd) HD Bucket
All operating weights include a 90% fuel tank with 75 kg (165 lb) operator.
34 800
(76,700)
34 700
(76,500)
Ground
Pressure Weight
kPa
(psi)
64.8
(9.4)
64.6
(9.4)
700 mm (28")
TripleGrouser Shoes
Ground
Pressure Weight
kg
(lb)
35 100
(77,500)
35 000
(77,200)
kPa
(psi)
56.1
(8.1)
55.9
(8.1)
800 mm (31")
TripleGrouser Shoes
Ground
Pressure Weight
kg
(lb)
35 800
(78,900)
35 700
(78,700)
kPa
(psi)
50.0
(7.3)
49.9
(7.2)
850 mm (33")
TripleGrouser Shoes
Ground
Pressure
kg
(lb)
36 000
(79,400)
35 900
(79,100)
kPa
(psi)
47.3
(6.9)
47.2
(6.8)
Major Component Weights
kg lb
Base machine with 6.8 mt (14,991 lb) counterweight, standard swing frame, base frame with standard track rollers and carrier rollers
Track Shoes:
600 mm (24") Width, 11 mm (0.43") Thick, Triple Grouser Track Shoes 4090 9,020
700 mm (28") Width, 11 mm (0.43") Thick, Triple Grouser Track Shoes 4450 9,800
800 mm (31") Width, 13 mm (0.51") Thick, Triple Grouser Track Shoes 5100 11,230
850 mm (33") Width, 13 mm (0.51") Thick, Triple Grouser Track Shoes 5300 11,690
Two Boom Cylinders 560 1,240
Weight of 90% Fuel Tank and 75 kg (165 lb) Operator 550 1,210
Counterweight:
6.8 mt Counterweight 6800 14,991
Swing Frame:
Standard Swing Frame 3160 6,960
Standard Undercarriage:
Base Frame with Standard Track Rollers and Carrier Rollers 8400 18,520
Boom (including lines, pins, stick cylinder):
Reach Boom 6.5 m (21'4") 3140 6,910
Sticks (including lines, pins, bucket cylinder, bucket linkage):
Reach Stick R2.8DB (9'2") 1650 3,650
Reach Stick R3.2DB (10'6") 1760 3,890
Bucket (without linkage):
1.88 m (2.46 yd) HD 1710 3,770
Quick Coupler:
Pin Grabber QC 700 1,550
23 540 51,910
3
336 GC Hydraulic Excavator Specifications
3
2
Dimensions
All dimensions are approximate and may vary depending on bucket selection.
1
6
9
10
4
5
7 8
Boom Option Reach Boom
Stick Options Reach Stick
R3.2DB (10'6") R2.8DB (9'2")
Machine Height:
1
Cab Height 3170 mm 10'4" 3170 mm 10'4"
FOGS Height 3310 mm 10'10" 3310 mm 10'10"
Handrails Height 3160 mm 10'4" 3160 mm 10'4"
With Boom/Stick/Bucket Installed 3470 mm 11'4" 3660 mm 12'0"
With Boom/Stick Installed 3330 mm 10'11" 3450 mm 11'3"
With Boom Installed 2880 mm 9'5" 2880 mm 9'5"
With Boom/Stick/Bucket Installed (with auxiliary lines) 3520 mm 11'6" 3680 mm 12'0"
With Boom/Stick Installed (with auxiliary lines) 3400 mm 11'1" 3500 mm 11'5"
With Boom Installed (with auxiliary lines) 2970 mm 9'8" 2970 mm 9'8"
Machine Length:
2
With Boom/Stick/Bucket Installed 11 170 mm 36'7" 11 220 mm 36'9"
With Boom/Stick Installed 11 140 mm 36'6" 11 190 mm 36'8"
With Boom Installed 9960 mm 32'8" 9960 mm 32'8"
With Boom/Stick/Bucket Installed (with auxiliary lines) 11 170 mm 36'7" 11 220 mm 36'9"
With Boom/Stick Installed (with auxiliary lines) 11 140 mm 36'6" 11 190 mm 36'8"
With Boom Installed (with auxiliary lines) 10 010 mm 32'10" 10 010 mm 32'10"
Upperframe Width without Walkways 2970 mm 9'9" 2970 mm 9'9"
3
Tail Swing Radius 3530 mm 11'6" 3530 mm 11'6"
4
Counterweight Clearance 1250 mm 4'1" 1250 mm 4'1"
5
Ground Clearance 510 mm 1'8" 510 mm 1'8"
6
Length to Center of Rollers 4040 mm 13'3" 4040 mm 13'3"
7
Track Length 5030 mm 16'6" 5030 mm 16'6"
8
Track Gauge 2590 mm 8'5" 2590 mm 8'5"
9
Undercarriage Width:
10
600 mm (24") Shoes 3190 mm 10'5" 3190 mm 10'5"
700 mm (28") Shoes 3290 mm 10'9" 3290 mm 10'9"
800 mm (31") Shoes 3390 mm 11'1" 3390 mm 11'1"
850 mm (33") Shoes 3440 mm 11'3" 3440 mm 11'3"
Bucket Type HD HD
Bucket Capacity 1.88 m 2.46 yd 1.88 m 2.46 yd
Bucket Tip Radius 1760 mm 5'9" 1760 mm 5'9"
6.5 m (21'4")
4
336 GC Hydraulic Excavator Specifications
R3.2DB (10'6")
Meters
0510152025303540
Feet
Working Ranges and Forces
All dimensions are approximate and may vary depending on bucket selection.
12
11
35
10
30
9
8
25
7
20
6
3
5
15
4
10
3
2
5
1
0
0
1
5
2
7
3
10
1
4
15
5
6
20
7
25
8
4
5
2
6
R2.8DB (9'2")
0123456789101213 11 –1
Meters
Feet
Boom Option Reach Boom
6.5 m (21'4")
Stick Options Reach Stick
R3.2DB (10'6") R2.8DB (9'2")
Maximum Digging Depth 7520 mm 24'8" 7120 mm 23'4"
1
Maximum Reach at Ground Line 11 050 mm 36'3" 10 740 mm 35'2"
2
Maximum Cutting Height 10 300 mm 33'9" 10 360 mm 33'11"
3
Maximum Loading Height 7080 mm 23'2" 7080 mm 23'2"
4
Minimum Loading Height 2580 mm 8'5" 2980 mm 9'9"
5
Maximum Depth Cut for 2240 mm (8'0") Level Bottom 7360 mm 24'1" 6950 mm 22'9"
6
Maximum Vertical Wall Digging Depth 5660 mm 18'6" 5620 mm 18'5"
7
Bucket Digging Force (ISO) 197 kN 44,350 lbf 197 kN 44,350 lbf
Stick Digging Force (ISO) 148 kN 33,160 lbf 164 kN 36,890 lbf
Bucket Type HD HD
Bucket Capacity 1.88 m 2.46 yd 1.88 m 2.46 yd
Bucket Tip Radius 1760 mm 5'9" 1760 mm 5'9"
5
