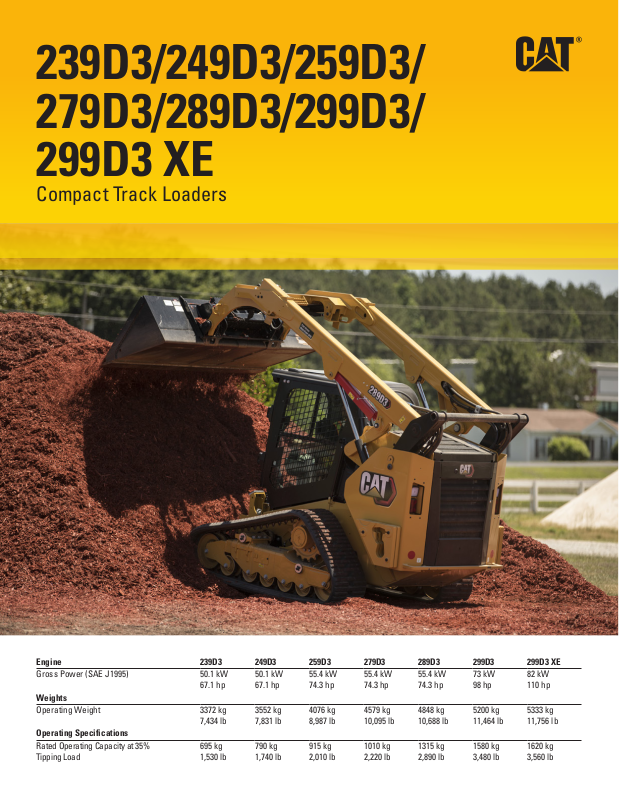

239D3/249D3/259D3/ 279D3/289D3/299D3/ 299D3 XE

Compact Track Loaders

Engine 239D3 249D3 259D3 279D3 289D3 299D3 299D3 XE

Gross Power (SAE J1995) 50.1 kW

67.1 hp

Weights

Operating Weight 3372 kg

7,434 lb

Operating Specifications

Rated Operating Capacity at 35% Tipping Load

695 kg 1,530 lb

50.1 kW

67.1 hp

3552 kg 7,831 lb

790 kg 1,740 lb

55.4 kW

74.3 hp

4076 kg 8,987 lb

915 kg 2,010 lb

55.4 kW

74.3 hp

4579 kg 10,095 lb

1010 kg 2,220 lb

55.4 kW

74.3 hp

4848 kg 10,688 lb

1315 kg 2,890 lb

73 kW 98 hp

5200 kg 11,464 lb

1580 kg 3,480 lb

82 kW 110 hp

5333 kg 11,756 lb

1620 kg 3,560 lb

Page 2

239D3/249D3/259D3/279D3/289D3/ 299D3/299D3 XE Features

Industry Leading Cab

One piece, modular design provides a premium sealed and pressurized cab for a cleaner and quieter operating environment with excellent visibility, wide opening door, and generous leg room.

Superior Power

High performance power train provides maximum performance with features such as Electronic Torque Management system and an electronic hand/foot throttle with decel pedal capability.

Powerful Hydraulics

High flow hydraulic system available for applications that demand maximum hydraulic worktool performance.

Suspended Undercarriage

Standard torsion suspension undercarriage system provides superior traction, flotation and stability to work in a wide range of applications and underfoot conditions.

Labor Saving Features

The industry leading dual direction electronic self level, return-to-dig, and work tool positioner features make repetitive tasks like grading, digging, and loading fast and easy.

Versatility

One machine, many tasks. Do more with the broad range of performance matched Cat® Work Tool Attachments, built toget the most out of yourmachine.

Contents

Operator Station ..................................................4

Power Train ..........................................................6

Lift Linkages .........................................................6

Steel Embedded Rubber

Track Undercarriage ..........................................7

Performance ........................................................7

Attachments.........................................................8

Serviceability .......................................................9

Customer Support ...............................................9

Specications ....................................................10

Feature Availability ...........................................19

Page 3

Experience the difference of a Cat Compact Track Loader. Spacious operator station features ergonomic joystick controls, ample leg room and an available high back, heated, air ride seat to keep you comfortable all day long. Built for low ground pressure with outstanding performance, comfort and versatility, the Cat D3 Series Compact Track Loaders help you get more done to improve your bottom line.

Page 4

Operator Station

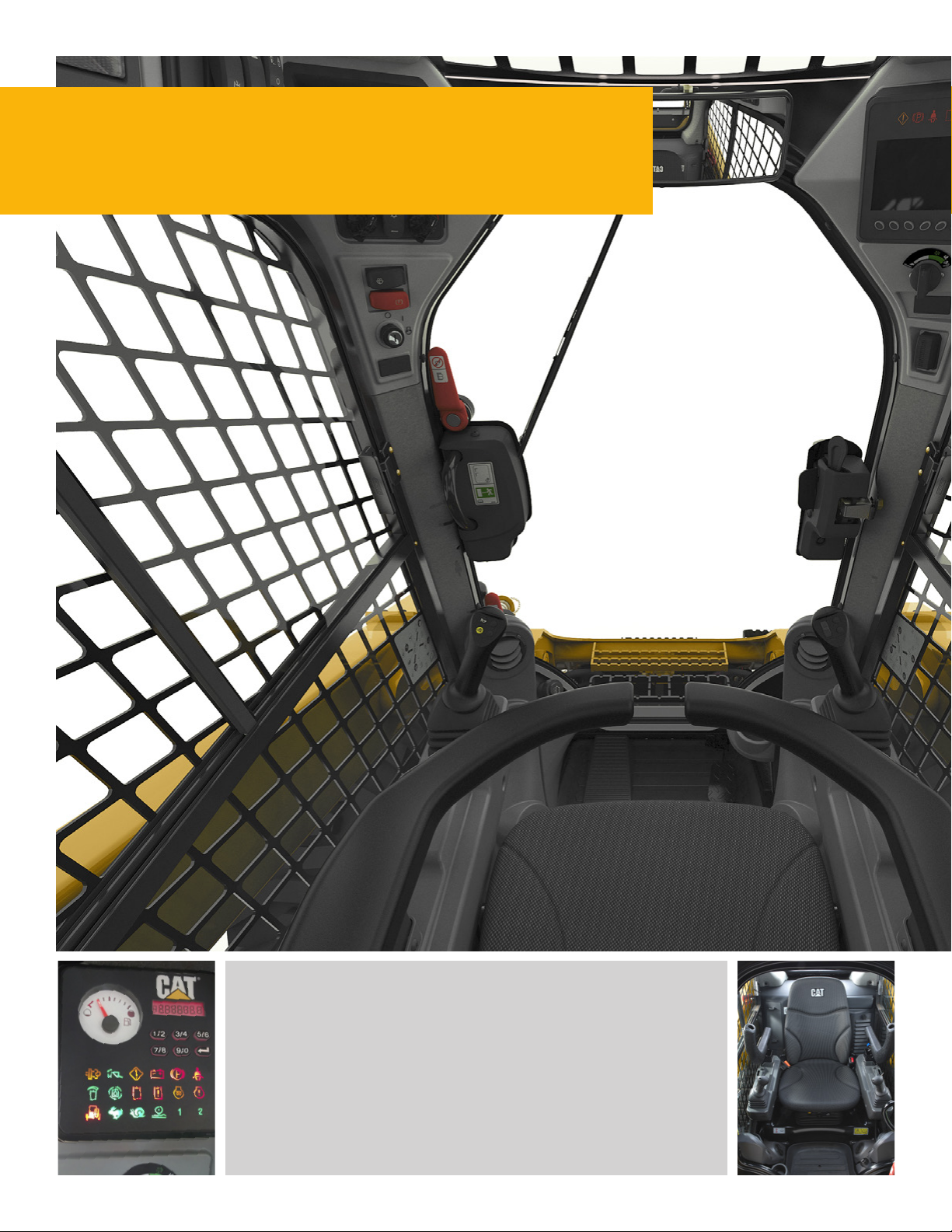

Spacious working environment for all day comfort.

Base Display

The standard control monitor on 239D3 and 249D3 provides single-code security to help prevent theft and unwanted operation. The full color Advanced Display monitor is available as an option on these models and standard on all other Compact Track Loader models.

Best Seat on the Job Site

High back, heated, air ride seat available in both cloth andvinyl.

Page 5

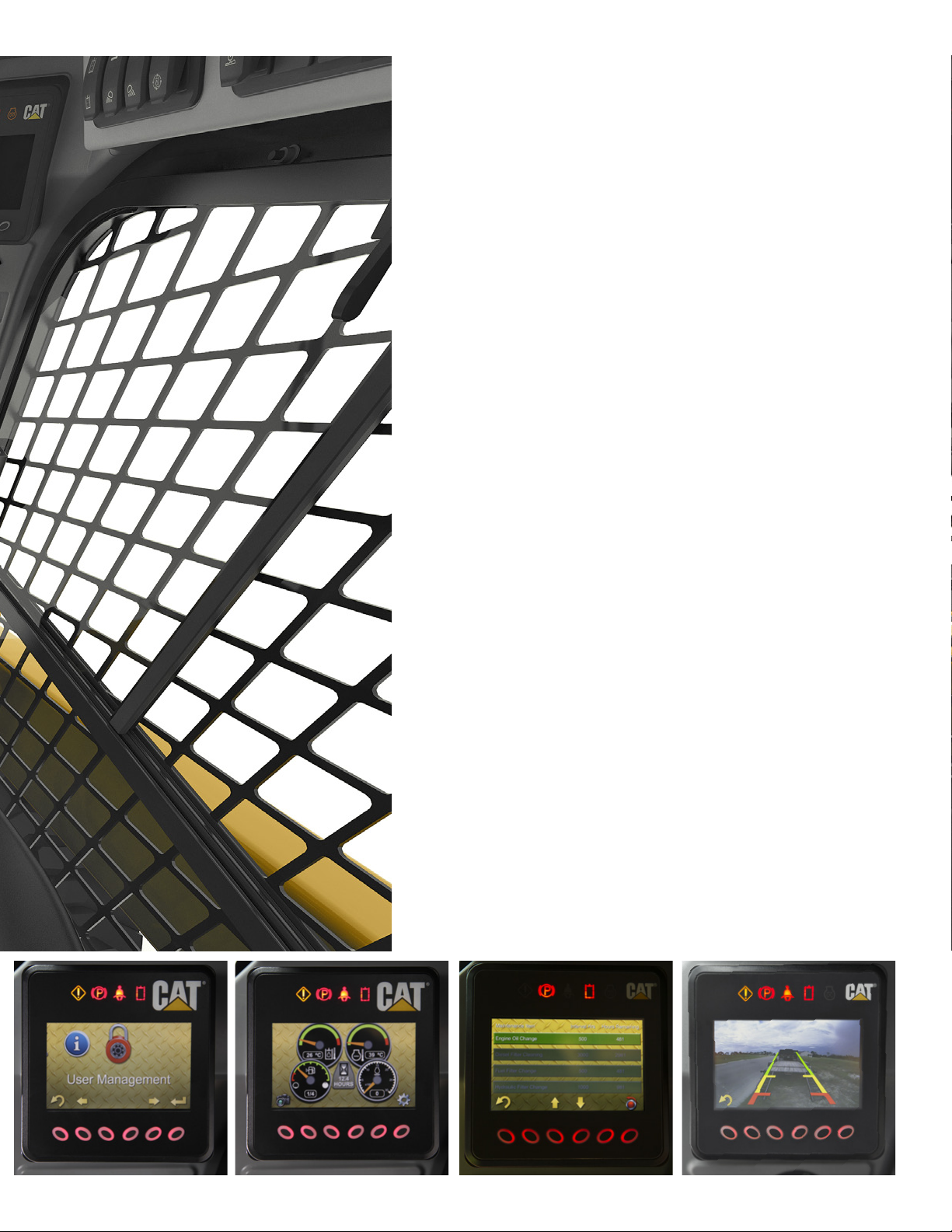

Superior Comfort

The Cat D3 Series sets a new standard in operator comfort. The wide, spacious interior and uncluttered oor helps you work comfortably and productively allday long. Features include:

• One piece, modular design provides a premium sealed and pressurized cab for cleaner and quieter working environment

• High back, heated, air ride seat with seat-mounted joystick controls for added comfort (option)

• Clear sight lines provide excellent visibility

• Air conditioner and heater for greater comfort in all climates (option)

• Ample leg room room with 75 mm (3 in) of additional room for your knees †

• Easier entry and exit with up to a 40% wider-opening door †

• ISO or H-Pattern Control patterns are available to allow the operator to select the control pattern they are most familiar with for greater productivity

†Compared to previous model series

Advanced Display Monitor

The Advanced Display monitor (standard on most models) lets you customize your machine performanceto your needs by offering the ultimate in operator control featuresand functionality. This easy to read 127 mm (5 in) full color display puts machine information atyour ngertips. It provides on screen adjustments to working parameters andpreferences such as implement response adjustment, drive response adjustment, creep setting, ride control activation speed, top speed limit setting, language, background color and gauge display style. Allparameters can be customized and retained for each individual operator’s code. It also provides:

• Security system to prevent unauthorized machine usage

• Capability to program up to 50 operator codes to store and recall each operator’s preferences and working parameters, allowing the machine tobetailored to experience level and application

• Integrated rearview camera for enhanced job site visibility

• Provides special information and control screens for Smart Attachments

• Favorites button provides quick access to commonly used screens

• Job Clock helps track costs by monitoring and storing statistics by the job

• Machine maintenance schedule and reminders for optimum uptime

Page 6

Power Train

Aggressive performance.

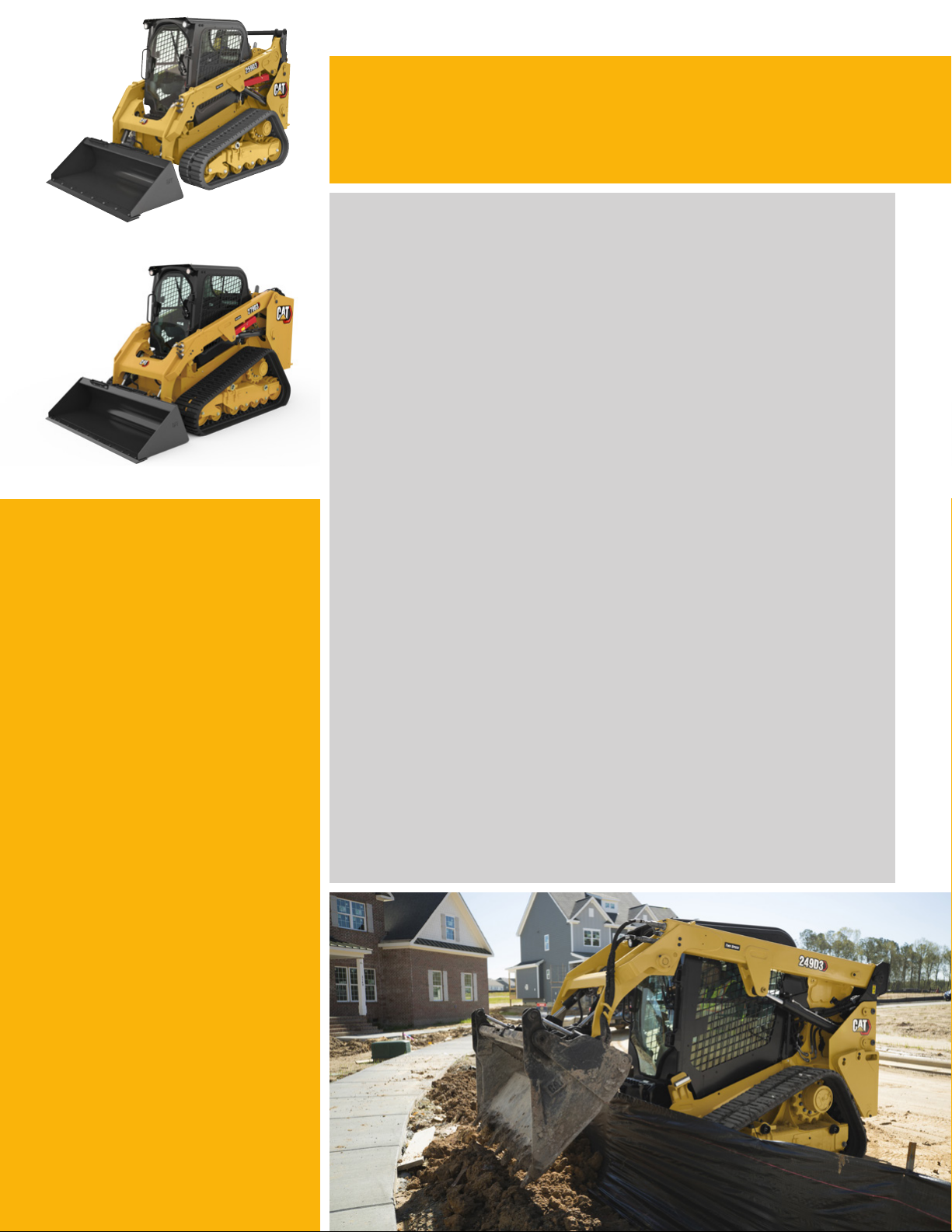

Vertical Lift Linkage

Radial Lift Linkage

Lift Linkages

Choice of lift designs.

Two types of lifting arrangement are available – vertical lift and radial lift – tomeet your specic application needs.

Vertical Lift

The 249D3, 259D3, 289D3, 299D3 and 299D3 XE feature the vertical lift design which provides extended reach and lift height for material handling or quick and easy truck loading.

Radial Lift

The 239D3 and 279D3 feature the radial lift design which delivers excellent digging performance and superior mid-lift reach.

Cat® Engine

The electronically controlled Cat C2.2, C3.3B, and C3.8 engines provide high horsepower and torque. These rugged, reliable engines meet U.S. EPA Tier 4 Final and EU StageIV* (C3.8), EU Stage V (C3.3B), and EU Stage IIIB* (C2.2) emission standards.

* Stage IV and Stage IIIB engines comply with the transition provisions of the EU non-road emission

regulation.

Cat Intelligent Leveling (ILEV) System

The exclusive Cat Intelligent Leveling System takes machine performance toanewlevel and provides industry leading features such as:

• Electronic Dual Self Leveling that allows the operator to automatically maintain alevel load whether lifting or lowering

• Return-to-dig which allows the operator to pre-set the digging angle of the bucket andthen automatically lowers the lift arms and recalls the bucket angle

• Work Tool Positioner which allows the angle of the work tool (bucket, box rake, cold planer, forks, trencher, etc.) to be pre-set and thenautomatically recalled ifthemachine is repositioned, increasing productivity

• Electronic snubbing that automatically cushions the descent of the lift arms, slowing the downward motion just before the arms reach their stops

Electronic Throttle

An electronic dial-type throttle lets you set precise RPM setting. When the dial is moved to the high-idle position, the foot throttle functions as a decelerator pedal. This gives you greater control, allowing you to quickly adjust the travel speed during precise maneuvers or to regulate engine speed when using hydro-mechanical work tools.

Thethrottle-smoothing feature monitors the accelerator pedal’s movement under the operator’s foot when traveling over rough terrain and adjusts to provide a steadier, moreeven travel speed.

Page 7

Steel Embedded Rubber Track Undercarriage

Suspended undercarriage for versatility, comfort and durability.

Torsion Suspension Undercarriage

The Cat Compact Track Loaders feature the industry’s only standard, torsion suspension undercarriage with a steel embedded rubber track. Heavy-duty torsion axles suspend the CTL undercarriage and can move independently relative to the machine and each other. Theseaxles absorb most of the shock to the undercarriage, machine and operator, especially over rough terrain. This means smooth travel, even at high speeds, as well as better load retention and greater productivity. The performance-tuned undercarriage system delivers improved operating stability while handling heavy loads, grading, or truck loading. Choose bar or block style tread to optimize ride, traction, otation andground disturbance for your application.

Outstanding Durability

The CTL undercarriage system features highly durable and easily maintained components. Steel imbeds provide a rigid support for the entire width of the track and provide excellent durability in a wide variety of applications. Continuously wound cables hold these imbeds in place and provide tensile strength, ensuring the track does not stretch. Following the same philosophy as Cat Track-Type Tractors, the elevated external positive drive system keeps drive components away from ground debris. Planetary nal drive motors improve torque and drawbar performance, delivering more power to the ground. Steel rollers with metal face seals provide maximum protection for wheel bearings resulting in long-term durability and reliability in even the toughest conditions. The simple recoil grease tensioning system allows quick track tension adjustment.

Performance

Solutions for a wide range ofapplications.

High Performance Hydraulic System

Maximum power and reliability are built into the Cathydraulic system to help you get the job done faster. The hydraulic system features outstanding liftand breakout forces. The standard demand fanprovides improved fuel efciency andincreased horsepower.

High Flow Hydraulic Systems

High Flow (239D3/249D3/259D3) and High Flow XPS (279D3/289D3/299D3) hydraulic systems are available for applications that demand maximum work tool performance. The 299D3 XE high ow system features the highest level of hydraulic performance with 94 hydraulic HP (70 kW).

Two Speed (Standard on all CTL models)

Increase your productivity with standard Two Speed on all Compact Track Loader models.

Ride Control

The optional Speed Sensitive Ride Control system delivers a smoother ride on uneven terrain for superior comfort, higher speed operation and better material retention.

Page 8

Attachments

Do more jobs with one machine using CatWorkTools.

The Right Tool for the Job

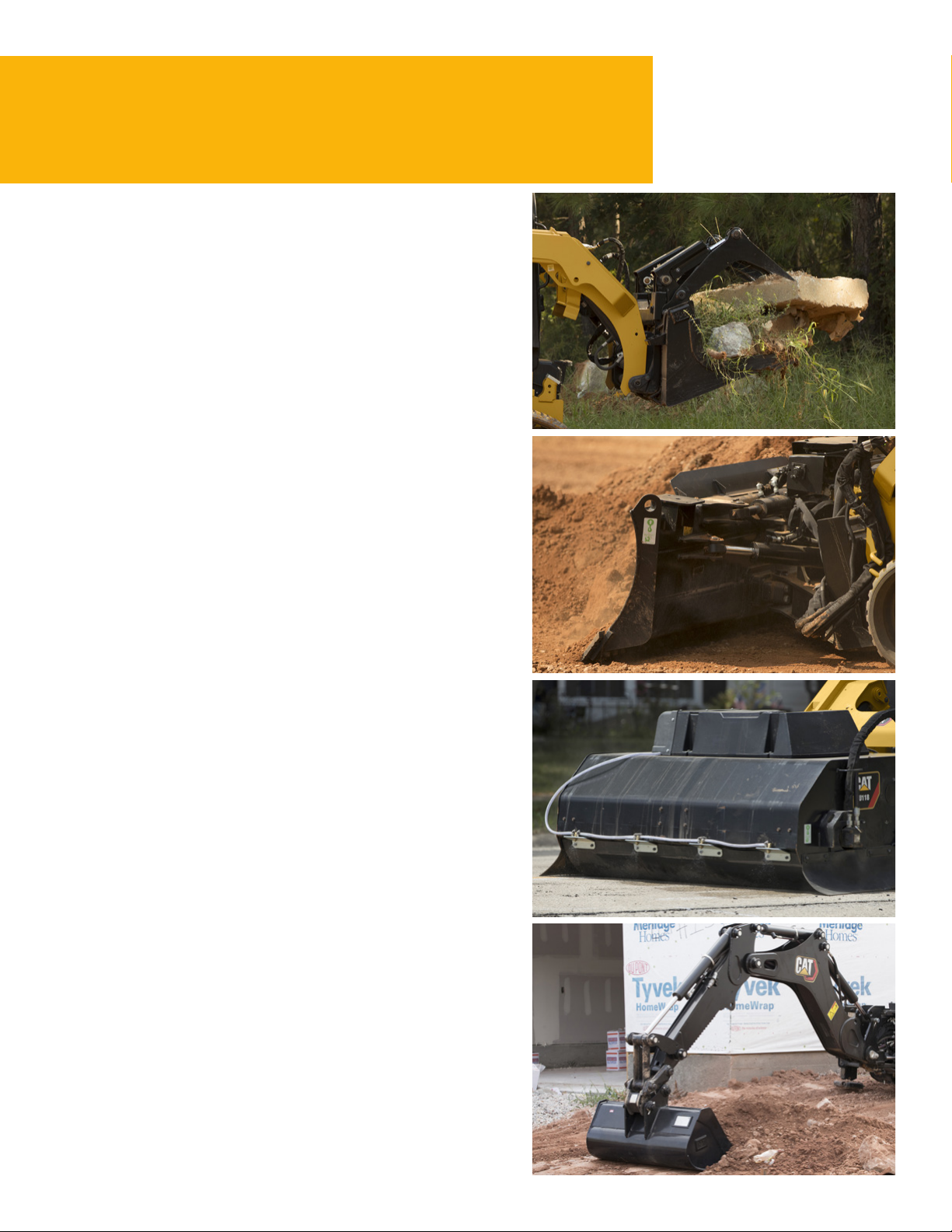

Designed and built for optimum performance and durability, Cat Work Tools deliver high productivity in a variety of applications to maximize versatility:

• Augers

• Blades (angle, dozer)

• Buckets (general purpose, high capacity, dirt, utility, light material, multipurpose, industrial grapple, utility grapple)

• Brooms (angle, pickup, utility)

• Brushcutters

• Cold Planers

• Forks (pallet, industrial grapple, utility grapple, utility)

• Hydraulic Hammers

• Landscape Tillers and Rakes

• Material Handling Arm

• Mulchers

• Power Box Rakes

• Shear

• Snow Tools (snow blowers, pushes, plows, wings)

• Stump Grinders

• Trenchers

• Vibratory Compactors

• Wheel Saws

• Smart Backhoe

• Smart Dozer Blade with Assist

• Smart Grader Blade with Assist

Smart Attachments

Plug-and-play recognition between the machine and attachment adapts the joystick controls to match specic Smart Attachments. Special information and control screens can be accessed in the Advanced Display monitor. This high level of integration maximizes productivity by making complex attachments easy to set up and use from the comfort of the cab.

Quick Couplers

Work tools can be changed quickly and easily with the CatCompact TrackLoader’s quick coupler system. The standard quick coupler features manual engagement and disengagement of work tools using two high leverage handles. The optional hydraulic quick coupler allows the operator to quickly change tools without leaving the cab.

Page 9

Minimize Your Downtime

Convenient service features make maintenance easy, reducing your downtime:

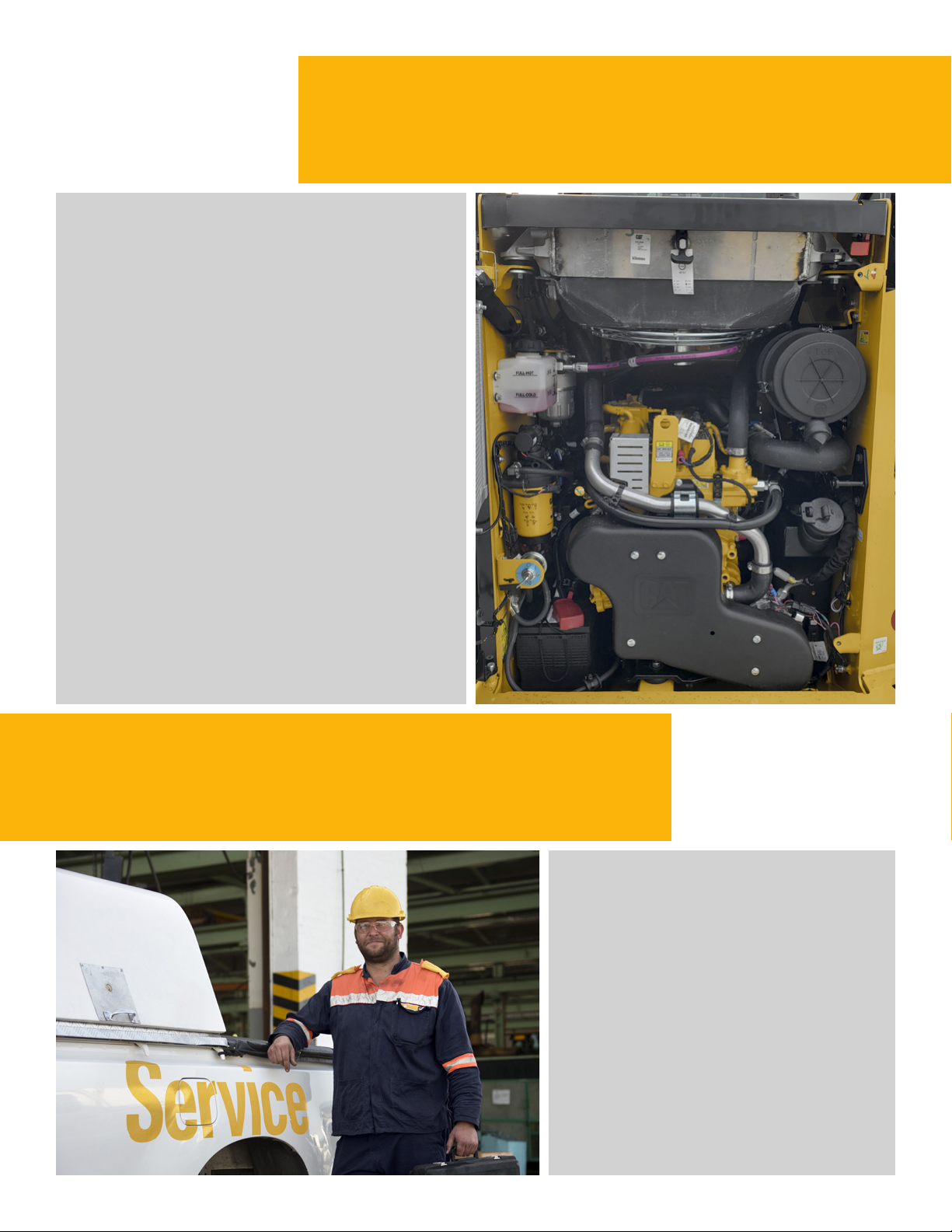

• Easy ground level access to all routine servicepoints

• Wide opening rear door for easy access to both sides ofthe engine

• Electric priming pump with automatic air bleed for the fuelsystem eliminates the need to pre-ll lters with fuel, reducing the risk of contaminants

• Cat Product Link™ system provides remote reporting ofmachine location and operating systemparameters

Serviceability

Easy maintenance helps keep your

machineworking.

Customer Support

Unmatched support makes the difference.

Renowned Dealer Support

From helping you choose the right machine to knowledgeable ongoing support, Cat dealers provide the best in sales and service.

• Preventive maintenance programs and guaranteed maintenance contracts

• Best-in-class parts availability

• Operator training to help boost your prots

• Genuine Cat Remanufactured parts

Page 10

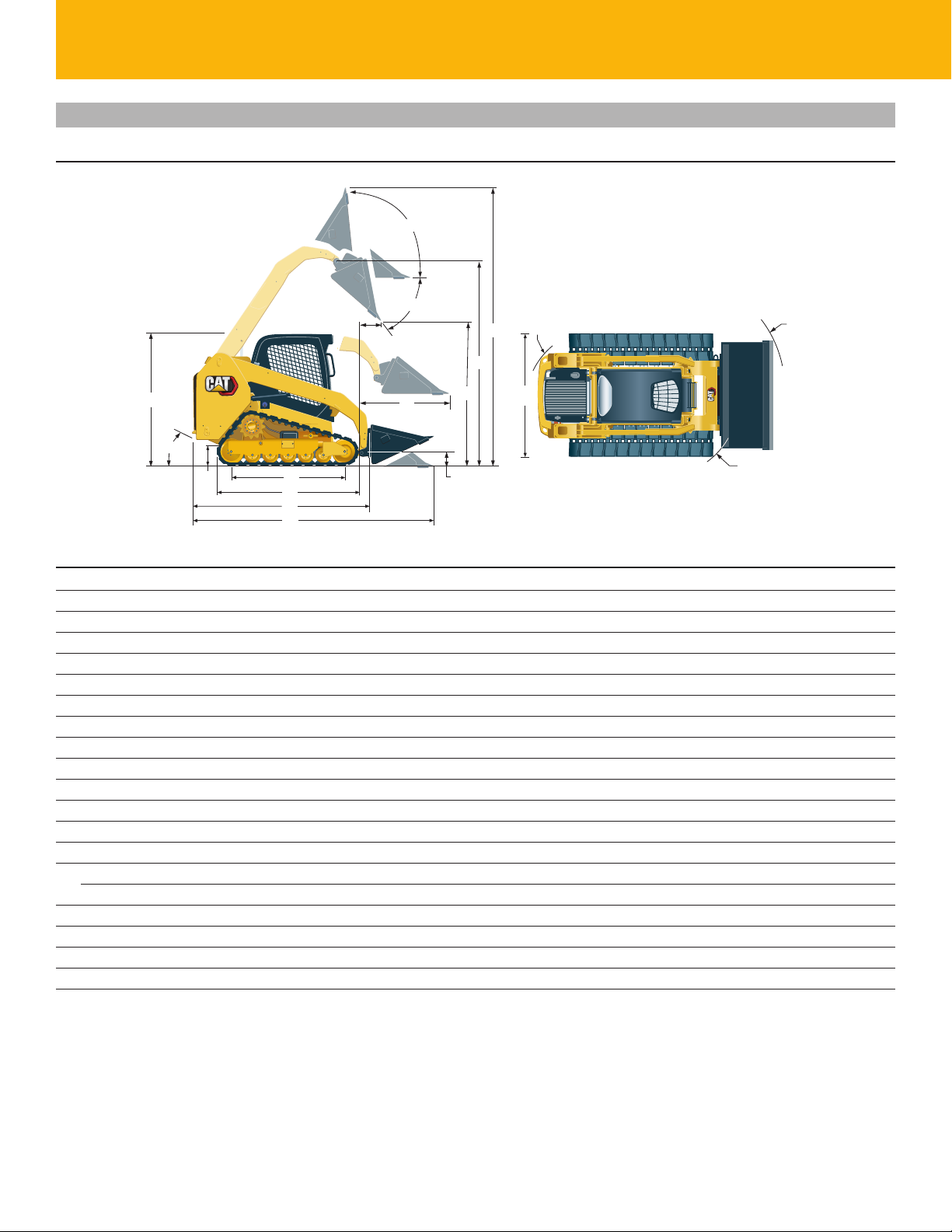

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE Compact Track Loaders Specifications

Engine

Engine Model

239D3/249D3 Cat C2.2 (Turbo)

259D3/279D3/289D3/ 299D3/299D3 XE

Gross Power (SAE J1995:2014)

239D3/249D3 50.1 kW 67.1 hp

259D3 55.4 kW 74.3 hp

279D3/289D3 55.4 kW 74.3 hp

299D3 73 kW 98 hp

299D3 XE 82 kW 110 hp

Net Power (SAE J1349:2011)*

239D3/249D3 49.1 kW 65.8 hp

259D3 54.6 kW 73.2 hp

279D3/289D3 54.4 kW 72.9 hp

299D3 71 kW 95 hp

299D3 XE 79 kW 106 hp

Net Power (ISO 9249:2007)*

239D3/249D3 49.6 kW 66.5 hp

259D3 55.1 kW 73.9 hp

279D3/289D3 54.9 kW 73.7 hp

299D3 71 kW 95 hp

299D3 XE 80 kW 107 hp

Displacement

239D3/249D3 2.2 L 134.3 in

259D3/279D3/289D3 3.3 L 203 in³

299D3/299D3 XE 3.8 L 232 in³

Stroke

239D3/249D3 100 mm 3.9 in

259D3/279D3/289D3/ 299D3/299D3 XE

Bore

239D3/249D3 84 mm 3.3 in

259D3/279D3/289D3 94 mm 3.7 in

299D3/299D3 XE 100 mm 3.9 in

Cat C3.8 DIT (Turbo)

120 mm 4.7 in

Weights*

Operating Weight

239D3 3372 kg 7,434 lb

249D3 3552 kg 7,831 lb

259D3 4076 kg 8,987 lb

279D3 4579 kg 10,095 lb

289D3 4848 kg 10,688 lb

299D3 5200 kg 11,464 lb

299D3 XE 5333 kg 11,756 lb

Power Train

Travel Speed (Forward or Reverse)

One Speed

239D3/249D3 7.2 km/h 4.5 mph

259D3 9.5 km/h 5.9 mph

279D3/289D3 7.2 km/h 4.5 mph

299D3/299D3 XE 8.4 km/h 5.2 mph

Two Speed

239D3/249D3 13.3 km/h 8.3 mph

259D3 13.7 km/h 8.5 mph

279D3/289D3 13.3 km/h 8.3 mph

299D3/299D3 XE 13.5 km/h 8.4 mph

* Net power advertised is the power available at the ywheel

when the engine is equipped with alternator, air cleaner, mufer/aftertreatment and cooling fan.

Page 11

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE

Compact Track Loaders Specifications

Operating Specifications*

Rated Operating Capacity at 35% Tipping Load

239D3 695 kg 1,530 lb

249D3 790 kg 1,740 lb

259D3 915 kg 2,010 lb

279D3 1010 kg 2,220 lb

289D3 1315 kg 2,890 lb

299D3 1580 kg 3,480 lb

299D3 XE 1620 kg 3,560 lb

Rated Operating Capacity at 50% Tipping Load

239D3 995 kg 2,185 lb

249D3 1130 kg 2,485 lb

259D3 1305 kg 2,870 lb

279D3 1445 kg 3,170 lb

289D3 1880 kg 4,130 lb

299D3 2255 kg 4,970 lb

299D3 XE 2315 kg 5,085 lb

Rated Operating Capacity with Optional Counterweight (at 50%)

239D3 1090 kg 2,400 lb

249D3 1225 kg 2,700 lb

259D3 1390 kg 3,060 lb

279D3 1540 kg 3,390 lb

289D3 1985 kg 4,370 lb

299D3 2380 kg 5,240 lb

299D3 XE 2435 kg 5,360 lb

Tipping Load

239D3 1985 kg 4,370 lb

249D3 2260 kg 4,970 lb

259D3 2610 kg 5,745 lb

279D3 2885 kg 6,345 lb

289D3 3750 kg 8,255 lb

299D3 4520 kg 9,945 lb

299D3 XE 4625 kg 10,170 lb

Breakout Force, Tilt Cylinder

239D3 1800 kg 3,968 lb

249D3 1797 kg 3,962 lb

259D3 2283 kg 5,034 lb

279D3 3304 kg 7,285 lb

289D3 3307 kg 7,291 lb

299D3 3298 kg 7,270 lb

299D3 XE 3298 kg 7,270 lb

Continued

Operating Specifications* (Continued)

Ground Contact Area

239D3 (with 320 mm/12.6 in track) 0.89 m

239D3 (with 400 mm/15.7 in track) 1.11 m

249D3 (with 320 mm/12.6 in track) 0.89 m

249D3 (with 400 mm/15.7 in track) 1.11 m

259D3 (with 320 mm/12.6 in track) 0.96 m

259D3 (with 400 mm/15.7 in track) 1.19 m

279D3 (with 450 mm/17.7 in track) 1.47 m

289D3 (with 450 mm/17.7 in track) 1.47 m

299D3 (with 400 mm/17.7 in track) 1.40 m

299D3 (with 450 mm/17.7 in track) 1.58 m

299D3 XE (with 400 mm/17.7 in track) 1.40 m

299D3 XE (with 450 mm/17.7 in track) 1.58 m

Ground Pressure

239D3 (with 320 mm/12.6 in track) 37.3 kPa 5.4 psi

239D3 (with 400 mm/15.7 in track) 30.6 kPa 4.4 psi

249D3 (with 320 mm/12.6 in track) 39.3 kPa 5.7 psi

249D3 (with 400 mm/15.7 in track) 32.2 kPa 4.7 psi

259D3 (with 320 mm/12.6 in track) 41.8 kPa 6.1 psi

259D3 (with 400 mm/15.7 in track) 34.0 kPa 4.9 psi

279D3 (with 450 mm/17.7 in track) 30.4 kPa 4.4 psi

289D3 (with 450 mm/17.7 in track) 32.2 kPa 4.7 psi

299D3 (with 400 mm/17.7 in track) 36.4 kPa 5.3 psi

299D3 (with 450 mm/17.7 in track) 32.2 kPa 4.7 psi

299D3 XE (with 400 mm/17.7 in track) 37.3 kPa 5.4 psi

299D3 XE (with 450 mm/17.7 in track) 33 kPa 4.8 psi

1,373 in

1,716 in

1,373 in

1,716 in

1,483 in

1,848 in

2,272 in

2,171 in

2,443 in

2,171 in

2,443 in

Page 12

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE Compact Track Loaders Specifications

Hydraulic System – 239D3 and 249D3

Hydraulic Flow – Standard

Loader Hydraulic Pressure 23 000 kPa 3,336 psi

Loader Hydraulic Flow 69 L/min 18 gal/min

Hydraulic Power (calculated) 26.5 kW 35.5 hp

Hydraulic Flow – High Flow

Maximum Loader Hydraulic Pressure 23 000 kPa 3,336 psi

Maximum Loader Hydraulic Flow 99 L/min 26 gal/min

Hydraulic Power (calculated) 38.0 kW 50.9 hp

Hydraulic System – 259D3

Hydraulic Flow – Standard

Loader Hydraulic Pressure 23 000 kPa 3,336 psi

Loader Hydraulic Flow 76 L/min 20 gal/min

Hydraulic Power (calculated) 29 kW 39 hp

Hydraulic Flow – High Flow

Maximum Loader Hydraulic Pressure 23 000 kPa 3,336 psi

Maximum Loader Hydraulic Flow 112 L/min 30 gal/min

Hydraulic Power (calculated) 43 kW 58 hp

Hydraulic System – 279D3 and 289D3

Hydraulic Flow – Standard

Loader Hydraulic Pressure 23 000 kPa 3,336 psi

Loader Hydraulic Flow 86 L/min 23 gal/min

Hydraulic Power (calculated) 33 kW 44 hp

Hydraulic Flow – High Flow XPS

Maximum Loader Hydraulic Pressure 28 000 kPa 4,061 psi

Maximum Loader Hydraulic Flow 121 L/min 32 gal/min

Hydraulic Power (calculated) 57 kW 76 hp

Hydraulic System – 299D3

Hydraulic Flow – Standard

Loader Hydraulic Pressure 23 000 kPa 3,335 psi

Loader Hydraulic Flow 86 L/min 23 gal/min

Hydraulic Power (calculated) 33 kW 44 hp

Hydraulic Flow – High Flow XPS

Maximum Loader Hydraulic Pressure 28 000 kPa 4,061 psi

Maximum Loader Hydraulic Flow 121 L/min 32 gal/min

Hydraulic Power (calculated) 57 kW 76 hp

Hydraulic System – 299D3 XE

Hydraulic Flow – Standard

Loader Hydraulic Pressure 23,000 kPa 3,335 psi

Loader Hydraulic Flow 86 L/min 23 gal/min

Hydraulic Power (calculated) 33 kW 44 hp

Hydraulic Flow – XE

Maximum Loader Hydraulic Pressure 28,000 kPa 4,061 psi

Maximum Loader Hydraulic Flow* 150 L/min 40 gal/min

Hydraulic Power (calculated) 70 kW 94 hp

*When equipped with Cat 400 Series work tools.

Page 13

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE

Compact Track Loaders Specifications

Noise Level

Inside Cab**

239D3, 249D3, 259D3, 299D3, 299D3 XE

279D3, 289D3 81 dB(A)

Outside Cab***

239D3, 249D3, 259D3, 279D3, 289D

299D3, 299D3 XE 104 dB(A)

*** The declared dynamic operator sound pressure levels per

ISO6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

*** The labeled sound power level for the CE marked congurations

when measured according to the test procedure and conditions specied in 2000/14/EC.

83 dB(A)

103 dB(A)

Cab

ROPS ISO 3471:2008

FOPS ISO 3449:2005 Level I

Air Conditioning System

The air conditioning system on the 239D3, 249D3, 259D3, 299D3 and 299D3 XE contains the uorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

The air conditioning system on the 279D3 and 289D3 contains the uorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO

equivalent of 1.430 metric tonnes.

Service Refill Capacities

Cooling System

239D3/249D3 12 L 3.2 gal

259D3/279D3/289D3/299D3/ 299D3 XE

299D3/299D3 XE 16 L 4.1 gal

Engine Crankcase

239D3/249D3 10 L 2.6 gal

259D3/279D3/289D3 11 L 3.0 gal

299D3/299D3 XE 13 L 3.5 gal

Fuel Tank

239D3/249D3 57 L 15.1 gal

259D3 94 L 24.8 gal

279D3/289D3 105 L 27.7 gal

299D3/299D3 XE 120 L 31.7 gal

Hydraulic System

239D3/249D3 45 L 11.9 gal

259D3 50 L 13.2 gal

279D3/289D3 52 L 13.7 gal

299D3/299D3 XE 55 L 14.5 gal

Hydraulic Tank

239D3/249D3 34 L 9.0 gal

259D3/279D3/289D3/299D3/ 299D3 XE

Diesel Exhaust Fluid (DEF) Tank

299D3/299D3 XE 19 L 5.0 gal

14 L 3.7 gal

39 L 10.3 gal

Page 14

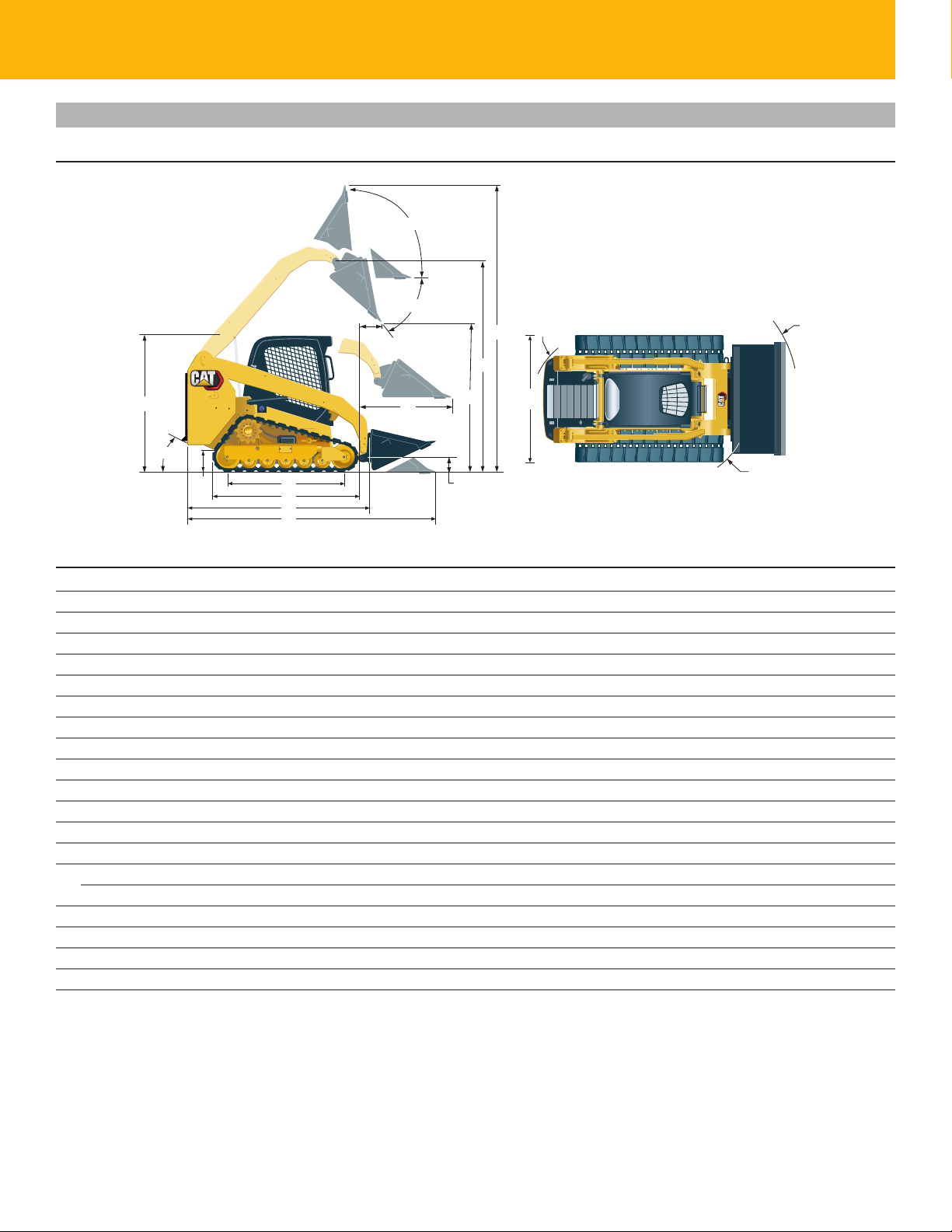

239D3 Compact Track Loaders Specifications

Dimensions*

All dimensions are approximate.

1 2 3

239D3

Length of Track on Ground 1384 mm 54.5 in

Overall Length of Track 1808 mm 71.2 in

Length without Bucket 2522 mm 99.3 in

Length with Bucket on Ground 3234 mm 127.3 in

Height to Top of Cab 2034 mm 80.1 in

Maximum Overall Height 3645 mm 143.5 in

Bucket Pin Height at Maximum Lift 2825 mm 111.2 in

Bucket Pin Height at Carry Position 218 mm 8.6 in

Reach at Maximum Lift and Dump 563 mm 22.2 in

Clearance at Maximum Lift and Dump 2057 mm 81.0 in

Ground Clearance 195 mm 7.7 in

Departure Angle 34.5°

Maximum Dump Angle 50.3°

Vehicle Width (320 mm/12.6 in tracks) 1676 mm 66.0 in

Vehicle Width (400 mm/15.7 in tracks) 1756 mm 69.1 in

Turning Radius from Center – Machine Rear 1458 mm 57.4 in

Turning Radius from Center – Coupler 1159 mm 45.6 in

Turning Radius from Center – Bucket 2069 mm 81.5 in

Maximum Reach with Arms Parallel to Ground 1356 mm 53.4 in

Rack Back Angle at Maximum Height 85.5°

* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks,

standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Page 15

Dimensions*

All dimensions are approximate.

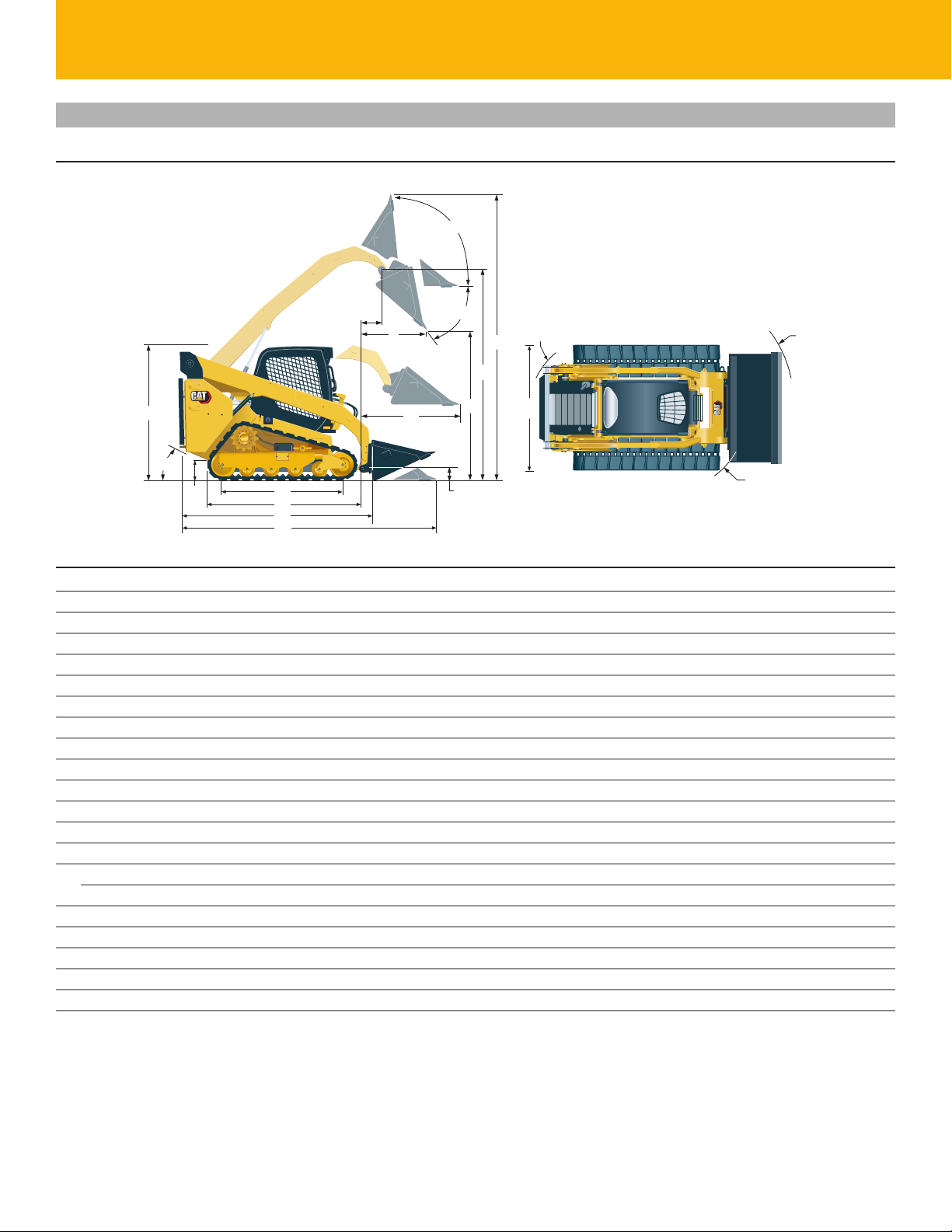

249D3 Compact Track Loaders Specifications

1 2 3

249D3

Length of Track on Ground 1384 mm 54.5 in

Overall Length of Track 1808 mm 71.2 in

Length without Bucket 2523 mm 99.3 in

Length with Bucket on Ground 3233 mm 127.3 in

Height to Top of Cab 2039 mm 80.3 in

Maximum Overall Height 3831 mm 150.8 in

Bucket Pin Height at Maximum Lift 3002 mm 118.2 in

Bucket Pin Height at Carry Position 219 mm 8.6 in

Reach at Maximum Lift and Dump 727 mm 28.6 in

Clearance at Maximum Lift and Dump 2253 mm 88.7 in

Ground Clearance 194 mm 7.6 in

Departure Angle 34.5°

Maximum Dump Angle 48°

Vehicle Width (320 mm/12.6 in tracks) 1676 mm 66.0 in

Vehicle Width (400 mm/15.7 in tracks) 1756 mm 69.1 in

Turning Radius from Center – Machine Rear 1458 mm 57.4 in

Turning Radius from Center – Coupler 1160 mm 45.7 in

Turning Radius from Center – Bucket 2060 mm 81.1 in

Maximum Reach with Arms Parallel to Ground 1317 mm 51.8 in

Rack Back Angle at Maximum Height 87.5°

Bucket Pin Reach at Maximum Lift 311 mm 12.2 in

* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks,

standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Page 16

259D3/289D3 Compact Track Loaders Specifications

Dimensions*

All dimensions are approximate.

1 2 3 4

259D3 289D3

Length of Track on Ground 1499 mm 59.0 in 1630 mm 64.2 in

Overall Length of Track 1999 mm 78.7 in 2129 mm 83.8 in

Length without Bucket 2767 mm 108.9 in 2995 mm 117.9 in

Length with Bucket on Ground 3486 mm 137.3 in 3714 mm 146.2 in

Height to Top of Cab 2111 mm 83.1 in 2113 mm 83.2 in

Maximum Overall Height 3915 mm 154.1 in 4051 mm 159.5 in

Bucket Pin Height at Maximum Lift 3075 mm 121.0 in 3178 mm 125.1 in

Bucket Pin Height at Carry Position 198 mm 7.8 in 190 mm 7.5 in

Reach at Maximum Lift and Dump 608 mm 23.9 in 761 mm 30.0 in

Clearance at Maximum Lift and Dump 2283 mm 89.9 in 2387 mm 94.0 in

Ground Clearance 226 mm 8.9 in 226 mm 8.9 in

Departure Angle 35° 33°

Maximum Dump Angle 52° 51°

Vehicle Width (320 mm/12.6 in tracks) – 259D only 1676 mm 66.0 in N/A

Vehicle Width (400 mm/15.7 in tracks) – 259D/289D 1755 mm 69.0 in 1931 mm 76.0 in

Vehicle Width (450 mm/17.7 in tracks) – 289D only N/A 1981 mm 78.0 in

Turning Radius from Center – Machine Rear 1561 mm 61.5 in 1796 mm 70.7 in

Turning Radius from Center – Coupler 1392 mm 54.8 in 1410 mm 55.5 in

Turning Radius from Center – Bucket 2184 mm 86.0 in 2256 mm 88.8 in

Maximum Reach with Arms Parallel to Ground 1305 mm 51.4 in 1270 mm 50.0 in

Rack Back Angle at Maximum Height 87° 84°

Bucket Pin Reach at Maximum Lift 238 mm 9.4 in 369 mm 14.5 in

* Operating Weight, Operating Specifications and Dimensions for the 259D3 and 289D3 all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1730 mm (68 in)

low profile bucket for the 259D3 and 80” low profile bucket for the 289D3, 320 mm (12.6 in) tracks for the 259D3 or 450 mm (17.7 in) tracks for the 289D3, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Page 17

Dimensions*

All dimensions are approximate.

279D3 Compact Track Loaders Specifications

1 2 3 4

279D3

Length of Track on Ground 1630 mm 64.2 in

Overall Length of Track 2129 mm 83.8 in

Length without Bucket 2995 mm 117.9 in

Length with Bucket on Ground 3714 mm 146.2 in

Height to Top of Cab 2113 mm 83.2 in

Maximum Overall Height 4051 mm 159.5 in

Bucket Pin Height at Maximum Lift 3173 mm 124.9 in

Bucket Pin Height at Carry Position 198 mm 7.8 in

Reach at Maximum Lift and Dump 575 mm 22.6 in

Clearance at Maximum Lift and Dump 2485 mm 97.8 in

Ground Clearance 226 mm 8.9 in

Departure Angle 32°

Maximum Dump Angle 39°

Vehicle Width (400 mm/15.7 in tracks) 1931 mm 76.0 in

Vehicle Width (450 mm/17.7 in tracks) 1981 mm 78.0 in

Turning Radius from Center – Machine Rear 1796 mm 70.7 in

Turning Radius from Center – Coupler 1410 mm 55.5 in

Turning Radius from Center – Bucket 2256 mm 88.8 in

Maximum Reach with Arms Parallel to Ground 1373 mm 54.0 in

Rack Back Angle at Maximum Height 84°

* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket,

450 mm (17.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Page 18

299D3/299D3 XE Compact Track Loaders Specifications

Dimensions*

All dimensions are approximate.

1 2 3 4

299D3/299D3 XE

Length of Track on Ground 1767 mm 69.6 in

Overall Length of Track 2270 mm 89.4 in

Length without Bucket 3189 mm 125.5 in

Length with Bucket on Ground 3931 mm 154.7 in

Height to Top of Cab 2125 mm 83.6 in

Maximum Overall Height 4032 mm 158.7 in

Bucket Pin Height at Maximum Lift 3208 mm 126.3 in

Bucket Pin Height at Carry Position 180 mm 7.1 in

Reach at Maximum Lift and Dump 852 mm 33.6 in

Clearance at Maximum Lift and Dump 2399 mm 94.5 in

Ground Clearance 245 mm 9.6 in

Departure Angle 33°

Maximum Dump Angle 54°

Vehicle Width over Tires (400 mm/15.7 in tracks) 1931 mm 76.0 in

Vehicle Width over Tires (450 mm/17.7 in tracks) – 299D3 XE only 1981 mm 78.0 in

Turning Radius from Center – Machine Rear 1881 mm 74.0 in

Turning Radius from Center – Coupler 1476 mm 58.1 in

Turning Radius from Center – Bucket (racked) 2314 mm 91.1 in

Maximum Reach with Arms Parallel to Ground 1319 mm 51.9 in

Rack Back Angle at Maximum Height 81°

Bucket Pin Reach at Maximum Lift 493 mm 19.4 in

Roll Back Angle 25°

* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door,

side windows, air conditioning, air ride seat, advanced display, rearview camera, 850 CCA battery (299D3) and 1,000 CCA battery (299D3 XE) , dual direction self level (299D3 XE), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/singe flange rear idler (299D3) triple flange front/rear idlers (299D3 XE), no optional counterweights and manual quick coupler (unless otherwise noted).

Page 19

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE

Feature Availability

Standard Optional Not Available

Electrical 239D3 249D3 259D3 279D3 289D3 299D3 299D3 XE

12V Electrical System

80 Ampere Alternator

Ignition Key Start/Stop Switch

Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light

Lights: Two Rear LED Working Lights, Two Adjustable Front LED Lights

Lights: Rear, with STOP/TAIL/TURN

Lights: Rear, with STOP/TAIL/TURN. Front Headlights. Front Mirrors.

Backup Alarm

Heavy Duty Battery, 850 CCA

Heavy Duty Battery, 1000 CCA

Top and Rear Windows

Floor mat

Interior Rearview Mirror

12 Volt Electric Socket

USB Charging Port (bundled with Advanced Display option only)

Horn

Hand (Dial) Throttle, Electronic

Adjustable Joystick Controls (Selectable at Dealer: ISO or H-Pattern)

Adjustable Joystick Controls (Selectable In-Cab: ISO or H-Pattern)

Hand and Foot Controls

Anti-theft Security System with six-button Keypad

Storage Compartment with Netting

Engine Block Heater – 120V

(continued on next page)

Page 20

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE Feature Availability

Standard Optional Not Available

Operator Environment 239D3 249D3 259D3 279D3 289D3 299D3 299D3 XE

Gauges: Fuel Level, Hour Meter

Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System

Adjustable Vinyl Seat

Adjustable Vinyl Seat with Suspension

Adjustable Vinyl Seat with Air Suspension and Heat

Adjustable Cloth Seat with Air Suspension and Heat

Fold In Ergonomic Contoured Armrest

Seat Belt: High Visibility 2"

Seat Belt: High Visibility 3"

Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages

Rops Cab, Open, Tilt Up

Fops, Level I

Advanced Display: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control; Rearview Camera Included

Radio Ready with Speakers, Wiring, Radio Box, Antenna and Cable, and hardware for installing single DIN radio

Bluetooth Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)

Powertrain and Performance 239D3 249D3 259D3 279D3 289D3 299D3 299D3 XE

Cat® C2.2, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Final and EU Stage IIIB Emissions Standards

Cat C3.3B, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Final and EU Stage V Emissions Standards

Cat C3.8, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Final and EU Stage IV Emissions Standards

Air Cleaner, Dual Element, Radial Seal

S·O·S™ Sampling Valve, Hydraulic Oil

Filter, Cartridge-type, Hydraulic

Filters, Canister-type Fuel and Water Separator

Radiator/Hydraulic Oil Cooler (side-by-side)

Spring Applied, Hydraulically Released Parking Brakes

Two Speed Travel

Hydrostatic Transmission

(continued on next page)

Page 21

239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE

Feature Availability

Standard Optional Not Available

Other 239D3 249D3 259D3 279D3 289D3 299D3 299D3 XE

Engine Enclosure, Lockable

Extended Life Antifreeze, –36° C (–33° F)

Cat HYDO™ Advance Hydraulic Oil, –20° C (–4° F) Min

Cat Cold Operation Hydraulic Oil, –40° C (–40° F) Min

Machine Tie Down Points (6)

Support, Lift Arm

Hydraulic Oil Level Sight Gauge

Radiator Coolant Level Sight Gauge

Radiator, Expansion Bottle

Cat ToughGuard™ Hose

Auxiliary, Hydraulics, Continuous Flow

Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release

Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm

Worktool Quick Coupler: Manual

Worktool Quick Coupler: Hydraulic

Electrical Outlet, Beacon

Beacon, Rotating

Belly Pan Cleanout

Variable Speed Demand Fan

Variable Speed Demand Fan: Reversing

Product Link PL243, Cellular

Product Link PL641, Cellular

Paint, Custom

Speed Sensitive Ride Control

Work Tool Return to Dig and Work Tool Positioner

Page 22

Notes

Page 23

Notes

Page 24

For more complete information on Cat products, dealer services, andindustry solutions, visit us on the web atwww.cat.com

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “Power Edge” and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, are trademarks ofCaterpillar and may not be used without permission.

AEHQ8269-02 (01-2021)

Replaces AEHQ8269-01

(Am North, EU, APD,

ANZP, HRC)
