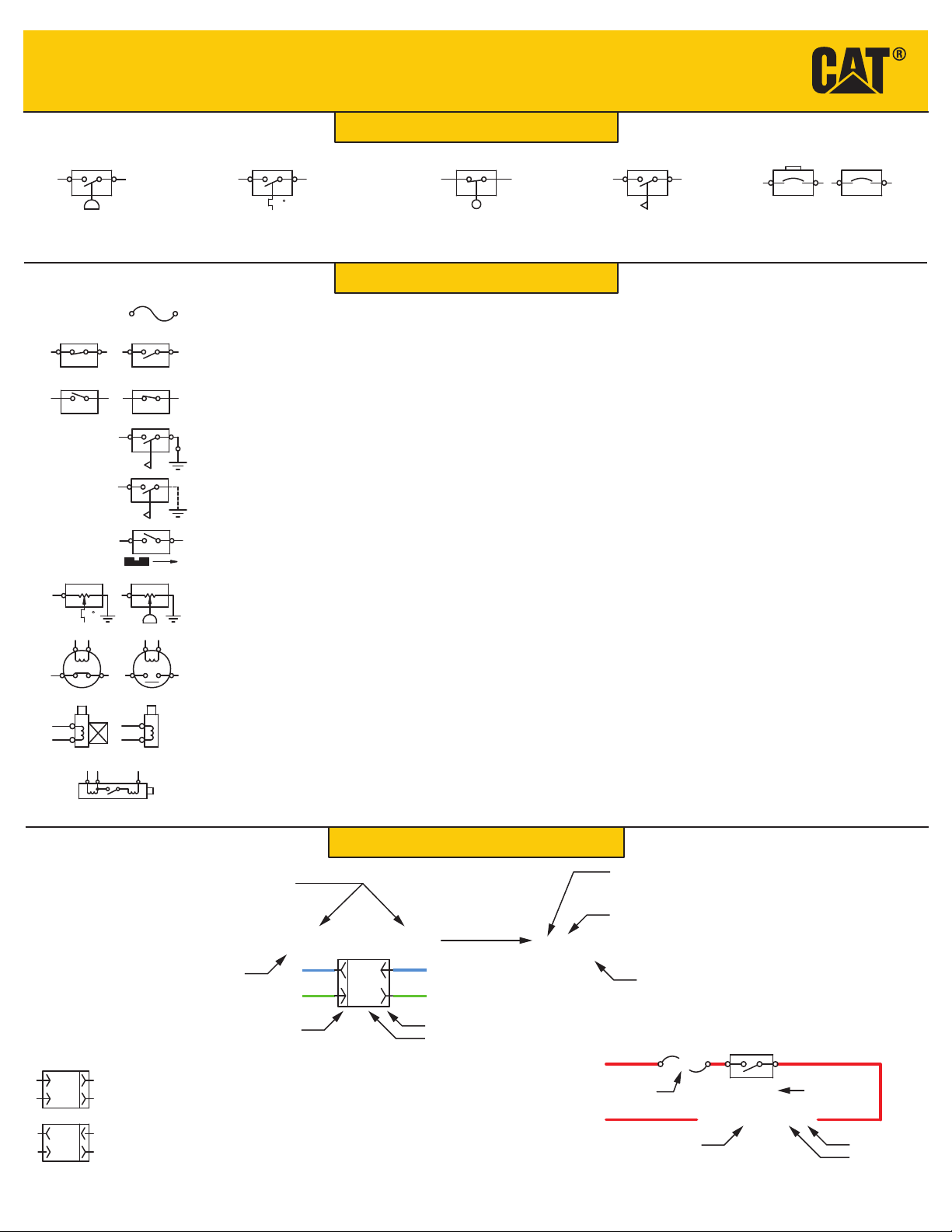

Fluid Power Symbols
Electrical Symbols

Schematic
Machine Views

Front Frame
Rear Frame
Tap Views

X

Options

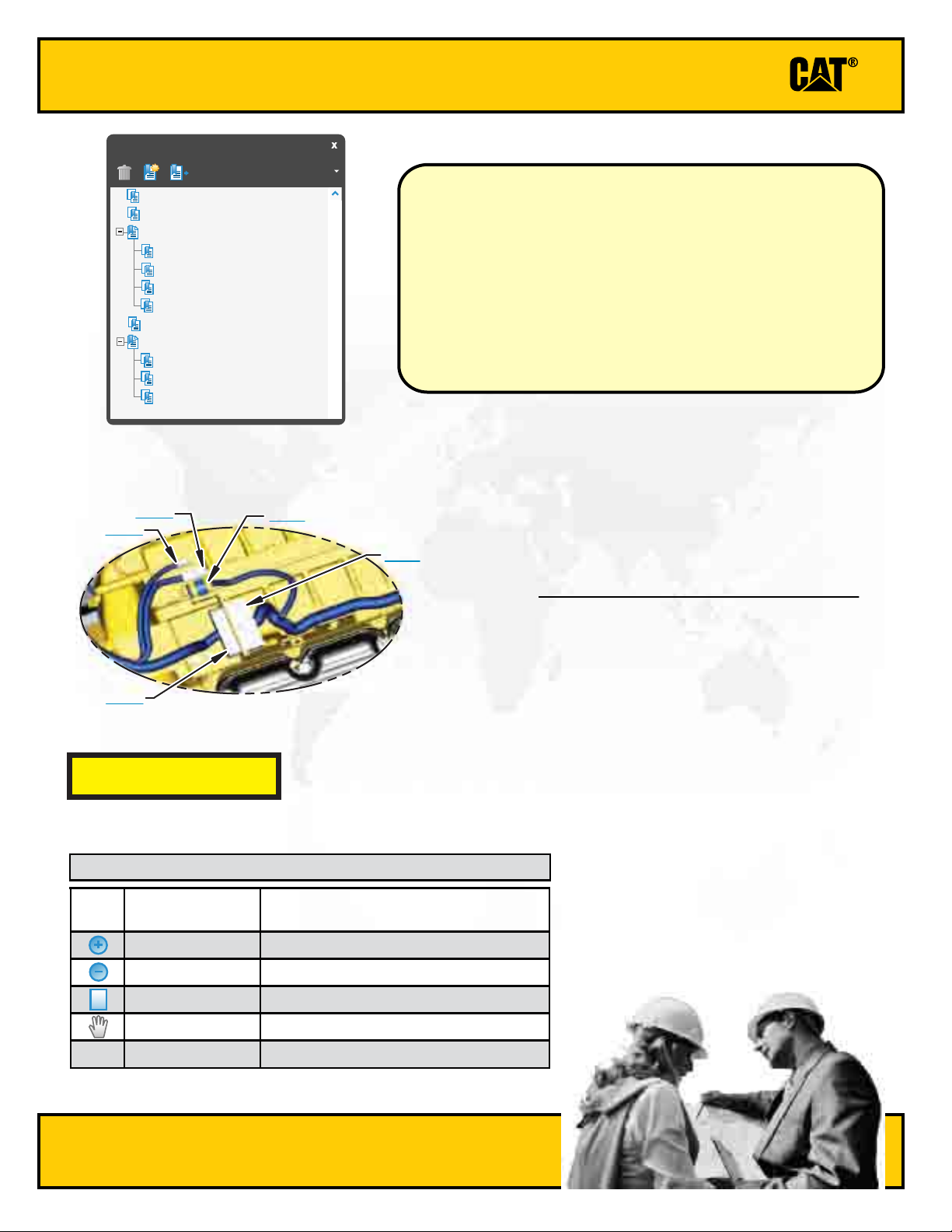

The Bookmarks panel will allow you to

quickly navigate to points of interest.

EC-C2

EC-C3

E-C60

E-C61

This document is best viewed at a

screen resolution of 1024 X 768.

To set your screen resolution do the following:

RIGHT CLICK on the DESKTOP.

Select PROPERTIES.

CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION

until it shows 1024 X 768.

CLICK OK to apply the resolution.

Click on any text that is BLUE and underlined.
These are hyperlinks that can be used to navi­gate the schematic and machine views.

EC-C1

VIEW ALL CALLOUTS

HOTKEYS (Keyboard Shortcuts)

FUNCTION

Zoom In
Zoom Out
Fit to Page
Hand Tool
Find

When only one callout is showing on a machine view this
button will make all of the callouts visible. This button is
located in the top right corner of every machine view page.

KEYS

“CTRL” / “+”
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
“CTRL” / “F”

UENR1753-04

August 2012

246C, 256C, 262C, 262C2 and 272C
Skid Steer Loaders
277C, 277C2, 287C, 287C2 and 297C
Multi-Terrain Loader
279C, 279C2, 289C, 289C2 and 299C
Compact Track Loader

Electrical System

246C:
JAY2116-UP

277C:
JWF2336-UP

289C:
JMP1344-UP

256C:
DWS1581-UP

287C:
MAS1955-UP

299C:
JSP1135-UP

262C:
MST3520-UP

297C:
GCP1657-UP

262C2:
TMW1-UP

272C:
RED2116-UP

279C:
MBT1498-UP

277C2:
MET1-UP

279C2:
KWB1-UP

Volume 1 of 2: Engine
Volume 2 of 2: Cab

© 2012 Caterpillar, All Rights Reserved Printed in U.S.A.

287C2:
SSB1-UP

289C2:
RTD1-UP

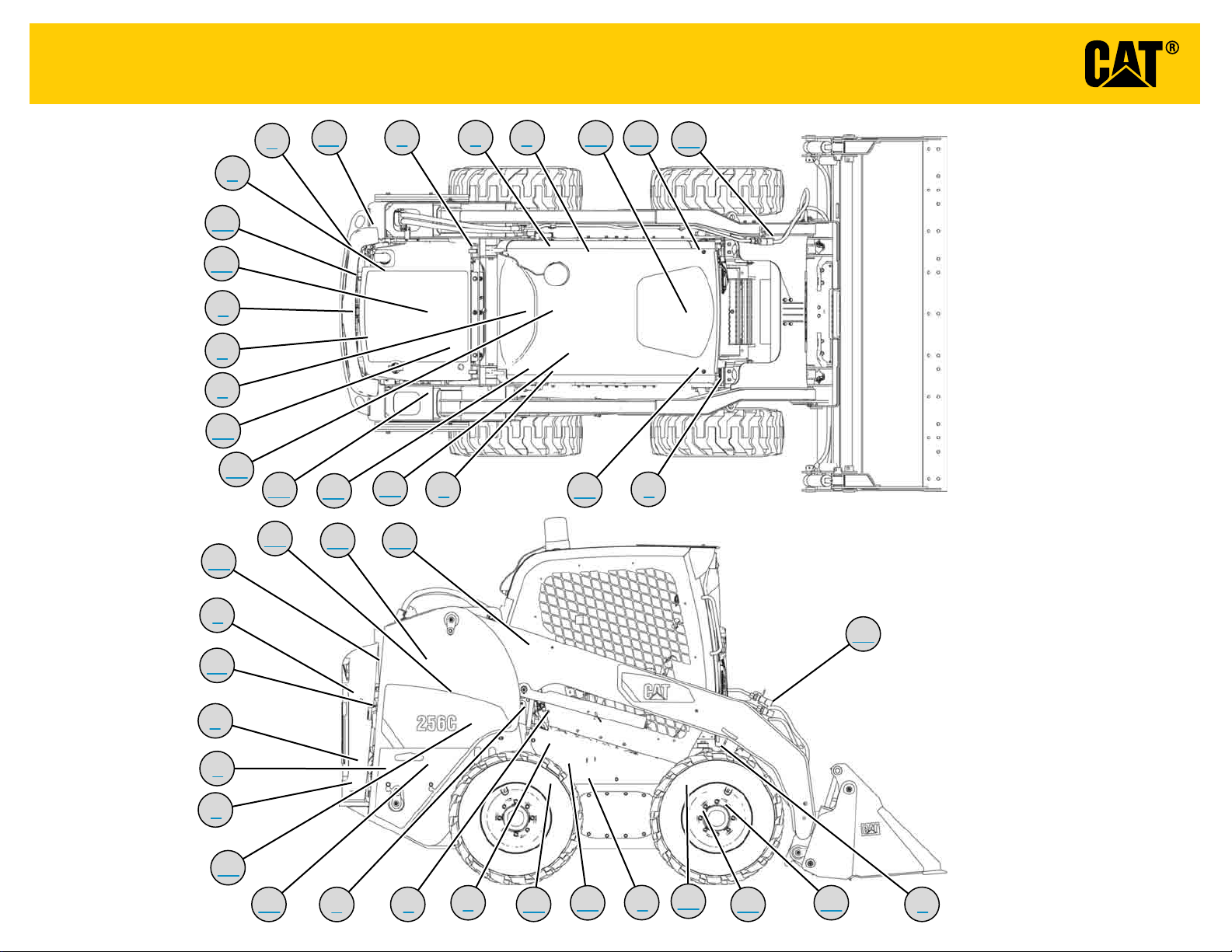

COMPONENT LOCATION
Volume 1 of 2 - ENGINE

Component

12V Battery H-12

Alarm - Backup F-10 2

Alternator H-13 3

Control - Product Link E-1 5

Fuse - Main Power I-8 6

Horn - Forward H-5 7

Indicator - Air Filter D-13 8

Motor - Condenser #1 H-1 5

Motor - Condenser #2 H-1 5

Motor - Fuel Priming Pump H-7 9

Motor - Starter H-12 10

Motor - Water Pump I-6 11

Plugs - Glow F-11 12

Radio - Product Link GPS E-3 5

Relay - A/C Compressor H-1 4

Relay - Cold Start C-11 13

Relay - Condenser Fans G-1 14

Relay - Start G-12 15

Resistor - HVAC H-4 16

Sender - Fuel Level B-8 17

Sensor - Engine Coolant Temperature G-13 3

Sensor - Engine Speed C-11 18

Sensor - Hydraulic Temperature G-7 6

Sensor - Left Motor Speed G-11 19

Sensor - Right Motor Speed D-11 20

Sensor - Throttle Position H-5 21

Solenoid - 2 Speed E-11 22

Solenoid - A/C Compressor Clutch G-13 3

Solenoid - A1 G-5 21

Solenoid - A2 G-5

Machine locations are repeated for components located close together.

Schematic

Location

Machine
Location

1

21

Component

Solenoid - Bucket (Lower) G-5 21

Solenoid - Bucket (Raise) G-5 21

Solenoid - Bucket (Tilt Down) F-5 21

Solenoid - Bucket (Tilt Up) F-5 21

Solenoid - Cold Start Advance C-13 23

Solenoid - Demand Fan B-7 24

Solenoid - Fuel Shutdown C-13 23

Solenoid - High Flow (C Minus) F-3 21

Solenoid - High Flow (C Plus) F-3 21

Solenoid - High Flow (LSR) F-3 21

Solenoid - Implement Shutoff G-5 21

Solenoid - LH Forward Pump F-11 25

Solenoid - LH Rev Pump F-11 26

Solenoid - Parking Brake E-11 27

Solenoid - Quick Coupler Valve E-5 17

Solenoid - RH Forward Pump F-11 28

Solenoid - RH Rev Pump F-11 27

Solenoid - Ride Control #1 B-5 21

Solenoid - Ride Control #2 B-5 21

Solenoid - Ride Control #3 B-5 24

Solenoid - Self Level D-5 21

Suppressor - Arc Solenoid Self Level D-5 21

Switch - A/C G-4 16

Switch - Engine Oil Pressure G-11 10

Switch - HVAC Blower G-2 16

Switch - HVAC High Pressure Cutout G-1 29

Switch - HVAC Low Pressure G-1 1

Switch - Hydraulic Filter Bypass F-10 8

Switch - Temperature Control H-4 16

Switch - Thermostat F-4 30

Schematic

Location

Machine
Location

COMPONENT LOCATION
Volume 2 of 2 - CAB

Component

Alarm - Action
Block - Fuse #1
Block - Fuse #2
Control Gp - LH Joystick
Control Gp - Machine
Control Gp - Monitor
Control Gp - MSS
Control Gp - RH Joystick
Flasher As - Stop Light
Fuse - Roading
Ground - Cab
Motor As - Front Wiper
Receiver Gp - Laser
Receptacle As - Power Supply
Relay As - Cold Start
Relay As - Backup Alarm
Relay As - Fuel Pump
Relay As - High Flow (C-Minus)
Relay As - High Flow (C-Plus)
Relay As - Level Ride
Relay As - Stop Lamp
Relay As - Work Tool #1
Relay As - Work Tool #2
Relay As - Work Tool Trigger
Relay Gp - Main Power #1
Relay Gp - Main Power #2
Resister - Can

Machine locations are repeated for components located close together.
A = Located inside cab.

B = Located inside right console.
C = Located inside left console.

Schematic

Location

G-3
H-9
G-9
G-6
I-14
G-3

F-3
E-6
D-9

J-14
J-14

B-6
C-3

F-3

E-10
F-10
F-10
G-10
H-10
F-10
G-10
H-10
H-10
G-10

E-9
E-9

J-14

Machine

Location

Component

35

A

A
36 37
37 C
38

C
39 C
40

A C
41

A C
42

C

A

A

A C

A

A B

A 37

A C

A

A 43

A

A C

A 43

A

Resistor - 120 OHM
Resistor - Accugrade
Socket As - Beacon
Switch As - Air Seat
Switch As - Auxiliary Bleed Off
Switch As - Beacon
Switch As - Creeper Control
Switch As - Front Work Lamps
Switch As - Hazard
Switch As - Hydraulic Quick Coupler
Switch As - Implement Lockout
Switch As - Keystart
Switch As - Limit Armbar
Switch As - Operator Implement Lockout
Switch As - Parking Brake
Switch As - Pattern Change
Switch As - Rear Work Lamps
Switch As - Ride Control
Switch As - Roading Lamp
Switch As - Seat
Switch As - Self Level
Switch As - Turn Signal
Switch As - Wiper Washer
Switch As - Work Tool #1
Switch As - Work Tool #2
Tank As - Window Washer

Schematic

Location

C-2
D-1
H-8
F-6

J-4
D-4
E-4

I-4
D-4
H-4
B-6
F-3
G-8

J-4
F-4
G-4

I-4
E-4
D-4
F-6
H-4
C-4
B-6
H-4
H-4
C-7

Machine
Location

42
42
41

43

44

B
B

B

C
C
C

B

B

C

CONNECTOR LOCATION
Volume 1 of 2- ENGINE

Schematic

Machine

Connector Number

Location

CONN 1 E-11 6
CONN 2 E-7 6
CONN 3 C-7 31
CONN 4 B-13, D-11, G-11 20
CONN 5 C-10, G-8 11
CONN 6 B-9, D-9 32
CONN 7 C-9, G-9 32
CONN 8 I-7 11
CONN 9 I-5 11
CONN 10 C-5 21

Location

CONN 11 E-5 17
CONN 12 F-5 6
CONN 13 H-4, I-4 29
CONN 14 D-3 5
CONN 15 D-2 5
CONN 16 E-2 5
CONN 17 G-3, I-3 30
CONN 18 H-3, J-3 16
CONN 19 Work Tool Connector J-6 33

The connectors shown in this chart are for harness to harness connectors.
Connectors that join a harness to a component are generally located at or near
the component. See the Component Location Chart.

CONNECTOR LOCATION
Volume 2 of 2 - CAB

Schematic

Machine

Connector Number

Location

CONN 1 C-14 45

CONN 2 A-14 45

CONN 3 D-14 46

CONN 13 D-9

CONN 14 J-14 47

CONN 20 C-1, D-9 48

CONN 21 I-10 A

CONN 22 Service Tool Connector I-10 A

CONN 23 A-8 47

CONN 24 J-8 43

Location

48

CONN 25 C-6 39

CONN 26 D-7

CONN 27 G-2 44

The connectors shown in this chart are for harness to harness connectors.
Connectors that join a harness to a component are generally located at or near
the component. See the Component Location Chart.

8

CID / MID / FMI

Component Identifiers (CID¹)

Module Identifier (MID²)

Machine Control System

(MID No. 039)

CID Component

0041 8 Volt DC Supply

0070 Parking Brake Switch

0091 Throttle Position Sensor

0096 Fuel Level Sensor

0110 Engine Coolant Temperature

0190 Engine Speed Sensor

0262 5 Volt DC Sensor Power Supply

0354 Bucket Raise Solenoid

0355 Bucket Lower Solenoid

0357 Rackback Solenoid

0358 Implement Pilot Pressure Supply

0367 Ride Control Switch

0490 Implement Lockout Switch

0600 Hydraulic Oil Temperature Sensor

0681 Parking Brake Solenoid

1007 Linkage Control Joystick Mapping Switch

1182 High Flow Solenoid

1189 Auxiliary Hydraulics Lever

1190 Armrest/Seat Switch

1482 10 Volt DC Power Supply

1551 Engine Demand Fan System

1703 Left Drive Pump Forward Solenoid

1704 Left Drive Pump Reverse Solenoid

1705 Right Drive Pump Forward Solenoid

1706 Right Drive Pump Reverse Solenoid

1960 Ignition Key Reader

2211 Auxiliary Valve #1

2212 Auxiliary Valve #2

2471 Cab Door Position Switch

2474 Left Joystick Forward/Reverse Position Sensor

2475 Right Joystick Forward/Reverse Position Sensor

2476 Left Joystick Left/Right Position Sensor

2477 Right Joystick Left/Right Position Sensor

2669 Creeper Mode Switch

2685 Left Drive Motor Speed Sensor #1

2686 Left Drive Motor Speed Sensor #2

2687 Right Drive Motor Speed Sensor #1

2688 Right Drive Motor Speed Sensor #2

¹ The CID is a diagnostic code that indicates which circuit is faulty.

² The MID is a diagnostic code that indicates which electronic control module
diagnosed the fault.

Failure Mode Identifiers (FMI)¹

FMI No. Failure Description

0 Data valid but above normal operational range.

1 Data valid but below normal operational range.

2 Data erratic, intermittent, or incorrect.

3 Voltage above normal or shorted high.

4 Voltage below normal or shorted low.

5 Current below normal or open circuit.

6 Current above normal or grounded circuit.

7 Mechanical system not responding properly.

8 Abnormal frequency, pulse width, or period.

9 Abnormal update.

10 Abnormal rate of change.

11 Failure mode not identifiable.

12 Bad device or component.

13 Out of calibration.

14 Parameter failures.

15 Parameter failures.

16 Parameter not available.

17 Module not responding.

18 Sensor supply fault.

19 Condition not met.

20 Parameter failures.

¹The FMI is a diagnostic code that indicates what type of failure has occurred.

SPECIFICATIONS AND RELATED MANUALS
Volume 1 of 2- ENGINE

Resistor, Sender and Solenoid Specifications

Part No. Component Description Resistance (Ohms)¹

185-4254 Solenoid:
195-9700 Solenoid: C- & C+ (High Flow) 10 ± 0.5

252-4734 Solenoid: Implement Shutoff 7.5 ± 0.4 @ 20 ± 5°C (68°F ± 41°F)
274-8044 Solenoid: Quick Coupler Valve 10.3 ± 0.6 @ 25 ± 5°C (77°F ± 41°F)
277-8862 Solenoid: Demand Fan 5 @ 20°C (68°F)
285-2195 Solenoid: Ride Control #1 & Ride Control #2 5.9 ± 0.5 @ 25 ± 5°C (77°F ± 41°F)

¹ At room temperature unless otherwise noted.

Auxiliary #1, Auxiliary #2,
Bucket (Raise, Lower, Tilt Up, Tilt Down)

2.2 ± 0.2

Related Electrical Service Manuals

Title

K3A Alternator: 239-0772 SENR5841

Electric Starting Motor: SENR3828

Machine Control System: KENR5119

143-0539

Form Number

Off Machine Switch Specification

Part No. Function Actuate Deactuate Contact Position

134-0404 Hydraulic Filter Bypass

236-6923 A/C Pressure Cutout (High)

149-6371 A/C Pressure (Low)

¹ With increasing pressure the closed condition can be maintained up to 2800 kpa (405 psi), with decreasing pressure the closed condition can be maintained
down to 170 kpa (25psi).

² Contact postion at the contacts of the harness connector.

276 kPa

(40.0 psi)

275 kPa Max ¹

(40 psi)

103.4 ± 13.8 kPa
(15 ± 2 psi)

207 kPa

(30.0 psi)

170 ± 55 kPa
(24.6 ± 8 psi)

34.5 ± 7 kPa
(5 ± 1 psi)

Normally Open

Normally Open ²

Normally Open

SPECIFICATIONS AND RELATED MANUALS
Volume 2 of 2 - CAB

Related Electrical Service Manuals

Title

K3A Alternator: 239-0772 SENR5841

Electric Starting Motor: SENR3828

Machine Control System: KENR5119

143-0539

Form Number

HARNESS and WIRE

Electrical Schematic Symbols

Symbols

Pressure

Symbol

T

T

Temperature

Symbol

Level

Symbol

Flow

Symbol

Circuit Breaker

Symbol

Symbols and Definitions

Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.

Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates that the component has

screw terminals and a wire can be disconnected from it.

Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.). No circle indicates that the wire cannot be
disconnected from the component.

Ground (Wired): This indicates that the component is connected to a grounded wire. The grounded wire is fastened to the machine.

Ground (Case): This indicates that the component does not have a wire connected to ground. It is grounded by being fastened to the

machine.

Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of a normally open reed switch; it
opens the contacts of a normally closed reed switch.

Sender: A component that is used with a temperature or pressure gauge. The sender measures the temperature or pressure. Its
resistance changes to give an indication to the gauge of the temperature or pressure.

Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity. It has a coil that makes an electromagnet
when current flows through it. The electromagnet can open or close the switch part of the relay.

Solenoid: A solenoid is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current
flows through it. The electromagnet can open or close a valve or move a piece of metal that can do work.

Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is activated by electricity and held latched by a
permanent magnet. It has two coils (latch and unlatch) that make electromagnet when
internal switch that places the latch coil circuit open at the time the coil latches.

Wire, Cable, or Harness Assembly Identification:

Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).

Part Number: for

Connector Plug

Plug

Deutsch connector: Typical representation

1

of a Deutsch connector. The plug contains all

2

sockets and the receptacle contains all pins.

1
2

Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.

AG-C4

111-7898

Harness and Wire Symbols

1
2

L-C12
3E-5179

Receptacle
Pin or Socket Number

L-C12
3E-5179

Fuse (5 Amps)

Harness identification code:

This example indicates wire group 325,

wire 135 in harness "AG".

current flows through them. It also has an

Harness Identification Letter(s): (A, B, C, ..., AA, AB, AC, ...)

Harness Connector Serialization Code: The "C" stands for

"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...).

Part Number: for
Connector Receptacle

5A

9X-1123

Component
Part Number

325-AG135 PK-14

Wire Gauge
Wire Color

J

I

H

G

F

E

D

C

B

TERM. FOR WARNING LIGHT

R TERM. IS THE AC
TAP FROM STATOR

IG TERMINAL IS THE FIELD EXCITATION.
BATTERY MUST BE CONNECTED FOR TURN ON

308-E52 YL-18
403-E53 GN-18

JUMP POST GND

NOTE K

E-C8

1073134

406-E54 PU-18
200-E61 BK-18

430-E6 BU-18
200-E7 BK-18

327-E68 PK-18

317-E1 YL-18

TERM.

1

IG

2

R

3

(3) ALTERNATOR

239-0772

E-C27

2304011

1

2

E-C16

1552269

1

2

200-E36 BK-18
E554-E9 PK-18

E-C26

1761477

E-C7

2364701

E-C6

2364701

B+

SIGNAL

GROUND

109-E46 RD-4
109-E60 RD-8

403-E53 GN-18
308-E52 YL-18

(3) SENSOR GP
COOLANT
TEMPERATURE

238-0112

USE 6V9028 SEAL O RING

200-E61 BK-18
406-E54 PU-18

(3) SOLENOID GP
A/C COMPRESSOR CLUTCH

RD-18

RD-18

276-9875

3.7A

(8) IND AIR FLTR

237-7325

6 WATT

1

2

200-E7 BK-18
430-E6 BU-18

SL034 MODEL USES
300-3573 SOLENOID

(23) SOL FUEL SHUTDN

1

335-5735

327-E68 PK-18

(23) SOL COLD ST ADVANCE

1

352-3694

317-E1 YL-18

CONNECTS TO

(LOC SH1 F-12)

(LOC SH1 C-12)

E-C13

AND

E-C14

CONN 4

1

2

3

4

CBL-JJ1 RD-00

JUMP POST BAT.
114-4516

ENGINE

109-E46 RD-4

109-E47 RD-12
109-E48 RD-12
109-E60 RD-8

198-E55 PK-16

200-E7 BK-18
200-E2 BK-12

200-E36 BK-18

200-E61 BK-18

304-E49 WH-12

306-E51 GN-18

308-E52 YL-18
317-E1 YL-18
327-E68 PK-18
384-E45 BU-12

403-E53 GN-18
406-E54 PU-18
418-E5 WH-18

430-E6 BU-18

450-E26 YL-18

451-E27 BR-18

832-E18 BR-18

833-E17 GY-18

834-E23 YL-18

835-E22 PU-18

A958-E11 WH-18

E554-E9 PK-18

H801-E8 PU-18
H801-E25 PU-18
H801-E31 PU-18
H801-E29 PU-18
H801-E58 PU-18

H807-E12 YL-18

H807-E56 YL-18

H808-E50 WH-18

K943-E28 OR-18

K944-E30 YL-18

K946-E10 OR-18

K947-E24 YL-18

L987-E62 WH-18

P769-E13 YL-18
P769-E19 YL-18
P769-E14 YL-18

P770-E15 WH-18
P770-E20 WH-18
P770-E16 WH-18

P981-E57 PU-18

ENGINE

MJ-C1

NOTE D

3E3376

P769-MJ1 YL-18 P769-MJ1 YL-18
P770-MJ2 WH-18 P770-MJ2 WH-18
835-MJ3 PU-18 835-MJ3 PU-18
834-MJ4 YL-18 834-MJ4 YL-18

MOTOR SPEED SNSR MTL JUMPER (ATCH)

NOTE D

(1) BATTERY

230-6368

850 CCA

MJ-C2

1552272

CBL-CC1 RD-4

CBL-AA1 RD-00

CBL-GG2 BK-00

NEGPOS

CBL-GG1 BK-00

(10) MOTOR

P769-E13 YL-18
P770-E15 WH-18
835-E22 PU-18
834-E23 YL-18

1

CONNECTS TO

2

SNSR R MOT SP

3

AND SNSR L MOT SP

4

STARTER

235-4963

109-E46 RD-4
304-E49 WH-12

200-E2 BK-12

418-E5 WH-18

(15) RELAY AS

START

115-1615

30

86

85

87

87a

304-E49 WH-12
H808-E50 WH-18
306-E51 GN-18
109-E47 RD-12

384-E45 BU-12

K943-E28 OR-18
H801-E29 PU-18

K944-E30 YL-18
H801-E31 PU-18

K946-E10 OR-18
H801-E8 PU-18

K947-E24 YL-18
H801-E25 PU-18

A958-E11 WH-18
H807-E12 YL-18

P981-E57 PU-18
H807-E56 YL-18

327-E68 PK-18
306-E51 GN-18
308-E52 YL-18
317-E1 YL-18
403-E53 GN-18
406-E54 PU-18
430-E6 BU-18

418-E5 WH-18
450-E26 YL-18
451-E27 BR-18

198-E55 PK-16
832-E18 BR-18
833-E17 GY-18

834-E23 YL-18
835-E22 PU-18
A958-E11 WH-18

E554-E9 PK-18
H801-E58 PU-18
H807-E56 YL-18

H807-E12 YL-18
K943-E28 OR-18
K944-E30 YL-18
K946-E10 OR-18
P769-E14 YL-18
P770-E16 WH-18
K947-E24 YL-18
L987-E62 WH-18
P981-E57 PU-18
H808-E50 WH-18

P769-E19 YL-18
P770-E20 WH-18
833-E17 GY-18
832-E18 BR-18

109-E48 RD-12
198-E55 PK-16
L987-E62 WH-18
384-E45 BU-12

451-E27 BR-18
450-E26 YL-18

G S

MTR BAT

MOTOR

1
5
2
4
3

1552272

E-C11
9X1054

109-E47 RD-12
306-E51 GN-18

H808-E50 WH-18

304-E49 WH-12

CONN 4

E-C13

1

2

3

4

1552269

1552269

1552269

1552269

1552269

1552269

2584170

E-C14

1552272

1552269

GROUND
FRAME

NOTE A

304-E49 WH-12

CBL-AA1 RD-00
109-E46 RD-4

(10) SWITCH
ENGINE OIL PRESSURE

327-0752

NOTE D

+8V SPLY

RD

+8V RTN

BK

SIGNAL-SP

GN

WH

SIGNAL-DIR

1

(12) GLOW PLUGS

107-3659
CONNECTION PLATE
257-8390

(19) SENSOR AS
LEFT MOTOR SPEED

262-3764

E-C2

(26) SOL LH REV PUMP

1

278-8744

2

E-C1

(25) SOL LH FWD PUMP

1

278-8744

2

VALVE GROUP

(P/N 278-8737)

E-C5

(27) SOL RH REV PUMP

1

278-8744

2

E-C3

(28) SOL RH FWD PUMP

1

278-8744

2

E-C4

VALVE GROUP

(P/N 278-8737)

(27) SOL PARK BK

1

278-8743

2

E-C28

(22) SOL 2 SP

1

252-4734

2

2A

CONN 1

E-C9

9X1054

CONN TO C-C3
CAB HARN

1

[LOC SH 2 C-14]

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

CONN 4

E-C12

(18) SNSR ENG SP

E-C19

PIN 2 IS POS WITH RESPECT

TO PIN 1 AS FERROUS METAL

APPROACHES SNSR TIP

(20) SNSR R MOT SP

262-3764

NOTE D

+8V SPLY

1

RD

+8V RTN

2

BK

SIGNAL-SP

3

GN

4

WH

SIGNAL-DIR

(13) RLY COLD START

115-1615

30

1

86

5

2

85

4

87

3

87a

191-8303

110-200 OHMS

1

SIGNAL -

2

SIGNAL +

GROUND
ENGINE

FLY. HSG

NOTE A

YL

TURN

BK

GND

WH

TAIL

BU

STOP

LAMP GP LH EAME
172-6490

LICENSE LAMP
190-8962

0.63 A

CONN TO H-C1
REAR DOOR HARN
[LOC SH 1 F-8]

CONN TO P-C13
PLATFORM HARN

[LOC SH 1 F-8]

LJ-C3
1552272

1

1

2

2

3

3
4

4

CONN 5

1

2

3

4

5

6

7

8

9

10

11

12

CONN 5

605-LJ1 YL-18
200-LJ2 BK-18

604-LJ4 OR-18

617-LJ7 BR-18
200-LJ8 BK-18

K-C4
1552252

321-K7 BR-18
200-K15 BK-14
604-K28 OR-18
605-K20 YL-16
606-K16 GY-16
608-K23 GN-16
617-K17 BR-16
618-K18 YL-16

E455-K22 BR-18

K-C1
3E5179

1

2

3

4

5

6

7

8

9

10

11

12

321-K7 BR-18
200-K21 BK-14
604-K14 OR-18
605-K9 YL-16
606-K10 GY-16
608-K23 GN-16
617-K11 BR-16
618-K12 YL-16
619-K19 GN-16
E455-K22 BR-18

TURN

GND

TAIL

STOP

LAMP GP RH EAME
172-6490

3.17 A

NOTE F

NOTE F

REAR DOOR

TAIL

LAMP GP LH TAIL
258-0930

0.59 A

L RR WORK LT
268-4071

200-LJ8 BK-18
200-LJ2 BK-18617-LJ5 BR-18

604-LJ4 OR-18 605-LJ1 YL-18
605-LJ1 YL-18

617-LJ5 BR-18
617-LJ7 BR-18

200-LJ3 BK-18

617-LJ6 BR-18

200-LJ3 BK-18
617-LJ6 BR-18
604-LJ4 OR-18

LICENSE LAMP HARN

(EAME) (ATCH)

NOTE H

(8) SW HYDO FLTR BYP

134-0404

H-C6

(2) ALARM BKUP

300-9546

R RR WORK LT
268-4071

TAIL

LAMP GP RH TAIL
258-0930

0.59 A

RT-C2
1552272

1

YL

1

2

BK

2

3

3

WH

4

4

BU

606-RT1 GY-18
200-RT2 BK-18
618-RT4 YL-18
604-RT3 OR-18

BK-18

BK-18

1552269

1

2

1

2

H-C5
1552269

BK

YL

RH LAMP EXT HARN (ATCH)

200-K21 BK-14
200-K15 BK-14

321-K7 BR-18

604-K28 OR-18
604-K14 OR-18

605-K9 YL-16
605-K20 YL-16

606-K10 GY-16
606-K16 GY-16

608-K23 GN-16

617-K17 BR-16
617-K11 BR-16

618-K12 YL-16
618-K18 YL-16

619-K19 GN-16

E455-K22 BR-18

200-K5 BK-18
200-K6 BK-18 200-K6 BK-18
200-K25 BK-18
200-K31 BK-18

604-K27 OR-18
604-K29 OR-18

605-K1 YL-18
605-K30 YL-18

606-K2 GY-18
606-K24 GY-18

617-K3 BR-18
617-K32 BR-18

618-K13 YL-18
618-K26 YL-18

619-K4 GN-18
619-K8 GN-18

ROADING LAMP HARNESS (ATCH)

REAR DOOR

BK

YL

1

2

3
4

1

2

3
4

1

2

LJ-C2

3E3376

H-C3
1552272

H-C2
1552272

H-C4
1552269

CONN 7

1

CONN TO H-C2

2

RR DOOR HARN

3

[LOC SH 1 H-11]

4

200-H15 BK-12

E455-H14 BR-18

321-H11 BR-18
200-H6 BK-18

608-H16 GN-18
200-H18 BK-18

606-H7 GY-16
200-H10 BK-16
618-H8 YL-16
604-H2 OR-18

RT-C1

3E3376

1

2

3

4

91011121314

605-H4 YL-16
200-H1 BK-16
617-H3 BR-16
604-H9 OR-18

608-H17 GN-18
200-H19 BK-18

CONN 6

CONN TO K-C15
(LOC SH 1 B-10)

605-K1 YL-18

617-K3 BR-18

619-K4 GN-18

606-K24 GY-18
200-K25 BK-18
618-K26 YL-18
604-K27 OR-18

606-K2 GY-18
200-K5 BK-18
618-K13 YL-18

619-K8 GN-18

605-K30 YL-18
200-K31 BK-18
617-K32 BR-18
604-K29 OR-18

K-C3

1552273

K-C14

1552272

CONN 7

K-C2

1552273

K-C15

1552272

200-H10 BK-16
200-H6 BK-18
200-H15 BK-12
200-H18 BK-18
200-H5 BK-14
200-H1 BK-16
200-H19 BK-18

321-H11 BR-18

604-H2 OR-18
604-H12 OR-18
604-H9 OR-18

605-H4 YL-16
606-H7 GY-16

608-H16 GN-18
608-H13 GN-16
608-H17 GN-18

617-H3 BR-16
618-H8 YL-16
E455-H14 BR-18

YL-18

1

BK-18

2

WH-18

3

BU-18

4

5

RD-18

6

1

CONNECTS TO

2

LAMP GP LH EAME

3

172-6490
(LOC SH1 G-11)

4

YL-18

1

BK-18

2

3

WH-18

4

BU-18

5

RD-18

6

CONN 6

1

CONNECTS TO

2

RT-C1

3

(LOC SH1 B-10)

4

FUSE HOLDER
[INCLUDES BASE AND COVER]
267-2744

FUSE COVER
267-2746

(6) FUSE MAIN PWR

CBL-CC1 RD-4

235-1845

TURN

MARKER

ROADING

LH LAMP GP HEAD POS TURN
195-0190
60W HEAD LT

TURN

MARKER

ROADING

RH LAMP GP HEAD POS TURN
195-0189
60W HEAD LT

100

NOTE F

321-H11 BR-18
200-H5 BK-14
604-H12 OR-18
605-H4 YL-16
606-H7 GY-16
608-H13 GN-16
617-H3 BR-16
618-H8 YL-16

101-P27 RD-4

H-C1

3E5179

1

2

3

4

5

6

7

8

9

10

11

12

200-T1 BK-14
A572-T8 PK-14
M906-T3 BU-14
M907-T4 GY-14
200-T5 BK-14
200-T6 BK-14
C460-T7 BU
A571-T2 PU-14

404-P1 YL-18
200-P2 BK-18

CONN 5

P-C13
1552252

NOTE F

321-P42 BR-18
200-P41 BK-14
604-P43 OR-18
605-P44 YL-14
606-P45 GY-14
608-P60 GN-14
617-P46 BR-14
618-P47 YL-14
619-P65 GN-14
E455-P17 BR-18E455-H14 BR-18

124, 125
from PINS 16, 17

& E554 REMOVED

(17) SENDER FUEL LVL

271-2912

NOTE T

CONN TO C-C4

[LOC SH 2 A-14]

& 14 on P-C2

[LOC SH 2 D-14]

GND PLATF

"M10 STUD"

NOTE A

3E3388

-14

327-P32 PK-18
200-P33 BK-18

P-C1

1552269

CAB HARN

TO BACK OF

CAB HARN

CONN C-C15

PK-18

BK-1812

H746-P29 YL-18
H802-P31 GY-18

CONN 8

T-C1

1

2

3

4

5

6

7

8

1

2

CONN 2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

CONN 3

1

P-C18
1552269

P-C17

1552269

W-C1
1552264

200-W1 BK-14
A752-W2 BR-14
M906-W3 BU-14
M907-W4 GY-14
200-W5 BK-14
M733-W11 PK-14
C460-W10 BU-14
A571-W12 PU-14

P-C16

1552269

(9) MOTOR GP

FUEL PRIMING PUMP

(6) SENSOR GP

SIGNAL

HYDRAULIC TEMPERATURE

GROUND

264-4297
3K0360 SEAL O RING

P-C2
2584171

321-P42 BR-18
E455-P17 BR-18
327-P32 PK-18
404-P1 YL-18
469-P28 GN-18
604-P43 OR-18
779-P71 WH-18
780-P72 PU-18
976-P68 OR-18

322-P69 GY-14

F905-P81 YL-18

608-P60 GN-14
A571-P49 PU-14
A572-P55 PK-14
C460-P54 BU-14
M906-P50 BU-14
M907-P51 GY-14
605-P44 YL-14
606-P45 GY-14
617-P46 BR-14
618-P47 YL-14
619-P65 GN-14
G970-P12 BU-18
H746-P29 YL-18
H758-P16 BR-18
H803-P38 BU-14
H807-P18 YL-14
H759-P15 OR-18
H802-P40 GY-18
H845-P3 WH-18

H846-P5 PK-18
K927-P75 BU-18
M927-P20 GN-18
P769-P56 YL-18
P770-P57 WH-18
P831-P9 BR-18
P832-P10 WH-18
P978-P21 GN-18
P979-P22 YL-18
R914-P58 OR-18

P-C12
1275483

101-P27 RD-4

1

(24) SOL DEMAND FAN

2

277-8862

1

MOTOR

2

258-3442

469-P28 GN-18
200-P30 BK-18

H802-P31 GY-18
H746-P29 YL-18

200-P11 BK-14

200-T1 BK-14
A571-T2 PU-14
M906-T3 BU-14
M907-T4 GY-14
200-T5 BK-14
200-T6 BK-14
C460-T7 BU-14
A572-T8 PK-14

200-W7 BK-14
200-W6 BK-14
200-W1 BK-14

200-W5 BK-14
A571-W12 PU-14

A752-W8 BR-14
A752-W9 BR-14
A752-W2 BR-14

C460-W10 BU-14
M733-W11 PK-14
M906-W3 BU-14
M907-W4 GY-14

WKTL WATER PUMP (ATCH)

PLATFORM

101-P27 RD-4

200-P2 BK-18
200-P11 BK-14
200-P30 BK-18
200-P33 BK-18

200-P41 BK-14
321-P42 BR-18

322-P69 GY-14
327-P32 PK-18

404-P1 YL-18

469-P28 GN-18

604-P43 OR-18

605-P44 YL-14

606-P45 GY-14

608-P60 GN-14

617-P46 BR-14

618-P47 YL-14

619-P65 GN-14

779-P71 WH-18
780-P72 PU-18
976-P68 OR-18
A571-P49 PU-14
A572-P55 PK-14
C460-P54 BU-14
E455-P17 BR-18

F905-P81 YL-18
G970-P12 BU-18
H746-P29 YL-18

H758-P16 BR-18
H759-P15 OR-18
H802-P31 GY-18
H802-P40 GY-18
H803-P38 BU-14
H807-P18 YL-14
H845-P3 WH-18
H846-P5 PK-18
K927-P75 BU-18
M906-P50 BU-14
M907-P51 GY-14
M927-P20 GN-18
P769-P56 YL-18
P770-P57 WH-18
P831-P9 BR-18
P832-P10 WH-18
P978-P21 GN-18
P979-P22 YL-18
R914-P58 OR-18

CONN 19

T-C2

1561460

A

B

C

D

E

F

G

H

200-W7 BK-14
A752-W8 BR-14
M906-W3 BU-14
M907-W4 GY-14
200-W5 BK-14
M733-W11 PK-14
C460-W10 BU-14
A571-W12 PU-14

200-W6 BK-14
A752-W9 BR-14

CONN TO
WORK TOOL

T
O
O
L

W-C3

1552269

1

2

200-P11 BK-14

200-P35 BK-18
200-P37 BK-18
200-P70 BK-14
200-P53 BK-14
200-P76 BK-14

200-P41 BK-14
200-P33 BK-18
200-P2 BK-18
200-P30 BK-18
200-P76 BK-14
200-P13 BK-18
200-P48 BK-14
200-P52 BK-14

322-P69 GY-14
779-P71 WH-18
780-P72 PU-18

976-P24 OR-18
976-P79 OR-18
976-P68 OR-18

A571-P49 PU-14
A572-P55 PK-14
C460-P54 BU-14

F905-P81 YL-18
F905-P80 YL-18
F905-P34 YL-18

G970-P12 BU-18
H758-P16 BR-18
H759-P15 OR-18

H802-P23 GY-18
H802-P39 GY-18
H802-P31 GY-18
H802-P40 GY-18

H803-P6 BU-18
H803-P8 BU-18
H803-P7 BU-18
H803-P4 BU-18
H803-P38 BU-14

H807-P14 YL-18
H807-P19 YL-18
H807-P18 YL-14

H845-P3 WH-18
H846-P5 PK-18
K927-P75
M906-P50 BU-14
M907-P51 GY-14
M927-P20 GN-18
P769-P56 YL-18
P770-P57 WH-18
P831-P9 BR-18
P832-P10 WH-18
P978-P21 GN-18
P979-P22 YL-18
R914-P58 OR-18

BU-18

PLATFORM

W-C2

3E3388

(11) MOTOR GP
WATER PUMP

258-3645

CONN 9

P-C19
1552264

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

200-P48 BK-14
200-P52 BK-14
200-P53 BK-14
A571-P49 PU-14
A572-P55 PK-14
C460-P54 BU-14
M906-P50 BU-14
M907-P51 GY-14

M927-P20 GN-18

H807-P19 YL-18

H845-P3 WH-18
H803-P4 BU-18

H846-P5 PK-18
H803-P8 BU-18

G970-P12 BU-18
200-P13 BK-18
H807-P14 YL-18
H758-P16 BR-18
H759-P15 OR-

779-P71 WH-18
780-P72 PU-18
K927-P75 BU-18

200-P35 BK-18
976-P79 OR-18
F905-P34 YL-18
F905-P80 YL-18

976-P24 OR­200-P37 BK-18

NOTE T

200-P48 BK-14
A572-P55 PK-14
M906-P50 BU-14
M907-P51 GY-14
200-P52 BK-14
200-P53 BK-14
C460-P54 BU-14
A571-P49 PU-14

P769-P56 YL-18
P770-P57 WH-18
R914-P58 OR-18

322-P69 GY-14
200-P70 BK-14

P978-P21 GN-18
H802-P23 GY-18

P979-P22 YL-18
H802-P39 GY-18

P831-P9 BR-18
H803-P6 BU-18

P832-P10 WH-18
H803-P7 BU-18

1552269

1552269

1552273

18

1552269

18

P-C20

1552267

A

A

B

B

C

C

P-C24

1552269

P-C4

1552269

1

2

P-C5

1552269

1

2

P-C6

1552269

1

2

P-C7

1552269

1

2

P-C8

1552269

1

2

P-C9

1

2

P-C10

1

2

CONN 12

HF-C1

P-C3

3E3382

1

2

3

4

5

6

P-C25

1552267

A

B

C

CONN 10

P-C14

RC-C1
3E3364

1

2

(21) SOL RIDE CONT 1

(21) SOL RIDE CONT 2

(24) SOL RIDE CONT 3

(21) SENSOR GP

THROTTLE POSITION

266-1467

+8 VOLTS

OR

BK

GROUND

SIGNAL

WH

(7) HORN FORWARD

164-9425

1

2

-

(21) SOL IMP SHUTOFF

252-4734

13.3 W

(21) SOL A1

331-6223
14 W

(21) SOL A2

331-6223
14 W

(21) SOL BUKT RAISE

331-6223
14 W

(21) SOL BUKT LOWER

331-6223
14 W

(21) SOL BUKT TILT UP

331-6223
14 W

(21) SOL BUKT TILT DN

331-6223
14 W

G970-HF2 BU-18

H807-HF1 YL-18
H758-HF3 BR-18
H759-HF4 OR-18

CONN 11

CP-C3
3E3370

779-CP1 WH-18
780-CP3 PU-18
K927-CP5 BU-18

(17) VALVE QCPLR

274-8044

-

1

2

1

2

106-8704

MUR460

COIL S-1

COIL S-2

(21) SOL SELF LVL

218-6858

(21) SUPPR ARC SOL SELF LVL

976-RC1 OR-18

200-RC5 BK-18

274-8035

"12V 20W"

274-8035

"12V 20W"

VALVE GROUP

(P/N 307-2275)

274-8035

"12V 20W"

VALVE GROUP

(P/N 307-2276)

RIDE CONT (ATCH)

CONN 13

NOTE Y

CONN TO C-C8

[LOC SH 2 D-9]

(16) RESISTOR

CP-C1
1552269

779-CP1 WH-18
K927-CP2 BU-18

CP-C2
1552269

780-CP3 PU-18
K927-CP4 BU-18

QCPLR (ATCH)

P-C11

1

2

1552272

1

2

3
4

P-C28
1552269

RD-18

RD-18

SELF-LEVEL (ATCH)

200-RC5 BK-18
200-RC8 BK-18
200-RC7 BK-18
200-RC6 BK-18

976-RC1 OR-18
976-RC2 OR-18
976-RC3 OR-18
976-RC4 OR-18

RC-C2
1552269

1

2

1

2

1

2

RC-C3
1552269

RC-C4
1552269

976-RC2 OR-18
200-RC8 BK-18

976-RC3 OR-18
200-RC7 BK-18

976-RC4 OR-18
200-RC6 BK-18

HE-C7
3E3382

1

2

3

4

5

6

CONN 13

CAB HARN

1

2

3

4

5

6

(16) TEMP CONT SW

258-4271

L

M H

MOTOR

WATER VALVE
328-3317

+ BATTERY

CONTOL SIGNAL

FEEDBACK

(30) THERMOSTAT SW

F905-P34 YL-18

200-P35 BK-18

F905-P80 YL-18
976-P79 OR-18

AC-C7
3E3382

20 BK
20 RD

20 YL

BLOWER AS
295-5440

GROUND

119-9631

8

124-HE10 GN-14
124-HE8 GN-14

124-HE1 GN-14

200-HE2 BK-12
200-HE3 BK-14 200-HE4 BK-14

124-HE1GN-14

200-HE4 BK-14

515-HE5 GY-14 515-HE5 GY-14

516-HE6 GN-14

517-HE7 BU-14

A523-HE9 PU-16

HEATER ONLY (ATCH)

124-AC20 GN-14
125-AC1 OR-14

C510-AC35 WH-18 C510-AC35 WH-18
E554-AC30 PK-18

124-AC20 GN-14
125-AC1 OR-14
A510-AC33 OR-18A510-AC33 OR-18

E554-AC30 PK-18

HVAC CONT PANEL (ATCH)

HV-C4
2818198

1

123 456

7

1
2

2
3

3

4

4

200-HV8 BK-16
124-HV10 GN-16

A523-HV14 PU-16

520-HV7 WH-18
567-HV13 BU-14

10

(16) A/C SW

266-0299

HV-C2
2285856

9

520-HV12 WH-16
200-HV9 BK-18

516-AE2 GN-14

517-AE3 BU-14

515-AE1 GY-14

AE-C2
1552272

1

124-AE8 GN-14

2

A523-AE7 PU-18

3
4

200-AE9 BK-14

AE-C3
7T6739

1

2

T

520-AE4 WH-18
519-AE5 PK-18

200-HF8 BK-18
200-HF5 BK-18
200-HF6 BK-18200-HF8 BK-18

G970-HF2 BU-18
H758-HF3 BR-18
H759-HF4 OR-18
H807-HF1 YL-18

HIGH FLOW (ATCH)

(5) PRODUCT LINK GPS RADIO

+ BATTERY

- BATTERY

K927-CP5 BU-18

124-HV10 GN-16
124-HV11 GN-14
124-HV3 GN-14

200-HV9 BK-18
200-HV8 BK-16
200-HV1 BK-14

515-HV4 GY-14

516-HV5 GN-14

517-HV6 BU-14

520-HV21 WH-16
520-HV12 WH-16
520-HV7 WH-18

567-HV13 BU-14
A523-HV14 PU-16

124-AE8 GN-14

200-AE6 BK-14
200-AE9 BK-14

515-AE1 GY-14
516-AE2 GN-14
517-AE3 BU-14
520-AE4 WH-18
519-AE5 PK-18
A523-AE7 PU-18

HEATER GP (ATCH)

NOTE V

G970-HF2 BU-18
H807-HF1 YL-18

H758-HF3 BR-18
200-HF5 BK-18

H759-HF4 OR-18
200-HF6 BK-18

263-9088

KEYSWITCH

RTERM
TX
LOGGER GND

RX
SIGNAL GND

DTR

DCD

LOGGER TXD

LOGGER RXD

PRODUCT LINK PL 121SR

[GPS RADIO ONLY] [ATCH]

LOCATION NOTE

SH 1 G-12

SH 1 A-8

VARIOUS B

SH 1 F-12;
SH 1 A-12
SH 1 C-12

SH 1 B-11;
SH 1 F-8

SH 1 F-11

SH 1 C-2;
SH 1 D-2

SH 1 B-15

SH 1 I-6;
SH 1 I-8

SH 1 D-2

SH 1 F-4

SH 1 I-1 X

SH 1 I-2 Y

HE-C1

CONN 18

1552252

HE-C9

1552264

1

2

3

4

5

6

7

8

9

10

11

12

CONN 17

1

2

3

4

5

6

7

8

200-HE3 BK-14
A523-HE9 PU-16
124-HE10 GN-14
515-HE5 GY-14
516-HE6 GN-14
517-HE7 BU-14

A523-HE9 PU-16
124-HE8 GN-14

516-HE6 GN-14
517-HE7 BU-14

200-HE2 BK-12

GROUND

PLATFORM

"M10 STUD"

200-HV1 BK-14
A523-HV14 PU-16
124-HV3 GN-14
515-HV4 GY-14
516-HV5 GN-14
517-HV6 BU-14
520-HV21 WH-16

124-HV11 GN-14
567-HV13 BU-14
515-HV4 GY-14
516-HV5 GN-14
517-HV6 BU-14

CONN 17

AE-C1

200-AE6 BK-14
A523-AE7 PU-18200-AE10 BK-14
124-AE8 GN-14
515-AE1 GY-14
516-AE2 GN-14200-AE10 BK-14
517-AE3 BU-14
520-AE4 WH-18
519-AE5 PK-18

3E3388

CONDITIONER GP (ATCH)

HF-C2

1552269

1552269

1552269

PL-C1
1552252

1

2

3

4

5

6

7

8

9

10

11

12

HF-C3

HF-C4

A

D

F

H

J

K

T

U

V

(21) SOL LSR HIGH FLOW

1

295-0046

2

(21) SOL C+

1

195-9700

2

13.3 W

(21) SOL C-

1

195-9700

2

13.3 W

125-PL1 OR-18
200-PL2 BK-18
308-PL3 YL-18
403-PL4 GN-18
N957-PL7 PK-18

N960-PL6 OR-18
N979-PL5 GN-18
N970-PL8 YL-18
N973-PL9 BR-18

CONN TO C-C14

BACK OF CAB HARN

[LOC SH 2 I-14]

ASSEMBLE TERMINALS TO STUD

WIRE PAIRS TO BE TWISTED TOGETHER AT
LEAST ONE TURN PER 25 mm WIRES TO BE
TWISTED ARE:
450-YL AND 451-BR
892-BR AND 893-GN
944-OR AND 945-BR
F711-GN AND F712-GY
T901-YL AND T902-PK
Y794-OR AND Y795-GN

FOR MTL AND CTL MACHINES, USE TWO JUMPER
HARNESSES, MJ

IF ROADING LAMP ATCH HARN IS USED, CONN
K-C1 TO P-C13 AND K-C4 TO H-C1

CONNECT RING TERMINAL TO FILTER GP
MOUNTING ASSEMBLY

A SERIAL SERV CONN IS REQUIRED IF THE
MACH IS OFFERING A PRODUCT LINK RADIO
ONLY-OPTION. IN A PRODUCT LINK
RADIO-ONLY OPTION THE PRODUCT LINK
RADIO HARNESS CONNECTS DIRECTLY TO THE
MACH HARNESS. A SERIAL SERV CABLE
CONNECTS BETWEEN THE SERIAL SERV CONN
AND THE DEALER TECHNICIAN PC TO ACCESS
THE PL121 RADIO DIRECTLY IN CAT
ELECTRONIC TECHNICIAN.

ATTACH NEGATIVE JUMPER CABLE TO ENGINE
LIFTING EYE

IF WORK TOOL WATER PUMP ATCH IS NOT
USED CONNECT P-C19 DIRECTLY TO T-C1

IF PRODUCT LINK PL 121SR ATCH IS USED
REMOVE DUST CAP PL-C4, AND CONNECT TO
PL-C3 TO PW-C3.

THERMOSTAT IS INCLUDED IN HVAC
THERMOSTAT IS NOT INCLUDED IN HEAT ATCH

HE-C1 CONNECTS TO AC-C1 WHEN THE
HEATER ONLY ATTACHMENT IS USED
HE-C9 CONNECTS TO AC-C9 WHEN THE
HEATER ONLY ATTACHMENT IS USED

HE-C7 CONNECTS TO C-C8 WHEN THE
HEATER ONLY ATTACHMENT IS USED

NOTE X

1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

AC-C9
1552264

CONN 18

HV-C1

3E7990

1

2

3

4

5

6

7

8

9

10

11

12

HV-C3

1287721

B

C

H

M

L

200-AC25 BK-14
A523-AC24 PU-16
124-AC13 GN-14
515-AC22 GY-14
516-AC21 GN-14
517-AC23 BU-14
520-AC18 WH-18
519-AC26 PK-18

NOTE J
CONN TO C-C14
BACK OF CAB HARN
[LOC SH 2 I-15]

125-PL1 OR-18
200-PL2 BK-18
308-PL3 YL-18
403-PL4 GN-18

N979-PL5 GN-18
N960-PL6 OR-18
N957-PL7 PK-18

NOTE U

N970-PL8 YL-18
N973-PL9 BR-18

NOTE J

CONN 14

PW-C4
3E5179

1

2

3

4

5

6

7

8

9

10

11

12

AC-C1
1552252

200-AC27 BK-14
A523-AC24 PU-16
124-AC19 GN-14
515-AC22 GY-14
516-AC21 GN-14
517-AC23 BU-14
520-AC10 WH-16

(16) BLOWER SW

258-4272

1

GN-16

2

BR-16

5

GY-16

4

GN-16

3

BU-16

HVAC (ATCH)

CONN 16

PW-C2

PL-C2

1552252

3E5179

1

125-PW17 OR-18

2

200-PW19 BK-18

3

308-PW21 YL-18

4

403-PW23 GN-18

5

6

7

8

9

10

N979-PW7 GN-18

11

N960-PW4 OR-18

12

N957-PW3 PK-18

CONN 15

PL-C3

PW-C3

3E3364

1552269

1

N970-PW5 YL-18

2

N973-PW6 BR-18

125-PW18 OR-18
200-PW20 BK-18
308-PW22 YL-18
403-PW24 GN-18
944-PW1 OR-18
945-PW2 BR-18
Y795-PW8 GN-18
Y794-PW9 OR-18

N981-PW14 GN-18
N963-PW12 OR-18
N959-PW13 PK-18

PRODUCT LINK PL 321SR

[GPS RADIO AND WORLDVIEW] [ATCH]

IDENT PART NO. CHG DESCRIPTION

AC 348-4173 00 SH 1 G-1 AIR CONDITIONING ATCH

AE 328-2369 02 SH 1 F-3 HVAC ATCH

AE 328-2370 01 SH 1 F-3 HEATER ATCH

CP 258-4191 02 SH 1 D-5 QCPLR ATCH

E 258-4116 06 SH 1 C-12 ENGINE
H 258-4106 03 SH 1 G-8 REAR DOOR

HE 348-4172 00 SH 1 I-1 HEATER

HF 331-7171 00 SH 1 E-5 HIGH FLOW ATCH

HV 328-2368 00 SH 1 G-3 HVAC CONT PANEL ATCH

K 258-4131 05 SH 1 B-9 ROADING ATCH
LJ 293-9044 01 SH 1 G-10 LICENSE LAMP HARN ATCH
MJ 258-4158 02 SH 1 A-12 MOTOR SPEED SNSR JUMPER

P 348-4171 00 SH 1 D-8 PLATFORM

PL 256-6803 03 SH 1 D-2 PRODUCT LINK PL 121 ATCH

PW 256-6804 01 SH 1 D-1 PRODUCT LINK PL 321 ATCH

RC 308-6423 01 SH 1 B-5 RIDE CONTROL ATCH

RT 315-9794 00 SH 1 C-10 RH LAMP EXT HARN ATCH

T 258-4126 03 SH 1 I-8 WORK TOOL LIFT ARM

W 165-4894 02 SH 1 I-6 TANK (WATER PUMP) ATCH

AA 258-4117 03 SH 1 H-13 BAT. (+) TO STARTER MOTOR

AA 258-4189 02 SH 1 H-13 POWER (BETA)

GG 258-4119 02 SH 1 H-12 BAT. (-) TO MACH AND STARTER GNDS

GG 258-4188 01 SH 1 H-12 GROUND (BETA)

JJ 258-4118 04 SH 1 H-14 BAT. (+) TO JUMP POST

CC 258-4120 01 SH 1

E554-AC28 PK-18
200-AC41 BK-18

AC-C2

1552269

AC-C3

1552269

124-AC13 GN-14
124-AC20 GN-14
124-AC19 GN-14
124-AC36 GN-18

125-AC1 OR-14

200-AC25 BK-14
200-AC7 BK-8
200-AC6 BK-14
200-AC41 BK-18
200-AC4

BK-14

200-AC5 BK-18

200-AC27 BK-14

514-AC3 PU-14
514-AC2

PU-14

514-AC8 PU-14

514-AC2 PU-14
200-AC4 BK-14

514-AC3 PU-14
200-AC6 BK-14

A510-AC14 OR-14
124-AC36 GN-18
C510-AC35 WH-18
E554-AC17 PK-14

515-AC22 GY-14

516-AC21

517-AC23 BU-14

519-AC26 PK-18

520-AC10 WH-16
520-AC11
520-AC18 WH-18

597-AC15 PU-18

A523-AC24 PU-16

C510-AC35 WH-18

E554-AC30 PK-18
E554-AC28 PK-18

E554-AC17 PK-14

GN-14

WH-18

A510-AC14 OR-14

A510-AC31 OR-18

A510-AC33 OR-18

597-AC15 PU-18
519-AC26 PK-18

125-AC1 OR-14
520-AC11 WH-18
200-AC5 BK-18
514-AC8 PU-14

1552269

A510-AC31 OR-18
597-AC15 PU-18

1684999

AC-C8

AC-C5

AC-C6

9X1054

1

2

200-AC7 BK-8

1607690

944-PW1 OR-18

125-PW18 OR-18
125-PW17 OR-18
125-PW10 OR-18

200-PW19 BK-18
200-PW20 BK-18
200-PW15 BK-18

308-PW21 YL-18
308-PW22 YL-18
308-PW16 YL-18

403-PW23 GN-18
403-PW24 GN-18
403-PW11 GN-18

944-PW1 OR-18
945-PW2 BR-18

N957-PW3 PK-18
N959-PW13 PK-18
N960-PW4 OR-18
N963-PW12 OR-18
N970-PW5 YL-18
N973-PW6 BR-18
N979-PW7 GN-18
N981-PW14 GN-18

Y794-PW9 OR-18
Y795-PW8 GN-18

945-PW2 BR

N957-PW3 PK-18

N960-PW4 OR-18
N970-PW5 YL-18

N973-PW6 BR-18
N979-PW7 GN-18

Y795-PW8 GN-18

RAIL0061

Y794-PW9 OR-18

-

18

125-PW10 OR-18

403-PW11 GN-18

N963-PW12 OR-18
N959-PW13 PK-18
N981-PW14 GN-18
200-PW15 BK-18

308-PW16 YL-18

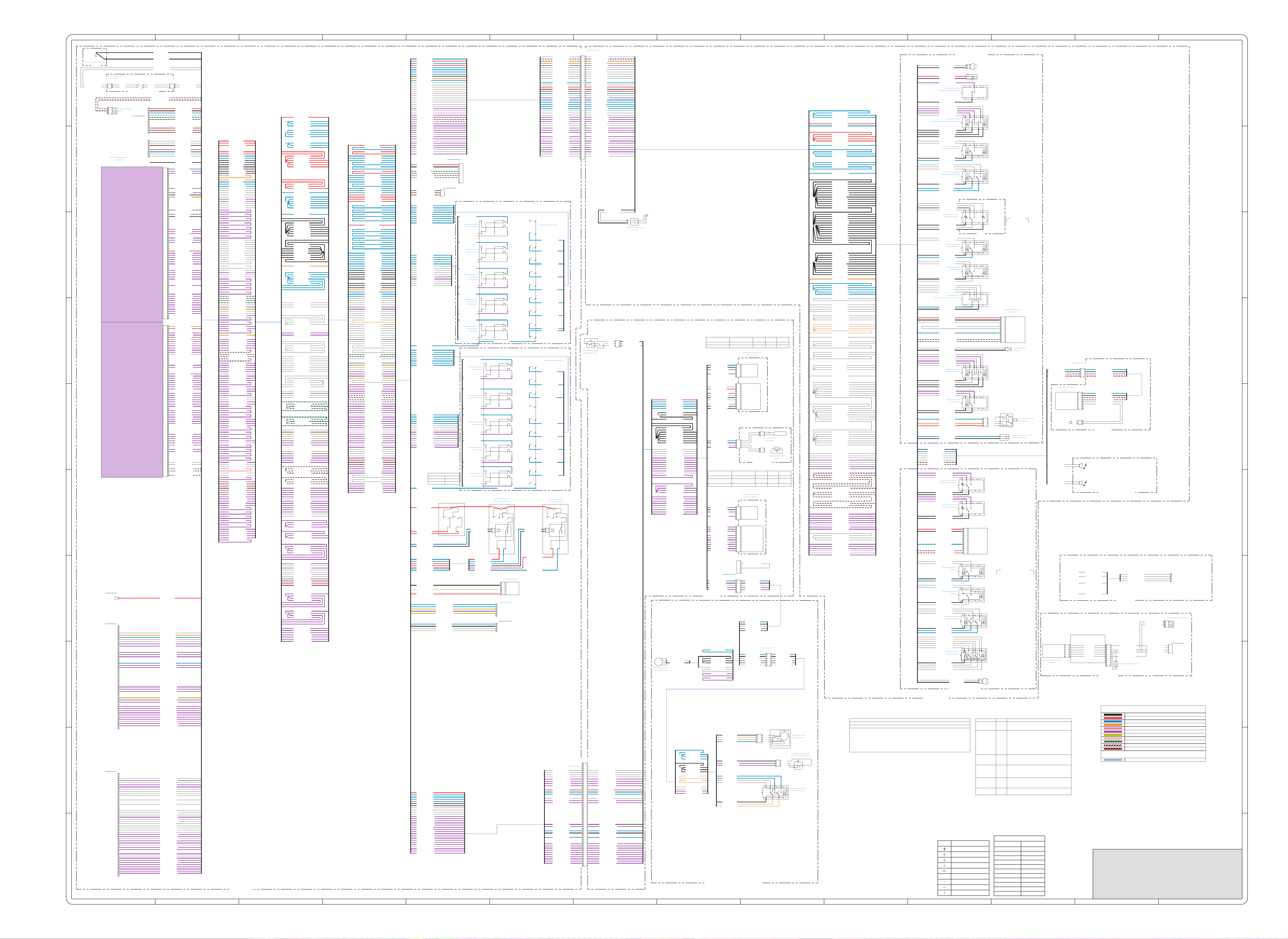

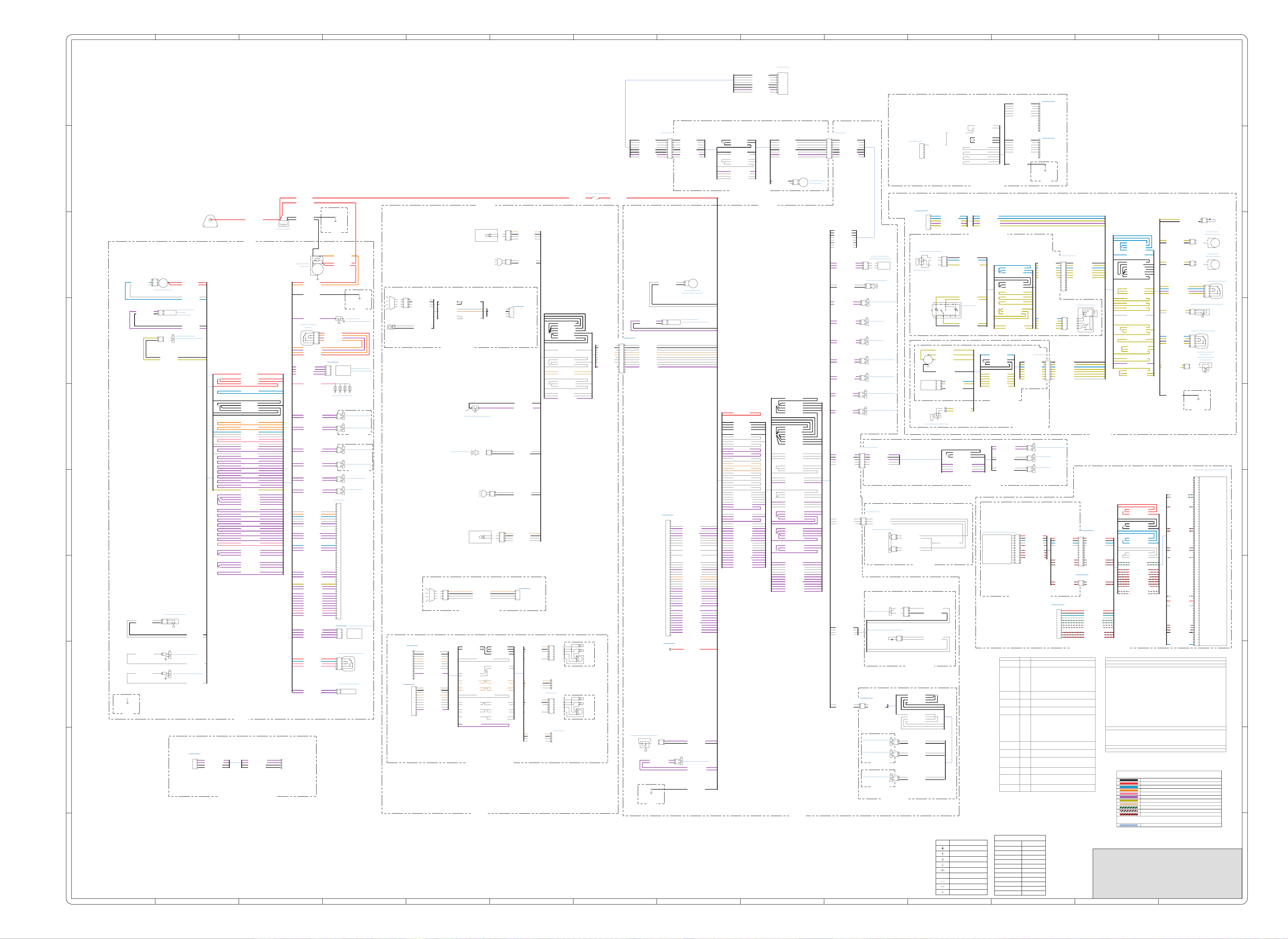

WIRING DIAGRAM 239-5275 CHG 03

HARNESS AS.

CABLE AS.

WIRE AS.

H-9

BAT. (+) TO MAIN PWR FUSE

WIRE GROUP COLOR DESCRIPTIONS

GROUND CIRCUIT

WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF

WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON

STARTING CIRCUIT

START AID CIRCUIT

TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT

HEATER AND AIR CONDITIONER CIRCUIT

TURN SIGNAL / WIPER WASHER CIRCUIT

CAT DATA LINK

CAN DATA LINK

RS-232 / RS-485 DATA LINK

OTHER COLOR DESCRIPTIONS

HIGHWAYS

12345678

AC-C12

1552269

1

2

1

2

(29) SW PRESS HIGH CUTOUT

"CLOSED 275-1750 kPa"

A

B

N/O BELOW LOW SETTING DEACTUATION.
CLOSED FROM LOW SETTING ACTUATION
TO HIGH SETTING DEACTUATION.
OPEN ABOVE HIGH SETTING ACTUATION.

(14) RLY COND FANS

1

86

5

2

85

4

3

BK-18
BK-18

GND PLATF
"M10 STUD"

(5) CONTROL PRODUCT LINK

PW-C1

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

COMPRESSOR ARC SUPPR
189-3158

1

2

(5) MOTOR

CONDENSER #1

287-7062

WH/RD-14

BK-14

WH/RD-14

BK-14

AC-C10
9X1054

MOTOR

(5) MOTOR

CONDENSER #2

287-7062

MOTOR

(4) RLY AC COMP

115-1615

1

86

5

2

85

4

3

236-6923

3
2

1

115-1615

30

87

87a

(1) SWITCH AS

PRESSURE

(REFRIGERANT,

LOW SIDE)

149-6371

1

CONT GP WORLDVIEW
262-1421

1

2

3

4

5

6

7

8

CAT DATA LINK +

9

CAT DATA LINK -

RS-232 PORT 1 -TXD

RS-232 PORT 1 -RXD
RS-232 PORT 1 -DTR

RS-232 PORT 1 - DCD
RS-232 PORT 1 - GND

CAN LOW (-)

CAN HIGH (+)

BAT +

R TERM

RS-232 PORT 3 -TXD
RS-232 PORT 3 -RXD
RS-232 PORT 3 -GND
BAT -

KEY SWITCH RUN

30

87

87a

J

I

H

G

F

E

D

C

B

A

COLOR ABBREVIATIONS

SYMBOL DESCRIPTION

CIRCUIT CONNECTED

CIRCUIT NOT CONNECTED

ELECTRICAL CONNECTION TO
MACHINE STRUCTURE

INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT

CONNECTOR

H#

CIRCUIT GROUPING DESIGNATION

ATCH WIRE, CABLE, COMPONENT

SPLICE

BLADE, SPADE, RING OR SCREW
TERMINAL

91011121314

ABBREV

RD

WH

OR

YL

PK

BK

GY

PU

BR

GN

BU

COLOR

RED

WHITE

ORANGE

YELLOW

PINK

BLACK

GRAY

PURPLE

BROWN

GREEN

BLUE

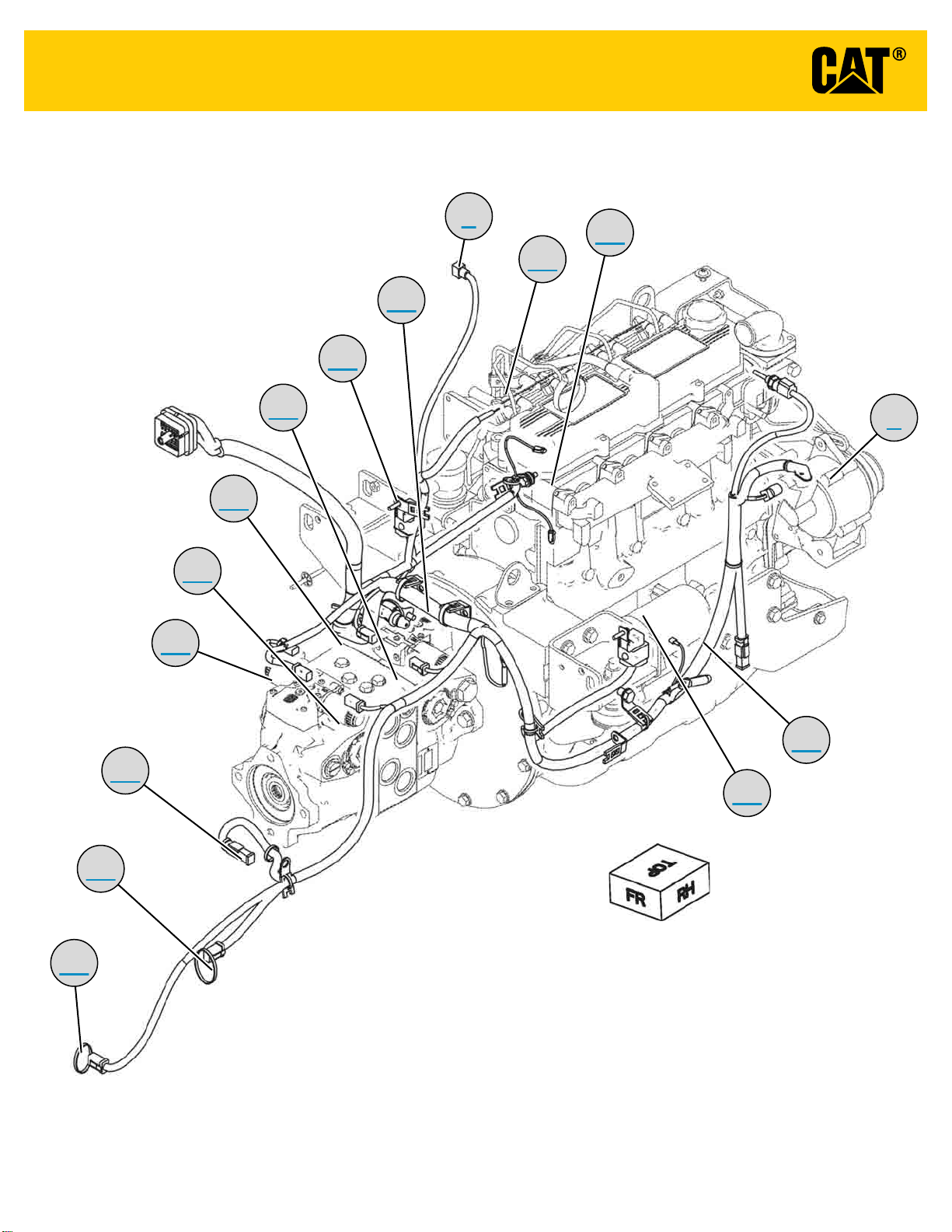

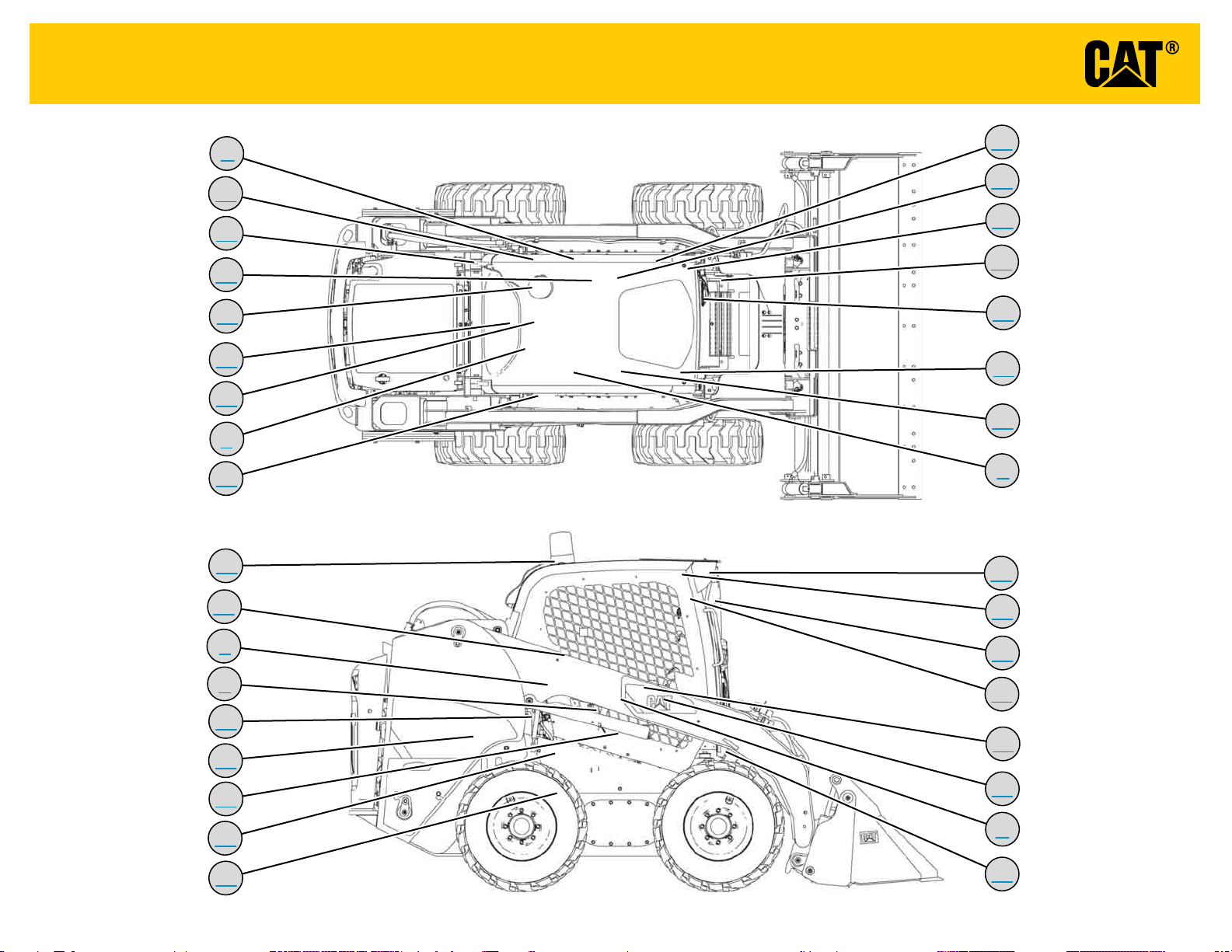

THIS SCHEMATIC IS FOR THE 246C, 256C, 262C, 262C2, AND 272C SKID
STEER LOADER, AND 277C, 277C2, 287C, 287C2, AND 297C,
MULTI-TERRAIN LOADER, AND 279C, 279C2, 289C, 289C2, AND 299C
COMPACT TRACK LOADER ELECTRICAL SYSTEM
VOLUME 1 of 2: ENGINE

MEDIA NUMBER: UENR1753-04

PART NUMBER: 239-5275, CHANGE: 03, VERSION: -

Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.

Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.

12345678

A

J

I

H

G

F

E

D

C

B

A

(41) CAB GND STUD

"10 MM"

NOTE A

IF ROAD ATCH
IS NOT USED
CONN C-C12 TO
C-C16

614-C126 PU-16
614-C127 PU-16

3E3364

1552267

KEY SW (START) [KEY ST IP (PWR TO NEUT ST ON / OFF)]

CONN TO P-C12
PLATFORM HARN
[LOC SH 1 C-7]

CONN TO E-C9

[LOC SH 1 E-11]

CONN TO P-C2

[LOC SH 1 D-8]

203-C8 BK-10

200-C53 BK-10

614-C127 PU-16
614-C126 PU-16

(A) FUSE AS
ROADING

258-4134

C-C16

"220-7220 HOLDER"

1

BK-16

2

BK-16

10

BK-16

10

BK-16

ROADING FUSE (ATCH)

F712-C212 GY-18
F711-C154 GN-18

C-C18

(A) RESISTOR

A

CAN

B

134-2540

C

(37) CONTROL GP

MACHINE

304-5687

ELEK GP

258-4103

SOL - TWO SPEED CONT [2 A ON / OFF FAST 1]

CONN 14

CONN TO PW-C4

PRODUCT LINK HARN

[LOC SH 1 C-2]

CONN TO
RADIO

CONN TO A4M1 ECM
MOUNTING BOLT

KEY SWITCH ON [KEY SWITCH IP]
ENG SP SNSR + (POS) [DIFF SP 1 +]
ENG SP SNSR - (NEG) [DIFF SP 1 -]

NOT USED [5V SNSR SPLY]

AC REFRIGERANT [SWB 1]

PASSIVE ANLG IP RTN [5 V SNSR RTN]

ENG COOL. TEMP SNSR [PASSIVE ANLG 1]

HYD TEMP SNSR [PASSIVE ANLG 2]
FUEL LVL SNSR [PASSIVE ANLG 3]

+ BATTERY (DIRECT - NOT SWITCHED)

SW SEAT - SW ARMBAR N/C [STG 05]

CONTINUOUS FLOW SW [STG 06]

AUX BLEED-OFF SW [STG 07]

+BATTERY (DIRECT - NOT SWITCHED)
HIGH PRESS. TOOL DET SW [STG 08]

SW - OPR IMP LOCKOUT N/C [STG 10]
SW - OPR IMP LOCKOUT N/O [STG 11]

OIL PRESS. SW [STG 09]

8 V SNSR / SW TO GND RTN

L PUMP FWD SOL [PROPN DRVR 01]
L PUMP REV SOL [PROPN DRVR 02]

R PUMP FWD SOL [PROPN DRVR 03]
R PUMP REV SOL [PROPN DRVR 04]

[PROPN DRVR RTN 11-12]
[PROPN DVR RTN (9-12)]

AUX 1 SOL [PROPN DRVR 06]

AUX 2 SOL [PROPN DRVR 07]

DEMAND FAN SOL [PROPN DRVR 08]

CREEPER CONT SW N/O [STG 12]
CREEPER CONT SW N/C [STG 13]

TILT UP IMP SOL [PROPN DRVR 09]

TILT DOWN IMP SOL [PROPN DRVR 10]

LIFT IMP SOL [PROPN DRVR 11 (2 WIRE)]

LWR IMP SOL [PROPN DRVR 12 (2 WIRE)]

PHS PWR SPLY [10 V SNSR SPLY]

PARK BRAKE SOL [2 A ON / OFF STD 1]

2 A ON / OFF STD RTN 1-4 [ON / OFF RTN 1]

LSR SOL (XPS) [2 A ON / OFF STD 3]

NEUTRAL START RELAY [2 A ON / OFF NEUT ST]

RIDE CONT-SELF LVL RLY [300 mA SINKING ON / OFF 6]

COLD ST ADVANCE RLY [300 mA SINKING ON / OFF 7]

AUX 1-AUX 2 RLR OR AUX 2 SW N/O [PWM/FREQ/SWG 06]

IMP PLT SOL [2 A ON / OFF STD 4]

NEUTRAL ST RLY RTN [2 A ON / OFF RTN 2]
COLD ST RLY [300 mA SINKING ON / OFF 1]

STOP LAMP RLY [300 mA SINKING ON / OFF 2]

BKUP ALM RLY [300 mA SINKING ON / OFF 3]

F PUMP RLY [300 mA SINKING ON / OFF 4]

A/C COMP RLY [300 mA SINKING ON / OFF 8]

[300 mA SINKING ON / OFF 5]

[PWM/FREQ/SWG 01 (HIGH ACCURACY)]
[PWM/FREQ/SWG 02 (HIGH ACCURACY)]
[PWM/FREQ/SWG 03 (HIGH ACCURACY)]
[PWM/FREQ/SWG 04 (HIGH ACCURACY)]

NOT USED [DIGITAL RTN]

AIR CLEANER IND SW [STG 14]

THRT LVR POS SNSR [PWM/FREQ/SWG 05]

SW RIDE CONT N/C [PWM/FREQ/SWG 07]

SW C- N/O [PWM/FREQ/SWG 08]

RH TRIGGER N/O [STG 17]

LH JSTICK (FORE / AFT) [PWM/FREQ/SWG 10]

L MOT SP B (POCLAIN DIR) [PWM/FREQ/SWG 12]

SW C+ N/O [PWM/FREQ/SWG 09]

LH JSTICK (SIDE) [PWM/FREQ/SWG 11]

RIDE CONT N/O [STG 19]

HYDO FLTR SW N/O [STG 21]

L MOT SP A (POCLAIN SP) [PWM/FREQ/SWG 13]

R MOT SP B (POCLAIN DIR) [PWM/FREQ/SWG 14]

R MOT SP A (POCLAIN SP) [PWM/FREQ/SWG 15]

RH JSTICK (FORE / AFT) [PWM/FREQ/SWG 16]

PATTERN CHG SW N/O (CASE/ROWBOAT/H) [STG 23]

PATTERN CHG SW N/C (NEUTRAL) [STG 24]

RH JSTICK (SIDE) [PWM/FREQ/SWG 20]

PATTERN CHG SW N/O (CAT / ISO) [STG 27]

TWO SP SW N/O [STG 25]

PARK. BK SW N/O [STG 28]
PARK. BK SW N/C [STG 29]

INTLK OVRD SW [STG 30]

SW SEAT-SW ARMBAR N/O [STG 31]

SW WKTL C+ / C- N/C [STG 32]

PHS- ADDRESS OUT [STG 35]

PHS LINK [CAN B (+) (EXTERNAL)]
PHS LINK [CAN B (-) (EXTERNAL)]

CONN 3

CONN 1

ENG HARN

CONN 2

PLATF HARN

C-C15
1275484

1

C-C3
2584172

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

C-C4
2584173

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

C-C14
1552252

1

2

3

4

5

6

7

8

9

10

11

12

C-C10
1552264

1

2

3

4

5

6

7

8

[DIFF SP 2 +]
[DIFF SP 2 -]
[DIFF SP 3 +]
[DIFF SP 3 -]
[DIFF SP 4 +]
[DIFF SP 4 -]

CAT DATA LINK (+)

GROUND

[DIFF SP 5 +]
[DIFF SP 5 -]
[DIFF SP 6 +]
[DIFF SP 6 -]

CAT DATA LINK (-)

[N/C]

GROUND
[SWB 2]
[SWB 3]

[STG 01]
[STG 02]
[STG 03]

[STG 04]

[ACTIVE ANLG 1]
[ACTIVE ANLG 2]

[+ BAT.]

8 V SNSR SPLY

[+ BAT.]
[+ BAT.]

PROPN DRVR RTN (1-4)

[N/C]

PHS RETURN [- BAT.]

[- BAT.]

[PROPN DRVR 05]

PROPN DRVR RTN (5-8)

[- BAT.]

[2 A ON / OFF STD 2]

ALTERNATOR R TERMINAL

AUX 1 SW N/O [STG 15]

DOOR SW N/C [STG 16]

[STG 18]

DOOR SW N/O [STG 20]

[STG 22]

[STG 26]
[PWM/FREQ/SWG 17]
[PWM/FREQ/SWG 18]
[PWM/FREQ/SWG 19]

CAN A (+) (INTERNAL)

[CAN A SHIELD]

[STG 33]

[STG 34]

[GROUND]

[CAN SHIELD (EXT)]
CAN A (+) (INTERNAL)
CAN A (-) (INTERNAL)

[CAN SHIELD (INT)]

CAN A (-) (INTERNAL)

NOTE J

C-C17
1471445

J1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

C-C13
1471446

J2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

101-C45 RD-4

327-C36 PK-18
306-C35 GN-18
308-C11 YL-18
317-C109 YL-18
403-C197 GN-18
406-C98 PU-18
430-C99 BU-18

418-C100 WH-18
450-C101 YL-18
451-C102 BR-18

198-C38 PK-16
832-C103 BR-18
833-C104 GY-18

834-C105 YL-18
835-C106 PU-18
A958-C30 WH-18

E554-C136 PK-18
H801-C19 PU-18
H807-C107 YL-18

H807-C34 YL-18
K943-C18 OR-18
K944-C16 YL-18
K946-C21 OR-18
P769-C28 YL-18
P770-C29 WH-18
K947-C20 YL-18
L987-C37 WH­P981-C108 PU-18
H808-C146 WH-18

321-C111 BR-18
E455-C118 BR-18
327-C25 PK-18
404-C133 YL-18
469-C119 GN-18
604-C120 OR-18
779-C49 WH-18
780-C50 PU-18
976-C128 OR-18

322-C148 GY-14

F905-C78 YL-18

608-C61 GN-14
A571-C191 PU-14
A572-C65 PK-14
C460-C217 BU-14
M906-C131 BU-14
M907-C132 GY-14
605-C59 YL-14
606-C60 GY-14
617-C124 BR-14
618-C125 YL-14
619-C69 GN-14
G970-C110 BU-18
H746-C138 YL-18
H758-C134 BR-18
H803-C17 BU-14
H807-C33 YL-14
H759-C135 OR-18
H802-C137 GY-18
H845-C12 WH-18

H846-C13 PK-18
K927-C96 BU-18
M927-C31 GN-18
P769-C139 YL-18
P770-C140 WH-18
P831-C14 BR-18
P832-C15 WH-18
P978-C22 GN-18
P979-C23 YL-18
R914-C143 OR-18

C-C12
1552269

1

617-C124 BR-14

2

618-C125 YL-14

122-C194 RD-18
203-C195 BK-18
308-C196 YL-18
403-C198 GN-18
893-C215 GN-18
892-C216 BR-18

N979-C200 GN-18
N960-C201 OR-18
N957-C199 PK-18

509-C70 WH-18
508-C68 PU-18
200-C75 BK-18

122-C74 RD-18
191-C76 WH-16
512-C72 GN-18
511-C71 BR-18

203-C147 BK-16

308-C1 YL-18
450-C101 YL-18
451-C102 BR-18

893-C214 GN-18

P981-C108 PU-18
203-C6 BK-14
A510-C26 OR-18

892-C213 BR-18

203-C7 BK-14

404-C133 YL-18
469-C119 GN-18
128-C3 RD-14

G984-C161 PK-18
P993-C165 OR-18
N931-C44 GY-18

128-C4 RD-14
C460-C217 BU-14
418-C100 WH-18
E918-C80 GN-18
E917-C86 WH-18
P769-C141 YL-18
P770-C142 WH-18

K944-C16 YL-18
K943-C18 OR-18
H801-C19 PU-18
K947-C20 YL-18
K946-C21 OR-18

H803-C17 BU-14

P978-C22 GN-18
H802-C137 GY-18
P979-C23 YL-18
H746-C138 YL-18
F763-C90 WH-18
F764-C89 GN-18
H845-C12 WH-18
H846-C13 PK-18
P831-C14 BR-18
P832-C15 WH-18

307-C47 OR-18
A958-C30 WH-18

H807-C32 YL-18
G970-C110 BU-18
M927-C31 GN-18
306-C35 GN-18
H808-C146 WH-18
L987-C37 WH-18
677-C121 GN-18
331-C112 OR-18
365-C115 YL-18
C510-C27 WH-18
403-C97 GN-18

G797-C211 BU-18
R810-C192 BR-18

430-C99 BU-18
R914-C143 OR-18
P996-C175 GN-18
F738-C87 WH-18
H792-C171 BR-18
C776-C176 GN-18
G944-C81 YL-18
A771-C169 PU-18

H791-C170 GN-18
E848-C158 GN-18
E847-C157 GY-18
834-C105 YL-18
F739-C88 GN-18
G943-C82 BU-18
E455-C118 BR-18

835-C106 PU-18
832-C103 BR-18
833-C104 GY-18
L804-C160 WH-18
J753-C91 BU-18
P797-C93 GN-18
P982-C67 BU-18

E850-C159 BR-18
P796-C92 OR-18
F780-C55 PK-18
A314-C54 OR-18
G982-C43 PK-18
F711-C154 GN-18

G985-C162 PU-18
P984-C174 YL-18

L856-C79 YL-18
L857-C83 GN-18

F711-C205 GN-18
F712-C209 GY-18

F712-C212 GY-18

18

101-C45 RD-4
122-C74 RD-18
122-C194 RD-18

128-C3 RD-14
128-C4 RD-14
191-C76 WH-16
198-C38 PK-16
200-C53 BK-10
200-C75 BK-18
203-C6 BK-14
203-C7 BK-14
203-C8 BK-10
203-C147 BK-16
203-C195 BK-18
306-C35 GN-18

307-C47 OR-18
308-C1 YL-18
308-C11 YL-18
308-C196 YL-18
317-C109 YL-18
321-C111 BR-18
322-C148 GY-14
327-C25 PK-18
327-C36 PK-18
331-C112 OR-18
365-C115 YL-18
403-C97 GN-18
403-C197 GN-18
403-C198 GN-18
404-C133 YL-18

406-C98 PU-18406-C98 PU-18

418-C100 WH-18

430-C99 BU-18

450-C101 YL-18

451-C102 BR-18

469-C119 GN-18

508-C68 PU-18
509-C70 WH-18
511-C71 BR-18
512-C72 GN-18
604-C120 OR-18
605-C59 YL-14
606-C60 GY-14
608-C61 GN-14
614-C126 PU-16
614-C127 PU-16
617-C124 BR-14

618-C125 YL-14

619-C69 GN-14
677-C121 GN-18
779-C49 WH-18
780-C50 PU-18
832-C103 BR-18

833-C104 GY-18

834-C105 YL-18

835-C106 PU-18

892-C213 BR-18
892-C216 BR-18
893-C214 GN-18
893-C215 GN-18
976-C128 OR-18
A314-C54 OR-18
A510-C26 OR-18
A571-C191 PU-14
A572-C65 PK-14
A771-C169 PU-18
A958-C30 WH-18

C460-C217 BU-14

C510-C27 WH-18
C776-C176 GN-18
E455-C118 BR-18

E554-C136 PK-18

E847-C157 GY-18
E848-C158 GN-18
E850-C159 BR-18
E917-C86 WH-18
E918-C80 GN-18
F711-C154 GN-18

F711-C205 GN-18
F712-C209 GY-18
F712-C212 GY-18

F738-C87 WH-18
F739-C88 GN-18
F763-C90 WH-18
F764-C89 GN-18
F780-C55 PK-18
F905-C78 YL-18
G797-C211 BU-18
G943-C82 BU-18
G944-C81 YL-18
G970-C110 BU-18

G982-C43 PK-18
G984-C161 PK-18
G985-C162 PU-18
H746-C138 YL-18

H758-C134 BR-18
H759-C135 OR-18
H791-C170 GN-18
H792-C171 BR-18
H801-C19 PU-18

H802-C137 GY-18

H803-C17 BU-14

H807-C32 YL-18
H807-C33 YL-14
H807-C34 YL-18
H807-C107 YL-18
H808-C146 WH-18

H845-C12 WH-18

H846-C13 PK-18

J753-C91 BU-18
K927-C96 BU-18
K943-C18 OR-18

K944-C16 YL-18

K946-C21 OR-18

K947-C20 YL-18

L804-C160 WH-18
L856-C79 YL-18
L857-C83 GN-18
L987-C37 WH-18

M906-C131 BU-14
M907-C132 GY-14
M927-C31 GN-18

N931-C44 GY-18
N957-C199 PK-18
N960-C201 OR-18
N979-C200 GN-18
P769-C28 YL-18
P769-C139 YL-18
P769-C141 YL-18
P770-C29 WH-18
P770-C140 WH-18
P770-C142 WH-18
P796-C92 OR-18
P797-C93 GN-18
P831-C14 BR-18

P832-C15 WH-18

P978-C22 GN-18

P979-C23 YL-18

P981-C108 PU-18

P982-C67 BU-18
P984-C174 YL-18
P993-C165 OR-18
P996-C175 GN-18
R810-C192 BR-18
R914-C143 OR-18

BACK OF CAB

101-C45 RD-4

110-C116 GN-14
110-C117 GN-18
110-C193 GN-18

117-C42 YL-14

117-C130 YL-18

117-C85 YL-18

117-C129 YL-14

120-C113 YL-16
120-C122 YL-18
120-C123 YL-18

122-C194 RD-18
122-C74 RD-18
122-C73 RD-14
122-C56 RD-12
122-C202 RD-18
122-C208 RD-16

128-C3 RD-14
128-C4 RD-14
128-C5 RD-12

191-C76 WH-16

196-C188 BU-14
196-C185 BU-14
196-C186 BU-14
196-C187 BU-14
196-C189 BU-18
196-C190 BU-18

198-C38 PK-16

200-C53 BK-10
200-C75 BK-18
200-C52 BK-12
200-C166 BK-14
200-C179 BK-18
200-C180 BK-18
200-C204 BK-16

203-C84 BK-18
203-C167 BK-14
203-C6 BK-14
203-C7 BK-14
203-C8 BK-10
203-C147 BK-16
203-C195 BK-18
203-C203 BK-18

307-C47 OR-18

308-C2 YL-14
308-C177 YL-18
308-C178 YL-18
308-C1 YL-18
308-C11 YL-18
308-C196 YL-18

317-C109 YL-18
321-C111 BR-18
322-C148 GY-14

327-C25 PK-18

327-C36 PK-18

327-C114 PK-18

331-C112 OR-18

365-C115 YL-18

403-C97 GN-18

403-C198 GN-18

403-C197 GN

508-C68 PU-18

509-C70 WH-18

511-C71 BR-18

512-C72 GN-18
604-C120 OR-18

605-C59 YL-14

606-C60 GY-14

608-C61 GN-14

614-C24 PU-18

614-C48 PU-14
614-C126 PU-16
614-C127 PU-16

619-C69 GN-14

677-C121 GN-18
779-C49 WH-18
780-C50 PU-18

976-C128 OR-18

A314-C54 OR-18

A510-C26 OR-18

A571-C191 PU-14

A572-C65 PK-14

A771-C169 PU-18

C510-C27 WH-18

C776-C176 GN-18

E554-C136 PK-18

E847-C157 GY-18

E848-C158 GN-18

E850-C159 BR-18

E917-C86 WH-18

E918-C80 GN-

F711-C205 GN-18

F711-C94 GN-18

F711-C207 GN-18

F712-C209 GY-18

F712-C95 GY-18

F712-C206 GY-18

F738-C87 WH-18

F739-C88 GN-18

F763-C90 WH-18

F764-C89 GN-18

F780-C55 PK-18
F905-C78 YL-18

G797-C211 BU-18

G943-C82 BU-18

G944-C81 YL-18

G982-C43 PK-18

G984-C161 PK-18

G985-C162 PU-18

H758-C134 BR-18

H759-C135 OR-18

H791-C170 GN-18

H791-C181 GN-18

H791-C184 GN-18

H792-C171 BR-18

H792-C182 BR-18

H792-C183 BR-18

H807-C32 YL-18

H807-C33 YL-14

H807-C34 YL-18

H807-C107 YL-18

J753-C91 BU-18

K927-C96 BU-18

L804-C160 WH-18

L856-C79 YL-18

L857-C83 GN-18

M906-C131 BU-14

M907-C132 GY-14

N931-C44 GY-18

N957-C199 PK-18

N960-C201 OR-18

N979-C200 GN-18

P769-C172 YL-18
P769-C28 YL-18
P769-C139 YL-18

P769-C141 YL-18

P770-C173 WH-18

P770-C29 WH-18
P770-C140 WH-18
P770-C142 WH-18

P796-C92 OR-18

P797-C93 GN-18

P982-C67 BU-18

P984-C174 YL-18

P993-C165 OR-18

P996-C175 GN-18

R810-C192 BR-18

-18

892-C213 BR-18
892-C10 BR-18
892-C216 BR-18

893-C214 GN-18
893-C9 GN-18
893-C215 GN-18

18

101-C45 RD-4
102-C51 BU-14

105-C41 RD-12

110-C116 GN-14
110-C117 GN-18
110-C193 GN-18
112-C63 PU-10

112-C64 PU-10

114-C149 RD-14

117-C42 YL-14
117-C85 YL-18
117-C129 YL-14
117-C130 YL-18
118-C150 GY-14

120-C113 YL-16
120-C122 YL-18
120-C123 YL-18
122-C56 RD-12
122-C73 RD-14
122-C202 RD-18
122-C208 RD-16

124-C145 GN-14

125-C144 OR-14

126-C152 PK-16

127-C153 OR-16

128-C5 RD-12

129-C46 BU-14

134-C57 YL-14

135-C40 BU-14

180-C168 GN-14

190-C58 PK-14

191-C76 WH-16

196-C188 BU-14
196-C189 BU-18
196-C190 BU-18
198-C38 PK-16
200-C52 BK-12
200-C166 BK-14
200-C179 BK-18
200-C180 BK-18
200-C204 BK-16

203-C84 BK-18
203-C167 BK-14
203-C203 BK-18
307-C47 OR-18
308-C2 YL-14
308-C177 YL-18
308-C178 YL-18
317-C109 YL-18
321-C111 BR-18
322-C148 GY-14
327-C114 PK-18
331-C112 OR-18
365-C115 YL-18
508-C68 PU-18
509-C70 WH-18
511-C71 BR-18
512-C72 GN-18
537-C39 GN-16

604-C120 OR-18
605-C59 YL-14
606-C60 GY-14
608-C61 GN­614-C24 PU-18
614-C48 PU-14
619-C69 GN-14
677-C121 GN-18
779-C49 WH-18
780-C50 PU-18
781-C155 PK-18

14

782-C156 GY-18

892-C10 BR-18
893-C9 GN-18
976-C128 OR-18

A314-C54 OR-18
A510-C26 OR-18
A571-C191 PU-14
A572-C65 PK-14
A771-C169 PU-18
C510-C27 WH-18
C776-C176 GN-18
E554-C136 PK-18
E741-C77 YL-18

E847-C157 GY-18
E848-C158 GN-18
E850-C159 BR-18
E917-C86 WH-18
E918-C80 GN-18
F711-C94 GN-18
F711-C207 GN-18
F712-C95 GY-18
F712-C206 GY-18
F738-C87 WH-18
F739-C88 GN-18
F763-C90 WH-18
F764-C89 GN-18
F780-C55 PK-18
F905-C78 YL-18
G797-C211 BU-18
G943-C82 BU-18
G944-C81 YL-18
G982-C43 PK-18
G984-C161 PK-18
G985-C162 PU-18
H758-C134 BR-18
H759-C135 OR-18
H791-C181 GN-18
H791-C184 GN-18
H792-C182 BR-18
H792-C183 BR-18
J753-C91 BU-18
K927-C96 BU-18
L804-C160 WH-18
L856-C79 YL-18
L857-C83 GN-18
M906-C131 BU-14
M907-C132 GY-14
N931-C44 GY-18
N957-C199 PK-18
N960-C201 OR-18
N979-C200 GN-18
P769-C172 YL-18
P770-C173 WH-18
P796-C92 OR-18
P797-C93 GN-18
P813-C66 YL-18

P814-C62 BU-18

P982-C67 BU-18
P984-C174 YL-18
P993-C165 OR-18
P996-C175 GN-18
R810-C192 BR-18

102-C51 BU-14
105-C41 RD-12
117-C129 YL-14
122-C73 RD-14
129-C46 BU-14
134-C57 YL-14
135-C40 BU-14
190-C58 PK-14
200-C52 BK-12
307-C47 OR-18
308-C2 YL-14
508-C68 PU-18
509-C70 WH-18
511-C71 BR-18
512-C72 GN-18
537-C39 GN-16
605-C59 YL-14
606-C60 GY-14
608-C61 GN-14
614-C48 PU-14
619-C69 GN-14
779-C49 WH-18
780-C50 PU-18
A314-C54 OR-18
A572-C65 PK-14
E741-C77 YL-18
E917-C86 WH-18
E918-C80 GN-18
F711-C94 GN-18
F712-C95 GY-18
F738-C87 WH-18
F739-C88 GN-18
F763-C90 WH-18
F764-C89 GN-18
F780-C55 PK-18
F905-C78 YL-18
G982-C43 PK-18
J753-C91 BU-18
K927-C96 BU-18
N931-C44 GY-18
P796-C92 OR-18
P797-C93 GN-18
P813-C66 YL-18
P814-C62 BU-18
P982-C67 BU-18

122-C202 RD-18
203-C203 BK-18

893-C9 GN-18
892-C10 BR-18
F712-C206 GY-18
F711-C207 GN-18

N979-C200 GN-18
N960-C201 OR-18
N957-C199 PK-18

118-C150 GY-14
125-C144 OR-14
126-C152 PK-16
127-C153 OR-16
129-C46 BU-14
135-C40 BU-14
180-C168 GN-14
191-C76 WH-16
198-C38 PK-16

196-C185 BU-14196-C185 BU-14
196-C186 BU-14196-C186 BU-14
196-C187 BU-14196-C187 BU-14
196-C189 BU-18
196-C190 BU-18
781-C155 PK-18
782-C156 GY-18
A571-C191 PU-14
H758-C134 BR-18
H759-C135 OR-18
H791-C184 GN-18
H792-C183 BR-18
M906-C131 BU-14
M907-C132 GY-14
P813-C66 YL-18

NOTE J

112-C63 PU-10

102-C51 BU-14
110-C116 GN-14
117-C42 YL
120-C113 YL-16
124-C145 GN-14
134-C57 YL-14
190-C58 PK-14
196-C188 BU-14

110-C193 GN-18
117-C130 YL-18
120-C122 YL-18
120-C123 YL-18
317-C109 YL-18
321-C111 BR-18
327-C114 PK-18
331-C112 OR-18

604-C120 OR-18
677-C121 GN-18
976-C128 OR-18
E741-C77 YL-18
G797-C211 BU-18
R810-C192 BR-18

-14

112-C64 PU-10

101-C45 RD-4

105-C41 RD-12

128-C5 RD-12

308-C177 YL-18
200-C179 BK-18

112-C63 PU-10
112-C64 PU-10
114-C149 RD-14
122-C56 RD-12
200-C180 BK-18
308-C178 YL-18

200-C204 BK-16

537-C39 GN-16

122-C208 RD-16

114-C149 RD-14
118-C150 GY-14
126-C152 PK-16
127-C153 OR-16
180-C168 GN-14
200-C166 BK-14
203-C167 BK-14
322-C148 GY-14
614-C24 PU-18
781-C155 PK-18
782-C156 GY-18
A771-C169 PU-18
C776-C176 GN-18
E847-C157 GY-18
E848-C158 GN-18
E850-C159 BR-18
G943-C82 BU-18
G944-C81 YL-18
G984-C161 PK-18
G985-C162 PU-18
H791-C181 GN-18
H792-C182 BR-18
L804-C160 WH-18
P769-C172 YL-18
P770-C173 WH-18
P814-C62 BU-18
P984-C174 YL-18
P993-C165 OR-18
P996-C175 GN-18

CONN 22

CONN TO CAT

SERVICE TOOL

C-C7

CONN 21

8T8732

FUSES FOR PWR MODULES

RATING PART NUMBER

20 A 267-2680

60 A 267-2701

CONN TO

A

PROD LINK

B

SERIAL SERV

C

CONNECTOR

FUSE
POWER MODULE
267-5202

BATTERY + IN

20

UNSWITCHED

FUSE

UNSWITCHED

POWER OUT

124-C145 GN-14
125-C144 OR-14
A510-C26 OR-18
C510-C27 WH-18
E554-C136 PK-18

117-C85 YL-18
203-C84 BK-18
L856-C79 YL-18
L857-C83 GN-18

UNSWITCHED
FUSE

C-C6
9W1951

A

B

C

D

E

F

G

H

J

C-C20
3139053

196-C185 BU-14

M906-C131 BU-14
781-C155 PK-18

196-C186 BU-14

M907-C132 GY-14
782-C156 GY-18

196-C189 BU-18

H758-C134 BR-18
H791-C184 GN-18

196-C190 BU-18

(A) RELAY AS

H759-C135 OR-18
H792-C183 BR-18

196-C187 BU-14

(A) RELAY AS

A571-C191 PU-14
P813-C66 YL-18

C-C21
3139053

20

(A) RELAY AS
WORK TOOL #1

146-9439

(A) RELAY AS
WORK TOOL #2

146-9439

(A) RELAY AS

HIGH FLOW

(C-PLUS)

146-9439

HIGH FLOW
(C-MINUS)

146-9439

WORK TOOL

TRIGGER

146-9439

L1 L2

120-C122 YL-18

(A) RELAY AS

STOP LAMP

146-9439

604-C120 OR-18
677-C121 GN-18

120-C123 YL-18

(A) RELAY AS
BACKUP ALARM

146-9439

321-C111 BR-18
331-C112 OR-18

110-C117 GN-18110-C117 GN-18

(A) RELAY AS

FUEL PUMP

146-9439

327-C114 PK-18
365-C115 YL-18365-C115 YL-18

117-C130 YL-18

(A) RELAY AS

LEVEL RIDE

146-9439

976-C128 OR-18
E741-C77 YL-18
G797-C211 BU-18

110-C193 GN-18

(A) RELAY AS

COLD START

146-9439

317-C109 YL-18
R810-C192 BR-18

308-C177 YL-18
200-C179 BK-18

114-C149 RD-14
112-C63 PU-10
308-C178 YL-18
200-C180 BK-18
122-C56 RD-12
112-C64 PU-10

86 30

D1 A1

86

87

87A

87a87 85

86 30

D3 B3

86

87

87A

D4

86 30

D5

87a87 85

C4 B4

86

87

87A

87a87 85

C6

86 30

D7

86

87

87A

87a87 85

C8D8

86 30

D9

86

87

87A

87a87 85

C10

B1

30

85

B2C2D2

A2

30

85

B5

A4

A5

30

85

B6D6

B7

A6

A7

30

85

B8

B9

A8

A9

30

85

B10D10

A10

112-WA1 PU-10

86 30

D1

86

87

87A

87a87 85

86 30

D3 B3

86

87

87A

D4

86 30

D5

87a87 85

C4 B4

86

87

87A

87a87 85

C6

86 30

D7

86

87

87A

87a87 85

C8D8

86 30

D9

86

87

87A

87a87 85

C10

L1 L2

C-C11

2304011

(A) RELAY GP

MAIN POWER #1

258-4135

BATTERY + IN

20

UNSWITCHED
FUSE

85

1

2

86

MAIN PWR
RELAY

UNSWITCHED

POWER OUT

112-WA1 PU-10

60

FUSE FOR

MAIN PWR RLY

30

87 87a

SWITCHED
POWER OUT

B1

30

85

B2C2D2

30

85

B5

30

85

B6D6

B7

30

85

B8

B9

30

85

B10D10

A1

A2

A4

A5

A6

A7

A8

A9

A10

BUS BAR FUSE RLY
258-4143

308-C178 YL-18
200-C180 BK-18

122-C56 RD-12

112-C64 PU-10

C-C1

(40) FLASHER

1918332

C-C8

1552273

C-C9

1552272

242-9000

1

- GROUND

2

- GROUND
3

4

LAMP OUT

5

6

+ BATTERY

CONN 13

CONN TO AC-C7

1

HVAC HARN

2

[LOC SH 1 H-4]

3

4

5

6

CONN 20

CONN TO AF-C1

1

ACCUGRADE HARN

2

[LOC SH 2 C-1]

3

4

CONN TO HE-C7

OR

HEATER ONLY (ATCH)
[LOC SH 1 I-4]

91011121314

15

15

A3

15

10

10

10

15

20

10

10

15

10

A3

20

10

15

15

15

15

15

20

2304011

SPARE 15A
113-8491

(A) FUSE BLOCK 1

WIPER WSHR
113-8491

118-C150 GY-14
RR WK LTS BEACON
113-8491

135-C40 BU-14

LH JSTICK BASE
113-8490

126-C152 PK-16

PWR PORT
113-8490

129-C46 BU-14

RADIO SWITCHED
113-8490

191-C76 WH-16

AIR RIDE SEAT
113-8491

180-C168 GN-14

HVAC COND COMPR
113-8492

125-C144 OR-14

RH JSTICK BASE
113-8490

127-C153 OR-16

198-C38 PK-16
COLD ST RLY COIL
113-8490

(A) FUSE BLOCK 2

FR WK LTS
113-8491

134-C57 YL-14

BKUP ALM STOP LTS
113-8490

120-C113 YL-16

HVAC BLOWER
113-8492

124-C145 GN-14

SPARE 10A
113-8490

ROADING LTS
113-8491

102-C51 BU-14

WKTL SWITCH
113-8491

190-C58 PK-14

FUEL PUMP SOL
113-8491

110-C116 GN-14

QCPLR SELF LVL RIDE
113-8491

117-C42 YL-14

WKTL C+ C- C1 C2
113-8491

196-C188 BU-14

SPARE 20A
113-8492

(A) RELAY GP

MAIN POWER #2

258-4135

BATTERY + IN

20

UNSWITCHED
FUSE

C-C80

85

1

2

86

MAIN PWR
RELAY

UNSWITCHED

POWER OUT

E741-C77 YL-18
F711-C94 GN-18
F712-C95 GY-18
307-C47 OR-18
A314-C54 OR-18
508-C68 PU-18
509-C70 WH-18
511-C71 BR-18
512-C72 GN-18
779-C49 WH-18
780-C50 PU-18

308-C2 YL-14
614-C48 PU-14
122-C73 RD-14
200-C52 BK-12
105-C41 RD-12
102-C51 BU-14
537-C39 GN-16
P982-C67 BU-18
117-C129 YL-14
129-C46 BU-14
134-C57 YL-14
135-C40 BU-14
190-C58 PK-14
605-C59 YL-14
606-C60 GY-14
608-C61 GN-14
E917-C86 WH-18
E918-C80 GN-18
F738-C87 WH-18
619-C69 GN-14
A572-C65 PK-14
F739-C88 GN-18
F763-C90 WH-18
F764-C89 GN-18

F780-C55 PK-18
F905-C78 YL-18
G982-C43 PK-18
J753-C91 BU-18
K927-C96 BU-18
N931-C44 GY-18
P796-C92 OR-18
P797-C93 GN-18
P813-C66 YL-18
P814-C62 BU-18

60

FUSE FOR

MAIN PWR RLY

30

87 87a

SWITCHED
POWER OUT

614-C24 PU-18
781-C155 PK-18
782-C156 GY-18
P814-C62 BU-18
E847-C157 GY-18
E848-C158 GN-18
P993-C165 OR-18
G984-C161 PK-18

114-C149 RD-14
118-C150 GY-14
126-C152 PK-16

G943-C82 BU-18
G944-C81 YL-18

203-C167 BK-14
C776-C176 GN-18

180-C168 GN-14

200-C166 BK-14

127-C153 OR-16

G985-C162 PU-18
H791-C181 GN-18
H792-C182 BR-18
L804-C160 WH-18
P769-C172 YL-18
P770-C173 WH-18
A771-C169 PU-18
P984-C174 YL­E850-C159 BR-18
P996-C175 GN-18

C-C2

2584172

2584172

CONN 23

18

CONN 24

L-C16
2584170

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

(44) SWITCH AS

LIMIT ARMBAR

229-8757

C-C5

CH-C1
2584170

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

E741-L82 YL-18
F711-L55 GN-18
F712-L54 GY-18
307-L63 OR-18
A314-L29 OR-18
508-L68 PU-18
509-L17 WH­511-L69 BR-18
512-L71 GN-18
779-L28 WH-18
780-L27 PU-18

308-L67 YL-14
614-L26 PU-14
122-L57 RD-14
200-L12 BK-12
105-L62 RD-14
102-L76 BU-14
537-L38 GN-16
P982-L118 BU-18
117-L21 YL-14
129-L60 BU-14
134-L6 YL-14
135-L44 BU-14
190-L108 PK-14
605-L40 YL-14
606-L41 GY-14
608-L14 GN-14
E917-L106 WH-18
E918-L104 GN-18
F738-L72 WH-18
619-L70 GN-14
A572-L119 PK-14
F739-L73 GN-18
F763-L74 WH-18
F764-L75 GN-18

F780-L30 PK-18
F905-L18 YL-18
G982-L105 PK-18
J753-L84 BU-18
K927-L23 BU-18
N931-L97 GY-18
P796-L86 OR-18
P797-L85 GN-18
P813-L120 YL-18
P814-L107 BU-18

18

200-L115 BK-18
603-L78 PK-18

614-CH33 PU-18
781-CH11 PK-18
782-CH12 GY-18
P814-CH13 BU-18
E847-CH26 GY-18
E848-CH27 GN-18
P993-CH14 OR-18
G984-CH32 PK-18

114-CH7 RD-14
118-CH65 GY-14
126-CH24 PK-16

322-CH6 GY-14322-C148 GY-14
G943-CH69 BU­G944-CH70 YL-18

203-CH9 BK-14
C776-CH72 GN-18

180-CH28 GN-14
200-CH67 BK-14

127-CH38 OR-16

G985-CH30 PU-18
H791-CH8 GN-18
H792-CH17 BR-18
L804-CH22 WH-18
P769-CH1 YL-18
P770-CH2 WH-18
A771-CH18 PU-18
P984-CH4 YL-18
E850-CH21 BR-18
P996-CH3 GN-18

BK-16

WH-16

GN-16

A

B

C

18

L-C21

1237615

1

2

(41) SOCKET AS

CH-C7
1552267

203-CH34 BK-18
G983-CH31 GN-18
G984-CH32 PK-18

BEACON

9R-7941

LAMP GP BEACON
128-6985

4.7A

1

2

(43) TANK AS

WINDOW WASHER

258-4078

114-CH7 RD-14
118-CH65 GY-14
126-CH24 PK-16
127-CH38 OR-16
180-CH28 GN-14

200-CH66 BK-14
200-CH29 BK-14

200-CH67 BK-14

203-CH9 BK-14
203-CH34 BK-18
203-CH15 BK-18
203-CH20 BK-18
203-CH25 BK-16
203-CH16 BK-18
203-CH19 BK-18
203-CH23 BK-16

322-CH6 GY-14
614-CH33 PU-18
781-CH11 PK-18
782-CH12 GY-18
A771-CH18 PU-18
C776-CH72 GN-18
E847-CH26 GY-18
E848-CH27 GN-18
E850-CH21 BR-18
G943-CH69 BU-18
G944-CH70 YL-18
G983-CH31 GN-18
G984-CH32 PK-18

G985-CH30 PU-18
G985-CH10 PU-18
G985-CH35 PU-18
G985-CH5 PU-18

H791-CH8 GN-18
H792-CH17 BR-18
L804-CH22 WH-18
P769-CH1 YL-18
P770-CH2 WH-18
P814-CH13 BU-18
P984-CH4 YL-18
P993-CH14 OR-18
P996-CH3 GN-18

A-C2
1237615

506-A6 PU-18
200-A3 BK-18

118-G8 GY-14
118-G7 GY-14
118-G5 GY-14
118-G6 GY-18

200-G1 BK-14
200-G2 BK-14
200-G3 BK-18
200-G4 BK-18

500-G9 BR-16

501-G10 GN-16

506-G13 PU-18
614-G14 PU-18
G943-G11 BU-18
G944-G12 YL-18

CONT GP-JSTICK (LH) DESCRIPTION HANDLE AS BASE AS BOOT

269-0265 TRIGGER, 4 BUTTONS 272-1790 269-0258 254-3437

269-0266 TRIGGER, 2 L BUTTONS269-0259 269-0258 254-3437

(36) CONTROL GP

LH JOYSTICK

269-0265

CH-C5

1552273

1

CH-C4

CH-C8

POWER

2

GROUND

3

SIGNAL - X AXIS
CALIBRATION - S

4

5

SIGNAL - Y AXIS
CALIBRATION - R

6

PLUGGED

1

SW 1 COMMON

2

SW 1 N/O

3

PLUGGED

4

5

SW 3 AND SW 4 COMMON

SW 3 N/O

6

TRIGGER COMMON

7

8

SW 4 N/O

9

PLUGGED

10

TRIGGER N/O

11

SW 2 N/O

12

SW 2 COMMON

1

2

3

4

(BASE)

SW 1 = HORN

SW 3 = WKTL C1

SW 4 = WKTL C2

(HANDLE)

TRIGGER = 2-SP/WKTL

SW 2 = CONT FLOW

(37) SWITCH

AIRSEAT

293-2870

BK-18

BK-18

(37) SWITCH AS

SEAT HARNESS

(ATCH)

SEAT COMPR

SEAT

293-2871

126-CH24 PK-16
203-CH25 BK-16
E847-CH26 GY-18

E848-CH27 GN-18

322-CH6 GY-14
114-CH7 RD-14

G985-CH10 PU-18
781-CH11 PK-18
203-CH20 BK-18
782-CH12 GY-18

P814-CH13 BU-18
P993-CH14 OR-18
203-CH15 BK-18

180-CH28 GN-14
200-CH29 BK-14
G983-CH31 GN-18
G985-CH35 PU-18

1552252

1552272

CONT GP-JSTICK (RH) DESCRIPTION HANDLE AS BASE AS BOOT

269-0262 TRIGGER, ROLLER L 273-9103 269-0257 254-3437

269-0263 TRIGGER, ROLLER L,

269-0264 TRIGGER, 2 BUTTONS L269-0259 269-0257 254-3437

2 BUTTONS R

(39) CONTROL GP

CH-C3

127-CH38 OR-16
203-CH23 BK-16
E850-CH21 BR-18

L804-CH22 WH-18

P769-CH1 YL-18
P770-CH2 WH-18
P996-CH3 GN-18

G985-CH5 PU-18
H791-CH8 GN-18
203-CH16 BK-18
H792-CH17 BR-18
P984-CH4 YL-18
A771-CH18 PU-18
203-CH19 BK-18

CONN 26

118-CH65 GY-14
200-CH66 BK-14
614-CH33 PU-18
G943-CH69 BU-18
G944-CH70 YL-18

1552273

1552252

CH-C10

1552273

CH-C2

POWER

1

GROUND

2

SIGNAL - X AXIS

3

CALIBRATION - S

4

SIGNAL - Y AXIS

5

CALIBRATION - R

6

1

ROLLER POWER

2

ROLLER GROUND

ROLLER SIGNAL

3

4

CALIBRATION
SW 1 AND SW2 COMMON

5

SW 1 N/O

6

TRIGGER OR SW 3 COMMON

7

8

SW 2 N/O

9

SW 1 AND SW 2 N/C

10

TRIGGER N/O
SW 3 N/C

11

12

SW 3 N/O

CH-C18
3E3382

1

2

G943-CH71 BU-18

3

4

5

6

A-C3
3E3382

1

2

3

4

5

6

273-9104 269-0257 254-3437

RH JOYSTICK

269-0263

(BASE)

NOTE G

NOTE G

118-A2 GY-14

-14

200-A7 BK
614-A8 PU-18
G943-A4 BU-18
G944-A5 YL-18

ROLLER = A1 / A2

SW 1 = WKTL C+

(HANDLE)

SW 2 = WKTL C-

TRIGGER = FLOAT

SW 3 = A1 PUSH BUTTONC776-CH72 GN-18

SEAT DECK

118-A2 GY-14
200-A7 BK-14
614-A8 PU-18
G943-A4 BU-18
G944-A5 YL-18

CONN 25

G-C1

118-A2 GY-14

200-A3 BK-18
200-A1 BK-14
200-A7 BK-14

506-A6 PU-18
614-A8 PU-18

118-A2 GY-14
200-A1 BK-14
614-A8 PU-18
G943-A4 BU-18
G944-A5 YL-18
506-A6 PU-18

A-C1

1552273

3E3382

1

2

3

4

5

6

118-G8 GY-14
200-G1 BK-14
614-G14 PU-18
G943-G11 BU-18
G944-G12 YL-18
506-G13 PU-18

G943-A4 BU-18

G944-A5 YL-18

G-C4

200-G2 BK-14
500-G9 BR-16
501-G10 GN-16
118-G7 GY-14

200-G3 BK-18
G943-G11 BU-18
G944-G12 YL-18

118-G6 GY-18
118-G5 GY-14
500-G9 BR-16
614-G14 PU-18

200-G4 BK-18
501-G10 GN-16
506-G13 PU-18

1552272

1

2

3

4

BK-16

GN-16

RD-16

YL-16

8

7

GND

G-C3

1552267

1

3

2

T

A

B

C

FR DOOR AND FR DOOR AUX HARN (ATCH)

12345678

LH INSTRUMENT PANEL

L-C12

1552269

1

607-L4 PK-18
200-L3 BK-18

122-L34 RD-18
200-L35 BK-18

N931-L97 GY-18

(C) SWITCH AS

AUXILIARY BLEED OFF

263-5416

2712837

8

L-C4

7

200-L96 BK-18

614-L102 PU-18
G982-L105 PK-18

102-L76 BU-14
102-L47 BU-16
102-L53 BU-

105-L62 RD-14
117-L21 YL-14

122-L57 RD-14
122-L34 RD-18
122-L56 RD-18
122-L36 RD-18

18

129-L60 BU-14

134-L6 YL-14
134-L7 YL-16
134-L8 YL-18

135-L13 BU-16
135-L43 BU-18
135-L44 BU-14

190-L108 PK-14

200-L12 BK-12
200-L98 BK-18
200-L16 BK-18
200-L11 BK-18
200-L99 BK-18
200-L101 BK-18
200-L100 BK-18
200-L3 BK-18
200-L19 BK-18
200-L22 BK-18
200-L32 BK-18
200-L33 BK-18
200-L88 BK-14

200-L35 BK-18
200-L91 BK-18
200-L96 BK-18
200-L110 BK-18
200-L111 BK-18
200-L37 BK-18
200-L59 BK-18
200-L61 BK-16
200-L89 BK-18
200-L92 BK-18
200-L93 BK-18
200-L117 BK-18
200-L39 BK-18
200-L115 BK-18

200-L39 BK-18
200-L109 BK-18
200-L140 BK-18
200-L141 BK-18
200-L142 BK-18
200-L2 BK-18
200-L79 BK-18
200-L80 BK-18
200-L81 BK-18
200-L83 BK-18
200-L90 BK-18

307-L63 OR-18

308-L67 YL-14
308-L66 YL-18
308-L64 YL-14
308-L65 YL-18
308-L116 YL-18

410-L58 WH-18

508-L68 PU-18
509-L17 WH-18
511-L69 BR-18
512-L71 GN-18

536-L121 WH-16
536-L122 WH-16
536-L123 WH-16

537-L126 GN-16
537-L125 GN-16
537-L124 GN-16

537-L38 GN-16

603-L78 PK-18

605-L127 YL-16
605-L128 YL-16
605-L40 YL-14

606-L130 GY-16
606-L129 GY-16
606-L41 GY-14

607-L5 PK-16
607-L4 PK-18
607-L1 PK-18

608-L14 GN-14

614-L131 PU-18
614-L132 PU-18
614-L133 PU-18
614-L134 PU-18
614-L135 PU-18
614-L137 PU-18
614-L136 PU-18

614-L26 PU-14
614-L42 PU- 18
614-L103 PU-18
614-L10 PU-18
614-L9 PU-18
614-L15 PU-18
614-L102 PU-18
614-L77 PU-18

614-L20 PU-18
614-L112 PU-18
614-L113 PU-18
614-L114 PU-18
614-L31 PU-18
614-L94 PU-18
614-L95 PU-18

619-L70 GN-14
779-L28 WH-18
780-L27 PU-18
A314-L29 OR-18
A572-L119 PK-14
E741-L82 YL-18
E917-L106 WH-18
E918-L104 GN-18

F711-L48 GN-18
F711-L46 GN-18
F711-L45 GN-18
F711-L55 GN-18

F711-L138 GN-18

F712-L50 GY-18
F712-L51 GY-18
F712-L52 GY-18

F712-L139 GY-18
F712-L54 GY-18

F738-L72 WH-18
F739-L73 GN-18
F763-L74 WH-18
F764-L75 GN-18
F780-L30 PK-18
F905-L18 YL-18
G982-L105 PK-18
J753-L84 BU-18

K927-L23 BU-18
K927-L24 BU-18
K927-L25 BU-18

N931-L97 GY-18
P796-L86 OR-18
P797-L85 GN-18
P813-L120 YL-18
P814-L107 BU-18
P982-L118 BU-18

200-L117 BK­308-L116 YL-18
508-L68 PU-18
509-L17 WH-18
511-L69 BR-18
512-L71 GN-18
F711-L46 GN-18
F712-L51 GY-18

E918-L104 GN-18
E917-L106 WH-18
614-L103 PU-18

OPERATOR IMPLEMENT LOCKOUT

(C) SWITCH AS

263-5415

2285856

200-L101 BK-18
200-L100 BK-18
200-L99 BK-18
200-L98 BK-18

608-L14 GN-14
614-L15 PU-18

(C) SWITCH AS

REAR WORK LAMPS

265-9425

2712837

200-L16 BK-18
135-L13 BU-16

614-L9 PU-18
607-L5 PK-16
614-L10 PU-18

(C) SWITCH AS

FRONT WORK LAMPS

265-9424

2285856

L-C6

L-C1

L-C5

200-L11 BK-18

134-L7 YL-16
134-L8 YL-18

614-L112 PU-18
P813-L120 YL-18
P982-L118 BU-18
614-L113 PU-18

(C) SWITCH AS

WORK TOOL #2

263-5419

L-C9

2712837

200-L111 BK-18
P814-L107 BU-18
200-L110 BK-18

A572-L119 PK-14
614-L114 PU-18

(C) SWITCH AS

WORK TOOL #1

263-5418

L-C8

200-L91 BK-18
190-L108 PK-14

F905-L18 YL-18
614-L20 PU-18

200-L19 BK-18
E741-L82 YL-18

K927-L25 BU-18
K927-L24 BU-18
780-L27 PU-18
779-L28 WH-18

HYDRAULIC QUICK COUPLER

117-L21 YL-14
200-L22 BK-18

122-L36 RD-18
200-L37 BK-18
410-L58 WH-18

2285856

(C) SWITCH AS

SELF LEVEL

263-5417

L-C10

2712837

(C) SWITCH AS

265-9513

L-C11

2285856

N740-L49 WH-18

308-L65 YL-18

F712-L50 GY-18
F711-L48 GN-18

410-L58 WH-18
200-L59 BK-18

614-L95 PU-18
J753-L84 BU-18
200-L87 BK-18
P797-L85 GN-18
P796-L86 OR-18
614-L94 PU-18

(C) SWITCH AS

PATTERN CHANGE

265-8033

L-C2

200-L93 BK-18
200-L87 BK-18
200-L92 BK-18
200-L89 BK-18

F780-L30 PK-18
A314-L29 OR-18
614-L31 PU-18

200-L33 BK-18
200-L32 BK-18

2712837

(C) SWITCH AS

PARK BRAKE

263-5414

L-C13

2285856

308-L64 YL-14

307-L63 OR-18
105-L62 RD-14

129-L60 BU-14
200-L61 BK-16

18

F763-L74 WH-18
F764-L75 GN-18
614-L137 PU-18

(B) SWITCH AS

CREEPER CONTROL

263-5420

L-C22

200-L140 BK-18
200-L141 BK-18
F739-L73 GN-18
F738-L72 WH-18
614-L136 PU-18

200-L109 BK-18
200-L142 BK-18

122-L56 RD-18
200-L90 BK-18

2285856

(B) SWITCH AS

RIDE CONTROL

265-9526

L-C23

2712837

2304009

308-L66 YL-18

F712-L139 GY-18
F711-L138 GN-18

603-L78 PK-18
614-L135 PU-18

(B) SWITCH AS

BEACON

263-5423

L-C19

200-L81 BK-18
135-L43 BU-18

536-L123 WH-16
614-L132 PU-18

200-L80 BK-18
537-L126 GN-16

619-L70 GN-14

614-L134 PU-18
614-L133 PU-18

200-L83 BK-18
102-L53 BU-18
102-L47 BU-16

605-L128 YL-16
537-L125 GN-16
536-L122 WH-16
536-L121 WH-16
537-L124 GN-16
614-L131 PU-18

200-L79 BK-18
606-L129 GY-16
605-L127 YL-16
606-L130 GY-16

2712837

(B) SWITCH AS

HAZARD

265-9543

L-C17

2285856

(B) SWITCH AS

ROADING LAMP

263-5421

L-C18

2712837

(B) SWITCH AS

TURN SIGNAL

263-5422

2285856

607-L1 PK-18
200-L2 BK-18

L-C3

8

7

8

7

8

7

8

7

8

7

8

7

8

7

8

7

8

7

1

8

7

1

8

7

CMPT INSTR CLUSTER ATCH
346-6336

L-C24

ELEK GP 347-4187

1

2

3

4

5

6

7

8

9

10

11

12

1

8

7

1

8

7

8

7

8

7

RH INSTRUMENT PANEL

INSTRUMENT PANEL

IDENT PART NO. CHG LOCATION NOTEDESCRIPTION

A 258-4157 01 SH 2 A-7 FRONT DOOR AUXILIARY ATCH

-

B+

456

BK-16

WH-16

GN-16

MOM

P

10

9

N/C COMMON

N/O

(43) SWITCH AS
WIPER WASHER

281-6390

G-C2
2285856

330-5011

3.0A

(43) SWITCH AS

IMPLEMENT LOCKOUT

229-8757

(A) MOTOR AS

MOTOR

FRONT WIPER

+

AF 292-4554 01 SH 2 A-2 ACCUGRADE ATCH

C 348-4170 00 SH 2 B-10 BACK OF CAB

CH 258-4160 03 SH 2 B-9 SEAT
FV 328-2367 01 SH 2 B-1 ACCUGRADE-RETROFIT ATCH

G 258-4156 01 SH 2 A-5 FRONT DOOR ATCH
L 258-4101 05 SH 2 E-3 INSTRUMENT PANEL

MC 213-6065 03 SH 2 E-2 MACHINE SECURITY SYSTEM ATCH

WIRING DIAGRAM 239-5275 CHG 03

HARNESS AS.

SYMBOL DESCRIPTION

CIRCUIT CONNECTED

CIRCUIT NOT CONNECTED

ELECTRICAL CONNECTION TO
MACHINE STRUCTURE

INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT

CONNECTOR

H#

CIRCUIT GROUPING DESIGNATION

ATCH WIRE, CABLE, COMPONENT

SPLICE

BLADE, SPADE, RING OR SCREW
TERMINAL

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

MOM

2

1

3

MOM

2

1

3

2

3

2

3

2

BATTERY (+)

GROUND

OPEN

OPEN

CAN TERM (-)

CAN TERM (+)

SUP MFG

KEY SWITCH

OPEN

CAN SHIELD

CAN BUS (-)

CAN BUS (+)

3

2

3

2

1

3

2

1

3

2

L-C15

1552269

LH FR WORK LAMP
234-4328

DOME LAMP
084-4277

0.83A

456

10

MOM

9

456

10

MOM

9

456

10

9

456

10

9

456

10

9

ATCH

456

10

9

456

10

9

456

10

MOM

9

456

10

MOM

9

456

10

MOM

9

L-C14

1552272

456

456

456

456

456

456

YL-16

1

PU-16

2

OR-16

3

BR-16

4

10

9

10

9

10

9

10

9

10

9

10

9

1

2

LOCATION NOTE

SH 2 I-15

VARIOUS B

SH 2 G-3

SH 2 B-6

SH 2 B-3

SH 2 B-1 W

200-WL1 BK-18

NOTE E

(38) CONTROL GP

L-C7

2304009

3

RH FR FLOOD LAMP
234-4328
"12V 4.58A"

MONITOR

346-6335

ELEK GP 347-4186

1

BATTERY (+)

2

GROUND

3

EXT ALARM DRVR

4

GA BACKLT DIMMER

5

CAN TERM (-)

6

CAN TERM (+)

7

SUP MFG

8

KEY SWITCH

9

OPEN

10

CAN SHIELD

11

CAN BUS (-)

12

CAN BUS (+)

R

OFF

C

ON

S

ST

B

(C) RECEPTACLE AS

POWER SUPPLY

178-7539

200-WL2 BK-18

NOTE M

(35) ALARM
ACTION

232-1792

(C) SWITCH AS
KEYSTART

110-7887

A ASSEMBLE TERMINALS TO STUD

WIRE PAIRS TO BE TWISTED TOGETHER AT
LEAST ONE TURN PER 25 mm WIRES TO BE
TWISTED ARE:
450-YL AND 451-BR
892-BR AND 893-GN
944-OR AND 945-BR
F711-GN AND F712-GY
T901-YL AND T902-PK
Y794-OR AND Y795-GN

FOR MACHINES WITHOUT WORKTOOL SW 2,

E

INSERT WIRE AS. INTO SWITCH CONNECTOR
AT POSITIONS 2 AND 3

IF FR DOOR AUX HARN IS USED, REMOVE
CH-C18 AND CONNECT CH-C10 TO A-C3;

G

STRAP RECP AS. CH-C18 TO CH-C10 FOR
SERV RPR

FOR MACHINES WITHOUT BEACON SWITCH,

M

INSERT WIRE AS. INTO SWITCH CONNECTOR
AT POSITIONS 2 AND 3.

CONNECT TO AF-C1 WHEN C-C9
DOES NOT EXIST

COLOR ABBREVIATIONS

ABBREV

RD

WH

OR

YL

PK

BK

GY

PU

BR

GN

BU

2

2

COLOR

RED

WHITE

ORANGE

YELLOW

PINK

BLACK

GRAY

PURPLE

BROWN

GREEN

BLUE

308-L116 YL-18
200-L117 BK-18
F711-L46 GN-18
F712-L51 GY-18

(C) CONTROL GP

KEYSWITCH ON

GND

CAN DATA LINK +

CAN DATA LINK -

EXCITER COIL SIGNAL

EXCITER COIL RETURN

[N/C]

[N/C]

508-L68 PU-18
509-L17 WH-18

511-L69 BR-18
512-L71 GN-18

SW PWR (+)

RIGHT/LEFT DETECT

CAN HIGH

CAN LOW

PWR CONT

GROUND

(42) RECEIVER GP

LASER

342-9559

CONN 27

L-C20

1552272

MSS

310-5289

MSS EXCITER COIL

205-8257

BK
BK

TO PRM1
SWITCHED PWR STUD

TO GROUND

TO A4:M1
J2-64 (CAN B+)

TO A4:M1
J2-65 (CAN B-)

A

B

C

D

E

F

MC-C1
3E3376

1

2
3

4

MC-C2
1552264

1

2

3

4

5

6

7

8

MC-C3
1552269

1

2

308-MC4 YL-18
202-MC14 BK-18
F711-MC6 GN-18
F712-MC20 GY-18

308-MC4 YL-18
202-MC14 BK-18
F711-MC6 GN-18
F712-MC20 GY-18
T901-MC8 YL-18
T902-MC3 PK-18

MSS (ATCH)

SPEAKER LH
168-8772

SPEAKER RH
168-8772

CAB ACCESSORIES (ATCH)

C987-FV3 BU-16

C988-FV4 BK-16 C988-FV4 BK-16

L856-FV1 YL-18

L857-FV2 GN-18

ACCUGRADE/

RETROFIT

LASER RECEIVER COIL

248-1497

RD-20
BU-20
GN-20
WH-20
BR-20
BK-20

AF-C2
2302566

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

C987-AF1 RD-18

L856-AF2 YL-18
L857-AF3 GN-18

C988-AF4 BK-18

(42) 120 OHM RES

262-5541

ACCUGRADE

WIRE GROUP COLOR DESCRIPTIONS

THIS SCHEMATIC IS FOR THE 246C, 256C, 262C, 262C2, AND 272C SKID
STEER LOADER, AND 277C, 277C2, 287C, 287C2, AND 297C,
MULTI-TERRAIN LOADER, AND 279C, 279C2, 289C, 289C2, AND 299C
COMPACT TRACK LOADER ELECTRICAL SYSTEM
VOLUME 2 of 2: CAB

MEDIA NUMBER: UENR1753-04

PART NUMBER: 239-5275, CHANGE: 03, VERSION: -

Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.

Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.

FV-C1

1552272

C987-FV3 BU-16

L856-FV1 YL-18
L857-FV2 GN-18

1552267

L856-AF7 YL-18
L857-AF8 GN-18

C987-AF1 RD-18
C988-AF4 BK-18
L856-AF5 YL-18
L857-AF6 GN-18

AF-C3

1

NOTE W

2

3

CONNECT TO AF-C1 (LOC C-1)

4

WHEN C-C9 DOES NOT EXIST

(42) ACCUGRADE RES

134-2540

A

A

B

B

C

C

AF-C1

CONN 20

3E3376

1

2

CONN TO C-C9

3

CAB HARN

4

[LOC SH 2 D-9]

GROUND CIRCUIT

WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF

WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON

STARTING CIRCUIT

START AID CIRCUIT

TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT

HEATER AND AIR CONDITIONER CIRCUIT

TURN SIGNAL / WIPER WASHER CIRCUIT

CAT DATA LINK

CAN DATA LINK

RS-232 / RS-485 DATA LINK

OTHER COLOR DESCRIPTIONS

HIGHWAYS

J

I

H

G

F

E

D

C

B

A

91011121314

12345678

MACHINE COMPONENT AND CONNECTOR LOCATIONS - ENGINE

VIEW ALL CALLOUTS

32

24

2

8

5

14

32

3

31

9

17

14

11

16

24

24

7

16

6

4

1

20

30

19

33

7

2

11

8

3

9

29

17

33

30

5

4

6

31

21

1

19

20

7

MACHINE COMPONENT AND CONNECTOR LOCATIONS - CAB

VIEW ALL CALLOUTS

C

45

48

44

41

37

46

A

40

41

38

36

35

43

47

42

39

B

35

40

A

B

37

48

44

45

46

38

43

42

36

39

C

47

ENGINE COMPONENT LOCATIONS

VIEW ALL CALLOUTS

8

12

18

13

23

22

27

28

26

25

3

10

15

19

20
