Caterpillar 272D3 XE Datasheet

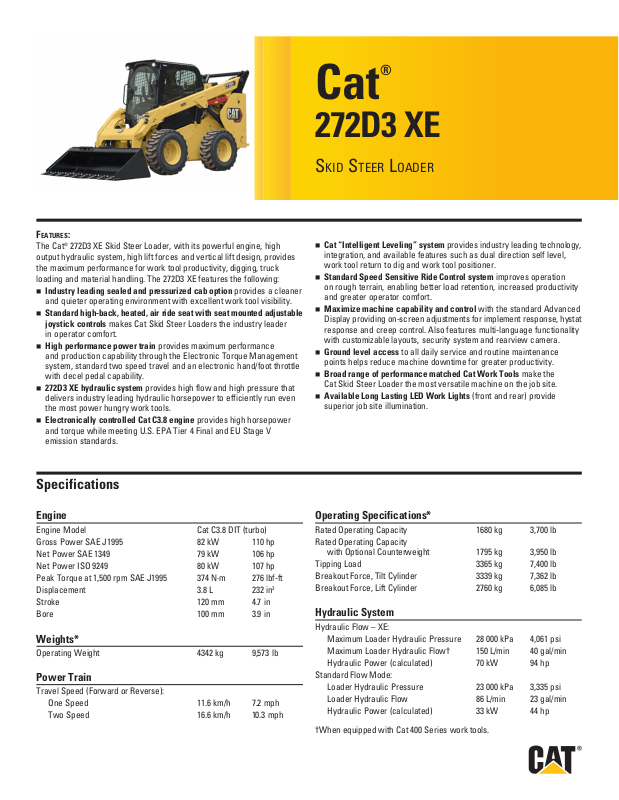

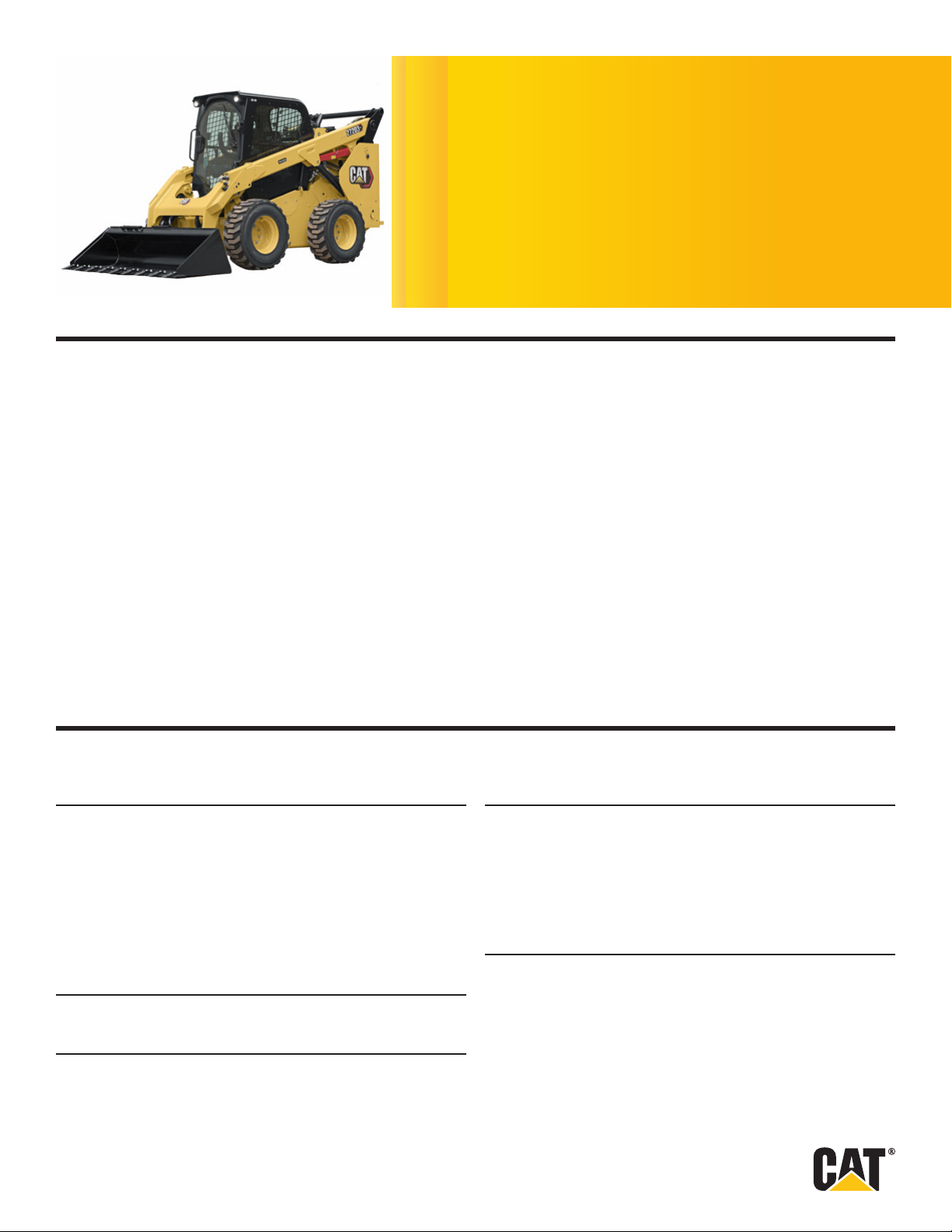

Page 1

Features:

The Cat® 272D3 XE Skid Steer Loader, with its powerful engine, high output hydraulic system, high lift forces and vertical lift design, provides the maximum performance for work tool productivity, digging, truck loading and material handling. The 272D3 XE features the following:

n Industry leading sealed and pressurized cab option provides a cleaner

and quieter operating environment with excellent work tool visibility.

n Standard high-back, heated, air ride seat with seat mounted adjustable

joystick controls makes Cat Skid Steer Loaders the industry leader inoperator comfort.

n High performance power train provides maximum performance

andproduction capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

n 272D3 XE hydraulic system provides high flow and high pressure that

delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools.

n Electronically controlled Cat C3.8 engine provides high horsepower

and torque while meeting U.S. EPA Tier 4 Final and EU Stage V emissionstandards.

Cat

272D3 XE

Skid Steer Loader

n Cat “Intelligent Leveling” system provides industry leading technology,

integration, and available features such as dual direction self level, work tool return to dig and work tool positioner.

n Standard Speed Sensitive Ride Control system improves operation

onrough terrain, enabling better load retention, increased productivity and greater operator comfort.

n Maximize machine capability and control with the standard Advanced

Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system andrearview camera.

n Ground level access to all daily service and routine maintenance

points helps reduce machine downtime for greater productivity.

n Broad range of performance matched Cat Work Tools make the

CatSkid Steer Loader the most versatile machine on the job site.

n Available Long Lasting LED Work Lights (front and rear) provide

superior job site illumination.

Specifications

Engine

Engine Model Cat C3.8 DIT (turbo) Gross Power SAE J1995 82 kW 110 hp Net Power SAE 1349 79 kW 106 hp Net Power ISO 9249 80 kW 107 hp Peak Torque at 1,500 rpm SAE J1995 374 N·m 276 lbf-ft Displacement 3.8 L 232 in Stroke 120 mm 4.7 in Bore 100 mm 3.9 in

Weights*

Operating Weight 4342 kg 9,573 lb

Power Train

Travel Speed (Forward or Reverse): One Speed 11.6 km/h 7.2 mph Two Speed 16.6 km/h 10.3 mph

Operating Specifications*

Rated Operating Capacity 1680 kg 3,700 lb Rated Operating Capacity

with Optional Counterweight 1795 kg 3,950 lb Tipping Load 3365 kg 7,400 lb Breakout Force, Tilt Cylinder 3339 kg 7,362 lb Breakout Force, Lift Cylinder 2760 kg 6,085 lb

Hydraulic System

Hydraulic Flow – XE: Maximum Loader Hydraulic Pressure 28 000 kPa 4,061 psi Maximum Loader Hydraulic Flow† 150 L/min 40 gal/min Hydraulic Power (calculated) 70 kW 94 hp Standard Flow Mode: Loader Hydraulic Pressure 23 000 kPa 3,335 psi Loader Hydraulic Flow 86 L/min 23 gal/min Hydraulic Power (calculated) 33 kW 44 hp

†When equipped with Cat 400 Series work tools.

Page 2

272D3 XE Skid Steer Loader

112

Dimensions*

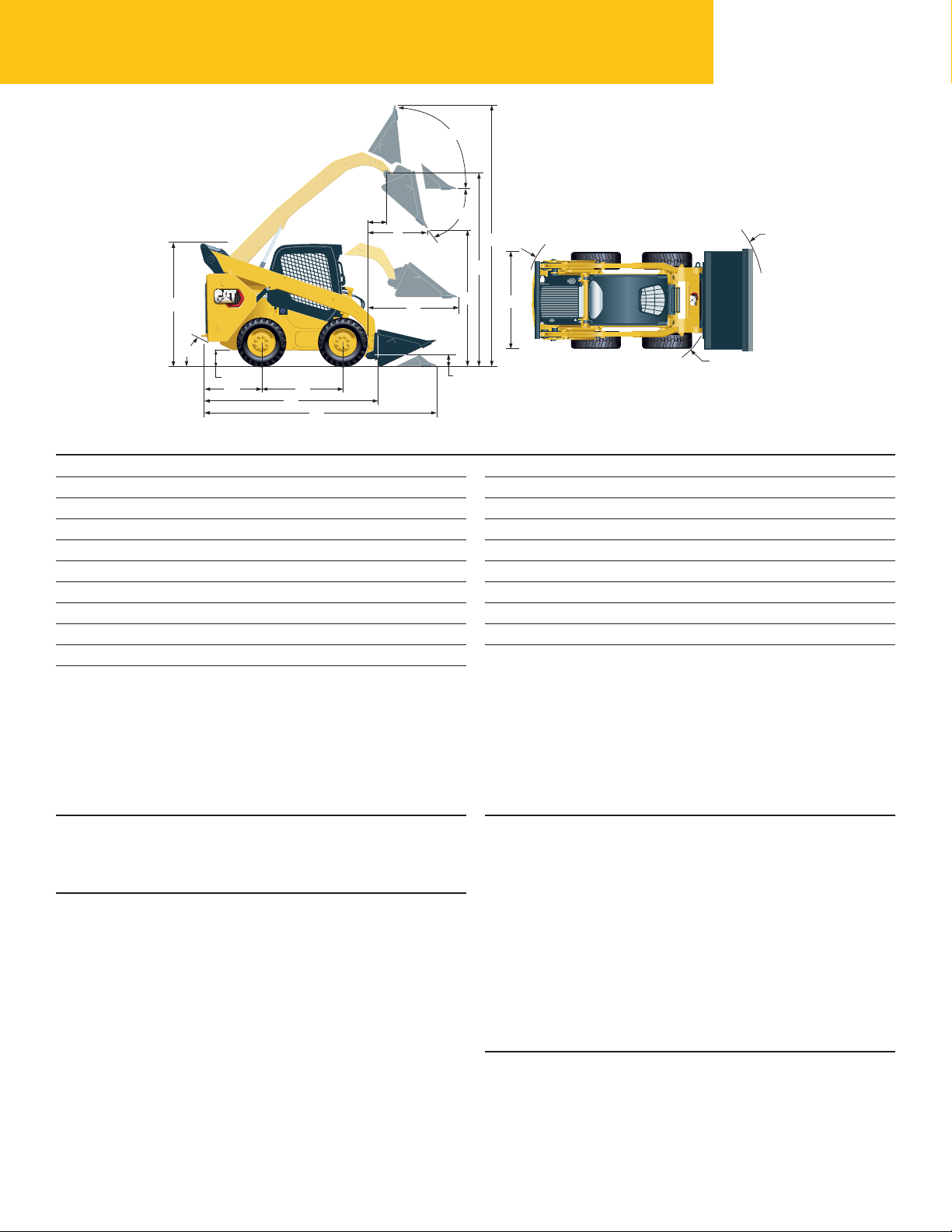

1 Wheelbase 1386 mm 54.6 in 2 Length without Bucket 3226 mm 127.0 in 3 Length with Bucket on Ground 3937 mm 155.0 in 4 Height to Top of Cab 2133 mm 84.0 in 5 Maximum Overall Height 4103 mm 161.5 in 6 Bucket Pin Height at Maximum Lift 3265 mm 128.6 in 7 Bucket Pin Height at Carry Position 235 mm 9.3 in 8 Reach at Maximum Lift and Dump 736 mm 29.0 in 9 Clearance at Maximum Lift and Dump 2474 mm 97.4 in 10 Ground Clearance 263 mm 10.4 in 11 Departure Angle 28°

12 Bumper Overhang behind Rear Axle 1175 mm 46.2 in 13 Maximum Dump Angle 51° 14 Vehicle Width over Tires 1930 mm 76.0 in 15 Turning Radius from Center – Machine Rear 1899 mm 74.7 in 16 Turning Radius from Center – Coupler 1466 mm 57.7 in 17 Turning Radius from Center – Bucket (racked) 2301 mm 90.6 in 18 Maximum Reach with Arms Parallel to Ground 1246 mm 49.1 in 19 Rack Back Angle at Maximum Height 84° 20 Bucket Pin Reach at Maximum Lift 344 mm 13.5 in 21 Roll Back Angle 28°

* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab

withglass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires andmanual quick coupler (unless otherwise noted).

Cab

ROPS ISO 3471:2008 FOPS ISO 3449:2005 Level I

Service Refill Capacities

Chain Box, each side 10.2 L 2.7 gal Cooling System 16 L 4.1 gal Diesel Exhaust Fluid (DEF) Tank 19 L 5 gal Engine Crankcase 13 L 3.5 gal Fuel Tank 120 L 31.7 gal Hydraulic System 55 L 14.5 gal Hydraulic Tank 39 L 10.3 gal

Noise Level

Inside Cab** 83 dB(A) Outside Cab*** 104 dB(A)

• Cab and Rollover Protective Structures (ROPS) are standard in NorthAmerica and Europe.

*** The declared dynamic operator sound pressure levels per ISO 6396:2008.

The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

*** The labeled sound power level for the CE marked configurations when

measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System (if equipped)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). Thesystem contains 0.81 kg of refrigerant which has a CO of1.158 metric tonnes.

equivalent

Page 3

MANDATORY EQUIPMENT

n Quick Coupler, Mechanical or Powered n High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)

PERFORMANCE PACKAGE

n Performance Package H3: XE Hydraulics, Dual Direction Electronic

Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)

STANDARD EQUIPMENT

ELECTRICAL

n 12 volt Electrical System n 100 ampere Alternator n Ignition Key Start/Stop Switch n Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen

Working Lights, Two Adjustable Front Halogen Lights, Dome Light

n Backup Alarm n Heavy Duty Battery, 1,000 CCA, with Battery Disconnect

OPERATOR ENVIRONMENT

n Gauges: Fuel Level, DEF Level, Hour Meter n Operator Warning System Indicators: Air Filter Restriction, Alternator

Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System

n High Back Cloth Seat with Air Suspension, Heated with Recline

andLumbar Support and Fully Adjustable Seat Mounted Controls

n Fold In Ergonomic Contoured Armrest n Control Interlock System, when operator leaves seat or armrest raised:

Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages

n ROPS Cab, Enclosed, Tilt Up n FOPS, Level I n Top, Rear and Side Windows n Headliner, Deluxe n Floor Mat n Interior Rearview Mirror n 12 volt Electric Socket n Horn n Hand (Dial) and Foot Throttle, Electronic with Decel Feature n Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD

Screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Drive Response, and Creep Control

n Storage Compartment with Netting

272D3 XE Skid Steer Loader

COMFORT PACKAGE

n Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and

Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (HighBack and Heated) and Door (Glass or Polycarbonate)

POWER TRAIN

n Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V

EmissionStandards

n Air Cleaner, Dual Element, Radial Seal

n S·O·S n Filters, Cartridge-type, Hydraulic n Filters, Canister-type, Fuel and Water Separator n Radiator/Hydraulic Oil Cooler (side-by-side) n Spring Applied, Hydraulically Released Parking Brakes n Hydrostatic Transmission, Two Speed with Speed Sensitive Ride Control n Four Wheel Chain Drive, 14 × 17.5 Tires

OTHER

n Engine Enclosure, Lockable n Extended Life Antifreeze, –37° C (–34° F) n Machine Tie Down Points (6) n Support, Lift Arm n Hydraulic Oil Level Sight Gauge n Radiator Coolant Level Sight Gauge n Radiator, Expansion Bottle n Cat ToughGuard™ Hose n Auxiliary, Hydraulics, Continuous Flow n Heavy Duty, Flat Faced Quick Disconnects with

n Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm n Electrical Outlet, Beacon n Belly Pan Cleanout n Variable Speed Demand Fan n Product Link™ PL240, Cellular

Sampling Valve, Hydraulic Oil

Integrated Pressure Release

OPTIONAL ATTACHMENTS

n Beacon, Rotating n Engine Block Heater – 120V n Oil, Hydraulic, Cold Operation n Paint, Custom n Variable Speed Demand Fan with Reversing Functionality

n External Counterweights n Product Link PL641, Cellular n Bluetooth

Radio with Microphone (AM/FM/Weather Band Receiver

with USB and Auxiliary Input Jack)

Page 4

272D3 XE Skid Steer Loader

For more complete information on Cat products, dealer services, andindustry solutions, visit us on the web atwww.cat.com

Materials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “PowerEdge” and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, aretrademarks ofCaterpillar and may not be used without permission.

AEHQ8212-02 (01-2021)

Replaces AEHQ8212-01

(Am North, EU, APD, ANZP)
