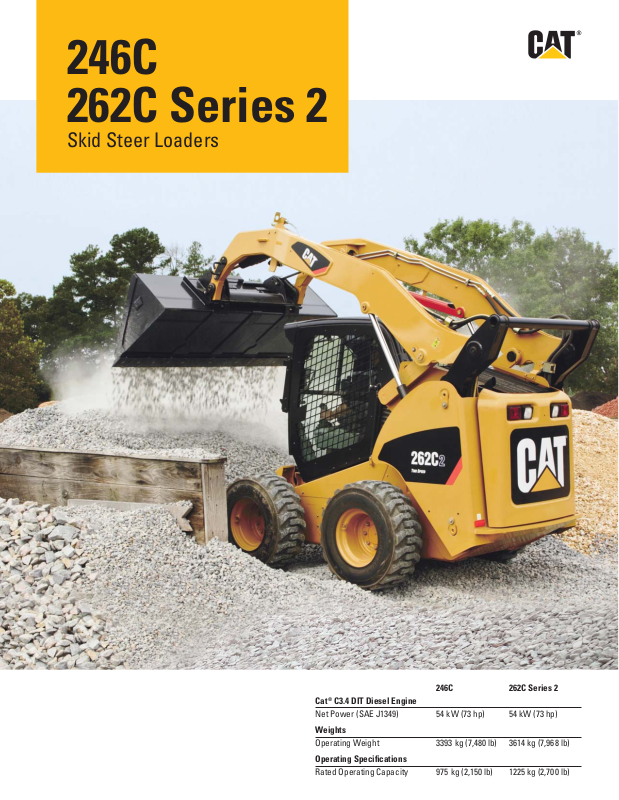

Page 1
246C
262C Series 2
Skid Steer Loaders
®
C3.4 DIT Diesel Engine
Cat
Net Power (SAE J1349) 54 kW (73 hp)
Weights
Operating Weight 3393 kg (7,480 lb) 3614 kg (7,968 lb)
Operating Specifications
Rated Operating Capacity 975 kg (2,150 lb) 1225 kg (2,700 lb)
246C
262C Series 2
54 kW (73 hp)
Page 2
Features
Sealed and Pressurized Cab
Sealed and pressurized cab option provides
a cleaner and quieter operating environment.
Seat Mounted Adjustable Controls
Ergonomic seat mounted adjustable controls
and available air ride seat can be adjusted
to meet your personal preference.
High Performance Power Train
Increased horsepower and higher torque
deliver outstanding performance.
High Flow XPS Hydraulic System
High fl ow XPS hydraulic system available
on all models for applications demanding
maximum hydraulic work tool performance.
More Work Tools
The broad range of performance matched
Cat Work Tools make the Cat Skid Steer
Loader the most versatile machine on
the job site.
Contents
Operator Station . . . . . . . . . . . . . . . . . . . . .3
Power Train . . . . . . . . . . . . . . . . . . . . . . . . .4
Lift Linkages. . . . . . . . . . . . . . . . . . . . . . . . .4
Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . .5
Work Tools . . . . . . . . . . . . . . . . . . . . . . . . . .6
Serviceability. . . . . . . . . . . . . . . . . . . . . . . .7
Customer Support. . . . . . . . . . . . . . . . . . . .7
Specifications . . . . . . . . . . . . . . . . . . . . . . . 8
Standard and Optional Equipment . . . . .11
Cat® Skid Steer Loaders lead the industry in operator
comfort, performance and versatility. Inside the spacious
operator station, feel the superior comfort of a sealed and
pressurized cab. Adjustable seat mounted controls and an
available air ride seat keep you comfortable throughout
the work day. Increased rated operating capacities,
higher horsepower and improved drawbar performance
help you get more done and increase your bottom line.
Page 3

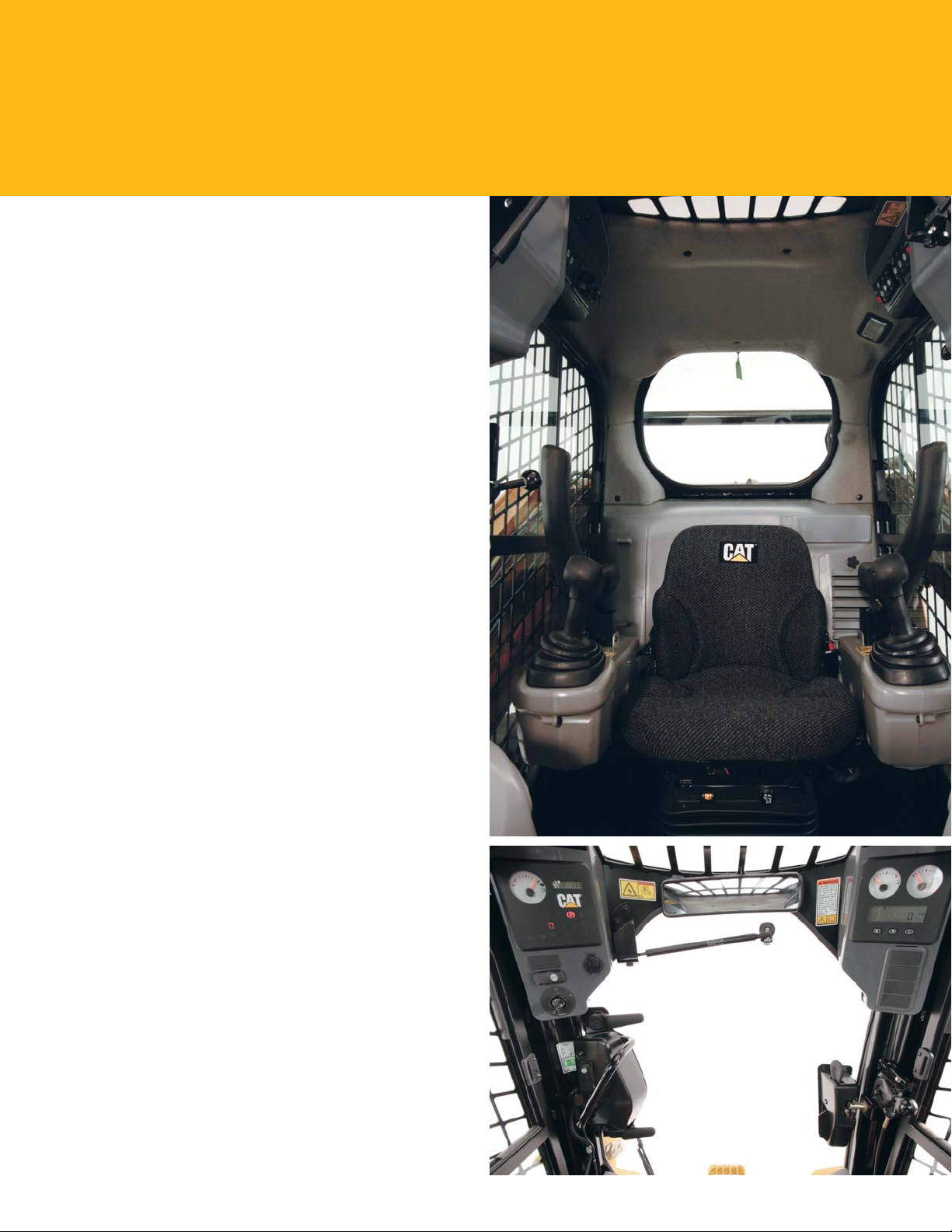

Operator Station
Superior comfort to keep you productive throughout the work day.
Superior Comfort
Comfort and ease of operation have been designed into every
aspect of the operator station. The wide, spacious interior and
uncluttered floor provide a comfortable work environment with
excellent head, shoulder and leg room to keep productivity high
and help reduce fatigue.
Sealed and Pressurized Cab
Operators spend long hours in the machine. The optional sealed
and pressurized cab keeps dust out and clean air in for greater
operator comfort. Reduced sound levels within the cab also
help reduce fatigue.
Seat Mounted Joystick Controls
Ergonomic, seat mounted joystick controls enable a wide range
of comfortable operating positions for operators of any size.
The seat and controls are independently adjustable to meet
the specific needs of the operator.
Advanced Machine Information and Control System
The optional Advanced Machine Information and Control System
(AMICS) provides easy to read analog gauges for hydraulic oil
and engine coolant temperature. The electronic display provides
additional operating information such as engine speed, job clock
and diagnostic service codes. This display also provides the user
interface for the optional AccuGrade™ Grade Control System.
The Selectable Work Speed Control, Selectable Implement
Control and Selectable Hystat Response Control modes allow
the operator to “dial in” his machine to maximize production.
Additional Features for Maximum Comfort
• Air ride seat available for an unparalleled level of comfort
in a skid steer loader.
• Easy to read instrument panels.
• Optional air conditioner and heater for greater comfort
in extreme conditions.
• Optional Selectable Pattern Control which allows the operator
to select the control pattern they are most familiar with for
greater productivity.
3
Page 4
Power Train
Aggressive performance with fuel efficiency.
Cat Engine
The high performance power train provides high engine horsepower and torque.
The machines feature the Cat C3.4 DIT engine – a rugged, reliable engine that
meets U.S. EPA Tier 4 Interim/EU Stage IIIA emission requirements.
Hand and Foot Throttles
Hand and foot throttles allow the operator to match engine speed to the task.
The hand throttle is ideal for jobs requiring constant engine speed such as cold
planing, trenching or snow blowing. The foot throttle lets the operator vary engine
speed and minimize fuel consumption for other tasks such as load and carry, truck
loading, grading and dozing.
Electronic Torque Management
The Electronic Torque Management system maximizes power to the ground
and prevents the engine from stalling in tough digging and dozing applications for
maximum productivity. The system allows part throttle operation which provides
smoother machine operation and reduces fuel consumption.
Lift Linkages
Built for tough working
Selectable Work Speed Control
The optional Selectable Work Speed Control lets you select the ground speed
that is best suited for the application. This feature is useful in operations such as
trenching and cold planing that require precise machine control at relatively slow
and constant speeds.
Selectable Hystat Response Control
The optional Selectable Hystat Response Control lets the operator select one of
three modes to match the machine’s drive response to the operator’s preference,
skill level and application requirements.
conditions.

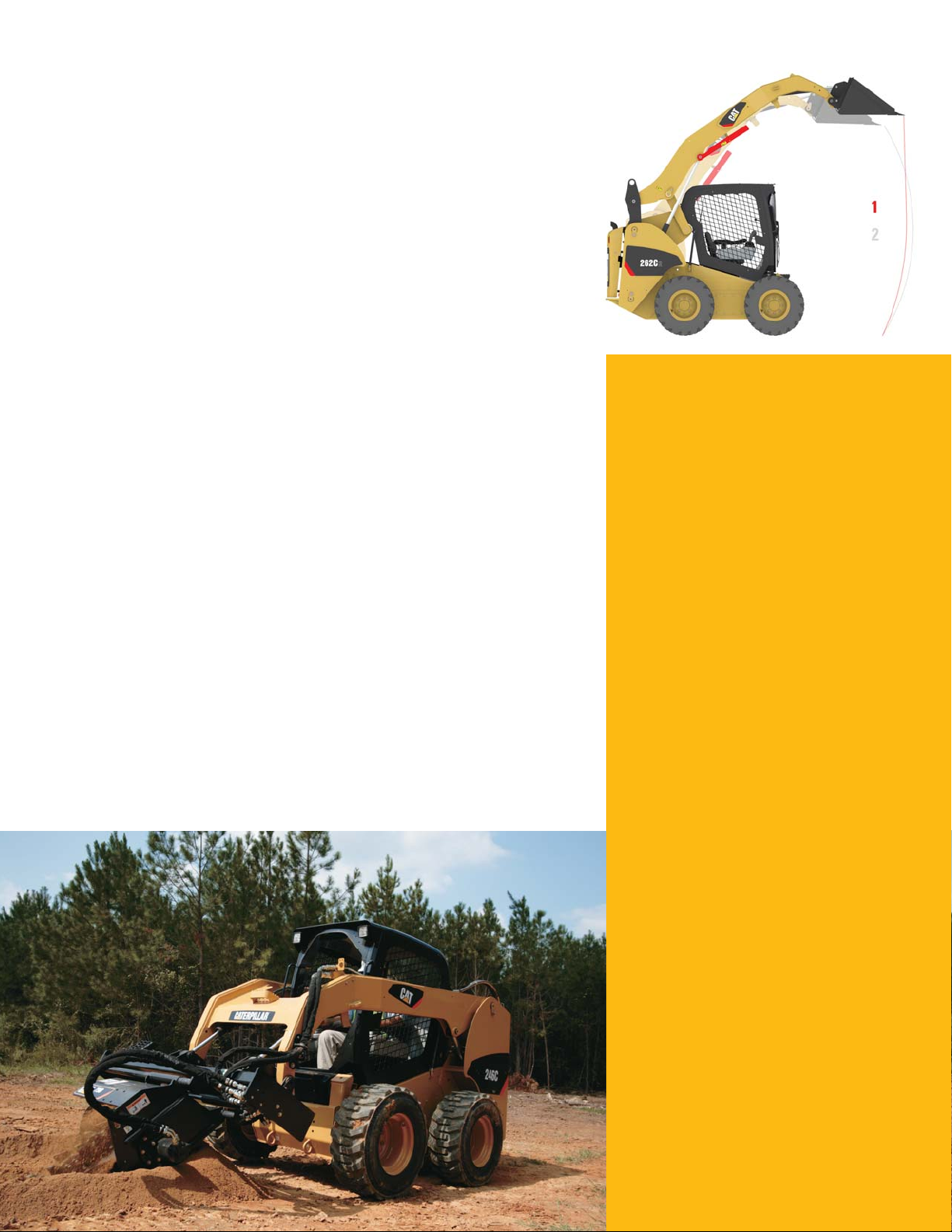

Choice of Lift Designs
Two types of lifting arrangements are
available – vertical lift (path #1 above)
and radial lift (path #2) – to meet your
specific application needs.
Vertical Lift
The 262C Series 2 features the vertical
lift design which provides extended reach
and lift height for quick and easy truck
loading and material placement. The lift
height is 3233 mm (127 in) on the
262C Series 2.
Radial Lift

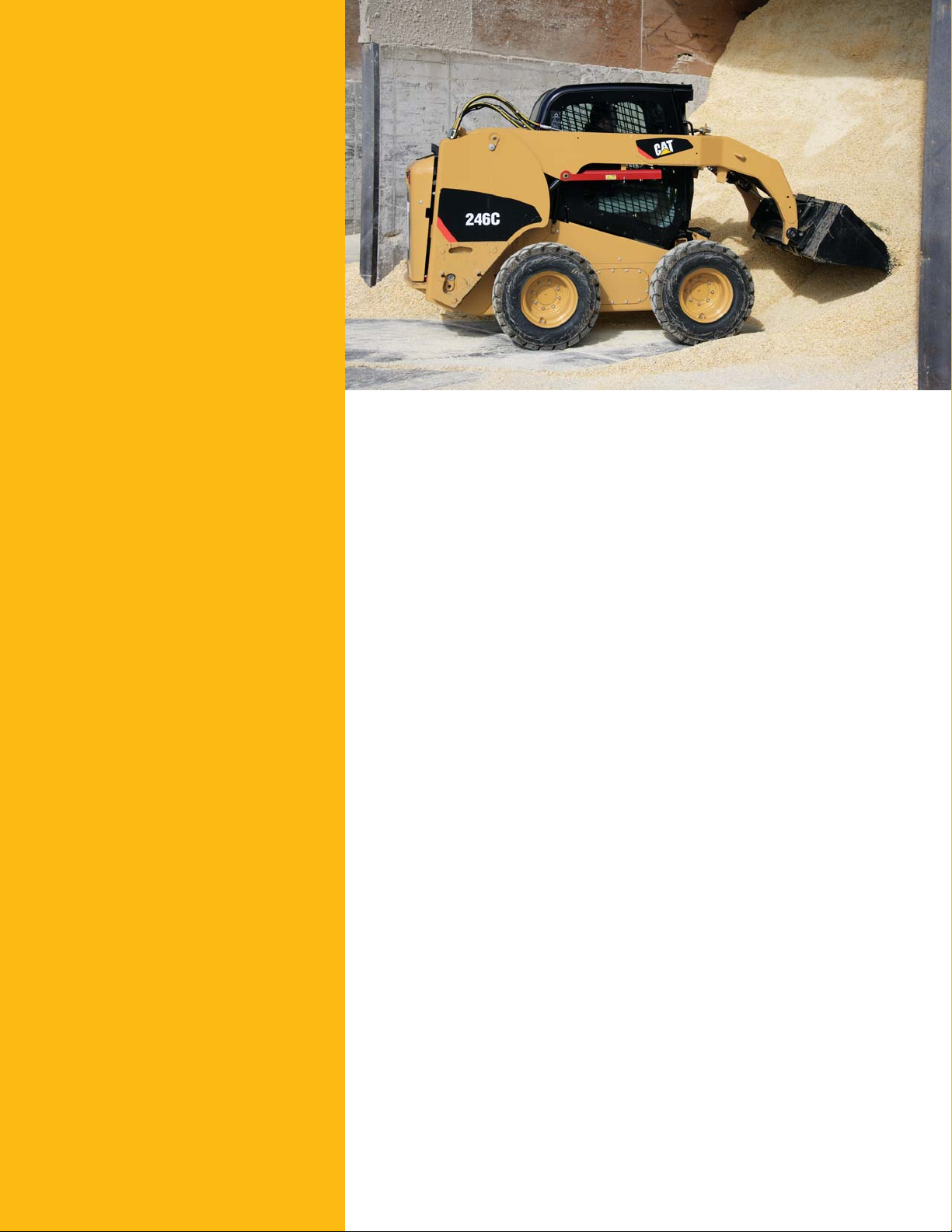

The 246C, with its radial lift design,
delivers excellent digging performance
and superior mid-lift reach.
Page 5
Hydraulics
Exceptional lift, breakout and power to meet your needs.
High Performance Hydraulic System
Maximum power and reliability are built into the Cat Skid Steer
Loader hydraulic system. In addition to providing power to the
wheels, this system also powers the loader lift and tilt functions,
powers the auxiliary circuit to drive work tools and drives the
engine cooling fan. The hydraulic system features:
• Increased lift and tilt breakout forces allowing you to move
more material and get more done.
• Continuous demand fan for improved fuel efficiency, increased
horsepower, reduced sound levels and improved cold weather
performance.
• Cat ToughGuard™ hoses for increased reliability and durability.
• High capacity hydraulic tank and side-by-side cooling package
keep components cool for maximum durability.
High Flow XPS
High flow XPS hydraulic system is
available on all models for greater machine
versatility. Maximum performance can
be maintained regardless of the work tool
speed or conditions with this load sensing,
pressure compensating system. Cat cooling
systems are sized to allow the operator to
continuously power high flow work tools
in conditions that cause competitive
machines to overheat.
Two Speed Option
Two speed is available as an option to increase cycle times
and get the job done faster.
Selectable Implement Control
The Selectable Implement Control
option with three levels of control
gives the operator the ability to adjust
the responsiveness and speed of the lift
and tilt functions for more precise
implement control.
Speed Sensitive Ride Control
The optional Speed Sensitive Ride
Control system delivers a smoother ride
on uneven terrain for superior comfort.
It allows for both higher speed operation
and better material retention for increased
productivity. The system automatically
turns off when digging or placing a load
for maximum performance and control.
5
Page 6

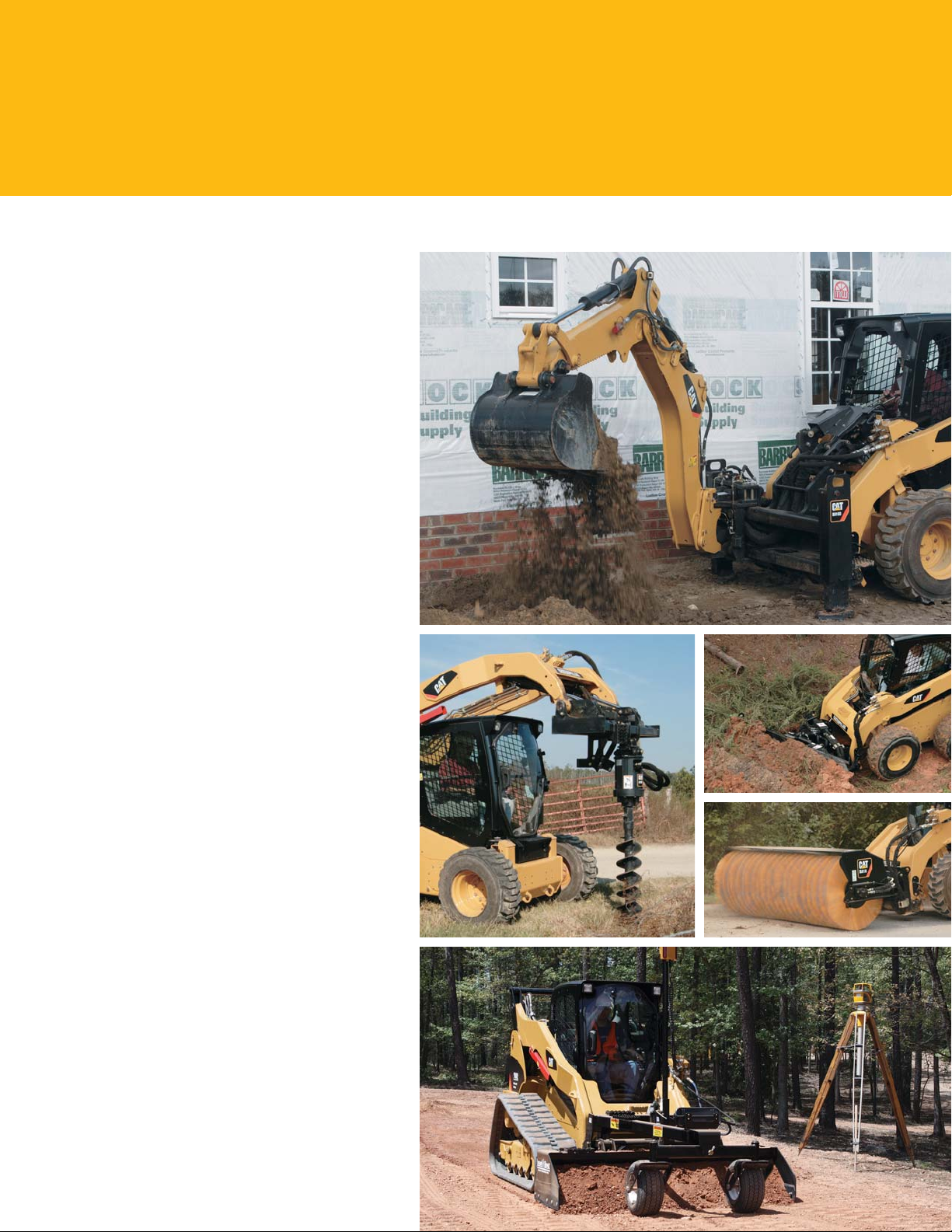

Work Tools
Do more jobs with one machine using Cat® Work Tools.
The Right Tool for the Job
Designed and built for optimum performance and
durability, Cat Work Tools deliver high productivity
in a variety of applications to maximize versatility:
• Augers
• Backhoes
• Blades (angle, dozer)
• Buckets (general purpose, high capacity, dirt,
utility, light material, multi purpose, industrial
grapple, utility grapple)
• Brooms (angle, pickup, utility)
• Brushcutters
• Cold Planers
• Forks (pallet, industrial grapple, utility
grapple, utility)
• Hydraulic Hammers
• Landscape Tillers
• Landscape Rakes
• Material Handling Arm
• Mulchers
• Power Box Rakes
• Shear
• Snow Blowers
• Stump Grinders
• Trenchers
• Vibratory Compactors
• Wheel Saws
Quick Couplers
Work tools can be changed quickly and easily
with the Cat Skid Steer Loader’s quick coupler
system. The standard quick coupler features manual
engagement and disengagement of work tools using
two high leverage handles. The optional hydraulic
quick coupler allows the operator to quickly change
tools without leaving the cab.
AccuGrade™ Grade Control System for Skid
Steer, Multi Terrain and Compact Track Loaders
Common to AccuGrade systems for Track-Type
Tractors and Motor Graders, this deeply integrated
solution automates the machine’s electrohydraulic
controls to achieve a consistent grade across the
work site, improve accuracy and increase productivity,
ultimately lowering operating and material costs.
6
Page 7

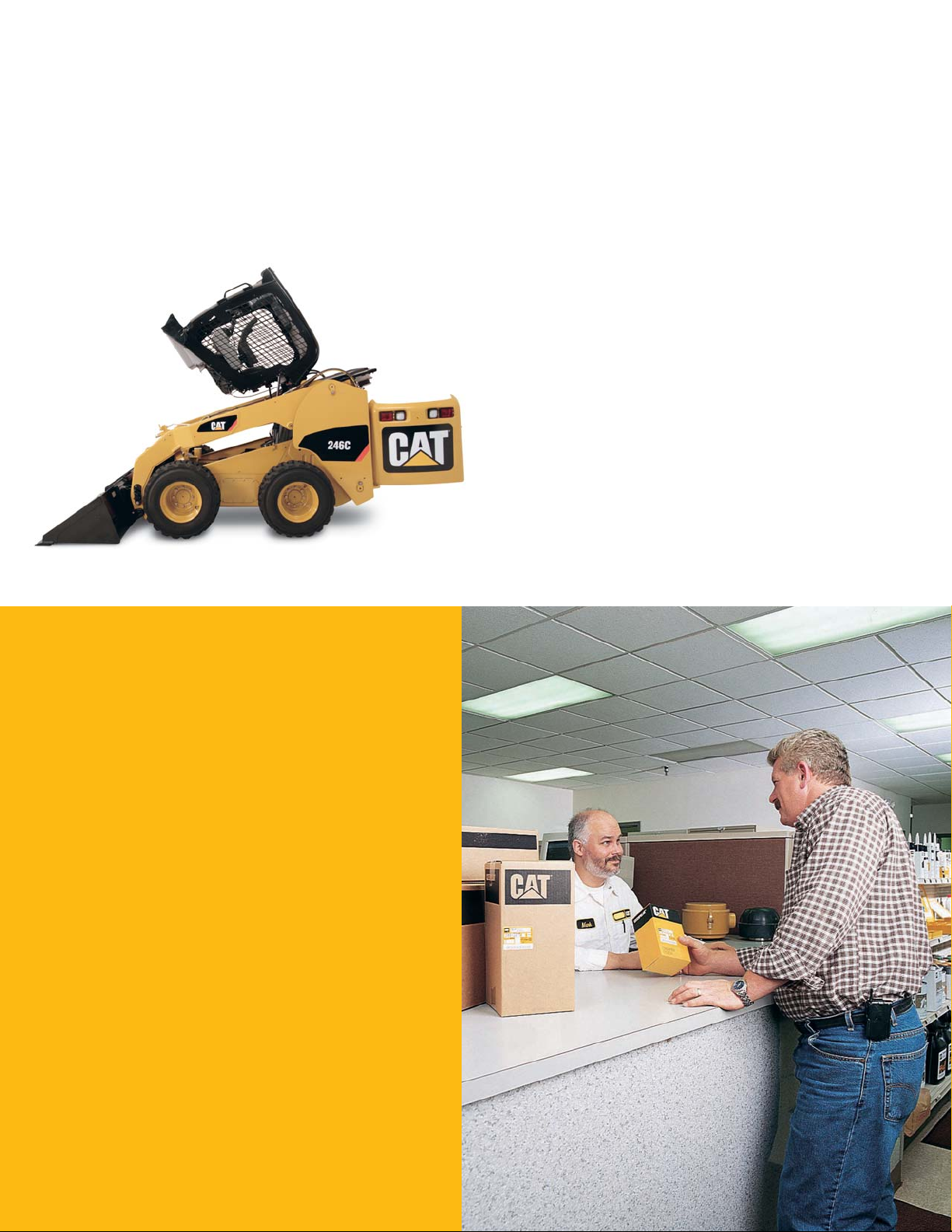

Serviceability
Simplified service and maintenance save you time and money.
Easy Service
Convenient service features make maintenance easy, reducing
your downtime:
• Rear door opens 90 degrees for easy access to both sides
of the engine.
• Cooling package tilts up to provide excellent access to the
engine compartment.
• Cab tilts rearward for easy access to all hydraulic pumps,
motors, valves, lines and hydraulic tank.
• Daily maintenance points are easily accessible.
• Wires are color coded and numbered for easy identification.
• S•O•SSM oil sampling valves are standard to allow regular
monitoring of the engine and hydraulic oil quality.
Customer Support
Unmatched support makes
the difference.
Superior Dealer Service
Your Cat dealer is ready to assist you with your purchase
decision and everything after.
• Make detailed comparisons of the machines you are
considering before you buy – with estimates of component
life, preventative maintenance and the true cost of production.
• Customize the machine that is right for you using the
Build and Quote application on your dealer’s website
or www.cat.com.
• Financing packages are flexible to meet your needs.
• Repair option programs guarantee the cost of repairs
up front.
• Nearly all parts are available at the dealer parts counter.
• Operator training can improve your operator’s techniques
and boost your profits.
• Your Cat dealer can evaluate the cost involved in repairing,
rebuilding and replacing your machine so you can make
the right choice.
Page 8

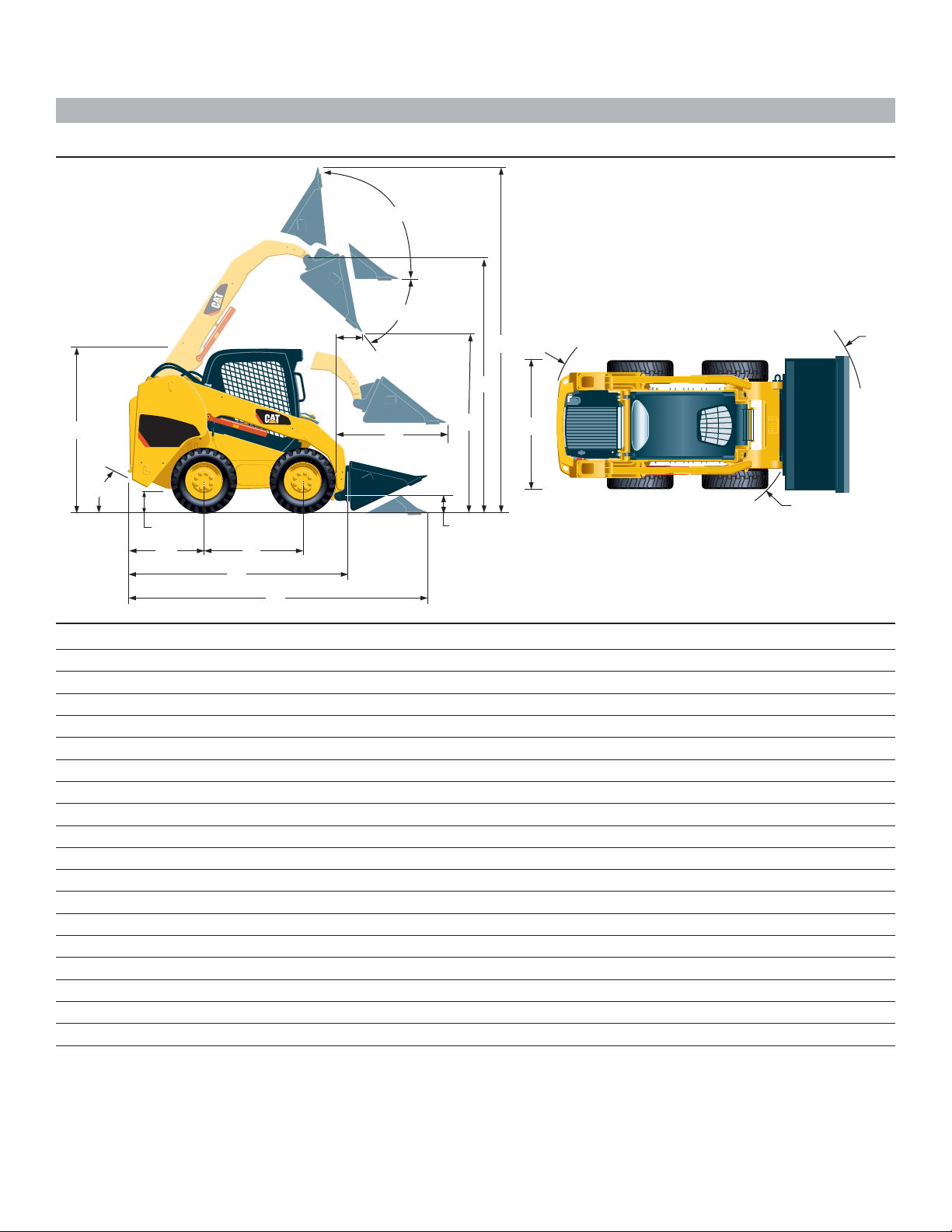

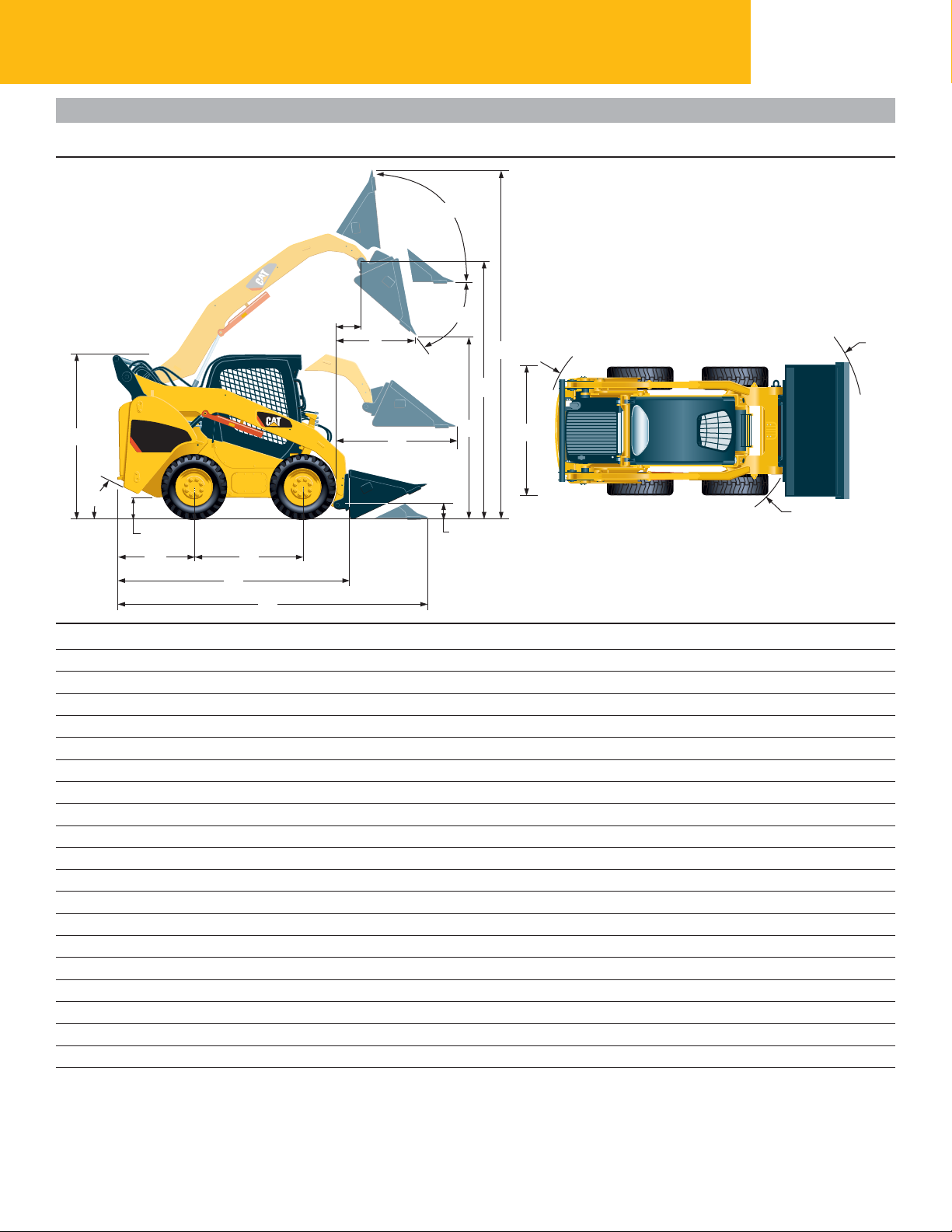

246C and 262C Series 2 Skid Steer Loaders Specifications
Engine Operating Specifi cations Cab
Engine Model Cat C3.4 DIT Rated Operating Capacity ROPS SAE J1040 MAY94,
Net Power (SAE J1349) 246C 975 kg 2,150 lb
246C 54 kW 73 hp
262C Series 2 54 kW 73 hp
Gross Power (SAE J1995)
246C 55 kW 74 hp
262C Series 2 55 kW 74 hp
Displacement 3.3 L 201 in
Stroke 120 mm 4.7 in
Bore 94 mm 3.7 in
Weights
Operating Weight
246C 3393 kg 7,480 lb
262C Series 2 3614 kg 7,968 lb
ISO 3471:1994
262C Series 2 1225 kg 2,700 lb
Rated Operating Capacity
with Optional Counterweight
246C only – Internal
Counterweight
3
increases ROC by
246C only – External
Counterweight
increases ROC by
262C Series 2 1336 kg 2,945 lb
Tipping Load
246C 1950 kg 4,300 lb
262C Series 2 2449 kg 5,400 lb
Breakout Force, Tilt Cylinder
246C 3324 kg 7,328 lb
262C Series 2 3318 kg 7,315 lb
Hydraulic System
Hydraulic Flow Standard
Loader Hydraulic
Pressure
Loader Hydraulic 84 L/min 22 gal/
Flow min
Hydraulic Power 31.9 kW 42.8 hp
Hydraulic Flow High Flow XPS
Max. Loader 28 000 kPa 4,061 psi
Hydraulic Pressure
Max. Loader 125 L/min 33 gal/
Hydraulic Flow min
91 kg 200 lb
91 kg 200 lb
23 000 kPa 3,335 psi
FOPS SAE J1043 SEPT87,
ISO 3449:1992
Level I
FOPS Level II SAE J231 JAN81,
ISO 3449:1992
Level II
Power Train
Travel Speed
(Forward or Reverse)
Travel Speed –
2-Speed Option
(Forward or Reverse)
12.5 km/h 7.7 mph
19.3 km/h 12.0 mph
Service Refi ll Capacities
Chain box, each side 10 L 2.6 gal
Cooling System 14 L 3.7 gal
Engine Crankcase 10 L 2.6 gal
Fuel Tank 98 L 26 gal
Hydraulic System
Hydraulic Tank
57 L
42 L
15 gal
11 gal
8
Page 9
Dimensions
19
13
5
8
15
17
6
4
18
9
14
11
10
7
12 1
2
3
246C
Wheelbase 1240 mm 48.8 in
1
Length w/o Bucket 2979 mm 117.2 in
2
Length w/Bucket on Ground 3692 mm 145.3 in
3
Height to Top of Cab 2104 mm 82.8 in
4
Max. Overall Height 3998 mm 157.4 in
5
Bucket Pin Height at Max. Lift 3122 mm 122.9 in
6
Bucket Pin Height at Carry Position 200 mm 7.8 in
7
Reach at Max. Lift and Dump 600 mm 23.6 in
8
Clearance at Max. Lift and Dump 2425 mm 95.4 in
9
Ground Clearance 225 mm 8.8 in
10
Departure Angle 26°
11
Bumper Overhang Behind Rear Axle 1089 mm 42.8 in
12
Maximum Dump Angle 40°
13
Vehicle Width over Tires 1676 mm 66.0 in
14
Turning Radius from Center – Machine Rear 1730 mm 68.1 in
15
Turning Radius from Center – Coupler 1386 mm 54.6 in
16
Turning Radius from Center – Bucket 2167 mm 85.3 in
17
Max. Reach w/Arms Parallel to Ground 1388 mm 54.6 in
18
Rack Back Angle at Max. Height 85°
19
16
9
Page 10
246C and 262C Series 2 Skid Steer Loaders Specifications
Dimensions
19
20
8
13
5
15
6
4
18
9
14
11
10
7
12 1
2
3
262C Series 2
Wheelbase 1240 mm 48.8 in
1
Length w/o Bucket 2979 mm 117.3 in
2
Length w/Bucket on Ground 3692 mm 145.4 in
3
Height to Top of Cab 2104 mm 82.8 in
4
Max. Overall Height 4075 mm 160.4 in
5
Bucket Pin Height at Max. Lift 3233 mm 127.3 in
6
Bucket Pin Height at Carry Position 200 mm 7.8 in
7
Reach at Max. Lift and Dump 781 mm 30.7 in
8
Clearance at Max. Lift and Dump 2450 mm 96.4 in
9
Ground Clearance 225 mm 8.8 in
10
Departure Angle 26°
11
Bumper Overhang Behind Rear Axle 1089 mm 42.8 in
12
Maximum Dump Angle 50°
13
Vehicle Width over Tires 1676 mm 66.0 in
14
Turning Radius from Center – Machine Rear 1730 mm 68.1 in
15
Turning Radius from Center – Coupler 1386 mm 54.6 in
16
Turning Radius from Center – Bucket 2167 mm 85.3 in
17
Max. Reach w/Arms Parallel to Ground 1283 mm 50.5 in
18
Rack Back Angle at Max. Height 85°
19
Bucket Pin Reach at Max. Lift 373 mm 14.7 in
20
17
16
10
Page 11
246C and 262C Series 2 Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
12 volt Electrical System
90 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge backlighting, two rear tail
lights, two rear halogen working lights, two
adjustable front halogen lights, dome light
Backup Alarm
Heavy Duty Battery, 880 CCA
OPERATOR ENVIRONMENT
Gauges: Fuel level, hour meter
Operator Warning System Indicators:
Air filter restriction, alternator output,
armrest raised/operator out of seat, engine
coolant temperature, engine oil pressure,
glow plug activation, hydraulic filter
restriction, hydraulic oil temperature,
parking brake engaged
Vinyl seat, mechanical suspension
Fold-in Ergonomic Contoured Armrest
Control Interlock System, when operator
leaves seat or armrest raised: Hydraulic
system disables, hydrostatic transmission
disables, parking brake engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Headliner, Deluxe
Floor Mat
Interior Rear View Mirror
12 volt Electric Socket
Horn
POWER TRAIN
Cat C3.4 DIT Diesel Engine (meets U.S.
EPA Tier 4 Interim/EU Stage IIIA emission
standards)
Air Cleaner, Dual Element, Radial Seal
SM
S•O•S
Sampling Valve, Hydraulic Oil
Filters, Spin-on, Hydraulic
Filters, Bayonet-type, Fuel and Water
Separator
Tilt Up Radiator/Hydraulic Oil Cooler
Spring Applied, Hydraulically Released,
Parking Brake
Hydrostatic Transmission
Four Wheel Chain Drive
OTHER
Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (4)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects
Split D-Ring to Route Work Tool Hoses
Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
MANDATORY EQUIPMENT
Hydraulics, Standard or High Flow XPS
Quick Coupler, Mechanical or Hydraulic
Seat Belt, 50 mm (2 in) or 75 mm (3 in)
Comfort Package
(must select one of the following):
• Open ROPS (C1): Suspension Seat
(no heater or door)
• Enclosed ROPS with Heat (C2):
Cup Holder, Radio Ready, Seat
(choice of Suspension or Air Ride),
Heater and Defroster, Side Windows,
Door (either Glass or Polycarbonate)
• Enclosed ROPS with A/C (C3): Features
of C2 Package plus Air Conditioner
Performance Package
(must select one of the following):
• Performance Package 1: One Speed
• Performance Package 2: One Speed,
Self Level
• Performance Package 3: Two Speed,
Self Level
• Performance Package 4: Two Speed, Self
Level, Ride Control, Advanced Machine
Information and Control System (AMICS)
246C and 262C Series 2 Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details.
Counterweight
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
AM/FM/Weather Band Radio with CD Player
and Auxiliary Input Jack
11
Page 12
246C and 262C Series 2 Skid Steer Loaders
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2012 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
AEHQ6577 (05-2012)
Replaces AEHQ5968-01
Loading...
