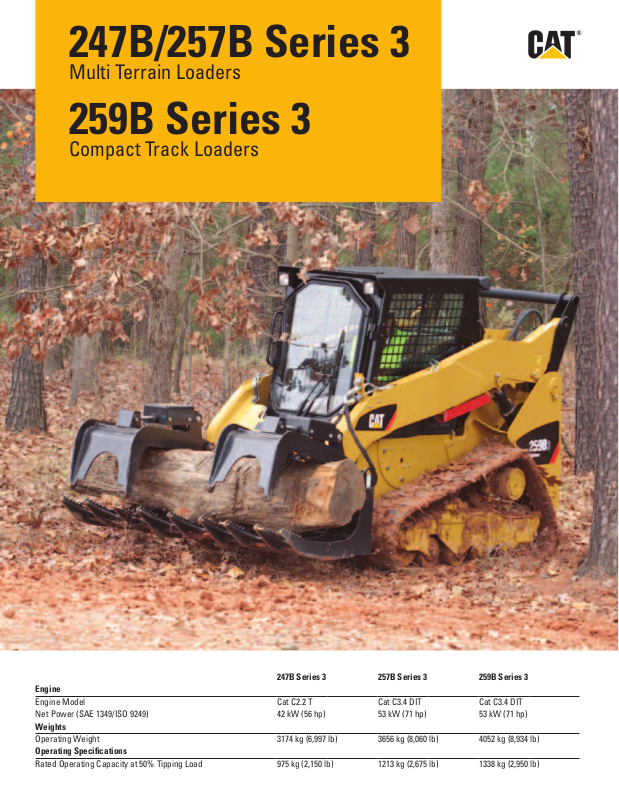

Page 1
247B/257B Series 3
Multi Terrain Loaders
259B Series 3
Compact Track Loaders
247B Series 3 257B Series 3 259B Series 3
Engine
Engine Model Cat C2.2 T Cat C3.4 DIT Cat C3.4 DIT
Net Power (SAE 1349/ISO 9249) 42 kW (56 hp) 53 kW (71 hp) 53 kW (71 hp)
Weights
Operating Weight 3174 kg (6,997 lb) 3656 kg (8,060 lb) 4052 kg (8,934 lb)
Operating Specifications
Rated Operating Capacity at 50% Tipping Load 975 kg (2,150 lb) 1213 kg (2,675 lb) 1338 kg (2,950 lb)
Page 2
Features
Comfortable Operator Station
Spacious, comfortable cab and ergonomic, low
effort joystick controls reduce operator fatigue.
Suspended Undercarriage
Suspended undercarriages on the Cat Compact
Track Loaders and Multi Terrain Loaders absorb
shocks and vibrations from uneven terrain while
allowing higher operating speeds, better material
retention and increased operator comfort.
High Performance Power Train
High horsepower and torque deliver outstanding
performance.
Advanced Hydraulic System
Hydraulic system provides maximum power and
reliability for demanding applications.
More Work Tools
Caterpillar’s broad range of performance matched
work tools make the Cat Compact Track Loader
and Multi Terrain Loader the most versatile
machines on the jobsite.
Contents
Operator Station ..................................................3
Undercarriage .....................................................4
Power Train ..........................................................5
Lift Linkages .........................................................5
Hydraulics ............................................................6
Work Tools ............................................................7
Serviceability .......................................................8
Customer Support ...............................................8
Specifications ......................................................9
Standard Equipment .........................................14
Optional Equipment...........................................15
2
The Cat B-Series 3 Compact Track Loaders and
MultiTerrain Loaders feature suspended undercarriages
for lower ground pressures and superior traction.
Spacious, ergonomic operator station and easy-to-use
pilot operated joystick controls keep you comfortable
throughout the work day. High performance power train,
advanced hydraulic system, traditional Cat reliability
and a wide range of Cat Work Tools improve your
productivity in the toughest working conditions.
Page 3

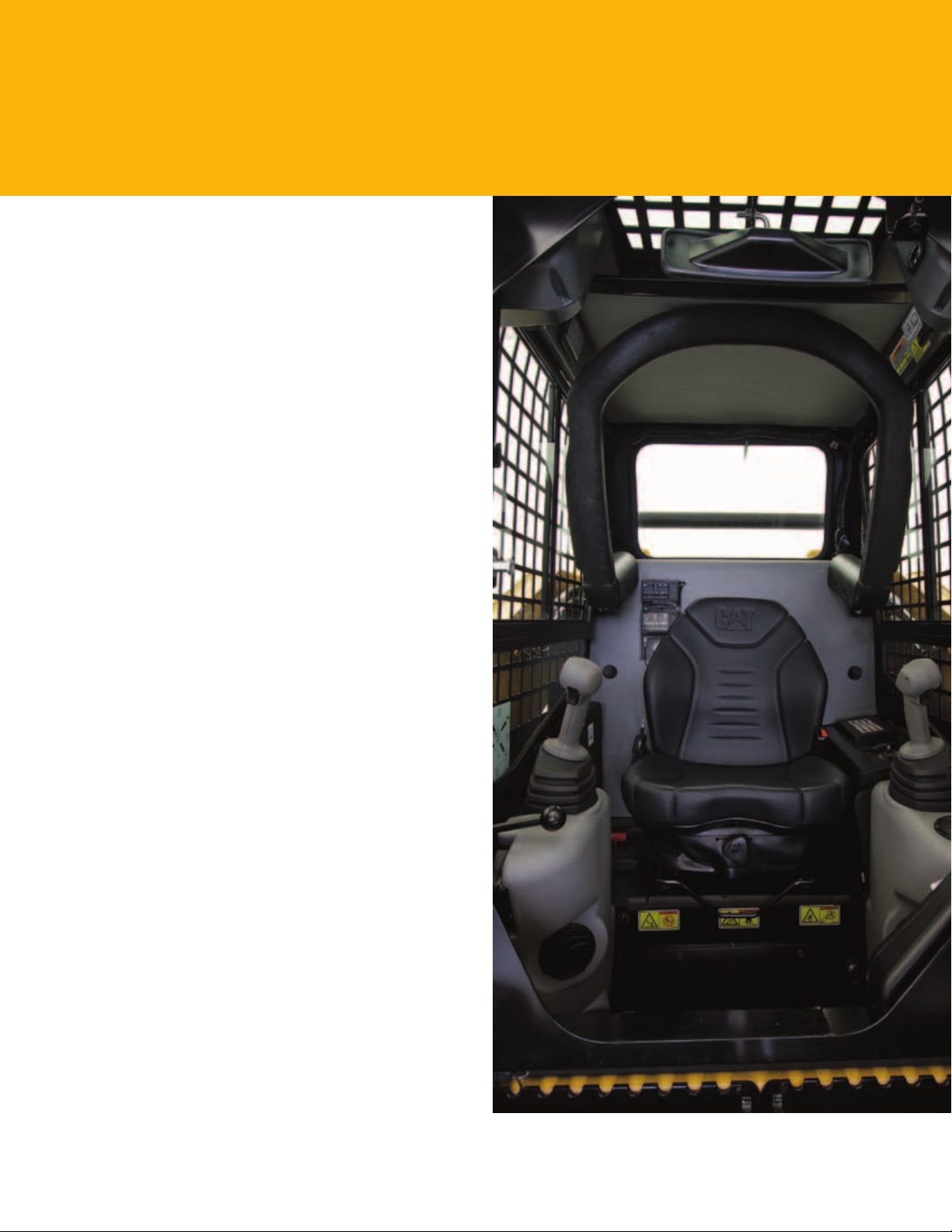

Operator Station
Superior comfort to keep you productive throughout the work day.
All Day Comfort
Comfort and ease of operation have been designed into
every aspect of the operator station. The wide, spacious
interior and uncluttered floor provide a comfortable work
environment with excellent head, shoulder and leg room
to keep productivity high and fatigue low. The adjustable
seat and low effort controls keep the operator comfortable
throughout the work day.
Low Effort Joystick Controls
Ergonomic, pilot hydraulic controls deliver precise control
with minimal effort. The right joystick controls the loader
raise, lower and tilt functions while the left joystick controls
the forward and reverse travel speed plus direction. Optional
deluxe joysticks provide additional auxiliary controls with
fingertip control of many work tool functions, including
proportional work tool hydraulics and work tool electrical.
Basic and deluxe joystick functions include one-touch
continuous auxiliary hydraulic flow and momentary auxiliary
hydraulic flow.
Excellent Visibility
The wide cab opening offers an exceptional view to the work
tool. The sloped angle of the engine compartment allows
excellent visibility to the rear of the machine. The standard
rear view mirror gives the operator a panoramic view of the
machine’s rear and sides. The side windows remove easily
for cleaning.
Additional Features for Maximum Comfort
The B-Series 3 machines offer the following additional
features to help you on the job:
• Suspension seat option for even greater operator comfort.
• Easy to read instrument panels.
• Optional air conditioner and heater for greater comfort
in extreme conditions.
• Standard floor mat with footrest provides non-slip
surface and can be removed for easy cleaning.
• Ergonomic, contoured and padded armbar provides
comfortable operation.
3
Page 4

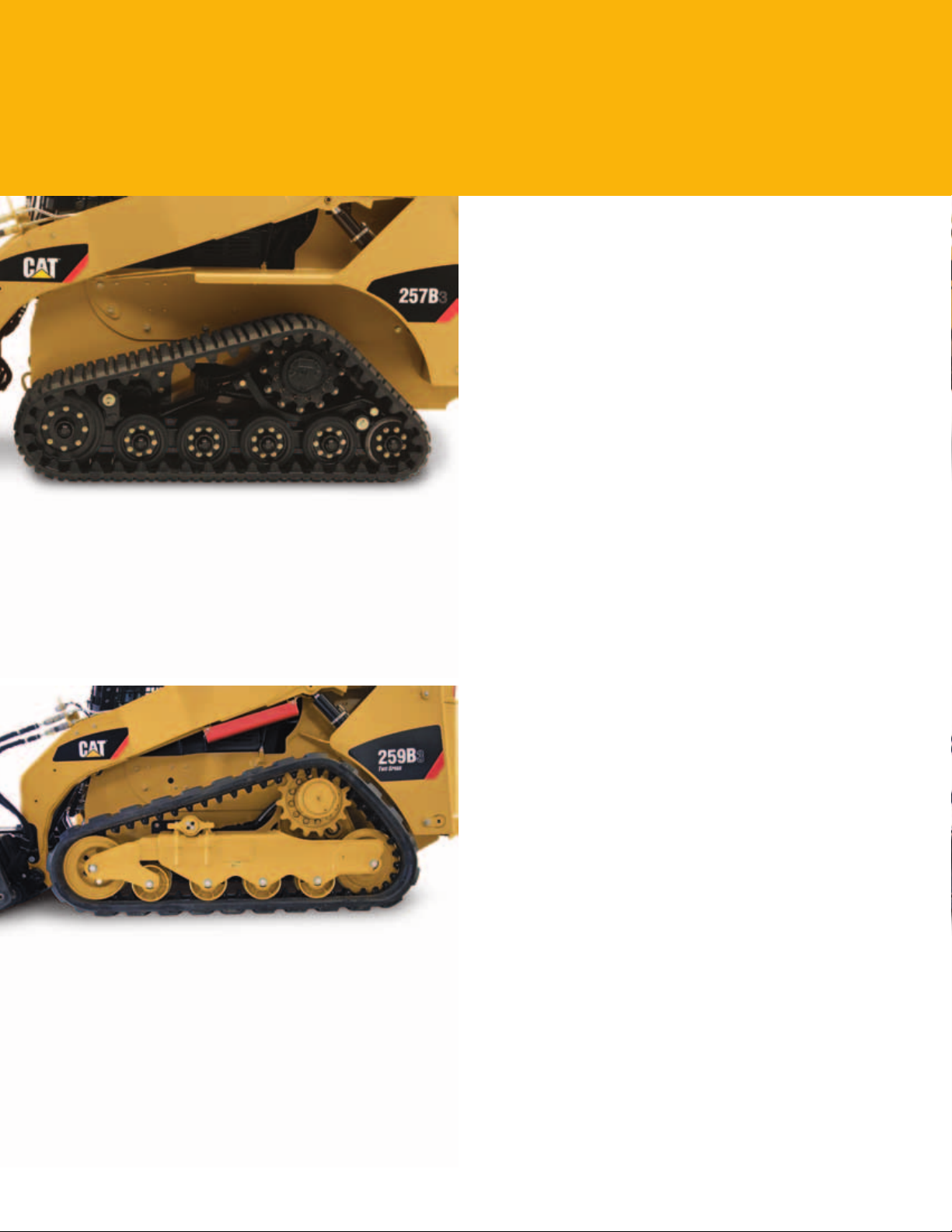

Undercarriage
Choice of undercarriage to meet your specific needs.
Multi Terrain Loader Undercarriage
The Cat 247B Series 3 and 257B Series 3 Multi Terrain
Loaders feature a fully suspended, rugged, durable rubber
track that is lightweight and pliable, yet reinforced with high
tensile strength cords. The undercarriage provides extremely
low ground pressure, allowing these machines to operate
over sensitive surfaces and in soft underfoot conditions.
The independently suspended undercarriage distributes the
load and greatly reduces shock and vibration throughout
the machine for a comfortable ride and excellent bucket
load retention. The undercarriage also features:
• Heavy duty torsion axles that independently suspend
each side of the machine frame for a smoother ride over
rough terrain, even at high speeds.
• Components that are replaceable as individual wear
items, reducing owning and operating costs.
• Low ground pressure: 27.3 kPa (4.0 psi) for the
247B Series 3 and 31 kPa (4.5 psi) for the 257B Series 3.
Compact Track Loader Undercarriage
The Cat 259B Series 3 Compact Track Loader features a
fully suspended, steel embedded rubber track undercarriage
for versatility, durability and comfort. Heavy-duty torsion
axles suspend the undercarriage and can move independently
relative to the machine and each other. These axles absorb
most of the shock to the machine and operator, especially
over rough terrain. This means smooth travel, even at
high speeds, as well as better load retention and greater
productivity. The undercarriage also features:
• Steel embedded rubber track that provides excellent
durability in a wide variety of applications.
• Steel rollers with metal face seals for long-term
durability and reliability in even the toughest conditions.
• Simple recoil grease tensioning system for quick track
tension adjustment.
• Two track options – standard track width of 320 mm
(12.6 in) or optional 400 mm (15.7 in) track.
• Low ground pressure: 41.2 kPa (6.0 psi) with the
standard track and 34.4 kPa (5.0 psi) with optional
400 mm (15.7 in) track.
4
Page 5
Power Train
Aggressive performance with fuel efficiency.
Cat Engine
The high performance power train provides high engine horsepower and
torque. The B-Series 3 machines feature rugged, reliable Cat engines that
meet U.S. EPA Tier 4 Interim and EU Stage IIIA emissions requirements.
Hand and Foot Throttles
Hand and foot throttles allow the operator to match engine speed to the task.
The hand throttle is ideal for jobs requiring constant engine speed such as cold
planing, trenching or snow blowing. The foot throttle lets the operator vary engine
speed and minimize fuel consumption for other tasks such as load and carry, truck
loading, grading and dozing.
Anti-Stall Feature
The anti-stall system maximizes machine power at all times by matching the engine
torque with the operational requirements of the hystat and implement systems.
This load sensing feature prevents the engine from stalling even during part
throttle operation, keeping productivity high and fuel consumption low.
Two Speed
Two speed is available as standard equipment on the 259B Series 3 Compact Track
Loader and as an option on the 257B Series 3 Multi Terrain Loader to increase
cycle times and get the job done faster.
Lift
Linkages
Built for tough jobs.

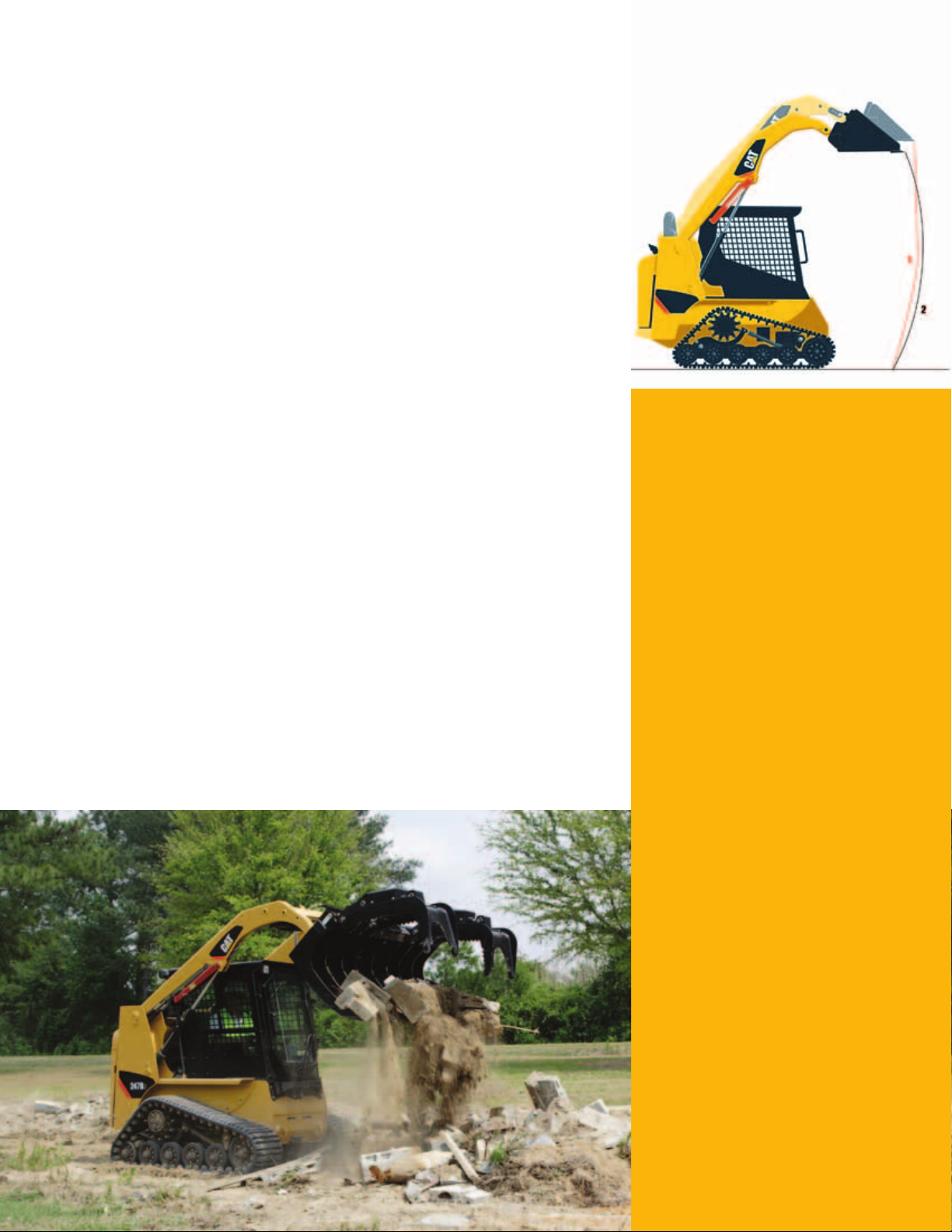

Choice of Lift Designs
Two types of lifting arrangements
are available – vertical lift (path #1
above) and radial lift (path #2) – to
meet your specific application needs.
Vertical Lift
The 257B Series 3 and 259B Series 3
feature the vertical lift design which
provides extended reach and lift
height for quick and easy truck
loading and material placement.
The lift height is 3069 mm (121 in)
on the 257B Series 3 and 3046 mm
(120 in) on the 259B Series 3.
Radial Lift
The 247B Series 3, with its radial
lift design, delivers excellent
digging performance with superior
mid-lift reach.
5
Page 6
Hydraulics
Exceptional lift, breakout and power to meet your needs.
High Performance Hydraulic System
Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing
power to the tracks, this system also provides the loader lift and tilt functions, powers the auxiliary
circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly
off the engine for maximum hydraulic performance and reliability – no belts are used. The hydraulic
system also features:
• Standard auxiliary hydraulics to power work tools that are available through quick connect
hydraulic couplings rigidly mounted to the loader arm.
• Cat ToughGuard XT™ hoses for increased reliability and durability.
High Efficiency Cooling System
Cooling capacity is maximized through the use of a side-by-side cooling package and hydraulically
driven cooling fan.
• High-efficiency, hydraulic oil cooler lets the machine work longer and harder in higher ambient
temperatures, even with continuous work tool usage.
• Efficient, hydraulically driven cooling fan provides cooling even when the machine is under load.
• Optional variable speed demand fan provides improved fuel efficiency, increased machine
performance, reduced sound levels and improved cold weather performance.
6
Page 7

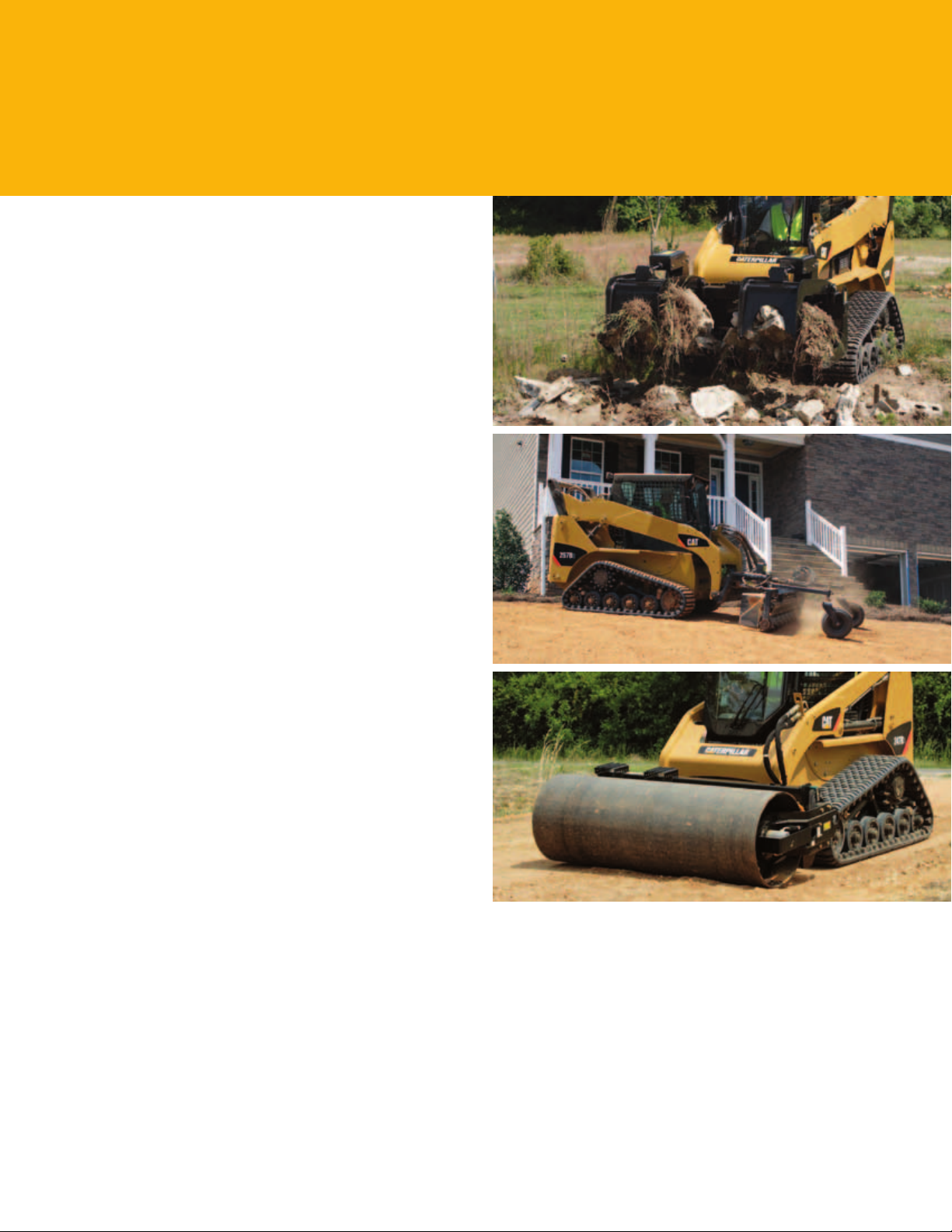

Work Tools
Do more jobs with one machine with Cat Work Tools.
The Right Tool for the Job
Get the most out of your machine with the comprehensive
line of Cat Work Tools. Designed and built for optimum
performance and durability, these tools deliver high
productivity in a variety of applications to maximize the
versatility and flexibility of the Cat Compact Track Loader
and Multi Terrain Loader:
• Augers
• Backhoes
• Blades (angle, dozer)
• Buckets (general purpose, high capacity, dirt, utility,
light material, multi purpose, industrial grapple,
utility grapple)
• Brooms (angle, pickup, utility)
• Brushcutters
• Cold Planers
• Forks (pallet, industrial grapple, utility grapple, utility)
• Hydraulic Hammers
• Landscape Tillers
• Landscape Rakes
• Material Handling Arm
• Power Box Rakes
• Shear
• Snow Blowers
• Stump Grinders
• Trenchers
• Vibratory Compactors
• Wheel Saws
Quick Couplers
Work tools can be changed quickly and easily with the
machine’s quick coupler system. The standard quick coupler
features manual engagement and disengagement of work
tools using two high leverage handles. The optional hydraulic
quick coupler allows the operator to quickly change tools
without leaving the cab.
7
Page 8

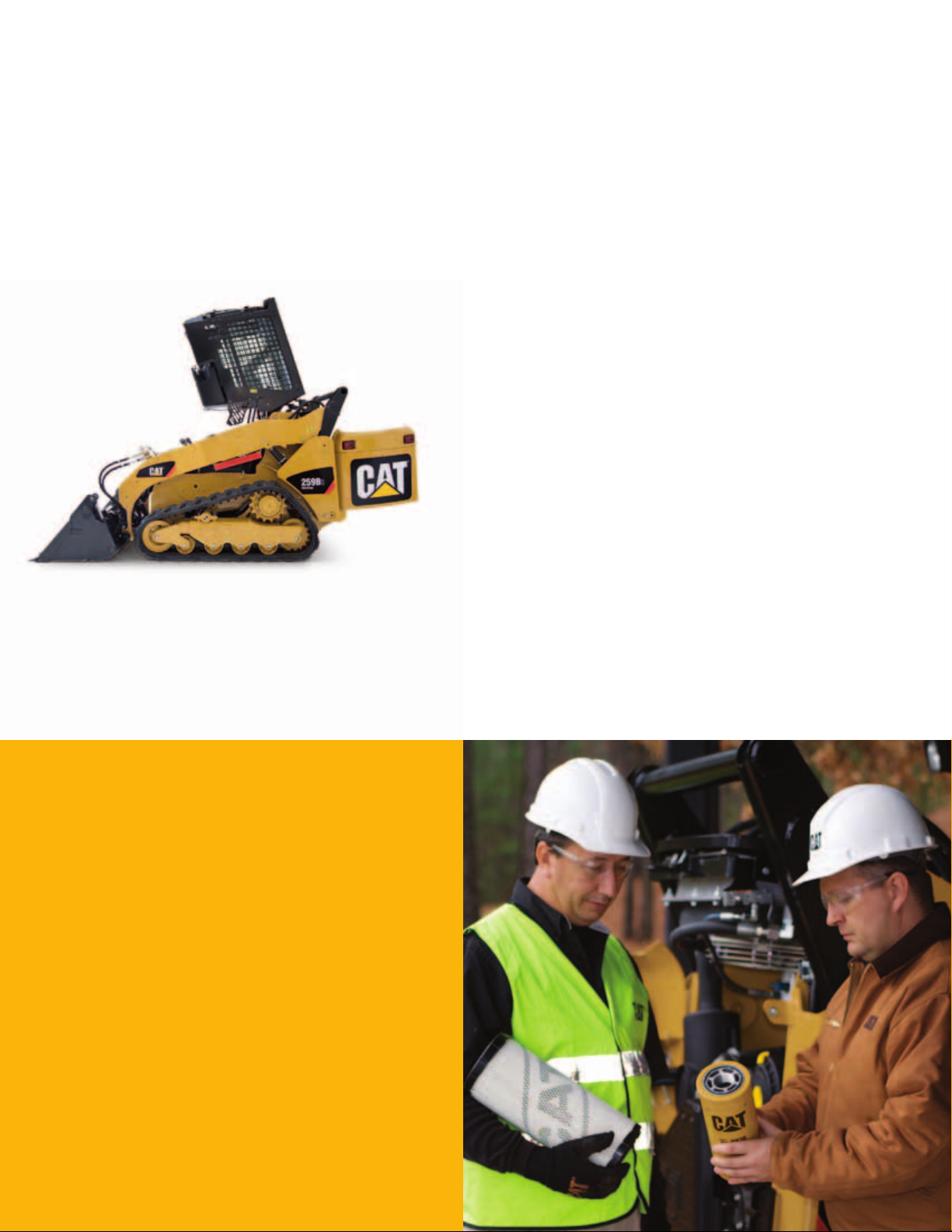

Serviceability
Simplified service and maintenance save you time and money.
Easy Service
Convenient service features make maintenance easy, reducing
your downtime:
• Industry exclusive tilt-up cooling package provides
superior access to service points and coolers.
• Rear door opens 90 degrees for easy access to both sides
of the engine.
• Cab tilts rearward for easy access to all hydraulic
pumps, motors, valves, lines and hydraulic tank.
• Daily maintenance points are easily accessible.
• Electrical wiring is color coded and numbered for easy
identification.
• S·O·SSM oil sampling valve is standard to allow regular
monitoring of the hydraulic oil quality.
Customer Support
Support you can count on.
Superior Dealer Services
Your Cat dealer is ready to assist you with your purchase
decision and everything after.
• Make comparisons of machines, with estimates of
component life, preventative maintenance and cost
of production.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost to repair,
rebuild and replace your machine, so you can make
the right decision.
• For more information on Cat products, dealer services
and industry solutions, visit us at www.cat.com.
8
Page 9
B-Series 3 Compact Track and Multi Terrain Loaders Specifications
Engine
Engine Model
247B Series 3 Cat C2.2 T
257B/259B Series 3 Cat C3.4 DIT
Net Power (SAE 1349/ISO 9249)
247B Series 3 42 kW 56 hp
257B/259B Series 3 53 kW 71 hp
Gross Power (SAE J1995)
247B Series 3 46 kW 62 hp
257B/259B Series 3 55 kW 74 hp
Displacement
247B Series 3 2.2 L 134 in
257B/259B Series 3 3.3 L 201 in
Stroke
247B Series 3 100 mm 3.9 in
257B/259B Series 3 120 mm 4.7 in
Bore
247B Series 3 84 mm 3.3 in
257B/259B Series 3 94 mm 3.7 in
Weights *
Operating Weight
247B Series 3 3174 kg 6,997 lb
257B Series 3 3656 kg 8,060 lb
259B Series 3
(320 mm/12.6 in
tracks)
259B Series 3
(400 mm/15.7 in
tracks)
4052 kg 8,934 lb
4185 kg 9,227 lb
Operating Speci cations *
Rated Operating Capacity
(50% Tipping Load)
247B Series 3 975 kg 2,150 lb
257B Series 3 1213 kg 2,675 lb
259B Series 3 1338 kg 2,950 lb
Rated Operating Capacity
(35% Tipping Load)
247B Series 3 683 kg 1,505 lb
257B Series 3 848 kg 1,870 lb
259B Series 3 937 kg 2,065 lb
Rated Operating Capacity
3
with Optional Counterweight
3
257B Series 3 1236 kg 2,725 lb
259B Series 3 1360 kg 3,000 lb
Tipping Load
247B Series 3 1950 kg 4,300 lb
257B Series 3 2427 kg 5,350 lb
259B Series 3
2676 kg 5,900 lb
(320 mm/12.6 in
tracks)
Breakout Force, Tilt Cylinder
247B Series 3 1842 kg 4,060 lb
257B Series 3 2045 kg 4,508 lb
259B Series 3 2045 kg 4,508 lb
Ground Contact Area
247B Series 3 1.14 m
257B Series 3 1.14 m
259B Series 3
0.96 m
(320 mm/12.6 in
tracks)
259B Series 3
1.19 m
(400 mm/15.7 in
tracks)
Ground Pressure
247B Series 3 27.3 kPa 4.0 psi
257B Series 3 31 kPa 4.5 psi
259B Series 3
41.2 kPa 6.0 psi
(320 mm/12.6 in
tracks)
259B Series 3
34.4 kPa 5.0 psi
(400 mm/15.7 in
tracks)
* Operating Weight, Operating Speci cations
and Dimensions all based on 75 kg (165 lb)
operator, all uids, 1 speed (247B/257B
Series 3) or 2 speed (259B Series 3),
OROPS, dirt bucket, no optional
counterweights and manual quick coupler
(unless otherwise noted).
2
2
2
2
1,770 in
1,770 in
1,495 in
1,848 in
Hydraulic System
Hydraulic Flow Standard
Loader Hydraulic
Pressure
Loader Hydraulic
Flow – 247B
Series 3
Loader Hydraulic
Flow – 257B/259B
Series 3
Hydraulic Power
(calculated) –
247B Series 3
Hydraulic Power
(calculated) –
257B/259B Series 3
2
2
2
2
23 000 kPa 3,335 psi
61 L/min 16 gal/min
83 L/min 22 gal/min
23.2 kW 31 hp
31.9 kW 42.8 hp
9
Page 10
B-Series 3 Compact Track and Multi Terrain Loaders Specifications
Cab
ROPS SAE J1040 MAY94,
ISO 3471:1994
FOPS SAE J/ISO 3449
APR98 LEVEL I,
ISO 3449:1992
Level I
FOPS Level II SAE J/ISO 3449
APR98 LEVEL II,
ISO 3449:1992
Level II (optional)
Power Train
Travel Speed (Forward or Reverse)
247B Series 3 11.3 km/h 7.0 mph
257B Series 3 11.1 km/h 6.9 mph
259B Series 3 9.5 km/h 5.9 mph
Travel Speed (Forward or Reverse)
– 2 Speed
257B Series 3
(optional)
259B Series 3
(standard)
16.1 km/h 10 mph
13.6 km/h 8.5 mph
Service Re ll Capacities
Cooling System 10 L 2.6 gal
Engine Crankcase
247B Series 3 10 L 2.6 gal
257B/259B Series 3 9 L 2.4 gal
Fuel Tank
247B Series 3 65 L 17 gal
257B/259B Series 3 84 L 22.2 gal
Hydraulic System 55 L 14.5 gal
Hydraulic Tank 35 L 9.2 gal
10
Page 11

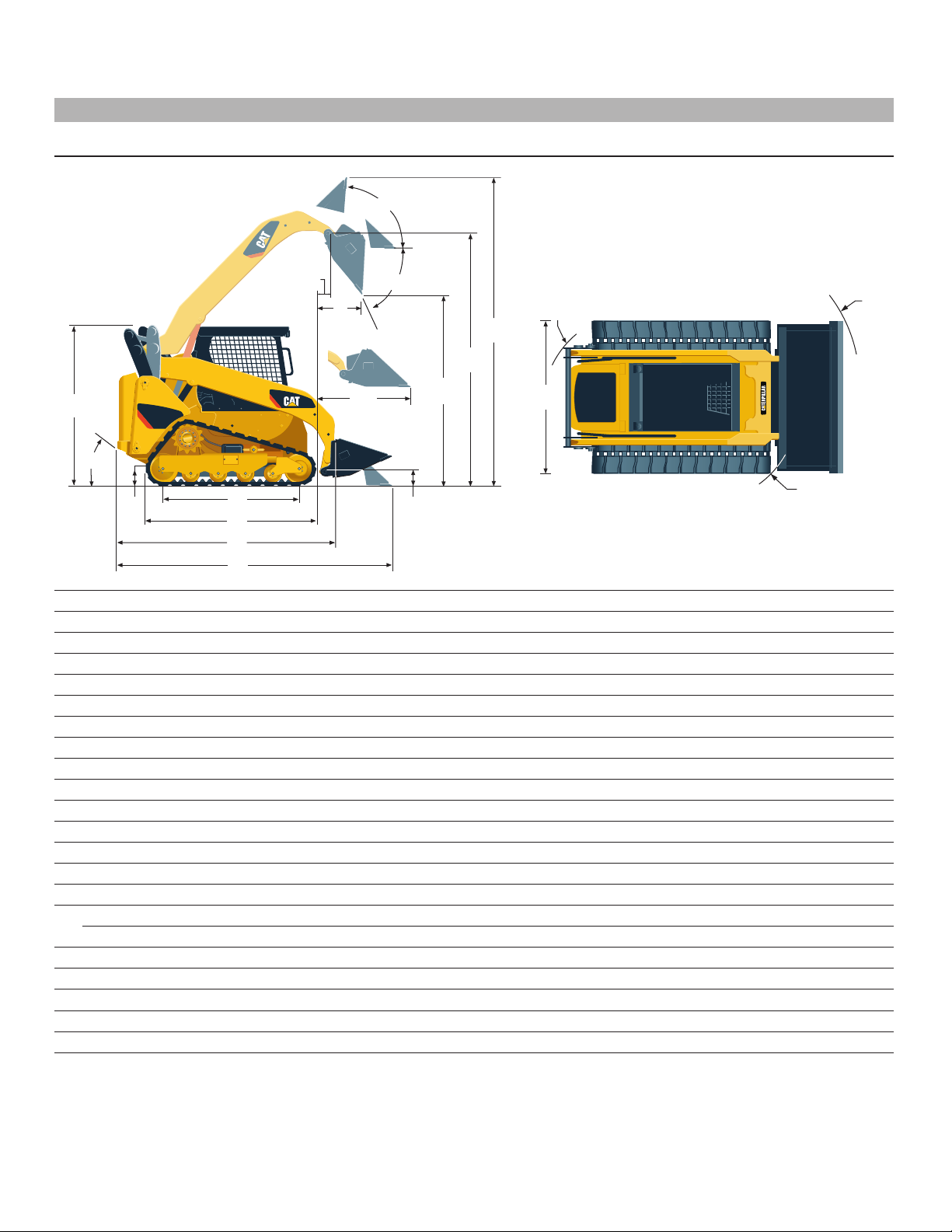

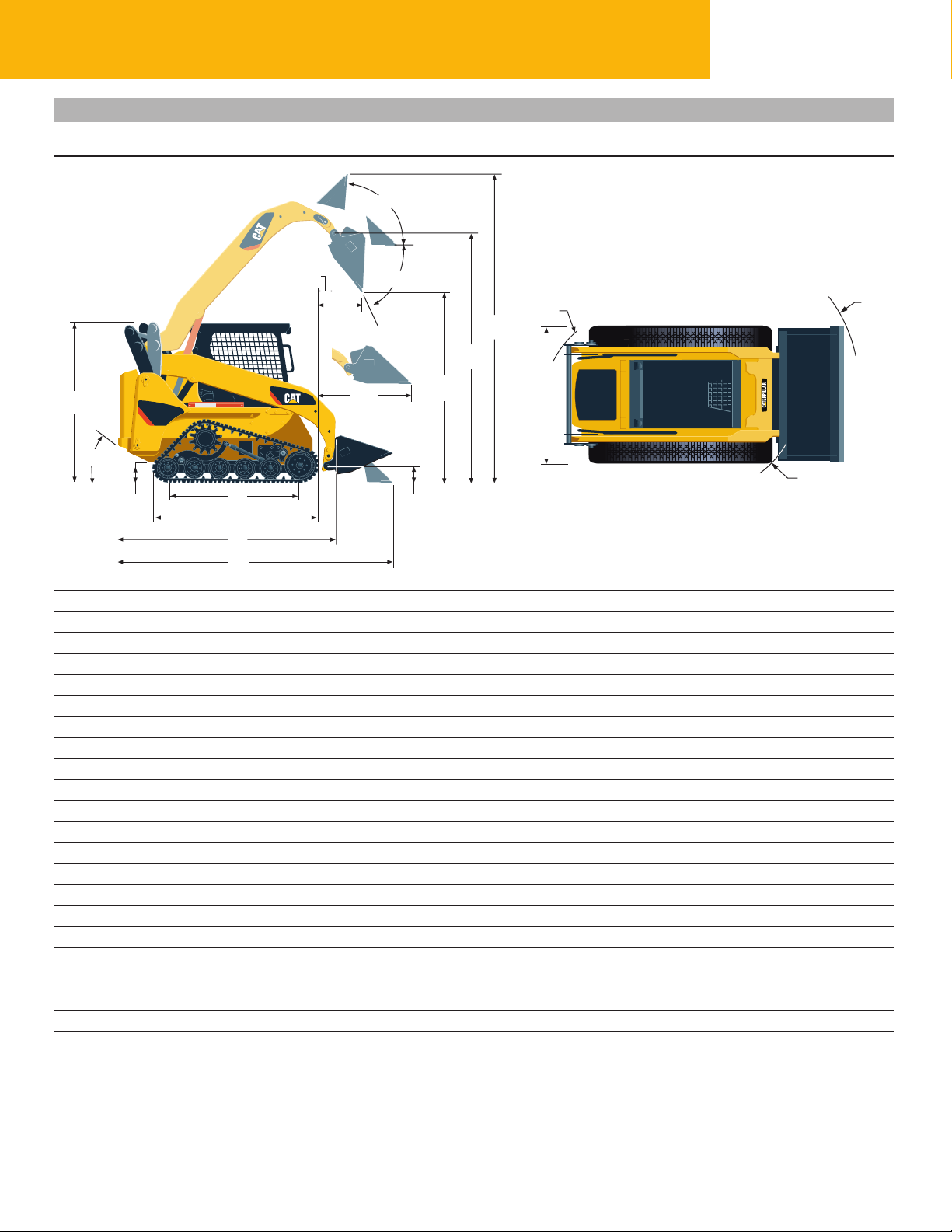

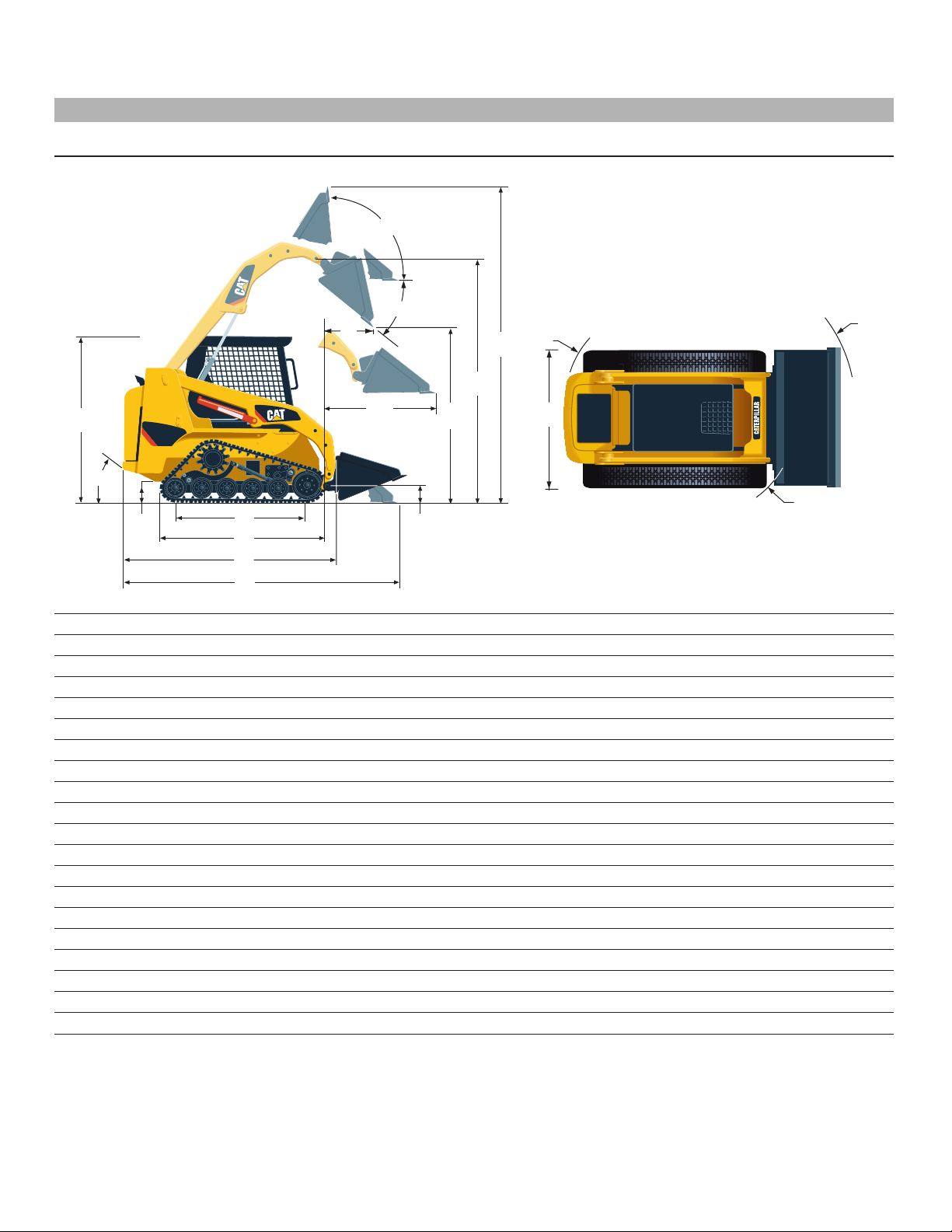

Dimensions
19
13
9
15
6
7
5
18
10
14
12
16
11
1
8
2
3
4
247B Series 3
mm in
Length of Track on Ground 1499 59
1
Overall Length of Track 1899 75
2
Length without Bucket 2518 99
3
Length with Bucket on Ground 3285 129
4
Height to Top of Cab 1990 78
5
Maximum Overall Height 3799 150
6
Bucket Pin Height at Maximum Lift 2862 112
7
Bucket Pin Height at Carry Position 220 8.7
8
Reach at Maximum Lift and Dump 625 25
9
Clearance at Maximum Lift and Dump 2134 84
10
Ground Clearance 267 10
11
Departure Angle 41°
12
Maximum Dump Angle 40°
13
Vehicle Width 1676 66
14
Turning Radius from Center – Machine Rear 1377 54
15
Turning Radius from Center – Coupler 1312 52
16
Turning Radius from Center – Bucket 2095 82
17
Maximum Reach with Arms Parallel to Ground 1339 53
18
Rack Back Angle at Maximum Height 82°
19
17
11
Page 12
B-Series 3 Compact Track and Multi Terrain Loaders Specifications
Dimensions
19
20
9
13
15
6
7
5
18
10
14
12
16
11
1
8
2
3
4
257B Series 3
mm in
Length of Track on Ground 1499 59
1
Overall Length of Track 1899 75
2
Length without Bucket 2718 107
3
Length with Bucket on Ground 3439 135
4
Height to Top of Cab 2035 80
5
Maximum Overall Height 3895 153
6
Bucket Pin Height at Maximum Lift 3069 121
7
Bucket Pin Height at Carry Position 212 8
8
Reach at Maximum Lift and Dump 758 30
9
Clearance at Maximum Lift and Dump 2309 91
10
Ground Clearance 246 10
11
Departure Angle 37°
12
Maximum Dump Angle 50°
13
Vehicle Width 1676 66
14
Turning Radius from Center – Machine Rear 1451 57
15
Turning Radius from Center – Coupler 1412 56
16
Turning Radius from Center – Bucket 2192 86
17
Maximum Reach with Arms Parallel to Ground 1335 53
18
Rack Back Angle at Maximum Height 87°
19
Bucket Pin Reach at Maximum Lift 358 14.1
20
17
12
Page 13
Dimensions
19
20
9
13
15
6
7
5
18
10
14
12
16
11
1
8
2
3
4
259B Series 3
mm in
Length of Track on Ground 1495 59
1
Overall Length of Track 1995 79
2
Length without Bucket 2722 107
3
Length with Bucket on Ground 3432 135
4
Height to Top of Cab 1986 78
5
Maximum Overall Height 3872 152
6
Bucket Pin Height at Maximum Lift 3046 120
7
Bucket Pin Height at Carry Position 195 8
8
Reach at Maximum Lift and Dump 740 29
9
Clearance at Maximum Lift and Dump 2243 88
10
Ground Clearance 222 9
11
Departure Angle 35°
12
Maximum Dump Angle 49.5°
13
Vehicle Width (320 mm/12.6 in tracks) 1676 66
14
Vehicle Width (400 mm/15.7 in tracks) 1755 69
Turning Radius from Center – Machine Rear 1471 58
15
Turning Radius from Center – Coupler 1393 55
16
Turning Radius from Center – Bucket 2174 86
17
Maximum Reach with Arms Parallel to Ground 1338 53
18
Rack Back Angle at Maximum Height 87°
19
Bucket Pin Reach at Maximum Lift 309 12.1
20
17
13
Page 14
B-Series 3 Compact Track and Multi Terrain Loaders Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
12 volt Electrical System
85 ampere Alternator (247B Series 3)
90 ampere Alternator (257B/259B Series 3)
Automatic Glow Plug Activation
Heavy Duty Battery, 880 CCA
(standard on the 257B/259B Series 3)
Ignition Key Start/Stop Switch
Lights: Gauge backlighting, two rear
tail lights, two adjustable front and
rear halogen lights, dome light.
OPERATOR ENVIRONMENT
Gauges: Fuel level, hour meter
Operator Warning System Indicators:
Air filter restriction, alternator output,
armrest raised/operator out of seat,
engine coolant temperature, engine oil
pressure, glow plug activation, hydraulic
filter restriction, hydraulic oil temperature,
parking brake engaged
Vinyl seat
Pull Down Ergonomic Contoured Armrest
Control Interlock System, when operator
leaves seat or armrest raised: Hydraulic
system disables, hydrostatic transmission
disables, parking brake engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rear View Mirror
12 volt Electric Socket
Horn
Backup Alarm
Hand and Foot Throttle
POWER TRAIN
Cat C2.2 T Diesel Engine (247B Series 3)
Cat C3.4 DIT Diesel Engine
(257B/259B Series 3)
Engines are Tier 4 Interim/Stage IIIA
Compliant
Air Cleaner, Dual Element, Radial Seal
SM
Sampling Valve, Hydraulic Oil
S·O·S
Filters, Spin-on, Hydraulic
Filters, Bayonet-type, Fuel and
Water Separator
Tilt Up Radiator/Hydraulic Oil Cooler
Spring Applied, Hydraulically Released
Parking Brakes
Hydrostatic Transmission
OTHER
Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (4)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects
Split D-Ring to Route Work Tool Hoses
Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
MANDATORY EQUIPMENT
Quick Coupler, Mechanical or Hydraulic
Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package
(Europe only – includes Demand Fan)
Cooling Fan, Demand or Standard
(EU Preparation Package includes
Demand Fan)
Comfort Packages
(must select one of the following):
• Open ROPS (C0): Static Seat
• Open ROPS (C1): Suspension Seat,
Deluxe Headliner
• Enclosed ROPS (C2): Features of
C1 Package plus Heater, Cab Door,
Side Windows, Cup Holder,
Cab Debris Barrier
• Enclosed ROPS (C3): Features of
C2 Package plus Air Conditioner
Control Packages for the 247B Series 3
(must select one of the following):
• Control Package 1: On/Off Auxiliary
Hydraulics Basic
• Control Package 2: Proportional
Auxiliary Hydraulics Deluxe
• Control Package 3: Proportional
Auxiliary Hydraulics Deluxe,
Work Tool Harness
Control Packages for the 257B Series 3
(must select one of the following):
• Control Package 1: On/Off Auxiliary
Hydraulics Basic
• Control Package 2: Proportional
Auxiliary Hydraulics Deluxe, 1 Speed
• Control Package 3: Proportional
Auxiliary Hydraulics Deluxe, 1 Speed,
Work Tool Harness
• Control Package 4: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed
• Control Package 5: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed,
Work Tool Harness
Control Packages for the 259B Series 3
(must select one of the following):
• Control Package 1: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed
• Control Package 2: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed,
Work Tool Harness
14
Page 15
B-Series 3 Compact Track and Multi Terrain Loaders Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details.
400 mm (15.7 in) track with dual flange
front idler (259B Series 3 only)
2 Speed Travel (257B Series 3 only)
Variable Speed Demand Fan
Counterweight
Beacon, Rotating
Engine Block Heater, 120V or 240V
Heavy Duty Battery, 880 CCA
(optional on the 247B Series 3)
Oil, Hydraulic, Cold Operation
Door, Glass or Polycarbonate
Self-Leveling
Paint, Custom
15
Page 16
B-Series 3 Compact Track and Multi Terrain Loaders
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2010 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
16
AEHQ6132 (09-2010)
Loading...
