Caterpillar 236B SERIES 3, 242B SERIES 3, 252B SERIES 3, 226B SERIES 3, 216B SERIES 3 BROCHURE
Page 1
216B/226B/236B Series 3
242B/252B Series 3
Skid Steer Loaders
216B Series 3 226B Series 3 236B Series 3 242B Series 3 252B Series 3
Engine
Engine Model Cat C2.2 Cat C2.2 T Cat C3.4 DIT Cat C3.4 DIT Cat C3.4 DIT
Net Power (SAE 1349/ISO 9249) 35 kW (47 hp) 42 kW (56 hp) 53 kW (71 hp) 53 kW (71 hp) 53 kW (71 hp)
Weights
Operating Weight 2581 kg (5,690 lb) 2641 kg (5,822 lb) 3178 kg (7,007 lb) 3179 kg (7,008 lb) 3565 kg (7,861 lb)
Operating Specifications
Rated Operating Capacity 635 kg (1,400 lb) 680 kg (1,500 lb) 884 kg (1,950 lb) 975 kg (2,150 lb) 1202 kg (2,650 lb)
Page 2

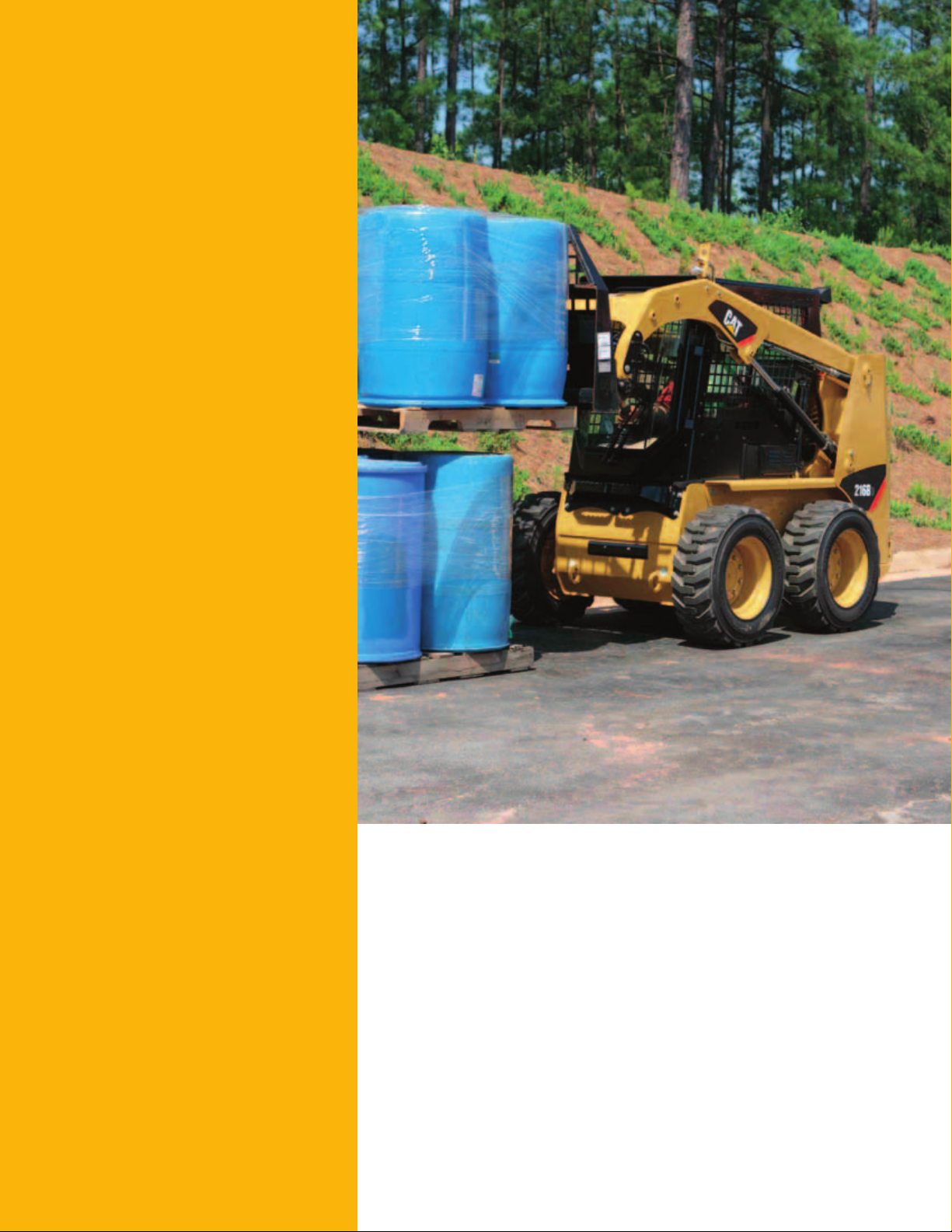

Features
Comfortable Operator Station
Spacious, comfortable cab and ergonomic, low
effort joystick controls reduce operator fatigue.
High Performance Power Train
High horsepower and torque deliver outstanding
performance.
Advanced Hydraulic System
Hydraulic system provides maximum power and
reliability for demanding applications.
More Work Tools
Caterpillar’s broad range of performance matched
work tools make the Cat Skid Steer Loader the
most versatile machine on the job site.
Contents
Operator Station ..................................................3
Hydraulics ............................................................4
Power Train ..........................................................5
Lift Linkages .........................................................5
Work Tools ............................................................6
Serviceability .......................................................7
Customer Support ...............................................7
Specifications ......................................................8
Standard Equipment .........................................12
Optional Equipment...........................................13
Notes ...................................................................14
2
The Cat B-Series 3 Skid Steer Loader, with its many
work tool options, delivers outstanding performance to
help you get more done and increase your bottom line.
Spacious, ergonomic operator station and easy-to-use
pilot operated joystick controls keep you comfortable
throughout the work day. High performance power train,
advanced hydraulic system and traditional Cat reliability
improve your productivity in the toughest working
conditions.
Page 3
Operator Station
Superior comfort to keep you productive throughout the work day.
All Day Comfort

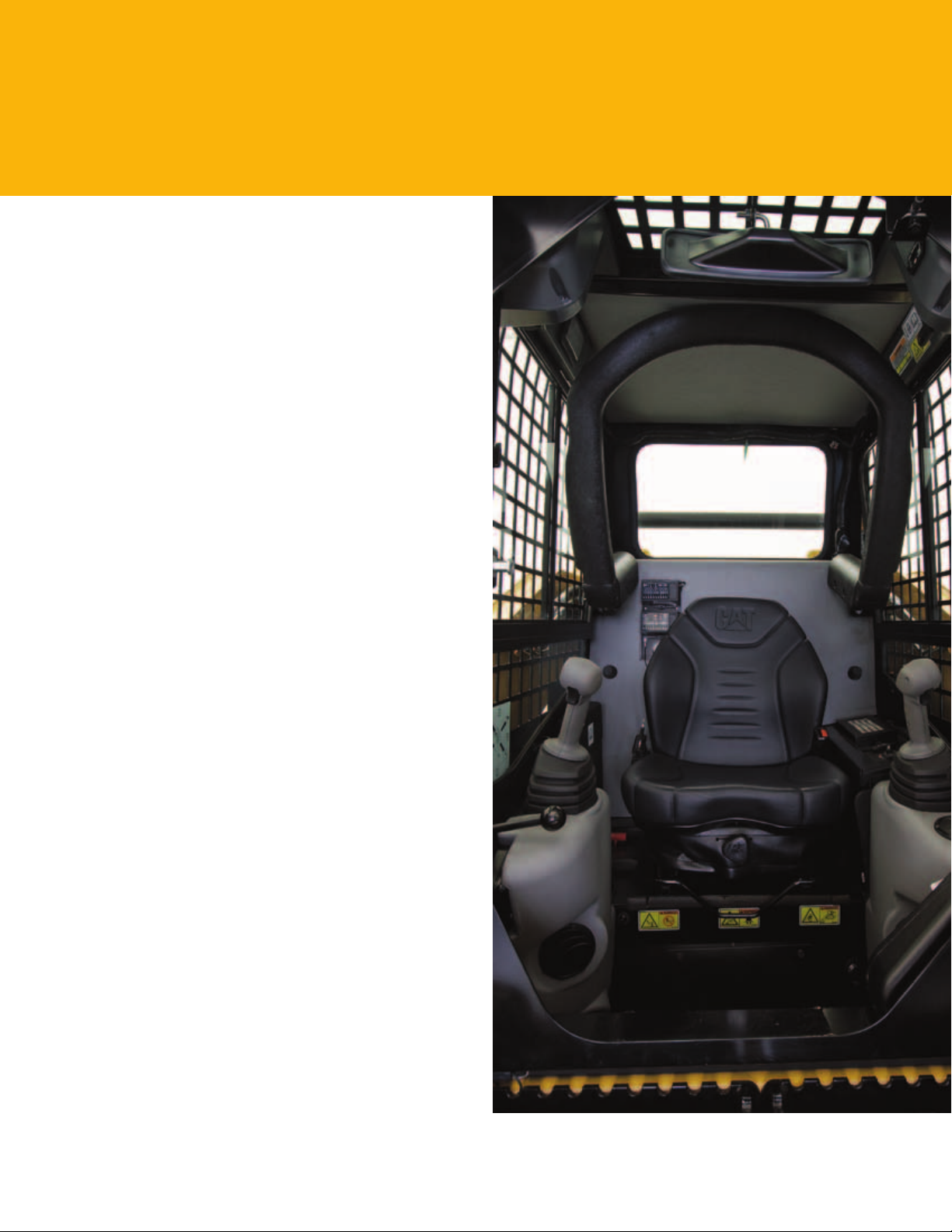

Comfort and ease of operation have been designed into
every aspect of the operator station. The wide, spacious
interior and uncluttered floor provide a comfortable work
environment with excellent head, shoulder and leg room
to keep productivity high and fatigue low. The adjustable
seat and low effort controls keep the operator comfortable
throughout the work day.
Low Effort Joystick Controls
Ergonomic, pilot hydraulic controls deliver precise control with
minimal effort. The right joystick controls the loader raise, lower
and tilt functions while the left joystick controls the forward
and reverse travel speed plus direction. Optional deluxe
joysticks provide additional auxiliary controls with fingertip
control of many work tool functions, including proportional
work tool hydraulics and work tool electrical. Basic and deluxe
joystick functions include one-touch continuous auxiliary
hydraulic flow and momentary auxiliary hydraulic flow.
Excellent Visibility
The wide cab opening offers an exceptional view to the work
tool. The sloped angle of the engine compartment allows
excellent visibility to the rear of the machine. The standard
rear view mirror gives the operator a panoramic view of the
machine’s rear and sides. The side windows remove easily
for cleaning.
Additional Features for Maximum Comfort
The B-Series 3 machines offer the following additional
features to help you on the job:
• Suspension seat option for even greater operator comfort.
• Easy to read instrument panels.
• Optional air conditioner and heater for greater comfort
in extreme conditions.
• Standard floor mat with footrest provides non-slip
surface and can be removed for easy cleaning.
• Ergonomic, contoured and padded armbar provides
comfortable operation.
3
Page 4

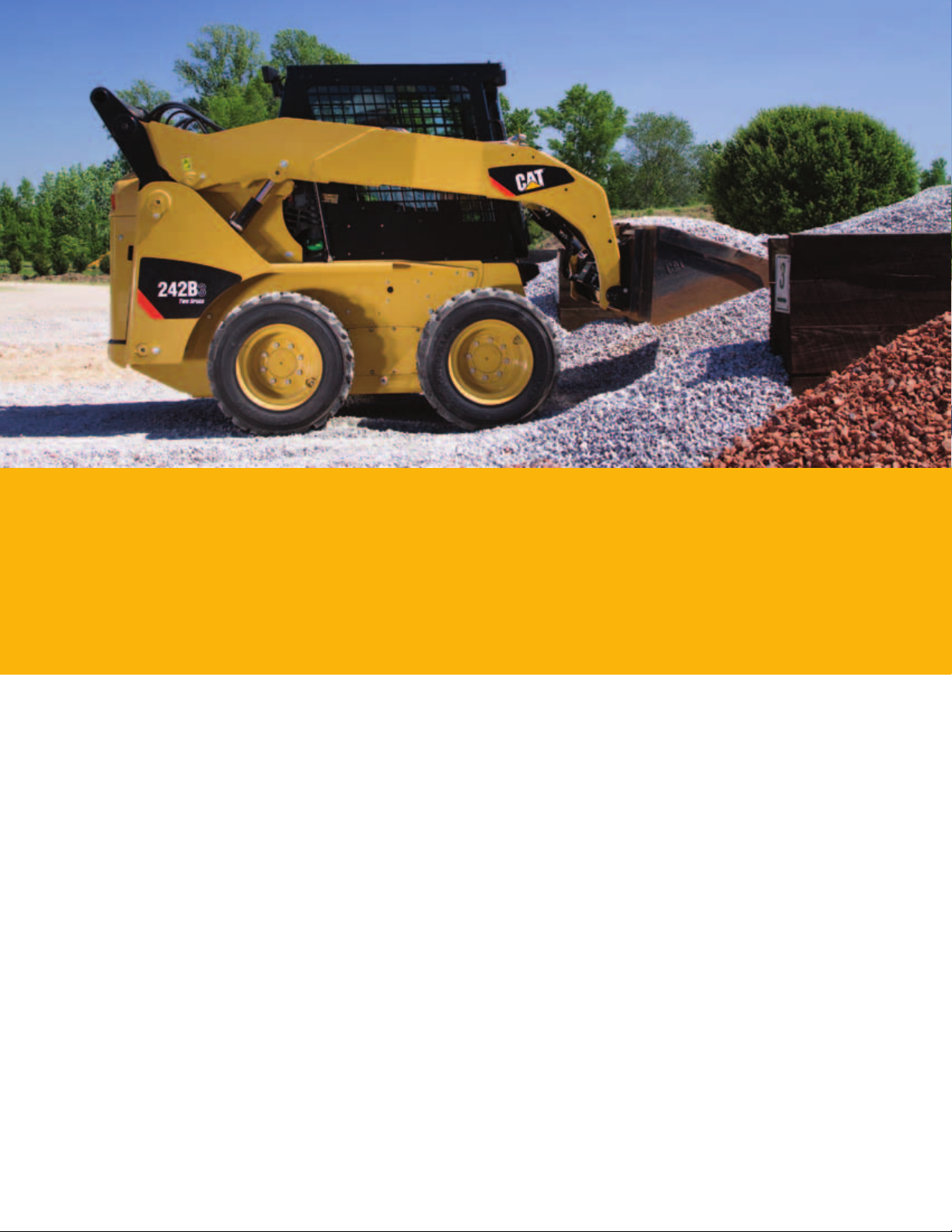

Hydraulics
Exceptional lift, breakout and power to meet your needs.
High Performance Hydraulic System
Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing
power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary
circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly
off the engine for maximum hydraulic performance and reliability – no belts are used. The hydraulic
system also features:
• Standard auxiliary hydraulics to power work tools that are available through quick connect
hydraulic couplings rigidly mounted to the loader arm.
• Cat ToughGuard XT™ hoses for increased reliability and durability.
High Flow Hydraulics
High flow hydraulic system is available on the 226B Series 3 for greater machine versatility.
High Efficiency Cooling System
Cooling capacity is maximized through the use of a side-by-side cooling package and hydraulically
driven cooling fan.
• High-efficiency, hydraulic oil cooler lets the machine work longer and harder in higher ambient
temperatures, even with continuous work tool usage.
• Efficient, hydraulically driven cooling fan provides cooling even when the machine is under load.
• Optional variable speed demand fan provides improved fuel efficiency, increased machine
performance, reduced sound levels and improved cold weather performance.
4
Page 5
Power Train
Aggressive performance with fuel efficiency.
Cat Engine
The high performance power train provides high engine horsepower and torque.
The B-Series 3 machines feature rugged, reliable Cat engines that meet U.S. EPA
Tier 4 Interim and EU Stage IIIA emissions requirements.
Hand and Foot Throttles
Hand and foot throttles allow the operator to match engine speed to the task.
The hand throttle is ideal for jobs requiring constant engine speed such as cold
planing, trenching or snow blowing. The foot throttle lets the operator vary engine
speed and minimize fuel consumption for other tasks such as load and carry, truck
loading, grading and dozing.
Anti-Stall Feature
The anti-stall system maximizes machine power at all times by matching the engine
torque with the operational requirements of the hystat and implement systems.
This load sensing feature prevents the engine from stalling even during part
throttle operation, keeping productivity high and fuel consumption low.
Two Speed Option
Two speed is available as an option on the 236B Series 3, 242B Series 3 and
252B Series 3 Skid Steer Loader to increase cycle times and get the job done faster.
Lift
Linkages
Built for tough jobs.

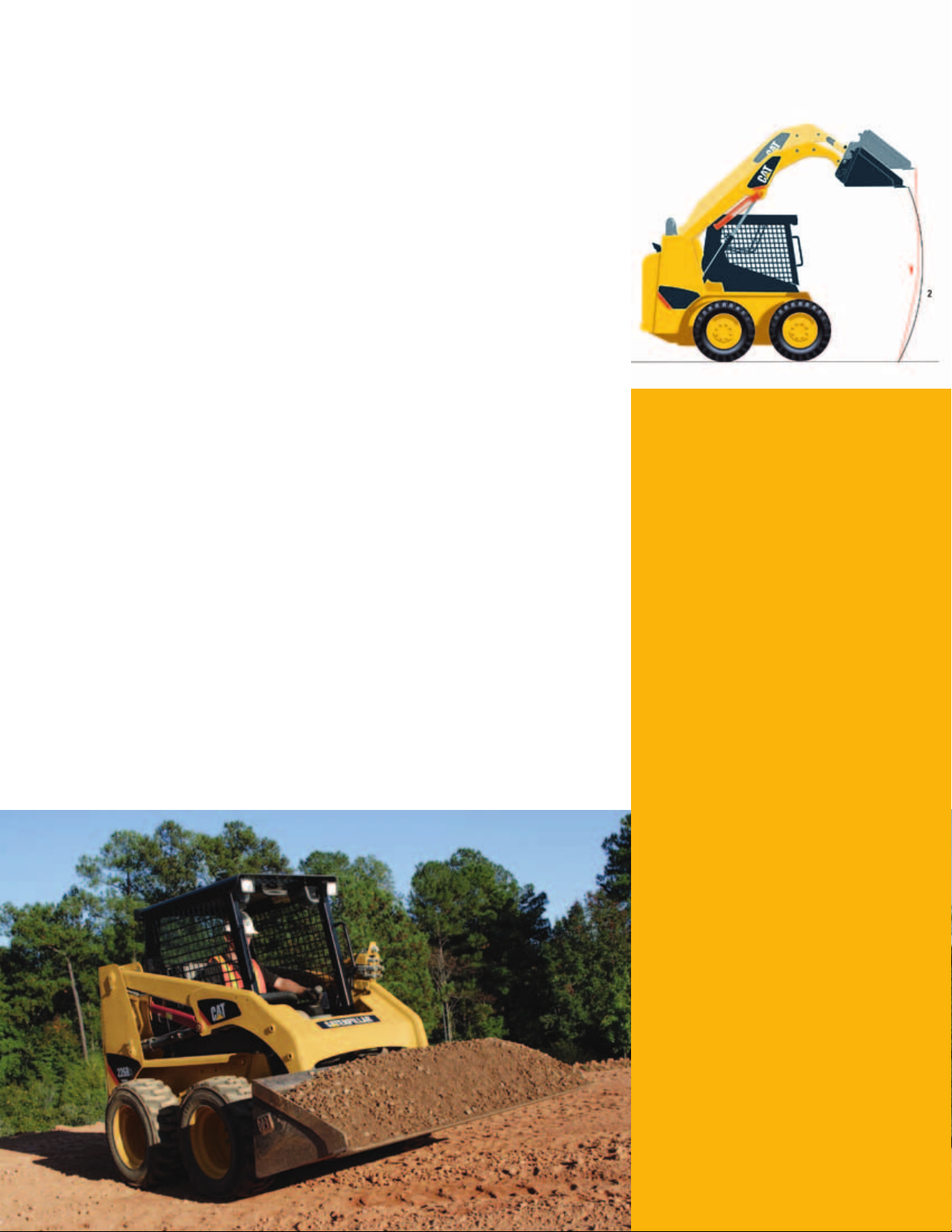

Choice of Lift Designs
Two types of lifting arrangements
are available – vertical lift (path #1
above) and radial lift (path #2) – to
meet your specific application needs.
Vertical Lift
The 242B Series 3 and 252B Series 3
feature the vertical lift design which
provides extended reach and lift
height for quick and easy truck
loading and material placement.
The lift height is 3086 mm (121 in)
on the 242B Series 3 and 3210 mm
(126 in) on the 252B Series 3.
Radial Lift
The 216B Series 3, 226B Series 3
and 236B Series 3, with their
radial lift design, deliver excellent
digging performance with superior
mid-lift reach.
5
Page 6
Work Tools
Do more jobs with one machine with Cat Work Tools.
The Right Tool for the Job
Get the most out of your machine with the comprehensive
line of Cat Work Tools. Designed and built for optimum
performance and durability, these tools deliver high
productivity in a variety of applications to maximize the
versatility and flexibility of the Cat Skid Steer Loader:
• Augers
• Backhoes
• Blades (angle, dozer)
• Buckets (general purpose, high capacity, dirt, utility,
light material, multi purpose, industrial grapple,
utility grapple)
• Brooms (angle, pickup, utility)
• Brushcutters
• Cold Planers
• Forks (pallet, industrial grapple, utility grapple, utility)
• Hydraulic Hammers
• Landscape Tillers
• Landscape Rakes
• Material Handling Arm
• Power Box Rakes
• Shear
• Snow Blowers
• Stump Grinders
• Trenchers
• Vibratory Compactors
• Wheel Saws
Quick Couplers
Work tools can be changed quickly and easily with the
machine’s quick coupler system. The standard quick coupler
features manual engagement and disengagement of work
tools using two high leverage handles. The optional hydraulic
quick coupler allows the operator to quickly change tools
without leaving the cab.
6
Page 7
Serviceability
Simplified service and maintenance save you time and money.

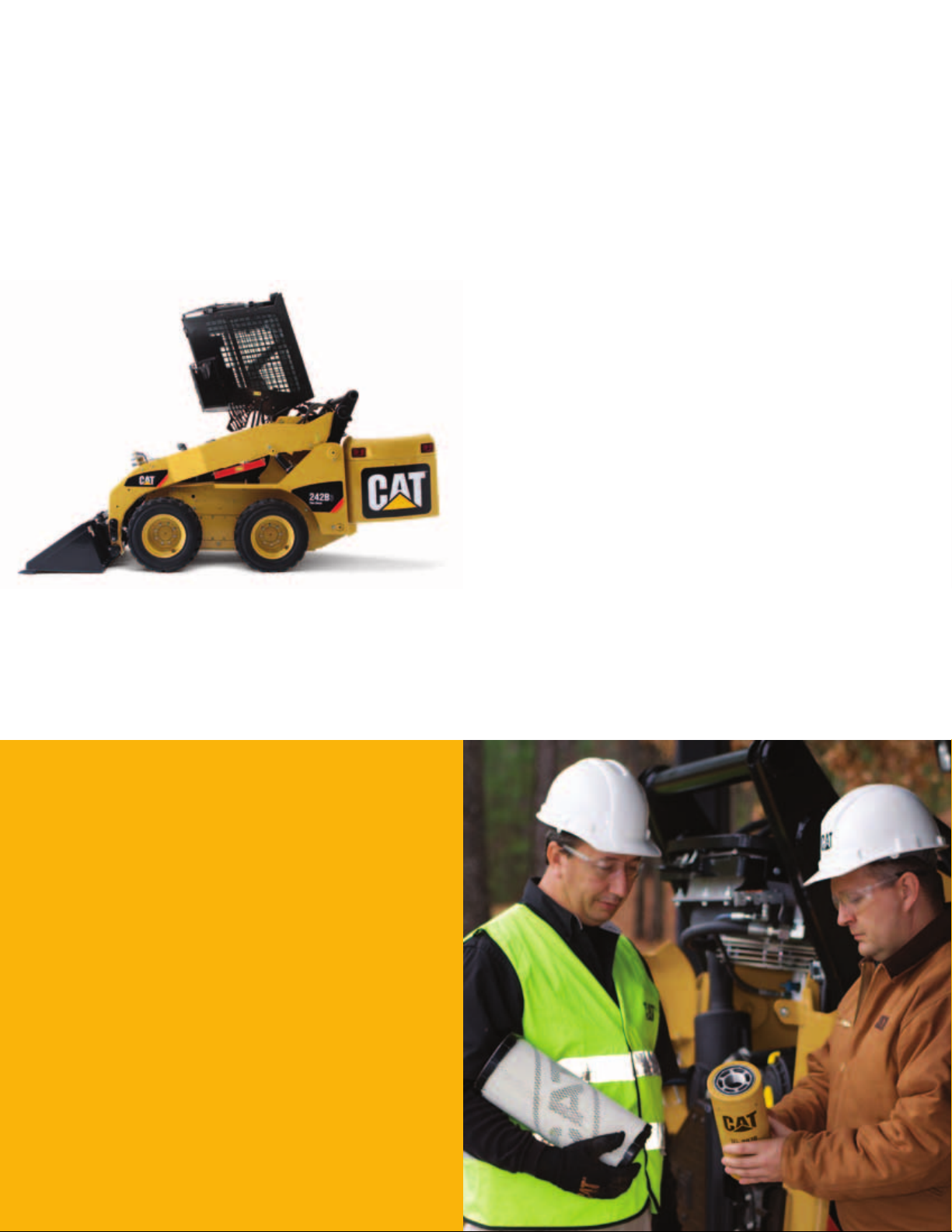

Easy Service
Convenient service features make maintenance easy, reducing
your downtime:
• Industry exclusive tilt-up cooling package provides
superior access to service points and coolers.
• Rear door opens 90 degrees for easy access to both sides
of the engine.
• Cab tilts rearward for easy access to all hydraulic
pumps, motors, valves, lines and hydraulic tank.
• Daily maintenance points are easily accessible.
• Electrical wiring is color coded and numbered for easy
identification.
• S·O·SSM oil sampling valve is standard to allow regular
monitoring of the hydraulic oil quality.
Customer Support
Support you can count on.
Superior Dealer Services
Your Cat dealer is ready to assist you with your purchase
decision and everything after.
• Make comparisons of machines, with estimates of
component life, preventative maintenance and cost
of production.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost to repair,
rebuild and replace your machine, so you can make
the right decision.
• For more information on Cat products, dealer services
and industry solutions, visit us at www.cat.com.
7
Page 8

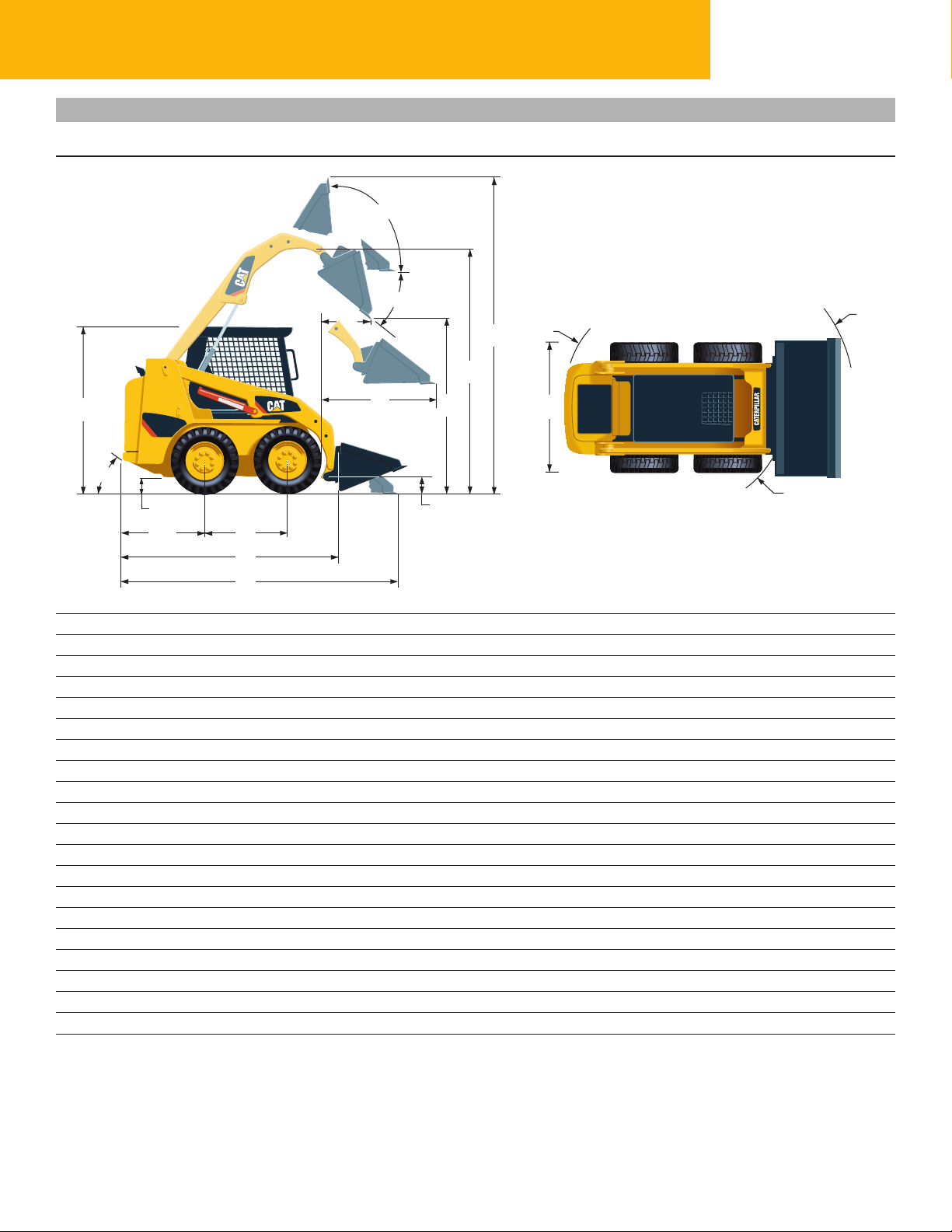

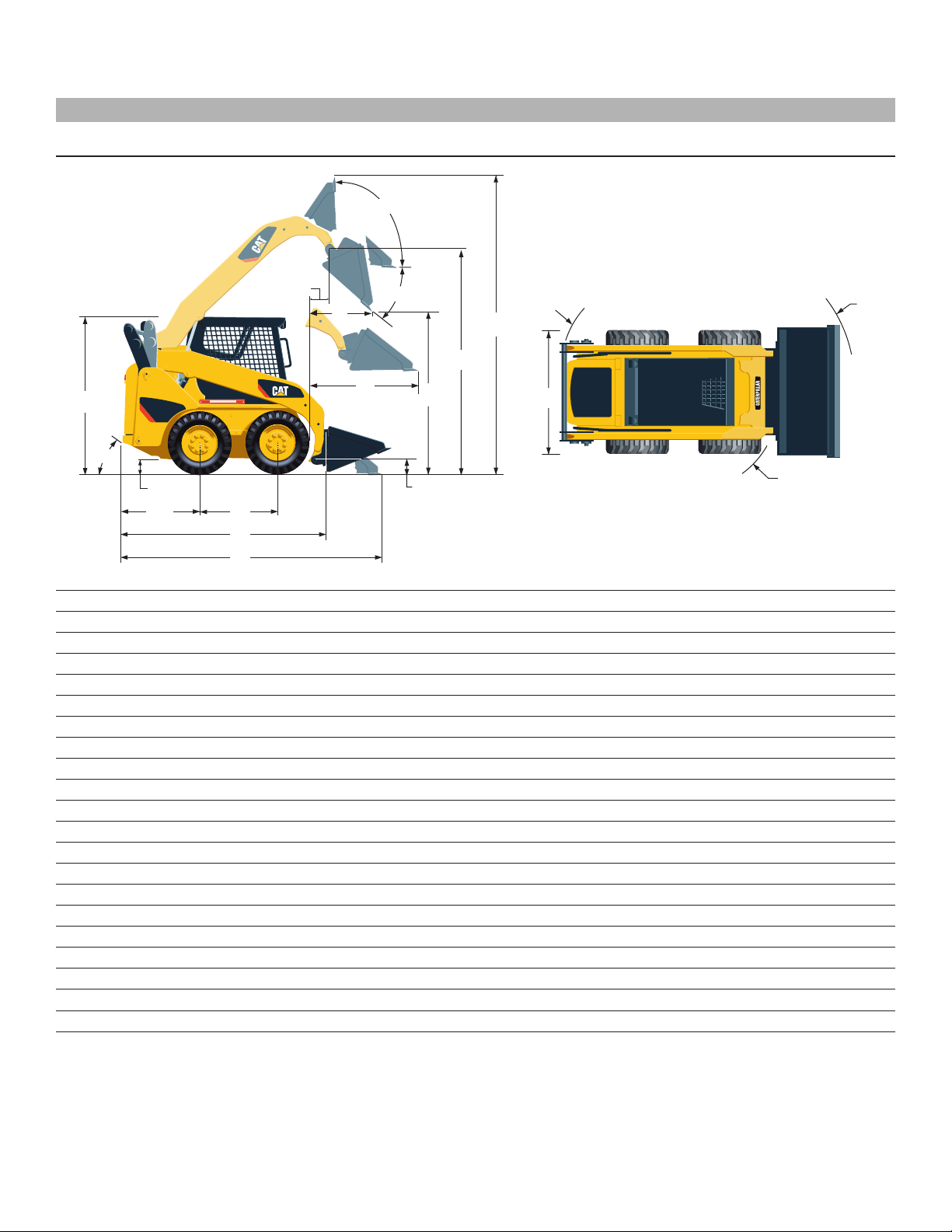

B-Series 3 Skid Steer Loaders Specifications
Engine
Engine Model
216B Series 3 Cat C2.2
226B Series 3 Cat C2.2 T
236B/242B/252B
Series 3
Net Power (SAE 1340/ISO 9249)
216B Series 3 35 kW 47 hp
226B Series 3 42 kW 56 hp
236B/242B/252B
Series 3
Gross Power (SAE J1995)
216B Series 3 38 kW 51 hp
226B Series 3 45.5 kW 61 hp
236B/242B/252B
Series 3
Displacement
216B/226B Series 3 2.2 L 134 in
236B/242B/252B
Series 3
Stroke
216B/226B Series 3 100 mm 3.9 in
236B/242B/252B
Series 3
Bore
216B/226B Series 3 84 mm 3.3 in
236B/242B/252B
Series 3
Cat C3.4 DIT
53 kW 71 hp
55 kW 74 hp
3.3 L 201 in
120 mm 4.7 in
94 mm 3.7 in
Weights *
Operating Weight
216B Series 3 2581 kg 5,690 lb
226B Series 3 2641 kg 5,822 lb
236B Series 3 3178 kg 7,007 lb
242B Series 3 3179 kg 7,008 lb
252B Series 3 3565 kg 7,861 lb
Operating Speci cations *
Rated Operating Capacity
216B Series 3 635 kg 1,400 lb
226B Series 3 680 kg 1,500 lb
236B Series 3 884 kg 1,950 lb
242B Series 3 975 kg 2,150 lb
252B Series 3 1202 kg 2,650 lb
Rated Operating Capacity
with Optional Counterweight
216B Series 3 680 kg 1,500 lb
226B Series 3 726 kg 1,600 lb
236B Series 3 929 kg 2,050 lb
242B Series 3 1000 kg 2,200 lb
252B Series 3 1225 kg 2,700 lb
Tipping Load
216B Series 3 1270 kg 2,800 lb
3
3
226B Series 3 1360 kg 3,000 lb
236B Series 3 1769 kg 3,900 lb
242B Series 3 1950 kg 4,300 lb
252B Series 3 2404 kg 5,300 lb
Breakout Force, Tilt Cylinder
216B/226B Series 3 1852 kg 4,083 lb
236B Series 3 2487 kg 5,484 lb
242B Series 3 2044 kg 4,507 lb
252B Series 3 2498 kg 5,508 lb
* Operating Weight, Operating Speci cations
and Dimensions all based on 75 kg (165 lb)
operator, all uids, 1 speed, OROPS, dirt
bucket, tires, no optional counterweights
and manual quick coupler (unless
otherwise noted).
Hydraulic System
Hydraulic Flow Standard
Loader Hydraulic
Pressure
Loader Hydraulic
Flow – 216B/226B
Series 3
Loader Hydraulic
Flow – 236B/242B/
252B Series 3
Hydraulic Power
(calculated) –
216B/226B Series 3
Hydraulic Power
(calculated)
– 236B/242B/252B
Series 3
Hydraulic Flow High Flow –
Maximum Loader
Hydraulic Pressure
Maximum Loader
Hydraulic Flow
Hydraulic Power
(calculated)
23 000 kPa 3,335 psi
61 L/min 16 gal/min
83 L/min 22 gal/min
23.2 kW 31.1 hp
31.9 kW 42.8 hp
226B Series 3 only
23 000 kPa 3,335 psi
104 L/min 27 gal/min
37.7 kW 50.6 hp
Model availability may vary by region.
8
Page 9
Cab
Power Train
Service Re ll Capacities
ROPS SAE J1040 MAY94,
ISO 3471:1994
FOPS SAE J/ISO 3449
APR98 Level I,
ISO 3449:1992
Level I
FOPS Level II SAE J/ISO 3449
APR98 Level II,
ISO 3449:1992
Level II (optional)
Travel Speed (Forward or Reverse)
216B/226B Series 3 12.7 km/h 7.9 mph
236B Series 3 12.1 km/h 7.5 mph
242B Series 3 12.4 km/h 7.7 mph
252B Series 3 11.9 km/h 7.4 mph
Travel Speed (Forward or Reverse)
– 2 Speed Option
236B Series 3 18.1 km/h 11.2 mph
242B Series 3 18.4 km/h 11.4 mph
252B Series 3 17.8 km/h 11.1 mph
Chain Box, each side
216B/226B/242B
Series 3
236B Series 3 7 L 1.8 gal
252B Series 3 8 L 2.1 gal
Cooling System 10 L 2.6 gal
Engine Crankcase
216B/226B Series 3 10 L 2.6 gal
236B/242B/252B
Series 3
Fuel Tank
216B/226B/242B
Series 3
236B/252B Series 3 90 L 23.8 gal
Hydraulic System
216B/226B/242B
Series 3
236B Series 3 52 L 13.7 gal
252B Series 3 53 L 14 gal
Hydraulic Tank 35 L 9.2 gal
6 L 1.6 gal
9 L 2.4 gal
58 L 15.4 gal
55 L 14.5 gal
9
Page 10
B-Series 3 Skid Steer Loaders Specifications
Dimensions
19
13
8
6
4
11
10
112
2
3
Wheelbase 986 39 1134 45
1
Length without Bucket 2519 99 2800 110
2
Length with Bucket on Ground 3233 127 3515 138
3
Height to Top of Cab 1950 77 2092 82
4
Maximum Overall Height 3709 146 3965 156
5
Bucket Pin Height at Maximum Lift 2854 112 3099 122
6
Bucket Pin Height at Carry Position 200 8 215 8.4
7
Reach at Maximum Lift and Dump 505 20 541 21
8
Clearance at Maximum Lift and Dump 2169 85.4 2398 94
9
Ground Clearance 195 8 235 9.3
10
Departure Angle 26° 28°
11
Bumper Overhang Behind Rear Axle 967 38 1038 41
12
Maximum Dump Angle 40° 40°
13
Vehicle Width over Tires 1525 60 1676 66
14
Turning Radius from Center – Machine Rear 1502 59 1623 64
15
Turning Radius from Center – Coupler 1195 47 1318 52
16
Turning Radius from Center – Bucket 1944 77 2092 82
17
Maximum Reach with Arms Parallel to Ground 1291 51 1353 53
18
Rack Back Angle at Maximum Height 81° 83°
19
18
9
7
15
5
14
16
216B/226B Series 3 236B Series 3
mm in mm in
17
10
Page 11
Dimensions
19
20
8
13
15
5
6
18
4
9
14
11
10
12
7
1
16
2
3
242B Series 3 252B Series 3
mm in mm in
Wheelbase 1094 43.1 1228 48
1
Length without Bucket 2760 108.7 2901 114
2
Length with Bucket on Ground 3437 135.3 3616 142
3
Height to Top of Cab 2019 79 2063 82.6
4
Maximum Overall Height 3918 154 4062 160
5
Bucket Pin Height at Maximum Lift 3086 121 3210 126
6
Bucket Pin Height at Carry Position 228 9 213 8.4
7
Reach at Maximum Lift and Dump 622 24 829 33
8
Clearance at Maximum Lift and Dump 2333 92 2421 95
9
Ground Clearance 178 7 196 7.7
10
Departure Angle 28° 26.4°
11
Bumper Overhang Behind Rear Axle 989 39 1043 41
12
Maximum Dump Angle 50° 51°
13
Vehicle Width over Tires 1676 66 1829 72
14
Turning Radius from Center – Machine Rear 1556 61 1679 66
15
Turning Radius from Center – Coupler 1311 52 1362 54
16
Turning Radius from Center – Bucket 2092 82 2167 85
17
Maximum Reach with Arms Parallel to Ground 1216 48 1257 50
18
Rack Back Angle at Maximum Height 88° 88°
19
Bucket Pin Reach at Maximum Lift 254 10 348 13.7
20
17
11
Page 12
B-Series 3 Skid Steer Loaders Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details
ELECTRICAL
12 volt Electrical System
65 ampere Alternator (216B Series 3)
85 ampere Alternator (226B Series 3)
90 ampere Alternator
(236B/242B/252B Series 3)
Automatic Glow Plug Activation
Heavy Duty Battery, 880 CCA
(standard on the 236B/242B/252B Series 3)
Ignition Key Start/Stop Switch
Lights: Gauge backlighting, two rear tail
lights, two adjustable front and rear halogen
lights, dome light.
OPERATOR ENVIRONMENT
Gauges: Fuel level, hour meter
Operator Warning System Indicators:
Air filter restriction, alternator output,
armrest raised/operator out of seat,
engine coolant temperature, engine oil
pressure, glow plug activation, hydraulic
filter restriction, hydraulic oil temperature,
parking brake engaged
Vinyl seat
Pull Down Ergonomic Contoured Armrest
Control Interlock System, when operator
leaves seat or armrest raised: Hydraulic
system disables, hydrostatic transmission
disables, parking brake engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rear View Mirror
12 volt Electric Socket
Horn
Backup Alarm
Hand and Foot Throttle
POWER TRAIN
Cat C2.2 Diesel Engine (216B Series 3)
Cat C2.2 T Diesel Engine (226B Series 3)
Cat C3.4 DIT Diesel Engine
(236B/242B/252B Series 3)
Engines are Tier 4 Interim/Stage IIIA
Compliant
Air Cleaner, Dual Element, Radial Seal
SM
S·O·S
Filters, Spin-on, Hydraulic
Filters, Bayonet-type, Fuel
and Water Separator
Tilt Up Radiator/Hydraulic Oil Cooler
Spring Applied, Hydraulically Released
Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive
OTHER
Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (4)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects
Split D-Ring to Route Work Tool Hoses
Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Sampling Valve, Hydraulic Oil
MANDATORY EQUIPMENT
Quick Coupler, Mechanical or Hydraulic
Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package
(Europe only – includes Demand Fan
on the 226B/242B Series 3)
Cooling Fan, Demand or Standard
(EU Preparation Package includes Demand
Fan on the 226B/242B Series 3)
Comfort Packages
(must select one of the following):
• Open ROPS (C0): Static Seat
• Open ROPS (C1): Suspension Seat,
Deluxe Headliner
• Enclosed ROPS (C2): Features of
C1 Package plus Heater, Cab Door, Side
Windows, Cup Holder, Cab Debris Barrier
• Enclosed ROPS (C3): Features of
C2 Package plus Air Conditioner
(not available on the 216B Series 3)
Control Packages for the 216B/226B Series 3
(must select one of the following):
• Control Package 1: On/Off Auxiliary
Hydraulics Basic
• Control Package 2: Proportional Auxiliary
Hydraulics Deluxe
• Control Package 3: Proportional Auxiliary
Hydraulics Deluxe, Work Tool Harness
• Control Package 4: High Flow Hydraulics
(226B Series 3 only)
Control Packages for the 236B/242B/252B
Series 3 (must select one of the following):
• Control Package 1: On/Off Auxiliary
Hydraulics Basic
• Control Package 2: Proportional
Auxiliary Hydraulics Deluxe, 1 Speed
• Control Package 3: Proportional
Auxiliary Hydraulics Deluxe, 1 Speed,
Work Tool Harness
• Control Package 4: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed
• Control Package 5: Proportional
Auxiliary Hydraulics Deluxe, 2 Speed,
Work Tool Harness
12
Page 13
B-Series 3 Skid Steer Loaders Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details
Variable Speed Demand Fan
(not available in all regions)
Counterweight
Beacon, Rotating
Engine Block Heater, 120V or 240V
Heavy Duty Battery, 880 CCA
(optional on the 216B/226B Series 3)
Oil, Hydraulic, Cold Operation
13
Page 14
Notes
14
Page 15
15
Page 16
B-Series 3 Skid Steer Loaders
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2010 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
20
AEHQ6131 (09-2010)
Loading...
