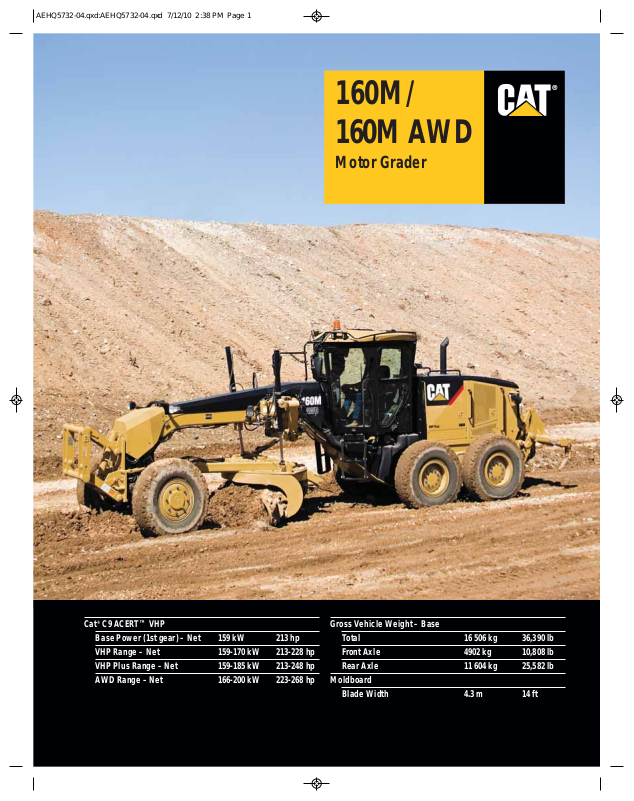

Page 1
®
®
160M/
160M A WD
Motor Grader
Cat®C9 ACERT™ VHP
Base Power (1st gear) – Net 159 kW 213 hp
VHP Range – Net 159-170 kW 213-228 hp
VHP Plus Range – Net 159-185 kW 213-248 hp
AWD Range – Net 166-200 kW 223-268 hp
Gross Vehicle Weight – Base
Total 16 506 kg 36,390 lb
Front Axle 4902 kg 10,808 lb
Rear Axle 11 604 kg 25,582 lb
Moldboard
Blade Width 4.3 m 14 ft
Page 2

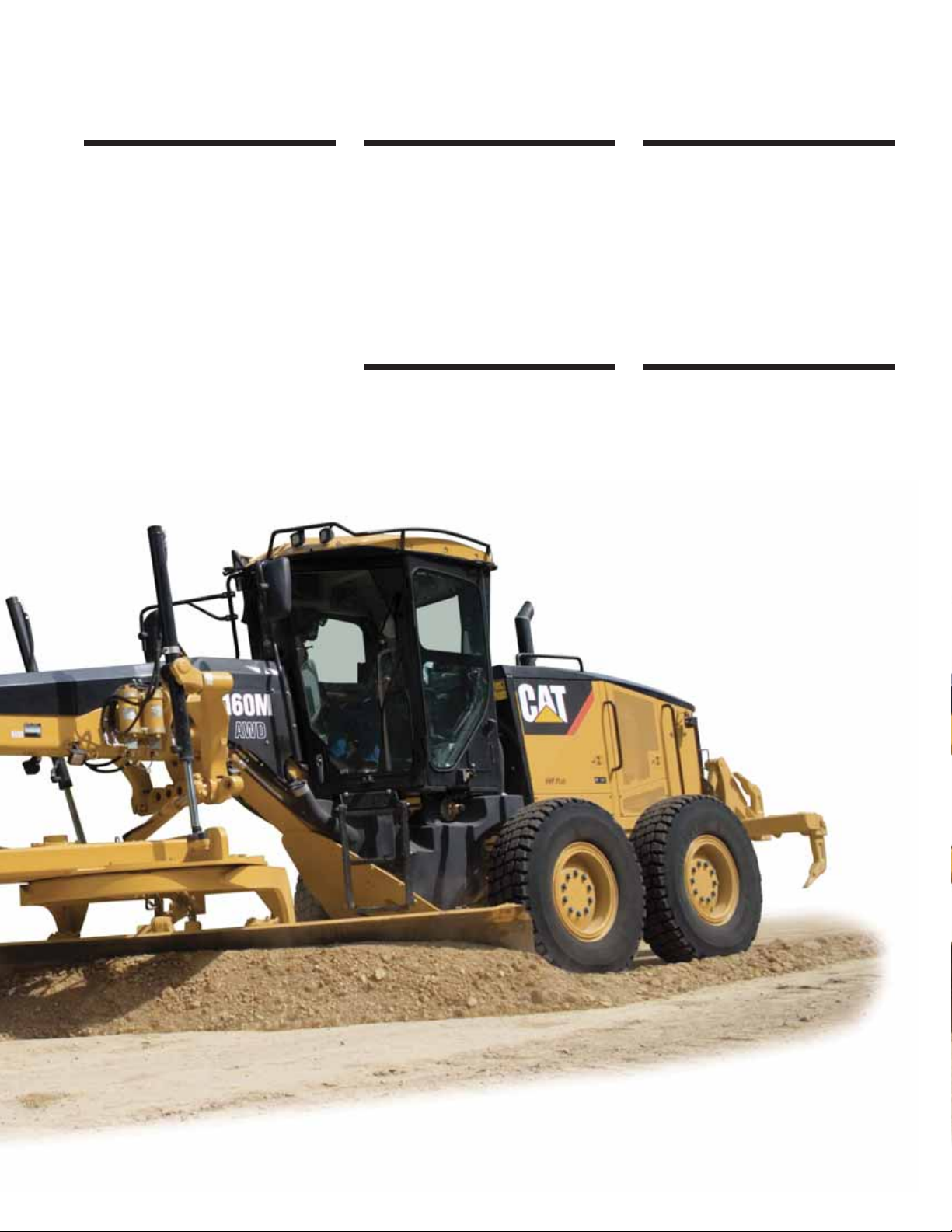

160M Motor Grader
The 160M delivers multiple technological breakthroughs to give you the best return
on your investment.
Operator Station
A technologically advanced cab, featuring
✔
joystick controls, provides unmatched
comfort and visibility. pg. 4
Integrated Electronic Solutions
Full systems integration with advanced
✔
electronics including Cat®Messenger,
AccuGrade™ blade control system and
Cat ET, create a “Smart Machine” that
optimizes performance and availability.
pg. 14
Steering and Implement Controls
Two joysticks offer precise control
✔
and unparalleled ease of operation.
This advanced technology makes
the 160M the most operator-friendly
motor grader in the world. pg. 6
All Wheel Drive, Work Tools
and Attachments
✔
The Work Tools and optional attachments
for the 160M, including the industry
leading All Wheel Drive system, expand
machine versatility, utilization and
performance. pg. 16
Structures, Drawbar, Circle and
Moldboard
✔
The 160M frame provides a solid working
platform, and the DCM delivers service
ease and precise blade control for
maximum productivity. pg. 8
The 160M motor grader represents a
re volution in operational efficiency, visibility,
service ease and overall productivity, setting
the new standard and building on the legacy
of high quality you can trust.
2
Page 3

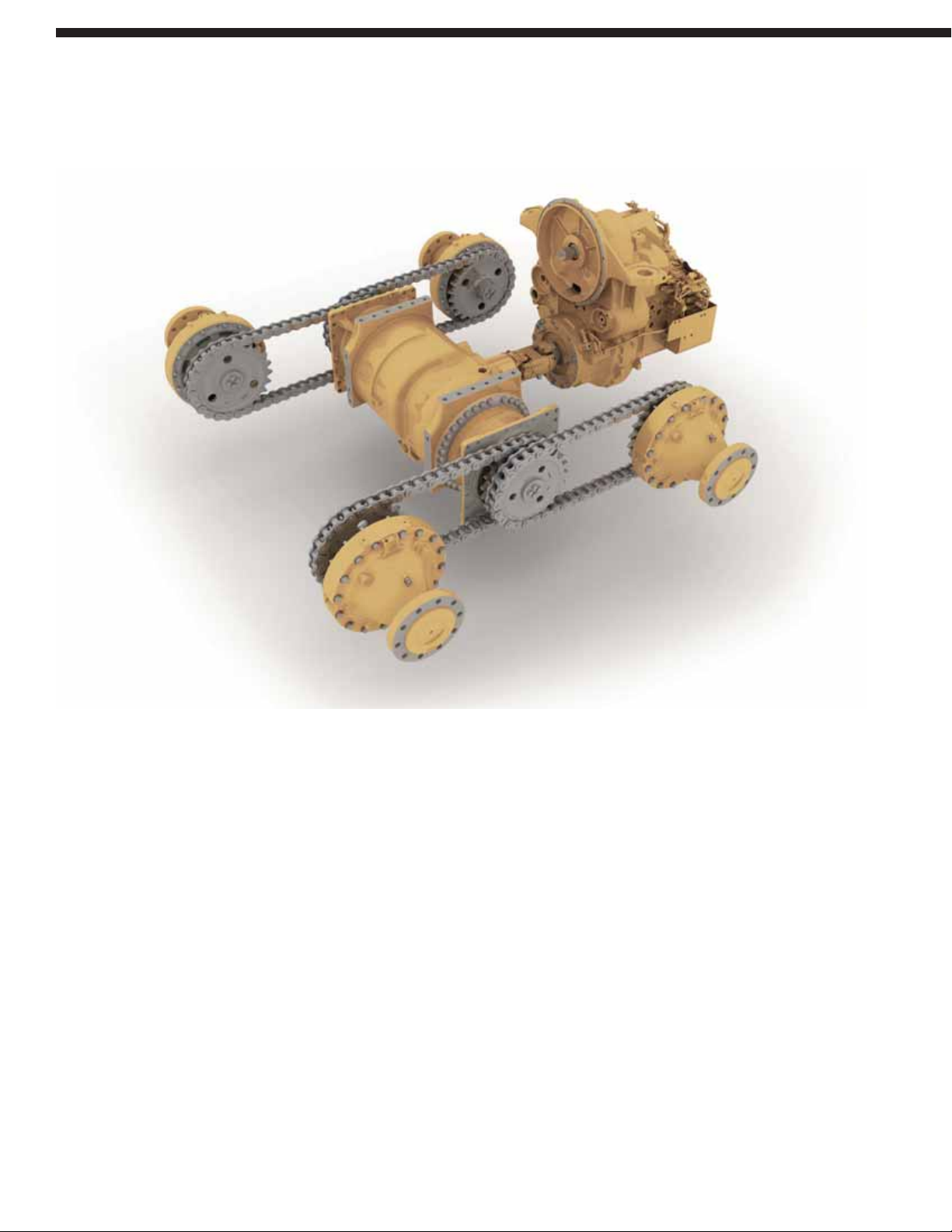

Power Train
Engine
Hydraulics
An electronically controlled power
✔
shift transmission assures smooth
shifting and maximum power to the
ground. A modular rear axle and
hydraulic brakes simplify serviceability
and reduce operating costs. pg. 10

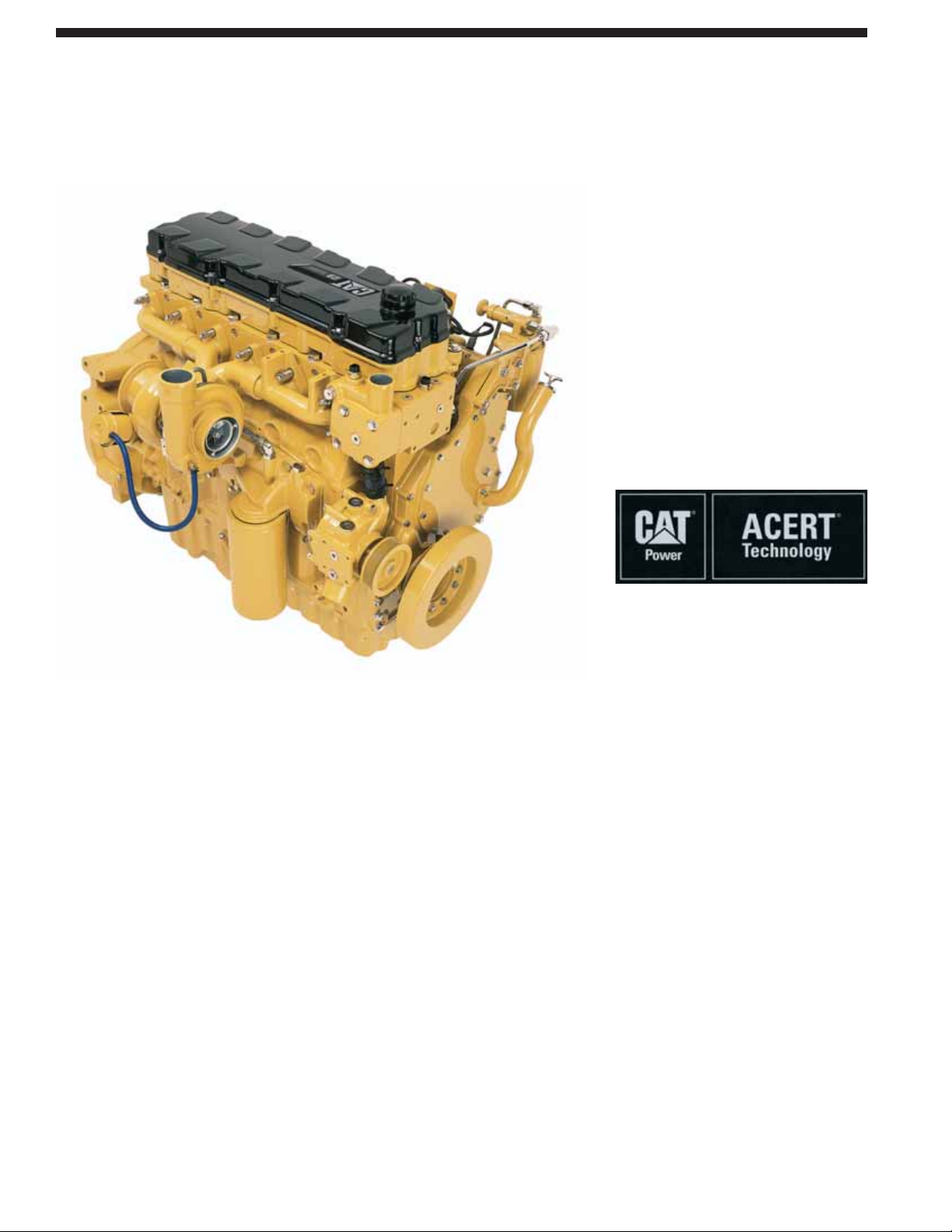

The Cat®C9 engine combines power
✔
management with ACERT™ Technology
to deliver maximum power and efficiency
in every gear while reducing the
environmental impact. pg. 12
Safety
Caterpillar has been and continues to be
✔
proactive in developing machines that
meet or exceed safety standards. pg. 18
The electro-hydraulic load-sensing system
✔
provides the foundation for advanced
machine controls, enabling superior
controllability and precise and predictable
hydraulic movements, with the reliability
you expect from Caterpillar. pg. 13
Serviceability and Customer Support
Fast component replacement and
✔
minimum downtime are possible with
Caterpillar’s exceptional parts availability
and dealers’ advanced rebuild and repair
capabilities. pg. 20
✔ New Feature
3
Page 4

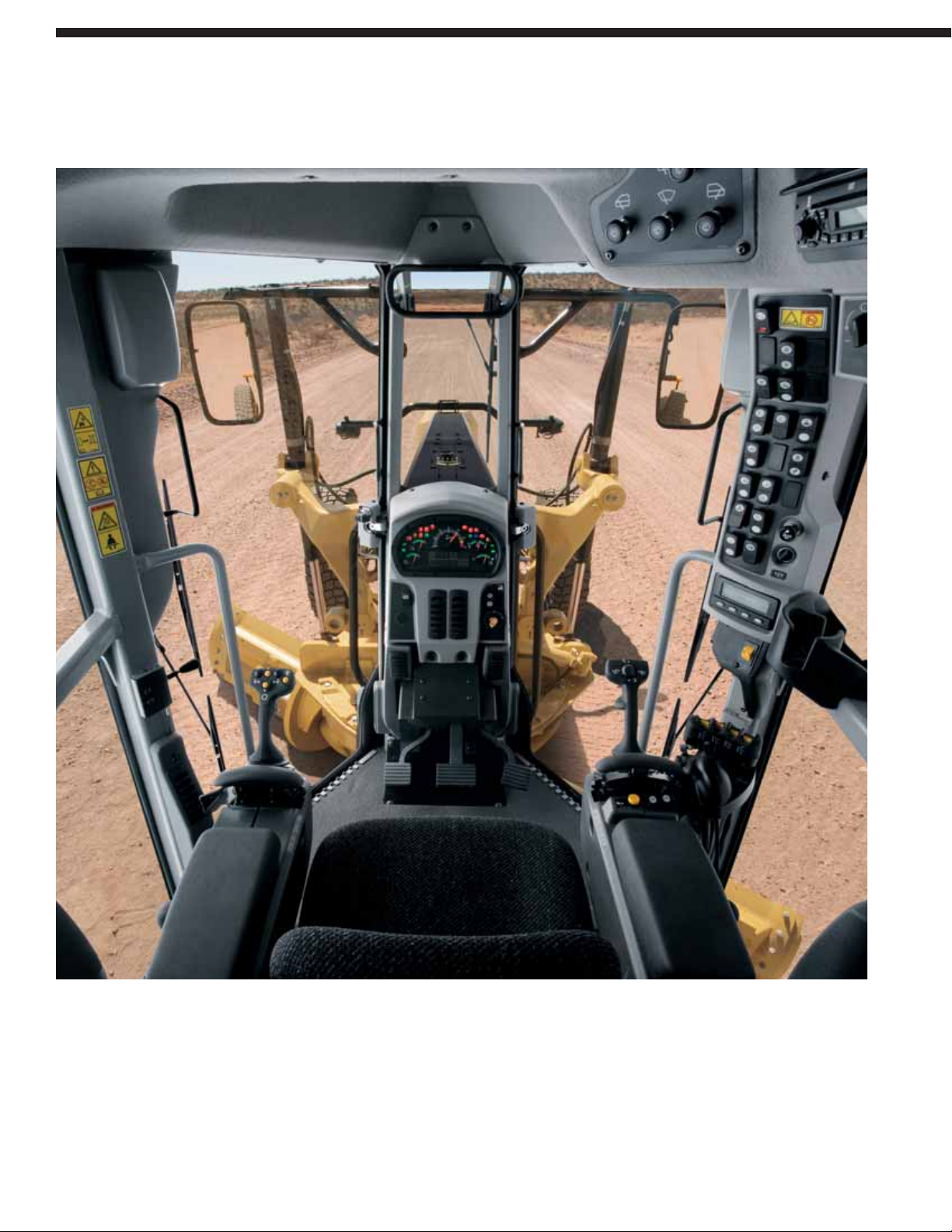

Operator Station
The 160M features a revolutionary cab design that provides unmatched comfort, visibility
and ease of use, making the operator more confident and productive.
4
Page 5
Advanced Joystick Controls.
Two electro-hydraulic joysticks reduce
hand and wrist movement as much as
78% compared to conventional lever
controls for greatly enhanced operator
efficiency. The intuitive pattern is easy to
learn and provides the precise implement
control you expect from Caterpillar.
Auxiliary Pod and Ripper Control.
The optional ripper control and auxiliary
control pod are ergonomically positioned
to allow simple, comfortable operation
for the multiple hydraulic options.

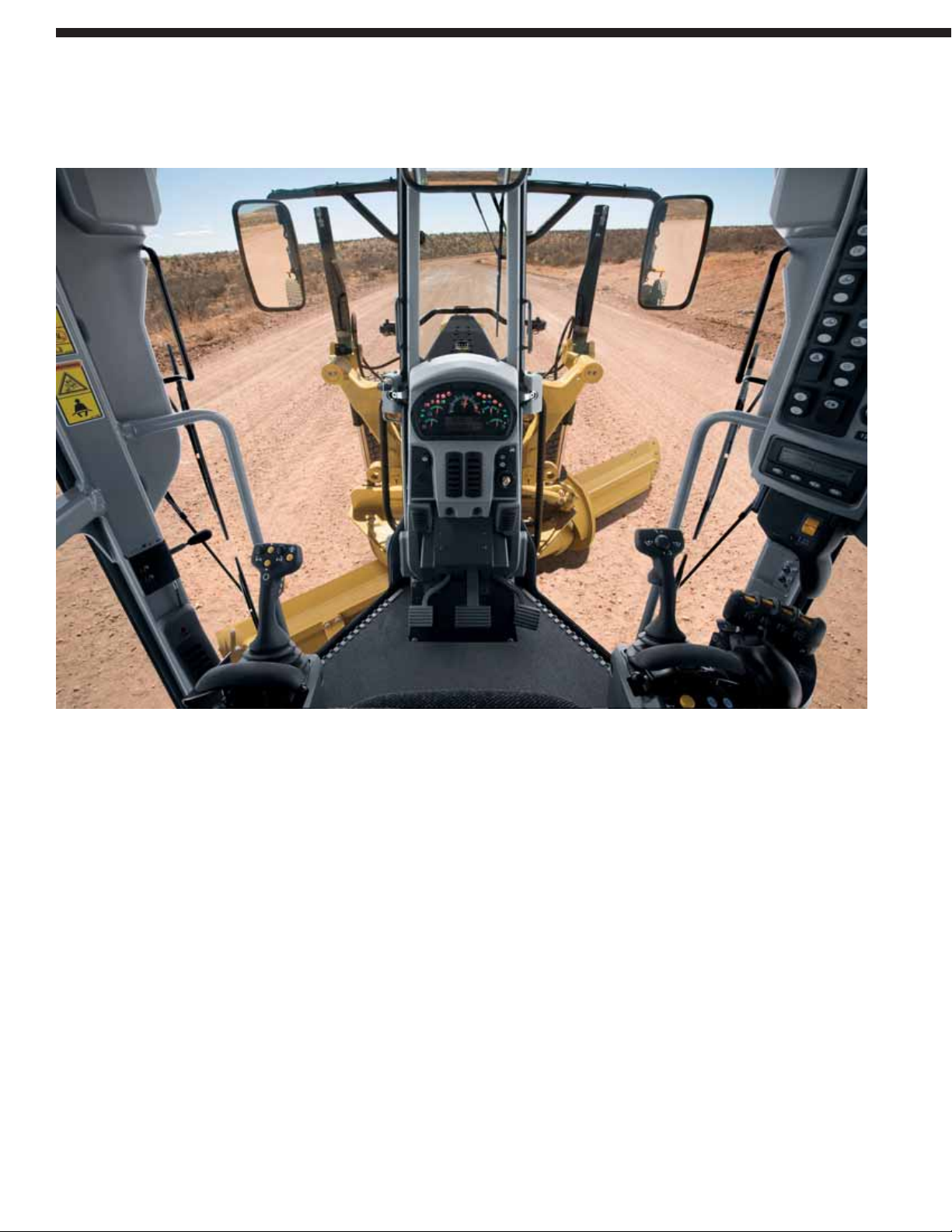

Visibility. The 160M boasts excellent
visibility to the work area, made possible
with angled cab doors, a tapered engine
enclosure and a patented sloped
rear window.

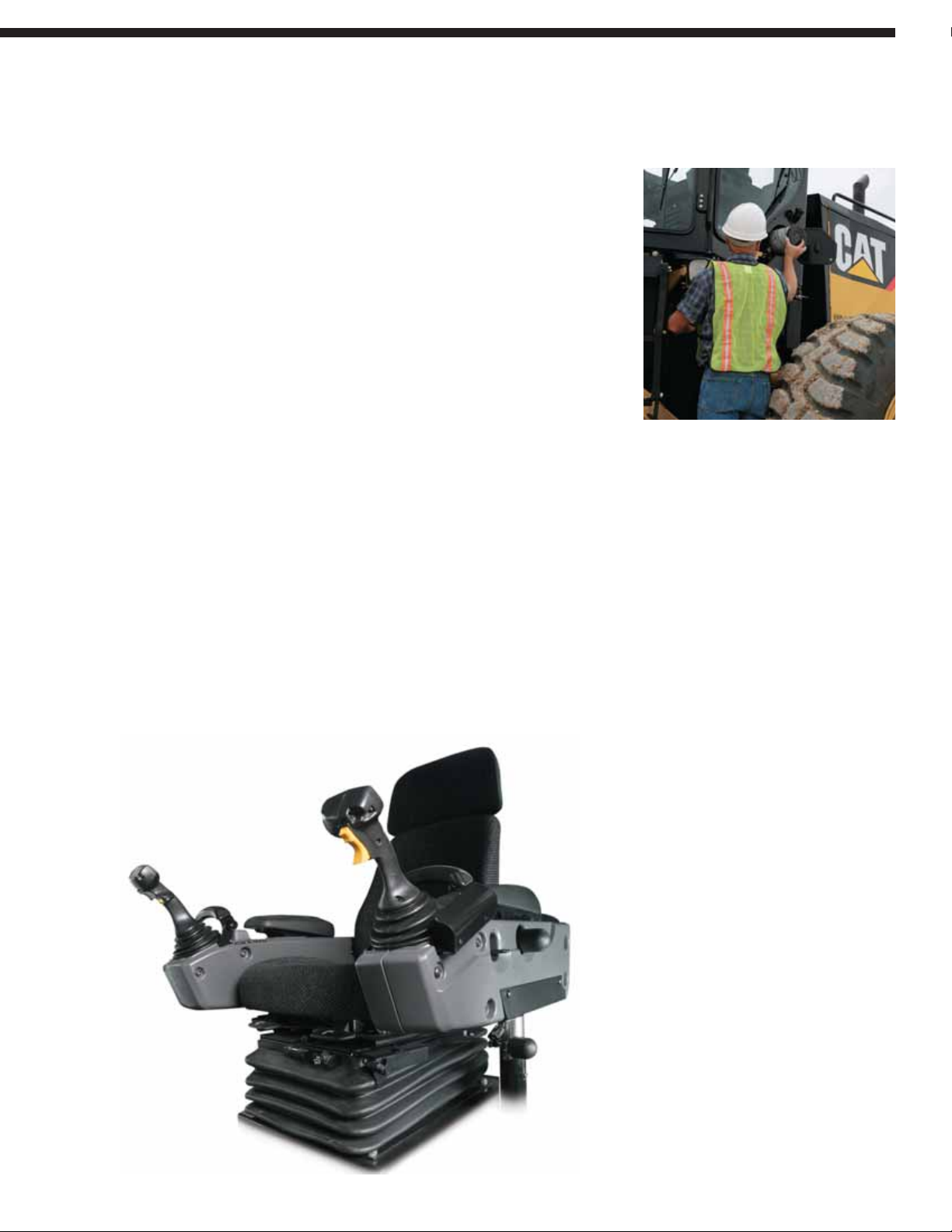

Cat Comfort Series Seat. The Cat
®
Comfort Series suspension seat has an
ergonomic high-back design, with extra
thick contoured cushions and infinitely
adjustable lumbar support that evenly
distributes the operator’s weight.
Multiple seat controls and armrests
are easy to adjust for optimal support
and comfort all day. The optional air
suspension seat enhances ride quality
for additional comfort.
In-Dash Instrument Cluster.
The instrument panel, with easy-to-read,
high-visibility gauges and warning lamps,
keeps the operator aware of critical
system information.

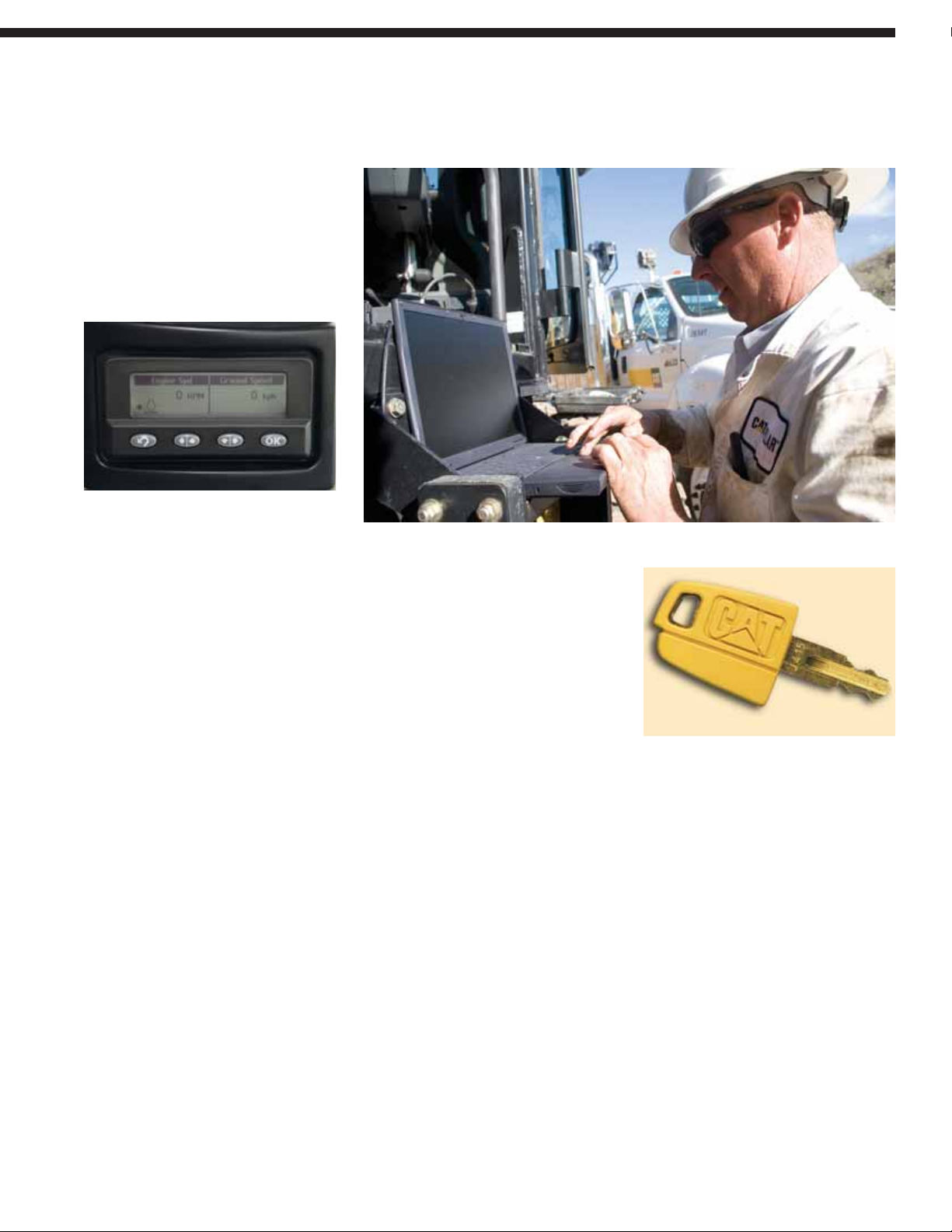

Cat Messenger. Cat Messenger provides
real-time machine performance and
diagnostic data. You can quickly view
critical performance and operating
information, in multiple languages,
helping to maximize the life and
productivity of the machine.
Controls and Switches. Reliable, longlife rocker switches are located on the
right side cab post and front instrument
cluster, within easy reach for the operator.
Comfort and Convenience. Caterpillar has
built the most comfortable cab in the
industry by replacing the control levers
and steering wheel with two joystick
controls, and lengthening the cab to
give more leg room.
Multiple adjustment capabilities for the
arm rest, wrist rests and joystick pods
help keep the operator comfortable
throughout a long shift.
HVAC. The heating, ventilation and
air conditioning system uses intelligent
vent placement for consistent climate
control and clear windows for every
condition. The high-capacity system
dehumidifies air and pressurizes the
cab, circulating fresh air and sealing out
dust. An easily accessible fresh air filter
is located outside the cab at ground
level for quick replacement or cleaning.
Low Interior Sound and Vibration Levels.
Isolation mounts for the cab, engine and
transmission, in addition to the relocation
of the hydraulic pump and valves, provide
significant sound and vibration reductions.
The low vibration levels and quiet interior
provide a comfortable work environment.
Additional Cab Features. Additional cab
features include cup holder, lighter and
ashtray, coat hook, storage area, night
time light, power port and heater.
Optional rearview camera, 25 amp power
converter and radio are also available.
5
Page 6
Steering and Implement Controls
The 160M sets the new standard for motor grader operational efficiency.
Ease of Operation. The revolutionary
joystick controls and exceptional
visibility make the 160M easier to
operate without sacrificing control.
The intuitive joystick control pattern
allows both new and experienced
operators to become productive quickly.
Logical grouping of hydraulic functions
in the joysticks allow any operator to
easily control several functions at the
same time. This allows the operator to
be more productive and remain
comfortable throughout the work shift.
6
Intuitive Steering Control. The 160M
introduces a breakthrough in joystick
steering control. This technology
creates a direct relationship between the
lean angle of the joystick and the
turning angle of the steer tires.
A brake tensioning system holds the
joystick in position until the operator
moves it. In addition, the steering
control automatically reduces steering
sensitivity at higher ground speeds for
comfortable and predictable control.
Electronic Throttle Control. Electronic
Throttle Control (ETC) provides the
operator with easy, precise, and
consistent throttle operation. An
automatic and manual mode on a single
switch offers flexibility for different
applications and operator preferences.
Page 7
7
1
7
4
4
6
6
2
1
3
5

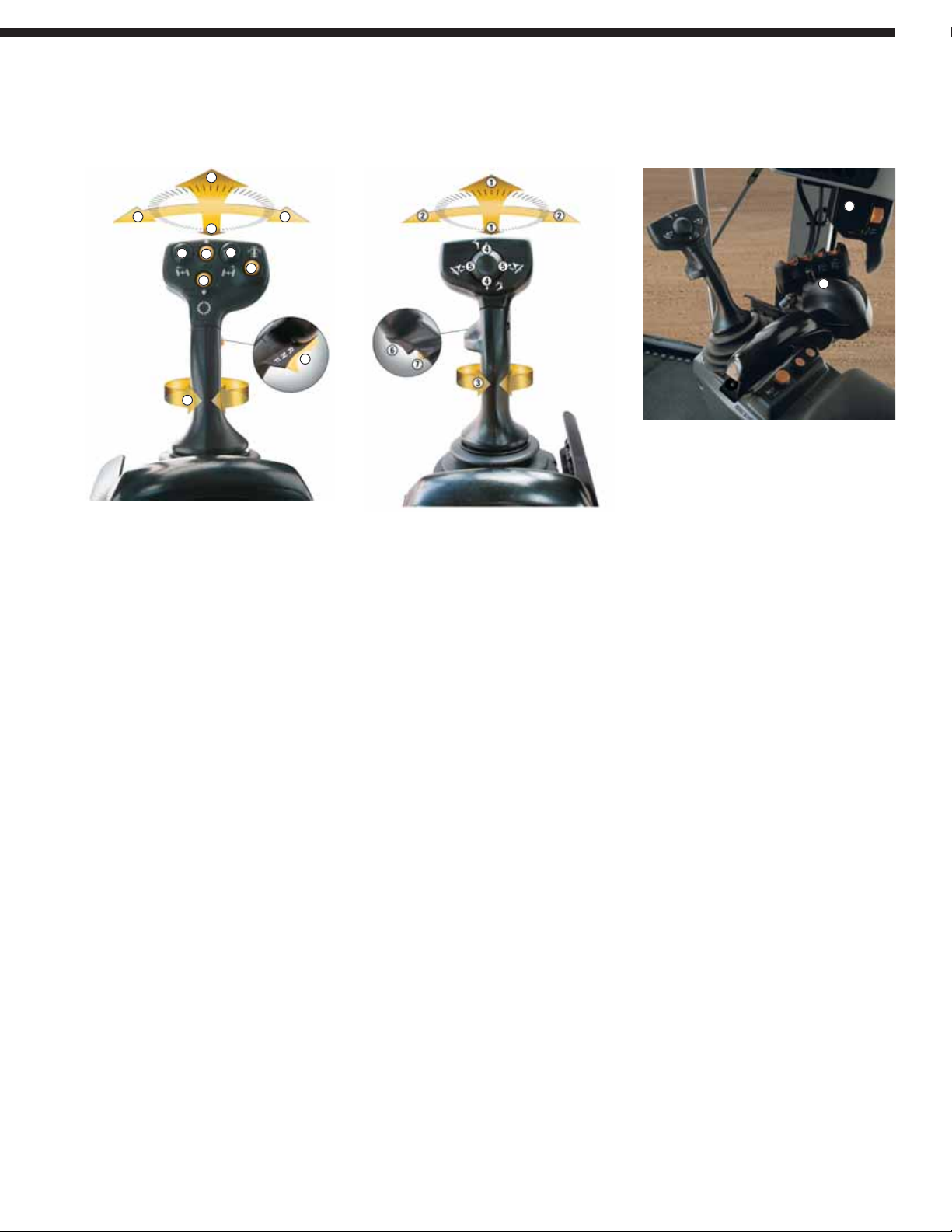

Left Joystick Functions. The left
joystick primarily controls the machine
direction and speed.
1 – Steering: Lean joystick left and right
2 – Articulation: Twist joystick left
and right
3 – Articulation Return to Center:
Yellow thumb button
4 – Wheel Lean: Two black thumb
buttons
5 – Direction: Index trigger shifts
transmission to forward, neutral
or reverse
6 – Gear Selection: Two yellow thumb
buttons upshift and downshift
7 – Left moldboard lift cylinder:
Push joystick to lower, pull
joystick to raise
– Left moldboard lift cylinder float:
Pushing joystick through detent
engages float
Articulation Return-to-Center.
This feature automatically returns the
machine to a straight frame position from
any articulation angle with the touch of
a single button. Return-to-Center helps
improve productivity and safety by
allowing the operator to focus on
controlling the moldboard.
Right Joystick Functions. The right
joystick primarily controls the Drawbar,
Circle and Moldboard functions.
1 – Right moldboard lift cylinder:
Push joystick to lower, pull
joystick to raise
– Right moldboard lift cylinder float:
Pushing joystick through detent
engages float
2 – Moldboard slide: Lean joystick left
and right
3 – Circle turn: Twist joystick left
and right
4 – Moldboard tip: Thumb switch fore
and aft
5 – Drawbar center shift: Thumb switch
left and right
6 – Electronic Throttle Control: Trigger
switch is resume and decrement
7 – Differential Lock/Unlock:
Yellow button
1
2
1 – Ripper Control Pod. Infinitely variable
roller switches control the rear ripper
and/or front lift group (when equipped),
for easy and comfortable control.
2 – Programmable Auxiliary Hydraulic
Pod. Four fingertip controls and a mini
joystick maximize hydraulic control
flexibility, accommodating up to six
hydraulic circuits. Individual functions
are easily programmable through Cat
ET to meet the configuration you need.
The optional auxiliary hydraulic pod is
provided when the machine is configured
with three or more auxiliary functions.
7
Page 8

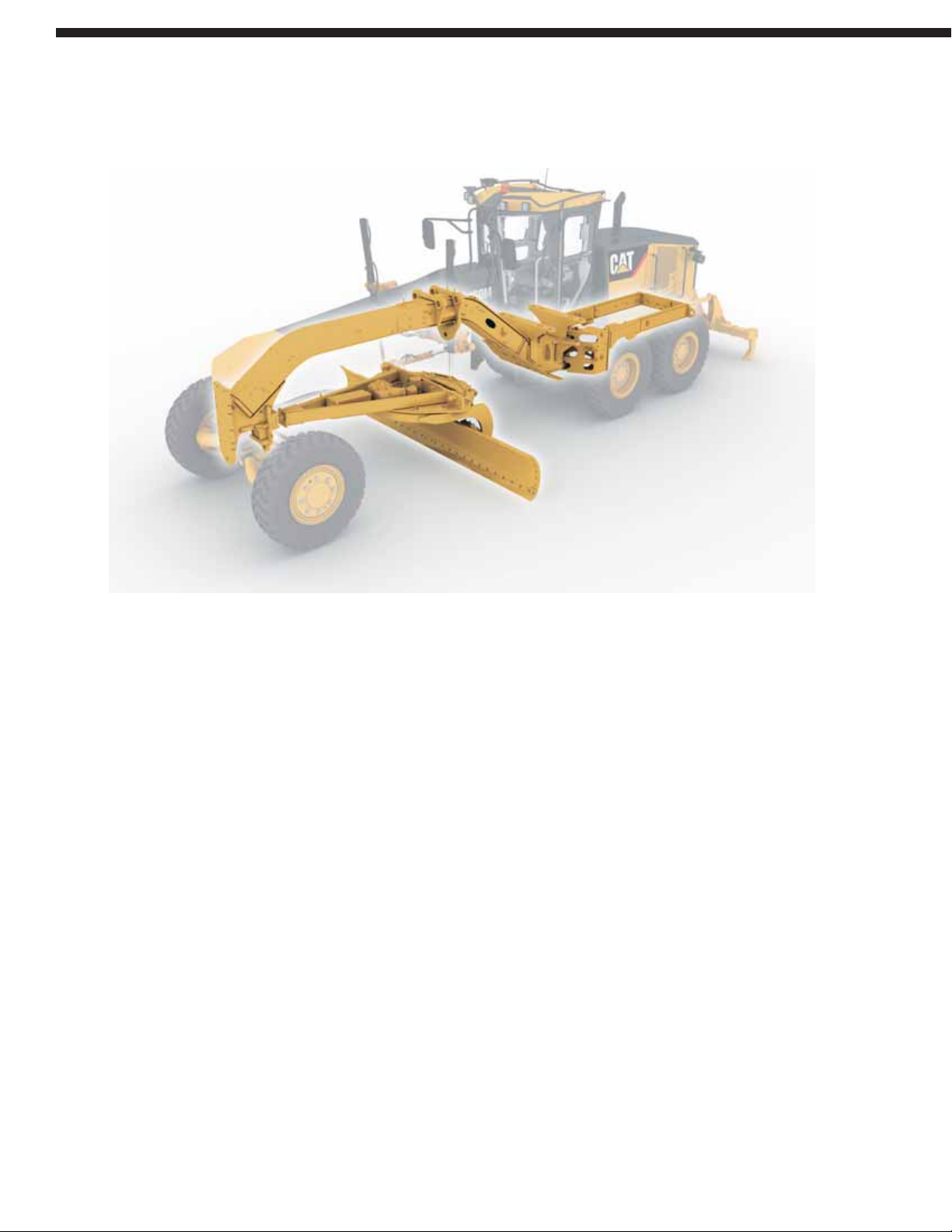

Structures, Drawbar, Circle and Moldboard
Durable structures with fast and simple DCM adjustments deliver precise material control
while lowering operating costs.
Front Frame Structure. The 160M front
frame is a formed structural carbon steel
tube. Advanced fabrication technology
significantly reduces the number of weld
joints, which more evenly distributes
stress loads. The result is a robust machine
that delivers the durability you expect
from Caterpillar.
Rear Frame Structure. The box-sectioned
hitch design helps resist torsion loads and
ensure structural durability. The integrated
bumper ties the rear frame together as
a single, solid unit, so the frame can
withstand heavy-duty applications
such as ripping and winging snow.
Articulation Hitch. A large tapered
roller bearing at the lower pivot carries
loads evenly and smoothly. This joint
is sealed to prevent contamination in
this critical area.
A mechanical locking pin prevents frame
articulation to help ensure safety when
servicing or transporting the machine.
Circle Construction. Our one-piece
forged steel circle is built to stand up to
high stress loads and provide structural
durability. The front 240° of circle teeth
are hardened to reduce wear and ensure
component reliability.
Drawbar Construction. The A-frame
drawbar features a tubular design for
high strength and optimum durability.
Aggressive Blade Angle. With a long
wheelbase the operator can obtain
aggressive moldboard angles, so material
rolls more freely along the length of the
blade. This is particularly helpful when
handling very dry materials or cohesive
soils. Better material control gets the job
done faster, requires less power and
saves fuel.
8
Page 9

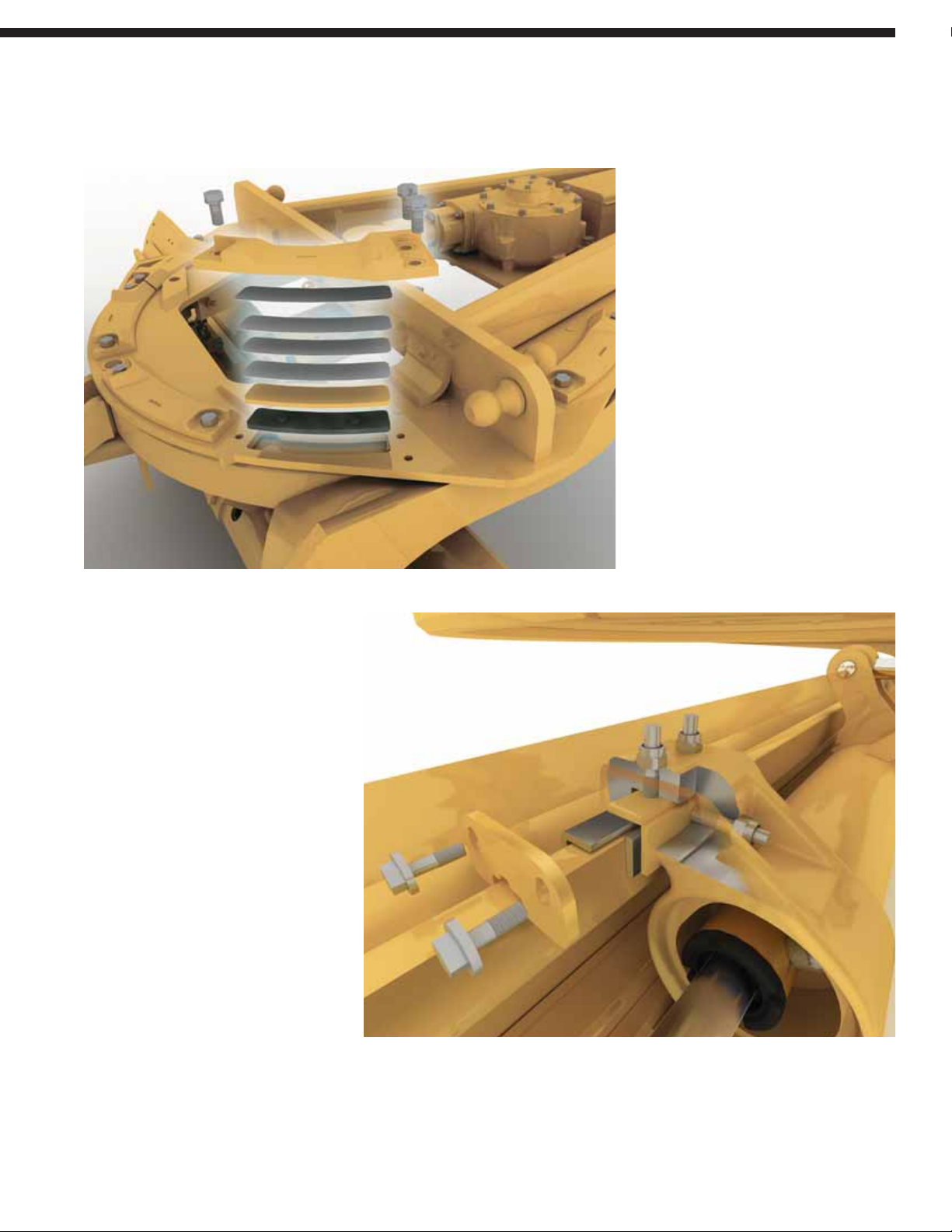

Top-adjust drawbar wear strips
Top-Adjust Drawbar Wear Strips.
The patented top-adjust wear strips
dramatically reduce drawbar/circle
adjustment time. By removing the
access plates on top of the drawbar,
shims and wear strips can easily be
added or replaced. This feature reduces
service downtime and lowers overall
machine operating costs.
Moldboard. The optimal curvature and
large throat clearance help move material
quickly and efficiently. Heat-treated
moldboard rails, hardened cutting edges
and end bits, and large diameter bolts
assure reliability and longer service life.
The moldboard side shift cylinder is
positioned on the left side to eliminate
snow wing interference.
Moldboard Positioning. The blade link
bar design extends the possibilities for
moldboard positioning, most beneficial
in mid-range bank sloping and in ditch
cutting and cleaning.
Shimless Moldboard Retention System.
The unique shimless moldboard retention
system reduces the potential for blade
chatter. Vertical and horizontal adjusting
screws keep the moldboard’s wear strips
aligned for precise blade control and
dramatic reductions in service time.
Replaceable Wear Inserts. Tough,
durable nylon composite wear inserts
reduce rotational friction for maximum
circle torque and longer component life.
They are located between the drawbar
and circle, and between the support
shoes and circle. High load-resistant
brass wearstrips are placed between the
blade mounting group and moldboard.
This sacrificial wear system can
be replaced easily and helps keep
components tight for fine grading.
Shimless moldboard retention system with adjusting screws
9
Page 10
Power Train
Integrated, electronically controlled systems, deliver smooth reliable performance
with reduced operating costs.
Smooth Shifting Transmission. The
160M combines several key innovations
to ensure smooth, powerful shifts
throughout the gear range.
Electronically Controlled Shifting. The
full Electronic Clutch Pressure Control
(ECPC) system optimizes inching
modulation and smooths shifting
between all gears and directional
changes. This provides outstanding
control and also extends the life of the
transmission by reducing stress on
gears.
Load Compensation. This standard
feature ensures consistent shift quality
regardless of blade or machine load.
10
Controlled Throttle Shifting. This
standard feature helps to smooth
directional and gear changes without
use of the inching pedal.
Engine Over-Speed Protection. Helps
protect the transmission and extend
component life by preventing
downshifting until a safe travel speed
has been established.
Power Shift Countershaft Transmission.
Designed and manufactured specifically
for the 160M motor grader, the direct
drive countershaft transmission is
matched with the powerful Cat C9
engine to maximize power to the
ground.
Modular Rear Axle. The 160M
incorporates a bolt-on modular rear axle
design, which offers easy access to
differential components, improves
serviceability and contamination
control, and lowers maintenance time
and operating costs. The result is a
rugged machine you can rely on for
years to come.
Page 11
1
2
2
3
3
1
1
2
2

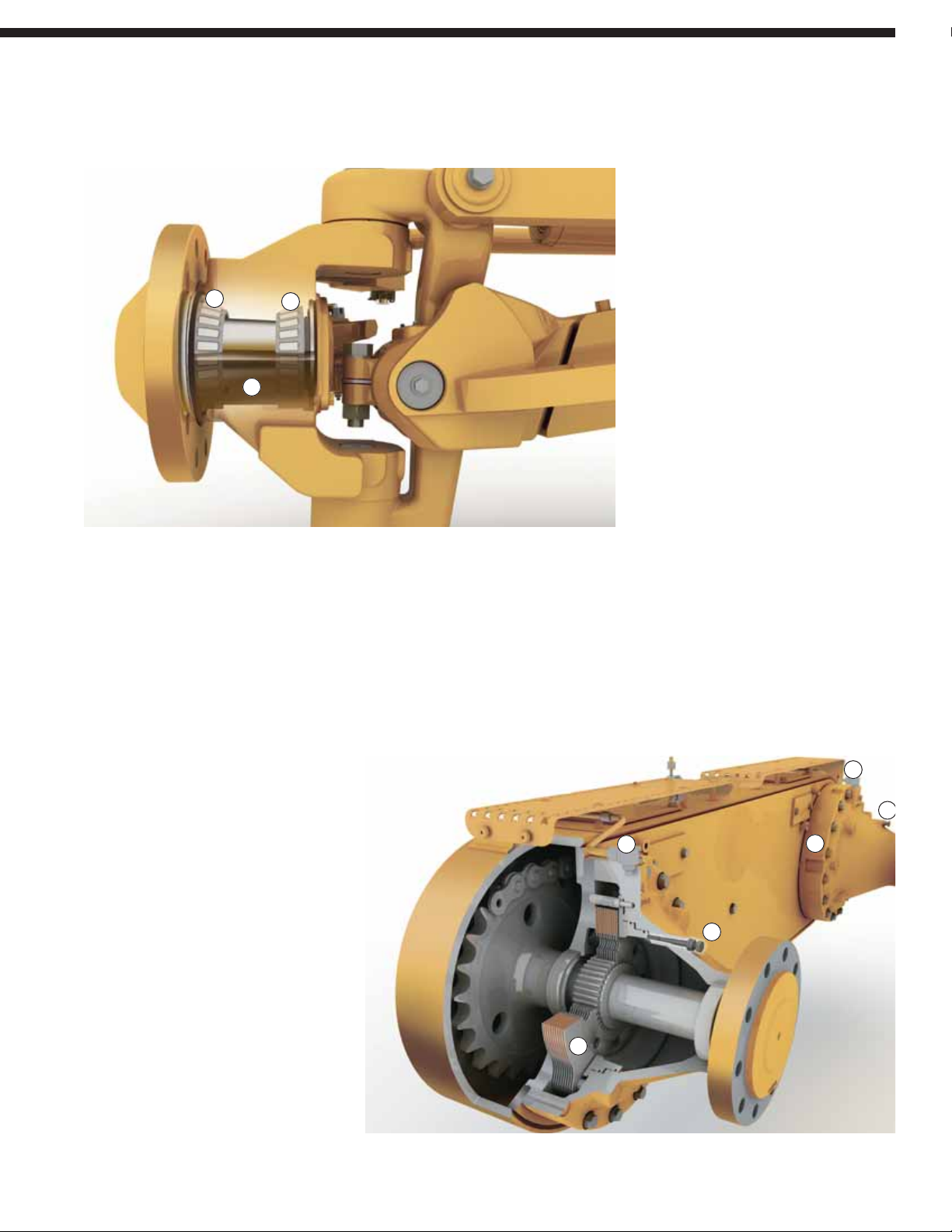

Front axle
Front Axle. The Cat®sealed spindle keeps
the bearings free from contaminants
and lubricated in a light-weight oil (1).
This durable, low-maintenance design
reduces your owning and operating
costs. Two tapered roller bearings (2)
support the wheel spindle. The Cat “Live
Spindle” design places the larger tapered
roller bearing outboard where the load
is greater, extending bearing life.
Hydraulic Brakes. The oil bathed, multidisc service brakes are hydraulically
actuated (1), providing smooth
predictable braking and lower operating
costs. With brakes located at each tandem
wheel, the 160M offers the largest total
brake surface area in the industry (2),
delivering dependable stopping power
and longer brake life.
Brake Serviceability and Reliability.
An easily accessible brake wear indicator/
compensator system (3) maintains
consistent brake performance and
indicates brake wear without
disassembly. This system cuts service
time and extends brake service life.
Parking Brake. The spring-applied,
hydraulically released multi-disc parking
brake is a sealed, oil-cooled design
extending component life and reducing
the need for service. The parking brake
is integrated into the Operator Presence
System to prevent unintended machine
movement.
Gear Selection. Eight forward and six
reverse gears give the operator a wide
operating range. The specifically designed
range of gears ensures maximum
productivity in all earthmoving
applications.
Inching Pedal. Allows precise control of
machine movements in any gear with low
pedal effort and excellent modulation,
critical in close-quarter work or finish
grading.
Programmable Autoshift. The operator
can easily customize various shift
parameters through Cat Messenger
to match the specific application
requirement. This feature automatically
shifts the transmission at optimal points
so the operator can focus on the work,
improving safety, productivity and ease
of operation.
Brake design
11
Page 12
Engine
The 160M combines power management with ACERT™ Technology to deliver maximum
power and efficiency while reducing the environmental impact.
Power Management. The 160M Power
Management System automatically
delivers an additional five horsepower
in each forward gear 1st through 4th,
and each reverse gear 1st through 3rd.
This standard feature optimizes rimpull
for all gears by balancing traction, speed
and horsepower while conserving fuel.
The system limits horsepower in lower
gears, which helps reduce wheel slip
where traction is limited. With the
Variable Horsepower (VHP) Plus
(optional for tandem-drive and standard
on the AWD model), an additional
five-horsepower is delivered in each
forward gear 5th through 8th for more
power at higher speeds.
ACERT™ Technology.
ACERT Technology allows Cat
engines to supply more power per unit of
displacement without causing premature
wear. This breakthrough technology
reduces emissions during the combustion
process by using advanced technology
in the air and fuel systems, in conjunction
with integrated electronics. ACERT
Technology enhances overall engine
performance while dramatically
reducing exhaust emissions.
Fuel Delivery. The C9 engine with
ACERT Technology uses multiple
injection fuel delivery to precisely shape
the combustion cycle. Several small
ignitions lower combustion chamber
temperatures, generates fewer emissions
and optimizes fuel combustion. Bottom
line: more work output for your fuel cost.
Performance. The Cat C9 engine meets
specific performance requirements for
160M applications. Its superior torque
and lugging capability can pull through
sudden, short-term increases in loads,
maintaining consistent, desirable grading
speeds to get the work done faster without
downshifting.
Hydraulic Demand Fan. The hydraulic
demand fan automatically adjusts cooling
fan speed according to engine cooling
requirements. This system reduces
demands on the engine, putting more
horsepower to the ground and
improving fuel efficiency.
Exhaust Emissions Compliant. The Cat
C9 with ACERT Technology meets
or exceeds all U.S. EPA Tier 3 and
European Union Stage IIIa emissions
control standards.
12
Page 13
Hydraulics
The 160M electro-hydraulics enable advanced machine controls with precise
and predictable movements.
Advanced Electro-Hydraulic System.
The 160M incorporates a state-of-the-art
electro-hydraulic system. This technology
is the foundation for revolutionary
changes of the machine and implement
controls. Advanced joystick controls
provide unmatched controllability with
precise, predictable hydraulic movements
and the reliability you expect from
Caterpillar.
Blade Float. Blade float is built into the
blade lift control valves and is optional
for some auxiliary hydraulic functions.
The blade float feature allows the blade
to move freely under its own weight.
By floating both cylinders, the blade
can follow the contours of the road
when removing snow. Floating only
one cylinder permits the toe of the
blade to follow a hard surface while
the operator controls the slope with
the other lift cylinder.
Cat®XT™ Hose. Caterpillar hose
technology allows high pressures for
maximum power and reduced downtime.
Intelligent routing minimizes exposure
to damage. Hose clips prevent hose
rubbing and excessive vibration for
lower owning and operating costs.
Independent Oil Supply. Large, separate
hydraulic oil supply prevents crosscontamination and provides proper oil
cooling, which reduces heat build-up
and extends component life.
Load Sensing Hydraulics (PPPC).
The time proven load-sensing system
and the advanced Proportional Priority
Pressure-Compensating (PPPC, or
“triple-PC”) electro-hydraulic valves
on the 160M are designed to provide
superior implement control and enhanced
machine performance in all applications.
Continuous matching of hydraulic flow
and pressure to power demands creates
less heat and reduces power consumption.

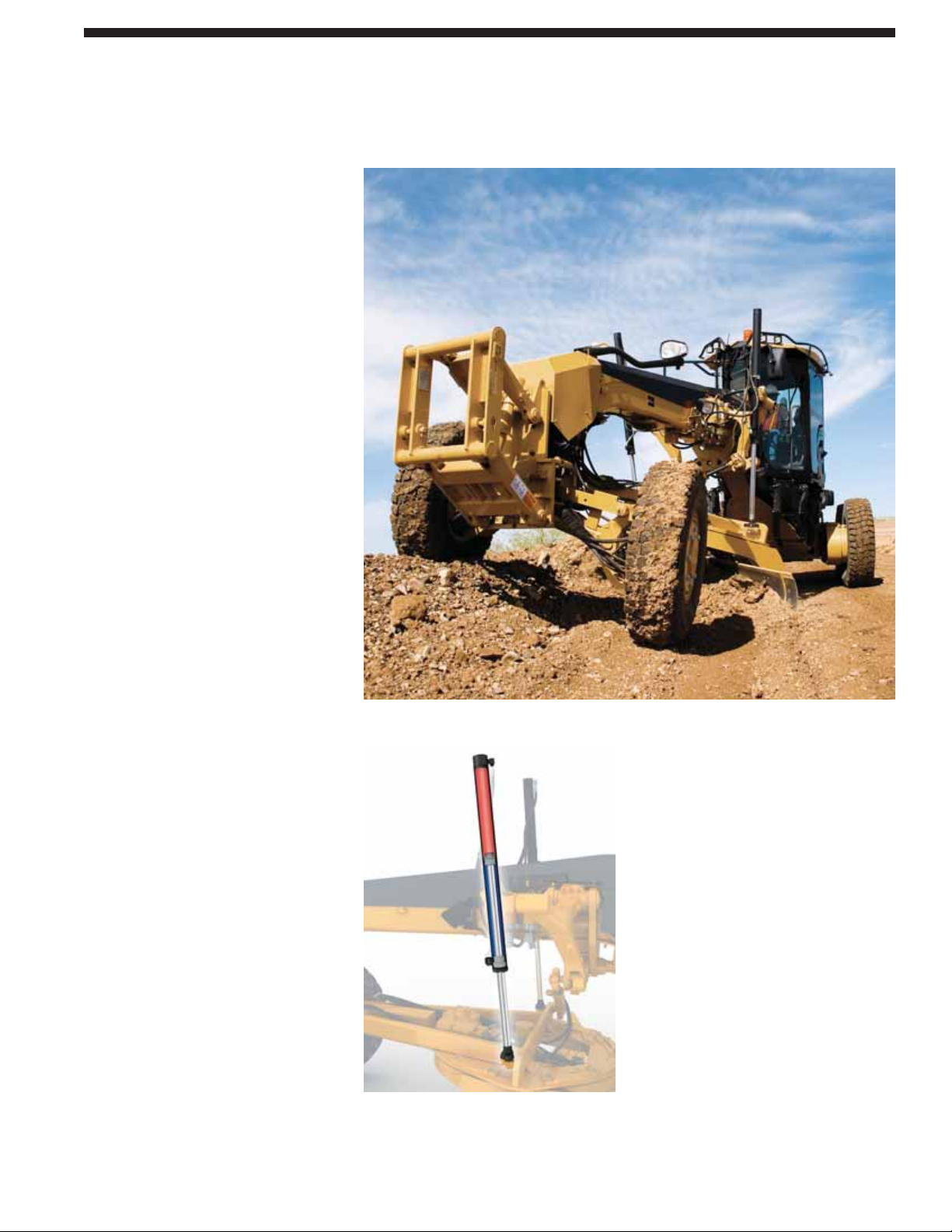

Consistent and Predictable Movement.
PPPC valves have different flow rates
for the head (red) and rod ends (blue)
of the cylinder. This ensures consistent
extension and retraction speeds for
each cylinder, and gives the operator
a consistent and predictable response
every time an implement control is moved.
Balanced Flow. Hydraulic flow is
proportioned to ensure all implements
operate simultaneously with little effect
on the engine or implement speeds.
If demand exceeds pump capacity, all
cylinder velocities are reduced by the
same ratio. The result is improved
productivity in all applications.
Predictable movements
13
Page 14
Integrated Electronic Solutions
Full systems integration optimizes machine performance and availability.

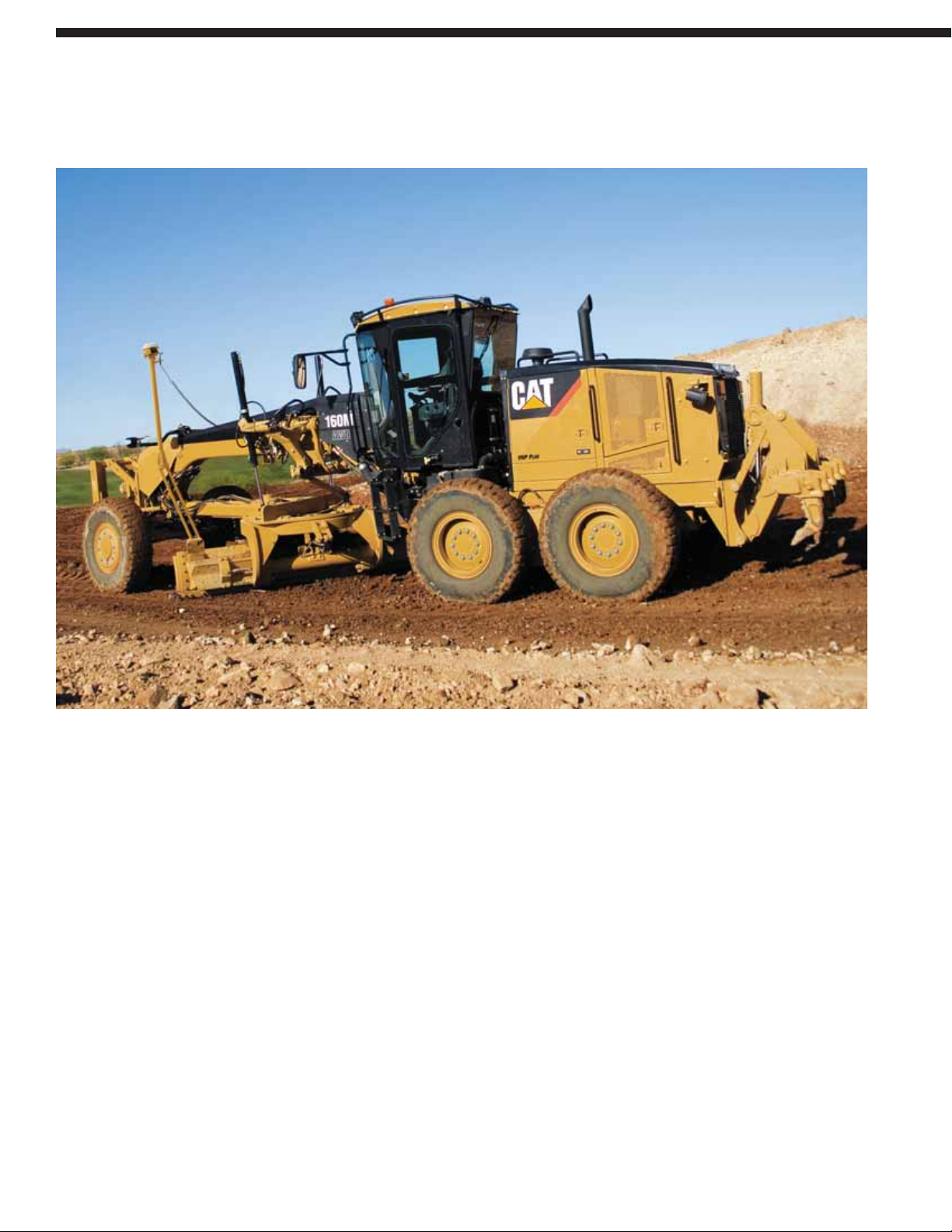

160M with AccuGrade™ System
“Smart Machine”. The 160M fully
integrates all core systems creating a
“Smart Machine.” The Cat data link
shares key data among systems,
optimizing machine performance while
preventing potential machine damage.

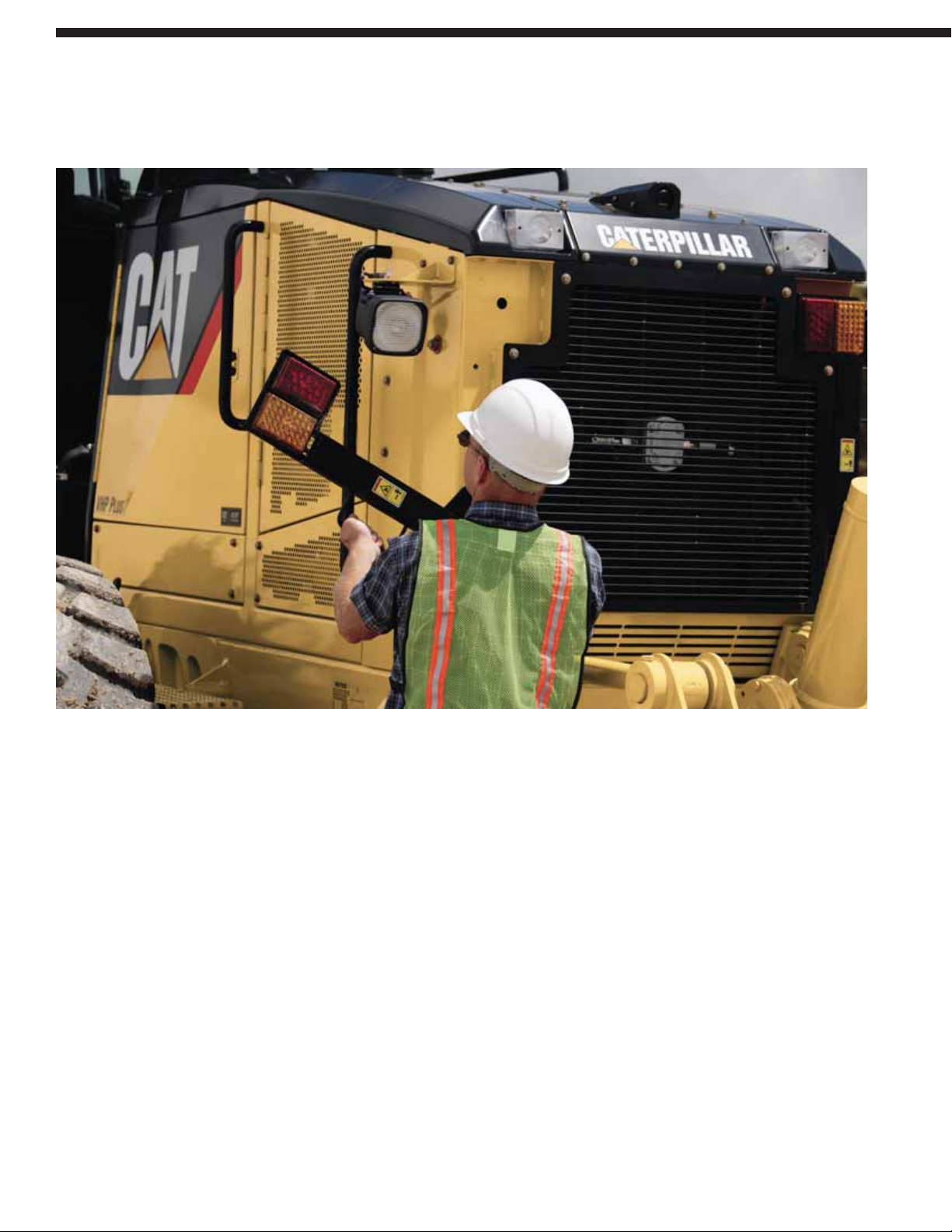

Diagnostics. Cat Messenger, combined
with full systems integration, enhances
the diagnostic capability of the 160M.
Machine system errors are displayed
in text as well as with fault codes,
allowing service technicians and
operators to quickly analyze critical
data, increasing machine availability.
Optional Automatic Blade Control.
The Cat AccuGrade System
automatically controls the blade,
improving operator efficiency and
productivity. AccuGrade™ technology
reduces the need for traditional survey
stakes or grade checkers, so you can
reach grade faster and in fewer passes
than ever before.
AccuGrade Attachment Ready Option.
The AccuGrade System is fully integrated
into the machine design, making
installation quick and easy. Integral
hydraulic and electrical components are
standard on the 160M (Grade Control
Ready). The AccuGrade Attachment
Ready Option provides additional
mounting brackets, cab controls and
electrical harnesses for easy installation
of the Cross Slope, Sonic, Laser, GPS
or ATS electronics kits.
Product Link. Product Link streamlines
diagnostic efforts, and reduces downtime,
maintenance scheduling and costs by
providing a communication flow of vital
machine data and location. Product Link
gives automatic updates on machine
parameters such as machine hours,
machine condition, location, fault
codes and alarms directly to your
office computer.
14
Page 15
Electronic Technician (Cat ET). Cat ET
is a two-way communication tool that
gives service technicians easy access
to stored diagnostic data and lets them
configure the machine parameters through
the Cat Data Link. This integrated feature
reduces machine downtime and lowers
operating costs.
Cat Messenger. Standard on the 160M,
Cat Messenger provides real-time machine
performance and diagnostic data with
an easy-to-use interface. Messenger
monitors all system data and alerts the
operator of any faults through a digital
text display that can be shown in
multiple languages.
Low Battery Elevated Idle. After the 160M
is at low idle for an extended period and
low system voltage is detected, idle speed
is raised. This ensures adequate system
voltage and improves battery reliability.
Automatic Engine Deration. Protects the
C9 engine by automatically lowering
engine torque output and alerting the
operator if critical conditions are detected.
Machine Security System (MSS).
The optional MSS uses electronically
coded keys to limit usage by specific
individuals or times of the day.
MSS deters theft, vandalism
and unauthorized use.
15
Page 16
All Wheel Drive, Work Tools and Attachments
The All Wheel Drive, Work Tools and optional attachments for the 160M expand machine
versatility, utilization and performance.

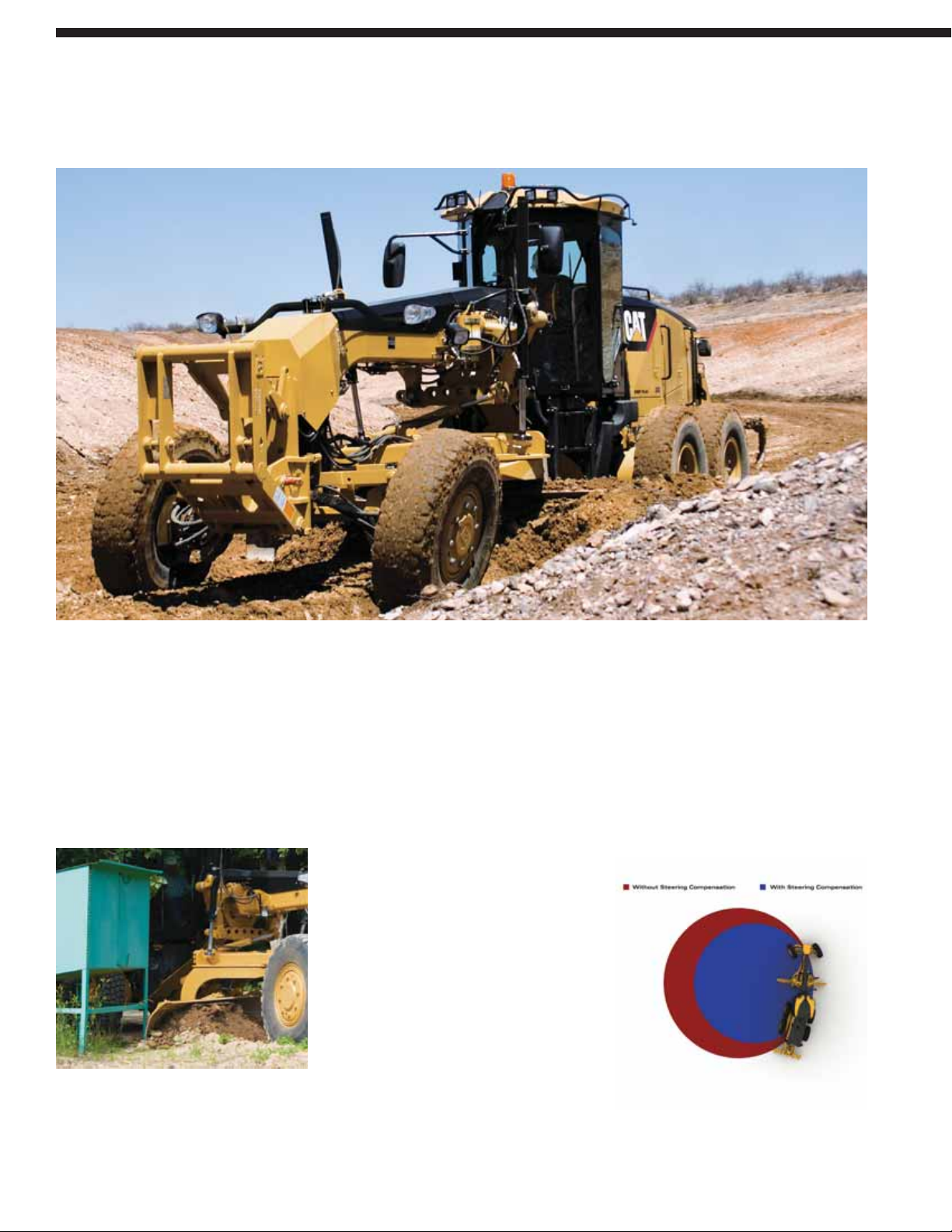

All Wheel Drive (AWD) System.
The optional AWD system utilizes
dedicated left and right pumps for precise
hydraulic control. The infinitely variable
pumps and motors maximize torque in
each gear delivering the most power to
the ground in the industry and increasing
productivity in the most demanding
applications.
Precise control
AWD – Maximum Net Power.
When equipped with AWD, the 160M
will automatically increase power up
to 32 kW (43 hp) when the system
is engaged. This offsets the parasitic
losses and maximizes net power to
the ground for increased productivity.
AWD – Hydrostatic Mode.
Standard with AWD, this mode
disengages the transmission and provides
hydraulic power to the front wheels only.
The ground speed is infinitely variable
between 0-8 km/h (0-5 mph), perfect for
precise finish work.
AWD – Steering Compensation.
The Cat Steering Compensation System
is standard with All Wheel Drive.
This feature enables a “powered turn”
by adjusting the outside front tire speed
up to 50% faster than the inside tire.
The result is improved control, less
damage to surfaces and a dramatic
reduction of turning radius in poor
underfoot conditions.
16
Page 17
Moldboard Options. A 3.7 m (12 ft)
moldboard is standard on the 160M,
with an optional 4.3 m (14 ft) or 4.9 m
(16 ft) moldboard available from the
factory. Left side moldboard extensions
are also available, increasing versatility.
Ground Engaging Tools (GET). A wide
variety of Cat GET is available on
the 160M, including cutting edges,
graderbits and end bits, all designed for
maximum service life and productivity.
Front Mounted Groups. A front mounted
push plate/counterweight or front lift
group can be ordered on the 160M.
The Cat Work Tools front lift group can
be combined with a front dozer blade or
front scarifier for added versatility.

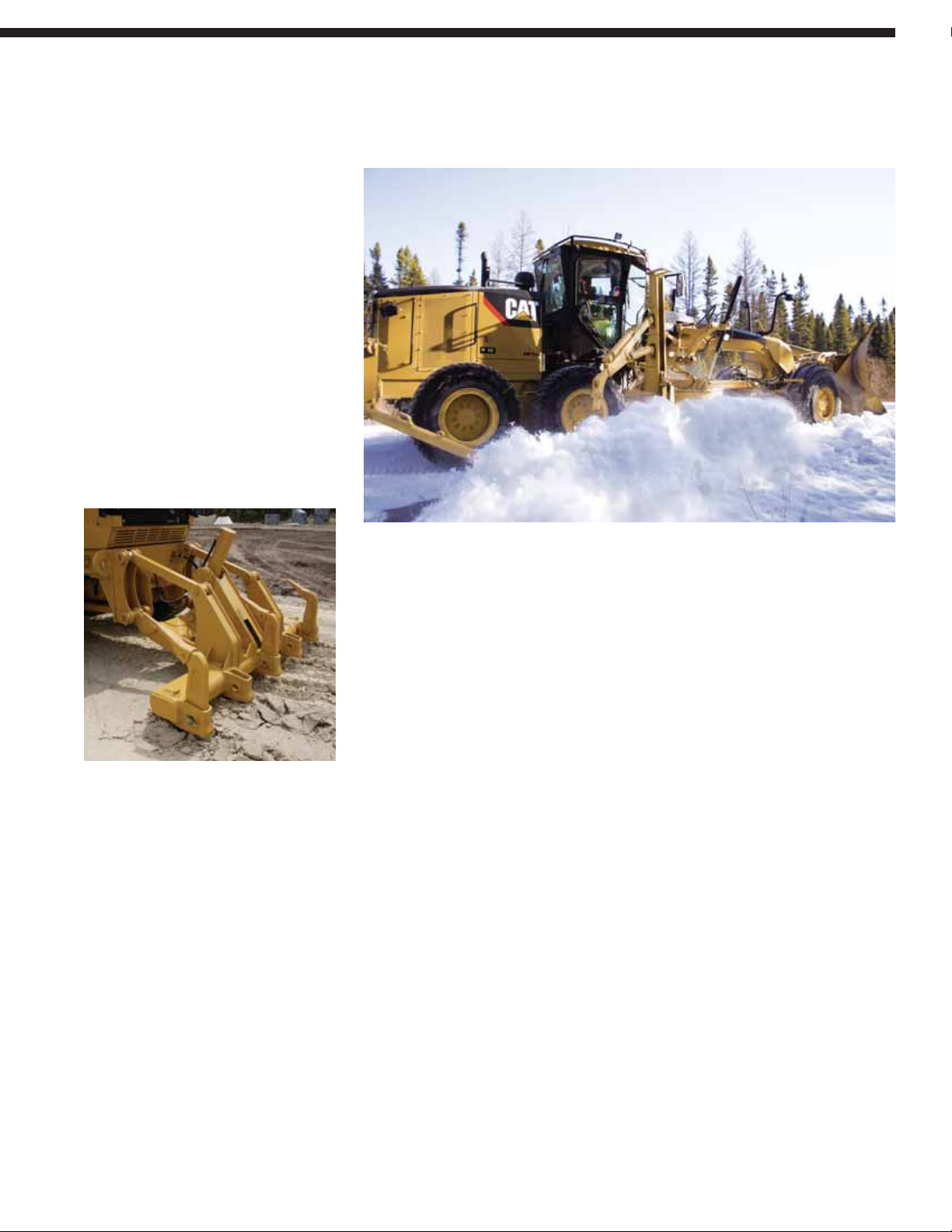

Rear Ripper/Scarifier. The 160M optional
ripper/scarifier is made to penetrate tough
material fast and rip thoroughly for easier
material movement with the moldboard.
The ripper includes three shanks with
the ability to add two more if needed.
Nine scarifier shanks can also be added
for additional versatility.
Snow Removal Work Tools.
Cat Work Tools offer a variety of snow
removal equipment specifically for the
160M. Multiple snow plow, snow wing
and mounting options are available,
adding additional machine versatility
and utilization throughout the year.
Air Compressor. An optional air
compressor is available, giving you a
convenient on-board air system to blow
debris off the machine and operate
power tools.
17
Page 18
Safety
Safety is an integral part of all machine and system designs.
Operator Presence System. The Operator
Presence System keeps the parking brake
engaged and hydraulic implements
disabled until the operator is seated and
the machine is ready for safe operation.
Secondary Steering System. The standard
secondary steering system automatically
engages an electric hydraulic pump in
case of a drop in steering pressure,
allowing the operator to steer the
machine to a stop.
Speed Sensitive Steering. The steering
software automatically provides an
infinitely variable ratio between the
joystick and the steer tires, resulting
in less sensitive steering as the ground
speed increases.
18
Low Sound and Vibration Levels.
Isolation mounts for the cab, engine and
transmission maximize operator comfort
and help to minimize sound and vibration.
These modifications provide a quieter and
more comfortable working environment,
optimizing operator focus.
Hydraulic Lockout. A simple switch
located in the cab disables all implement
functions while still providing machine
steering control. This safety feature is
especially useful while the machine
is roading.
Brake Systems. Brakes are located at
each tandem wheel to eliminate braking
loads on the power train. In addition, the
brake systems are redundant and utilize
accumulators to enable stopping in case
of machine failure, further increasing
operational safety.
Drop-Down Rear Lights. Optional dropdown lights fold out from the rear of the
machine. This creates a wider, lower
profile to be better aligned with
passenger cars.
Rearview Camera. Visibility is further
enhanced with an optional Work Area
Vision System (WAVS) through a
178 mm (7 in) LCD color monitor in the
cab. Developed specifically for rugged
applications, this durable camera improves
productivity and increases operator
awareness of surroundings.
Page 19

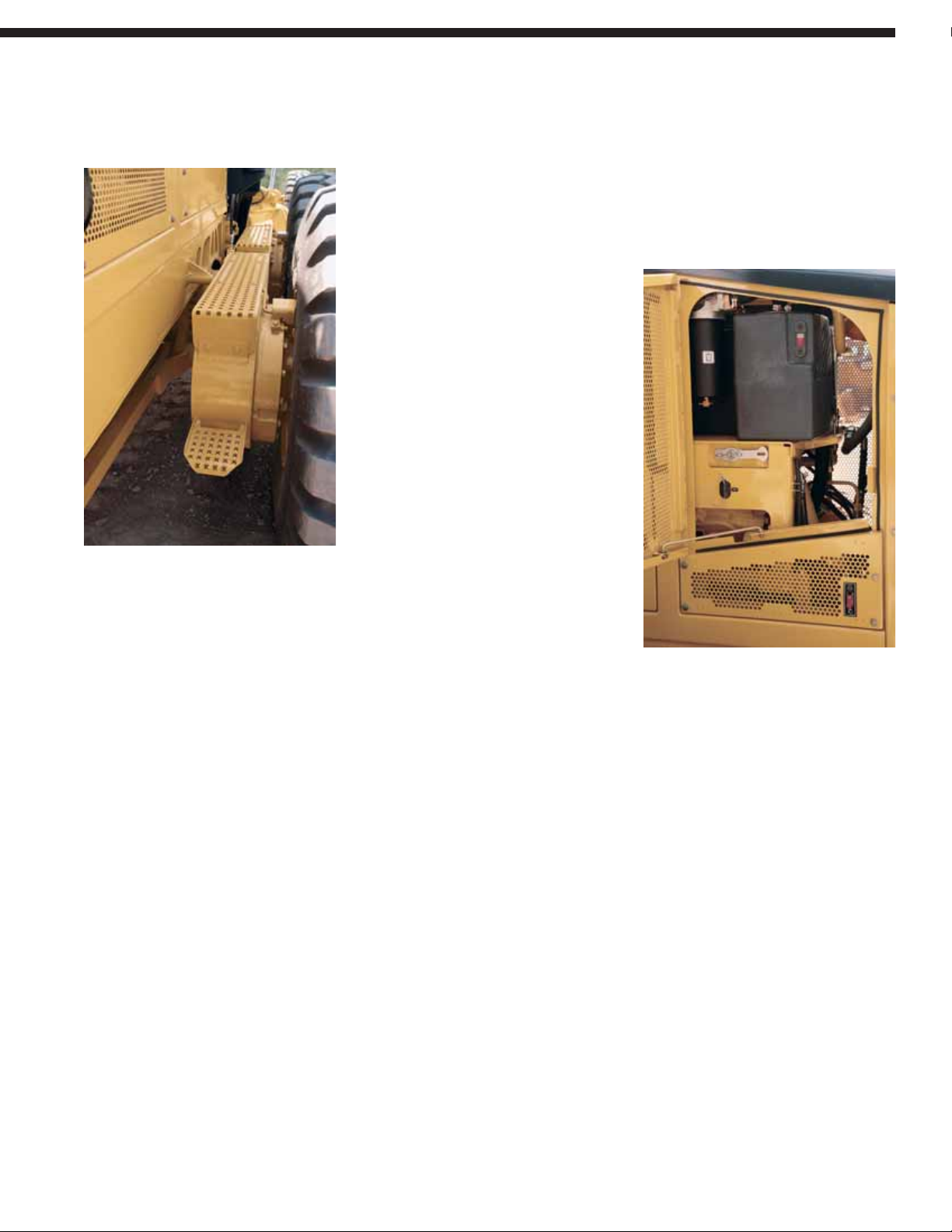

Steel Tandem Walkways.
Perforated raised steel walkways cover
the tandems. This provides a sturdy
platform for standing and walking, and
additional protection for the brake lines.
Circle Drive Slip Clutch. This standard
feature protects the drawbar, circle and
moldboard from shock loads when the
blade encounters an immovable object.
It also reduces the possibility of abrupt
directional changes in poor traction
conditions, protecting the machine,
operator and surroundings.
Blade Lift Accumulators. This optional
feature uses accumulators to help absorb
impact loads to the moldboard by allowing
vertical blade travel. Blade lift
accumulators reduce unnecessary wear
and help to avoid unintended machine
movement for increased operator safety.
Engine Shutoff Switch. An engine shutoff
switch is located at ground level on the
left rear of the machine, allowing anyone
nearby to shut it down in case of an
emergency.
Electrical Disconnect Switch. A battery
disconnect switch, located inside the left
rear enclosure, provides ground-level
lockout of the electrical system to prevent
inadvertent starting of the machine.
ROPS/FOPS Cab. Isolation mounted to
the frame to reduce vibration and sound,
the integral ROPS/FOPS structure meets
ISO and SAE criteria for operator
protection.
Fenders. To help reduce objects flying
from the tires, as well as build-up of mud,
snow and debris, optional fenders can
be added.
Additional Safety Features. The 160M has
many additional standard safety features,
including laminated glass on the front
windows and doors, lockable doors, backup lights and sounding alarm, black glarereducing paint on the front frame and
engine enclosure, and conveniently
located grab rails for added safety.
19
Page 20
Serviceability and Customer Support
Simplified service, world-class product support and Cat®dealer-trained experts
keep your fleet up and running, maximizing your equipment investment.
Purchase. Consider the financing options
available, as well as day-to-day operating
costs. Look at dealer services that can
be included in the cost of the machine
to yield lower equipment owning and
operating costs over the long run.
Maintenance Services. Repair option
programs guarantee the cost of repairs
up front. Diagnostics programs such
as Scheduled Oil Sampling, S•O•S
analysis, Coolant Sampling and
Technical Analysis help avoid
unscheduled repairs.
SM
Grouped Service Points. The 160M
groups daily service points in the left
side service center to help ensure proper
maintenance and inspection routines.
Extended Service Intervals. The 160M
extended service intervals, such as 500hour engine oil changes and 4000-hour
hydraulic oil changes, reduce machine
service time and increase availability.
Ecology Drains. Conveniently located
ecology drains shorten service times
and help keep the environment safe
by preventing spills.
Diagnostics and Monitoring. The 160M
integrates Cat Messenger, Cat Electronic
Technician and S•O•SSMSampling
ports for easy monitoring and fast
troubleshooting, keeping your
machine up and running.
Machine Selection. Make detailed
comparisons of the machines under
consideration before purchase. Cat dealers
help you size the right machine for your
operations and can estimate component
life, preventative maintenance cost, and
the true cost of production.
Product Support. You will find nearly
all parts at our dealer parts counter.
Cat dealers use a world-wide computer
network to track in-stock parts to
minimize machine down time.
Save money with genuine Cat Reman
parts. You receive the same warranty
and reliability as new products at
substantial cost savings.
20
Page 21
Engine
Engine Model Cat®C9 ACERT™ VHP
Base Power (1st gear) – Net 159 kW 213 hp
VHP range – Net 159-170 kW 213-228 hp
VHP Plus range – Net 159-185 kW 213-248 hp
Displacement 8.8 L 537 in
Bore 112 mm 4.4 in
Stroke 149 mm 5.9 in
Torque Rise (VHP Plus) 40%
Max Torque (VHP Plus) 1237 N•m 912 lb-ft
Speed @ Rated Power 2,000 rpm
Number of Cylinders 6
Derating Altitude 3048 m 10,000 ft
3
160M Net Power
Gear kW (hp) – Net kW (hp) – Net
Fwd. 1st 159 (213) 159 (213)
2nd 162 (218) 163 (218)
3rd 166 (223) 166 (223)
4th 170 (228) 170 (228)
5th 170 (228) 174 (233)
6th 170 (228) 177 (238)
7th 170 (228) 181 (243)
8th 170 (228) 185 (248)
Rev. 1st 159 (213) 159 (213)
2nd 163 (218) 163 (218)
3rd – 6th 166 (223) 166 (223)
Std – Fan Speed – Max 1,450 rpm
Std – Fan Speed – Min 600 rpm
Std – Ambient Capability 43° C 109° F
Hi Ambient – Fan Speed – Max 1,650 rpm
Hi Ambient – Fan Speed – Min 600 rpm
Hi Ambient Capability 50° C 122° F
• Max torque (VHP Plus) measured at 1,000 rpm.
• Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269
Standards in effect at the time of manufacture.
• VHP Plus is an optional attachment for tandem-drive machines.
• Net power advertised is the power available at rated speed
of 2,000 rpm, measured at the flywheel when engine is
equipped with fan running at minimum speed, air cleaner,
muffler and alternator.
• No engine derating required up to 3048 m (10,000 ft).
VHP VHP Plus
Power Train
Forward/Reverse Gears 8 Fwd/6 Rev
Transmission Direct drive, power
shift, Countershaft
Brakes – Service Multiple oil-disc
Brakes – Service, Surface Area 23 000 cm23,565 in
Brakes – Parking Multiple oil disc
Brakes – Secondary Dual circuit control system
2
Hydraulic System
Circuit Type Electro-hydraulic load
sensing, closed center
Pump Type Variable piston
Pump Output 210 L/min 55.7 gal/min
Maximum System Pressure 24 150 kPa 3,500 psi
Standby Pressure 3100 kPa 450 psi
• Pump output measured at 2,150 rpm
All-Wheel Drive System (Optional)
AWD HP Range – Net* 166-200 kW 223-268 hp
Motor Type 2 variable axial piston
Pump Type 2 Variable piston
Maximum Torque 13 998 N•m 10,325 lb-ft
Operational Gears Forward = 1-7
Reverse = 1-5
* AWD Net power is an incremental increase per gear ranging
from 7-32 kW (10-43 hp), depending on selected gear.
160M/160M AWD Motor Grader specifications
21
Page 22
Operating Specifications
Tandems
Top Speed – Fwd. 47.4 km/h 29.5 mph
Top Speed – Rev. 37.4 km/h 23.3 mph
Turning Radius, Outside Front Tires 7.6 m 24 ft 11 in
Steering Range – Left/Right 47.5°
Articulation Angle – Left/Right 20°
Fwd. 1st 4.1 km/h 2.5 mph
Fwd. 2nd 5.6 km/h 3.5 mph
Fwd. 3rd 8.1 km/h 5 mph
Fwd. 4th 11.2 km/h 7 mph
Fwd. 5th 17.4 km/h 10.8 mph
Fwd. 6th 23.7 km/h 14.7 mph
Fwd. 7th 32.6 km/h 20.3 mph
Fwd. 8th 47.4 km/h 29.5 mph
Rev. 1st 3.3 km/h 2 mph
Rev. 2nd 6.1 km/h 3.8 mph
Rev. 3rd 8.8 km/h 5.5 mph
Rev. 4th 13.7 km/h 8.5 mph
Rev. 5th 25.7 km/h 16 mph
Rev. 6th 37.4 km/h 23.3 mph
Service Refill
Fuel Capacity 416 L 110 gal
Cooling System 40 L 10.6 gal
Hydraulic System – Tank 64 L 16.9 gal
Engine Oil 30 L 7.9 gal
Trans./Diff./Final Drives 65 L 17.2 gal
Tandem Housing (each) 80 L 21.1 gal
Front Wheel Spindle 0.5 L 0.13 gal
Bearing Housing
Circle Drive Housing 7 L 1.8 gal
Height 572 mm 22.5 in
Width 204 mm 8 in
Sidewall Thickness – Inner 25 mm 1 in
Sidewall Thickness – Outer 18 mm 0.7 in
Drive Chain Pitch 50.8 mm 2 in
Wheel Axle Spacing 1523 mm 60 in
Tandem Oscillation – Front Up 15°
Tandem Oscillation – Front Down 25°
Moldboard
Moldboard – Width 4.3 m 14 ft
Moldboard – Height 686 mm 27 in
Moldboard – Thickness 25 mm 1 in
Arc Radius 413 mm 16.3 in
Throat Clearance 95 mm 3.7 in
Cutting Edge – Width 152 mm 6 in
Cutting Edge – Thickness 16 mm 0.6 in
End Bit – Width 152 mm 6 in
End Bit – Thickness 16 mm 0.6 in
Blade Pull – Base GVW 10 444 kg 23,024 lb
Blade Pull – Max GVW 13 454 kg 29,662 lb
Blade Pull – Base GVW (AWD) 15 333 kg 33,803 lb
Blade Pull – Max GVW (AWD) 18 301 kg 40,347 lb
Down Pressure – Base GVW 8408 kg 18,537 lb
Down Pressure – Max GVW 14 499 kg 31,965 lb
• Blade pull calculated at 0.9 traction coefficient, which is equal
to ideal no-slip conditions, and Gross Machine Weight.
Blade Range
Frame
Circle – Diameter 1553 mm 61.1 in
Circle – Blade Beam Thickness 40 mm 1.6 in
Drawbar – Height 152 mm 6 in
Drawbar – Width 76.2 mm 3 in
Front Frame Structure
– Height 305 mm 12 in
– Width 305 mm 12 in
– Thickness 16 mm 0.6 in
Front Axle
– Height to Center 571 mm 22.5 in
– Wheel Lean, Left/Right 18°
– Total Oscillation Per Side 32°
22
160M/160M AWD Motor Grader specifications
Circle Centershift – Right 728 mm 28.7 in
Circle Centershift – Left 695 mm 27.4 in
Moldboard Sideshift – Right 950 mm 37.4 in
Moldboard Sideshift – Left 820 mm 32.3 in
Maximum Blade Position Angle 90°
Blade Tip Range – Forward 40°
Blade Tip Range – Backward 5°
Maximum Shoulder Reach Outside of Tires
– Right 2278 mm 89.7 in
– Left 2090 mm 82.3 in
Maximum Lift Above Ground 452 mm 17.8 in
Maximum Depth of Cut 750 mm 29.5 in
Page 23
Ripper
Weights
Ripping Depth, Maximum 428 mm 16.8 in
Ripper Shank Holders 5
Ripper Shank Holder Spacing 533 mm 21 in
Penetration Force 9317 kg 20,540 lb
Pryout Force 11 911 kg 26,259 lb
Machine Length Increase, 995 mm 39.2 in
Beam Raised
Scarifier
Front, V-Type, 5 or 11 tooth
Working Width 1205 mm 47.4 in
Scarifying Depth, Maximum 467 mm 18.4 in
Scarifier Shank Holders 5/11
Scarifier Shank Holder Spacing 116 mm 4.6 in
Mid, V-Type
Working width 1184 mm 46.6 in
Scarifying Depth, Maximum 292 mm 11.5 in
Scarifier Shank Holders 11
Scarifier Shank Holder Spacing 116 mm 4.6 in
Rear
Working Width 2300 mm 91 in
Scarifying Depth, Maximum 266 mm 10.5 in
Scarifier Shank Holders 9
Scarifier Shank Holder Spacing 267 mm 10.5 in
Gross Vehicle Weight – Base
– Total 16 506 kg 36,390 lb
– Front Axle 1902 kg 10,808 lb
– Rear Axle 11 604 kg 25,582 lb
– Total with AWD 17 348 kg 38,246 lb
Gross Vehicle Weight – Max
– Total 23 947 kg 52,795 lb
– Front Axle 8453 kg 18,637 lb
– Rear Axle 15 494 kg 34,158 lb
• Base operating weight calculated on standard machine
configuration with 14.00-24 10PR (G-2) tires, full fuel tank,
coolant, lubricants and operator.
Standards
ROPS/FOPS ISO 3471/ISO 3499
Steering ISO 5010:1992
Brakes ISO 3450:1996
Sound ISO 6394:1998/
ISO 6395:1988
• The static sound operator pressure level measured
according to ISO 6394:1988 for a cab offered by Caterpillar,
when properly installed, maintained and tested with doors
and windows closed and hydraulic fan at maximum speed
is 70 dB(A).
• The dynamic spectator sound power level for the standard
machine when equipped with sound suppression package
and hydraulic fan running at 70% of maximum speed,
machine sound measured is less than 107 dB(A), complying
with EU 2000/14/EC requirement.
160M/160M AWD Motor Grader specifications
23
Page 24

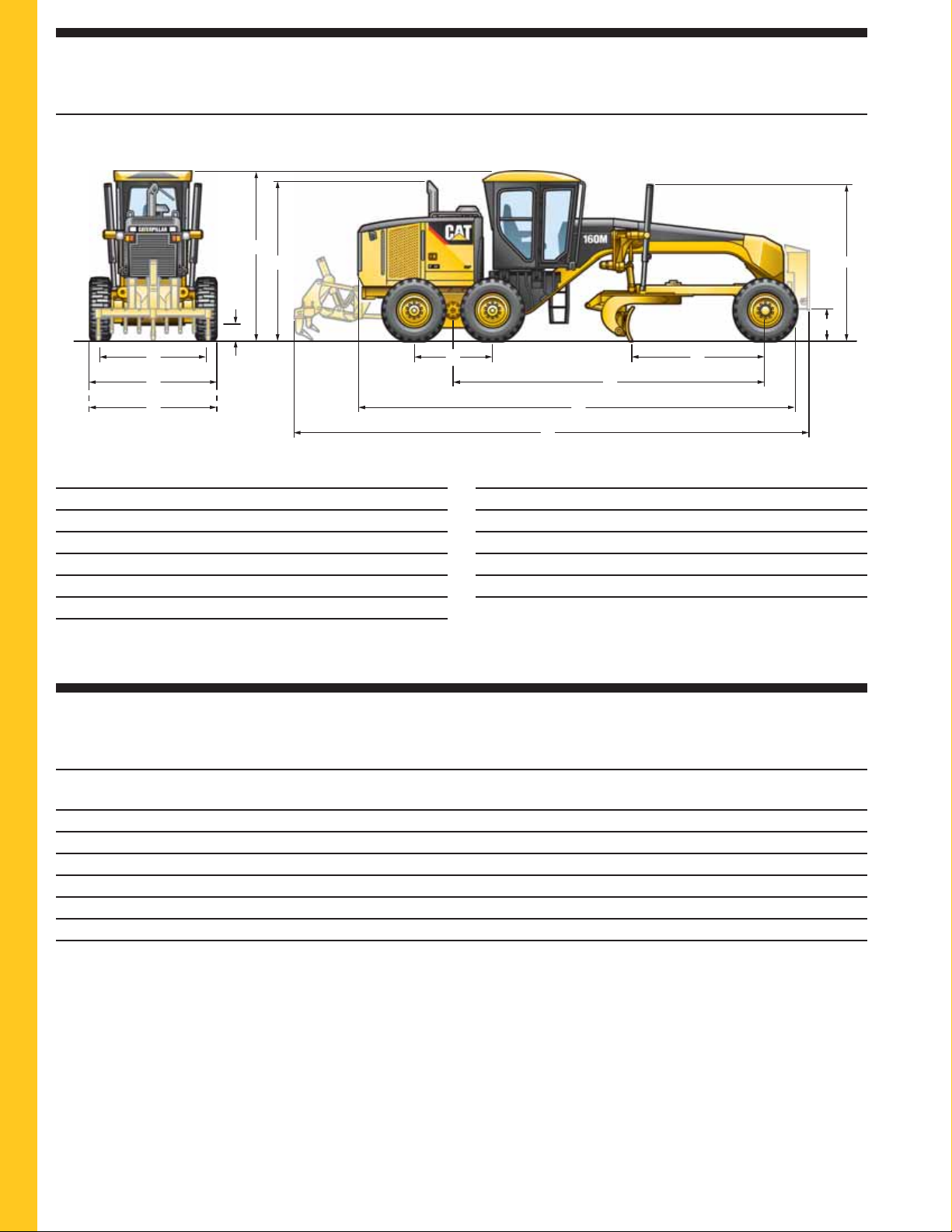

Dimensions
All dimensions are approximate based on standard machine configuration with 14.00-24 16PR (G-2) tires.
1
10
8
11
12
13 6
1 Height – Top of Cab 3293 mm 129.6 in
2 Height – Front Axle Center 600 mm 23.6 in
3 Length – Between Tandem Axles 1523 mm 60 in
4 Length – Front Axle to Moldboard 2609 mm 102.7 in
5 Length – Front Axle to Mid Tandem 6121 mm 241 in
6 Length – Front Tire to Rear of Machine 8713 mm 343 in
7 Length – Counterweight to Ripper 10 144 mm 399.4 in
9
2
43
5
7
8 Ground Clearance at Rear Axle 344 mm 13.5 in
9 Height to Top of Cylinders 3040 mm 119.7 in
10 Height to Exhaust Stack 3124 mm 123 in
11 Width – Tire Center Lines 2127 mm 83.7 in
12 Width – Outside Rear Tires 2518 mm 99.1 in
13 Width – Outside Front Tires 2518 mm 99.1 in
Optional Tire Arrangements
Total machine width and changes in machine weight are shown for common tire options.
Wheel Width – Outside Width – Outside Tire Arrangement
GroupTires Front Tires Rear Tires Weight
10x24 MP 14.00R24 Michelin XGLA2 1 Star 2576 mm 101.4 in 2576 mm 101.4 in 335 kg 738 lb
10x24 MP 14.0R24 Bridgestone VSW 1 Star 2583 mm 101.7 in 2583 mm 101.7 in 523 kg 1,152 lb
10x24 MP 14.0R24 Bridgestone VKT 1 Star 2562 mm 100.9 in 2562 mm 100.9 in 528 kg 1,164 lb
14x25 MP 17.5R25 Michelin XTLA 1 Star 2703 mm 106.4 in 2703 mm 106.4 in 504 kg 1,112 lb
14x25 MP 17.5R25 Michelin XSNO Plus 1 Star 2692 mm 106 in 2692 mm 106 in 588 kg 1,297 lb
14x25 MP 17.5R25 Michelin XHA 1 Star 2692 mm 106 in 2692 mm 106 in 636 kg 1,402 lb
14x25 MP 17.5R25 Bridgestone VKT 1 Star 2729 mm 107.4 in 2729 mm 107.4 in 702 kg 1,549 lb
• Based off the standard arrangement, AWD arrangements will have between 250–470 mm (9.8–19.5 in) additional width.
24
160M/160M AWD Motor Grader specifications
Page 25
Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
Air Conditioner with heater
Arm and wrist rest, adjustable
Articulation, automatic Return-to-Center
Ashtray and lighter
Cat Messenger, operator information system
Centershift pin indicator
Coat hook
Cup holder
Display, digital speed and gear
Doors, left and right side with wiper
Gauge cluster – articulation, engine coolant temp,
engine rpm, fuel, system voltage
Gauge, machine level
Hour meter, digital
Joystick hydraulic controls
implements, steering, transmission
Ladders, cab, left and right side
Lights, night time cab
Messenger operator information system
Mirror, inside rearview, wide angle
Power port, 12V
Radio Ready, Entertainment
ROPS cab, sound suppressed
Seat belt, retractable 76 mm (3 in)
Seat, cloth-covered, comfort suspension
Storage area for cooler/lunchbox
Throttle control, electronic
Windows, laminated glass:
fixed front with intermittent wiper
side and rear (3)
POWER TRAIN
Air cleaner, dual stage, dry type, automatic dust ejector,
service indicator through Cat Messenger
Air-to-air after cooler (ATAAC)
Belt, serpentine, automatic tensioner
Brakes, four-wheel hydraulic
Differential, lock / unlock
Drain, engine oil, ecology
Electronic over speed protection
Engine, Cat
Fuel-water separator
Hydraulic demand fan
Muffler, under hood
Parking brake – multi-disc, sealed, oil-cooled
Priming pump, fuel
Rear axle, modular
Sediment drain, fuel tank
Transmission, 8F/6R, power shift, direct drive
VHP (Variable Horsepower)
VHP Plus (Variable Horsepower Plus) – AWD Model
®
C9 with ACERT™ Technology
ELECTRICAL
Alarm, back up
Alternator, 80 ampere, sealed
Batteries, maintenance free, heavy duty 1125 CCA
Breaker panel, ground accessible
Electrical system, 24V
Grade Control Ready – Cab harness, software,
electrical hydraulic valves, bosses and brackets
Lights, reversing
Lights, roading, roof-mounted
Lights, stop and tail, LED
Product Link Ready
Starter, electric
OTHER STANDARD EQUIPMENT
Brake accumulators, dual certified
Bumper, rear, integrated with hitch
CD ROM Parts Book
Clutch, circle drive slip
Cutting edges
curved DH-2 steel
152 mm ⳯ 16 mm (6 in ⳯ 5/8 in)
19 mm (3/4 in) mounting bolts
Doors (3), engine compartment, locking
Drawbar – 6 shoe with replaceable wear strips
Endbits
16 mm (5/8 in) DH-2 steel
19 mm (3/4 in) mounting bolts
Extended Life Coolant to –35° C (–30° F)
Fluid check, ground level
Frame, articulated, with safety lock
Fuel tank, ground level access
Ground level engine shutdown
Hammer (emergency exit)
Horn, electric
Hydraulics, base 8 implement controls
Hydraulics, load-sensing
Lockout, hydraulic implement for roading
Moldboard
3658 mm ⳯ 610 mm ⳯ 22 mm (12 ft ⳯ 24 in ⳯ 7/8 in)
hydraulic sideshift and tip
Mounting, cab roof accessories
Paint, glare reducing – top of front frame
and rear enclosure
Pump, hydraulic, high capacity (99cc/6 in3)
Radiator cleanout access
Secondary steering
Serviceability, LH side
SM
S•O•S
Tandem walkway/guards
Tool box
Tow hitch
ports: engine, hydraulic, transmission, coolant, fuel
TIRES, RIMS, & WHEELS
Partial allowance for tires and multi-piece rims
160M/160M AWD Motor Grader specifications
25
Page 26
Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details.
kg lb
ELECTRICAL
Alternator, 150 ampere 2 5
Batteries:
Extreme Duty, 1400 CCA 14 30
Converter, communication (CB) 2 5
Lights:
5 Lighting Arrangements,
including rear roading, drop down
Warning, LED strobe 1 2
GUARDS
Covers, Screen 4 9
Debris 9 20
Transmission Sides/Sound 110 243
Transmission 141 310
OPERATOR ENVIRONMENT
Fan, Defroster, Rear Window 2 4
Mirrors, Outside:
Heated 24V 15 33
Mounted 10 22
Seat, Air Suspension, Cloth 5 10
Shade, Sun 2 5
Wiper, Each Side 0 1
Wiper/washer, Rear 2 4
Power Train
All Wheel Drive 680 1,500
Engine, Variable Horsepower Plus
(VHP Plus)
Precleaner, Sy-Klone 2 5
Transmission, Autoshift 2 5
kg lb
OTHER ATTACHMENTS
AccuGrade ARO 41 90
Accumulators, Blade Lift 77 170
Camera, Rearview 7 15
Cat Product Link 321SR 13 29
Compressor/Tank, Air 29 65
Fenders, Front 56 124
Fenders, Rear 156 344
Heater, Engine Coolant:
120V 1 3
220V 1 3
Hydraulic arrangements with one or more
additional hydraulic valves are available
for rear ripper, blade, mid mount scarifier,
front lift group, snow plow and snow wing.
Security System 5 10
Snow Wing Mounting, Frame Ready 111 245
Sound Suppression 15 32
Starting Aid, Ether 0.5 1
WORK TOOLS/G.E.T.
Blade Extension, 610 mm (2 ft) 109 240
Left Hand
Endbits, Overlay 24 52
Front Lift Group, Hydraulic
Mid Mount Scarifier 942 2,076
Moldboard
3658 mm ⳯ 610 mm ⳯ 22 mm
(12 ft ⳯ 24 in ⳯ 7/8 in)
4267 mm ⳯ 610 mm ⳯ 22 mm
(14 ft ⳯ 24 in ⳯ 7/8 in)
4877 mm ⳯ 686 mm ⳯ 25 mm
(16 ft ⳯ 27 in ⳯ 1 in)
Push Plate, Counterweight 885 1,950
Ripper, Rear 962 2,120
Ripper Tooth 28 61
Note: Not all attachments are available in all regions.
26
160M/160M AWD Motor Grader specifications
MACHINE ARRANGEMENTS
Canadian Arrangement
European Arrangement
Roading Arrangement, European
Snow Arrangement
Page 27
Notes
160M/160M AWD Motor Grader specifications
27
Page 28
160M/160M AWD Motor Grader
AEHQ5732-04 (07-10)
Replaces AEHQ5732-03
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2010 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Cat Dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used
herein, aretrademarks of Caterpillar and may not be used without permission.
Loading...
