Page 1
160M2/
160M2 AWD
Motor Graders
Engine
Engine Model Cat
Base Power (1st gear) – Net 159 kW 213 hp
VHP range – Net 159-181 kW 213-243 hp
VHP Plus range – Net 159-196 kW 213-263 hp
Moldboard
Blade width 4.2 m 14 ft
®
C9.3 ACERT™ VHP
Weights
Gross Vehicle Weight, base – total 17 296 kg 38,131 lb
Gross Vehicle Wt, base – front axle 4236 kg 9,339 lb
Gross Vehicle Wt, base – rear axle 13 060 kg 28,792 lb
Page 2
Features
Operator Station
A revolutionary cab design provides unmatched
comfort, visibility and ease of use, making the
operator more confident and productive.
Engine and Power Train
Combining power management with ACERT™
Technology delivers maximum power and efficiency
while reducing the environmental impact.
Structures, Drawbar, Circle and Moldboard
Durable structures with fast and simple
DCMadjustments deliver precise material
controlwhile lowering operating costs.
Hydraulics
The M2 motor graders’ electro-hydraulics enable
advanced machine controls with precise and
predictable movements.

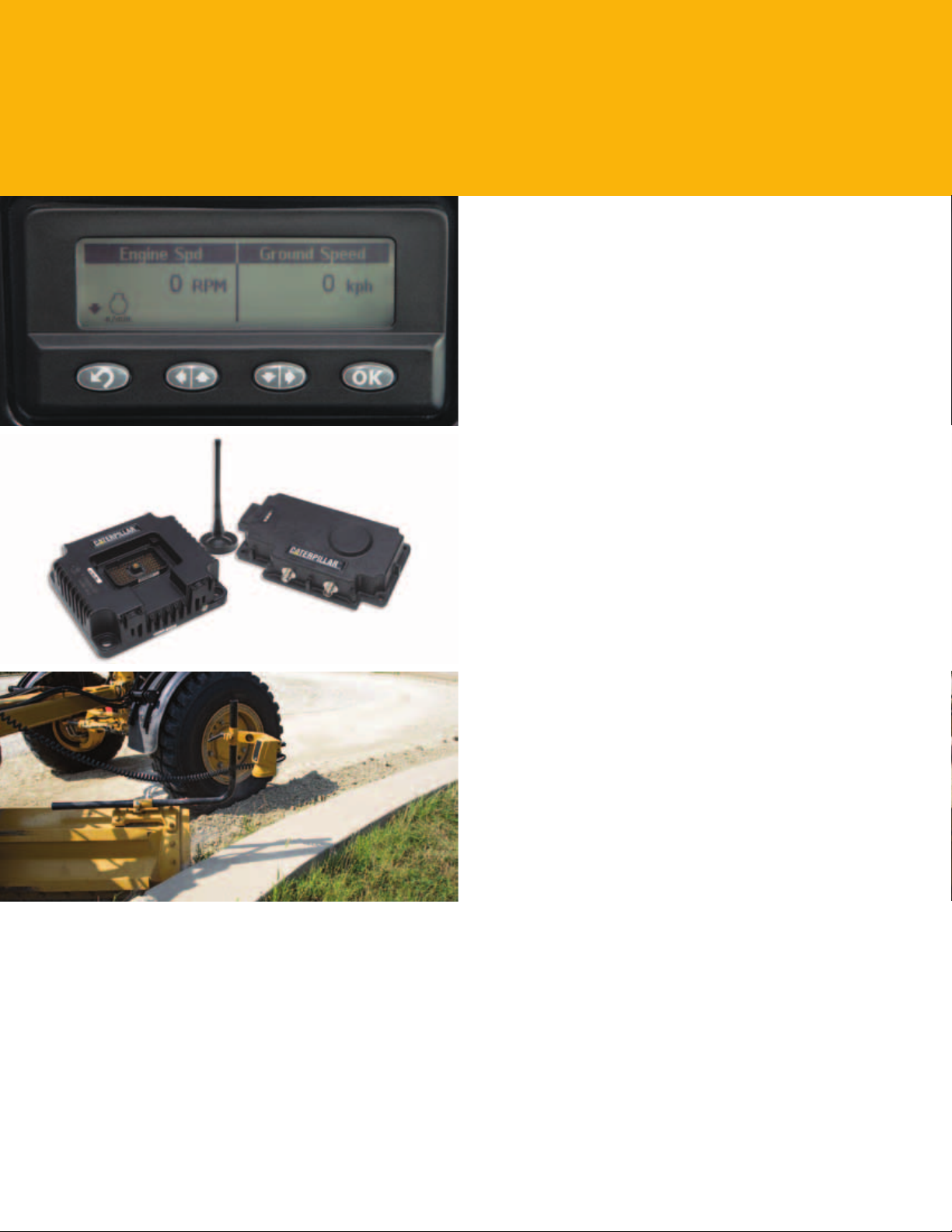

Integrated Electronic Solutions
Full systems integration optimizes machine
performance and availability.
All Wheel Drive (AWD)
Maximum productivity with six powered
wheels. Hydrostatic Mode powers only the front
wheels, perfect for precise finish work. Steering
Compensation adjusts the outside front tire
speed for tighter turns, less scuffing and tire wear,
and improved control.
Contents
Operator Station ..................................................3
Steering and Implement Controls ....................4
Engine and Emissions Technologies ................5
Power Train ..........................................................6
Structures and DCM ...........................................7
All Wheel Drive (AWD) .......................................8
Hydraulics ............................................................9
Integrated Electronic Solutions ......................10
Work Tools and Attachments ..........................11
Safety ..................................................................12
Customer Support .............................................13
Sustainability .....................................................13
160M2/160M2 AWD Motor Grader

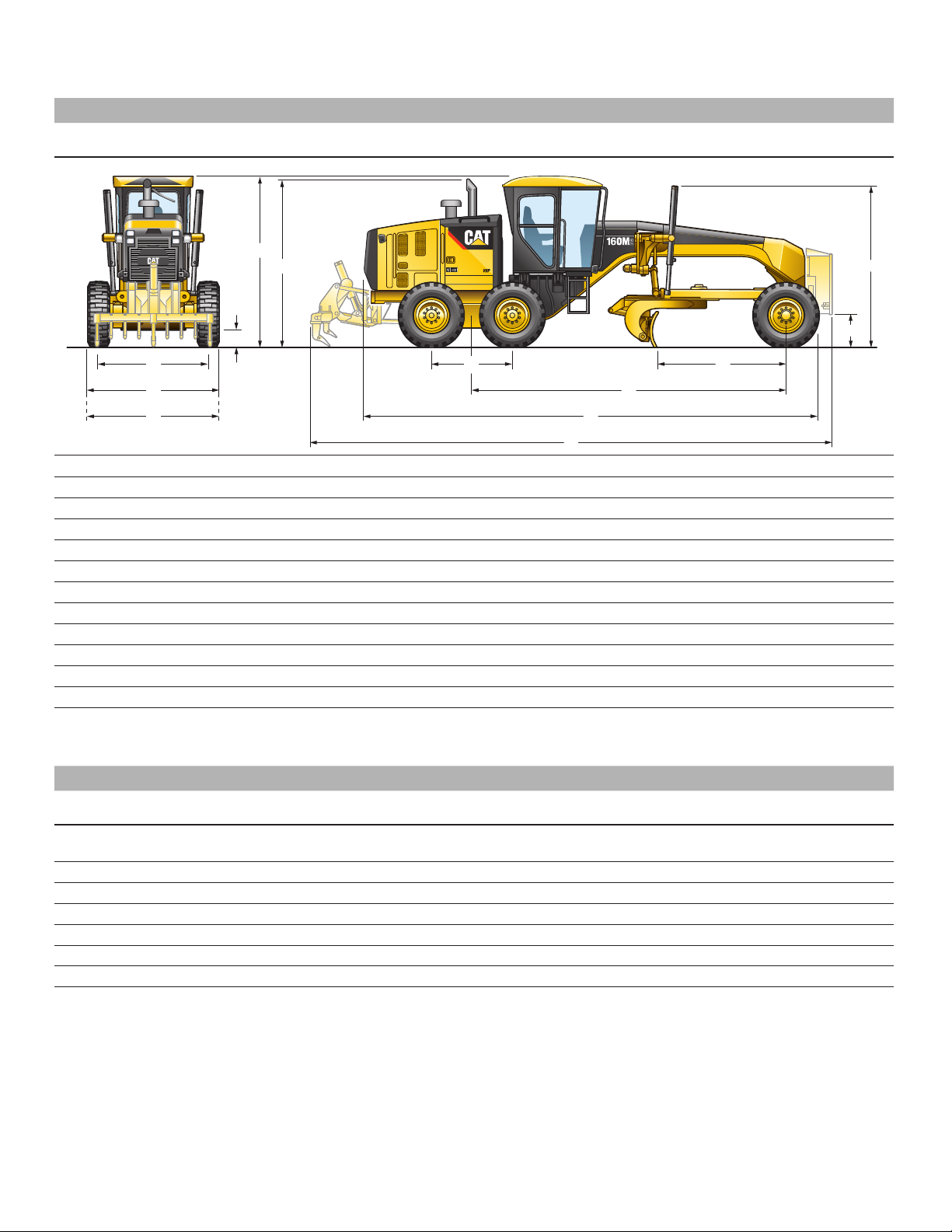

Specifications ....................................................14
160M2/160M2 AWD Standard Equipment .....18
160M2/160M2 AWD Optional Equipment ......19
The M Series 2 continues the legacy of quality already
established by Cat motor graders. The extensive
validation program, combined with improvements
tothemanufacturing process, allows Caterpillar to
further enhance our quality.
The end result of this development process is a motor
grader line with breakthrough technologies, tested in
the field and built around real applications and real
customer needs.
2
Page 3

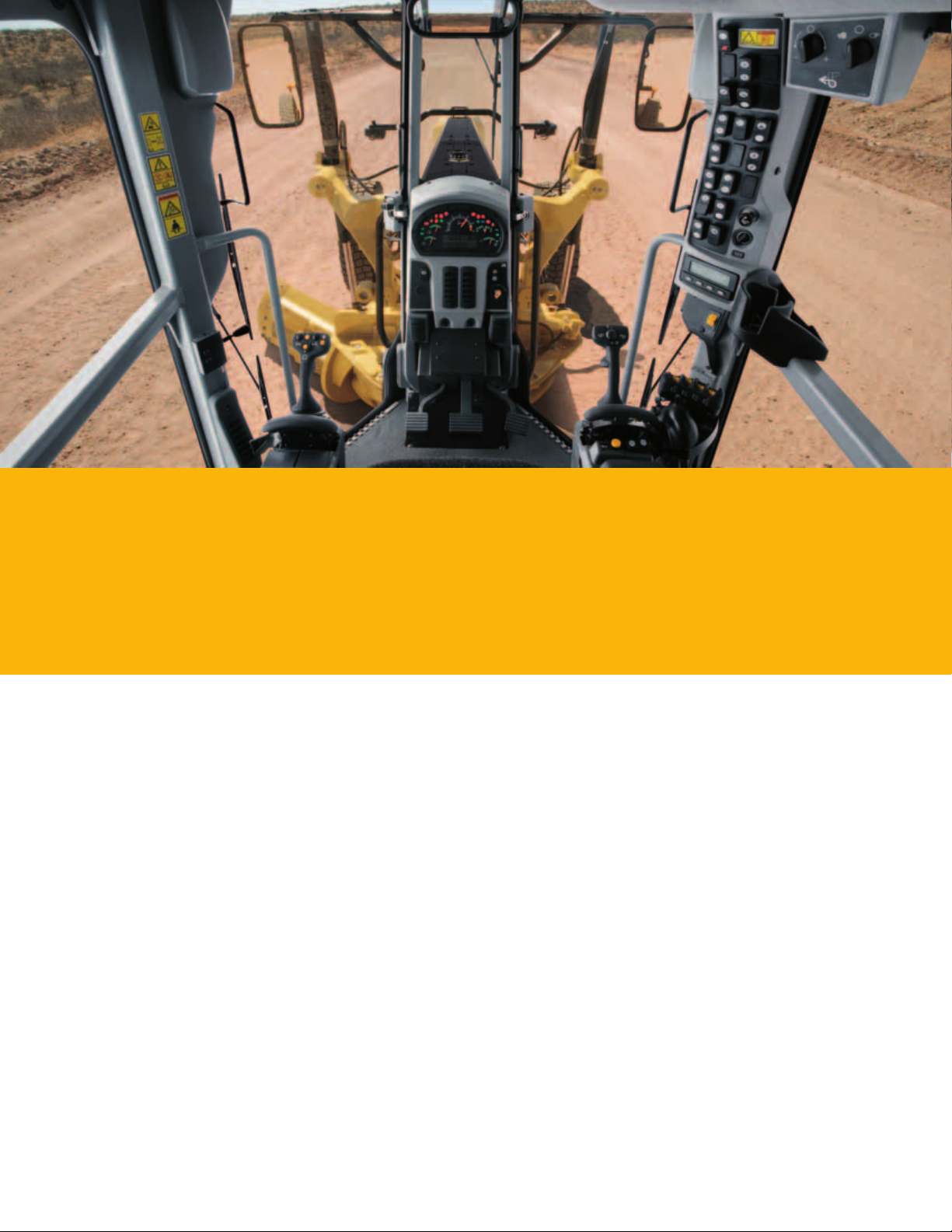

Operator Station
Comfort, productivity, advanced technology.
Visibility
Angled cab doors, a tapered engine enclosure and patented sloped rear window assure excellent
visibility to the work area. Optional anti-icing glass increases visibility and working capability.
Maximum Control, Maximum Comfort
Caterpillar has built the most comfortable cab in the industry, replacing the control levers and steering
wheel with two joystick controls, and lengthening the cab for more leg room. Machine design features,
like angled doors, provide excellent visibility.
Operator Comfort
The Cat® Comfort Series suspension seat and arm/wrist rests are fully adjustable for improved comfort
and productivity. Extra leg room, easy-to-reach long-life rocker switches and revolutionary joystick
controls make this the most comfortable cab in the industry.
Standard HVAC system
The high capacity system dehumidies and pressurizes the cab, circulates fresh air, seals out dust and
keeps windows clear.
Low Interior Sound and Vibration Levels
Multiple isolation mounts along with relocated hydraulic pump and valves signicantly improve
operator comfort and productivity.
In-Dash Instrument Cluster
Easy-to-read, high-visibility gauges and warning lamps keep the operator aware of critical system
information.
3
Page 4
Steering and Implement Controls
Unprecedented precision and ease of operation.
Ease of Operation
Two electro-hydraulic joysticks require up to 78% less hand
and wrist movement than conventional lever controls for
greatly enhanced operator comfort and efciency. The intuitive
control pattern allows both new and experienced operators
to quickly become productive.

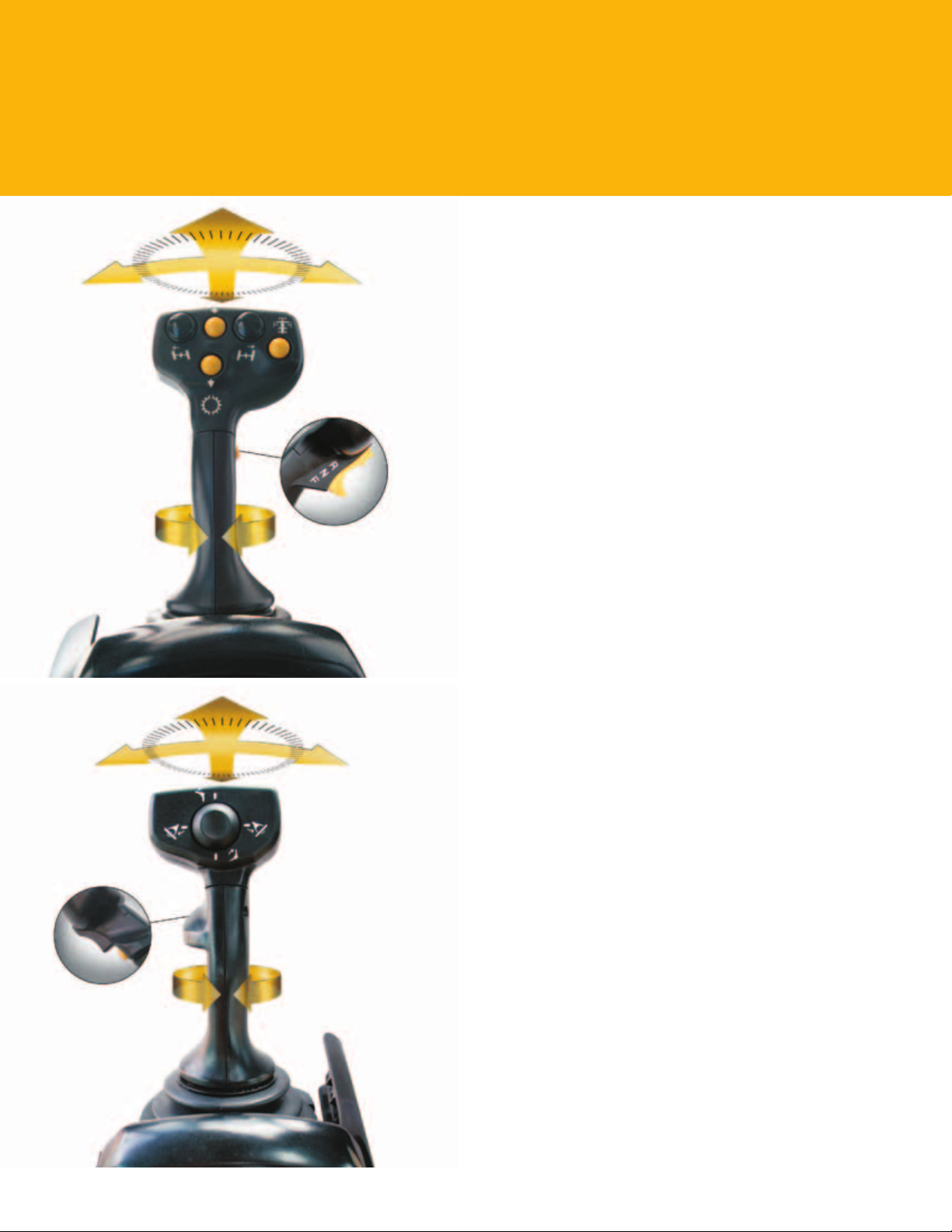

Joystick Functions
Optimum control at your ngertips:
• The left joystick primarily controls the machine
direction and speed including steering, articulation,
return-to-center, wheel lean, gear selection, left
moldboard lift cylinder and oat.
• The right joystick primarily controls drawbar, circle and
moldboard functions including right moldboard lift
cylinder and oat, moldboard slide and tip, circle turn,
drawbar center shift, electronic throttle control and
differential lock/unlock.
Intuitive Steering Control
Joystick lean angle mirrors the steer tires’ turning
angle. Abrake tensioning system holds the joystick in
position untilthe operator moves it. The steering control
automatically reduces steering sensitivity at higher ground
speeds for comfortable and predictable control.
Electronic Throttle Control
Provides easy, precise and consistent throttle operation.
Anautomatic/manual mode switch offers exibility for
different applications and operator preferences.
Articulation Return-to-Center
Automatically returns the machine to a straight frame
position from any angle with the touch of a button.
Auxiliary Pod and Ripper Control (Optional)
Ergonomically positioned to allow simple, comfortable
operation of the multiple hydraulic options.
• Four ngertip controls and a mini joystick maximize
control of up to six hydraulic circuits. Individual
functions can be programmed with Electronic
Technician (Cat ET). The auxiliary hydraulic pod
isprovided when the machine is congured with
threeormore auxiliary functions.
• Innitely variable roller switches provide precise
control of the rear ripper and/or front lift group
(whenequipped).
4
Page 5
Engine and Emissions Technologies
Next generation solutions for tough regulations.

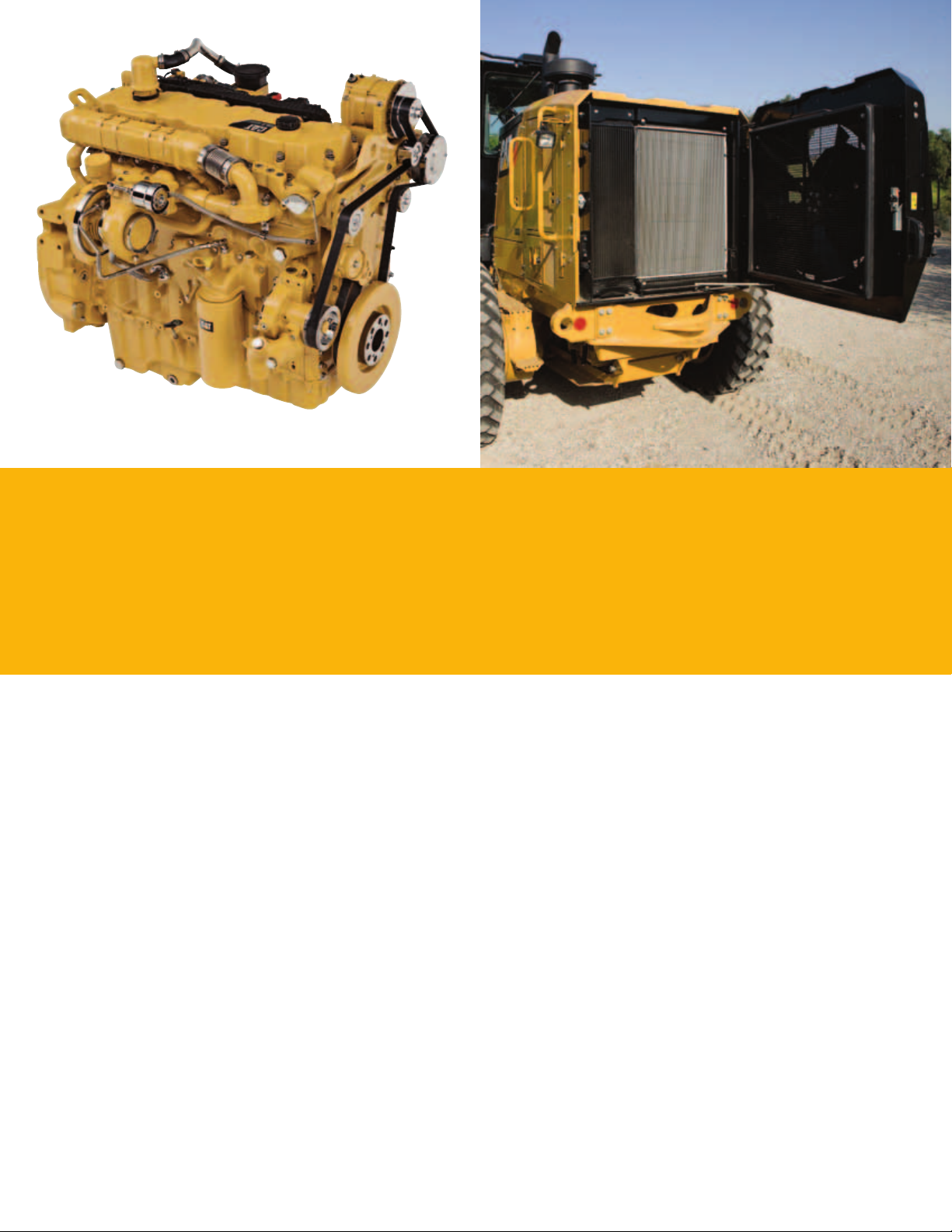

Cat C9.3® Engine with ACERT™ Technology
The Cat C9.3 engine meets U.S. EPA Tier 4 Interim and EU Stage IIIB emissions regulations using
anideal combination of electronic, fuel, air and after-treatment components.
• Innovative Air Management Systems match turbo performance to rated output for high
productivity, excellent fuel efciency, long life and low operating costs.
• Cat NOx Reduction System captures, cools and routes a small quantity of exhaust gas back into
the combustion chamber where it lowers combustion temperatures and reduces NOx emissions.
• Cat Regeneration System (CRS) is used when supplemental regeneration is needed. CRS elevates
exhaust gas temperatures to promote oxidation and burn off soot in the Diesel Particulate Filter.
• Cat Clean Emissions Module (CEM), a exible Caterpillar-designed modular system, protects the
components, minimizes the after-treatment footprint and simplies maintenance.
Performance
The Cat C9.3 engine has superior torque and lugging capability to pull through sudden, short-term
loads and maintain consistent, desirable grading speeds to get work done faster without downshifting.
Hydraulic Demand Fan
Cooling fan speed automatically adjusts according to engine cooling needs, reducing demand on the
engine, putting more horsepower to the ground and improving fuel efciency.
High Pressure Common Rail Fuel Systems
Improves precision and control with full electronic injection that boosts performance and reduces soot.
5
Page 6
Power Train
Maximum power to the ground.

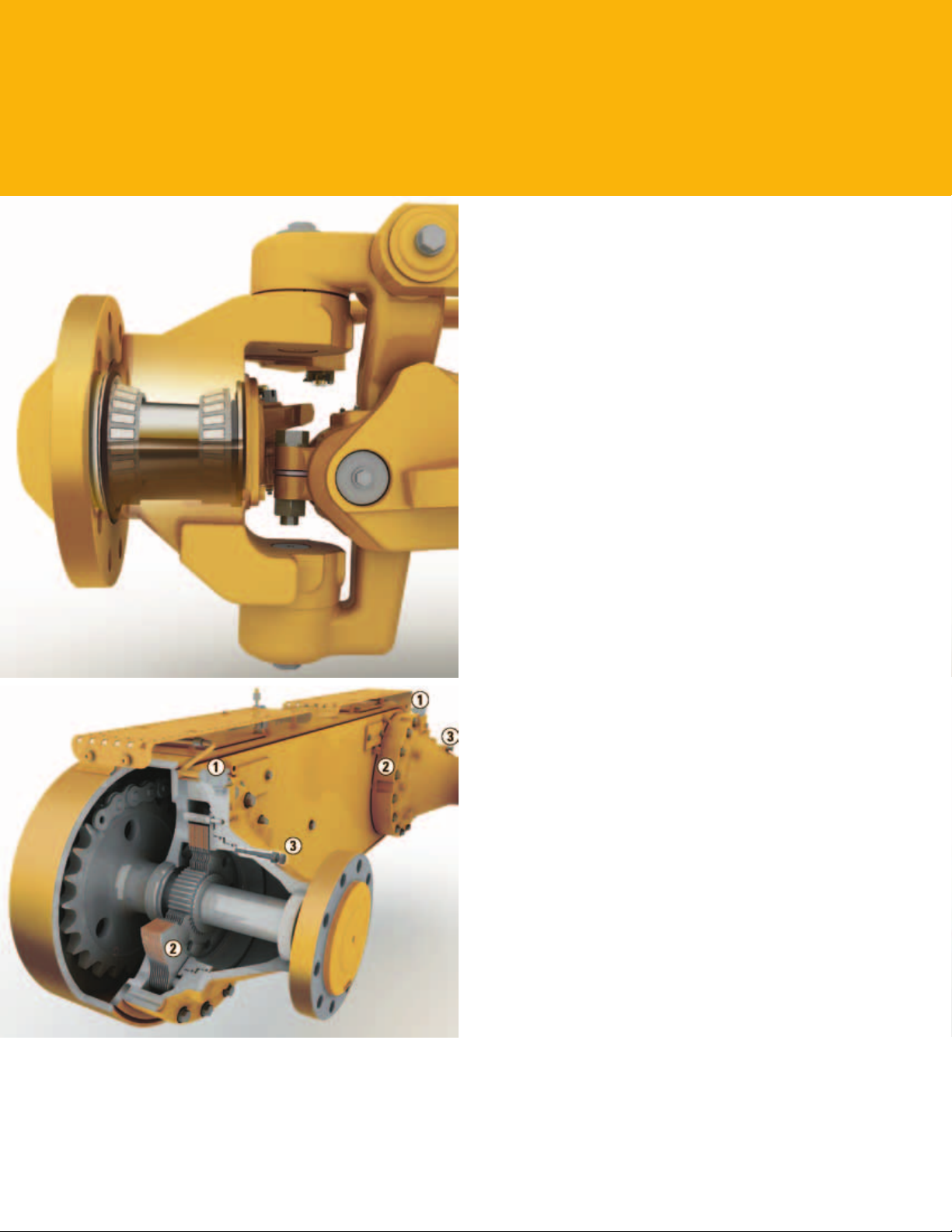

Front Axle
The Cat sealed spindle keeps bearings free from contaminants
and lubricated in a light weight oil. The Cat “Live Spindle”
design places the larger tapered roller bearing outboard
where the load is greater, extending bearing life.
Inching Pedal
Allows precise control of machine movements and excellent
modulation, critical in close-quarter work or nish grading.
Smooth Shifting Transmission
Several key innovations ensure smooth, powerful shifts.
• Full Electronic Clutch Pressure Control (ECPC) system
optimizes inching modulation for smooth shifts and
directional changes, reducing stress on gears.
• Controlled Throttle Shifting helps to smooth directional
and gear changes without using the inching pedal.
• Load Compensation ensures consistent shift quality
regardless of blade or machine load.
• Programmable Autoshift lets the operator match shift
parameters to the job so shifts occur at optimal points.
• Power Shift Countershaft Transmission and the
CatC9.3 engine maximize power to the ground.
Eightforward/six reverse gears optimize productivity.
• Engine Over-Speed Protection prevents downshifting
until a safe travel speed has been established.
Bolt-On Modular Rear Axle
Improves serviceability and contamination control with easy
access to differential components.
Hydraulic Brakes
Hydraulically actuated, oil bathed, multi-disc service brakes
at each tandem wheel (1) offer the industry’s largest total
brake surface area (2) for dependable stopping power and
long brake life. The brake wear indicator/compensator
system (3) maintains brake performance and indicates brake
wear without disassembly, for fast servicing and longer brake
service life. The spring-applied, hydraulically released multidisc parking brake, sealed and oil-cooled for long life and
low service, is integrated into the Operator Presence System
to prevent unintended machine movement.
Automatic Differential Lock (Optional)
Unlocks the differential during a turn, re-locks when straight,
for easier operation and improved power train protection.
6
Page 7

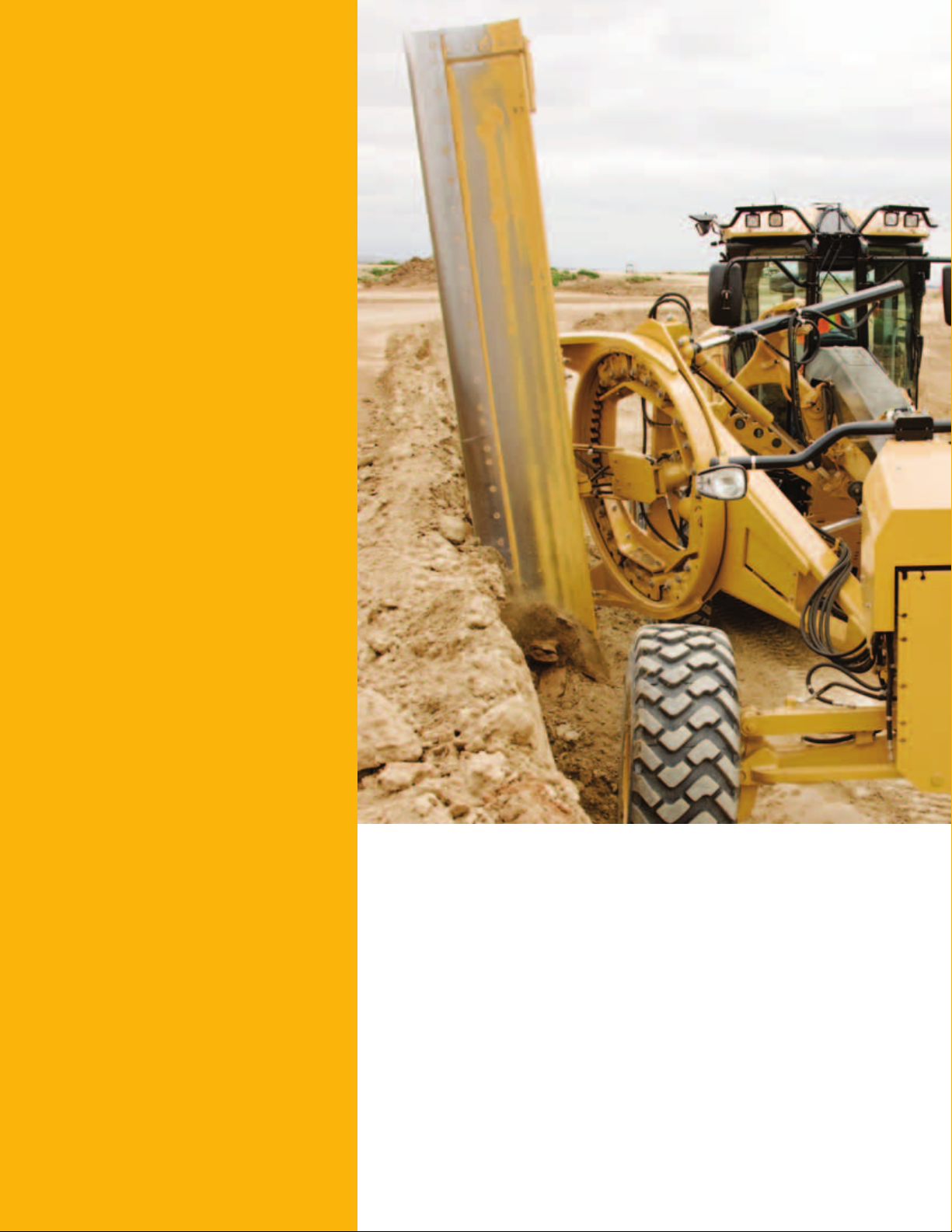

Structures and DCM
Service ease and precise blade control.
Heavy Duty Durability
The frame, drawbar and one-piece forged steel circle are designed for durability in heavy duty
applications. The strong A-frame drawbar uses a durable tubular design. The front 240° of circle teeth
are hardened to reduce wear and ensure component reliability.
Articulation Hitch
A large tapered roller bearing at the lower pivot carries loads evenly and smoothly. Sealed to prevent
contamination, a locking pin prevents articulation for safety during service or transport.
Aggressive Blade Angle
Allows material to roll more freely along the blade, particularly dry materials or cohesive soils.
Bettermaterial control gets the job done faster, requires less power and saves fuel.

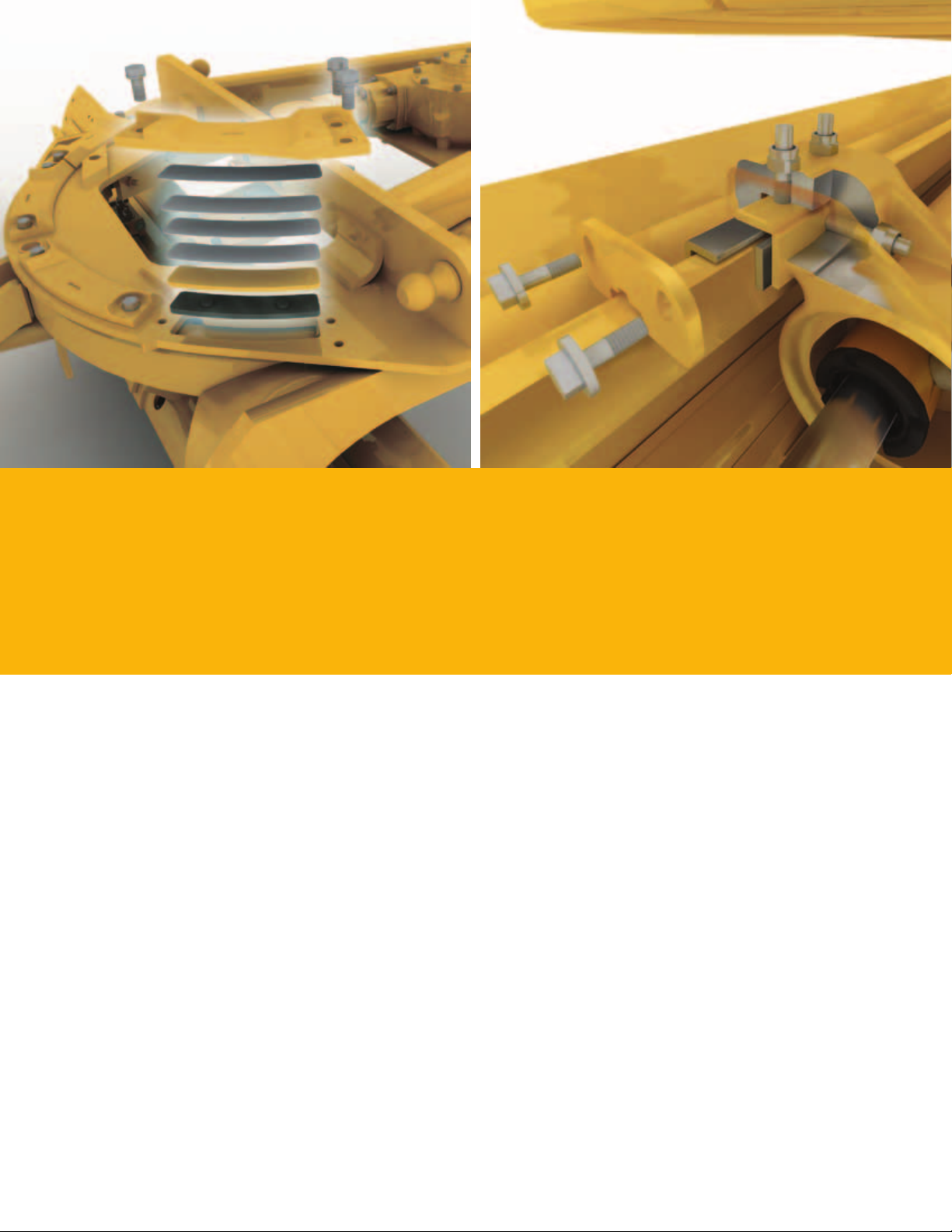

Fast, Easy Adjustment Means Tight Components
Shims and patented top-adjust wear strips are easy to add or replace, dramatically reducing downtime
and operating costs. Durable nylon composite wear inserts maximize circle torque and component life.
Sacricial brass wear strips between the blade mounting group and moldboard can be replaced easily.
Shimless Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard
wear strips aligned for reduced blade chatter, precise blade control and dramatic reductions in service time.
Moldboard
Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts assure reliability and long
service life. The link bar allows extreme moldboard positioning for bank sloping, ditch cutting and cleaning.
7
Page 8
All Wheel Drive (AWD)
Expanded machine versatility.
All Wheel Drive (AWD)
The AWD arrangement utilizes dedicated left and right
pumps for precise hydraulic control. The innitely variable
pumps and motors maximize torque in each gear delivering
the most power to the ground in the industry and increasing
productivity.
Maximum Net Power
When AWD is engaged, ywheel horsepower is automatically
increased by an additional 41 kW (55 hp) compared to the
rear drive model. This offsets the parasitic losses and maximizes
net power to the ground for increased productivity.
Hydrostatic Mode
Standard with AWD, this mode disengages the transmission
and provides hydraulic power to the front wheels only.
Theground speed is innitely variable between 0-8 km/h
(0-5 mph), perfect for precise nish work.

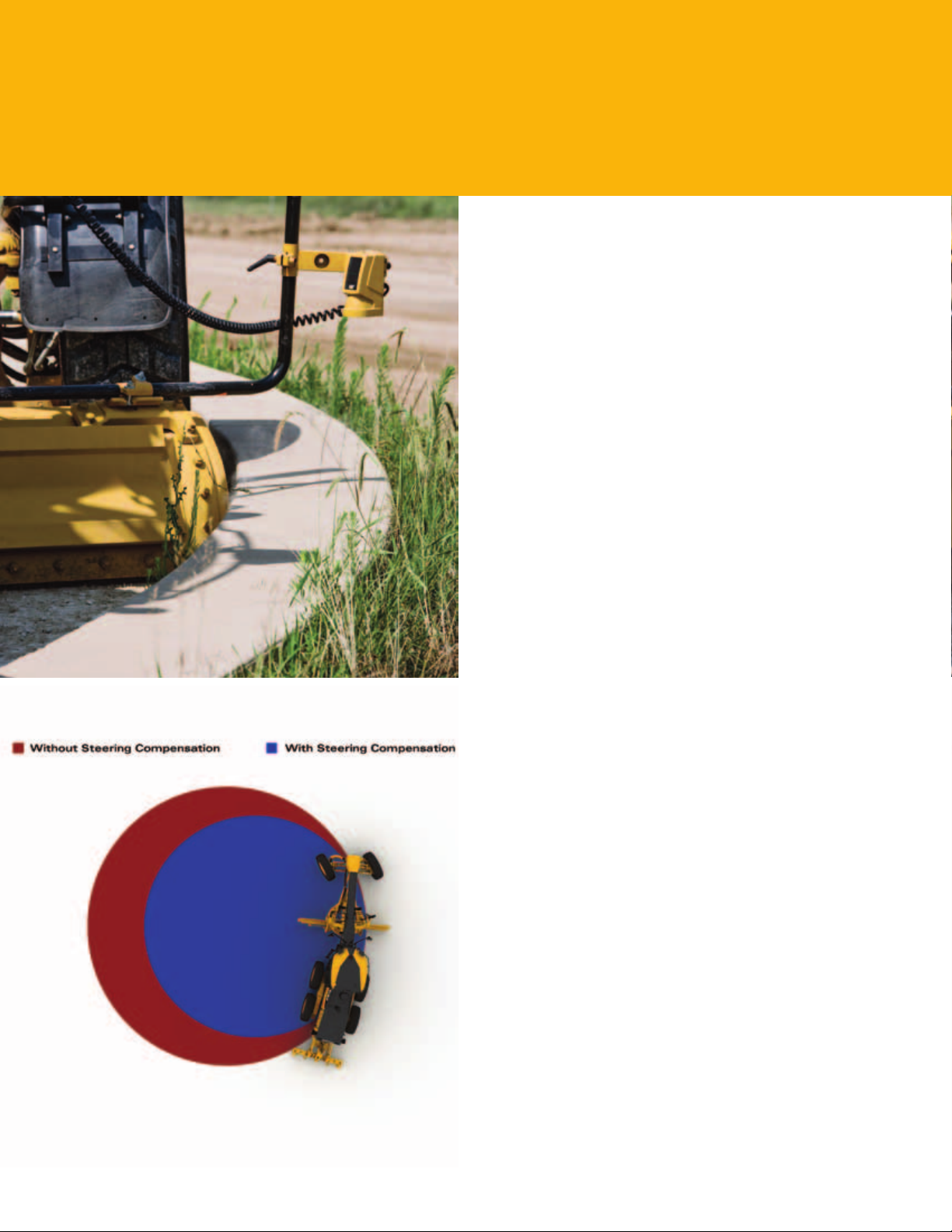

Steering Compensation
Cat Steering Compensation System enables a “powered turn”
by adjusting the outside front tire speed up to 50% faster
than the inside tire. The result is improved control, less
damage to surfaces and a dramatic reduction of turning
radius in poor underfoot conditions.
8
Page 9
Hydraulics
Advanced machine control.
Advanced Electro-Hydraulic System
Incorporates a state-of-the-art electro-hydraulic system as the foundation for revolutionary changes
inmachine and advanced joystick controls.
Blade Float
Allows the blade to move freely under its own weight. By oating both cylinders, the blade can follow
the contours of the road, especially useful when removing snow. Floating only one cylinder permits the
toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
Independent Oil Supply
Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling,
which reduces heat build-up and extends component life.
Load Sensing Hydraulics (PPPC)
The proven load-sensing system and the advanced Proportional Prioritized Pressure-Compensating
(PPPC or “triple P – C”) electro-hydraulic valves provide superior implement control and enhanced
machine performance in all applications. Continuously matching hydraulic ow/pressure to power
demands creates less heat and reduces power consumption.
• Consistent, Predictable Movement – PPPC valves have different ow rates for the head (red) and
rod ends (blue) of the cylinder, ensuring consistent extension and retraction speeds.
• Balanced Flow – Hydraulic ow is proportioned so all implements operate simultaneously with
little effect on the engine or implement speeds.
9
Page 10
Integrated Electronic Solutions
Advanced technology for optimized performance.
“Smart Machine” Integrates Core Systems
Sharing key data among systems optimizes machine
performance.
• Cat Messenger, combined with full systems integration,
enhances diagnostic capability. Machine system errors
are displayed in both text and fault codes for quick
analysis of critical data.
• Electronic Technician (Cat ET) lets service technicians
access stored diagnostic data and congure machine
parameters through the Cat Data Link.
• Product Link streamlines diagnostics, reducing
downtime, maintenance scheduling and costs by
communicating vital machine data and location.
• Low Battery Elevated Idle raises idle speed when low
system voltage is detected, ensuring adequate system
voltage and improving battery reliability.

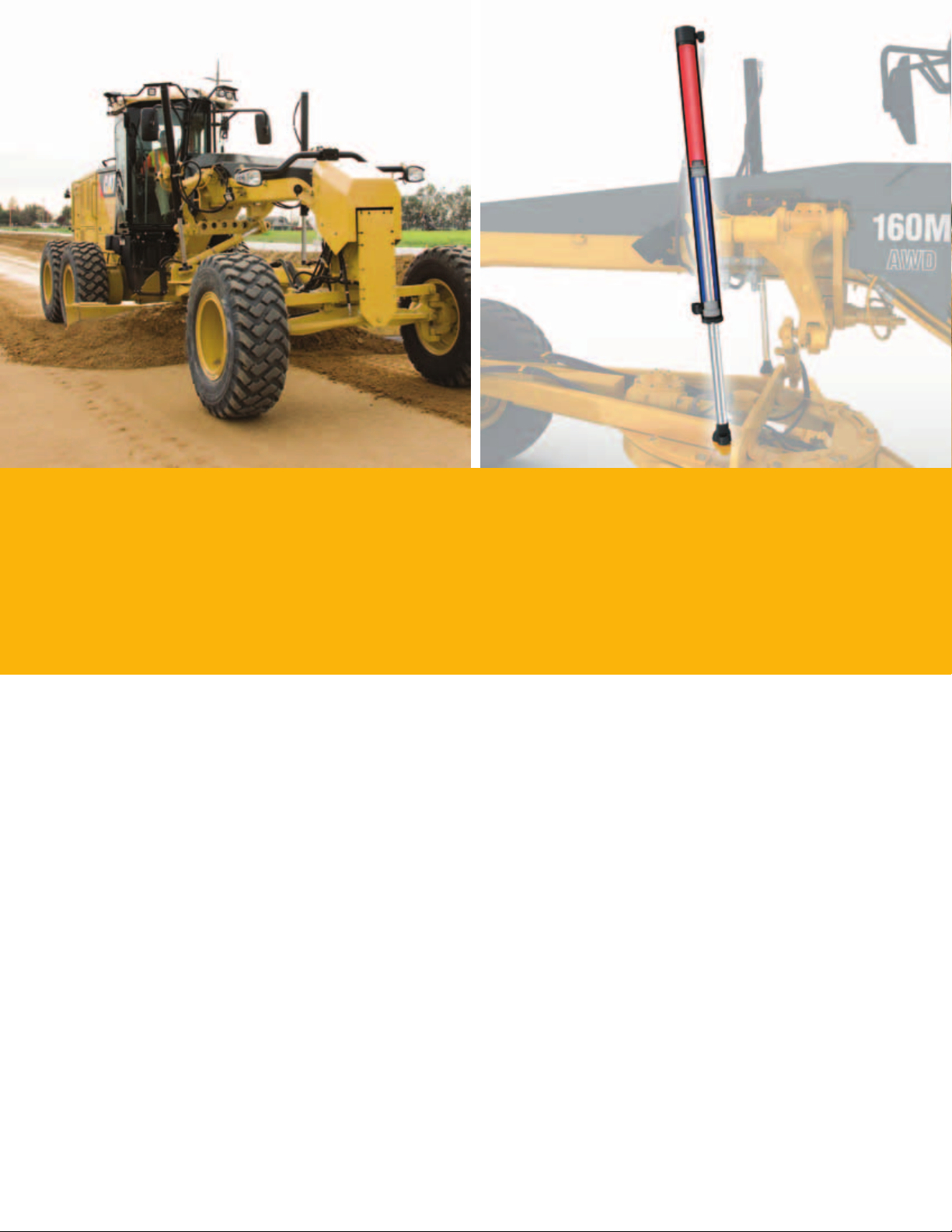

Automatic Blade Control
The AccuGrade™ System components and mounts fully
integrated into the machine, so system installation is quick
and easy. Integral hydraulic and electrical components are
standard on M2 Series (Grade Control Ready).
• The optional Cat AccuGrade™ System automatically
controls the blade, improving operator efciency and
productivity. AccuGrade technology reduces the need
for traditional survey stakes or grade checkers, so you
can reach grade faster and in fewer passes.
• The AccuGrade™ Attachment Ready Option provides
additional mounting brackets, cab controls and electrical
harnesses for easy installation of Cross Slope, Sonic,
Laser, GPS or ATS electronics kits.
AccuGrade™ Attachment Ready Option
The AccuGrade System is fully integrated into the machine
design, making installation quick and easy. Integral hydraulic
and electrical components are standard on the M Series 2
(Grade Control Ready). The AccuGrade Attachment Ready
Option provides additional mounting brackets, cab controls
and electrical harnesses for easy installation of the Cross
Slope, Sonic, Laser, GPS or ATS electronics kits.
Automatic Engine Deration
Protects the engine by automatically lowering engine torque
output and alerting the operator if critical conditions
aredetected.
10
Page 11
Work Tools and Attachments
Equip your machine for the job.
Moldboard Options
Standard moldboard is 4.3 m × 610 mm (14 ft × 24 in). Caterpillar offers a 4.3 m × 686 mm
(14 ft × 27 in) and a 3.7 m × 610 mm (12 ft × 24 in) as options. Left side extensions are also available.
Ground Engaging Tools (GET)
A variety of tools are available from Cat Work Tools, including cutting edges, graderbits and end bits,
all designed for maximum service life and productivity.

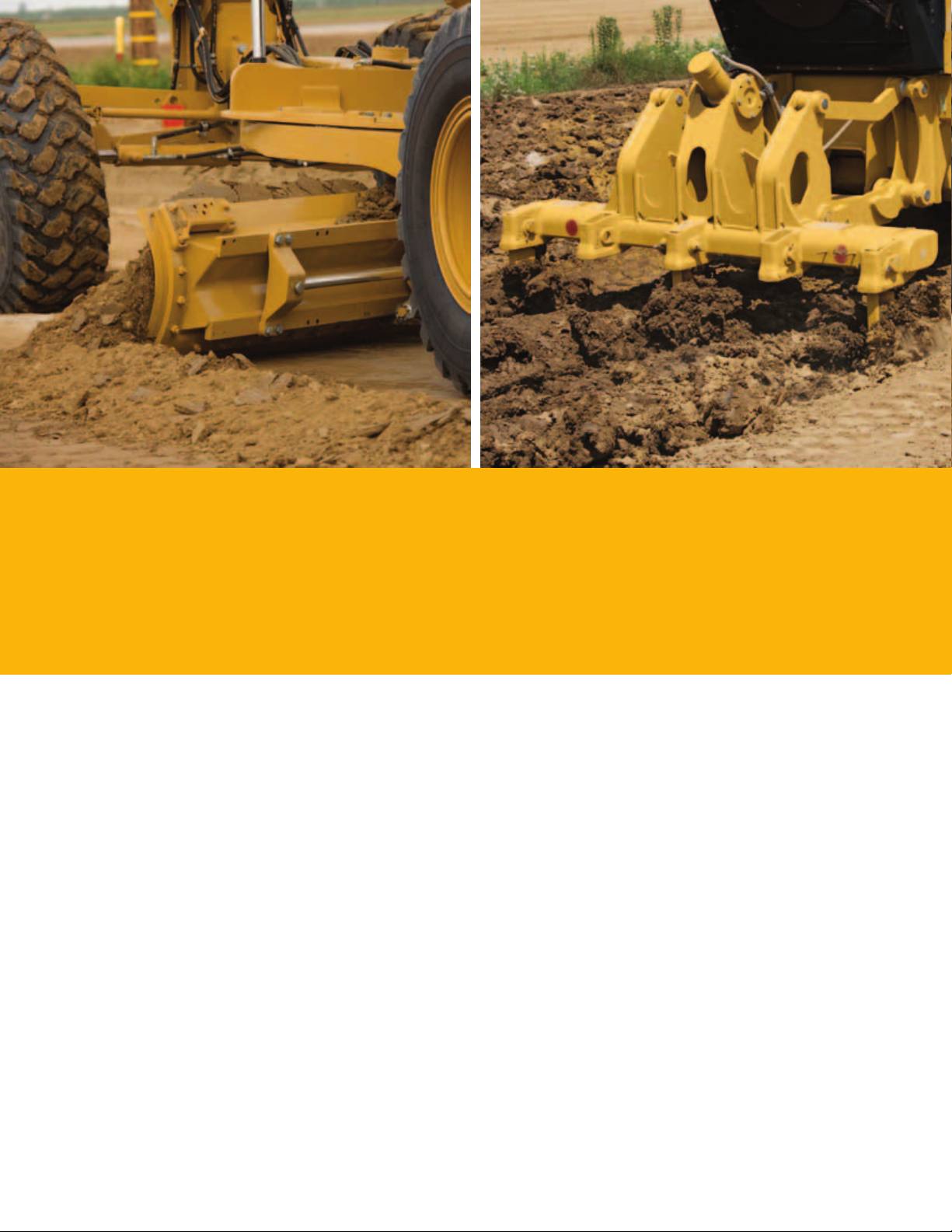

Front Mounted Groups
A front mounted push plate/counterweight or front lift group are available. The front lift group can
becombined with a front dozer blade or front scarier for added versatility.
Rear Ripper/Scarifier
Made to penetrate tough material fast and rip thoroughly for easier movement with the moldboard.
The ripper includes three shanks (with holders for ve). Nine scarier shanks can also be added for
additional versatility.
Snow Removal Work Tools
Multiple snow plow, snow wing and mounting options increase machine versatility and utilization
throughout the year.
11
Page 12
Safety
Protect your most valuable resource.

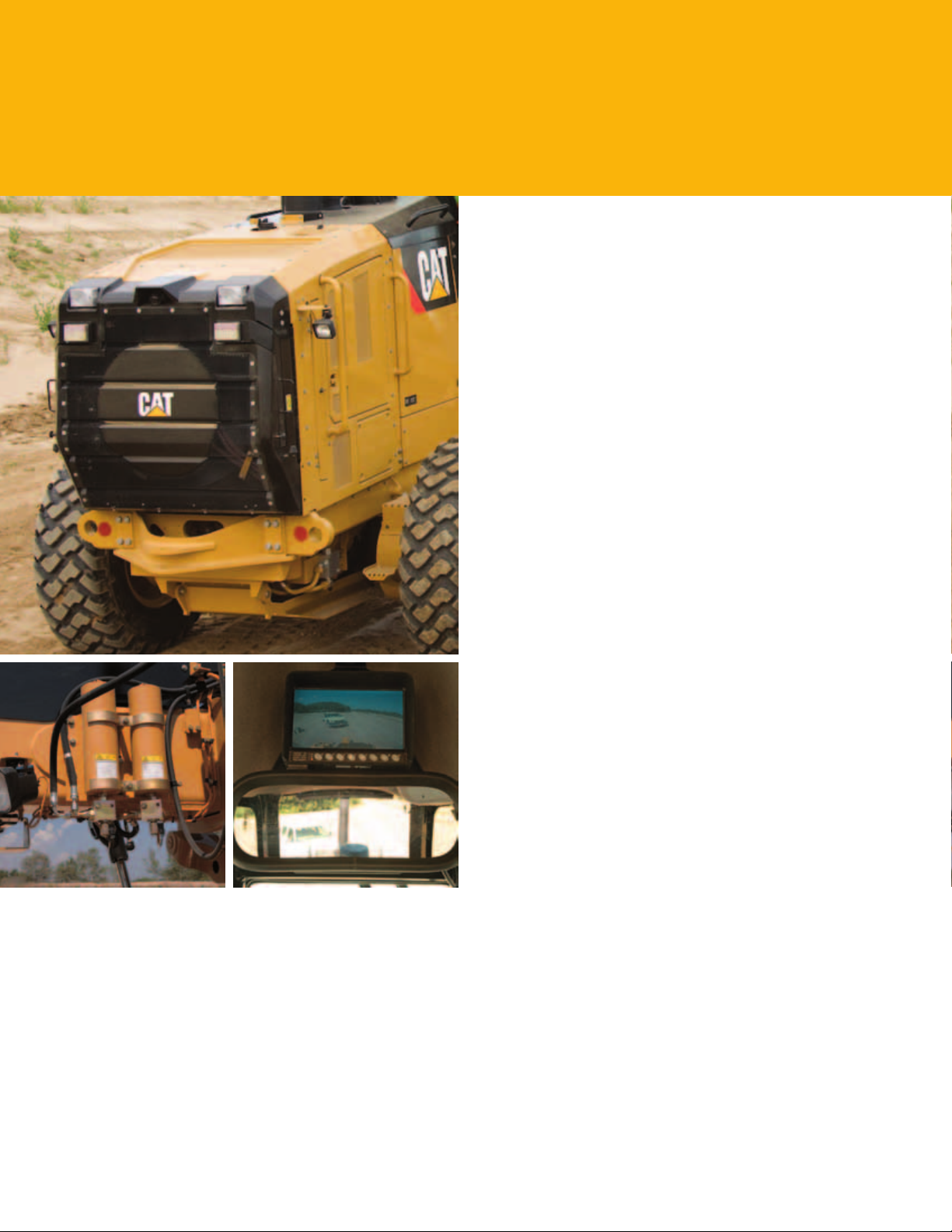

Designed with Protection in Mind
Features are designed to enhance operator and job site
safety, such as optional HID lighting, drop-down rear lights
and a rear view camera. Among many standard safety features
are laminated glass, back-up lights, perforated tandem
walkways and grab rails.
Operator Presence System
The parking brake remains engaged and hydraulic
implements disabled until the operator is seated and the
machine is ready for safe operation.
Secondary Steering System
Automatically engages an electric hydraulic pump in case
ofa drop in steering pressure, allowing the operator to steer
the machine to a stop.
Hydraulic Lockout
A simple switch located in the cab disables all implement
functions while still providing machine steering control.
Thissafety feature is especially useful while roading.
Brake Systems
Brakes are located at each tandem wheel to eliminate braking
loads on the power train. Redundant brake systems utilize
accumulators to enable stopping in case of machine failure,
further increasing operational safety.
Circle Drive Slip Clutch
This standard feature protects the drawbar, circle and
moldboard from shock loads when the blade encounters an
immovable object. It also reduces the possibility of abrupt
directional changes in poor traction conditions.
Blade Lift Accumulators
This optional feature uses accumulators to help absorb
impact loads to the moldboard by allowing vertical blade
travel. Blade lift accumulators reduce unnecessary wear and
help to avoid unintended machine movement for increased
operator safety.
Front and Rear Fenders (Optional)
To help reduce objects ying from the tires, as well as buildup of mud, snow and debris, optional fenders can be added.
12
Page 13

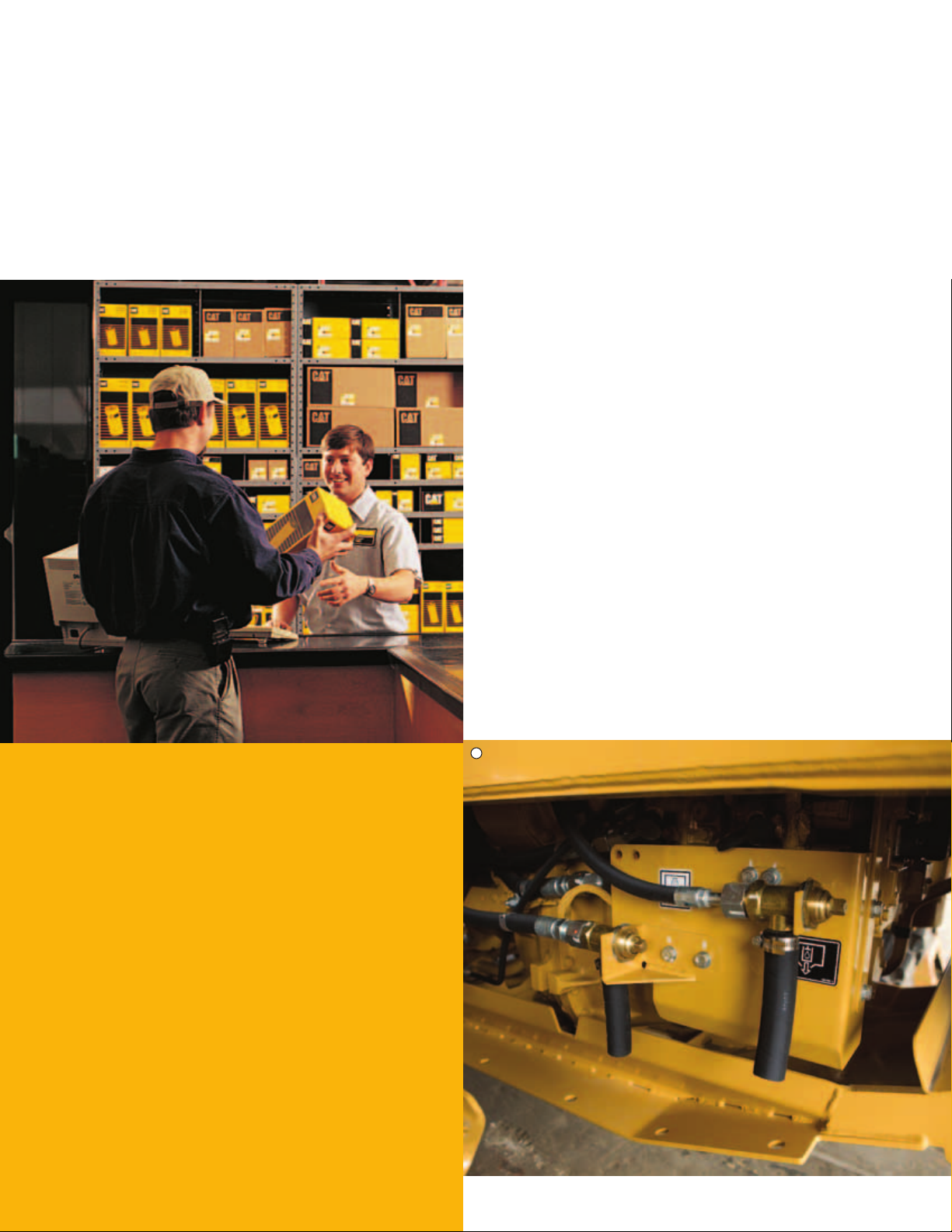

Customer Support
Unparalleled worldwide support.
Renowned dealer service
From helping you choose the right machine to nancing and
ongoing support, your Cat dealer provides the best in sales
and service.
Manage your costs with preventive maintenance programs
like Custom Track Service, S•O•SSM analysis and guaranteed
maintenance contracts.
Stay productive with best-in-class parts availability.
YourCatdealer can even help boost your prots with
operator training.
And when it’s time for component replacement, your
Cat dealer can help you save even more. Genuine Cat
Remanufactured parts carry the same warranty and
reliability as new products at savings of 40 to 70 percent
forpower train and hydraulic components.
Sustainability
Resourceful productivity.
Conserving Resources and Investments
Cat Motor Graders are designed to meet tougher emissions
regulations, reduce customer costs and conserve natural
resources. Integrated machine systems and technologies
improve productivity for greater accuracy, lower fuel use
and reduced machine wear. Extended service intervals
reduce maintenance time/cost and waste. Ecology drains
help protect against spills. Replaceable wear parts save
maintenance time and cost, as well as extend major
component life. Major structures and components are
built to be rebuilt, reducing waste and replacement costs.
1
1. At right, ecology drains.
13
Page 14
160M2/160M2 AWD Motor Grader Specifications
Engine
Engine Model Cat® C9.3 ACERT™
VHP
Base Power (1st gear)
– Net
VHP range – Net 159-
VHP Plus range –
Net
AWD range – Net 166-
VHP – gears 1-3 Net 9.3 kW 567 hp
VHP – gears 4-8 Net 115 kW 4.5 hp
VHP Plus –
gears1-3 Net
Torque rise 50%
Max torque 1355 N·m 1,000 lb ft
Speed @ rated power 2,100 rpm
Number of cylinders 6
Derating altitude 3048 m 10,000 ft
Std – Fan speed
Max 1,350 rpm
Min 500 rpm
Std – Ambient
Capability
VHP – gear
1F, Net 159 kW 213 hp
2F, Net 166 kW 223 hp
3F, Net 174 kW 233 hp
4-8F, Net 181 kW 243 hp
1R, Net 159 kW 213 hp
2R, Net 166 kW 223 hp
3-6R, Net 174 kW 233 hp
159 kW 213 hp
213-
181 kW
159196 kW
211 kW
149 kW 5.9 hp
50° C 122° F
243hp
213263hp
223283hp
VHP Plus – gear
1F, Net 159 kW 213 hp
2F, Net 166 kW 223 hp
3F, Net 174 kW 233 hp
4F, Net 181 kW 243 hp
5F, Net 185 kW 248 hp
6F, Net 189 kW 253 hp
7F, Net 192 kW 257 hp
8F, Net 196 kW 263 hp
• Net power is tested per ISO 9249,
SAEJ1349, and EEC 80/1269 Standards
ineffect at the time of manufacture.
• VHP Plus is an optional attachment for the
160M2; standard for the 160M2 AWD.
• Net power advertised is the power available
at rated speed of 2,100 rpm, measured at
the ywheel when engine is equipped with
fan running at minimum speed, air cleaner,
mufer and alternator.
• No engine derating required up to 3048 m
(10,000 ft).
Power Train
Forward/Reverse
Gears
Transmission Direct Drive
Brakes
Service Multiple Oil Disc
Service,
surfacearea
Parking Multiple Oil Disc
Secondary Dual Circuit Control
8 Fwd/6 Rev
Powershift
23 000 cm
2
3,565 in
2
Hydraulic System
Operating Specifications
Top Speed
Fwd. 46.6 km/h 29 mph
Rev. 36.8 km/h 22.9 mph
Turning radius,
outside front tires
Steering range –
left/right
Articulation angle –
left/right
Fwd.
1st 4.05 km/h 2.52 mph
2nd 5.5 km/h 3.42 mph
3rd 7.99 km/h 4.97 mph
4th 11.02 km/h 6.82 mph
5th 17.1 km/h 10.63 mph
6th 23.27 km/h 14.46 mph
7th 32.04 km/h 19.91 mph
8th 46.6 km/h 28.96 mph
Rev.
1st 3.19 km/h 1.98 mph
2nd 5.98 km/h 3.72 mph
3rd 8.7 km/h 5.41 mph
4th 13.51 km/h 8.4 mph
5th 25.29 km/h 15.7 mph
6th 36.8 km/h 22.87 mph
7.76 m 25 ft 6 in
50°
20°
Circuit type Parallel
Pump type Variable Piston
Pump output 210 L/min 55.5 gal/
min
Maximum system
pressure
Reservoir tank
capacity
Standby Pressure 4200 kPa 609 psi
• Pump output measured at 2,150 rpm.
14
24 150 kPa 3,503 psi
60 L 15.9 gal
Page 15
Service Refill
Tandems
Blade Range
Fuel Capacity 416 L 110 gal
Cooling system 56 L 14.8 gal
Hydraulic system
Total 100 L 26.4 gal
Tank 64 L 16.9 gal
Engine Oil 30 L 7.9 gal
Trans./Diff./
FinalDrives
Tandem housing
(each)
Front wheel spindle
bearing housing
Circle drive housing 7 L 1.8 gal
65 L 17.2 gal
64 L 16.9 gal
0.5 L 0.13 gal
Frame
Circle
Diameter 1530 mm 60.2 in
Blade beam
thickness
Drawbar
Height 152 mm 6 in
Width 76.2 mm 3 in
Thickness 12.7 mm 0.5 in
Front-top/bottom plate
Width 300 mm 11.8 in
Thickness 16 mm 0.63 in
Front frame structure
Height 304.8 mm 12 in
Width 304.8 mm 12 in
Thickness 15.9 mm 0.63 in
Front axle
Height to center 600 mm 23.6 in
Wheel lean,
left/right
Total oscillation
per side
• Front-top/bottom plate – width tolerance
±2.5 mm (0.098 in).
40 mm 1.6 in
18°
32°
Height 506 mm 19.9 in
Width 210 mm 8.3 in
Sidewall thickness
Inner 16 mm 0.63 in
Outer 18 mm 0.71 in
Drive chain pitch 50.8 mm 2 in
Wheel axle spacing 1523 mm 59.95 in
Tandem oscillation
Front up 15°
Front down 25°
Moldboard
Blade width 4.2 m 14 ft
Moldboard
Height 610 mm 24 in
Thickness 22 mm 0.87 in
Arc radius 413 mm 16.3 in
Throat clearance 166 mm 6.5 in
Cutting edge
Width 152 mm 6 in
Thickness 16 mm 0.6 in
End Bit
Width 152 mm 6 in
Thickness 16 mm 0.6 in
Blade Pull
Base GVW 7183 kg 15,836 lb
Max GVW 9092 kg 20,044 lb
Down Pressure
Base GVW 7265 kg 16,016 lb
Max GVW 10 380 kg 22,884 lb
Circle centershift
Right 728 mm 28.7 in
Left 695 mm 27.4 in
Moldboard sideshift
Right 660 mm 26 in
Left 510 mm 20.1 in
Maximum blade
position angle
Blade tip range
Forward 40°
Backward 5°
Maximum shoulder reach outside of tires
Right 2278 mm 89.7 in
Left 2090 mm 82.3 in
Maximum lift
aboveground
Maximum depth
of cut
90°
452 mm 17.8 in
750 mm 29.5 in
Ripper
Ripping depth,
maximum
Ripper shank holders 5
Ripper shank holder
spacing
Penetration force 9440 kg 371.7 lb
Pryout force 13 322 kg 29,370 lb
Machine length
increase, beam raised
426 mm 16.8 in
533 mm 21 in
1031 mm 40.6 in
15
Page 16
160M2/160M2 AWD Motor Grader Specifications
Scarifier
Front, V-Type:
Working width
Front, V-Type, 5 or 11 tooth
Working width 1031 mm 40.6 in
Scarifying depth,
maximum
Scarier shank
holders
Scarier shank
holder spacing
Mid, V-Type
Working width 1184 mm 46.6 in
Scarifying depth,
maximum
Scarier shank
holders
Scarier shank
holder spacing
Mid, straight
Working width 1800 mm 70.9 in
Scarifying depth,
maximum
Scarier shank
holders
Scarier shank
holder spacing
Front, V-Type
Scarifying depth,
maximum
Scarier shank
holders
Scarier shank
holder spacing
Rear
Working width 2133 mm 84 in
Scarifying depth,
maximum
Scarier shank
holders
Scarier shank
holder spacing
1205 mm 47.4 in
467 mm 18.4 in
5/11
116 mm 4.6 in
292 mm 11.5 in
11
116 mm 4.6 in
317 mm 12.5 in
17
111 mm 4.4 in
1031 mm 40.6 in
5/11
467 mm 18.4 in
426 mm 16.8 in
9
267 mm 10.5 in
Weights
Gross Vehicle Weight, base
Total 17 296 kg 38,131 lb
Front axle 4236 kg 9,339 lb
Rear axle 13 060 kg 28,792 lb
Gross Vehicle Weight, max
Total 23 947 kg 52,795 lb
Front axle 6052 kg 13,343 lb
Rear axle 16 531 kg 36,444 lb
Operating Wt, typically equipped
Total 19 620 kg 43,255 lb
Front axle 5258 kg 11,592 lb
Rear axle 14 362 kg 31,662 lb
• Base operating weight calculated on
standard machine conguration with
14.00-24 10PR (G-2) tires, full fuel tank,
coolant, lubricants and operator.
Weights – AWD
Gross Vehicle Weight, max
Total 23 947 kg 52,795 lb
Front axle 6418 kg 14,149 lb
Rear axle 17 529 kg 38,645 lb
Operating Wt, typically equipped
Total 20 512 kg 45,221 lb
Front axle 5805 kg 12,798 lb
Rear axle 14 707 kg 32,424 lb
Standards
ROPS/FOPS ISO 3471; ISO 3499
Steering ISO 5010
Brakes ISO 3450, ISO 10265
Sound ISO 6394; ISO 6395
16
Page 17
Dimensions
1
10
8
11
12
13 6
7
Height – Top of Cab 3287 mm 129.4 in
1
Height – Front Axle Center 600 mm 23.6 in
2
Length – Between Tandem Axles 1523 mm 60 in
3
Length – Front Axle to Moldboard 2557 mm 100.7 in
4
Length – Front Axle to Mid Tandem 6126 mm 241 in
5
Length – Front Tire to Rear of Machine 8898 mm 350.3 in
6
Length – Counterweight to Ripper 10 140 mm 399.2 in
7
Ground Clearance at Rear Axle 344 mm 13.5 in
8
Height to Top of Cylinders 3043 mm 119.8 in
9
Height to Exhaust Stack 3242 mm 127.6 in
10
Width – Tire Center Lines 2141 mm 84.3 in
11
Width – Outside Rear Tires 2581 mm 101.6 in
12
Width – Outside Front Tires 2581 mm 101.6 in
13
5
43
9
2
Optional Tire Arrangements
Total machine width and changes in machine weight are shown for common tire options.
Wheel
Group Tires
10x24 MP 14.00R24 Michelin XGLA2 1 Star 2576 mm 101.4 in 2576 mm 101.4 in 335 kg 738 lb
10x24 MP 14.0R24 Bridgestone VSW 1 Star 2583 mm 101.7 in 2583 mm 101.7 in 523 kg 1,152 lb
10x24 MP 14.0R24 Bridgestone VKT 1 Star 2562 mm 100.9 in 2562 mm 100.9 in 528 kg 1,164 lb
14x25 MP 17.5R25 Michelin XTLA 1 Star 2703 mm 106.4 in 2703 mm 106.4 in 504 kg 1,112 lb
14x25 MP 17.5R25 Michelin XSNO Plus 1 Star 2692 mm 106 in 2692 mm 106 in 588 kg 1,297 lb
14x25 MP 17.5R25 Michelin XHA 1 Star 2692 mm 106 in 2692 mm 106 in 636 kg 1,402 lb
14x25 MP 17.5R25 Bridgestone VKT 1 Star 2729 mm 107.4 in 2729 mm 107.4 in 702 kg 1,549 lb
• Based off the standard arrangement, AWD arrangements will have between 250–470 mm (9.8–19.5 in) additional width.
• For a complete list of tire options, contact your local Cat dealer.
Width – Outside
Front Tires
Width – Outside
Rear Tires Tire Arrangement Weight
17
Page 18
160M2/160M2 AWD Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
Air cleaner, dual stage, dry type,
diesel, with automatic engine derate and
automatic dust ejector, service indicator
through Cat Messenger
Air-to-air after cooler (ATAAC)
Belt, serpentine, automatic tensioner
Brakes, oil disc, four-wheel, hydraulic
Demand fan, hydraulic
Differential, lock/unlock
Drain, engine oil, ecology
Electronic over speed protection
Engine, C9.3 with ACERT Technology,
Tier 4 Interim and EU Stage IIIB
emissions regulations
Fuel tank, 416 L (110 gal), ground level
access and sediment drain
Mufer, under hood
Parking brake – multi-disc,
sealed, oil-cooled
Priming pump, fuel
Rear axle, modular
Sediment drain, fuel tank
Tandem drive
Transmission, 8F/6R, power shift,
direct drive
VHP (Variable Horsepower)
ELECTRICAL
Alarm, back up
Alternator, 150 ampere, sealed
Batteries, maintenance free, heavy duty,
1125 CCA
Breaker panel, ground accessible
Cab harness and electrical hydraulic valves
Electrical system, 24V
Grade Control Ready – Cab harness,
software, electrical hydraulic valves,
bosses and brackets
Lights, roof-mounted roading, reversing,
LED stop and tail
Product Link Ready
Starter, electric
OPERATOR ENVIRONMENT
Accelerator
Air conditioning with heater
Arm and wrist rest, adjustable
Articulation, automatic Return-to-Center
Ashtray and lighter
®
Messenger operator
Cat
information system
Centershift pin indicator
Coat hook
Cup holder
Display, digital speed and gear
Doors, left and right side with wiper
Gauge, machine level
Gauge cluster (analog) – fuel, articulation,
engine coolant temp, engine rpm,
hydraulic oil temp, regen
Hour meter, digital
Joystick hydraulic controls
right/left blade lift with oat
position, circle drive, blade sideshift
and tip, centershift, front wheel lean,
articulation and power steering
Joystick, adjustable armrests
Joystick gear selection
Joystick hydraulic power steering
Ladders, cab, left and right side
Lights, night time cab
Mirror, inside rearview, wide angle
Power port, 12V
Radio Ready, Entertainment
ROPS cab, sound suppressed 70 dB(A)
Seat, cloth-covered, comfort suspension
Seat belt, retractable 76 mm (3 in)
Storage area for cooler/lunchbox
Throttle control, electronic
Windows, laminated glass:
xed front with intermittent wiper
side and rear (3)
FLUIDS
Antifreeze
Extended Life Coolant to –35° C (–30° F)
TIRES, RIMS AND WHEELS
Partial allowance for tires on
254 × 607 mm (10 × 24 in) multi-piece rims
is included in the base machine price
andweight
OTHER STANDARD EQUIPMENT
Accumulators, brake, dual certied
Anti-glare paint
Bumper, rear, integrated with hitch
CD ROM Parts Book
Clutch, circle drive slip
Cutting edges
152 × 16 mm (6 × 5/8 in)
curved DH-2 steel
19 mm (3/4 in) mounting bolts
Doors (3), engine compartment, locking
Drawbar – 6 shoes, replaceable wear strips
Electrical hydraulic valves, hydraulic
lines for base 8 functions
Endbits
16 mm (5/8 in) DH-2 steel
19 mm (3/4 in) mounting bolts
Fluid check, ground level
Frame, articulated, with safety lock
Ground level engine shutdown
Hammer (emergency exit)
Horn, electric
Hydraulic lines for base functions
Lockout, hydraulic implement
(for roading and servicing)
Moldboard – 4267 × 610 × 22 mm
(14 ft × 24 in × 7/8 in)
Mounting, cab roof accessories
Pump, hydraulic, high capacity,
98 cm³ (6 in³)
Radiator, cleanout access
(both sides with swing doors)
Secondary steering
Serviceability, LH side
SM
S•O•S
Tandem walkway/guards
Tool box
Tow hitch
ports: engine, hydraulic,
transmission, coolant, fuel
18
Page 19
Optional equipment may vary. Consult your Cat dealer for details.
kg lb kg lb kg lb
ELECTRICAL
Alternator, 250 ampere 2 5
Batteries:
extreme duty,
1,400CCA
Converter,
communication (CB)
Lights:
Headlights, high 5 11
Headlights, low 5 11
Working lights, basic 9 20
Working lights, plus 10 22
Warning: Beacon or
Strobe
Mounting for
WarningLight
GUARDS
Fenders, Front 56 123
Fenders, Rear 34 75
Sound suppression
(Bottom)
Sound suppression
(Enclosure)
Transmission 141 311
OPERATOR ENVIRONMENT
Anti-icing Glass 14 31
Fan, defroster,
rearwindow
Mirrors, outside:
heated 24V 15 33
mounted 15 33
Precleaner, HVAC 5 10
Radio ready, AM/FM 9 20
Seat, air suspension,
cloth
Shade, sun 2 5
Wiper/washer, rear 2 4
14 30
5 11
2 5
5 11
110 243
110 243
2 4
2 5
POWER TRAIN
All Wheel Drive 590 1,300
Differential Lock,
Automatic
Engine, variable
horsepower plus
(VHPPlus)
Fuel tank, fast ll 14 31
Oil, Hydraulic,
Biodegradable
Synthetic
Precleaner, snow 2 4.4
Starter, Heavy Duty,
1,000 Amp
Transmission, autoshift 2 5
OTHER ATTACHMENTS
AccuGrade ARO 39 85
Accumulators,
bladelift
AutoLube, Lincoln 23 50
AutoLube, Lincoln,
ripper enhancement
Camera, rearview 9 20
Cat Product Link
321SR
Compressor/tank, Air 23 50
Drain, ecology, engine
Wiggins
Fenders, front, AWD 56 124
Fenders, rear 119 262
Heater, engine coolant:
120V 1 3
220V 1 3
Hydraulic arrangements with one or more
additional hydraulic valves are available
for rear ripper, dozer, snow plow and
snowwing.
Ladder, cab, right side 7 15
Security system 2 5
Snow wing mounting,
frame ready
Sound suppression 15 32
Starting aid, Ether 0.5 1
160M2/160M2 AWD Optional Equipment
WORK TOOLS/G.E.T.
9 20
00 00
00 00
10 22
77 170
5 10
5 10
2 5
91 200
Blade extension, left
hand, 610 mm (2 ft)
Cutting Edges, curved 43 95
Endbits, overlay 24 52
Front lift group,
mounting
Front lift group,
mechanical
Grader bit, narrow and
super penetration
Mid-Mount Scarier,
Package
Mid-Mount Scarier,
Mounting
Moldboard
4267 × 686 × 25 mm
(14 ft × 27 in × 1 in)
3658 × 610 × 22 mm
(12 ft × 24 in × 7/8 in)
Push plate,
counterweight
Ripper, mounting 32 70
Ripper, rear 962 2,120
Ripper tooth 28 61
Scarier, front 434 956
Snow Arrangement 161 355
Snow Wing Ready
Package
MACHINE ARRANGEMENTS
Canadian
Arrangement
European
Arrangement
European Roading
Arrangement
113 249
5 11
680 1,500
181 400
942 2,077
57 125
257 567
885 1,951
114 355
2 4
289 637
451 994
19
Page 20
160M2/160M2 AWD Motor Grader
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2010 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
20
AEHQ6112 (09-2010)
Loading...
