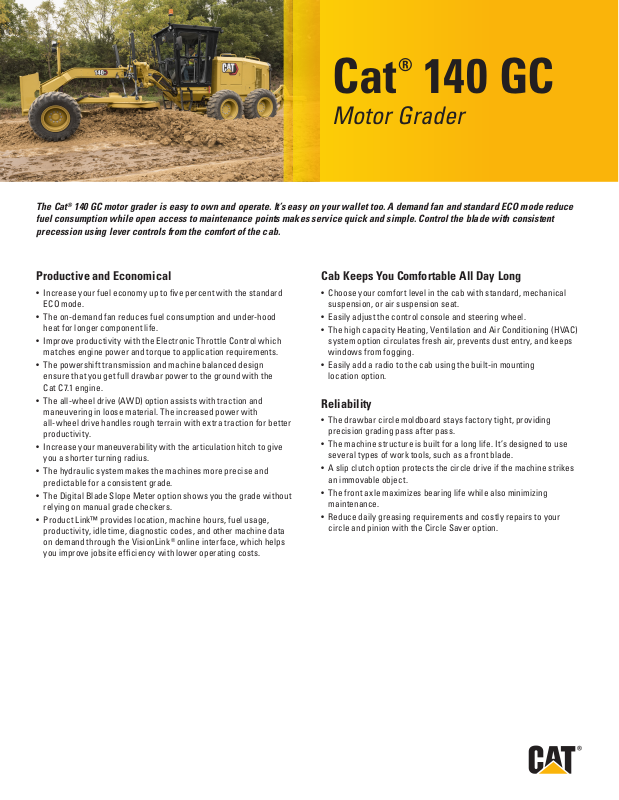

Cat® 140GC

Motor Grader

The Cat® 140GC motor grader is easy to own and operate. It’s easy on your wallet too. A demand fan and standard ECO mode reduce fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precession using lever controls from the comfort of the cab.

Productive and Economical

• Increase your fuel economy up to ve percent with the standard ECOmode.

• The on-demand fan reduces fuel consumption and under-hood heatfor longer component life.

• Improve productivit y with the Electronic Throt tle Control which matches engine power and torque to application requirements.

• The powershift transmission and machine balanced design ensurethat you get full drawbar power to the ground with the CatC7.1 engine.

• The all-wheel drive (AWD) option assists with traction and maneuvering in loose material. The increased power with all-wheel drive handles rough terrain with ex tra traction for bet ter productivity.

• Increase your maneuverability with the articulation hitch to give you a shor ter turning radius.

• The hydraulic system makes the machines more precise and predictable for a consistent grade.

• The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.

• Product Link™ provides location, machine hours, fuel usage, productivit y, idle time, diagnostic codes, and other machine data ondemand through the VisionLink® online interface, which helps you improve jobsite efciency with lower operating costs.

Cab Keeps You Comfortable All Day Long

• Choose your comfort level in the cab with standard, mechanical suspension, or air suspension seat.

• Easily adjust the control console and steering wheel.

• The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry, and keeps windows from fogging.

• Easily add a radio to the cab using the built-in mounting locationoption.

Reliability

• The drawbar circle moldboard stays factory tight, providing precision grading pass af ter pass.

• The machine structure is built for a long life. It’s designed to use several types of work tools, such as a front blade.

• A slip clutch option protects the circle drive if the machine strikes an immovable object.

• The front axle maximizes bearing life while also minimizing maintenance.

• Reduce daily greasing requirements and costly repairs to your circle and pinion with the Circle Saver option.

Page 2

Cat® 140GC Motor Grader

Safety

• See what’s behind you with the rear camera option. The dedicated display can always be on to ensure a safe work environment.

– The heated lens keeps the rearview camera clear in cold and

wetconditions.

• In the event of an engine stall, count on the secondary steering system option to help stop the machine safely.

• Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.

• Ground level engine shut-of f switch stops all fuel to the engine when activated and shuts down the machine.

• See the rear of your machine with side and rearview mirrors.

• Work past sundown using the strategically placed lights for night time visibility.

• Keep your work site safer with Cat Grade with Digital Blade Slope Meter to reduce the need for manual grade checking with working machines.

Maintenance

• Filters, such as fuel, engine air, and oil, are grouped together for easy access and preventative maintenance.

• The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.

• Hydraulic brakes are well oiled to keep them maintenance free.

• The standard bot tom guard shields the transmission and lter. Optional guarding protects your machine from damage in demanding applications.

• Remote Services connects you to a dealer ser vice pro to help solve your problem and quickly get you to work. Remote Services works around your schedule to ensure your machine’s sof tware is up to date for optimal performance.

• S•O•SSM ports are available for simplifying maintenance and allowing for quick, easy extraction of uid samples for analysis.

Versatility

• Improve the per formance and efciency of your machine with thecounterweight or push block option.

• Ripper and scarier options are available to assist with grading hard ground.

• The front lift group option is ready for at tachments like the straight or angle front blade.

Page 3

Standard and Optional Equipment

Standard and optional equipment may vary. Consult your Cat dealer for details.

Cat® 140GC Motor Grader

CAB

Standard Seat

Mechanical Suspension Seat

Air Suspension Seat

Steering Wheel/Lever Controls

ROPS/FOPS

Heating/Cooling Cab System

Rear Wiper

Base Cab

Canopy

Cab Plus

Information Display Screen

Halogen Lighting

Enter tainment Radio Ready

Rear Window Screen

Front Wipers

Digital Blade Slope Meter

Product Link

ENGINE

Cat C7.1

ECO Mode

No-Spin Differential

On-Demand Fan

All-Wheel Drive

Standard Optional



DRAWBAR CIRCLE MOLDBOARD

Standard

Circle Drive Slip Clutch

Circle Saver

SAFETY

Parking Brake

Signaling/Warning Horn

Rearview Mirror

Rearview Camera

Hydraulic Brakes

Secondar y Steering System

Side View Mirrors

Grab Rails

Walkways

VERSATILITY

Counterweight

Push Block

Ripper

Scarier

Front Lift Group

Front Blade

Standard Optional



Not all features are available in all regions. Please check with your local Cat dealer for specic offering availability in your area.

For additional information, refer to the Technical Specications brochure available at www.cat.com or your Cat dealer.

Page 4

Cat® 140GC Motor Grader

Technical Specifications

Power Train

Engine Model Cat 7.1

Meets India CEV Stage V

emission standards or China

Emissions

Net Power – ISO 9249 /S AE J134 9 EEC 80/1269

Bore 105 mm 4.1 in Displacement 7.01 L 42 7.8 in Stroke 135 mm 5.3 in Engine RPM 2,2 00 rpm Maximum Torque – ISO 9249 – Tier 3/

Stage IIIA Equivalent Maximum Torque – ISO 9249 – India CEV

Stage V Top Forward Speed 41.7 km /h 25.9 mph Top Reverse Speed 24.0 km /h 14.9 mph Turning Radius, Outside Front Tires 7.8 m 25.6 f t

• Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in eect at the time of manufacture.

• The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). Thesystem contains 2.0 kg of refrigerant which has a CO2 equivalent of2.86 metric tonnes.

• Net power advertised is the power available at rated speed of 2,200 rpm, measured at the ﬂywheel when engine is equipped with fan, air cleaner, muer and alternator.

Nonroad Stage III and Brazil

MAR-1 emission s tandards,

equivalent to U.S. EPA Tier 3/

EU Stage III A.

131 kW-147 kW 176hp-196 hp

889 N·m 656 lbf-ft

835 N·m 616 lbf-f t

Weight

Typically Equipped Machine Weight

Weight* – ROPS – Tier 3/Stage IIIA Equivalent

Front Axle 5217 kg 11,502 lb Rear Axle 12 173 kg 26,8 36 lb Weight* – All-Wheel Drive (AW D) – ROPS

– Tier 3 /Stage IIIA Equivalent Front Axle 545 7 kg 12,0 31 lb Rear Axle 12 733 kg 28 ,071 lb Weight* * – India CEV Stage V 17 65 0 kg 3 8,912 lb Front Axle 4942 kg 10,8 95 lb Rear Axle 12 708 kg 28,016 lb * Typically equipped operating weight is calculated with full fuel tank,

coolant, lubricants, operator, push block , ROPS closed cab, rear ripper/ scarier, 4.3 m (14 f t) blade, 17.5-25 MP tires on multi-piece rims and other equipment.

** Typically equipped operating weight is calculated with full fuel tank ,

coolant, lubricants, operator, push block , rear ripper, 4.3 m (14 ft) blade, tires on multi-piece rims (17.4 -25 Bias), ROPS cab with HVAC and other equipment.

17 39 0 kg 38,338 lb

18 190 kg 4 0,102 lb

Dimensions

Length of Machine* 10 33 2 mm 406 .8 in Maximum Height 38 39 mm 151.1 in Width 2428 mm 95.6 in * Typically equipped with push block and ripper.

Moldboard

Width 3.7 m 12 ft

Height 509 mm 20 in

End Bit 152 mm 6 in

Cutting Edge 152 mm 6 in

Arc Radius 413 mm 16.3 in

Throat Clearance 112 mm 4 .7 in

Blade Range

Circle Center Shift

Right 728 mm 28.7 in

Left 752 mm 29.6 in

Moldboard Side Shift

Right 512 mm 20.2 in

Left 663 mm 26.1 in

Blade Tip Range

Forward 40°

Backward 5°

Maximum Shoulder Reach

Right 192 8 mm 75.9 in

Left 1764 mm 69.4 in

Maximum Lif t Above Ground 48 0 mm 18.9 in

Maximum Depth of Cut 735 mm 28.9 in

Net Power

Gear VHP Forward

1st 131 kW 176 hp 2nd 139 kW 186 hp 3rd – 6th 147 kW 196 hp

Reverse

1st 131 kW 176 hp 2nd 139 kW 186 hp 3rd 147 kW 196 hp

Service Rell Capacities

Fuel Tank 297 L 78.5 gal

Standard Circle Drive 2 L 0.5 gal

Circle Drive Slip Clutch 7.5 L 2 gal

Engine Crankcase 21 L 5.6 gal

Cooling System 40 L 10.6 gal

Hydraulic System 45 L 11.9 gal

Transmission 18 L 4.8 gal

Differential Group 33 L 8.7 gal

AEXQ 2479-03 (03-2021)

(Afr-ME, Aus-NZ, CIS, China, India,

Indonesia, S Am, SE A sia, Turkey)

Build Number: 01A
