Casio XJ-S43W User Manual
DATA PROJECTOR
XJ-S43W
User’s Guide
z Be sure to read the precautions in the
separate User’s Guide (Basic Operation). For
details about setting up the projector and lamp
replacement, see the User’s Guide (Basic
Operation).
z Be sure to keep all user documentation handy
for future reference.
E
1
• DLP is a registered trademark of Texas Instruments of the United States.
• Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of
Microsoft Corporation in the United States and other countries.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
• XGA is a registered trademark of IBM Corporation of the United States.
• Other company and product names may be registered product names or trademarks of
their respective owners.
• The contents of this User’s Guide are subject to change without notice.
• Copying of this manual, either in part or its entirety is forbidden. You are allowed to
use this manual for your own personal use. Any other use is forbidden without the
permission of CASIO COMPUTER CO., LTD.
• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims
from third parties arising out of the use of this product or this manual.
• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due
to loss of data due to malfunction or maintenance of this product, or any other reason.
• The sample screens shown in this manual are for illustrative purposes only, and may
not be exactly the same as the screens actually produced by the product.
2
Contents
About this manual... .......................................................................................... 5
Projector Overview ......................................................... 6
Projector Features and Main Functions ............................................................ 6
Projector Keys and Remote Controller Keys..................................................... 7
Operation During Projection .......................................... 8
Image Operations During Projection ................................................................. 8
Adjusting Image Brightness .........................................................................................8
Selecting the Color Mode............................................................................................. 9
Zooming an Image .......................................................................................................9
Momentarily Cutting Off the Input Source Image ....................................................... 10
Freezing an Image .....................................................................................................10
Displaying a Pointer in the Projected Image .............................................................. 11
Changing the Aspect Ratio of the Projected Image ................................................... 12
Adjusting the Volume Level............................................................................. 13
To adjust the volume level .........................................................................................13
To mute the audio ......................................................................................................13
Eco Mode ........................................................................................................ 13
Using the [FUNC] Key ..................................................................................... 14
Configuring Advanced Projector Settings.................. 15
Basic Setup Menu Operations ........................................................................ 15
Displaying the Setup Menu ........................................................................................ 15
Configuring Setup Menu Settings .............................................................................. 15
Basic Setup Menu Example....................................................................................... 16
Direct Power On.............................................................................................. 18
Password Protecting the Projector.................................................................. 19

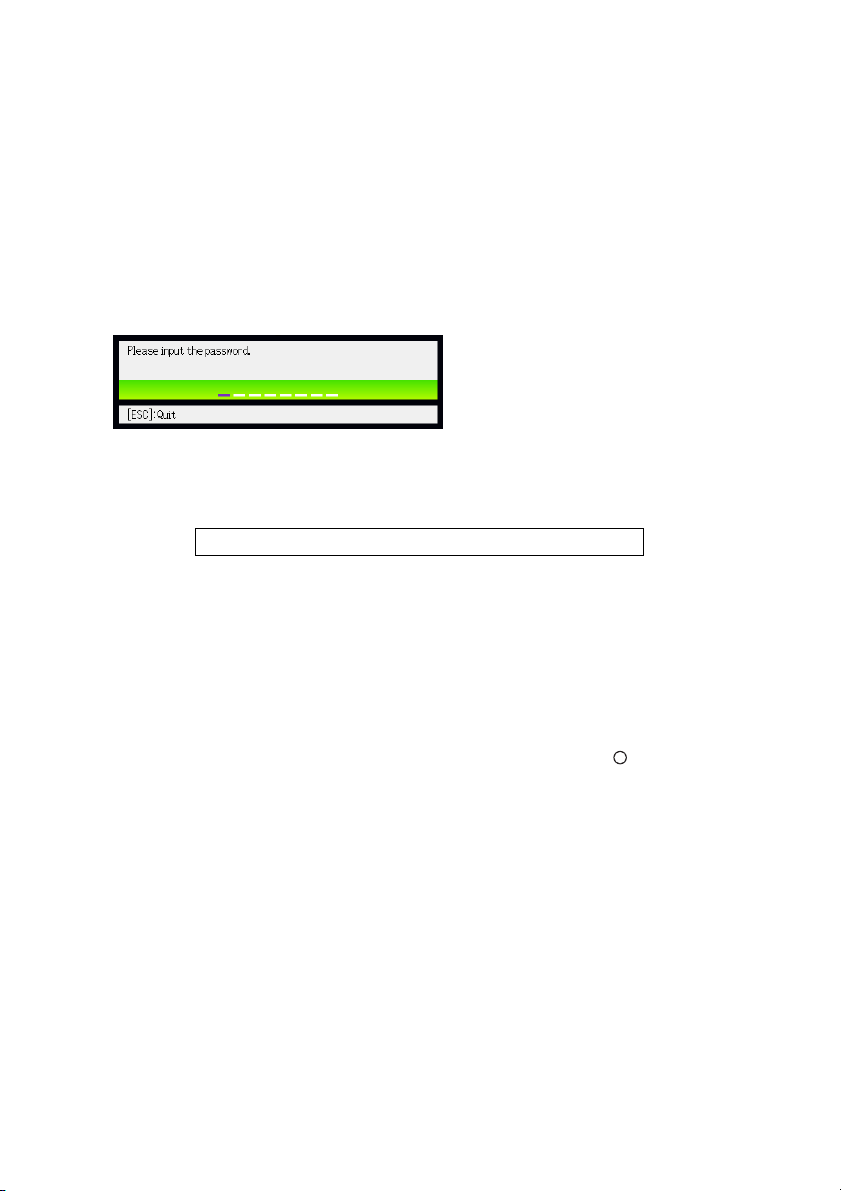

Inputting a Password ................................................................................................. 19
Using the Password Feature...................................................................................... 19
Entering the Password when Turning On the Projector .............................................21

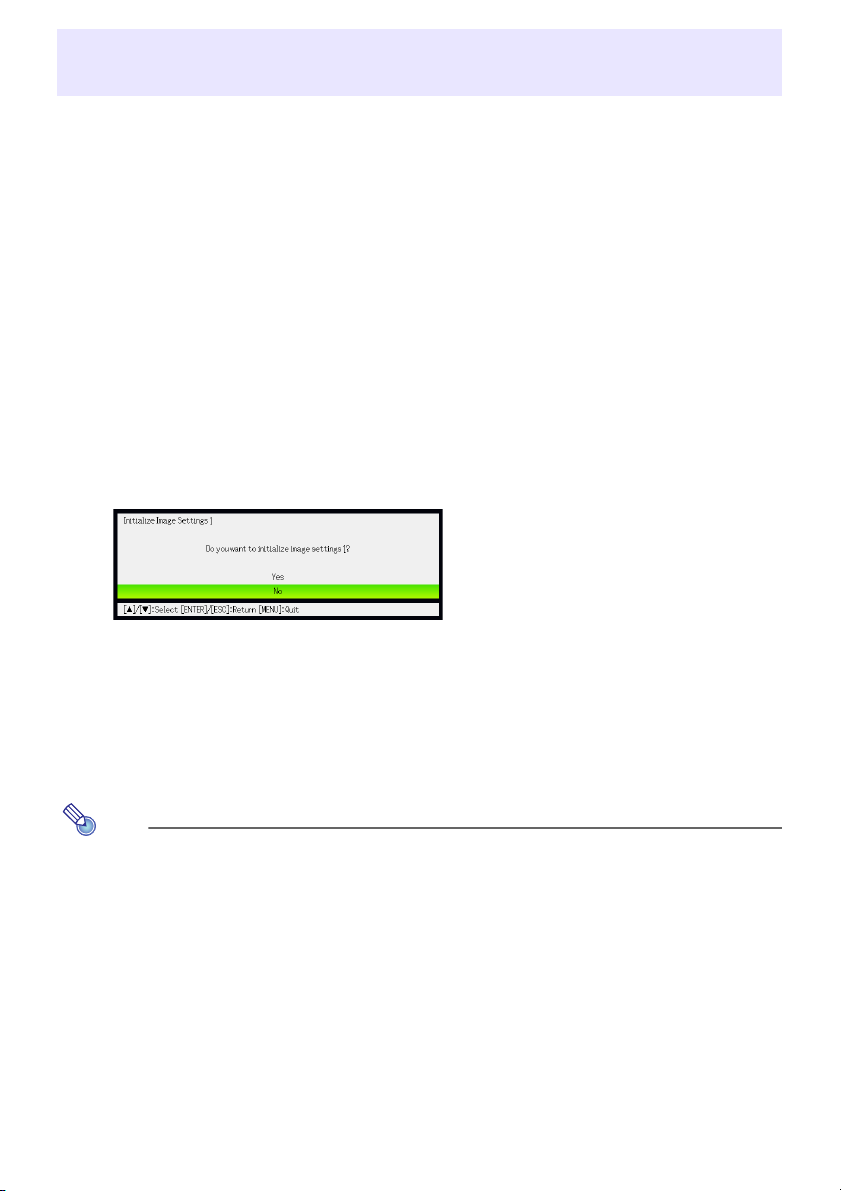

Restoring Projector Settings to Their Initial Factory Defaults.......................... 22
Setup Menu Contents ..................................................................................... 23
Image Adjustment 1 Main Menu ................................................................................ 24
Image Adjustment 2 Main Menu ................................................................................ 25
Volume Adjustment Main Menu ................................................................................. 26
3
Screen Settings Main Menu.......................................................................................27
Input Settings Main Menu .......................................................................................... 29
Option Settings 1 Main Menu..................................................................................... 30
Option Settings 2 Main Menu..................................................................................... 32
Operational Info Main Menu....................................................................................... 33
Restore All Defaults Main Menu.................................................................................34
User Maintenance ......................................................... 35
Cleaning the Projector..................................................................................... 35
Cleaning the Projector Exterior .................................................................................. 35
Cleaning the Lens ...................................................................................................... 35

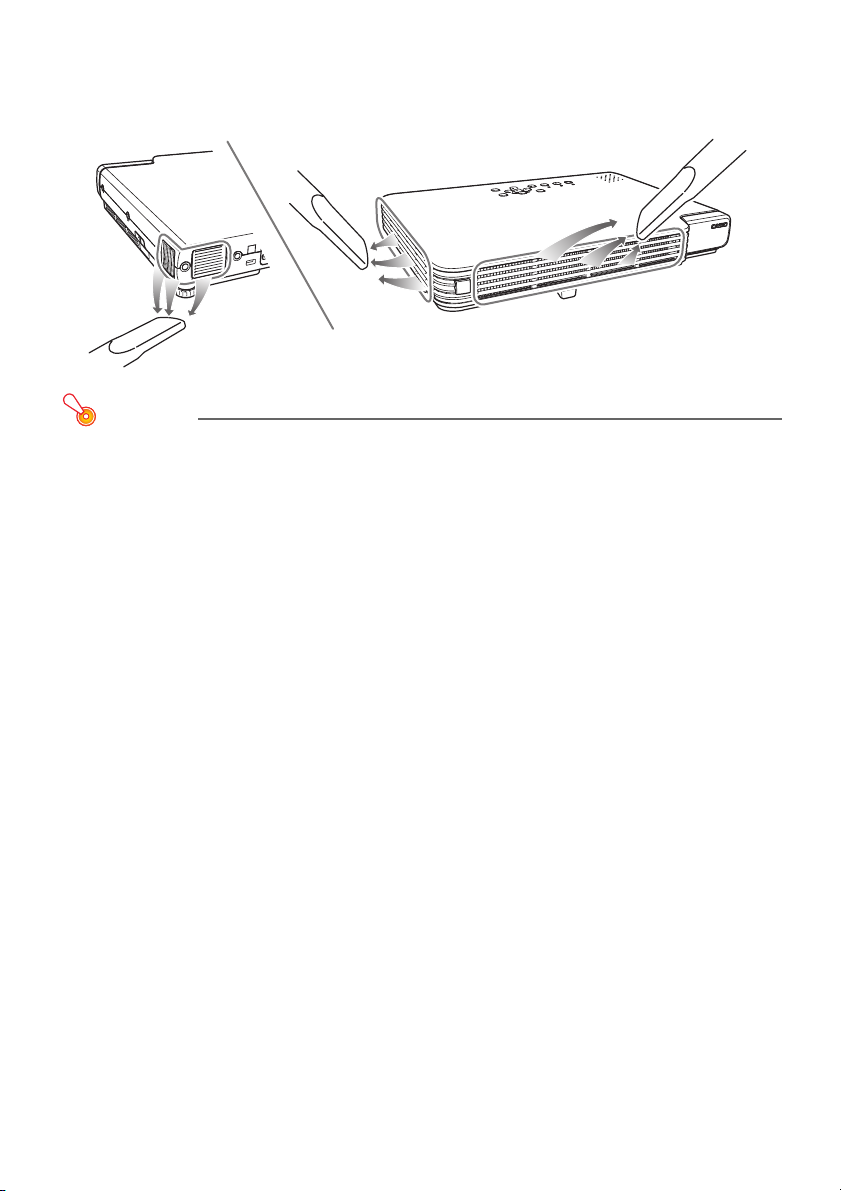

Cleaning Intake and Exhaust Vents ........................................................................... 36
Replacing the Lamp ........................................................................................ 37
To check the current lamp use time...........................................................................37
When to replace the lamp .......................................................................................... 37

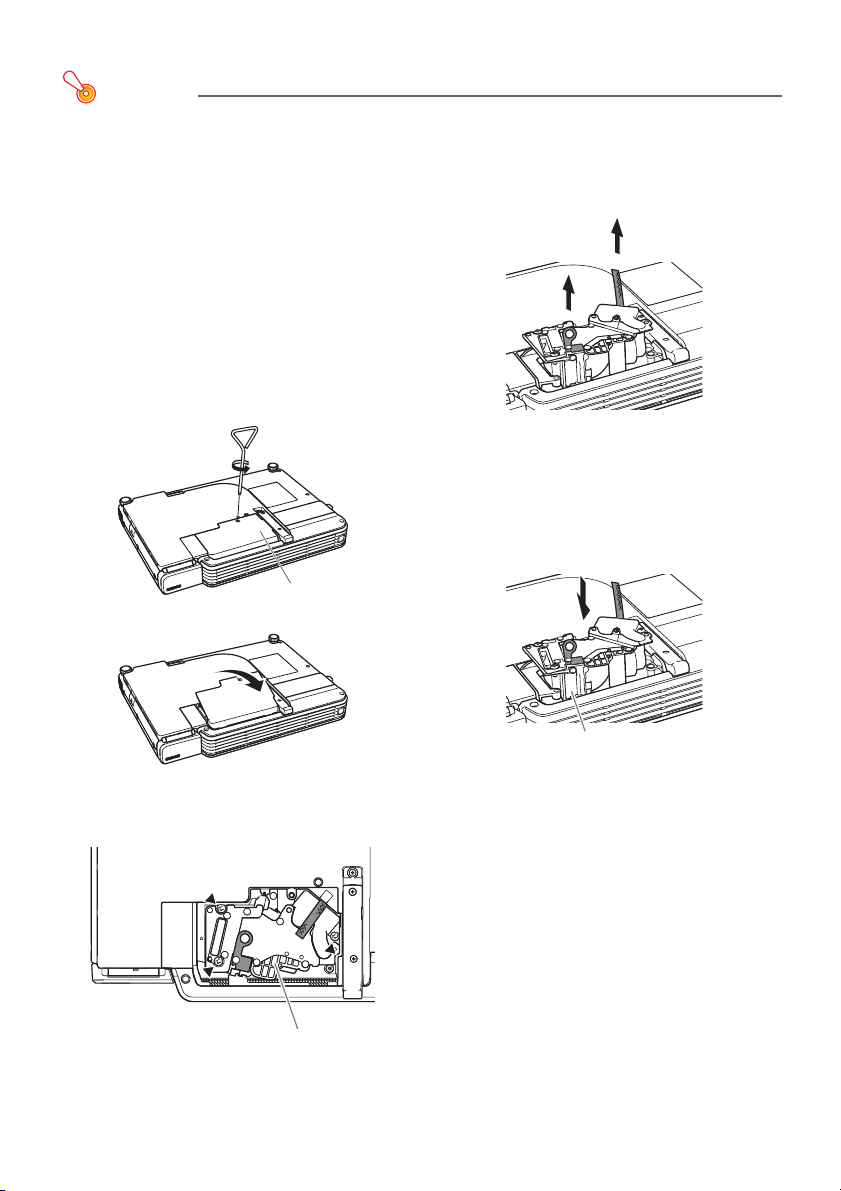

Replacing the Lamp ................................................................................................... 38
To replace the lamp ................................................................................................... 39
Resetting the Lamp Time........................................................................................... 40
To reset the lamp time ...............................................................................................40
To reset the lamp time after exceeding the lamp life ................................................. 41
Error Indicators and Warning Messages .................... 42
Appendix........................................................................ 45
Connecting to a Component Video Output Device ......................................... 45
Connecting the HDMI Output of a Video Device or
Computer to the Projector ............................................................................... 46
Remote Controller Signal Range .................................................................... 47

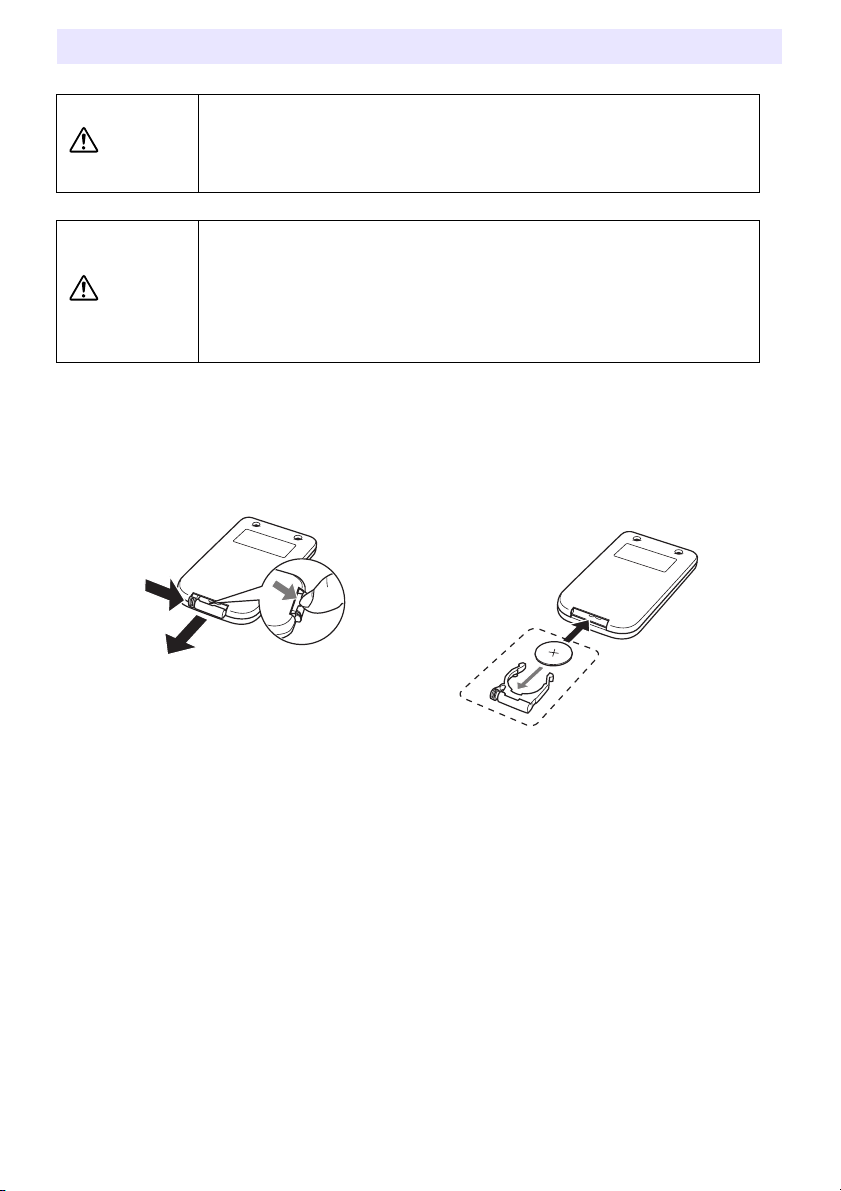

Replacing the Remote Controller Battery........................................................ 48
Projection Distance and Screen Size.............................................................. 49

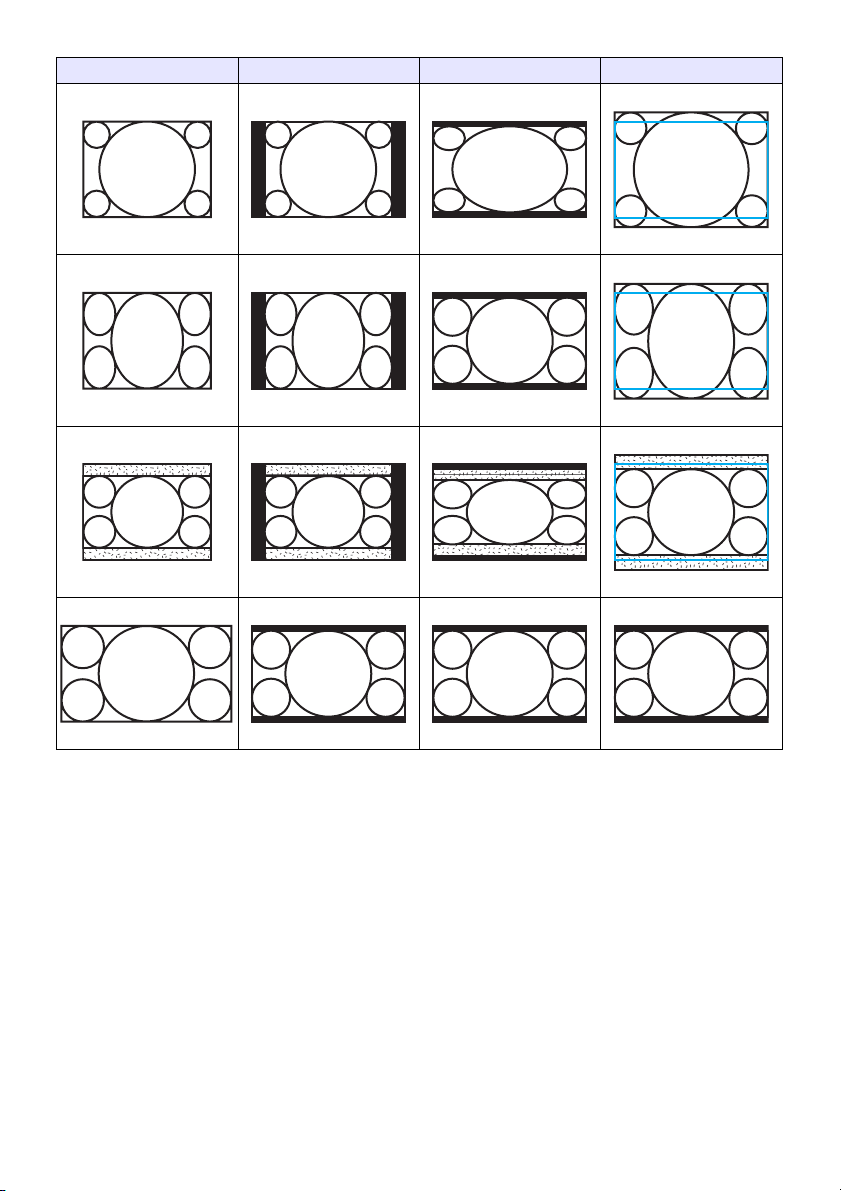

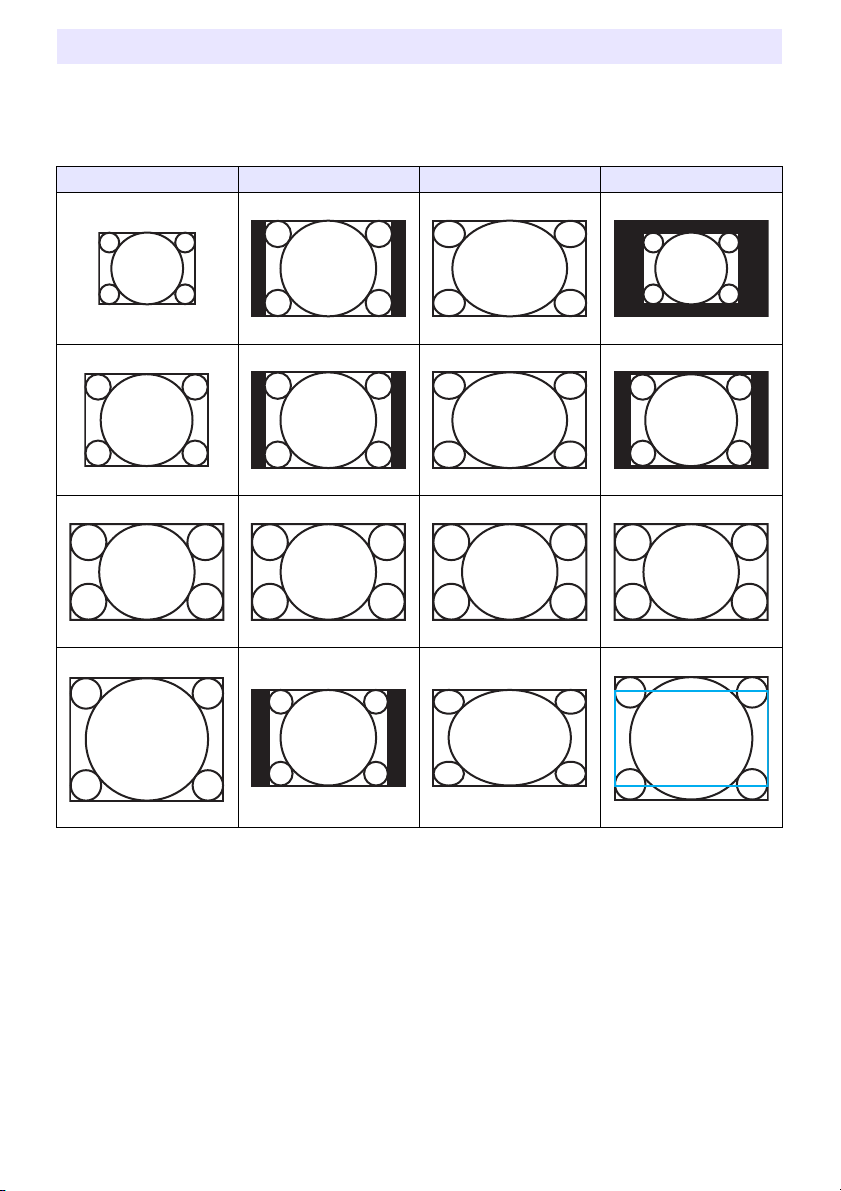

Aspect Ratio Setting and Projection Image..................................................... 50
Supported Signals ........................................................................................... 52
4
About this manual...
z This manual assumes that you are already familiar with the contents of the separate
“User’s Guide (Basic Operation)”.
z All of the operations in this manual are explained using the remote controller that comes
with the projector. The following key operations can also be performed on the projector
instead of the remote controller: [MENU], [], [], [], [], [ENTER], [ESC], [ ],
[INPUT], [AUTO], [ZOOM +], [ZOOM –], [FOCUS ], [FOCUS ].
To perform this remote
controller operation:
[ENTER] Button in the center of the cursor keys
[ZOOM +], [ZOOM –] [ZOOM] button in combination with the [] and [] (or [] and
[FOCUS ], [FOCUS ]
Use this projector button:
[]) buttons
[FOCUS] button in combination with the [] and [] (or []
and []) buttons
5
Projector Overview
This section describes the features of the projector, and explains the functions of the
projector and remote controller keys.
Projector Features and Main Functions
z Slim and compact:
B5 file size and a mere 32 mm slim (at thinnest part). Compact enough to install or use
just about anywhere.
z WXGA resolution:
This is the first of the CASIO Super Slim projector series to support WXGA (1280 × 800)
resolution for optimal viewing of content formatted for today’s widescreen displays. This
makes it perfect for projecting images from widescreen notebook PCs and HD video input
sources.
z HDMI video/audio input:
HDMI (High Definition Multimedia Interface) input support enables direct connectivity with
today’s HDMI enabled notebook PCs, HD video devices, Blu-ray Disc players, games, and
other devices for image projection and audio output.
z Wide projection range, from a minimum of 0.84 meters:
Wide angle 2X zoom allows projection even when projector-to-screen distance is severely
limited. Minimum projection distance is 1.7 meters, even when projecting onto a 60-inch
large screen.
z A selection of possible input sources:
Computer RGB, composite video, component video (Y-Cb/P-Cr/Pr), and HDMI audio/video
are all supported as input sources.
z Direct Power On:
The projector can be configured to turn on automatically and start projecting as soon as it
is plugged into a power outlet. This eliminates keeping your audience waiting as you
perform time-consuming setups.
z Pointer:
The remote controller can be used to select one of a variety of different pointers for use
during projection.
6
Projector Keys and Remote Controller Keys
Projector Keys and Indicator Panel
TEMP indicator
LAMP indicator
POWER/STANDBY indicator
[FOCUS] key
[Enter] key*
[MENU] key
[P] (Power) key
[INPUT] key
[AUTO] key
[ZOOM] key
[ESC] key
Cursor keys
* The projector’s enter key does not have anything printed on it. When you see [ENTER] in
this manual, it means you should press the projector’s enter key or the [ENTER] key of
the remote controller.
Remote Controller Keys
[INPUT] key
[AUTO] key
[P] (Power) key
[ZOOM +] [ZOOM –] keys
[FOCUS ]
[FOCUS ] keys
[D-ZOOM +]
[D-ZOOM –] keys
[KEYSTONE +]
[KEYSTONE –] keys
[BRIGHT] key ([O] key)
[ECO] key ([f] key)
[ASPECT] key ([Z] key)
[FUNC] key
Remote control signal emitter
CLASS 1 LED PRODUCT
[BLANK] key
[FREEZE] key
[VOLUME] key
[COLOR MODE] key
[MENU] key
Cursor keys
[POINTER] key
[ENTER] key ([STYLE] key)
[ESC] key
Important!
z To avoid running down the battery, store the remote control unit so its buttons are
not pressed inadvertently.
7
Operation During Projection
This section explains the various types of operations you can perform while the projector is
projecting an image.
Image Operations During Projection
You can perform the following operations while projecting an image.
z Image brightness adjustment
z Color mode selection
z Image zooming
z Momentary cut off of the input source image and projection of a black or blue screen, or
a logo
z Image freeze
z Pointer display in the projected image
z Aspect ratio switching
Adjusting Image Brightness
To adjust image brightness
Press the [BRIGHT] key.
1
z This displays the brightness adjustment window.
Use the [] and [] keys to adjust image brightness.
2
To hide the window, press the [ESC] key.
3
8
Selecting the Color Mode
You can select from among five different color mode settings to optimize the projected
image in accordance with image contents and projection conditions.
To change the color mode
Press the [COLOR MODE] key.
1
z This displays the color mode selection window. The currently selected color mode is the
one whose button is selected (filled in).
Use the [] and [] keys to move the highlighting to the color mode you want
2
to select, and then press the [ENTER] key.
z This will select the button next to the highlighted color mode name.
z For details on what each color mode does, see “Color Mode” under “Image Adjustment 1
Main Menu” on page 24.
To hide the window, press the [ESC] key.
3
Zooming an Image
Press the [D-ZOOM +] key.
1
z This will enlarge the center of the projected image one step.
To zoom in on the center of the projected image more, press the [D-ZOOM +]
2
key again. To zoom out, press the [D-ZOOM –] key.
z Each press of [D-ZOOM +] zooms in (increases the zoom factor), while [D-ZOOM –]
zooms out. Holding down either key continuously scrolls the zoom factor.
While an image is zoomed, use [], [], [], and [] to scroll the view to
3
other parts of the image.
To exit the zoom operation, press the [ESC] key.
4
9
Momentarily Cutting Off the Input Source Image
Press the [BLANK] key.
1
z This temporarily cuts off the image from the input source and projects a black screen in
its place.
To resume projection of the image from the input source, press the [BLANK] key
2
(or [ESC] key).
Note
You can specify projection of a black screen or blue screen, or a logo. For details, see
“Blank Screen” under “Screen Settings Main Menu” on page 28.
Freezing an Image
Pressing the [FREEZE] key freezes the projected image.
To freeze the projected image
While an image is being projected from an input source, press the [FREEZE]
1
key.
z This will capture the image that is on the screen at the moment you press [FREEZE]
and stores it in projector memory. That image remains projected on the screen.
To restore projection of the image from an input source, press the [ESC] key.
2
10
Displaying a Pointer in the Projected Image
You can select from among different pointer styles, including various arrow styles, for
display in the projected image. Pointers can be used during a presentation to indicate or
highlight a specific part of the image.
Note
Depending on the pointer style you are using, the pointer may not display properly
when you are using keystone correction. If this happens, use the [KEYSTONE +] and
[KEYSTONE –] keys to change the keystone correction value to zero.
To display a pointer in the image
Press the [POINTER] key.
1
z This will cause a pointer to appear in the image.
z You also can use the setup menu to specify the pointer type that appears first when you
press the [POINTER] key. For details, see “Pointer” under “Option Settings 2 Main Menu”
on page 32.
Use the cursor keys to move the pointer to the location you want.
2
z Holding down a cursor key moves the cursor at high speed.
To modify the pointer as described below, press the [STYLE] key.
3
For this pointer type: Pressing [STYLE] will change it like this:
Toggle between flashing and not flashing
To select the pointer type
Press the [POINTER] key to display the pointer.
1
Keep pressing the [POINTER] key until the pointer you want is displayed.
2
z Each press of the [POINTER] key cycles through the available pointer types.
To clear the pointer from the image
Press the [ESC] key.
11
Changing the Aspect Ratio of the Projected Image
Use the [ASPECT] key to change the aspect ratio of the projected image.
When the input source
is this:
VIDEO, component, or
HDMI (DTV)
RGB or HDMI (PC) Normal Full Tr u e
For details about the meanings of the “Normal”, “16:9”, “Letter Box”, “Full”, and “True”
settings, see “Aspect Ratio” under “Screen Settings Main Menu” (page 27).
Note
z For details about how the aspect ratio setting affects the projected image, see
“Aspect Ratio Setting and Projection Image” (page 50).
z You also can change the aspect ratio setting using the setup menu. For details, see
“Aspect Ratio” under “Screen Settings Main Menu” on page 27.
Important!
Note that enlarging or reducing the size of an image using the [ASPECT] key for
commercial purposes or public presentation may infringe on the legally protected
copyright of the copyright holder of the original material.
Each press of [ASPECT] cycles through these settings:
Normal 16:9 Letter Box
When the input source is either a component signal or an HDMI
(DTV) signal with an aspect ratio of 16:9, the projection aspect ratio
also will become 16:9 automatically. Pressing the [ASPECT] key will
not change it.
12
Adjusting the Volume Level
You can use the remote controller keys to adjust the volume level of the audio that is output
from the projector’s speaker.
To adjust the volume level
On the remote controller, press the [VOLUME] key.
1
z This causes the [Volume] screen to appear on the projected image.
Press the [] key to increase the volume, or the [] key to lower the volume.
2
After the setting is the way you want, press the [ESC] key.
3
z This causes the [Volume] screen to disappear.
Note
z You also can use the setup menu to adjust the volume level. For details, see
“Volume Adjustment Main Menu” on page 26.
z Pressing the [VOLUME] key will not display the [
input to the HDMI port during projection of an HDMI signal.
To mute the audio
Vol um e] screen if no audio is being
On the remote controller, press the [VOLUME] key.
1
Press the [ENTER] key.
2
z This stops output from the speaker.
To restore the audio, press the [VOLUME] key again.
3
Eco Mode
Turning on the Eco Mode reduces lamp brightness to save power. The projector’s cooling fan
also operates at a slower speed while the Eco Mode is turned on, which results in quieter
operation.
Turn on the Eco Mode when your priority is quieter operation. Turn off the Eco Mode when
your priority is maximum brightness.
To turn the Eco Mode on or off
Press [ECO] to toggle the Eco Mode on and off.
13
Using the [FUNC] Key
Pressing the [FUNC] key displays the menu shown below.
You can use this menu to perform the operations described below.
z Adjust image brightness
Highlight “Brightness” and then press the [ENTER] key.
• This performs the same operation as pressing the [BRIGHT] key ( key) described on
page 8.
z Turn the Eco Mode on or off
Highlight “Eco Mode” and then press the [ENTER] key.
• This performs the same operation as pressing the [ECO] key (
page 13.
z Select the aspect ratio of the projected image
Highlight “Aspect Ratio” and then press the [ENTER] key.
• This performs the same operation as pressing the [ASPECT] key (
page 12.
key) described on
key) described on
14
Configuring Advanced Projector Settings
Your projector has a setup menu that you can use to configure advanced settings.
Basic Setup Menu Operations
Displaying the Setup Menu
Pressing the [MENU] key displays the menu shown below in the center of the projection
screen.
Main menu
The main menu includes nine main menu items.
The currently selected main menu item is the
one that is highlighted.
Sub-menu
The sub-menu shows each individual setting
under each main menu item, and its current
setting.
Guidance text
Guidance text provides a brief description of the
main key operations available for the operation
you are currently performing.
To exit the setup menu
Press the [MENU] key.
Configuring Setup Menu Settings
Press the [MENU] key to display the setup menu.
1
Use the [] and [] keys to select the main menu item you want by
2
highlighting it.
Press the [ENTER] key.
3
Use the [] and [] keys to select the sub-menu item you want by highlighting
4
it.
Perform the required operation on the selected sub-menu item screen.
5
z The guidance text explains the operations you need to perform to configure each setting.
To return to the main menu from the sub-menu, press the [ESC] key.
6
To exit the setup menu, press the [MENU] key.
7
15
Basic Setup Menu Example
The procedure below shows how to configure the following three settings:
• Image Adjustment 1 Contrast
• Image Adjustment 1 Color Mode
• Option Settings 1 Eco Mode
Note
z Certain settings on the setup menu cannot be changed while there is no input signal
to the projector. Because of this, you should configure setup menu settings after
selecting an input source and starting projection.
z This example covers basic steps only. For more detailed information, see “Setup Menu
Contents” on page 23.
To configure the “Image Adjustment 1 Contrast” setting
Press the [MENU] key to display the setup menu.
1
“Image Adjustment 1” is initially selected on the main menu, so simply press
2
the [ENTER] key.
Press the [] key once to select “Contrast”.
3
Use the [] (lighter) and [] (darker) keys to adjust contrast.
4
16
To configure the “Image Adjustment 1 Color Mode” setting
Press the [] key once to select “Color Mode”.
5
Press the [ENTER] key.
6
z This displays the color mode menu.
Use the [] and [] keys to select the color mode you want, and then press
7
the [ENTER] key.
After selecting the color mode you want, press the [ESC] key.
8
To configure the “Option Settings 1 Eco Mode” setting
Press the [ESC] key.
9
Press the [] key five times to select “Option Settings 1”.
10
Press the [ENTER] key.
11
Press the [] key two times to select “Eco Mode”.
12
Use the [] and [] keys to select “On” or “Off”.
13
After you are finished, press the [MENU] key to exit the setup menu.
14
17
Loading...
