Casio XJ-M255, XJ-M245, XJ-M240, XJ-M155, XJ-M145 User Manual

...

DATA PROJECTOR

XJ-M140/XJ-M145

XJ-M150/XJ-M155

XJ-M240/XJ-M245

XJ-M250/XJ-M255

* USB Port Models

User’s Guide

z Be sure to read the precautions in the separate Setup Guide. For

details about setting up the projector, see the Setup Guide.

z Be sure to keep all user documentation handy for future

reference.

z To obtain the latest version of this manual visit the website at the

URL below. http://www.casio.com/support/

z DLP is a registered trademark of Texas Instruments of the United States. z Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft

Corporation in the United States and other countries.

z HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing, LLC.

z XGA is a registered trademark of IBM Corporation of the United States. z PJLink is a trademark applied for registration or is already registered in Japan, the United States

of America and other countries and areas.

z Crestron is a registered trademark of Crestron Electronics, Inc. of the United States. z AMX is a registered trademark of AMX LLC of the United States. z Other company and product names may be registered product names or trademarks of their

respective owners.

z Portions of this product are based in part on the work of the Independent JPEG Group.

z The contents of this User’s Guide are subject to change without notice. z Copying of this manual, either in part or its entirety is forbidden. You are allowed to use this

manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD.

z CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third

parties arising out of the use of this product or this manual.

z CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of

data due to malfunction or maintenance of this product, or any other reason.

z The sample screens shown in this manual are for illustrative purposes only, and may not be

exactly the same as the screens actually produced by the product.

About this manual... ...............................................................................5

Projector Overview ......................................................... 6

Projector Features and Main Functions .................................................6

Remote Controller and Projector Keys...................................................8

Back Terminals.......................................................................................9

Operation During Projection ........................................ 10

Selecting the Input Source ...................................................................10

To select a different input source ..............................................................................10

Resolution ..................................................................................................................10

3D Input Mode ........................................................................................................... 11

Horizontal Flipping in the 3D Input Mode .................................................................. 12

Image Operations During Projection ....................................................12

Adjusting Image Brightness....................................................................................... 12

Selecting the Color Mode ..........................................................................................13

Zooming an Image.....................................................................................................13

Momentarily Blanking the Image and Muting the Audio............................................ 14

Freezing an Image...................................................................................................... 14

Displaying a Pointer in the Projected Image .............................................................. 15

Changing the aspect ratio of the projected image .................................................... 16

Adjusting the Volume Level..................................................................17

To adjust the volume level .........................................................................................17

To mute the audio...................................................................................................... 17

Eco Mode (Power Saving, Low Noise) .................................................18

To select the Eco Mode.............................................................................................18

Using the [FUNC] Key ..........................................................................19

Configuring Advanced Projector Settings .................. 20

Basic Setup Menu Operations .............................................................20

Displaying the Setup Menu........................................................................................20

Configuring Setup Menu Settings..............................................................................20

Basic Setup Menu Example.......................................................................................21

Direct Power On......................................................................................................... 22

Password Protecting the Projector ......................................................23

Inputting a Password................................................................................................. 23

Using the Password Feature......................................................................................23

Entering the Password when Turning On the Projector ............................................ 25

Restoring Projector Settings to Their Initial Factory Defaults ..............26

Setup Menu Contents ..........................................................................28

Image Adjustment 1 Main Menu................................................................................ 28

Image Adjustment 2 Main Menu................................................................................ 30

Volume Adjustment Main Menu.................................................................................30

Screen Settings Main Menu....................................................................................... 31

Input Settings Main Menu..........................................................................................33

Option Settings 1 Main Menu ....................................................................................34

Option Settings 2 Main Menu ....................................................................................35

Wired LAN Settings Main Menu (USB Port Models Only) ......................................... 37

USB Settings Main Menu (USB Port Models Only) ................................................... 37

Operational Info Main Menu ......................................................................................38

Restore All Defaults Main Menu.................................................................................38

Cleaning the Projector.................................................. 39

Cleaning the Projector Exterior ............................................................39

Cleaning the Lens.................................................................................39

Cleaning Intake, Exhaust and Airflow Vents.........................................39

Error Indicators and Warning Messages .................... 40

Appendix ........................................................................ 43

Connecting to a Video Device..............................................................43

Connection to a composite video output or S-video output ..................................... 43

Connection to a component video output.................................................................44

Connecting the HDMI Output of a Video Device or

Computer to the Projector....................................................................45

Remote Controller Signal Range..........................................................46

Projection Distance and Screen Size ...................................................47

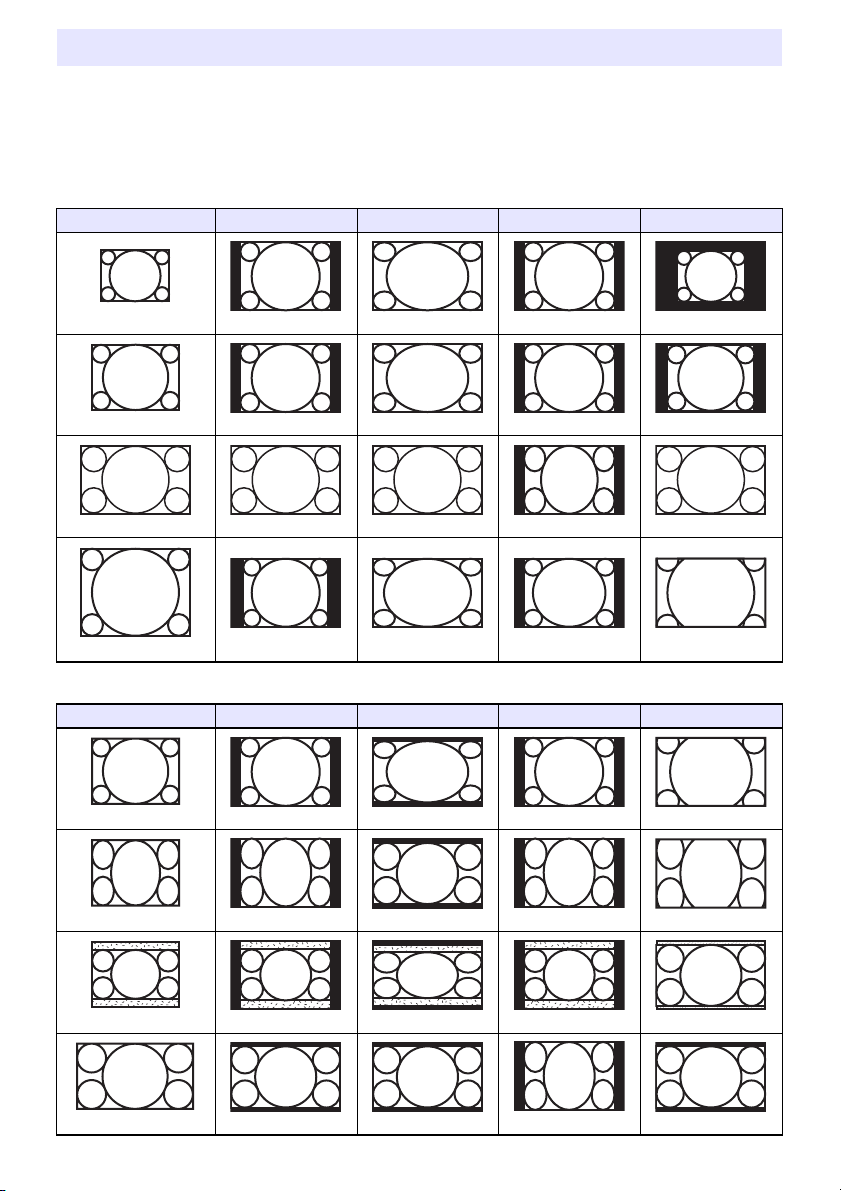

Aspect Ratio Setting and Projection Image .........................................48

Supported Signals................................................................................50

Using Wired LAN to Control the Projector

(XJ-M145, XJ-M155, XJ-M245, XJ-M255) ...........................................53

Supported External Devices ......................................................................................53

Controlling the Projector from a Computer ............................................................... 53

Projector RS-232C Control ..................................................................58

Connecting the Projector to a Computer...................................................................58

Specifications.......................................................................................60

About this manual...

All of the operations in this manual are explained using the remote controller that comes with the projector.

Projector Overview

This section describes the features of the projector, and explains the functions of the projector and remote controller keys.

Projector Features and Main Functions

XJ-M140/XJ-M145/XJ-M150/XJ-M155/XJ-M240/XJ-M245/XJ-M250/XJ-M255

z A laser and LED hybrid light source provides high brightness of 2,500 to 3,000 lumens along with

low power consumption and low heat generation.

z A wide selection of input sources:

Analog RGB, composite video, S-video, component video (Y·Cb·Cr, Y·Pb·Pr), and HDMI input sources are supported.

z Intelligent Brightness Control function (Eco Mode):

The projector senses surrounding light levels and adjusts projection brightness automatically as required for efficient low-power operation. (Requires “Eco Mode” setting to be set to “On (Auto)”.)

z 3D image projection support:

Projection of a 3D image signal (60Hz/120Hz field sequential protocol) via one of three input sources (analog RGB, composite video, S-video) is supported.

* Separately available 3D glasses (YA-G30) are required in order to view a projected 3D image in

3D. Also, separately available special software (CASIO 3D Converter) is required to project a 3D image with the projector when a computer (analog RGB) is the input source.

* 3D image projection is not supported via an HDMI connection or component video connection.

z Pointer:

The remote controller can be used to select one of a variety of different pointers for use during projection.

z Direct Power On:

The projector can be configured to turn on automatically and start projecting as soon as it is plugged into a power outlet.

XJ-M240/XJ-M245/XJ-M250/XJ-M255

z WXGA Resolution:

The XJ-M240/XJ-M245/XJ-M250/XJ-M255 models support WXGA (1280 × 800) resolution for optimal viewing of content formatted for today’s widescreen displays. This makes it perfect for projecting images from widescreen notebook PCs and HD video input sources.

XJ-M145/XJ-M155/XJ-M245/XJ-M255

z Projection of Data from USB Memory or a Memory Card without a Computer:

USB memory or a memory card (using a commercially available USB card reader) can be connected directly to the projector’s USB port. The projector comes with special software for converting PowerPoint presentation data to a format that can be stored to USB memory or a memory card and projected without using a computer. Images and movies also can be projected directly from USB memory or a memory card.

z Multi Projection Camera (YC-400, YC-430) Connection:

A CASIO Multi Projection Camera can be connected directly to the projector’s USB port for fine resolution projection of documents and other images. Document camera capabilities allow projection of data without going through a computer.

z Graphic Scientific Function Calculator Connection:

Certain CASIO graphic scientific calculator models can be connected directly to the projector’s USB port for projection of the calculator screen contents.

z Projection of Computer Screen Contents via Wireless LAN:

The projector comes with a wireless LAN adapter. After a wireless LAN connection is established, the contents of the computer screen can be sent to the projector for projection.

z Support for Wireless projection from MobiShow:

You can install AWIND’s MobiShow (client software for wireless connection to a projector) on a smartphone or mobile terminal, and then use the projector to project photographs and presentation files stored in the smartphone or terminal memory.

* Note that the type of terminal and the MobiShow version can limit certain functions or can even

make projection impossible.

z Projector operation via wired or wireless LAN:

Remote control of the projector is supported via a wired connection to the LAN port on the back or the projector or via wireless LAN.

Remote Controller and Projector Keys

Operations in this manual are presented based on the remote controller that comes with the projector. Major operation keys are also provided on the projector unit, so the most of the same procedures can also be performed directly on the projector.

Remote Controller Keys

[INPUT] key

[MENU] key [P] (Power) key

[ESC] key

[FUNC] key

[AUTO] key

[BLANK] key

[FREEZE] key

[COLOR MODE] key

[VOLUME] key [BRIGHT] key ([O] key) [ECO] key ([f] key) [ASPECT] key ([Z] key)

Remote control signal emitter

CLASS 1 LED PRODUCT

Cursor keys (S/T/W/X)

[ENTER] key ([STYLE] key)

[D-ZOOM +] [D-ZOOM –] keys

[KEYSTONE +] [KEYSTONE –] keys

[POINTER] key

The remote controller does not come with batteries loaded. You need to load the two supplied batteries before use.

Important!

To avoid running down the batteries, store the remote control unit so its keys are not pressed inadvertently.

Projector Keys and Indicators

TEMP indicator

LIGHT indicator

POWER/STANDBY indicator

[ENTER] key

[MENU] key

[P] (Power) key

[INPUT] key Cursor keys (q/w/U/I)

[AUTO] key

[ESC] key

Back Terminals

23 456

87 bm bn9bk bl bo

1 USB port (XJ-M145, XJ-M155, XJ-M245, XJ-M255 only) 2 LAN port (XJ-M145, XJ-M155, XJ-M245, XJ-M255 only) 3 COMPUTER IN terminal 4 HDMI port 5 VIDEO terminal 6 S-VIDEO terminal 7 Remote control signal receiver 8 SERIAL port* 9 AUDIO IN terminal bk AUDIO OUT terminal bl AUDIO IN L/R terminals bm Anti-theft lock hole

bn Speaker bo Power connector

* This terminal is for controlling the projector from an external device. It normally is not used. For

information about using control commands and other details, See “Projector RS-232C Control” (page 58).

Operation During Projection

Selecting the Input Source

Turning on the projector initially causes the same input source that was selected the last time it was turned off to be selected.

To select a different input source

Press the [INPUT] key.

z This displays the input source selection screen.

Select either the Normal Input Mode or 3D Input Mode depending on the type of image you want to project.

z For details, see “3D Input Mode” (page 11).

Use the [T] and [S] keys to select the name of the input source you want to select and then press the [ENTER] key.

z The name of the input source you select appears in the upper right corner of the projection

screen for a few seconds.

z The message “No signal input.” will appear if no input signal can be selected.

Resolution

Depending on the projector model, its video resolution will be fixed at XGA (1024 × 768 pixels) or WXGA (1280 × 800 pixels). Images may appear coarse, text and other figures may be difficult to read or a moire pattern may appear when the input signal from a computer does not match the projector’s video resolution. If this happens, try doing the following.

z Change the computer’s output resolution setting so it matches the projector’s video resolution.

For information about the video resolution of your projector, see the “DLP chip” item of the “Specifications” (page 60). See the user documentation that comes with your computer for details about changing its settings.

z Change the “Aspect Ratio” setting to “True” (Applies only to models that support WXGA video

resolution). With the “True” setting, the projector projects the input signal at its actual size (1 input source dot equal to one projector output pixel dot). For information about configuring the Aspect Ratio setting, see “Changing the aspect ratio of the projected image” (page 16).

3D Input Mode

Your projector supports projection of 3D images. To project a 3D image, first enter the projector’s 3D input mode, and then select the input source.

Important!

z Separately available 3D glasses (YA-G30) are required in order to view a projected 3D image in

3D.

z Separately available special software (CASIO 3D Converter) is required to project a 3D image

with the projector when a computer (analog RGB) is the input source.

z 3D image projection is not supported via an HDMI connection or component video

connection.

The input sources described below can be selected for projection in the 3D Input Mode.

Input Source Projection Conditions

Computer (Analog RGB) z Any of the following types of 3D image data played back using separately available

Composite Video, S-video z Field sequential 3D format files recorded with field sequential DVD software, etc.

Note

See “3D Signals (3D Input Mode)” (page 52) for a list of 3D image signals supported by this projector.

Entering the 3D Input Mode

special software (CASIO 3D Converter). – 2D image file converted to a 3D image file using CASIO 3D Converter – Side-by-side 3D format files

z Signal with 60Hz/120Hz vertical scan frequency

z Signal with 60Hz vertical scan frequency

Press the [INPUT] key to display the input source selection screen.

Select Computer (RGB), S-video, or Video as the input source.

Use the [T] and [S] keys to move the highlighting to “To 3D input mode” and then press the [ENTER] key.

z This enters the 3D input mode and closes the input source selection screen.

Important!

z You cannot select HDMI or USB as the input source in the 3D input mode. To use either of

these input sources, change the input source setting back to normal input mode.

z When Computer is selected as the input source in the 3D input mode, a component video

signal input through the projector’s COMPUTER IN terminal is treated as an RGB signal resulting in abnormal image projection.

z Except when using the projector for 3D image projection, you should normally leave it in the

normal input mode.

Returning to the Normal Input Mode from the 3D Input Mode

Press the [INPUT] key to display the input source selection screen.

Use the [T] and [S] keys to move the highlighting to “To normal input mode” and then press the [ENTER] key.

z This enters the normal input mode and closes the input source selection screen.

Horizontal Flipping in the 3D Input Mode

In side-by-side 3D, a full frame consists of two halves on the left and right for each eye. In rare cases, the left and right images may be reversed, which causes a loss of 3D depth. If this happens, try using the following procedure to swap the left and right images with each other.

To swap the left and right images

In the 3D input mode, press the [ENTER] key.

Image Operations During Projection

You can perform the following operations while projecting an image.

z Image brightness adjustment z Color mode selection z Image zooming z Momentarily blanking the image and muting the audio z Image freeze z Pointer display in the projected image z Aspect ratio switching

Adjusting Image Brightness

Note

(for USB port model users)

Use the setup menu (page 20) to adjust image brightness when the input source is an external device connected to the USB port.

Press the [BRIGHT] key.

z This displays the brightness adjustment window.

Use the [W] and [X] keys to adjust image brightness.

To hide the window, press the [ESC] key.

Selecting the Color Mode

You can select from among various different color mode settings in accordance with image contents and projection conditions.

Important!

The color mode cannot be selected in the following cases.

z When “Off” is selected for the Eco Mode setting (page 18) z When the projector is in the 3D input mode. See “3D Input Mode” (page 11).

To change the color mode

Press the [COLOR MODE] key.

z This displays the color mode selection window. The currently selected color mode is the one

whose button is selected (filled in).

Use the [T] and [S] keys to move the highlighting to the color mode you want to select, and then press the [ENTER] key.

z This will select the button next to the highlighted color mode name. z For details on what each color mode does, see “Color Mode” (page 29) under “Image

Adjustment 1 Main Menu”.

To hide the window, press the [ESC] key.

Zooming an Image

Press the [D-ZOOM +] key.

z This will enlarge the center of the projected image one step.

To zoom in on the center of the projected image more, press the [D-ZOOM +] key again. To zoom out, press the [D-ZOOM –] key.

z Each press of [D-ZOOM +] zooms in (increases the zoom factor), while [D-ZOOM –] zooms

out. Holding down either key continuously scrolls the zoom factor.

While an image is zoomed, use the [S], [T], [W], and [X] keys to scroll the view to other parts of the image.

To exit the zoom operation, press the [ESC] key.

Momentarily Blanking the Image and Muting the Audio

Press the [BLANK] key.

z This temporarily blanks the image (projecting a black screen) and mutes the audio.

To resume normal image and sound, press the [BLANK] key (or [ESC] key).

Note

You can specify projection of a black screen or blue screen, or a logo. For details, see “Blank Screen” (page 32) under “Screen Settings Main Menu”.

Freezing an Image

Pressing the [FREEZE] key freezes the projected image.

To freeze the projected image

While an image is being projected from an input source, press the [FREEZE] key.

z This will capture the image that is on the screen at the moment you press [FREEZE] and stores

it in projector memory. That image remains projected on the screen.

To restore projection of the image from an input source, press the [ESC] key.

Displaying a Pointer in the Projected Image

You can select from among different pointer styles, including various arrow styles, for display in the projected image. Pointers can be used during a presentation to indicate or highlight a specific part of the image.

Note

Depending on the pointer style you are using, the pointer may not display properly when you are using keystone correction. If this happens, use the [KEYSTONE +] and [KEYSTONE –] keys to change the keystone correction value to zero.

To display a pointer in the image

Press the [POINTER] key.

z This will cause a pointer to appear in the image. z You also can use the setup menu to specify the pointer type that appears first when you press

the [POINTER] key. For details, see “Pointer” (page 35) under “Option Settings 2 Main Menu”.

Use the cursor keys to move the pointer to the location you want.

z Holding down a cursor key moves the cursor at high speed.

To modify the pointer as described below, press the [STYLE] key.

For this pointer type: Pressing [STYLE] will change it like this:

J J

Toggle between flashing and not flashing

To select the pointer type

Press the [POINTER] key to display the pointer.

Keep pressing the [POINTER] key until the pointer you want is displayed.

z Each press of the [POINTER] key cycles through the available pointer types.

To clear the pointer from the image

Press the [ESC] key.

Changing the aspect ratio of the projected image

Press the [ASPECT] key to cycle through the aspect ratio settings for the projected image. Available settings depend on your projector model as shown below. For details about the meaning of each setting, see “Aspect Ratio” (page 31) under “Screen Settings Main Menu”.

XJ-M240/XJ-M245/XJ-M250/XJ-M255

Pressing the [ASPECT] key will cycle through settings in accordance with the current input source as shown below.

Input Source Pressing [ASPECT] will cycle through these settings:

Video, S-video, Component, HDMI (DTV) Normal J 16:9 J 4:3 J Letter Box

RGB, HDMI (PC) Normal J Full J 4:3 J True

XJ-M140/XJ-M145/XJ-M150/XJ-M155

Pressing the [ASPECT] key will toggle between settings in accordance with the current input source as shown below.

Input Source Pressing [ASPECT] will toggle between these settings:

Video, S-video, Component, HDMI (DTV) Normal

RGB, HDMI (PC) Normal

Note

z For details about how the aspect ratio setting affects the projected image, see “Aspect Ratio

Setting and Projection Image” (page 48).

z You also can change the aspect ratio setting using the setup menu. For details, see “Aspect

Ratio” (page 31) under “Screen Settings Main Menu”.

 16:9

 Full

Important!

Note that enlarging or reducing the size of an image using the [ASPECT] key for commercial purposes or public presentation may infringe on the legally protected copyright of the copyright holder of the original material.

Adjusting the Volume Level

You can use the remote controller keys to adjust the volume level of the audio that is output from the projector’s speaker or the AUDIO OUT terminal.

To adjust the volume level

Press the [VOLUME] key.

z This causes the [Volume] screen to appear on the projected image.

Press the [X] key to increase the volume, or the [W] key to lower the volume.

After the setting is the way you want, press the [ESC] key.

z This causes the [Volume] screen to disappear.

Note

You also can use the setup menu to adjust the volume level. For details, see “Volume Adjustment Main Menu” on page 30.

To mute the audio

Press the [VOLUME] key.

Press the [ENTER] key.

z This stops output from the speaker.

To restore the audio, press the [VOLUME] key again.

Eco Mode (Power Saving, Low Noise)

The following three Eco Mode settings are available to specify whether priority should be given to low-power, low-noise operation or to projection brightness.

On (Auto) : A brightness sensor on the top of the projector senses surrounding light, and

On (Manual): Enables manual adjustment to balance the needs of low-power, quiet operation and

Off : Give top priority to projection brightness.

Important!

z While “On (Auto)” is selected as the Eco Mode setting, make sure that the brightness sensor

z The local environment and setup conditions affect the brightness sensor, so operation when

To select the Eco Mode

Press the [ECO] key.

z This causes “Eco Mode” window to appear on the projection screen.

automatically adjusts projection brightness and color accordingly. Brightness is reduced for darker surroundings, which saves power and reduces operation noise.

projection brightness.

on the top of the projector is not blocked by anything.

“On (Auto)” is selected for the Eco Mode depends on these factors.

Use the [W] and [X] keys to select the setting you want.

z If you select “On (Manual)” here, go to step 3. If you select another setting, jump to step 4.

Perform the following steps to adjust the “Eco Level” (the balance between low-power, quiet operation and projection brightness).

1 Press the [T] key to move the highlighting to the Eco Level. 2 Use the [W] and [X] keys to adjust the Eco Level to the setting you want.

Fewer marks gives higher priority to projection brightness. A greater number gives high priority to low-power, quiet operation.

To hide the window, press the [ESC] key.

Important!

z The Eco Mode level is fixed whenever the projector is in the 3D input mode (“3D Input Mode”,

page 11). Because of this the Eco Mode setting cannot be changed.

z The “On (Auto)” setting cannot be selected for the Eco Mode while “Rear” is selected for

“Screen Settings J Projection Mode” (page 32) on the setup menu. If the “Projection Mode” setting is changed to “Rear” while “On (Auto)” is selected for the Eco Mode setting, the Eco Mode setting will automatically change to “On (Manual)”.

Note

z While “Off” is selected for the Eco Mode setting, you also can specify whether brightness or

color should be given emphasis. For details, see “Eco Off Mode” (page 29) under “Image Adjustment 1 Main Menu”.

z (for USB port model users)

Use the setup menu (page 20) to select the Eco Mode when the input source is an external device connected to the USB port.

Using the [FUNC] Key

Pressing the [FUNC] key displays the menu shown below.

You can use this menu to perform the operations described below.

z Adjust image brightness

Highlight “Brightness” and then press the [ENTER] key. J This performs the same operation as pressing the [BRIGHT] key (O key) described on page 12.

z Turn the Eco Mode on or off

Highlight “Eco Mode” and then press the [ENTER] key. J This performs the same operation as pressing the [ECO] key (

z Select the aspect ratio of the projected image

Highlight “Aspect Ratio” and then press the [ENTER] key. J This performs the same operation as pressing the [ASPECT] key (

key) described on page 18.

key) described on page 16.

Note

(for USB port model users)

When the input source is an external device connected to the USB port, use the [FUNC], [O], [

], and [Z] keys to control the connected device. For details, see the “USB Function Guide”

and “Wireless Function Guide” on the bundled CD-ROM.

+ 42 hidden pages
