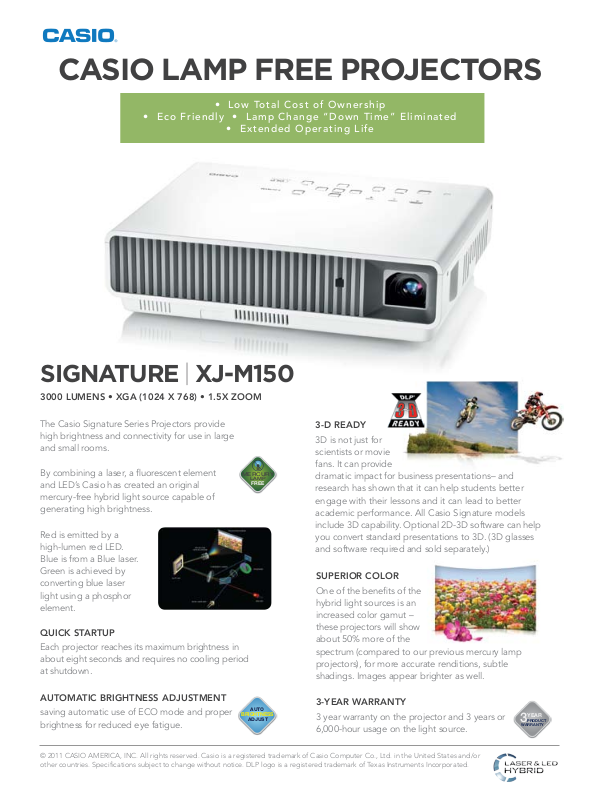

CASIO LAMP FREE PROJECTORS

• Low Total Cost of Ownership

• Eco Friendly • Lamp Change “Down Time” Eliminated

• Extended Operating Life

SIGNATURE | XJ-M150

3000 LUMENS • XGA (1024 X 768) • 1.5X ZOOM

The Casio Signature Series Projectors provide
high brightness and connectivity for use in large
and small rooms.

By combining a laser, a fluorescent element
and LED’s Casio has created an original
mercury-free hybrid light source capable of
generating high brightness.

Red is emitted by a
high-lumen red LED.
Blue is from a Blue laser.
Green is achieved by
converting blue laser
light using a phosphor
element.

QUICK STARTUP

Each projector reaches its maximum brightness in
about eight seconds and requires no cooling period
at shutdown.

AUTOMATIC BRIGHTNESS ADJUSTMENT

saving automatic use of ECO mode and proper
brightness for reduced eye fatigue.

3-D READY

3D is not just for
scientists or movie
fans. It can provide
dramatic impact for business presentations– and
research has shown that it can help students better
engage with their lessons and it can lead to better
academic performance. All Casio Signature models
include 3D capability. Optional 2D-3D software can help
you convert standard presentations to 3D. (3D glasses
and software required and sold separately.)

SUPERIOR COLOR

One of the benefits of the
hybrid light sources is an
increased color gamut –
these projectors will show
about 50% more of the
spectrum (compared to our previous mercury lamp
projectors), for more accurate renditions, subtle
shadings. Images appear brighter as well.

3-YEAR WARRANTY

3 year warranty on the projector and 3 years or
6,000-hour usage on the light source.

© 2011 CASIO AMERICA, INC. All rights reserved. Casio is a registered trademark of Casio Computer Co., Ltd. in the United States and/or
other countries. Specifications subject to change without notice. DLP logo is a registered trademark of Texas Instruments Incorporated.

SPECIFICATIONS | XJ-M150

Brightness 3000 lumens

Contrast Ratio Telephoto Mode 1800:1
Zoom 1.5x Manual

Focus Manual Focus

Lens Offset 100%

Light Source Casio Laser & LED Hybrid
Estimated Operating Life Up to 20,000 Hours (Warranty 3 years or 6,000 Hrs)
Projection Screen Size 30 to 300-inch Diagonal

Projection Range 60-inch Screen 6.6 ~ 9.9 ft
100-inch Screen 11.2 ~ 14.8 ft
Minimum 3.3 ft
Projection Ratio 1.64-2.46:1

Projection System DLP

Native Resolution 1024 X 768
Native Aspect Ratio 4:3
Color Reproduction Full Color (16.77 million colors)
Keystone Correction Vertical +30° (Auto) Vertical + or - 30° (Manual)
Dimension Including Projections 12.24 X 9.61 X 3.31 inches
Excluding Projections 12.24 X 9.61 X 3.23 inches
Weight 8.6 lbs.
Power Source AC100-240V, 50/60Hz
Power Consumption Operating Operating power: 150W (with Eco Mode “Eco 1” selected),
190W (with Eco Mode Off “Bright” selected)
Standby 0.4 w (LAN OFF), 4.8 w (LAN ON)

Security Compatibility Kensington Compatible Yes
Power On Password Yes
Ceiling Mount Mount optional and available separately from 3rd party vendors
Mounting Screw Size

and Quantity M3 Qty. 3 (Optional and sold separately)

Manufactured In China

OTHER INFORMATION

Usage Environment Operating Temperature 41~95°F
Operating Humidity 20-80% (non condensation)
High Altitude Mode Yes (for operation 3,300-6,600 ft)
Remote Control Range 16.5 ft Maximum
Limited Warranty 3 years Parts And Labor plus 3 years or 6,000 hours
light source, see Warranty Statement included with
product for complete details.
Included Accessories Wireless remote control, 6’ RGB cable, 6’ AV cable, 6’ AC
Power Cord, Carry Bag, Manual on CD-ROM & booklet

Optional Accessories
Software (YA-D30)

Packing Information Carton Dimensions 16.5” L X 14.5” W X 6.5” H
Carton Weight 14.1 lbs.

I/O CONNECTIVITY

RGB/Component Video Input mini D-Sub 15 Pin x 1 Also use as YCbCr/YPbPr input—

commercially available adapter required

Native Resolution (1024 x 768) 786,432 pixels

Digital Input HDMI Type A x 1 (Locking Type)
Audio Input RCA (R/L) x1, Stereo mini x 1

Output Stereo mini x 1
Speaker 5W Monaural Speaker

Video Signal Compatability Video Systems NTSC/ PAL/ PAL-N/ PAL-M/ PAL60/ SECAM
DTV/HDTV 480i/480P/576i/576P/720P/1080i/1080p
Video Input Composite Video (RCA) x 1, S-Video x 1
Control Terminal RS-232C (Mini D sub 9 Pin) x 1

Device Type 0.55-inch DLP Chip

®

Active Shutter 3D Glasses (YA-G30)/ 2D-3D Conversion

The above product line is for the US market. This line-up may differ depending on areas.
