Operation Guide 5176

Congratulations upon your selection of this CASIO watch.

Applications

The built-in sensors of this watch measure barometric pressure, temperature and altitude. Measured values are then shown on the display. Such features make this watch useful when hiking, mountain climbing, or when engaging in other such outdoor activities.

ENGLISH

E-1

•

The measurement functions built into this watch are not intended for taking measurements that require professional or industrial precision. Values produced by this watch should be considered as reasonable representations only.

• Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any

damage or loss suffered by you or any third party arising through the use of this product or its malfunction.

E-2

Warning !

Things to check before using the watch

1. Check the Home City and the daylight saving time (DST) setting.

Use the procedure under “To conﬁ gure Home City settings” (page E-14) to conﬁ gure your Home City and daylight saving time settings.

Important!

Proper World Time Mode data depend on correct Home City, time, and date settings in the Timekeeping Mode. Make sure you conﬁ gure these settings correctly.

2. Set the current time.

See “Conﬁ guring Current Time and Date Settings” (page E-17).

The watch is now ready for use.

E-4

E-23 Barometer/Thermometer

E-23 To enter and exit the Barometer/Thermometer Mode E-28 To calibrate the pressure sensor and the temperature sensor

E-30 Altimeter

E-31 To take an altimeter reading E-34 To specify a reference altitude value

E-39 Specifying Temperature, Barometric Pressure, and Altitude Units

E-39 To specify temperature, barometric pressure, and altitude units

E-41

Precautions Concerning Simultaneous Measurement of Altitude and Temperature

E-42 Checking the Current Time in a Different Time Zone

E-42 To enter the World Time Mode E-42 To view the time in another time zone E-43 To specify standard time or daylight saving time (DST) for a city

E-6

About This Manual

• Depending on the model of your watch, display text

appears either as dark ﬁ gures on a light background, or light ﬁ gures on a dark background. All sample displays in this manual are shown using dark ﬁ gures on a light background.

• Button operations are indicated using the letters shown

in the illustration.

• Note that the product illustrations in this manual are

intended for reference only, and so the actual product may appear somewhat different than depicted by an illustration.

Contents

E-3 About This Manual

E-4 Things to check before using the watch

E-9 Mode Reference Guide

E-13 Timekeeping

E-14 Conﬁ guring Home City Settings

E-14 To conﬁ gure Home City settings E-16 To change the Daylight Saving Time (summer time) setting

E-17 Conﬁ guring Current Time and Date Settings

E-18 To change the current time and date settings

E-22 Hand Home Position Correction

E-22 To adjust home positions

E-44 Using the Stopwatch

E-44 To enter the Stopwatch Mode E-44 To perform an elapsed time operation E-44 To pause at a split time E-45 To measure two ﬁ nishes

E-46 Using the Countdown Timer

E-46 To enter the Countdown Timer Mode E-46 To specify the countdown start time E-48 To perform a countdown timer operation E-48 To stop the alarm

E-49 Using the Alarm

E-49 To enter the Alarm Mode E-50 To set an alarm time E-51 To test the alarm E-52 To turn an alarm and the Hourly Time Signal on and off E-52 To stop the alarm

E-3

E-5

E-7

E-53 Illumination

E-53 To turn on illumination E-53 To change the illumination duration

E-55 Button Operation Tone

E-55 To turn the button operation tone on and off

E-57 Troubleshooting

E-61 Speciﬁ cations

E-8

Mode Reference Guide

Your watch has 7 “modes”. The mode you should select depends on what you want to do.

To do this: Enter this mode: See:

• View the current time and date in the Home City

•

Conﬁ gure Home City and daylight saving time (DST) settings

• Conﬁ gure time and date settings

View the barometric pressure and temperature at your current location

• View the altitude at your current location

• Determine the altitude differential between two locations

(reference point and current location)

View the current time in one of 48 cities (31 time zones) around the globe

Use the stopwatch to measure elapsed time Stopwatch Mode E-44 Use the countdown timer Set an alarm time Alarm Mode E-49

Timekeeping Mode E-13

Barometer/ Thermometer Mode

Altimeter Mode E-30

World Time Mode E-42

Countdown Timer Mode

E-23

E-46

E-9

Operation Guide 5176

Selecting a Mode

• The illustration below shows which buttons you need to press to navigate between

modes.

• In any mode (except when a setting screen, with ﬂ ashing digits is on the display),

pressB to illuminate the display.

World Time

Mode

Stopwatch Mode

E-10

General Functions (All Modes)

The functions and operations described in this section can be used in all of the modes.

Auto Return Features

• The watch returns to the Timekeeping Mode automatically if you do not perform any

button operation for two or three minutes in the Alarm Mode.

• The watch will return to the Timekeeping Mode automatically if you do not perform

any operation for about one hour after entering the Barometer/Thermometer Mode.

•

If you leave a setting screen with ﬂ ashing digits on the display for two or three minutes without performing any operation, the watch exits the setting screen automatically.

Initial Screens

When you enter the World Time Mode or Alarm Mode, the data you were viewing when you last exited the mode appears ﬁ rst.

Scrolling

TheB and D buttons are used on the setting screen to scroll through data on the display. In most cases, holding down these buttons during a scroll operation scrolls through the data at high speed.

E-12

Barometer/

Thermometer Mode

Countdown

Countdown Timer Mode

Timer Mode

Conﬁ guring Home City Settings

There are two Home City settings: actually selecting the Home City and selecting either standard time or daylight saving time (DST).

To conﬁ gure Home City settings

1. In the Timekeeping Mode, hold down A until the currently selected city code (Home City) starts to ﬂ ash. This is the city code setting screen.

• Before the cit y code starts to ﬂ ash, the m essage

SET Hold will appear on the dis play. Keep depressed until SET Hold disappears and the cit y code star ts to ﬂ ash.

Seconds

• The watch will exi t the settin g mode autom atically if

you do not per form any ope ration for ab out two or three minutes.

• For deta ils about cit y codes, see the “Cit y Code Table”

at the back of thi s manual.

E-14

City code

PM indicator

Hour : Minutes

Timekeeping Mode

Altimeter Mode

Alarm Mode

Hand Setting Mode

Timekeeping

Hour hand

Graphic

Hour : Minutes

Minute hand

PM indicator

Month Day

Day of week

DST indicator

Setting

After all the settings are the way you want, press A to return to the Timekeeping Mode.

• The DST indicator a ppears to indi cate that Daylig ht Saving Tim e is turned on.

Note

• After you sp ecify a cit y code, the watch w ill use UTC* of fsets in the World Time

Mode to calcu late the current t ime for othe r time zones bas ed on the curre nt time in your H ome City.

* Coordinated Universal Time, the world-wide scientiﬁ c standard of timekeeping.

The reference point for UTC is Greenwich, England.

Use the Timekeeping Mode to set and view the current time and date.

• In the Timekeeping Mode, the graphic in the center of

the display indicates the passage of seconds.

Seconds

2. Press D (East) and B (West) to select the city code

you want to use as your Home City.

• Keep pressing D or B until the cit y code you want to

select as you r Home Cit y appears on t he display.

3. Press C to display the DST setting screen.

PressDto toggle between Daylight Saving Time (On)

4. and Standard Time (

• Note that you c annot switch b etween st andard time

and daylight sav ing time (DS T) while U TC is selected as your Home City.

OFF

E-11

E-13

E-15

To change the Daylight Saving Time (summer time) setting

DST indicator

1. In the Timekeeping Mode, hold down A until the currently selected city code (Home City) starts to ﬂ ash. This is the city code setting screen.

• Before the cit y code starts to ﬂ ash, the m essage

SET Hold will appear on the dis play. Keep depressed until SET Hold disappears and the cit y code star ts to ﬂ ash.

2. Press C to display the DST setting screen.

Setting

E-16

To change the current time and date settings

City code

Hour : Minutes

PM indicator

E-18

3. Press D to toggle between Daylight Saving Time (On) and Standard Time (

4. After all the settings are the way you want, press A to return to the Timekeeping Mode.

• The DST indicator ap pears to indica te that Daylight

Saving Tim e is turned on.

1. In the Timekeeping Mode, hold down A until the currently selected city code (Home City) starts to ﬂ ash. This is the city code setting screen.

• Before the cit y code starts to ﬂ ash, the m essage

SET Hold will appear on the dis play. Keep depressed until SET Hold disappears and the cit y code star ts to ﬂ ash.

2. Use D and B to select the city code you want.

Seconds

• Select you r Home Cit y code before c hanging any

other setting.

• For full info rmation on c ity codes , see the “Cit y Code

Table” at the back of thi s manual.

OFF

Conﬁ guring Current Time and Date Settings

You can use the procedure below to adjust the current time and date settings if they are off.

Changing the digital Home City data should cause the analog time setting to change accordingly. If the analog time does not indicate the digital time, check the home positions of the hands and make adjustments if necessary (page E-22).

PressC to move the ﬂ ashing in the sequence shown below to select the other settings.

City Code

Barometer unit

DST

Altitude unit

12/24-Hour Format

Seconds Hour Minute Year Month

Temperature unit

Illumination Duration

Button Operation Tone On/Off

Day

• The follow ing steps expla in how to conﬁ gu re timekeepi ng setting s only.

4. When the timekeeping setting you want to change is ﬂ ashing, use B and/or D to change it as described below.

Screen To do this: Do this:

Change the city code

Toggle between Daylight Saving Time (On) and Standard Time (

OFF

UseD (East) and

(West).

PressD.

E-17

E-19

Operation Guide 5176

Screen To do this: Do this:

Toggle between 12-hour (

24H

(

) timekeeping.

Reset the seconds to

Change the hour or minute

Change the year, month, or day

12H

) and 24-hour

PressD.

UseD (+) and (–).

5. Press A to exit the setting screen.

E-20

Hand Home Position Correction

The hour and minute hands of the watch can be thrown off by exposure to strong magnetism or impact. The watch is designed to correct the hour and minute hand positions manually.

• All of the operations in this section are performed in the Hand Setting Mode, which

you enter by pressing C (page E-11).

To adjust home positions

Hour and minute hands

Correct hour and

minute hand positions

E-22

2. Press C ﬁ ve times to return to the Timekeeping Mode.

•

The watch will ret urn to the Time keeping Mod e automatica lly if you do not pe rform any operatio n for about on e hour after e ntering the Baro meter/T hermom eter Mode.

Barometric Pressure

• Barometric pressure is displayed in units of 1 hPa (or 0.05 inHg).

•

The displayed barometric pressure value changes to pressure falls outside the range of 260 hPa to 1,100 hPa (7.65 inHg to 32.45 inHg). The barometric pressure value will reappear as soon as the measured barometric pressure is within the allowable range.

Temperature

• Temperature is displayed in units of 0.1°C (or 0.2°F).

• The displayed temperature value changes to

temperature falls outside the range of –10.0°C to 60.0°C (14.0°F to 140.0°F). The temperature value will reappear as soon as the measured temperature is within the allowable range.

1. In the Hand Setting Mode, hold down A for about two seconds until 0:00 appears on the display.

• This is the home position adjustment mode.

2. Check the positions of the hour and minute hands.

• The hand s are in the corre ct home posi tions if they are

pointed at 12 o’clock. I f they aren’t, u se D (clockwise) and B (counterclock wise) to adjust their positi ons.

3. Press A to exit the setting screen.

• This will cause the hour and minute hands to move to

the current T imekeepin g Mode time.

- - -

if a measured barometric

--.-

°C (or °F) if a measured

Note

• For information about selecting a Home City and conﬁ guring the DST setting, see

“Conﬁ guring Home City Settings” (page E-14).

• While 12-hour format is selected for timekeeping, a P (PM) indicator will appear for

times from noon to 11:59 p.m. No indicator appears for times from midnight to 11:59 a.m. With 24-hour format, time is displayed from 0:00 to 23:59, without any (PM) indicator.

• The watch’s built-in full automatic calendar makes allowances for different month

lengths and leap years. Once you set the date, there should be no reason to change it except after you have the watch’s battery replaced.

E-21

Barometer/Thermometer

This watch uses a pressure sensor to measure air pressure (barometric pressure) and a temperature sensor to measure temperature.

To enter and exit the Barometer/Thermometer Mode

1. While in the Timekeeping Mode, press C to enter the Barometer/Thermometer Mode.

• BARO will appea r on the display, indic ating

that baromet ric pressure an d temperature measurem ents are in progre ss. The mea surement results will a ppear on the di splay after abo ut ﬁ ve seconds.

• After you press C, the watch will take readings every

ﬁ ve seconds fo r the ﬁ rst three mi nutes, and th en every two mi nutes after t hat.

This pointer indicates the relative difference between

Barometric

the most recent barometric pressure reading and the

pressure

pressure differential

differential

current barometric pressure value displayed in the

pointer

Barometer/Thermometer Mode (page E-23).

E-23

Barometric

Barometric pressure

pressure

Current time

Temperature

Pressure

Pressure differential

differential pointer

pointer

Display Units

You can select either hectopascals (hPa) or inchesHg (inHg) as the display unit for the measured barometric pressure, and Celsius (°C) or Fahrenheit (°F) as the display unit for the measured temperature value. See “To specify temperature, barometric pressure, and altitude units” (page E-39).

Barometric Pressure Differential Pointer

E-24

Reading Barometric Pressure Differential Pointer

Pressure differential is indicated in the range of ±5 hPa, in 1-hPa units.

If the pointer is located here: It means this:

CLOUDY (–)

FINE (+)

• The nearby screen shot, for example, shows what the pointer would indicate when

the calculated pressure differential is approximately – 3 hPa (approximately – 0.09 inHg).

E-26

To calibrate the pressure sensor and the temperature sensor

E-28

Pressure is falling and weather will tend to deteriorate.

Pressure is rising and weather will tend to improve.

0.15

−0.15

inHg valueshPa values

1.Take a reading with another measurement device to determine the exact current barometric pressure or temperature.

2. With the watch in the Timekeeping Mode, press C to enter the Barometer/Thermometer Mode.

3. Hold down A until the current temperature value starts to ﬂ ash on the display. This is the setting screen.

• Before the tem perature value s tarts to ﬂ ash, t he

message SET Hold will appear on the display. Keep A depressed u ntil SET Hold disappears.

4. Press C to move the ﬂ ashing between the temperature value and barometric pressure value, to select the one you want to calibrate.

Current pressure greater than most recent measured pressure

Current pressure less than most recent measured pressure

E-25

• Barometric pressure is calculated and displayed using hPa as the standard. The

barometric pressure differential also can be read in inHg units as shown in the illustration (1 hPa

Pressure Sensor and Temperature Sensor Calibration

The pressure sensor and temperature sensor built into the watch are calibrated at the factory and normally require no further adjustment. If you notice serious errors in the pressure readings and temperature readings produced by the watch, you can calibrate a sensor to the reading of another device to correct the errors.

Important!

• Incorrectly calibrating the temperature sensor can result in incorrect readings.

Carefully read the following before doing anything.

Compare the readings produced by the watch with those of another reliable and

–

accurate thermometer.

– If adjustment is required, remove the watch from your wrist and wait for 20 or 30

minutes to give the temperature of the watch time to stabilize.

UseD (+) and B (–) to adjust the calibration value in the units shown below.

Temperature 0.1°C (0.2°F) Barometric Pressure 1 hPa (0.05 inHg)

• To return the currentl y ﬂ ashing value to it s initial facto ry default se tting, press

and D at the same ti me. OFF will appear at t he ﬂ ashing lo cation for ab out one second, fo llowed by the init ial default valu e.

0.03 inHg).

E-27

6. Press A to return to the Barometer/Thermometer Mode screen.

Barometer and Thermometer Precautions

• The pressure sensor built into this watch measures changes in air pressure, which

you can then apply to your own weather predictions. It is not intended for use as a precision instrument in ofﬁ cial weather prediction or reporting applications.

• Sudden temperature changes can affect pressure sensor readings.

• Temperature measurements are affected by your body temperature (while you are

wearing the watch), direct sunlight, and moisture. To achieve a more accurate temperature measurement, remove the watch from your wrist, place it in a well ventilated location out of direct sunlight, and wipe all moisture from the case. It takes approximately 20 to 30 minutes for the case of the watch to reach the actual surrounding temperature.

E-29

Operation Guide 5176

Altimeter

The watch displays altitude values based on air pressure readings taken by a built-in pressure sensor.

How the Altimeter Measures Altitude

The altimeter can measure altitude based on its own preset values (initial default method) or using a reference altitude speciﬁ ed by you.

When you measure altitude based on preset values

Data produced by the watch’s barometric pressure sensor is converted to approximate altitude based on ISA (International Standard Atmosphere) conversion values stored in watch memory.

When you measure altitude using a reference altitude speciﬁ ed by you

After you specify a reference altitude, the watch uses that value to convert barometric pressure readings to altitude (page E-34).

E-30

• If you leave the watc h in the Altime ter Mode, it wil l update the displ ayed altitude

value regularl y.

• Temperature is meas ured in the Baro meter/T hermome ter Mode and in t he

Altimeter M ode. For det ails about te mperature readi ngs, see "Tempe rature" (page E-24).

3. After you are ﬁ nished using the Altimeter, press Mode and stop auto measurement.

• The watch will re turn to the Tim ekeeping Mo de automatic ally if you do not p erform

any operatio n for about 10 ho urs after ente ring the Alti meter Mode.

Note

• The measurement range for altitude is –700 to 10,000 meters (–2,300 to 32,800

feet).

• The displayed altitude value changes to

measurement range. An altitude value will reappear as soon as the altitude reading is within the allowable range.

E-32

To specify a reference altitude value

• You can set the referen ce altitude val ue within the ra nge of –10,00 0 to 10,00 0

meters (–32,800 to 32,800 feet).

•

Pressing B and D at the same ti me returns to OFF (no referenc e altitude valu e), so the watch per forms air pres sure to altitude c onversions b ased on preset da ta only.

1. In the Altimeter Mode, hold down A until the current reference altitude value starts to ﬂ ash. This is the setting screen.

• Before the referen ce altitude va lue starts to ﬂ as h,

the message SET Hold will appear on the dis play. Keep A depressed u ntil SET Hold disappears.

2. Press D (+) or B (–) to change the current reference altitude value by 5 meters (or 20 feet).

• Specify a re ference altit ude value based o n accurate

altitude information about your current location from a map, etc.

- - - -

if an altitude reading falls outside the

ABA

to return to the Timekeeping

3. Press A to exit the setting screen.

E-34

• When mountain climbing, you can specify a reference altitude value in accordance

with a marker along the way or altitude information from a map. After that, the altitude readings produced by the watch will be more accurate than they would without a reference altitude value.

To take an altimeter reading

Current time

Temperature

Current

Current altitude

altitude

•

Normally, displayed altitude values are based on the watch’s preset conversion values. You also can specify a reference altitude value, if you want. See “Specifying a Reference Altitude Value” below.

• You can change the unit for displayed altitude values to either meters (m) or feet (ft).

See “To specify temperature, barometric pressure, and altitude units” (page E-39).

Specifying a Reference Altitude Value

The altitude readings produced by this watch are subject to error caused by changes in air pressure. Because of this, we recommend that you update the reference altitude value whenever accurate altitude information is available during your climb. After you specify a reference altitude value, the watch adjusts its air-pressure-to-altitude conversion calculation accordingly.

How does the altimeter work?

Generally, air pressure and temperature decrease as altitude increases. This watch bases its altitude measurements on International Standard Atmosphere (ISA) values stipulated by the International Civil Aviation Organization (ICAO). These values deﬁ ne relationships between altitude, air pressure, and temperature.

Altitude Air Pressure Temperature

4000 m

3500 m

3000 m

2500 m

2000 m

1500 m

1000 m

0 m

1. Make sure the watch is in the Timekeeping Mode.

2. Press

to start Altimeter measurement.

• ALTI will appear on the disp lay, indicating that

Altimeter m easuremen t is in progress. T he ﬁ rst reading will app ear on the dis play after abo ut four or ﬁ ve seconds.

• The current a ltitude value i s displayed in uni ts of 5

meters (20 feet).

• After the ﬁ rst reading is obtained, the wa tch continues

to take altimete r readings autom atically ever y ﬁ ve seconds fo r the ﬁ rst three mi nutes, and the n every two minute s after that.

616 hPa

About 8 hPa per 100 m

701 hPa

About 9 hPa per 100 m

795 hPa

About 10 hPa per 100 m

About 11 hPa per 100 m

899 hPa

500 m

About 12 hPa per 100 m

–11°C

–4.5°C

8.5°C

15°C1013 hPa

2°C

About 6.5°C per 1000 m

E-31

E-33

E-35

14000 ft.

12000 ft.

10000 ft.

8000 ft.

4000 ft.

0 ft.

Source: International Civil Aviation Organization

• Note that the following conditions will prevent you from obtaining accurate readings:

When air pressure changes because of changes in the weather Extreme temperature changes When the watch itself is subjected to strong impact

E-36

Altimeter Precautions

• This watch estimates altitude based on air pressure. This means that altitude

readings for the same location may vary if air pressure changes.

• The semiconductor pressure sensor used by the watch for altitude measurements

is also affected by temperature. When taking altitude measurements, do not subject the watch to temperature changes.

• Do not rely upon this watch for altitude measurements or perform button operations

while sky diving, hang gliding, or paragliding, while riding a gyrocopter, glider, or any other aircraft, or while engaging in any other activity where there is the chance of sudden altitude changes.

• Do not use this watch for measuring altitude in applications that demand

professional or industrial level precision.

• Remember that the air inside of a commercial aircraft is pressurized. Because of

this, the readings produced by this watch will not match the altitude readings announced or indicated the ﬂ ight crew.

E-38

6000 ft.

2000 ft.

19.03 inHg

22.23 inHg

25.84 inHg

About 0.15 inHg per 200 ft.

About 0.17 inHg per 200 ft.

About 0.192 inHg per 200 ft.

About 0.21 inHg per 200 ft.

16.2°F

30.5°F

44.7°F

59.0°F29.92 inHg

About 3.6°F per 1000 ft.

There are two standard methods of expressing altitude: Absolute altitude and relative altitude. Absolute altitude expresses an absolute height above sea level. Relative altitude expresses the difference between the height of two different places.

Height of building 130 m (relative altitude)

Rooftop at an altitude of 230 m above sea level (absolute altitude)

Sea Level

E-37

Specifying Temperature, Barometric Pressure, and Altitude Units

Use the procedure below to specify the temperature, barometric pressure, and altitude units to be used in the Barometer/Thermometer Mode and the Altimeter Mode.

Important!

TYO

When

(Tokyo) is selected as the Home City, the altitude unit is set automatically to meters (m), the barometric pressure unit to hectopascals ( temperature unit to Celsius (°C). These settings cannot be changed.

To specify temperature, barometric pressure, and altitude units

1. In the Timekeeping Mode, hold down A until the

currently selected city code starts to ﬂ ash. This is the city code setting screen.

hPa

), and the

E-39

Operation Guide 5176

• Before the cit y code starts to ﬂ ash, the m essage SET Hold will appear o n the

display. Keep A depressed u ntil SET Hold disappears and the city code starts to ﬂ ash.

2. Keep pressing C until pressure) appears in the left corner of the screen.

• See step 3 unde r “To change the cur rent time and da te settings” (p age E-18) for

informatio n about how to sc roll through set ting screen s.

TEMP

(temperature),

ALTI

(altitude), or

BARO

(barometric

3. Perform the operations below to specify the units you want.

To specify this unit: Press this key: To toggle between these settings:

Temperature

Altitude

Barometric Pressure

°C

(Celsius) and °F (Fahrenheit)

(meters) and ft (feet)

hPa

(hectopascals) and

inHg

(inches of mercury)

4. After the settings are the way you want, press A to exit the setting screen.

E-40

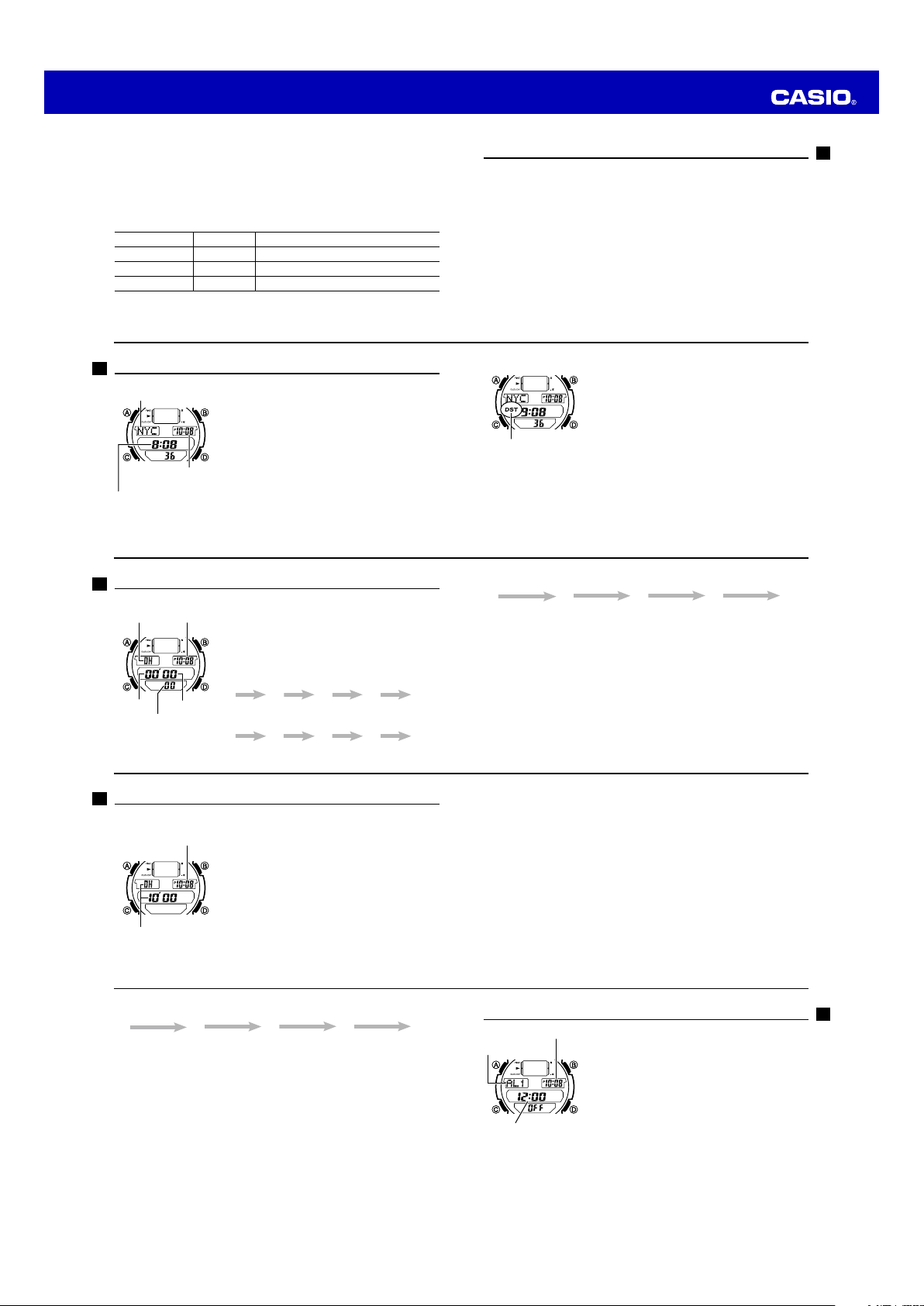

Checking the Current Time in a Different Time Zone

Currently selected

Currently selected World Time City

World Time City

Current Timekeeping

Current Timekeeping Mode time

Mode time

Current time in the

Current time in the currently selected

currently selected World Time City

World Time City

E-42

You can use the World Time Mode to view the current time in one of 31 time zones (48 cities) around the globe. The city that is currently selected in the World Time Mode is called the “World Time City”.

To enter the World Time Mode

UseC to select the World Time Mode (WT) as shown on page E-10.

•

will appear on the display for about one second. Next, the display will change to show the city code of the currently selected World Time City.

To view the time in another time zone

In the World Time Mode, use D (East) to scroll through city codes.

Using the Stopwatch

The stopwatch measures elapsed time, split times, and two ﬁ nishes.

To enter the Stopwatch Mode

UseC to select the Stopwatch Mode ( page E-10.

STW

•

will appear on the display for about one second. Next, the display will change to show the stopwatch hours.

STW

) as shown on

To perform an elapsed time operation

Start Stop (Restart) (Stop) Reset

D D D A

To pause at a split time

Start Split

A A D A

SPL

(

displayed)

Split release

Stop Reset

E-44

Minutes

1/100 second

Current timeHours

Seconds

Precautions Concerning Simultaneous Measurement of Altitude and Temperature

Though you can perform altitude and temperature measurements at the same time, you should remember that each of these measurements requires different conditions for best results. With temperature measurement, it is best to remove the watch from your wrist in order to eliminate the effects of body heat. In the case of altitude measurement, on the other hand, it is better to leave the watch on your wrist, because doing so keeps the watch at a constant temperature, which contributes to more accurate altitude measurements.

• To give altitude measurement priority, leave the watch on your wrist or in any other

location where the temperature of the watch is kept constant.

• To give temperature measurement priority, remove the watch from your wrist and

allow it to hang freely from your bag or in another location where it is not exposed to direct sunlight. Note that removing the watch from your wrist can affect pressure sensor readings momentarily.

E-41

To specify standard time or daylight saving time (DST) for a city

DST indicatorDST indicator

• You cannot use th e World Time M ode to change th e current stand ard time/

daylight savin g time (DST ) setting o f the Home Ci ty.

• Note that you c annot switch b etween st andard time /daylight savin g time (DST )

while UTC is selected as the World Ti me City.

• Note that the st andard time /daylight savin g time (DST ) setting af fects only the

currently se lected time zo ne. Other ti me zones are not a ffected.

To measure two ﬁ nishes

Start Split

Note

• The Stopwatch Mode can indicate elapsed time up to 23 hours, 59 minutes, 59.99

seconds.

• Once started, stopwatch timing continues until you press A to stop it, even if you

exit the Stopwatch Mode to another mode and even if timing reaches the stopwatch limit deﬁ ned above.

• Exiting the Stopwatch Mode while a split time is frozen on the display clears the

split time and returns to elapsed time measurement.

1. In the World Time Mode, use D (East) to display the city code (time zone) whose Standard Time/Daylight Saving Time setting you want to change.

2. Hold down A until and then disappears. Release A after disappears.

• This toggle s the city co de you selecte d in step 1

between D aylight Savin g Time (DST indicato r displayed) and st andard time (DST ind icator not displayed).

First runner ﬁ nishes. Display time of ﬁ rst runner

DST Hold

D A

Stop

Second runner ﬁ nishes.

appears on the display

Split release

Display time of second runner

DST Hold

E-43

Reset

E-45

Using the Countdown Timer

The countdown timer can be conﬁ gured to start at a preset time, and sound an alarm when the end of the countdown is reached.

Current time

Countdown time

Countdown time (Hour, minutes,

(Hour, minutes, seconds)

seconds)

E-46

To perform a countdown timer operation

Start Stop (Restart) (Stop) Reset

• Before starting a countdown timer operation, check to make sure that a countdown

operation is not already in progress (indicated by the seconds counting down). If it is, press D to stop it and then A to reset to the countdown start time.

• An alarm sounds for ﬁ ve seconds when the end of the countdown is reached. This

alarm will sound in all modes. The countdown time is reset to its starting value automatically when the alarm sounds.

To stop the alarm

Press any button.

E-48

To enter the Countdown Timer Mode

UseC to select the Countdown Timer Mode ( shown on page E-10.

TMR

will appear on the display for about one second.

•

Next, the display will change to show the countdown time hours.

To specify the countdown start time

1. Enter the Countdown Timer Mode.

• If a countdow n is in progress (i ndicated by the

seconds counting down), press D to stop it and then press A to reset to the cur rent countdo wn start time.

• If a countdow n is paused, pres s A to reset to the

current countdown start time.

D D

TMR

) as

2. Hold down A until the hour setting of the current countdown start time starts to ﬂ ash. This is the setting screen.

• Before the ho ur setting st arts to ﬂ ash, t he message SET Hold will appea r on the

display. Keep A depressed u ntil SET Hold disappears and the hour setting starts to ﬂ ash.

3. Press C to move the ﬂ ashing between the hour and minute settings.

4. Use D (+) and B (–) to change the ﬂ ashing item.

• To set the starti ng value of the co untdown tim e to 24 hours, set 0H 00’00.

5. Press A to exit the setting screen.

Using the Alarm

number or

number or SIG

SIG

Alarm time

Alarm time (Hour : Minutes)

(Hour : Minutes)

Current timeAlarm

You can set ﬁ ve independent daily alarms. When a daily alarm is turned on, an alarm tone will sound for about 10 seconds each day when the time in the Timekeeping Mode reaches the preset alarm time. This is true even if the watch is not in the Timekeeping Mode. You can also turn on an Hourly Time Signal, which will cause the watch to beep twice every hour on the hour.

To enter the Alarm Mode

to select the Alarm Mode (

Use page E-10.

ALM

will appear on the display for about one second.

•

Next, the display will change to show an alarm number

AL1

( number indicates an alarm screen. the Hourly Time Signal screen is on the display.

• When you enter the Alarm Mode, the data you were

viewing when you last exited the mode appears ﬁ rst.

through

AL5

) or the

ALM

) as shown on

SIG

indicator. The alarm

SIG

is shown when

E-47

E-49

Operation Guide 5176

To set an alarm time

1. In the Alarm Mode, use D to scroll through the alarm screens until the one whose time you want to set is displayed.

AL1 AL2 AL3

Alarm ON/OFF

Alarm ON/OFF indicator

indicator

2. Hold down A until the alarm time starts to ﬂ ash. This is the setting screen.

• Before the al arm time sta rts to ﬂ ash, the m essage SET Hold will appea r on the

display. Keep A depressed u ntil SET Hold disappears and the alarm time starts to ﬂ ash.

3. Press C to move the ﬂ ashing between the hour and minute settings.

E-50

To turn an alarm and the Hourly Time Signal on and off

1. In the Alarm Mode, use D to select an alarm or the Hourly Time Signal.

2. When the alarm or the Hourly Time Signal you want is selected, press A to toggle it between on and off.

Hourly time signal

Hourly time signal on indicator

on indicator

Alarm on indicator

To stop the alarm

Press any button.

E-52

2. Keep pressing C until

• See step 3 unde r “To change the cur rent time and da te settings” (p age E-18) for

informatio n about how to sc roll through set ting screen s.

3. Press D to toggle the illumination duration between three seconds ( and one second (

4. After the settings are the way you want, press A to exit the setting screen.

Illumination Precautions

• Illumination may be hard to see when viewed under direct sunlight.

• Illumination turns off automatically whenever an alarm sounds.

• Frequent use of illumination runs down the battery.

• The watch may emit an audible sound whenever the display is illuminated. This is

due to vibration of the EL panel used for illumination, and does not indicate malfunction.

LT1

displayed).

SIG AL5 AL4

• The alar m on indicator (wh en any alarm is o n) and the

Hourly Ti me Signal on i ndicator (whe n the Hourly Time Sign al is on) are shown on t he display in all modes.

LT1

LT3

is displayed in the left corner of the display.

LT3

displayed)

4. While a setting is ﬂ ashing, use D (+) and B (–) to change it.

• When set ting the alar m time using th e 12-hour for mat, take care t o set the time

correctly a s a.m. (no indicato r) or p.m. (P indicator).

5. Press A to exit the setting screen.

To test the alarm

In the Alarm Mode, hold down D to sound the alarm.

E-51

Illumination

The display of the watch is illuminated for easy reading in the dark.

To turn on illumination

In any mode (except when a setting screen is on the display), press B to illuminate the display.

• You can use the procedure below to select either one

second or three seconds as the illumination duration. When you press B, the display will remain illuminated for about one second or three seconds, depending on

To change the illumination duration

1. In the Timekeeping Mode, hold down A until the currently selected city code starts to ﬂ ash. This is the city code setting screen.

• Before the cit y code starts to ﬂ ash, the m essage SET Hold will appear o n the

display. Keep A depressed u ntil SET Hold disappears and the city code starts to ﬂ ash.

the current illumination duration setting.

E-53

Button Operation Tone

The button operation tone sounds any time you press one of the watch’s buttons. You can turn the button operation tone on or off as desired.

• Even if you turn off the button operation tone, the alarm, Hourly Time Signal, and

Countdown Timer Mode alarm all operate normally.

To turn the button operation tone on and off

1. In the Timekeeping Mode, hold down A until the currently selected city code starts to ﬂ ash. This is the city code setting screen.

• Before the cit y code sta rts to ﬂ ash, the m essage

SET Hold will appear on the dis play. Keep depressed until SET Hold disappears and the cit y code star ts to ﬂ ash.

E-54

MUTE

2. Keep pressing C until

• See step 3 unde r “To change the cur rent time and da te settings” (p age E-18) for

informatio n about how to sc roll through set ting screen s.

Mute indicatorMute indicator

E-56

The battery indicator (

■

performed.

Battery indicatorBattery indicator

“ERR” appears while a sensor operation is in progress.

■

Subjecting the watch to strong impact can cause sensor malfunction or improper contact of internal circuitry. When this happens, and sensor operations will be disabled.

E-58

The battery indicator appears in the left corner of the digital display whenever there is not enough battery power available to perform a sensor operation in the Barometer/Thermometer Mode or Altimeter Mode. Sensor operation is disabled while the battery indicator is displayed.

• Normal operation should return after battery power recovers.

KEY

is displayed in the left corner of the display.

PressD to toggle the button operation tone between on

KEY

(

4. After the settings are the way you want, press A to exit the setting screen.

Note

• The mute ind icator is displaye d in all modes wh en the

button op eration ton e is turned of f.

) appears while a sensor operation is being

) and off (

MUTE

ERR

(error) will appear on the display

E-55

Troubleshooting

Time Setting

The current time setting is off by hours.

■

Your Home City setting may be wrong (page E-14). Check your Home City setting and correct it, if necessary.

The current time setting is off by one hour.

■

You may need to change your Home City’s standard time/daylight saving time (DST) setting. Use the procedure under “To change the current time and date settings” (page E-18) to change the standard time/daylight saving time (DST) setting.

Sensor modes

I can’t change the temperature, barometric pressure, and altitude units.

■

TYO

When

(Tokyo) is selected as the Home City, the altitude unit is set automatically to meters (m), the barometric pressure unit to hectopascals (hPa), and the temperature unit to Celsius (°C). These settings cannot be changed.

E-57

Barometric

Pressure/Temperature

Measurement

ERR

appears while a measurement operation is being performed in a sensor mode,

•

restart the measurement. If something wrong with the sensor.

•

Barometer/Thermometer Mode and Altimeter Mode sensor operations are disabled whenever there is not enough battery power available to perform a sensor operation. This is true regardless of the current battery level. In this case, the display. This does not indicate malfunction, and sensor operation should resume once battery voltage returns to its normal level.

ERR

appears on the display again, it can mean there is

Altitude

Measurement

ERR

will appear on

E-59

Operation Guide 5176

ERR

• If

keeps appearing during measurement, it could mean there is a problem with

the applicable sensor.

Whenever you have a sensor malfunction, take the watch to your original dealer or nearest authorized CASIO distributor as soon as possible.

The barometric pressure differential pointer does not appear on the display

■

when I enter the Barometer/Thermometer Mode.

• This could indicate sensor error. Try using C to re-enter the Barometer/

Thermometer Mode.

•

The barometric pressure differential pointer is not displayed when the displayed current

barometric value is outside of the allowable measurement range (260 to 1,100 hPa).

World Time Mode

The time for my World Time City is off in the World Time Mode.

■

This could be due to incorrect switching between standard time and daylight saving time. See “To specify standard time or daylight saving time (DST) for a city” (page E-43) for more information.

E-60

Speciﬁ cations

Accuracy at normal temperature: Digital Timekeeping:

Time format: 12-hour and 24-hour Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2099 Other: Home City code (can be assigned one of 48 city codes); Standard Time /

Daylight Saving Time (summer time)

Analog Timekeeping: Altimeter:

Measurement range: –700 to 10,000 m (or –2,300 to 32,800 ft.) without reference

altitude

Display range: –10,000 to 10,000 m (or –32,800 to 32,800 ft.)

Negative values can be caused by readings produced based on a reference

altitude or due to atmospheric conditions.

Display unit: 5 m (or 20 ft.)

Hour, minutes, seconds, p.m. (P), month, day, day of the week

Hour, minutes (hand moves every 20 seconds)

±30 seconds a month

E-61

Measurement timing: 5-second interval for ﬁ rst 3 minutes followed by 2-minute

interval for next 10 hours

Other: Reference altitude setting

Barometer:

Measurement and display range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg) Display unit: 1 hPa (or 0.05 inHg) Measurement timing: 5-second interval for ﬁ rst 3 minutes followed by 2-minute

interval for next 10 hours in the Barometer/Thermometer Mode

Other: Calibration; Barometric pressure differential pointer

Thermometer:

Measurement and display range: –10.0 to 60.0°C (or 14.0 to 140.0°F) Display unit: 0.1°C (or 0.2°F) Measurement timing: 5-second interval for ﬁ rst 3 minutes followed by 2-minute

interval for next 10 hours

Other: Calibration

E-62

Temperature Sensor Precision:

±2°C (±3.6°F) in range of –10°C to 60°C (14.0°F to 140.0°F)

World Time:

Stopwatch:

Countdown Timer:

Alarms: Illumination:

Other:

E-64

48 cities (31 time zones)

Other: Daylight Saving Time/Standard Time

Measuring unit: 1/100 second Measuring capacity: 23:59' 59.99" Measuring modes: Elapsed time, split time, two ﬁ nishes

Measuring unit: 1 second Countdown start time setting range: 1 minute to 24 hours (1-hour increments and

1-minute increments)

5 Daily alarms; Hourly time signal

EL (electro-luminescent panel); Selectable illumination duration

(approximately 1 second or 3 seconds)

Low-temperature resistance (–10°C/14°F); Button operation tone on/off

City Code Table

City

Code

PPG Pago Pago –11

HNL Honolulu –10

ANC Anchorage –9

YVR Vancouver

LAX Los Angeles

YEA Edmonton

DEN Denver

MEX Mexico City

CHI Chicago

NYC New York –5

UTC Offset/

GMT Differential

City

Code

SCL Santiago

YHZ Halifax

YYT St. Johns –3.5

–8

–7

–6

RIO Rio De Janeiro –3

Fernando de

FEN

Noronha

RAI Praia –1

UTC

LON London

UTC Offset/

GMT Differential

Pressure Sensor Precision:

Conditions

(Altitude)

0 to 6000 m

Fixed temperature

Effect of variable temperature

• Values are guaranteed for a temperature range of –10°C to 40°C (14°F to 104°F).

• Precision is lessened by strong impact to either the watch or the sensor, and by

temperature extremes.

Battery:

0 to 19680 ft.

6000 to 10000 m 19680 to 32800 ft.

0 to 6000 m 0 to 19680 ft.

6000 to 10000 m 19680 to 32800 ft.

One lithium battery (Type: CR2016)

Approximate battery operating time: 3 years under the following conditions:

• 1 illumination operation (1.5 seconds) per day

• 10 seconds of alarm operation per day

• 10 hours of altimeter measurement, once per month

Altimeter Barometer

± (altitude differential × 2% + 15 m) m ± (altitude differential × 2% + 50 ft.) ft.

± (altitude differential × 2% + 25 m) m ± (altitude differential × 2% + 90 ft.) ft.

± 50 m every 10°C ± 170 ft. every 50°F

± 70 m every 10°C ± 230 ft. every 50°F

± (pressure differential × 2% + 2 hPa) hPa ± (pressure differential × 2% + 0.059 inHg) inHg

± 5 hPa every 10°C ± 0.148 inHg every 50°F

E-63

Frequent use of illumination runs down the battery.

E-65

City

Code

MAD Madrid

PAR Paris

–4

–2

0LIS Lisbon

ROM Rome

BER Berlin

STO Stockholm

ATH Athens

JRS Jerusalem

MOW Moscow

JED Jeddah

THR Tehran +3.5

DXB Dubai +4

UTC Offset/

GMT Differential

+2CAI Cairo

City

Code

KBL Kabul +4.5

KHI Karachi +5

DEL Delhi +5.5

KTM Kathmandu +5.75

DAC Dhaka +6

RGN Yangon +6.5

BKK Bangkok +7

SIN Singapore

HKG Hong Kong

BJS Beijing

TPE Taipei

UTC Offset/

GMT Differential

L-1

City

Code

SEL Seoul

TYO Tokyo

ADL Adelaide +9.5

GUM Guam

SYD Sydney

NOU Noumea +11

WLG Wellington +12

L-2

UTC Offset/

GMT Differential

+10

• Based on data as of July 2010.

• The rules governing global times (GMT

differential and UTC offset) and summer time are determined by each individual country.

Casio SGW400H-1B Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
