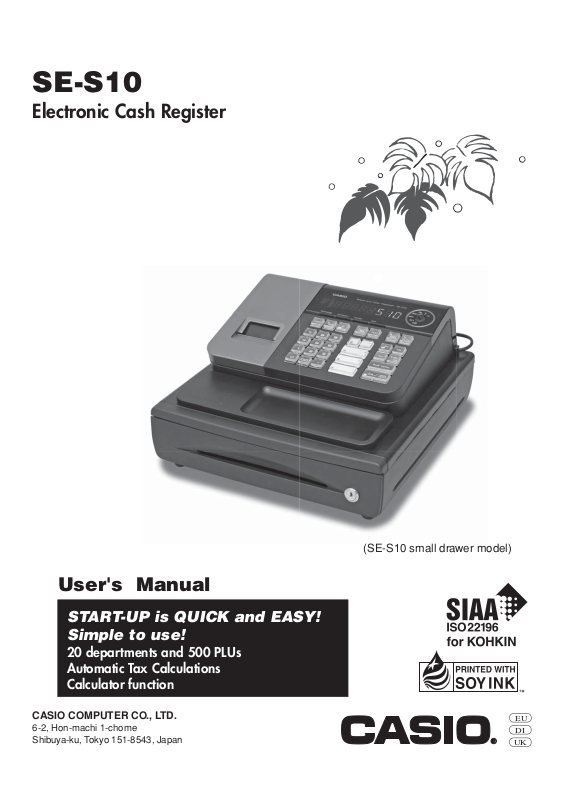

SE-S10
Electronic Cash Register
User's Manual
START-UP is QUICK and EASY!
Simple to use!
20 departments and 500 PLUs
Automatic Tax Calculations
Calculator function
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
(SE-S10 small drawer model)
EU
DI
UK
INTRODUCTION
Thank you very much for purchasing this CASIO electronic cash register.
START-UP is QUICK and EASY!
Part-1 of this User's Manual can help you make a quick start.
Once you have mastered the QUICK START operations, you will undoubtedly want to expand your use of this machine by studying other
sections of Part-2.
Original Carton/Package
If for any reason, this product is to be returned
to the store where purchased, it must be
packed in the original carton/package.
Power Supply
Your cash register is designed to operate
on standard household current (120V, 220V,
230V or 240V; 50/60Hz). Do not overload the
outlet by plugging in too many appliances.
Location
Locate the Cash register on a fl at, stable surface, away from heaters or areas exposed to
direct sunlight, humidity or dust.
Cleaning
Clean the cash register exterior with a soft
cloth which has been moistened with a solution of a mild neutral detergent and water, and
wrung out.
Be sure that the cloth is thoroughly wrung out
to avoid damage to the printer.
Never use paint thinner, benzene, or other
volatile solvents.
The mains plug on this equipment must be used to disconnect mains power.
Please ensure that the socket outlet is installed near the equipment and shall be easily
accessible.
E
2
Safety precautions
To use this product safely and correctly, read this manual thoroughly and operate as instructed.
•
After reading this guide, keep it close at hand for easy reference.
Please keep all informations for future reference.
Always observe the warnings and cautions indicated on the product.
•
About the icons
In this guide various icons are used to highlight safe operation of this product and to prevent injury to the operator and
other personnel and also to prevent damage to property and this product. The icons and defi nitions are given below.
Indicates that there is a risk of severe injury or death if used incorrectly.
Indicates that injury or damage may result if used incorrectly.
Icon examples
To bring attention to risks and possible damage, the following types of icons are used.
The symbol indicates that it includes some symbol for attracting attention (including warning). In this triangle the
actual type of precautions to be taken (electric shock, in this case) is indicated.
symbol indicates a prohibited action. In this symbol the actual type of prohibited actions (disassembly, in this
The
case) will be indicated.
INTRODUCTION
The
outlet, in this case) is indicated.
Handling the register
Should the register malfunction, start to emit smoke or a strange odor, or otherwise behave abnormally,
immediately shut down the power and unplug the AC plug from the power outlet. Continued use creates the
danger of fi re and electric shock.
• Contact CASIO service representative.
Do not place containers of liquids near the register and do not allow any foreign matter to get into it. Should
water or other foreign matter get into the register, immediately shut down the power and unplug the AC plug
from the power outlet. Continued use creates the danger of short circuit, fi re and electric shock.
• Contact CASIO service representative.
Should you drop the register and damage it, immediately shut down the power and unplug the AC plug from
the power outlet. Continued use creates the danger of short circuit, fi re and electric shock.
• Attempting to repair the register yourself is extremely dangerous. Contact CASIO service representative.
Never try to take the register apart or modify it in any way. High-voltage components inside the register create
the danger of fi re and electric shock.
• Contact CASIO service representative for all repair and maintenance.
symbol indicates a restriction. In this symbol the type of actual restriction (removal of the power plug from an
Warning!
Power plug and AC outlet
Use only a proper AC electric outlet. Use of an outlet with a different voltage from the rating creates the danger
of malfunction, fi re, and electric shock. Overloading an electric outlet creates the danger of overheating and
fi re.
Make sure the power plug is inserted as far as it will go. Loose plugs create the danger of electric shock,
overheating, and fi re.
• Do not use the register if the plug is damaged. Never connect to a power outlet that is loose.
E
3
INTRODUCTION
Use a dry cloth to periodically wipe off any dust built up on the prongs of the plug. Humidity can cause poor
insulation and create the danger of electric shock and fi re if dust stays on the prongs.
Do not allow the power cord or plug to become damaged, and never try to modify them in any way. Continued
use of a damaged power cord can cause deterioration of the insulation, exposure of internal wiring, and short
circuit, which creates the danger of electric shock and fi re.
• Contact CASIO service representative whenever the power cord or plug requires repair or maintenance.
Do not place the register on an unstable or uneven surface. Doing so can cause the register — especially
when the drawer is open — to fall, creating the danger of malfunction, fi re, and electric shock.
Do not place the register in the following areas.
• Areas where the register will be subject to large amounts of humidity or dust, or directly exposed to hot or cold air.
• Areas exposed to direct sunlight, in a close motor vehicle, or any other area subject to very high temperatures.
The above conditions can cause malfunction, which creates the danger of fi re.
Do not overlay bend the power cord, do not allow it to be caught between desks or other furniture, and never
place heavy objects on top of the power cord. Doing so can cause short circuit or breaking of the power cord,
creating the danger of fi re and electric shock.
Warning!
Caution!
Be sure to grasp the plug when unplugging the power cord from the wall outlet. Pulling on the cord can
damage it, break the wiring, or cause short, creating the danger of fi re and electric shock.
Never touch the plug while your hands are wet. Doing so creates the danger of electric shock. Pulling on the
cord can damage it, break the wiring, or cause short, creating the danger of fi re and electric shock.
At least once a year, unplug the power plug and use a dry cloth or vacuum cleaner to clear dust from the area
around the prongs of the power plug.
Never use detergent to clean the power cord, especially power plug.
Keep small parts out of the reach of small children to make sure it is not swallowed accidentally.
Disposing of batteries:
Make sure that you dispose of used batteries in accordance with the rules and regulations in your local area.
E
4
Contents
Getting to know your cash register .................................................................... 6
Daily Job Flow ................................................................................................... 8
Part-1 QUICK START OPERATION ...........................................................
1. Loading Memory Protection Battery ........................................................... 9
2. Loading Paper Roll ..................................................................................... 9
3. Setting the Cash Register ........................................................................... 10
4. If you want to use a printer as journal printer ............................................. 10
5. To remove receipt paper ............................................................................. 11
6. To remove journal paper ............................................................................. 11
7. Caution (in handling the thermal printer) .................................................... 11
8. Basic Programming for QUICK START ....................................................... 12
9. Basic Operation after Basic Programming .................................................. 14
10. Daily Management Report .......................................................................... 18
Part-2 CONVENIENT OPERATION ............................................................
1. Various Programming ................................................................................. 20
2. Various Operations ..................................................................................... 37
Part-3 CALCULATOR FUNCTION ............................................................. 43
1. Calculator Mode .......................................................................................... 43
Part-4 USEFUL INFORMATION .................................................................
9
20
45
1. Troubleshooting .......................................................................................... 45
2. Specifi cations .............................................................................................. 46
Basic Components and Accessories
Printer cover
Operator display
Mode switch
Keyboard
Drawer
(SE-S10 small drawer model)
Accessories
Roll paper 1 pc
Mode keys
Drawer keys 2 pcs
User's manual 1 pc
Fixing hook
(M drawer model only) 2 pcs
Magnetic plate* 1 pc
* Use this plate for tacking the notes
received from customer.
Weld lines
Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process.
They are not cracks or scratches.
E
5
Getting to know your cash register
Getting to know your cash register
Mode Switch
REG
XCAL
OFF
RF
PGM
OP
OP key PGM key
Note:
An error is generated (E01 displayed)
whenever the position
of the Mode Switch is
changed during registration.
Z
PGM
The position of the Mode Switch controls the type of operations you
can perform on the cash register. The PROGRAM key (marked PGM)
can be select any Mode Switch setting, while OPERATOR key (marked
OP) can be used to select OFF, REG or CAL only.
PGM RF OFF REG CAL X Z
OP key
PGM key
OFF
In this position, the power of the cash register is off.
REG (Register)
This is the position used for registration of normal transactions.
RF (Refund)
This is the position used for registration of refunds.
CAL (Calculator)
This is the position used for calculator mode.
PGM (Programming)
This is the position used to program the cash register to suit the
needs of your store.
X (Read)
This is the position used to produce reports of daily sales totals without clearing the totals.
Z (Reset)
This is the position used to produce reports of daily sales totals. This
setting clears the totals.
● ● ●
● ● ● ● ● ● ●
Display
Operator display Customer display
Numeric Display
!
Department Number Display
!
Anytime you press a department key to register a
unit price, the corresponding department number
appears here.
PLU Number Display
@
Anytime you perform a PLU registration, the corresponding PLU number appears here.
Number of Repeat Display
#
Anytime you perform “repeat registration” (page
14), the number of repeats appears here.
Note that only one digit is displayed for the number of repeats.
E
$
Entered values (unit prices or quantities) and
calculated values (subtotals, totals or change
amount due) are displayed here. The capacity of
the display is 8 digits.
This part of the display can be used to show the
current time or date between registrations (page
40).
Character Display
%
In the character programming (P2) mode, it shows
the last entered character.
The total (T) or change (C) appears when a subtotal,
total, or change is obtained.
In the paper saving mode, it shows *.
6
Keyboard
Getting to know your cash register
( ) * +
&
AC
9
6
3
TAX PGMPAPER
C
.
HELP
—
ERR.
CORR
'
w
9/14/19
s
4
10/15/20
8/13/18
7/12/17
6/11/16
5
3
2
1
#
DEPT
SHIFT
RC
MR
"
CH
#
SUB TOTAL
$
CA AMT
=
%
CLK#
PD
CHK
NS
TEND
SAVING
FEED PLU
%
7
4
1
0
POST
RECEIPT
s
DATE
TIME
8
5
2
00
Certain keys have two functions; one for register
mode and one for calculator mode.
In this manual, we will refer to specifi c keys as
noted below to make the operations as easy to
understand as possible:
Register Mode
l
Feed key
1
• Department 6 through 20 are specifi ed by
pressing the
j
jj ~ jj
jjj
PAPER
G
SAVING
Paper saving key
key respectively as follows:
j
~
j
~
jjj
→
Department 6 ~ 10
→
Department 11 ~ 15
→
Department 16 ~ 20
Paper saving key is the key to save printing
paper (Journal compressed printing/ No re
ceipt issuing). In these cases, "
" is lit on the
*
character display.
H
<
Post receipt key
Post receipt key is used for issuing receipt
after transaction. This key is effective if the
printer is defi ned as printing receipts. Refer
to page 38.
I
J
~
/
Tax Program key
Help key
Help key is used for issuing assistant receipts such as programming date/ time,
paper installation etc.
2
3
4
5
6
7
8
9
0
A
B
C
D
E
F
h
y
g
i
j
:
.
;
u
m
p
?, Z
Multiplication/ Date Time key
Clear key
Minus/ Error Correction key
PLU (Price Look Up) key
Reference Number/Department Shift key
Percent/Cashier ID No. Assignment key
Received on Account key
Paid Out key
Charge key
Check/No Sale key
Subtotal key
Cash Amount Tendered key
, ~
>, '
Numeric keys and 2-zero key
"
Decimal key
, , , ,
Calculator Mode
3
7
8
A
C
D
E
F
t
:
/
m
p
?, Z
AC key
Percent key
Memory Recall key
Drawer Open key
Equal key
, ~
Numeric keys and 2-zero key
"
Decimal key
, , ,
Arithmetic Operation key
>, '
Department keys
E
7
Daily Job Flow
Daily Job Flow
Before Opening The Store
1. Plugged in?
2. Enough Roll Paper? Page-11
3. Date and Time is correct? Page-40
4. Enough small change in the drawer?
Page-41
While The Store Is Open
1. Registrations. Page-14 ~
2. Issuing latest daily sales total if needed.
(Generating report by Mode Switch to
X position.) Page-18
After Closing The Store
1. Issuing Daily Sales Total.
(Resetting report by Mode Switch to
Z position.) Page-19
2. Picking up money in the drawer.
Page-41.
Turn the Mode Switch to OFF.
Other
1. Troubleshooting Page-45
E
8
Part-1 QUICK START OPERATION
Part-1
QUICK START OPERATION
1. Loading Memory Protection Battery
Important
You must initialize
the Cash register.
1. Remove the printer cover.
2. Open the battery compartment cover.
3. Load 2 new UM-3, or R6P (SUM-3) type batteries into the
compartment. Be sure that the plus (+) and minus (–) ends
of each battery are facing in the directions indicated by the illustrations inside the battery compartment (Figure 1).
4. Replace the memory protection battery compartment cover
back into place.
Part-1
(Figure 1)
·Note:To prevent to lose all of your settings and sales data, we recommend you to install
the memory protection batteries.
·REPLACE MEMORY PROTECTION BATTERIES AT LEAST ONCE EVERY YEAR.
2. Loading Paper Roll
To load receipt paper
#
!
Open platen arm.
@
Ensuring the paper is being fed from the bot-
tom of the roll, lower the roll into the space
behind the paper.
Put the leading end of the paper over the
printer.
$
Close the platen arm slowly until it locks
steadily.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
E
9
Part-1 QUICK START OPERATION
3. Setting the Cash Register
Plug the power cord of the cash register into AC outlet.
!
Please choose your language followed by printed message.
@
When the display shows blinking "0", such as
#
00-00-00
Enter current date in Day, Month, Year.
$
When the display shows blinking "0", such as
00-00
Enter current time in Hour, Minute.
%
Set the mode switch to REG.
^
Tear off any excess paper.
&
Replace the printer cover slowly.
*Default printer defi nition is receipt printer.
4. If you want to use a printer as journal printer
Set printing system as journal.
!
CAL X
REG
OFF
RF
Z
PGM
Z
Z
u
Remove the printer cover by lifting up the back.
@
$
Roll the paper onto the take up real a few turns.
%
Set the left plate of the take up need and place the
reel into the register.
^
Press the l key to take up any slack in the pa-
per.
&
Replace the printer cover slowly.
Press the l key until approximately 20cm of the
#
paper is fed from the register.
E
10
5. To remove receipt paper
Open the platen arm.
!
Remove the core of the paper.
@
Part-1 QUICK START OPERATION
Part-1
6. To remove journal paper
!
Remove the printer cover by
lifting up the back.
@
Press the
proximately 20cm of the paper is fed from the printer.
#
Cut off the roll paper.
l
key until ap-
$
Remove the take-up reel
from the printer and take off
the left plate of the reel.
%
Remove the journal paper
from the take-up reel.
^
Open the platen arm.
&
*
7. Caution (in handling the thermal printer)
Remove the core of the paper.
Load new paper following the
instructions "1. To load journal paper".
1. Never touch the printer head and platen.
2. Unpack the paper just before you use.
3. Avoid heat/ direct sunlight.
4. Avoid dusty and humid places for strage.
5. Do not scratch the paper.
6. Do not keep the paper under the following circumstances: High humidity and temperature/ direct
sunlight/ contact with glue, thinner or rubber eraser.
11
E
Part-1 QUICK START OPERATION
8.
Basic Programming for QUICK START
Procedure
1. To select the date format and monetary mode (if necessary)
You can select the date format and monetary mode after initialization depending on
the requirements in your area. Default date format is Day/ Month/ Year and default
monetary mode is add 2.
C
P3 appears in mode display
?ZXX
Program set code No.
Select number from list A
Select number from list B
X? p
(To end the setting)
Date Format Selections
Year/ Month/ Day
Day/ Month/ Year
A
Month/ Day/ Year
Monetary Mode Selections
Add 0 (0.)
Add 1 (0.0)
B
Add 2 (0.00)
?
Z
X
?
Z
X
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Purpose
Select date format
and
monetary mode
2. Input the desired add-in tax rate to the appropriate department key.
(This procedure below programs add-in tax rate only. If you want to set add-on tax
or tax with special rounding, refer to page 27 of this manual.)
A) Enter
B) Press the
and press the key.
1
key.
~
C) Enter tax rate. (Example: For 6% enter “6”, 5.75% enter “5.75”.)
D) Press the appropriate department key.
E) Repeat step B) and C) to set other department key.
F) Press the
Note: In case of setting the wrong tax rate to the key, please enter
those department keys above, and quit this procedure by pressing
key to end tax programming.
and press
?
key,
and start from the beginning of this procedure.
Example :
Set add-in tax 8% to department 2, 3, 15% to department 4 key.
8
8
15
Start tax program.
~
Enter tax rate and press dept key.
Enter tax rate and press dept key.
Enter tax rate and press dept key.
Setting the tax rates
E
12
To end the setting.
Part-1 QUICK START OPERATION
Procedure
3. In case of accepting two (the Euro and the local) currencies.
3-1. Press the following keys to defi ne the main currency/print out currency of the
subtotal.
C
P3 appears in mode display
XVXX
Z
Euro Status
p
(to end the setting)
Euro status
(1) Main currency = Local, Print out subtotal = Local:
(2) Main currency = Euro, Print out subtotal = Euro :
(3) Main currency = Local, Print out subtotal = Both:
(4) Main currency = Euro, Print out subtotal = Both :
?
Z
X
C
3-2. Press the following keys to set the currency exchange rate against the Euro.
Z
P appears in mode display
Z"B>;
(To end the setting)
•
The rate within the range of 0.00001 to 999999.
Example: (Exchange rate and decimal position)
Currency exchange rate = 1 Euro in local currency
1 Euro = 1.95583 DM :
Z>BB<CB
Purpose
Part-1
Setting the Euro
4. In case of becoming to accept the Euro only.
You can restrict the registable currency to the Euro only by the following procedure.
1. Turn the mode switch to Z position.
2. Issue all reset report including periodic data.
3. Press the following keys to set.
If you want to cancel this operation, press
?Z?MX??X p
instead of
p.
5.For Australia only.
You can set some programmable options to suit the Australian GST by the following
procedure.
1. Turn the mode switch to Z position.
2. Press the following keys to program.
If you want to cancel this operation, press instead of
?Z?ZX??Z p
p.
Restricting the Cur-
rency
to the Euro
Setting the
Australian GST
13
E
Part-1 QUICK START OPERATION
9. Basic Operation after Basic Programming
Note:
Whenever an error is generated, the input fi gures reset to 0. All printout
samples are journal images and the header (date, time and consecutive
no.) are eliminated from the samples.
Printout
9-1 Open the drawer
without a sale
9-2 Basic operation
Example
Unit Price $1.00 $2.00 $0.30
Quantity 1 1 1
Dept. 1 10 15
Cash
Amount
tendered
$5.00
Operation
m
Z??
Unit Price
Department 1
jX??
Department 10
jjC?
Department 15
08-01-2010 08:55
REG 0001
NS ••••••••••
08-01-2010 09:00
REG 0002
DEPT01 •1.00
DEPT10 •2.00
DEPT15 •0.30
TOTAL •
CASH •5.00
CHANGE •1.70
B?? p
3.30
Mode Switch
CAL
X
REG
OFF
RF
PGM
— No Sale Symbol
—
Department No./Unit Price
— Subtotal
—
Cash Amount Tendered
— Change Amount Due
Z
9-3 Multiple registra-
tion of the same
items
Example
Unit Price $1.00 $1.35
Quantity 2 3
Dept. 1 2
Note that repeat registration can be used with unit prices up to 6 digits long.
9-4 Charge sales
Example
Unit Price $1.00 $2.00 $3.00
Quantity 1 1 1
Dept. 1 2 1
Cash amount tendered
Departments 6 through 10, 11 through 15, 16 through 20 can also be registered in combination with the j and , , , or keys, respec-
tively. The j key should be entered just before entering unit price manually.
Z??
Unit Price
Department 1
C h
Quantity
Multiple key
ZCB
08-01-2010 09:05
REG 0003
DEPT01 •1.00
DEPT01 •1.00
3 X @1.35
DEPT02 •4.05
CASH •
6.05
— Repeat
—
Sales Quantity/ Unit Price
p
Z??
08-01-2010 09:10
REG 0004
X??
C??
u
DEPT01 •1.00
DEPT02 •2.00
DEPT01 •3.00
CHARGE •
6.00
— Charge Sales
Charge key
You cannot perform the amount tendered operation using the u key.
E
14
Part-1 QUICK START OPERATION
9-5 Split cash/
charge sales
Example
Unit Price $2.00 $3.00 $4.00
Quantity 1 1 1
Dept. 1 2 1
Cash
Amount
tendered
$5.00
9-6 Corrections
9-6-1 Before you
press a department key
Example
1. Entered 400 for unit
price by mistake instead of 100.
Operation
X??
08-01-2010 09:25
REG 0005
Printout
C??
V??
B?? p
u
DEPT01 •2.00
DEPT02 •3.00
DEPT01 •4.00
TOTAL •
CASH •5.00
CHARGE •4.00
9.00
—
Cash Amount Tendered
— Charge Sales
Corrections can be made while you are registering the item (before
you press a department key), or after it has already been registered into the memory (by pressing a department key).
y
key clears the last item entered.
Operation
V?? y
Wrong entry Clears the last item entered.
Z??
Printout
DEPT01 •1.00
Part-1
2. Entered unit price fi rst
instead of quantity
and then pressed h.
3. Entered 150 for unit
price by mistake instead of 105.
Correct entry Registered Department 1
X??
Unit price Multiplication
Quantity
X??
Unit price
h
y
Clears the last item entered.
B h
Multiplication
Registered Department 2
Z? h
Quantity
Multiplication
ZB? y
Wrong entry Clears the last item entered.
5 X @2.00
DEPT02 •10.00
10 X @1.05
DEPT03 •10.50
Z? h
Quantity
Z?B
Correct entry Registered Department 3
E
15
Part-1 QUICK START OPERATION
Mode Switch
CAL
REG
OFF
RF
PGM
X
Z
9-6-2 After you
pressed a
department key
Example
1. Entered unit price 550 by
mistake instead of 505 and
pressed a department key.
2. Entered unit price 220 by
mistake instead of 230
and pressed a depart-
ment key.
Operation
key cancels the last registered item.
g
BB?
Wrong entry
g
Cancels the last item registered.
B?B
Registered Department 1Correct entry
C h
MultiplicationQuantity
XX?
Wrong entry
g
Printout
DEPT01 •5.50
ERR CORR -5.50
DEPT01 •5.05
3 x @2.20
DEPT02 •6.60
ERR CORR -6.60
3 X @2.30
DEPT02 •6.90
Cancels the last item registered.
XC?
Correct entry Registered Department 2
E
C h
16
Part-1 QUICK START OPERATION
9-7 Registering with
currency exchange
Example
Unit Price £2.00
Quantity 3
Dept. 1 1
Cash Amount
tendered
Rate 1Euro = £ 0.8
Main currency Local (£)
Printout of ST Both currencies
10.00 Euro
Operation
C h
X??
;
Pressing ] before subtotal converts the
subtotal amount into the Euro.
'50e
Z?'
;
Pressing ; after amount tendered
converts the amount into the Euro. *1
1~00e
Display
Mode Switch
CAL
REG
OFF
RF
PGM
X
Z
Part-1
p
Press
The change amount in the main currency
is shown on the display. *2
to fi nalize the transaction.
p
"00
*1 If the payment is the same as the subtotal amount, you can omit this
operation. Press
p
key directly after the subtotal.
*2 If the payment is less than the subtotal amount, the cash register
specifi es it as a partial payment and shows the balance in the main
currency on the display.
Printout
08-01-2010 09:30
REG 0010
3 x @2.00
DEPT01 •6.00
—
TOTAL •
⁄
EURO
CASH
CASH •8.00
CHANGE •2.00
EURO CG
6.00
7.50
⁄
10.00
⁄
2.50
Subtotal in the main currency
— Subtotal after conversion
— Payment in the Euro
— Payment after conversion
—
Change in the main currency
—
Change in the sub currency
17
E
Part-1 QUICK START OPERATION
10. Daily Management Report
This section tells you the procedures to use to produce reports of the transaction data stored in the
cash register's memory.
Important
Remember that when you issue a reset (Z) report, the data that is reported is cleared from
the applicable totalizers. To view data without clearing totalizers, issue a read (X) report.
10-1 Financial Report
Mode Switch
X
REG
OFF
CAL
RF
PGM
Z
10-2 Read/Reset
Report
10-2-1 Electronic
journal Report
Mode Switch to
X
Operation
h
Operation
B<p
Printout
08-01-2010 19:10
X 0070
FLASH
GROSS TOTAL QT 57
•270.48
NET TOTAL No 38
•271.24
CASH-INDW •197.57
CHARGE-INDW •18.19
CHECK-INDW •45.18
Printout
10-01-2010 19:25
X 0173
EJ
0058
X
X
— Read Symbol
—
Gross Sales No. of items
— Gross Sales Amount
—
Net Sales No. of Customers
— Net Sales Amount
— Cash Total in Drawer
—
Charge Total in Drawer
— Check Total in Drawer
— Read Symbol
(Date)*
p
(Consecutive No.)*
p
REG 17:34
0023
DEPT01 •2.24
CA •
2.24
* If you want to designate read range, enter date and/ or cosecutive No..
If you want to reset the electronic journal, just press
B<p
in Z mode.
• Journal is saved in the memory and you can take a report any time you want.
E
18
—
Journal
Part-1 QUICK START OPERATION
10-2-2 Daily Read/Reset
Report
Mode Switch to
Mode Switch to
Mode Switch
CAL X
REG
OFF
RF
PGM
X (Read) report is the same except *1 and *2.
(Read)
X
(Reset)
Z
Z
Operation
p
p
Printout
Z (Reset) report
08-01-2010 19:25
Z 0073
0000
DAILY
DEPT01 QT 48
•50.10
DEPT02 QT 28
•76.40
DEPT03 QT 17
•85.80
DEPT20 QT 4
•3.00
-----------------------GROSS TOTAL QT 108
•316.80
NET TOTAL No 46
•325.13
CASH-INDW •199.91
CHARGE-INDW •16.22
CHECK-INDW •105.00
TA1 •105.10
TAX1 •4.20
ROUNDING AMT •1.23
RF-MODE TTL No 2
•0.50
CALCULATOR No 3
-----------------------CASH No 44
•203.91
CHARGE No 3
•16.22
CHECK No 2
•105.00
RC •6.00
PD •10.00
- •0.50
%- •0.66
ERR CORR No 21
NS No 12
-----------------------CLERK01 •325.13
-----------------------GT •0,000,832,271.20
Z 0012
— Date/
—
—
—
Time
Consecutive No.
Non-resettable No. of
Resets*1/RESET Symbol
*1
Dept. Name/ No. of Items
— Amount
—
Gross Sales No. of Items
— Gross Sales Amount
—
Net Sales No. of Customers
— Net Sales Amount
— Cash in Drawer
— Charge in Drawer
— Check in Drawer
—
Taxable Amount for Tax Rate 1
—
Tax Amount for Tax Rate 1
— Rounded Amount
— Refnd Mode Count
— Refund Mode Amount
—
No. of
key operation in CAL mode
p
— Cash Sales Count
— Cash Sales Amount
— Charge Sales Count
— Charge Sales Amount
— Check Sales Count
— Check Sales Amount
—
Received On Account Amount
— Paid Out Amount
— Reduction Amount
—
Premium/Discount Amount
— Error Correction Count
— No sale Count
— Clerk 1 Sales Amount
(Refer to 2-8 Cashier Assignment)
—
Non-resettable Grand Sales total
(Printed only on RESET report)
*2
Part-1
10-2-3 Periodic Read/
Reset Report
Mode Switch to
Z
or
Operation
X
Z?p
Printout
12-01-2010 20:25
Z 1100
0010 PERIODIC ZZ 0001
GROSS TOTAL QT 67
•270.73
NET TOTAL No 38
•271.24
— Periocic Reset Symbol
—
Gross Sales No. of Items
— Gross Sales Amount
—
Net Sales No. of Customers
— Net Sales Amount
19
E
Part-2 CONVENIENT OPERATION
Part 2
CONVENIENT OPERATION
1. Various Programming
1-1 Unit price for Departments
Example
Unit Price $1.00 $2.20 $11.00
Dept. 1 2 3
Z
P appears in mode display
Z??
XX?
ZZ??
Mode Switch
CAL X
REG
OFF
RF
PGM
(For Dept. 1)
(For Dept. 2)
(For Dept .3)
• Unit prices within the range of 0.01~9999.99.
Z
1-2 Rate for percent key
Example
Discount Rate 2.5%
Z
X"B :
1-3 To change tax status
for Departments
Example
Status Taxable 1 Taxable 2
Depts. 1 7
Select key from list A For Dept. 1
Taxable status 2 For Dept. 7
P appears in mode display
(To end the setting)
• The rate within the range of 0.01 to 99.99%.
Tax status for the Departments 1 ~ 20 are initialized as Non-Taxable.
Z
P appears in mode display
~
.
j;
(To end the setting)
Selections
Taxable status 1
Taxable status 2
Taxable status 3
Taxable status 4
Non-taxable status
E
.
;
h
u
m
A
20
1-4 Status for Department
Part-2 CONVENIENT OPERATION
Mode Switch
REG
CAL X
Z
Example
Depts.
1 041
2 051
Selections
ABC
Select a number
from list A
Normal department
Minus department
No limitation for manually entered price.(7digits)
Maximum number of digits for manually entered price.
(1 ~ 7 digits)
Normal
department
C
P3 appears in mode display
?VZ
Select a number
from list B
?BZ
Maximum No. of
digits to be 5
For Dept. 1
Select a number from list C
For Dept. 2
Single item sale department
(To end the setting)
Selections
Z
~
?
Z
?
M
OFF
RF
PGM
Part-2
A
B
To prohibit manual price entries.
Normal sales (not a single-item sale) department
Set as a single-item sale department
1-5 Status for percent key
1-5-1 To change taxable status
for the percent key
Z
Example
Change Percent key registration as a Taxable status 1.
.:
Select key from list A
Taxable status 1
Taxable status 2
Taxable status 3
Taxable status 4
All taxable status (1, 2, 3 and 4)
Non-taxable status
or
<
>
?
C
Z
The percent key is initialized as Non-taxable.
~
P appears in mode display
(For percent key)
(To end the setting)
Selections
.
;
h
u
.;
m
A
21
E
Part-2 CONVENIENT OPERATION
1-5-2 Status for
percent key
C
Example
Round Up
Percent %+
Select a number from list A
Rounding of results produced by Percent Key operation.
Round off (1.544=1.54; 1.545=1.55)
Cut off (1.544=1.54; 1.545=1.54)
Round up (1.544=1.55; 1.545=1.55)
Program Percent Key to register discounts (%–).
Program Percent Key to register premiums (%+).
1-6 Taxable Status
for minus key
P3 appears in mode display
ZZ :
Select a number from list B
(To end the setting)
Selections
?
Z
X
A
?
Z
B
The minus key is initialized as Non-taxable.
Z
P appears in mode display
~
Example :
Change minus key registrations as a
Taxable status 1.
.g
Select key from list A
Minus key
(To end the setting)
Selections
Taxable status 1
Taxable status 2
Taxable status 3
Taxable status 4
All taxable status (1, 2, 3 and 4)
Non-taxable status
.
;
h
A
u
.;
m
E
22
Part-2 CONVENIENT OPERATION
1-7 General features
1-7-1 To set general
controls
Select a number from list A
Select a number from list B
Select a number from list C
Select a number from list D
Limit the last 2 digits of total amount to 00
and 50 when Danish rounding is specifi ed
for subtotal and total amount.
Key catch tone.
Ye s
No
Maintain key buffer during receipt issue
in REG mode.
Reset the consecutive number
to zero whenever a Daily Reset
Report is issued.
Allow credit balance registration.
No
Ye s
C
?NXX
Program code No.
???? p
No
Ye s
No
Ye s
Ye s
Ye s
No
Ye s
No
No
Ye s
Ye s
No
Ye s
No
No
P3 appears in mode display
(To end the setting)
Selections
?
X
A
V
N
Selections
?
Z
X
C
B
V
B
N
M
Time displays with second.
Allow split cash amount ten-
dered.
Allow split check amount
tendered.
Ye s
Ye s
No
Ye s
No
No
Use the ' key as a 000 key.
Cashier assignment systems (sign
on) is used.
Limit the last 1 digit of total
amount to 0 and 5 when Malaysian rounding is specifi ed
for subtotal and total amount.
No
No
Ye s
No
Ye s
Ye s
Mode Switch
CAL X
REG
OFF
RF
PGM
Selections
No
?
Ye s
Z
No
X
Ye s
C
V
B
N
M
?
Z
X
C
V
B
N
M
C
D
No
Ye s
No
Ye s
Selections
No
Ye s
No
Ye s
No
Ye s
No
Ye s
Z
Part-2
23
E
Part-2 CONVENIENT OPERATION
1-7-2 To set printing
controls
Select a number from list A
Always “0”
Select a number from list B
Select a number from list C
Use the printer to print receipts = R
Use the printer to print a journal = J
Print receipt by single/ double
height characters.
Print Total line at fi nalization
Single
No
Double
Single
Ye s
Double
C
P3 appears in mode display
?BXX
Program code No.
???? p
Selections
R
?
J
Z
R
X
J
C
R
V
J
B
R
N
J
M
(To end the setting)
A
Print the time on the receipt and journal.
Ye s
No
Print the consecutive number on the
receipt/journal.
Print the subtotal on the receipt/
journal when the Subtotal Key is
pressed.
Skip item print on journal.
Ye s
No
Ye s
No
Ye s
No
Ye s
No
Ye s
No
Ye s
No
No
Ye s
Selections
?
B
V
Selections
?
Z
X
C
C
V
B
N
M
E
24
Part-2 CONVENIENT OPERATION
1-7-3 To set report
printing controls
Select a number from list A
Select a number from list B
Select a number from list C
Clear electronic journal memory after
Daily Reset Report.
Ye s
No
Print RF switch mode refund count/
amount on the Daily Read/Reset Reports.
Ye s
No
C
P3 appears in mode display
?<XX
Program code No.
??? p
(To end the setting)
Selections
Print zero-total line on the Read/Reset
Reports
?
A
Z
Selections
?
B
Z
Print the grand sales total on the
Reset Reports.
Ye s
No
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Selections
No
?
Ye s
Z
X
C
C
No
Ye s
Part-2
1-7-4 Printer switch for
Receipt or Journal
The printer is initialized as receipt.
Z
Example
To print a journal
Z u
Select a number from list A
1-7-5 Receipt printing character/
key catch tone
Z
Z?X??
Z p
Z?<??
Z p
P appears in mode display
P appears in mode display
Selections
Use the printer to print receipts.
Use the printer to print a journal.
?
Z
A
• Printer selection to print a journal or
receipts can also be set on procedures
1-7-2 “To set printing controls”.
Selections
Print receipt with single height.
Print receipt with double height.
Selections
Key catch tone
No key catch tone
?
Z
?
Z
A
B
25
E
Part-2 CONVENIENT OPERATION
1-8 PLU setting
1-8-1 Linkage with
C
Departments
P3 appears in mode display
Example
ZiV p
PLU No. 1 100
Link dept. No. 4 4
PLU No.
Z?? i
V p
Linked to dept. 20.
Linked depts. 1~20 respectively.
Select number from list A
PLU No.
Dept. No. to be linked
(To end the setting)
Selections
?
Z~ X?
A
1-8-2 Unit Prices
for PLUs
Z
Example
PLU No. 1 2
Z i
Unit Price $1.00 $3.00
P appears in mode display
PLU No.
Z?? p
Unit Price
X i
PLU No.
C?? p
• 500 PLUs can be set.
• When the linked department is not specifi ed, the
PLU is linked to department 20.
• Status for a single-item sale and tax status are
followed the specifi ed linked department.
Unit Price
(To end the setting)
• Unit prices within the range of $0.01~9999.99.
E
26
Part-2 CONVENIENT OPERATION
1-9 Setting the Tax Rate
and rounding
?ZXB
Program set code No. for tax rate 1*
??"???? p
Select numbers from list B
Enter tax rate A
???? p
*1 Program set code
No. for Tax rate 2 is
?XXB
Tax rate 3 is
?CXB
The tax rate within the range of 0.0001 ~
99.9999%. Use " key for decimal point.
Tax rate 4 is
?VXB
• You can use either an
add-on rate tax or an
add-in rate tax (VAT),
depending on the
requirements in your
.
Cut off to 2 decimal places.
(1.544=1.54; 1.545=1.54)
Round off to 2 decimal places.
(1.544=1.54; 1.545=1.55)
Round up to 2 decimal places.
(1.544=1.55; 1.545=1.55)
area. You can specify
only one tax rate.
No specifi cations
• The normal rounding
specifi cation tells the
cash register how to
round tax amounts to
the proper number of
decimal places.
• The special rounding specifi cation and
Danish rounding tell
the cash register how
to round off subtotals
and totals so that their
rightmost 2 digits are
00 and 50.
• Note that the round-
Special rounding 1: 0 ~ 2 ➝ 0; 3 ~ 7 ➝ 5; 8 ~ 9 ➝ 10
Examples: 1.21=1.20; 1.26=1.25; 1.28=1.30
Special rounding 2: 0 ~ 4 ➝ 0; 5 ~ 9 ➝ 10
Examples: 1.123=1.120; 1.525=1.530
Danish rounding *2: 0 ~ 24 ➝ 0; 25 ~74 ➝ 50; 75 ~ 100 ➝ 100
(set the amount tender restriction on page 23 also)
Examples: 1.11=1.00; 1.39=1.50;1.99=2.00
Malaysian rounding: 0 ~ 2 ➝ 0; 3 ~ 7 ➝ 5; 8 ~ 9 ➝ 10
(set the amount tender restriction on page 23 also)
Examples: 1.21=1.20; 1.26=1.25; 1.28=1.30
Scandinavian rounding:
0~ 24 ➝ 0; 25 ~ 74 ➝ 50; 75 ~ 99 ➝ 100
Examples: 1.21=1.00; 1.30=1.50; 1.87=2.00
Australian rounding (only for tax rate 1)
0 ~ 2 ➝ 0; 3 ~ 7 ➝ 5; 8 ~ 9 ➝ 10
Examples: 1.21=1.20; 1.26=1.25; 1.28=1.30
Czech rounding: 0 ~ 49 ➝ 00;
Examples: 1.23=1.00; 1.52=2.00
ing specifi cation you
program for your cash
register depends on
the tax laws of your
country.
No specifi cations.
Specifi es add-on rate tax.
Specifi es add-in rate tax (VAT).
C
P3 appears in mode display
1
Select number from list D
Select number from list C
(To end the setting)
Tax rate specifi cations
A
Normal rounding specifi cations
??
B?
>?
Special rounding specifi cations for subtotal and total amounts
50 ~ 99 ➝ 100
Normal rounding specifi cations
?
X
C
B
D
?
Z
X
C
B
N
M
<
Part-2
C
See page 20 (department key), 21 (percent key), 22 (minus key) to change the fi xed tax status.
*2: In case of defi ning Danish rounding, the Euro should be set to the sub currency and the local to
the main currency.
27
E
Part-2 CONVENIENT OPERATION
1-10 To control Tax
Status printing
Select number from list A
C
P3 appears in mode display
?CXN
Program set code No.
??? p
Select number from list B
Always “0”
(To end the setting)
Selections
Print tax total line (only for Australia).
Print tax symbol.
No
Ye s
No
Ye s
No
Ye s
?
Z
X
C
A
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Print taxable amount.
Print taxable amount and tax
amount for Add-in.
No
Ye s
Selections
No
Ye s
No
Ye s
?
Z
X
C
B
E
28
Part-2 CONVENIENT OPERATION
1-11 To program department,
PLU, clerk name, receipt message
1-11-1 Simple character
list fror
/
1-1. Issue category list.
112:ARTICLE SALE
212:BOOK, STATIONARY
312:ELECTRONIC GOODS
412:DRESSING
512:SERVICE
612:PHARMACY
712:FOODSTUFFS
812:MEAL
912:OTHER
You can set department and PLU name by
using a simple character list fror
ZX
/
Categories
/
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Part-2
1-2. Issue category list.
VZX
DRESSING
401:JEWELRY
402:CLOTHING
403:UMBRELLA
404:SHOES
: :
: :
428:SCARF
/
2-1. Programming department name.
Example
Department 2 8
Name JEWELRY SHOES
Character code 401 404
X
P2 appears in mode display
V?Z
V?V j
(To end the setting)
E
29
Part-2 CONVENIENT OPERATION
2-2. Reset department name.
Department 2
Name DEPT01
Character code 0
2-3. Programming department PLU
PLU(1-1200) 2 30
Name CLOTHING UMBRELLA
Character code 402 403
X
P2 appears in mode display
?
(To end the setting)
2-4. Reset PLU name.
PLU(1-1200) 30
Name PLU0030
Character code 0
X
P2 appears in mode display
XizV?Xp
C?izV?Cp
(To end the setting)
X
P2 appears in mode display
C?iz? p
(To end the setting)
E
30
Part-2 CONVENIENT OPERATION
PLU
DBL
DEL
CH
DEPT
SHIFT
CLK#
CASH AMT
TEND
SUB
TOTAL
m
7 8 9
4 5 6
1 2 3
0
— ABC DEF
GHI JKL MNO
PQRS
TUV
WXYZ
"
In the PGM 2 mode, the keyboard becomes character setting keyboard
1-11-2 Character
keyboard
Double size key
1
Use this key to specify the next charac-
ter to a double sized character. You must
press this key before each double sized
character.
Alphabet keys
2
Use these keys to input characters. Re-
fer to the next page to enter characters.
Right arrow key
3
Use this key to input the character
located on the same alphabet key. This
key is also used for inputting a space.
Delete key
4
Use this key to delete character just
entered.
PLU key
5
Use this key to input PLU code.
Department keys
6
Use this key to specify department.
Department shift key
7
Use this key to shift department.
Clerk number key
8
Use this key to input clerk number.
illustrated below after specifying a department, a PLU, or a clerk.
Character program key (
Receipt message number key (
9
.
key)
Use this key to program receipt mes-
sage.
Program end key ( key)
0
Use this key to terminate character pro-
gramming.
A
u
key)
Use this key to program the PLU / clerk
characters just entered before.
p
Part-2
1-11-3 Programming department name
Example
Department 1 7
Name DAIRY
X
up to 8 (4 double sized) characters
><VVVZZZCCC p
Department 1
j \VV<<+< p
o
H
BA
P2 appears in mode display
D A I R Y → refer to 1-11-7
H
Department 7
B A → refer to 1-11-7
(To end the setting)
E
31
Part-2 CONVENIENT OPERATION
1-11-4 Programming PLU name
X
Example
PLU (1 ~ 500) 1 50
Name DAIRY
Z i
up to 8 (4 double sized) characters
D A I R Y → refer to 1-11-7
H
BA
><VVVZZZCCC p
B?i VV<<+< p
P2 appears in mode display
PLU No.
PLU No.
H B A → refer to 1-11-7
(To end the setting)
1-11-5 Programming clerk name
X
Example
Clerk (1~ 8) 1 5
Name JOHN
Z :
up to 8 (4 double sized) characters
KATE
BNNNVVNN p
J O H N → refer to 1-11-7
B: \BB\<\X\>> p
Clerk No.
K A T E
P2 appears in mode display
Clerk No.
→ refer to 1-11-7
(To end the setting)
1-11-6 Programming receipt message
X
Example
Line (1 ~ 5) 2
Message THANK YOU
X u
up to 24 (12 double sized) characters
XVV<NNBB++
T H A N K
CCCNNNXX p
Y O U → refer to 1-11-7
E
32
P2 appears in mode display
Line No.
fi x “K” space
(To end the setting)
YOUR RECEIPT
THANK YOU
CALL AGAIN
←
←
←
Line1
Line2
Line3
Part-2 CONVENIENT OPERATION
Characters are assigned to each numeric key. You can enter “A” by
1-11-7 Alphabetical
order
pressing
once, “B” twice, “C” three times …
<
The following tables indicate character assignment and the depression
numbers of the key to enter the appropriate character.
: A → B
A, B, C,
a, b, c,
8, …
→ Ä → Å
<
key
A
01
A
08
B
A
02
09
→ Ç → â
C
15
a
16
→ ã → ç
: D → E
D, E, F,
d, e, f,
9, …
→
>
key
a
22
D
01
c
E
D
08
E
23
02
É → Ê
→
09
→ ê → ë
: G → H
G, H, I,
g, h, i,
4, …
→ Í → Î → I
V
key
e
15
G
I
01
08
e
H
I
16
02
09
C
→
C
→
A
→
a
→
→
F
E
→
e
→
I
03
a
Æ
10
A
ä
17
a
returns to the beginning
F
03
d
10
E
è
17
f
I
03
9
→
I
10
I
a → b
→
Á → Â
→
à → å
→
d → e
→
Ë → È
→
ƒ →
→
g → h
→
Ï
04
11
18
04
11
18
04
11
b
A
a
e
E
05
c
12
A
19
a
05
f
12
d
returns to the beginning
h
→
I
05
i
Ì
12
i
c → 8
→
06
8
À → Ã
→
13
A
æ → á
→
20
a
f → 9
→
06
9
→ é
→
13
e
i → 4
→
06
4
Ï → Î
→
13
i
07
14
21
07
14
07
14
→
→
→
→
→
Part-2
→
→
→ Ì → í → í
: J → K
J, K, L,
j, k, l,
5,
: M → N
M, N, O,
m, n, o,
6, …
→ Ñ → Ö → Ø
B
N
key
key
i
→
→ ñ → ô
→
15
i
J
01
returns to the beginning
M
N
n
returns to the beginning
01
08
15
K
N
O
o
16
02
02
09
16
i
→
L
→
O
O
→
o
17
L
03
O
03
10
ö
17
returns to the beginning
→
.16
j → k
→
j
m → n
→
m
Ó → Ô
→
O
ò
→
o
04
k
04
n
11
O
ø
→
18
o 19
o
05
05
12
l → 5
→
l
→
o
→
O
→
o
06
5
o → 6
06
6
Ò → Õ
13
O
ó
→
20
õ
o
07
07
14
21
→
→
→
→
33
E
Part-2 CONVENIENT OPERATION
: P → Q → R
P, Q, R, S,
p, q, r, s,
1, …
→ s → 1 →
: T → U → V
T, U, V,
t, u, v,
2, …
→ Ü → Ú → Û → Ù
Z
X
key
key
→ ú
: W → X → Y
W, X, Y, Z,
w, x, y, z,
3, …
→ z → 3 →
: 0
0
: 7 → @ → -
7,
Symbols, …
C
?
M
key
key
key
P
01
Q
02
R
03
s
08
T
U
01
08
1
U
U
→
u
15
W
01
u
X
09
P
02
V
09
U
μ →
16
02
Y
10
03
10
returns to the beginning
03
z
08
3
→
0
01
7
01
@
09
Y
returns to the beginning
02
-
10
03
→ ~ → ( → ) → *
~
08
(
09
)
10
S
→
S
→
p
→
t
U
→
Z
→
y
→
/
*
04
11
t
04
11
Z
04
ÿ
11
/
04
11
p
→
p
ß
→
B
u
→
u
ü
→
u
w
→
w
→
y
:
→
:
#
→
#
05
q
12
05
v
12
u
05
x
12
05
!
12
+
q → r
→
06
r
returns to the beginning
→
v → 2
→
06
2
û → ù
→
13
u
x → y
→
06
y
returns to the beginning
→
! → ?
→
06
?
+
→
→ , →
13
,
07
07
14
07
07
14
→
→
→
→
→
→ ^ → ; → < → =
^
15
;
16
<
17
=
18
→ % → & → [ → ]
%
22
&
23
[
24
]
25
→ } → • → " → .
}
29
•
30
"
31
.
32
→ £ → √ → ¿ → ¡
→
Cf.
£
returns to the beginning
A
01 01
A
01
36
™
37
¿
38
Printing character
Number of the digit for entering character.
Number of the depression of the same key.
¡
39
>
→
>
'
→
'
\
→
\
™ → § →
→
¶
19
26
33
40
$ → ¥
→
$
→
{
→
_
§
20
{ → |
27
_ → `
34
41
→
¥
21
→
|
28
→
'
35
space
42
→
E
34
1-12 Printing to read
All Preset Data
• Printing preset data.
Part-2 CONVENIENT OPERATION
1-12-1 Printing preset
data except PLU
settings
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Operation
p
Printout
DEPT01 T1 @1.00
0000
DEPT02 @10.00
0000
DEPT20 @5.00
0000
- T1
%-(12.34%) T1
0000
1EURO
10200 0
10800 0
0122 0022
0522 1020
0622 0000
0822 0000
1022 0000
0326 0202
2422 2
‹•
1.29739
— Dept Name./Unit Price
— Tax Status/Normal Dept/
Digit Limit/
Single Item
— Minus/Tax Status
—
Percent Rate/%+ or %-
—
Tax Status/Percent Key Control
— Euro Exchange Rate
—
Date/Monetary Mode Control
—
Key catch tone Control
— Print Control
— General Control
— Calculation Control
— Tax Control
— Euro Status
Part-2
CLERK01 1
CLERK02 2
CLERK03 3
CLERK04 4
CLERK05 5
CLERK06 6
CLERK07 8
0125
4 %
5003
0000
0225
5.25 %
5003
0000
01
02
YOUR RECEIPT
07
TAXABLE SUPPLY
08
TAX INVOICE
— Tax Rate1
— Rounding specifi cation/
Tax System specifi cation
— Tax Rate 2
— Receipt message
35
E
Part-2 CONVENIENT OPERATION
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
1-12-2 Printing preset
Operation
PLU settings
Z p
Stop printing by .
Printout
PLU0001 @1.00
#0001 0000
PLU0002 @2.00
#0002 0002
PLU0003 @3.00
#0003 0000
PLU0004 @4.00
#0004 0000
PLU0199 @1,999.00
#0199 0000
PLU0500 @500.00
#0500 0000
— PLU Name/Unit Price
— PLU No./Program
E
36
Part-2 CONVENIENT OPERATION
2. Various Operations
2-1 Registration using
preset price
for Departments.
(Programming: See page 20)
Operation
Example
Unit Price $1.00 $2.20 $11.00
Quantity 1 2 4
Depts. 1 2 3
Amount
tendered
$50.00
V h
B???p
Printout
08-01-2010 15:30
REG 0040
DEPT01 •1.00
DEPT02 •2.20
DEPT02 •2.20
4 X @11.00
DEPT03 •44.00
TOTAL •
CASH •50.00
CHANGE •0.60
49.40
Mode Switch
CAL
X
REG
OFF
RF
PGM
— Repeat
—
Multiplication/Unit Price
—
Cash Amount Tendered
— Change
Z
Part-2
2-2 Single-Item Sales
(Programming: See page 21)
B?
Example 1:
Status Single item sale
Unit Price $0.50
Quantity 1
Dept. 1
Example 2:
Status Normal Single item sale
Unit Price $1.00 $0.50
Quantity 1 1
Dept. 2 1
Z??
B?
p
08-01-2010 15:45
REG 0041
DEPT01 •0.50
CASH •
0.50
— Cash Sales
For this example, Dept. 1 is programmed for a single-item-sale.
08-01-2010 16:00
REG 0042
DEPT02 •1.00
DEPT01 •0.50
CASH •
1.50
— Cash Sales
Single-item sale cannot be fi nalized if an item is registered
previously.
2-3 Check sales
Example
Unit Price $35.00
Quantity 2
Depts. 4
Operation
CB??
m
08-01-2010 16:10
REG 0043
DEPT04 •35.00
DEPT04 •35.00
CHECK •
Printout
70.00
— Check Sales
E
37
Part-2 CONVENIENT OPERATION
2-4 Split cash/
check sales
Example
Unit Price $30.00 $25.00
Quantity 1 1
Depts. 2 3
Cash amount
tendered
Check $35.00
$20.00
2-5 Post receipt
issuance
Example
Unit Price $1.00 $2.00
Z?? G
Quantity 1 1
Depts. 1 2
Cash amount
tendered
$5.00
C???
XB??
X???p
m
You can issue a post receipt after fi nalizing a transaction by pressing
Note that all of the following condition must be satisfi ed:
• Print “receipt” option is selected.
• Paper Saving mode must be "ON".
• The transaction must be fi nalized in the REG/RF mode using
X?? S
B?? p
(Receipt is not issued.)
If the transaction contains more than 40 lines (including receipt header), then the total formatted post receipt is issued.
<
(Receipt is issued.)
08-01-2010 16:15
REG 0044
DEPT02 •30.00
DEPT03 •25.00
TOTAL •
CASH •20.00
CHECK •35.00
55.00
<
p, u
Note:
You can issue only one post receipt per transaction.
(Post receipt)
08-01-2010 16:25
REG 0045
DEPT01 •1.00
DEPT02 •2.00
TOTAL •
CASH •5.00
CHANGE •2.00
(Total formatted post receipt)
08-01-2010 16:25
REG 0045
.
or m.
3.00
2-6 Refund
Example
Unit Price $1.00 $2.00
Quantity 1 1
Depts. 2 3
E
CASH •3.
00
Mode Switch
CAL
REG
OFF
RF
PGM
Operation
Z??
X??
p
08-01-2010 16:55
RF 0050
DEPT02 •1.00
DEPT03 •2.00
CASH •
Printout
3.00
Refund Mode
—
Indicator
After you fi nish RF mode operation, be sure to return the Mode
Switch to the REG (register) setting.
X
Z
38
Part-2 CONVENIENT OPERATION
2-7 PLU operation
2-7-1 PLU registration
Operation
(Programming: See page 26)
Z i
i
Example
PLU No. 1 2
Unit Price $1.00 $2.00
Quantity 2 4
Depts. 1 1
Cash amount
tendered
$10.00
Z??? p
V h
X i
Mode Switch
CAL
X
REG
OFF
RF
PGM
Printout
08-01-2010 17:00
REG 0051
PLU0001 •1.00
PLU0001 •1.00
4 X @2.00
PLU0002 •8.00
TOTAL •
CASH •10.00
CHANGE •0.00
10.00
— Repeat
— Multiplication
— Preset Unit Price
—
Cash Amount Tendered
Z
Part-2
2-7-2 PLU Single-Item Sale
(Programming: See page 26)
Operation
Z i
Example
PLU No. 1
Status Single item sale
Unit Price $1.00
Quantity 1
• For this example, linked department 1 is programmed for a singleitem-sale.
• Single-item sale cannot be fi nalized if an item is registered previously.
2-7-3 PLU report
Operation Printout
Mode Switch
X
Z p
Mode Switch
Z p
OFF
REG
OFF
REG
RF
RF
CAL
PGM
CAL X
PGM
Z
(Read)
Z
(Reset )
Printout
08-01-2010 17:10
REG 0052
PLU0001 •1.00
CASH •
08-01-2010 17:20
Z 0055
0001 PLU Z 0001
PLU0001 QT 12
•12.00
PLU0002 QT 27
•27.00
PLU0500 QT
•180.00
-----------------------TOTAL QT 1284
•10856.89
1.00
— Reset Counter
— PLU Name/No. of items
— Amount
— PLU total count
— PLU total amount
39
E
Part-2 CONVENIENT OPERATION
2-8 Other registrations
2-8-1 Reading the Time
and Date
h
h
y
Operation
Mode Switch
REG
Display
13-5#
08-01-10
~00
• Flashes per second
Hour/Minute
Day/Month/Year
(Default : depends
upon date order)
Mode Switch
REG
OFF
OFF
RF
CAL X
CAL
PGM
X
Z
Z
Adjusting the Time
Example
Current time = 13:58
Current Time: Hour Minute
Adjusting the Date
Example
Current date = 8, January 2010
Z
Operation
• Turn the Mode Switch to PGM.
Z
ZCB<h
y
Operation
• Turn the Mode Switch to PGM.
Display
p ~00
13-58 02
p ~00
• Enter current time in 24 hour system.
Mode Switch
REG
OFF
Display
p ~00
RF
PGM
CAL X
RF
PGM
Z
?<?ZZ?h
Current date: Day Month Year
y
08-01-10
p ~00
• Enter current date in 6 digits.
• Enter the last 2 digits for year set. (2010 → 10)
• If you have changed the date order (refer to page 12), enter date of that order.
E
40
Part-2 CONVENIENT OPERATION
Mode Switch
CAL
X
REG
OFF
RF
PGM
Z
2-8-2 Paid out from
cash in drawer
2-8-3 Cash received
on account
2-8-4 Registering
identifi cation
numbers
Operation
ZXCV
BNM<
Enter reference No.
Z??? ;
Operation
N?? .
Operation
j
# 12345678
08-01-2010 17:20
REG 0057
PD •10.00
08-01-2010 17:25
REG 0058
RC •6.00
Printout
Printout
Printout
— Reference Number
— Paid Out Amount
— Received On Account
Amount
A reference number or ID number of up to 8 digits can be registered
prior to any transaction.
Part-2
2-8-5 Reduction on
subtotal
Example:
Amount due reduced by
$0.50.
B?
ZXCV
BNM<
j
p
Operation
Z??
X??
B? g
p
08-01-2010 17:35
REG 0059
DEPT01 •0.50
# 12345678
CASH •
08-01-2010 17:45
REG 0060
DEPT01 •1.00
DEPT04 •2.00
- -0.50
CASH •
Printout
0.50
2.50
— Reference Number
or ID No.
E
41
Part-2 CONVENIENT OPERATION
2-8-6 Premium/
Discount
Z??
• 2.5% premium/discount
(programmed to x key)
applied to fi rst item.
:
X??
C??
• 7% premium/discount applied to transaction total.
• For programming the x
key as percent minus or
percent plus, see page 22.
• For programming percent
rate, see page 20.
M :
p
2-9 Cashier
Assignment
(Programming: See page 23)
Operation
Printout
Premium
DEPT01 $1.00
%+(2.5%) $0.03
DEPT02 $2.00
DEPT03 $3.00
ST $6.03
%+(7%) ·0.42
CA $
6.45
DEPT01 $1.00
— *1
%-(2.5%) -0.03
DEPT02 $2.00
DEPT03 $3.00
— *2
ST $5.97
— *3
%-(7%) -0.42
CA $
*1 Premium/Discount Rate
Premium/Discount Amount
*2 Subtotal
*3 Premium/Discount Rate
Premium/Discount Amount
Discount
5.55
Mode Switch
In any mode
REG, RF, CAL,
— *1
— *2
— *3
X or Z,
except PGM
Cashier assignment system is used to control each cashier (or clerk) sales total. When you select
this function on page 23, you can get 8 cashiers (or clerk) sales data.
Cashier assignment must be performed prior to starting registration or any other operation, except
Program mode.
Z :
Select a number
from list A
Selections
Sign off (cancel) the assignment of cashier ID No.
Assign a cashier ID No. 1 through 8. Z ~
?
<
A
• Currently assigned cashier (or clerk) ID number is printed on the receipt or journal for each transaction.
• The assigned clerk memory number is automatically signed off when the mode key is set to OFF
position.
• The assigned cashier (or clerk) sales totals with ID number are printed on the receipt or journal
when you perform daily X/Z sales report.
E
42
Part 3
CALCULATOR FUNCTION
1. Calculator
Mode
1-1 Calculation
examples
5+3–2=
(23–56)×78=
(4×3–6)÷3.5+8=
12% on 1500
t
BZ t
BC X p
V C N C"B < p
ZB?? ZX :
While registering at REG
mode, you can switch to
CAL mode and then return to REG mode to resume the registration.
Operation
(Miss operation)
XC BN M< p
Mode Switch
CAL
X
REG
OFF
RF
PGM
Z
ç ~
(Cancels item entered.)
&
-257$
)714
18~
Mode Switch
CAL
REG
OFF
RF
Display
PGM
X
Z
Part-3
1-2 Memory recall
Recalls the current amount onto the display.
– during registration: current subtotal
– registration has been completed: the last amount
Operation
On REG mode
On CAL mode
/ C p
Example:
Divide the current subtotal
$30.00 at REG mode by 3 (to divide the bill between 3 people).
Operation
On REG mode
/ p
/ p
/ p
Example:
Recall the current result at CAL mode during
registration, and register the cash amount due
for each person.
Z?' X?'
Memory recall
Recalls the current result by pressing
mode on the display.
Memory recall
Display
1~
key at CAL
/
Printout
DEPT01 •10.00
DEPT02 •10.00
TOTAL •
CA •10.00
CA •10.00
CA •10.00
CG •0.00
30.00
43
E
Part-3 CALCULATOR FUNCTION
1-3 Setting for calculator
operation
C
Z?XX
Program Code No.
? p
Select a number from list A.
P3 appears in mode display
(To end the setting)
Mode Switch
REG
OFF
CAL X
RF
Z
PGM
Selections
Open drawer whenever
Open drawer whenever m is pressed.*
Print No. of Equal key operations on
General Control X and Z reports.
Ye s
No
p
is pressed.*
No
Ye s
No
Ye s
No
Ye s
No
Ye s
No
Ye s
No
Ye s
?
Z
X
C
V
B
N
M
A
* Drawer does not open during registration procedures even if you
press
p
or
by turning the mode switch to CAL position.
m
E
44
Part 4
USEFUL INFORMATION
1. Troubleshooting
1-1 If the following things happen
Symptom/Problem Most common causes Solutions
1 E01 appears on the display.
2 E08 appears on the display. Sign on operation is not performed.
3 E10 appears on the display.
4 E90 appears on the display. Totals remain in the memory.
5 E81 appears on the display.
No date on receipt.
6
Paper is not advancing enough.
Drawer opens up after ringing up
7
only one time.
Not clearing totals at end of day
8
after taking report.
Programming is lost whenever
9
register is unplugged or there is
a power outage.
Register is inoperative.
10
Can’t get money out of drawer.
Changing modes without completing transaction.
Printer head (platen arm) is
opened or no papaer roll.
Electronic journal memory becomes/ is full.
Printer is programmed as a journal. Program printer to print receipts.
Department is programmed as a
single item dept.
Using X mode to take out reports. Use Z mode to take out reports.
Bad or no batteries. Put in new batteries.
No power. Pull lever underneath register at rear.
Return mode switch to where it stops buzzing and press
Prior to starting registration of any other
operation, press Z~< and then :.
Close the platen arm fi rmly or enter paper
roll.
Issue the general control reset report, periodic reset report and PLU reset report.
Issue electronic journal reset report. (refer
to page 18)
Program the dept. as a normal dept.
p
.
1-2 In case of power failure
If the power supply to the cash register is cut by a power failure or any other reason, simply wait for
power to be restored.The details of any ongoing transaction as well as all sales data in memory are
protected by the memory backup batteries.
· Power failure during a registration
The subtotal for items registered up to the power failure is retained in memory.You will be able to
continue with the registration when power is restored.
· Power failure during printing a read/reset report
The data already printed before fhe power failure is retained in memory.You will be able to issue
a report when power is restorted.
· Power failure during printing of a receipt and the journal
Printing will resume after power is restored.A line that was being printed when the power failure
occurred is printed in full.
· Other
The power failure symbol is printed and any item that was being printed when the power failure
occurred is reprinted in full.
Part-4
45
E
Part-4 USEFUL INFORMATION
1-3 When the L sign appears on the display
About the low battery indicator...
The following shows the low battery indicator.
If this indicator appears when you switch the cash register on, it can mean one of three things:
· No memory backup batteries are loaded in the cash register.
· The power of the batteries loaded in the unit is below a ceratain level.
· The batteries loaded in the unit are dead.
To clear this sign, press
Important!
Whenever the low battery indicator appears on the display, load a set of 2 new batteries as soon as
possible. If there is a power failure or you unplug the cash register when this indicator appears, you
will lose all of your sales data and settings.
BE SURE TO KEEP THE POWER CORD OF THE CASH REGISTER
PLUGGED IN WHENEVER YOU REPLACE THE BATTERIES.
l ~00
key.
y
2. Specifi cations
INPUT METHOD
Entry: 10-key system; Buffer memory 8 keys (2-key roll over)
Display (LED): Amount 8 digits (zero suppression); Department/PLU No.; No. of repeats
PRINTER
Receipt: 12 digits (Amount 10 digits, Symbol 2 digits)
(or Journal) Automatic paper roll winding (journal)
Paper roll: 58 mm × 80 mm ∅ (Max.)
CALCULATIONS
Entry 8 digits; Registration 7 digits; Total 8 digits
CALCULATOR FUNCTION
8 digits; Arithmetic calculations; Percent calculations
Memory protection batteries:
The effective service life of the memory protection batteries 2 (UM-3, or R6P (SUM-3) type
batteries) is approximately one year from installation into the machine.
Power source/Power consumption: See the rating plate.
Operating temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10 to 90%
Dimensions/Weight: 188 mm(H)× 330 mm(W)× 360 mm(D) with S drawer
4 kg with S drawer
205 mm(H)× 410 mm(W)× 450 mm(D) with M drawer
8 kg with M drawer
Specifi cations and design are subject to change without notice.
E
46
Part-4 USEFUL INFORMATION
When the cash drawer does not open!
In case of power failure or the machine is in malfunction, the cash drawer does not open automatically.
Even in these cases, you can open the cash drawer by pulling drawer release lever (see below).
Important!
The drawer will not open, if it is locked with a drawer lock key.
Laite on liitettävä suojamaadoituskostkettimilla vaurstettuun pistrasiaan
Apparatet må tiloples jordet dtikkontakt
Apparaten skall anslutas till jordat nätuttag
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku Tokyo 151-8543, Japan
Representative within the European Union:
Casio Europe GmbH
Casio-Platz 1, 22848 Norderstedt Germany
Part-4
This mark applies in
EU countries only.
Please keep all information for future reference.
E
47
c
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
SE-S10 E
CR0906-A Printed in Indonesia
Printed on recycled paper.
Loading...
