Casio FX9750GIISC User Manual
fx-9860GII SD
fx-9860GII
fx-9860G AU PLUS
fx-9750GII
fx-7400GII
Hardware
User’s Guide
E
CASIO Worldwide Education Website
http://edu.casio.com
CASIO EDUCATIONAL FORUM
http://edu.casio.com/forum/
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to
meet FCC emission limits.
Connector SB-62 Power Graphic Unit to Power Graphic Unit
USB connector that comes with the fx-9860G
Power Graphic Unit to Windows® compatible PC
II SD/ fx-9860GII
Declaration of Conformity
Model Number: fx-9860GII SD/fx-9860GII/fx-9860G AU PLUS
fx-9750GII/fx-7400GII
Trade Name: CASIO COMPUTER CO., LTD.
Responsible party: CASIO AMERICA, INC.
Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801
Telephone number: 973-361-5400
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Windows is a registered trademark of Microsoft Corporation.
Company and product names used in this manual may be registered trademarks or trademarks
of their respective owners.

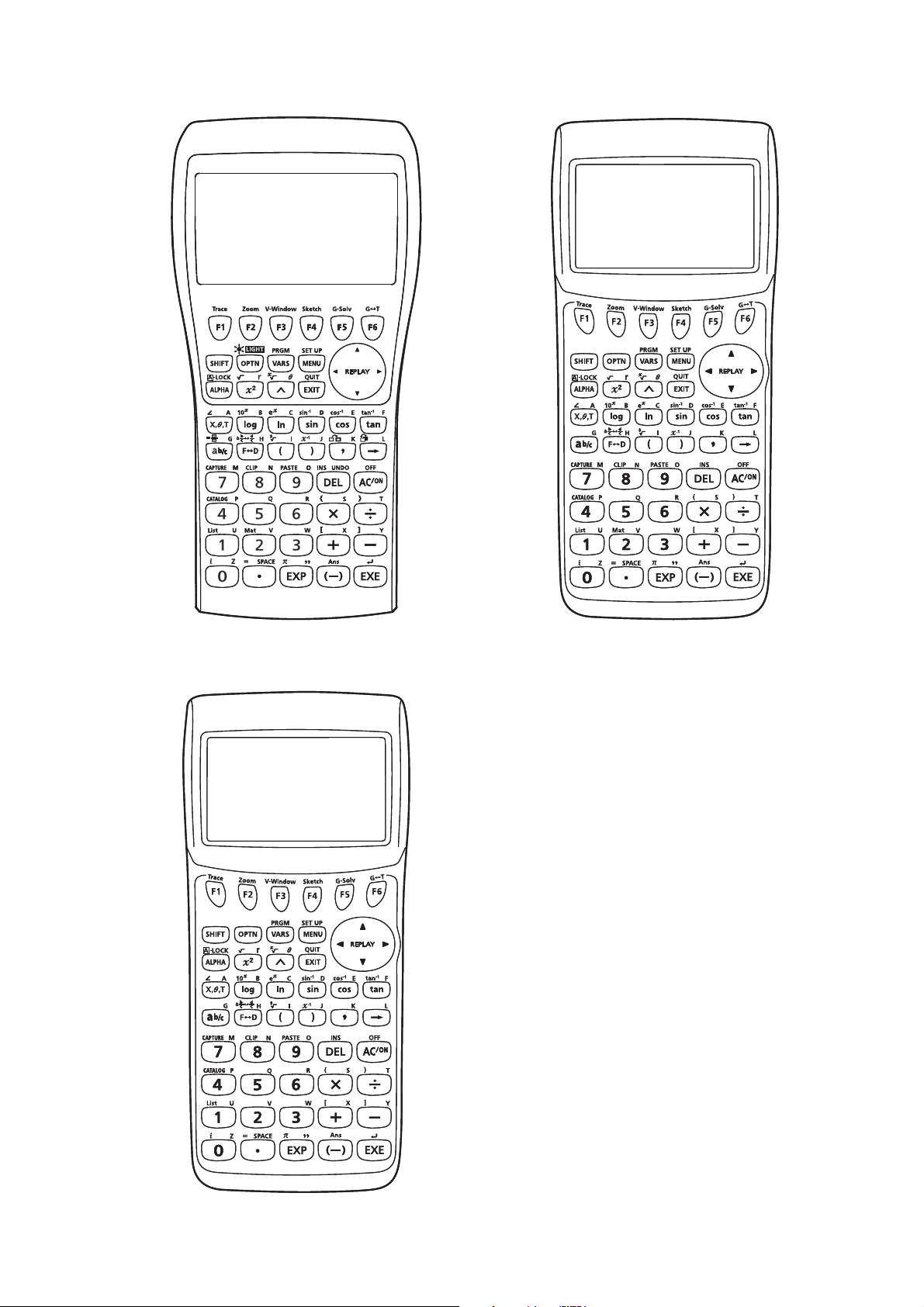

BEFORE USING THE CALCULATOR
fx-9860GII SD
fx-9860G
II
fx-9860G AU PLUS
fx-9750G
II
fx-7400GII
fx-9860GII SD
fx-9860G
II
fx-9860G AU PLUS
fx-9750G
II
fx-7400GII
FOR THE FIRST TIME...
Batteries are not loaded in your calculator at the factory.
Be sure to follow the procedure below to load batteries and adjust the display contrast
before trying to use the calculator for the first time.
1. Making sure that you do not accidently press the M key, slide the case onto the
calculator and then turn the calculator over. Remove the battery cover from the
calculator by pulling with your finger at the point marked .
2. Load the four batteries that come with the
calculator.
• Make sure that the positive (+) and negative (–)
ends of the batteries are facing correctly.
3. Replace the battery cover, making sure that
its tabs enter the holes marked and turn the
calculator front side up. The calculator will turn on
automatically and the MAIN MENU will appear on
the display.
i
• If the Main Menu shown to the right is not on the
RESTART buttonRESTART button
display, press the RESTART button on the back
of the calculator.
The above screen shows
the fx-9860G
appearance of the screens
of other models may be
slightly different.
4. Use the cursor keys (D, A, B, C) to select the SYSTEM icon and press U,
then press (
) to display the contrast adjustment screen.
II SD. The
5. Adjust the contrast.
• The C cursor key makes display contrast darker.
• The B cursor key makes display contrast lighter.
• (INIT) returns display contrast to its initial default.
6. To exit display contrast adjustment, press K.
ii
Precautions when Using this Product
A progress bar and/or a busy indicator appear on the display whenever the calculator is performing
a calculation, writing to memory, or reading from memory.
Busy indicator
Progress bar
Never press the RESTART button or remove the batteries from the calculator when the progress
bar or busy indicator is on the display. Doing so can cause memory contents to be lost and can
cause malfunction of the calculator.
fx-7400GII, fx-9750GII users...
You can transfer data to a computer using the optionally available Program-Link software (FA-124).
The Program-Link software can be used to backup data to a computer.
fx-9860G
The calculator is equipped with flash memory for data storage. It is recommended that you always
backup your data to flash memory. For details about the backup procedure, see “Using the Memory
Manager” (page 11-1) in the separate Software Version 2.00 User’s Guide.
You can also transfer data to a computer using the Program-Link software (FA-124) that comes
bundled with the calculator. The Program-Link software can also be used to backup data to a
computer.
fx-9860G
If the message “No Card” appears even though an SD card is loaded in the SD card slot, it means
that the calculator is not recognizing the card for some reason. Try removing the card and then
loading it again. If this does not work, contact the developer of the SD card. Note that some SD
cards may not be compatible with this calculator.
II SD, fx-9860GII, fx-9860G AU PLUS users...
II SD only
E-1
Handling Precautions
• Your calculator is made up of precision components. Never try to take it apart.
• Avoid dropping your calculator and subjecting it to strong impact.
• Do not store the calculator or leave it in areas exposed to high temperatures or humidity, or large
amounts of dust. When exposed to low temperatures, the calculator may require more time to
display results and may even fail to operate. Correct operation will resume once the calculator is
brought back to normal temperature.
• The display will go blank and keys will not operate during calculations. When you are operating
the keyboard, be sure to watch the display to make sure that all your key operations are being
performed correctly.
• Replace the main batteries once every one year regardless of how much the calculator is used
during that period. Never leave dead batteries in the battery compartment. They can leak and
damage the unit.
• Do not use an oxyride battery* or any other type of nickel-based primary battery with this product.
Incompatibility between such batteries and product specifications can result in shorter battery life
and product malfunction.
• Keep batteries out of the reach of small children. If swallowed, consult a physician immediately.
• Avoid using volatile liquids such as thinner or benzine to clean the unit. Wipe it with a soft, dry
cloth, or with a cloth that has been moistened with a solution of water and a neutral detergent and
wrung out.
• Always be gentle when wiping dust off the display to avoid scratching it.
• In no event will the manufacturer and its suppliers be liable to you or any other person for any
damages, expenses, lost profits, lost savings or any other damages arising out of loss of data
and/or formulas arising out of malfunction, repairs, or battery replacement. It is up to you to
prepare physical records of data to protect against such data loss.
• Never dispose of batteries, the liquid crystal panel, or other components by burning them.
• Be sure that the power switch is set to OFF when replacing batteries.
• If the calculator is exposed to a strong electrostatic charge, its memory contents may be
damaged or the keys may stop working. In such a case, perform the Reset operation to clear the
memory and restore normal key operation.
• If the calculator stops operating correctly for some reason, use a thin, pointed object to press the
RESTART button on the back of the calculator. Note, however, that this clears all the data in
calculator memory.
• Note that strong vibration or impact during program execution can cause execution to stop or can
damage the calculator’s memory contents.
• Using the calculator near a television or radio can cause interference with TV or radio reception.
• Before assuming malfunction of the unit, be sure to carefully reread this User’s Guide and ensure
that the problem is not due to insufficient battery power, programming or operational errors.
* Company and product names used in this manual may be registered trademarks or trademarks of
their respective owners.
E-2
