Casio EQB-800, 5512 Instruction Manual

MA1707-EB

Operation Guide 5512

Contents

Basic Operations

Watch Face Items

Navigating Between Modes

Mode Overview

Using the Crown

Hands and the Day Indicator Movement

Solar Charging

Using Mobile Link with a Mobile Phone

Getting Ready

A Installing applications

B Configuring Bluetooth Settings

C Pairing the watch with a phone

Auto Time Adjustment

Configuring World Time Settings

Configuring Stopwatch Settings

Viewing Stopwatch Data

Setting the Alarm

Watch Settings

Setting the Time and Date

Configuring Dual Time Settings

Swapping Your Current Location Time and

Dual Time Settings

Stopwatch

Split Times and Lap Times

Measuring Elapsed Time

Taking a Split Time Reading

Checking the Difference between a Lap Time

and the Target Time

Target Value Type

Enabling or Disabling Alert Sounds

Example: Recording a Race Lap Time

Alarm

Configuring Alarm Settings

Turning the Alarm On or Off

Stopping an Alarm

Adjusting Hand and Day Indicator Alignment

Phone Finder

Configuring Watch Settings

Returning the Watch to Its Factory Default

Settings

Changing the Home City Summer Time Setting

Checking the Watch Charge Level

Connection

Connecting with a Phone

Disconnecting from a Phone

Using the Watch in a Medical Facility or Aircraft

Unpairing

After Purchasing Another Phone

Adjusting Hand and Day Indicator Alignment

International Travel

Other Information

Summer Time Switching

Supported Phone Models

Specifications

Mobile Link Precautions

Copyrights and Registered Copyrights

Troubleshooting

②

④

⑦ ⑧

⑨

⑥

①

③

⑤

C*

Bluetooth connection

Alarm Mode Stopwatch Mode

Calendar Mode

Any button

(Approximately 2 seconds)

③④⑤⑥

②

①

Phone Finder (Hold down about

1.5 seconds.)

Current location time/World Time swapping (Hold down about 3 seconds.)

④⑤⑥

③

①

②

Split/ Reset

Start/ Stop

Operation Guide 5512

Basic Operations

This section provides an overview of the watch and its operations.

Note

●

The illustrations included in this operation guide have been created to facilitate explanation. An illustration may differ somewhat from the item it represents.

Watch Face Items

Lap evaluation area

When the watch is in the Stopwatch Mode, the mode hand indicates the difference between the lap time being measured and the target time.

F / T marks

When setting a target lap time in the Stopwatch Mode between a lap time and the target value, the second hand will point to the current target lap time type. “F”: FASTEST (Fastest) “T”: TARGET (Target)

for calculating the difference

Alarm setting, stopwatch alert beeper

setting In the Alarm Mode, the second hand indicates if the alarm is enabled or disabled. “ON”: Alarm enabled “OFF”: Alarm disabled In the Stopwatch Mode the second hand indicates if the stopwatch alert beeper is enabled or disabled. “ON”: Alert enabled “OFF”: Alert disabled

Day of week

The mode hand points to the current day of the week.

A / P marks

When configuring time settings in your current location (Home City), the second hand indicates whether it is an a.m. time or a p.m. time. “A”: AM “P”: PM

Navigating Between Modes

Your watch has the modes shown below.

Mode Overview

Calendar Mode

●

In this mode, the main hour and minute hands indicate the current time in your current location (Home City), while the dial hour and minute hands

Current day of the week in your current

location (Home City)

Charge level

Current second in your current location

(Home City)

Dual Time hour

Dual Time minute

Dual Time 24-hour hand

The A-side of the dial indicates an a.m. time, while the P-side indicates a p.m. time.

Stopwatch Mode

●

In this mode, the main hour and minute hands indicate the current time in your current location (Home City), while the other hands show elapsed time as measured by the stopwatch.

show another time (Dual Time).

R mark

The retrograde dial hand points to “R” while the watch is standing by for connection with a phone.

Charge level

In the Calendar Mode and Alarm Mode, the retrograde dial hand indicates the current battery charge level.

e mark

The retrograde dial hand points to e while the watch is connected with a phone.

AL mark

In the Alarm Mode, the mode hand points to “AL”.

Lap evaluation

Checking the Difference between a Lap

Time and the Target Time

Use (A) to navigate between modes. Hold

Stopwatch seconds

down (A) for about two seconds to enter the Calendar Mode. To connect with a phone, hold down (C) for about 2 seconds.

* The watch cannot connect with a phone while a stopwatch time measurement operation is in progress.

Stopwatch 1/20 (0.05) second

Stopwatch hours

Stopwatch minutes

Stopwatch 24-hour hand

The A-side of the dial indicates hours 0 through 12, while the P-side indicates hours 12 through 24.

③④⑤

①

②

Enabling/ Disabling the Alarm

Loosen

Crown

Normal timekeeping

Screw in

Mode hand

Day indicator

NOYES

Operation Guide 5512

Alarm Mode

●

In this mode, the main hour and minute hands indicate the current time in your current location (Home City), while the dial hour and minute hands show the alarm time setting.

Mode

Alarm enable/disable

The second hand will point to “ON” while the alarm is turned on, and to “OFF turned off.

Alarm minute

Alarm hour

Alarm 24-hour hand

The A-side of the dial indicates an a.m. time, while the P-side indicates a p.m. time.

”

while it is

Important!

●

To prevent loss of water resistance and/or damage due to impact, be sure to

screw the crown in by rotating

it away from you as you push it in.

●

When pushing the crown back in, take care not to apply too much force.

●

Fast Forward/Fast Reverse

After pulling out the crown, rotating it quickly in succession hands to move forward or back at high speed. While the hands are moving forward at high speed, quickly rotating the crown in succession again will increase the speed even further.

in either direction will cause the

●

Day

●

It can take anywhere from about 15 to 30 seconds for

the day indicator to change after timekeeping reaches midnight. The mode hand moves as the day indicator changes.

●

The day indicator will not change while a stopwatch time measurement operation is in progress.

Solar Charging

This watch runs on power supplied from a rechargeable (secondary) battery that is charged by a solar panel. The solar panel is integrated into the face of the watch, and power is generated whenever the face is exposed to light.

Charging the Watch

●

When you are not wearing the watch, put it in a location where it is exposed to bright light.

Using the Crown

The watch’s crown is a screw-in (screw lock) type. To

use the crown, you first need to rotate

it towards you (leftwards) to loosen it.

●

Pulling Out and Pushing In the Crown

To perform a crown operation, pull it out to the first or second click and then rotate it. Do not pull the crown with too much force.

First click

Second click

●

Stopping Fast Forward/Fast Reverse

Rotate the crown in the direction opposite that of the ongoing operation or press any button.

Note

●

If you do not perform any operation for about two minutes after pulling out the crown, crown operations will automatically become disabled. If that happens, push the crown back in and then pull it out again.

Hands and the Day Indicator Movement

●

Mode Hand and Day Indicator Movement

Changing the day setting of the watch will also cause the mode hand to move.

While you are wearing the watch, make sure that its face (solar panel) is not blocked from

light

by the sleeve of your clothing. Power

the generation efficiency is reduced even when the face of the watch is blocked only partially.

Important!

●

Depending on light intensity and local conditions, the watch may become hot to the touch when exposed to light for charging. Take care to avoid burn injury after charging. Also, avoid charging the watch under high-temperature conditions like the ones described below.

ー

On the dashboard of a vehicle parked in the sun

ー

incandescent light bulb or

Near an other source of heat Under direct sunlight or in other hot areas for long periods

③

②

④

①

Second hand

Operation Guide 5512

Checking the Charge Level

●

You can determine the watch’s current charge level by checking the position of the retrograde dial hand.

Charge LevelA: Good (High)

Charge LevelB: Good (Medium)

Charge LevelC: Good (Medium)

Charge LevelD: Low

Remaining Charge and Dead Battery

●

You can determine if the charge level is low by checking the hand movement. Functions become disabled as battery power goes low.

Important!

●

Should battery go low or go dead, expose the

face (solar panel) to light

as soon as possible.

Note

●

Exposing the watch face to light after the battery goes dead will cause the second hand to revolve counterclockwise until it stops at second 57. This indicates charging has started.

Low Battery Power

The second hand jumps at two-second intervals.

Charging Time Guidelines

●

The table below shows guidelines for approximate charging times.

Required Charging Time for 1-day Use

Light Intensity Approximate Charging Time

High

Low

A B C D

8 minutes 30 minutes 48 minutes

8 hours

Time Required to Achieve Next Charge Level

Approximate Charging Time

Light Intensity

Charge Level1Charge Level

High

Low

6 hours 85 hours

8 hours 137 hours

93 hours -

2 hours 23 hours

Charge Level 1 :

Time from dead battery until hand movement starts

Charge Level 2 :

Time from hand movement starts until a full charge

Light Intensity

Sunny day, outdoors (50,000 lux)

Sunny day, near a window (10,000 lux)

Overcast day, near a window (5,000 lux)

Indoor fluorescent lighting (500 lux)

Note

●

Actual charging local charging environment.

time depends on the

Using Mobile Link with

a Mobile Phone

While there is a Bluetooth connection between the setting is adjusted automatically in accordance with the phone’s time setting. You can also change the watch’s time settings.

Note

●

Getting Ready

A Installing applications

To use the watch with a phone, first tap one of the links +” app on the phone.

●

iOS (iPhone) Users

https://itunes.apple.com/us/app/ id760165998?ls=1&mt=8

●

AndroidTM

https://play.google.com/store/apps/details? id=com.casio.watchplus

Configuring Bluetooth Settings

Enable the phone’s Bluetooth.

watch and phone, the watch time

This function is available only while CASIO WATCH+ is running on the phone.

This section describes watch and phone operations.

X : Watch operation Y : Phone operation

below and install the “CASIO WATCH

(GALAXY, etc.) Users

Dead Battery

All hands and the day indicator are stopped.

Power Saving

●

Leaving the watch in a dark location for about one hour between the hours of 10 p.m. and 6 a.m. will cause the second hand to stop, and the watch to enter Level 1 power saving. If the watch is left in this condition for six or seven days, all hands will stop at 12 o’clock and the watch will enter Level 2 power saving.

Level 1 :

Second hand stops to save power.

Level 2 :

The following operations are stopped to save power:

all

hand movement (excluding the day indicator), Bluetooth connection, and alarm alerts.

Recovering from Power Saving Operation

Press any button or place the watch in a welllit area to recover from power saving.

Note

●

For details about setting procedures, see your phone documentation.

Bluetooth mark

12:30

Operation Guide 5512

C Pairing the watch with a phone

Before you can use the watch in combination with a phone, you first need to pair them.

Move the phone to be paired with close to

(within one meter of) the watch.

Y On the Home Screen, tap the “CASIO WATCH+” icon.

Perform the operation shown on the

screen of the phone to be paired with.

●

If a pairing prompt message appears, perform the operation shown on the phone screen.

●

pairing

When hand will point to the “R” mark. When pairing is complete, the retrograde dial

hand will move to e.

starts, the retrograde dial

Important!

●

Note that the watch will not perform auto time adjustment if it enters the Calendar Mode

while any one of the

conditions below exists.

ー

The stopwatch is performing a time measurement operation.

ー

Watch battery power is low (retrograde dial hand pointing to “E”).

ー

Watch is in Level 2 power saving.

ー

While it is too far away from its paired phone

ー

When communication is not possible due to radio interference, etc.

ー

While the phone is updating its system

Note

●

Triggering Immediate Time Adjustment

The watch will synchronize its time setting to that of the phone immediately when they are connected with each other. Whenever you want to adjust the watch’s time setting based on your phone's time, perform the procedure below to connect with a phone.

X Press (C).

This causes the retrograde dial hand to

“R”. The retrograde dial hand will

move move to e when a connection is

established between the watch and phone, and the time setting of the watch will synchronize with the phone’s time setting.

●

The watch will disconnect from the phone automatically after time synchronization is complete.

Auto Time Adjustment

The watch can be set to adjust its time setting automatically each phone time.

To have the watch perform auto time adjustment, put it into the Calendar Mode.

●

Using Auto Adjust

Your watch adjusts its time setting four times a day according to a preset schedule. It performs the adjustment operation automatically as you go about your daily life, without any operation required by you.

day in accordance with the

●

If the watch does not indicate the correct time

even if is able to connect with a phone, correct the hand and date indicator positions.

Adjusting Hand and Day Indicator

Alignment

●

is a World Time City specified

If there with CASIO WATCH+, its time will also be synchronized automatically.

●

The watch will connect with the phone and perform auto time adjustment at around 12:30 a.m., 6:30 a.m., 12:30 p.m. and 6:30 p.m. The connection is automatically terminated after auto time adjustment is complete.

●

Summer Time

Once the watch is connected with a phone and its time is adjusted with the phone time, its Home City time and World Time will automatically switch between standard time and summer time as required, even if the watch is

no longer connected with the phone.

Summer Time Switching

●

Adjusting the time setting manually with a watch operation will cancel auto standard time/summer time switching.

●

A CASIO WATCH+ screen shows information about summer time periods.

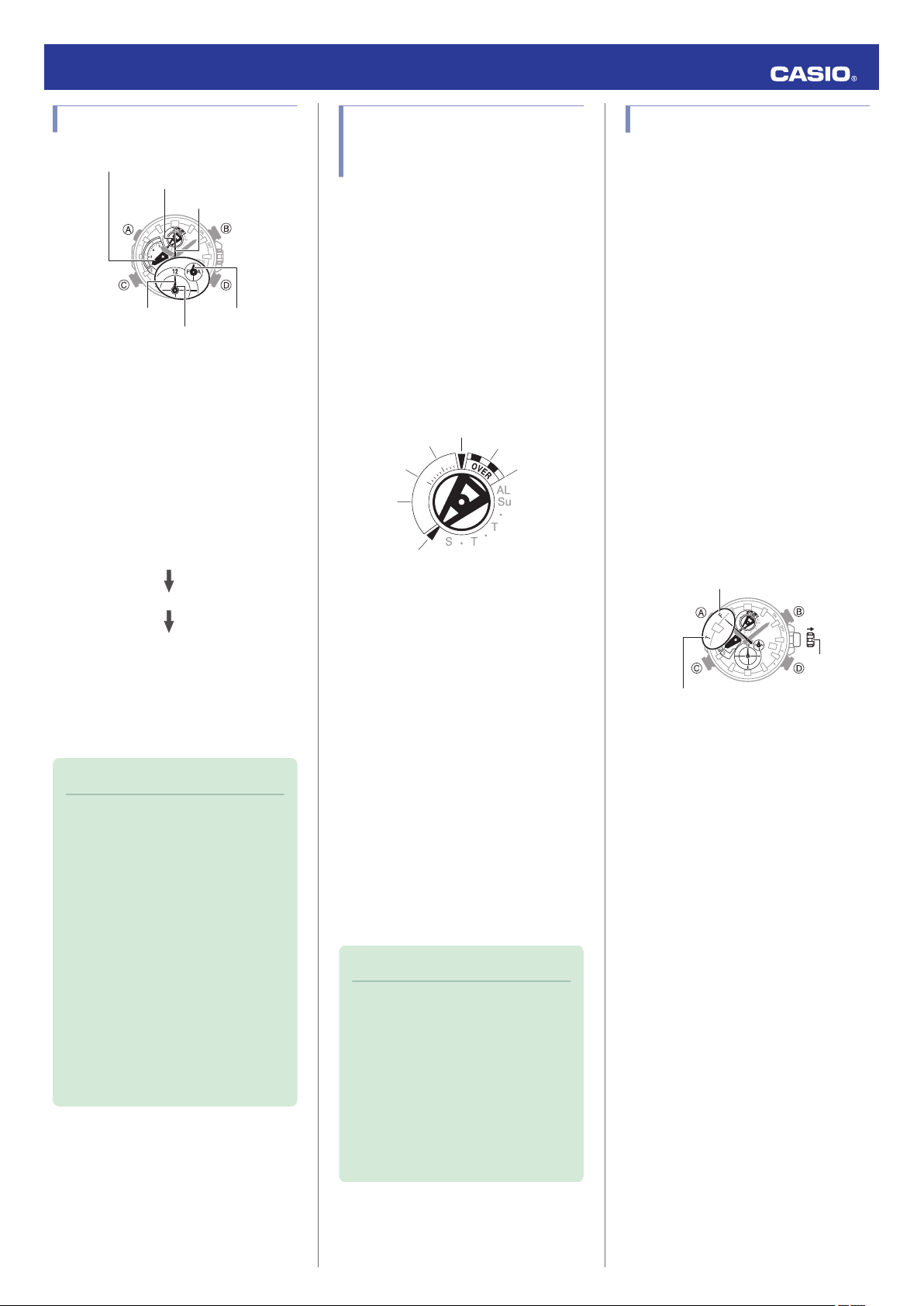

Configuring World Time Settings

Specifying a World Time City with CASIO WATCH+ causes the city’s time to be indicated by Watch settings can be configured for auto summer time switching for the World Time City.

Note

the small hour and minute hands.

●

CASIO WATCH+ World Time lets you select from among approximately 300 cities as the World Time City.

World Time hour (24-hour)

World Time hour and minute

After swappingBefore swapping

World Time

World TimeHome Time

Home Time

Operation Guide 5512

●

Selecting a World Time City

Y Tap the

X Hold down the (C) button for about 2

“CASIO WATCH+

” icon.

seconds.

●

This causes the second hand to move to 12 o’clock. Keep (C) depressed at this time until the second hand completes one full rotation.

●

The

retrograde

dial hand will move from

“R” to e when a connection is established between the watch and phone.

Y Perform the operation shown on the phone screen.

The World Time setting will

be reflected on the watch.

The dial hour and minute hands, and the small 24-hour hand indicate the current time in the selected city and time zone.

●

You can determine whether a World Time is a.m. or p.m. by checking the position of the small 24-hour hand.

●

Configuring the Summer Time Setting

Y Tap the

X Hold down the (C) button for about 2

“CASIO WATCH+

” icon.

seconds.

●

This causes the second hand to move to 12 o’clock. Keep (C) depressed at this time until the second hand completes one full rotation.

●

retrograde

The

dial hand will move from

“R” to e when a connection is established between the watch and phone.

Y Perform the operation shown on the phone screen to configure the summer time setting.

Note

●

When “Auto” is selected for standard/summer time switching, the watch will switch between standard time and summer time automatically. Do not need to change the changes between summer time and standard time. Even if you are in an area that does not observe summer time, you can leave the watch’s summertime setting as “Auto”.

●

Changing the time setting manually with a watch operation will cancel auto standard time/summer time switching.

●

A CASIO WATCH+ screen shows information about summer time periods.

time setting manually for

●

Swapping Your World Time and Home Time

Y Tap the

“CASIO WATCH+” icon.

Hold down the (C) button for about 2

seconds.

●

This causes the second hand to move to 12 o’clock. Keep (C) depressed at this time until the second hand completes one full rotation.

●

retrograde

The

dial hand will move from

“R” to e when a connection is established between the watch and phone.

Y Perform the operation shown on the phone screen to swap your Home Time with your World Time.

Note

●

Auto time adjustment is not performed for 24 hours after swapping of the Home Time and World Time.

+ 14 hidden pages
