MO1103-EA

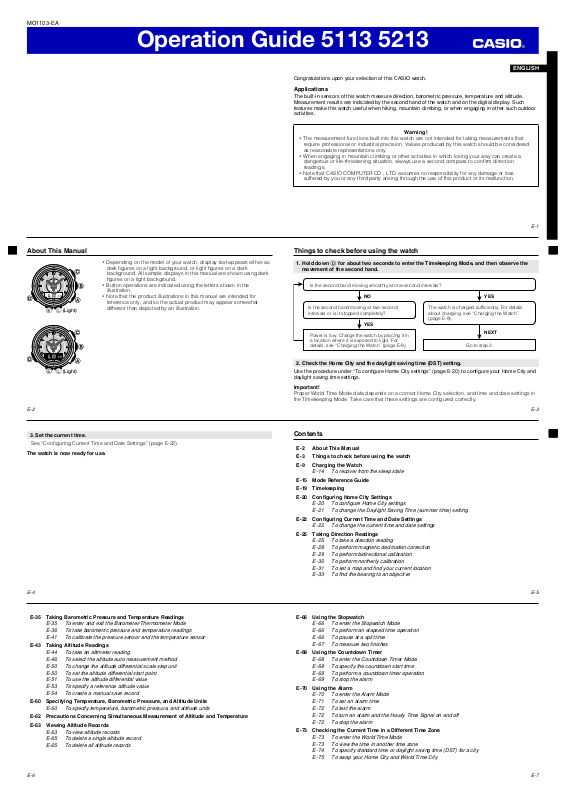

Operation Guide 5113 5213

Congratulations upon your selection of this CASIO watch.

Applications

The built-in sensors of this watch measure direction, barometric pressure, temperature and altitude. Measurement results are indicated by the second hand of the watch and on the digital display. Such features make this watch useful when hiking, mountain climbing, or when engaging in other such outdoor activities.

ENGLISH

About This Manual

(Light)

E-2

• Depending on the model of your watch, display text appears either as

dark ﬁ gures on a light background, or light ﬁ gures on a dark background. All sample displays in this manual are shown using dark ﬁ gures on a light background.

• Button operations are indicated using the letters shown in the

illustration.

• Note that the product illustrations in this manual are intended for

reference only, and so the actual product may appear somewhat different than depicted by an illustration.

• The measurement functions built into this watch are not intended for taking measurements that

require professional or industrial precision. Values produced by this watch should be considered as reasonable representations only.

• When engaging in mountain climbing or other activities in which losing your way can create a

dangerous or life-threatening situation, always use a second compass to conﬁ rm direction readings.

• Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss

suffered by you or any third party arising through the use of this product or its malfunction.

Warning !

Things to check before using the watch

1. Hold downD for about two seconds to enter the Timekeeping Mode, and then observe the movement of the second hand.

Is the second hand moving smoothly at one-second intervals?

Is the second hand moving at two-second intervals or is it stopped completely?

YES

Power is low. Charge the watch by placing it in a location where it is exposed to light. For details, see “Charging the Watch” (page E-9).

2. Check the Home City and the daylight saving time (DST) setting.

Use the procedure under “To conﬁ gure Home City settings” (page E-20) to conﬁ gure your Home City and daylight saving time settings.

Important!

Proper World Time Mode data depends on a correct Home City selection, and time and date settings in the Timekeeping Mode. Take care that these settings are conﬁ gured correctly.

The watch is charged sufficiently. For details about charging, see “Charging the Watch” (page E-9).

YES

Go to step 2.

E-1

E-3

3. Set the current time.

See “Conﬁ guring Current Time and Date Settings” (page E-22).

The watch is now ready for use.

E-4

E-35 Taking Barometric Pressure and Temperature Readings

E-35 To enter and exit the Barometer/Thermometer Mode E-36 To take barometric pressure and temperature readings E-41 To calibrate the pressure sensor and the temperature sensor

E-43 Taking Altitude Readings

E-44 To take an altimeter reading E-46 To select the altitude auto measurement method E-50 To change the altitude differential scale step unit E-50 To set the altitude differential start point E-51 To use the altitude differential value E-53 To specify a reference altitude value E-54 To create a manual save record

E-60 Specifying Temperature, Barometric Pressure, and Altitude Units

E-60 To specify temperature, barometric pressure, and altitude units

E-62 Precautions Concerning Simultaneous Measurement of Altitude and Temperature

E-63 Viewing Altitude Records

E-63 To view altitude records E-65 To delete a single altitude record E-65 To delete all altitude records

Contents

E-2 About This Manual

E-3 Things to check before using the watch

E-9 Charging the Watch

E-14 To recover from the sleep state

E-15 Mode Reference Guide

E-19 Timekeeping

E-20 Conﬁ guring Home City Settings

E-20 To conﬁ gure Home City settings E-21 To change the Daylight Saving Time (summer time) setting

E-22 Conﬁ guring Current Time and Date Settings

E-22 To change the current time and date settings

E-25 Taking Direction Readings

E-25 To take a direction reading E-28 To perform magnetic declination correction E-29 To perform bidirectional calibration E-30 To perform northerly calibration E-31 To set a map and ﬁ nd your current location E-33 To ﬁ nd the bearing to an objective

E-66 Using the Stopwatch

E-66 To enter the Stopwatch Mode E-66 To perform an elapsed time operation E-66 To pause at a split time E-67 To measure two ﬁ nishes

E-68 Using the Countdown Timer

E-68 To enter the Countdown Timer Mode E-68 To specify the countdown start time E-69 To perform a countdown timer operation E-69 To stop the alarm

E-70 Using the Alarm

E-70 To enter the Alarm Mode E-71 To set an alarm time E-72 To test the alarm E-72 To turn an alarm and the Hourly Time Signal on and off E-72 To stop the alarm

E-73 Checking the Current Time in a Different Time Zone

E-73 To enter the World Time Mode E-73 To view the time in another time zone E-74 To specify standard time or daylight saving time (DST) for a city E-75 To swap your Home City and World Time City

E-5

E-6

E-7

Operation Guide 5113 5213

E-76 Adjusting Home Positions

E-76 To adjust home positions

E-77 Illumination

E-77 To turn on illumination manually E-78 To change the illumination duration E-80 To turn the auto light switch on and off

E-82 Button Operation Tone

E-82 To turn the button operation tone on and off

E-83 Troubleshooting

E-87 Speciﬁ cations

E-8

Important!

• Allowing the watch to become very hot can cause its liquid crystal display to black out. The

appearance of the LCD should become normal again when the watch returns to a lower temperature.

• Turn on the watch’s Power Saving function (page E-14) and keep it in an area normally exposed to

bright light when storing it for long periods. This helps to ensure that power does not run down.

• Storing the watch for long periods in an area where there is no light or wearing it in such a way that it is

blocked from exposure to light can cause power to run down. Expose the watch to bright light whenever possible.

Charging the Watch

The face of the watch is a solar cell that generates power from light. The generated power charges a built-in rechargeable battery, which powers watch operations. The watch charges whenever it is exposed to light.

Charging Guide

Whenever you are not wearing the watch, leave it in a location where it is exposed to light.

• Best charging performance is

achieved by exposing the watch to the strongest light available.

Warning! Leaving the watch in bright light for charging can cause it to become quite hot. Take care when handling the watch to avoid burn injury. The watch can become particularly hot when exposed to the following conditions for long periods.

• On the dashboard of a car parked in direct sunlight

• Too close to an incandescent lamp

• Under direct sunlight

Power Levels

You can check the current battery power level by viewing the battery power indicator that appears on the digital display when you enter the Timekeeping Mode.

• To enter the Timekeeping Mode from any other mode, hold down D for about two seconds.

Level Battery Power Indicator Function Status

(H)

(M)

(L)

Month Day

Battery power

Battery power indicator

indicator

Day of week

When wearing the watch, make sure that its face is not blocked from light by the sleeve of your clothing.

• The watch may enter a sleep state

(page E-14) if its face is blocked by your sleeve even only partially.

All functions enabled.

Illumination, tone, and sensor disabled. Second hand jumps every two seconds.

Illumination, tone, and sensor disabled. Blank digital display. Second hand stopped, hour and minute hands stopped at 12 o’clock.

All hands stopped at 12 o’clock. All functions disabled.

E-9

E-10

• The ﬂ ashing L indicator at Level 3 tells you that battery power is very low, and that exposure to bright

light for charging is required as soon as possible.

• At Level 5, all functions are disabled and settings return to their initial factory defaults. Once the battery

reaches Level 2 ( M) after falling to Level 5, reconﬁ gure the current time, date, and other settings.

• Display indicators reappear as soon as the battery is charged from Level 5 to Level 2 ( M).

• Leaving the watch exposed to direct sunlight or some other very strong light source can cause the

battery power indicator to show a reading temporarily that is higher than the actual battery level. The correct battery level should be indicated after a few minutes.

• All data stored in memory is deleted, and the current time and all other settings return to their initial

factory defaults whenever battery power drops to Level 5 and when you have the battery replaced.

Charging Required Indication (by second hand)

When battery power reaches Level 3, the second hand of the watch will jump at 2-second intervals in the Timekeeping Mode to let you know that charging is required.

Power Recovery Mode

• Repeated sensor measurement, illumination, or use of tones over a short period of time may cause the

watch to enter a power recovery mode, which is indicated by a recovery indicator ( R) to ﬂ ash on the digital display. The watch will remain in the power recovery mode until battery power recovers.

• Illumination, tones, and sensor operations are disabled and the hands of the watch stop until battery

power recovers.

E-12

Power Saving

Power Saving enters a sleep state automatically whenever the watch is left for a certain period in an area where it is dark. The table below shows how watch functions are affected by Power Saving.

• There actually are two sleep state levels: “display sleep” and “function sleep”.

• With this watch, the Power Saving function cannot be disabled.

Elapsed Time in Dark Hands and Display Operation

60 to 70 minutes (display sleep)

6 or 7 days (function sleep)

• The watch will not enter a sleep state between 6:00 AM and 9:59 PM. If the watch is already in a sleep

state when 6:00 AM arrives, however, it will remain in the sleep state.

• You will not be able to enter the Compass, Barometer/Thermometer, Altimeter, Stopwatch, or

Countdown Timer Mode while the watch is in a sleep state.

To recover from the sleep state

Move the watch to a well-lit area, press any button, or angle the watch towards your face for reading (page E-78).

Blank display, second hand stopped at 12 o’clock.

Blank display, all hands stopped at 12 o’clock.

Except for display and second hand, all functions enabled.

Except for timekeeping, all functions disabled.

E-11

• Battery power takes about 15 minutes to recover. The recovery indicator ( R) will stop ﬂ ashing and

normal watch operation will be restored when battery recovery is complete.

• Frequent ﬂ ashing of the recovery indicator ( R) indicates that battery power is low. Expose the watch to

light to charge its battery.

Charging Times

Daily

Exposure Level (Brightness)

Outdoor sunlight (50,000 lux) 8 min. 2 hours 20 hours 6 hours

Sunlight through a window (10,000 lux)

Daylight through a window on a cloudy day (5,000 lux)

Indoor ﬂ uorescent lighting (500 lux) 8 hours 100 hours – – – – – –

*1 Approximate amount of exposure time required each day to generate enough power for normal daily

operation.

*2 Approximate amount of exposure time (in hours) required to take power from one level to the next.

• The above exposure times all are for reference only. Actual exposure times depend on lighting

conditions.

• For details about the operating time and daily operating conditions, see the “Power Supply” section of

the Speciﬁ cations (page E-90).

Operation

30 min. 6 hours 75 hours 21 hours

48 min. 9 hours 122 hours 33 hours

Level 5 Level 4 Level 3 Level 2 Level 1

Level Change *2

E-13

Mode Reference Guide

Your watch has 10 “modes”. The mode you should select depends on what you want to do.

To do this: Enter this mode: See:

• View the current date in the Home City

• Conﬁ gure Home City and daylight saving time (DST) settings

• Conﬁ gure time and date settings

• Determine your current bearing or the direction from your current

location to a destination as a direction indicator and angle value

• Determine your current location using the watch and a map

• View the barometric pressure and temperature at your current location

• View a graph of barometric pressure readings

• View the altitude at your current location

• Determine the altitude differential between two locations (reference

point and current location)

• Record an altitude reading with the measurement time and date

Recall records created in the Altimeter Mode Data Recall Mode E-63

Use the stopwatch to measure elapsed time Stopwatch Mode E-66

Use the countdown timer Countdown Timer Mode E-68

Set an alarm time Alarm Mode E-70

View the current time in one of 29 cities (29 time zones) around the globe World Time Mode E-73

Perform hand home position adjustment

Timekeeping Mode E-19

Compass Mode E-25

Barometer/Thermometer Mode

Altimeter Mode E-43

Hand Home Position Adjustment Mode

E-35

E-76

E-14

E-15

Operation Guide 5113 5213

Selecting a Mode

• The illustration below shows which buttons you need to press to navigate between modes.

• To return to the Timekeeping Mode from any other mode, hold downD for about two seconds.

• In any mode, pressL to illuminate the display.

Timekeeping Mode

Countdown

Countdown Timer Mode

Timer Mode

Alarm Mode

E-16

General Functions (All Modes)

The functions and operations described in this section can be used in all of the modes.

Auto Return Features

• The watch returns to the Timekeeping Mode automatically if you do not perform any button operation

for two or three minutes in the Data Recall, Alarm, or Hand Home Position Adjustment Mode.

• If you leave a screen with ﬂ ashing digits on the digital display for two or three minutes without

performing any operation, the watch exits the setting screen automatically.

Initial Screens

When you enter the Data Recall, World Time, Alarm, Compass, or Barometer/Thermometer Mode, the data you were viewing when you last exited the mode appears ﬁ rst.

Scrolling

TheA andC buttons are used to scroll through settings on the digital display while a setting screen is displayed, and to move the hands of the watch manually. In most cases, holding down either of these buttons will perform its operation at high speed.

Stopwatch Mode

World Time

Mode

Data Recall

Mode

Hand Home Position

Adjustment Mode

• You can use buttonsA,B, andC to enter a sensor mode directly from the Timekeeping Mode or

from another sensor mode. To enter a sensor mode from the Data Recall, Stopwatch, Countdown Timer, Alarm, World Time, or Hand Home Position Adjustment Mode, ﬁ rst enter the Timekeeping Mode and then press the applicable button.

• The hour and minute hands indicate the current time in all modes. In the Timekeeping, Data Recall,

Stopwatch, Countdown Timer, and Alarm modes, the second hand indicates the current (Timekeeping Mode) second. The second hand performs other operations in the other modes.

Sensor Modes

Barometer/

Compass Mode

Barometer/

Thermometer Mode

Altimeter Mode

Timekeeping

Use the Timekeeping Mode (

• In the Timekeeping Mode, pressE to toggle the digital display between the day of the week and the

barometric pressure graph.

Second hand

Hour hand

HOME

Day of the Week

Day of weekMonth Day

) to set and view the current time and date.

Barometric Pressure Graph

Minute hand

Month Day

Barometric pressure graph

E-17

E-18

Conﬁ guring Home City Settings

There are two Home City settings: selecting the Home City, and specifying either standard time or daylight saving time (DST).

PM indicator

indicator

E-20

Hour :

Hour : Minutes

Minutes

City code

DST indicator

To conﬁ gure Home City settings

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

• For in formation a bout city c odes, see th e “City Co de Table” at the

back of this manual.

2. To change the Home City code setting, pressA to move the second hand clockwise.

• Keep pre ssing A until the second hand is pointing to the city code

Second

Second hand

hand

you want to selec t as your Home C ity.

• The current ti me in the time zo ne of the current ly selected ci ty code is

shown on the digital display.

3. PressD. This will display the DST setting screen on the digital display.

PressA to toggle the DST setting between Daylight Saving Time ( On) and standard time (

• Note th at you cannot s witch betwe en standard ti me and daylight

saving time (D ST) whil e UTC is selec ted as your Hom e City.

OFF

Conﬁ guring Current Time and Date Settings

You can use the procedure below to adjust the Timekeeping Mode time and date settings if they are off.

To change the current time and date settings

PM indicator

indicator

Hour :

Hour : Minutes

Minutes

City code

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

2. UseA to select the city code you want to select as your Home City.

• Each pre ss of A moves the second hand clockwise. Keep pressing

until the sec ond hand is poi nted at the cit y code you want to

select.

• Sele ct your Hom e City code b efore changing a ny other set ting.

• For f ull informati on about cit y codes, see the “Cit y Code Table” at the

Second

Second hand

hand

back of this manual.

E-19

5. After all the settings are the way you want, pressE to return to the Timekeeping Mode.

• The ha nds of the watch wil l move the current t ime in the zone w here the cit y code you sele cted as

your Home C ity is locate d. Do not per form any opera tion on the watch w hile the hand s are moving.

• If Dayli ght Saving Ti me is selected , the dSt indicat or will be on the d igital display.

Note

• Afte r you specif y a city code, t he watch will use U TC* offset s in the World Ti me Mode to calc ulate the

current time f or other tim e zones based o n the current tim e in your Hom e City.

* Coordinated Universal Time, the world-wide scientiﬁ c standard of timekeeping.

The reference point for UTC is Greenwich, England.

To change the Daylight Saving Time (summer time) setting

DST indicatorDST indicator

4. After all the settings are the way you want, pressE to exit the setting screen.

• The dSt indicator ind icates that Dayl ight Saving Ti me is selected .

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

2. PressD. This will display the DST setting screen on the digital display.

3. PressA to toggle the DST setting between Daylight Saving Time ( On) and standard time (

OFF

E-21

3. PressD to cycle through the available settings on the digital display in the sequence shown below.

City Code DST

Thermometer/Barometer/ Altitude unit

12/24-Hour Format

Auto Light On/Off

Seconds Hour Minute Year

Illumination Duration

Button Operation Tone On/Off

Day Month

• The fo llowing step s explain how to co nﬁ gure time keeping set tings only.

4. When the timekeeping setting you want to change is displayed, useA and/orC to change it as described below.

Display To do this: Do this:

Change the city code PressA.

Toggle between Daylight Saving Time ( On) and Standard Time (

Toggle between 12-hour ( timekeeping.

Reset the seconds to

Change the hour or minute UseA (+) andC (–).

OFF

12H

) and 24-hour (

24H

PressA.

)

PressA.

E-22

E-23

Operation Guide 5113 5213

Display To do this: Do this:

5. PressE to exit the setting screen.

• The ha nds of the watch wil l move to the time yo u set. Do not per form any operation on the wa tch

while the han ds are moving.

Note

• For in formation a bout selec ting a Home Ci ty and con ﬁ guring the DS T setting, s ee “Conﬁ guring

Home City Settings” (page E-20).

• Chang ing the time o n the digital dis play will cause t he time indic ated by the hands to ch ange

accordingl y. If the displayed tim e and the time in dicated by the han ds do not match, i t could mean that the hand h ome posit ions are off. Adj ust the hand h ome positi ons as required ( page E-76).

• Whil e 12-hour for mat is selected , a P (P M) indicator w ill appear for t imes from no on to 11:59 p.m. No

indicator app ears for tim es from midnigh t to 11:59 a.m. With 24-h our format , time is displayed f rom 0:00 to 2 3:59, witho ut any P (PM) indicator.

• The watc h’s built-in full au tomatic cale ndar makes all owances for di fferent mon th lengths an d leap

years. Once y ou set the date, th ere should be no re ason to chang e it except after yo u have the watch’s rechargeabl e battery re placed or afte r power drops to Leve l 5 (page E-11).

E-24

Interpreting Direction Reading Results

• When you pressC,

• After about two seconds, the second hand moves to point to magnetic north. The digital display shows

either the angle between magnetic north and the 12 o’clock position of the watch, or one of 16 literal direction indicators.

• The watch updates the direction reading about once every second for about 20 seconds, and then

stops. The digital display shows button) to indicate that direction readings are complete. If your want to continue taking direction readings, pressC again.

• PressingE at this time switches the digital display between the angle value and a one-, two-, or

three-character literal direction indicators.

• The Auto Light switch is disabled during the 20 seconds that direction readings are being taken.

• The following table shows the meanings of the abbreviations used for the literal direction indicators that

appear on the digital display.

Direction Meaning Direction Meaning Direction Meaning Direction Meaning

• The margin of error for the angle value and the direction indicator is ±11 degrees while the watch is

horizontal (in relation to the horizon). If the indicated direction is northwest ( NW) and 315 degrees, for example, the actual direction can be anywhere from 304 to 326 degrees.

E-26

Change the year

Change the month or day

COMP

appears on the digital display to indicate that direction reading has started.

- - -

and the second hand moves to

North

East

South

West

NNE

ESE

SSW

WNW

North-

northeast

East-

southeast

South-

southwest

West-

northwest

UseA (+) andC (–).

COMP

(located below the

Northeast

Southeast

Southwest

Northwest

ENE

SSE

WSW

NNW

East-

northeast

South-

southeast

West-

southwest

North-

northwest

Taking Direction Readings

The Compass Mode uses the watch’s direction sensor to detect magnetic north. The second hand will indicate magnetic north and the digital display shows one of 16 directions and an angle value.

12 o’clock

North indicated by

position

second hand

Angle value (in degrees)

• If the second hand is indicating 12 o’clock (north), the digital display will show an upwards pointing

white on black arrow.

•

The small scale in the center of the watch face is a direction scale (page E-25). You can use the direction scale to get an idea of how many degrees the 12 o’clock position of the watch is (clockwise) from the northerly indication of the second hand. The direction scale is marked in 10-degree increments. Some watch models may not have a direction scale.

• Note that taking a measurement while the watch is not horizontal (in relation to the horizon) can result in

large measurement error.

•

You can calibrate the bearing sensor if you suspect the direction reading is incorrect.

• Any ongoing direction measurement operation is paused temporarily while the watch is performing an

alert operation (daily alarm, Hourly Time Signal, countdown timer alarm) or while illumination is turned on (by pressingL). The measurement operation resumes for its remaining duration after the operation that caused it to pause is ﬁ nished.

• For precautions that should be observed when using the Compass Mode, see “Compass Precautions”

(page E-34).

Calibrating the Bearing Sensor

You should calibrate the bearing sensor whenever you feel that the direction readings being produced by the watch are off. There are three different calibration methods available: magnetic declination correction, bidirectional calibration, and northerly calibration.

Magnetic Declination Correction

•

With magnetic declination correction, you input a magnetic declination angle (difference between magnetic north and true north), which allows the watch to indicate true north. You can perform this procedure when the magnetic declination angle is indicated on the map you are using. Note that you can input the declination angle in whole degree units only, so you may need to round off the value speciﬁ ed on the map. If your map indicates the declination angle as 7.4 °, you should input 7 °. In the case of 7.6 ° input 8 °, for 7.5 ° you can input 7 ° or 8 °.

NNW

WNW

270

WSW

SSW

ESE

180

ESE

SSE

To take a direction reading

1. Check to make sure the watch is in the Timekeeping Mode or one of the sensor modes.

• The sen sor modes are t he Compas s Mode, Barom eter/The rmometer

Mode, and Al timeter Mod e.

2. Place the watch on a ﬂ at surface. If you are wearing the watch, make sure that your wrist is horizontal (in relation to the horizon).

3. Point the 12 o’clock position of the watch in the direction you want to

Direction

Direction scale

scale

NNE

measure.

4. PressC to start the direction reading operation, which is indicated by

COMP

appearing on the digital display.

• When you pre ss C, the secon d hand will ﬁ rst po int in the direct ion

of the C (COMP) but ton. This in dicates the Co mpass Mod e. After that the sec ond hand will p oint in the direc tion of magnet ic north.

• For in formation a bout directi on reading resu lts, see “In terpreting

ENE

Direction Reading Results” (page E-26).

5. After you are ﬁ nished taking direction readings, press D to return to the Timekeeping Mode.

E-25

E-27

Bidirectional Calibration and Northerly Calibration

•

Bidirectional calibration and northerly calibration calibrate the accuracy of the bearing sensor in relation to magnetic north. Use bidirectional calibration when you want to take readings within an area exposed to magnetic force. This type of calibration should be used if the watch becomes magnetized for any reason. With northerly calibration, you “teach” the watch which way is north (which you have to determine with another compass or some other means).

Important!

The more correctly you perform bidirectional calibration, the better the accuracy of the bearing sensor readouts. You should perform bidirectional calibration whenever you change environments where you use the bearing sensor, and whenever you feel that the bearing sensor is producing incorrect readings.

To perform magnetic declination correction

Magnetic declination

Magnetic declination angle direction value

angle direction value (E, W, or 0˚)

(E, W, or 0˚)

Magnetic declination

Magnetic declination angle value

angle value

E-28

3. Place the watch on a level surface facing any direction you want, and pressC to calibrate the ﬁ rst direction.

• - - - i s shown on the d igital display w hile calibrat ion is being pe rformed . When calibra tion is

successf ul, the digita l display will sho w -2- . This me ans that the watc h is ready for calib ration of the second direction.

• Calibratio n takes about 13 se conds. Do n ot move the watch wh ile calibratio n is being per formed.

1. In the Compass Mode, hold downE until each of the following steps occurs.

•

Hold SE T a ppears on th e digital displ ay. ➝ Magneti c declinatio n settings ﬂ a sh.

•

This is the setting screen.

2. UseA (East) andC (West) to change the settings.

•

The follow ing explains m agnetic decli nation angl e direction se ttings.

0°

No magnetic declination correction performed. The magnetic



declination angle with this setting is 0 °.

: When magnetic north is to the east (east declination)

: When magnetic north is to the west (west declination)

• You can sele ct a value within t he range of W 9 0 ° to E 90 ° with these

settings.

4. Rotate the watch 180 degrees.

5. PressC again to calibrate the second direction.

• - - - i s shown on the d igital display w hile calibrat ion is being pe rformed . When calibra tion is

successf ul, the digita l display will sho w OK and then c hange to the C ompass Mod e screen ( - - -).

To perform northerly calibration

Important!

If you want to perform both northerly and bidirectional calibration, perform bidirectional calibration ﬁ rst, and then perform northerly calibration. This is necessary because bidirectional calibration cancels any existing northerly calibration setting.

3. Place the watch on a level surface, and position it so that its 12 o’clock position points north (as

measured with another compass).

E-30

1. In the Compass Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ Magnetic declination

settings ﬂ ash.

• This is the setting screen.

2. PressD twice to display the northerly calibration screen.

• At this t ime, -n- (north) appe ars on the digi tal display.

• To return the ma gnetic declin ation to its ini tial factor y default set ting, press A and

time

. This will cause OFF to app ear on the digi tal display. After a bout one se cond, the magn etic

declinatio n will change to 0 d egrees.

• The ill ustration o n page E-28 sho ws declinatio n angle directi on value and th e angle value you s hould

select whe n a map shows a mag netic declin ation of “We st 1 °”.

at the same

3. When the setting is the way you want, pressE to exit the setting screen.

Precautions about bidirectional calibration

• You can use any two opposing directions for bidirectional calibration. You must, however, make sure

that they are 180 degrees opposite each other. Remember that if you perform the procedure incorrectly, you will get wrong bearing sensor readings.

• Do not move the watch while calibration of either direction is in progress.

• You should perform bidirectional calibration in an environment that is the same as that where you plan

to be taking direction readings. If you plan to take direction readings in an open ﬁ eld, for example, calibrate in an open ﬁ eld.

To perform bidirectional calibration

4. PressC to start the calibration operation.

• - - - i s shown on the d igital display w hile calibrat ion is being pe rformed . When calibra tion is

successf ul, the digita l display will sho w OK and then c hange to the C ompass Mo de screen ( - - -).

Using the Compass While Mountain Climbing or Hiking

This section provides two practical applications for using the watch’s built-in compass.

• Setting a map and ﬁ nding your current location

Having an idea of your current location is important when mountain climbing or hiking. To do this, you need to “set the map”, which means to align the map so the directions indicated on it are aligned with the actual directions of your location. Basically what you are doing is aligning north on the map with north as indicated by the watch.

• Finding the bearing to an objective

To set a map and ﬁ nd your current location

1. With the watch on your wrist, position it so the face is horizontal.

2. While in the Timekeeping Mode or in any of the sensor modes, pressC to take a compass reading.

• The rea ding result will a ppear on the d igital display a fter about t wo seconds, and the sec ond hand

will point to north.

1. In the Compass Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ Magnetic declination

settings ﬂ ash.

• This is the setting screen.

2. PressD to display the bidirectional calibration screen.

• At this t ime, the digit al display will sh ow -1- to indicate that the watch

is ready to calib rate the ﬁ rst direct ion.

E-29

E-31

Operation Guide 5113 5213

North indicated

North indicated on the map

on the map

Current

Current location

E-32

Compass Precautions

This watch features a built-in magnetic bearing sensor that detects terrestrial magnetism. This means that north indicated by this watch is magnetic north, which is somewhat different from true polar north. The magnetic north pole is located in northern Canada, while the magnetic South Pole is in southern Australia. Note that the difference between magnetic north and true north as measured with all magnetic compasses tends to be greater as one gets closer to either of the magnetic poles. You should also remember that some maps indicate true north (instead of magnetic north), and so you should make allowances when using such maps with this watch.

Location

• Taking a direction reading when you are near a source of strong magnetism can cause large errors in

readings. Because of this, you should avoid taking direction readings while in the vicinity of the following types of objects: permanent magnets (magnetic necklaces, etc.), concentrations of metal (metal doors, lockers, etc.), high tension wires, aerial wires, household appliances (TVs, personal computers, washing machines, freezers, etc.).

• Accurate direction readings are impossible while in a train, boat, air plane, etc.

• Accurate readings are also impossible indoors, especially inside ferroconcrete structures. This is

because the metal framework of such structures picks up magnetism from appliances, etc.

Storage

• The precision of the bearing sensor may deteriorate if the watch becomes magnetized. Because of

this, you should store the watch away from magnets or any other sources of strong magnetism, including: permanent magnets (magnetic necklaces, etc.) and household appliances (TVs, personal computers, washing machines, freezers, etc.).

• Whenever you suspect that the watch may have become magnetized, perform the procedure under “To

perform bidirectional calibration” (page E-29).

E-34

location

North indicated by

North indicated by second hand

second hand

3. Rotate the map without moving the watch so the northerly direction indicated on the map matches north as indicated by the watch.

• If the watc h is conﬁ gured to in dicate magneti c north, ali gn the

map’s magnetic n orth with t he watch indicati on. If the watch ha s been conﬁ gured with a decl ination to cor rect to true nor th, align the map’s true n orth with t he watch indicati on. For deta ils about magnetic dec lination co rrection, se e “Calibratin g the Bearing Sensor ” (page E-27).

• This will position the map in accordance with your current location.

4. Determine your location as you check the geographic contours around you.

To ﬁ nd the bearing to an objective

Current

Current location

location

12 o’clock

position

North indicated by

North indicated by second hand

second hand

1. Set the map so its northerly indication is aligned with north as indicated by the watch, and determine your current location.

• See “ To set a map and ﬁ nd your cu rrent locati on” on page E- 31 for

information about how to perform the above step.

2. Set the map so the direction you want to travel on the map is pointed

Objective

straight in front of you.

3. With the watch on your wrist, position it so the face is horizontal.

4. While in the Timekeeping Mode or in any of the sensor modes, press

to take a compass reading.

• The rea ding result will a ppear on the d igital display a fter about t wo

seconds, a nd the seco nd hand will poi nt to north.

5. Still holding the map in front of you, turn your body until north as indicated by the watch and the northerly direction on the map are aligned.

• This will position the map in accordance with your current location,

so the beari ng to your object ive is straight ah ead of you.

Taking Barometric Pressure and Temperature Readings

This watch uses a pressure sensor to measure air pressure (barometric pressure) and a temperature sensor to measure temperature.

Barometric pressure

Barometric pressure differential indicated

differential indicated by second hand

by second hand

Barometric

Barometric pressure

pressure

Barometric pressure

pressure graph

graph

Temperature

To enter and exit the Barometer/Thermometer Mode

1. While in the Timekeeping Mode or in any of the sensor modes, press

to enter the Barometer/Thermometer Mode.

•

BARO a ppears on the d igital display to i ndicate that baro metric pressure and te mperature read ings are being t aken. The cur rent barometri c pressure or tem perature appea rs on the digit al display after readin gs are complete.

• Whe n you press B, the secon d hand will ﬁ rst p oint in the direc tion of

the B (BARO) but ton. This ind icates the Baro meter/T hermomete r Mode. Af ter that, the se cond hand wil l point at the cur rent barometric p ressure dif ferential.

• Press ing E toggles the dig ital display bet ween the baro metric

pressure and te mperature scre en.

•

After you pre ss B, the watch takes re adings every ﬁ ve se conds for

the ﬁ rst three mi nutes, and the n every two mi nutes after t hat.

2. PressD to return to the Timekeeping Mode.

• The watc h will return to the T imekeepin g Mode automa tically if you

do not perf orm any operat ion for abou t one hour af ter entering th e Barometer/Thermometer Mode.

E-33

E-35

To take barometric pressure and temperature readings

While in the Timekeeping Mode or in any of the sensor modes, pressB.

• The watch will start taking barometric pressure and temperature readings automatically.

• You also can take a barometric pressure and temperature reading at any time by pressingB in the

Barometer/Thermometer Mode.

• PressE to toggle the digital display between the barometric pressure and temperature screen.

• It can take up to four or ﬁ ve seconds for the barometric pressure reading to appear after you enter the

Barometer/Thermometer Mode.

Barometric Pressure

• Barometric pressure is displayed in units of 1 hPa (or 0.05 inHg).

•

The displayed barometric pressure value changes to the range of 260 hPa to 1,100 hPa (7.65 inHg to 32.45 inHg). The barometric pressure value will reappear as soon as the measured barometric pressure is within the allowable range.

Temperature

• Temperature is displayed in units of 0.1 °C (or 0.2 °F).

• The displayed temperature value changes to

range of –10.0 °C to 60.0 °C (14.0 °F to 140.0 °F). The temperature value will reappear as soon as the measured temperature is within the allowable range.

Display Units

You can select either hectopascals (hPa) or inchesHg (inHg) as the display unit for the measured barometric pressure, and Celsius ( °C) or Fahrenheit ( °F) as the display unit for the measured temperature value. See “To specify temperature, barometric pressure, and altitude units” (page E-60).

E-36

Note

• If there are sudden changes in weather or temperature, the graph line of past

measurements may run off the top or bottom of the display. The entire graph will become visible once barometric conditions stabilize.

• The following conditions cause the barometric pressure measurement to be skipped,

with the corresponding point on the barometric pressure graph being left blank.

– Barometric reading that is out of range (260 hPa to 1,100 hPa or 7.65 inHg to 32.45

inHg)

– Sensor malfunction

About the barometric pressure differential indicated by the second hand

Second handSecond hand

In the Barometer/Thermometer Mode, the second hand indicates the difference between the value of the last barometric pressure reading displayed in the barometric pressure graph (page E-37) and the value of the last barometric pressure reading taken by the watch (which is shown on the digital display).

- - -

if a measured barometric pressure falls outside

- - -

°C (or °F) if a measured temperature falls outside the

Not visible on

Not visible on the display.

the display.

Barometric Pressure Graph

Barometric

Barometric pressure graph

pressure graph

Reading the Barometric Pressure Graph

The barometric pressure graph shows readings of previous measurements for up to 16 hours.

Barometric

Barometric pressure

pressure

Time

Barometric pressure indicates changes in the atmosphere. By monitoring these changes you can predict the weather with reasonable accuracy. This watch takes barometric pressure measurements automatically every two hours (at the 30th minute of every even numbered hour). Measurement results are used as the data to create the barometric pressure graph that appears on the digital display, and the second hand indicates the barometric pressure differential.

• The horizontal axis of the graph represents time, with each dot

standing for two hours. The rightmost dot represents the most recent reading.

• The vertical axis of the graph represents barometric pressure, with

each dot standing for the relative difference between its reading and that of the dots next to it. Each dot represents 1 hPa.

The following shows how to interpret the data that appears on the barometric pressure graph.

A rising graph generally means improving weather.

A falling graph generally means deteriorating weather.

Barometer/Thermometer Mode Second Hand Units

The second hand indicates barometric pressure differentials up to ±10hPa (in 1-hPa units).

• The nearby illustration, for example,

shows what the second hand would indicate when the calculated differential is approximately 5 hPa (approximately

0.15 inHg).

• The second hand will point to

UNDER

if the barometric pressure differential is outside the allowable range of the scale.

• The second hand will move to 9 o’clock

if a sensor reading could not be taken for some reason or if the reading is outside the allowable range.

• Barometric pressure is calculated and

displayed using hPa as the standard. The barometric pressure differential also can be read in inHg units as shown in the illustration (1 hPa = 0.03 inHg).

OVER

inHg values

hPa values

−0.3

0.3

−10

−5

−0.15

0.15

Current pressure

greater than most

recent measured

pressure

Current pressure

less than most

recent measured

pressure

E-37

Second hand

E-38

E-39

Operation Guide 5113 5213

Pressure Sensor and Temperature Sensor Calibration

The pressure sensor and temperature sensor built into the watch are calibrated at the factory and normally require no further adjustment. If you notice serious errors in the pressure readings and temperature readings produced by the watch, you can calibrate a sensor to the reading of another device to correct the errors.

Important!

• Incorrectly calibrating the pressure sensor can result in incorrect readings. Before changing the

calibration value, make sure the readings you are using are reliable and accurate.

• Incorrectly calibrating the temperature sensor can result in incorrect readings.

Carefully read the following before doing anything.

–

Compare the readings produced by the watch with those of another reliable and accurate thermometer.

– If adjustment is required, remove the watch from your wrist and wait for 20 or 30 minutes to give the

temperature of the watch time to stabilize.

E-40

Barometer and Thermometer Precautions

• The pressure sensor built into this watch measures changes in air pressure, which you can then apply

to your own weather predictions. It is not intended for use as a precision instrument in ofﬁ cial weather prediction or reporting applications.

• Sudden temperature changes can affect pressure sensor readings.

• Temperature measurements are affected by your body temperature (while you are wearing the watch),

direct sunlight, and moisture. To achieve a more accurate temperature measurement, remove the watch from your wrist, place it in a well ventilated location out of direct sunlight, and wipe all moisture from the case. It takes approximately 20 to 30 minutes for the case of the watch to reach the actual surrounding temperature.

To calibrate the pressure sensor and the temperature sensor

Press D.Press D.

1. Take a reading with another measurement device to determine the exact current barometric pressure or temperature.

2. With the watch in the Timekeeping Mode or in any of the sensor modes, pressB to enter the Barometer/Thermometer Mode.

3. Hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ T he current temp erature

value ﬂ ashes.

4. PressD to move the ﬂ ashing between the temperature value and barometric pressure value, to select the one you want to calibrate.

UseA (+) andC (–) to adjust the calibration value in the units shown below.

Temperature 0.1 °C (0.2 °F) Barometric Pressure 1 hPa (0.05 inHg)

• To return the cu rrently ﬂ ashin g value to its initia l factory def ault

setting, p ress A and C at the same ti me. OFF will appear at the ﬂ ashing lo cation for a bout one se cond, follow ed by the initial default value.

6. PressE to return to the Barometer/Thermometer Mode screen.

Taking Altitude Readings

The watch displays altitude values based on air pressure readings taken by a built-in pressure sensor.

How the Altimeter Measures Altitude

The altimeter can measure altitude based on its own preset values (initial default method) or using a reference altitude speciﬁ ed by you.

When you measure altitude based on preset values

Data produced by the watch’s barometric pressure sensor is converted to approximate altitude based on ISA (International Standard Atmosphere) conversion values stored in watch memory.

When you measure altitude using a reference altitude speciﬁ ed by you

After you specify a reference altitude, the watch uses that value to convert barometric pressure readings to altitude (page E-53).

• When mountain climbing, you can specify a reference altitude value in

accordance with a marker along the way or altitude information from a map. After that, the altitude readings produced by the watch will be more accurate than they would without a reference altitude value.

ABA

E-41

E-42

To take an altimeter reading

Altitude differential

Altitude differential indicated by second hand

indicated by second hand

Current

Current attitude

attitude

• If you le ave the watch in the Al timeter Mod e, it will update th e displayed altit ude value regula rly and

indicate reading-to-reading changes in graph form.

• You can use th e procedure un der “Sele cting an Alt itude Auto Me asurement M ethod” (page E -46) to

specify t he altitude au to measureme nt method you wa nt to use.

3. After you are ﬁ nished using the Altimeter, press

measurement.

• The watc h will return to the T imekeeping M ode automa tically if you d o not perfor m any operatio n for

about 10 hour s after enteri ng the Altim eter Mode (under i nitial defaul t settings).

E-44

Selecting an Altitude Auto Measurement Method

You can select either of the following two altitude auto measurement methods.

0’05 1H 2’00 10H

Note

If you do not perform any button operation while in the Altimeter Mode, the watch will return to the Timekeeping Mode automatically after 10 hours (altitude auto measurement method: one hour (altitude auto measurement method:

To select the altitude auto measurement method

Altitude

Altitude graph

graph

: Readings at ﬁ ve-second intervals for one hour

: Readings at ﬁ ve-second intervals for the ﬁ rst three minutes followed by two-minute

intervals for approximately 10 hours

1. Make sure the watch is in the Timekeeping Mode or any one of the sensor modes.

• The se nsor modes a re: Compass M ode, Barome ter/The rmometer

Mode, and Al timeter Mod e.

2. Press

to start Altimeter measurement.

• When you press A, the secon d hand will ﬁ rst point in the direction of

the

(ALTI) button. T his indicates t he Altimete r Mode. Afte r that,

the secon d hand will poin t at the current al titude dif ferential.

• ALTI will appear on the digital display, indicating that Altimeter

measurem ent is in progres s. The ﬁ rst readi ng will appear o n the digital disp lay after abou t four or ﬁ ve seco nds.

• The cu rrent altitud e value is displayed i n units of 5 meter s (20 feet).

• Afte r the ﬁ rst reading i s obtained, th e watch continue s to take

altimeter rea dings automat ically every ﬁ ve seconds for t he ﬁ rst three minute s, and then ever y two minute s after that (unde r initial default settings).

to return to the Timekeeping Mode and stop auto

2’00 10H

0’05 1H

1. In the Altimeter Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ H old SET disappears.

2. PressD to display the current altitude auto measurement method setting.

• This will cause either 0’05 or 2’00 to ﬂ a sh on the digit al display.

3. PressA to toggle the altitude auto measurement method setting

0’05 1H

between

4. PressE to exit the setting screen.

and

2’00 10H

) or after

Reading the Altitude Graph

The altitude graph shows Altimeter Mode auto measurement readings over time.

Latest

Latest reading

reading

Altitude

Time

Note

• The measurement range for altitude is –700 to 10,000 meters (–2,300 to 32,800 feet).

• The displayed altitude value changes to

range. An altitude value will reappear as soon as the altitude reading is within the allowable range.

•

Normally, displayed altitude values are based on the watch’s preset conversion values. You also can specify a reference altitude value, if you want. See “Specifying a Reference Altitude Value” (page E-52).

• You can change the unit for displayed altitude values to either meters (m) or feet (ft). See “To specify

temperature, barometric pressure, and altitude units” (page E-60).

Using the Altitude Differential Value

Altitude differential

Altitude differential indicated by second hand

indicated by second hand

• The vertical axis of the graph represents altitude, and each dot stands

for 10 meters (40 feet).

• The horizontal axis represents time. For the altitude readings taken

during the ﬁ rst three minutes after you start an altimeter measurement operation, each dot represents ﬁ ve seconds. After that, each dot represents two minutes (under initial default settings).

• An out of range reading or a measurement error will cause the column

of dots for that reading to be blank (skipped).

- - - -

if an altitude reading falls outside the measurement

In the Altimeter Mode, the part of the watch’s dial from 11 o’clock to 7 o’clock acts as an altitude differential scale. The second hand points to a place on the scale that indicates the difference between the altitude at a start point set by you and the altitude at your current location. The altitude differential indication is updated each time the watch takes an altitude reading. You can conﬁ gure the watch so each second mark in the altitude differential scale stands for 5 meters (20 feet) or 50 meters (200 feet). See “Conﬁ guring the Altitude Differential Scale” (page E-49) for information about how to conﬁ gure this setting.

• The second hand will point to

differential is outside the allowable range of the scale.

• The second hand will move to 9 o’clock if a sensor reading could not

be taken for some reason or if the reading is outside the allowable range.

• See “Using the Altitude Differential Value While Mountain Climbing or

Hiking” (page E-51) for some real-life examples of how to use this feature.

OVER

UNDER

if the altitude

E-43

E-45

E-46

E-47

Unit: 50m (200ft)

Unit: 5m (20ft)

1000 m (4000 ft)

100 m (400 ft)

Operation Guide 5113 5213

Conﬁ guring the Altitude Differential Scale

500 m (2000 ft)

50 m (200 ft)

Current altitude

reading greater than

previous reading

Second hand

You can select either of the two altitude differential scale options described below.

To specify this: Select this setting:

Scale step: 5 meters (20 feet) per second mark Scale range: ±100 meters (± 400 feet)

Scale step: 50 meters (200 feet) per second mark Scale range: ±1000 meters (± 4000 feet)

• Altitude differential is always calculated in meters, even when feet is selected as the altitude

measurement unit.

100

1000

−100 m (−400 ft)

−1000 m (−4000 ft)

E-48

To change the altitude differential scale step unit

1. In the Altimeter Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ H old SET disappears.

2. PressD twice.

• This will cause either

3. PressA to toggle the altitude differential scale step unit between

1000

and

4. PressE to exit the setting screen.

To set the altitude differential start point

Altitude differential

Altitude differential indicated by second hand

indicated by second hand

E-50

In the Altimeter Mode, pressE.

• The watch will take an altitude reading and record the result as the

current differential start point. At this time, the second hand will point to 0 because that is the current altitude differential.

−50 m (−200 ft)

−500 m (−2000 ft)

100

Current altitude

reading less than

previous reading

1000

to ﬂ ash on the digital display.

100

Using the Altitude Differential Value While Mountain Climbing or Hiking

After you specify the altitude differential start point while mountain climbing or hiking, you easily can measure the change in the altitude between that point and other points along the way.

To use the altitude differential value

Destination

Destination altitude

altitude

Current

Current location

location

1. In the Altimeter Mode, check to make sure that an altitude reading is on the digital display.

• If an alt itude reading i s not displayed, pre ss A to take one. See “To

take an altim eter reading” (pag e E-44) for d etails.

2. Use the contour lines on your map to determine the difference in altitude between your current location and your destination.

3. In the Altimeter Mode, pressE to specify your current location as the altitude differential start point.

• The watch w ill take an altit ude reading and re gister the resu lt as

the altitud e different ial value star t point. Th e altitude di fferential value will be res et to zero at this time.

E-49

E-51

Altitude differential

Altitude differential indicated by second hand

indicated by second hand

Altitude

Specifying a Reference Altitude Value

The altitude readings produced by this watch are subject to error caused by changes in air pressure. Because of this, we recommend that you update the reference altitude value whenever one is available during your climb. After you specify a reference altitude value, the watch adjusts its air-pressure-to-altitude conversion calculation accordingly.

E-52

Manual Save Records

Any time you perform the procedure below in the Altimeter Mode, the watch will create and store a record with the currently displayed altitude reading, along with the date and time the reading was taken. There is enough memory to store up to 14 manual save records, which are numbered from

REC14

To create a manual save record

4. While comparing the altitude difference you determined on the map and the watch’s altitude differential value, advance towards your destination.

• If the ma p shows a diffe rence of +8 0 meters betwe en your curre nt

location and your destination, you will know that you are approachin g your destina tion when th e second han d is pointed at +80 meter s.

REC01

through

1. In the Altimeter Mode, check to make sure that an altitude reading is on the digital display.

• If an alt itude reading i s not displayed, pre ss A to take one. Se e “To

take an altim eter reading” (pag e E-44) for d etails.

2. Hold downA until changes to

• This w ill save the curren tly displayed alt itude reading i n a manual

save record, alo ng with the me asurement t ime and date.

• The watch w ill return to the A ltimeter Mo de screen autom atically af ter

the save operat ion is compl ete.

• There i s enough me mory to store u p to 14 manual save reco rds. If

there are alread y 14 manual save reco rds in memor y, the above operation w ill cause the o ldest record to b e deleted auto matically to make room for t he new one.

REC

Hold REC

appears on the digital display and then

To specify a reference altitude value

1. In the Altimeter Mode, hold downE until each of the following steps occurs.

• Hold SET appears on the digital display. ➝ Hold SET disappears.

2. PressA (+) orC (–) to change the current reference altitude value by 5 meters (or 20 feet).

• Spec ify a reference a ltitude valu e based on accura te altitude

informati on about you r current loca tion from a ma p, etc.

• You can set the reference altitude value within the range of –10,00 0

to 10,000 meters (–32,800 to 32,800 feet).

• Press ing A and C at the same ti me returns to OFF (no reference

altitude val ue), so the watch perfo rms air press ure to altitude conversions based on preset data only.

3. PressE to exit the setting screen.

Types of Altitude Data

The watch maintains two types of altitude data in its memory: manual save records and auto save values (low altitude, high altitude, cumulative ascent, cumulate descent).

• Use the Data Recall Mode to view data stored in memory. See “Viewing Altitude Records” (page E-63)

for details.

E-53

Auto Save Values

While the altitude auto measurement method is being used (page E-46), the watch automatically stores high altitude ( HI), low altitude ( LO), cumulative ascent (

• These values are checked and updated automatically by the watch as altitude auto measurements are

taken.

How the high altitude and low altitude values are updated

While the watch is in the Altimeter Mode, altitude readings are taken automatically at the interval speciﬁ ed by the altitude auto measurement method (page E-46). With each reading, the watch compares the current reading against theHI andLO values. It will replace theHI value if the current reading is greater thanHI, or theLO value if the current reading is less thanLO.

ASC

), and cumulative descent (

DSC

) values.

How Cumulative Ascent/Descent Values Are Updated

620 m

Session start point

20 m

Session end point

320 m

120 m

0 m

E-54

E-55

Operation Guide 5113 5213

The total Cumulative Ascent and Cumulative Descent values produced by an Altimeter Mode measurement session during the example climb illustrated above are calculated as follows. Cumulative Ascent: Cumulative Descent:

• Entering the Altimeter Mode starts a new altitude auto measurement session, but it does not reset the

ASC

current values for a new Altimeter Mode auto measurement session are the values that currently are in memory. Each time you complete an Altimeter Mode auto measurement session by returning to the Timekeeping Mode, the cumulative ascent value of the current session (920 meters in the above example) is added to the session’s starting measurement session (–820 meters in the above example) is added to the session’s starting value.

• Note that any change in elevation when ascending that is less than 15 meters (49 feet) is not added to

the cumulative ascent value for the current Altimeter Mode auto measurement session. Also, any change in elevation when descending that is less than –15 meters (–49 feet) is not added to the cumulative descent value for the current Altimeter Mode auto measurement session.

Note

• The high altitude, low altitude, cumulative ascent, and cumulative descent values are retained in

memory when you exit the Altimeter Mode. To clear values, perform the procedure under “To delete a single altitude record” (page E-65) or “To delete all altitude records” (page E-65).

E-56

• Note that the following conditions will prevent you from obtaining accurate readings:

When air pressure ﬂ uctuates because of changes in the weather Extreme temperature changes When the watch itself is subjected to strong impact

There are two standard methods of expressing altitude: Absolute altitude and relative altitude. Absolute altitude expresses an absolute height above sea level. Relative altitude expresses the difference between the height of two different places.

(300 m) +

(320 m) +

DSC

and

values or change them in any way. This means that the starting

(620 m) = 920 m

(500 m) = 820 m

ASC

value. Also, the cumulative descent value of the current auto

Height of building 130 m (relative altitude)

Rooftop at an altitude of 230 m above sea level (absolute altitude)

ASC

and

DSC

How does the altimeter work?

Generally, air pressure and temperature decrease as altitude increases. This watch bases its altitude measurements on International Standard Atmosphere (ISA) values stipulated by the International Civil Aviation Organization (ICAO). These values deﬁ ne relationships between altitude, air pressure, and temperature.

Altimeter Precautions

• This watch estimates altitude based on air pressure. This means that altitude readings for the same

location may vary if air pressure changes.

• The semiconductor pressure sensor used by the watch for altitude measurements is also affected by

temperature. When taking altitude measurements, do not subject the watch to temperature changes.

• Do not rely upon this watch for altitude measurements or perform button operations while sky diving,

hang gliding, or paragliding, while riding a gyrocopter, glider, or any other aircraft, or while engaging in any other activity where there is the chance of sudden altitude changes.

• Do not use this watch for measuring altitude in applications that demand professional or industrial level

precision.

• Remember that the air inside of a commercial aircraft is pressurized. Because of this, the readings

produced by this watch will not match the altitude readings announced or indicated the ﬂ ight crew.

Altitude Air Pressure Temperature

616 hPa

4000 m

3500 m

3000 m

2500 m

2000 m

1500 m

1000 m

500 m

0 m

14000 ft.

12000 ft.

10000 ft.

8000 ft.

6000 ft.

4000 ft.

2000 ft.

0 ft.

Source: International Civil Aviation Organization

701 hPa

795 hPa

899 hPa

19.03 inHg

22.23 inHg

25.84 inHg

About 8 hPa per 100 m

About 9 hPa per 100 m

About 10 hPa per 100 m

About 11 hPa per 100 m

About 12 hPa per 100 m

About 0.15 inHg per 200 ft.

About 0.17 inHg per 200 ft.

About 0.192 inHg per 200 ft.

About 0.21 inHg per 200 ft.

–11°C

–4.5°C

2°C

8.5°C

15°C1013 hPa

16.2°F

30.5°F

44.7°F

59.0°F29.92 inHg

About 6.5°C per 1000 m

About 3.6°F per 1000 ft.

E-57

Sea Level

E-58

Specifying Temperature, Barometric Pressure, and Altitude Units

Use the procedure below to specify the temperature, barometric pressure, and altitude units to be used in the Barometer/Thermometer Mode and the Altimeter Mode.

Important!

TOKYO

TYO

(

) is selected as the Home City, the altitude unit is set

), and the temperature unit to Celsius ( °C). These settings cannot

hand points t o the current Ho me City co de.

E-22) for info rmation abo ut how to scroll th rough setti ng screens.

E-60

When automatically to meters ( m), the barometric pressure unit to hectopascals

hPa

( be changed.

To specify temperature, barometric pressure, and altitude units

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SET appears on the digital display. ➝ HT ﬂ a s h e s . ➝ Second

2. UseD to cycle through the settings on the digital display until the unit setting screen is shown.

• See ste p 3 under “To change the current ti me and date settings” (page

Precautions Concerning Simultaneous Measurement of Altitude and Temperature

Though you can perform altitude and temperature measurements at the same time, you should remember that each of these measurements requires different conditions for best results. With temperature measurement, it is best to remove the watch from your wrist in order to eliminate the effects of body heat. In the case of altitude measurement, on the other hand, it is better to leave the watch on your wrist, because doing so keeps the watch at a constant temperature, which contributes to more accurate altitude measurements.

• To give altitude measurement priority, leave the watch on your wrist or in any other location where the

temperature of the watch is kept constant.

• To give temperature measurement priority, remove the watch from your wrist and allow it to hang freely

from your bag or in another location where it is not exposed to direct sunlight. Note that removing the watch from your wrist can affect pressure sensor readings momentarily.

E-59

3. Perform the operations below to specify the units you want.

To specify this unit: Press this key: To toggle between these settings:

Altitude

Barometric Pressure

Temperature

(meters) andft (feet)

hPa

(hectopascals) and

°C

(Celsius) and°F (Fahrenheit)

inHg

(inches of mercury)

4. After the settings are the way you want, pressE to exit the setting screen.

E-61

Viewing Altitude Records

Use the Data Recall Mode to view manual save altitude records and automatically saved high altitude, low altitude, cumulative ascent, and cumulative descent values. Altitude records are created and saved in the Altimeter Mode.

Record nameRecord name

To view altitude records

1. UseD to select the Data Recall Mode (

2. UseA andC to scroll through altitude records in the sequence shown on page E-64.

• For a manual save record, high altitude and low altitude records, the

month and day of the reading will appear ﬁ rst. After about one second, this will change to show the time of the reading. After that the time and a ltitude readi ng will alternate o n the digital d isplay at one- second inter vals. For cu mulative asc ent and cumula tive descent, t he digital disp lay will show the m onth and day of t he ﬁ rst reading. Af ter about o ne second, th is will change to s how the cumulative altitude.

REC

) as shown on page E-16.

E-62

E-63

Operation Guide 5113 5213

Manual Save 1 Manual Save 14 High Altitude (HI)

Hour : Minutes

1 second

E-64

Month Day

Record name

Cumulative recording start month and day

Altitude

1 second

Cumulative descent

Cumulative Ascent (ASC) Low Altitude (LO)Cumulative Descent (DSC)

Cumulative recording start month and day

Cumulative ascent

Using the Stopwatch

The stopwatch measures elapsed time, split times, and two ﬁ nishes.

To enter the Stopwatch Mode

UseD to select the Stopwatch Mode ( ST) as shown on page E-16.

• About one second afterST appears on the digital display, the display

will change to show the stopwatch time.

To perform an elapsed time operation

SPL

(

displayed)

Seconds

Minutes

1/100

1/100 second

second

Start Stop (Restart) (Stop) Reset

To pause at a split time

Start Split

1 second

Altitude

1 second

A A

C A

Split release Stop Reset

1 second

High altitude

1 second

Low altitude

3. After you are ﬁ nished viewing data, use D to exit the Data Recall Mode.

- . - -

•

will be displayed i f data has been d eleted or if the re is no corresp onding data du e to error, etc.

In such cases, cumulative ascent ( ASC ) an d cumulative de scent ( DSC ) valu es will show zero.

• When t he cumulati ve ascent ( ASC ) or cumulati ve descent ( DSC ) exceeds 99, 995 mete rs (or 327,980

feet), the applic able value will re start fro m zero.

To delete a single altitude record

1. In the Data Recall Mode, useA andC to scroll through records until the one you want to delete is

displayed.

2. Hold down E for about two seconds until each of the following steps occurs.

• Hold CLR appears on the digital display. ➝ CLR appears.

• This deletes the record you displayed in step 1.

• ReleaseE after CLR appears on the digital display.

• Dele ting a manual s ave record shif ts all of the rec ords followin g it up one posi tion.

To delete all altitude records

In the Data Recall Mode, hold down E for about ﬁ ve seconds until each of the following steps occurs.

Hold CLR

appears on the digital display.

•

appears.

• This deletes all of the records currently in memory.

CLR

appears.

➝

Hold ALL

➝

appears.

CLR ALL

➝

E-65

To measure two ﬁ nishes

Start Split

Note

• The Stopwatch Mode can indicate elapsed time up to 59 minutes, 59.99 seconds.

• Once started, stopwatch timing continues until you pressC to stop it, even if you exit the Stopwatch

Mode to another mode and even if timing reaches the stopwatch limit deﬁ ned above.

• Exiting the Stopwatch Mode while a split time is frozen on the digital display clears the split time and

returns to elapsed time measurement.

First runner ﬁ nishes. Display time of ﬁ rst runner

A C

Stop

Second runner ﬁ nishes.

Split release

Display time of second runner

Reset

E-66

Using the Countdown Timer

The countdown timer can be conﬁ gured to start at a preset time, and sound an alarm when the end of the countdown is reached.

To enter the Countdown Timer Mode

UseD to select the Countdown Timer Mode ( TR) as shown on page E-16.

• About one second afterTR appears on the digital display, the display

will change to show the current countdown start time.

To specify the countdown start time

1. Enter the Countdown Timer Mode.

• If a cou ntdown is in prog ress (indicate d by the second s counting

down), press A to stop it and th en press C to reset to the cur rent countdown start time.

Countdown time

Countdown time (Minutes, seconds)

(Minutes, seconds)

• If a coun tdown is pause d, press C to reset to the cur rent

countdown start time.

2. Hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ Th e current coun tdown

start time ﬂ ashes.

3. UseA (+) andC (–) to change the minute setting.

4. PressE to exit the setting screen.

E-68

Using the Alarm

You can set ﬁ ve independent daily alarms. When a daily alarm is turned on, an alarm tone will sound for about 10 seconds each day when the time in the Timekeeping Mode reaches the preset alarm time. This is true even if the watch is not in the Timekeeping Mode. You can also turn on an Hourly Time Signal, which will cause the watch to beep twice every hour on the hour.

To enter the Alarm Mode

to select the Alarm Mode ( AL) as shown on page E-16.

Use

Alarm time

Alarm time (Hour: Minutes)

(Hour: Minutes)

• About one second afterAL appears on the digital display, the display

Alarm

Alarm number

number

will change to show an alarm number ( −1 through−5) or the indicator. The alarm number indicates an alarm screen. is shown when the Hourly Time Signal screen is on the digital display.

• When you enter the Alarm Mode, the data you were viewing when you

last exited the mode appears ﬁ rst.

E-67

To perform a countdown timer operation

Start Stop (Restart) (Stop) Reset

• Before starting a countdown timer operation, check to make sure that a countdown operation is not in

progress (indicated by the seconds counting down). If it is, pressA to stop it and thenC to reset to the countdown start time.

• An alarm sounds for ﬁ ve seconds when the end of the countdown is reached. This alarm will sound in

all modes. The countdown time is reset to its starting value automatically when the alarm sounds.

To stop the alarm

Press any button.

To set an alarm time

1. In the Alarm Mode, useA andC to scroll through the alarm ( through–5) until the one whose time you want to set is displayed.

A A

E-69

–1

−1 −2 −3

Alarm ON/OFF

Alarm ON/OFF indicator

indicator

−5

2. Hold downE until each of the following steps occurs.

• Hold SET appea rs on the digit al display. ➝ T he current set ting

ﬂ a s h e s .

• This is the setting screen.

−4

3. PressD to move the ﬂ ashing between the hour and minute settings.

4. While a setting is ﬂ ashing, use A (+) andC (–) to change it.

• Whe n setting the a larm time us ing the 12-hou r format, ta ke care to set the tim e correctly as a .m. (no

indicator) or p.m . ( P indicator).

5. PressE to exit the setting screen.

E-70

E-71

Operation Guide 5113 5213

To test the alarm

In the Alarm Mode, hold downA to sound the alarm tone.

To turn an alarm and the Hourly Time Signal on and off

1. In the Alarm Mode, useA andC to select an alarm or the Hourly Time Signal.

2. When the alarm or the Hourly Time Signal you want is selected, pressB to toggle it between ( ON) and

OFF

off (

• The al arm on indica tor (when any ala rm is on) and the hou rly time sign al on indicato r (when the

hourly tim e signal is on) are sho wn on the digit al display in all m odes.

Alarm on indicator

To stop the alarm

Press any button.

E-72

To specify standard time or daylight saving time (DST) for a city

DST indicatorDST indicator

1. In the World Time Mode, useA to move the second hand to the city code whose standard time/daylight saving time setting you want to change.

• Keep pre ssing A until the second hand is pointing to the city code

you want.

2. Hold downE until each of the following steps occurs.

Hold

•

appears on the digital display. ➝

• This to ggles the cit y code you se lected in step 1 bet ween Daylight

Saving Time ( dSt indicator displayed) and standard time ( dSt indicator not d isplayed).

• Using t he World Time M ode to change t he DST set ting of the cit y

code that is se lected as your H ome Cit y also will chan ge the Timekeep ing Mode tim e DST set ting.

• Note th at you cannot s witch betwe en standard t ime/daylight s aving

time (DST ) while UTC is s elected as th e World Time Cit y.

• The st andard time /daylight savin g time (DST ) setting af fects only the

currently se lected time zo ne. Other ti me zones are not af fected.

Hourly time signal on indicator

Hold

disappears.

Checking the Current Time in a Different Time Zone

You can use the World Time Mode to view the current time in one of 29 time zones (29 cities) around the globe. The city that is currently selected in the World Time Mode is called the “World Time City”.

• You also can swap the current World Time City and Home Time City in the World Time Mode. (page

E-75)

Currently selected

Currently selected World Time City

World Time City

Current time in the

Current time in the currently selected

currently selected World Time City

World Time City

Swapping the Home City and World Time City

You can use the procedure below to swap your Home City with your World Time City. This function comes in handy for those who often travel between two different time zones. The following example shows what happens when the Home City and World Time City are swapped while the Home City originally is

Before swapping

After swapping

To swap your Home City and World Time City

1. In the World Time Mode, useA to select the city code you want to make your World Time City.

• Keep pre ssing A until the sec ond hand is poi nting to the cit y code you want .

• In this exa mple, you woul d move the seco nd hand to NEW YORK ( NYC ) in order to sele ct New York

as the World Time City.

2. Hold downC until each of the following steps occurs.

Hold

•

• This w ill cause the Wo rld Time Cit y ( NEW YORK / NYC in this examp le) you selected in s tep 1 of this

appears on the digital display. ➝

)

(

procedure yo ur new Home Ci ty, and your previo usly selec ted Home Cit y ( TOKYO / TYO in this example) will bec ome your new Wo rld Time Cit y. The digital di splay and hands w ill indicate the current time i n your new World T ime City ( TOK YO / TYO in this example).

To enter the World Time Mode

UseD to select the World Time Mode ( WT) as shown on page E-16.

appears on the digital display and the second hand moves to the

•

city code of the currently selected World Time City.

To view the time in another time zone

In the World Time Mode, useA to move the second hand to a city code in the zone whose time you want to view.

• Keep pressingA until the second hand is pointing to the city code

you want.

• The current time in time zone of the currently selected city code is

shown in the digital display.

TOKYO

TYO

(

) and the World Time City is

Home City World Time City

Tokyo

10:08 p.m.

(Standard time)

New York 9:08 a.m.

(Daylight saving time)

Hold

(

disappears.

)

NEW YORK

New York 9:08 a.m.

(Daylight saving time)

Tokyo

10:08 p.m.

(Standard time)

(

NYC

E-73

E-74

Adjusting Home Positions

Strong magnetism or impact can cause the hands of the watch to be off. When this happens, you can adjust the hand home positions to ensure correct timekeeping.

• Hand home position adjustment is not necessary as long as the hands are indicating time correctly.

To adjust home positions

E-76

To change the illumination duration

4. After all the settings are the way you want, pressE to exit the setting screen.

About the Auto Light Switch

Turning on the auto light switch causes illumination to turn on, whenever you position your wrist as described below in any mode.

Moving the watch to a position that is parallel to the ground and then tilting it towards you more than 40 degrees causes illumination to turn on.

1. Enter the Hand Home Position Adjustment Mode (page E-16).

• The digital display will show HS , followed by t he current Ti mekeeping

Mode time. You ca n use the digit al display to chec k if the hand position s are correct an d to conﬁ rm whe ther the anal og time indication matches the digital time.

2. Hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ SEC 00 ﬂ a s h e s .

• The se cond hand sh ould move to 12 o’clock at th is time. If it do esn’t,

use A (+) to move the second hand so i t aligns with 12 o’clock .

3. After the second hand is aligned correctly, pressD.

• The ho ur and minute h ands should m ove to 12 o’clock. If they do n’t,

use A (+) and C (–) to move them so they align with 12 o’clock.

• Press ing D here returns to t he second ha nd home posi tion

adjustmen t in step 2.

4. After adjusting the hour hand and minute hand home positions, press

1. In the Timekeeping Mode, hold downE until each of the following

steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

2. UseD to cycle through the settings on the digital display until the

current illumination duration (

• See ste p 3 under “To change the current ti me and date settings” (page

E-22) for info rmation abo ut how to scroll th rough setti ng screens.

3. PressA to toggle the illumination duration between three seconds

LT3

(

displayed) and one second (

LT1

LT3

LT1

) is shown.

displayed).

More than

More than 40°

40°

Wear the watch on the

Wear the watch on the outside of your wrist

outside of your wrist

Illumination

The face of the watch is illuminated for easy reading in the dark. The watch’s auto light switch turns on illumination automatically when you angle the watch towards your face.

• The auto light switch must be turned on (page E-80) for it to operate.

To turn on illumination manually

PressL in any mode to turn on illumination.

• You can use the procedure below to select either one second or three

seconds as the illumination duration. When you pressL, illumination will remain on for about one second or three seconds, depending on the current illumination duration setting.

• The above operation turns on illumination regardless of the current

auto light switch setting.

• Illumination cannot be used in a sensor mode, or while a compass

operation is in progress.

Warning!

Always make sure you are in a safe place whenever you are reading the display of the watch

•

using the auto light switch. Be especially careful when running or engaged in any other activity that can result in accident or injury. Also take care that sudden illumination by the auto light switch does not startle or distract others around you.

When you are wearing the watch, make sure that its auto light switch is turned off before riding

•

on a bicycle or operating a motorcycle or any other motor vehicle. Sudden, unintended operation of the auto light switch can create a distraction, which can result in a trafﬁ c accident and serious personal injury.

Note

• This watch features a “Full Auto LED Light”, so the auto light switch operates only when available light

is below a certain level. Illumination does not turn on under bright light.

• The auto light switch is always disabled, regardless of its on/off setting, when any one of the following

conditions exists.

While an alarm is sounding During sensor measurement While a bearing sensor calibration operation is being performed in the Compass Mode

While a hand home position adjustment operation is in progress

E-75

E-77

E-78

E-79

Operation Guide 5113 5213

To turn the auto light switch on and off

4. After the setting is the way you want, pressE to exit the setting screen.

Illumination Precautions

• Frequent use of illumination can run down the battery, which will require exposing the watch to light for

charging. The following guidelines give an idea of the charging time required to recover from a single illumination operation.

Approximately ﬁ ve minutes exposure to bright sunlight coming in through a window Approximately 50 minutes exposure to indoor ﬂ uorescent lighting

• Illumination may be hard to see when viewed under direct sunlight.

• Illumination turns off automatically whenever an alarm sounds.

• Frequent use of illumination runs down the battery.

E-80

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

2. UseD to cycle through the settings on the digital display until the current auto light switch setting ( digital display.

• See ste p 3 under “To change the current ti me and date settings” (page

E-22) for info rmation abo ut how to scroll th rough setti ng screens.

3. PressA to toggle the auto light switch setting between on ( On) or off

OFF

(

AT OFF

AT On

) is ﬂ ashing on the

Button Operation Tone

The button operation tone sounds any time you press one of the watch’s buttons. You can turn the button operation tone on or off as desired.

• Even if you turn off the button operation tone, the alarm, Hourly Time Signal, and Countdown Timer

Mode alarm all operate normally.

To turn the button operation tone on and off

1. In the Timekeeping Mode, hold downE until each of the following steps occurs.

• Hold SE T appears on the digital display. ➝ HT ﬂ ashes. ➝ Second

hand points t o the current Ho me City co de.

2. UseD to cycle through settings on the digital display until the current button operation tone (

• See ste p 3 under “To change the current ti me and date settings” (page

E-22) for info rmation abo ut how to scroll th rough setti ng screens.

3. PressA to toggle the button operation tone between on (

MUTE

off (

4. After the setting is the way you want, pressE to exit the setting screen.

MUTE

BEEP

) is displayed.

BEEP

) or

Auto light switch precautions

• Wearing the watch on the inside of your wrist, movement of your arm, or vibration of your arm can

cause frequent activation of the auto light switch and illumination. To avoid running down the battery, turn off the auto light switch whenever engaging in activities that might cause frequent illumination.

• Note that wearing the watch under your sleeve while the auto light switch is turned on can cause

frequent illumination and can run down the battery.

• Illumination may not turn on if the face of the watch is more than 15 degrees above

or below parallel. Make sure that the back of your hand is parallel to the ground.

• Illumination turns off after the preset illumination duration (page E-78), even if you

keep the watch pointed towards your face.

• Static electricity or magnetic force can interfere with proper operation of the auto

light switch. If illumination does not turn on, try moving the watch back to the starting position (parallel with the ground) and then tilt it back towards your face again. If this does not work, drop your arm all the way down so it hangs at your side, and then bring it back up again.

• You may notice a very faint clicking sound coming from the watch when it is shaken

back and forth. This sound is caused by mechanical operation of the auto light switch, and does not indicate a problem with the watch.

E-81

Troubleshooting

Time Setting

The current time setting is off by one hour.

■

You may need to change your Home City’s standard time/daylight saving time (DST) setting. Use the procedure under “To change the current time and date settings” (page E-22) to change the standard time/ daylight saving time (DST) setting.

Hand Home Position Adjustment

The time indicated by the hands is different from the time shown on the digital display

■

If the displayed time and the time indicated by the hands do not match, it could mean that the hand home positions are off. Use the Hand Home Position Adjustment Mode (page E-76) to adjust them.

Sensor modes

I can’t change the temperature, barometric pressure, and altitude units.

■

TOKYO

When barometric pressure unit to hectopascals (hPa), and the temperature unit to Celsius ( °C). These settings cannot be changed.

“Err” appears on the digital display while I am using a sensor.

■

Subjecting the watch to strong impact can cause sensor malfunction or improper contact of internal circuitry. When this happens, disabled.

TYO

(

) is selected as the Home City, the altitude unit is set automatically to meters (m), the

Err

(error) will appear on the digital display and sensor operations will be

E-82

Compass Reading Barometric Pressure

Err

•

appears while a measurement operation is being performed in a sensor mode, restart the measurement.

Err

appears on the digital display again, it can mean there is something wrong with the sensor.

•

Even if battery power is at Level 1 ( H) or Level 2 ( M), the Compass Mode, Barometer/Thermometer Mode, or Altimeter Mode sensor may be disabled if there is not enough voltage available to power it sufﬁ ciently. In this case, sensor operation should resume once battery voltage returns to its normal level.

Err

• If

keeps appearing during measurement, it could mean there is a problem with the applicable

sensor.

“Err” appears on the digital display after I perform bidirectional calibration or northerly

■

calibration.

- - -

appears and then changes to

wrong with the sensor.

Err

• If

disappears after about one second, try performing the calibration again.

Err

• If

keeps appearing, contact your original dealer or nearest authorized CASIO distributor to have the

watch checked.

E-84

Why doesn’t the second hand indicate the barometric pressure differential when I enter the

■

Barometer/Thermometer Mode?

• This could indicate sensor error. Try pressingB again.

• The barometric pressure differential is not indicated by the second hand if the pressure reading is

outside the allowable measurement range (260 to 1,100 hPa).

World Time Mode

The time for my World Time City is off in the World Time Mode.

■

This could be due to incorrect switching between standard time and daylight saving time. See “To specify standard time or daylight saving time (DST) for a city” (page E-74) for more information.

Charging

The watch does not resume operation after I expose it to light.

■

This can happen after the power level drops to Level 5 (page E-11). Continue exposing the watch to light until the battery power indicator shows “ H” or “ M”.

Reading

Err

will appear on the digital display. This does not indicate malfunction, and

Err

(error) on the calibration screen, it means that there is something

Temperature Reading Altitude Reading

E-83

“Err” appears on the digital display after I perform northerly calibration.

■

Err

The

message indicates there may be some problem with the sensor. The due to movement of the watch while the calibration procedure is being performed. Try performing calibration again, taking care to ensure that the watch is not moved. If this does not solve the problem, the problem may be due to some nearby source of terrestrial magnetism. Try performing the calibration procedure again from the beginning.

Whenever you have a sensor malfunction, take the watch to your original dealer or nearest authorized CASIO distributor as soon as possible.

What causes incorrect direction readings?

■

• Incorrect bidirectional calibration. Perform bidirectional calibration (page E-29).

• Nearby source of strong magnetism, such as a household appliance, a large steel bridge, a steel

beam, overhead wires, etc., or an attempt to perform direction measurement on a train, boat, etc. Move away from large metal objects and try again. Note that compass operation cannot be performed inside a train, boat, etc.

What causes different direction readings to produce different results at the same location?

■

Magnetism generated by nearby high-tension wires is interfering with detection of terrestrial magnetism. Move away from the high-tension wires and try again.

Why am I having problems taking direction readings indoors?

■

A TV, personal computer, speakers, or some other object is interfering with terrestrial magnetism readings. Move away from the object causing the interference or take the direction reading outdoors. Indoor direction readings are particularly difﬁ cult inside ferro-concrete structures. Remember that you will not be able to take direction readings inside of trains, airplanes, etc.

Err

message also may be

E-85

Speciﬁ cations

Accuracy at normal temperature: Digital Timekeeping:

Calendar: Full auto calendar from 2000 to 2099. Other: Two display formats (day of the week and barometric pressure graph)

Analog Timekeeping:

Other: Home City code (can be assigned one of 29 city codes and Coordinated Universal Time);

Standard Time/Daylight Saving Time (summer time)

Compass:

of north; Calibration (bidirectional, northerly); Magnetic declination correction

Barometer:

Measurement and display range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg) Display unit: 1 hPa (or 0.05 inHg) Measurement timing: Daily from midnight, at two hour intervals (12 times per day); Every ﬁ ve seconds

in the Barometer/Thermometer Mode

Other: Calibration; Manual measurement (button operation); Barometric pressure graph; Hand

indication of pressure differential

Thermometer:

Measurement and display range: –10.0 to 60.0 °C (or 14.0 to 140.0 °F) Display unit: 0.1 °C (or 0.2 °F) Measurement timing: Every ﬁ ve seconds in the Barometer/Thermometer Mode Other: Calibration; Manual measurement (button operation)

Month, day, day of the week

20 seconds continuous measurement; 16 directions; Angle value 0 ° to 359 °; Hand indication

±15 seconds a month

Hour, minute (moves every 10 seconds), second

E-86

E-87

Operation Guide 5113 5213

Altimeter:

Measurement range: –700 to 10,000 m (or –2,300 to 32,800 ft.) without reference altitude Display range: –10,000 to 10,000 m (or –32,800 to 32,800 ft.)

Negative values can be caused by readings produced based on a reference altitude or due to

atmospheric conditions.

Display unit: 5 m (or 20 ft.) Current Altitude Data: 5-second intervals for 1 hour (

followed by 2-minute interval for next 10 hours (

Altitude Memory Data:

Manual save records: 14 (altitude, date, time) Auto save values: High altitude (with month, day, time of reading), low altitude (with month, day,

time of reading), cumulative ascent (with month, day, time of ﬁ rst reading), cumulative descent (with month, day, time of ﬁ rst reading)

Other: Reference altitude setting; Altitude graph; Altitude differential; Altitude auto measurement

Bearing Sensor Precision:

Direction: Within ±10°

Values are guaranteed for a temperature range of –10°C to 40°C (14°F to 104°F).

North indicated by second hand: Error of ±2° for each mark in the scale.

E-88

Countdown Timer:

Measuring unit: 1 second Countdown start time setting range: 60 minutes (1-minute unit)

Alarms: World Time:

Other: Daylight Saving Time/Standard Time; Home City/World Time City switching

Illumination:

Other:

Power Supply:

Approximate battery operating time: 6 months (from full charge to Level 4) under the following

• Watch not exposed to light

• Internal timekeeping

• Display on 18 hours per day, sleep state 6 hours per day

• 1 illumination operation (1.5 seconds) per day

• 10 seconds of alarm operation per day

• 10 compass operations per week

• 10 hours of altimeter measurement, once per month

• Barometric pressure readings and graph updating every two hours (12 times per day)

Frequent use of illumination runs down the battery. Particular care is required when using the auto light switch (page E-81).

0’05

method (

5 Daily alarms; Hourly time signal

29 cities (29 time zones)

LED (light-emitting diode); Selectable illumination duration (approximately 1.5 seconds or 3

seconds); Auto Light Switch on/off (Full Auto LED Light lights only in the dark)

Battery power indicator; Power Saving; Low-temperature resistance (–10 °C/14°F); Button

operation tone on/off; Time Formats (12-hour and 24-hour)

2’00

)

Solar cell and one rechargeable battery

conditions:

0’05

), or 5-second interval for ﬁ rst 3 minutes

2’00

)

Pressure Sensor Precision:

Conditions (Altitude) Altimeter Barometer

0 to 6000 m

Fixed temperature

Effect of variable temperature

• Values are guaranteed for a temperature range of –10 °C to 40 °C (14 °F to 104 °F).

• Precision is lessened by strong impact to either the watch or the sensor, and by temperature extremes.

Temperature Sensor Precision:

Stopwatch:

0 to 19680 ft.

6000 to 10000 m 19680 to 32800 ft.

0 to 6000 m 0 to 19680 ft.

6000 to 10000 m 19680 to 32800 ft.

±2°C (±3.6 °F) in range of –10 °C to 60 °C (14.0 °F to 140.0 °F)

Measuring unit: 1/100 second Measuring capacity: 59' 59.99" Measuring modes: Elapsed time, split time, two ﬁ nishes

± (altitude differential × 2% + 15 m) m ± (altitude differential × 2% + 50 ft.) ft.

± (altitude differential × 2% + 25 m) m ± (altitude differential × 2% + 90 ft.) ft.

± 50 m every 10 °C ± 170 ft. every 50 °F

± 70 m every 10 °C ± 230 ft. every 50 °F

± (pressure differential × 2% + 2 hPa) hPa ± (pressure differential × 2% + 0.059 inHg) inHg

± 5 hPa every 10 °C ± 0.148 inHg every 50 °F

E-89

E-90

City Code Table

City

Code

PAGO PAGO (PPG) Pago Pago –11

HONOLULU (HNL) Honolulu –10

ANCHORAGE (ANC) Anchorage –9

LOS ANGELES (LAX) Los Angeles –8

DENVER (DEN) Denver –7

CHICAGO (CHI) Chicago –6

NEW YORK (NYC) New York –5

SANTIAGO (SCL) Santiago –4

RIO

PRAIA (RAI) Praia –1

UTC

LONDON (LON) London

PARIS (PAR) Paris +1

ATHENS (ATH) Athens +2

JEDDAH (JED) Jeddah +3

TEHRAN (THR) Tehran +3.5

DUBAI (DXB) Dubai +4

L-2

Rio De Janeiro

City

UTC Offset/

GMT Differential

L-1

City

Code

KABUL (KBL) Kabul +4.5

KARACHI (KHI) Karachi +5

DELHI (DEL) Delhi +5.5

KATHMANDU (KTM) Kathmandu +5.75

DHAKA (DAC) Dhaka +6

YANGON (RGN) Yangon +6.5

BANGKOK (BKK) Bangkok +7

HONG KONG (HKG) Hong Kong +8

–3

TOKYO (TYO) Tokyo +9

ADELAIDE (ADL) Adelaide +9.5

SYDNEY (SYD) Sydney +10

NOUMEA (NOU) Noumea +11

WELLINGTON (WLG) Wellington +12

• Based on data as of July 2010.

• The rules governing global times (GMT

differential and UTC offset) and summer time are determined by each individual country.

City

UTC Offset/

GMT Differential

Casio 5213 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
