Before using the watch...
Operation Guide 4343
Expose the watch to light
Your watch runs on electrical power generated from light and stored
by a chargeable battery. Long-term storage of the watch can cause
the battery to run low, so be sure to expose the watch to light for
some time before using it for the first time. See “Solar Charging” for
more information.
Low Battery Alert
When secondary battery power is low, the second hand of the watch
will start to jump at 2-second intervals to let you know that charging
is required.
• See “Low Battery Alert” for more information.
30
Jumps 2 seconds
Modes and Indicators
Chronograph Mode
Second Hand
• Reset
30
The stopwatch performs 1/20-second elapsed time
measurement up to 23 hours, 59 minutes, 59.95
seconds (24 hours).
Start/Stop
Press the button to start and stop the
chronograph.
Chronograph Reset
To exit the Chronograph Mode, the chronograph must
be reset by pressing the button while the
chronograph is stopped. The chronograph is reset
when the second hand, chronograph hands, and 1/20second hand are all at 12 o’clock.
• Start
• Stop
Chronograph
Hands
(Hour, Minute)
1/20-second Hand
(First minute only.)
(While
chronograph
is reset.)
Power Saving
Power Saving causes the watch to enter a sleep state automatically
and stop movement of the analog hands in order to save power
whenever it is left in the dark. The watch will exit the sleep state if
you expose it to light or perform any button operation.
• Note that the watch may also enter the sleep state and stop if it is
blocked from light by your sleeve.
How the sleep state works
Sleep Level 1
The display sleep state is triggered whenever the watch is left in the
dark for about one hour between the hours of 10 p.m. and 6 a.m.
• The second hand stops.
• The hour and minute hands, and the date indicator continue to
operate normally.
• Alarms and the hourly time signal continue to operate normally.
Sleep Level 2
Sleep Level 2 is triggered whenever the watch is left in the dark
while in Sleep Level 1 for six or seven days.
• The hour and minute hands, and the date indicator stop at their
current positions.
• Auto Receive is disabled.
• Alarms and the hourly time signal are disabled.
• Digital timekeeping functions continue to operate normally.
Timekeeping Mode
Hour Hand
Indicator Hand
Button
Hour Hand
(24-hour)
Button
Second Hand
(Moving)
❚
To check the reception result
Press the button. The indicator
hand will move to “Y” (successful) or
“N” (unsuccessful) to indicate the
reception result.
❚ To trigger a receive operation manually
Hold down the button for about two seconds until
the indicator hand moves to the “READY” position. This
will start signal reception.
For more information, see “How a Radiocontrolled Watch Works”.
30
Minute Hand
Button
(Chronograph
Mode)
Button
Date
Y:
Successful
N:
Unsuccessful
You can use the button operations shown below to enter the Timekeeping Mode, World Time Mode, or Alarm Mode directly.
World Time Mode
• The indicator hand points to the city code.
• World Time lets you display the current time in any one
of 27 cities (29 time zones) around the world.
City Code
(New York)
ON = On
• On/Off
Alarm Mode
30
OFF = Off
30
World Time
(Hour, Minute)
Alarm Time
(Hour, Minute)
❚
To search for a city code
Use the button to scroll clockwise through the city
codes around the face.
• The indicator hand points to ON or OFF.
• Use this mode to set the alarm time and to turn the
alarm on or off.
❚
To turn the alarm on or off
Press the button to toggle the alarm on and off.
1
Operation Guide 4343
Solar Charging
Your watch runs on electrical power generated from light and stored by a chargeable battery. To ensure stable operation, make sure that the
watch is exposed to light as much as possible.
• Whenever you are not wearing the watch on your wrist, position it
so the face (solar cell) is pointed in the direction of a source of
bright light.
Solar Cell
Leave the watch under fluorescent lighting, near a window, etc.
Light
Low Battery Alert
When secondary battery power is low, the second hand of the watch will start to jump at 2-second intervals to let you know that charging is
required.
Normal Operation Disabled StateLow Battery Alert
When battery
runs low
30
Jumps 1 second.
• Even if the battery level drops to the point that timekeeping stops, you still will be able to recharge the battery and use the watch again.
• When you recharge the battery after it drops to a level where timekeeping stops, the hands will move automatically to the current time
setting.
• Try to keep the watch exposed to light as much as possible during normal use.
Jumps 2 seconds.
At midnight, the date
indicator will change to 1
(which is the home
position).
Important!
The following functions are disabled
when battery power is low.
• Auto receive and manual receive
• Alarm beeper
• When wearing the watch, try to keep your sleeve from blocking its
face, where the solar cell is located.
Charging efficiency is reduced significantly even if the face of the
watch is covered only partially by your sleeve.
Hands stop
at 12 o’clock.
1
1
Home Position
If power drops
even more...
The second, hour, and
minute hands all stop at 12
o’clock.
How the solar cell and battery work
When exposed to light
Light
Solar cell
(Converts light to power.)
Electrical Energy
Rechargeable
Battery
Power supplied to watch
When not exposed to light
Your watch continues to operate even when it is not exposed to light.
Leaving the watch in the dark can run down its battery and cause
functions to become disabled.
Charge
Rechargeable
Battery
Power supplied to watch
Discharge
Charging Guide
• Required Charging Time for One Day of Operation
Based on six minutes of signal reception and 10 seconds of alarm
per day.
Exposure Level (Brightness)
Outdoor Sunlight (50,000 lux)
Sunlight through a Window (10,000 lux)
Overcast Daylight through a Window (5,000 lux)
Indoor Fluorescent Lighting (500 lux)
Making sure the watch is exposed to light ensures stable operation.
• Approximate Charge Times Required to Advance to a Higher
Level
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Sunlight through a
Window (10,000 lux)
Overcast Daylight through
a Window (5,000 lux)
Indoor Fluorescent
Lighting (500 lux)
• Note that the above charging times are for reference only. Actual
charging time depends on a variety of environmental factors.
Until Hand Movement
Charging Time
Restarts
1 hours
2 hours
4 hours
35 hours
Charging Time
8 minutes
30 minutes
48 minutes
8 hours
Until Full Charge
21 hours
77 hours
– – –
– – –
Charging Precautions
Avoid charging the watch in the following locations, and anywhere
else where the watch may become very hot.
• On the dashboard of an automobile parked in the sun
• Very close to an incandescent light source or other sources of
heat
• In a location exposed to direct sunlight for long periods
Depending on the light source you are using, the
case of the watch may become quite hot when
charging. Take care to guard against burn injury
after charging.
2
Operation Guide 4343
How a Radio-controlled Watch Works
What is a radio-controlled watch?
A radio-controlled watch is designed to receive a time calibration
signal that contains standard time data and adjust its current time
setting accordingly.
Signal is received by
Transmitter
Cesium
atomic clock
After the watch receives the Standard Time signal, it performs
internal calculations to determine the current time. Because of
this, there may be an error of up to one second in the
displayed time.
❚
To check the result of the last receive
Long-wave time
calibration signal
Signal data
Time data
Watch
Internally
operation
In the Timekeeping Mode, press the
Receive Result Mode, which displays the last receive result.
• The indicator hand will move to “Y” (if the last reception was
successful) or “N” (if the last reception was unsuccessful).
• Press the A button to return to the Timekeeping Mode.
• The watch also will return to the Timekeeping Mode automatically
if you do not perform any operation for about five seconds.
built-in antenna.
Watch decodes
received data and
converts it to time
data.
Decode
Time is adjusted
according to time
data.
AA
A button to renter the
AA
Y: Successful
30
N: Unsuccessful
Calibration Signal
• The Japanese calibration signal (Call Sign: JJY) is maintained by
the National Institute of Information and Communications
Technology (NICT). It is transmitted 24 hours a day from the Mt.
Otakadoya transmitter (40 kHz) located in Tamura-gun,
Fukushima Prefecture, and from the Mt. Hagane transmitter (60
kHz) located on the border between Saga Prefecture and
Fukuoka Prefecture.
• The U.S. calibration signal (Call Sign: WWVB) is transmitted by
the National Institute of Standards and technology from Fort
Collins, Colorado.
• Time calibration signal frequencies and transmitter locations are
subject to change.
The time data of the Japanese calibration signal (Call Sign:
JJY) is maintained by the Japan Standard Time Group of the
National Institute of Information and Communications
Technology (NICT). Note that transmission of the standard
wave may be interrupted occasionally due to maintenance,
lightning, etc. For more information, visit the website of the
Japan Standard Time Group of the National Institute of
Information and Communications Technology (NICT) at the
following URL.
http://jjy.nict.go.jp
• Note that the above URL is subject to change.
❚
To position the watch for optimum
reception
Remove the watch from your wrist and place it somewhere so its top
(12 o’clock, where the antenna is located) is facing approximately in
the direction of the signal transmitter. Keep it away from metal
objects.
Resin Band
Receiving the Calibration Signal
There are two methods you can use in order to receive the time
calibration signal.
Auto Receive
Up to six times per day
(Midnight, 1:00, 2:00, 3:00, 4:00, and 5:00 a.m.)
• As soon as one auto receive is complete, all subsequent auto
receives for that day are cancelled.
Manual Receive
You initiate signal reception by pressing a button.
Hold down the
about two seconds.
• The indicator hand will indicate
the result of the reception, the
watch will beep, and the indicator
hand will move to “READY”.
❚
To interrupt a receive operation
Press any button.
AA
A button for
AA
30
READY
At the start of the receive
operation
• The indicator hand will move to “READY”.
• The hour and minute hands will remain at their normal positions.
• The second hand will stop at “0”.
While reception is in progress
• The indicator hand will move to “WORK”.
• The hour and minute hands will remain at their normal positions.
• Do not perform any watch operations while signal reception is in
progress.
Y: Successful
30
WORK
N: Unsuccessful
WORK
When reception is complete (Signaled when the watch beeps.)
• When the receive operation is successful, the indicator hand
moves to “Y”, the watch adjusts its time, and then the indicator
hand returns to its second hand operation after about one or two
minutes.
• When the receive operation fails, the indicator hand moves to “N”
and then the watch returns to the unadjusted time after about one
or two minutes.
Reception Ranges
This watch is designed to receive the standard time calibration signal of Japan (JJY) or of the United States (WWVB). The signal that is
received depends on the current Home City setting.
• For information about selecting a Home City, see “Changing the Home City Setting”. See the “World Time City Code List” for
information about city codes.
Home City (Supports signal reception)
TYO, HKG
HNL, ANC, LAX, DEN, CHI, NYC
• Signal reception is possible in Hong Kong (HKG), Honolulu (HNL), and Anchorage (ANC) when reception conditions are good.
Transmitter Location
Either the Mt. Otakadoya signal (40 kHz) or the Mt. Hagane signal (60 kHz)
Ft.Collins
1000km
Receivable Transmitter
Transmitter Location
The last receive status changes each time a new time
calibration signal receive operation is performed.
Metal Band
• Orienting the watch so it is sideways to the transmitter makes it
more difficult to receive the signal.
• Do not move the watch while it is receiving the calibration signal.
Time Required for Reception
Signal reception normally takes anywhere from about two to seven
minutes. Under certain signal conditions however, the receive
operation can take as long at 14 minutes.
Mt. Hagane
(60 kHz)
Certain conditions can make reception impossible even when the watch is within one of the reception ranges shown above.
Signals become weaker outside of the smaller circles indicated by dashed lines, so the reception environment has a greater effect on signal
reception.
• The following also can affect signal reception: geographic contours, structures, weather, climate, time of day (afternoon, evening), noise.
500km
1000km
500km
Mt. Otakadoya
(40 kHz)
3000km
1000km
Ft.Collins
3
Operation Guide 4343
Location
Reception is difficult and may even be impossible in the locations
described below. Avoid such locations when performing signal
reception.
• You should think of your watch as operating like a radio or TV
when it is receiving the calibration signal.
Among or near buildings
Inside a vehicle
(automobile, train, plane, etc.)
In a location where there is
radio interference
(construction site, airport, etc.)
If you are experiencing problems with reception, move away
from the types of locations described above to a location with
better reception, and try again.
Near high-voltage lines
Next to a household
appliance or office
equipment (TV, speaker, fax,
computer, cell phone, etc.)
Near mountains
Using the Chronograph
Calibration Signal Reception
Precautions
• Auto receive is disabled while the watch is in the Chronograph
Mode.
• Operating any button while auto receive is in progress will cause
the watch to beep and then exit the receive operation.
• Make sure you are within the range of a calibration signal
transmitter before performing the receive operation. Remember
that geographic contours, nearby buildings, the season, or the
time of day can make reception impossible even when you are
within range of the transmitter.
• Proper reception may be impossible if there is something blocking
the signal. If reception is unsuccessful, try again.
• This watch is designed to adjust its current time setting in
accordance with the calibration signal transmitted in Japan and
the United States only. Note that you will need to make your own
adjustments when using this watch outside of Japan or the United
States, or in any area that is outside the range of one of the
receivable time calibration signal transmitters.
• When the watch is unable to adjust its time using the calibration
signal for some reason, timekeeping accuracy is within ±20
seconds per month.
• Strong electrostatic charge can cause timekeeping error.
• Receive is cancelled if an alarm operation starts while it is being
performed.
• The watch’s calendar shows dates up to the year 2099.
Attempting a receive operation after that causes an error.
Troubleshooting
1. The watch cannot receive the time calibration signal.
• Is there something in the immediate area that may be interfering
with reception?
Even if you are within the reception range of a transmitter, objects
between you and the transmitter or electrical noise can interfere
with reception. Avoid such areas during signal reception. See
“Location” for more information.
• Are you within the reception range of a transmitter?
See “Reception Ranges” for information about areas where the
watch can receive the signal.
• Do you have the correct Home City code selected?
Remember that auto receive is not performed unless TYO
(Tokyo), HKG (Hong Kong), NYC (New York), CHI (Chicago),
DEN (Denver), LAX (Los Angeles), ANC (Anchorage), or HNL
(Honolulu) is selected as the Home City. Select the correct Home
City code using the procedure under “Changing the Home City
Setting”.
• Is the signal being transmitted?
Though the time data of the Japanese calibration signal (Call
Sign: JJY) is maintained by the Japan Standard Time Group of
the National Institute of Information and Communications
Technology (NICT), it sometimes may be interrupted for periodic
maintenance work, or because of lightning or other problems.
2. Time calibration signal reception is successful, but the
hourly time signal and current time are slightly off.
• After the watch receives the time calibration signal, it performs an
internal decoding process before updating its time setting.
Because of this, the time setting may be off slightly (within one
second).
3. Time calibration signal reception is successful, but the
current time setting is wrong.
• Is the correct city code selected for your Home City? Select the
correct Home City code using the procedure under “Changing the
Home City Setting”.
The chronograph performs 1/20-second elapsed time measurement
up to 23 hours, 59 minutes, 59.95 seconds (24 hours). When the
maximum limit is reached, the elapsed time returns to zero
automatically and timing continues from there.
• In the Timekeeping Mode, press the
the Chronograph Mode.
Timekeeping Mode Chronograph Mode
30
Second hand
counts seconds.
• To return to the Timekeeping Mode, press the
the chronograph is reset to zero.
BB
B button once to enter
BB
Indicator hand makes
one revolution.
30
Second hand
moves to “0”.
AA
A button while
AA
❚
To start or stop an elapsed time
operation
Enter the Chronograph Mode to use the chronograph.
Second
30
• Start
• Stop
Hour, Minute
• Reset
1/20 second
Start Stop Reset
• 1/20-second timing is performed for the first minute after you start
or restart an elapsed time measurement operation. The 1/20second hand also jumps to the elapsed time position when you
stop an elapsed time measurement operation.
• Pressing the A button while an elapsed time measurement
operation is in progress resets the chronograph to zero.
Cumulative Time Measurement
Pressing the B button to restart the chronograph without resetting it
to all zeros resumes elapsed time measurement from where it was
last stopped.
4

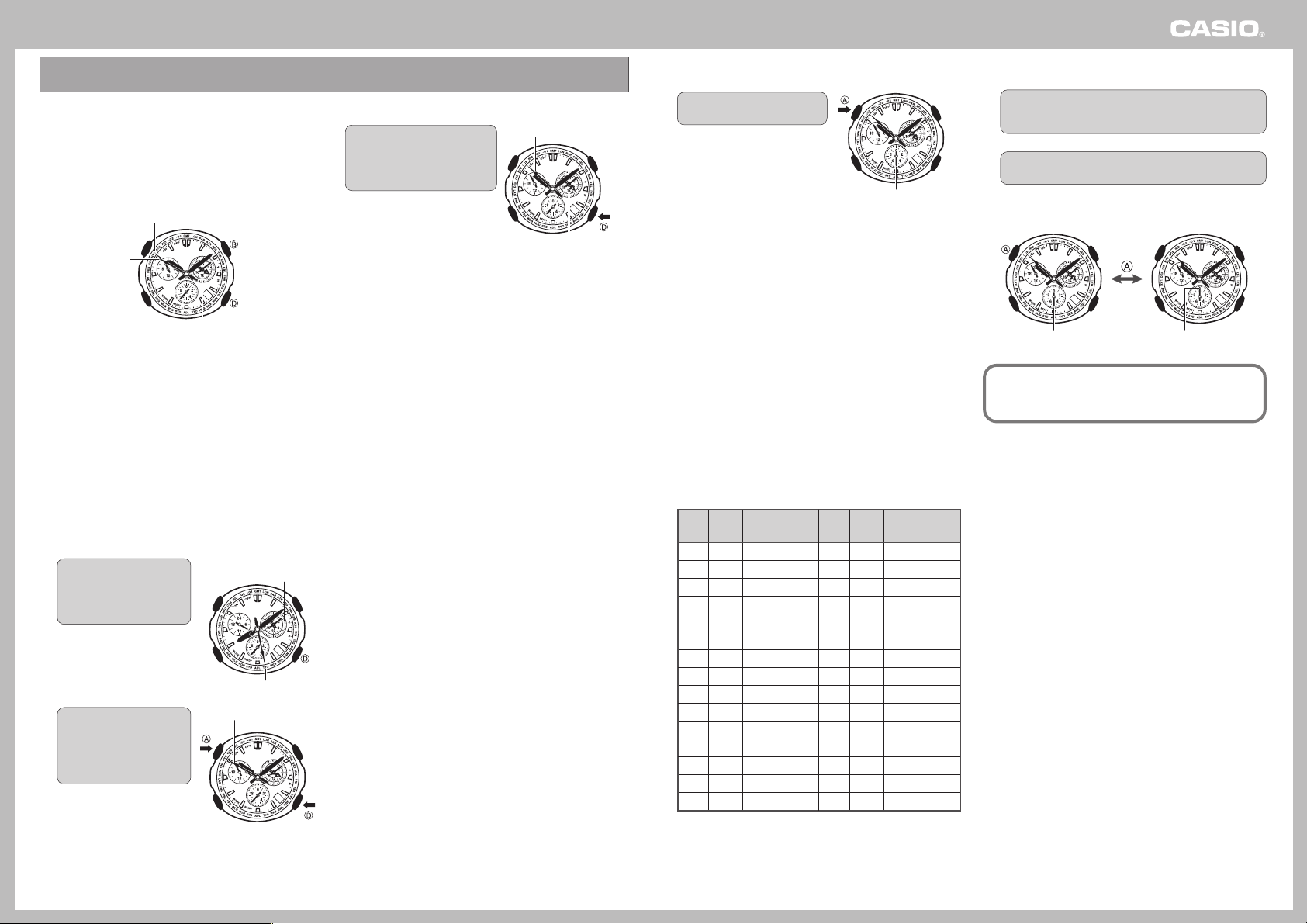

Using World Time
World Time lets you display the current time in any one of 27 cities
(29 time zones) around the world.
• Press the
• If you are entering from the Chronograph Mode, the chronograph
Important!
If the current time shown of the selected city code is not correct,
check the current time setting of your Home Time and make
adjustments as necessary.
• For information about configuring home time settings, see
• Press the
DD
D button to enter the World Time Mode.
DD
must be reset first. See “Chronograph Reset” for more
information.
World Time Mode
Currently Selected City Code
Indicator Hand
30
Time City Code Zone
(Hour, Minute)
“Changing the Home City Setting”.
BB
B button to return to the Timekeeping Mode.
BB
Operation Guide 4343
❚
To search for a city
In the World Time Mode, press
DD
the
D button to move the
DD
indicator hand (which is
pointing at the currently
selected city code) clockwise.
• About one second after you
release the D button, the hands
of the watch will move to the
current time in the zone of the
indicated city code.
Home City beep indicator
If the city code that the indicator hand moves to when you press the
D button is your currently selected Home City, the watch will beep.
(Indicates zone)
30
(Clockwise)
Current time in the zone
where the currently
selected city code is
located (24-hour format;
hour, minute)
❚
To check the current summer time on/
off setting
In the World Time Mode, press
AA
the
A button.
AA
• The second hand moves to “0”
when summer time is turned on,
and to “5” (between “4” and “6”)
when summer time is turned off.
• The second hand will resume
normal operation after about five
seconds.
30
Off
When summer time is turned on
• When you turn on summer time for a city code that supports time
calibration signal reception, the watch will decide automatically
whether or not to apply the summer time or standard time setting
in accordance with the received signal.
• In the case of a city code that does not support signal reception,
turning on summer time advances the current time setting by one
hour.
• City codes that support signal reception are TYO, HKG, HNL,
ANC, LAX DEN, CHI, and NYC.
• Signal reception is possible in Hong Kong (HKG), Honolulu
(HNL), and Anchorage (ANC) when reception conditions are
good.
• To select summer time manually for a city code that supports
signal reception, turn off summer time for the city code and
then select a city code in the neighboring time zone that will
advance the time by one hour.
❚
To turn summer time on or off
1. In the World Time Mode, use the
city code whose summer time setting you want to
change.
2. Hold down the
toggle summer time on or off.
• You can turn summer time on or off individually for each World
Time city. Note, however, that you cannot change the summer
time setting for the “GMT” (Greenwich Mean Time) zone.
Summer time, or Daylight Saving Time (DST) as is it is called
in some countries, calls for setting clocks ahead one hour
during the summer season. Note that the use of summer time
depends on the country and even the local area.
AA
A button for about five seconds to
AA
(5 seconds)
30
OFF ON
DD
D button to select the
DD
30
Changing the Home City Setting
Use the World Time Mode to specify your Home City.
Example: To change the Home City setting from New York
1. In the World Time Mode,
2. Hold down the
(NYC) to Tokyo (TYO)
DD
use the
D button to select
DD
the city code you want to
use as your new Home
City.
AA
A button
AA
as you press the
button to swap your
current Home City with the
World Time City you
selected in step 1.
• The watch will beep and make
the currently selected World
Time City your new Home
City.
• Your previous Home City will
become your new World Time
City, and the indicator hand
will move to its city code.
DD
D
DD
Current Time in
Selected City
30
TYO Selected
Indicator Hand Movement
30
Important!
If you are using the watch in Japan, be sure to select TYO (Tokyo)
as your Home City.
Selecting another city code will make it impossible to receive the
time calibration signal, which will cause your time setting to be off.
World Time City Code List
GMT
City
Differential
+0.0
+0.0
+1.0
+2.0
+3.0
+3.5
+4.0
+4.5
+5.0
+5.5
+6.0
+6.5
+7.0
+8.0
+9.0
City Name
Greenwich Mean Time
London
Pari s
Athens
Jeddah
Teheran
Dubai
Kabul
Karachi
Delhi
Dhaka
Yangon
Bangkok
Hong Kong
Tokyo
Code
GMT
LON
PA R
AT H
JED
THR
DXB
KBL
KHI
DEL
DAC
RGN
BKK
HKG
TYO
• Based on data as of June 2007.
• The rules governing global times (GMT differential and UTC
offset) and summer time are determined by each individual
country.
In December 2007, Venezuela changed its offset from –4.0 to
*
–4.5. Note, however, that this watch displays an offset of –4.0 (the
old offset) for the CCS (Caracas, Venezuela) city code.
City
Code
ADL
SYD
NOU
WLG
PPG
HNL
ANC
LAX
DEN
CHI
NYC
*
CCS
RIO
–2.0
–1.0
GMT
Differential
+9.5
+10.0
+11.0
+12.0
–11.0
–10.0
–9.0
–8.0
–7.0
–6.0
–5.0
–4.0
–3.0
City Name
Adelaide
Sydney
Noumea
Wellington
Pago Pago
Honolulu
Anchorage
Los Angeles
Denver
Chicago
New York
Caracas
Rio de Janeiro
5
Using the Alarms
The watch beeps for 10 seconds when the Timekeeping Mode time
reaches the currently set alarm time.
• The alarm will sound when the current time in your Home City
matches the alarm time.
• Press the
• If you are entering from the Chronograph Mode, the chronograph
• To return to the Timekeeping Mode from the Alarm Mode,
CC
C button to enter the Alarm Mode.
CC
must be reset first. See “Chronograph Reset” for more
information.
Alarm Mode
ON or OFF
30
Alarm Setting
(24-hour Format)
BB
press the
B button. Note that you cannot return to the
BB
Timekeeping Mode while in the alarm setting mode.
Operation Guide 4343
❚
To turn the alarm on or off
In the Alarm Mode, press the
and off.
• When the alarm is turned on, a beeper sounds when the alarm
time is reached.
OFF ON
30
❚
To stop the alarm
Pressing any button while the alarm is sounding stops it.
CC
C button to toggle the alarm on
CC
30
❚
To set the alarm time
Example: To change the alarm setting from midnight to 3:00 p.m.
1. In the Alarm Mode, hold
• This indicates the setting
2. Use the
• Each press of either button
• Holding down either button
• The alarm time uses 24-hour timekeeping format.
AA
down the
A button for
AA
about five seconds until
the indicator hand moves
to “ON” and the second
hand moves to zero.
mode.
DD
D (+) and
DD
buttons to change the
alarm setting in oneminute increments.
changes the setting by one
minute.
will cause the hands to move
at high speed. Once started,
high-speed hand movement
will continue even if you
release the button. To stop
high-speed hand movement,
press any button.
BB
B (–)
BB
ON
30
0
Alarm time
(–)
30
(+)
3. When everything is the
way you want, press the
AA
A button to exit the alarm
AA
setting mode.
• This will exit the alarm setting
mode and the second hand
will resume normal operation.
• The watch will exit the alarm
setting mode automatically if
you do not perform any button
operation for about two or
three minutes.
30
Setting the Time and Date Manually
You can perform the following procedures to adjust the time
and date when the watch is unable to receive a time
calibration signal for some reason.
1. In the Timekeeping Mode
hold down the
until the indicator hand
completes the following
sequence of operations:
indicates the last signal
reception result, moves to
the “READY” position,
moves to 12 o’clock.
• This is the setting mode.
• Keep A button depressed
until the indicator hands stops
at 12 o’clock.
• The second hand also will
move to “0” at this time.
AA
A button
AA
Indicator Hand
Second Hand
2. Use the
• Each press of either button
• Holding down either button
30
• When setting the time, make sure you also watch the 24-hour
3. Use the
• Each press of the C button advances the day by one.
DD
D (+) and
DD
buttons to change the
hour and minute setting.
changes the setting by one
minute.
will cause the hands to move
at high speed. Once started,
high-speed hand movement
will continue even if you
release the button. To stop
high-speed hand movement,
press any button.
hand so the time is set properly (1:00 a.m. = 1 o’clock, 1:00
p.m. = 13 o’clock).
CC
C button to change the day setting.
CC
BB
B (–)
BB
24-hour Hand
Date
(+)
Hour, Minute
(–)
30
Hour,
Minute
(+)
4. When everything is the
way you want, press the
AA
A button to exit the
AA
setting mode.
• The second hand will resume
normal operation.
• Pressing A to restart
timekeeping on a time signal
on the TV or radio ensures
precise setting.
• The watch will exit the setting
mode automatically if you do
not perform any button
operation for about two or
three minutes.
When you are using the watch in an area that supports time
calibration signal reception, it will adjust the date automatically
for month lengths and leap years. If you use it in an area that
does not support signal reception, you will have to make
adjustments for month lengths and leap year manually.
30
6
Operation Guide 4343
Home Position Adjustment
If the time setting of your watch is not correct even though time calibration signal reception is being performed normally, use the
procedure in this section to check the home positions of the hands and make adjustments as required. Note that you do not need to
perform the following operation if your watch is showing the correct time.
1. In the Timekeeping Mode,
hold down the
and then the
about five seconds.
• The watch will beep, and then
the indicator hand and the
second hand will move their
home positions.
Home Position
Indicator Hand: 12 o’clock
Second Hand: 0
• If the indicator hand and second hand are both at their
proper home positions, advance to step 3.
7. Check the day indicator. If
it is not at its home
position, use the
button to move it there.
Home Position
Day 1
• If the Day is at its proper home position, advance to step 9.
AA
A button
AA
CC
C button for
CC
CC
C
CC
Indicator Hand
30
Second Hand
1
Day
If the Day is not at its proper home position
8. Use the
DD
D (+) and
DD
BB
B (–) buttons to
BB
adjust the day.
1
If the indicator hand or second hand is
not at its proper home position
2. Use the
• The hands move
9. Press the
home position adjustment
and return to the
Timekeeping Mode.
• If you press the C button
instead of the A button in
step 1, the watch will return to
step 1 (indicator hand and
second hand home position
adjustment) of this procedure.
• The watch also will exit home
position adjustment
automatically if you do not
perform any operation for
about two or three minutes.
After completing the home position adjustment procedure, put
the watch in a location where it is able to receive the time
calibration signal easily and perform a manual receive
operation.
• For details about the manual receive procedure, see
“Receiving the Calibration Signal”.
BB
B button to
BB
adjust the position
of the indicator hand
CC
and the
C button to
CC
adjust the position
of the second hand.
clockwise only. Keep
pressing the buttons
until the applicable
hand is at its proper
home position.
AA
A button to exit
AA
3. Press the
• This will cause the hour hand,
• If the hour, minute, and 24-hour hands are all at their proper
home positions, advance to step 5.
30
30
4. Use the
CC
C button.
CC
minute hand, and 24-hour
hand to move to their home
positions.
Home Position
Hour Hand: 12 o’clock
Minute Hand: 12 o’clock
24-hour Hand: 24:00
If the chronograph hour and minute hands
are not at their proper home positions
DD
D (+) and
DD
BB
B (–) buttons to
BB
adjust the hands.
• Holding down either button will cause the hands to
move at high speed. Once started, high-speed hand
movement will continue even if you release the button.
To stop high-speed hand movement, press any button.
• The 24-hour hand is synchronized with the hour and
minute hands, so separate adjustment is not required.
Hour and Minute Hands
24-hour Hand
5. Press the
• This will cause the
30
• If the hour and minute hands are at their proper home
positions, advance to step 7.
6. Use the
30
CC
C button.
CC
chronograph hour and minute
hands to move to their home
positions.
Home Position
Hour Hand: 24:00
Minute Hand: 24:00
If the chronograph hour and minute hands
are not at their proper home positions
DD
D (+) and
DD
BB
B (–) buttons to
BB
adjust the hands.
• Holding down either button will cause the hands to
move at high speed. Once started, high-speed hand
movement will continue even if you release the button.
To stop high-speed hand movement, press any button.
Chronograph Hands
30
30
• Holding down either button will cause the day to change
at high speed. Once started, high-speed day change
will continue even if you release the button. To stop
high-speed day change, press any button.
7
Loading...
