CARVIN PM12, PM12A Specifications

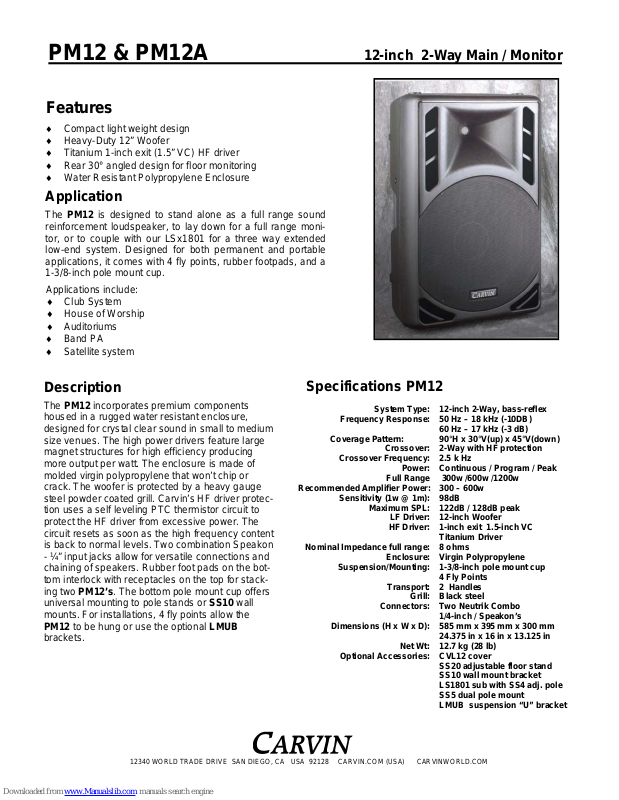

PM12 & PM12A 12-inch 2-Way Main / Monitor

Features

♦ Compact light weight design
♦ Heavy-Duty 12” Woofer
♦ Titanium 1-inch exit (1.5” VC) HF driver
♦ Rear 30° angled design for floor monitoring
♦ Water Resistant Polypropylene Enclosure

Application

The PM12 is designed to stand alone as a full range sound
reinforcement loudspeaker, to lay down for a full range moni­tor, or to couple with our LSx1801 for a three way extended
low-end system. Designed for both permanent and portable
applications, it comes with 4 fly points, rubber footpads, and a
1-3/8-inch pole mount cup.

Applications include:

♦ Club System
♦ House of Worship
♦ Auditoriums
♦ Band PA
♦ Satellite system

Description

The PM12 incorporates premium components
housed in a rugged water resistant enclosure,
designed for crystal clear sound in small to medium
size venues. The high power drivers feature large
magnet structures for high efficiency producing
more output per watt. The enclosure is made of
molded virgin polypropylene that won’t chip or
crack. The woofer is protected by a heavy gauge
steel powder coated grill. Carvin’s HF driver protec­tion uses a self leveling PTC thermistor circuit to
protect the HF driver from excessive power. The
circuit resets as soon as the high frequency content
is back to normal levels. Two combination Speakon

- ¼” input jacks allow for versatile connections and
chaining of speakers. Rubber foot pads on the bot­tom interlock with receptacles on the top for stack­ing two PM12’s. The bottom pole mount cup offers
universal mounting to pole stands or SS10 wall
mounts. For installations, 4 fly points allow the
PM12 to be hung or use the optional LMUB
brackets.

Specifications PM12

System Type: 12-inch 2-Way, bass-reflex
Frequency Response: 50 Hz – 18 kHz (-10DB)
60 Hz – 17 kHz (-3 dB)

Coverage Pattern: 90°H x 30°V(up ) x 45°V(down)

Crossover: 2-Way with HF protection
Crossover Frequency: 2.5 k Hz
Power: Continuous / Program / Peak
Full Range 300w /600w /1200w
Recommended Amplifier Power: 300 – 600w
Sensitivity (1w @ 1m): 98dB
Maximum SPL: 122dB / 128dB peak
LF Driver: 12-inch Woofer
HF Driver: 1-inch exit 1.5-inch VC
Titanium Driver
Nominal Impedance full range: 8 ohms
Enclosure: Virgin Polypropylene
Suspension/Mounting: 1-3/8-inch pole mount cup
4 Fly Points
Transport: 2 Handles
Grill: Black steel
Connectors: Two Neutrik Combo
1/4-inch / Speakon’s
Dimensions (H x W x D): 585 mm x 395 mm x 300 mm

24.375 in x 16 in x 13.125 in
Net Wt: 12.7 kg (28 lb)
Optional Accessories: CVL12 cover
SS20 adjustable floor stand
SS10 wall mount bracket
LS1801 sub with SS4 adj. pole
SS5 dual pole mount
LMUB suspension “U” bracket

12340 WORLD TRADE DRIVE SAN DIEGO, CA USA 92128 CARVIN.COM (USA) CARVINWORLD.COM

Frequency Response

PM12 Rear Plate Passive Block Diagram in Full Range Mode

Active PM12A Description

The PM12A incorporates powerful Class-D amplifier
technology powered by an efficient switch-mode
power supply. The PM12A model also features a 3­Band EQ with Mid-sweep for final room adjustments,
3 channels with individual level controls, internal ac­tive multi-band limiters for LF and HF driver protec­tion, and an 18db/octave low cut filter for a smooth
low-end optimized to the enclosure. The input XLR
can take in line levels or be switched to mic levels for
direct microphone input. The output XLR parallel the
input XLR for daisy chaining or it can output the mix
of all three channels.

PM12A Rear Plate

1+
1-

Neutrik 1/4-inch
Speakon Combo

1+
1-

HIGH PASS
FILTER

EQ AND
MATCHING

LOW PASS
FILTER

SPEAKER
GUARD

+

HORN

DRIVER

­+

LOW

DRIVER

-

Specifications PM12A

System Type: Internal Active system
Speaker Protection: Active HF & LF Limiter
Crossover Frequency: 2.5 k Hz
Maximum SPL: 124dB peak
Internal Amplifier full range: 400Watts
Connectors: Two XLR’s one Male, one Female
Two 1/4 TRS phone jacks
Two RCA jacks
AC Power Requirement: 90-250VAC 50-60Hz
Net Wt: 13 kg (29 lb)

PM12A 400Watt

Suspension with LMUB Bracket
