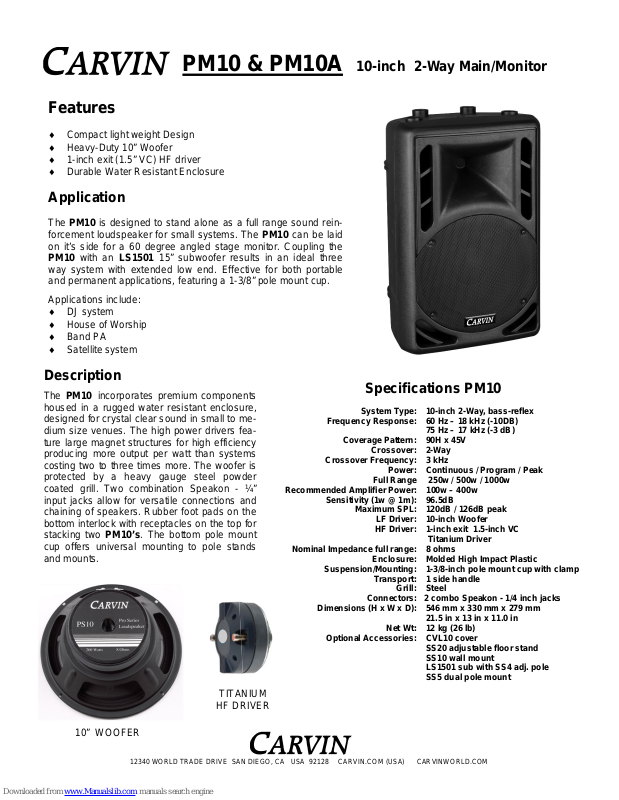

CARVIN PM10, PM10A Specifications

PM10 & PM10A 10-inch 2-Way Main/Monitor

Features

♦ Compact light weight Design
♦ Heavy-Duty 10” Woofer
♦ 1-inch exit (1.5” VC) HF driver
♦ Durable Water Resistant Enclosure

Application

The PM10 is designed to stand alone as a full range sound rein­forcement loudspeaker for small systems. The PM10 can be laid
on it’s side for a 60 degree angled stage monitor. Coupling the
PM10 with an LS1501 15” subwoofer results in an ideal three
way system with extended low end. Effective for both portable
and permanent applications, featuring a 1-3/8” pole mount cup.

Applications include:

♦ DJ system
♦ House of Worship
♦ Band PA
♦ Satellite system

Description

The PM10 incorporates premium components
housed in a rugged water resistant enclosure,
designed for crystal clear sound in small to me­dium size venues. The high power drivers fea­ture large magnet structures for high efficiency
producing more output per watt than systems
costing two to three times more. The woofer is
protected by a heavy gauge steel powder
coated grill. Two combination Speakon - ¼”
input jacks allow for versatile connections and
chaining of speakers. Rubber foot pads on the
bottom interlock with receptacles on the top for
stacking two PM10’s. The bottom pole mount
cup offers universal mounting to pole stands
and mounts.

TITANIUM

HF DRIVER

Specifications PM10

System Type: 10-inch 2-Way, bass-reflex
Frequency Response: 60 Hz – 18 kHz (-10DB)
75 Hz – 17 kHz (-3 dB)
Coverage Pattern: 90H x 45V
Crossover: 2-Way
Crossover Frequency: 3 kHz
Power: Continuous / Program / Peak
Full Range 250w / 500w / 1000w
Recommended Amplifier Power: 100w – 400w
Sensitivity (1w @ 1m): 96.5dB
Maximum SPL: 120dB / 126dB peak
LF Driver: 10-inch Woofer
HF Driver: 1-inch exit 1.5-inch VC
Titanium Driver
Nominal Impedance full range: 8 ohms
Enclosure: Molded High Impact Plastic
Suspension/Mounting: 1-3/8-inch pole mount cup with clamp
Transport: 1 side handle
Grill: Steel

Connectors: 2 combo Speakon - 1/4 inch jacks

Dimensions (H x W x D): 546 mm x 330 mm x 279 mm

21.5 in x 13 in x 11.0 in
Net Wt: 12 kg (26 lb)
Optional Accessories: CVL10 cover
SS20 adjustable floor stand
SS10 wall mount
LS1501 sub with SS4 adj. pole
SS5 dual pole mount

10” WOOFER

12340 WORLD TRADE DRIVE SAN DIEGO, CA USA 92128 CARVIN.COM (USA) CARVINWORLD.COM

PM10 Frequency Response

PM10 Rear Connections

Neutrik 1/4-inch
Speakon Combo

Active PM10A Description

The PM10A incorporates powerful Class-D amplifier
technology powered by an efficient switch-mode
power supply. The PM10A model also features a 3­Band EQ with Mid-sweep for final room adjustments,
3 channels with individual level controls, internal ac­tive multi-band limiters for LF and HF driver protec­tion, and an 18db/octave low cut filter for a smooth
low-end optimized to the enclosure. The input XLR
can take in line levels or be switched to mic levels for
direct microphone input. The output XLR parallel the
input XLR for daisy chaining or it can out­put the mix of all three channels.

Block Diagram in Full Range Mode

1+
1-

1+
1-

HIGH PASS
FILTER

EQ AND
MATCHING

LOW PASS
FILTER

SPEAKER
GUARD

+

HORN

DRIVER

­+

LOW

DRIVER

-

Specifications PM10A

System Type: Internal Active system
Speaker Protection: Active HF & LF Limiter
Crossover Frequency: 2.5 k Hz
Maximum SPL: 122.5dB
Internal Amplifier full range: 400Watts
Connectors: Two XLR’s one Male, one Female
Two 1/4 TRS phone jacks
Two RCA jacks
AC Power Requirement: 90-250VAC 50-60Hz
Net Wt: 13kg (28 lb)

PM10A Rear Plate

PM10A 400Watt

PM10 Dimensions
