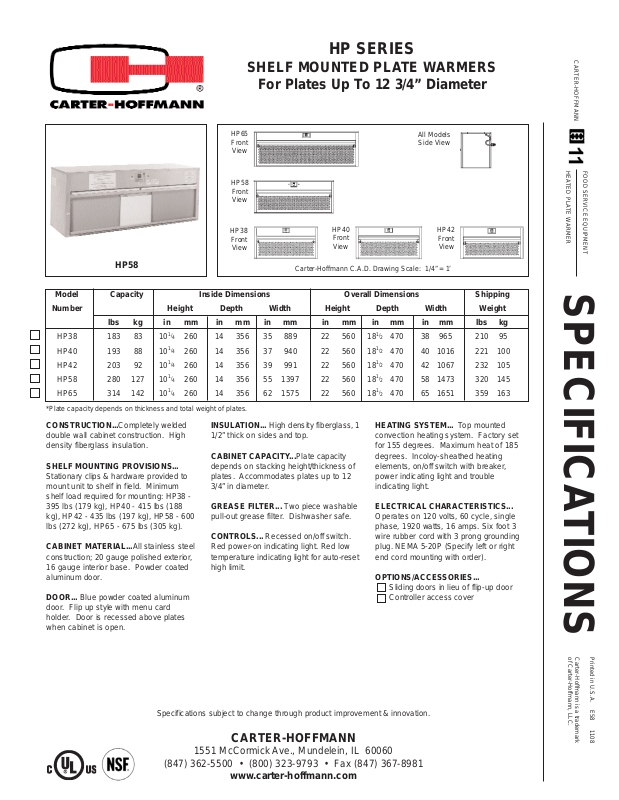

Carter-Hoffmann HP SERIES General Manual
SPECIFICATIONS
Printed in U.S.A. E58 1108
Carter-Hoffmann is a trademark
of Carter-Hoffmann, LLC.
HP SERIES
SHELF MOUNTED PLATE WARMERS
For Plates Up To 12 3/4” Diameter
CONSTRUCTION...Completely welded
double wall cabinet construction. High
density fiberglass insulation.
SHELF MOUNTING PROVISIONS...
Stationary clips & hardware provided to
mount unit to shelf in field. Minimum
shelf load required for mounting: HP38 395 lbs (179 kg), HP40 - 415 lbs (188
kg), HP42 - 435 lbs (197 kg), HP58 - 600
lbs (272 kg), HP65 - 675 lbs (305 kg).
CABINET MATERIAL...All stainless steel
construction; 20 gauge polished exterior,
16 gauge interior base. Powder coated
aluminum door.
DOOR... Blue powder coated aluminum
door. Flip up style with menu card
holder. Door is recessed above plates
when cabinet is open.
INSULATION... High density fiberglass, 1
1/2” thick on sides and top.
CABINET CAPACITY...Plate capacity
depends on stacking height/thickness of
plates. Accommodates plates up to 12
3/4” in diameter.
GREASE FILTER... Two piece washable
pull-out grease filter. Dishwasher safe.
CONTROLS... Recessed on/off switch.
Red power-on indicating light. Red low
temperature indicating light for auto-reset
high limit.
HEATING SYSTEM... Top mounted
convection heating system. Factory set
for 155 degrees. Maximum heat of 185
degrees. Incoloy-sheathed heating
elements, on/off switch with breaker,
power indicating light and trouble
indicating light.
ELECTRICAL CHARACTERISTICS...
Operates on 120 volts, 60 cycle, single
phase, 1920 watts, 16 amps. Six foot 3
wire rubber cord with 3 prong grounding
plug. NEMA 5-20P (Specify left or right
end cord mounting with order).
OPTIONS/ACCESSORIES...
Sliding doors in lieu of flip-up door
Controller access cover
FOOD SERVICE EQUIPMENT
HEATED PLATE WARMER
CARTER-HOFFMANN
HP58
*Plate capacity depends on thickness and total weight of plates.
Model Capacity Inside Dimensions Overall Dimensions Shipping
Number Height Depth Width Height Depth Width Weight
lbs kg in mm in mm in mm in mm in mm in mm lbs kg
HP38 183 83 10
1
/
4
260 14 356 35 889 22 560 18
1
/
2
470 38 965 210 95
HP40 193 88 10
1
/
4
260 14 356 37 940 22 560 18
1
/
2
470 40 1016 221 100
HP42 203 92 10
1
/
4
260 14 356 39 991 22 560 18
1
/
2
470 42 1067 232 105
HP58 280 127 10
1
/
4
260 14 356 55 1397 22 560 18
1
/
2
470 58 1473 320 145
HP65 314 142 10
1
/
4
260 14 356 62 1575 22 560 18
1
/
2
470 65 1651 359 163
HP58
Front
View
HP65
Front
View
HP38
Front
View
HP40
Front
View
HP42
Front
View
Carter-Hoffmann C.A.D. Drawing Scale: 1/4” = 1’
All Models
Side View
Specifications subject to change through product improvement & innovation.
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
HP SERIES
SHELF MOUNTED PLATE WARMERS
Since 1947, Foodservice Equipment That Delivers!
FEATURES & BENEFITS
1551 McCormick Avenue, Mundelein, Illinois 60060
Tel. (847)362-5500
.
(800)323-9793
.
Fax (847)367-8981
www.carter-hoffmann.com
DOUBLE WALL STAINLESS STEEL
CONSTRUCTION... Strongest, most
durable materials for long life and easy
cleaning. High density fiberglass
insulation for maximum heat retention.
HIGH PERFORMANCE HEATING
SYSTEM... Blower system for fast heat up,
recovery and heat distribution throughout
cabinet. Simple on-off switch with power
indicating light and red service indicator
light for simple operation. Factory pre-set
at 155 degrees.
GREASE FILTERS... Protect heater
components from grease and dirt so
unit may be mounted conveniently
above grill or saute station. Simple
pull-out design for easy removal and
cleaning. Filters can be washed by
hand or run through an automatic
dishwasher.
FLIP UP DOOR... For easy plate access,
door can be pushed up into recessed
track. Includes conveniently located menu
card holder.
