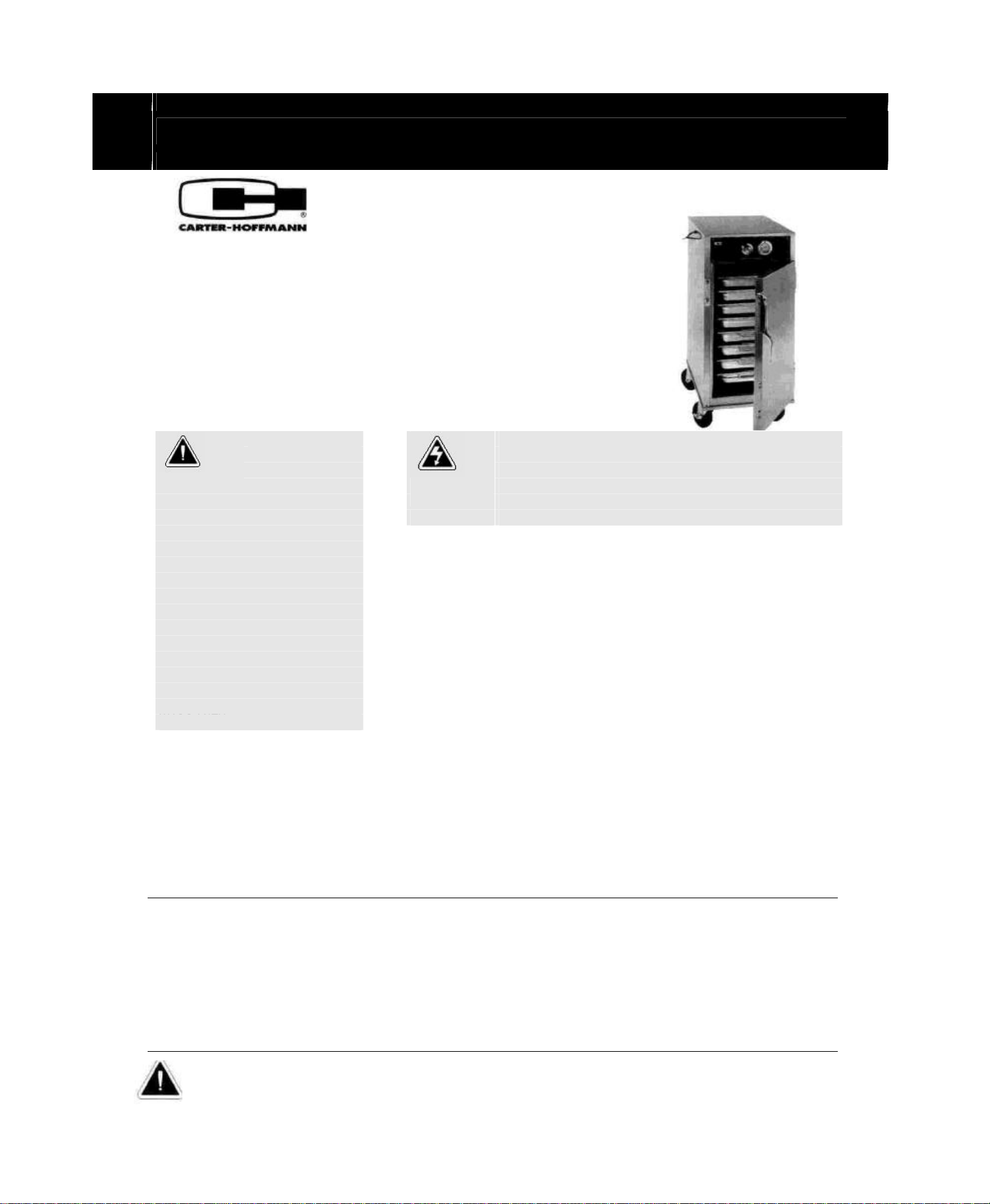

Carter-Hoffmann HS Series General Manual

1.

Racks or shelves are easily removed without tools for cleaning.

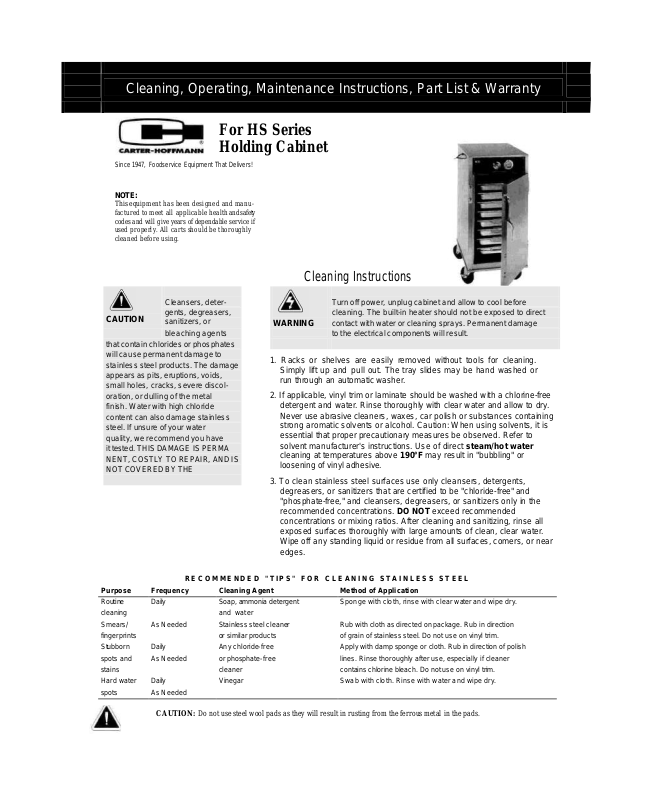

Cleaning, Operating, Maintenance Instructions, Part List & Warranty

For HS Series
Holding Cabinet

Since 1947, Foodservice Equipment That Delivers!

NOTE:

This equipment has been designed and manu­factured to meet all applicable health and safety
codes and will give years of dependable service if
used properly. All carts should be thoroughly
cleaned before using.

Cleaning Instructions

Cleansers, deter-

CAUTION

bleaching agents

that contain chlorides or phosphates
will cause permanent damage to
stainless steel products. The damage
appears as pits, eruptions, voids,
small holes, cracks, severe discol­oration, or dulling of the metal
finish. Water with high chloride
content can also damage stainless
steel. If unsure of your water
quality, we recommend you have
it tested. THIS DAMAGE IS PERMA
NENT, COSTLY TO REPAIR, AND IS
NOT COVERED BY THE

gents, degreasers,
sanitizers, or

WARNING contact with water or cleaning sprays. Permanent damage

Simply lift up and pull out. The tray slides may be hand washed or
run through an automatic washer.

2. If applicable, vinyl trim or laminate should be washed with a chlorine-free
detergent and water. Rinse thoroughly with clear water and allow to dry.
Never use abrasive cleaners, waxes, car polish or substances containing
strong aromatic solvents or alcohol. Caution: When using solvents, it is
essential that proper precautionary measures be observed. Refer to
solvent manufacturer's instructions. Use of direct steam/hot water
cleaning at temperatures above 190°F may result in "bubbling" or
loosening of vinyl adhesive.

3. To clean stainless steel surfaces use only cleansers, detergents,
degreasers, or sanitizers that are certified to be "chloride-free" and
"phosphate-free," and cleansers, degreasers, or sanitizers only in the
recommended concentrations. DO NOT exceed recommended
concentrations or mixing ratios. After cleaning and sanitizing, rinse all
exposed surfaces thoroughly with large amounts of clean, clear water.
Wipe off any standing liquid or residue from all surfaces, comers, or near
edges.

Turn off power, unplug cabinet and allow to cool before
cleaning. The built -in heater should not be exposed to direct

to the electrical components will result.

Purpose Frequency Cleaning Agent Method of Application

Routine Daily Soap, ammonia detergent Sponge with cloth, rinse with clear water and wipe dry.
cleaning

Smears/ As Needed Stainless steel cleaner Rub with cloth as directed on package. Rub in direction
fingerprints
Stubborn Daily Any chloride-free Apply with damp sponge or cloth. Rub in direction of polish
spots and As Needed or phosphate-free lines. Rinse thoroughly after use, especially if cleaner
stains
Hard water Daily Vinegar Swab with cloth. Rinse with water and wipe dry.
spots As Needed

RECOMMENDED "TIPS" FOR CLEANING STAINLESS STEEL

and water

or similar products of grain of stainless steel. Do not use on vinyl trim.

cleaner contains chlorine bleach. Do not use on vinyl trim.

CAUTION: Do not use steel wool pads as they will result in rusting from the ferrous metal in the pads.

Cabinet Operations

NOTE:

1.

Before using, familiarize y

ourself with the cabinet controls.

This unit is designed for HOLDING hot
foods. To insure best results, be sure
your food, containers, and covers are at
or above the desired holding
temperature and the cabinet is

completely pre-heated.

2. Plug the cabinet into a proven power source.

3. Turn the thermostat to number 4 or 5 on the knob. Be sure the cabinet
door(s) are fully closed during the pre-heat time.

4. Food serving temperature will vary with the mass, type and quantities
of food served. Set the thermostat for the desired holding setting. Turn
clockwise to increase the temperature and counter clockwise to
decrease the temperature.

5. During loading, the cabinet temperature will drop. Try not to move the
cart right away; wait 10-15 minutes until the cabinet recovers air
temperature.

6. Move the cart to the service area as quickly as possible.

7. Upon reaching the serving area, plug in the cabinet as quickly as
possible. Wait 5-10 minutes (check the thermometer to see if the
temperature is at the desired level). If not, adjust the thermostat as
required.

8. When removing items, start at the bottom and work to the top position.
This keeps food hotter and eliminates spillage on lower items.

Calibrations

[A] THERMOSTAT CALIBRATION

No thermostat calibration is required. Thermostat is preset at the

factory and is uncalibrateable.

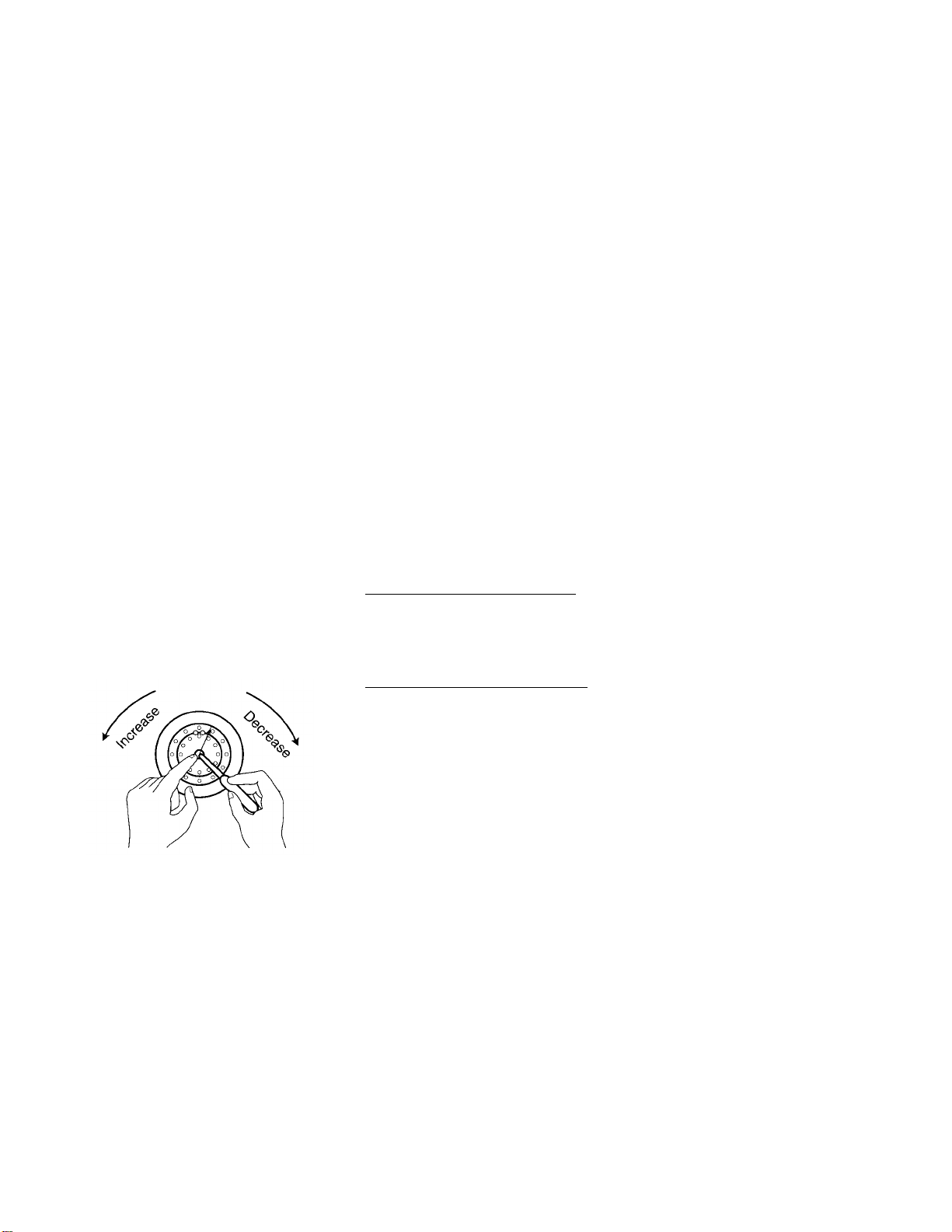

[B] THERMOMETER CALIBRATION

Place an oven thermometer in the center of the cabinet. Turn heater
on; turn thermostat to maximum setting and wait approximately 45
minutes. Open the door and check inside thermometer temperature. If
recalibration is required, pry the plastic cover off the dial body and with
a small flat blade screwdriver insert into the pointer as shown.
Carefully turn the pointer with your finger to the correct setting. Be
careful not to bend the pointer, it is very fragile.

2

18304

-

0030 Door Hinge

Heat Element 220V

18601

-

1180 Red Glow Light 250V

Maintenance

Instructions

Replacement

Tarts

Contact factory with your
model and serial number for
replacement cabinet
components.

[A] CASTERS

Some casters are equipped with Zerk grease fitting so that they may be
easily lubricated with a grease gun. Recommended lubrication is at least
once every six months. Lubrication will be required more frequently if carts
are cleaned with a hot water or steam cleaning system. Casters with
special bearings are recommended for frequent cart wash or steam
cleaning situations.

[B] LATCHES

Check frequently to insure that all door latches are secure. Latches may
become "sticky" due to residue buildup from daily use and cleaning.
Lubricate latches regularly with WD-40, silicone spray, graphite or other
commercial lubricants for stainless steel products. Do not use oil.

HS REPLACEMENT PARTS

Part Number Description
18304-0031 Hinge Spring Kit

18302-0050 Door Latch
18607-0009 Terminal Block
18602-0055 On/Off Switch
18612-0021 Element 120V 375W
18606-0586 Plug NEMA L5-20P
18600-0054 Hi-Limit 350°
18600-0085 Thermostat
18616-0014 Dial Thermometer
18605-5020 12/3 Power Cord
18312-0165 Control Overlay
18608-0012 Thermostat Knob
18612-0022
18612-0257 Heat Element 220V
18602-0056 On/Off Switch 220V

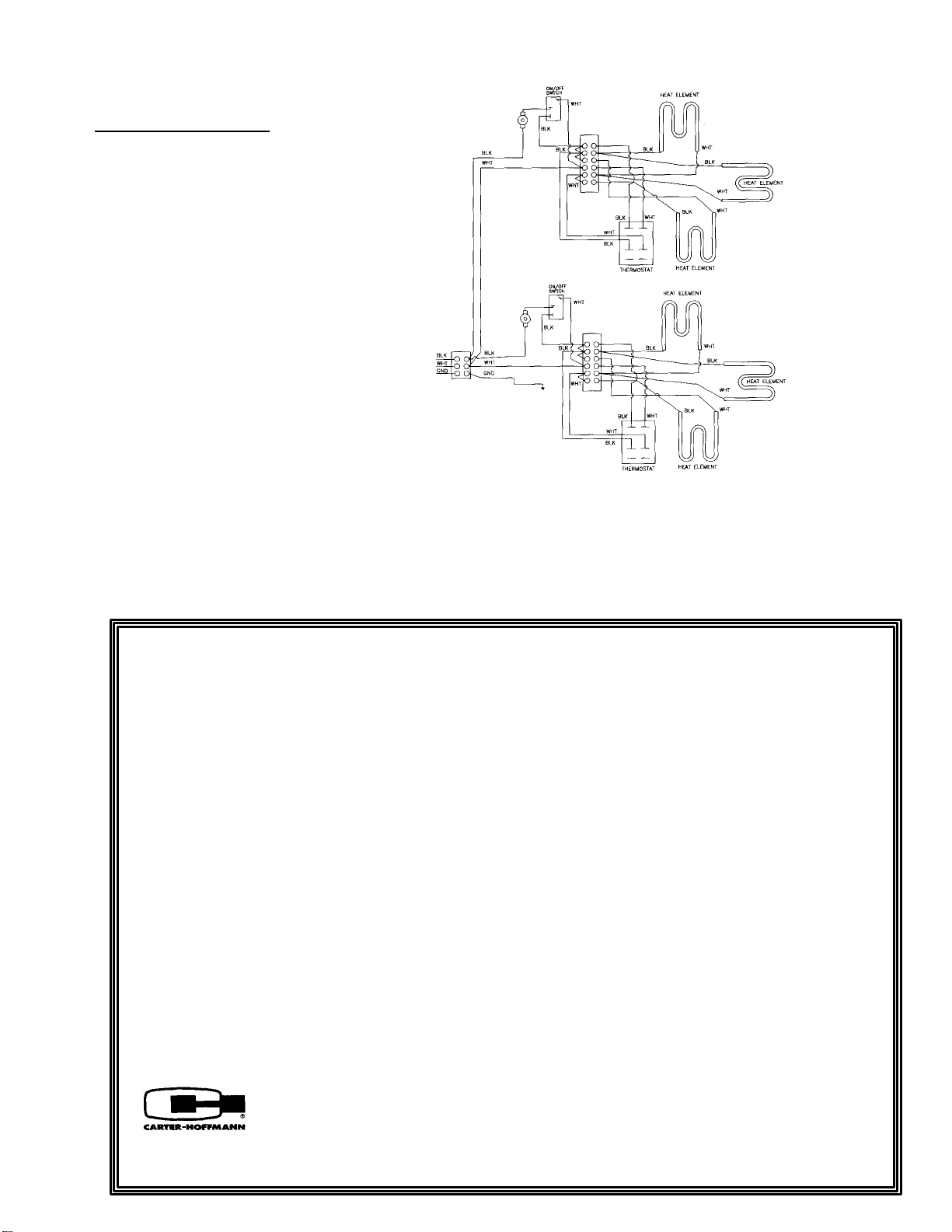

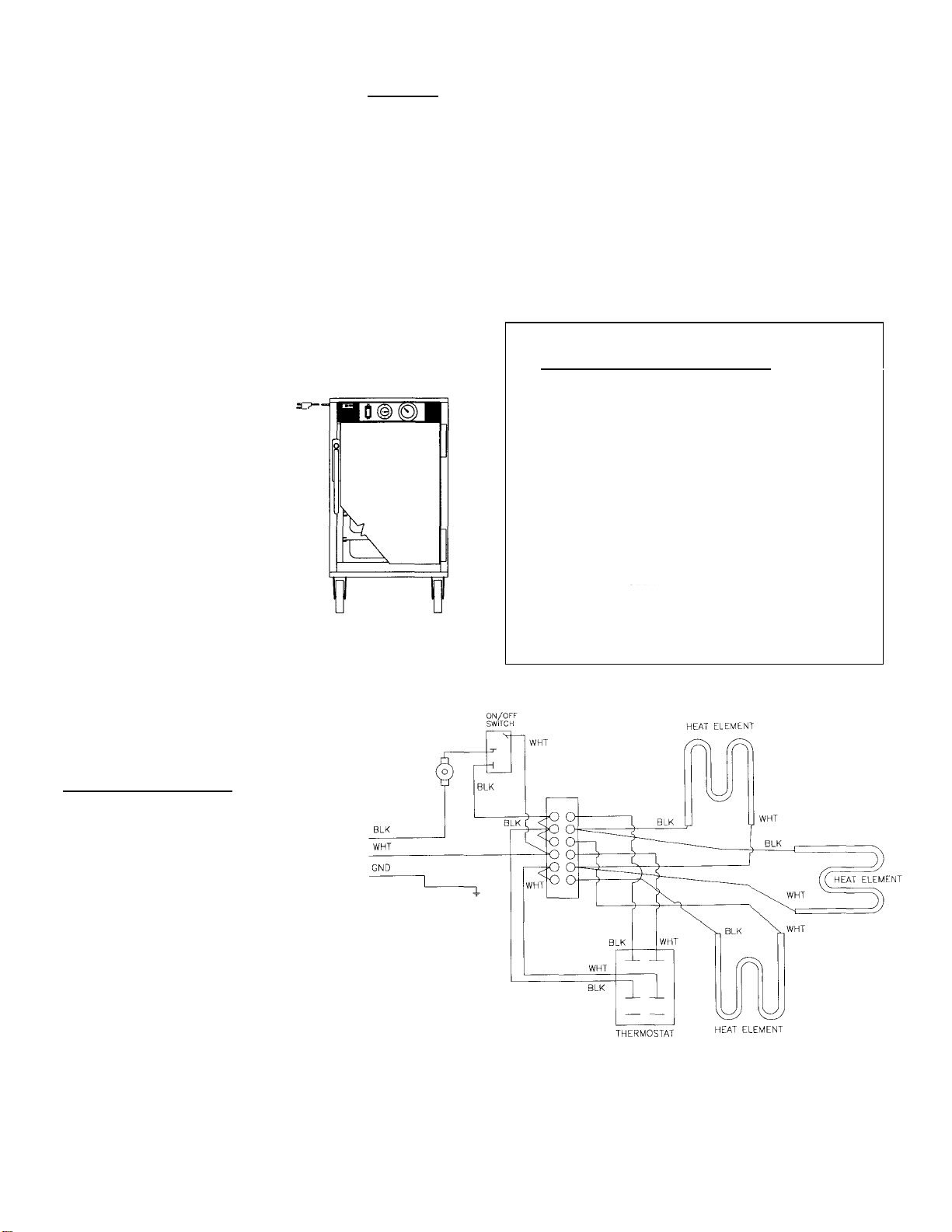

Wiring Diagram

HS SERIES WIRE DIAGRAM 120/200-240 VOLT
FOR SINGLE CHAMBER UNITS__________

18601-1170 Red Glow Light 120V

3

3

Wiring Diagram

HS SERIES WIRE DIAGRAM 120/200-240 VOLT
FOR DOUBLE CHAMBER UNITS_________

Carter-Hoffinann Corporation Warranty:
Carter-Hoffmann Corporation ("CARTER-HOFFMANN") warrants to the initial purchaser of its standard Carter Line Products that
CASTER-HOP f MANN will, at its option, repair or replace, during the warranty period set forth below, any part of such products
made necessary due to a defect in material or workmanship which is present when the product leaves its factory and which
manifests itself during the warranty period under normal use and service.

This warranty applies only to original equipment owned and possessed by the initial purchaser and the warranty period begins
on the date of original shipment from the CARTER-HOFPMANN factory and extends as follows: to electrical and refrigeration
components for one year; to electrical and refrigeration labor for 120 days; to refrigeration compressor unit for 1 year
(limited to replacement of the unit only—not to include labor for removal, repair or replacement), and to all other component
parts and labor for 12 months.

Repair or replacements under this warranty will be performed, unless otherwise authorized in writing by CARTER-HOPPMANN,
at its factory. All parts or components to be repaired or replaced under this warranty are to be shipped prepaid to CARTER-
HOFFMANN, with reimbursement credit for such part or component to be given if found by CARTER-HOFFMANN to be
defective.

CARTER-HOFPMANN neither makes nor assumes and does not authorize any other person to make or assume any obligation
or liability in connection with its products other than that covered in this warranty. This warranty applies only within the
continental United States and Canada. In Alaska and Hawaii, this warranty applies only to and is limited to the supply of
replacement parts.

Warranty Exclusions And Limitations:
Any implied warranty of merchantability or fitness for a particular purpose is hereby specifically disclaimed by Carter-Hoffmann
Corporation. There are no warranties, expressed or implied, which extend beyond the description on the face hereof.

This warranty does not cover and CARTER-HOFFMANN shall not under any circumstances he liable for any incidental,
consequential or other damages (such as injury to persons or property, loss of time, inconvenience, loss of use, loss of business
or profits, or other matters not specifically covered) arising in connection with the use of, inability to use, or failure of these
products.

Specifications subject to change through product improvement and innovation.

Printed in U.S.A.

1551 McCormick Avenue, Mundelein, Illinois 60060 NOVEMBER 1997

Since 1947 Foodservice Equipment That Delivers! SN/97P1344

Tel. [phone] • Fax No. [phone] 18400-3023B
