Carson SA-365-10 User Manual
Y
Carson Manufacturing Co., Inc.
5451 North Rural Street
Indianapolis, IN 46220
Phone: (888) 577-6877 Fax: (317) 254-2667
www.carsonsirens.com
SA-365-10
SIREN AMPLIFIER
M
A
N
P
H
S
R
/
E
L
P
STANDBY
SA-365
W
OUTPUT
A
I
L
INSTALLATION AND OPERATING
INSTRUCTIONS
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
H
O
R
N
Page 2 of 8 SA-365-10 Installation Instructions
GENERAL DESCRIPTION .................................................................................................... 2
SPECIFICATIONS................................................................................................................. 2
INSTALLATION ..................................................................................................................... 3
SAFETY PRECAUTIONS................................................................................................. 3
UNPACKING .................................................................................................................... 3

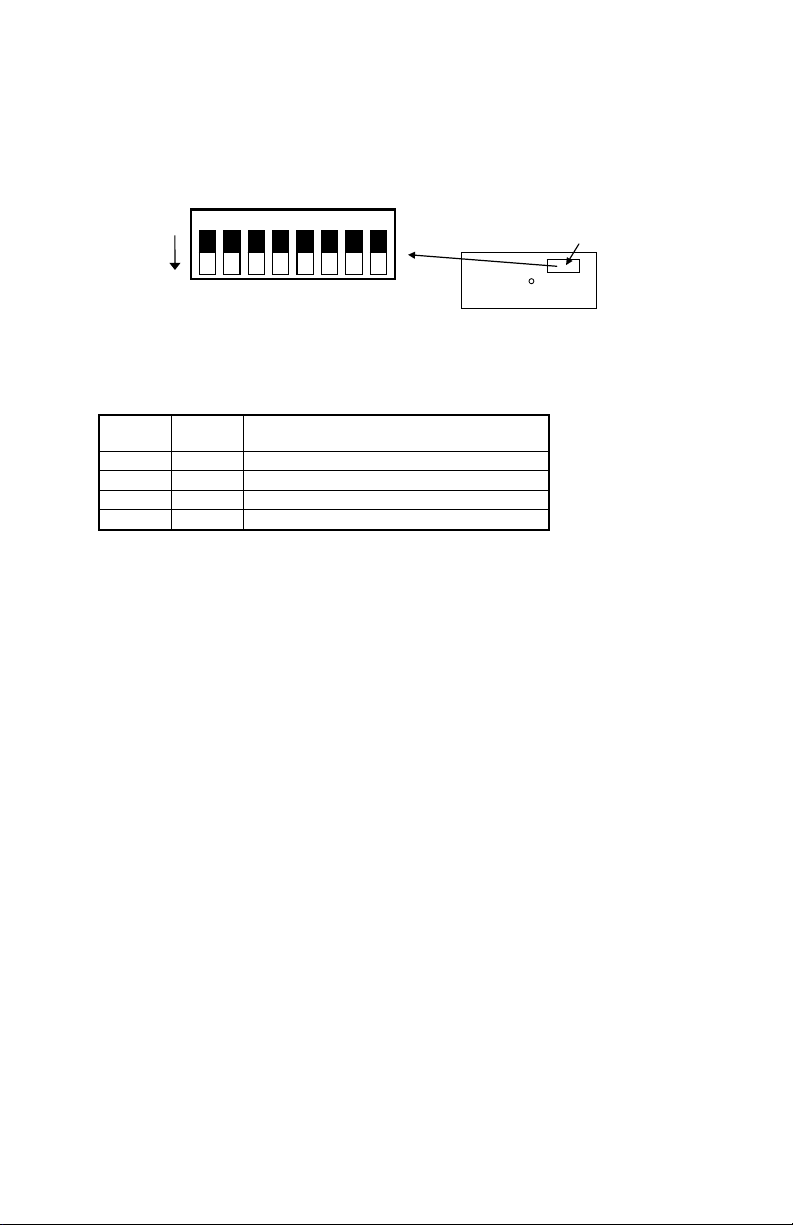

OPTION SWITCHES........................................................................................................ 4
MOUNTING...................................................................................................................... 5
ELECTRICAL CONNECTIONS ........................................................................................ 5
OPERATION ......................................................................................................................... 6
POWER ON/OFF ............................................................................................................. 6
YELP - STANDBY - WAIL SELECTOR SWITCH............................................................. 6
MANUAL / PHASER - HORN SWITCH ............................................................................ 6
AUXILIARY INPUT FUNCTIONS...................................................................................... 6
Horn Ring Cycler 2 (HRC2) ....................................................................................... 6
SERVICE............................................................................................................................... 7
PROBLEMS...................................................................................................................... 7
PARTS and ACCESSORIES............................................................................................ 7
RETURNS.........................................................................................................................8
WARRANTY ..................................................................................................................... 8
GENERAL DESCRIPTION
TABLE OF CONTENTS
The SA-365 Siren Amplifier is designed for single 100W speaker use. The primary operating
modes are Yelp, Wail and Standby, selected by a 3-position rocker switch. Horn Override, pushon/push-off Phaser operation in the Yelp and Wail modes, and Manual siren control in the
Standby mode are controlled by a momentary 3-position rocker switch. The unit features instanton allowing the unit to produce a tone instantly when a switch is activated. A DIP switch provides
options such as Two-Tone, disable tones, HRC2 operation, Auxiliary function, etc. The unit utilizes short circuit, high voltage, and reverse polarity protection systems for maximum service life.
An output light indicates siren signal output for diagnostics and troubleshooting.
SPECIFICATIONS
Speaker Load Single 100W 11ohm
Input Voltage 10 - 16 VDC (negative ground)
Input Current 8 AMPS (@14 VDC - single 100W speaker)
Standby Current 0 mA
Output Power 105 WATTS RMS MAX. (15 VDC - single 100W speaker)
Siren Frequency 700Hz - 1500Hz (Two-Tone and Horn = 435 & 585Hz)
Tones / Cycle Rates Horn Wail Yelp Phaser Two-Tone
Cycle Rates 109 CPS 13 CPM 190 CPM 15 CPS 60 CPM
High Voltage Protection 16 - 18 VDC will cause siren output to cease, resume at normal voltage
Short Circuit Current 50 AMPS (supply circuit must be capable of supplying this for 1 second)
Operating Temp. -15° F to +140°F
Controls 3-position rocker selector switch (Yelp, Wail and Standby).
Connections (6-Pin Conn) Positive, Negative, (2) Speaker, and Auxiliary +/-.
Size 4-1/2" Wide, 1-13/16" High, 4-13/16" Deep
Weight 3 LBS.
Due to continuous product improvements, we must reserve the right to change any specifications and information,
contained in this manual at any time without notice.
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
Carson Manufacturing Co., Inc. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual.
05/24/10 CP5036A
3-position momentary rocker switch (Horn and Manual/Phaser toggle).
Positive or Negative Auxiliary input.
8-position DIP switch option selector.
NOTICE
See www.carsonsirens.com for latest information.
SA-365-10 Installation Instructions Page 3 of 8
Proper installation of the unit is essential for years of safe, reliable operation. Please read all
INSTALLATION
instruction before installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may void warranties.
SAFETY PRECAUTIONS
For the safety of the installer, vehicle operator, passengers and the community please observe
the following safety precautions. Failure to follow all safety precautions and instructions may
result in property damage, injury or death.
Qualifications - The installer must have a firm knowledge of basic electricity, vehicle electrical
systems and emergency equipment.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Mounting - Mount the unit for easy access by the vehicle operator. DO NOT mount in air bag
deployment area. Assure clearances before drilling in vehicle. To prevent internal damage
mounting bolts must not enter case more than 1/4"
Wiring - Use wiring capable of handling the current required. Make sure all connections are tight.
Route wiring to prevent wear, overheating and interference with air bag deployment. Install and
check all wiring before connection to vehicle battery.
Testing - Test all siren functions after installation to assure proper operation. Test vehicle operation to assure no damage to vehicle.
Keep These Instructions - Keep these instructions in the vehicle or other safe place for future
reference. Advise the vehicle operator of the location.
UNPACKING
Inspect contents for shipping damage. If found alert carrier immediately
Contact supplier immediately if any items are missing.
Contents of box should include the following items:
Qty Item
1 Amplifier Unit (SA-365-10 14)
1 Bracket, ‘U’ Dash Mount (CP5037)
2 Bolts, ‘U’ Mounting Bracket (CP3966)
1 Connector, 6-P Terminal Block Plug (CP4688-06)
1 Instruction Manual (CP5036 This Manual)
.
CP5036A 05/24/10
