Carrier DIRECT VENT 4 58HDV User Manual

58HDV Direct Vent 4---Way Multipoise Condensing Gas Furnace 95% Downflow / Horizontal Orientations

93.5% Upflow Orientation

Installation Instructions

Special Venting Requirements for Installations in Canada

Installation in Canada must conform to the requirements of CSA B149 code. Vent systems must be composed of pipe, fittings, cements, and primers listed to ULC S636. The special vent fittings and accessory concentric vent termination kits and accessory external drain trap have been certified to ULC S636 for use with those IPEX PVC vent components which have been certified to this standard. In Canada, the primer and cement must be of the same manufacturer as the vent system -- IPEX System 636, PVC/CPVC Primer, Purple Violet for Flue Gas Venting and IPEX System 636, PVC Cement for Flue Gas Venting, rated Class IIA, 65 deg C. must be used with this venting system -- do not mix primers and cements from one manufacturer with a vent system from a different manufacturer. Follow the manufacturer’s instructions in the use of primer and cement and never use primer or cement beyond its expiration date.

The safe operation, as defined by ULC S636, of the vent system is based on following these installation instructions, the vent system manufacturer’s installation instructions, and proper use of primer and cement. All fire stop and roof flashing used with this system must be UL listed material. Acceptability under Canadian standard CSA B149 is dependent upon full compliance with all installation instructions. Under this standard, it is recommended that the vent system be checked once a year by qualified service personnel.

The authority having jurisdiction (gas inspection authority, municipal building department, fire department, etc) should be consulted before installation to determine the need to obtain a permit.

Consignes spéciales pour l’installation de ventillation au Canada

L’installation faite au Canada doit se conformer aux exigences du code CSA B149. Ce systême de ventillation doit se composer de tuyaux, raccords, ciments et apprêts conformes au ULC S636. La tuyauterie de ventillation des gaz, ses accessoires, le terminal concentrique mural ainsi que l’ensemble du drain de condensat extérieur ont été certifiés ULCS 636 pour l’application des composantes IPEX PVC qui sont certifiées à ce standard. Au Canada l’apprêt et le ciment doivent être du même manufacturier que le systême de ventillation -- IPEX Système 636, Apprêt PVC/CPVC. Mauve Violette pour conduit en évacuation des gaz et IPEX Système 636, ciment pour PVC pour conduit en évacuation des gaz, évalué CLASSE IIA, 65 deg. C. doit ëtre utilisé avec ce systèeme d’évacuation -- ne pas mélanger l’apprêt et le ciment d’un manufacturier avec le systême de ventillation d’un autre manufacturier. Bien suivre les indications du manufacturier lors de l’utilisation de l’apprêt et du ciment et ne pas utiliser ceux--ci si la date d’expiration est atteinte.

L’opération sécuritaire, tel que définit par ULC S636, du système de ventilation est basé sur les instructions d’installation suivantes, ainsi que l’usage approprié de l’apprêt et ciment. Tout arrët feu et solin de toit utilisés avec ce système doivent être des matériaux listés UL. L’acceptation du standard Canadien CSA B419 est directement relié à l’installation conforme aux instructions ci-- haut mentionnées. Le standard Canadien recommande l’ inspection par un personel qualifié et ce, une fois par année.

Les autoritées ayant juridiction (inspecteurs de gas, inspecteurs en bâtiments, département des incendies, etc) devraient être consultées avant l’installation afin de déterminer si un permis est requis.

ama

CERTIFIED

TABLE OF CONTENTS

PAGE

IMPORTANT INFORMATION 2.........................

SAFE INSTALLATION REQUIREMENTS 3...............

COMBUSTION & VENTILATION AIR 8..................

CONCENTRIC TERMINATION 31.......................

GAS SUPPLY & PIPING 33.............................

ELECTRICAL WIRING 37.............................

DUCTWORK & FILTER 39.............................

CHECKS & ADJUSTMENTS 42.........................

FURNACE MAINTENANCE 4 4.........................

SEQUENCE OF OPERATION & DIAGNOSTICS 46.........

Required Notice for Massachusetts Installations

IMPORTANT

The Commonwealth of Massachusetts requires compliance with regulation 248 CMR as follows:

5.08: Modifications to NFPA--54, Chapter 10

2) Revise 10.8.3 by adding the following additional requirements:

a. For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in

whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back--up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

58HDV

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired

carbon monoxide detector with alarm and battery back--up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall

have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one--half (1/2) inch in size, ”GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

5. EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

(1.) The equipment listed in Chapter 10 entitled ”Equipment Not Required To Be Vented” in the most current edition of NFPA

54 as adopted by the Board; and

(2.) Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the

dwelling, building or structure used in whole or in part for residential purposes.

c. MANUFACTURER REQUIREMENTS -- GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the

manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

d. MANUFACTURER REQUIREMENTS -- GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the

manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

e. A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment,

all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

NOTE: Read the entire instruction manual before starting the installation.

suggestions which will result in enhanced installation, reliability, or operation.

NOTE: Please retain these instructions with the furnace after installation for future reference.

SAFETY CONSIDERATIONS

CAUTION

FURNACE RELIABILITY HAZARD

Improper installation or misapplication of furnace may require excessive servicing or cause premature component failure.

Application of this furnace should be indoors with special attention given to vent sizing and material combustion air requirements, gas input rate, air temperature rise, unit leveling, and unit sizing.

WARNING

FIRE, EXPLOSION, ELECTRICAL SHOCK AND CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury, death, or property damage.

Improper installation, adjustment, alteration, service, maintenance, or use can cause carbon monoxide poisoning, explosion, fire, electrical shock, or other conditions which may cause personal injury or property damage. Consult a qualified installer, service agency, local gas supplier, or your distributor or branch for information or assistance. The qualified installer or agency must use only factory--authorized and listed kits or accessories when modifying this product.

Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualified

personnel should install, repair, or service heating equipment.

Untrained personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed by trained service personnel. When working on heating equipment, observe precautions in literature, on tags, and on labels attached to or shipped with unit and other safety precautions that may apply.

These instructions cover the minimum requirements and conform to existing national standards and safety codes. In some instances, these instructions exceed certain local codes and ordinances, especially those that may not have kept up with changing residential construction practices. We require these instructions as a minimum for a safe installation.

Wear safety glasses and work gloves. Have a fire extinguisher available during start--up and adjustment procedures and service calls.

Recognize safety information. This is the safety--alert symbol When you see this symbol on the furnace and in instructions or manuals, be alert to the potential for personal injury.

Understand the signal words DANGER, WARNING, and CAUTION. These words are used with the safety--alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies a hazard which could result in personal injury or death. CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage. NOTE is used to highlight

CAUTION

CUT HAZARD

Failure to follow this caution may result in personal injury.

Sheet metal parts may have sharp edges or burrs. Use care and wear appropriate protective clothing and gloves when handling parts.

SAFE INSTALLATION REQUIREMENTS

WARNING

FIRE, EXPLOSION, AND ASPHYXIATION HAZARD

Failure to follow this warning could result in personal injury or death.

Improper adjustment, alteration, service, maintenance or installation could cause personal injury, death and/or property damage.

Installation or repairs made by unqualified persons could result in hazards to you and others. Installation MUST conform to local codes or, in the absence of local codes, with codes of all governmental authorities having jurisdiction.

The information contained in this manual is intended for use by a qualified service agency that is experienced in such work, is familiar with all precautions and safety procedures required in such work, and is equipped with the proper tools and test instruments.

NOTE: This furnace is design--certified by the CSA International (formerly AGA and CGA) for installation in the United States and Canada. Refer to the appropriate codes, along with this manual, for proper installation.

S Use only the type of gas approved for this furnace (see Rating

Plate on unit). Overfiring will result in failure of heat exchanger

and cause dangerous operation. (Furnaces can be converted to

Propane gas with approved kit.)

S Install this furnace only in a location and position as specified in

“Installation” of these instructions.

S Provide adequate combustion and ventilation air to the furnace as

specified in “ Combustion and Ventilation Air” of these

instructions.

S Combustion products must be discharged outdoors. Connect this

furnace to an approved vent system only, as specified in “Ve n t

and Combustion Air Piping” of these instructions.

S Never test for gas leaks with an open flame. Use a commercially

available soap solution made specifically for the detection of

leaks to check all connections, as specified in “Gas Supply and

Piping, Final Check” of these instructions.

S Always install furnace to operate within the furnace’s intended

temperature--rise range with a duct system which has an external

static pressure within the allowable range, as specified in

“Technical Support Manual” of these instructions. See furnace

rating plate.

S When a furnace is installed so that supply ducts carry air

circulated by the furnace to areas outside the space containing the

58HDV

furnace, the return air shall also be handled by a duct(s) sealed to

the furnace casing and terminating outside the space containing

the furnace.

S A gas--fired furnace for installation in a residential garage must

be installed as specified in “Installation” of these instructions.

S This furnace is not to be used for temporary heating of buildings

or structures under construction.

S This furnace is NOT approved for installation in mobile

homes, trailers or recreation vehicles.

S Seal around supply and return air ducts. S Install correct filter type and size. S Unit MUS T be installed so electrical components are protected

from direct contact with water.

3. Never obstruct the vent grilles, or any ducts that provide air to the unit. Air must be provided for proper combustion and ventilation of flue gases.

Frozen Water Pipe Hazard

CAUTION

WATER DAMAGE TO PROPERTY HAZARD

Failure to follow this caution may result in property damage.

Do not leave your home unattended for long periods during freezing weather without turning off water supply and draining water pipes or otherwise protecting against the risk of frozen pipes and resultant damage.

Safety Rules

Your unit is built to provide many years of safe and dependable service providing it is properly installed and maintained. However, abuse and/or improper use can shorten the life of the unit and create

58HDV

hazards for you, the owner.

The U.S. Consumer Product Safety Commission encourages installation of carbon monoxide alarms. There can be various sources of carbon monoxide in a building or dwelling. The sources could be gas--fired clothes dryers, gas cooking stoves, water heaters, furnaces, gas--fired fireplaces, wood fireplaces.

Carbon monoxide can cause bodily injury and/or death. Carbon monoxide or “CO” is a colorless and odorless gas produced when fuel is not burned completely or when the flame does not receive sufficient oxygen.

Therefore, to help alert people of potentially dangerous carbon monoxide levels, you should have a commercially available carbon monoxide alarm that is listed by a nationally recognized testing agency in accordance with Underwriters Laboratories Inc. Standard for Single and Multiple Station Carbon Monoxide Alarms, ANSI/UL 2034 or the CSA 6.19--01 Residential Carbon Alarming Devices installed and maintained in the building or dwelling concurrently with the gas-- fired furnace installation (see Note below). The alarm should be installed as recommended by the alarm manufacturer’s installation instructions.

There can be numerous sources of fire or smoke in a building or dwelling. Fire or smoke can cause bodily injury, death, and/or property damage. Therefore, in order to alert people of potentially dangerous fire or smoke, you should have fire extinguisher and smoke alarms listed by Underwriters Laboratories installed and maintained in the building or dwelling (see Note below).

NOTE: The manufacturer of your furnace does not test any alarms and makes no representations regarding any brand or type of alarms.

To ensure safe and efficient operation of your unit, you should do the following:

1. Thoroughly read this manual and labels on the unit. This will help you understand how your unit operates and the hazards involved with gas and electricity.

2. Do not use this unit if any part has been under water. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system and any gas control which has been under water.

Your furnace is designed solely to provide a safe and comfortable living environment. The furnace is NOT designed to ensure that water pipes will not freeze. It is equipped with several safety devices that are designed to turn the furnace off and prevent it from restarting in the event of various potentially unsafe conditions.

If your furnace remains off for an extended time, the pipes in your home could freeze and burst, resulting in water damage.

If the structure will be unattended during cold weather you should take these precautions.

1. Turn off the water supply to the structure and drain the water lines if possible and add an antifreeze for potable water to drain traps and toilet tanks. Open faucets in appropriate areas.

-- o r --

2. Have someone check the structure frequently during cold weather to make sure it is warm enough to prevent pipes from freezing. Instruct them on a service agency to call to provide service, if required.

-- o r --

3. Install a reliable remote sensing device that will notify somebody of freezing conditions within the home.

Winter Shutdown

If you go away during the winter months and do not leave the heat on in your home, the plastic transition box and the condensate trap on the furnace must be protected from freeze damage. (See Fig. 10 through Fig. 17)

1. Disconnect the ting that is located downstream of the combustion blower. Insert a funnel into the hose and pour four(4) ounces of sanitary type (RV) antifreeze into the condensate trap. Reconnect the fitting. Secure with the hose clamp.

2. Disconnect the trap. Insert a funnel into the hose and and pour four(4) ounces of sanitary type (RV) antifreeze into the plastic Transition box. Squeeze the hose together near the end and quickly reconnect the condensate trap. Secure with the hose clamp.

When you return home, your furnace will be ready to start, as it is not necessary to drain the antifreeze from the furnace.

/8″ OD rubber hose from the vent drain fit-

/8″ OD rubber hose to the stub on the vent drain

/4″ OD rubber hose from the condensate

/4″ OD rubber hose to the stub on the

INSTALLATION

″

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

This furnace can NOT be common vented or connected to any type B, BW or L vent or vent connector, nor to any portion of a factory--built or masonry chimney. If this furnace is replacing a previously common-vented furnace, it may be necessary to resize the existing vent and chimney to prevent oversizing problems for the other remaining appliance(s). See Venting and Combustion Air Check in Gas Vent Installation section. This furnace MUST be vented to the outside.

*8″ (203.2mm) Min. 20′ (6.1m) Max. in same atmospheric zone

Vent Pipes MUST be supported Horizontally and

Vertically

Aluminum or non--rusting shield recommended. (See Vent Termination Shielding for dimensions).

Inlet Pipe (not used on Single Pipe model)

DISCHARGE AIR

Coupling on ends of exhaust pipe. Total pipe & coupling outside structure = 8″

(203.2mm)

*8″ (203.2mm) Min. 20′ (6.1m) Max. in same atmospheric zone

Installation Positions

This furnace can be installed in an upflow, horizontal (either left or right) or downflow airflow position. DO NOT install this furnace on its back. For the upflow position, the return air ductwork can be attached to either the left or right side panel and/or the bottom. For horizontal and downflow positions, the return air ductwork must be attached to the bottom. The return air ductwork must never be attached to the back of the furnace.

Location and Clearances

1. Refer to Fig. 1 for typical installation and basic connecting parts required. Refer to Fig. 4 for typical horizontal direct vent installation and basic connecting parts required. Supply and return air plenums and duct are also required.

2. If furnace is a replacement, it is usually best to install the furnace where the old one was. Choose the location or evaluate the existing location based upon the minimum clearance and furnace dimensions (Fig. 2).

CAUTION

FROZEN AND BURST PIPE HAZARD

Failure to follow this caution may result in property damage.

Special precautions MUST be made is installing furnace in an area which may drop below freezing. This can cause improper operation or damage to equipment. If furnace environment has the potential of freezing, the drain trap and drain line must be protected. The use of electric heat tape or RV antifreeze is recommended for these installations. (See “Condensate Trap Freeze Protection Section”)

* Increase minimum from 8″ tained temperatures 0

(203.2mm) to 18″(457.2mm) for cold climates (sus-

F(-17°C) and below for 24 or more consecutive hours).

2 5 -- 2 3 -- 3 3

Fig. 1 -- Typical Upflow Installation

See Vent Termination Shielding in Vent Section.

Inlet Pipe (not used on Single Pipe model)

Vent Pipes MUST be supportedHorizontally and Vertically

Increase minimum from 8″″to 18″(203 to 457 mm) for cold climates (sustained temperatures

F (-18°C ) and ) below for 24 or more consecutive hours).

*8″ Min. (203 mm) 20′ Max. in same (6 M) atmosphericzone

Couplingoninside and outside ofwall to restrain vent pipe

8″ Min. (203 mm)

*8″ Min. (203 mm) 20′ Max. (6.1 M) in same atmospheric zone

25--23--33a

Fig. 2 -- Typical Downflow Installation

Installation Requirements

1. Install furnace level.

2. This furnace is NOT to be used for temporary heat of buildings or structures under construction.

3. Install furnace as centralized as practical with respect to the heat distribution system.

4. Install the vent pipes as short as practical, and in accordance to these instructions. (See Vent and Combustion Air Piping section).

5. Maintain clearance for fire safety and servicing. A front clearance of 24″ (609.6mm) required and 30″ (762mm) recommended for access to the burner, controls and filter. See clearance requirements in Fig. 4.

6. Use a raised base for upflow furnace if the floor is damp or wetattimes.

7. For downflow installations, non combustible subbase must be used under the furnace unless installation is on a non combustible floor surface. This requirement applies even when a coil box or cabinet is used.

A07700

58HDV

A07762

8. For horizontal installations, line contact is permissible only

″

between lines formed by intersection of back and two sides of furnace jacket, and building joists, studs or framing.

9. Residential garage installations require:

S Burners and ignition sources installed at least 18″ (457.2mm)

above the floor.

S Located or physically protected from possible damage by a

vehicle.

10. Local codes may require a drain pan under the entire furnace and condensate trap when the furnace is installed in attic application.

This furnace may be used for construction heat provided that all the following conditions are met:

S The furnace is permanently installed with all electrical wiring,

piping, venting and ducting installed according to these

installation instructions. A return air duct is provided, sealed to

the furnace casing, and terminated outside the space containing

58HDV

the furnace. This prevents a negative pressure condition as

created by the circulating air blower, causing a flame rollout

and/or drawing combustion products into the structure.

S The furnace is controlled by a thermostat. It may not be “hot

wired” to provide heat continuously to the structure without

thermostatic control.

S Clean outside air is provided for combustion. This is to

minimize the corrosive effects of adhesives, sealers and other

construction materials. It also prevents the entrainment of

drywall dust into combustion air, which can cause fouling and

plugging of furnace components.

S The temperature of the return air to the furnace is maintained

between 55° F(13° C) and 80° F(27° C) , with no evening

setback or shutdown. The use of the furnace while the structure

is under construction is deemed to be intermittent operation per

our installation instructions.

S The air temperature rise is within the rated rise range on the

furnace rating plate, and the firing rate has been set to the rating

plate value.

S The filters used to clean the circulating air during the

construction process must be either changed or thoroughly

cleaned prior to occupancy.

S The furnace, ductwork and filters are cleaned as necessary to

remove drywall dust and construction debris from all HVAC

system components after construction is completed.

S After construction is complete, verify furnace operating

conditions including ignition, input rate, temperature rise and

venting according to these instructions.

Furnace Installation Considerations

The installation of the furnace for a given application will dictate the position of the furnace, the airflow, ductwork connections, vent and combustion air piping. Consideration must be given to the following:

Condensate Trap and Drain Lines

The supplied condensate trap must be attached to the furnace side panel on either the left or right side. For horizontal installations, the drain trap is vertically attached to the side panel below the furnace. A minimum clearance of 6″ (152.4mm) below the furnace is required for the condensate trap. Downward slope of the condensate drain line from the condensate trap to the drain location must be provided. Adequate freeze protection of the drain trap and the drain line must be provided. See “Condensate Drain Trap” section for further details.

Leveling

Proper leveling of the furnace must be provided to insure proper drainage of the condensate from the furnace. The furnace must be level to within side for upflow and downflow installations or top to bottom for horizontal installations.

/4″ (6.4mm) from front to back and from side to

Vent and Combustion Air Connections

For venting information literature, contact www.carrier.com with the complete model and serial number of the furnace.

On the Dual Certified furnace, the vent and combustion air pipes attach to the furnace through the top panel for the upflow and horizontal installations. For the downflow installation, the vent and combustion air pipes attach to the furnace through the alternate locations on the furnace side panels.

NOTE: On the Direct Vent furnace, the vent pipe attaches to the furnace through the side panels. The combustion air pipe attaches to the top panel or to the alternate location on the side panel. On the Single Pipe furnace, the vent pipe attaches to the furnace through the furnace side panels.

NOTE: Repositioning of the combustion blower is required for the vent pipe connection to the furnace through the “right side” panel. See “Vent and Combustion Air Piping” section for further details.

Horizontal Furnace Installation

Inlet Pipe (not used on Single Pipe model)

Ven t Pipe

Condensate Trap

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Do NOT operate furnace in a corrosive atmosphere containing chlorine, fluorine or any other damaging chemicals, which could shorten furnace life.

Refer to Combustion & Ventilation Air section, Contaminated Combustion Air for combustion air evaluation and remedy.

NOTE: 6

bottom clearance required for condensate trap.

A07703

Fig. 3 -- Typical Horizontal Installation

This furnace can be installed horizontally in an attic, basement, crawl space, alcove, or suspended from a ceiling in a basement or utility room (See Fig. 3). Do not install furnace on its back as safety control operation will be adversely affected.

AIR INTAKE

VENT

A B

TOP

LEFT SIDE

TRAP (KO) (COUNTERFLOW)

GAS

VENT

AIR INTAKE (KO) (ALTERNATE)

TRAP (KO) UPFLOW/HORIZONTAL

(57.2)

(336.6)

THERMOSTAT

(KO)

(122.2)

611/

(177.5)

(177.8)

ELECTRICAL

11/

(318)

11/

(34.9)

13/

241/

(611.2)

175/

(439.7)

111/

(42.9)

(27)

283/

(730.3)

(758.8)

297/

3111/

(804.9)

1311/

(347.7)

1913/

(503.2)

FRONT

MINIMUM CLEARANCES TO COMBUSTIBLE

MATERIALS FOR ALL UNITS -- in (mm)

REAR 0

FRONT (combustion air openings in furnace and in structure)

Required For Service

3″ (76.2)

24″ (609.6)

ALL SIDES Of SUPPLY PLENUM 1″ (25.4)

SIDES 0

VENT 0 TOP OF FURNACE 1″ (25.4)

30″ (762mm) clearance recommended for furnace removal.

Horizontal position: Line contact is permissible only between lines formed by intersections of top and two sides of furnace jacket, and building joists, studs or framing.

NOTE: Evaporator “A” coil drain pan dimensions may vary from furnace duct opening size. Always consult evaporator specifications for duct size requirements.

Furnace is designed for bottom return or side return.

Return air through back of furnace is NOT allowed.

(31.7)

58HDV

(47.6 )

Capacity

58HDV040---1--12/ 359BAV036040

58HDV060---1--12/ 359BAV036060

58HDV080---1--12/ 359BAV060080

58HDV100---1--20/ 359BAV060100

Unit

215/

(549.3)

(609.6)

47/

(123.8)

Drawing is representative, but some models may vary

BOTTOM

(587.4) (98.4)

37/

ALL DIMENSIONS: in (mm)

Cabinet Bottom Top

A B

(485.8)

191/

(485.8)

223/

(577.9)

241/

(622.3)

175/

(447.7)

175/

(447.7)

211/

(539.8)

(584.2)

D E F G H

21/

143/

(54)

21/

(54)

115/

(49.2)

(11.1)

(374.7)

143/

(374.7)

183/

(476.3)

(584.2)

43/

(111.1)

43/

(111.1)

43/

(111.1)

43/

(111.1)

41/

(114.3)

41/

(114.3)

41/

(114.3)

41/

(114.3)

(73)

11/

GAS (KO)

(109.5)

45/

(60.3 )

(27)

281/

(723.9)

(469.9)

RIGHT SIDE

(19.1)

TYPE

TRAP (KO) (COUNTERFLOW)

ELECTRICAL (KO)

AIR INTAKE (KO)

TRAP (KO) UPFLOW/HORIZONTAL

THERMOSTAT

(ALTERNATE)

VENT (KO)

215/

(549.3)

(609.6)

21/

(57.2)

131/

(336.6)

(KO)

17/

(47.6)

(1016)

297/

(758.8)

273/

(690.6)

215/

(549.3)

413/

(122.2)

11/

(27)

(439.7)

175/

111/

(42.9)

(177.8)

(123.8)

(30.2)

913/

(249.2)

3311/

(855.7)

KO = KnockOut

21/

(63.5)

21/

(63.5)

25/

(66.7)

21/

(57.2)

91/

(241.3)

91/

(241.3)

113/

(288.9)

121/

(311.2)

Specifications are subject to change without notice.

Fig. 4 -- Dimensions and Clearances

2 5 -- 2 3 -- 3 6 b

A09192

If the furnace is to be suspended from the floor joists in a crawl space or the rafters in an attic, it is necessary to use steel pipe straps or an angle iron frame to rigidly attach the furnace to prevent movement. These straps should be attached to the furnace bottom side with sheet metal screws and to the rafters or joists with bolts. The preferred method is to use an angle iron frame bolted to the rafters or joists.

If the furnace is to be installed in a crawl space, consult local codes. A suitable concrete pad or blocks are recommended for crawl space installation on the ground.

NOTE:6″ (152.4mm) bottom clearance required for condensate trap.

24″ (609.6mm) inches between the front of the furnace and adjacent construction or other appliances MUST be maintained for service clearance. [30″ (762mm) inches is required to remove furnace].

Keep all insulating materials clear from louvered door. Insulating materials may be combustible.

The horizontal furnaces may be installed directly on combustible wood flooring or supports as long as all required furnace clearances

58HDV

are met. See Fig. 3. This furnace MUST NOT be installed directly on carpeting or tile

or other combustible material other than wood flooring or supports. For horizontal installation over a finished living space. A field

fabricated auxiliary drain pan with drain pipe is required to prevent damage by overflow due to blocked condensate drain.

Knock Outs

Fig. 5 -- Hammer and Screwdriver used for Knockout

CAUTION

CUT HAZARD

Failure to follow this caution may result in personal injury.

Sheet metal parts may have sharp edges or burrs. Use care and wear appropriate clothing, safety glasses and gloves when handling parts and servicing furnaces.

Use a hammer and screwdriver to strike a sharp blow (See Fig. 5) directly to the knockout tie points or use a hammer in the upper left corner of the desired knockout. Remove any burrs and sharp edges.

NOTE: If a knockout does not come out after two sharp blows, pull and snip as needed to remove the knockout.

A07702

COMBUSTION & VENTILATION

AIR

For Single Pipe Installation

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Use methods described here to provide combustion and ventilation air.

Furnaces require ventilation openings to provide sufficient air for proper combustion and ventilation of flue gases. All duct or openings for supplying combustion and ventilation air must comply with the gas codes, or in the absence of local codes, the applicable national codes.

Combustion and ventilation air must be supplied in accordance with one of the following:

NOTE: The Combustion & Ventilation Air Section in this document, uses tables and information from the ANSI Z223.1/NFPA 54. For use in Canada, use CSA B149.1 for this information.

1. Section 9.3, Air for Combustion and Ventilation, of the National Fuel Gas Code, (NFGC), ANSI Z223.1--2006/NFPA 54-- 2006 in the U.S.,

2. Sections 8.2, 8.3, 8.5, 8.6, 8.7, and 8.8 of National Standard of Canada, Natural Gas and Propane Installation Code (NSCNGPIC), CSA B149.1--05 in Canada,

3. Applicable provisions of the local building code.

This furnace can NOT be common vented or connected to any type B, BW or L vent or vent connector, nor to any portion of a factory--built or masonry chimney. Multistory common venting is NOT permitted. If this furnace is replacing a previously common-vented furnace, it may be necessary to resize the existing vent and chimney to prevent oversizing problems for the other remaining appliance(s). See “Venting and Combustion Air Check” in this section. This furnace MUST be vented to the outside.

When the installation is complete, check that all appliances have adequate combustion air and are venting properly. See V e nting And Combustion Air Check in “Gas Vent Installation” Section in this manual.

Outdoor Combustion Air Method

A space having less than 50 cubic feet per 1,000 BTUH input rating for all gas appliances installed in the space requires outdoor air for combustion and ventilation.

Air Openings and Connecting Ducts

1. Total input rating for all gas appliances in the space MUST be considered when determining free area of openings.

2. Connect ducts or openings directly to the outdoors.

3. When screens are used to cover openings, the openings MUST be no smaller than

4. The minimum dimension of air ducts MUST NOT be less than 3″ (76.2 mm).

5. When sizing a grille, louver, or screen use the free area of opening. If free area is NOT stamped or marked on grill or louver, assume a 20% free area for wood and 60% for metal. Screens shall have a mesh size not smaller than mm) .

/4″ (6.35 mm) mesh.

/4″ (6.35

Confined Space Installation

NOTE: A confined space is defined as an area with less than 50 cubic feet (1.4 all gas appliances installed in the area.

M)per 1,000 BTUH (2.33 cm2/kW) input rating for

Requirements

1. Provide the space with sufficient air for proper combustion and ventilation of flue gases using horizontal or vertical ducts or openings.

2. Fig. 6 illustrates how to provide combustion and ventilation air. A minimum of two permanent openings, one inlet and one outlet, are required.

a. One opening MUST commence within 12″ (304.8mm)

of the floor and the second opening MUST commence within 12″ (304.8mm) of the ceiling.

b. Size openings and ducts per Ta b l e 1.

c. Horizontal duct openings require 1 square inch of free

area per 2,000 BTUH (11 cm

/kW) of combined input

for all gas appliances in the space (see Tab le 1) .

d. Vertical duct openings or openings directly

communicating with the outdoors require 1 square inch of free area per 4,000 BTUH (5.5 cm

/kW) for

combined input of all gas appliances in the space (see

Table 1).

This installation NOT approved in Canada

Gable Vent

Gas Vent

3. One opening MUST be within 12″ (304.8mm) of the floor and the second opening within 12″ (304.8mm) of the ceiling.

a. 1 sq. in of free area per 3,000 BTUH (7 cm

b. not less than the sum of the areas of all vent connectors

The opening shall commence within 12″ (304.8mm) of the top of the enclosure. Appliances shall have clearances of at least 1″ (25.4mm) from the sides and back and 6″ (152.4mm) from the front. The opening shall directly communicate with the outdoors or shall communicate through a vertical or horizontal duct to the outdoors or spaces (crawl or attic) that freely communicate with the outdoors.

4. Size openings and ducts per Ta b l e 1.

a. Indoor openings that comply with the Indoor

Ventilated Attic

Top Above Insulation

Outlet Air (1)

Ventilated Crawl Space

alternate Inlet Air (1)

Alternate Inlet Air (1)

Soffit Vent

Inlet Air (1)

Gas Vent

OutletAir (1)

Fig. 6 -- Outside Air

(This is ONLY a guide. Subject to codes of country having jurisdiction).

/kW) for combined input of all gas appliances in the space (see Table 1)and

in the space.

Combustion Air Method below and

Ventilated Attic

Top Above Insulation

Gas Vent

Gable Vent

Outlet Air (1)

Soffit Vent

Inlet Air (2)

Inlet Air (1)

Minimum One Inlet and One Outlet Air Supply is Required May be in any Combination Shown

Inlet Air Opening Must be Within12″ of floor

Outlet Air Opening Must be Within12″ of ceiling

(1) 1 Square Inch per 4000 BTUH

(2) 1 Square Inch per 2000 BTUH

b. Outdoor openings located as required in the Outdoor

Combustion Air Method above and

c. Outdoor openings sized as follows.

(1.) Calculate the Ratio of all Indoor Space volume

divided by required volume for Indoor Combustion Air Method.

(2.) Outdoor opening size reduction Factor is 1 minus

the Ratio in 1) above.

(3.) Minimum size of Outdoor openings shall be the

size required in Outdoor Combustion Air Method above multiplied by reduction Factor.

5. Horizontal duct openings require 1 square inch of free area per 2,000 BTUH of combined input for all gas appliances in area (see Table 1 ) .

6. Vertical duct openings or openings directly to outside require 1 square inch of free area per 4,000 BTUH (5.5

/kW) for combined input of all gas appliances in area

cm (see Table 1 ).

Inlet Air (2)

Outlet Air (2)

A07704

58HDV

Table 1

BTUH (kW)

Input Rating

40,000 (11.72) 20 sq. in. (129 cm2) 13.34 sq. in. (86 cm2) 10 sq. in. (65 cm2) 4″ (101.6mm)

50,000 (14.65) 25 sq. in. (161 cm2) 16.7 sq. in. (108 cm2) 12.5 sq. in. (81 cm2) 4″ (101.6mm)

60,000 (17.58) 30 sq. in. (194 cm2) 20 sq. in. (129 cm2) 15 sq. in. (97 cm2) 5″ (127mm)

75,000 (21.98) 37.5 sq. in. (242 cm2) 25 sq. in. (161 cm2) 18.75 sq. in. (121 cm2) 5″ (127mm)

80,000 (23.45) 40 sq. in. (258 cm2) 26.7 sq. in. (172 cm2) 20 sq. in. (129 cm2) 5″ (127mm)

100,000 (29.31) 50 sq. in. (322 cm2) 33.3 sq. in. (215 cm2) 25 sq. in. (161 cm2) 6″ (152.4mm)

125,000 (36.63) 62.50 sq. in. (403 cm2) 41.7 sq. in. (269 cm2) 31.25 sq. in. (202 cm2) 7″ (177.8mm)

EXAMPLE: Determining Free Area

Furnace

100,000

29.31

58HDV

Furnace

100,000

29.31

Free Area

Two Horizontal Ducts

BTUH (kW)

sq. in./2,000(1 cm

Water Heater

30,000

8.8

Water Heater

30,000

8.8

/.09)

Minimum Free Area Required for Each Opening or Duct to Outdoors

Single Opening

BTUH (kW)

sq. in./3,000 (1 cm

Total Input

(130,000 ÷ 4,000)

(38.11 ÷ .18)

Total Input

(130,000 ÷ 2,000)

(38.11 ÷ .09)

/.135)

Two Vertical Ducts or

Openings

BTUH (kW)

sq. in./4,000(1 cm

= 32.5 Sq. In. Vertical = 210 c

= 65 Sq. In. Horizontal = 423

/.18)

Verti cal

Horizontal

Round Duct

BTUH (kW)

sq.

in./4,000(6.5cm

/.18)

Indoor Combustion Air (Unconfined Space)

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Most homes will require additional air from outdoors for combustion and ventilation. A space with at least 50 cubic feet

(1.4

M) per 1,000 (2.33 cm2/kW) Btuh Input rating or homes

appliances installed in the space. The standard method permits indoor air to be used for combustion and ventilation air.

The Known Air Infiltration Rate Method shall be used if the infiltration rate is known to be less than 0.40 air changes per hour (ACH) and equal to or greater than 0.10 ACH. Infiltration rates greater than 0.60 ACH shall not be used. The minimum required volume of the space varies with the number of ACH and shall be determined per Table 2 or Equations 1 and 2. Determine the minimum required volume for each appliance in the space, and add the volumes together to get the total minimum required volume for the space.

with tight construction may need outdoor air, supplied through ducts, to supplement air infiltration for proper combustion and ventilation of flue gasses.

WARNING

CARBON MONOXIDE POISONING HAZARD

Standard and Known- Air- Infiltration Rate Methods

Indoor air is permitted for combustion and ventilation, if the Standard or Known--Air--Infiltration Rate Method is used.

The Standard Method may be used, if the space has no less

Failure to supply additional air by means of ventilation grilles or ducts could result in personal injury or death.

An unconfined space or homes with tight construction may not have adequate air infiltration for proper combustion and ventilation of flue gasses. Most homes will require additional air.

volume than 50 cubic feet per 1,000 BTUH input rating for all gas

MINIMUM SPACE VOLUME FOR 100% COMBUSTION AND VENTILATION AIR FROM INDOORS

Other Than Fan- Assisted Total Fan- assisted Total

40,000 BTU (11,720 kW)

50,000 BTU (14,650 kW)

75,000

(21,975 kW)

100,000 BTU

(29,300 kW)

125,000 BTU

(36,625 kW)

ACH

Tab l e 2

30,000 BTU

(8,790 kW)

ft3(m3)

0.60 1,050 (29.7) 1,400 (39.2) 1,750 (49) 1,250 (35) 1,875 (52.5) 2,500 (70) 3,125 (87.5)

0.50 1,260 (35.3) 1,680 (47.04) 2,100 (58.8) 1,500 (42) 2,250 (63) 3,000 (84) 3,750 (105)

0.40 1,575 (44.1) 2,100 (58.8) 2,625 (73.5) 1,875 (52.5) 2,813 (78.8) 3,750 (105) 4,688 (131.3)

0.30 2,100 (58.8) 2,800 (78.4) 3,500 (98) 2,500 (70) 3,750 (105) 5,000 (140) 6,250 (175)

0.20 3,150 (88.2) 4,200 (117.6) 5,250 (147) 3,750 (105) 5,625 (157.5) 7,500 (210) 9,375 (262.5)

0.10 6,300 (176.4) 8,400 (235.2) 10,500 (294) 7,500 (210) 11,250 (315) 15,000 (420) 18,750 (525)

0.00 NP NP NP NP NP NP NP

ACH = Air Changes per Hou r NP = Not Permitted Ta b l e 2 Minimum Space Volumes were determined by using the following equations from the National Fuel Gas Code ANSI Z223.1/NFPA 54 ---2006, 9.3.2.2:

1. For appliances other than fan--assisted appliances (such as a draft hood--equipped water heater), calculate using the following equation:

Required Volume

other

21 ft

ACH

(

1000 Btu / hr

other

)

2. For fan-- assisted appliances (such as this furnace), calcu- late using the following equation:

Required Volume

where:

= all appliances other than fan--assisted input in Btu

other

per hour

= fan-- assisted appliance input in Btu per hour

fan

ACH =air change per hour (percent of volume of space exchanged

per hour, expressed as a decimal)

3. For purposes of this calculation, an infiltration rate greater than 0.60 ACH shall not be used in the equations above.

The following requirements apply to the Standard Method and to the Known Air Infiltration Rate Method.

S Adjoining rooms can be considered part of a space, if there are

no closeable doors between rooms.

S Combining spaces on the same story. Each opening shall have a

minimum free area of at least 1 in.

/kW) of the total input rating of all appliances in the space

but not less than 100 in.

commence within 12 in. (304.8 mm) of the top, and one opening

shall commence within 12 in. (304.8 mm) of the bottom, of the

enclosure. The minimum dimension of air openings shall not be

less than 3 in. (76.2 mm).

S Combining spaces in different stories. The volumes of spaces on

different stories shall be considered as communicating spaces

where such spaces are connected by one or more openings in

doors or floors having a total minimum free area of 2 in.

BTUH (4,400 mm

S An attic or crawl space may be considered a space that freely

communicates with the outdoors provided there are adequate

ventilation openings directly to outdoors. Openings MUST

remain open and NOT have any means of being closed off.

Ventilation openings to outdoors MUST be at least 1 square inch

of free area per 4,000 BTUH (550 mm

for all gas appliances in the space.

S In spaces that use the Indoor Combustion Air Method,

infiltration should be adequate to provide air for combustion,

ventilation and dilution of flue gases. However, in buildings with

unusually tight construction, additional air MUST be provided

fan

/kW) of total input rating of all appliances.

15 ft

ACH

/1,000 BTUH (2,200

(0.06 m2). One opening shall

fan

(

1000 Btu / hr

/kW) of total input rating

/1,000

)

using the methods described in section titled Outdoor

Combustion Air Method:

S Unusually tight construction is defined as Construction with:

1. Walls and ceilings exposed to the outdoors have a continuous, sealed vapor barrier. Openings are gasketed or sealed and

2. Doors and openable windows are weather stripped and

3. Other openings are caulked or sealed. These include joints around window and door frames, between sole plates and floors, between wall--ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines, etc.

Ventilation Air

Some provincial codes and local municipalities require ventilation or make--up air be brought into the conditioned space as replacement air. Whichever method is used, the mixed return air temperature across the heat exchanger MUST not fall below 60° so that flue gases will not condense excessively in the heat exchanger. Excessive condensation will shorten the life of the heat exchanger and possibly void your warranty.

Venting and Combustion Air Check

NOTE: If this installation replaces an existing furnace from a commonly vented system, the original venting system may no longer be sized to properly vent the attached appliances. An improperly sized venting system may cause the formation of condensate in the vent and the leakage or spillage of vent gases. To make sure there is adequate combustion air for all appliances, MAKE THE FOLLOWING CHECK.

Vent Pipe

Typical Gas Water Heater

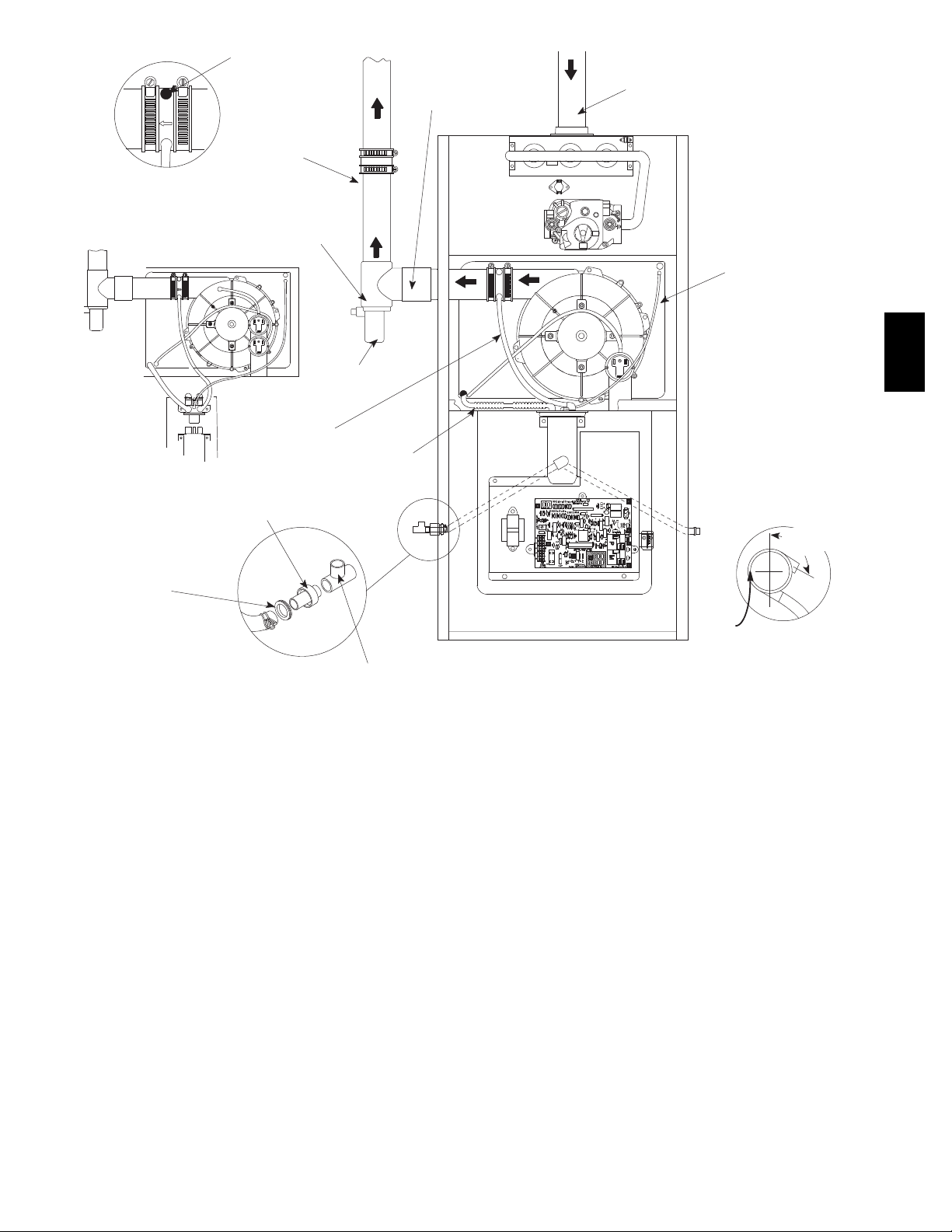

Fig. 7 -- Vent Check

The following information is supplied to allow the installer to make adjustments to the setup of existing appliances, IF REQUIRED, based on good trade practices, local codes, and good judgement of the installer. Manufacturer does NOT take responsibility for modifications made to existing equipment.

Draft Hood

Match

A07688

58HDV

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow the step s outlined below for each appliance connected to the venting system being placed into operation, could result in carbon monoxide poisoning or death:

The following steps shall be followed for each appliance connected to the venting system being placed into operation, while all other appliances connected to the venting system are not in operation:

1. Seal any unused openings in the venting system.

2. Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas

Code, ANSI Z223.1/NFPA 54 or CSA B149.1, Natural Gas and Propane Installation Code and these

instructions. Determine that there is no blockage or

58HDV

restriction, leakage, corrosion and other deficiencies which could cause an unsafe condition.

3. As far as practical, close all building doors and windows and all doors between the space in which the appliance(s) connected to the venting system are located and other spaces of the building.

4. Close fireplace dampers.

5. Turn on clothes dryers and any appliance not connected to the venting system. Turn on any exhaust fans, such as range hoods and bathroom exhausts, so they are operating at maximum speed. Do not operate a summer exhaust fan.

6. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust the thermostat so appliance is operating continuously.

7. Test for spillage from draft hood equipped appliances at the draft hood relief opening after 5 minutes of main burner operation. Use the flame of a match or candle. (Fig. 6)

8. If improper venting is observed, during any of the above tests, the venting system must be corrected in accordance with the National Fuel Gas Code, ANSI

Z223.1/NFPA 54 and/or CSA B149.1, Natural Gas and Propane Installation Code.

9. After it has been determined that each appliance connected to the venting system properly vents when tested as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-- fired burning appliance to their previous conditions of use.

For Two Pipe Installation (Direct Vent)

This furnace can NOT be common vented or connected to any type B, BW or L vent or vent connector, nor to any portion of a factory--built or masonry chimney. If this furnace is replacing a previously common-vented furnace, it may be necessary to resize the existing vent and chimney to prevent oversizing problems for the other remaining appliance(s). See “Venting and Combustion Air Check” in this section. This furnace MUST be vented to the outside.

VENT AND COMBUSTION AI R

PIPING

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Use methods described here to provide combustion and ventilation air.

Dual Certified Direct or Non- Direct Vent

This furnace is certified as a Category IV furnace. This furnace can be installed as a direct vent furnace using outside air for combustion or the furnace can use air from inside the structure for combustion. The INLET air pipe is optional. If combustion air comes from inside the structure, adequate make up air MUST be provided to compensate for oxygen burned. See Confined Space Installation in the Combustion and Ventilation Air chapter. If combustion air is drawn from outside the structure, it MUST be taken from the same atmospheric pressure zone as the vent pipe.

Contaminated Combustion Air

Installations in certain areas or types of structures will increase the exposure to chemicals or halogens that may harm the furnace.

The following areas or types of structures may contain or have exposure to the substances listed below. The installation must be evaluated carefully as it may be necessary to provide outside air for combustion.

S Commercial buildings. S Buildings with indoor pools. S Furnaces installed in laundry rooms. S Furnaces installed in hobby or craft rooms. S Furnaces installed near chemical storage areas. S Permanent wave solutions for hair. S Chlorinated waxes and cleaners. S Chlorine based swimming pool chemicals. S Water softening chemicals. S De--icing salts or chemicals. S Carbon tetrachloride. S Halogen type refrigerants. S Cleaning solvents (such as perchloroethylene). S Printing inks, paint removers, varnishes, etc. S Hydrochloric acid. S Sulfuric Acid. S Solvent cements and glues S Antistatic fabric softeners for clothes dryers. S Masonry acid washing materials.

Vent and Combustion Air Piping Guidelines

This furnace is approved for venting with Schedule 40 PVC, CPVC, ABS fittings, and Cellular Core and SDR--26 PVC pipe.

(1.) NOTE: In Canada, all pipe, fittings & cements

must conform to applicable CSA standards or to local codes having jurisdiction.

Applicable ASTM Standards for Vent Materials

Materi-

ABS D1527 __ F628

PVC D1785 D2241 F891

CPVC F441 F442 -- -- F438 -- -- F493

ABS to

PVC

als

Sch. 40

Pipe

-- -- -- -- -- -- -- -- -- -- D3138

SDR Pipe

Cell

Core

Pipe

Fittings Primer

D2468

D2661

D2466

D2665

-- -- D2235

F656 D2564

Solv.

Cement

(2.) Only use solvent cements that are marked for use

with the specific venting material.

(3.) ABS to PVC transition joints REQUIRE a special

solvent cement that meets the requirements of ASTM D3138.

(4.) Refer to ASTM D2855 for general procedure to use

for cementing plastic pipe and fittings.

NOTE: In order to create a seal that allows future removal of pipe, RTV sealant MUST be used on the inlet pipe where it joins to the

furnace.

NOTE: All vent piping MUST be installed in compliance with local codes or ordinances, these instructions, good trade practices, and codes of country having jurisdiction.

1. Determine the best routing and termination for the vent pipe and air inlet pipe by referring to all of the instructions and guidelines in this Section.

2. Determine the size required for the vent pipe and air inlet pipe.

3. Loosely assemble all venting parts without adhesive (pipe joint cement) for correct fit before final assembly.

4. Furnace shall be installed so as to prevent the accumulation of condensate.

5. Use of vertical piping is preferred because there will be some moisture in the flue gases that may condense as it leaves the vent pipe (See Instructions for Horizontal Vents).

6. The vertical vent pipe MUST be supported so that no weight is allowed to rest on the combustion blower.

7. Exhaust vent piping or air inlet piping diameter MUST NOT be reduced.

8. All exhaust vent piping from the furnace to termination MUST slope upwards. A minimum of

/4″ (6.4mm) per foot (304.8mm) of run is required to properly return condensate to the furnace drain system.

9. Use DWV type long radius elbows whenever possible, as they provide for the minimum slope on horizontal runs and they provide less resistance in the vent system. If DWV elbows cannot be used, use two, 45° elbows when possible. On horizontal runs the elbows can be slightly misaligned to provide the correct slope.

10. All horizontal pipe runs MUST be supported at least every five feet (1.5 M) with galvanized strap or other rust resistant material. NO sags or dips are permitted.

11. All vertical pipe runs MUST be supported every six feet (4.8 M) where accessible.

12. The maximum pipe length is 40′ (12.2m) total in the inlet or outlet side of the system. Up to five, 90° elbows can be used on the inlet or the outlet. With the Concentric Vent Termination Kits (KGAVT0701CVT or KGAVT0801CVT), the maximum pipe length is 35′ (10.7m) with four 90° elbows. If more elbows are required, reduce the length of

both the inlet and exhaust pipes 5′ (1.5m) for each additional elbow used. (See Table 3 or Ta b le 4 ) .

13. The minimum vent length is 5′ (1.5m) of PVC.

14. The piping can be run in the same chase or adjacent to supply or vent pipe for water supply or waste plumbing. It can also be run in the same chase with a vent from another 90+ furnace.

NOTE:InNO case can the piping be run in a chase where temperatures can exceed 140° F(60° C). or where radiated heat from adjacent surfaces would exceed 140° F(60° C).

15. The vent outlet MUST be installed to terminate in the same atmospheric pressure zone as the combustion air inlet.

16. The vent system can be installed in an existing unused chimney provided that:

S Both the exhaust vent and air intake run the length of the

chimney.

S No other gas fired appliance or fireplace (solid fuel) is vented

into the chimney.

S The top of the chimney MUST be sealed flush or crowned up to

seal against rain or melting snow so ONLY the piping protrudes.

S The termination clearances shown in Fig. 8 are maintained.

17. Furnace applications with vertical vents requiring vent diameter increaser fittings must have increaser fittings installed in vertical portion of the vent. Condensate will be trapped in the vent if the vent diameter is increased prior to having an elbow turned upward. This could cause nuisance tripping of the pressure switch.

Combustion Air and Vent Piping Insulation Guidelines

NOTE: Use closed cell, neoprene insulation or equivalent. If Fiberglass or equivalent insulation is used it must have a vapor barrier. Use R values of 7 up to 10′ (3.1m), R--11 if exposure exceeds 10′ (3.1m). If Fiberglass insulation is used, exterior to the structure, the pipe MUST be boxed in and sealed against moisture.

1. When the vent or combustion air pipe height above the roof

exceeds 30″ (76.2mm),orifanexteriorverticalriserisused on a horizontal vent to get above snow levels, the exterior portion MUST be insulated.

2. When combustion air inlet piping is installed above a suspended ceiling, the pipe MUST be insulated with moisture resistant insulation such as Armaflex or other equivalent type of insulation.

3. Insulate combustion air inlet piping when run in warm, humid spaces.

Sizing Combustion Air and Vent Pipe

Consult Table 3 or Table 4 to select the proper diameter exhaust and combustion air piping. Exhaust and combustion air piping is sized for each furnace Btuh size based on total lineal vent length (on inlet or outlet side), and number of 90° elbows required.

1. Double Pipe Installation--If installing as a direct--vent appliance, consult Table 4 to select the proper diameter exhaust and combustion air piping. Exhaust and combustion air piping is sized for each furnace Btuh size based on total lineal vent length (on inlet or outlet side), and number of 90° elbows required.

2. Single Pipe Installation--If installing as a non--direct vent appliance, (single outlet pipe and no inlet pipe) refer to Table 3. The table shows the maximum number of elbows allowed with any given pipe diameter and length of run.

3. Use of Elbows--Two 4 5 ° elbows can be substituted for one 90° elbow. The elbow or elbows used for vent termination outside the structure ARE counted, including elbows needed to bring termination above expected snow levels.

58HDV

Tab l e 3

40,000, 50,000, 60,000 & 75,000 Btuh Furnaces

40′ (12.2m) & (5) 90° elbows with 2″ (50.8mm) PVC pipe

80,000 & 100,000 Btuh Furnace

40′ (12.2m) & (5) 90° elbows with 3″ (76.2mm) PVC pipe

The minimum vent length is 5’ (1.5m) of PVC. Elbows are

DWV Long Radius Type for 2” (50.8mm) and 3” (76.2mm)

If more than five elbows are required, reduce the length of both the inlet and exhaust pipes 5′ (1.5m) for each additional elbow used. If less than five elbow are required, the length can be INCREASED by 5′ (1.5m) for each additional elbow NOT used.

NOTE: It is allowable to use larger diameter pipe and fitting than shown in the tables but not smaller diameters than shown.

58HDV

Tab l e 4

40,000, 50,000, 60,000 & 75,000 Btuh Furnaces

40′ (12.2m) & (5) 90° elbows with 2″ (50.8mm) PVC pipe

80,000 & 100,000 Btuh Furnace

40′ (12.2m) & (5) 90° elbows with 3″ (76.2mm) PVC pipe

The minimum vent length is 5’ (1.5m) of PVC. Elbows are

DWV Long Radius Type for 2” (50.8mm) and 3” (76.2mm)

Pipe Diameter Table

Single Piping ONLY

125,000 Btuh Furnace

vents.

Pipe Diameter Table

Dual Piping ONLY

125,000 Btuh Furnace

vents.

* Feet (M) of pipe is whichever pipe run is the longest, either inlet or outlet side.

For venting table, see“Concentric Termination Kit” in this manual.

Vent Termination Clearances

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Inlet and outlet pipes may NOT be vented directly above each other.

1. Determine termination locations based on clearances specified in following steps and as shown in Fig. 8, 9, and 22 through 30.

For “Concentric Termination Kit” clearances, see Fig. 32, 33, 34, 35 and 36 in this manual.

2. This furnace is Dual Certified and can be installed as a single pipe appliance (all combustion from inside the structure) or as a direct vent appliance where all combustion air is taken from outside the structure.

3. For Direct Vent installation, refer to Fig. 8 for vent termination.

4. For Single Pipe installation refer to Fig. 9 for vent termination clearances.

58HDV

12 inches (30 cm) for applieances >10,000 Btuh(3 kW) and <

100,000 Btuh(30kW), 36 inches (91cm) for

appliances > 100,000 Btuh(30kW)

Fig. 8 -- Direct Vent Termination Clearance

A08600

58HDV

Fig. 9 -- Other than Direct Vent Termination Clearance

A08601

Condensate Drain Trap

This furnace removes both sensible and latent heat from the products of combustion. Removal of the latent heat results in condensation of the water vapor. The condensate is removed from the furnace through the drains in the plastic transition and the vent fitting. The drains connect to the factory installed internally mounted condensate drain trap on the left or right side of the furnace.

The startup of a new furnace will involve a cycle or two of the furnace to properly prime the condensate trap with water. Until the trap is fully primed, some condensate will be pulled into the combustion blower. The furnace may cycle on the pressure switch connected to the plastic transition box due to condensate buildup. After the trap is primed, the condensate will start draining from the furnace. The combustion blower will clear out any remaining condensate in the blower housing through the vent fitting downstream of the blower. Note that the condensate trap can also be primed by pouring water into the Remove the the white PVC tee trap. Using a funnel pour eight (8) ounces (30 ml)ofwaterinto

/2″ (12.7mm) ID drain hose from either the gutter or

/2″ (12.7mm) ID drain hose. Water will flow through the drain hose and into the condensate drain trap. This will prime both the vent and the transition sides of the trap. Reconnect

/2″ (12.7mm) ID drain hose to the original component, either

the the gutter or the PVC tee trap.

The condensate drain trap supplied with the furnace MUST be used. The drain connection on the condensate drain trap is sized for

/4″ (19.1mm) PVC or CPVC pipe, however alternate1/2″

(12.7mm) CPVC [nominal

/8″ (15.9mm) O.D.] or vinyl tubing with a minimum inner diameter (I.D.) of used, as allowed by local codes. Alternate drain pipes and hoses maybeusedasallowedbylocalcodes.

The drain line must maintain a downward slope toward the drain. (304.8mm) is recommended. Installation of an overflow line is recommended when the

/4″ (6.4mm) per foot (304.8mm) slope to the condensate drain cannot be maintained. A drain tube clip is included in the furnace to prevent kinking/buckling of the drain tube. The clip should remain in the furnace (between the door switch plate and the blower shelf, Fig. 10) during operation. See Fig. 20 for proper routing and installation of the overflow.

/2″ (12.7mm) drain hose.

/8″ (15.9mm) may also be

/4″ (6.4mm) per foot (304.8mm)

/4″ (6.4mm) per foot

DO NOT trap the drain line in any other location than at the condensate drain trap supplied with the furnace.

If possible, DO NOT route the drain line where it may freeze. The drain line must terminate at an inside drain to prevent freezing of the condensate and possible property damage.

1. A condensate sump pump MUST be used if required by local codes, or if no indoor floor drain is available. The condensate pump must be approved for use with acidic condensate.

2. A plugged condensate drain line or a failed condensate pump will allow condensate to spill. If the furnace is installed where a condensate spill could cause damage, it is recommended that an auxiliary safety switch be installed to prevent operation of the equipment in the event of pump failure or plugged drain line. If used, an auxiliary safety switch should be installed in the R circuit (low voltage) ONLY.

3. If the auxiliary switch in the condensate pump is used, the furnace may shut down due to a blocked condensate line or failed pump. To prevent frozen water pipes see the “Frozen Water Pipe Hazard” section of this manual.

CAUTION

FROZEN AND BURST WATER PIPE HAZARD

Failure to follow this caution may result in property damage.

If a condensate pump is installed, a plugged condensate drain or a failed pump may cause the furnace to shut down. Do not leave the home unattended during freezing weather without turning off water supply and draining water pipes or otherwise protecting against the risk of frozen pipes.

Condensate Drain Trap Freeze Protection

Special precautions MUST be made if installing furnace in an area which may drop below freezing. This can cause improper operation or damage to the equipment. If the the furnace environment has the potential of freezing, the drain trap and drain line must be protected. Use 3 to 6 watt per foot at 115 volt, 40° F(4°C) self-- regulating shielded and waterproof heat tape. Wrap the drain trap and drain line with the heat tape and secure with the ties. Follow the heat tape manufacturer’s recommendations. Prime the trap before furnace operation.

58HDV

Drain Tube

Blower Shelf

Clip

Door Switch

Representative drawing only, some models may vary in appearance.

Fig. 10 -- Drain Tube Clip Location

A07705

″

58HDV

Casing Grommet Black Rubber

(Loose parts bag)

Plastic Caps (2) Yellow or black

Ven t Dr ain &Clamps

Dual Pressure Switch Detail

FLOW

AIR

Drain Connector Black PVC

(18.1mm) PVC X1/

(12.7mm) CPVC (Loose parts bag)

(15.9mm) ID

Coupling & Clamps (Optional)

Drain Tee

Drain Tube Black Rubber

(12.7mm) ID &

Clamps

Drain Tube Corrugated

/8″″(15.9mm) ID &

Clamps

EXHAUST

On Some Models ONLY

Single Pressure Switch

Relief Tube Black Rubber

(4.8mm) ID

Street Elbow

(12.7mm) CPVC

(Loose parts bag)

INLET

OFF

Drain Line Vent Tee (18.1mm) PVC or1/ CPVC (Field supplied)

Representative drawing only, some models may vary in appearance.

(12.7mm)

Drain Tube Black Rubber5/ Clamps, Cut length to fit (Loose parts bag)

(15.9mm) ID &

2 5 -- 2 4 -- 6 7

A07706

Fig. 11 -- Upflow Installations Top Vent

Upflow Installations Top Vent (See Fig. 11)

Remove knockout from the side of the furnace casing where drain tube will exit.

Install casing grommet [black rubber

/8″ (15.9mm) ID grommet --

in loose parts bag].

Install the Install the black PVC tube connector [

/2″ (12.7mm) CPVC street elbow on discharge of trap

/4″ (18.1mm) PVC x1/2″ (12.7mm) CPVC from loose parts bag] as shown in the illustration above.

Cut the black drain tube [

/8″ (15.9mm) ID -- in loose parts bag] to

length to fit between trap and tube connector through grommet. Clamp both ends of the drain tube using clamps provided.

NOTE: “PVC” is used as a generic term. Pipe and fitting materials used must be acceptable to the local code officials having jurisdiction.

Glue the CPVC street elbow to the trap using appropriate cleaner and solvent cement.

The field supplied

/4″ (18.1mm) PVC or1/2″ (12.7mm) CPVC drain line vent tee must vent outside the furnace cabinet (see exploded view above).

Note: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Tr a p must be primed before operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

Plastic Cap

″

Yellow or black

Coupling & Clamps (Optional)

Ven t Dr ain &Clamps

Either: The PVC Drain Tee or a field supplied 2 (50.8mm) PVC Tee

Dual Pressure Switch Detail

FLOW

AIR

2″(50.8mm) PVC Coupling

EXHAUST

INLET

On Some Models ONLY

OFF

Single Pressure Switch

Relief Tube Black Rubber (4.8mm) ID

Tee Trap White PVC (loose parts bag)

Drain Tube Black Rubber

(12.7mm) ID

&Clamps

Drain Connector Black PVC

(19.1mm) PVC X1/

(12.7mm) CPVC

Drain Tube Corrugated

(15.9mm) ID

& Clamps

(Loose parts bag)

Casing Grommet Black Rubber

(15.9mm) ID

(Loose parts bag)

Drain Line Vent Tee (12.7mm) CPVC (Field supplied)

(18.1mm) PVC or1/

Representative drawing only, some models may vary in appearance.

Fig. 12 -- Upflow Installations Vent through Left Side

Upflow Installations Vent through Left--Side (See Fig. 12)

Remove drain tee from inducer discharge and remove black drain

tube

/2″ (12.7mm) ID from bottom of drain tee.

Install Vent Pipe grommet in side of casing.

Cut an appropriate length of 2″ (50.8mm) PVC pipe long enough to exit the cabinet and connect the vent drain to either:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom of tee.

Remove knockout from the side of the furnace casing where drain tube will exit.

Install the Install the black PVC drain connector [

CPVC from loose parts bag] as shown in the illustration above.

/2″ (12.7mm) CPVC street elbow on discharge of trap

/4″ (19.1mm) PVC x1/2″

Cut the black drain tube [ length to fit between trap and tube connector through grommet.

Clamp both ends of the drain tube using clamps provided.

Glue the CPVC street elbow to the trap using appropriate cleaner and solvent cement.

Connect the tee trap and the main drain line exiting the casing as showninFig.12

Note: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the internal trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

58HDV

SIDE VIEW

Rotate downward

to 10

NOTE: Built--in channel will

be angled 5° to 10° also.

/8″ (15.9mm) ID -- in loose parts bag] to

2 5 -- 2 4 -- 6 7 a

A07707

″

Ven t Dr ain

″

″ 〈

″

&Clamps

Plastic Cap Yellow or black

Dual Pressure Switch

On Some Models

INLET

ONLY

Either: The PVC Drain

Tee or a field supplied Relief Tube Black Rubber

4.8mm) ID

(50.8mm)

OFF

(50.8mm) PVC Tee

Single Pressure Switch Details

PVC Coupling

58HDV

Drain Tube Corrugated

(15.9mm) ID &

Clamps

SIDE VIEW

Rotate downward

to 10

NOTE: Built--in channel will

be angled 5° to 10° also.

Fig. 13 -- All Models Vent Through Right Side

All Models Vent through Right--Side (See Fig. 13)

Disconnect the black drain tube between the drain vent and the trap.

Rotate the inducer 180° for a right side vent after loosening the four (4) inducer attachment screws. Reinstall and retighten the inducer screws to 20 in. lb. (2.3Nm) torque.

Using the connect together with the two short and connect the lower discharge port of the vent drain to the trap. Secure all connections with clamps.

Install the vent pipe grommet into the casing Cut an appropriate length of 2″ (50.8mm) PVC pipe long enough

to exit the cabinet and connect the vent drain to either:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee. Remove knockout from the side of the furnace casing where drain

tube will exit. Install casing grommet black rubber [

in loose parts bag]

/2″ (12.7mm) OD barbed coupling in the loose parts bag

/2″ (12.7mm) ID elbow tubes

/8″ (15.9mm) ID grommet --

EXHAUST

AIRFLOW

Tee Trap White PVC (loose parts bag)

Elbow Tubes (2) Black Rubber

(12.7mm) ID & Clamps

(loose parts bag)

Barbed Coupling,1/ (loose parts bag)

(12.7mm) OD

Drain Line Vent Tee3/ (18.1mm) PVC or1/ (12.7mm) CPVC (Field sup-

plied)

Drain Connector Black PVC

(19.1mm) PVC X1/

(12.7mm) CPVC

(Loose parts bag)

Casing Grommet Black Rubber (Loose parts bag)

(15.9mm) CPVC

2 5 -- 2 4 -- 6 8

A07708

Install the

Install the black PVC tube connector [

/2″ (12.7mm) CPVC street elbow on discharge of trap.

/4″ (19.1mm) PVC x1/2″ (12.7mm) CPVC from loose parts bag] as shown in the illustration above.

Cut the black drain tube [

/8″ (15.9mm) ID -- in loose parts bag] to

length to fit between trap and tube connector through grommet.

Clamp both ends of the drain tube using clamps provided. Glue the CPVC street elbow to the trap using appropriate cleaner

and solvent cement. Connect the tee trap and the main drain line exiting the casing as

showninFig.13

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the internal trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

″

Plastic Cap

″

Yellow or black

Coupling & Clamps (Optional)

Vent Dra in &Clamps

Single Pressure Switch Detail

FLOW

AIR

Either: The PVC Drain Tee or a field supplied 2 PVC Tee

(51 mm)

SIDE VIEW

Rotate downward 5

to 10

EXHAUST

2″(51 mm) PVC Coupling

Dual Pressure Switch

FLOW

AIR

NOTE: Built--in channel will be angled 5° to 10° also.

Relief Tube Black Rubber

On Some Models ONLY

INLET

(5 mm) ID

58HDV

Tee Trap White PVC (loose parts bag)

Elbow Tube Black Rubber

/2″″ID (13 mm) & Clamps

(Loose Parts Bag)

Drain Tube Black, Cut at straight section

Leave room for clamp

Drain Tube Black Rubber

ID (13 mm) & Clamps

WARNING Move Caps to top of trap

(16 mm) ID Corrugated

Cut Here

Barbed Coupling1/ (loose parts bag)

Fig. 14 -- Downflow Left--Side Vent and Trap

Downflow Left--Side Vent and Trap (See Fig. 14).

Remove the inducer mounting screws, rotate the inducer 180° and retighten the inducer screws to 20″ pounds torque.

Disconnect the hoses from the trap assembly, and remove trap and trap mounting bracket from the blower compartment. Using cover plate and gasket provided in the loose parts bag, cover the hole from the burner compartment to the blower compartment and secure with screws.

Move the caps to the top of the trap and mount the trap externally to the left side of the unit using the two(2) screws provided.

Cut the fasten the 90° bend end to the trap and fasten the straight end to the

/8″ (15.9mm) ID corrugated hose as shown above and

transition drain. Secure both connections with clamps.

Reconnect the the trap and secure with a clamp. In some cases, additional length will be required for this hose. Use the Black plastic OD barbed coupling and a suitable section of

/2″ (12.7mm) ID drain hose from the vent drain to

/2″ (12.7mm)

/2″ (12.7mm) ID

hose to make the connection. Secure all connections with clamps Connect the

trap to the top port of the transition as shown in the picture. In

/16″ (4.8mm) ID relief tube from the small port on the

Flexible Tubing Connector,

(5 mm) OD (loose parts bag)

Relief Tube, Extension Black Rubber,

(5 mm) ID Cut to fit

OFF

(13 mm) OD

some cases, additional hose length will be needed. Use the clear

plastic

/16″ (4.8mm) OD flexible tubing connector and a suitable

length of extra

/16″ (4.8mm) ID hose to make this connection.

(loose parts bag)

Trap Connection

Preassemble & insert into furnace

“Clamp ears” Pointed OUT

25-- 24--69

A07767

Install the vent pipe grommet into the casing Cut an appropriate length of 2″ (50.8mm) PVC pipe long , enough

to exit the cabinet and connect the vent drain to either:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe. Remove knockout from the side of the furnace casing where drain

tube will exit. Connect the tee trap and the main drain line exiting the casing as

shown in Fig. 14.

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

″

Plastic Cap

″

Yellow or black

Trap Connection

“Clamp ears” Pointed OUT

Vent Dr ain &Clamps

NOTE: Built--in channel will

be angled 5° to 10° also.

58HDV

Single Pressure Switch Detail

SIDE VIEW

Rotate downward

to 10

AIR

FLOW

Elbow Tube Black Rubber

(13 mm) ID & Clamps

(Loose Parts Bag)

Dual Pressure Switch

Drain Tube Corrugated

Black,

ID&Clamps

(16 mm)

Barbed Coupling

(13 mm) OD

(Loose Parts Bag)

Relief Tube Black Rubber

(5 mm) ID

Drain Hose Black Rubber

(13 mm) ID Cut to

Fit & Clamps

On Some Models

Preassemble & insert into furnace

Coupling & Clamps (Optional)

2″(51 mm) PVC Coupling

ONLY

INLET

Either: The PVC DrainTeeorafield

AIR FLOW

supplied 2

(51 mm) PVC Tee

Tee Trap White PVC (loose parts bag)

Drain Connector Black

OFF

PVC

(19 mm)

PVC X

/2″

CPVC (Loose parts bag)

(13 mm)

WARNING Move Caps to top of trap

Drain Tube Black Rubber,

(loose parts bag)

ID (16 mm) Cut to fit & Clamps

Fig. 15 -- Downflow Right--Side Vent and Trap

Downflow Right--Side Vent and Trap (See Fig. 15)

Remove the drain tee if installed.

Move the caps to the top of the trap and mount the trap externally to the right side of the unit using the two(2) screws provided.

Connect the corrugated drain tube from the transition box to the trap as shown. If an extension is required, use the black PVC tube connector and the black parts bag. Cut tube to length. Secure all connections with clamps.

Connect the drain hose from the Vent Drain to the trap. If an extension is required, use the black coupling, connect a black suitable section of a connection from the vent drain to the trap. Secure all connections with clamps.

/8″ (15.9mm) ID drain tube in the loose

/2″ (12.7mm) ID elbow tube and a

/2″ (12.7mm) ID drain tube to make

/2″ (12.7mm) OD barbed

Install the vent pipe grommet into the casing

Cut an appropriate length of 2″ (50.8mm) PVC pipe long , enough to exit the cabinet and connect the vent drain to either:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe.

Remove knockout from the side of the furnace casing where drain tube will exit.

Connect the tee trap and the main drain line exiting the casing as shown in Fig. 15.

NOTE: Note: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

A07768

Vent Dr ain

″

&Clamps

Plastic Caps Yellow or black

Single Pressure Switch Detail

Trap Connection

“Clamp ears” Pointed OUT

EXHAUST

Field Supplied Tee

Tee Trap White PVC (loose parts bag)

Alternate Orientation

Coupling & Clamps (Optional)

AIR FLOW

Relief Tube Black Rubber

(4.8mm) ID

Dual Pressure Switch

OFF

Flexible tubing connector

(4.8mm) OD (Loose

Parts Bag)

Relief Tube Extension

AIR

FLOW

Drain Tube Black Rubber

(12.7mm) ID

&Clamps

Cap and Clamp Open End

Representative drawing only, some models may vary in appearance.

Black Rubber Cut to Fit (Loose Parts Bag)

Drain Tube Corrugated

Remove KO before mounting Trap

Leave room for clamp

(15.9mm) ID & Clamps

Cut at straight section

Fig. 16 -- Horizontal Left through Top

Preassemble & insert into furnace

(4.8mm) ID

Cut Here

58HDV

2 5 -- 2 4 -- 7 0

A07709

Horizontal Left through Top (See Fig. 16)

Remove knockout from the side of the furnace casing where drain tube will exit.

Mount the trap externally to the bottom side of the unit using the two screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Connect the corrugated hose from the transition to the trap. Secure connections with clamps.

Remove the black Install a yellow cap and clamp over the open drain port of the drain tee.

Connect the black to the trap. Secure connections with clamps.

/2″ (12.7mm) ID drain tube from the drain tee.

/2″ (12.7mm) ID drain tube from the Vent Drain

Connect the trap. If an extension is required, use the tubing connector and the black

/16″ (4.8mm) ID relief tube to the middle port on the

/16″ (4.8mm) ID relief tube in the

/16″ (4.8mm) OD flexible

loose parts bag. Cut tube to length. Secure all connections with clamps.

Cut an appropriate length of 2″ (50.8mm) PVC pipe, long enough to exit the cabinet and connect the vent drain to either:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe.

Connect the tee trap and the main drain line exiting the casing as shown in Fig. 16.

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

″

Alternate Orientation

″

Single Pressure Switch Detail

Yellow or black Plastic Cap

Field Supplied Tee

58HDV

Tee Trap White PVC (loose parts bag)

On Some Models ONLY

EXHAUST

INLET

Level or Sloped towards Tee

Dual Pressure Switch

Relief Tube Black Rub-

(4.8mm) ID

ber

OFF

Flexible Tube Connector (4.8mm) OD (Loose Parts Bag)

Relief Tubing Extension Black Rubber Cut to Fit (Loose Parts Bag)

(4.8mm) ID

FLOW

AIR

WARNING Move Caps to top of trap

Ven t Dr ain &Clamps

Elbow Tube Black Rubber1/ ID & Clamps (Loose Parts Bag)

Barbed Coupling1/ (Loose Parts Bag)

Drain Tube Black Rubber

(12.7mm) ID & Clamps

Drain Tube Corrugated

(15.9mm) ID & Clamps

Leave room for clamp

(12.7mm) OD

Cutatstraightsection

(12.7mm)

Cut Here

Representative drawing only, some models may vary in appearance.

Fig. 17 -- Horizontal Left--Side Vent

Horizontal Left--Side Vent (See Fig. 17)

Remove the drain tee from the Vent Drain if installed.

Rotate the inducer 180 attachment screws. Reinstall and retighten the inducer screws to 20

in. lbs. (2.3 Nm) torque.

Remove knockout from the side of the furnace casing where drain tube will exit.

Mount the trap externally to the bottom side of the unit using the two screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Connect the corrugated hose from the transition to the trap. Secure connections with clamps.

Connect the black to the trap. If an extension is required, use the black OD flexible tubing connector and the black tube in the loose parts bag. Cut tube to length. Secure connections with clamps.

° for a side vent after loosening the 4 inducer

/2″ (12.7mm) ID drain tube from the Vent Drain

/2″ (12.7mm)

/2″ (12.7mm) ID drain

25-- 24--70a

A07710

Connect the trap. If an extension is required, use the tubing connector and the black loose parts bag. Cut tube to length.

Cut an appropriate length of 2″ (50.8mm) PVC pipe, fittings and extension pipe long enough to exit the cabinet and connect the vent draintoeither:

/16″ (4.8mm) ID relief tube to the middle port on the

/16″ (4.8mm) ID relief tube in the

/16″ (4.8mm) OD flexible

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe.

Important: The pipe to the tee trap must be level or sloping towards the tee trap

Connect the tee trap and the main drain line exiting the casing as shown in Fig. 17.

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

″

Trap Connection

″

Preassemble & insert into furnace

“Clamp ears” Pointed OUT

Single Pressure Switch Detail

AIRFLOW

Drain Tube Black Rubber ID & Clamps

(4.8mm) ID Rub-

ber Tube

Coupling & Clamps (Optional)

(12.7mm)

Plastic Cap Yellow or black

Ven t Dr ain &Clamps

Alternate Orientation

EXHAUST

Field Supplied Tee

Relief Tube Black Rub-

(4.8mm) ID

ber

Flexible Tubing Connector

(4.8mm) OD (Loose

Parts Bag)

Relief Tube Extension Black Rubber Cut to Fit (Loose Parts Bag)

(4.8mm) ID

Drain Tube Corrugated Clamps Cut at straight section

Leave room for clamp

WARNING AddCapandClamp

OFF

Dual Pressure Switch

(15.9mm) ID &

Cut Here

Remove KO before mounting Trap

Drain Tube Black Rubber

(12.7mm) ID & Clamps

Representative drawing only, some models may vary in appearance.

Fig. 18 -- Horizontal Right through Top

Tee Trap White PVC (loose parts bag)

INLET

On Some Models ONLY

Barbed Coupling1/ OD (Loose Parts Bag)

2 5 -- 2 4 -- 7 0 b

58HDV

(12.7mm)

A07711

Horizontal Right through Top (See Fig. 18)

Remove knockout from the side of the furnace casing where drain tube will exit.

Mount the trap externally to the bottom side of the unit using the two(2) screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Connect the corrugated hose from the transition to the trap. Secure connections with clamps.

Connect the black to the trap. If an extension is required, use the black OD barbed coupling and the black the loose parts bag. Cut tube to length. Secure connections with clamps.

/2″ (12.7mm) ID drain tube from the Vent Drain

/2″ (12.7mm) ID drain tube in

/2″ (12.7mm)

Connect the trap. If an extension is required, use the clear flexible tubing connector and the black

/16″ (4.8mm) ID relief tube to the middle port on the

/16″ (4.8mm) OD

/16″ (4.8mm) ID relief tube

in the loose parts bag. Cut tube to length. Cut an appropriate length of 2″ (50.8mm) PVC pipe, fittings and

extension pipe long enough to exit the cabinet and connect the vent drain to a standard field supplied 2″ (50.8mm) PVC tee

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe.

Connect the tee trap and the main drain line exiting the casing as shown in Fig. 18.

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

Single Pressure Switch Detail

″

FLOW

AIR

Plastic Cap Yellow or black

Coupling & Clamps (Optional)

Ven t Dr ain &Clamps

Level or Sloped towards Tee

Relief Tube Black Rubber

58HDV

Flexible Tubing Connector3/ (4.8mm) OD (Loose Parts Bag)

(4.8mm) ID

Relief Tube Extension Black Rubber Cut to Fit (Loose Parts Bag)

OFF

(4.8mm) ID

Dual Pressure Switch

Drain Tube Black, Corrugated Cut at straight section

Leave room for clamp

Representative drawing only, some models may vary in appearance.

(15.9mm) ID & Clamps

Cut Here

Remove KO before mounting Trap

Drain Tube Black Rubber

(12.7mm) ID

& Clamps

Elbow Tube Black Rubber

(12.7mm) ID & Clamps

(Loose Parts Bag)

On Some Models ONLY

INLET

Alternate Orientation

Barbed Coupling1/ OD (Loose Parts Bag)

EXHAUST

Field Supplied Tee

Tee Tr ap White PVC (loose parts bag)

(12.7mm)

2 5 -- 2 4 -- 7 0 c

Fig. 19 -- Horizontal Right Side Vent

Horizontal Right--Side Vent (See Fig. 19)

Disconnect drain tee if installed

Remove knockout from the side of the furnace casing where drain tube will exit.

Mount the trap externally to the bottom side of the unit using the two(2) screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Connect the corrugated hose from the transition to the trap. Secure connections with clamps.

Connect the black to the trap. If an extension is required, use the barbed coupling and the black loose parts bag. Cut tube to length. Secure connections with clamps.

Connect the

/16″ (4.8mm) ID relief tube to the middle port on the trap. If an extension is required, use the clear splice connector and the black loose parts bag. Cut tube to length.

/2″ (12.7mm) ID drain tube from the Vent Drain

/2″ (12.7mm) ID drain tube in the

/16″ (4.8mm) ID relief tube in the

/2″ (12.7mm) OD

/16″ (4.8mm) OD

A07712

Cut an appropriate length of 2″ (50.8mm) PVC pipe, fittings and extension pipe long enough to exit the cabinet and connect the vent draintoeither:

S A2″ (50.8mm) PVC coupling fastened onto the drain tee

Install tee trap into bottom section of tee and glue pipe.

Important: The pipe to the tee trap must be level or sloping towards the tee trap

Connect the tee trap and the main drain line exiting the casing as shown in Fig. 19.

NOTE: It is recommended that all PVC piping and fitting connections be fit up and inspected before final cementing. Both

the external trap and the external tee trap must be primed before operation. Verify all condensate drain connections are

securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

INLET

EXHAUST

Open Tee

Tee Trap

Evaporator

Coil Drain Line (Optional)

Main Drain Line

Condensate Trap

Representative drawing only, some models may vary in appearance.

OFF

A07713

Fig. 20 -- Connecting Tee Trap to Condensate Trap and Main

Drain Line

The tee trap must be connected to the main condensate drain line as conceptually shown above. Different installations may require slightly different orientations. The following steps apply to all installations.

1. The tee trap should be installed as close to the side or top of the furnace as practical. Minimize the distance between the inducer and the tee trap as much as possible.

2. An open tee is to be used at the tee trap discharge. The top end of the tee should be open to the atmosphere to eliminate potential air lock problems.

3. The drain line from the tee trap is to be connected to the furnace condensate trap drain line as shown above.

4. Condensate drain lines from a cooling coil may be connected downstream of the connection point of the tee trap and furnace condensate trap.

Important: Prime both traps with water before operation.

Failure to prime the traps may result in discharge of flue gases from the condensate drain line and open tee for a period of time, and may result in temporary lockout of the furnace upon start up. Main drain line construction is left to the discretion of the installer. It may be made of either ridged pipe or flexible tube. Tube ID should NOT be less than

(12.7mm).

″

Connecting Vent and Combustion Air Piping

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Cement or mechanically seal all joints, fittings, etc. to prevent leakage of flue gasses.

Refer to Fig. 11 through Fig. 19 that corresponds to the installation position of the furnace for the application.

Preassemble the vent and combustion air piping from the furnace to the vent termination. Do not cement the pipe joints until the pipe preassembly process is complete.

Combustion Air Pipe Connection (Direct Vent)

Install the air intake coupling and gasket to the furnace with the four(4) screws.

Note: The air intake coupling and gasket can be installed to the top panel to the alternate air intake locations on either the left or right side panels of the furnace.

For downflow installation, the air intake coupling and gasket must

be installed to the alternate air intake location on either the left or right side panels. Remove the 3″ (76.2mm) hole plug from the furnace accessory bag and relocate to the open hole in the furnace panel. Use four screws to seal the four mounting holes in the top panel next to the hole plug. Drill four

/64″ (2.8mm) diameter holes

in the casing using the air intake coupling as the template.

The air intake coupling is sized for 2″ (50.8mm) PVC pipe. Install the combustion air pipe to the air intake coupling using RTV

sealant to provide for future serviceability.

Vent Pipe Connection

Install the vent pipe grommet to the furnace panel. Locate the grommet in the furnace panel at a location directly away from the vent fitting on the combustion blower. The grommet snaps into the 3″ (76.2mm) hole from the furnace panel. NOTE: Depending on the installation position, the vent pipe grommet will be installed to the top panel or to the alternate location on the side panels. If needed, remove the 3″ (76.2mm) hole plug from the loose parts bag and install it in the open hole in the furnace panel. (See Fig. 11 or Fig. 20)

Install the vent pipe to the rubber coupling, the vent fitting or the PVC vent extension pipe. Securely attach using the clamp or PVC cement as required.

NOTE: The vent fitting MUST be installed with the air flow marking arrow pointed toward the vent pipe. (See Fig. 21). Some installations require the vent fitting to be installed with a 5° to 10° downward slope. (See Fig. 11 thru Fig. 20)

58HDV

Rubber Coupling

&Clamps

Vent Pipe

Vent Extension Pipe (Side Panel Exit)

Tee

Elbow

SIDE VIEW

Rotate downward 5

Vent Pipe (Top Panel Exit)

NOTE: The 90° elbow is approved for use inside the furnace ONLY.

Vent Fitting &Clamps

to 10

58HDV

NOTE: Built--in channel will be angled 5° to 10° also.

Fig. 21 -- Proper Sealing Procedure for Combustion Blower

Joining Pipe and Fittings

SEE VENT AND COMBUSTION AIR PIPING, Vent and Combustion Air Piping Guidelines in this manual for applicable

ASTM Standards for vent materials.

Combustion Blower

A07714

Connecting Vent Pipes and Termination

NOTE: Combustion air intake and vent MUST terminate in the same atmospheric pressure zone. If installation is in a cold climate (sustained temperatures 0°F(--17°C) and below for 24 or more consecutive hours), increase the minimum distance between vent pipe and air intake from 8″ (203.2mm) to 18″(457.2mm).

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to properly vent this furnace could result in personal injury or death.

Maintain a minimum of 36″ (914.4mm) between combustion air inlet and clothes dryer vent. Terminate the combustion air intake as far as possible from any air conditioner, heat pump, swimming pool, swimming pool pumping, chlorinator or filtration unit.

1. Install all couplings, nipples and elbows using proper procedures for Joining Pipe and Fittings and maintain spacing between vent and combustion air piping as indicated in Fig. 22through 30.

8” (203.2mm)* MIN. 20’ (6.1m) MAX

*18″(457.2mm) Minimum for cold climates [sustained 0

C) and below for 24 or

(-17 more consecutive hours]

8” (203.2mm) MIN.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Do NOT use solvent cement that has become curdled, lumpy or thickened and do NOT thin. Observe precautions printed on containers. For applications below 32_F(0_C), use only low temperature type solvent cement. Poor joints may lead to disconnected or leaking vent pipe joints allowing carbon monoxide to enter the living space.

1. Cut pipe end square, remove ragged edges and burrs. Chamfer end of pipe, then clean fitting, socket and pipe joint of all dirt, grease, or moisture.

NOTE: Stir the solvent cement frequently while using. Use a natural bristle brush or the dauber supplied with the cement. The proper brush size is one inch.

2. After checking pipe and socket for proper fit, wipe socket and pipe with cleaner-primer. Apply a liberal coat of primer to inside surface of socket and outside of pipe. Do NOT allow primer to dry before applying cement.

3. Apply a thin coat of cement evenly in the socket. Quickly apply a heavy coat of cement to the pipe end and insert pipe into fittings with a slight twisting movement until it bottoms out.

NOTE: Cement MUST be fluid while inserting pipe. If NOT, recoat pipe.

4. Hold the pipe in the fitting for 30 seconds to prevent the tapered socket from pushing the pipe out of the fitting.

5. Wipe all excess cement from the joint with a rag. Allow 15 minutes before handling. Cure time varies according to fit, temperature and humidity.

12 ” (304.8mm) MIN.

GRADE LEVEL

SNOW LEVEL

25--00--05F

A07715

Fig. 22 -- Sidewall Termination 12” (304.8 mm) or More Above

Snow Level or Grade Level

Horizontal Termination

1. Cut two holes. 21/2″ (63.5mm) for 2″ (50.mm) pipe, 3″ (76.2mm) for 2 (76.2mm) pipe. Do NOT make the holes oversized, or it will be necessary to add a sheet metal or plywood plate on the outside with the correct size hole in it.

2. Check hole sizes by making sure it is smaller than the couplings or elbows that will be installed on the outside. The couplings or elbows MUST prevent the pipe from being pushed back through the wall.

3. Extend vent pipe and combustion air pipe through the wall

/4″ (19.1mm) to 1″ (25.4mm) and seal area between pipe

and wall.

4. Install the couplings, nipple and termination elbows as shown and maintain spacing between vent and combustion air piping as indicated in Fig. 22 and Fig. 23.

A metal shield is recommended 18″ x18″ (457.2mm x 457.2mm) min. or 18″ (457.2mm) min. diameter around the vent termination at the exterior wall to protect the house exterior materials from flue product or condensation (freezing) damage.

/2″ (63.5mm) pipe, or 31/2″ (88.9mm) for 3″

Using Exterior Risers

1. Install elbows and pipe to form riser as shown in Fig. 23

2. Secure vent pipe to wall with galvanized strap or other rust resistant material to restrain pipe from moving.

3. Insulate pipe with Armaflex or equivalent moisture resistant closed cell foam insulation or Fiberglass insulation if boxed in and sealed against moisture.

Vertical Termination

1. Fig. 25 shows the proper installation and clearances for vertical vent termination. The vertical roof termination should be sealed with a plumbing roof boot or equivalent flashing. The inlet of the intake pipe and end of the exhaust vent must be terminated no less than 12″ (307.8mm) above the roof or snow accumulation level, and 12″ (307.8mm) away from a vertical wall or other protrusion.

2. If the vent system is installed in an existing chimney make sure clearances shown in Fig. 25 are maintained. Horizontal section before the termination elbow can be extended on the inlet air to provide necessary clearance.

Vent Termination Shielding

Under certain wind conditions some building materials may be affected by flue products expelled in close proximity to unprotected surfaces. Sealing or shielding of the exposed surfaces with a corrosion resistant material (such as aluminum sheeting) may be required to prevent staining or deterioration. The protective material should be attached and sealed (if necessary) to the building before attaching the vent terminal.

OVERHANG

EXHAUST

FRONT VIEW

Same Joist

Space

12″(304.8mm) MIN.

INLET

12″(304.8mm) MIN. Ground Level OR Snow Level

SIDE VIEW

25- 23- 73

12″(304.8mm) MIN.

Fig. 24 -- Recommended Alternate Installation

for Sustained Cold Weather

(0_F(--17_C) & below for 24 or more consecutive hours)

58HDV

A07699

Multi Vent Termination Clearances

When two (2) or more furnaces are vented near each other, each furnace must be individually vented.

Two (2) vent terminations may be installed as shown in Fig. 26, 27, 28, 29, and 30 but the next vent termination must be at least 36″ (914.4mm) away from first two terminations. It is important that vent terminations be made as shown to avoid recirculation of flue gases.

8” (203.2mm)* MIN.

20’ (6.1m) MAX

12 ” (304.8mm) MIN.

GRADE LEVEL

SNOW LEVEL

Fig. 23 -- Sidewall Termination with Exterior Risers to Get

Above Snow Level or Grade Level

*18″(457.2mm) Minimum for cold climates [sustained 0

C) and below for 24 or

(-17 more consecutive hours]

8” (203.2mm)

MIN.

25--00--04F

A07716

2 5 -- 0 0 -- 0 6

A=12″ (304.8mm) Above roof or snow accumulation level B=8″ (203.2mm) Min., 20′ (6.1m) Maximum, except in areas with extreme cold temperatures [sustained 0°F(--17°C) and below for 24 or more consecutive hours], the 18″ (457.2mm) Min.

A07717

Fig. 25 -- Rooftop Termination

′

58HDV

12″″(304.8mm) Min. Grade or Snow Level

Combustion Air

2” (50.8mm) Max

36” Min

(914.4mm)

Fig. 26 -- Concentric Vent and Combustion--Air

Roof Termination

36”Min

(914.4mm)

Exhaust

A07718

“A”

Inlet

12″″(304.8mm) Min. Grade or Snow Level

“A”

Exhaust

8″(457.2mm) Min.

(6.1m) Max.

18″(457.2mm) Min. for Cold Climates [Sustained 0 24 hours or more consecutive hours]

8″Min.

F(- 17°C) and below for

Dimension “A” is touching or 2″ (50.8mm) maximum separation.

A07696

Fig. 28 -- Sidewall Inlet Vent and Exhaust--Air Termination

1″(25.4mm)

Combustion Air

Exhaust

Ven t

Maximum

Ven t

“A”

2 5 -- 2 2 -- 0 2 d

Dimension “A” is touching or 2″ (50.8mm) maximum separation.

A07695

Fig. 27 -- Concentric Vent and Combustion Air

Sidewall Termination

Inlet

Exhaust

Dimension “A” is touching or 2″ (50.8mm) maximum separation.

Fig. 29 -- Sidewall Inlet Vent and Exhaust--Air Termination

8″(203.2mm) Min.

(6.1m) Max.

8″(203.2mm) Min.

(6.1m) Max.

“A”

with Exterior Risers

8″(203.2mm) Min.

12″(457.2mm) Min. Grade or

Inlet

Snow Level

“A”

18″(457.2mm) Min. for Cold Climates [Sustained 0 24 hours or more consecutive hours]

F(- 17°C) and below for

A07697

12″″(304.8mm) Min. Grade or Snow Level

18″(457.2mm) Min. for Cold Climates [Sustained 0 24 hours or more consecutive hours]

Exhaust

F(- 17°C) and below for

25--22--43

A07698

Fig. 30 -- Rooftop Inlet Vent and Exhaust--Air Termination

CONCENTRIC VENT

TERMINATION

Vent Termination Clearances

WARNING

CARBON MONOXIDE POISONING, FIRE AND EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death, or property damage.

Inlet and outlet pipes may NOT be vented directly above each other (standard vent terminals).

1. Determine termination locations based on clearances specified in following steps and as shown in Fig. 8, 31 through 36

2. The vent termination must be located at least 12″ (304.8mm) above ground or normally expected snow accumulation levels.

3. Do NOT terminate over public walkways. Avoid areas where condensate may cause problems such as above planters, patios, or adjacent to windows where steam may cause fogging.

4. The vent termination shall be located at least 4′ (1.2m) horizontally from any electric meter, gas meter, gas regulator, and any relief equipment. These distances apply ONLY to U.S. installations.

5. The vent termination is to be located at least 3′ (.91m) above any forced air inlet located within 10′ (3m); and at least 10′ (3m) from a combustion air intake of another appliance, except another direct vent furnace intake.

6. In Canada, the Canadian Fuel Gas Code takes precedence over the preceding termination instructions.

Concentric V e nt Termination Kit # KGAVT0701CVT & KGAVT0801CVT

For additional venting information contact www.Carrier.com. These kits are for vertical or horizontal termination of the

combustion air inlet and the exhaust vent pipes on Category IV gas--fired condensing furnaces. The KGAVT0701CVT kit can be used for 2″ (50.8mm) diameter pipe systems. The KGAVT0801CVT kit can be used for 3″ (76.2mm)diameter pipe system. Refer to Ta bl e 5 for the correct pipe size for the furnace. Both the combustion air inlet and the exhaust vent pipes must attach to the termination kit. The termination kit must terminate outside the structure and must be installed per the instructions outlined below for vertical or horizontal termination. V ertical termination is preferred. Field supplied pipe and fittings are required to complete the installation.

Vertical & Horizontal Termination

1. Determine the pipe diameters required for the installation from Ta b l e 5 and Fig. 33

2. Determine the best location for the termination kit. See Fig. 32 for vertical termination or Fig. 35 and 36 for horizontal termination. Roof termination is preferred since it is less susceptible to damage, has reduced intake contaminants and less visible vent vapor. For side wall termination, consideration should be given to: 1) possible damage from the vapors to plants/shrubs, other equipment and building materials, 2) possible damage to the terminal from foreign objects, 3) wind effects that may cause recirculation of flue products, debris or light snow and 4) visible vent vapor.

Kit Contents:

3″ (76.2) Rain Cap or 2″ (50.8) Rain Cap 3″ (76.2) Diameter SDR--26 Pipe, 19 4″ (101.6) Diameter SDR--26 Pipe, 24″ (609.6) Long, 2″ (50.8) Diameter SDR--26 Pipe, 31

/2″ (63.5) Diameter SDR--26 Pipe, 371/8″ (973) Long,

2 3″ (76.2) Y Concentric Fitting or 2″ (50.8) Y Concentric Fitting

2″ (50.8) or 3″ (76.2) Dia. Y Concentric Fitting

/2″ (495.3) Long or

/8″ (803.3) Long or

Nominal 3″ (76.2) or 4″ (101.6) Dia. SDR--26 Pipe

2 (50.8) or 21/2″ (63.5) Dia. SDR--26 Pipe

2″ (50.8) or 3″ (76.2) Dia. Rain Cap

2 5 -- 2 2 -- 0 3

A07719

Fig. 31 -- Kit Components

Vent

Combustion Air

Roof Boot/ Flashing (Field Supplied)

Vent

Note:

Support must be field installed to secure termination kit to structure.

Maintain 12″ (304.8mm) min. clearance above highest anticipated snow level. Max. of 24″ (609.6mm) above roof.

Support (Field Supplied)

45° Elbow (Field Supplied)

Combustion Air

25-- 22--02

A07720

Fig. 32 -- Concentric Vent Roof Installation

3. Cut one 5″ (127mm)diameter hole through the structure for the KGAVT0701CVT Kit or one 4″ (101.6mm)diameter hole for the KGAVT0801CVT Kit .

4. Dimension D may be lengthened to 60″ (1524mm)max. or shortened by cutting the pipes to 12″ (304.8mm) min. Dimension A will change according to D dimension. (See Fig. 33.)

58HDV

B PVC Vent/Exhaust

Drill clearance hole in rain cap and pilot hole in vent pipe.

/2″

(38 mm)

Model A* B C D**

KGAVT0801CVT 387/

KGAVT0701CVT 333/

* = Dimension will change accordingly as dimension D is lengthened or shortened. **= Dimension D may be lengthened to 60″ may also be shortened by cutting the pipes provided in the kit to 12″ minimum.

58HDV

Fig. 33 -- Concentric Vent Dimensional Drawing

B PVC Intake/Combustion Air

3 41/

2 31/

Concentric Termination Kit

Tab l e 5

KGAVT0701CVT & KGAVT0801CVT

Venting Table Dual Piping ONLY

40,000, 50,000, 60,000, & 75,000 Btuh Furnaces

KGAVT0701CVT -- 35′ (10.7m) & (4) 90° elbows

80,000, 100,000 & 125,000 Btuh Furnaces

KGAVT0801CVT -- 35′ (10.7m) & (4) 90° elbows

1. Do not include the field supplied 45° elbow in the total elbow count.

2. If more than four elbows are required, reduce the length of both the inlet and the exhaust pipes five feet for each additional elbow used.

3. Elbows are DWV long radius type for 2 and 3

″ (76.2mm) vents.

If more than four elbows are required, reduce the length of both the inlet and exhaust pipes 5′ (1.5m)for each additional elbow used.

* Feet of pipe is whichever pipe run is the longest, either inlet or outlet side.

If assembly needs to be extended to meet height or side wall thickness requirement, the two pipes supplied in the kit may be replaced by using the same diameter solid, single (no coupling connections) field supplied SDR--26 PVC (ASTM D2241) pipes. Do not extend dimension D more than 60″(1524mm). (See Fig.

33.)

Do not use field supplied couplings to extend the pipes. Airflow restriction will occur and the furnace pressure switch may cause intermittent operation.

5. Partially assemble the concentric vent termination kit. Clean and cement the parts using the procedures for Joining Pipe and Fittings section of the manual.

a. Cement the Y Concentric fitting to the longest of the

two straight kit pipes. See Fig. 34.

b. Cement the rain cap to the shortest of the straight kit

parts. (See Fig. 34.)

NOTE: A field supplied stainless steel screw may be used to secure the rain cap to the pipe instead of cementing when field disassembly is desired for cleaning (See Fig. 34.)

with 2″ (50.8mm) PVC pipe

with 3″ (76.2mm) PVC pipe

″ (50.8mm)

211/

165/

A09195

Stainless steel screw (Field supplied)

A07722

Fig. 34 -- Rain Cap to Vent Pipe Assembly

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

When using the alternate screw assembly method, drill a clearance hole in the rain cap and a pilot hole in the vent pipe for the screw size being used. Failure to drill adequate holes may cause cracking of the PVC components, allowing flue gasses to be recirculated.

6. Install the Y concentric fitting and the pipe assembly through the structure’s hole. For vertical termination, install the parts through the field supplied roof boot/flashing. NOTE: Do not allow insulation or other materials to accumulate inside the pipe assembly when installing through the structure’s hole.

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Do not operate the furnace with the rain cap removed as recirculating of the flue gasses may occur. Water may also collect inside the larger combustion air pipe and flow to the burner enclosure.

7. Secure the assembly to the structure as shown in Fig. 32 or Fig. 36 using field supplied metal strapping or equivalent material.

NOTE: Ensure the termination height is above the roof surface or anticipated snow level as shown in Fig. 32 for vertical termination. Ensure the termination location clearance dimensions are as shown in Fig. 35 and Fig. 36 for horizontal termination.

8. Install the rain cap and the small diameter pipe assembly in the Y concentric fitting and the large pipe assembly. Ensure that the small diameter pipe is bottomed out and securely cemented in the Y concentric fitting.

9. Cement the furnace combustion air and vent pipes to the concentric vent termination assembly. See Fig. 32 or Fig. 36 for proper pipe attachment.

10. Operate the furnace through one heat cycle to ensure combustion air and vent pipes are properly connected to the concentric termination connections.

Roof Overhang

1″ (25.4mm) max.

Combustion Air

12″ (304.8mm) min.

Vent

Maintain 12″ (304.8mm) clearance above highest anticipated snow level or grade whichever is greater.

25--22--02

A07736

Fig. 35 -- Concentric Vent and Combustion--Air

Side Termination

Strap (Field Supplied)

Vent

Combustion Air

Note:

Securing strap must be field installed to prevent movement of termination kit in side wall.

45° Elbow (Field Supplied)

Combustion Air

Vent

Flush to 1″ (25.4mm) max.

25-- 22--02

A07723

Fig. 36 -- Concentric Vent Sidewall Attachment

GAS SUPPLY AND PIPING

WARNING

FIRE AND EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death, and/or property damage.

Models designated for Natural Gas are to be used with Natural Gas ONLY, unless properly converted to use with Propane gas.

NOTE: The rating plate is stamped with the model number, gas type and gas input rating. In addition, models manufactured for sale in Canada have orifice size information stamped on the rating plate.

Gas Supply Requirements

WARNING

FIRE HAZARD

Failure to follow this warning could result in personal injury or death.

Do NOT set input rating above that shown on rating plate.

Gas supply pressure should be within minimum and maximum values listed on rating plate. Pressures are usually set by gas suppliers.

(See Propane Gas Conversion Kit instruction manual for furnaces converted to Propane gas)

S Use only the Type of gas approved for this furnace. See rating

plate for approved gas type.

/8″ NPT plugged tapping, accessible for a test gauge

S A

connection,must be installed immediately upstream of the gas

supply connection to furnace.

S Gas supply pressure should be within minimum and maximum

values listed on rating plate. Pressures are usually set by gas

suppliers.

S Gas input must not exceed the rated input shown on the rating

plate. Overfiring will result in failure of heat exchanger and cause

dangerous operation.

S Do not allow minimum supply pressure to vary downward.

Doing so will decrease input to furnace. Refer to Ta b l e 6 for Gas

supply. Refer to Tables 7 through 10 for manifold pressures.

Tab l e 6 Gas Pressures

Gas Type

Natural

Propane

Recommended Max. Min.

7inwc

(1744 Pa)

11 in w c

(2740 Pa)

Supply Pressure

14 in wc

(3487 Pa)

14 in wc

(3487 Pa)

4.5inwc

(1121 Pa)

11 in w c

(2740 Pa)

Gas Piping Requirements

NOTE: The gas supply line must be installed by a qualified service technician in accordance with all building codes.

NOTE: In the state of Massachusetts.

a. Gas supply connections MUST be performed by a

licensed plumber or gas fitter.

b. When flexible connectors are used, the maximum length

shall not exceed 36″ (915 mm).

c. When lever handle type manual equipment shutoff

valves are used, they shall be T--handle valves.

d. The use of copper tubing for gas piping is NOT

approved by the state of Massachusetts.

1. Install gas piping in accordance with local codes, or in the absence of local codes, the applicable national codes. Refer to NFPA 54/ANSI Z223.1 for proper gas pipe size.

2. It is recommended that a manual equipment shutoff valve be installed in the gas supply line outside the furnace. Locate valve as close to the furnace as possible where it is readily accessible. Refer to Fig. 37.

3. Use black iron or steel pipe and fittings or other pipe approved by local code.

4. Use pipe thread compound which is resistant to natural and Propane gases.

5. Use ground joint unions and install a drip leg no less than 3″ (76.2mm) long to trap dirt and moisture before it can enter gas controlvalve inside furnace.

6. Use two pipe wrenches when making connections to prevent gas valve from turning.

7. Install a manual shut-- off valve external to furnace casing and tighten all joints securely.

8. If local codes allow the use of flexible gas appliance connectors, always use a new listed connector. Do not use a connector which has previously serviced another gas appliance.

9. Flexible corrugated metal gas connector may NOT be used inside the furnace or be secured or supported by the furnace or ductwork.

58HDV

10. Properly size gas pipe to handle combined appliance load or

″

run gas pipe directly from gas meter or Propane gas regulator.

NOTE: Refer to Fig. 37 or Fig. 38 for the general layout at the furnace. The rules listed apply to natural and Propane gas pipe installations.

NOTE: On the Dual Certified or Direct Vent models, install the gas pipe grommet to the furnace side panel with the gas pipe entry. If needed, remove the 2″ (50.8mm) hole plug from the plastic accessory bag and relocate to the open hole in the furnace side panel.

11. Install correct pipe size for run length and furnace rating.

12. Measure pipe length from gas meter or Propane second stage regulator to determine gas pipe size.

WARNING

ELECTRICAL OPERATION HAZARD

Failure to follow this warning could result in personal injury or death.

Failure to properly install me tal gas connector could result in personal injury, death, and/or property damage.

A flexible corrugated metal gas connector must be properly installed, shall not extend through the side of the furnace,and shall not be used inside the furnace.

Black iron pipe shall be installed at the furnace gas control valve and extend a minimum of 2″ (50.8mm) outside furnace casing.

Drip Leg and Union, Union* should be outside the

58HDV

cabinet. Manual shut--off valve MUST be upstream of dripleg, union, and furnace.

Use elbows and 3″″(76.2mm) pipe nipple to connect valve to piping when using right side gas pipe entry.

Propane low pressure switch.

Union may be installed inside the cabinet when necessary because of clearances.

Representative drawing only, some models may vary in appearance.

(76.2mm)

pipe nipple

Fig. 37 -- Typical Gas Piping for Upflow

Vent Pipe Grommet (Single Pipe)

Manual shut- off valve

Alternative installation

2 5 -- 2 5 -- 4 5

A09196

Use elbows and 3″(76 mm) pipe nipple to connect valve to

piping when using left side gas pipe entry.

Propane low pressure switch.

Manual shut- off valve

Drip Leg and Union, Union* should be outside the cabinet. Manual shut--off valve MUST be upstream of dripleg, union, and furnace.

Alternative installation

Union may be installed inside the cabinet when necessary

because of clearances.

Fig. 38 -- Typical Gas Piping for Downflow

Additional Propane Connection Requirements

1. Have a licensed Propane gas dealer make all connections at storage tank and check all connections from tank to furnace.

2. If copper tubing is used, it MU ST comply with limitation set in National Fuel Gas Code or CGA codes.

3. Two--stage regulation of Propane gas is recommended.

Propane Conversion

An accessory kit shall be used to convert to propane gas use, see the furnace rating plate for the Propane conversion accessory kit part number.

WARNING

FIRE, EXPLOSION HAZARD

Failure to follow this warning could result in personal injury or death.

A Propane conversion accessory kit is required when operating the furnace with Propane gas.

General Derating Rules

1. These furnaces may be used at full input rating when installed at altitudes up to 2,000′ (609.6m). When installed above 2,000′ (609.6m), the input must be decreased 2% (Natural) or 4% (Propane) for each 1000′ above sea level in the USA. In Canada, the input rating must be derated 5% (Natural Gas) and 10% (Propane Gas) for altitudes 2000′ to 4500′ (609.6 to 1371.6m) above sea level.

2. For operation with natural gas at altitudes above 2,000′ (609.6m), orifice change and/or manifold pressure adjustments may be required for the gas supplied. First consult your local gas supplier, then refer to or Ta b l e 7 for required pressure change and/or orifice change for high altitudes.

* B a s e d o n m i d --- r a n g e o f el e v a t i o n .

Gas Pipe Grommet (Single Pipe)

A09206

3. For operation with Propane gas, gas orifices MUST be changed and manifold pressure MUST be maintained as per Ta b le 8. Orifices can be ordered through your distributor. See Fig. 39.

4. In cases where Table 7 is not applicable, eg. alternate input rate application, refer to above table for required high altitude input rate.

Nameplate Sea Level Input Rate x (Multiplier)*{

Elevation

ft (m)

2001′ - 3000′

(609.9 -- 914.4)

3001′ - 4000′

(914.7 -- 1219.2)

4001′ - 5000′

(1219.5 -- 1524)

5001′ - 6000′

(1524.3 -- 1828.8)

6001′ - 7000′

(1829.1 -- 2133.6)

7001′ - 8000′

(2133.9 -- 2438.4)

High Altitude Input Rate =

High Altitude Multiplier

Natural Gas Propane Gas

{

0.95 0.90

0.93 0.86

0.91 0.82

0.89 0.78

0.87 0.74

0.85 0.70

High Altitude Air Pressure Switch

Altitudes over 4,000′ (1219.2m) may require a different air pressure switch than the one installed at the factory. Check parts list for pressure switch and consult your distributor for part number and availability. In Canada, provincial codes may govern installation of switch. Check with governing authorities.

* In the USA, derating of these furnaces at 2% (Natural Gas) and 4% (Propane Gas) has been tested and design--certified by CSA. {In Canada, the input rating must be derated 5% (Natural Gas) and 10% (Propane Gas) for altitudes of 2,000 to 4,500 (609.6 to

1371.6m) above sea level. Use the 2001 to 3000 (609.9 to 914.4 m) column in Tab l e 7 and Ta b l e 8.

58HDV

Tab l e 7

HEATING

VAL U E a t

ALTITUDE

BTU/CU.

700 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 44 3.7 1.8 725 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 44 3.7 1.8 44 3.4 1.7 750 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 44 3.5 1.7 44 3.2 1.6 775 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 44 3.5 1.7 44 3.2 1.6 46 3.8 1.9 800 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 44 3.6 1.8 44 3.3 1.6 45 3.7 1.8 46 3.6 1.7 825 -- -- -- -- -- -- -- -- -- -- -- -- 44 3.7 1.8 44 3.4 1.7 45 3.8 1.8 46 3.6 1.8 47 3.8 1.9 850 -- -- -- -- -- -- -- -- -- -- -- -- 44 3.5 1.7 44 3.2 1.6 46 3.7 1.8 46 3.4 1.7 47 3.6 1.7 875 -- -- -- -- -- -- 44 3.5 1.7 44 3.3 1.6 46 3.8 1.9 46 3.5 1.7 47 3.7 1.8 48 3.8 1.9 900 -- -- -- -- -- -- 44 3.3 1.6 45 3.7 1.8 46 3.6 1.8 47 3.8 1.8 47 3.5 1.7 48 3.6 1.8 925 44 3.7 1.8 44 3.2 1.5 46 3.7 1.8 46 3.4 1.7 47 3.6 1.8 48 3.7 1.8 48 3.4 1.7 950 44 3.5 1.7 45 3.6 1.8 46 3.5 1.7 47 3.7 1.8 47 3.4 1.7 48 3.5 1.7 49 3.8 1.9 975 44 3.3 1.6 46 3.6 1.8 47 3.8 1.9 47 3.5 1.7 48 3.7 1.8 48 3.4 1.6 49 3.6 1.8

1000 44 3.2 1.6 46 3.4 1.7 47 3.6 1.8 48 3.8 1.8 48 3.5 1.7 49 3.8 1.8 49 3.4 1.7

58HDV

1050 46 3.6 1.8 47 3.5 1.7 48 3.7 1.8 48 3.4 1.7 49 3.7 1.8 -- -- -- -- -- -- -- -- -- -- -- -1100 47 3.8 1.8 48 3.7 1.8 48 3.4 1.7 49 3.7 1.8 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

NATURAL GAS MANIFOLD PRESSURE (in wc) 20,000 BTU per burner

MEAN ELEVATION ABOVE SEA LEVEL ft(m)

FT.

0 to 2000

(0 to 609.6)

Orifice

Manifold

No.

Pressure

HI LO HI LO HI LO HI LO HI LO HI LO HI LO

2001 to 3000{

(609.9 to 914.4){

Orifice

Manifold

No.

Pressure

3001 to 4000

(914.7 to 1219.2)

Orifice

Manifold

No.

Pressure

4001 to 5000

(1219.5 to 1524)

Orifice

Manifold

No.

Pressure

5001 to 6000

(1524.3 to 1828.8)

Orifice

Manifold

No.

Pressure

6001 to 7000

(1829.1 to 2133.6)

Orifice

Manifold

No.

Pressure

(2133.9 to 2438.4)

Orifice

No.

Conversion: 1 in wc = 249 Pa Bold-- indicates factory orifice size. NOTE: Propane data is based on 1.53 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Code ANSI Z223.1--2006/NFPA 54--2006 or National Standard of Canada, Natural Gas and Propane Installation Code CSA B149.1-- 05.

In the USA, derating of these furnaces at 2% (Natural Gas) and 4% (Propane Gas) has been tested and design--certified by CSA. { In Canada, the input rating must be derated 5% (Natural Gas) and 10% (Propane Gas) for altitudes of 2,000 to 4,500 (609.6 to 1371.6m) above sea level. Use the 2001 to 3000 (609.9 to 914.4m) column in Table 7 and Tab l e 8.

7001 to 8000

Manifold

Pressure

Tab l e 8 PROP ANE GAS MANIFOLD PRESSURE (in wc) 20,000 BTU per burner

MEAN ELEVATION FEET ABOVE SEA LEVEL ft(m)

HEATING VALUE

at ALTITUDE

BTU/CU. FT.

2500 10.0 4.9 8.9 4.4 8.4 4.1 10.0 4.9 10.0 4.9 10.0 4.9 10.0 4.9

Orifice Size #55 #55 #55 #56 #56 #56 #56

Conversion: 1 in wc = 249 Pa NOTE:

Z223.1--2006/NFPA 54 --2006 or National Standard of Canada, Natural Gas and Propane Installation Code CSA B149.1-- 05.

Propane data is based on 1.53 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Code ANSI

Orifice

41 333730-- 701 42 333730--702

43 333730-- 703 44 333730--704

45 333730-- 705 46 333730--709

47 333730-- 710 48 333730--711

49 333730-- 712 54 333730--706

55 333730-- 707 56 333730--708

0 to 2000

(0 to 609.6)

Hi Lo Hi Lo Hi Lo Hi Lo Hi Lo Hi Lo Hi Lo

2001 to 3000{

(609.9 to

914.4)

{

3001 to 3999

(914.7 to

1219.2)

4001 to 5000

(1219.5 to 1524)

5001 to 6000

(1524.3 to

1828.8)

6001 to 7000

(1829.1 to

2133.6)

Changing Orifices for High Altitude

Part # Orifice Part #

WARNING

ELECTRICAL SHOCK, FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death, and/or property damage.

Turn OFF electric power (at disconnect) and gas supply (at manual valve in gas line) when installing orifices. Installation of orifices requires a qualified service technician.

7001 to 8000

(2133.9 to

2438.4)

NOTE: Main burner orifices can be changed for high altitudes.

1. Disconnect gas line from gas valve.

2. Remove manifold from furnace.

3. Remove the orifices from the manifold and replace them with properly sized orifices.

4. Tighten orifices so it is seated and gas tight. (See Fig. 39.)

1.11″ (28.2mm)

1.21″ (30.8mm)

Measure from face of orifice to the back side of the manifold.

Fig. 39 -- Changing Orifices

A07725

ELECTRICAL WIRING

WARNING

ELECTRICAL OPERATION HAZARD

Failure to follow this warning could result in personal injury or death.

Turn OFF electrical power at fuse box or service panel before making any electrical connections and ensure a proper ground connection is made before connecting line voltage.

5. Reinstall manifold. Ensure burners do NOT bind on new orifices.

Final Gas Piping Check

1. The furnace and the equipment shut off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of

/2″ PSIG. Close the manual shut--off valve before testing at

such pressures.

2. The furnace must be isolated from the gas supply system by closing the equipment shut off valve during any pressure testing of the gas supply system at test pressure equal to or less than

3. When installation is complete, test all pipe connections for leaks with the gas pressure less than valve.

4. Apply a commercial soap solution to all joints to test for leaks. Correct any leaks indicated by bubbles.

5. Correct even the smallest leak at once.

6. Check for leaks at gas valve and orifice connections to the burner manifold along with the pilot tube connections to the valve and pilot assembly while the furnace is operating.

FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death, and/or property damage.

Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections. A fire or explosion could result causing property damage, personal injury and/or loss of life.

/2″ PSI.

WARNING

/2″ PSIG to the gas

Power Supply Wiring

The furnace MUST be electrically wired and grounded in accordance with local codes, or in the absence of local codes with the latest edition of The National Electric Code, ANSI NFPA 70 and/or The Canadian Electric Code CSA C22.1.

Field wiring connections must be made inside the furnace connection box. A suitable strain relief should be used at the point the wires exit the furnace casing.

NOTE: Furnace will not have normal operation is line polarity is reversed. Check ALL field and control connections prior to operation.

Copper conductors shall be used. Line voltage wires should conform to temperature limitation of 35° C rise and be sized for the unit maximum amps stated on the rating plate. Add the full load amps for potential field--installed accessories such as electronic air cleaners and humidifiers that would receive power from the furnace control board. The furnace control board is rated for a maximum of

1.0 amps combined for EAC and HUM. Consult NEC or local codes for proper wire and circuit sizing.

Junction Box (J- Box) Relocation

The J--Box is installed on left side of casing. An alternate J-- Box location on right side can be used.

1. Remove bag containing two hole plugs and two self tapping screws from loose parts bag in blower compartment.

2. Remove two screws holding J--Box to casing.

3. Install large hole plug from loose furnace accessory bag into the left J--Box location.

4. Clip wire tie holding J--Box wires.

5. Move J--Box to alternate location and attach using two self tapping screws from bag.

6. Apply two hole plugs from bag at left J--Box location.

58HDV

AVERTISSEMENT

RISQUE D‘INDENDIE OU D‘EXPLOSION

Le non--respect des avertissements de sécurité pourrait d‘entrainer des blessures graves, la mort ou des dommages matériels.

Ne jamais utiliser une flamme nue por vérifier la présence des fuites de gaz. Pour la vérification de tous les joints, utiliser plutôt une solution savonneuse commerciale fabriquée spécifiquement pur la détection des fuites de gaz. Un incendie ou une explosion peut entrainer des dommages matériels, des blessures ou la mort.

Thermostat Heating

The two-- stage furnace control board will operate with either a single stage or a two-- stage heating thermostat and will provide two--stage heating operation.

For single-- stage thermostat installations, the R and W wires from the thermostat connect to the R and W1 connections on the furnace control board. (See Fig. 40and wiring diagram)

NOTE: The TT (Thermostat Type) SW1 DIP switch #3 should be in the OFF position for the furnace to operate properly with a single--stage thermostat. Failure to change DIP switch with single--stage thermostat will result in Low Heat operation ONLY.

During operation, the furnace will operate on Low Heat for up to12 minutes. If the heat request exists for more than 12 minutes, the furnace will automatically shift to the High Heat mode for the remaining duration of the heating cycle.

For two--stage thermostat installations, the R, W1 and W2 wires

from the thermostat connect to the R, W1 and W2 connections on the furnace control board. Set TT SW1 DIP switch #3 to ON position. During operation, the furnace will shift from Low Heat to High Heat as requested by the thermostat. (See Fig. 40 and wiring diagram)

Heat anticipator setting will need to be measured if 24V AC humidifier is installed. Measure current in series from R to W1 at the thermostat. Be sure 24VAC humidifier is operating during this check. Allow furnace to operate for 2 minutes before recording the AC amperage reading. Set anticipator on thermostat to recorded value.

Thermostat location has an important effect on the operation of the furnace. Follow instructions included with thermostat for correct mounting and wiring.

Low voltage connections to furnace must be made on terminal board to furnace control board. (See Fig. 41)

Cooling

If single--speed cooling is used, the YandGfrom the thermostat

58HDV

must be connected to the control board Y/Y2 and G to energize cooling blower speed.

If two-- stage cooling is used, the Y1, Y2, G of the thermostat must be connected to Y1 of tap select interface board for low cooling, Y/Y2 of the furnace control board for high cooling and G of the furnace control board for continuous fan speed.

Optional Equipment

All wiring from furnace to optional equipment MUST conform to local codes or, in the absence of local codes with the latest edition of The National Electric Code, ANSI NFPA 70 and/or The Canadian Electric Code CSA C22.1. Install wiring in accordance with manufacturer’s instructions. The wiring MUS T have a minimum temperature rating of 105° C.

Humidifier/Electronic Air Cleaner

The furnace is wired for humidifier and/or electronic air cleaner connection.

HUMIDIFIER -- The HUM (24V) terminal is energized when the low pressure switch closes on a call for heat. The HUM (115V) is energized when the inducer is energized.

ELECTRONIC AIR CLEANER -- EAC terminal is energized when there is a blower speed call, except it is NOT energized when blower operates in the hard-- wired continuous fan mode.

CAUTION

REDUCED FURNACE LIFE HAZARD

Failure to follow this caution may result in reduced furnace life.

Do NOT exceed 115V/1.0 amp. maximum current load for both the EAC terminal and the HUM terminal combined.

Furnace Control Board

The furnace control board has a fixed blower ON delay of 30 seconds for High Heat calls and 45 seconds for Low Heat calls. The blower OFF timing is factory preset at 140 seconds. If desired, the fan OFF delay can be reset to obtain the longest delay times while still maintaining comfort levels. See “Furnace Wiring Diagram”.

Dehumidification

The furnace control board has a dehumidification feature which reduces cooling airflow by 20% when the DEHUM terminal ( male quick connect) is energized by 24VAC and there is a cooling call. DEHUM may be operated by a thermostat dehumidify (24VAC for dehumidify) command or a dehumidistat (switch closes on call for dehumidification) with one terminal connected to (Y1 for two--stage cooling or Y/Y2 for single--speed cooling applications) and the other terminal connected to DEHUM.

/4”

Furnace Control Fuse

The 24V circuit contains a 5--amp, automotive--type fuse located on furnace control board. (See Fig. 41) Any electrical shorts of 24V wiring during installation, service, or maintenance may cause fuse to blow. If fuse replacement is required, use only a fuse of identical size (5 amp.)

115 V. 60 H z .

NEUT

HOT

Connection

Box

Ground

SingleStage Thermostat

Y/Y2

A07779

LowVoltage

TerminalBoard

LowVoltage

TerminalBoard

TwoStage

Thermostat

NOTE:115VAC/60Hz/single -- --phase

Operatingvoltagerange*:127VACmax,104VACmin.

Permissible limits of voltage at which unit will operate satisfactorily

Fig. 40 -- Electrical Connections

Tap Select Interface Board

The Tap Select Interface Board is used with the Variable Speed motor. There are DIP switches (SW2) for continuous blower adjust, heating blower adjust, cooling blower adjust and cooling on/off delay profiles. There is a jumper (J1) for slight blower adjustment, increase (+)/no change (NOM)/decrease (--). There is a jumper (J2) for airflow selection of Heat Pump EFFICIENCY or COMFORT. (EFFICIENCY provides no airflow reduction in airflow whether O is energized or not. COMFORT provides a 10% reduction in airflow when O is not energized with a cooling call).

The O terminal is available for use for Heat Pump applications, if desired.

The Y1 terminal (if a two --stage Air Conditioner or two-- stage Heat Pump is used) will provide low cooling blower speed when energized. (Only Y/Y2 on the furnace control board is used if a single--stage Air Conditioner or Heat Pump is installed)

Diagnostic Light

Dip Switch See “Wiring Diagram” for switch settings

24 VAC HUM

FUSE

DEHUM

Fig. 41 -- Control Connections

115 VAC HUM

EAC

DUCTWORK AND FILTER

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Do NOT draw return air from inside a closet or utility room where furnace is located. Return air duct MUST be sealed to furnace casing.

A07780

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal injury or death.

Cool air passing over heat exchanger can cause condensate to form resulting in heat exchanger failure.

Connections

NOTE: Return air can enter through either side, both sides, the bottom or a side and the bottom. Return air can not rear of the furnace. When the furnace is located in an area near or adjacent to the living area, the system should be carefully designed with returns to minimize noise transmission through the return grille. Any blower moving a high volume of air will produce audible noise which could be objectionable to when the unit is located very close to living areas. It is advisable to route the return air ducts under the floor or through the attic.

1. For side connections using a 16″ x25″ (406.4 x 635mm) filter, cut out the embossed area shown in Fig. 42. This will provide a 14 opening.

=14 /2″ (368.3mm) Height of Cutoutfor 16″ x25″ (406.4x 635mm) Filter

B=22

/2″ (571.5mm) Width of Cutout for 16″ x25″ (406.4 x 635mm) Filter

Embossed Area on Side of Furnace

/2″ x221/2″ (368.3 x 571.5mm) approximate

enter through

58HDV

Installation

NOTE: Design and install the air distribution system to comply with Air Conditioning Contractors of America manuals and/or NFPA pamphlets 90A and 90B or other approved methods that conform to local codes and good trade practices.

1. When furnace supply ducts carry air outside furnace area, seal return air duct to furnace casing and terminate duct outside furnace space.

2. Install air conditioning cooling coil (evaporator) on outlet side of furnace.

3. For furnaces installed without a cooling coil, it is recommended that the outlet duct be provided with a removable access panel. This panel should be accessible when the furnace is installed so the exterior of the heat exchanger can be viewed for inspections. The access panel MUST be sealed to prevent leaks.

4. If separate evaporator and blower units are used, install good sealing dampers for air flow control. Chilled air going through the furnace could cause condensation and shorten the furnace life.

NOTE: Dampers (field supplied) can be either automatic or manual. Manually operated dampers MUST be equipped with a means to prevent furnace or air conditioning operation unless damper is in the full heat or cool position.

NOTE: Furnaces with 5 TONS cooling capacity may require two(2) side returns or one side return with bottom return.

2. Bottom returns can be made by removing the knockout panel in the furnace base. Do NOT remove knock-out except for a bottom return.

3. Installation of locking-type dampers are recommended in all branches, or in individual ducts to balance system’s air flow.

4. Non-combustible, flexible duct connectors are recommended for return and supply connections to furnace.

5. If air return grille is located close to the fan inlet, install at least one, 90° air turn between fan and inlet grille to reduce noise.

NOTE: To further reduce noise, install acoustical air turning vanes and/or line the inside of duct with acoustical material.

Sizing

Existing or new ductwork MUST be sized to handle the correct amount of airflow for either heating only or heating and air conditioning.

Fig. 42 -- Side Return Air Cutout

Furnace Bottom

A07728

Insulation

1. Insulate ductwork installed in attics or other areas exposed to outside temperatures with a minimum of 2″ (50.8mm) insulation and vapor barrier.

2. Insulate ductwork in indoor unconditioned areas with a

minimum of 1″ (25.4mm) insulation with indoor type vapor barrier.

Filters

A filter must be used: Filters are supplied with these furnaces, and additional filters may

be purchased from your distributor. Use either filter type:

S Washable, high velocity filters are based on a maximum

air flow rating of 600 FPM.

S Disposable, low velocity filters are based on a maximum

air flow of 300 FPM when used with filter grille.

S See Service & Maintenance Manual, Circulation Air

Blower Data for additional data.

NOTE: Disposable, low velocity filters may be replaced with washable, high velocity filter providing they meet the minimum size areas. Washable, high velocity filters can be replaced ONLY with same type and size.

58HDV

11/2″

(38.1)

26 Ga. Galvanized Steel FAST part number 1008482

3″

(76.2)

11/4″

/16″

(31.8)

(27)

A07730

Fig. 45 -- Filter Clip Construction

Refer to Fig. 46 and for guidelines to install filters. Furnaces which require larger filter media and have limited clearances on one side of furnace, require a standoff filter rack, see Fig. 46, available from your distributor.

NOTE: If filters are only suitable for heating application, advise homeowner that filter size may need to be increased if air conditioning is added.

Using Optional Standoff Filter Rack

A07729

Fig. 43 -- Side Mounted Filter Rack

Filter Installation using Filter Rack

When installing or removing a bottom mounted filter, slide the two side filter clips to the back of the furnace BEFORE installing or removing. This will allow the filter to clear the front raised edge of the furnace. Insert filter into side clips first and push filter back until it is fully engaged into back clip. When filter is in place, slide clips back into place midway on filter as shown in Fig. 44 or Fig. 45

Center Clip s i d e -- t o -- s i d e

9″ (152.4mm)

Slide filter clips towards back before removing

Fig. 44 -- Bottom Mounted Filter Rack

25--24--18--1

A07691

A07731

Fig. 46 -- Standoff Filter Rack

Addition Of Air Conditioning

When a refrigeration coil is used in conjunction with this unit, it must be installed parallel with or on the discharge side of the unit to avoid condensation on the heat exchanger. All furnaces are designed with a break--away duct flange on the supply air side of the furnace. This allows for installation in the horizontal right or downflow applications. The coil installation instructions must be consulted for proper coil location and installation procedures. With a parallel flow arrangement, dampers must be installed to prevent chilled air from entering the furnace. If manually operated dampers are used, they must be equipped with a means to prevent operation of either unit unless the damper is in full heat or full cool position.

A3″ clearance is required on the right side of the furnace in order to run the condensate drain line. Copper or plastic tubing may be used for the condensate drain line.

Downflow Furnace Installation Non- Combustible Floor Installation

Fabricate a plenum to the dimensions given in Fig. 47, for the furnace outlet. Plenum should be flanged, approximately (19.1mm) for support.

/4″

Note: The three(3) screws in the top panel of the furnace next to the duct flange MUST be removed to provide serviceability of the primary heat exchangers in the downflow installation

1. Position plenum through the floor and set the furnace over the opening in the floor. If necessary, grout around the base to seal air leaks between the base and the floor.

Combustible Floor Installation

WARNING

FIRE HAZARD

Failure to

result in personal injury, death, and/or property damage.

Place furnace on noncombustible subbase on downflow applications, unless installing on non-combustible flooring. The noncombustible subbase also must be used on downflow applications in addition to a coil box installation.

Subbase for Combustible Floor

NOTE: The three(3) screws in the top panel of the furnace next to the duct flange MUST be removed to provide serviceability of the primary heat exchangers in the downflow installation

install unit on noncombustible subbase could

Note: When using the subbase for combustible floors, the discharge air duct flanges on the furnace MUST be broken down to provide proper fit up to the subbase. Use duct pliers to bend the duct flanges flat onto the furnace casing. DO NOT bend the duct flanges inward (toward the heat exchangers) as air flow restrictions may occur.

The Subbase for Combustible Floors MUS T be used when a downflow furnace is set on a combustible floor, even when the furnace is installed on a coil box.

1. Cut the opening in the floor according to Ta b l e 9. The hole in the floor must be cut to the dimensions listed in Tab le 9 since the base is equipped with locating tabs that center the base over the opening.

The opening in the base is 1

/4″ (31.8mm) shorter and 11/8″ (28.6mm) narrower than the recommended size of the opening in the floor. This is done to maintain clearance between the floor and the plenum.

2. Fabricate the plenum to the dimensions given in Ta b l e 9. Note that the dimensions given are outside dimensions.

3. Set the base over the opening in the floor, centering it over the opening. Fasten the base to the floor with screws or nails. See Fig. 47, 48, and 49.

4. Drop the plenum through the opening in the base. The flange of the plenum should rest on top of the subbase.

58HDV

Tab l e 9 Subbases for Combustible Floors Dimensions -- in(mm)

Sub-- base for

Combustible Floors

Part Number

Furnace Only

KGASB0301P01

KGASB0401P02

KGASB0801P06

Subbase for Coil Box

KGASB0501P03

KGASB0601P04 23 (284.2)

KGASB0701P05

Outside Dimension

Base Spacer Side To Side

Conversion: 1 in = 25.4 mm

Sub--base for Combustible

Floor Dimensions

195/

(490.5) 2215/

(582.6)

2411/ (627.1)

193/

(181.1)

243/

(628.7)

J* K** L M N P R S T

283/

(730.3)

283/

(730.3)

283/

(730.3)

209/

(522.3)

209/

(522.3)

209/

(522.3)

183/

(462)

2113/

(554)

239/

(598.5)

183/

(462)

2113/

(554)

239/

(598.5)

Opening In Floor

16(406.4)

161/

(408)

161/

(408)

161/

(408)

161/

(412.8)

161/

(412.8)

161/

(412.8)

161/

(412.8)

161/

(412.8)

161/

(412.8)

181/

(463.6)

217/

(555.6)

235/

(600.1)

181/

(463.6)

217/

(555.6)

235/

(600.1)

Base For Plenum

15 (381)

Opening In

(435.6)

(501.7)

(571.5)

(435.6)

(501.7)

(571.5)

171/

193/

221/

171/

193/

221/

Typical Plenum

Dimensions

15 (381)

171/

(435.6)

193/

(501.7)

221/

(571.5)

171/

(435.6)

193/

(501.7)

221/

(571.5)

Plenum

A = 4 1/4” (108mm) Minimum clearance from back of hole to wall or other obstruction.

2″

(50.8mm)

58HDV

Fig. 47 -- Exploded View of Subbase for Furnace Only

Hole in Floor

2″ (50.8mm)

1″ (25.4mm)

25--20--46

A07781

A07784

Fig. 50 -- Condensate Line Raised by Base

CHECKS AND ADJUSTMENTS

NOTE: Verify the input rate of the furnace.

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death and /or property damage.

21/

″ (63.5mm)

11/

″ (38.1mm)

Turn OFF gas at shut off before connecting manometer.

Startup

NOTE: Refer to the start--up procedures in the “User’s Information Manual”ortothe“Operating Instructions Label” on the furnace.

A09182

Fig. 48 -- Exploded View of Base for Downflow Cased Coil

5. Position furnace or coil cabinet and furnace on subbase so it aligns between the locating tabs.

Furnace

Installation of Combustible Floor Base

Wood Floor

Plenum

A07783

Fig. 49 -- Setting the Subbase

This subbase for combustible floors has been designed so that the height of the subbase raises the downflow coil off the floor to allow easy installation of the condensate drain. See Fig. 50

WARNING

ELECTRICAL OPERATION HAZARD

Failure to follow this warning could result in personal injury, death, and/or property damage.

If any sparks, odors or unusual noises occur, immediately shut OFF power to the furnace. Check for wiring errors or obstruction to blower.

Gas Supply Pressure

Gas supply pressure should be within minimum and maximum values listed on rating plate. Pressures are usually set by gas suppliers.

Manifold Gas Pressure Adjustments

(High and Low Heat)

NOTE: Make adjustment to manifold pressure with burners operating.

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death and /or property damage.

Turn OFF gas at shut off before connecting manometer.

1. With gas OFF, connect manometer to manifold pressure tap on the outlet of gas control valve. See Fig. 51Use a manometer with a 0 to 12 inches of water column range.

2. Turn gas ON. Operate the furnace on High Heat by using a jumper wire on the R to W1 & W2 thermostat connections on the furnace control board.

3. Remove manifold pressure adjustment screw cover on furnace gas control valve. Turn adjusting screw counterclockwise to decrease the manifold pressure and clockwise to increase pressure. See Fig. 51

NOTE: Adjustment screw cover MUST be replaced on gas control valve before reading manifold pressure and operating furnace.

Regulator Adjustment Under Cap

HONEYWELL

INLET Pressure Tap - -

25-- 24--98a

OFF

OUTLET Pressure

Tap - -

A07792

Fig. 51 -- Ty pical Gas Control Valve (Honeywell)

4. Set manifold pressure to value shown in Table 7 , or Ta b le 8.

5. Operate the furnace on Low Heat by using a jumper wire on the R to W1 thermostat connections on the furnace control board.

NOTE: The SW1 DIP switch #3 should be in the ON position to set the Low Heat manifold pressure. (See wiring diagram.)

6. Repeat steps 3 and 4 for Low Heat operation.

7. When the manifold pressures are properly set, replace the adjustment screw covers on the gas control valve.

8. Remove the jumper wires from the thermostat connections on the furnace control board. Remove manometer connection from manifold pressure tap, and replace plug in gas valve.

9. Return SW1 DIP switch #3 to previous setting.

10. Check for leaks at plug.

Natural Gas Input Rating Check

NOTE: The gas meter can be used to measure input to furnace. Rating is based on a natural gas BTU content of 1,000 BTU’s per cubic foot. Check with gas supplier for actual BTU content.

1. Turn OFF gas supply to all appliances and start furnace. Use jumper wire on R to W1 and W2 for High Heat.

2. Time how many seconds it takes the smallest dial on the gas meter to make one complete revolution. Refer to Example.

3. Repeat steps 1 and 2 with jumper wire on R to W1 for Low Heat.

NOTE: If meter uses a 2 cubic foot dial, divide results (seconds) by two.

NOTE: SW1 DIP switch #3 must be in ON position. (See Furnace Wiring Diagram). Return SW1 DIP switch #3 to previous setting after check.

Example (BTUH)

Natural Gas

BTU Content

per cu. foot

1,000 3,600 48 75,000

To Determine the appliance kW input rate from a .05m3test dial that has been clocked at 80 seconds for one complete revolution.

No. of

Seconds

Per Hour

1,000 x 3,600 ÷ 48 = 75,000 BTUH

Time Per

Cubic Foot in

Seconds

BTU Per

Hour

Example (kW)

Number of

seconds per

hour

3,600 80 .05 2.25

4. Remove jumper wire from R to W1 and W2.

5. Relight all appliances and ensure all pilots are operating.

Number of

seconds per

complete

rotation

3,600 ÷ 80x.05=7.2m3/h

2.25m3/h x 10.35 kWh/m3= 23.28 kW

23.28 x 3.412 = 79,431 BTU

Size of test

dial

(.05m

)

kW m3/h

Main Burner Flame Check

Allow the furnace to run approximately 10 minutes then inspect the main burner and pilot flames. See Fig. 52.

Check for the following (Fig. 52:

• Stable and blue flames. Dust may cause orange tips or wisps of yellow, but flames MUST NOT have solid, yellow tips.

• Flames extending directly from burner into heat exchanger.

• Flames do NOT touch sides of heat exchanger

If any problems with main burner flames are noted, it may be necessary to adjust gas pressures, or check for drafts.

Burner Face

A07734

Fig. 52 -- Main Burner

NOTE: For Igniter location see Fig. 53.

(52.4)

/16(8)

/4(6.4)

A07735

Fig. 53 -- Igniter Location

Temperature Rise Check

The blower speed MU ST be set to give the correct air temperature rise through the furnace as marked on the rating plate for both High Heat and Low Heat operation. Temperature rise is the difference between supply and return air temperatures.

58HDV

To check temperature rise,use the following procedure:

1. Place thermometers in supply and return air registers as close to furnace as possible, avoiding direct radiant heat from heat exchangers.

2. Operate furnace on High Heat for 10 minutes with all the registers and duct dampers open by using a jumper wire on R to W1 and W2 thermostat connections on the furnace control board. Note: The SW1 DIP switch #3 should be in the on position. (See furnace wiring diagram)

3. Take readings and compare with range specified on rating plate.

4. If the temperature rise is not in the correct range, the blower speed must be changed. A higher blower speed will lower the temperature rise. A lower blower speed will increase the temperature rise.

5. Repeat steps 2 thru 4 with the furnace operating on Low Heat for 10 minutes by using a jumper wire on the R to W1 thermostat connections on the furnace control board.

58HDV

6. Remove the jumper wire after the adjustments are complete. ReturnSW1DIPswitch#3toprevioussetting.

Blower Adjustments

Changing Blower Speed

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death.

Turn OFF power to furnace before changing blower speed.

NOTE: The blower speeds that the manufacturer sets from the factory for this product are based on a nominal 400 CFM (189 L/s) per ton cooling and the mid range on the temperature rise for heating.

Since the manufacturer cannot predict the static pressure that will be applied to the furnace, it is the responsibility of the installing dealer/contractor to select the proper speeds for the application when the furnace is installed.

If it is necessary to change speeds, refer to steps below.

1. The 115 VAC power supply to the furnace must be turned OFF before making adjustments to the motor.

NOTE: Allow at least 1 minute before restoring power to the furnace after making Blower Control changes.

2. The heating, cooling and continuous blower speeds can be adjusted by changing the SW2 DIP switch settings that are located on the Tap Select Interface Board (See Fig. 54).

S Switches #1 and #2 adjust the continuous blower speeds.

Switches #3 and #4 adjust the heating speed. Switches #5 and #6 adjust the cooling speed.

Switches #7 and #8 adjust the cooling speed on/off delay profiles. See the “Technical Support Manual” for the switch settings for the desired airflow rates for the installation. The jumper J1 is used to slightly increase (+) or decrease (--) or not change (NOM) the blower speed selected from SW2. J1 effects BOTH cooling and heating airflow.

S Continuous blower selection DIP 10 and 11 will cause

the blower to run in high cooling speed for all low cooling (Y1) calls. Continuous blower DIP settings of 00 and 01 will allow low cooling (Y1) calls to operate normally.

Continuous- Fan using “G”

Energizing the ”G” terminal on the furnace control board provides continuous fan operation. This is done by connecting the G terminal of the thermostat to the G terminal on the furnace control board. When the FAN switch is turned from auto to ON the fan will operate continuously at airflow selected by DIP SW2 switch #1 andDIPSW2switch#2. EAC will be energized in this mode.

NOTE: In heating, the fan will not turn off during furnace ignition and warm up.

Hard Wired Continuous Fan Operation

Not available for variable speed models.

FURNACE MAINTENANCE

WARNING

FIRE, EXPLOSION, OR CARBON MONOXIDE HAZARDS

Failure to follow this warning could result in personal injury, death and/or property damage.

It is recommended that the furnace be inspected and serviced on an annual basis (before the heating season) by a qualified service technician.

WARNING

ELECTRICAL SHOCK, FIRE OR EXPLOSION HAZARD

Failure to follow this warning could result in personal injury, death, and/or property damage.

Before servicing, disconnect all electrical power to furnace.

When servicing controls, label all wires prior to disconnecting. Reconnect wires correctly.

Verify proper operation after servicing.

See “User’s Information Manual” and the “Service Manual”.

ON = 1

OFF

= 0

Fig. 54 -- Variable Speed Tap Select Interface Board

DIP Switch See “Wiring Diagram” for switch settings

24 VAC HUM

FUSE

DEHUM

58HDV

A09197

Diagnostic Light

115 VAC HUM

EAC

Fig. 55 -- Control Board

A09198

SEQUENCE OF OPERATION & DIAGNOSTICS

The following is the normal operating sequence at factory default settings (SW1 OFF/ON/OFF, SW2 all OFF)

NOTE: SW1 DIP switches (G, Y/Y2, W1, W2 thermostat terminals) and DEHUM (1/4” male quick connect terminal) are located on the FCB. SW2 DIP switches and Y1 and O thermostat terminals are located on the TSIB.

Low Cooling (Y1) Request:

24VAC signals applied to Y1 & G terminals of TSIB (Tap Select Interface Board) and FCB (Furnace Control Board), respectively.

S Low Cooling motor speed is energized after 5 second Cool Fan On Delay time.

Y1 & G signals removed from TSIB and FCB

S Low Cooling motor speed is de--energized after 90 second Cool Fan Off Delay time. Cooling (Y1) and dehumidification (DEHUM)

requests:

S 24 VAC signals applied to Y1, DEHUM & G terminals of TSIB and FCB. S Same operation as the cooling (Y1) request, except the cooling airflow is reduced 20% to compensate for high humidity conditions during

cooling operation. The low cooling airflow returns to the normal setting after the DEHUM signal is removed.

High Cooling (Y1 & Y/Y2) or (Y/Y2) Request:

24VAC signals applied to Y1 & Y/Y2 & G or Y/Y2 & G terminals of FCB (Furnace Control Board).

58HDV

S High Cooling motor speed is energized after 5 second Cool Fan On Delay time.

Y1 & Y/Y2 & G or Y/Y2 & G signals removed from TSIB and FCB

S High Cooling motor speed is de--energized after 90 second Cool Fan Off Delay time.

High Cooling (Y1 & Y/Y2 or Y/Y2) and dehumidification (DEHUM) requests:

S 24 VAC signals applied to Y1 & Y/Y2 or Y/Y2, DEHUM, & G terminals of TSIB and FCB. S Same operation as the high cooling (Y1 & Y/Y2 or Y/Y2) request, except the cooling airflow is reduced 20% to compensate for high

humidity conditions during cooling operation. The high cooling airflow returns to the normal setting after the DEHUM signal is removed.

Low or high cooling and O terminal (Heat Pump mode):

S If the J2 jumper is in the AC/HP EFFICIENCY position, there will be no change in blower airflow regardless of the O terminal being

energized or de--energized.

S If the J2 jumper is in the HP COMFORT position, then there will be a 10% reduction in airflow when the O terminal is de--energized (HP

heating) and no airflow reduction when O is energized (HP cooling).

NOTE 1) The motor has been set up to recognize the O terminal as energized during cooling calls (reversing valve energized for cooling).

Continuous Circulating Fan (G) Request:

24VAC signal applied to G terminal of FCB.

S Continuous fan speed is energized without delay.

G signal removed from FCB.

S Continuous fan speed is de--energized after 5 second delay.

NOTE 2) Heat or Cooling requests received during a Fan request, cause the fan speed to change to the appropriate heat or cool speed after the Fan On Delay time expires. The fan returns to continuous circulating speed after the selected Fan Off Delay time expires following loss of the Heating or Cooling request.

NOTE 3) Hard-- wire option not available for variable speed models. NOTE 4) Continuous blower selection DIP 10 and 11 will cause the blower to run in high cooling speed for all low cooling (Y1) calls.

Continuous blower DIP settings of 00 and 01 will allow low cooling (Y1) calls to operate normally.

Heating (W1) Request (single stage thermostat operation, SW1 DIP switch #3 on the FCB must be in OFF position) (see furnace wiring diagram):

24VAC signal applied to W1 terminal of FCB.

S Inducer motor turns on at high speed. S Following a 15 second prepurge delay after the low pressure switch closes, the igniter begins a 17 second warm up. S The gas valve is energized, the main burners light at Low Heat rate. S The igniter is de--energized, and the inducer drops to low speed after the main burners ignite. S The FCB will delay Low Heat blower operation for the 45 --second Low Heat Fan On Delay time timed from the opening of the gas valve. S If the W1 request is still present after 12 minutes, timed from the opening of the gas valve, the inducer switches to high speed, closing the

high pressure switch, then the High Heat solenoid energizes, and the fan switches to High Heat speed.

W1 signal removed from FCB.

S The gas valve de--energizes and the main burners go out. S The inducer runs at its present speed for a 15 second postpurge period. S The fan runs at its present speed. S The blower de--energizes after the selected Heat Fan Off Delay time expires timed from the gas valve de--energizing.

NOTE 5) If a new Heating request arrives while the control is waiting for the Heat Fan Off Delay time to expire, the FCB will wait for the selected Heat Fan Off Delay, and then start a new heating cycle.

Heating (W1 & W2) Request (two- stage thermostat operation, SW1 DIP switch #3 must be in ON position) (see furnace wiring diagram):

24VAC signals applied to W1 terminal of FCB.

S Same response as single stage thermostat operation described above except the burners, inducer, and blower will not go to high heat rate,

and High Heat Fan speed unless a W2 signal is applied.

24VAC signal applied to W1 and W2 terminals of FCB.

S Same light--off routine as described for the signal stage thermostat operation except burners light at High Heat rate, the inducer remains on

high speed after ignition, and the FCB will delay High Heat blower operation for the 30--second High Heat Fan On Delay.

NOTE 6) The FCB responds without delay to the presence or loss of W2 (with W1 constant). W1 & W2 result in high inducer, High Heat rate, and High Heat Fan speed. W1 only results in low speed inducer, Low Heat rate, and Low Heat Fan speed.

Heating Request with Gas Shut Off:

24 VAC signals applied to W1 terminal of FCB.

The FCB will attempt 4 cycles for ignition then go to soft lockout for 3 hours, and then try for ignition again as long as the heat call remains. Power reset will clear lockout.

S Inducer motor turns on at high speed. S Following a 15 second prepurge delay after the low pressure switch closes, the igniter begins warm up. S The igniter glows red-- hot for 22 seconds, then turns off. The FCB flashes error code 6. S The igniter stays off for 17 seconds, then begins to warm up again. S The igniter glows red hot for 22 seconds then turns off. The FCB continues flashing error code 6. S The igniter stays off for 17 seconds, then begins to warm up again. S The igniter glows red hot for 22 seconds then turns off. The FCB continues flashing error code 6. S The igniter stays off for 17 seconds, then begins to warm up again. S The igniter glows red hot for 22 seconds then turns off. The FCB proceeds to soft lockout. Stops flashing error code 6, and begins flashing

error code 6 + 1.

S The inducer motor de--energizes 15 seconds after error code 6 + 1 starts flashing.

58HDV

Furnace Control Board Diagnostic Codes (See Fig. 55):

OFF = 24VAC or 115VAC is off, fuse is open

Heartbeat = Normal operation or no previous Diagnostic Code

ON SOLID = Soft Lockout - Furnace Control Error (1 hr delay) If code repeats immediately following

power reset then replace control

1 Flash = Not used

2 Flashes = Pressure switch(es) closed when should be open

3 Flashes = Low pressure switch open when should be closed

4 Flashes = Limit or flame roll-out switch open (less than 2 minutes)

5 Flashes = Flame sensed out of sequence

6 Flashes = Failure to ignite or flame sense lost while running

6 + 1 Flashes = Soft Lockout - Max of four trials for ignition reached (3 hr delay)

7 Flashes = Limit or flame roll-out switch open longer than 2 minutes (1 hr delay) (roll-out switch

requires manual reset)

8 Flashes = Permanent Lockout - Gas valve relay contact stuck closed or miswired gas valve (power

reset only)

9 Flashes = High pressure switch open when should be closed

10 Flashes = Improper transformer phasing on twinned applications or improper line voltage polarity.

* If status code recall is needed, briefly (2--3 seconds) remove then reconnect one limit switch wire (main or rollout) to display last stored status code. Do not remove power or blower door before initiating status code recall or code will be lost. Code is automatically cleared after 72 hours or upon power reset.

* Proper flame sense microamps: 0.7 microamps D.C. minimum, 2.0 -- 4.0 microamps nominal

NOTE 7) Continuous blower selection DIP 10 and 11 will cause the blower to run in high cooling speed for all low cooling (Y1) calls. Continuous blower DIP settings of 00 and 01 will allow low cooling (Y1) calls to operate normally.

S HUMIDIFIER -- The 24VAC HUM is energized when the low pressure switch closes on a call for heat. The 115V HUM (called

HUM on Control) is energized when the inducer is energized.

S ELECTRONIC AIR CLEANER -- EAC is energized when there is a blower speed call. It is NOT energized when blower operates

in the hard--wired continuous fan mode.

WIRING DIAGRAM

58HDV

Thermostat Wiring Guide

1. These diagrams are for reference. See thermostat

wiring instructions for specific terminal assignments, connections or operation.

2. Humidifier/humidistat is optional and not included

with the furnace.

3. Dehumidify feature requires thermostat with

DEHUM feature or a separate dehumidistat to get the dehumidification operation. Dehumidistat is optional and not included with the furnace.

4. Underlined terminal indicates intended use for

multiple function terminals.

5. TSIB terminals only available on 58HDV/359BAV

models.

6. Two--stage Air Conditioning or two--stage Heat

Pump compatible.

7. W2 furnace operation is from furnace control

algorithm SW1 DIP switch #3 (TT) set to OFF. Furnace runs in Low Heat for 12 minutes then switches to High Heat if heating call still exists.

TSIB

NO CONNECTION

NOTE 5

8. 24V H UM terminal on furnace control is used to

power a humidifier (on call for heat and pressure switch closed) if no HUM thermostat option is available.

9. DEHUM provides a 20% reduction in airflow (when

Y1 or Y1 + Y2 is energized) when the furnace control DEHUM terminal is energized with 24V.

10. If no DEHUM thermostat option is available, a

dehumidistat that has closed contacts on a call for dehumidify may be used

11. O provides a 10% reduction in airflow when Y1 or

Y1 + Y2 is energized and O is NOT energized. (J2 jumper on TSIB must be in HP COMFORT position to get this function. AC/HP EFFICIENCY position results in no reduction of airflow for Y1 or Y1 + Y2 calls regardless of O being energized or not.)

12. For Heat Pump/Furnace systems, refer to Fossil Fuel

Kit or Dual Fuel Thermostat Installation Instructions for wiring.

58HDV

NO CONNECTION

SINGLE-STAGE

THERMOSTAT

NOTE 3, 9, 10

DEHUM

C COM

HUM

NOTE 11

TWO-STAGE or VS

FURNACE CONTROL

NOTE 7

Y/Y2

DEHUM

24V HUM

SINGLE-STAGE

AIR CONDITIONER

OPTIONAL

HUMIDIFIER

24V in

COM

NOTE 2

Fig. 56 -- HUM and DEHUM Terminal available from Thermostat. Humidifier Wiring Models and Dehumidify Wiring

A07787

NO CONNECTION

TSIB

NOTE 5

NO CONNECTION

SINGLE-STAGE

THERMOSTAT

OPTIONAL

DEHUMIDISTAT

Connect 1 to Y/Y2 for

1-stage AC/ HP

applications

58HDV

NOTE 3

C C

Fig. 57 -- No HUM and/or DEHUM Terminal available from Thermostat. Humidifier Wiring Models

NOTE 11

TWO-STAGE or VS

FURNACE CONTROL

NOTE 7

Y/Y2

DEHUM

24V HUM

OPTIONAL

HUMIDISTAT

H-STAT

NOTE 2

SINGLE-STAGE

AIR CONDITIONER

OPTIONAL

HUMIDIFIER

24V in

COM

NOTE 2

A09202

and Dehumidify Wiring

TSIB

NOTE 5

NOTE 11

TWO-STAGE or VS

FURNACE CONTROL

NOTE 7

Y/Y2

DEHUM

24V HUM

OPTIONAL

HUMIDISTAT

H-STAT

NOTE 2

SINGLE-STAGE

AIR CONDITIONER

OPTIONAL

HUMIDIFIER

24V in

COM

NOTE 2

OPTIONAL

DEHUMIDISTAT

Connect 1 to Y/Y2 for

1-stage AC/ HP

applications

NO CONNECTION

(HP may use O)

SINGLE-STAGE

THERMOSTAT

C C

NOTE 3

Fig. 58 -- Single-- Stage Thermostat with Variable Speed Furnace Models

and Single--Stage Air Conditioner

A09203

OPTIONAL

DEHUMIDISTAT

If no DEHUM from

thermostat available

Connect 1 to Y1 for 2-

stage AC-HP

applications.

Connect 1 to Y/Y2 for

1-stage AC- HP

applications

TWO-STAGE

THERMOSTAT

DEHUM

NOTE 3, 9, 10

TSIB

NOTE 5

NOTE 11

VS FURNACE

CONTROL

NOTE 7

Y/Y2

DEHUM

24V HUM

AIR CONDITIONER

HUM

Fig. 59 -- Two--Stage Thermostat with Variable Speed Furnace Models

and Single--Stage Air Conditioner

SINGLE STAGE

OPTIONAL

HUMIDIFIER

24V in

COM

NOTE 2

58HDV

A09204

TSIB

NOTE 5

NOTE 11

VS FURNACE

CONTROL

Y/Y2

DEHUM

24V HUM

TWO-STAGE

AIR CONDITIONER

OPTIONAL

HUMIDIFIER

24V in

OPTIONAL

DEHUMIDISTAT

If no DEHUM from

thermostat available

Connect 1 to Y1 for 2-

stage AC-HP

applications.

Connect 1 to Y/Y2 for

1-stage AC- HP

applications

THERMOSTAT

DEHUM

HUM

NOTE 3, 9, 10

COM

NOTE 2

Fig. 60 -- Two--Stage Thermostat with Variable Speed Furnace and Two--Stage Air Conditioner

and Single--Stage Air Conditioner

A09205

58HDV

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Catalog No: 58HDV--- 01SI

Replaces: NEW

Carrier DIRECT VENT 4 58HDV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
