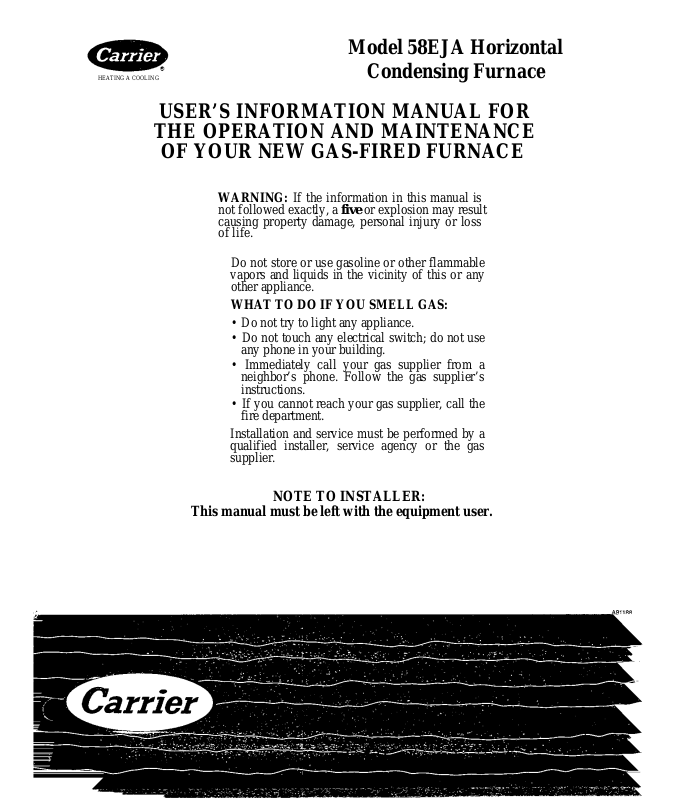

Model 58EJA Horizontal

HEATING A COOLING

Condensing Furnace

USER’S INFORMATION MANUAL FOR

THE OPERATION AND MAINTENANCE

OF YOUR NEW GAS-FIRED FURNACE

WARNING: If the information in this manual is

not followed exactly, a five or explosion may result causing property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Page 2

IMPORTANT! IMPORTANT!

Please Fill Out And Return Within The Next 10 Days.

9 1. □ Mr.

First Name

1 I I.-

Strect

I I I I I I I I I I I I I I I I I I I I I I I I I I I I

City State ZIP Code

i I I I I I I I I I 1 I I I I I I I I I I I I I

9 Date of Installation;

1^ Importanti For proper registration, please fill in the model number,

and senal number of this product; A. Model Number:

I I I I I I I I I I I I I I I I

B. Serial Number;

I I I I I I I I I I I ■LL I I i .1

(What type of product is this?

1. □ Central Air Conditioner

2. □ Gas Furnace

3. □ on Furnace

4. □ Electric Furnace

5. □ Heat Pump

> Q A. Price paid for this product (excluding installation charges and

sates tax):

$ L_L_LJ_!_1.00

B. Price paid for installation:

$ L_1_J_J_!_! ,00

IQ Name of company that aold you this product:

1 1-.1-I I I I I I I I I I I I I

> Q When did you acquire your product?

1. n Upon purchase of a new dwelling.

2. n To replace an older system of the same brand.

3. □ To replace an older system of another brand.

4. □ Within a year after purchasing a dwelling with no central air.

5. □ 2-4 years after buying a dwelling with no central air system,

6. G Over 4 years after buying a dwelling with no central air

0 If you replaced an older system, approximately how old was that

system?

0 If this is a replacement, what brand did you previously own?

1. G Amana

2. □ Bryant

3. □ Carrier

4. □ Day & Night 5 n Heil

2. D Mrs. 3. □ Ms. 4. □ Miss

I I I I I I I U I I I I I I I I -I- I i I I I I I

Day

system.

Don't know 1-5 years 6-8 years 9-11 years 12-14 years

6. □ Janitroi 11,

7. □ Lennox 12.

8. O Payne 13.

9. □ Rheem

10. □ Ruud 15.

6. U 15-17 years

7. D 18-20 years 8, □ 21-24 years

9. D Over 24 years

Initial Last Name

Year

□ Snyder □ Tempstar □ frane

14.

□ York □ Other

Apt. No.

(Check a maximum of two.)

1. O Brand reputation

2. □ Dealer reputation

3. □ Previous experience with products of this brand

I 4. □ Previous experience with this dealer

I 5. D Price

6. n Energy efficiency

7. □ Location of deafer

8. □ Dealer's installation policy

9. □ Friend's/relative's recommendation

10. □ Contractor's/deaier's recommendation

11. n Other

whose name appears above;

dren and other adults living your household?

1. U No one else in household Male

Female Atte

1. P 2. O

1. P

1. □ Married

2. □ Divorced/Separated

Homemaker..................................................................□

Professional/Technical

Upper Management/Executive.....................................□

Middle Management.....................................................□

Sales/Marketing............................................................□

Clerical or Service Worker............................................□

Tradesman/Machine Oper./Laborer Retired

Student.........................................................................□

Self Employed/Business Owner....................................□ 10. □

1. U UnderS15,000 7, u $40,00O-$44,999

2. □ $15,000-$19,999 8. D S45,000-$49,999

3. Ci $20,000-S24,999 9 O $50,000-$59,999

4. □ $25,000-$29,999 10 H $60,000-$74,999

5. O $30,000-$34,999 11. O $75,000-$99,999

6. □ $35,000-$39,999 12, O $100,080 & over

Some High School or Less . .

Completed High School....

Vocation a l/Technica I School

Some College

Completed College

Some Graduate School . . .

Completed Graduate School

1.1_1 years

2. P 1 1 1 years

...............................................

......................................................................

......................

...............

83G01-01

L_LJ hl9| I I

Month

Male

1. □ 2. □

1. □ 2. □ I

3. Ü Widowed 4, □ Never Married (Single)

.............................

Year

Female

Me I I I years

I— . I years

You

□

________

You Spouse

.□ 7. n

® Which credit cards do you use regularly?

1. □ American Express. Diners Club

2. □ MasterCard, Visa, Discover

3. □ Department Store, Oil Company, etc.

4. □ Do not use credit cards

participating on a renular basis:

Bicycling Frequently 18.

01.

02. □ Golf

Physical Filness/Exerc'tse 20.

03. □

Running/Jogging

04. □

Snow Skiing Frequently

05, O

Tennis Frequently 23,□Stereo, Records/Tapes/CDs

06. O

Camping/Hiking

07. O

Fishing Frequently 25.

08 □

HuntingfShooting 26.

09. □

Power Boating

10. n

Sailing

11. □

12. □ House Plants

Grandchildren 30.

13. □

Noedlework/Knitting 31.

14. □

Vegetable Gardening

15. n

□

Flower Gardening 33.

16. Sewing

17, n

> Using the numbers in the above list, please

indicele the 3 most Important activities for. You Please check all that apply to your household:

1 a Regularly Purchase Items 4. Li Support Health Charities

Through the Mail 5. □ Subscribe to Cable TV

2. □ Military Veteran in Household 6. □ Have a Microwave Oven

3 □ Member of Frequent Flyer Program 7. U Have a CD Player

ThatiXs for taking the time to iill out thi* quesiionnaira Your answers vnl' be used for market research studies and reports — and w,ii help us betier serve you in the future They will also allow you to receive impotient mailings and special offers from a numbet of fine companies whose products and services relate duecily to the specit'c inferests. hobbies, and other information mdicaied above Through this selective program, you will be able to obtain more information about activities m which you are involved and less about those in whtcii you are not. Piease check here if. for some reason, you vrouid prefer not to participate in this opportunity

□ Crafts

Automotive Work

D a Electronics

21OHome Workshop/Oo It Yourself 38. □

22.aRecreational Vehicles 39. □ Our Nation's Heritage

24,aBuy Pre-Recorded Videos 41. O

Avid Book Reading 42. □

□

Bible/Devotional Reading 43. □

□

27.

□ Health/Natural Foods □ Photography

28. Home Furnish log/Deco rating

29.

□ Ü Attending Cultu raff Arts Events

Fashion Clothing

32.

p Fine ArVAntiques □ Foreign Travel

34.

u Travel in the USA

L_LJLLJL_LJ spouse L_ULi

[f you have comments or suggestions about our product please write to:

FOLD HERE

P!ease send products and other correspondence to:

Carrier Consumer Relations Department RO. Box 4808 Syracuse, NY 13221 or call 1-800-C-A-R-R-l-E-R

For your primary residence, do you:

1. □ Own a House?

2. D Own a Townhouse or Condominium?

3. □ Rent a House?

4. D Rent an Apartment, Townhouse or Condominium?

35. □ Gourmet Cooking

36. O Wines

37. □ Coin/Stamp Collecting Collectibles/Collections

40. □ Real Estate Investments Stock/Bond Investments Entering Sweepstakes Casino Gambling Science Fiction

44. □

45. P

Wildlife/Environmental Issues

46. P Dieting/Weight Control

47. P Science/New Technology Self Improvement

48. P Walking tor Health

49. P

50. O Watching Sports on TV

8. □ Have a VCR

9. □ Use a Personal Computer

to. □ Have a Dog

11. □ Have a Cat

Carrier Consumer Relations Department RO. Box 4608 Syracuse, NY 13221 orcall1-800-C-A-R-R-l-E-R

PLACE

FIRST-CLASS

STAMP

HERE

RO. BOX 173244 DENVER CO 80217-3244

89G01-Ot

Page 3

Page 4

WELCOME TO A NEW GENERATION OF COMFORT

Congratulations! In light of rising energy costs, this deluxe gasfired, condensing furnace is one of the soundest investments to day’s homeowner can make.

Your new furnace is truly a triumph of technology in home heat ing. The design employs two heat exchangers to ‘"squeeze” out the maximum amount of heat from the fuel consumed. In fact, your new furnace is so efficient, over 90%* of the heat generated during combustion is captured and delivered inside your home. That’s more than a 33%* increase in heating efficiency over con ventional furnaces.

This unit is not only one of the most energy-efficient furnaces you can buy today, it is also one of the safest and most depend able. We are proud of the technological advances incorporated into this furnace design. With only minimal care, your new fur nace will deliver many years of money-saving home comfort and enjoyment. Spend just a few minutes with this manual to learn the operation of your new furnace and the small amount of maintenance it takes to help keep it opera ting at peak efficiency

year after year.

'The output capacity and any representations of efficiency for this furnace are based on stan

dard Department ofEner^ test pmeeduresi.

A91180

FURNACE IDENTIFICATION

For your convenience, record the product and serial numbers of

your new furnace on the form below. Should you ever require

service, you will have ready access to the information needed by

the service representative.

Product No

Serial No_____

Date Installed.

Dealer Name _

Address

___

______

MODEL 58EJA HORIZONTAL FURNACE

City

_________

State, . Zip

Telephone,

Page 5

HORiZONTAL FURNACE COMPONENTS

\ I i Gas valve. Safe, efficient. Features two separate

gas shut-off valves.

I 2 I Burner assembly (inside). Operates with hot

3 ~| Primary serpentine heat exchanger (inside).

4 I Secondary condensing heat exchanger (inside).

surface ignitor, inshot burners, and flame sensor for safe, dependable heating.

Stretches fuel dollars with the S-shaped heat flow design. Solid construction of corrosionresistant aluminized steel means reliability.

Wrings out more heat through condensation. Constructed with corrosion-resistant steel to ensure durability.

5 1 Inducer motor. Pulls hot flue gases through the

heat exchangers, maintaining negative pressure for added safety.

I 6 I Vent outlet. Uses PVC pipe to carry vent gases

from the home.

7 1 Condensate drain trap. Collects moisture

9 [ Air filter and wire filter retainer (inside).

condensed from burned gases for disposal into home drain system.

Heavy-duty blower (inside). Circulates air, scrubbing the heat exchangers to speed condensation and transfer extra heat into the home.

MODEL 58EJA HORIZONTAL FURNACE

A91174

Page 6

IMPORTANT FACTS

Your gas furnace uses air from outside the home for combus tion and venting. It is not to be installed using in-house air. Therefore, both pipes must terminate outside the structure. These pipes must not be obstructed in any way.

NOTE: The qualified installer or agency must use only factory-

authorized replacement parts, kits, and accessories when modi fying this product.

If the furnace is left unattended for an extended period of time, have it checked periodically for proper operation. This precau tion will prevent problems associated with NO HEAT, such as frozen water pipes, etc., see “Before You Request a Service Call” in this manual.

SAFETY CONSIDERATIONS

Installation and servicing of beating equipment can be hazard ous due to gas and electrical components. Only trained and qualified personnel should install, repair, or service heating equipment.

Untrained personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed by trained service personnel. Observe safety precautions in this manual, on tags, and labels attached to the furnace and other safety precautions that may apply.

Recognize safety information: This is the safety-alert symbol A. When you see this symbol on the furnace and in instruc tions or manuals, be alert to the potential for personal injury.

Understand the signal word—DANGER, WARNING, or CAU TION. These words are used with the safety-alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards that could result in personal injury or death. CAUTION is used to identify unsafe practices, which would result in minor per sonal injury or product and property damage.

To minimize the possibility of serious personal injury, fire,

damage to your furnace, or improper operation, carefully follow

these safety rules:

• Keep the area around your furnace free of combustible mate rials, gasoline, and other flammable liquids and vapors.

• Do not cover the furnace, store trash or debris near it, or in any way block the flow of fresh air to the unit.

• A furnace installed in an attic or other insulated space must be kept free and clear of insulating material. Examine the fur nace area when installing the furnace or adding more insula tion. Some materials may be combustible.

NOTE: Do not use this furnace if any part has been under wa

ter. Immediately call a qualified service technician to inspect the furnace and to replace any part of the control system and any gas control which has been under water.

STARTING YOUR FURNACE

Instead of a continuously burning pilot flame which wastes val uable energy, your furnace uses an automatic hot surface igni tion system to light the burners each time the thennosLat turns

your furnace on. Follow these important safeguards:

• Never attempt to light the burners manually with a match or other source of flame.

AS6023

• Read and follow the operating instructions on the furnace.

• If a suspected malfunction occurs with your gas control sys tem, such as the burners not lighting when they should, refer to the shutdown procedures on the furnace or in the next .section to turn off your system, then call your dealer as soon as possible.

Page 7

WARNING

If overheating occurs, or the gas valve fails to shut off the gas supply, turn OFF the manual gas valve (see Fig. 7) to the furnace BEFORE turning OFF the electrical supply. Failure to follow this warning could result in a fire or explo sion, and personal injury or death.

• CHECK AIR FILTER: Before attempting to start your furnace,

be sure the furnace filter is clean and in place. (See the mainte nance section of this manual.) Then proceed as follows:

STEPS FOR STARTING YOUR FURNACE

1. Set your room thermostat to the lowest temperature set ting. (See Fig. 6.)

2. Close the external manual gas valve. (See Fig. 7.)

3. Turn OFF the electrical supply to the furnace. (See Fig. 8.)

8. Set the room thermostat to a temperature slightly above room temperature. This will automatically signal the fur nace to start. The inducer motor will start, and the hot sur face ignitor will energize. When hot, the ignitor will have an orange glow.

and wait 5 minutes. (See Fig. 9.)

A911S2

5. After waiting 5 minutes, turn the control knob on the gas valve to the ON po.sition. (See Fig. 9.)

6. TUrn ON the electrical supply to the furnace. (See Fig. 10.)

7. Open the external manual gas valve. (See Fig. 11.)

A86035

9. After 30 to 58 seconds, the gas valve permits gas to flow to the main burners where it is ignited. Hot flames begin to warm the furnace’s heat exchanger. After a time delay of approximately 60 seconds, the furnace blower is switched on.

NOTE: If the main burners fail to ignite, the furnace control

system will go through three more ignition cycle.s. Then, if burners fail to ignite, the system will lockout. If lockout occurs, or the blower doesn’t come on, shut down your furnace and call

your dealer for service.

10. Set your thermostat to the temperature that satisfies your comfort requirements. SUGGESTION; Setting the ther mostat back a few degi'ees—and compensating for the dif ference with warmer clothing—can make a big difference in your fuel consumption on extremely cold days. The few degrees at the top of your thermostat “comfort level” are the most costly degrees to obtain.

When the room temperature drops below the temperature selected on the thermostat, the furnace will be switched on automatically. When the room temperature reaches the degree selected on the thermostat, the furnace will be au tomatically switched off.

Page 8

Some thermostats have a “fan” switch with two selections:

AUTO or ON. When set on AUTO, the hirnace blower cy cles on and off, controlled by the thermostat. In the ON

position, the furnace blower runs continuously except for a 60 second delay at the “call for heat.” This keeps the tem perature level in your home more evenly balanced. It also continuously filters the indoor air.

SHUTTING DOWN YOUR FURNACE

Should you ever suspect a malfunction in your furnace, you will need to turn the furnace OFF. The following procedures must be followed:

1. Set your room thermostat to the lowest temperature set ting. (See Fig. 12.)

2. Close the external manual gas valve. (See Fig. 7.)

3. Thm OFF the electrical power to your furnace. (See Fig.

4. Tbrn the control knob on the gas valve to the OFF position. (See Fig. 14.)

A WARNING

Tbrn OFF electrical power supply to your furnace before re-

movingtheaccess doors to service orperfoim maintenance. Failure to follow this warning could result in personal in jury or death.

A CAUTION

Although special care has been taken to minimize sharp

edges, be extremely careful when handling parts or reach

ing into the furnace.

FILTERING OUT TROUBLE

A dirty filter will cause excessive stress on the furnace blower motor and can cause it to overheat and automatically shut down. The furnace filter should be checked every 3 or 4 weeks and cleaned if necessaiy.

A CAUTION

Never operate your furnace without a filter in place. Doing

so may damage the furnace blower motor. An accumulation

of dust and lint on internal parts of your furnace can cause

a loss of efficiency.

The air filter is normally located in the blower compartment be fore the blower (See Fig. 16.) If thefilter(s) has been installed in another location, contact your dealer for instructions. To in spect, clean and/or replace the air filter(s), follow these steps:

If your furnace filter needs to be replaced, be sure to use the same size and type of filter that was originally supplied. Use the furnace filter table and compare your furnace size with the proper filter size.

А9П82

5. If the furnace is being shut down because of a malfunction, call your dealer as soon as possible.

A CAUTION

Furnace is not to be installed, operated, and then turned off and left turned off in an unoccupied structure during win ter. (See winterizing procedures in maintenance section).

PERFORMING ROUTINE MAINTENANCE

With proper maintenance and care, your furnace will operate

economically and dependably. Instructions for basic mainte nance, which can easily be followed, are found on this and the

following pages. However, before beginning maintenance, fol

low these safety precautions:

HORIZONTAL FURNACE FILTER TABLE

HORIZONTAL

FURNACE

CASING WIDTH

50,000 (1)13x23x1 Cleanable

75,000 (1) 13x23x1 Cleanable 100,000 125,000

REMOVE THE FILTER FOR CLEANING AS FOLLOWS:

1, Turn OFF electrical supply to the furnace. (See Fig. 13.)

2. Remove blower access door located at the inlet (return air) end of the furnace (4 screws must be removed). (See Fig.

15.)

FILTER SIZE

(INCHES)

(1)16x23x1 Cleanable

(1) 20x23x 1 Cleanable

FILTER

TYPE

А9П83

Page 9

3. Bend the formed wire filter retainer to clear the furnace flange at one side.

4. Pivot the filter retainer toward the blower. (See Fig. 16.)

5. Remove the filter from the furnace.

6. Inspect the filter. If torn, replace it.

7. Wash the filter (if dirty) in a sink, bathtub, or outside with a garden hose. Always use cold tap water. A mild liquid de tergent may be used if necessary. Spray water through the filter in the opposite direction of airflow through the cross mesh binding side. Allow filter to dry.

8. Reinstall the clean filter with the cross-mesh binding side facing the furnace blower.

9. Replace blower door, reinstall 4 screws (see Fig. 17) and turn OM electrical power to your furnace.

Inspect the gas burners for dirt, rust, or scale. (See Fig. 18.) Then inspect the vent outlet area and vent pipe.

A CAUTION

If dirt, rust, soot, or scale accumulations are found, call

your dealer.

Do not operate your furnace.

3. Inspect the vent pipe for sag, holes, cracks, or dis connection. Any horizontal vent pipe must slope upward, away from the furnace; look for signs of water leakage.

A91185

COMBUSTION AREA AND VENT SYSTEM

Visually inspect the combustion area and vent system before each heating season. Make sure that all PVC pipes leading into the combustion area and vent are free from any cracks and sags. Also check the combustion air intake and vent pipes on the out side of your home for blockage.

When dirt, soot or rust is allowed to build up, your furnace can suffer a loss of efficiency and perform improperly. Accumula tions on the main burners can result in their firing out of nor

mal sequence. This delayed ignition will create an alarmingly loud sound.

A CAUTlOÑ

If your furnace makes an especially loud noise when the main burners light, shut down your furnace and call your dealer.

Tb inspect the combustion area and vent system, you will need a flashlight. Refer to Fig. 2, and proceed as follows:

1. Tarn OFF the electrical supply to your furnace.

2. Remove burner enclosure front.

A DANGER

If holes are found in the vent pipe, or if it has become dis

connected, toxic fumes can escape into your home. DO NOT OPERATE YOUR FURNACE. Call your dealer for service.

4. Reinstall the burner enclosure front.

5. If your furnace is free of the above conditions, restore elec trical power to your furnace. (See Fig. 10.)

6. Start your furnace and observe its operation. Watch the burner flames to see if they are bright blue. (See Pig. 19) If you observe a suspected malfunction, or the burner ñames are not bright blue, call your dealer.

HEADING SOUTH FOR THE WINTER?

DON’T FORGET YOUR FURNACE! Since the furnace uses a condensing heat exchanger, some wa

ter will accumulate in the unit as a result of the heat transfer process. Therefore, once it has been operated, it cannot be turned off and left off for an extended period of time when tem peratures will reach 32°F or lower, unless winterized. Follow these procedures to winterize your furnace:

1. Mix a solution of equal amounts of ethylene glycol (Pres

tone II antifreeze coolant or equivalent) and water.

2. Tbm OFF electrical supply to furnace. (See Fig. 8.)

3. Disconnect drain tube from bottom of inducer vent outlet. (See Pig. 20.)

4. Insert funnel in drain tube and pour antifreeze/water solu

tion into furnace until it is visible at point where conden sate enters open drain. (See Fig. 21.)

5. Reconnect drain tube to vent outlet.

Page 10

A CHECKUP CHECKLIST

Your furnace represents an important investment in your fam

ily’s comfort and your home’s value. To keep it in tip-top shape and as a preventative to future problems, have a trained service

specialist give your furnace a professional check-up annually.

The following checklist can be used as a guideline to proper

service:

• Inspect all flue gas passages, burners, heat exchangers, cou pling box(es), and inducer assembly.

• Inspect all combustion and ventilation air passages and openings, including combustion air and vent pipe terminations outside the structure.

• Check gas pipe.s leading to and inside of your furnace for leaks.

• Inspect, clean, and lubricate the blower motor and wheel as

required.

NOTE: If oil ports are provided, refer to the unit Service and

Maintenance Instructions for blower motor oiling information. The motor must be oiled by a qualified service technician.

• Inspect and change or clean air fiiter(s) if necessary.

• Inspect all supply- and return-air ducts for obstructions, air leaks, and insulation. Remedy any problem when necessary.

• Inspect electrical wiring, connections, and component.^ for loose connections.

• Perform an operational checkout to determine whether your furnace is working properly and if it requires adjustments.

• Inspect all condensate tubes and connections, condensate

trap assembly, and drain for leaks. The condensate removal

system should be cleaned annually by a qualified service

agency; refer to the Service and Maintenance Instructions for further information.

• Examine the physical support of the furnace; the support should be sound with no cracks, sagging, gaps, etc. around the base.

• Check the furnace for any obvious signs of deterioration.

• Your servicing dealer offers an economical service agreement that covers seasonal inspections; ask for details.

BEFORE YOU REQUEST A

SERVICE CALL

If your furnace is not operating or not performing properly, you

may save the expense of a service call by checking a few things yourself before calling for service.

FOR INSUFFICIENT AIRFLOW:

• Check for dirty air filter(s).

• Check for blocked return-air or supply-air grilles throughout

your home; ensure they are open and unobstructed. If problem still exists, call your dealer for service. WHEN FURNACE FAILS TO OPERATE: Follow this checklist step by step, advancing to the next one

only if furnace fails to start.

• Cheek thermostat for proper temperature (set above room

temperature).

• Is the thermostat switch on HEAT?

• Check fuses and circuit breakers. Is electrical supply on?

• Is the manual shut-off valve in gas supply pipe in open posi

tion? (Follow startup procedures if you open gas valve.)

NOTE: Tlirn OFF the electrical power supply before continuing

with checklist.

• Is the control knob on gas valve in ON position? (Follow

startup procedures If you must reset knob to ON.) If your furnace still fails to operate, call your service

representative. For your convenience, record the product and serial numbers on

the form on page 4. Should you ever require service, you will have ready access to the information needed by your service representative.

Page 11

Carrier Air Conditioning Company

FOR SERVICE OR REPAIR, FOLLOW THESE STEPS IN ORDER:

FIRST: Contact the instailer. You may find his name on the product or in your

SECOND: Contact the nearest CARRiER distributor. (See telephone yellow pages.}

THIRD: Contact:

Owner’s Packet. If his name is not known, caii your builder if yours is a new residence.

Carrier Consumer Relations RO. Box 4952 Syracuse, New York 13221 -4952 Phone: 1-800-CARRiER (TOLL FREE) from USA.

1-315-432-7885 from Canada,

Model No, Date of Installation. Name of Owner

___

Effective on products manufactured after June 15,1991. Supersedes any other warranty certificates supplied with the product.

Unit Sériai No.. instaiied by Address of Installation.

Deluxe Gas-Fired Condensing Furnace Limited Warranty

ONE-YEAR LIMITED WARRANTY—CARRIER warrants to the original purchaser that this product will be free from defects in material and work manship for a period of one year from the date of original installation (whether or not actual use begins on that date). At Garner’s sole option, a new or remanufactured part will be provided without charge to replace any defective part.

THIS WARRANTY DOES NOT INCLUDE LABOR or other costs incurred

for diagnosing, repairing, removing, installing, shipping, servicing or han dling of either defective parts or replacement parts. Such costs may be covered by a separate warranty or service agreement provided by the installer, which is separate and distinct from this factory warranty.

EXTENDED 2-YEAR LIMITED WARRANTY ON MICROPROCESSOR CONTROL CENTER ONLY—During the second through third years after

the date of original installation, CARRIER further warrants the micropro

cessor control center against defects in material or workmanship under normal use and maintenance. A new or remanufactured part, at CAR RIER’S sole option, will be provided under the same conditions as stated in the ONE-YEAR WARRANTY

EXTENDED WARRANTY ON HEAT EXCHANGER ONLY During the second through nineteenth years after the date of original in

stallation, CARRIER further warrants the heat exchanger to be free from defects in material and workmanship under normal use and proper main tenance. CARRIER will, AT ITS SOLE OPTION, provide a new heat ex changer without charge, or allow a credit in the amount of the then current factory selling price for a new or equivalent heat exchanger to ward the retail purchase price of a new CARRIER brand furnace. This warranty applies only to the furnace in its original installation location and

is void if the furnace is reinstalled elsewhere. WARRANTY CONDITIONS

1. These warranties apply only to products in their original installation location and become void upon reinstallation.

2. Installation, use, care, and maintenance must be normal and in ac cordance with instructions contained in the owner's manual and CAR RIER service information.

3. Defective parts must be returned to the distributor at purchaser’s ex pense for credit.

LIMITATIONS OF WARRANTIES—ALL IMPLIED WARRANTIES (IN CLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT NESS FOR A PARTICULAR PURPOSE) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE APPLICABLE COMPO NENT LIMITED WARRANTY IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU, THE EXPRESSED WARRAN TIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER. ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PE RIOD ONLY THE REMAINING TIME PERIOD OF THE APPLICABLE COMPONENT WARRANTY

CARRIER WILL NOT BE RESPONSIBLE FOR:

1. Normal maintenance as outlined in the installation and servicing in structions or owners manual including filter cleaning and/or replace ment and lubrication.

2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation,

3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other damages due to the inadequacy or interruption of electrical service.

4. Damage as a result of floods, winds, fires, lightning, accidents, corro sive environments or other conditions beyond the control of CARRIER.

5. Parts not supplied or designated by CARRIER, or damages resulting from their use.

6. CARRIER products installed outside the continental U.S.A., Alaska, Hawaii and Canada.

7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever including additional or unusual use of supplemen-

8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of incidental or consequential dam ages, so the above limitation may not apply to you.

___

$l0ctric

Form No. S3Û-063 (New 6,*91)

This warranty gives you specillc legal rights, and you may also have other rights which vary from state to state

Page 12

Page 13

HEATING A COOLING

TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the

“Heating Equipment” or “Air Conditioning Contractors & Systems” headings for dealer listing by brand name.

Have available the Model No., Series Letter & Serial No. of your equipment to insure correct replacement part.

Carrier Corporation • Syracuse, New York 13221

Manufacturer reserves the right to discontinue, or change at any lime, specifications or designs without notice and without incurring obligations.
