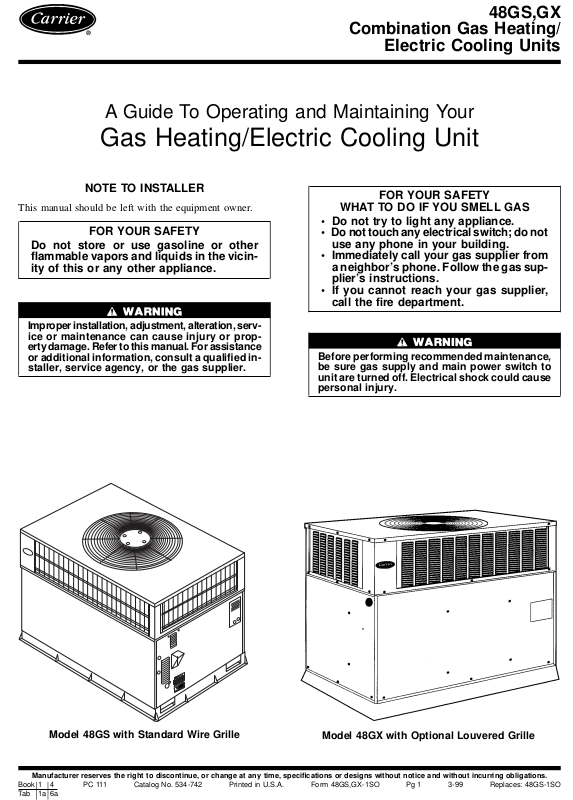

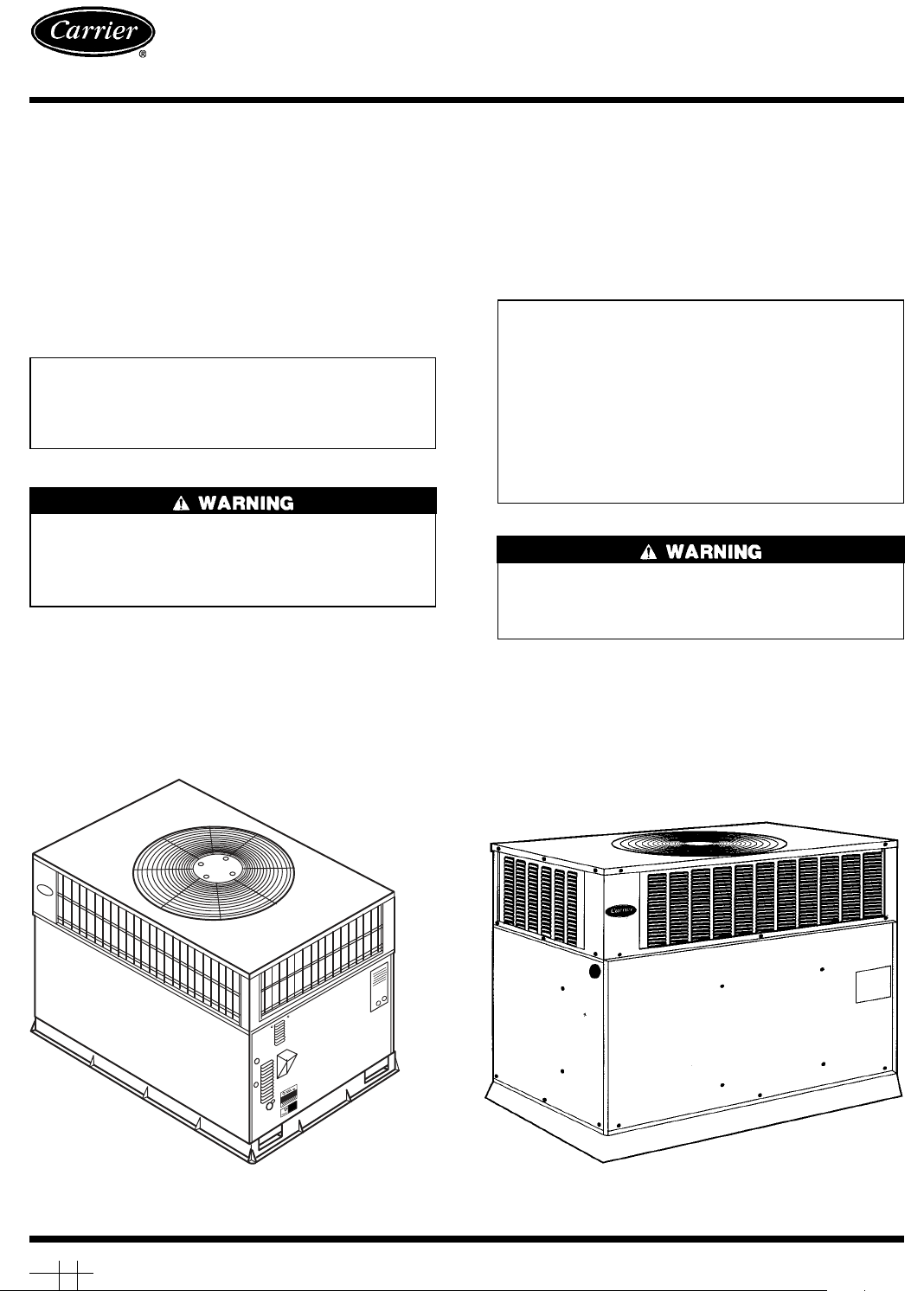

Combination Gas Heating/

Electric Cooling Units

A Guide To Operating and Maintaining Your

Gas Heating/Electric Cooling Unit

48GS,GX

NOTE TO INSTALLER

This manual should be left with the equipment owner.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other appliance.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualiﬁed installer, service agency, or the gas supplier.

FOR YOUR SAFETY

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

Before performing recommended maintenance, be sure gas supply and main power switch to unit are turned off. Electrical shock could cause personal injury.

Model 48GS with Standard Wire Grille

Manufacturer reserves the right to discontinue, or change at any time, speciﬁcations or designs without notice and without incurring obligations.

Book 1 4 Ta b 1 a 6 a

PC 111 Catalog No. 534-742 Printed in U.S.A. Form 48GS,GX-1SO Pg 1 3-99 Replaces: 48GS-1SO

Model 48GX with Optional Louvered Grille

Your combination heating/cooling unit is equipped with

an automatic direct spark ignition and power combustion blower.

Do not attempt to light by hand; personal injury may result.

TO LIGHT UNIT

1. Do not turn off the electrical power to unit without ﬁrst turning off the gas supply.

2. Before attempting to start the gas heating section, familiarize yourself with all the procedures that must be followed.

If you do not follow these instructions exactly, a ﬁre or explosion may result, causing property damage, injury, or loss of life.

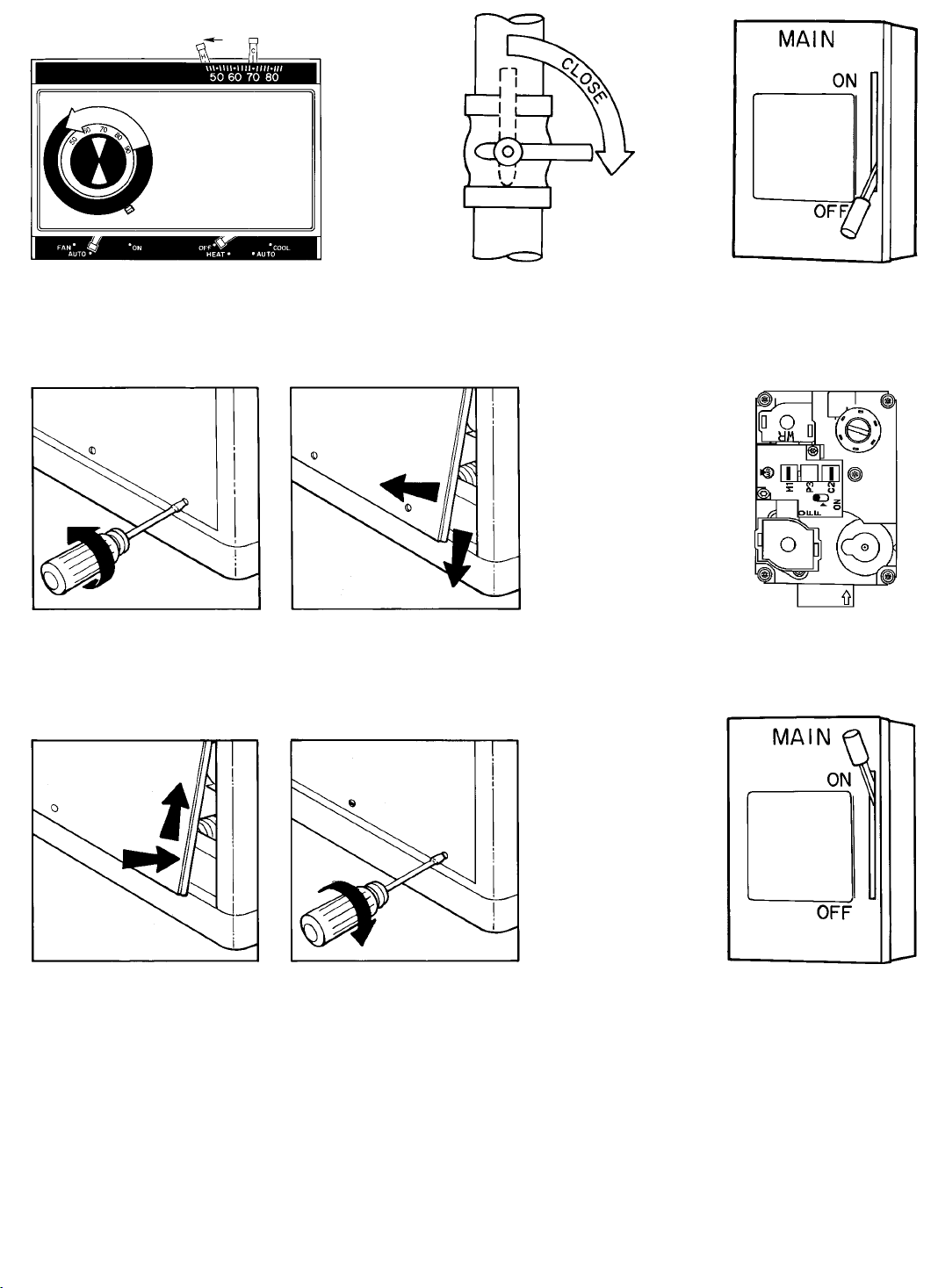

Refer to Fig. 1. See Fig. 2 for location of gas valve. Refer

to Fig. 3 while proceeding with the following steps.

Step 1 — Set the temperature selector on room thermo-

stat to the lowest temperature setting and set system switch to HEAT.

Step 2 — Close the external manual shutoff valve.

Step 3 — Turn off the electrical supply to the unit.

Step 4 — Remove the front access panel with a

nut driver.

⁄16-in.

Step 5 — Move the selector switch on the internal gas

valve to the OFF position and wait 5 minutes.

Step 6 — Move the selector switch on the internal gas

valve to the ON position.

Step 7 — Replace the front access panel.

Step 8 — Turn on the electrical supply to unit.

Step 9 — Open the external manual shutoff valve.

Step 10 — Set the temperature selector on room thermo-

stat slightly above room temperature to start unit. The induceddraft combustion-air fan will start. Main gas valve will open and main burners should ignite within 5 seconds. If the burner does not light within 5 seconds, the ignition module will go into a Retry mode after a period of approximately 22 seconds (following the 5-second ignition period).

If the burners do not light within 15 minutes of the initial

call for heat, there is a lockout.

Step 11 — Set the temperature selector on room ther-

mostat to desired setting.

FRONT ACCESS PANEL

Fig. 1 — Gas Heating/Electric Cooling Unit

(Unit 48GS Shown)

TO SHUT UNIT OFF

Do not turn off the electrical power to unit without ﬁrst turning off the gas supply.

Failure to follow these procedures can result in serious ﬁre or personal injury.

NOTE: If unit is being shut down because the heating season has ended, make sure to turn on power to cooling system.

If unit is being shut down because of a malfunction, call

your dealer as soon as possible.

Should overheating occur or the gas supply fail to shut off, shut off the manual gas valve to the unit before shutting off the electrical supply.

Do not use this unit if any part has been under water. Immediately call a qualiﬁed service technician to inspect the unit and to replace any part of the control system and any gas control which has been under water.

Refer to Fig. 4 while proceeding with the following steps.

Step 1 — Set the temperature selector on room thermo-

stat to lowest temperature setting and set system switch to OFF.

Step 2 — Close the external manual shutoff valve.

1. If the main burners fail to light, or the blower fails to start, shut down gas heating section and call your dealer for service.

2. Never attempt to manually light the main burners on unit with a match, lighter, or any other ﬂame. If the electric sparking device fails to light the main burners, refer to the following shutdown procedures, then call your dealer as soon as possible.

Failure to follow these requirements could result in serious personal injury.

Step 3 — Turn off the electrical power supply to the unit.

Step 4 — Remove the front access panel.

Step 5 — Move the selector switch on the internal gas

valve to the OFF position.

Step 6 — Replace the burner access panel.

Step 7 — Restore electrical power to the unit and set sys-

tem switch to COOL to ensure operation of the cooling system during the cooling season.

ROUTINE MAINTENANCE

All routine maintenance should be handled by skilled, experienced personnel. Your dealer can help you establish a standard procedure.

For your safety, keep the unit area clear and free of combustible materials, gasoline, and other ﬂammable liquids and vapors.

To assure proper functioning of the unit, ﬂow of combustion and ventilating air must not be obstructed from reaching the unit. Clearance of at least 30 in. is required on all sides except the duct side.

MAINTENANCE AND CARE FOR THE

EQUIPMENT OWNER

Before proceeding with those things you might want to maintain yourself, please carefully consider the following:

1. TURN OFF GAS SUPPLY AND ELECTRICAL POWER TO YOUR UNIT BEFORE SERVICING OR PERFORMING MAINTENANCE.

2. Do not turn off electrical power to this unit without ﬁrst turning off the gas supply.

3. When removing access panels or performing maintenance functions inside your unit, be aware of sharp sheet metal parts and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into the unit.

Air Filters — Air ﬁlter(s) should be checked at least ev-

ery 3 or 4 weeks and changed or cleaned whenever it becomes dirty. Dirty ﬁlters produce excessive stress on the blower motor and can cause the motor to overheat and shut down. Table 1 indicates the correct ﬁlter size for your unit. Refer to Fig. 5 to access the ﬁlter(s).

To replace or inspect ﬁlter(s) (or accessory ﬁlter rack when supplied):

1. Remove the ﬁlter access panel using a

2. Remove the ﬁlter(s) by pulling the ﬁlter(s) out of the unit. If the ﬁlter(s) is dirty, clean or replace with new one.

When installing the new ﬁlter(s), note the direction of the

airﬂow arrows on the ﬁlter frame.

If you have difficulty in locating your air ﬁlter(s), or if you have questions concerning proper ﬁlter maintenance, contact your dealer for instructions. When replacing ﬁlters, always use the same size and type of ﬁlter that was supplied originally by the installer.

⁄16-in. nut driver.

Never operate your unit without ﬁlters in place. Failure to heed this warning may result in damage to the blower motor and/or compressor. An accumulation of dust and lint on internal parts of your unit can cause loss of efﬁciency and, in some cases, ﬁre.

Heat Exchanger — To ensure dependable and efficient

heating operation, the heat exchanger should be checked by a qualiﬁed maintenance person before each heating season, and cleaned when necessary. This checkout should not be attempted by anyone not having the required expertise and equipment to properly do the job. Checking and/or cleaning the heat exchanger involves removing the gas controls assembly and the ﬂue collector box cover and, when completed, reinstalling the gas controls assembly for proper operation. Also, the ﬂue collector box cover must be replaced correctly so that a proper seal is maintained. Contact your dealer for the required periodic maintenance.

Fans and Fan Motor — Periodically check the con-

dition of fan wheels and housings and fan-motor shaft bearings. No lubrication of condenser- or evaporator-fan bearings or motors is required or recommended.

Evaporator and Condenser Coils — Cleaning of

the coils should only be done by qualiﬁed service personnel. Contact your dealer for the required annual maintenance.

Condensate Drain — The drain pan and condensate

drain line should be checked and cleaned at the same time the cooling coils are checked by your dealer.

Compressor — All compressors are factory-shipped with

a normal charge of the correct type refrigeration grade oil in them and should rarely require additional oil. The service person must be certain the proper oil level is maintained in the compressor when it is installed and running.

Condenser Fan

Do not poke sticks, screwdrivers, or any other object into revolving fan blades. Severe bodily injury may result.

The fan must be kept free of all obstructions to ensure proper cooling. Contact your dealer for any required service.

Table 1 — Indoor-Air Filter Data*

UNIT SIZE FILTER SIZE 48GS018-030 20x20 48GS036-042 20x24 48GS048-060 24x30 48GX024-030 20x20

48GX036 20x24

48GX042-060 24x30

*For ﬁlter grille installations only.

Fig. 2 — Gas Heating/Electric Cooling Unit

STEP 1

STEP 2

STEP 3

STEP 6

STEP 4

STEP 5

STEP 7

STEP 8

STEP 9

Fig.3—ToLight Unit

STEP 10

STEP 1

STEP 2

STEP 3

STEP 4

STEP 6

STEP 5

STEP 7

Fig.4—ToShut Unit Off

ACCESS PANEL

FILTER ACCESS PANEL*

*For accessory ﬁlter rack.

Fig. 5 — FilterAccess Panel — Vertical Supply Shown

Electrical Controls and Wiring — Electrical con-

trols are difficult to check without proper instrumentation; therefore, if there are any discrepancies in the operating cycle, contact your dealer and request service.

Refrigerant Circuit — The refrigerant circuit is diffi-

cult to check for leaks without the proper equipment; therefore, if inadequate cooling is suspected, contact your local dealer for service.

Combustion Area and Vent System — The com-

bustion area and vent system should be inspected visually before each heating season. The normal accumulation of dirt, soot, rust, and scale can result in loss of efficiency and improper performance if allowed to build up.

If your unit makes an especially loud noise when the main burners are ignited, shut down the heating section and call your dealer.

Proceed as follows to inspect the combustion area and power-

venting system of your unit.

1. Turn off electrical power and gas supply to your unit.

2. Remove burner access panel. (See Fig. 1.)

3. Using a ﬂashlight, carefully inspect the burner areas for dirt, soot, rust, or scale. See Fig. 2.

If dirt, soot, rust, or scale accumulations are found, call your dealer and do not operate your heating section.

Components in heat section may be hot after unit has been started up. When observing ﬂame, be careful not to get close to or touch heating components or serious personal injury may result.

Watch the burner ﬂame to see if it is bright blue. If you observe a suspected malfunction or if the burner ﬂames are not bright blue, call your dealer.

6. Replace burner access panel.

Unit Panels — After performing any maintenance or serv-

ice on the unit, be sure all panels are fastened securely in place to prevent rain from entering unit cabinet and to prevent disruption of the correct unit airﬂow pattern.

REGULAR DEALER MAINTENANCE

In addition to the type of routine maintenance you might be willing to perform, your unit should be inspected regularly by a properly trained service technician. An inspection (preferably each year, but at least every other year) should include the following:

1. Inspection of all ﬂue product passages — including the burners, heat exchanger, and ﬂue collector box.

2. Inspection of all combustion- and ventilation-air passages and openings.

3. Close inspection of all gas pipes leading to and inside of your unit.

4. Inspection and, if required, cleaning of the condenser and evaporator coils.

5. Inspection and, if required, cleaning of the evaporator drain pan.

6. Inspection and cleaning of blower wheel housing and motor.

7. Inspection of all supply-air and return-air ducts for leaks, obstructions, and insulation integrity.Any problems found should be resolved at this time.

8. Inspection of the unit base to ensure that no cracks, gaps, etc., exist which may cause a hazardous condition.

9. Inspection of the unit casing for signs of deterioration.

10. Inspection of all electrical wiring and components to assure proper connection.

11. Inspection for leaks in the refrigerant circuit. Pressure-

check to determine appropriate refrigerant charge.

12. Inspection of compressor oil level.

13. Operational check of the unit to determine working conditions. Repair or adjustment should be made at this time.

Your servicing dealer may offer an economical service contract that covers seasonal inspections. Ask for further details.

Complete service instructions can be found in the unit Installation, Start-Up and Service Instructions.

4. When you have completed your inspection, follow the start-up procedures in this manual to restore your unit to operation.

5. Observe unit heating operation.

WARRANTIES

Units 48GS and GX have warranties located at the back of this book. Be sure to read the warranty carefully to determine the coverage for your unit.

BEFORE YOU CALL FOR SERVICE,

CHECK FOR SEVERAL EASILY-SOLVED

PROBLEMS

If insufficient heating or cooling is suspected:

( ) Check for sufficient airﬂow. Check the air ﬁlter for dirt. Check for blocked return-air or supply-air grilles. Be sure they are open and unobstructed. If these checks do not reveal the cause, call your servicing dealer.

If your unit is not operating at all, check the following list

for easy solutions:

( ) Check to be sure that your thermostat temperature selector is set above the indoor temperature during the heating season, or below the indoor temperature during the cooling season. Be sure the system switch is in the proper HEAT or COOL position and not in the OFF position.

( ) Is the electrical supply switch ON? Are any fuses blown, or has the circuit breaker tripped?

( ) During the heating season, check the external manual shutoff valve. Is this lever parallel with the pipe, indicating that the valve is open? Or is the lever at a right angle, indicating that the valve is closed? If closed, has the gas been shut off for safety reasons? Otherwise, you may open the valve and follow the start-up procedures listed in this manual.

NOTE: Before proceeding with the next check, turn OFF the gas supply, then the electrical power supply to the unit. Remove the control access door.

( ) During the heating season, check the control dial on the internal gas valve. Is it in the ON position? If it is not, be sure it was not turned off for the purpose of safety. If no safety hazards exist, follow the start-up procedures in this manual.

( ) If your unit still fails to operate, call your servicing dealer for troubleshooting and repairs. Specify the model and serial numbers of your unit. (Record them in this manual in the space provided.) If the dealer knows exactly which unit you have, he may be able to offer suggestions over the phone, or save valuable time through knowledgeable preparation for the service call.

IN CASE OF TROUBLE

If after performing the above and unit performance is still

unsatisfactory, shut off the unit and call your dealer.

Dealer’s Name

Telephone

Unit Model

Unit Serial Number
