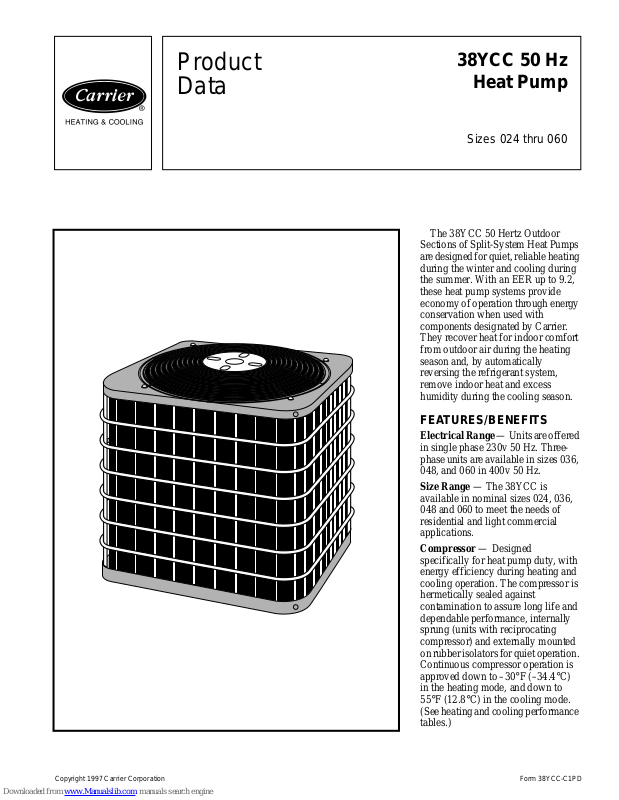

Page 1
°
°
Product
Data
38YCC 50 Hz
Heat Pump
Sizes 024 thru 060
The 38YCC 50 Hertz Outdoor
Sections of Split-System Heat Pumps
are designed for quiet, reliable heating
during the winter and cooling during
the summer. With an EER up to 9.2,
these heat pump systems provide
economy of operation through energy
conservation when used with
components designated by Carrier.
They recover heat for indoor comfort
from outdoor air during the heating
season and, by automatically
reversing the refrigerant system,
remove indoor heat and excess
humidity during the cooling season.
FEATURES/BENEFITS
Electrical Range — Units are offered
in single phase 230v 50 Hz. Threephase units are available in sizes 036,
048, and 060 in 400v 50 Hz.
Size Range — The 38YCC is
available in nominal sizes 024, 036,
048 and 060 to meet the needs of
residential and light commercial
applications.
Compressor — Designed
specifically for heat pump duty, with
energy efficiency during heating and
cooling operation. The compressor is
hermetically sealed against
contamination to assure long life and
dependable performance, internally
sprung (units with reciprocating
compressor) and externally mounted
on rubber isolators for quiet operation.
Continuous compressor operation is
approved down to –30
in the heating mode, and down to
F (12.8 ° C) in the cooling mode.
55
(See heating and cooling performance
tables.)
F (–34.4 ° C)
Copyright 1997 Carrier Corporation Form 38YCC-C1PD
Page 2
Built-in-Reliable Components —
Include a suction-tube accumulator
that reduces the amount of liquid
refrigerant that reaches the
compressor; low-pressure switch to
stop the compressor if refrigerant
charge is lost; crankcase heater on
units with reciprocating compressor
and all 3-phase units to keep
compressor oil warm and free of
refrigerant for maximum lubricity;
internal compressor relief valve for
high-pressure protection.
Discharge Silencer — Minimizes low
frequency sound and pressure
pulsation generated by compressor
discharge gas.
Defrost Control Board —
Incorporates a defrost relay, defrost
timer, and low-voltage terminations.
The defrost control is a time and
temperature initiation/termination
control which includes 3 fieldselectable time periods of 30, 50, and
90 minutes. The control includes builtin 5-minute compressor delay for units
equipped with scroll compressors.
Weather-Protective Cabinet — Steel
is protected with a heavy galvanized
coating and treated with a layer of zinc
phosphate. A coat of modified
polyester powder coating is then
applied and baked-on, providing each
unit with a hard, smooth finish that will
last for many years.
All screws on cabinet exterior are
coated for a long-lasting rust-resistant,
quality appearance.
Unit Design — All units are equipped
with totally enclosed fan motors for
greater reliability under rain and snow
conditions. The large, wraparound coil
uses copper tube and enhanced
aluminum fin and is designed for
optimum heat transfer during heating
and cooling. Vertical air discharge
carries sound and air up and away from
adjacent patio areas and foliage. Coils
can be cleaned with a common garden
hose.
External Service Valves — Both
service valves are brass, front seating
type. Valves are externally located
so refrigerant tube connections can
be made quickly and easily. Each
valve has a service port for ease of
checking operating refrigerant
pressures. The 38YCC has sweat-type
field connections.
Safety — All units are designed and
manufactured in accordance with
Underwriters Laboratories (U.L. 1995)
standard for safety, heating and
cooling equipment.
Quality Assurance
Model number nomenclature
38YCC 024
Electric Heat Pump
Nominal Capacity
024 — 24,000 Btuh (7.0 Kw) 048 — 48,000 Btuh (14.1 Kw)
036 — 36,000 Btuh (10.6 Kw) 060 — 60,000 Btuh (17.6 Kw)
703
Packaging
Series
Electrical
7 — 230-1-50
9 — 400-3-50
2
Page 3
)
Physical data
UNIT SIZE-SERIES 024-70 036-70, 90 048-70, 90, 92 060-90, 92
OPERATING WT (Lb/Kg)
COMPRESSOR
Manufacturer
Type
REFRIGERANT
Control
Charge (Lb/Kg) @ 15 ft (4.57m)
CONDENSER FAN
Air Discharge
Air Qty (CFM / L/S)
Motor HP
Motor RPM (50 Hz)
CONDENSER COIL
Face Area (Sq ft/m
Fins per In. / Fins per Cm
Rows
Circuits
CONNECTION (In./mm ID)
Vapor
Liquid
REFRIG TUBES* (In./mm OD)
Vapor (0–50 Ft (15.24m)
Tube Length)
Vapor (Max Diameter for
Long-Line Applications)
Liquid (0–50 Ft (15.24m) Tube
Tube Length)
Liquid (For Long-Line
Applications)
2
* Tube sizes are for lengths up to 50 ft (15.24m). For lengths over 50 ft (15.24m), consult Residential Split System Long-Line Application Guideline.
NOTE: See unit Installation Instructions for proper installation.
140 / 63.6 216 / 97.8 216, 216, 224 / 97.8, 97.8, 101.8 257, 259 / 116.4, 117.5
Copeland
Recip
4.84 / 2.20 7.93 / 3.60 5.32, 5.32, 7.25 / 2.41, 2.41, 3.29 10.95, 10.75 / 4.97, 4.88
2160 / 1019 2750 / 1298 2750 / 1298 2750 / 1298
1/10 1/4 1/4 1/4
850 900 900 900
12.4 / 1.15 22.4 / 2.08 18.7 / 1.74 18.7 / 1.74
20 / 8 20 / 8 20 / 8 20 / 8
1112
2346
5/8 / 15.875 3/4 / 19.05 7/8 / 22.225 7/8 / 22.225
5/8 / 15.875 3/4 / 19.05 7/8 / 22.225 1-1/8 / 28.575
3/4 / 19.05 7/8 / 22.225 1-1/18 / 28.575
Copeland
Recip
Propeller Type, Direct Drive
Millennium, Millennium, Copeland
R-22
Piston
Vertical
Sweat
3/8 / 9.525
3/8 / 9.525
3/8 / 9.525
Scroll
Millennium, Copeland
Scroll
UNIT
SIZE-SERIES
024-70
036-70, 90
048-70, 90
048-92
060-90
060-92
*Piston listed is for any approved coil combination.
METERING DEVICE
OUTDOOR
PISTON
49 63
61 73
73 88
73 90
76 98
76 96
INDOOR
PISTON*
3
Page 4
Accessories
ORDERING NUMBER DESCRIPTION
KAATD0101TDR
P251-0083 (RCD)*
P504-8083S (RCD)
P504-8163S (RCD)
32LT660004 (RCD)
32LT660005 (RCD)
KAAFT0101AAA † Evaporator Freeze Thermostat — All Sizes
KAAWS0101AAA
KHAIR0101AAA † Isolation Relay — All Sizes
KSACY0101AAA
KSAHS1001AAA
KSAHS1301AAA
KSAHS1601AAA
N/A
KAACS0201PTC
N/A
KSASH1101COP
KSASH2001CYL
KHAOT0301FST
KHAOT0201SEC
KHAIC0101AAA
KSATX0601HSO‡
KSATX0701HSO‡
KHATX0301RPB
KHATX0501RPB
KHATX0601RPB
KHATX0701RPB
KHAHI0101HPS
KHALS0101LLS
P165-0001 (RCD)
* Isolation relay required.
† Consult low-ambient controller Installation Instructions for application.
‡ Hard shutoff TXV requires compressor start assist on reciprocating compressors.
N/A — Not applicable in this application.
Time-Delay Relay — All Sizes
Low-Ambient Controller — All Sizes
Filter Drier — Bi-Flow — Sizes 024, 036
Filter Drier — Bi-Flow — Sizes 048, 060
MotorMaster® Control — Sizes 024 (70), 036 (70), 048 (70)
MotorMaster® Control — Sizes 036 (90), 048 (90, 92), 060 (90, 92)
Winter Start Control — All Sizes
Cycle Protector — All Sizes
Start Assist — Capacitor and Relay — Size 024 (70)
Start Assist — Capacitor and Relay — Size 036 (70)
Start Assist — Capacitor and Relay — Size 048 (70)
Start Assist — Capacitor and Relay — Sizes 036 (90), 048 (90, 92), 060 (90, 92)
Start Assist — PTC — Sizes 024 (70), 036 (70), 048 (70)
Start Assist — PTC — Sizes 036 (90), 048 (90, 92), and 060 (90, 92)
Sound Hood — Sizes 024, 036
Sound Hood — Sizes 048, 060
Outdoor Thermostat — All Sizes
Secondary Outdoor Thermostat — All Sizes
Interface Control (Optimizer II®) — All Sizes
TXV (Hard Shutoff) — Sizes 024, 036
TXV (Hard Shutoff) — Sizes 048, 060
TXV (RPB) — Size 024
TXV (RPB) — Sizes 036
TXV (RPB) — Size 048
TXV (RPB) — Size 060
High-Pressure Switch — All Sizes
Liquid-Line Solenoid Valve (LSV) — All Sizes
Unit Risers — All Sizes (2 Required/Unit)
THERMOSTAT DESCRIPTION
TSTATCCNHP01-A
TSTATCCPHP01-A
TSTATCCPDF01-A
--HH--07AT-215
TSTATCCSEN01
TSTATXXNBP01
TSTATXXPBP01
TSTATXXCNV10
4
Thermostat, Auto Changeover, Non-Programmable, ° F/ ° C, 2-Stage Heat, 1-Stage Cool
Thermostat, Auto Changeover, 7-Day Programmable, ° F/ ° C, 2-Stage Heat, 1-Stage Cool
Thermostat Auto Changeover, 7-Day Programmable, ° F/ ° C, Dual Fuel Thermostat
Must be used with Outdoor Sensor (TSTATCCSEN01)
Thermostat, Manual Changeover, Non-Programmable, ° F, 2-Stage Heat, 1-Stage Cool
Outdoor Air Temperature Sensor
Backplate for Non-Programmable Thermostat
Backplate for Programmable Thermostat
Thermostat Conversion Kit (4 to 5 wire) — 10 Pack
Page 5
Accessory usage guideline
REQUIRED FOR
LOW-AMBIENT
ACCESSORY
Crankcase Heater
Evaporator Freeze Thermostat
Winter Start Control
Accumulator
Compressor Start Assist
Capacitor and Relay
Low Ambient Controller
MotorMaster® Control
Liquid-Line Solenoid Valve
* For tubing line sets between 50 and 175 ft (15.24 and 53.34m), refer to Residential Split-System Long-Line Application Guideline.
† For buried line applications, refer to Residential Split System Buried Line Application Guideline.
‡ Only when low-pressure switch is used.
or
Wind Baffle
Support Feet
or
Hard Shutoff TXV
APPLICATIONS
(Below 55 ° F/12.8 ° C)
Yes Yes Yes
Yes No No
Yes‡ No No
No No Yes
Yes Yes Yes
Yes No No
See Low-Ambient Instructions No No
Recommended No No
No
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft/15.24m)
See Long-Line
Application
Guideline
REQUIRED FOR
BURIED LINE
APPLICATIONS†
(Over 3 Ft/0.914m)
Yes
Accessory description and usage (Listed alphabetically)
1. Compressor Start Assist — Capacitor and Relay
Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft (15.24m).
2. Compressor Start Assist — PTC
Solid-state electrical device which gives a “soft” boost to compressor motor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
3. Cycle Protector
Solid-state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor
has been interrupted for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
4. Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Winter Start Control has been added.
5. Filter Drier—Bi-Flow
A device for removing contaminants from refrigerant circulating in a heat pump system: 2-direction flow.
SUGGESTED USE: All split-system heat pumps.
6. High-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to about
426 ± 7 psig and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow. To prevent rapid compressor
recycling, Cycle Protector can be used with this switch.
SUGGESTED USE: Installations exposed to very “dirty” outdoor air.
7. Interface Control (Optimizer II®)
An electric control for controlling a heat pump and gas or oil furnace system for maximum energy savings. It allows heat pump to operate down to a
predetermined economic balance point temperature, then switches to allow furnace operation only below that temperature. Requires outdoor thermostat
to be adjusted for economic balance point temperature.
SUGGESTED USE: All heat pump and gas- or oil-fired furnace combination systems.
8. Isolation Relay
An SPDT relay which switches the Low-Ambient Controller out of the outdoor fan motor circuit when heat pump switches to heating mode.
SUGGESTED USE: All heat pumps where Low-Ambient Controller has been added.
9. Liquid-Line Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor unit and which stops and starts refrigerant liquid flow in response to compressor
operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
NOTE: Compressor Start Assist–Capacitor and Relay must also be used.
SUGGESTED USE: In certain long-line applications. Refer to Residential Split System Long-Line Application Guideline.
Installations where outdoor design temperature exceeds 105 ° F (40.6 ° C).
Replacement installations with hard shutoff expansion valve on indoor coil.
Installations where Liquid-Line Solenoid Valve has been added.
Units installed with Low-Ambient Controller.
Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.
Where user is likely to “play” with room thermostat.
All commercial installations.
Installations where interconnecting tube length exceeds 50 ft (15.24m).
High-rise applications.
All units where Low-Ambient Controller has been added.
Installations where condenser inlet air temperature exceeds 125 ° F (51.7 ° C).
5
Page 6
Accessory description and usage (Listed alphabetically) continued
10. Low-Ambient Controller
Head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle
the outdoor fan motor in order to maintain condensing temperature within normal operating limits (approximately 100°F (37.8°C) high and 60°F
(15.6°C) low). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when property installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
11. MotorMaster® Control
A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing
temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at
100°F ± 10°F (37.8°C ± 5.5°C).
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
12. Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All corporate programmable thermostats.
13. Outdoor Thermostat
An SPDT temperature actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below set point.
SUGGESTED USE: Heat pump installations with multiple-stage supplemental heaters
14. Secondary Outdoor Thermostat
An SPDT temperature actuated switch which turns on a third stage of supplemental electric heaters when outdoor air temperature drops below the
second-stage set point.
SUGGESTED USE: Heat pump installations where 3-stage operation of supplemental heaters is desired.
15. Sound Hood
Wraparound sound attenuation cover for the compressor. Reduces the sound level by about 2 dBA.
SUGGESTED USE: Unit installed closer than 15 ft (4.55m) to quiet areas—bedrooms, etc.
16. Thermostatic Expansion Valve (TXV) — Bi-Flow
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving
the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
17. Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
18. Unit Risers
Six-in. tall plastic rails that are used to elevate outdoor units above mounting pad. The risers are adjustable from 24- to 34-in. long..
SUGGESTED USE: Heat pump installations in light to moderate snowfall areas.
19. Winter Start Control
An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load
conditions.
SUGGESTED USE: All heat pumps where Low-Ambient Controller has been added.
All commercial installations.
Unit installed between 2 houses less than 10 ft (3.04m) apart.
Required for use on all zoning systems.
Coastal installations.
Windy areas where debris can circulate.
Rooftop installations.
6
Page 7
Electrical data
OUTDOOR
UNIT V/PH
024-70
036-70 94.0 16.5 1.6 22.2 12/12 65/47 19.8/14.3 35
048-70 140.0 19.2 1.6 25.6 10/10 96/70 29.3/21.3 40
036-90
048-90 66.5 8.0 0.7 10.7 14/14 165/157 50.3/47.9 15
048-92 63.0 7.9 0.7 10.7 14/14 165/157 50.3/47.9 15
060-90 73.0 9.5 0.7 12.6 14/14 165/157 50.3/47.9 20
060-92 74.0 9.0 0.7 11.9 14/14 165/157 50.3/47.9 20
230-1 253 207
400-3 440 360
OPER VOLTS* COMPRESSOR
68.0 11.5 1.4 15.8 14/14 55/39 16.7/11.9 25
42.0 6.4 0.7 8.7 14/14 260/247 79.2/75.3 15
FAN
FLA MCA
MIN WIRE
SIZE**
60°C/75°C
MAX
LENGTH
(Ft)‡
60°C/75°C
MAX
LENGTH
(m)‡
60°C/75°C
MAX FUSE†
OR HACR
TYPE CKT
BKR AMPSMax Min LRA RLA
* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† Time-delay fuse.
‡ Length shown is as measured 1 way along the wire path between the unit and the service panel for voltage drop not to exceed 2%.
** If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed-
cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-30.
If other than uncoated (non-plated), 60° or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for
larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
FLA — Full Load Amps
HACR — Heating, Air Conditioning, Refrigeration
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
RLA — Rated Load Amps
NOTE: Control circuit is 24v on all units and requires external power source. Copper wire must be used from disconnect to unit. All motors/compres-
sors contain internal overload protection.
7
Page 8

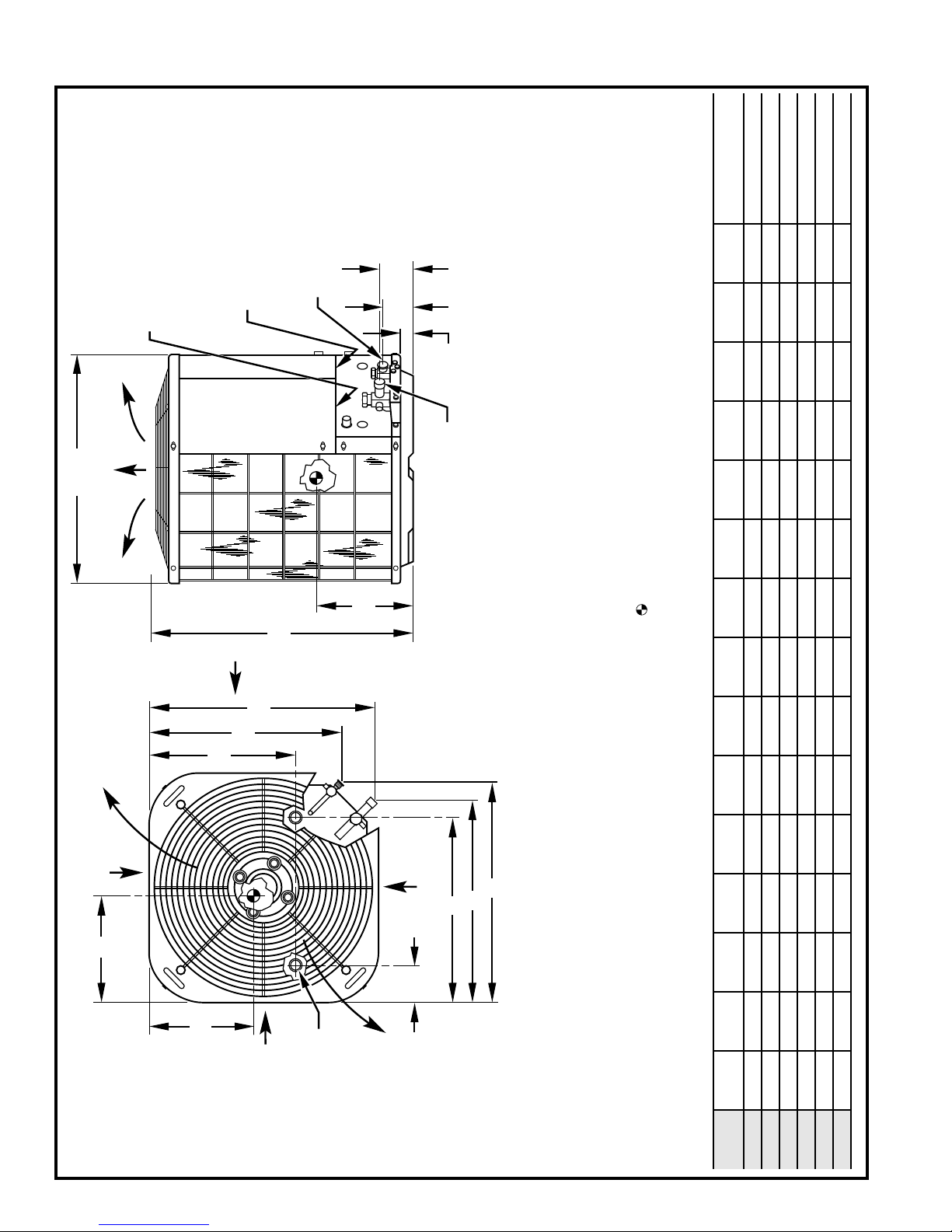

Dimensions (S.I.)
A SQ
AIR DISCHARGE
22.2mm DIA
HOLE
FIELD CONTROL SUPPLY
CONN
KNOCKOUT
FIELD POWER SUPPLY CONN
22.2mm DIA HOLE WITH
28.6mm DIA KNOCKOUT
AND 34.9mm DIA
B
C
9.5mm DIA LIQUID
LINE CONN
73.0mm
P
31.8mm
D DIA VAPOR LINE CONN
A97281
PAD DIMENSIONS
MINIMUM MOUNTING
AIR DISCHARGE
AIR IN
M
AIR IN
DIMENSIONS (mm)
L
K
NOTES:
1. Allow 762.0 mm clearance to service side of unit,
1219.2 mm above unit, 152.4 mm on one side,
304.8 mm on remaining side, and
609.6 mm between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is 13°C
(unless low ambient control is used) max. 52°C.
3. Maximum outdoor operating ambient in heating mode
is 19°C.
4. Series designation is the 13th position of the unit model number.
J
AIR IN
H
G
F
5. Center of gravity .
E
N
AIR IN
TIEDOWN
9.5mm DIA
(2) PLACES
KNOCKOUTS
AIR DISCHARGE
8
024 70 571.5 862.0 81.0 15.9 93.6 460.4 501.7 549.3 365.1 479.4 560.4 317.5 304.8 355.6 571.5 x 571.5
SIZE SERIES ABCDEFGHJKLMNP
UNIT
036 70, 90 762.0 1014.4 82.6 19.1 165.1 596.9 692.2 739.8 508.0 669.9 750.9 381.0 400.1 393.7 762.0 x 762.0
048 70, 90 762.0 862.0 82.6 22.2 165.1 596.9 692.2 739.8 508.0 669.9 750.9 381.0 400.1 393.7 762.0 x 762.0
048 92 762.0 862.0 82.6 22.2 165.1 596.9 692.2 739.8 508.0 669.9 750.9 387.4 396.9 393.7 762.0 x 762.0
060 90 762.0 862.0 82.6 22.2 165.1 596.9 692.2 739.8 508.0 669.9 750.9 400.1 396.9 381.0 762.0 x 762.0
060 92 762.0 862.0 82.6 22.2 165.1 596.9 692.2 739.8 508.0 669.9 750.9 396.9 400.1 384.2 762.0 x 762.0
Page 9

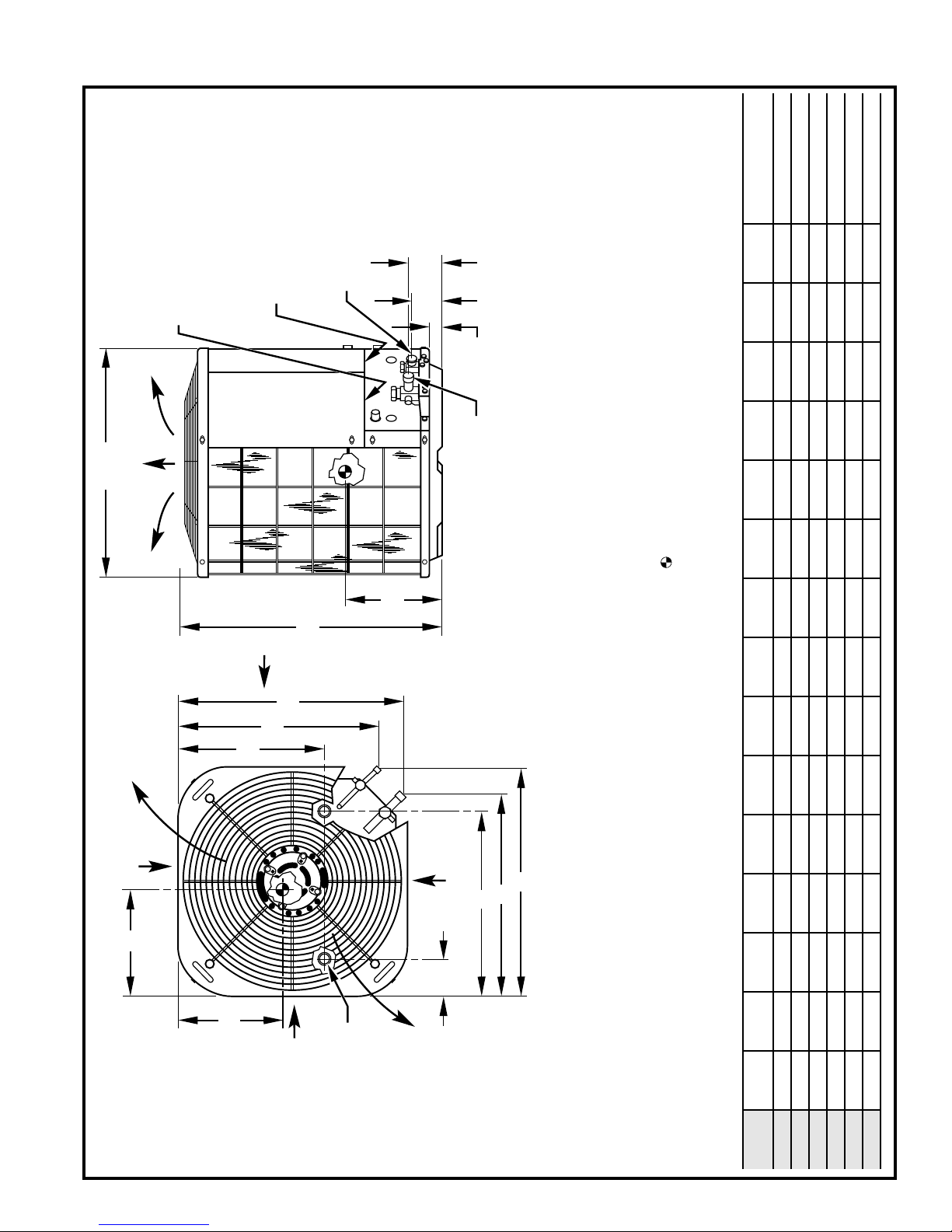

Dimensions (English)
-IN. DIA
8
/
7
3
HOLE
FIELD CONTROL SUPPLY
CONN
-IN. DIA LIQUID
8
/
LINE CONN
A SQ
AIR DISCHARGE
-IN. DIA
8
/
3
-IN. DIA KNOCKOUT
8
-IN. DIA HOLE WITH
/
1
8
/
KNOCKOUT
1
FIELD POWER SUPPLY CONN
7
AND 1
A97045
PAD DIMENSIONS
MINIMUM MOUNTING
C
/8″
7
2
/4″
1
1
AIR DISCHARGE
AIR IN
M
D DIA VAPOR LINE CONN
P
B
AIR IN
L
NOTES:
1. Allow 30 in. clearance to service side of
unit, 48 in. above unit, 6 in. on one side, 12 in.
on remaining side, and 24 in. between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is
55°F (unless low ambient control is used) max. 125°F.
3. Maximum outdoor operating ambient in heating mode
is 66°F.
4. Series designation is the 13th position of the unit
model number.
5. Center of gravity .
DIMENSIONS (IN.)
K
J
AIR IN
H
G
F
E
N
AIR IN
/8 -IN. DIA
3
TIEDOWN
(2) PLACES
KNOCKOUTS
AIR DISCHARGE
024 70 22-1/2 33-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 12-1/2 12 14 22-1/2 x 22-1/2
SIZE SERIES ABCDEFGHJKLMNP
UNIT
036 70, 90 30 39-15/16 3-1/4 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15 15-3/4 15-1/2 30 x 30
048 70, 90 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15 15-3/4 15-1/2 30 x 30
048 92 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/4 15-5/8 15-1/2 30 x 30
060 90 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-3/4 15-5/8 15 30 x 30
060 92 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-5/8 15-3/4 15-1/8 30 x 30
9
Page 10
Printed in U.S.A. 11-94
BUILDING HEAT LOSS, KW
UNIT INTEGRATED HEATING CAPACITY, KW
10
-20
-10
20
OUTDOOR TEMPERATURE, °C
30
40

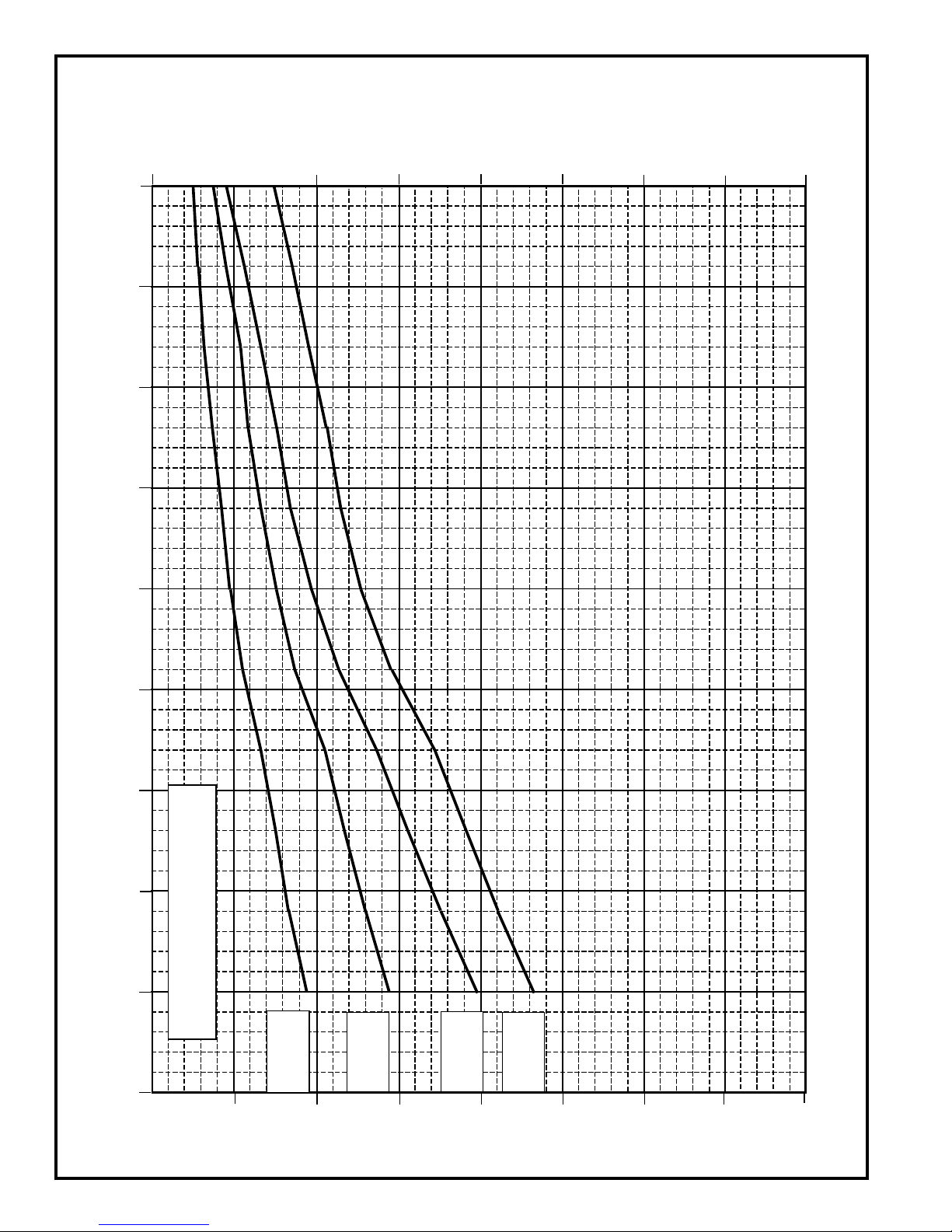

38YCC BALANCE POINT WORKSHEET
0
10
20
BASED ON INDOOR ENT. AIR AT 21°C
AND AT RATED CFM
38YCC024
FB4AS024
38YCC036
FB4AS036
38YCC048
FB4AS048
38YCC060
FB4AS060
25
10
A97280
Page 11
BUILDING HEAT LOSS, 1000 BTU/HR
UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR
Printed in U.S.A.
-10
0
10
10
20
30
40
OUTDOOR TEMPERATURE, °F
20
30
50
60
70
80

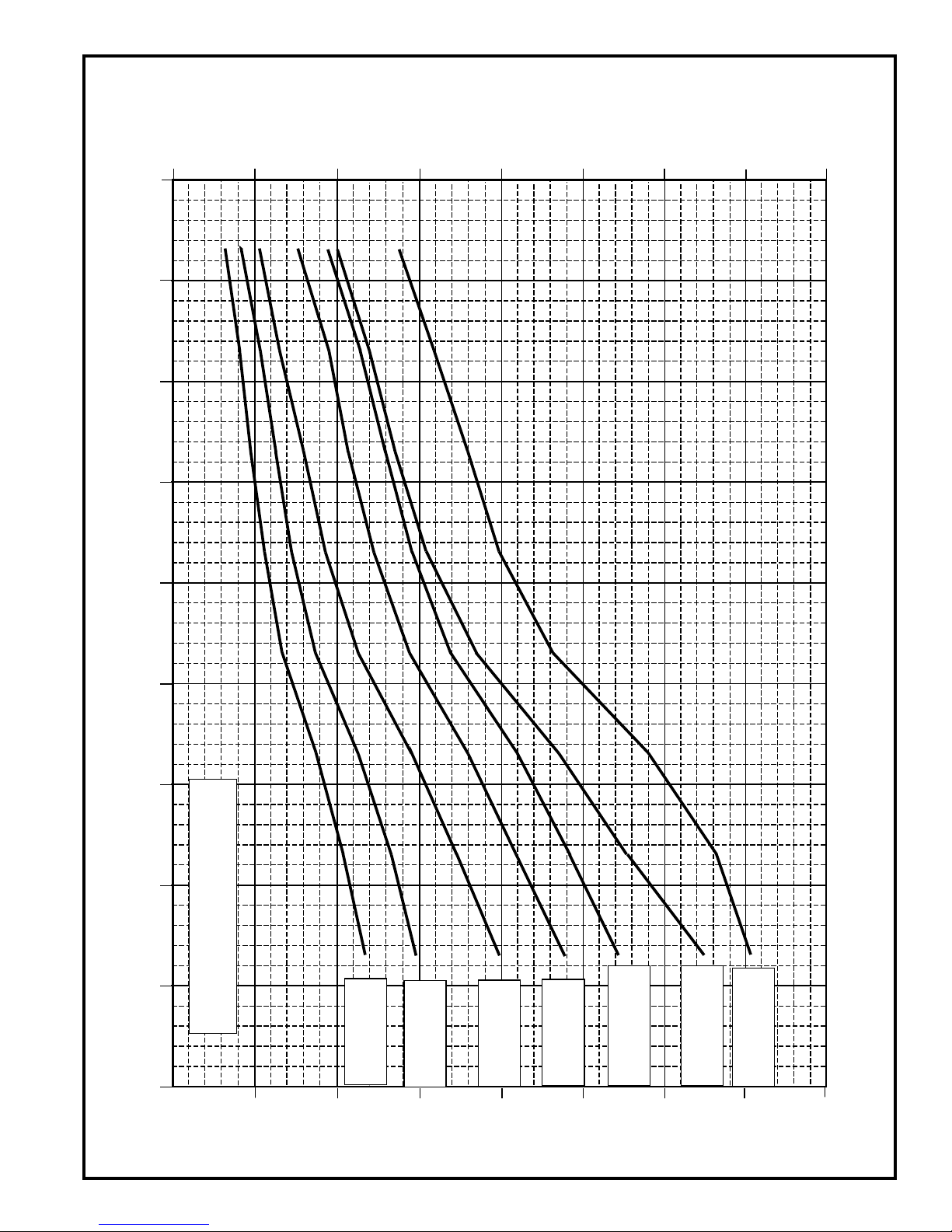

38YCC BALANCE POINT WORKSHEET
40
50
60 70
80
BASED ON INDOOR ENT. AIR AT
70°F AND AT RATED CFM
38YCC01830/31
F(A,B)4ANF018
2.9
5.9
F(A,B)4ANF024
8.8
38YCC02430/31
38YCC04230/31
F(A,B)4AN(F,B)042
38YCC03630/31
38YCC030/31
F(A,B)4ANF030
11.7
F(A,B)4ANF036
14.7
17.6
38YCC04830/31
F(A,B)4AN(F,B)048
F(A,B)4AN(F,B)060
20.5
38YCC06030/31
23.4
KW
A97279
11
Page 12
Performance summary*
HEATING CAPACITY
UNIT SIZE-
SERIES INDOOR MODEL
024-70
036-70, 90
048-70, 90,
92
060-90, 92
F(A,B)4ASF024† 800 380 23,000 6.7 2.72 9.00 23,000 6.7 2.40 14,000 4.1 1.72
F(A,B)4ASF030 800 380 23,600 6.9 2.73 9.00 23,000 6.7 2.38 14,000 4.1 1.70
FG3ASA024 800 380 22,000 6.4 2.77 8.50 23,000 6.7 2.51 13,829 4.1 1.80
F(A,B)4ASF036† 1200 550 35,000 10.3 3.85 9.00 36,000 10.5 3.40 22,100 6.5 2.65
F(A,B)4AS(F,B)042 1200 550 35,500 10.4 3.80 9.20 37,000 10.8 3.30 22,145 6.5 2.57
FG3ASA036 1200 550 34,000 10.0 3.83 8.80 36,000 10.5 3.43 21,949 6.4 2.67
F(A,B)4AS(F,B)048† 1600 750 46,500 13.6 4.98 9.00 47,000 13.8 4.27 28,000 8.2 3.71
F(A,B)4AS(F,B)060 1600 750 47,500 13.9 5.03 9.00 47,000 13.8 4.16 28,004 8.2 3.61
FG3ASA048 1600 750 45,500 13.3 4.97 8.50 47,000 13.8 4.39 27,909 8.2 3.81
FG3ASA060 1600 750 46,500 13.6 5.01 8.50 47,000 13.8 4.35 28,010 8.2 3.78
F(A,B)4AS(F,B)060† 1900 900 57,000 16.7 6.05 9.00 59,000 17.3 5.20 39,000 11.4 4.44
FB4ASB070 1900 900 58,000 17.0 6.15 9.00 59,000 17.3 5.01 39,150 11.5 4.28
FG3ASA060 1900 900 56,500 16.6 6.02 9.00 57,500 16.8 5.37 38,793 11.4 4.58
NOMINAL
AIRFLOW
COOLING CAP @ 95°F (35°C)
Rated Capacity
PowerKWRated
EER
Hi Temp 47°F (8°C)
Rated Capacity
Power
KW
Lo Temp 17°F (–3°C)
Rated Capacity
Power
* Ratings are net values reflecting the effects of circulating f an heat. Supplemental electric heat is not included. Ratings are based on:
Cooling Standard: 80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit.
High-Temperature Heating Standard: 70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43 °F (6 °C) wb air entering outdoor unit.
Low-Temperature Heating Standard: 70°F (21 °C) db indoor entering air temperature and 17°F (–8°C) db 15°F (11° C) wb air entering outdoor unit.
† Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are
determined under DOE computer simulation procedures.
Sound power
KWCFM L/S BTUH KW BTUH KW BTUH KW
UNIT
SIZE
024
036
048
060
SOUND
RATING
(dBA)
78
78
78
78
OCTAVE BAND CENTER FREQUENCY (Hz)
125 250 500 1000 2000 4000 8000
42.4
43.4
58.5
55.5
52.9
52.9
64.0
63.5
63.3
61.3
68.5
67.0
64.0
72.5
70.0
67.5
72.2
63.2
69.0
65.5
60.5
62.5
63.5
62.5
59.4
59.9
56.0
57.5
12
Page 13
Detailed cooling capacities* (S.I.)
CONDENSER ENTERING AIR TEMPERATURES °C
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Total
L/S
COIL
AIR
28 32 36 40 44 48 52
Capacity
(C)
EWB
Kw†
Total Sens‡ T otal Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
38YCC024-70 Outdoor Section With F(A,B)4ASF024 Indoor Section
22 7.83 3.94 2.56 7.50 3.81 2.68 7.17 3.69 2.80 6.84 3.57 2.91 6.50 3.44 3.02 6.16 3.32 3.13 5.81 3.20 3.23
20 7.32 4.64 2.49 7.01 4.51 2.61 6.70 4.39 2.72 6.38 4.26 2.83 6.06 4.14 2.93 5.73 4.01 3.03 5.40 3.88 3.13
340
18 6.84 5.33 2.43 6.55 5.20 2.54 6.25 5.06 2.65 5.96 4.93 2.75 5.66 4.79 2.85 5.36 4.64 2.95 5.05 4.48 3.05
16 6.46 5.89 2.38 6.19 5.74 2.49 5.93 5.58 2.59 5.66 5.42 2.70 5.39 5.25 2.80 5.12 5.06 2.90 4.84 4.84 2.99
14 6.25 6.22 2.35 6.03 6.00 2.46 5.80 5.79 2.57 5.57 5.56 2.68 5.34 5.33 2.79 5.09 5.09 2.89 4.84 4.84 2.99
22 7.96 4.09 2.61 7.62 3.96 2.73 7.28 3.84 2.85 6.93 3.71 2.96 6.58 3.59 3.07 6.23 3.47 3.18 5.88 3.35 3.28
20 7.45 4.86 2.54 7.12 4.74 2.66 6.80 4.61 2.77 6.47 4.48 2.88 6.14 4.35 2.99 5.80 4.23 3.09 5.47 4.10 3.18
380
18 6.97 5.62 2.48 6.67 5.48 2.59 6.36 5.34 2.70 6.06 5.20 2.81 5.76 5.04 2.91 5.46 4.86 3.01 5.17 4.67 3.11
16 6.61 6.20 2.43 6.34 6.03 2.54 6.06 5.87 2.65 5.79 5.69 2.76 5.52 5.49 2.86 5.26 5.26 2.96 5.00 5.00 3.07
14 6.47 6.45 2.41 6.23 6.22 2.53 6.00 5.99 2.64 5.76 5.75 2.75 5.51 5.51 2.86 5.26 5.26 2.96 5.00 5.00 3.07
22 8.06 4.23 2.66 7.72 4.11 2.78 7.37 3.98 2.89 7.01 3.86 3.01 6.65 3.73 3.12 6.29 3.61 3.23 5.93 3.49 3.33
20 7.55 5.08 2.59 7.22 4.95 2.70 6.88 4.82 2.82 6.54 4.70 2.93 6.21 4.57 3.03 5.87 4.44 3.13 5.52 4.31 3.23
420
18 7.08 5.89 2.53 6.77 5.75 2.64 6.46 5.60 2.75 6.16 5.43 2.86 5.86 5.24 2.96 5.56 5.05 3.07 5.26 4.84 3.17
16 6.74 6.48 2.48 6.46 6.30 2.59 6.18 6.11 2.70 5.91 5.90 2.81 5.65 5.65 2.92 5.39 5.39 3.03 5.12 5.12 3.13
14 6.65 6.64 2.47 6.41 6.40 2.59 6.16 6.15 2.70 5.91 5.91 2.81 5.65 5.65 2.92 5.39 5.39 3.03 5.13 5.13 3.13
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.97 1.02
030 1.02 1.00 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
38YCC036-70, 90 Outdoor Section With F(A,B)4ASF036 Indoor Section
22 11.9 6.04 3.60 11.4 5.86 3.77 10.9 5.68 3.94 10.4 5.50 4.11 9.92 5.32 4.27 9.42 5.14 4.42 8.90 4.96 4.58
20 11.1 7.14 3.51 10.6 6.95 3.67 10.2 6.77 3.83 9.69 6.58 3.99 9.21 6.40 4.14 8.73 6.21 4.29 8.25 6.03 4.43
500
18 10.3 8.21 3.42 9.91 8.01 3.58 9.48 7.81 3.74 9.04 7.61 3.89 8.60 7.40 4.04 8.17 7.16 4.18 7.73 6.90 4.32
16 9.78 9.05 3.36 9.39 8.82 3.51 8.99 8.58 3.67 8.60 8.34 3.82 8.21 8.07 3.96 7.82 7.77 4.11 7.43 7.43 4.26
14 9.51 9.47 3.32 9.18 9.15 3.48 8.85 8.83 3.64 8.51 8.49 3.80 8.16 8.15 3.95 7.80 7.80 4.11 7.43 7.43 4.26
22 12.1 6.29 3.68 11.6 6.11 3.85 11.1 5.93 4.02 10.6 5.75 4.18 10.1 5.56 4.35 9.53 5.38 4.50 8.99 5.20 4.65
20 11.3 7.51 3.58 10.8 7.32 3.75 10.3 7.13 3.91 9.83 6.94 4.07 9.33 6.75 4.22 8.84 6.56 4.37 8.34 6.37 4.51
5.60
18 10.5 8.67 3.49 10.1 8.47 3.65 9.65 8.25 3.81 9.21 8.03 3.97 8.77 7.77 4.12 8.33 7.49 4.27 7.90 7.20 4.42
16 10.0 9.53 3.43 9.61 9.28 3.59 9.21 9.02 3.75 8.81 8.74 3.90 8.43 8.40 4.06 8.04 8.04 4.21 7.66 7.66 4.36
14 9.84 9.82 3.41 9.49 9.47 3.58 9.14 9.13 3.74 8.78 8.77 3.90 8.42 8.41 4.06 8.04 8.04 4.21 7.66 7.66 4.36
22 12.3 6.61 3.77 11.8 6.43 3.94 11.3 6.24 4.11 10.7 6.06 4.28 10.2 5.87 4.44 9.65 5.69 4.60 9.10 5.50 4.75
20 11.5 7.98 3.67 11.0 7.78 3.84 10.5 7.59 4.00 9.98 7.40 4.16 9.47 7.20 4.32 8.96 7.01 4.47 8.45 6.81 4.61
640
18 10.8 9.24 3.59 10.3 9.00 3.75 9.85 8.75 3.91 9.41 8.46 4.07 8.98 8.16 4.23 8.53 7.86 4.38 8.08 7.56 4.53
16 10.3 10.1 3.53 9.87 9.79 3.69 9.47 9.47 3.86 9.09 9.09 4.02 8.70 8.70 4.18 8.31 8.31 4.34 7.91 7.91 4.49
14 10.2 10.2 3.52 9.84 9.84 3.69 9.47 9.47 3.86 9.09 9.09 4.02 8.70 8.70 4.18 8.31 8.31 4.34 7.92 7.92 4.49
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.98 1.00
F(A,B)4AS(F,B) 042 1.02 0.99 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
See notes on pg. 14.
Cooling
Capacity
Kw†
Sens‡
Sys.
Power
Kw**
13
Page 14
Detailed cooling capacities* (S.I.) continued
CONDENSER ENTERING AIR TEMPERATURES °C
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
Capacity
Kw†
Total
Sens‡
Sys.
Power
Kw**
L/S
COIL
AIR
28 32 36 40 44 48 52
Capacity
(C)
EWB
Kw†
Total Sens‡ T otal Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Sys.
Power
Kw**
Capacity
Kw†
Sys.
Power
Kw**
38YCC048-70, 90, 92 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section
22 15.4 7.87 4.50 14.9 7.69 4.79 14.4 7.51 5.09 13.9 7.32 5.41 13.3 7.13 5.75 12.8 6.94 6.11 12.3 6.75 6.48
20 14.5 9.38 4.41 14.0 9.19 4.69 13.5 9.00 4.98 13.0 8.81 5.29 12.5 8.62 5.63 12.0 8.42 5.97 11.5 8.23 6.33
650
18 13.6 10.8 4.32 13.2 10.7 4.59 12.7 10.5 4.88 12.3 10.3 5.18 11.8 10.1 5.51 11.3 9.82 5.84 10.8 9.56 6.19
16 12.9 12.0 4.25 12.5 11.8 4.52 12.1 11.5 4.80 11.7 11.3 5.11 11.3 11.0 5.43 10.9 10.7 5.75 10.4 10.4 6.09
14 12.6 12.6 4.21 12.3 12.3 4.49 12.0 11.9 4.78 11.6 11.6 5.09 11.2 11.2 5.41 10.8 10.8 5.75 10.4 10.4 6.09
22 15.6 8.26 4.60 15.1 8.08 4.89 14.6 7.89 5.19 14.1 7.71 5.51 13.5 7.51 5.86 13.0 7.32 6.22 12.4 7.13 6.59
20 14.7 9.96 4.51 14.2 9.78 4.79 13.7 9.59 5.08 13.2 9.39 5.39 12.7 9.19 5.73 12.2 9.00 6.08 11.7 8.80 6.44
750
18 13.9 11.6 4.42 13.4 11.4 4.69 13.0 11.2 4.98 12.5 10.9 5.29 12.0 10.7 5.62 11.6 10.4 5.97 11.1 10.1 6.32
16 13.3 12.8 4.35 12.9 12.5 4.63 12.5 12.2 4.92 12.0 12.0 5.22 11.6 11.6 5.56 11.2 11.2 5.90 10.8 10.8 6.25
14 13.1 13.1 4.34 12.8 12.7 4.62 12.4 12.4 4.91 12.0 12.0 5.22 11.6 11.6 5.56 11.2 11.2 5.90 10.8 10.8 6.25
22 15.8 8.64 4.70 15.3 8.45 4.99 14.8 8.27 5.29 14.2 8.08 5.61 13.7 7.89 5.95 13.1 7.69 6.31 12.5 7.50 6.69
20 14.9 10.5 4.60 14.4 10.3 4.88 13.9 10.2 5.18 13.4 9.96 5.49 12.9 9.75 5.83 12.3 9.55 6.18 11.8 9.35 6.54
850
18 14.1 12.3 4.51 13.6 12.0 4.79 13.2 11.8 5.08 12.7 11.5 5.40 12.3 11.1 5.74 11.8 10.8 6.09 11.3 10.5 6.45
16 13.6 13.4 4.45 13.2 13.1 4.73 12.8 12.8 5.03 12.4 12.4 5.34 11.9 11.9 5.68 11.5 11.5 6.04 11.1 11.1 6.40
14 13.5 13.5 4.45 13.1 13.1 4.73 12.8 12.8 5.03 12.4 12.4 5.34 11.9 11.9 5.68 11.5 11.5 6.04 11.1 11.1 6.40
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 0.98 1.00
060 1.03 1.01 060 1.00 1.01
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
38YCC060-90, 92 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section
22 19.1 9.97 5.49 18.5 9.74 5.88 17.9 9.52 6.30 17.2 9.28 6.76 16.5 9.05 7.25 15.8 8.80 7.78 15.1 8.55 8.33
20 18.0 12.0 5.35 17.4 11.7 5.73 16.8 11.5 6.15 16.2 11.3 6.60 15.5 11.0 7.09 14.9 10.8 7.60 14.2 10.5 8.15
850
18 16.9 13.9 5.22 16.4 13.7 5.60 15.8 13.4 6.02 15.2 13.2 6.46 14.7 12.9 6.95 14.1 12.5 7.47 13.5 12.1 8.01
16 16.1 15.4 5.13 15.6 15.1 5.51 15.2 14.8 5.93 14.6 14.4 6.37 14.1 14.0 6.86 13.6 13.6 7.38 13.0 13.0 7.93
14 15.9 15.9 5.10 15.5 15.4 5.49 15.0 15.0 5.91 14.6 14.6 6.36 14.1 14.1 6.86 13.6 13.6 7.38 13.1 13.1 7.93
22 19.2 10.2 5.55 18.6 9.94 5.94 17.9 9.71 6.36 17.3 9.48 6.82 16.6 9.25 7.31 15.9 9.00 7.84 15.2 8.76 8.39
20 18.1 12.3 5.41 17.5 12.0 5.79 16.9 11.8 6.21 16.2 11.6 6.66 15.6 11.3 7.15 14.9 11.1 7.66 14.3 10.8 8.21
900
18 17.0 14.3 5.28 16.5 14.1 5.66 15.9 13.8 6.08 15.4 13.5 6.52 14.8 13.1 7.01 14.2 12.8 7.53 13.6 12.3 8.08
16 16.3 15.8 5.19 15.8 15.5 5.58 15.3 15.1 5.99 14.8 14.7 6.44 14.3 14.3 6.93 13.8 13.8 7.46 13.2 13.2 8.01
14 16.1 16.1 5.17 15.7 15.7 5.56 15.2 15.2 5.98 14.8 14.8 6.44 14.3 14.3 6.94 13.8 13.8 7.46 13.2 13.2 8.01
22 19.3 10.4 5.61 18.7 10.1 6.00 18.1 9.92 6.42 17.4 9.68 6.88 16.7 9.45 7.37 16.0 9.20 7.90 15.2 8.95 8.45
20 18.2 12.6 5.46 17.6 12.3 5.85 17.0 12.1 6.26 16.3 11.9 6.71 15.7 11.6 7.20 15.0 11.4 7.72 14.3 11.1 8.26
950
18 17.1 14.7 5.33 16.6 14.4 5.72 16.0 14.1 6.13 15.5 13.8 6.58 14.9 13.4 7.08 14.3 13.0 7.60 13.7 12.6 8.15
16 16.5 16.1 5.25 16.0 15.8 5.64 15.5 15.4 6.06 15.0 15.0 6.51 14.5 14.5 7.01 13.9 13.9 7.53 13.4 13.4 8.09
14 16.3 16.3 5.24 15.9 15.9 5.63 15.4 15.4 6.05 15.0 15.0 6.51 14.5 14.5 7.01 13.9 13.9 7.53 13.4 13.4 8.09
22 19.4 10.6 5.66 18.8 10.3 6.06 18.1 10.1 6.47 17.4 9.87 6.93 16.7 9.64 7.43 16.0 9.39 7.95 15.3 9.14 8.50
20 18.3 12.9 5.51 17.6 12.6 5.90 17.0 12.4 6.32 16.4 12.2 6.77 15.7 11.9 7.26 15.1 11.7 7.77 14.3 11.4 8.32
1000
18 17.3 15.0 5.39 16.7 14.7 5.78 16.2 14.4 6.19 15.6 14.0 6.65 15.0 13.6 7.14 14.4 13.2 7.66 13.8 12.8 8.21
16 16.6 16.4 5.31 16.1 16.0 5.70 15.6 15.6 6.12 15.1 15.1 6.58 14.6 14.6 7.08 14.1 14.1 7.60 13.5 13.5 8.16
14 16.6 16.5 5.31 16.1 16.1 5.70 15.6 15.6 6.12 15.1 15.1 6.58 14.6 14.6 7.08 14.1 14.1 7.60 13.5 13.5 8.16
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.99 1.00
FB4ASB 070 1.02 1.02 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation and connected by 4.55m of tubing. If other than 4.55m of
tubing is used and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡ Sensible capacities shown are based on 27°C entering air at the indoor coil. For sensible capacities at other than 27°C, deduct 245 kw per 480
L/S of indoor coil air for each degree below 27°C, or add 245 kw per 480 L/S of indoor coil air per degree above 27°C.
** System kw is total of indoor and outdoor unit kilowatt’s.
EWB— Entering Wet Bulb
L/S — Liters per second
Cooling
14
Page 15
Detailed cooling capacities* (English)
CONDENSER ENTERING AIR TEMPERATURES °F
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
CFM
COIL
AIR
75 85 95 105 115 125
Capacity
(F)
EWB
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Sys.
Power
Kw**
Capacity
MBtuh†
38YCC024-70 Outdoor Section With F(A,B)4ASF024 Indoor Section
72 27.9 13.5 2.43 26.4 12.9 2.60 24.8 12.3 2.76 23.3 11.7 2.92 21.7 11.2 3.08 20.0 10.6 3.22
67 25.4 16.7 2.35 24.0 16.1 2.51 22.6 15.5 2.66 21.1 14.9 2.81 19.6 14.3 2.95 18.1 13.7 3.08
700
62 23.1 19.9 2.27 21.8 19.3 2.42 20.5 18.7 2.56 19.2 18.0 2.70 17.8 17.3 2.84 16.5 16.5 2.97
57 21.9 21.9 2.22 20.8 20.8 2.38 19.8 19.8 2.53 18.7 18.7 2.68 17.6 17.6 2.83 16.5 16.5 2.97
72 28.5 14.1 2.49 26.9 13.5 2.66 25.3 12.9 2.83 23.6 12.3 2.98 22.0 11.7 3.14 20.3 11.1 3.28
67 26.0 17.7 2.40 24.5 17.1 2.56 23.0 16.5 2.72 21.5 15.9 2.87 19.9 15.3 3.01 18.3 14.7 3.15
800
62 23.7 21.3 2.32 22.3 20.6 2.48 21.0 19.9 2.63 19.6 19.2 2.77 18.3 18.3 2.91 17.1 17.1 3.05
57 22.8 22.8 2.29 21.7 21.7 2.45 20.6 20.6 2.61 19.5 19.5 2.76 18.3 18.3 2.91 17.1 17.1 3.06
72 29.0 14.6 2.54 27.3 14.0 2.71 25.7 13.4 2.88 23.9 12.8 3.04 22.2 12.3 3.19 20.5 11.7 3.34
67 26.4 18.7 2.46 24.9 18.1 2.62 23.4 17.5 2.77 21.8 16.8 2.93 20.2 16.2 3.07 18.6 15.6 3.20
900
62 24.2 22.6 2.38 22.8 21.9 2.53 21.4 21.1 2.68 20.1 20.1 2.83 18.9 18.9 2.99 17.6 17.6 3.13
57 23.6 23.6 2.36 22.5 22.5 2.52 21.3 21.3 2.68 20.1 20.1 2.83 18.9 18.9 2.99 17.6 17.6 3.13
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.97 1.02
030 1.02 1.00 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
38YCC036-70, 90 Outdoor Section With F(A,B)4ASF036 Indoor Section
72 42.5 20.8 3.43 40.2 19.9 3.67 37.9 19.1 3.91 35.6 18.2 4.14 33.2 17.4 4.36 30.7 16.5 4.57
1050
1200
1350
See notes on pg. 16.
67 38.6 25.9 3.31 36.5 25.1 3.54 34.3 24.2 3.76 32.1 23.3 3.98 29.9 22.4 4.18 27.6 21.5 4.38
62 35.0 31.0 3.20 33.1 30.0 3.42 31.2 29.1 3.63 29.2 28.1 3.83 27.3 27.0 4.04 25.4 25.4 4.24
57 33.5 33.5 3.15 31.9 31.9 3.37 30.4 30.4 3.60 28.8 28.8 3.81 27.1 27.1 4.03 25.4 25.4 4.24
72 43.4 21.7 3.52 41.1 20.9 3.76 38.6 20.0 4.00 36.2 19.1 4.23 33.7 18.3 4.45 31.1 17.4 4.67
67 39.4 27.6 3.39 37.2 26.7 3.62 35.0 25.8 3.85 32.6 24.9 4.07 30.3 23.9 4.27 28.0 23.0 4.47
62 35.9 33.1 3.28 33.9 32.1 3.51 31.9 31.0 3.72 30.0 29.8 3.93 28.1 28.1 4.15 26.3 26.3 4.36
57 34.9 34.9 3.25 33.2 33.2 3.48 31.6 31.6 3.71 29.9 29.9 3.93 28.1 28.1 4.15 26.3 26.3 4.36
72 44.1 22.6 3.60 41.7 21.8 3.84 39.2 20.9 4.08 36.7 20.0 4.31 34.0 19.2 4.54 31.4 18.3 4.75
67 40.1 29.1 3.47 37.8 28.2 3.70 35.4 27.3 3.93 33.1 26.4 4.15 30.7 25.4 4.36 28.4 24.5 4.56
62 36.6 35.1 3.37 34.6 33.9 3.59 32.6 32.6 3.81 30.8 30.8 4.04 29.0 29.0 4.26 27.1 27.1 4.48
57 36.0 36.0 3.35 34.3 34.3 3.58 32.6 32.6 3.81 30.8 30.8 4.04 29.0 29.0 4.26 27.1 27.1 4.48
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.98 1.00
F(A,B)4AS(F,B) 042 1.02 0.99 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
Sys.
Power
Kw**
15
Page 16
Detailed cooling capacities* (English) continued
CONDENSER ENTERING AIR TEMPERATURES °F
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
Capacity
MBtuh†
Sys.
Power
Kw**
CFM
COIL
AIR
75 85 95 105 115 125
Capacity
(F)
EWB
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Sys.
Power
Kw**
Capacity
MBtuh†
38YCC048-70, 90, 92 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section
72 54.5 27.0 4.24 52.3 26.2 4.62 49.9 25.3 5.04 47.5 24.4 5.48 44.9 23.5 5.96 42.4 22.7 6.48
1400
1600
1800
67 50.1 34.3 4.12 48.0 33.4 4.49 45.8 32.5 4.88 43.6 31.6 5.31 41.2 30.7 5.78 38.8 29.8 6.27
62 46.0 41.3 4.00 44.1 40.4 4.36 42.1 39.4 4.75 40.1 38.4 5.17 38.0 37.3 5.61 35.7 35.7 6.08
57 44.4 44.4 3.96 42.8 42.8 4.32 41.2 41.2 4.71 39.5 39.5 5.15 37.8 37.8 5.60 35.8 35.8 6.08
72 55.4 28.2 4.34 53.1 27.4 4.72 50.6 26.5 5.13 48.1 25.6 5.58 45.4 24.7 6.06 42.8 23.8 6.58
67 51.0 36.3 4.21 48.8 35.5 4.58 46.5 34.6 4.98 44.1 33.7 5.41 41.7 32.7 5.88 39.3 31.8 6.37
62 46.9 44.1 4.10 45.0 43.1 4.46 43.0 42.0 4.85 41.0 40.7 5.27 39.0 39.0 5.74 37.0 37.0 6.23
57 46.0 46.0 4.07 44.4 44.4 4.44 42.6 42.6 4.84 40.9 40.9 5.27 39.0 39.0 5.74 37.0 37.0 6.23
72 56.1 29.4 4.43 53.7 28.5 4.81 51.2 27.6 5.22 48.6 26.8 5.67 45.9 25.8 6.15 43.1 24.9 6.67
67 51.6 38.4 4.30 49.4 37.5 4.67 47.1 36.6 5.07 44.6 35.6 5.50 42.1 34.7 5.97 39.7 33.7 6.47
62 47.8 46.6 4.19 45.8 45.4 4.55 43.9 43.9 4.95 41.9 41.9 5.39 40.0 40.0 5.86 38.0 38.0 6.37
57 47.4 47.4 4.18 45.7 45.7 4.55 43.8 43.8 4.95 42.0 42.0 5.39 40.0 40.0 5.86 38.0 38.0 6.37
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 0.98 1.00
060 1.03 1.01 060 1.00 1.01
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
38YCC060-90, 92 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section
72 67.5 33.7 5.11 64.7 32.7 5.61 61.8 31.6 6.18 58.6 30.5 6.81 55.5 29.4 7.51 52.0 28.2 8.27
1750
1900
2000
2150
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡ Sensible capacities shown are based on 80°F entering air at the indoor coil. For sensible capacities at other than 80°F, deduct 835 Btuh per 1000
** System kw is total of indoor and outdoor unit kilowatts.
EWB — Entering Wet Bulb
67 61.9 43.0 4.91 59.3 41.9 5.41 56.5 40.8 5.97 53.7 39.7 6.59 50.8 38.6 7.27 47.6 37.3 8.02
62 56.8 52.0 4.74 54.5 50.9 5.24 52.0 49.6 5.79 49.5 48.3 6.41 47.0 46.8 7.09 44.4 44.4 7.84
57 55.2 55.2 4.69 53.3 53.3 5.20 51.3 51.3 5.76 49.1 49.1 6.39 46.9 46.9 7.09 44.4 44.4 7.84
72 68.1 34.6 5.19 65.2 33.6 5.70 62.1 32.5 6.26 59.0 31.4 6.89 55.8 30.3 7.59 52.3 29.1 8.36
67 62.5 44.6 4.99 59.8 43.5 5.49 57.0 42.4 6.05 54.1 41.3 6.67 51.2 40.1 7.36 47.9 38.9 8.11
62 57.6 54.2 4.83 55.2 53.0 5.32 52.8 51.7 5.88 50.2 50.1 6.50 47.9 47.9 7.19 45.2 45.2 7.96
57 56.4 56.4 4.79 54.5 54.5 5.30 52.3 52.3 5.87 50.1 50.1 6.50 47.8 47.8 7.20 45.3 45.3 7.96
72 68.6 35.2 5.24 65.6 34.2 5.75 62.6 33.1 6.32 59.3 32.0 6.95 56.0 30.9 7.65 52.5 29.7 8.41
67 62.8 45.7 5.04 60.1 44.6 5.54 57.3 43.5 6.10 54.4 42.4 6.72 51.3 41.1 7.41 48.0 39.9 8.16
62 58.0 55.6 4.88 55.6 54.3 5.38 53.1 52.8 5.93 50.8 50.8 6.56 48.4 48.4 7.26 45.7 45.7 8.03
57 57.2 57.2 4.86 55.1 55.1 5.36 53.0 53.0 5.93 50.7 50.7 6.57 48.4 48.4 7.26 45.7 45.7 8.03
72 69.0 36.1 5.32 66.0 35.1 5.83 62.9 34.0 6.39 59.6 32.9 7.03 56.2 31.8 7.73 52.7 30.6 8.49
67 63.3 47.2 5.12 60.5 46.1 5.62 57.7 45.0 6.18 54.7 43.9 6.80 51.6 42.7 7.49 48.3 41.4 8.24
62 58.7 57.5 4.96 56.2 55.9 5.46 53.9 53.9 6.03 51.6 51.6 6.66 49.1 49.1 7.36 46.5 46.5 8.13
57 58.2 58.2 4.95 56.1 56.1 5.46 53.9 53.9 6.03 51.5 51.5 6.66 49.1 49.1 7.36 46.5 46.5 8.13
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.99 1.00
FB4ASB 070 1.02 1.02 — — —
Capacity Power Capacity Power
Cooling
Indoor
Section Size
Cooling
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation and connected by 25 ft of tubing. If other than 25 ft of
tubing is used and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
CFM of indoor coil air for each degree below 80°F, or add 835 Btuh per 1000 CFM of indoor coil air per degree above 80°F.
16
Page 17
Heat pump heating performance (S.I.)
OUTDOOR COIL ENTERING AIR TEMPERATURES
INDOOR
AIR
(C)
EDB L/ S Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw*
–16 –8 0 4 8 12 16 20
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
38YCC024-70 Outdoor Section With F(A,B)4ASF024 Indoor Section
340 3.39 3.12 1.39 4.44 4.04 1.63 5.64 5.08 1.90 6.32 5.90 2.05 7.04 7.01 2.22 7.87 7.87 2.42 8.75 8.75 2.64 9.67 9.67 2.88
12
380 3.44 3.17 1.41 4.51 4.10 1.65 5.73 5.16 1.91 6.42 5.99 2.06 7.15 7.11 2.22 7.98 7.98 2.42 8.88 8.88 2.64 9.82 9.82 2.88
420 3.49 3.21 1.43 4.56 4.15 1.66 5.80 5.21 1.92 6.49 6.05 2.07 7.22 7.18 2.23 8.06 8.06 2.43 8.97 8.97 2.65 9.93 9.93 2.89
340 3.28 3.01 1.41 4.33 3.94 1.66 5.51 4.96 1.94 6.18 5.76 2.10 6.89 6.86 2.27 7.70 7.70 2.47 8.57 8.57 2.70 9.48 9.48 2.95
15
380 3.33 3.06 1.43 4.39 4.00 1.68 5.60 5.04 1.95 6.28 5.85 2.11 6.99 6.96 2.28 7.82 7.82 2.48 8.70 8.70 2.70 9.63 9.63 2.95
420 3.37 3.10 1.45 4.45 4.05 1.69 5.66 5.09 1.96 6.34 5.91 2.12 7.07 7.03 2.28 7.90 7.90 2.48 8.79 8.79 2.71 9.73 9.73 2.95
340 3.16 2.91 1.43 4.21 3.83 1.69 5.38 4.84 1.98 6.04 5.63 2.14 6.74 6.71 2.32 7.54 7.54 2.53 8.39 8.39 2.76 9.28 9.28 3.01
18
380 3.21 2.95 1.45 4.27 3.89 1.71 5.46 4.92 1.99 6.13 5.71 2.15 6.84 6.81 2.33 7.65 7.65 2.54 8.52 8.52 2.77 9.43 9.43 3.01
420 3.26 3.00 1.47 4.33 3.94 1.72 5.53 4.97 2.01 6.20 5.78 2.17 6.92 6.89 2.34 7.74 7.74 2.54 8.61 8.61 2.77 9.54 9.54 3.02
340 3.05 2.80 1.44 4.10 3.73 1.72 5.25 4.73 2.02 5.89 5.49 2.19 6.59 6.56 2.37 7.37 7.37 2.59 8.21 8.21 2.83 9.08 9.08 3.08
21
380 3.10 2.85 1.47 4.16 3.78 1.74 5.33 4.80 2.03 5.98 5.58 2.20 6.69 6.66 2.38 7.49 7.49 2.59 8.34 8.34 2.83 9.23 9.23 3.08
420 3.14 2.89 1.49 4.21 3.83 1.75 5.39 4.85 2.05 6.06 5.65 2.21 6.77 6.74 2.39 7.58 7.58 2.60 8.44 8.44 2.83 9.35 9.35 3.09
340 2.92 2.69 1.46 3.98 3.63 1.75 5.12 4.61 2.06 5.75 5.36 2.23 6.43 6.40 2.42 7.20 7.20 2.64 8.02 8.02 2.89 8.88 8.88 3.14
24
380 2.98 2.74 1.48 4.04 3.68 1.76 5.19 4.68 2.07 5.84 5.44 2.25 6.53 6.50 2.43 7.32 7.32 2.65 8.15 8.15 2.89 9.03 9.03 3.14
420 3.02 2.78 1.50 4.10 3.73 1.78 5.26 4.73 2.09 5.91 5.51 2.26 6.61 6.58 2.44 7.41 7.41 2.66 8.26 8.26 2.89 9.14 9.14 3.15
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Capacity Power Capacity Power
Indoor
Section Size
F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.99 1.05
030 1.00 0.99 — — —
38YCC036-70, 90 Outdoor Section With F(A,B)4ASF036 Indoor Section
500 5.42 4.98 2.22 7.03 6.40 2.49 8.86 7.98 2.78 9.93 9.26 2.95 11.1 11.0 3.14 12.3 12.3 3.36 13.7 13.7 3.61 15.1 15.1 3.88
2
560 5.49 5.05 2.26 7.13 6.49 2.52 9.00 8.10 2.80 10.1 9.40 2.97 11.2 11.2 3.14 12.5 12.5 3.36 13.9 13.9 3.60 15.3 15.3 3.87
640 5.60 5.15 2.31 7.26 6.60 2.56 9.15 8.23 2.83 10.2 9.54 2.99 11.4 11.4 3.16 12.7 12.7 3.37 14.1 14.1 3.62 15.6 15.6 3.88
500 5.22 4.80 2.25 6.84 6.22 2.54 8.65 7.79 2.84 9.70 9.04 3.02 10.8 10.8 3.21 12.1 12.1 3.44 13.4 13.4 3.69 14.8 14.8 3.97
15
560 5.30 4.87 2.28 6.94 6.32 2.57 8.78 7.90 2.86 9.84 9.17 3.04 11.0 10.9 3.22 12.2 12.2 3.44 13.6 13.6 3.69 15.0 15.0 3.96
640 5.41 4.97 2.34 7.06 6.43 2.61 8.93 8.03 2.90 10.0 9.32 3.06 11.1 11.1 3.24 12.4 12.4 3.46 13.8 13.8 3.70 15.2 15.2 3.97
500 5.02 4.62 2.27 6.65 6.05 2.58 8.44 7.60 2.91 9.46 8.82 3.09 10.6 10.5 3.29 11.8 11.8 3.52 13.1 13.1 3.78 14.4 14.4 4.06
18
560 5.11 4.69 2.31 6.75 6.14 2.61 8.57 7.71 2.93 9.60 8.95 3.11 10.7 10.7 3.30 12.0 12.0 3.52 13.3 13.3 3.78 14.7 14.7 4.05
640 5.21 4.79 2.37 6.87 6.25 2.66 8.71 7.84 2.96 9.76 9.10 3.13 10.9 10.8 3.32 12.2 12.2 3.54 13.5 13.5 3.79 14.9 14.9 4.06
500 4.83 4.44 2.30 6.46 5.88 2.63 8.23 7.40 2.97 9.22 8.60 3.16 10.3 10.2 3.36 11.5 11.5 3.60 12.8 12.8 3.86 14.1 14.1 4.14
21
560 4.91 4.52 2.34 6.56 5.97 2.66 8.35 7.52 2.99 9.37 8.73 3.18 10.5 10.4 3.38 11.7 11.7 3.61 13.0 13.0 3.86 14.3 14.3 4.14
640 5.02 4.61 2.40 6.68 6.08 2.71 8.49 7.64 3.03 9.53 8.88 3.21 10.6 10.6 3.40 11.9 11.9 3.62 13.2 13.2 3.88 14.6 14.6 4.15
500 4.61 4.24 2.33 6.26 5.70 2.67 8.01 7.21 3.03 8.99 8.38 3.22 10.0 9.99 3.44 11.2 11.2 3.68 12.4 12.4 3.95 13.7 13.7 4.23
24
560 4.70 4.32 2.37 6.36 5.79 2.70 8.14 7.32 3.05 9.13 8.51 3.24 10.2 10.1 3.45 11.4 11.4 3.69 12.7 12.7 3.95 14.0 14.0 4.23
640 4.81 4.42 2.42 6.48 5.90 2.75 8.28 7.45 3.09 9.29 8.66 3.28 10.4 10.3 3.48 11.6 11.6 3.71 12.9 12.9 3.96 14.2 14.2 4.24
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Heating
F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.99 1.01
F(A,B)4AS(F,B) 042 1.00 0.97 — — —
See notes on pg. 18.
Indoor
Section Size
°C
CapacityKwTotal
Power
CapacityKwTotal
Power
Heating
Heating
CapacityKwTotal
Power
17
Page 18
Heat pump heating performance (S.I.) continued
OUTDOOR COIL ENTERING AIR TEMPERATURES
INDOOR
AIR
(C)
EDB L/ S Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw*
–16 –8 0 4 8 12 16 20
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
38YCC048-70, 90, 92 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section
650 6.41 5.89 3.05 8.38 7.63 3.25 10.9 9.79 3.48 12.3 11.5 3.61 13.9 13.8 3.75 15.8 15.8 3.92 17.8 17.8 4.12 20.1 20.1 4.34
12
750 6.48 5.96 3.08 8.49 7.72 3.27 11.0 9.92 3.49 12.4 11.6 3.60 13.9 13.9 3.72 15.9 15.9 3.89 18.1 18.1 4.08 20.4 20.4 4.30
850 6.56 6.03 3.13 8.58 7.81 3.31 11.1 9.99 3.50 12.5 11.7 3.61 14.2 14.2 3.74 16.1 16.1 3.88 18.2 18.2 4.05 20.4 20.4 4.25
650 6.35 5.84 3.19 8.33 7.58 3.40 10.8 9.71 3.64 12.2 11.4 3.78 13.8 13.7 3.93 15.6 15.6 4.11 17.7 17.7 4.32 19.9 19.9 4.55
15
750 6.43 5.91 3.23 8.42 7.67 3.42 10.9 9.82 3.64 12.3 11.5 3.77 13.8 13.8 3.89 15.8 15.8 4.07 17.9 17.9 4.27 20.1 20.1 4.49
850 6.50 5.98 3.27 8.52 7.75 3.45 11.0 9.90 3.66 12.4 11.6 3.77 14.1 14.0 3.91 15.9 15.9 4.06 18.0 18.0 4.24 20.2 20.2 4.45
650 6.29 5.79 3.34 8.27 7.52 3.55 10.7 9.62 3.80 12.1 11.3 3.95 13.6 13.6 4.10 15.5 15.5 4.30 17.5 17.5 4.52 19.7 19.7 4.76
18
750 6.37 5.86 3.37 8.36 7.61 3.57 10.8 9.72 3.80 12.2 11.4 3.93 13.7 13.7 4.07 15.6 15.6 4.25 17.7 17.7 4.46 19.9 19.9 4.69
850 6.44 5.92 3.41 8.45 7.69 3.60 10.9 9.81 3.81 12.3 11.5 3.94 13.9 13.8 4.07 15.8 15.8 4.24 17.8 17.8 4.43 20.0 20.0 4.65
650 6.24 5.73 3.48 8.21 7.47 3.70 10.6 9.54 3.96 12.0 11.2 4.11 13.5 13.4 4.28 15.3 15.3 4.48 17.3 17.3 4.72 19.4 19.4 4.96
21
750 6.31 5.80 3.51 8.30 7.55 3.71 10.7 9.63 3.96 12.1 11.3 4.09 13.6 13.6 4.25 15.5 15.5 4.44 17.5 17.5 4.65 19.6 19.6 4.88
850 6.39 5.87 3.54 8.39 7.63 3.74 10.8 9.72 3.97 12.2 11.4 4.10 13.7 13.7 4.24 15.6 15.6 4.42 17.7 17.7 4.62 19.8 19.8 4.84
650 6.20 5.70 3.64 8.18 7.44 3.86 10.5 9.46 4.13 11.9 11.1 4.29 13.4 13.3 4.46 15.1 15.1 4.67 17.1 17.1 4.91 19.2 19.2 5.18
24
750 6.27 5.76 3.66 8.25 7.51 3.87 10.6 9.55 4.12 12.0 11.2 4.27 13.5 13.4 4.43 15.3 15.3 4.63 17.3 17.3 4.85 19.4 19.4 5.09
850 6.34 5.83 3.70 8.31 7.57 3.89 10.7 9.63 4.13 12.1 11.3 4.27 13.6 13.6 4.42 15.5 15.5 4.61 17.5 17.5 4.82 19.6 19.6 5.05
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Capacity Power Capacity Power
Indoor
Section Size
F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 1.00 1.03
060 0.99 0.96 060 1.00 1.02
38YCC060-90, 92 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section
850 9.46 8.70 3.51 11.7 10.6 3.72 14.3 12.8 4.00 15.7 14.7 4.17 17.4 17.3 4.37 19.4 19.4 4.65 21.6 21.6 4.98 24.0 24.0 5.34
900 9.50 8.73 3.53 11.7 10.7 3.73 14.3 12.9 4.00 15.8 14.7 4.17 17.4 17.3 4.36 19.4 19.4 4.64 21.8 21.8 4.97 24.3 24.3 5.33
12
950 9.54 8.77 3.55 11.7 10.7 3.74 14.4 12.9 4.01 15.9 14.8 4.18 17.5 17.4 4.37 19.5 19.5 4.64 21.7 21.7 4.96 24.0 24.0 5.32
1000 9.59 8.81 3.57 11.8 10.7 3.76 14.4 13.0 4.02 15.9 14.9 4.19 17.6 17.5 4.38 19.6 19.6 4.65 21.7 21.7 4.97 24.0 24.0 5.32
850 9.42 8.66 3.73 11.6 10.6 3.96 14.2 12.8 4.25 15.7 14.6 4.43 17.3 17.2 4.64 19.2 19.2 4.93 21.4 21.4 5.26 23.7 23.7 5.63
900 9.46 8.70 3.75 11.7 10.6 3.97 14.3 12.8 4.25 15.7 14.7 4.43 17.3 17.3 4.63 19.3 19.3 4.91 21.5 21.5 5.24 23.9 23.9 5.61
15
950 9.51 8.74 3.77 11.7 10.6 3.98 14.3 12.9 4.26 15.8 14.7 4.43 17.4 17.3 4.64 19.4 19.4 4.91 21.5 21.5 5.23 23.7 23.7 5.60
1000 9.55 8.78 3.79 11.7 10.7 4.00 14.4 12.9 4.27 15.9 14.8 4.44 17.5 17.4 4.64 19.4 19.4 4.91 21.6 21.6 5.23 23.8 23.8 5.60
850 9.38 8.63 3.95 11.6 10.5 4.20 14.1 12.7 4.51 15.6 14.5 4.69 17.2 17.1 4.91 19.1 19.1 5.20 21.2 21.2 5.54 23.4 23.4 5.91
900 9.43 8.67 3.97 11.6 10.6 4.20 14.2 12.8 4.50 15.6 14.6 4.69 17.3 17.2 4.90 19.2 19.2 5.18 21.3 21.3 5.52 23.6 23.6 5.89
18
950 9.47 8.70 3.99 11.6 10.6 4.21 14.2 12.8 4.51 15.7 14.6 4.69 17.3 17.2 4.90 19.2 19.2 5.18 21.3 21.3 5.51 23.5 23.5 5.88
1000 9.51 8.74 4.01 11.7 10.6 4.23 14.3 12.9 4.52 15.8 14.7 4.69 17.4 17.3 4.90 19.3 19.3 5.18 21.4 21.4 5.50 23.6 23.6 5.87
850 9.34 8.59 4.17 11.5 10.5 4.44 14.1 12.7 4.76 15.5 14.4 4.96 17.1 17.0 5.19 18.9 18.9 5.48 21.0 21.0 5.82 23.1 23.1 6.20
900 9.39 8.63 4.19 11.6 10.5 4.44 14.1 12.7 4.76 15.6 14.5 4.95 17.2 17.1 5.17 19.0 19.0 5.46 21.0 21.0 5.79 23.2 23.2 6.17
21
950 9.43 8.67 4.21 11.6 10.6 4.45 14.2 12.8 4.76 15.6 14.6 4.94 17.2 17.2 5.16 19.1 19.1 5.45 21.1 21.1 5.78 23.3 23.3 6.15
1000 9.47 8.71 4.23 11.6 10.6 4.46 14.2 12.8 4.77 15.7 14.6 4.95 17.3 17.2 5.16 19.2 19.2 5.44 21.2 21.2 5.77 23.4 23.4 6.14
850 9.29 8.54 4.40 11.5 10.5 4.69 14.0 12.6 5.03 15.4 14.4 5.23 16.9 16.9 5.46 18.8 18.8 5.77 20.8 20.8 6.12 22.9 22.9 6.52
900 9.34 8.59 4.42 11.5 10.5 4.69 14.1 12.6 5.02 15.5 14.4 5.21 17.0 16.9 5.44 18.9 18.9 5.74 20.9 20.9 6.09 23.0 23.0 6.48
24
950 9.38 8.62 4.43 11.6 10.5 4.70 14.1 12.7 5.02 15.5 14.5 5.21 17.1 17.0 5.43 18.9 18.9 5.72 21.0 21.0 6.07 23.1 23.1 6.45
1000 9.43 8.67 4.45 11.6 10.6 4.71 14.2 12.7 5.02 15.6 14.5 5.21 17.1 17.1 5.43 19.0 19.0 5.72 21.0 21.0 6.06 23.2 23.2 6.44
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Heating
F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.99 1.03
FB4ASB 070 0.99 0.95 — — —
* The kw values include the compressor, outdoor fan motor, and indoor blower motor. The kw from supplement heaters should be added to these
values to obtain total system kilowatts.
† The kw heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The kw heating from supple-
ment heaters should be added to those values to obtain total system capacity.
EDB — Entering Dry Bulb
Indoor
Section Size
°C
CapacityKwTotal
Power
CapacityKwTotal
Power
Heating
Heating
CapacityKwTotal
Power
18
Page 19
Heat pump heating performance (English)
OUTDOOR COIL ENTERING AIR TEMPERATURES
–3 7 172737475767
INDOOR
AIR
(F)
EDB CFM
CapacityKwTotal
Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw*
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
38YCC024-70 Outdoor Section With F(A,B)4ASF024 Indoor Section
700 9.25 8.51 1.32 11.6 10.7 1.49 14.1 12.9 1.68 16.7 14.9 1.87 19.7 18.0 2.09 23.0 23.0 2.34 26.8 26.8 2.64 31.0 31.0 2.99
65
800 9.45 8.69 1.34 11.8 10.9 1.51 14.4 13.1 1.70 17.0 15.1 1.89 20.1 18.3 2.10 23.5 23.5 2.35 27.3 27.3 2.64 31.6 31.6 2.99
900 9.62 8.85 1.37 12.0 11.0 1.54 14.6 13.3 1.72 17.3 15.4 1.91 20.4 18.5 2.12 23.8 23.8 2.36 27.7 27.7 2.65 32.1 32.1 2.99
700 8.87 8.16 1.33 11.2 10.3 1.51 13.8 12.5 1.70 16.4 14.5 1.91 19.3 17.6 2.13 22.6 22.6 2.39 26.3 26.3 2.69 30.4 30.4 3.05
70
800 9.07 8.35 1.35 11.5 10.5 1.53 14.0 12.8 1.72 16.7 14.8 1.92 19.6 17.9 2.14 23.0 23.0 2.40 26.8 26.8 2.70 31.0 31.0 3.05
900 9.25 8.51 1.38 11.6 10.7 1.56 14.2 13.0 1.75 16.9 15.0 1.94 19.9 18.1 2.16 23.3 23.3 2.41 27.2 27.2 2.70 31.5 31.5 3.05
700 8.45 7.77 1.34 10.9 9.99 1.52 13.4 12.2 1.73 16.0 14.2 1.94 18.9 17.2 2.17 22.1 22.1 2.44 25.8 25.8 2.75 29.8 29.8 3.11
75
800 8.66 7.96 1.36 11.1 10.2 1.55 13.6 12.4 1.75 16.3 14.4 1.96 19.2 17.5 2.19 22.5 22.5 2.44 26.3 26.3 2.75 30.4 30.4 3.10
900 8.84 8.14 1.39 11.3 10.4 1.57 13.8 12.6 1.77 16.5 14.6 1.98 19.5 17.7 2.20 22.8 22.8 2.46 26.6 26.6 2.76 30.8 30.8 3.11
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Capacity Power Capacity Power
Indoor
Section Size
F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.99 1.05
030 1.00 0.99 — — —
38YCC036-70, 90 Outdoor Section With F(A,B)4AS(F,B)036 Indoor Section
1050 14.7 13.6 2.15 18.5 17.0 2.35 22.3 20.4 2.57 26.3 23.4 2.79 31.0 28.2 3.03 36.2 36.2 3.31 42.0 42.0 3.64 48.4 48.4 4.03
65
1200 15.1 13.9 2.19 18.8 17.3 2.40 22.7 20.7 2.61 26.8 23.8 2.82 31.6 28.7 3.06 36.8 36.8 3.32 42.8 42.8 3.64 49.3 49.3 4.02
1350 15.4 14.2 2.24 19.1 17.6 2.44 23.1 21.1 2.65 27.2 24.2 2.85 32.0 29.1 3.08 37.3 37.3 3.34 43.4 43.4 3.66 50.0 50.0 4.03
1050 14.0 12.9 2.16 17.9 16.4 2.38 21.7 19.8 2.61 25.7 22.8 2.84 30.3 27.6 3.10 35.3 35.3 3.38 41.0 41.0 3.72 47.3 47.3 4.11
70
1200 14.4 13.2 2.21 18.2 16.7 2.43 22.1 20.2 2.65 26.2 23.2 2.87 30.8 28.1 3.12 36.0 36.0 3.40 41.8 41.8 3.72 48.3 48.3 4.11
1350 14.7 13.5 2.27 18.5 17.0 2.48 22.5 20.5 2.69 26.6 23.6 2.91 31.3 28.5 3.15 36.5 36.5 3.42 42.5 42.5 3.74 49.0 49.0 4.12
1050 13.3 12.2 2.18 17.2 15.8 2.41 21.1 19.3 2.65 25.1 22.3 2.89 29.6 26.9 3.16 34.5 34.5 3.45 40.1 40.1 3.79 46.3 46.3 4.19
75
1200 13.7 12.6 2.23 17.6 16.2 2.45 21.5 19.6 2.69 25.6 22.7 2.92 30.1 27.4 3.18 35.2 35.2 3.47 40.9 40.9 3.80 47.2 47.2 4.19
1350 14.0 12.8 2.28 17.9 16.5 2.50 21.9 20.0 2.73 25.9 23.0 2.96 30.6 27.8 3.21 35.7 35.7 3.49 41.5 41.5 3.81 47.9 47.9 4.20
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Heating
F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.99 1.01
F(A,B)4AS(F,B) 042 1.00 0.97 — — —
See notes on pg. 20.
Indoor
Section Size
°F
CapacityKwTotal
Power
CapacityKwTotal
Power
Heating
Heating
CapacityKwTotal
Power
19
Page 20
Heat pump heating performance (English) continued
OUTDOOR COIL ENTERING AIR TEMPERATURES
–3 7 172737475767
INDOOR
AIR
(F)
EDB CFM
CapacityKwTotal
Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw* Total Integ† Kw*
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
CapacityKwTotal
Power
38YCC048-70, 90, 92 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section
1400 18.7 17.2 3.27 23.2 21.3 3.41 27.9 25.4 3.56 33.3 29.6 3.72 39.6 36.1 3.92 46.9 46.9 4.13 55.8 55.8 4.41 66.0 66.0 4.74
65
1600 18.9 17.4 3.30 23.5 21.6 3.44 28.2 25.7 3.57 33.7 29.9 3.73 40.0 36.4 3.90 47.3 47.3 4.10 56.3 56.3 4.36 66.7 66.7 4.67
1800 19.1 17.6 3.34 23.7 21.8 3.47 28.5 26.0 3.60 34.0 30.2 3.75 40.3 36.6 3.91 47.8 47.8 4.11 56.7 56.7 4.34 67.3 67.3 4.64
1400 18.5 17.1 3.41 23.0 21.1 3.54 27.7 25.3 3.70 33.1 29.4 3.87 39.3 35.7 4.07 46.4 46.4 4.29 55.3 55.3 4.59 65.3 65.3 4.93
70
1600 18.8 17.3 3.43 23.3 21.4 3.56 28.0 25.5 3.71 33.4 29.7 3.87 39.6 36.0 4.05 47.0 47.0 4.27 55.7 55.7 4.53 65.9 65.9 4.85
1800 19.0 17.4 3.47 23.5 21.6 3.60 28.3 25.8 3.74 33.7 30.0 3.89 39.9 36.3 4.06 47.3 47.3 4.26 56.3 56.3 4.51 66.7 66.7 4.82
1400 18.5 17.0 3.57 22.8 21.0 3.68 27.6 25.2 3.85 32.9 29.2 4.02 38.9 35.4 4.23 46.1 46.1 4.47 54.6 54.6 4.76 64.6 64.6 5.12
75
1600 18.7 17.2 3.59 23.1 21.2 3.70 27.8 25.4 3.85 33.1 29.4 4.02 39.3 35.8 4.21 46.6 46.6 4.44 55.2 55.2 4.71 65.4 65.4 5.05
1800 18.9 17.4 3.62 23.3 21.4 3.73 28.1 25.6 3.88 33.4 29.7 4.03 39.6 36.1 4.22 47.0 47.0 4.43 55.7 55.7 4.69 66.0 66.0 5.01
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Capacity Power Capacity Power
Indoor
Section Size
F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 1.00 1.03
060 0.99 0.96 060 1.00 1.02
38YCC060-90, 92 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section
1750 28.9 26.6 3.87 33.8 31.1 4.03 39.0 35.5 4.21 44.9 39.8 4.41 51.4 46.7 4.66 58.9 58.9 4.97 68.0 68.0 5.38 78.3 78.3 5.91
1900 29.1 26.8 3.90 34.0 31.2 4.05 39.2 35.8 4.22 45.1 40.1 4.41 51.7 47.0 4.65 59.3 59.3 4.95 68.4 68.4 5.35 79.2 79.2 5.87
65
2000 29.2 26.9 3.92 34.1 31.4 4.07 39.4 35.9 4.23 45.3 40.2 4.42 51.8 47.2 4.65 59.5 59.5 4.95 68.7 68.7 5.34 79.1 79.1 5.86
2150 29.5 27.1 3.95 34.3 31.5 4.10 39.6 36.1 4.25 45.5 40.4 4.44 52.1 47.4 4.66 59.8 59.8 4.95 69.0 69.0 5.34 79.5 79.5 5.85
1750 28.7 26.4 4.06 33.7 31.0 4.25 38.8 35.4 4.43 44.7 39.7 4.65 51.1 46.5 4.90 58.6 58.6 5.22 67.5 67.5 5.64 77.6 77.6 6.17
1900 28.9 26.6 4.09 33.9 31.2 4.26 39.1 35.6 4.44 45.0 39.9 4.64 51.4 46.8 4.89 59.0 59.0 5.20 67.9 67.9 5.60 78.1 78.1 6.13
70
2000 29.0 26.7 4.11 34.1 31.3 4.28 39.2 35.7 4.45 45.1 40.1 4.65 51.6 46.9 4.89 59.2 59.2 5.19 68.2 68.2 5.59 78.4 78.4 6.11
2150 29.3 26.9 4.14 34.3 31.5 4.30 39.4 35.9 4.47 45.4 40.3 4.66 51.8 47.2 4.89 59.5 59.5 5.19 68.5 68.5 5.59 78.8 78.8 6.10
1750 28.4 26.1 4.26 33.6 30.9 4.47 38.8 35.3 4.66 44.5 39.5 4.89 50.8 46.3 5.15 58.2 58.2 5.48 67.0 67.0 5.92 77.0 77.0 6.47
1900 28.6 26.3 4.28 33.8 31.1 4.48 39.0 35.6 4.67 44.8 39.8 4.88 51.1 46.5 5.14 58.5 58.5 5.45 67.4 67.4 5.87 77.5 77.5 6.41
75
2000 28.8 26.5 4.30 34.0 31.2 4.50 39.1 35.7 4.68 44.9 39.9 4.89 51.3 46.7 5.13 58.7 58.7 5.44 67.6 67.6 5.85 77.8 77.8 6.39
2150 29.0 26.7 4.34 34.2 31.4 4.52 39.4 35.9 4.69 45.1 40.1 4.89 51.5 46.9 5.13 59.0 59.0 5.44 68.0 68.0 5.84 78.2 78.2 6.37
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Heating
F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.99 1.03
FB4ASB 070 0.99 0.95 — — —
* The kw values include the compressor, outdoor fan motor, and indoor blower motor. The kw from supplement heaters should be added to these
values to obtain total system kilowatts.
† The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from sup-
plement heaters should be added to those values to obtain total system capacity.
EDB — Entering Dry Bulb
Indoor
Section Size
°F
CapacityKwTotal
Power
CapacityKwTotal
Power
Heating
Heating
CapacityKwTotal
Power
20
Page 21
System Design
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than
0.01-in. wg.
2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature for cooling mode is 125°F (51.7°C), except for some 3 phase models it is 115°F
(46.7°C).
4. Minimum outdoor operating air temperature for heating mode is –30°F (–34.4°C).
5. Maximum outdoor operating air temperature for heating mode is 66°F (18.9°C).
6. For reliable operation, unit should be level in all horizontal planes.
7. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft (15.24m), indoor coil below
= 150 ft (45.72m). (See items 8 and 9 following.)
8. For interconnecting refrigerant tube lengths greater than 50 ft (15.24m), consult Residential Split System Long-Line Application
Guideline available from equipment distributor.
9. Not more than 36 in. (912mm) of refrigerant tube should be buried in the ground. If necessary to bury tubes under a sidewalk,
provide a minimum 6-in. (152mm) vertical rise to the valve connections at the unit. For buried refrigerant tube lengths, between
3 and 100 ft (0.914 and 30.5m) consult Residential Split System Buried Line Application Guideline.
10. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector
provided.
11. Mixmatches of indoor coil capacity more than 1 size larger than outdoor unit capacity may result in inadequate indoor comfort.
21
Page 22
Guide specifications Air-Cooled, Split-System
Heat Pump
38YCC
2 To 5 Tons Nominal
(7 To 17.5 Kw)
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system heat pump unit
suitable for ground or rooftop installation. Unit consists of a
hermetic compressor, an air-cooled coil, propeller-type
condenser fan, and a control box. Unit will discharge supply air
upward as shown on contract drawings. Unit will be used in a
refrigeration circuit to match up to a packaged fan coil or coil
unit.
Quality Assurance
Unit shall be manufactured in a facility registered to ISO9001/
BS5750 Part II, International Standard for Quality Systems.
Unit will be rated in accordance with the latest edition of ARI
Standard 240.
Unit construction will comply with latest edition of ANSI/
ASHRAE and with NEC (U.S.A. Standard).
Unit will be constructed in accordance with UL standards.
Unit cabinet will be capable of withstanding Federal Test
Method Standard No. 141 (Method 6061) 500-hr salt spray test
(U.S.A. Standard).
Air-cooled condenser coils will be leak tested at
150 psig (1034 KPa) and pressure tested at 300 psig
(2068 KPa).
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and
handled per unit manufacturer’s recommendations.
PRODUCTS
Equipment
Factory-assembled, single piece, air-cooled heat pump unit.
Contained within the unit enclosure will be all factory wiring,
piping, controls, compressor, refrigerant charge (R-22), and
special features required prior to field start-up.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel,
bonderized, and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type, discharging
air upward.
Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Shafts will be corrosion resistant.
Fan blades will be statically and dynamically balanced.
Condenser fan openings will be equipped with
PVC-coated steel wire safety guards.
Compressor
Compressor will be hermetically sealed.
Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically
bonded to copper tubes which are then cleaned, dehydrated, and
sealed.
Refrigeration Components
Refrigeration circuit components will include liquid line
shutoff valve with sweat connections, suction shutoff valves with
sweat connections, system charge of refrigerant R-22,
compressor oil, accumulator, and reversing valve.
Operating Characteristics
The capacity of the unit will meet or exceed ____ Btuh
(____ kw) at a suction temperature of ____ F (____ C). The
power consumption at full load will not exceed ____ kw.
Combination of the unit and the evaporator or fan coil unit will
have a total net cooling capacity of ____ Btuh (____ kw) or
greater at conditions of ____ CFM (____ L/S) entering air
temperature at the evaporator at ____ F (____ C) wet bulb
and ____ F (____ C) dry bulb, and air entering the unit
at ____ F (____ C).
Electrical Requirements
Nominal unit electrical characteristics will be ____ v,
1 phase, 50 hertz. The unit will be capable of satisfactory
operation within voltage limits of ____ v to ____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and
descriptions for specific features and available enhancements.
22
Page 23
23
Page 24
SERVICE TRAINING
Packaged Service Training programs are an excellent way to increase your
knowledge of the equipment discussed in this manual, including:
• Unit Familiarization • Maintenance
• Installation Overview • Operating Sequence
A large selection of product, theory, and skills programs is available, using popular
video-based formats and materials. All include video and/or slides, plus companion
book.
Classroom Service Training plus "hands-on" the products in our labs can mean
increased confidence that really pays dividends in faster troubleshooting, fewer
callbacks. Course descriptions and schedules are in our catalog.
CALL FOR FREE CATALOG 1-800-962-9212
[ ] Packaged Service Training [ ] Classroom Service Training
A94328
Carrier Corporation • Indianapolis, IN 46231 6-97
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4 Page 24 Catalog No. 013-819 Printed in U.S.A. PC 101 Form 38YCC-C1PD
Tab 5a 5a
Replaces: 38YCB-C2PD
Loading...
