Carrier 38YCG Product Data

Download
Page 1

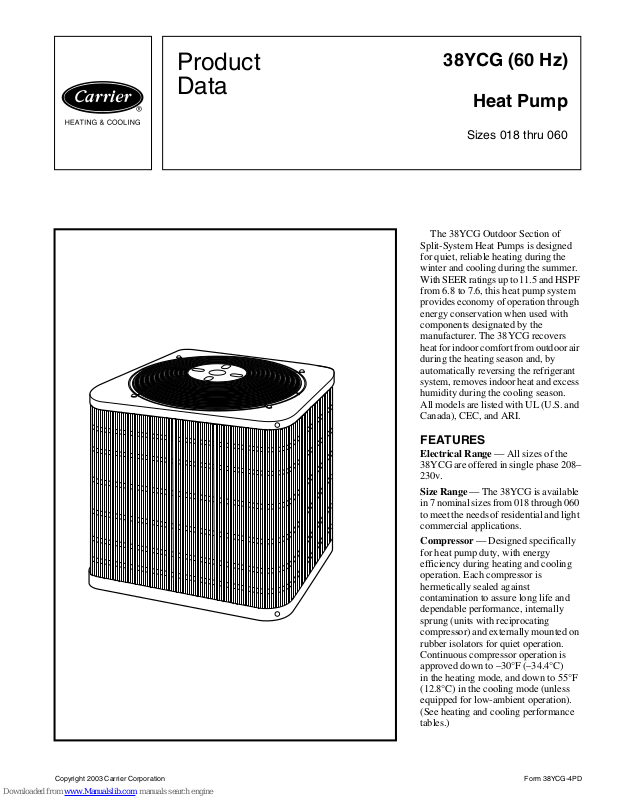

Product Data
38YCG (60 Hz)
Heat Pump
Sizes 018 thru 060
The 38YCG Outdoor Section of Split-System Heat Pumps is designed for quiet, reliable heating during the winter and cooling during the summer. With SEER ratings up to 11.5 and HSPF from 6.8 to 7.6, this heat pump system provides economy of operation through energy conservation when used with components designated by the manufacturer. The 38YCG recovers heat for indoor comfort from outdoor air during the heating season and, by automatically reversing the refrigerant system, removes indoor heat and excess humidity during the cooling season. All models are listed with UL (U.S. and Canada), CEC, and ARI.
FEATURES
Electrical Range — All sizes of the
38YCG are offered in single phase 208– 230v.
Size Range — The 38YCG is available
in 7 nominal sizes from 018 through 060 to meet the needs of residential and light commercial applications.
Compressor — Designed specifically
for heat pump duty, with energy efficiency during heating and cooling operation. Each compressor is hermetically sealed against contamination to assure long life and dependable performance, internally sprung (units with reciprocating compressor) and externally mounted on rubber isolators for quiet operation. Continuous compressor operation is approved down to –30°F (–34.4°C) in the heating mode, and down to 55°F (12.8°C) in the cooling mode (unless equipped for low-ambient operation). (See heating and cooling performance tables.)
Copyright 2003 Carrier Corporation Form 38YCG-4PD
Page 2
2
Reliable Standard Components —
Includes a suction-tube accumulator that reduces the amount of liquid refrigerant that reaches the compressor; a low­pressure switch to stop the compressor if refrigerant charge is lost; a crankcase heater on 036 and 060 sizes to keep compressor oil warm and free of refrigerant for maximum lubricity; an internal compressor relief valve for high­pressure protection.
Discharge Muffler — Minimizes
low frequency sound and pressure pulsation generated by compressor discharge gas.
Defrost Control Board — Incorporates
a defrost relay, defrost timer, and low-voltage terminations. The defrost control is a time and temperature initiation/termination control which includes 3 field-selectable time periods of 30, 50, and 90 minutes.
Weather-Protective Cabinet — The
casing steel is protected with a
galvanized coating and treated with a layer of zinc phosphate. A modified polyester powder coating is then applied and baked on, providing each unit with a hard, smooth finish that will last for many years.
All screws on cabinet exterior are coated for a long-lasting, rust-resistant, quality appearance.
Heavy Duty Inlet Grille —The
WeatherArmor™ coil protector, made of a coated steel wire grid with vertical 3/8­in. spacing, is designed to help protect the coil from inclement weather, vandalism, and incidental damage. It provides protection while not restricting airflow and maintaining ease of coil inspection and cleaning.
Unit Design — All units are equipped
with totally enclosed fan motors for greater reliability under adverse weather conditions. The large, wraparound coil uses copper tube and enhanced aluminum fin and is designed for
optimum heat transfer during heating and cooling. The vertical air discharge carries the sound and air up and away from adjacent patio areas and foliage. Coil can be cleaned with a common garden hose.
External Service Valves — Both
service valves are brass, front seating type. Valves are externally located so refrigerant tube connections can be made quickly and easily. Each valve has a service port for ease of checking operating refrigerant pressures. The 38YCG has sweat field connections.
Additional Standard Features —
Included as standard on this model is compressor protection through factory­installed accumulator and low-pressure switch.
Limited Warranty — Standard 5-year
limited warranty on unit parts and 5-year limited warranty on compressor.
Model number nomenclature
38YCG 018
Standard 10 SEER Split-System Heat Pump
Nominal Capacity
018 — 18,000 Btuh 042 — 42,000 Btuh 024 — 24,000 Btuh 048 — 48,000 Btuh 030 — 30,000 Btuh 060 — 60,000 Btuh 036 — 36,000 Btuh
T
O
D
E
A
I
R
F
I
I
T
A
R
S
E
C
R
E
R
U
T
C
A
F
U
N
A
M
A
R
C
O
A
M
I
R
C
P
O
Y
R
A
T
I
N
U
I
S
L
N
D
Y
I
T
I
N
I
O
G
N
I
N
W
G
I
T
E
T
H
T
Q
N
U
E
I
P
M
0
1
2
D
A
R
N
A
D
CERTIFICATION APPLIES ONLY WHEN THE
COMPLETE SYSTEM IS LISTED WITH ARI.
311
Electrical
3 — 208-230-1
Packaging
Series
REGISTERED QUALITY SYSTEM
Page 3
14
10
8
12
14
16
Physical data
UNIT SIZE 018 024 030 036 042 048 060
SERIES
OPERATING WT (Lb)
COMPRESSOR
Type
REFRIGERANT
Control Charge (Lb) @ 15 ft
CONDENSER FAN
Air Discharge Air Qty (CFM) Motor HP Motor RPM (60 Hz)
CONDENSER COIL
Face Area (Sq Ft) Fins per In. Rows Circuit
CONNECTION (In. ID)
Vapor Liquid
REFRIGERANT TUBES*
(In. OD) Vapor (0–50 Ft Tube Length) Vapor (Max Diameter for
Long-Line Applications) Liquid (0–50 Ft Tube Length) Liquid (For Long-Line
Applications)
* Tube sizes are for lengths up to 50 ft. For lengths over 50 ft and/or 20 ft vertical differential, consult Residential Split-Systems Long-Line Application Guideline.
NOTE: See unit Installation Instructions for proper installation.
32 32 33 33/34 34/36 32/34 32/34
127 143 153/157 176/185 195/197 219 237
Reciprocating Scroll/Reciprocating Scroll
R-22
4.69 4.75 5.63 6.38 7.88 9.25/9.38 10.50/10.25
Propeller Type, Direct Drive
1900 1900 2300 3000 3000 3300 3300
1/12 1/12 1/4 1/4 1/4 1/4 1/4
1100 1125 1125 1100 1100 1100 1100
9.10 9.11 12.42 14.8 18.5 22.40 22.40 20 25 20 20 20 20 25
111 1 111 233 3 445
5/8 5/8 3/4 3/4 7/8 7/8 7/8
5/8 5/8 3/4 3/4 7/8 7/8 1-1/8
3/4 3/4 7/8 7/8 1-1/8 1-1/8 1-1/8
Piston
Vertical
Sweat
3/8
3/8
3/8
UNIT SIZE SERIES
018
024
030
036
036
042
048
060
*Piston listed is for any approved coil combination.
CHARGING SUBCOOLING (TXV-TYPE EXPANSION DEVICE)
036 (33)
036 (34)
048-32/34
METERING DEVICE
OUTDOOR
PISTON
32 40 52
32 49 63
33 55 70
33 61 76
34 57 70
34, 36 63 78
32/34 73/70 88/86
32, 34 76 96
UNIT SIZE
018
024
030
042
060
REQUIRED
SUBCOOLING (°F)
10/15
10
INDOOR PISTON*
3
Page 4
Accessories
ORDERING NUMBER DESCRIPTION
KAATD0101TDR
KSALA0201R22
32LT660004 (RCD)†
HC34GE232 (RCD)
HC40GE232 (RCD)
KAAFT0101AAA‡
KHAIR0101AAA‡
Standard
KSACY0101AAA
KSAHS1001AAA
KSAHS1101AAA
KSAHS1501AAA
KSAHS1601AAA
KAACS0201PTC
Standard
KAACH1001AAA
KAACH1201AAA
KSASH1101COP
KSASH1201COP
KSASH1901CYL
KSASH2001CYL
KSASH2001BRL
KSASH0601COP
KSASH2101COP
KHAOT0301FST
KHAOT0201SEC
KSATX0601HSO††
KSATX0701HSO††
KHATX0201RPB
KHATX0301RPB
KHATX0401RPB
KHATX0501RPB
KHATX0601RPB
KHATX0701RPB
KHAHI0101HPS
P504-8083S (RCD)
P504-8163S (RCD)
KHALS0401LLS††
* Isolation relay required.
† Fan Motor with ball bearings required. ‡ Use with low-ambient controller.
†† Addition of these accessories requires capacitor and relay compressor start assist on all reciprocating compressor applications.
THERMOSTAT PKG DESCRIPTION
TSTATCCNHP01-B TSTATCCPHP01-B TSTATCCPDF01-B
TSTATCCPRH01-B*
TSTATCCBHP01*
TSTATXXSEN01-B
TSTATXXNBP01 TSTATXXPBP01 TSTATXXBBP01 TSTATXXCNV10
*Do not use in zoning heat pump applications.
Time-Delay Relay — All Sizes
Low-Ambient Pressure Switch
MotorMaster® Control — Sizes 018–060
Ball Bearing Fan Motor — Sizes 018, 024
Ball Bearing Fan Motor — Sizes 030–060
Evaporator Freeze Thermostat — All Sizes
Isolation Relay — All Sizes
Cycle Protector — 036 (33); 042–060
Cycle Protector — All Sizes
Start Assist — Capacitor and Relay — Sizes 018 (32); 024 (32); 030 (33)
Start Assist — Capacitor and Relay — Size 036 (34)
Start Assist — Capacitor and Relay — Size 036 (33), 042
Start Assist — Capacitor and Relay — Sizes 048 (32, 34), 060 (32, 34)
All Sizes
Crankcase Heater — Sizes 036 (34); 060 (32, 34)
Crankcase Heater — Sizes 018–024 (32); 030 (33)
Crankcase Heater — Sizes 036 (33); 042 (34, 36); 048 (32, 34)
Sound Hood — Sizes 018 (32); 024 (32)
Sound Hood — Size 030 (33)
Sound Hood — Size 036 (33); 042 (34)
Sound Hood — Sizes 042 (34); (048-32, 34); 060 (32)
Sound Hood — Size 036 (34)
Sound Hood — Sizes 042 (36)
Sound Hood — Size 060 (34)
Outdoor Thermostat — All Sizes
Secondary Outdoor Thermostat — All Sizes
TXV (Hard Shutoff) — Size 018–042
TXV (Hard Shutoff) — Size 048, 060
TXV (RPB) — Size 018
TXV (RPB) — Size 024
TXV (RPB) — Size 030
TXV (RPB) — Sizes 036, 042
TXV (RPB) — Size 048
TXV (RPB) — Size 060
High-Pressure Switch — All Sizes
Filter Drier — Bi-Flow — Sizes 018–036
Filter Drier — Bi-Flow — Sizes 042–060
Liquid-Line Solenoid Valve (LSV) — All Sizes
Thermostat — Auto Changeover, Non-Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, Dual Fuel
Must be used with Outdoor Sensor (TSTATXXSEN01-B). High-pressure switch must be added if not supplied with the system.
Thermidistat use in Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.)
Builder’s Thermostat — Manual Changeover, Non-Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool, Heat Pump
TM
Control — Non-Programmable/Programmable Thermostat with Humidity Control (For
Outdoor Air Temperature Sensor Backplate for Non-Programmable Thermostat Backplate for Programmable Thermostat Backplate for Builder’s Thermostat Thermostat Conversion Kit (4 to 5 wire) — 10 Pack
4
Page 5
Accessory usage guideline
REQUIRED FOR
LOW-AMBIENT
ACCESSORY
Crankcase Heater
Evaporator Freeze Thermostat
Accumulator
Compressor Start Assist
Capacitor and Relay
Low Ambient Controller,
MotorMaster® Control,
or
Low-Ambient Pressure Switch
Wind Baffle
Coastal Filter
Unit Risers
Liquid-Line Solenoid Valve
or
Hard Shutoff TXV
Ball Bearing Fan Motor
* For tubing line sets between 50 and 175 ft, refer to the Residential Split-System Long-Line Application Guideline.
‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster Control only.
APPLICATIONS
(Below 55°F)
Ye s Ye s
Ye s N o
No No
Ye s Ye s
Ye s N o
See Low-Ambient Instructions No
No No
Recommended No
No
Ye s ‡ No
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
See Long-Line
Application
Guideline
Accessory description and usage (Listed alphabetically)
1. Ball Bearing Fan Motor
A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.
SUGGESTED USE: Required on all units where low-ambient controller (full modulation feature) or MotorMaster® Control has been added.
2. Compressor Start Assist — Capacitor and Relay
Start capacitor and start relay gives hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
3. Compressor Start Assist — PTC
Solid-state electrical device which gives a soft” boost to the compressor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
4. Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
5. Cycle Protector
Solid-state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has been interrupted for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
6. Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Low-Ambient Controller has been added.
7. Filter Drier—Bi-Flow
A device for removing contaminants from refrigerant circulating in a heat pump system: 2-direction flow.
SUGGESTED USE: All field-connected split-system heat pumps.
8. High-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 426 ± 10 psig and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow.
SUGGESTED USE: Installations exposed to very dirty” outdoor air.
9. Isolation Relay
An SPDT relay which switches the low-ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.
SUGGESTED USE: All heat pumps where Low-Ambient Controller has been added.
Installations where outdoor design temperature exceeds 105°F (40.6°C). Installations with hard shutoff expansion valve on indoor coil. Units installed with Low-Ambient Controller. Units installed with Liquid-Line Solenoid Valve.
Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. (Use with Low-Ambient Controller.)
Where user is likely to play” with the room thermostat. All commercial installations. Installations where interconnecting tube length exceeds 50 ft. High-rise applications.
Installations where condenser inlet air temperature exceeds 125°F.
5
Page 6
Accessory description and usage (continued)
10. Liquid-LIne Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor unit and which stops and starts refrigerant liquid flow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
NOTE: Compressor Start Assist — Capacitor and Relay must be used also on reciprocating compressors.
SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
11. Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
12. MotorMaster® Control
A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F, it maintains condensing temperature at 100°F ± 10°F.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F.
13. Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed on the thermostat.
SUGGESTED USE: All Carrier programmable thermostats.
14. Outdoor Thermostat
An SPDT temperature-actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below set point.
SUGGESTED USE: Heat pump installations with multiple-stage supplemental heaters.
15. Secondary Outdoor Thermostat
An SPDT temperature actuated switch which turns on third-stage of supplemental electric heaters when outdoor air temperature drops below the second-stage set point.
SUGGESTED USE: Heat pump installations where 3-stage operation of supplemental heaters is desired.
16. Sound Hood
Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.
SUGGESTED USE: Unit installed closer than 15 ft to quiet areas—bedrooms, etc.
17. Thermostatic Expansion Valve (TXV) Bi-Flow
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available. Do not use hard shutoff TXV with Liquid-Line Solenoid Valve. Hard shutoff TXV requires Compressor Start Assist — Capacitor and Relay on units with single-phase reciprocating compressors.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
18. Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
In certain long-line applications. Refer to the Residential Split-System Long-Line Application Guideline.
All commercial installations.
Unit installed between 2 houses less than 10 ft apart.
Required for use on all zoning systems.
Required for use on all zoning systems.
SOUND POWER (A-weighted, non-pure tone corrected.)
UNIT SIZE
018 78 49.5 58.0 66.5 69.5 67.0 66.5 59.5
024 78 50.5 59.0 64.5 68.0 67.5 67.5 61.5
030 80 57.5 64.5 68.5 72.5 72.5 70.0 64.0 036 81 60.5 67.5 73.0 76.0 73.0 69.5 63.5 042 80 59.0 65.0 70.5 75.5 72.0 69.5 64.0 048 80 54.5 63.5 69.5 75.0 71.0 70.0 67.5 060 80 56.0 64.5 73.0 74.5 71.0 71.0 63.0
NOTE: Tested in accordance with ARI standard 270.95. (Not listed with ARI.)
SOUND LEVEL
(dBA)
125 250 500 1000 2000 4000 8000
OCTAVE BAND CENTER FREQUENCY (Hz)
6
Page 7
Electrical data
60°C
OUTDOOR
UNIT
018-32
024-32 61.0 11.4 0.5 14.8 14 14 50 45 20
030-33 75.0 13.7 1.4 18.5 14 14 40 40 30
036-33 105.0 18.0 1.4 23.9 12 12 50 50 35
036-34 86.0 17.2 1.4 22.9 12 12 55 52 35
042-34 115.0 24.4 1.4 31.9 8 10 97 59 50
042-36 127.0 22.9 1.4 30.0 10 10 67 63 50
048-32 140.0 24.4 1.4 31.9 8 8 90 90 50
048-34 131.0 22.0 1.4 29.0 8 10 107 66 50
060-32 165.0 30.8 1.4 39.9 8 8 75 70 60
060-34 148.0 30.8 1.4 39.9 8 8 75 70 60
* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed cable
(NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60° or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along the wire path between the unit and the service panel for voltage drop not to exceed 2%.
** Time-delay fuse.
NOTE: Control circuit is 24v on all units and requires external power source. Copper wire must be used from disconnect to unit. All motors/compressors contain internal overload protection. FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps
V/PH
60 Hz
208-230/1 253 197
OPERATING VOLTS* COMPRESSOR
49.0 9.8 0.5 12.8 14 14 70 70 20
FAN FLA MCA
MIN WIRE SIZE†
75°C
MIN WIRE SIZE†
60°C MAX
LENGTH
(Ft)‡
75°C MAX
LENGTH
(Ft)‡
MAX FUSE**
OR CKT
BKR AMPSMax Min LRA RLA
.
This heat pump can be part of a Comfort Heat Pump System which can provide higher heating supply air temperatures, as well as up to 30 times more humidity removal in cooling mode. A Comfort Heat Pump System requires the use of a Variable-Speed Fan Coil with Thermidistat Control.
HEAT PUMP SYSTEM
7
Page 8
Dimensions—38YCG
A03015
PAD DIMENSIONS
MINIMUM MOUNTING
DIMENSIONS (IN.)
018 32 22-1/2 25-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 11 5 12 22-1/2 X 22-1/2
SIZE SERIES ABCDEFGHJ KLMNP
UNIT
024 32 22-1/2 25-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 10 5 13 22-1/2 X 22-1/2
030 33 22-1/2 33-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 12-1/2 12 14 22-1/2 X 22-1/2
036 33, 34 30 27-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 16-3/4 15 12 30 X 30
042 34, 36 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15 15-3/4 13-1/2 30 X 30
048 32, 34 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15 15-3/4 15-1/2 30 X 30
060 32, 34 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 13-3/4 15-5/8 15 30 X 30
8
Page 9
Printed i n U.S. A.
-10
010
OUTDOOR TEMPERATURE, °F
20 30
BUILDING HEAT LOSS, 1000 BTU/HR
UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR
10
20
30
40
50
60
70
80

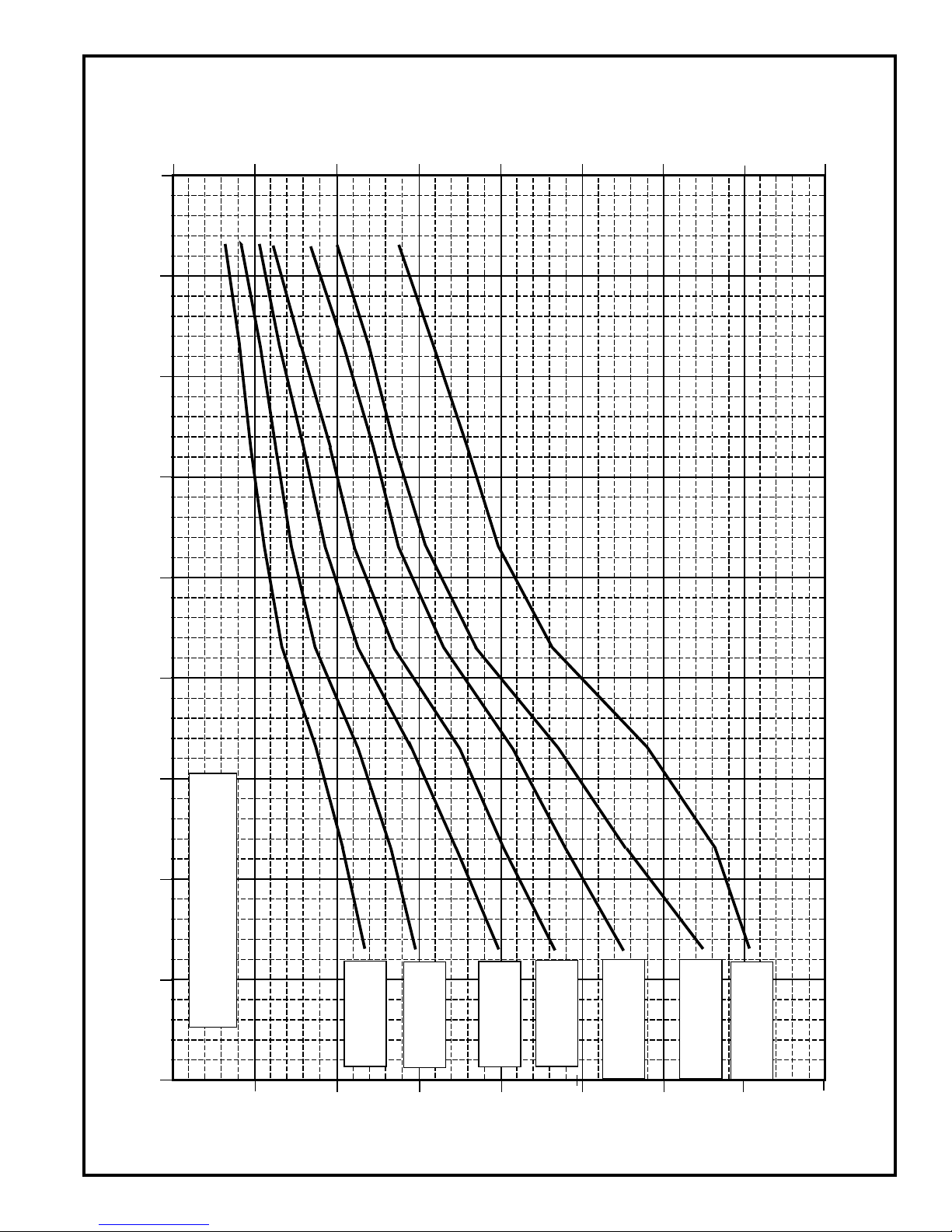

38YCG BALANCE POINT WORKSHEET
40
50 60 70
80
A03125
BASED ON INDOOR ENT. AIR AT
70°F AND AT RATED CFM
38YCG04234/36
38YCG01832
F(A,B)4BNF018
2.9
5.9
38YCG02432
F(A,B)4BNF024
8.8
38YCG03033
F(A,B)4BNF030
11.7
38YCG03633/34
F(A,B)4BNF036
F(A,B)4BN(F,B)042
14.7
17.6
38YCG04832/34
F(A,B)4BN(F,B)048
F(A,B)4BN(F,B)060
20.5
38YCG06032/34
23.4
KW
9
Page 10
Combination ratings
UNIT
SIZE-SERIES
018-32
024-32
030-33
See notes on pg. 13.
10
INDOOR
MODEL
*F(A,B)4(A,B)N(F,C)018 17,000 TDR 10.00 ——8.80 17,500 3.00 11,000 2.22 7.0
CC5A/CD5AA018 17,500 NONE — 10.00 10.00 8.85 17,000 2.94 11,000 2.18 6.8 CC5A/CD5AA024 17,800 NONE — 10.10 10.10 9.05 17,500 3.08 11,200 2.24 7.0
CE3AA024 17,800 NONE — 10.10 10.10 9.10 17,500 3.08 11,200 2.26 7.0 CF5AA024 17,800 NONE — 10.10 10.10 9.10 17,500 3.10 11,300 2.26 7.2
CK3BA024 17,800 NONE — 10.10 10.10 9.00 17,500 3.16 11,300 2.26 7.0 CK5A/CK5BA018 17,500 NONE — 10.00 10.00 8.85 17,000 3.04 11,200 2.24 6.8 CK5A/CK5BA024 17,800 NONE — 10.10 10.10 9.00 17,500 3.16 11,300 2.26 7.0
CK5A/CK5BW024 17,800 NONE — 10.10 10.10 9.00 17,500 3.16 11,300 2.26 7.0
F(A,B)4(A,B)N(F,C)024 18,000 TDR 10.10 ——8.95 18,000 3.12 11,400 2.26 7.2
FC4(B,C)NF024 18,000 TDR&TXV 10.10 ——8.80 18,000 3.14 11,300 2.28 7.2
FF1DNA018 17,000 TDR 10.00 ——9.00 17,500 3.02 11,000 2.22 7.0 FF1DNA024 17,800 TDR 10.20 ——9.05 17,600 3.16 11,300 2.28 7.2
FG3AAA024 17,500 NONE — 10.00 10.00 8.65 16,800 3.06 11,200 2.26 6.8
CC5A/CD5AA024 17,500 TDR 11.00 ——9.70 17,000 3.06 10,200 2.26 7.0
CC5A/CD5AW024 17,500 TDR 11.00 ——9.70 17,000 3.06 10,200 2.26 7.0
CE3AA024 17,500 TDR 11.00 ——9.70 17,000 3.08 10,300 2.28 7.0
CK3BA024 17,500 TDR 11.00 ——9.85 17,000 3.24 10,400 2.34 7.2 CK5A/CK5BA024 17,500 TDR 11.00 ——9.85 17,000 3.24 10,400 2.34 7.2
CK5A/CK5BW024 17,500 TDR 11.00 ——9.85 17,000 3.24 10,400 2.34 7.2
*F(A,B)4(A,B)N(F,C)024 22,600 TDR 10.00 ——8.90 22,800 3.20 14,000 2.28 7.0
CC5A/CD5AA024 22,400 NONE — 10.00 10.00 8.85 22,800 3.10 13,800 2.24 6.9 CC5A/CD5AA030 22,800 NONE — 10.00 10.00 8.90 22,800 3.10 13,900 2.24 6.9
CC5A/CD5AW030 22,800 NONE — 10.00 10.00 8.90 22,800 3.10 13,900 2.24 6.9
CE3AA024 22,600 NONE — 10.00 10.00 8.90 22,800 3.14 13,900 2.26 6.9
CE3AA030 23,000 NONE — 10.00 10.00 8.95 22,800 3.22 14,000 2.28 7.0
CF5AA024 22,600 NONE — 10.00 10.00 8.90 22,800 3.14 13,900 2.26 6.9
CK3BA024 22,600 NONE — 10.00 10.00 8.85 22,800 3.22 14,100 2.30 7.0
CK3BA030 22,800 NONE — 10.00 10.00 8.90 22,800 3.18 14,100 2.28 6.9 CK5A/CK5BA024 22,600 NONE — 10.00 10.00 8.90 22,800 3.20 14,000 2.28 7.0 CK5A/CK5BA030 22,800 NONE — 10.00 10.00 8.90 22,800 3.18 14,100 2.28 6.9
CK5A/CK5BW024 22,600 NONE — 10.00 10.00 8.90 22,800 3.20 14,000 2.28 7.0 CK5A/CK5BW030 22,800 NONE — 10.00 10.00 8.90 22,800 3.18 14,100 2.28 6.9
F(A,B)4(A,B)N(F,C)030 22,800 TDR 10.00 ——9.00 22,800 3.22 14,000 2.30 7.0
FC4(B,C)NF024 22,600 TDR&TXV 10.00 ——8.90 22,800 3.20 14,000 2.28 7.0 FC4(B,C)NF030 22,800 TDR&TXV 10.00 ——8.80 22,800 3.22 14,000 2.30 7.0
FF1DNA024 22,000 TDR 10.00 ——9.05 22,800 3.18 14,100 2.28 7.0
FF1DNA030 23,000 TDR 10.00 ——9.05 22,800 3.24 14,200 2.30 7.0 FK4(C,D)NF001 23,000 TDR&TXV 11.00 ——9.95 22,000 3.38 13,400 2.44 7.2 FK4(C,D)NF002 23,200 TDR&TXV 11.10 ——10.00 21,000 3.40 13,500 2.46 7.0
CC5A/CD5AA030 22,800 TDR 11.00 ——9.65 20,600 3.22 12,800 2.32 7.0
CC5A/CD5AW030 22,800 TDR 11.00 ——9.65 20,600 3.22 12,800 2.32 7.0
CE3AA030 22,800 TDR 11.00 ——9.70 21,000 3.30 13,100 2.36 7.0 CK3BA030 22,800 TDR 11.00 ——9.65 21,000 3.34 13,200 2.36 7.0
CK5A/CK5BA030 22,800 TDR 11.00 ——9.65 21,000 3.34 13,200 2.36 7.0
CK5A/CK5BW030 22,800 TDR 11.00 ——9.65 21,000 3.34 13,200 2.36 7.0
*F(A,B)4(A,B)N(F,C)030 28,200 TDR 10.00 ——9.20 29,000 3.08 17,100 2.20 7.2
CC5A/CD5AA030 27,800 NONE — 10.00 10.00 9.10 28,600 3.00 17,000 2.16 7.0
CC5A/CD5AA036 28,600 NONE — 10.20 10.20 9.30 29,200 3.14 17,300 2.20 7.2 CC5A/CD5AW030 27,800 NONE — 10.00 10.00 9.10 28,600 3.00 17,000 2.16 7.0 CC5A/CD5AW036 28,600 NONE — 10.20 10.20 9.30 29,200 3.14 17,300 2.20 7.2
CE3AA030 28,000 NONE — 10.00 10.00 9.15 29,000 3.08 17,200 2.18 7.0 CE3AA036 28,200 NONE — 10.00 10.00 9.25 29,000 3.08 17,200 2.20 7.2 CF5AA036 28,200 NONE — 10.00 10.00 9.30 29,000 3.10 17,300 2.20 7.2 CK3BA030 27,800 NONE — 10.00 10.00 9.15 28,600 3.06 17,100 2.18 7.0
CK3BA036 28,600 NONE — 10.20 10.20 9.40 29,200 3.18 17,400 2.24 7.2 CK5A/CK5BA030 27,800 NONE — 10.00 10.00 9.15 28,600 3.06 17,100 2.18 7.0 CK5A/CK5BA036 28,600 NONE — 10.20 10.20 9.40 29,200 3.18 17,400 2.24 7.2 CK5A/CK5BT036 28,600 NONE — 10.20 10.20 9.40 29,200 3.18 17,400 2.24 7.2
CK5A/CK5BW030 27,800 NONE — 10.00 10.00 9.15 28,600 3.06 17,100 2.18 7.0 CK5A/CK5BW036 28,600 NONE — 10.20 10.20 9.40 29,200 3.18 17,400 2.24 7.2
F(A,B)4(A,B)N(F,C)036 28,400 TDR 10.00 ——9.20 29,200 3.08 17,500 2.18 7.2
FC4(B,C)NF030 28,200 TDR&TXV 10.00 ——9.05 29,000 3.08 17,100 2.20 7.2 FC4(B,C)NF036 28,400 TDR&TXV 10.00 ——8.85 29,200 3.08 17,500 2.18 7.2
FF1DNA030 28,200 TDR 10.00 ——9.20 29,000 3.10 17,400 2.18 7.2
FG3AAA036 28,200 NONE — 10.00 10.00 9.10 29,000 3.08 17,200 2.20 7.2 FK4(C,D)NF001 28,200 TDR&TXV 10.50 ——9.95 28,000 3.18 16,500 2.30 7.3 FK4(C,D)NF002 28,400 TDR&TXV 11.00 ——10.00 28,200 3.26 16,600 2.32 7.5 FK4(C,D)NF003 28,800 TDR&TXV 11.00 ——10.30 28,000 3.30 16,400 2.36 7.5
CC5A/CD5AA036 28,600 TDR 11.00 ——10.10 27,400 3.20 16,000 2.30 7.2
CE3AA036 28,000 TDR 10.80 ——9.95 27,400 3.14 16,000 2.28 7.2
CK3BA036 28,600 TDR 11.00 ——10.10 27,400 3.24 16,300 2.32 7.2 CK5A/CK5BA036 28,600 TDR 11.00 ——10.10 27,400 3.24 16,300 2.32 7.2 CK5A/CK5BT036 28,600 TDR 11.00 ——10.10 27,400 3.24 16,300 2.32 7.2
CC5A/CD5AA036 28,600 TDR 11.00 ——10.25 27,400 3.22 15,900 2.32 7.2
CC5A/CD5AW036 28,600 TDR 11.00 ——10.25 27,400 3.22 15,900 2.32 7.2
ARI STANDARD RATINGS*
Cooling Heating
SEER
Factory-
Supplied
Enhance-
TC
ment
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
Standard
Rating
Accessory
TXV**
Carrier
Gas Furnace
or
Accessory
TDR‡
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
Page 11
Combination ratings continued
UNIT
SIZE-SERIES
030-33
036-33, 34
042-34, 36
See notes on pg. 13.
INDOOR
MODEL
CE3AA036 28,600 TDR 11.00 ——10.15 27,400 3.16 15,800 2.32 7.2 CK3BA036 28,600 TDR 11.00 ——10.25 27,400 3.26 16,200 2.34 7.2
CK5A/CK5BA036 28,600 TDR 11.00 ——10.25 27,400 3.26 16,200 2.34 7.2
CK5A/CK5BW036 28,600 TDR 11.00 ——10.25 27,400 3.26 16,200 2.34 7.2
*F(A,B)4(A,B)N(F,C)036 34,200 TDR 10.00 ——9.15 35,000 3.10 21,200 2.24 7.2
CC5A/CD5AA036 34,200 NONE — 10.00 10.00 9.40 35,000 3.16 21,000 2.26 7.2 CC5A/CD5AA042 34,800 NONE — 10.20 10.20 9.40 35,000 3.16 21,000 2.26 7.2 CC5A/CD5AW036 34,200 NONE — 10.00 10.00 9.40 35,000 3.16 21,000 2.26 7.2 CC5A/CD5AW042 34,400 NONE — 10.20 10.20 9.35 35,000 3.12 20,800 2.26 7.2
CE3AA036 34,200 NONE — 10.00 10.00 9.35 34,800 3.12 20,800 2.24 7.2 CE3AA042 34,600 NONE — 10.20 10.20 9.45 35,000 3.18 21,000 2.28 7.2 CF5AA036 34,200 NONE — 10.00 10.00 9.40 34,800 3.14 20,800 2.26 7.2 CK3BA036 34,200 NONE — 10.00 10.00 9.45 35,000 3.18 21,000 2.28 7.2
CK3BA042 34,800 NONE — 10.20 10.20 9.45 35,000 3.18 21,000 2.28 7.2 CK5A/CK5BA036 34,200 NONE — 10.00 10.00 9.45 35,000 3.18 21,000 2.28 7.2 CK5A/CK5BA042 34,800 NONE — 10.20 10.20 9.45 35,000 3.18 21,000 2.28 7.2 CK5A/CK5BT036 34,200 NONE — 10.00 10.00 9.45 35,000 3.18 21,000 2.28 7.2 CK5A/CK5BT042 34,800 NONE — 10.20 10.20 9.45 35,000 3.18 21,000 2.28 7.2
CK5A/CK5BW036 34,200 NONE — 10.00 10.00 9.45 35,000 3.18 21,000 2.28 7.2
F(A,B)4(A,B)N(F,B,C)042 34,800 TDR 10.20 ——9.35 35,200 3.16 21,200 2.26 7.4
FC4(B,C)N(F,B)042 34,800 TDR&TXV 10.20 ——9.60 35,200 3.16 21,200 2.26 7.4
FC4(B,C)NF036 34,200 TDR&TXV 10.00 ——9.40 35,000 3.10 21,200 2.24 7.2
FG3AAA036 34,000 NONE — 10.00 10.00 9.60 34,000 3.10 20,800 2.24 7.0 FK4(C,D)NF001 33,800 TDR&TXV 11.00 ——10.00 34,000 3.20 20,200 2.32 7.5 FK4(C,D)NF002 33,800 TDR&TXV 11.00 ——10.00 34,000 3.28 20,400 2.34 7.6 FK4(C,D)NF003 34,200 TDR&TXV 11.50 ——10.50 34,000 3.30 20,000 2.38 7.5
CE3AA042 34,600 TDR 11.00 ——10.00 34,000 3.24 20,200 2.36 7.4
CK5A/CK5BE042 34,800 TDR 11.00 ——10.00 34,200 3.28 20,200 2.36 7.4
CC5A/CD5AA042 34,600 TDR 11.00 ——10.15 33,800 3.24 19,800 2.36 7.4
CE3AA042 34,800 TDR 11.20 ——10.15 34,000 3.26 20,000 2.38 7.4
CK3BA042 34,600 TDR 11.20 ——10.10 34,000 3.28 20,000 2.38 7.4 CK5A/CK5BA042 34,600 TDR 11.20 ——10.10 34,000 3.28 20,000 2.38 7.4 CK5A/CK5BE042 34,800 TDR 11.20 ——10.15 34,000 3.32 20,200 2.40 7.4 CK5A/CK5BT042 34,600 TDR 11.20 ——10.10 34,000 3.28 20,000 2.38 7.4
CC5A/CD5AA042 34,600 TDR 11.20 ——10.25 33,600 3.26 19,700 2.38 7.4 CC5A/CD5AW042 34,200 TDR 11.20 ——10.20 33,600 3.22 19,600 2.36 7.4
CE3AA042 34,800 TDR 11.20 ——10.20 34,000 3.28 20,000 2.38 7.4
CK3BA042 34,800 TDR 11.20 ——10.20 34,000 3.30 20,000 2.40 7.4 CK5A/CK5BA042 34,800 TDR 11.20 ——10.25 34,000 3.30 20,000 2.40 7.4 CK5A/CK5BT042 34,600 TDR 11.20 ——10.20 34,000 3.30 20,000 2.40 7.4
CC5A/CD5AA042 34,600 TDR 11.20 ——10.20 33,800 3.24 19,800 2.36 7.4 CC5A/CD5AW042 34,200 TDR 11.20 ——10.15 33,600 3.22 19,700 2.36 7.4
CE3AA042 34,800 TDR 11.20 ——10.15 34,000 3.28 20,000 2.38 7.4
CK3BA042 34,600 TDR 11.20 ——10.15 34,000 3.28 20,000 2.40 7.4 CK5A/CK5BA042 34,600 TDR 11.20 ——10.15 34,000 3.28 20,000 2.40 7.4 CK5A/CK5BT042 34,600 TDR 11.20 ——10.15 34,000 3.28 20,000 2.40 7.4
CC5A/CD5AA042 34,600 TDR 11.20 ——10.30 33,600 3.26 19,700 2.38 7.4 CC5A/CD5AW042 34,400 TDR 11.20 ——10.20 33,600 3.24 19,600 2.36 7.4
CE3AA042 34,800 TDR 11.20 ——10.25 34,000 3.28 19,900 2.40 7.4
CK3BA042 34,600 TDR 11.20 ——10.20 34,000 3.30 20,000 2.40 7.4 CK5A/CK5BA042 34,800 TDR 11.20 ——10.20 34,000 3.30 20,000 2.40 7.4 CK5A/CK5BT042 34,800 TDR 11.20 ——10.20 34,000 3.30 20,000 2.40 7.4
*F(A,B)4(A,B)N(F,B,C)042 40,500 TDR 10.00 ——9.00 42,000 3.06 27,000 2.26 7.2
CC5A/CD5AA042 40,500 NONE — 10.00 10.00 9.10 42,000 3.04 26,800 2.26 7.2 CC5A/CD5AC048 40,500 NONE — 10.00 10.00 9.05 42,000 2.96 26,600 2.22 7.2 CC5A/CD5AW042 40,500 NONE — 10.00 10.00 9.05 42,000 3.02 26,600 2.24 7.2 CC5A/CD5AW048 41,000 NONE — 10.00 10.00 9.10 42,000 3.08 26,800 2.28 7.2
CD5AA048 41,000 NONE — 10.00 10.00 9.10 42,000 3.08 26,800 2.28 7.2 CE3AA042 41,000 NONE — 10.00 10.00 9.15 42,000 3.10 26,800 2.28 7.2 CE3AA048 41,000 NONE — 10.00 10.00 9.20 42,000 3.12 26,800 2.30 7.2 CF5AA048 40,500 NONE — 10.00 10.00 9.15 42,000 3.06 26,800 2.26 7.2 CK3BA042 40,500 NONE — 10.00 10.00 9.10 42,000 3.08 26,800 2.28 7.2
CK3BA048 41,000 NONE — 10.00 10.00 9.15 42,000 3.14 26,800 2.30 7.2 CK5A/CK5BA042 40,500 NONE — 10.00 10.00 9.10 42,000 3.08 26,800 2.28 7.2 CK5A/CK5BA048 41,000 NONE — 10.00 10.00 9.15 42,000 3.14 26,800 2.30 7.2 CK5A/CK5BE042 40,000 NONE — 10.00 10.00 9.15 41,000 3.14 26,800 2.30 7.0 CK5A/CK5BT042 40,500 NONE — 10.00 10.00 9.10 42,000 3.08 26,800 2.28 7.2 CK5A/CK5BT048 41,000 NONE — 10.00 10.00 9.15 42,000 3.14 26,800 2.30 7.2
F(A,B)4(A,B)N(F,B,C)048 41,000 TDR 10.00 ——9.10 42,000 3.16 27,000 2.30 7.2
FC4(B,C)N(F,B)042 40,500 TDR&TXV 10.00 ——9.05 42,000 3.06 27,000 2.26 7.2 FC4(B,C)N(F,B)048 41,000 TDR&TXV 10.00 ——9.15 42,000 3.16 27,000 2.30 7.2
FG3AAA048 40,500 NONE — 10.00 10.00 9.15 42,000 3.12 26,800 2.30 7.2
FK4(C,D)NF003 40,000 TDR&TXV 10.50 ——9.80 41,500 3.14 25,800 2.34 7.4
ARI STANDARD RATINGS*
Cooling Heating
SEER
Factory-
Supplied
Enhance-
TC
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
ment
Standard
Rating
Accessory
TXV**
Carrier
Gas Furnace
or
Accessory
TDR‡
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
11
Page 12
Combination ratings continued
Cooling Heating
SEER
Factory-
UNIT
SIZE-SERIES
042-34, 36
048-32, 34
See notes on pg. 13.
INDOOR
MODEL
CC5A/CD5AC048 40,000 TDR 10.50 ——9.65 40,500 2.96 25,600 2.28 7.2
CD5AA048 40,500 TDR 10.50 ——9.75 41,000 3.14 25,800 2.34 7.4
CE3AA048 40,500 TDR 10.50 ——9.70 41,000 3.16 26,000 2.34 7.4
CK3BA048 40,500 TDR 10.50 ——9.75 41,000 3.20 25,800 2.36 7.4 CK5A/CK5BA048 40,500 TDR 10.50 ——9.75 41,000 3.20 25,800 2.36 7.4 CK5A/CK5BT048 40,500 TDR 10.50 ——9.75 41,000 3.20 25,800 2.36 7.4
CC5A/CD5AC048 40,000 TDR 10.50 ——9.75 40,500 2.98 25,400 2.30 7.2
CC5A/CD5AW048 40,500 TDR 11.00 ——9.85 41,000 3.14 25,600 2.34 7.4
CD5AA048 40,500 TDR 11.00 ——9.85 41,000 3.16 25,600 2.34 7.4
CE3AA048 40,500 TDR 10.50 ——9.80 41,000 3.18 25,800 2.36 7.4
CK3BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BT048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
CK5A/CK5BW048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
CC5A/CD5AC048 40,000 TDR 10.50 ——9.75 40,500 2.98 25,400 2.30 7.2
CC5A/CD5AW048 40,500 TDR 11.00 ——9.85 41,000 3.14 25,600 2.34 7.4
CD5AA048 40,500 TDR 11.00 ——9.85 41,000 3.16 25,600 2.36 7.4
CE3AA048 40,500 TDR 10.50 ——9.80 41,000 3.18 25,800 2.36 7.4
CK3BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BT048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
CK5A/CK5BW048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
CC5A/CD5AC048 40,000 TDR 10.50 ——9.80 40,500 2.98 25,400 2.30 7.2
CC5A/CD5AW048 40,500 TDR 11.00 ——9.85 41,000 3.16 25,600 2.36 7.4
CD5AA048 40,500 TDR 11.00 ——9.90 41,000 3.16 25,600 2.36 7.4
CE3AA048 40,500 TDR 10.50 ——9.80 41,000 3.18 25,800 2.36 7.4
CK3BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BA048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4 CK5A/CK5BT048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
CK5A/CK5BW048 40,500 TDR 11.00 ——9.85 41,000 3.22 25,800 2.38 7.4
*F(A,B)4BN(F,B,C)048 45,500 TDR 10.00 — 10.00 9.15 47,000 3.20 30,200 2.34 7.20
CC5A/CD5AA060 45,000 NONE — 10.00 10.00 9.25 46,500 3.06 29,800 2.30 7.20
CC5A/CD5AC048 43,500 NONE — 10.00 10.00 9.15 46,000 2.94 29,400 2.26 7.00 CC5A/CD5AW048 45,000 NONE — 10.00 10.00 9.15 46,500 3.12 29,800 2.32 7.20 CC5A/CD5AW060 46,000 NONE — 10.00 10.00 9.40 47,000 3.22 29,800 2.36 7.20
CD5AA048 45,000 NONE — 10.00 10.00 9.20 46,500 3.12 29,800 2.32 7.20
CE3AA048 45,000 NONE — 10.00 10.00 9.35 47,000 3.12 29,600 2.34 7.20 CE3AA060 46,000 NONE — 10.00 10.00 9.45 47,000 3.18 29,800 2.38 7.50 CF5AA048 44,500 NONE — 10.00 10.00 9.30 46,500 2.94 29,000 2.28 7.20 CK3BA048 45,000 NONE — 10.00 10.00 9.25 46,500 3.16 29,800 2.36 7.20
CK3BA060 45,000 NONE — 10.00 10.00 9.40 46,500 3.30 30,000 2.40 7.20 CK5A/CK5BA048 45,000 NONE — 10.00 10.00 9.25 46,500 3.16 29,800 2.36 7.20 CK5A/CK5BA060 45,000 NONE — 10.00 10.00 9.40 46,500 3.30 30,000 2.40 7.20 CK5A/CK5BT048 45,000 NONE — 10.00 10.00 9.25 46,500 3.16 29,800 2.36 7.20 CK5A/CK5BT060 45,000 NONE — 10.00 10.00 9.40 46,500 3.30 30,000 2.40 7.20
CK5A/CK5BW048 45,000 NONE — 10.00 10.00 9.25 46,500 3.16 29,800 2.36 7.20
CK5A/CK5BX060 46,000 NONE — 10.00 10.00 9.50 47,000 3.28 30,000 2.42 7.20
F(A,B)4BN(F,B,C)060 46,500 TDR 10.00 — 10.00 9.20 47,000 3.22 30,400 2.36 7.50
FB4BNB070 47,000 TDR 10.00 — 10.00 9.45 47,000 3.30 30,400 2.42 7.50 FC4CN(F,B)048 46,000 TDR&TXV 10.00 — 10.00 9.20 47,000 3.20 30,200 2.34 7.20 FC4CN(F,B)060 46,500 TDR&TXV 10.00 — 10.00 9.25 47,000 3.22 30,400 2.36 7.50
FC4CNB070 47,000 TDR&TXV 10.00 — 10.00 9.55 47,000 3.24 30,400 2.42 7.50
FG3AAA048 44,500 NONE 10.00 — 10.00 9.15 47,000 3.16 29,800 2.34 7.20
FK4DNF005 46,000 TDR&TXV 11.00 — 11.00 10.20 46,000 3.36 28,800 2.50 7.50
FK4DNB006 47,000 TDR&TXV 11.20 — 11.20 10.45 46,000 3.52 28,800 2.54 7.60
CE3AA060 45,500 TDR 10.50 — 10.50 9.85 45,000 3.18 29,000 2.40 7.00
CC5A/CD5AA060 44,000 TDR 10.50 — 10.50 9.65 45,000 3.02 28,600 2.34 7.00
CE3AA060 45,500 TDR 10.50 — 10.50 9.90 45,000 3.18 28,800 2.42 7.00
CK3BA060 45,500 TDR 10.50 — 11.00 9.85 45,500 3.30 29,000 2.44 7.40 CK5A/CK5BA060 45,500 TDR 10.50 — 11.00 9.90 45,500 3.30 29,000 2.46 7.40 CK5A/CK5BT060 45,500 TDR 10.50 — 10.50 9.85 45,500 3.30 29,000 2.46 7.40 CK5A/CK5BX060 46,000 TDR 10.50 — 10.50 10.00 45,500 3.30 29,000 2.46 7.40
CC5A/CD5AA060 44,500 TDR 10.50 — 10.50 9.80 45,000 3.04 28,600 2.34 7.00
CE3AA060 45,500 TDR 11.00 — 11.00 10.00 45,000 3.22 28,800 2.44 7.00
CK3BA060 45,500 TDR 11.00 — 11.00 10.00 45,500 3.32 28,800 2.46 7.40 CK5A/CK5BA060 45,500 TDR 11.00 — 11.00 10.00 45,500 3.34 28,800 2.48 7.40 CK5A/CK5BT060 45,500 TDR 11.00 — 11.00 10.00 45,500 3.34 28,800 2.48 7.40 CK5A/CK5BX060 46,000 TDR 11.00 — 11.00 10.10 45,500 3.32 28,800 2.48 7.40
Supplied
Enhance-
TC
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-20 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
ment
Standard
Rating
Accessory
TXV**
ARI STANDARD RATINGS*
High-Temp Low-Temp
Carrier
Gas Furnace
or
Accessory
TDR‡
EER
TC COP TC COP
HSPF
12
Page 13
Combination ratings continued
ARI STANDARD RATINGS*
Cooling Heating
SEER
Factory-
UNIT
SIZE-SERIES
048-32, 34
060-32, 34
*Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:
Cooling Standard:80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit. High-Temperature Heating Standard:70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43°F (6°C) wb air entering outdoor unit. Low-Temperature Heating Standard:70°F (21°C) db indoor entering air temperature and 17°F (–8°C) db 15°F (–11°C) wb air entering outdoor unit.
† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance.
Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR.
‡ TXV must be hard shutoff type.
** Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are determined
under DOE computer simulation procedures. COP — Coefficient of Performance EER — Energy Efficiency Ratio HSPF — Heating Seasonal Performance Factor SEER — Seasonal Energy Efficiency Ratio TC — Total Capacity (Btuh) TDR — Time-Delay Relay TXV — Thermostatic Expansion Valve
INDOOR
MODEL
CC5A/CD5AA060 44,500 TDR 10.50 — 10.50 9.85 45,000 3.06 28,400 2.36 7.00
CE3AA060 45,500 TDR 11.00 — 11.00 10.10 45,000 3.22 28,600 2.44 7.00
CK3BA060 45,500 TDR 11.00 — 11.00 10.05 45,500 3.36 28,800 2.48 7.40 CK5A/CK5BA060 45,500 TDR 11.00 — 11.00 10.05 45,500 3.36 28,800 2.48 7.40 CK5A/CK5BT060 45,500 TDR 11.00 — 11.00 10.05 45,500 3.36 28,800 2.48 7.40 CK5A/CK5BX060 46,000 TDR 11.00 — 11.00 10.15 46,000 3.34 28,800 2.50 7.40
*F(A,B)4(A,B)N(F,B,C)060 56,000 TDR 10.10 ——9.00 58,000 3.16 38,500 2.38 7.5
CC5A/CD5AA060 53,500 NONE — 10.20 10.20 9.15 56,000 2.94 37,200 2.30 7.0
CC5A/CD5AW060 55,500 NONE — 10.50 10.50 9.30 56,500 3.14 37,600 2.40 7.5
CE3AA060 56,000 NONE — 10.20 10.20 9.35 56,500 3.16 37,600 2.40 7.5
CK3BA060 53,500 NONE — 10.20 10.20 9.30 56,000 3.06 37,200 2.36 7.0 CK5A/CK5BA060 53,500 NONE — 10.20 10.20 9.30 56,000 3.06 37,200 2.36 7.0 CK5A/CK5BT060 53,500 NONE — 10.20 10.20 9.30 56,000 3.06 37,200 2.36 7.0 CK5A/CK5BX060 55,500 NONE — 10.50 10.50 9.40 56,500 3.20 37,800 2.42 7.5
FB4(A,B)NB070 56,500 TDR 10.50 ——9.00 57,000 3.32 38,000 2.46 7.5
FC4(B,C)N(F,B)060 56,000 TDR&TXV 10.10 ——9.35 58,000 3.16 38,500 2.38 7.5
FC4(B,C)NB070 56,500 TDR&TXV 10.50 ——9.00 57,000 3.32 38,000 2.46 7.5
FG3AAA060 54,500 NONE — 10.40 10.40 9.35 56,500 3.10 37,600 2.38 7.2
FK4(C,D)NB006 56,000 TDR&TXV 10.80 ——9.60 53,000 3.20 38,500 2.50 7.6
CC5A/CD5AA060 54,000 TDR 10.50 ——9.45 55,500 2.96 37,600 2.38 7.0
CE3AA060 55,500 TDR 10.50 ——9.70 56,000 3.14 37,800 2.46 7.2
CK3BA060 55,000 TDR 10.50 ——9.50 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BA060 55,000 TDR 10.50 ——9.50 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BT060 55,000 TDR 10.50 ——9.50 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BX060 56,000 TDR 11.00 ——9.80 56,000 3.24 38,000 2.52 7.4
CC5A/CD5AA060 54,000 TDR 10.50 ——9.40 55,500 2.96 37,600 2.36 7.0
CC5A/CD5AW060 55,000 TDR 10.50 ——9.60 55,000 3.18 37,600 2.44 7.4
CE3AA060 55,500 TDR 10.50 ——9.65 56,000 3.14 38,000 2.46 7.2
CK3BA060 55,000 TDR 10.50 ——9.50 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BA060 55,000 TDR 10.50 ——9.50 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BT060 55,000 TDR 10.50 ——9.45 56,000 3.24 38,000 2.48 7.4 CK5A/CK5BX060 56,000 TDR 11.00 ——9.80 56,000 3.24 38,000 2.50 7.4
CC5A/CD5AA060 54,000 TDR 10.50 ——9.50 55,500 2.98 37,400 2.38 7.0
CC5A/CD5AW060 55,000 TDR 11.00 ——9.65 55,000 3.20 37,600 2.44 7.4
CE3AA060 55,500 TDR 10.50 ——9.75 56,000 3.14 37,800 2.46 7.2
CK3BA060 55,000 TDR 10.50 ——9.55 56,000 3.26 38,000 2.50 7.4 CK5A/CK5BA060 55,000 TDR 10.50 ——9.55 56,000 3.26 38,000 2.50 7.4 CK5A/CK5BT060 55,000 TDR 10.50 ——9.55 56,000 3.26 38,000 2.50 7.4 CK5A/CK5BX060 56,000 TDR 11.00 ——9.85 56,000 3.26 37,800 2.52 7.4
Supplied
Enhance-
TC
ment
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
Standard
Rating
Accessory
TXV**
Carrier
Gas Furnace
or
Accessory
TDR‡
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
13
Page 14
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG018-32 Outdoor Section With F(A,B)4(A,B)NF018 Indoor Section
72
19.8
67
600
650
700
Indoor
Section Size
CC5A/CD5AA 018 1.03 1.02 FF1DNA 018 1.00 0.98
CE3AA 024 1.05 1.01 FG3AAA 024 1.03 1.05 CF5AA 024 1.05 1.01
CK3BA 024 1.05 1.02 CC5A/CD5AA 024 1.03 0.93
CK5A/CK5BA 018 1.03 1.02 CC5A/CD5AW 024 1.03 0.93
CK5A/CK5BW 024 1.05 1.02 CK3BA 024 1.03 0.92
F(A,B)4(A,B)N(F,C) 018 1.00 1.00 CK5A/CK5BA 024 1.03 0.92
FC4(B,C)NF 024 1.06 1.06 —— —
See notes on pg. 20.
63†† 62 57
72 67 63†† 62 57
72 67 63†† 62 57
17.9
16.5
16.2
15.8
20.0
18.1
16.7
16.4
16.2
20.2
18.2
16.8
16.7
16.5
9.98
12.7
12.2
15.2
15.8
10.2
13.1
12.7
15.8
16.2
10.5
13.5
13.1
16.3
16.5
1.87
1.80
1.76
1.75
1.73
1.90
1.83
1.78
1.77
1.76
1.92
1.85
1.81
1.80
1.79
18.6
16.8
15.5
15.3
15.0
18.8
17.0
15.7
15.5
15.4
19.0
17.1
15.8
15.7
15.7
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
024 1.05 1.02 024 1.05 1.02
024 1.05 1.02 CE3AA 024 1.03 0.93
024 1.06 1.04 CK5A/CK5BW 024 1.03 0.92
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
17.5
15.8
14.5
14.3
14.2
17.6
15.9
14.6
14.6
14.5
17.8
16.0
14.7
14.8
14.8
9.14
11.8
11.4
14.2
14.2
9.40
12.3
11.8
14.6
14.5
9.65
12.7
12.1
14.8
14.8
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
Total
System
kW**
2.11
2.03
1.98
1.97
1.96
2.13
2.06
2.00
2.00
2.00
2.16
2.08
2.02
2.03
2.03
9.56
12.2
11.8
14.7
15.0
9.82
12.7
12.2
15.2
15.4
10.1
13.1
12.6
15.7
15.7
Cooling
Total
System
kW**
1.99
1.92
1.87
1.86
1.85
2.01
1.94
1.89
1.88
1.88
2.04
1.97
1.92
1.91
1.91
Capacity
MBtuh†
16.3
14.7
13.4
13.4
13.4
16.4
14.7
13.5
13.7
13.7
16.5
14.9
13.6
13.9
13.9
8.74
11.4
10.9
13.4
13.4
8.99
11.8
11.3
13.7
13.7
9.24
12.2
11.7
13.9
13.9
Total
System
kW**
2.23
2.14
2.08
2.08
2.08
2.25
2.17
2.11
2.12
2.12
2.28
2.20
2.13
2.15
2.15
Capacity
MBtuh†
14.8
13.2
12.0
12.3
12.3
14.9
13.3
12.1
12.5
12.6
15.0
13.4
12.2
12.8
12.8
Cooling
8.21
10.8
10.3
12.3
12.3
8.46
11.2
10.7
12.5
12.6
8.69
11.6
11.0
12.8
12.8
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
2.30
2.21
2.14
2.15
2.15
2.33
2.24
2.16
2.19
2.19
2.36
2.26
2.19
2.22
2.22
14
Page 15
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG024-32 Outdoor Section With F(A,B)4(A,B)NF024 Indoor Section
72
25.9
67
700
800
900
Indoor
Section Size
CC5A/CD5AA 024 0.99 1.00 FC4(B,C)NF 024 1.00 1.00
CC5A/CD5AW 030 1.01 1.01 FF1DNA 024 0.97 0.96
CE3AA 024 1.00 1.00 030 1.02 1.00
CF5AA 024 1.00 1.00 002 1.03 0.91 CK3BA 024 1.00 1.01
CK5A/CK5BA 024 1.00 1.00 CC5A/CD5AW 030 1.01 0.93
CK5A/CK5BW 024 1.00 1.00 CK3BA 030 1.01 0.93
F(A,B)4(A,B)N(F,C) 024 1.00 1.00 CK5A/CK5BW 030 1.01 0.93
See notes on pg. 20.
63†† 62 57
72 67 63†† 62 57
72 67 63†† 62 57
23.6
21.8
21.4
20.6
26.4
24.1
22.3
21.9
21.4
26.7
24.4
22.7
22.4
22.2
12.8
16.2
15.7
19.4
20.6
13.4
17.2
16.7
20.8
21.4
13.9
18.1
17.6
22.0
22.2
2.43
2.35
2.29
2.27
2.25
2.48
2.40
2.34
2.33
2.32
2.53
2.45
2.39
2.39
2.38
24.5
22.2
20.4
20.0
19.5
24.9
22.6
20.8
20.5
20.3
25.2
22.9
21.1
21.0
21.0
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
030 1.01 1.01 030 1.01 1.02
030 1.02 1.01 FK4(C,D)NF 001 1.02 0.91
030 1.01 1.01 CC5A/CD5AA 030 1.01 0.93
030 1.01 1.01 CE3AA 030 1.01 0.93
030 1.01 1.01 CK5A/CK5BA 030 1.01 0.93
030 1.01 1.00 —— —
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
22.9
20.6
19.0
18.7
18.4
23.3
21.0
19.3
19.2
19.2
23.5
21.3
19.6
19.8
19.8
11.7
15.0
14.4
18.0
18.4
12.3
16.0
15.4
19.2
19.2
12.9
17.0
16.3
19.8
19.8
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
Total
System
kW**
2.72
2.62
2.54
2.52
2.51
2.78
2.68
2.59
2.59
2.59
2.83
2.73
2.65
2.66
2.66
12.3
15.6
15.1
18.7
19.5
12.9
16.6
16.0
20.0
20.3
13.4
17.6
16.9
21.0
21.0
Cooling
Total
System
kW**
2.58
2.49
2.42
2.40
2.38
2.63
2.54
2.47
2.46
2.45
2.68
2.59
2.52
2.52
2.52
Capacity
MBtuh†
21.2
19.0
17.5
17.3
17.3
21.6
19.3
17.8
18.0
18.0
21.8
19.6
18.0
18.5
18.5
11.2
14.4
13.8
17.3
17.3
11.8
15.4
14.7
18.0
18.0
12.3
16.3
15.6
18.5
18.5
Total
System
kW**
2.86
2.74
2.65
2.64
2.64
2.91
2.80
2.71
2.72
2.72
2.97
2.85
2.76
2.79
2.79
Capacity
MBtuh†
19.5
17.5
16.0
16.1
16.1
19.8
17.7
16.2
16.7
16.7
20.0
18.0
16.4
17.2
17.2
Cooling
10.6
13.8
13.2
16.1
16.1
11.2
14.7
14.1
16.7
16.7
11.7
15.7
14.9
17.2
17.2
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
2.98
2.85
2.75
2.76
2.76
3.04
2.91
2.80
2.84
2.84
3.09
2.96
2.86
2.91
2.91
15
Page 16
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG030-33 Outdoor Section With F(A,B)4(A,B)NF030 Indoor Section
72
32.6 67 63†† 62 57
72 67 63†† 62 57
72 67 63†† 62 57
29.7
27.4
26.9
26.1
32.9
30.2
27.8
27.3
26.8
33.1
30.4
28.0
27.7
27.5
950
1050
1150
Indoor
Section Size
CC5A/CD5AA 030 0.99 1.00 FF1DNA 030 1.00 1.00
CC5A/CD5AW 030 0.99 1.00 FK4(C,D)NF 001 1.00 0.92
CE3AA 030 0.99 1.00 003 1.02 0.91
CF5AA 036 1.00 0.99 CC5A/CD5AA 036 1.01 0.92 CK3BA 030 0.99 0.99 CE3AA 036 0.99 0.92
CK5A/CK5BA 030 0.99 0.99 CK5A/CK5BA 036 1.01 0.92
CK5A/CK5BT 036 1.01 0.99
CK5A/CK5BW 030 0.99 0.99 CC5A/CD5AA 036 1.01 0.91
F(A,B)4(A,B)N(F,C) 030 1.00 1.00 CE3AA 036 1.01 0.92
FC4(B,C)NF 030 1.00 1.02 CK5A/CK5BA 036 1.01 0.91
See notes on pg. 20.
16.3
20.8
20.1
25.0
26.1
16.7
21.7
20.9
26.1
26.8
17.1
22.5
21.7
27.1
27.5
2.90
2.83
2.76
2.74
2.72
2.94
2.87
2.81
2.79
2.78
2.99
2.91
2.85
2.84
2.84
30.8
27.8
25.7
25.2
24.8
31.1
28.2
26.0
25.6
25.4
31.4
28.5
26.2
26.1
26.0
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
036 1.01 1.00 FG3AAA 036 1.00 1.01
036 1.01 1.00 002 1.01 0.93
036 1.00 0.99
036 1.01 0.99 CK3BA 036 1.01 0.92
036 1.01 0.99 CK5A/CK5BT 036 1.01 0.92
036 1.01 0.99 CC5A/CD5AW 036 1.01 0.91
036 1.01 1.01 CK3BA 036 1.01 0.91
036 1.01 1.05 CK5A/CK5BW 036 1.01 0.91
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
28.9
26.0
23.9
23.6
23.4
29.3
26.3
24.2
24.1
24.0
29.5
26.5
24.4
24.6
24.6
15.0
19.3
18.6
23.2
23.4
15.5
20.2
19.4
24.0
24.0
16.0
21.0
20.2
24.6
24.6
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
Total
System
kW**
3.27
3.16
3.07
3.06
3.05
3.32
3.21
3.12
3.12
3.12
3.36
3.26
3.17
3.18
3.18
15.7
20.0
19.3
24.1
24.8
16.2
20.9
20.2
25.2
25.4
16.6
21.8
21.0
26.0
26.0
Cooling
Total
System
kW**
3.09
2.99
2.92
2.90
2.89
3.13
3.04
2.97
2.96
2.95
3.18
3.09
3.02
3.01
3.01
Capacity
MBtuh†
26.9
24.1
22.1
22.0
22.0
27.1
24.4
22.4
22.6
22.6
27.3
24.5
22.5
23.1
23.1
14.3
18.6
17.8
22.0
22.0
14.8
19.5
18.6
22.6
22.6
15.3
20.3
19.4
23.1
23.1
Total
System
kW**
3.44
3.31
3.22
3.21
3.21
3.49
3.36
3.27
3.28
3.28
3.54
3.41
3.32
3.34
3.34
Capacity
MBtuh†
24.8
22.2
20.2
20.6
20.6
25.0
22.4
20.4
21.1
21.1
25.2
22.6
20.6
21.5
21.5
Cooling
13.6
17.8
17.0
20.6
20.6
14.1
18.7
17.8
21.1
21.1
14.6
19.5
18.6
21.5
21.5
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
3.60
3.46
3.35
3.36
3.36
3.65
3.51
3.40
3.43
3.43
3.70
3.56
3.45
3.50
3.50
16
Page 17
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG036-33, 34 Outdoor Section With F(A,B)4(A,B)N(F,C)036 Indoor Section
39.0
72
35.3
1050
1200
1350
F(A,B)4(A,B)N(F,B,C)
F(A,B)4(A.B)N(F,C) 036 1.00 1.00 CC5A/CD5AA 042 1.01 0.91
FC4(B,C)N(F,B) 042 1.02 0.97 CC5A/CD5AW 042 1.00 0.90
See notes on pg. 20.
67
32.7
63††
32.0
62
30.9
57
39.7
72
36.0
67
33.3
63††
32.8
62
32.2
57
40.0
72
36.5
67
33.8
63††
33.5
62
33.2
57
Indoor
Section Size
CC5A/CD5AA 036 1.00 0.97
CC5A/CD5AW 036 1.00 0.97 CE3AA 042 1.02 0.92
CE3AA 036 1.00 0.98 CK5A/CK5BA 042 1.01 0.92
CF5AA 036 1.00 0.97 CK5A/CK5BT 042 1.01 0.92 CK3BA 036 1.00 0.97
CK5A/CK5BA 036 1.00 0.97 CC5A/CD5AW 042 1.00 0.90
CK5A/CK5BT 036 1.00 0.97 CK3BA 042 1.02 0.91
CK5A/CK5BW 036 1.00 0.97 CK5A/CK5BT 042 1.01 0.91
FC4(B,C)NF 036 1.00 0.97 CE3AA 042 1.02 0.92
FG3AAA 036 0.99 0.95 CK3BA 042 1.01 0.91
FK4(C,D)NF 001 0.99 0.90 CK5A/CK5BA 042 1.01 0.91
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CE3AA 042 1.01 0.93 CC5A/CD5AW 042 1.01 0.90
CK5A/CK5BE 042 1.02 0.93 CE3AA 042 1.02 0.91
19.2
24.3
23.5
29.1
30.9
20.1
25.8
24.9
31.1
32.2
20.8
27.3
26.3
32.9
33.2
3.56
3.46
3.37
3.35
3.31
3.65
3.55
3.46
3.44
3.42
3.73
3.64
3.54
3.53
3.53
37.2
33.5
31.0
30.4
29.6
37.8
34.2
31.6
31.1
30.8
38.3
34.7
32.0
31.8
31.8
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
042 1.02 0.99 CC5A/CD5AA 042 1.01 0.91
042 1.01 0.98 CK3BA 042 1.01 0.92
042 1.01 0.98 CK5A/CK5BE 042 1.02 0.92
042 1.02 0.99 CC5A/CD5AA 042 1.01 0.90
042 1.02 0.99 CE3AA 042 1.02 0.91
042 1.02 0.99 CK5A/CK5BA 042 1.02 0.91
042 1.02 1.00
002 0.99 0.90 CK5A/CK5BT 042 1.01 0.91 003 1.00 0.87
—— — CK3BA 042 1.01 0.91
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
35.2
31.8
29.2
28.8
28.3
35.8
32.3
29.8
29.6
29.4
36.3
32.8
30.2
30.3
30.3
Section Size
CC5A/CD5AA 042 1.01 0.90
CK5A/CK5BA 042 1.02 0.91 CK5A/CK5BT 042 1.02 0.91
Total
System
kW**
17.8
22.8
22.0
27.5
28.3
18.7
24.3
23.4
29.3
29.4
19.6
25.8
24.8
30.3
30.3
Indoor
4.00
3.85
3.75
3.73
3.70
4.10
3.95
3.84
3.83
3.82
4.19
4.03
3.92
3.93
3.93
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
18.5
23.5
22.7
28.3
29.6
19.4
25.1
24.2
30.2
30.8
20.3
26.5
25.5
31.7
31.8
Cooling
Total
System
kW**
3.79
3.66
3.56
3.54
3.51
3.88
3.75
3.65
3.63
3.62
3.97
3.83
3.73
3.72
3.72
Capacity
MBtuh†
33.3
29.9
27.5
27.2
27.0
33.8
30.4
28.0
28.0
28.0
34.2
30.8
28.3
28.8
28.8
17.1
22.1
21.2
26.6
27.0
18.0
23.6
22.6
28.0
28.0
18.9
25.0
24.0
28.8
28.8
Total
System
kW**
4.22
4.06
3.94
3.92
3.91
4.32
4.15
4.03
4.03
4.03
4.41
4.24
4.12
4.14
4.14
Capacity
MBtuh†
31.3
28.1
25.7
25.6
25.6
31.7
28.5
26.2
26.6
26.5
32.1
28.8
26.4
27.3
27.3
Cooling
16.5
21.4
20.5
25.6
25.6
17.3
22.9
21.9
26.6
26.5
18.2
24.2
23.2
27.3
27.3
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
4.45
4.27
4.14
4.13
4.13
4.54
4.36
4.23
4.25
4.25
4.63
4.45
4.32
4.37
4.37
17
Page 18
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG042-34, 36 Outdoor Section With F(A,B)4(A,B)N(F,B,C)042 Indoor Section
44.6
72
41.7
1225
1400
1575
CC5A/CD5AA 042 1.00 0.99 CK5A/CK5BT 048 1.00 0.92 CC5A/CD5AC 048 1.00 0.99
CC5A/CD5AW 042 1.00 0.99 CC5A/CD5AC 048 0.99 0.91
CK5A/CK5BA 042 1.00 0.99
CK5A/CK5BE 042 0.99 0.97 CC5A/CD5AW 048 1.00 0.91 CK5A/CK5BT 042 1.00 0.99 CD5AA 048 1.00 0.91
F(A,B)4(A,B)N(F,B,C)
FC4(B,C)N(F,B) 042 1.00 0.99 CK5A/CK5BT 048 1.00 0.91
CC5A/CD5AC 048 0.99 0.92 CD5AA 48 1.00 0.91
CK5A/CK5BA 048 1.00 0.92 CK5A/CK5BT 048 1.00 0.91
See notes on pg. 20.
67
38.9
63††
38.3
62
37.0
57
45.2
72
42.4
67
39.7
63††
39.1
62
38.5
57
45.7
72
42.7
67
40.2
63††
39.9
62
39.6
57
Indoor
Section Size
CD5AA 048 1.01 1.00 CD5AA 048 1.00 0.91 CE3AA 042 1.01 1.00 CE3AA 048 1.00 0.92
CF5AA 048 1.00 0.98 CK5A/CK5BA 048 1.00 0.91 CK3BA 042 1.00 0.99 CK5A/CK5BT 048 1.00 0.91
FG3AAA 048 1.00 0.98
FK4(C,D)NF 003 0.99 0.91 CC5A/CD5AC 048 0.99 0.91
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CD5AA 048 1.00 0.92 CE3AA 048 1.00 0.92 CE3AA 048 1.00 0.93 CK3BA 048 1.00 0.91 CK3BA 048 1.00 0.92 CK5A/CK5BA 048 1.00 0.91
22.1
28.8
28.1
34.9
37.0
23.0
30.6
29.9
37.3
38.5
23.9
32.2
31.5
39.3
39.6
4.15
4.08
4.01
3.99
3.95
4.24
4.17
4.11
4.09
4.08
4.34
4.26
4.21
4.20
4.19
42.9
39.9
37.1
36.5
35.6
43.5
40.5
37.7
37.3
36.9
44.0
41.0
38.2
38.1
38.0
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
048 1.01 1.00 CC5A/CD5AW 048 1.00 0.91
048 1.01 0.99 CK3BA 048 1.00 0.91
048 1.01 1.00 CK5A/CK5BW 048 1.00 0.91
048 1.01 1.00 CC5A/CD5AC 048 0.99 0.91
048 1.01 1.00 CE3AA 048 1.00 0.92 042 1.00 1.00 CK3BA 048 1.00 0.91 048 1.01 1.00 CK5A/CK5BA 048 1.00 0.91
048 1.01 1.00 CK5A/CK5BW 048 1.00 0.91
—— —CK5A/CK5BW 048 1.00 0.91
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
41.1
21.0
37.9
27.4
35.1
26.5
34.6
33.1
34.1
34.1
41.7
21.9
38.5
29.2
35.7
28.2
35.5
35.2
35.3
35.3
42.1
22.9
38.9
30.9
36.1
29.8
36.4
36.4
36.3
36.3
Section Size
CC5A/CD5AW 048 1.00 0.91
Total
System
kW**
4.95
4.83
4.72
4.70
4.68
5.05
4.94
4.83
4.82
4.81
5.15
5.04
4.93
4.93
4.94
Indoor
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
21.6
28.1
27.3
34.1
35.6
22.5
29.9
29.0
36.3
36.9
23.4
31.7
30.7
38.0
38.0
Cooling
Total
System
kW**
4.54
4.45
4.36
4.34
4.31
4.64
4.55
4.46
4.45
4.44
4.74
4.65
4.56
4.56
4.56
Capacity
MBtuh†
39.1
35.7
33.0
32.7
32.5
39.6
36.3
33.5
33.6
33.6
39.9
36.7
33.9
34.5
34.5
20.3
26.5
25.6
32.1
32.5
21.3
28.3
27.3
33.6
33.6
22.2
30.0
28.8
34.5
34.5
Total
System
kW**
5.36
5.22
5.09
5.07
5.06
5.47
5.33
5.20
5.20
5.20
5.57
5.43
5.30
5.33
5.33
Capacity
MBtuh†
36.8
33.5
30.9
30.8
30.7
37.3
33.9
31.3
31.8
31.8
37.6
34.3
31.6
32.6
32.6
Cooling
19.5
25.6
24.7
30.7
30.7
20.6
27.4
26.3
31.8
31.8
21.5
29.1
27.8
32.6
32.6
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
5.78
5.60
5.45
5.45
5.45
5.89
5.71
5.56
5.59
5.59
5.99
5.82
5.67
5.72
5.72
18
Page 19
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG048-32, 34 Outdoor Section With F(A,B)4BN(F,B,C)048 Indoor Section
51.17 26.43 4.51 49.25 25.76 4.94 46.90 24.89 5.41 44.32 23.89 5.93 41.67 22.91 6.49
72
46.86 33.30 4.42 44.51 32.28 4.84 42.19 31.31 5.28 39.87 30.33 5.76 37.35 29.29 6.27
1400
1650
1800
CC5A/CD5AA 060 0.99 0.98 FK4DNB 006 1.03 0.90
CC5A/CD5AC 048 0.96 0.96
CC5A/CD5AW 048 0.99 0.99 CE3AA 060 1.00 0.93
CK5A/CK5BA 048 0.99 0.98
CK5A/CK5BT 048 0.99 0.98 CE3AA 060 1.00 0.92
CK5A/CK5BW 048 0.99 0.98 CK5A/CK5BA 060 1.00 0.91
CK5A/CK5BX 060 1.01 0.97 CK5A/CK5BT 060 1.00 0.92
F(A,B)4BN(F,B,C) 048 1.00 1.00 CK5A/CK5BX 060 1.01 0.92
See notes on pg. 20.
67
43.21 32.03 4.34 41.12 31.08 4.71 39.02 30.10 5.16 36.75 29.08 5.63 34.32 28.00 6.11
63††
42.43 39.67 4.31 40.43 38.62 4.69 38.44 37.54 5.14 36.34 36.34 5.62 34.37 34.37 6.12
62 57
41.40 41.40 4.28 39.77 39.77 4.67 38.11 38.11 5.13 36.32 36.32 5.62 34.37 34.37 6.12
51.74 27.56 4.63 49.99 27.07 5.06 47.74 26.32 5.53 45.14 25.41 6.05 42.38 24.37 6.61
72
47.78 35.81 4.55 45.50 34.80 4.97 43.00 33.81 5.43 40.56 32.81 5.91 37.91 31.71 6.41
67
44.15 34.39 4.46 41.96 33.41 4.86 39.70 32.41 5.29 37.36 31.36 5.77 34.86 30.24 6.25
63††
43.62 42.85 4.46 41.58 41.58 4.85 39.73 39.73 5.30 37.82 37.82 5.79 35.79 35.79 6.30
62 57
43.32 43.32 4.45 41.56 41.56 4.85 39.74 39.74 5.30 37.83 37.83 5.79 35.80 35.80 6.30
51.89 28.16 4.70 50.26 27.79 5.13 48.09 27.12 5.61 45.46 26.27 6.13 42.45 25.13 6.68
72
48.13 37.13 4.62 45.88 36.27 5.04 43.37 35.26 5.51 40.85 34.21 5.99 38.17 33.09 6.49
67
44.66 35.83 4.54 42.32 34.76 4.94 40.01 33.73 5.37 37.63 32.66 5.84 35.12 31.52 6.33
63††
44.33 44.33 4.54 42.42 42.42 4.95 40.52 40.52 5.40 38.57 38.57 5.89 36.49 36.49 6.41
62 57
44.32 44.32 4.54 42.42 42.42 4.95 40.53 40.53 5.40 38.57 38.57 5.89 36.49 36.49 6.41
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
060 1.01 0.98
CD5AA 048 0.99 0.98 CC5A/CD5AA 060 0.97 0.92
CE3AA 048 0.99 0.97 CE3AA 060 1.00 0.93
060 1.01 0.98 CK3BA 060 1.00 0.93
CF5AA 048 0.98 0.96 CK5A/CK5BA 060 1.00 0.93
CK3BA 048 0.99 0.98 CK5A/CK5BT 060 1.00 0.93
060 0.99 0.96 CK5A/CK5BX 060 1.01 0.93
060 0.99 0.96 CC5A/CD5AA 060 0.98 0.92
060 0.99 0.96 CK3BA 060 1.00 0.92
060 1.02 1.02
FB4BNB 070 1.03 1.00 CC5A/CD5AA 060 0.98 0.91
FC4CN(F,B) 048 1.01 1.01 CE3AA 060 1.00 0.91
060 1.02 1.01 CK3BA 060 1.00 0.91
FC4CNB 070 1.03 0.99 CK5A/CK5BA 060 1.00 0.91
FG3AAA 048 0.98 0.98 CK5A/CK5BT 060 1.00 0.91
FK4DNF 005 1.01 0.91 CK5A/CK5BX 060 1.01 0.91
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
System
Indoor
Section Size
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-20 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
Total
kW**
Cooling
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Cooling
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
19
Page 20
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
85 95 105 115 125
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
38YCG060-32, 34 Outdoor Section With F(A,B)4(A,B)N(F,B)060 Indoor Section
72
63.8 67
1800
2000
2200
Indoor
Section Size
CC5A/CD5AA 060 0.96 0.94 CK5A/CK5BX 060 1.00 0.92
CC5A/CD5AW 060 0.99 0.96
CE3AA 060 1.00 0.96 CC5A/CD5AA 060 0.96 0.92
CK3BA 060 0.96 0.92 CC5A/CD5AW 060 0.98 0.92
CK5A/CK5BA 060 0.96 0.92 CE3AA 060 0.99 0.92
CK5A/CK5BT 060 0.96 0.92 CK3BA 060 0.98 0.93
CK5A/CK5BX 060 0.99 0.95 CK5A/CK5BA 060 0.98 0.93
F(A,B)4(A,B)N(F,B,C)
FB4(A,B)NB 070 1.01 1.01 CK5A/CK5BX 060 1.00 0.92
FC4(B,C)N(F,B) 060 1.00 0.96
FC4(B,C)NB 070 1.01 1.01 CC5A/CD5AA 060 0.96 0.91
FG3AAA 060 0.97 0.94 CC5A/CD5AW 060 0.98 0.92
FK4(C,D)NB 006 1.00 0.94 CE3AA 060 0.99 0.91
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA 060 0.96 0.92 CK5A/CK5BA 060 0.98 0.93
CE3AA 060 0.99 0.92 CK5A/CK5BT 060 0.98 0.93
CK3BA 060 0.98 0.93 CK5A/CK5BX 060 1.00 0.91
CK5A/CK5BA 060 0.98 0.93 —— —
CK5A/CK5BT 060 0.98 0.93
63†† 62 57
72 67 63†† 62 57
72 67 63†† 62 57
58.2
54.1
53.2
52.0
64.4
58.8
54.7
54.0
53.5
64.9
59.3
55.1
54.8
54.7
NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
* Detailed cooling capacities are based on indoor and outdoor unit at same elevation per ARI standard 210/240-94. If additional tubing length and/
or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835
Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air per degree above 80°F (27°C).
** System kW is total of indoor and outdoor unit kilowatts. †† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb. EWB — Entering Wet Bulb
31.9
41.1
39.8
49.8
52.0
33.1
43.1
41.7
52.4
53.5
34.2
45.0
43.5
54.5
54.7
5.67
5.55
5.46
5.44
5.42
5.79
5.67
5.58
5.56
5.55
5.90
5.78
5.69
5.68
5.68
60.9
55.5
51.5
50.7
50.0
61.5
56.0
52.1
51.6
51.4
62.0
56.5
52.4
52.6
52.5
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
060 1.00 1.00 CK5A/CK5BT 060 0.98 0.94
CONDENSER ENTERING AIR TEMPERATURES °F
Capacity
MBtuh†
57.9
52.6
48.9
48.3
48.0
58.4
53.2
49.3
49.2
49.2
58.9
53.6
49.7
50.3
50.3
Section Size
CK3BA 060 0.98 0.93
Total
System
kW**
29.9
38.8
37.6
47.3
48.0
31.0
40.9
39.4
49.2
49.2
32.1
42.8
41.2
50.3
50.3
Indoor
6.70
6.57
6.47
6.45
6.45
6.82
6.68
6.58
6.58
6.58
6.94
6.79
6.70
6.71
6.71
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
30.9
40.0
38.7
48.6
50.0
32.1
42.0
40.6
51.0
51.4
33.2
43.9
42.4
52.6
52.5
Cooling
Total
System
kW**
6.17
6.03
5.94
5.93
5.91
6.29
6.15
6.06
6.04
6.04
6.40
6.26
6.17
6.17
6.17
Capacity
MBtuh†
54.8
49.8
46.1
45.8
45.8
55.3
50.2
46.6
46.9
46.9
55.6
50.6
46.9
47.9
47.9
28.8
37.7
36.4
45.7
45.8
29.9
39.7
38.3
46.9
46.9
31.0
41.6
40.0
47.9
47.9
Total
System
kW**
7.29
7.15
7.04
7.03
7.03
7.41
7.26
7.16
7.17
7.17
7.53
7.38
7.27
7.30
7.30
Capacity
MBtuh†
51.6
46.8
43.2
43.4
43.4
51.9
47.1
43.6
44.5
44.5
52.2
47.4
43.9
45.4
45.4
Cooling
27.7
36.6
35.2
43.4
43.4
28.8
38.5
37.0
44.5
44.5
29.9
40.4
38.7
45.4
45.4
Total
System
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
7.93
7.78
7.66
7.67
7.67
8.05
7.89
7.78
7.81
7.81
8.17
8.01
7.89
7.94
7.94
20
Page 21
Heat pump heating performance
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
7.22
600
7.31
650
7.40
700
6.96
600
7.05
650
7.13
700
6.67
600
6.76
650
6.85
700
Indoor
Section Size
CC5A/CD5AA 018 0.97 0.99 FF1DNA 018 1.00 0.99
CE3AA 024 1.00 0.97 FG3AAA 024 0.96 0.94 CF5AA 024 1.00 0.97
CK3BA 024 1.00 0.95 CC5A/CD5AA 024 0.97 0.95
CK5A/CK5BA 018 0.97 0.96 CC5A/CD5AW 024 0.97 0.95
CK5A/CK5BW 024 1.00 0.95 CK3BA 024 0.97 0.90
F(A,B)4(A,B)N(F,C) 018 1.00 1.00 CK5A/CK5BA 024 0.97 0.90
FC4(B,C)NF 024 1.03 0.98 —— —
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG018-32 Outdoor Section With F(A,B)4(A,B)NF018 Indoor Section
20.8
20.8
1.69
17.7
17.7
1.59
13.9
15.2
1.50
11.5
12.9
1.43
9.92
10.9
1.35
8.24
8.97
1.27
6.65
6.73
6.81
6.40
6.48
6.56
6.14
6.22
6.30
1.29
1.31
1.29
1.31
1.32
1.30
1.32
1.34
9.07
9.16
8.69
8.79
8.88
8.41
8.51
8.61
8.33
8.42
7.99
8.08
8.16
7.73
7.82
7.91
1.37
1.38
1.37
1.39
1.40
1.39
1.41
1.42
11.0
11.1
10.6
10.7
10.8
10.3
10.4
10.5
10.0
10.1
9.65
9.76
9.85
9.38
9.48
9.58
1.44
1.45
1.45
1.46
1.48
1.48
1.49
1.50
13.1
13.2
12.6
12.7
12.9
12.3
12.4
12.5
11.6
11.7
11.2
11.3
11.4
10.9
11.0
11.1
1.51
1.53
1.53
1.54
1.56
1.56
1.57
1.59
15.4
15.5
14.9
15.0
15.2
14.5
14.7
14.8
14.0
14.1
13.5
13.7
13.8
13.2
13.4
13.5
1.60
1.61
1.62
1.63
1.64
1.66
1.67
1.68
17.9
18.0
17.3
17.5
17.6
16.9
17.1
17.3
17.9
18.0
17.3
17.5
17.6
16.9
17.1
17.3
1.70
1.71
1.72
1.73
1.74
1.76
1.77
1.78
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
024 1.00 0.97 024 1.01 0.95
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
024 1.00 0.95 CE3AA 024 0.97 0.95
024 1.03 0.99 CK5A/CK5BW 024 0.97 0.90
21.0
21.1
20.3
20.5
20.7
19.9
20.1
20.2
21.0
21.1
20.3
20.5
20.7
19.9
20.1
20.2
Heating
Total
Power
1.83
1.83
1.84
1.86
1.87
1.88
1.90
1.91
1.91
Capacity
MBtuh
23.8
24.0
24.2
23.4
23.6
23.7
22.9
23.1
23.3
23.8
24.0
24.2
23.4
23.6
23.7
22.9
23.1
23.3
Total
Power
1.98
1.99
2.00
2.02
2.02
2.03
2.05
2.06
2.07
21
Page 22
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
9.37
700
9.59
800
9.79
900
8.87
700
9.11
800
9.31
900
8.34
700
8.58
800
8.78
900
Indoor
Section Size
CC5A/CD5AA 024 1.00 1.03 FC4(B,C)NF 024 1.00 1.00
CC5A/CD5AW 030 1.00 1.03 FF1DNA 024 1.00 1.01
CE3AA 024 1.00 1.02 030 1.00 0.99
CF5AA 024 1.00 1.02 002 0.92 0.87
CK3BA 024 1.00 0.99
CK5A/CK5BA 024 1.00 1.00 CC5A/CD5AW 030 0.90 0.90
CK5A/CK5BW 024 1.00 1.00 CK3BA 030 0.92 0.88
F(A,B)4(A,B)N(F,C) 024 1.00 1.00 CK5A/CK5BW 030 0.92 0.88
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG024-32 Outdoor Section With F(A,B)4(A,B)NF024 Indoor Section
30.2
30.2
2.17
26.6
26.6
2.02
22.7
22.7
1.92
17.8
19.6
1.84
14.9
16.8
1.75
12.9
14.2
1.66
10.8
11.7
1.56
8.62
8.82
9.00
8.16
8.38
8.56
7.67
7.89
8.07
1.59
1.63
1.57
1.60
1.64
1.57
1.61
1.64
11.9
12.2
11.3
11.5
11.7
10.8
11.1
11.3
11.0
11.2
10.4
10.6
10.8
9.95
10.2
10.4
1.69
1.72
1.67
1.70
1.73
1.68
1.71
1.75
14.5
14.7
13.7
14.0
14.2
13.3
13.5
13.8
13.2
13.4
12.5
12.8
13.0
12.1
12.3
12.6
1.77
1.80
1.77
1.80
1.83
1.79
1.82
1.85
17.1
17.4
16.3
16.6
16.9
15.8
16.1
16.4
15.2
15.4
14.5
14.8
15.0
14.1
14.3
14.6
1.86
1.88
1.86
1.89
1.91
1.89
1.91
1.94
19.9
20.2
19.1
19.5
19.7
18.6
19.0
19.3
18.1
18.4
17.4
17.7
18.0
16.9
17.3
17.5
1.94
1.96
1.96
1.98
1.99
1.99
2.01
2.03
23.2
23.5
22.2
22.6
22.9
21.6
22.0
22.4
23.2
23.5
22.2
22.6
22.9
21.6
22.0
22.4
2.04
2.05
2.06
2.07
2.09
2.10
2.11
2.12
27.1
27.4
26.0
26.5
26.9
25.3
25.8
26.2
27.1
27.4
26.0
26.5
26.9
25.3
25.8
26.2
2.17
2.16
2.20
2.21
2.21
2.24
2.25
2.26
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
Heating
030 1.00 1.03 030 1.00 0.99
030 1.00 0.99 FK4(C,D)NF 001 0.96 0.91
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
030 1.00 1.01 CC5A/CD5AA 030 0.90 0.90
030 1.00 1.01 CE3AA 030 0.92 0.89
030 1.00 1.01 CK5A/CK5BA 030 0.92 0.88
030 1.00 0.99 —— —
30.3
30.2
29.8
29.9
30.0
29.0
29.4
29.7
30.3
30.2
29.8
29.9
30.0
29.0
29.4
29.7
Power
Total
2.28
2.25
2.23
2.34
2.30
2.30
2.38
2.36
2.36
22
Page 23
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
11.7
950
11.9
1050
12.1
1150
11.2
950
11.4
1050
11.6
1150
10.6
950
10.8
1050
11.0
1150
Indoor
Section Size
CC5A/CD5AA 030 0.99 1.01 FF1DNA 030 1.00 0.99
CC5A/CD5AW 030 0.99 1.01 FK4(C,D)NF 001 0.97 0.94
CE3AA 030 1.00 1.00 003 0.97 0.90
CF5AA 036 1.00 0.99 CC5A/CD5AA 036 0.94 0.91 CK3BA 030 0.99 0.99 CE3AA 036 0.94 0.93
CK5A/CK5BA 030 0.99 0.99 CK5A/CK5BA 036 0.94 0.90
CK5A/CK5BT 036 1.01 0.98
CK5A/CK5BW 030 0.99 0.99 CC5A/CD5AA 036 0.94 0.90
F(A,B)4(A,B)N(F,C) 030 1.00 1.00 CE3AA 036 0.94 0.92
FC4(B,C)NF 030 1.00 1.00 CK5A/CK5BA 036 0.94 0.89
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG030-33 Outdoor Section With F(A,B)4(A,B)NF030 Indoor Section
34.7
34.7
2.62
29.3
29.3
2.49
22.8
25.1
2.37
18.9
21.3
2.26
16.3
17.8
2.15
13.5
14.7
2.04
10.8
11.0
11.2
10.3
10.5
10.7
9.78
9.97
10.1
2.07
2.11
2.06
2.09
2.13
2.07
2.11
2.14
14.9
15.1
14.3
14.5
14.7
13.7
14.0
14.2
13.7
13.9
13.1
13.3
13.5
12.6
12.8
13.0
2.18
2.21
2.17
2.21
2.24
2.20
2.23
2.26
18.1
18.3
17.4
17.6
17.8
16.9
17.1
17.3
16.5
16.7
15.8
16.0
16.2
15.4
15.6
15.8
2.29
2.32
2.30
2.32
2.35
2.33
2.35
2.39
21.5
21.8
20.7
21.0
21.3
20.2
20.5
20.7
19.1
19.4
18.4
18.7
18.9
17.9
18.2
18.4
2.40
2.42
2.41
2.44
2.46
2.45
2.48
2.50
25.4
25.7
24.5
24.8
25.1
23.9
24.2
24.5
23.1
23.4
22.3
22.6
22.8
21.8
22.1
22.3
2.51
2.53
2.54
2.56
2.58
2.59
2.61
2.63
29.7
30.0
28.6
29.0
29.3
27.9
28.3
28.7
29.7
30.0
28.6
29.0
29.3
27.9
28.3
28.7
2.64
2.65
2.68
2.69
2.71
2.73
2.74
2.76
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
036 1.01 0.99 FG3AAA 036 1.00 1.00
036 1.01 0.99 002 0.97 0.92
036 1.00 1.00
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
036 1.01 0.98 CK3BA 036 0.94 0.90
036 1.01 0.98 CK5A/CK5BT 036 0.94 0.90
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
036 1.01 0.98 CC5A/CD5AW 036 0.94 0.90
036 1.01 1.01 CK3BA 036 0.94 0.89
036 1.01 1.01 CK5A/CK5BW 036 0.94 0.89
35.2
35.6
33.9
34.4
34.8
33.1
33.6
34.0
35.2
35.6
33.9
34.4
34.8
33.1
33.6
34.0
Heating
Total
Power
2.81
2.82
2.83
2.87
2.87
2.89
2.92
2.93
2.94
Capacity
MBtuh
40.1
40.7
41.1
39.2
39.8
40.3
38.3
38.9
39.4
40.1
40.7
41.1
39.2
39.8
40.3
38.3
38.9
39.4
Power
Total
3.01
3.02
3.02
3.07
3.07
3.08
3.12
3.13
3.14
23
Page 24
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
13.7
1050
14.0
1200
14.4
1350
13.0
1050
13.4
1200
13.7
1350
12.3
1050
12.7
1200
13.0
1350
Indoor
Section Size
CC5A/CD5AA 036 1.00 0.98 CE3AA 042 0.97 0.92
CC5A/CD5AW 036 1.00 0.98 CK5A/CK5BA 042 0.97 0.92
CE3AA 036 0.99 0.99 CK5A/CK5BT 042 0.97 0.92
CF5AA 036 0.99 0.98 CC5A/CD5AA 042 0.96 0.91
CK3BA 036 1.00 0.97 CC5A/CD5AW 042 0.96 0.92
CK5A/CK5BA 036 1.00 0.97 CK3BA 042 0.97 0.91
CK5A/CK5BT 036 1.00 0.97 CK5A/CK5BT 042 0.97 0.91
CK5A/CK5BW 036 1.00 0.97 CC5A/CD5AA 042 0.97 0.92
F(A,B)4(A,B)N(F,B,C)
F(A,B)4(A,B)N(F,C) 036 1.00 1.00 CE3AA 042 0.97 0.92
FC4(B,C)N(F,B) 042 1.01 0.99 CK3BA 042 0.97 0.92
FC4(B,C)NF 036 1.00 1.00 CK5A/CK5BA 042 0.97 0.92
FG3AAA 036 0.97 0.97 CK5A/CK5BT 042 0.97 0.92
FK4(C,D)NF 001 0.97 0.94
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CE3AA 042 0.97 0.93 CK3BA 042 0.97 0.91
CK5A/CK5BE 042 0.98 0.92 CK5A/CK5BA 042 0.97 0.91
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA 042 0.97 0.92 —— —
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG036-33, 34 Outdoor Section With F(A,B)4(A,B)N(F,C)036 Indoor Section
40.6
40.6
3.33
35.2
35.2
3.09
27.3
30.0
2.87
22.5
25.3
2.69
19.4
21.3
2.50
16.0
17.4
2.32
12.6
12.9
13.2
12.0
12.3
12.6
11.4
11.7
12.0
2.37
2.44
2.33
2.39
2.45
2.34
2.40
2.46
17.7
18.0
16.8
17.2
17.5
16.3
16.6
17.0
16.3
16.6
15.5
15.8
16.1
15.0
15.3
15.6
2.55
2.61
2.52
2.58
2.64
2.54
2.60
2.66
21.7
22.0
20.7
21.1
21.5
20.2
20.6
20.9
19.8
20.1
18.9
19.3
19.6
18.4
18.7
19.1
2.74
2.79
2.72
2.77
2.83
2.75
2.81
2.86
25.8
26.1
24.7
25.2
25.6
24.1
24.6
25.0
22.9
23.2
21.9
22.3
22.7
21.4
21.8
22.2
2.91
2.96
2.92
2.96
3.01
2.96
3.01
3.06
30.5
30.9
29.4
29.9
30.3
28.7
29.2
29.7
27.8
28.2
26.7
27.2
27.6
26.1
26.6
27.0
3.12
3.16
3.14
3.18
3.22
3.20
3.24
3.28
35.7
36.2
34.5
35.0
35.5
33.8
34.4
34.8
35.7
36.2
34.5
35.0
35.5
33.8
34.4
34.8
3.35
3.39
3.40
3.42
3.46
3.46
3.49
3.53
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
042 1.00 0.98 CK3BA 042 0.97 0.92
042 1.00 0.99 CK5A/CK5BE 042 0.97 0.91
042 1.00 0.97
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
042 1.00 0.97 CE3AA 042 0.97 0.92
042 1.00 0.97 CK5A/CK5BA 042 0.97 0.91
042 1.00 0.97
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
042 1.01 0.99 CC5A/CD5AW 042 0.96 0.92
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
002 0.97 0.92 CC5A/CD5AA 042 0.96 0.91 003 0.97 0.91 CC5A/CD5AW 042 0.96 0.92
CE3AA 042 0.97 0.92
CK5A/CK5BT 042 0.97 0.91
41.2
41.7
39.9
40.5
41.0
39.2
39.8
40.3
41.2
41.7
39.9
40.5
41.0
39.2
39.8
40.3
Heating
Total
Power
3.60
3.63
3.66
3.68
3.70
3.73
3.76
3.78
3.81
Capacity
MBtuh
46.9
47.6
48.1
46.0
46.7
47.3
45.2
45.9
46.4
46.9
47.6
48.1
46.0
46.7
47.3
45.2
45.9
46.4
Total
Power
3.96
3.98
4.01
4.04
4.06
4.08
4.12
4.14
4.16
24
Page 25
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
18.8
1225
19.1
1400
19.5
1575
18.3
1225
18.6
1400
19.0
1575
17.6
1225
18.1
1400
18.4
1575
Indoor
Section Size
CC5A/CD5AA 042 1.00 1.01 CK5A/CK5BT 048 0.98 0.93 CC5A/CD5AC 048 1.00 1.03
CC5A/CD5AW 042 1.00 1.01 CC5A/CD5AC 048 0.96 0.99
CD5AA 048 1.00 0.99 CD5AA 048 0.98 0.95 CE3AA 042 1.00 0.99 CE3AA 048 0.98 0.94
CF5AA 048 1.00 1.00 CK5A/CK5BA 048 0.98 0.93 CK3BA 042 1.00 0.99 CK5A/CK5BT 048 0.98 0.93
CK5A/CK5BA 042 1.00 0.99
CK5A/CK5BE 042 0.98 0.95 CC5A/CD5AW 048 0.98 0.95 CK5A/CK5BT 042 1.00 0.99 CD5AA 048 0.98 0.95
F(A,B)4(A,B)N(F,B,C)
FC4(B,C)N(F,B) 042 1.00 1.00 CK5A/CK5BT 048 0.98 0.93
FG3AAA 048 1.00 0.98
FK4(C,D)NF 003 0.99 0.96 CC5A/CD5AC 048 0.96 0.99
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AC 048 0.96 1.00 CD5AA 048 0.98 0.95
CD5AA 048 0.98 0.95 CE3AA 048 0.98 0.94 CE3AA 048 0.98 0.95 CK3BA 048 0.98 0.93 CK3BA 048 0.98 0.93 CK5A/CK5BA 048 0.98 0.93
CK5A/CK5BA 048 0.98 0.93 CK5A/CK5BT 048 0.98 0.93
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG042-34, 36 Outdoor Section With F(A,B)4(A,B)N(F,B,C)042 Indoor Section
48.1
48.1
4.11
41.8
41.8
3.82
33.0
36.3
3.57
27.8
31.3
3.36
24.6
27.0
3.13
20.9
22.7
2.91
17.3
17.6
17.9
16.8
17.1
17.5
16.2
16.6
16.9
2.97
3.04
2.97
3.04
3.10
3.03
3.10
3.16
23.1
23.4
22.3
22.7
23.0
21.8
22.2
22.6
21.2
21.5
20.5
20.8
21.1
20.1
20.4
20.7
3.18
3.24
3.22
3.27
3.33
3.30
3.35
3.41
27.3
27.7
26.5
26.9
27.3
26.1
26.5
26.9
24.9
25.3
24.2
24.5
24.9
23.8
24.1
24.5
3.39
3.44
3.46
3.50
3.55
3.56
3.60
3.65
31.7
32.0
30.9
31.3
31.6
30.4
30.8
31.2
28.1
28.5
27.4
27.8
28.1
27.0
27.4
27.7
3.60
3.63
3.70
3.72
3.76
3.82
3.84
3.88
36.8
37.2
35.8
36.3
36.7
35.4
35.8
36.2
33.5
33.8
32.6
33.0
33.4
32.2
32.6
33.0
3.83
3.86
3.96
3.97
4.00
4.10
4.11
4.13
42.4
42.8
41.3
41.8
42.3
40.7
41.3
41.8
42.4
42.8
41.3
41.8
42.3
40.7
41.3
41.8
4.11
4.13
4.26
4.26
4.27
4.41
4.41
4.42
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
048 1.00 0.99 CC5A/CD5AW 048 0.98 0.95
048 1.00 0.98 CK3BA 048 0.98 0.93
048 1.00 0.97 CK5A/CK5BW 048 0.98 0.93
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
048 1.00 0.97 CC5A/CD5AC 048 0.96 0.99
048 1.00 0.97 CE3AA 048 0.98 0.94 042 1.00 1.00 CK3BA 048 0.98 0.93 048 1.00 0.97 CK5A/CK5BA 048 0.98 0.93
048 1.00 0.97 CK5A/CK5BW 048 0.98 0.93
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AW 048 0.98 0.95
—— —CK5A/CK5BW 048 0.98 0.93
48.7
49.2
47.4
48.0
48.6
46.8
47.4
47.9
48.7
49.2
47.4
48.0
48.6
46.8
47.4
47.9
Total
Power
4.46
4.45
4.46
4.62
4.61
4.61
4.79
4.77
4.77
Heating
Capacity
MBtuh
55.1
55.8
56.3
54.3
55.0
55.6
53.5
54.2
54.8
55.1
55.8
56.3
54.3
55.0
55.6
53.5
54.2
54.8
Power
Total
4.90
4.87
4.87
5.07
5.04
5.04
5.24
5.21
5.21
25
Page 26
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
1400 19.99 18.39 3.08 24.40 22.42 3.25 28.92 26.37 3.41 34.29 30.45 3.63 40.27 36.64 3.87 46.84 46.84 4.16 54.55 54.55 4.53 63.54 63.54 5.00 1650 20.43 18.80 3.15 24.86 22.84 3.30 29.46 26.86 3.45 34.85 30.95 3.65 40.87 37.19 3.88 47.52 47.52 4.15 55.35 55.35 4.50 64.16 64.16 4.89 1800 20.68 19.02 3.19 25.11 23.07 3.33 29.74 27.12 3.48 35.14 31.21 3.67 41.19 37.48 3.90 47.85 47.85 4.16 55.75 55.75 4.51 63.79 63.79 4.81
1400 19.56 17.99 3.19 24.03 22.08 3.38 28.75 26.22 3.56 33.90 30.10 3.77 39.81 36.22 4.03 46.31 46.31 4.32 53.92 53.92 4.70 62.67 62.67 5.18 1650 20.00 18.40 3.26 24.50 22.51 3.43 29.02 26.46 3.58 34.44 30.58 3.79 40.42 36.79 4.03 47.00 47.00 4.30 54.73 54.73 4.66 63.75 63.75 5.13 1800 20.26 18.64 3.30 24.76 22.75 3.46 29.30 26.72 3.61 34.73 30.84 3.81 40.75 37.08 4.05 47.35 47.35 4.32 55.12 55.12 4.67 63.82 63.82 5.05
1400 19.09 17.57 3.31 23.62 21.71 3.51 28.42 25.91 3.71 33.51 29.76 3.93 39.35 35.81 4.19 45.79 45.79 4.50 53.31 53.31 4.89 62.02 62.02 5.38 1650 19.55 17.99 3.37 24.10 22.15 3.56 28.90 26.35 3.74 34.04 30.24 3.94 39.95 36.35 4.19 46.48 46.48 4.47 54.12 54.12 4.84 63.03 63.03 5.31 1800 19.81 18.23 3.42 24.36 22.39 3.59 29.16 26.59 3.77 34.33 30.49 3.96 40.27 36.65 4.20 46.84 46.84 4.48 54.51 54.51 4.84 63.38 63.38 5.28
Indoor
Section Size
CC5A/CD5AA 060 0.99 1.03 FK4DNB 006 0.98 0.89
CC5A/CD5AC 048 0.98 1.07
CC5A/CD5AW 048 0.99 1.02 CE3AA 060 0.96 0.96
CD5AA 048 0.99 1.01 CC5A/CD5AA 060 0.96 1.01
CE3AA 048 1.00 1.02 CE3AA 060 0.96 0.96
CF5AA 048 0.99 1.07 CK5A/CK5BA 060 0.97 0.94
CK3BA 048 0.99 1.00 CK5A/CK5BT 060 0.97 0.94
CK5A/CK5BA 048 0.99 1.00
CK5A/CK5BT 048 0.99 1.00 CE3AA 060 0.96 0.95
CK5A/CK5BW 048 0.99 1.00 CK5A/CK5BA 060 0.97 0.93
CK5A/CK5BX 060 1.00 0.97 CK5A/CK5BT 060 0.97 0.93
F(A,B)4BN(F,B,C) 048 1.00 1.00 CK5A/CK5BX 060 0.97 0.93
FB4BNB 070 1.00 0.97 CC5A/CD5AA 060 0.96 1.00
FC4CN(F,B) 048 1.00 1.00 CE3AA 060 0.96 0.95
FC4CNB 070 1.00 0.98 CK5A/CK5BA 060 0.97 0.92
FG3AAA 048 1.00 1.01 CK5A/CK5BT 060 0.97 0.92
FK4DNF 005 0.98 0.93 CK5A/CK5BX 060 0.98 0.93
See notes on pg. 27.
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG048-32, 34 Outdoor Section With F(A,B)4BN(F,B,C)048 Indoor Section
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
060 1.00 0.99
COILS + 58CV(A,X)110-20 VARIABLE-SPEED FURNACE
060 1.00 1.00 CK3BA 060 0.97 0.94
060 0.99 0.96 CK5A/CK5BX 060 0.97 0.94
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
060 0.99 0.96 CC5A/CD5AA 060 0.96 1.01
060 0.99 0.96 CK3BA 060 0.97 0.93
060 1.00 0.99
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
060 1.00 0.99 CK3BA 060 0.97 0.92
Heating
Power
Total
26
Page 27
Heat pump heating performance continued
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
–3 7 17 27 37 47 57 67
INDOOR
AIR
EDB CFM Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡ Total Integ† kW‡
65
70
75
Capacity
MBtuh
30.0
1800
30.4
2000
30.8
2200
29.4
1800
29.9
2000
30.3
2200
28.9
1800
29.3
2000
29.8
2200
Indoor
Section Size
CC5A/CD5AA 060 0.97 1.04 CK5A/CK5BT 060 0.97 0.94
CC5A/CD5AW 060 0.97 0.98 CK5A/CK5BX 060 0.97 0.94
CE3AA 060 0.97 0.97
CK3BA 060 0.97 1.00 CC5A/CD5AA 060 0.96 1.02 CK5A/CK5BA 060 0.97 1.00 CC5A/CD5AW 060 0.95 0.94 CK5A/CK5BT 060 0.97 1.00 CE3AA 060 0.97 0.97 CK5A/CK5BX 060 0.97 0.96 CK3BA 060 0.97 0.94
F(A,B)4(A,B)N(F,B,C)
FB4(A,B)NB 070 0.98 0.94 CK5A/CK5BT 060 0.97 0.94
FC4(B,C)N(F,B) 060 1.00 1.00 CK5A/CK5BX 060 0.97 0.94
FC4(B,C)NB 070 0.98 0.94
FG3AAA 060 0.97 0.99 CC5A/CD5AA 060 0.96 1.01
FK4(C,D)NB 006 0.91 0.90 CC5A/CD5AW 060 0.95 0.94
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA 060 0.96 1.02 CK3BA 060 0.97 0.94
CE3AA 060 0.97 0.97 CK5A/CK5BA 060 0.97 0.94
CK3BA 060 0.97 0.94 CK5A/CK5BT 060 0.97 0.94 CK5A/CK5BA 060 0.97 0.94 CK5A/CK5BX 060 0.97 0.94
NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
† The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from sup-
plement heaters should be added to those values to obtain total system capacity.
‡ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these
values to obtain total system kilowatts.
EDB — Entering Dry Bulb
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
38YCG060-32, 34 Outdoor Section With F(A,B)4(A,B)N(F,B)060 Indoor Section
66.6
66.6
5.12
58.1
58.1
4.85
46.2
50.7
4.67
39.9
44.9
4.51
36.0
39.4
4.37
31.8
34.6
4.24
27.6
27.9
28.3
27.1
27.5
27.9
26.5
27.0
27.4
4.31
4.38
4.38
4.45
4.52
4.53
4.59
4.66
35.0
35.4
34.3
34.7
35.1
33.9
34.3
34.7
32.2
32.5
31.5
31.9
32.2
31.2
31.5
31.9
4.43
4.49
4.54
4.59
4.65
4.71
4.76
4.82
39.9
40.2
39.1
39.5
39.9
38.7
39.2
39.5
36.3
36.7
35.6
36.0
36.4
35.3
35.7
36.0
4.55
4.60
4.68
4.72
4.78
4.87
4.91
4.96
45.4
45.8
44.5
44.9
45.4
44.1
44.5
44.9
40.3
40.7
39.5
39.9
40.3
39.2
39.5
39.9
4.70
4.74
4.85
4.88
4.93
5.05
5.08
5.11
51.2
51.7
50.2
50.7
51.2
49.7
50.2
50.6
46.6
47.0
45.7
46.1
46.5
45.2
45.7
46.1
4.88
4.91
5.05
5.07
5.10
5.25
5.27
5.30
58.7
59.2
57.4
58.0
58.5
56.8
57.3
57.8
58.7
59.2
57.4
58.0
58.5
56.8
57.3
57.8
5.13
5.16
5.32
5.33
5.36
5.54
5.54
5.56
Multipliers for Determining the Performance With Other Indoor Sections
Heating
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
060 1.00 1.00 CK5A/CK5BA 060 0.97 0.94
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CE3AA 060 0.97 0.97
66.4
66.2
66.1
66.3
66.1
65.5
66.1
66.0
66.4
66.2
66.1
66.3
66.1
65.5
66.1
66.0
Heating
Total
Power
5.47
5.42
5.40
5.70
5.66
5.63
5.94
5.93
5.88
Capacity
MBtuh
71.9
71.1
70.4
72.1
70.9
69.9
72.2
72.3
70.8
71.9
71.1
70.4
72.1
70.9
69.9
72.2
72.3
70.8
Total
Power
5.69
5.61
5.57
5.97
5.84
5.78
6.26
6.20
6.08
System Design
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature for cooling mode is 125°F (51.7°C).
4. Minimum outdoor operating air temperature for heating mode is –30°F (–34.4°C).
5. Maximum outdoor operating air temperature for heating mode is 66°F (18.9°C).
6. For reliable operation, unit should be level in all horizontal planes.
7. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft, indoor coil below = 150 ft. (See items 8 and 9 following.)
8. For interconnecting refrigerant tube lengths between 50 and 175 ft and/or 20 ft vertical differential, consult the Residential Split-System Long-Line Application Guideline available from equipment distributor.
9. If any refrigerant tubing is buried, provide a minimum 6-in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may be buried without further consideration. For buried refrigerant tubing lengths greater than 36 in., consult your local distributor.
10. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
11. Mixmatches of indoor coil capacity more than 1 size larger than outdoor unit capacity may result in inadequate indoor comfort.
27
Page 28
Guide specifications Air-Cooled, Split-System
Heat Pump
38YCG
1-1/2 To 5 Tons Nominal
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of ARI Standard 240.
Unit will be certified for capacity and efficiency, and listed in the latest ARI directory.
Unit construction will comply with latest edition of ANSI/ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have c-UL approval.
Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.
Air-cooled condenser coils will be leak tested at 150 psig and pressure tested at 300 psig.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory-assembled, single piece, air-cooled heat pump unit. Contained within the unit enclosure will be all factory wiring, piping, controls, compressor, refrigerant charge (R-22), and special features required prior to field start-up.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type,
discharging air upward.
Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with steel wire
safety guards.
Compressor
Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid tube shutoff valve with sweat connections, suction tube shutoff valves with sweat connections, system charge of refrigerant R-22, compressor oil, accumulator, and reversing valve.
Operating Characteristics
The capacity of the unit will meet or exceed ____ Btuh at a suction temperature of ____ F. The power consumption at full load will not exceed ____ kW.
Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of ____ Btuh or greater at conditions of ____ CFM entering air temperature at the evaporator at ____ F wet bulb and ____ F dry bulb, and air entering the unit at ____ F.
The system will have an SEER of ____ Btuh/watt or greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be ____ v, 1 phase, 60 hz. The unit will be capable of satisfactory operation within voltage limits of ____ v to ____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements.
Carrier Corporation • Indianapolis, IN 46231 9-03
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4 Page 28 Catalog No. 523-80091 Printed in U.S.A. PC 101 Form 38YCG-4PD
Tab 5a 5a
Replaces: 38YCG-3PD
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
