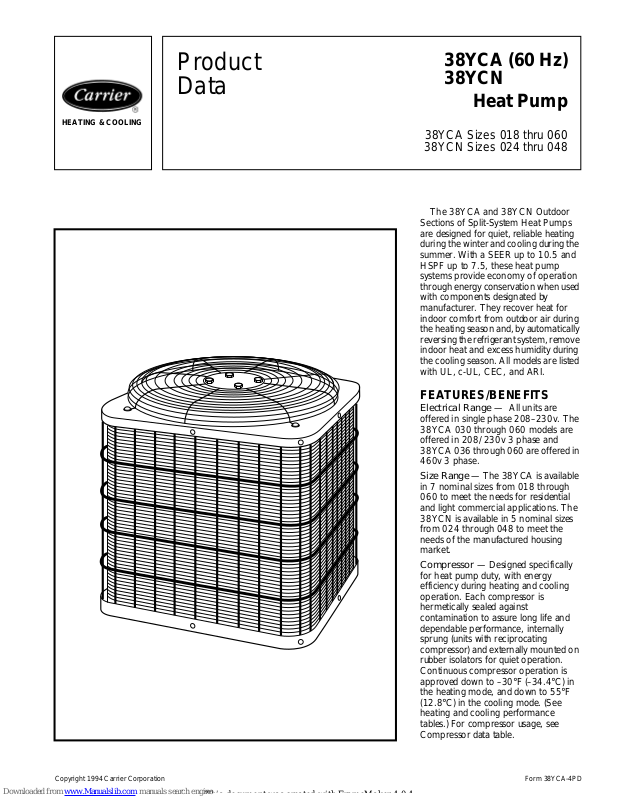

Page 1
Copyright 1994 Carrier Corporation Form 38YCA-4PD
Product
Data
38YCA (60 Hz)
38YCN
Heat Pump
38YCA Sizes 018 thru 060
38YCN Sizes 024 thru 048
HEATING & COOLING
The 38YCA and 38YCN Outdoor
Sections of Split-System Heat Pumps
are designed for quiet, reliable heating
during the winter and cooling during the
summer. With a SEER up to 10.5 and
HSPF up to 7.5, these heat pump
systems provide economy of operation
through energy conservation when used
with components designated by
manufacturer. They recover heat for
indoor comfort from outdoor air during
the heating season and, by automatically
reversing the refrigerant system, remove
indoor heat and excess humidity during
the cooling season. All models are listed
with UL, c-UL, CEC, and ARI.
FEATURES/BENEFITS
Electrical Range — All units are
offered in single phase 208–230v. The
38YCA 030 through 060 models are
offered in 208/230v 3 phase and
38YCA 036 through 060 are offered in
460v 3 phase.
Size Range — The 38YCA is available
in 7 nominal sizes from 018 through
060 to meet the needs for residential
and light commercial applications. The
38YCN is available in 5 nominal sizes
from 024 through 048 to meet the
needs of the manufactured housing
market.
Compressor — Designed specifically
for heat pump duty, with energy
efficiency during heating and cooling
operation. Each compressor is
hermetically sealed against
contamination to assure long life and
dependable performance, internally
sprung (units with reciprocating
compressor) and externally mounted on
rubber isolators for quiet operation.
Continuous compressor operation is
approved down to –30
°
F (–34.4 ° C) in
the heating mode, and down to 55
°
F
(12.8
°
C) in the cooling mode. (See
heating and cooling performance
tables.) For compressor usage, see
Compressor data table.
Page 2
2
Built-in-Reliability
Components
— Includes a suction-tube
accumulator that reduces the amount of
liquid refrigerant that reaches the
compressor; a low-pressure switch to
stop the compressor if refrigerant charge
is lost; a crankcase heater on units with
reciprocating compressor and all
3-phase units to keep compressor oil
warm and free of refrigerant for
maximum lubricity; an internal
compressor relief valve for high-pressure
protection.
Discharge Muffler — Minimizes
low frequency sound and pressure
pulsation generated by compressor
discharge gas.
Defrost Control Board — Incorporates
a defrost relay, defrost timer, and
low-voltage terminations. The defrost
control is a time and temperature
initiation/termination control which
includes 3 field-selectable time periods of
30, 50, and 90 minutes. The control
includes built-in 5-minute compressor
delay for units equipped with scroll
compressors (see Compressor data table).
Weather-Protective Cabinet — Steel is
protected with a heavy coating
commonly called “galvanizing,” and
coated with a layer of zinc phosphate. A
coat of modified polyester powder
coating is then applied and baked-on,
providing each unit with a hard, smooth
finish that will last for many years.
All screws on cabinet exterior are coated
for a long-lasting rust-resistant, quality
appearance.
Unit Design — All units are equipped
with totally enclosed fan motors for
greater reliability under rain and snow
conditions. The large, wraparound coil
uses copper tube and enhanced
aluminum fin and is designed for
optimum heat transfer during heating
and cooling. The vertical air discharge
carries the sound and air up and away
from adjacent patio areas and foliage.
Coils can be cleaned with a common
garden hose.
External Service Valves — Both service
valves are brass, front seating type.
Valves are externally located so
refrigerant tube connections can be
made quickly and easily. Each valve has a
service port for ease of checking
operating refrigerant pressures. The
38YCA has sweat field connections.
The 38YCN has mechanical field
connections.
Warranty — Standard 1 year on
parts. Additional 4 years on
compressor.
Model number nomenclature
38YCA 018
Electric Heat Pump
Nominal Capacity
018—18,000 Btuh 042—42,000 Btuh
024—24,000 Btuh 048—48,000 Btuh
030—30,000 Btuh 060—60,000 Btuh
036—36,000 Btuh
3 5 1
Packaging
Series
Electrical
3—208/230-1
5—208/230-3
6—460-3
Page 3
3
Physical data
* Tube sizes are for lengths up to 50 ft. For lengths over 50 ft, consult Long-Line Application Guideline.
NOTE: See unit Installation Instructions for proper installation.
UNIT SIZE 018 024 030 036 042 048 060
SERIES
33/34 35/36 36/37, 57 36, 56, 66/
37, 57, 67
32/33, 53, 63 32, 52, 62/
33, 53, 63
32, 52, 62/
33, 53, 63
OPERATING WT (lb)
127 143 157, 153 176 207 219 237
REFRIGERANT
Control
Charge (lb) @ 15 ft
22
Piston
4.69 4.75/4.88 5.38/5.63 6.38/7.13 7.63/7.38 9.25/7.78 10.00/10.25
CONDENSER FAN
Air Discharge
Air Qty (CFM)
Motor RPM (60 Hz)
Propeller Type, Direct Drive
Vertical
1900 1900 2300 3300
11001110 1125 1125
CONDENSER COIL
Face Area (sq ft)
9.10 9.11 14.07/12.42 14.93 18.67/17.42 22.40/17.42 22.40
CONNECTION (in. ID)
Vapor
Liquid
Sweat
5/8 3/4 7/8
3/8
REFRIGERANT TUBES*
(in. OD)
Vapor
Liquid
5/8 3/4 7/8 1-1/8
3/8
CERTIFICATION APPLIES ONLY WHEN THE
COMPLETE SYSTEM IS LISTED WITH ARI.
Page 4
4
COMPRESSOR DATA
METERING DEVICE
*Piston listed is for any approved coil combination.
COMPRESSOR MANUFACTURER & TYPE UNIT SIZE UNIT SERIES
BRISTOL RECIP
030 36
COPELAND RECIP
018 33
024 35
030 37, 57
TECUMSEH RECIP
018 34
024 36
036 37, 57, 67
MILLENNIUM SCROLL
036 36, 56, 66
042, 048, 060 32, 52, 62
COPELAND SCROLL
042, 048, 060 33, 53, 63
UNIT
SIZE SERIES
OUTDOOR
PISTON
INDOOR
PISTON*
018
33 40 52
018
34 40 55
024
35, 36 49 63
030
36 55 70
030
37, 57 52 70
036
36, 56, 66 61 76
036
37, 57, 67 59 73
042
32, 52 67 84
042
33, 53, 63 65 84
048
32, 52, 62, 33, 53, 63 73 88
060
32, 52, 62, 33, 53, 63 76 96
Page 5
5
Accessories
N/A — Not applicable in this application.
* Isolation relay required.
† Use with low-ambient controller.
‡ See Compressor data table.
** Hard shut-off TXV requires compressor start assist on recip compressors. See Compressor Data table.
ORDERING NUMBER DESCRIPTION
KAAWS0101AAA
Winter Start Control
KAATD0101TDR
Time-Delay Relay
KAAFT0101AAA
Evaporator Freeze Thermostat†
KHAIR0101AAA
Isolation Relay†
Standard
Cycle Protector—Units with scroll compressor‡
KSACY0101AAA
Cycle Protector—Units with recip compressor‡
KAAHS0601AAA
Compressor Start Assist (Capacitor/Relay) Sizes 018 (331, 341), 024 (351, 361), 030 (361, 371)
KAAHS0701AAA
Compressor Start Assist (Capacitor/Relay) Size 036 (371) 1 Phase
N/A
Compressor Start Assist (Capacitor/Relay)—3 Phase and Scroll Units‡
KAACS0201PTC
Start Assist (PTC)—Sizes 036–060 1 Phase Scroll Units‡
Standard
Start Assist (PTC)—Sizes 018–036 1 Phase Recip Units‡
N/A
Start Assist (PTC)—3 Phase
Standard
Crankcase Heater—Sizes 018 (331, 341), 024 (351, 361), 030 (361, 371), 036 (371), All 3 Phase
KAACH1201AAA
Crankcase Heater—Sizes 036 (361), 042–060 1 Phase
KSASH1101COP
Sound Blanket—Sizes 018 (331), 024 (351), 030 (371, 571)
Standard
Sound Blanket—Size 030 (361), 036 (371, 571, 671)
KSASH1301TEC
Sound Blanket—Sizes 018 (341), 024 (361)
KSASH1901CYL
Sound Blanket—Size 036 (361, 561, 661)
KSASH2001CYL
Sound Blanket—Sizes 042–060 (321, 521, 621)
KSASH1201COP
Sound Blanket—Size 036 (511, 531)
KSASH0801TEC
Sound Blanket—Size 036 (521)
KSASH1701COP
Sound Blanket—Sizes 042–060 (331, 531, 631)
KHAOT0301FST
Outdoor Thermostat
KHAOT0201SEC
Secondary Outdoor Thermostat
KHAIC0101AAA
Interface Control (Optimizer II)
KHAIC0201AAA
Interface Control (Outdoor Thermostat and Lockout Relay)
KHATX0901HSO**
TXV (Hard Shut-off)—Size 018
KHATX1001HSO**
TXV (Hard Shut-off)—Size 024
KHATX1101HSO**
TXV (Hard Shut-off)—Size 030
KHATX1201HSO**
TXV (Hard Shut-off)—Sizes 036, 042
KHATX1301HSO
TXV (Hard Shut-off)—Size 048
KHATX1401HSO
TXV (Hard Shut-off)—Size 060
KHATX0201RPB
TXV (RPB)—Size 018
KHATX0301RPB
TXV (RPB)—Size 024
KHATX0401RPB
TXV (RPB)—Size 030
KHATX0501RPB
TXV (RPB)—Sizes 036, 042
KHATX0601RPB
TXV (RPB)—Size 048
KHATX0701RPB
TXV (RPB)—Size 060
Standard
Low-Pressure Switch
KSAHI0201HPS
High-Pressure Switch
KHALS0101LLS
Liquid Solenoid Valve (LSV)
Not Available
Support Feet
Not Available
Snow Rack
P251-0083
Low-Ambient Controller* (RCD)
P504-8083S
Filter Drier—Bi-flow Sizes 018-036
P504-8163S
Filter Drier—Bi-flow Sizes 042-060
THERMOSTAT/SUBBASE
PKG DESCRIPTION
--HH--07AT-175
Thermostat, 2-Stage Heat, 1-Stage Cool, Auto/Manual Changeover— ° F
--HH--93AZ-195
Subbase for Manual Changeover Thermostat
--HH--93AZ-196
Subbase for Auto Changeover Thermostat
--HH--07AE--001
Thermostat (1 Piece) Night Setback, 2-Stage Heat, 1-Stage Cool— ° F/ ° C Option,
5-2 Day Programmable
Page 6
6
Accessory Description and Usage
1.
Time-Delay Relay
A SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. (Refer to ARI Unitary Directory.)
2.
Evaporator Freeze Thermostat
A SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where low-ambient controller has been added.
3.
Isolation Relay
A SPDT relay which switches the low-ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.
SUGGESTED USE: All heat pumps where low-ambient controller has been added.
4.
Compressor Start Assist-Capacitor/Relay Type
Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
Installations where outdoor design temperature exceeds 105
°
F (40.6 ° C).
Replacement installations with hard shut-off expansion valve or liquid line solenoid on indoor coil.
Units installed with low-ambient controller.
5.
Sound Blanket
Wraparound sound attenuation cover for the compressor. Reduces the sound level by about 0.2 bels.
SUGGESTED USE: Unit installed closer than 15 ft to quiet areas—bedrooms, etc.
Unit installed between 2 houses less than 10 ft apart.
6.
Outdoor Thermostat
A SPDT temperature actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below set point.
SUGGESTED USE: Heat pump installations with multiple-stage supplemental heaters
7.
Secondary Outdoor Thermostat
A SPDT temperature actuated switch which turns on a third stage of supplemental electric heaters when outdoor air temperature drops below the second-stage
set point.
SUGGESTED USE: Heat pump installations where 3-stage operation of supplemental heaters is desired.
8.
Interface Control (Optimizer II)
An electric control for controlling a heat pump and gas or oil furnace system for maximum energy savings. It allows heat pump to operate down to a predetermined economic balance point temperature, then switches to allow furnace operation only below that temperature. Requires outdoor thermostat (Item 6) to
be adjusted for economic balance point temperature.
SUGGESTED USE: All heat pump and gas- or oil-fired furnace combination systems.
9.
Thermostatic Expansion Valve (TXV)
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the
evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shut-off and RPB valves are available.
SUGGESTED USE: For improved system performance in cooling mode.
10. High-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to about 425
psig. Provides additional protection against compressor damage due to loss of outdoor airflow.
SUGGESTED USE: Installations exposed to very “dirty” outdoor air.
Installations where condenser inlet air temperature exceeds 125
°
F (51.7 ° C).
11.
Filter Drier—Bi-flow
A device for removing contaminants from refrigerant circulating in an air conditioner or heat pump system; bi-flow for heat pumps.
SUGGESTED USE: All field-connected split-system units.
12.
Liquid Solenoid Valve (LSV)
An electrically operated shut-off valve to be installed at the outdoor unit and which stops and starts refrigerant liquid flow in response to compressor operation.
Maintains a column of refrigerant liquid ready for action at next compressor operation cycle. Note: Compressor start assist–capacitor/relay type (Item 4) must
be used on single-phase reciprocating compressors.
SUGGESTED USE: In certain long-line applications. (Refer to Long-Line Application Guideline.)
Page 7
7
Electrical data
* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† Time-delay fuse.
‡ Length shown is as measured 1 way along the wire path between the unit and the service panel for voltage drop not to exceed 2%.
** If wire is applied at ambient greater than 30
°
C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed cable
(NM), trade name ROMEX, shall be that of 60
°
C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-36.
If other than uncoated (non-plated), 60
°
or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than
10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
NOTE:
Control circuit is 24v on all units and requires external power source. Copper wire must be used from disconnect to unit. All motors/compressors contain
internal overload protection. Model Size 042 MCA value greater than 048 due to UL testing.
FLA
— Full Load Amps
HACR
— Heating, Air Conditioning, Refrigeration
LRA
— Locked Rotor Amps
MCA
— Minimum Circuit Amps
RLA
— Rated Load Amps
OUTDOOR
UNIT
V/PH
60 Hz
OPER VOLTS* COMPR
FAN
FLA MCA
MIN WIRE
SIZE**
60
°
C/75°C
MAX
LENGTH
(Ft)‡
60°C/75°C
MAX FUSE†
OR HACR
TYPE CKT
BKR AMPSMax Min LRA RLA
018-33, 34
208-230/1 253 197
49.0 9.8 0.5 12.8 14/14 70/70 20
024-35
61.0 11.4 0.5 14.8 14/14 50/45 20
024-36
61.0 11.7 0.5 15.1 14/14 50/45 20
030-36
73.0 14.7 1.4 19.8 14/14 35/35 30
030-37
75.0 13.7 1.4 18.5 14/14 40/40 30
036-36
105.0 18.0 1.4 23.9 12/12 50/50 35
036-37
92.0 17.5 1.4 23.3 12/12 50/50 35
042-32
124.0 27.8 1.4 36.2 8/8 80/80 50
042-33
129.0 28.0 1.4 36.4 8/8 80/80 50
048-32
140.0 24.4 1.4 31.9 8/8 90/90 50
048-33
129.0 23.7 1.4 31.0 8/8 95/90 50
060-32
165.0 30.8 1.4 39.9 8/8 75/70 60
060-33
169.0 30.8 1.4 39.9 8/8 75/70 60
030-57
208/230/3 253 187
68.0 9.0 1.4 12.7 14/14 70/65 15
036-56
90.0 11.4 1.4 15.7 14/14 50/50 20
036-57
75.0 11.0 1.4 15.2 14/14 50/50 20
042-52
92.0 16.4 1.4 21.9 12/12 60/60 30
042-53
99.0 15.9 1.4 21.3 12/12 60/60 30
048-52
105.0 14.1 1.4 19.0 14/14 40/40 25
048-53
99.0 13.5 1.4 18.3 14/14 45/40 25
060-52
123.0 17.0 1.4 22.9 12/12 55/55 35
060-53
123.0 18.5 1.4 24.5 12/12 55/55 35
036-66
460/3 506 414
45.0 6.2 0.8 8.6 14/14 95/95 15
036-67
37.5 5.6 0.8 7.8 14/14 95/95 15
042-63
49.5 8.7 0.8 11.7 14/14 140/140 15
048-62
52.5 7.1 0.8 9.7 14/14 145/145 15
048-63
49.5 7.4 0.8 10.1 14/14 145/145 15
060-62
66.5 8.5 0.8 11.4 14/14 130/130 15
060-63
62.0 9.6 0.8 12.8 14/14 130/130 20
Page 8
8
Combination ratings
See notes on pg. 9.
UNIT
SIZE-
SERIES
AND
SOUND
RATING
(Bels)‡
INDOOR
UNIT
ARI STANDARD RATINGS*
Cooling Heating
TC
Seasonal Efficiency SEER
High-Temp Low-Temp
Seasonal
Efficiency
HSPF
Factory-
Supplied
Enhance-
ment
Standard
Rating
Field-Supplied
Accessory**
TDR TXV TC COP TC COP
018-33, 34
7.8/7.6
F(A,B)4ANF018†
FA1ANA018
FA1ANA024
FB(5,4)AN(A,F)018
FB(5,4)AN(A,F)024
F(A,B)4ANF024
FD3ANA024
FF1ANA018
FF1ANA024
FG3AAA024
CC5A/CD5A/CD5BA018
CD3(A,B)A018
CC5A/CD5A/CD5BA024
CD3(A,B)A024
CE3AA024
CF5AA024
17,000
17,000
17,800
17,000
18,000
18,000
17,500
17,000
17,800
17,500
17,500
17,500
17,800
17,800
17,800
17,800
TDR
TDR
TDR
TDR
TDR
TDR
NONE
TDR
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.00
10.10
10.00
10.10
10.10
—
10.00
10.20
—
—
—
—
—
—
—
—
—
—
—
—
—
10.00
—
—
10.00
10.00
10.00
10.10
10.10
10.10
10.10
10.00
10.00
10.10
10.00
10.10
10.10
10.00
10.00
10.20
10.00
10.00
10.00
10.10
10.10
10.10
10.10
17,500
17,500
17,800
17,500
18,000
18,000
17,500
17,500
17,600
16,800
17,000
17,000
17,500
17,500
17,500
17,500
3.00
3.04
3.14
3.00
3.12
3.12
3.12
3.02
3.16
3.06
2.94
2.94
3.08
3.08
3.08
3.10
11,000
10,900
11,400
11,000
11,400
11,400
11,200
11,000
11,300
11,200
11,000
11,000
11,200
11,200
11,200
11,300
2.22
2.24
2.28
2.22
2.26
2.26
2.28
2.22
2.28
2.26
2.18
2.18
2.24
2.24
2.26
2.26
7.00
7.00
7.20
7.00
7.20
7.20
7.00
7.00
7.20
6.80
6.80
6.80
7.00
7.00
7.00
7.20
024-35, 36
7.8/7.6
F(A,B)4ANF024†
F(A,B)4ANF030
FD3ANA024
FD3ANA030
FF1(A,B)NA024
FF1(A,B)NA030
CC5A/CD5A/CD5BA024
CD3(A,B)A024
CC5A/CD5A/CD5BA030
CC5A/CD5A/CD5BW030
CD3(A,B)A030
CE3AA024
CE3AA030
CF5AA024
22,600
22,800
22,000
23,000
22,000
23,000
22,400
22,400
22,800
22,800
22,800
22,600
23,000
22,600
TDR
TDR
NONE
NONE
TDR
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.00
—
—
10.00
10.00
—
—
—
—
—
—
—
—
—
—
10.00
10.00
—
—
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
22,800
3.20
3.22
3.16
3.24
3.18
3.24
3.10
3.10
3.10
3.10
3.10
3.14
3.22
3.14
13,900
13,900
13,600
14,000
14,000
14,100
13,700
13,700
13,800
13,800
13,800
13,900
14,000
13,800
2.24
2.26
2.24
2.26
2.24
2.26
2.20
2.20
2.22
2.22
2.22
2.22
2.24
2.22
7.00
7.00
6.90
7.00
7.00
7.00
6.90
6.90
6.90
6.90
6.90
6.90
7.00
6.90
030-36, 37,
57
8.0/7.6††
F(A,B)4ANF030†
F(A,B)4ANF036
FD3ANA030
FF1(A,B)NA030
FG3AAA036
CC5A/CD5A/CD5BA030
CC5A/CD5A/CD5BW030
CD3(A,B)A030
CC5A/CD5A/CD5BA036
CD5A/CD5BW036
CD3(A,B)A036
CE3AA030
CE3AA036
CF5AA036
28,200
28,400
28,000
28,200
28,200
27,800
27,800
27,800
28,600
28,600
28,600
28,000
28,200
28,200
TDR
TDR
NONE
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.00
—
10.00
—
—
—
—
—
—
—
—
—
—
—
—
10.00
—
10.00
10.00
10.00
10.00
10.20
10.20
10.20
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.20
10.20
10.20
10.00
10.00
10.00
29,000
29,200
29,000
29,000
29,000
28,600
28,600
28,600
29,200
29,200
29,200
29,000
29,000
29,000
3.08
3.08
3.08
3.10
3.08
3.00
3.00
3.00
3.14
3.14
3.14
3.08
3.08
3.10
17,100
17,500
17,300
17,400
17,200
17,000
17,000
17,000
17,300
17,300
17,300
17,200
17,200
17,300
2.20
2.18
2.18
2.18
2.20
2.16
2.16
2.16
2.20
2.20
2.20
2.18
2.20
2.20
7.20
7.20
7.20
7.20
7.20
7.00
7.00
7.00
7.20
7.20
7.20
7.00
7.20
7.20
036-36,
56, 66,
37, 57, 67
8.0/7.6††
F(A,B)4ANF036†
F(A,B)4AN(F,B)042
FG3AAA036
CC5A/CD5A/CD5BA036
CD5A/CD5BW036
CD3(A,B)A036
CC5A/CD5A/CD5BA042
CD3(A,B)A042
CC5A/CD5A/CD5BA043
CC5A/CD5A/CD5BW042
CC5A/CD5A/CD5BW043
CE3AA036
CE3AA042
CF5AA036
34,200
34,800
34,000
34,200
34,200
34,200
34,800
34,800
34,400
34,400
34,400
34,200
34,600
34,200
TDR
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.20
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10.00
10.00
10.00
10.00
10.20
10.20
10.20
10.20
10.20
10.00
10.20
10.00
10.00
10.20
10.00
10.00
10.00
10.00
10.20
10.20
10.20
10.20
10.20
10.00
10.20
10.00
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
36,000
3.04
3.12
3.02
3.10
3.10
3.10
3.10
3.10
3.10
3.06
3.08
3.04
3.14
3.06
21,000
21,000
20,600
20,800
20,800
20,800
20,800
20,800
20,800
20,600
20,800
20,600
20,800
20,800
2.24
2.28
2.26
2.28
2.28
2.28
2.28
2.28
2.28
2.26
2.26
2.26
2.30
2.26
7.20
7.50
7.20
7.20
7.20
7.20
7.20
7.20
7.20
7.20
7.20
7.20
7.20
7.20
042-32,
52, 33,
53, 63
8.0/8.0
F(A,B)4AN(F,B)042†
F(A,B)4AN(F,B)048
FG3AAA048
CC5A/CD5A/CD5BA042
CD3(A,B)A042
CC5A/CD5A/CD5BA043
CC5A/CD5A/CD5BW042
CC5A/CD5A/CD5BW043
CD5A/CD5BA048
CD3(A,B)A048
CC5A/CD5A/CD5BC048
CC5A/CD5A/CD5BW048
CE3AA042
CE3AA048
CF5AA048
40,500
41,000
41,000
40,500
40,500
40,500
40,500
40,500
41,000
41,000
40,500
41,000
41,000
41,000
41,000
TDR
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.00
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
42,000
3.00
3.12
3.06
2.98
2.98
2.98
2.94
2.96
3.02
3.02
2.88
3.02
3.04
3.06
3.00
28,600
28,800
28,600
28,400
28,400
28,400
28,400
28,400
28,400
28,400
28,400
28,400
28,400
28,600
28,400
2.24
2.30
2.28
2.24
2.24
2.24
2.22
2.22
2.26
2.26
2.20
2.24
2.26
2.28
2.24
7.20
7.20
7.20
7.20
7.20
7.20
7.10
7.20
7.20
7.20
7.00
7.20
7.20
7.00
7.20
Page 9
9
Combination ratings continued
COP
— Coefficient of Performance
TC
— Total Capacity (Btuh)
HSPF
— Heating Seasonal Performance Factor
TDR
— Time-Delay Relay
SEER
— Seasonal Energy Efficiency Ratio
TXV
— Thermostatic Expansion Valve
* Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:
Cooling Standard:
80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit.
High-Temperature Heating Standard:
70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43°F (6°C) wb air entering outdoor unit.
Low-Temperature Heating Standard:
70°F (21°C) db indoor entering air temperature and 17°F (–8°C) db 15°F (11°C) wb air entering outdoor unit.
† Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are determined
under DOE computer simulation procedures.
‡ Without/with accessory sound blanket.
** See TDR.90 table. TXV must be hard shut-off type.
†† 7.6 rating for 030 (371, 571) and 036 (361) units only.
TDR.90 TABLE
NOTE:
In most cases, only 1 of the above should be used to achieve
TDR function. More than 1 of the methods listed above in a system may
cause degradation in performance.
UNIT
SIZE-
SERIES
AND
SOUND
RATING
(Bels)‡
INDOOR
UNIT
ARI STANDARD RATINGS*
Cooling Heating
TC
Seasonal Efficiency SEER
High-Temp Low-Temp
Seasonal
Efficiency
HSPF
Factory-
Supplied
Enhance-
ment
Standard
Rating
Field-Supplied
Accessory**
TDR TXV TC COP TC COP
048-32, 52,
62, 33,
53, 63
8.0/8.0
F(A,B)4AN(F,B)048†
F(A,B)4AN(F,B)060
FB4ANB070
FG3AAA048
FG3AAA060
CD5A/CD5BA048
CD3(A,B)A048
CC5A/CD5A/CD5BC048
CC5A/CD5A/CD5BW048
CC5A/CD5A/CD5BA060
CD3(A,B)A060
CC5A/CD5A/CD5BW060
CE3AA048
CE3AA060
CF5AA048
46,000
46,500
47,000
45,000
46,000
45,000
45,000
44,000
45,000
45,000
45,000
46,000
45,000
46,000
45,000
TDR
TDR
TDR
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
10.00
10.30
10.50
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10.00
10.50
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.50
10.50
10.00
10.30
10.50
10.00
10.50
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.50
10.50
47,000
47,000
47,000
47,000
47,000
46,500
46,500
46,000
46,500
46,500
46,500
47,000
47,000
47,000
46,500
3.20
3.26
3.38
3.16
3.20
3.12
3.12
2.98
3.12
3.10
3.10
3.22
3.18
3.24
3.08
29,600
29,800
29.600
29,200
29,200
29.200
29.200
28,800
29,200
29,000
29,000
29,200
29,200
29.200
29.000
2.24
2.26
2.32
2.24
2.26
2.22
2.22
2.16
2.22
2.20
2.20
2.26
2.24
2.28
2.20
7.20
7.50
7.50
7.20
7.40
7.20
7.20
7.00
7.20
7.20
7.20
7.20
7.20
7.50
7.20
060–32,
52, 62,
33, 53, 63
8.0/8.0
F(A,B)4AN(F, B)060†
FB4ANB070
FG3AAA060
CC5A/CD5A/CD5BW060
CD3(A,B)A060
CC5A/CD5A/CD5BW060
CE3AA060
56,000
56,500
54,500
53,500
53,500
55,500
56,000
TDR
TDR
NONE
NONE
NONE
NONE
NONE
10.20
10.50
—
—
—
—
—
—
—
10.50
10.20
10.20
10.50
10.20
10.20
10.50
10.50
10.20
10.20
10.50
10.20
58,000
57,000
56,500
56,000
56,000
56,500
56,500
3.18
3.34
3.10
2.92
2.92
3.14
3.16
39,500
39,500
39,000
38,500
38,500
39,000
39,000
2.40
2.48
2.40
2.32
2.32
2.40
2.42
7.50
7.50
7.20
7.00
7.00
7.50
7.50
METHOD PART/MODEL NO.
Time-Delay Relay
KAATD0101TDR
Furnaces
with TDR
58DHC, 58DX, 58DXA, 58DXC, 58EJA, 58EJB,
58MCA, 58MVP, 58MXA, 58PAP, 58PAV, 58RAP,
58RAV, 58SSC, 58SX, 58SXA, 58SXB, 58TMA,
58TUA, 58VCA, 58VUA, 58WAV, 58ZAV
Page 10
10
Detailed cooling capacities*
See notes on pg. 13.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES
°
F
85 95 105 115 125
CFM EWB
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38YCA018-33, 34 Outdoor Section With F(A,B)4ANF018 Indoor Section
600
72
67
63††
62
57
19.8
17.9
16.5
16.2
15.8
9.98
12.7
12.2
15.2
15.8
1.87
1.80
1.76
1.75
1.73
18.6
16.8
15.5
15.3
15.0
9.56
12.2
11.8
14.7
15.0
1.99
1.92
1.87
1.86
1.85
17.5
15.8
14.5
14.3
14.2
9.14
11.8
11.4
14.2
14.2
2.11
2.03
1.98
1.97
1.96
16.3
14.7
13.4
13.4
13.4
8.74
11.4
10.9
13.4
13.4
2.23
2.14
2.08
2.08
2.08
14.8
13.2
12.0
12.3
12.3
8.21
10.8
10.3
12.3
12.3
2.30
2.21
2.14
2.15
2.15
650
72
67
63††
62
57
20.0
18.1
16.7
16.4
16.2
10.2
13.1
12.7
15.8
16.2
1.90
1.83
1.78
1.77
1.76
18.8
17.0
15.7
15.5
15.4
9.82
12.7
12.2
15.2
15.4
2.01
1.94
1.89
1.88
1.88
17.6
15.9
14.6
14.6
14.5
9.40
12.3
11.8
14.6
14.5
2.13
2.06
2.00
2.00
2.00
16.4
14.7
13.5
13.7
13.7
8.99
11.8
11.3
13.7
13.7
2.25
2.17
2.11
2.12
2.12
14.9
13.3
12.1
12.5
12.6
8.46
11.2
10.7
12.5
12.6
2.33
2.24
2.16
2.19
2.19
700
72
67
63††
62
57
20.2
18.2
16.8
16.7
16.5
10.5
13.5
13.1
16.3
16.5
1.92
1.85
1.81
1.80
1.79
19.0
17.1
15.8
15.7
15.7
10.1
13.1
12.6
15.7
15.7
2.04
1.97
1.92
1.91
1.91
17.8
16.0
14.7
14.8
14.8
9.65
12.7
12.1
14.8
14.8
2.16
2.08
2.02
2.03
2.03
16.5
14.9
13.6
13.9
13.9
9.24
12.2
11.7
13.9
13.9
2.28
2.20
2.13
2.15
2.15
15.0
13.4
12.2
12.8
12.8
8.69
11.6
11.0
12.8
12.8
2.36
2.26
2.19
2.22
2.22
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5A/
CD5BA
018 1.03 1.02
FA1ANA
018 1.00 0.99
024 1.05 1.03 024 1.05 1.04
CD3(A,B)A
018 1.03 1.02
FC4ANF
018 1.04 1.03
024 1.05 1.03
FD3ANA
024 1.03 1.01
CE3AA
024 1.05 1.03
FF1ANA
018 1.00 1.00
CF5AA
024 1.05 1.03 024 1.05 1.03
FB(4,5)AN(A,F)
018 1.00 1.00
F(A,B)4ANF
018 1.00 1.00
024 1.06 1.04 024 1.06 1.04
— — —
FG3AAA
024 1.03 1.03
38YCA/YCN024-35, 36 Outdoor Section With F(A,B)4ANF024 Indoor Section
700
72
67
63††
62
57
25.9
23.6
21.8
21.4
20.6
12.8
16.2
15.7
19.4
20.6
2.43
2.35
2.29
2.27
2.25
24.5
22.2
20.4
20.0
19.5
12.3
15.6
15.1
18.7
19.5
2.58
2.49
2.42
2.40
2.38
22.9
20.6
19.0
18.7
18.4
11.7
15.0
14.4
18.0
18.4
2.72
2.62
2.54
2.52
2.51
21.2
19.0
17.5
17.3
17.3
11.2
14.4
13.8
17.3
17.3
2.86
2.74
2.65
2.64
2.64
19.5
17.5
16.0
16.1
16.1
10.6
13.8
13.2
16.1
16.1
2.98
2.85
2.75
2.76
2.76
800
72
67
63††
62
57
26.4
24.1
22.3
21.9
21.4
13.4
17.2
16.7
20.8
21.4
2.48
2.40
2.34
2.33
2.32
24.9
22.6
20.8
20.5
20.3
12.9
16.6
16.0
20.0
20.3
2.63
2.54
2.47
2.46
2.45
23.3
21.0
19.3
19.2
19.2
12.3
16.0
15.4
19.2
19.2
2.78
2.68
2.59
2.59
2.59
21.6
19.3
17.8
18.0
18.0
11.8
15.4
14.7
18.0
18.0
2.91
2.80
2.71
2.72
2.72
19.8
17.7
16.2
16.7
16.7
11.2
14.7
14.1
16.7
16.7
3.04
2.91
2.80
2.84
2.84
900
72
67
63††
62
57
26.7
24.4
22.7
22.4
22.2
13.9
18.1
17.6
22.0
22.2
2.53
2.45
2.39
2.39
2.38
25.2
22.9
21.1
21.0
21.0
13.4
17.6
16.9
21.0
21.0
2.68
2.59
2.52
2.52
2.52
23.5
21.3
19.6
19.8
19.8
12.9
17.0
16.3
19.8
19.8
2.83
2.73
2.65
2.66
2.66
21.8
19.6
18.0
18.5
18.5
12.3
16.3
15.6
18.5
18.5
2.97
2.85
2.76
2.79
2.79
20.0
18.0
16.4
17.2
17.2
11.7
15.7
14.9
17.2
17.2
3.09
2.96
2.86
2.91
2.91
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4ANF
024 1.00 1.00
CD3(A,B)A
024 0.99 1.00
030 1.01 1.00 030 1.01 1.00
FD3ANA
024 0.97 0.97
CC5A/CD5A/CD5BW
030 1.01 1.00
030 1.02 1.01
CE3AA
024 1.00 1.00
FF1(A,B)NA
024 0.97 1.00 030 1.02 1.01
030 1.02 1.01
CF5AA
024 1.00 1.00
CC5A/CD5A/
CD5BA
024 0.99 1.00 — — —
030 1.01 1.00
Page 11
11
Detailed cooling capacities* continued
See notes on pg. 13.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES
°
F
85 95 105 115 125
CFM EWB
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38YCA030-36, 37, 57 Outdoor Section With F(A,B)4ANF030 Indoor Section
950
72
67
63††
62
57
32.6
29.7
27.4
26.9
26.1
16.3
20.8
20.1
25.0
26.1
2.90
2.83
2.76
2.74
2.72
30.8
27.8
25.7
25.2
24.8
15.7
20.0
19.3
24.1
24.8
3.09
2.99
2.92
2.90
2.89
28.9
26.0
23.9
23.6
23.4
15.0
19.3
18.6
23.2
23.4
3.27
3.16
3.07
3.06
3.05
26.9
24.1
22.1
22.0
22.0
14.3
18.6
17.8
22.0
22.0
3.44
3.31
3.22
3.21
3.21
24.8
22.2
20.2
20.6
20.6
13.6
17.8
17.0
20.6
20.6
3.60
3.46
3.35
3.36
3.36
1050
72
67
63††
62
57
32.9
30.2
27.8
27.3
26.8
16.7
21.7
20.9
26.1
26.8
2.94
2.87
2.81
2.79
2.78
31.1
28.2
26.0
25.6
25.4
16.2
20.9
20.2
25.2
25.4
3.13
3.04
2.97
2.96
2.95
29.3
26.3
24.2
24.1
24.0
15.5
20.2
19.4
24.0
24.0
3.32
3.21
3.12
3.12
3.12
27.1
24.4
22.4
22.6
22.6
14.8
19.5
18.6
22.6
22.6
3.49
3.36
3.27
3.28
3.28
25.0
22.4
20.4
21.1
21.1
14.1
18.7
17.8
21.1
21.1
3.65
3.51
3.40
3.43
3.43
1150
72
67
63††
62
57
33.1
30.4
28.0
27.7
27.5
17.1
22.5
21.7
27.1
27.5
2.99
2.91
2.85
2.84
2.84
31.4
28.5
26.2
26.1
26.0
16.6
21.8
21.0
26.0
26.0
3.18
3.09
3.02
3.01
3.01
29.5
26.5
24.4
24.6
24.6
16.0
21.0
20.2
24.6
24.6
3.36
3.26
3.17
3.18
3.18
27.3
24.5
22.5
23.1
23.1
15.3
20.3
19.4
23.1
23.1
3.54
3.41
3.32
3.34
3.34
25.2
22.6
20.6
21.5
21.5
14.6
19.5
18.6
21.5
21.5
3.70
3.56
3.45
3.50
3.50
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4ANF
030 1.00 1.00
CC5A/CD5A/CD5BW
030 0.99 1.00
036 1.01 1.03
CD3(A,B)A
030 0.99 1.00
FD3ANA
030 0.99 1.02 036 1.01 1.02
FF1(A,B)NA
030 1.00 1.02
CD5A/CD5BW
036 1.01 1.02
FG3AAA
036 1.00 1.01
CE3AA
030 0.99 1.01
CC5A/CD5A/
CD5BA
030 0.99 1.00 036 1.00 1.01
036 1.01 1.02
CF5AA
036 1.00 1.01
38YCA/YCN036-36, 56, 66, 37, 57, 67 Outdoor Section With F(A,B)4ANF036 Indoor Section
1100
72
67
63††
62
57
38.6
35.4
32.9
32.3
31.3
19.2
24.5
23.8
29.5
31.3
3.37
3.32
3.28
3.27
3.26
37.2
33.8
31.4
30.9
30.1
18.7
23.9
23.1
28.8
30.1
3.68
3.62
3.58
3.57
3.56
35.5
32.3
29.8
29.4
28.9
18.1
23.2
22.5
28.1
28.9
4.02
3.95
3.91
3.90
3.89
33.7
30.5
28.2
27.9
27.6
17.4
22.5
21.8
27.2
27.6
4.38
4.31
4.26
4.26
4.25
31.8
28.7
26.5
26.3
26.3
16.8
21.8
21.0
26.3
26.3
4.78
4.70
4.65
4.64
4.64
1200
72
67
63††
62
57
39.0
35.8
33.3
32.7
32.0
19.8
25.5
24.7
30.8
32.0
3.42
3.37
3.33
3.32
3.31
37.6
34.2
31.7
31.3
30.8
19.3
24.8
24.0
30.1
30.8
3.73
3.67
3.63
3.62
3.61
35.8
32.5
30.2
29.8
29.6
18.6
24.2
23.4
29.2
29.6
4.07
4.00
3.95
3.95
3.94
34.0
30.8
28.5
28.3
28.3
18.0
23.5
22.7
28.2
28.3
4.43
4.36
4.31
4.31
4.31
32.0
29.0
26.8
26.9
26.9
17.3
22.8
21.9
26.9
26.9
4.83
4.75
4.69
4.70
4.70
1300
72
67
63††
62
57
39.3
36.1
33.5
33.1
32.7
20.3
26.4
25.6
32.0
32.7
3.46
3.42
3.38
3.37
3.36
37.9
34.5
32.0
31.7
31.5
19.8
25.8
24.9
31.2
31.5
3.78
3.71
3.67
3.67
3.66
36.2
32.9
30.4
30.3
30.2
19.2
25.2
24.2
30.2
30.2
4.11
4.04
4.00
3.99
3.99
34.2
31.0
28.7
28.9
28.8
18.5
24.4
23.5
28.9
28.8
4.48
4.40
4.36
4.36
4.36
32.3
29.2
26.9
27.4
27.4
17.9
23.7
22.8
27.4
27.4
4.87
4.79
4.74
4.75
4.75
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4ANF
036 1.00 1.00
CD3(A,B)A
036 1.00 0.99
F(A,B)4AN(F,B)
042 1.02 1.00 042 1.02 0.99
FG3AAA
036 0.99 0.98
CC5A/CD5A/
CD5BW
042 1.01 0.99
CC5A/CD5A/
CD5BA
036 1.00 0.99 043 1.01 0.99
042 1.02 0.99
CE3AA
036 1.00 0.98
043 1.01 0.99 042 1.01 0.99
CD5A/CD5BW
036 1.00 0.99
CF5AA
036 1.00 0.99
Page 12
12
Detailed cooling capacities* continued
See notes on pg. 13.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES
°
F
85 95 105 115 125
CFM EWB
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38YCA/YCN042-32, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)042 Indoor Section
1300
72
67
63††
62
57
45.8
42.0
39.0
38.3
37.1
22.8
29.0
28.2
35.0
37.1
4.18
4.11
4.06
4.04
4.02
44.1
40.1
37.2
36.6
35.8
22.1
28.3
27.4
34.2
35.8
4.56
4.48
4.42
4.41
4.39
42.0
38.2
35.4
34.9
34.3
21.4
27.5
26.6
33.3
34.3
4.98
4.88
4.82
4.81
4.79
39.8
36.1
33.5
33.1
32.8
20.6
26.7
25.8
32.3
32.8
5.43
5.33
5.26
5.25
5.24
37.6
34.0
31.4
31.2
31.1
19.8
25.9
24.9
31.1
31.1
5.91
5.80
5.72
5.72
5.72
1400
72
67
63††
62
57
46.2
42.4
39.4
38.8
37.9
23.3
30.1
29.1
36.3
37.9
4.23
4.16
4.11
4.09
4.08
44.5
40.5
37.6
37.0
36.5
22.7
29.3
28.3
35.4
36.5
4.62
4.53
4.47
4.46
4.45
42.4
38.5
35.7
35.3
35.0
22.0
28.5
27.5
34.5
35.0
5.03
4.94
4.87
4.86
4.85
40.2
36.4
33.7
33.5
33.4
21.2
27.7
26.7
33.3
33.4
5.48
5.38
5.31
5.30
5.30
37.8
34.2
31.6
31.7
31.7
20.4
26.8
25.8
31.7
31.7
5.96
5.86
5.78
5.78
5.78
1500
72
67
63††
62
57
46.5
42.8
39.7
39.1
38.6
23.8
31.0
30.0
37.5
38.6
4.28
4.21
4.16
4.14
4.13
44.8
40.9
37.9
37.4
37.1
23.3
30.2
29.2
36.5
37.1
4.67
4.58
4.52
4.51
4.50
42.7
38.8
36.0
35.7
35.6
22.5
29.4
28.4
35.5
35.6
5.08
4.99
4.92
4.91
4.91
40.4
36.7
34.0
34.0
34.0
21.7
28.6
27.6
34.0
34.0
5.53
5.43
5.36
5.36
5.36
38.0
34.5
31.8
32.3
32.3
20.9
27.7
26.6
32.3
32.3
6.02
5.91
5.83
5.84
5.84
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4AN(F,B)
042 1.00 1.00
CC5A/CD5A/
CD5BW
042 1.00 0.99
048 1.01 1.00 043 1.00 0.99
FG3AAA
048 1.01 0.99 048 1.01 0.99
CC5A/CD5A/
CD5BA
042 1.00 0.99
CD5A/CD5BA
048 1.01 0.99
043 1.00 0.99
CC5A/CD5A/CD5BC
048 1.00 0.99
CD3(A,B)A
042 1.00 0.99
CE3AA
042 1.01 0.99
048 1.01 0.99 048 1.01 0.99
— — —
CF5AA
048 1.01 0.99
38YCA/YCN048-32, 52, 62, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)048 Indoor Section
1450
72
67
63††
62
57
51.8
47.7
44.3
43.5
42.6
26.1
33.7
32.7
40.7
42.6
4.49
4.43
4.37
4.35
4.34
49.9
45.5
42.3
41.6
41.0
25.4
32.8
31.8
39.8
41.0
4.90
4.82
4.76
4.75
4.73
47.6
43.3
40.2
39.7
39.4
24.6
31.9
30.9
38.7
39.4
5.35
5.25
5.19
5.18
5.17
45.1
41.0
37.9
37.7
37.6
23.7
31.0
29.9
37.5
37.6
5.83
5.73
5.65
5.65
5.65
42.5
38.5
35.6
35.6
35.7
22.8
30.1
28.9
35.6
35.7
6.35
6.24
6.16
6.16
6.16
1600
72
67
63††
62
57
52.2
48.2
44.8
44.3
43.7
26.8
35.2
34.1
42.8
43.7
4.57
4.51
4.44
4.43
4.42
50.4
46.0
42.7
42.3
42.1
26.3
34.3
33.2
41.7
42.1
4.98
4.90
4.83
4.83
4.82
48.0
43.7
40.6
40.4
40.3
25.5
33.4
32.3
40.3
40.3
5.42
5.33
5.26
5.26
5.26
45.5
41.3
38.3
38.5
38.5
24.6
32.5
31.3
38.5
38.5
5.91
5.80
5.73
5.74
5.74
42.8
38.8
35.8
36.5
36.5
23.7
31.5
30.3
36.5
36.5
6.43
6.32
6.23
6.25
6.25
1750
72
67
63††
62
57
52.5
48.7
45.2
44.9
44.7
27.6
36.8
35.5
44.5
44.7
4.64
4.58
4.52
4.51
4.51
50.7
46.4
43.1
43.0
43.0
27.1
35.9
34.6
43.0
43.0
5.05
4.97
4.91
4.91
4.91
48.4
44.1
40.9
41.2
41.2
26.4
35.0
33.7
41.2
41.2
5.50
5.41
5.34
5.34
5.34
45.8
41.6
38.6
39.3
39.3
25.5
34.0
32.7
39.3
39.3
5.98
5.88
5.81
5.82
5.82
43.1
39.1
36.2
37.3
37.3
24.6
33.0
31.7
37.3
37.3
6.50
6.39
6.31
6.34
6.34
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4AN(F,B)
048 1.00 1.00
CC5A/CD5A/CD5BC
048 0.96 0.97
060 1.01 1.02
CC5A/CD5A/
CD5BW
048 0.98 0.98
FB4ANB
070 1.02 1.01 060 1.00 0.99
FG3AAA
048 0.98 0.98
CC5A/CD5A/CD5BA
060 0.98 0.98
060 1.00 0.98
CE3AA
048 0.98 0.98
CD5A/CD5BA
048 0.98 0.98 060 1.00 0.99
CD3(A,B)A
048 0.98 0.98
CF5AA
048 0.98 0.97
060 0.98 0.98 — — —
Page 13
13
Detailed cooling capacities* continued
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation and connected by 25 ft of tubing. If other than 25 ft of
tubing is used and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835
Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480 L/S)
of indoor coil air per degree above 80°F (27°C).
** System kw is total of indoor and outdoor unit kilowatt’s.
†† At TVA rating indoor condition (75° edb/63° ewb). All other indoor air temperatures are at 80° edb.
EWB—Entering Wet Bulb
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES
°
F
85 95 105 115 125
CFM EWB
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**
Capacity
MBtuh†
Total
System
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38YCA060-32, 52, 62, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)060 Indoor Section
1800
72
67
63††
62
57
63.8
58.2
54.1
53.2
52.0
31.9
41.1
39.8
49.8
52.0
5.67
5.55
5.46
5.44
5.42
60.9
55.5
51.5
50.7
50.0
30.9
40.0
38.7
48.6
50.0
6.17
6.03
5.94
5.93
5.91
57.9
52.6
48.9
48.3
48.0
29.9
38.8
37.6
47.3
48.0
6.70
6.57
6.47
6.45
6.45
54.8
49.8
46.1
45.8
45.8
28.8
37.7
36.4
45.7
45.8
7.29
7.15
7.04
7.03
7.03
51.6
46.8
43.2
43.4
43.4
27.7
36.6
35.2
43.4
43.4
7.93
7.78
7.66
7.67
7.67
2000
72
67
63††
62
57
64.4
58.8
54.7
54.0
53.5
33.1
43.1
41.7
52.4
53.5
5.79
5.67
5.58
5.56
5.55
61.5
56.0
52.1
51.6
51.4
32.1
42.0
40.6
51.0
51.4
6.29
6.15
6.06
6.04
6.04
58.4
53.2
49.3
49.2
49.2
31.0
40.9
39.4
49.2
49.2
6.82
6.68
6.58
6.58
6.58
55.3
50.2
46.6
46.9
46.9
29.9
39.7
38.3
46.9
46.9
7.41
7.26
7.16
7.17
7.17
51.9
47.1
43.6
44.5
44.5
28.8
38.5
37.0
44.5
44.5
8.05
7.89
7.78
7.81
7.81
2200
72
67
63††
62
57
64.9
59.3
55.1
54.8
54.7
34.2
45.0
43.5
54.5
54.7
5.90
5.78
5.69
5.68
5.68
62.0
56.5
52.4
52.6
52.5
33.2
43.9
42.4
52.6
52.5
6.40
6.26
6.17
6.17
6.17
58.9
53.6
49.7
50.3
50.3
32.1
42.8
41.2
50.3
50.3
6.94
6.79
6.70
6.71
6.71
55.6
50.6
46.9
47.9
47.9
31.0
41.6
40.0
47.9
47.9
7.53
7.38
7.27
7.30
7.30
52.2
47.4
43.9
45.4
45.4
29.9
40.4
38.7
45.4
45.4
8.17
8.01
7.89
7.94
7.94
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling
Indoor
Section Size
Cooling
Capacity Power Capacity Power
F(A,B)4AN(F,B)
060 1.00 1.00
CD3(A,B)A
060 0.96 0.94
FB4ANB
070 1.01 0.98
CC5A/CD5A/
CD5BW
060 0.99 0.96
FG3AAA
060 0.97 0.96
CC5A/CD5A/CD5BA
060 0.96 0.94
CE3AA
060 1.00 0.97
Page 14
14
Heat pump heating performance
See notes on pg. 17.
INDOOR
AIR
OUTDOOR COIL ENTERING AIR TEMPERATURES
∞
F
–3 7 17 27 37 47 57 67
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
EDB CFM Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡
38YCA018-33, 34 Outdoor Section With F(A,B)4ANF018 Indoor Section
65
600
650
700
7.22
7.31
7.40
6.65
6.73
6.81
1.27
1.29
1.31
8.97
9.07
9.16
8.24
8.33
8.42
1.35
1.37
1.38
10.9
11.0
11.1
9.92
10.0
10.1
1.43
1.44
1.45
12.9
13.1
13.2
11.5
11.6
11.7
1.50
1.51
1.53
15.2
15.4
15.5
13.9
14.0
14.1
1.59
1.60
1.61
17.7
17.9
18.0
17.7
17.9
18.0
1.69
1.70
1.71
20.8
21.0
21.1
20.8
21.0
21.1
1.83
1.83
1.84
23.8
24.0
24.2
23.8
24.0
24.2
1.98
1.99
2.00
70
600
650
700
6.96
7.05
7.13
6.40
6.48
6.56
1.29
1.31
1.32
8.69
8.79
8.88
7.99
8.08
8.16
1.37
1.39
1.40
10.6
10.7
10.8
9.65
9.76
9.85
1.45
1.46
1.48
12.6
12.7
12.9
11.2
11.3
11.4
1.53
1.54
1.56
14.9
15.0
15.2
13.5
13.7
13.8
1.62
1.63
1.64
17.3
17.5
17.6
17.3
17.5
17.6
1.72
1.73
1.74
20.3
20.5
20.7
20.3
20.5
20.7
1.86
1.87
1.88
23.4
23.6
23.7
23.4
23.6
23.7
2.02
2.02
2.03
75
600
650
700
6.67
6.76
6.85
6.14
6.22
6.30
1.30
1.32
1.34
8.41
8.51
8.61
7.73
7.82
7.91
1.39
1.41
1.42
10.3
10.4
10.5
9.38
9.48
9.58
1.48
1.49
1.50
12.3
12.4
12.5
10.9
11.0
11.1
1.56
1.57
1.59
14.5
14.7
14.8
13.2
13.4
13.5
1.66
1.67
1.68
16.9
17.1
17.3
16.9
17.1
17.3
1.76
1.77
1.78
19.9
20.1
20.2
19.9
20.1
20.2
1.90
1.91
1.91
22.9
23.1
23.3
22.9
23.1
23.3
2.05
2.06
2.07
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
CC5A/CD5A/
CD5BA
018 0.97 0.99 FA1ANA 018 1.00 0.99
024 1.00 0.97 024 1.02 0.97
CD3(A,B)A 018 0.97 0.99 FC4ANF 018 1.02 0.98
024 1.00 0.97 FD3ANA 024 1.00 0.96
CE3AA 024 1.00 0.97 FF1ANA 018 1.00 0.99
CF5AA 024 1.00 0.97 024 1.01 0.95
FB(4,5)AN(A,F) 018 1.00 1.00 FG3AAA 024 0.96 0.94
024 1.03 0.99 F(A,B)4ANF 018 1.00 1.00
— — — 024 1.03 0.99
38YCA/YCN024-35, 36 Outdoor Section With F(A,B)4ANF024 Indoor Section
65
700
800
900
9.37
9.59
9.79
8.62
8.82
9.00
1.56
1.59
1.63
11.7
11.9
12.2
10.8
11.0
11.2
1.66
1.69
1.72
14.2
14.5
14.7
12.9
13.2
13.4
1.75
1.77
1.80
16.8
17.1
17.4
14.9
15.2
15.4
1.84
1.86
1.88
19.6
19.9
20.2
17.8
18.1
18.4
1.92
1.94
1.96
22.7
23.2
23.5
22.7
23.2
23.5
2.02
2.04
2.05
26.6
27.1
27.4
26.6
27.1
27.4
2.17
2.17
2.16
30.2
30.3
30.2
30.2
30.3
30.2
2.28
2.25
2.23
70
700
800
900
8.87
9.11
9.31
8.16
8.38
8.56
1.57
1.60
1.64
11.3
11.5
11.7
10.4
10.6
10.8
1.67
1.70
1.73
13.7
14.0
14.2
12.5
12.8
13.0
1.77
1.80
1.83
16.3
16.6
16.9
14.5
14.8
15.0
1.86
1.89
1.91
19.1
19.5
19.7
17.4
17.7
18.0
1.96
1.98
1.99
22.2
22.6
22.9
22.2
22.6
22.9
2.06
2.07
2.09
26.0
26.5
26.9
26.0
26.5
26.9
2.20
2.21
2.21
29.8
29.9
30.0
29.8
29.9
30.0
2.34
2.30
2.30
75
700
800
900
8.34
8.58
8.78
7.67
7.89
8.07
1.57
1.61
1.64
10.8
11.1
11.3
9.95
10.2
10.4
1.68
1.71
1.75
13.3
13.5
13.8
12.1
12.3
12.6
1.79
1.82
1.85
15.8
16.1
16.4
14.1
14.3
14.6
1.89
1.91
1.94
18.6
19.0
19.3
16.9
17.3
17.5
1.99
2.01
2.03
21.6
22.0
22.4
21.6
22.0
22.4
2.10
2.11
2.12
25.3
25.8
26.2
25.3
25.8
26.2
2.24
2.25
2.26
29.0
29.4
29.7
29.0
29.4
29.7
2.38
2.36
2.36
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4ANF
024 1.00 1.00
CD3(A,B)A
024 1.00 1.03
030 1.00 0.99 030 1.00 1.03
FD3ANA
024 1.00 1.01
CC5A/CD5A/CD5BW
030 1.00 1.03
030 1.00 0.99
CE3AA
024 1.00 1.02
FF1(A,B)NA
024 1.00 1.01 030 1.00 0.99
030 1.00 0.99
CF5AA
024 1.00 1.02
CC5A/CD5A/CD5BA
024 1.00 1.03 — — —
030 1.00 1.03
Page 15
15
Heat pump heating performance continued
See notes on pg. 17.
INDOOR
AIR
OUTDOOR COIL ENTERING AIR TEMPERATURES
∞
F
–3 7 17 27 37 47 57 67
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
EDB CFM Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡
38YCA030-36, 37, 57 Outdoor Section With F(A,B)4ANF030 Indoor Section
65
950
1050
1150
11.7
11.9
12.1
10.8
11.0
11.2
2.04
2.07
2.11
14.7
14.9
15.1
13.5
13.7
13.9
2.15
2.18
2.21
17.8
18.1
18.3
16.3
16.5
16.7
2.26
2.29
2.32
21.3
21.5
21.8
18.9
19.1
19.4
2.37
2.40
2.42
25.1
25.4
25.7
22.8
23.1
23.4
2.49
2.51
2.53
29.3
29.7
30.0
29.3
29.7
30.0
2.62
2.64
2.65
34.7
35.2
35.6
34.7
35.2
35.6
2.81
2.82
2.83
40.1
40.7
41.1
40.1
40.7
41.1
3.01
3.02
3.02
70
950
1050
1150
11.2
11.4
11.6
10.3
10.5
10.7
2.06
2.09
2.13
14.3
14.5
14.7
13.1
13.3
13.5
2.17
2.21
2.24
17.4
17.6
17.8
15.8
16.0
16.2
2.30
2.32
2.35
20.7
21.0
21.3
18.4
18.7
18.9
2.41
2.44
2.46
24.5
24.8
25.1
22.3
22.6
22.8
2.54
2.56
2.58
28.6
29.0
29.3
28.6
29.0
29.3
2.68
2.69
2.71
33.9
34.4
34.8
33.9
34.4
34.8
2.87
2.87
2.89
39.2
39.8
40.3
39.2
39.8
40.3
3.07
3.07
3.08
75
950
1050
1150
10.6
10.8
11.0
9.78
9.97
10.1
2.07
2.11
2.14
13.7
14.0
14.2
12.6
12.8
13.0
2.20
2.23
2.26
16.9
17.1
17.3
15.4
15.6
15.8
2.33
2.35
2.39
20.2
20.5
20.7
17.9
18.2
18.4
2.45
2.48
2.50
23.9
24.2
24.5
21.8
22.1
22.3
2.59
2.61
2.63
27.9
28.3
28.7
27.9
28.3
28.7
2.73
2.74
2.76
33.1
33.6
34.0
33.1
33.6
34.0
2.92
2.93
2.94
38.3
38.9
39.4
38.3
38.9
39.4
3.12
3.13
3.14
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4ANF 030 1.00 1.00 CD3(A,B)A 030 0.99 1.01
036 1.01 1.01 036 1.01 0.99
FD3ANA 030 1.00 1.00 CD5A/CD5BW 036 1.01 0.99
FF1(A,B)NA 030 1.00 0.99 CE3AA 030 1.00 1.00
FG3AAA 036 1.00 1.00 036 1.00 1.00
CC5A/CD5A/CD5BA 030 0.99 1.01 CF5AA 036 1.00 0.99
036 1.01 0.99 — — —
CC5A/CD5A/CD5BW 030 0.99 1.01
38YCA/YCN036-36, 56, 66, 37, 57, 67 Outdoor Section With F(A,B)4ANF036 Indoor Section
65
1100
1200
1300
17.1
17.3
17.5
15.8
15.9
16.1
2.77
2.79
2.82
20.3
20.4
20.6
18.6
18.8
18.9
2.85
2.87
2.89
23.7
23.9
24.1
21.6
21.8
21.9
2.94
2.95
2.96
27.4
27.6
27.8
24.4
24.6
24.7
3.05
3.05
3.05
31.6
31.9
32.1
28.8
29.0
29.2
3.18
3.17
3.17
36.2
36.4
36.7
36.2
36.4
36.7
3.34
3.33
3.33
42.1
42.4
42.7
42.1
42.4
42.7
3.60
3.59
3.58
48.2
48.6
48.9
48.2
48.6
48.9
3.93
3.91
3.90
70
1100
1200
1300
16.9
17.0
17.2
15.5
15.7
15.8
2.86
2.89
2.91
20.0
20.2
20.3
18.4
18.5
18.7
2.96
2.97
2.99
23.4
23.6
23.8
21.3
21.5
21.7
3.06
3.07
3.08
27.1
27.3
27.5
24.1
24.3
24.4
3.17
3.17
3.18
31.3
31.5
31.7
28.4
28.7
28.9
3.31
3.30
3.30
35.7
36.0
36.3
35.7
36.0
36.3
3.47
3.46
3.46
41.6
41.9
42.2
41.6
41.9
42.2
3.74
3.72
3.71
47.5
47.9
48.3
47.5
47.9
48.3
4.07
4.05
4.04
75
1100
1200
1300
16.5
16.7
16.9
15.2
15.3
15.5
2.95
2.97
3.00
19.7
19.9
20.1
18.1
18.3
18.5
3.07
3.08
3.10
23.1
23.3
23.5
21.1
21.3
21.4
3.18
3.18
3.19
26.8
27.0
27.2
23.8
24.0
24.2
3.29
3.29
3.30
30.9
31.1
31.3
28.1
28.3
28.5
3.44
3.43
3.43
35.3
35.6
35.8
35.3
35.6
35.8
3.61
3.59
3.59
41.0
41.3
41.6
41.0
41.3
41.6
3.88
3.86
3.85
46.9
47.3
47.6
46.9
47.3
47.6
4.22
4.19
4.18
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4ANF
036 1.00 1.00
CD3(A,B)A
036 1.00 0.98
F(A,B)4AN(F,B)
042 1.00 0.97 042 1.00 0.98
FG3AAA
036 1.00 1.01
CC5A/CD5A/CD5BW
042 1.00 0.99
CC5A/CD5A/CD5BA
036 1.00 0.98 043 1.00 0.99
042 1.00 0.98
CE3AA
036 1.00 1.00
043 1.00 0.98 042 1.00 0.97
CD5A/CD5BW
036 1.00 0.98
CF5AA
036 1.00 0.99
Page 16
16
Heat pump heating performance continued
See notes on pg. 17.
INDOOR
AIR
OUTDOOR COIL ENTERING AIR TEMPERATURES
∞
F
–3 7 17 27 37 47 57 67
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
EDB CFM Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡
38YCA/YCN042-32, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)042 Indoor Section
65
1300
1400
1500
21.7
21.9
22.1
20.0
20.1
20.3
3.51
3.53
3.56
25.4
25.5
25.7
23.3
23.5
23.6
3.57
3.59
3.61
29.1
29.3
29.5
26.5
26.7
26.9
3.62
3.63
3.64
33.1
33.3
33.5
29.4
29.6
29.7
3.67
3.67
3.68
37.4
37.6
37.9
34.0
34.2
34.4
3.75
3.74
3.74
42.2
42.5
42.8
42.2
42.5
42.8
3.85
3.84
3.83
48.4
48.8
49.1
48.4
48.8
49.1
4.03
4.01
3.99
54.5
55.0
55.3
54.5
55.0
55.3
4.24
4.21
4.20
70
1300
1400
1500
21.2
21.5
21.7
19.5
19.7
19.9
3.63
3.65
3.68
25.1
25.3
25.4
23.0
23.2
23.4
3.71
3.72
3.74
28.8
29.0
29.2
26.3
26.4
26.6
3.76
3.77
3.79
32.7
32.9
33.1
29.1
29.3
29.4
3.83
3.83
3.83
37.0
37.2
37.5
33.7
33.9
34.1
3.90
3.89
3.89
41.7
42.0
42.3
41.7
42.0
42.3
4.01
3.99
3.98
47.8
48.1
48.5
47.8
48.1
48.5
4.19
4.17
4.15
53.8
54.2
54.6
53.8
54.2
54.6
4.41
4.38
4.35
75
1300
1400
1500
20.7
20.9
21.1
19.1
19.3
19.5
3.75
3.77
3.80
24.7
24.9
25.1
22.7
22.9
23.1
3.83
3.86
3.88
28.5
28.7
28.9
26.0
26.2
26.3
3.91
3.92
3.93
32.4
32.6
32.8
28.7
28.9
29.1
3.98
3.98
3.98
36.6
36.8
37.1
33.3
33.5
33.7
4.06
4.05
4.05
41.2
41.5
41.8
41.2
41.5
41.8
4.17
4.15
4.15
47.1
47.5
47.8
47.1
47.5
47.8
4.36
4.33
4.32
53.0
53.4
53.8
53.0
53.4
53.8
4.58
4.54
4.52
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4AN(F,B)
042 1.00 1.00
CC5A/CD5A/CD5BW
042 1.00 1.02
048 1.00 0.96 043 1.00 1.01
FG3AAA
048 1.00 0.98 048 1.00 0.99
CC5A/CD5A/CD5BA
042 1.00 1.01
CD5A/CD5BA
048 1.00 0.99
043 1.00 1.01
CC5A/CD5A/CD5BC
048 1.00 1.04
CD3(A,B)A
042 1.00 1.01
CE3AA
042 1.00 0.99
048 1.00 0.99 048 1.00 0.98
— — —
CF5AA
048 1.00 1.00
38YCA/YCN048-32, 52, 62, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)048 Indoor Section
65
1450
1600
1750
21.1
21.3
21.6
19.4
19.6
19.8
3.51
3.55
3.60
25.1
25.4
25.6
23.1
23.3
23.5
3.60
3.63
3.67
29.6
29.9
30.2
27.0
27.3
27.5
3.70
3.72
3.75
34.7
35.0
35.3
30.8
31.1
31.3
3.81
3.82
3.84
40.3
40.7
41.0
36.7
37.0
37.3
3.95
3.95
3.96
47.1
47.6
47.9
47.1
47.6
47.9
4.14
4.14
4.15
55.8
56.3
56.8
55.8
56.3
56.8
4.44
4.43
4.44
64.8
64.4
64.2
64.8
64.4
64.2
4.80
4.69
4.64
70
1450
1600
1750
20.8
21.1
21.3
19.2
19.4
19.6
3.64
3.68
3.72
24.9
25.1
25.3
22.8
23.1
23.3
3.74
3.77
3.80
29.3
29.6
29.9
26.7
27.0
27.2
3.84
3.86
3.89
34.3
34.6
34.9
30.5
30.7
31.0
3.96
3.98
4.00
39.9
40.3
40.5
36.3
36.6
36.9
4.11
4.11
4.12
46.6
47.0
47.4
46.6
47.0
47.4
4.30
4.30
4.30
55.1
55.6
56.1
55.1
55.6
56.1
4.61
4.60
4.60
64.1
64.7
64.0
64.1
64.7
64.0
4.99
4.97
4.85
75
1450
1600
1750
20.5
20.7
21.0
18.8
19.1
19.3
3.76
3.80
3.84
24.6
24.8
25.1
22.6
22.8
23.0
3.88
3.91
3.94
29.0
29.3
29.5
26.5
26.7
26.9
3.99
4.01
4.04
33.9
34.2
34.5
30.1
30.4
30.7
4.12
4.13
4.15
39.5
39.9
40.2
36.0
36.3
36.6
4.28
4.28
4.29
46.0
46.4
46.8
46.0
46.4
46.8
4.48
4.46
4.47
54.4
54.9
55.3
54.4
54.9
55.3
4.79
4.77
4.77
63.2
63.8
64.3
63.2
63.8
64.3
5.17
5.14
5.14
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4AN(F,B)
048 1.00 1.00
CC5A/CD5A/CD5BC
048 0.98 1.05
060 1.00 0.98
CC5A/CD5A/CD5BW
048 0.99 1.01
FB4ANB
070 1.00 0.95 060 1.00 0.99
FG3AAA
048 1.00 1.01
CC5A/CD5A/CD5BA
060 0.99 1.02
060 1.00 1.00
CE3AA
048 1.00 1.01
CD5A/CD5BA
048 0.99 1.01 060 1.00 0.99
CD3(A,B)A
048 0.99 1.01
CF5AA
048 0.99 1.03
060 0.99 1.02 — — —
Page 17
17
Heat pump heating performance continued
† The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from sup-
plement heaters should be added to those values to obtain total system capacity.
‡ The kw values include the compressor, outdoor fan motor, and indoor blower motor. The kw from supplement heaters should be added to these
values to obtain total system kw’s.
EDB—Entering Dry Bulb
System Design
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature for cooling mode is 125°F (51.7°C), except some 3 phase models is 115°F (46.7°C).
4. Minimum outdoor operating air temperature for heating mode is –30°F (–34.4°C).
5. Maximum outdoor operating air temperature for heating mode is 66°F (18.9°C).
6. For reliable operation, unit should be level in all horizontal planes.
7. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft, indoor coil below = 150 ft. (See items 8 and 9
following.)
8. For interconnecting refrigerant tube lengths greater than 50 ft, consult Long-Line Application Guideline available from equipment distributor.
9. Not more than 36 in. of refrigerant tube should be buried in the ground. If necessary to bury tubes under a sidewalk, provide a minimum 6-in. vertical
rise to the valve connections at the unit.
10. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
11. Mixmatches of indoor coil capacity more than 1 size larger than outdoor unit capacity may result in inadequate indoor comfort.
INDOOR
AIR
OUTDOOR COIL ENTERING AIR TEMPERATURES
∞
F
–3 7 17 27 37 47 57 67
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
Capacity
MBtuh
Total
Power
EDB CFM Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡ Total Integ† Kw‡
38YCA060-32, 52, 62, 33, 53, 63 Outdoor Section With F(A,B)4AN(F,B)060 Indoor Section
65
1800
2000
2200
30.0
30.4
30.8
27.6
27.9
28.3
4.24
4.31
4.38
34.6
35.0
35.4
31.8
32.2
32.5
4.37
4.43
4.49
39.4
39.9
40.2
36.0
36.3
36.7
4.51
4.55
4.60
44.9
45.4
45.8
39.9
40.3
40.7
4.67
4.70
4.74
50.7
51.2
51.7
46.2
46.6
47.0
4.85
4.88
4.91
58.1
58.7
59.2
58.1
58.7
59.2
5.12
5.13
5.16
66.6
66.4
66.2
66.6
66.4
66.2
5.47
5.42
5.40
71.9
71.1
70.4
71.9
71.1
70.4
5.69
5.61
5.57
70
1800
2000
2200
29.4
29.9
30.3
27.1
27.5
27.9
4.38
4.45
4.52
34.3
34.7
35.1
31.5
31.9
32.2
4.54
4.59
4.65
39.1
39.5
39.9
35.6
36.0
36.4
4.68
4.72
4.78
44.5
44.9
45.4
39.5
39.9
40.3
4.85
4.88
4.93
50.2
50.7
51.2
45.7
46.1
46.5
5.05
5.07
5.10
57.4
58.0
58.5
57.4
58.0
58.5
5.32
5.33
5.36
66.1
66.3
66.1
66.1
66.3
66.1
5.70
5.66
5.63
72.1
70.9
69.9
72.1
70.9
69.9
5.97
5.84
5.78
75
1800
2000
2200
28.9
29.3
29.8
26.5
27.0
27.4
4.53
4.59
4.66
33.9
34.3
34.7
31.2
31.5
31.9
4.71
4.76
4.82
38.7
39.2
39.5
35.3
35.7
36.0
4.87
4.91
4.96
44.1
44.5
44.9
39.2
39.5
39.9
5.05
5.08
5.11
49.7
50.2
50.6
45.2
45.7
46.1
5.25
5.27
5.30
56.8
57.3
57.8
56.8
57.3
57.8
5.54
5.54
5.56
65.5
66.1
66.0
65.5
66.1
66.0
5.94
5.93
5.88
72.2
72.3
70.8
72.2
72.3
70.8
6.26
6.20
6.08
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Heating
Indoor
Section Size
Heating
Capacity Power Capacity Power
F(A,B)4AN(F,B) 060 1.00 1.00 CD3(A,B)A 060 0.97 1.05
FB4ANB 070 0.98 0.94 CC5A/CD5A/CD5BW 060 0.97 0.99
FG3AAA 060 0.97 1.00 CE3AA 060 0.97 0.98
CC5A/CD5A/CD5BA 060 0.97 1.05 — — —
Page 18
18

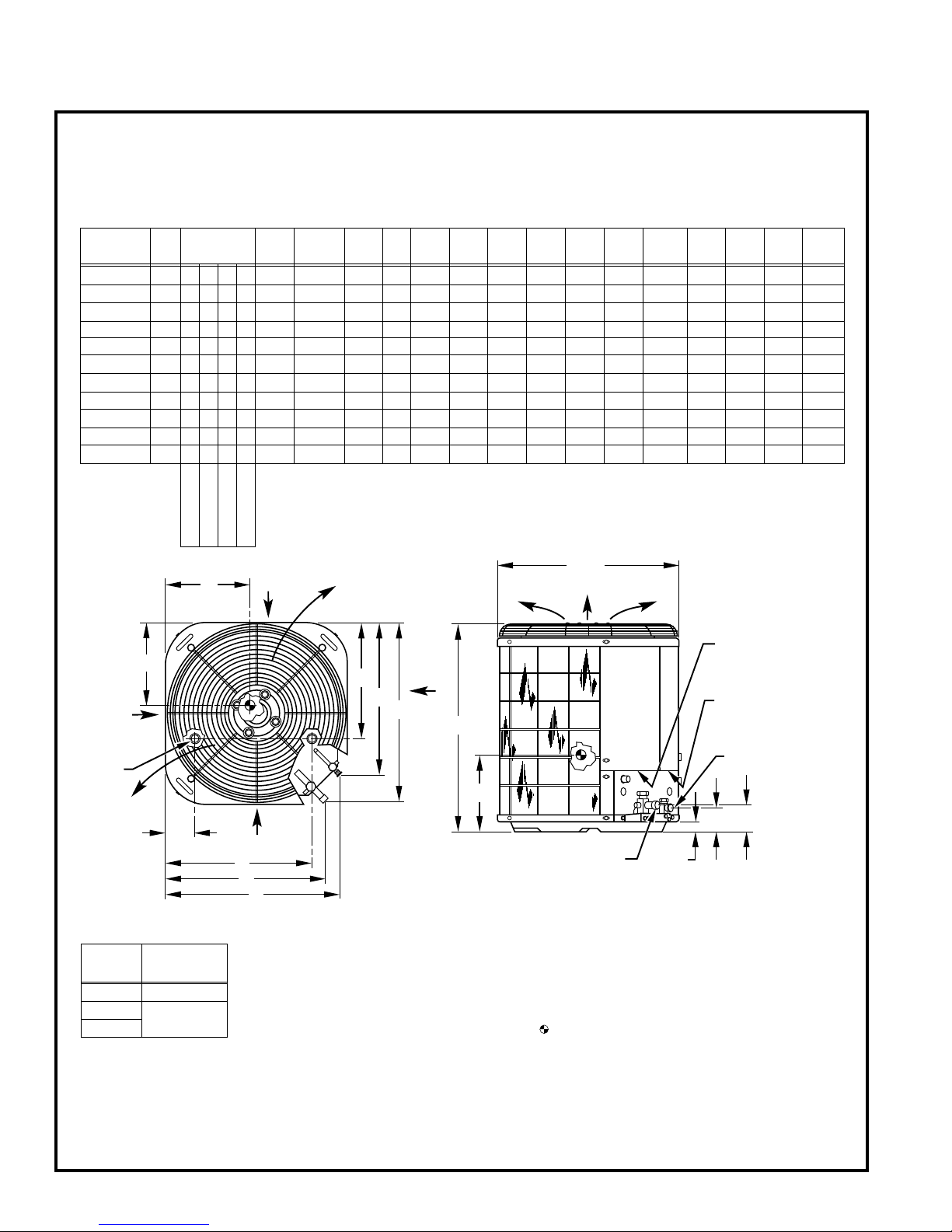

Certified drawing—38YCA
AIR DISCHARGE
AIR IN
A SQ
B
P
C
3
/8″ DIA TIEDOWN
KNOCKOUTS
(2) PLACES IN
BASEPAN
2
7
/8″
1
1
/4″
H
G
F
E
FIELD CONTROL SUPPLY
CONN
7
/8″ DIA HOLE
FIELD POWER SUPPLY CONN
7
/8″ DIA HOLE WITH
1
1
/8″ DIA KNOCKOUT
AND
1
3
/8″ DIA KNOCKOUT
3
/8″ DIA LIQUID LINE CONN
D DIA SERVICE LINE CONN
L
K
J
AIR IN
M
N
AIR DISCHARGE
AIR IN
AIR IN
38YCA018
38YCA024
38YCA030
38YCA030
38YCA030
38YCA036
38YCA042
38YCA042
38YCA048
38YCA048
38YCA060
3,4
5,6
5
6
7
6,7
2
3
2
3
2,3
X
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
18 1⁄8″
18 1⁄8″
18 1⁄8″
18 1⁄8″
18
1
⁄8″
23
1
⁄2″
23 1⁄2″
23
1
⁄2″
23 1⁄2″
23
1
⁄2″
23 1⁄2″
O
O
O
O
X
X
X
X
X
X
X
O
O
O
O
O
X
X
X
X
X
X
22 1⁄2″
22 1⁄2″
22 1⁄2″
22 1⁄2″
22
1
⁄2″
30″
30″
30″
30″
30″
30″
25
15
⁄16″
25 15⁄16″
33 15⁄16″
37 15⁄16″
33
15
⁄16″
33
15
⁄16″
33 15⁄16″
31
15
⁄16″
39 15⁄16″
31
15
⁄16″
39 15⁄16″
5
⁄8″
5
⁄8″
3
⁄4″
3
⁄4″
3
⁄4″
3
⁄4″
7⁄8″
7
⁄8″
7
⁄8″
7
⁄8″
7
⁄8″
3
3
⁄16″
3 3⁄16″
3 3⁄16″
3 3⁄16″
3
3
⁄16″
3
3
⁄16″
3 1⁄4″
3
1
⁄4″
3 1⁄4″
3
1
⁄4″
3 1⁄4″
19
3
⁄4″
19 3⁄4″
19 3⁄4″
19 3⁄4″
19
3
⁄4″
27
1
⁄4″
27 1⁄4″
27
1
⁄4″
27 1⁄4″
27
1
⁄4″
27 1⁄4″
21
5
⁄8″
21 5⁄8″
21 5⁄8″
21 5⁄8″
21
5
⁄8″
29
1
⁄8″
29 1⁄8″
29
1
⁄8″
29 1⁄8″
29
1
⁄8″
29 1⁄8″
14
3
⁄8″
14 3⁄8″
14 3⁄8″
14 3⁄8″
14
3
⁄8″
20″
20″
20″
20″
20″
20″
18
7
⁄8″
18 7⁄8″
18 7⁄8″
18 7⁄8″
18
7
⁄8″
26
3
⁄8″
26 3⁄8″
26
3
⁄8″
26 3⁄8″
26
3
⁄8″
26 3⁄8″
22
1
⁄16″
22 1⁄16″
22 1⁄16″
22 1⁄16″
22
1
⁄16″
29
9
⁄16″
29 9⁄16″
29
9
⁄16″
29 9⁄16″
29
9
⁄16″
29 9⁄16″
11″
10″
12
1
⁄2″
16 1⁄2″
12
1
⁄2″
16
3
⁄4″
15″
15″
15″
15″
13
3
⁄4″
5″
5″
12″
14″
12″
15″
15
3
⁄4″
15″
15
3
⁄4″
15″
15
5
⁄8″
12″
13″
14″
15″
14″
14″
13
1
⁄2″
13″
15
1
⁄2″
13″
15″
132#
148#
155#
162#
158#
181#
212#
212#
224#
222#
242#
UNIT
SERIES
ELECTRICAL
CHARACTERISTICS
A B C D
3 11⁄16″
3 11⁄16″
3 11⁄16″
3 11⁄16″
3
11
⁄16″
6
1
⁄2″
6 1⁄2″
6
1
⁄2″
6 1⁄2″
6
1
⁄2″
6 1⁄2″
E F G H J K L M N P
SHIPPING
WEIGHT
X = YES
O = NO
208-230-1-60
230-1-60
208/230-3-60
460-3-60
1. ALLOW 30″ CLEARANCE TO SERVICE SIDE OF
UNIT, 48″ ABOVE UNIT, 6″ ON ONE SIDE, 12″
ON REMAINING SIDE, AND 24″ BETWEEN
UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS
55°F, MAX 125°F.
3. MAXIMUM OUTDOOR OPERATING AMBIENT IN HEATING MODE IS 66°F.
4. SERIES DESIGNATION IS THE 13TH POSITION OF THE UNIT
MODEL NUMBER.
5. CENTER OF GRAVITY
NOTES:
18, 24, 30
36
42, 48, 60
22 1⁄2″ x 22 1⁄2″
30″ x 30″
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
AIR DISCHARGE
Page 19
19

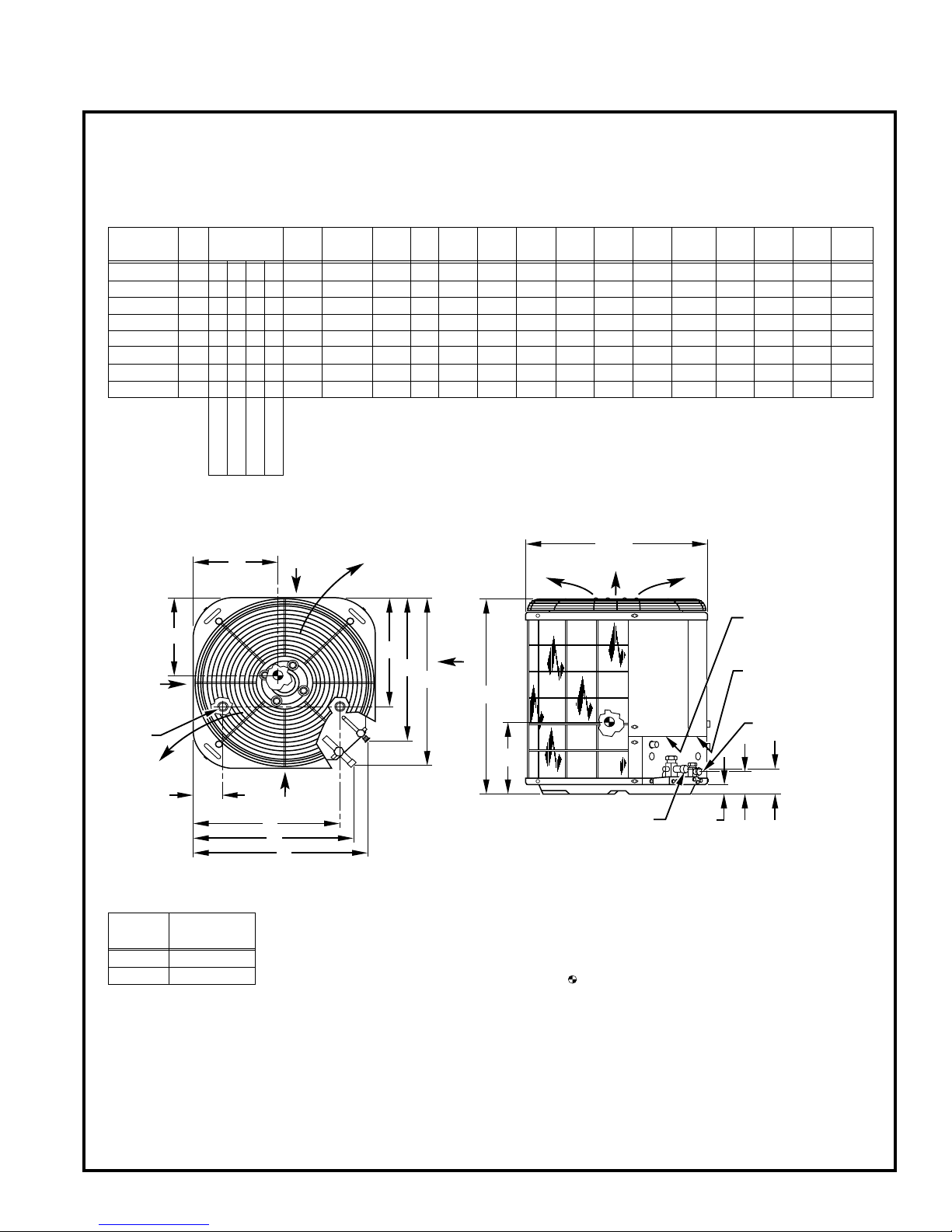

Certified drawing—38YCN
AIR DISCHARGE
AIR IN
A
SQ
B
P
C
3
/8″
DIA TIEDOWN
KNOCKOUTS
(2) PLACES IN
BASEPAN
2
7/8″
1
1
/4″
H
G
F
E
FIELD CONTROL SUPPLY
CONN
7
/8″ DIA HOLE
FIELD POWER SUPPLY CONN
7
/8″ DIA HOLE WITH
1
1
/8″ DIA KNOCKOUT
AND
1
3
/8″ DIA KNOCKOUT
3
/8″ DIA LIQUID LINE CONN
D
DIA SERVICE LINE CONN
L
K
J
AIR IN
M
N
AIR DISCHARGE
AIR IN
AIR IN
38YCN024
38YCN030
38YCN030
38YCN036
38YCN042
38YCN042
38YCN048
38YCN048
5,6
5,7
6
6,7
2
3
2
3
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
18 1⁄8″
18
1
⁄8″
18
1
⁄8″
23
1
⁄2″
23
1
⁄2″
23
1
⁄2″
23
1
⁄2″
23
1
⁄2″
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
22 1⁄2″
22
1
⁄2″
22
1
⁄2″
30″
30″
30″
30″
30″
33 15⁄16″
33
15
⁄16″
37
15
⁄16″
33
15
⁄16″
33
15
⁄16″
31
15
⁄16″
39
15
⁄16″
31
15
⁄16″
5
⁄8″
3
⁄4″
3
⁄4″
3
⁄4″
7
⁄8″
7
⁄8″
7
⁄8″
7
⁄8″
3
3
⁄16″
3
3
⁄16″
3
3
⁄16″
3
3
⁄16″
3
1
⁄4″
3
1
⁄4″
3
1
⁄4″
3
1
⁄4″
19
1
⁄2″
19
1
⁄2″
19
1
⁄2″
27
1
⁄16″
27
1
⁄16″
27
1
⁄16″
27
1
⁄16″
27
1
⁄16″
21
5
⁄8″
21
5
⁄8″
21
5
⁄8″
29
1
⁄8″
29
1
⁄8″
29
1
⁄8″
29
1
⁄8″
29
1
⁄8″
14
3
⁄8″
14
3
⁄8″
14
3
⁄8″
20″
20″
20″
20″
20″
18 7⁄8″
18
7
⁄8″
18
7
⁄8″
26
3
⁄8″
26
3
⁄8″
26
3
⁄8″
26
3
⁄8″
26
3
⁄8″
21
3
⁄4″
21
3
⁄4″
21
3
⁄4″
29
5
⁄16″
29
5
⁄16″
29
5
⁄16″
29
5
⁄16″
29
5
⁄16″
10″
12
1
⁄2″
16
1
⁄2″
16
3
⁄4″
15″
15″
15″
15″
5″
12″
14″
15″
15
3
⁄4″
15″
15 3⁄4″
15″
13″
14″
10″
14″
13 1⁄2″
13″
15 1⁄2″
13″
148#
155#
162#
181#
212#
212#
224#
222#
UNIT
SERIES
ELECTRICAL
CHARACTERISTICS
A B C D
3 11⁄16″
3
11
⁄16″
3
11
⁄16″
6
1
⁄2″
6
1
⁄2″
6
1
⁄2″
6
1
⁄2″
6
1
⁄2″
E F G H J K L M N P
SHIPPING
WEIGHT
X = YES
O = NO
208-230-1-60
230-1-60
208/230-3-60
460-3-60
1. ALLOW 30″ CLEARANCE TO SERVICE SIDE OF
UNIT, 48″ ABOVE UNIT, 6″ ON ONE SIDE, 12″
ON REMAINING SIDE, AND 24″ BETWEEN
UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS
55°F, MAX 125°F.
3. MAXIMUM OUTDOOR OPERATING AMBIENT IN HEATING MODE IS 66°F.
4. SERIES DESIGNATION IS THE 13TH POSITION OF THE UNIT
MODEL NUMBER.
5. CENTER OF GRAVITY
NOTES:
AIR DISCHARGE
24, 30
36, 42, 48
22 1⁄2″ x 22 1⁄2″
30″ x 30″
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
Page 20
20

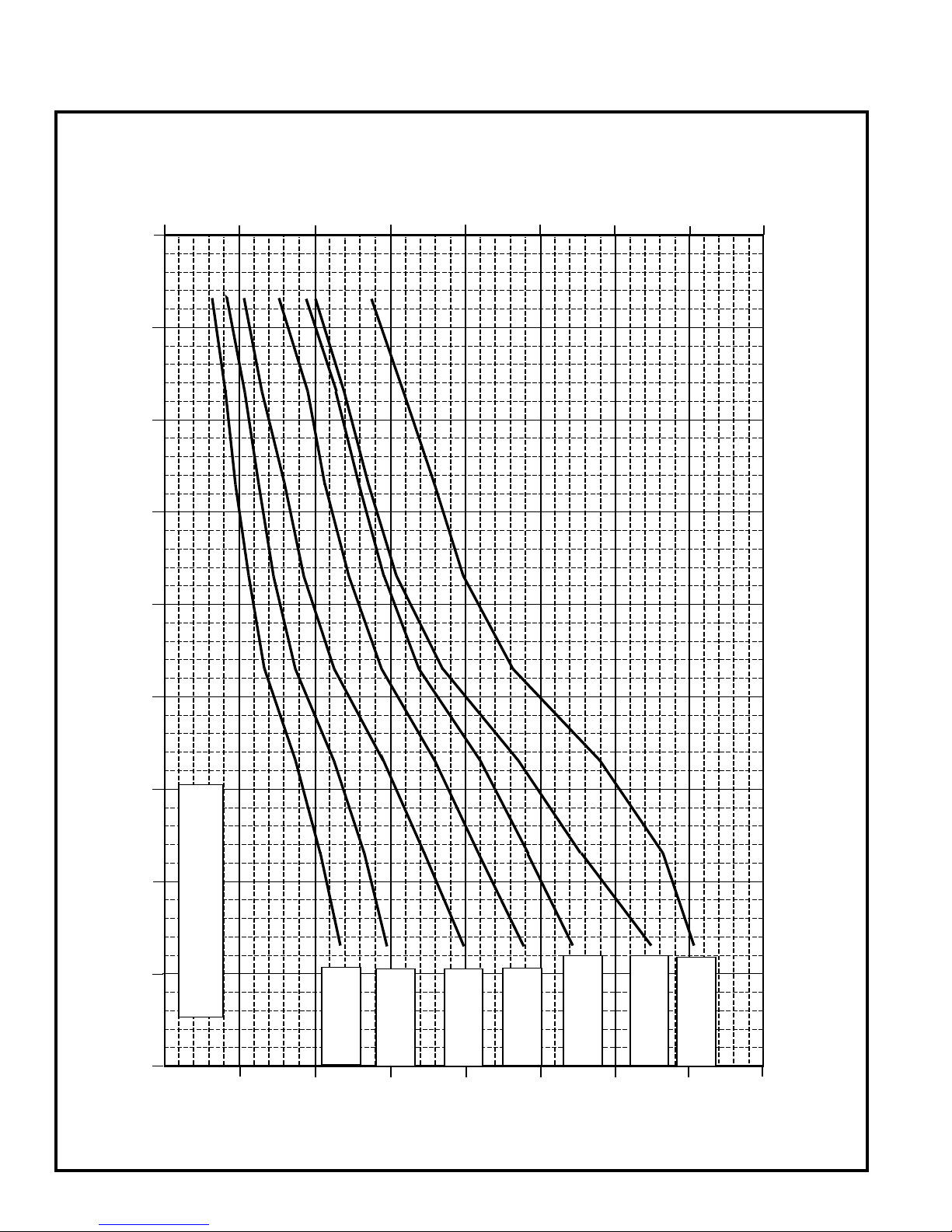

BUILDING HEAT LOSS, 1000 BTU/HR
Printed in U.S.A. 03-94 838-736
OUTDOOR TEMPERATURE, °F
-10 0 10 20 30 40 50
60 70 80
2.9
5.9
8.8
11.7
14.7
17.6
20.5
70
60
50
40
30
20
10
KW
BASED ON INDOOR ENT. AIR AT
70°F AND AT RATED CFM
23.4
80
38YCA01833/34
F(A,B)4ANF018
38YCA02435/36
F(A,B)4ANF024
38YCA03036/37
F(A,B)4ANF030
38YCA03636/37
F(A,B)4ANF036
38YCA04232/33
F(A,B)4AN(F,B)042
38YCA04832/33
F(A,B)4AN(F,B)048
38YCA06032/33
F(A,B)4AN(F,B)060
UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR
38YCA BALANCE POINT WORKSHEET
Page 21
21
Guide specifications
Air-Cooled, Split-System
Heat Pump
38YCA
1-1/2 To 5 Tons Nominal
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system heat pump
unit suitable for ground or rooftop installation. Unit
consists of a hermetic compressor, an air-cooled coil,
propeller-type condenser fan, and a control box. Unit will
discharge supply air upward as shown on contract
drawings. Unit will be used in a refrigeration circuit to
match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition
of ARI Standard 240 and 270.
Unit will be certified for capacity, efficiency, and sound
and listed in the latest ARI directory.
Unit construction will comply with latest edition of
ANSI/ASHRAE and with NEC.
Unit will be constructed in accordance with UL
standards and will carry the UL label of approval. Unit will
have C-UL approval.
Unit cabinet will be capable of withstanding Federal
Test Method Standard No. 141 (Method 6061) 500-hr
salt spray test.
Air-cooled condenser coils will be leak tested at
150 psig and pressure tested at 300 psig.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored
and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory-assembled, single piece, air-cooled heat pump
unit. Contained within the unit enclosure will be all factory
wiring, piping, controls, compressor, refrigerant charge
(R-22), and special features required prior to field start-up.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel,
bonderized, and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type,
discharging air upward.
Condenser fan motors will be totally enclosed, 1-phase
type with class B insulation and permanently lubricated
bearings.
Shafts will be corrosion resistant.
Fan blades will be statically and dynamically balanced.
Condenser fan openings will be equipped with
PVC-coated steel wire safety guards.
Compressor
Compressor will be hermetically sealed.
Compressor will be mounted on rubber vibration
isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically
bonded to copper tubes which are then cleaned,
dehydrated, and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid line
shut-off valve with sweat connections, suction shut-off
valves with sweat connections, system charge of
refrigerant R-22, compressor oil, accumulator, and
reversing valve.
Operating Characteristics
The capacity of the unit will meet or exceed ____ Btuh
at a suction temperature of ____ F. The power
consumption at full load will not exceed ____ kw.
Combination of the unit and the evaporator or fan coil
unit will have a total net cooling capacity of ____ Btuh or
greater at conditions of ____ CFM entering air
temperature at the evaporator at ____ F wet bulb and
____ F dry bulb, and air entering the unit at ____ F.
The system will have an SEER of ____ Btuh/watt or
greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be ____ v,
1 phase, 60 hertz. The unit will be capable of satisfactory
operation within voltage limits of ____ v to ____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories
and descriptions for specific features and available
enhancements.
Page 22
Carrier Corporation • Syracuse, New York 13221 7-94
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations
.
Book 1 4 Page 22 Catalog No. 523-810 Printed in U.S.A. PC 101 Form 38YCA-4PD
Tab 5a 5a
Replaces: 38YCA-3PD
Loading...
