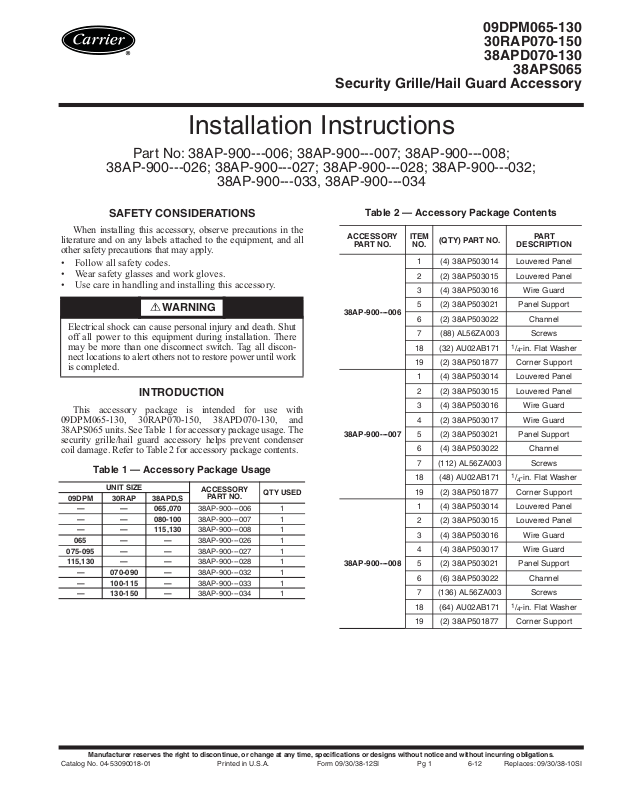

Security Grille/Hail Guard Accessory

Installation Instructions

Part No: 38AP-900---006; 38AP-900---007; 38AP-900---008;

38AP-900---026; 38AP-900---027; 38AP-900---028; 38AP-900---032;

38AP-900---033, 38AP-900---034

SAFETY CONSIDERATIONS

When installing this accessory, observe precautions in the
literature and on any labels attached to the equipment, and all
other safety precautions that may apply.

• Follow all safety codes.

• Wear safety glasses and work gloves.

• Use care in handling and installing this accessory.

WARNING

Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all discon­nect locations to alert others not to restore power until work
is completed.

INTRODUCTION

This accessory package is intended for use with
09DPM065-130, 30RAP070-150, 38APD070-130, and
38APS065 units. See Table 1 for accessory package usage. The
security grille/hail guard accessory helps prevent condenser
coil damage. Refer to Table 2 for accessory package contents.

Table 1 — Accessory Package Usage

UNIT SIZE

09DPM 30RAP 38APD,S

— — 065,070 38AP-900---006 1
— — 080-100 38AP-900---007 1
— — 115,130 38AP-900---008 1

065 — — 38AP-900---026 1
075-095 — — 38AP-900---027 1
115,130 — — 38AP-900---028 1

— 070-090 — 38AP-900---032 1
— 100-115 — 38AP-900---033 1
— 130-150 — 38AP-900---034 1

ACCESSORY

PART N O .

QTY USED

Table 2 — Accessory Package Contents

ACCE SSORY

PART N O.

38AP-900---006

38AP-900---007

38AP-900---008

ITEM

(QTY) PART NO.

NO.

1 (4) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

5 (2) 38AP503021 Panel Support

6 (2) 38AP503022 Channel

7 (88) AL56ZA003 Screws

18 (32) AU02AB171

19 (2) 38AP501877 Corner Support

1 (4) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

4 (2) 38AP503017 Wire Guard

5 (2) 38AP503021 Panel Support

6 (4) 38AP503022 Channel

7 (112) AL56ZA003 Screws

18 (48) AU02AB171

19 (2) 38AP501877 Corner Support

1 (4) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

4 (4) 38AP503017 Wire Guard

5 (2) 38AP503021 Panel Support

6 (6) 38AP503022 Channel

7 (136) AL56ZA003 Screws

18 (64) AU02AB171

19 (2) 38AP501877 Corner Support

PART

DESCRIPTION

1

/4-in. Flat Washer

1

/4-in. Flat Washer

1

/4-in. Flat Washer

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. 04-53090018-01 Printed in U.S.A. Form 09/30/38-12SI Pg 1 6-12 Replaces: 09/30/38-10SI

Table 2 — Accessory Package Contents (cont) Table 2 — Accessory Package Contents (cont)

ACCESSORY

PART NO.

38AP-900---026

38AP-900---027

38AP-900---028

38AP-900---032

ITEM

(QTY) PART NO.

NO.

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

5 (3) 38AP503021 Panel Support

6 (2) 38AP503022 Channel

7 (102) AL56ZA003 Screws

18 (32) AU02AB171

19 (2) 38AP501877 Corner Support

20 (1) 38AP501896 Blockoff Panel

21 (2) 38AP501803 Louvered Panel

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

4 (2) 38AP503017 Wire Guard

5 (3) 38AP503021 Panel Support

6 (4) 38AP503022 Channel

7 (126) AL56ZA003 Screws

18 (48) AU02AB171

19 (2) 38AP501877 Corner Support

20 (1) 38AP501896 Blockoff Panel

21 (2) 38AP501803 Louvered Panel

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

4 (4) 38AP503017 Wire Guard

5 (3) 38AP503021 Panel Support

6 (6) 38AP503022 Channel

7 (150) AL56ZA003 Screws

18 (64) AU02AB171

19 (2) 38AP501877 Corner Support

20 (1) 38AP501896 Blockoff Panel

21 (2) 38AP501803 Louvered Panel

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (2) 38AP503016 Wire Guard

4 (1) 38AP503017 Wire Guard

5 (2) 38AP503021 Panel Support

6 (3) 38AP503022 Channel

7 (112) AL56ZA003 Screws

18 (54) AU02AB171

19 (2) 38AP501877 Corner Support

22 (2) 38AP502095 Louvered Panel

23 (3) 38AP502981 Channel

24 (1) 38AP502612 Wire Guard

25 (1) 38AP503064 Wire Guard

26 (1) 38AP502609 Wire Guard

27 (1) 38AP502634 Wire Guard Patch

PART

DESCRIPTION

1

/4-in. Flat Washer

1

/4-in. Flat Washer

1

/4-in. Flat Washer

1

/4-in. Flat Washer

ACCESSORY

PART NO.

38AP-900---033

38AP-900---034

ITEM

(QTY) PART NO.

NO.

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (3) 38AP503016 Wire Guard

4 (2) 38AP503017 Wire Guard

5 (2) 38AP503021 Panel Support

6 (5) 38AP503022 Channel

7 (112) AL56ZA003 Screws

18 (54) AU02AB171

19 (2) 38AP501877 Corner Support

22 (2) 38AP502095 Louvered Panel

23 (3) 38AP502981 Channel

24 (1) 38AP502612 Wire Guard

25 (1)38AP504017 Wire Guard

26 (1) 38AP502609 Wire Guard

27 (1) 38AP502634 Wire Guard Patch

1 (2) 38AP503014 Louvered Panel

2 (2) 38AP503015 Louvered Panel

3 (4) 38AP503016 Wire Guard

4 (3) 38AP503017 Wire Guard

5 (2) 38AP503021 Panel Support

6 (7) 38AP503022 Channel

7 (170) AL56ZA003 Screws

18 (80) AU02AB171

19 (2) 38AP501877 Corner Support

22 (2) 38AP502095 Louvered Panel

23 (3) 38AP502981 Channel

24 (1) 38AP503587

25 (1)38AP504017 Wire Guard

26 (1) 38AP502609 Wire Guard

27 (1) 38AP502634 Wire Guard Patch

PART

DESCRIPTION

1

/4-in. Flat Washer

1

/4-in. Flat Washer

Wire Guard With

Opening

INSTALLATION

Refer to Tables 1 and 2 and inspect package contents for
any missing or damaged parts. File a claim with the shipping
company if any item is missing or damaged, and notify your
Carrier representative. See Fig. 1-4 for installation details. All
parts are labeled. Be sure to check the part number on the label
against the part description and part number listed in Table 2.

1. Disconnect all power to the unit.

2. Install the corner supports, Item 19, in the corner posts on
the end of the unit opposite the control box end. Use 4
screws, Item 7, per support.

3. Install support panels, Item 5, using screws provided. The
09DPM units use two support panels on the control box
end, and one on the opposite end. The 38AP and 30RAP
units use one support panel on each end.

4. On 09DPM units:

Install louvered panels, Item 21, on control box end
with screws provided. Install blockoff panel, Item 20, on
control box end using screws provided.

2

On 38AP units:

ITEM 3

ITEM 4

ITEM 3

ITEM 21

ITEM 20

ITEM 5

ITEM 3

ITEM 4

ITEM 3

ITEM 1

ITEM 19

ITEM 2

ITEM 5

ITEM 6

ITEM 6

ITEM 6

ITEM 6

OPPOSITE OF CONTROL BOX END

CONTROL BOX END

ITEM 3

ITEM 4

ITEM 3

ITEM 1

ITEM 5

ITEM 3

ITEM 4

ITEM 3

ITEM 1

ITEM 19

ITEM 2

ITEM 5

ITEM 6

ITEM 6ITEM 6

ITEM 6

ITEM 6

OPPOSITE OF CONTROL BOX END

CONTROL BOX END

Fig. 2 — Security Grille/Hail Guard Installation — 38AP Units (38APD115 Unit Shown)

NOTES:

1. Item numbers refer to parts listed in Table 2.

2. All parts are labeled. Be sure to check the part number on the
label against the part description and par t number listed in Table 2.

a09-583

Install louvered panels, Item 1, on control box end
with screws provided.

On 30RAP units:

Install louvered panels, Item 22, on control box end
with screws provided.

5. Install louvered panels, Item 1, on lower section of unit
opposite the control box end using screws provided.

6. Install louvered panels, Item 2, on upper section of unit
opposite the control box end using screws provided.

7. Install channel, Item 6, between each condenser "V" sec­tion using screws provided.

On 30RAP units:

Item 6 is installed the same as the above, except for the
water connection point. Item 6 is not required at water
connection point.

8. Install wire guards, Item 3, on outer "V" sections using
flat washers and screws provided.

9. Install wire guards, Item 4, on inner "V" sections with flat
washers and screws provided (all units except
09DPM065, 38APS065, and 38APD070).

On 30RAP units:

Item 4 is installed only on the non-water connection
side.

10. 30RAP units only:

Install wire guards, Items 24, 25, and 26, as shown on il­lustration, using screws provided. Install Item 23 between
Items 25 and 26, below and above the water connection.

11. 30RAP units only:

Install wire guards patch Item 27, over exposed water
connection opening, using wire ties provided.

NOTES:

1. Item numbers refer to parts listed in Table 2.

2. All parts are labeled. Be sure to check the part number on the
label against the part description and par t number listed in Table 2.

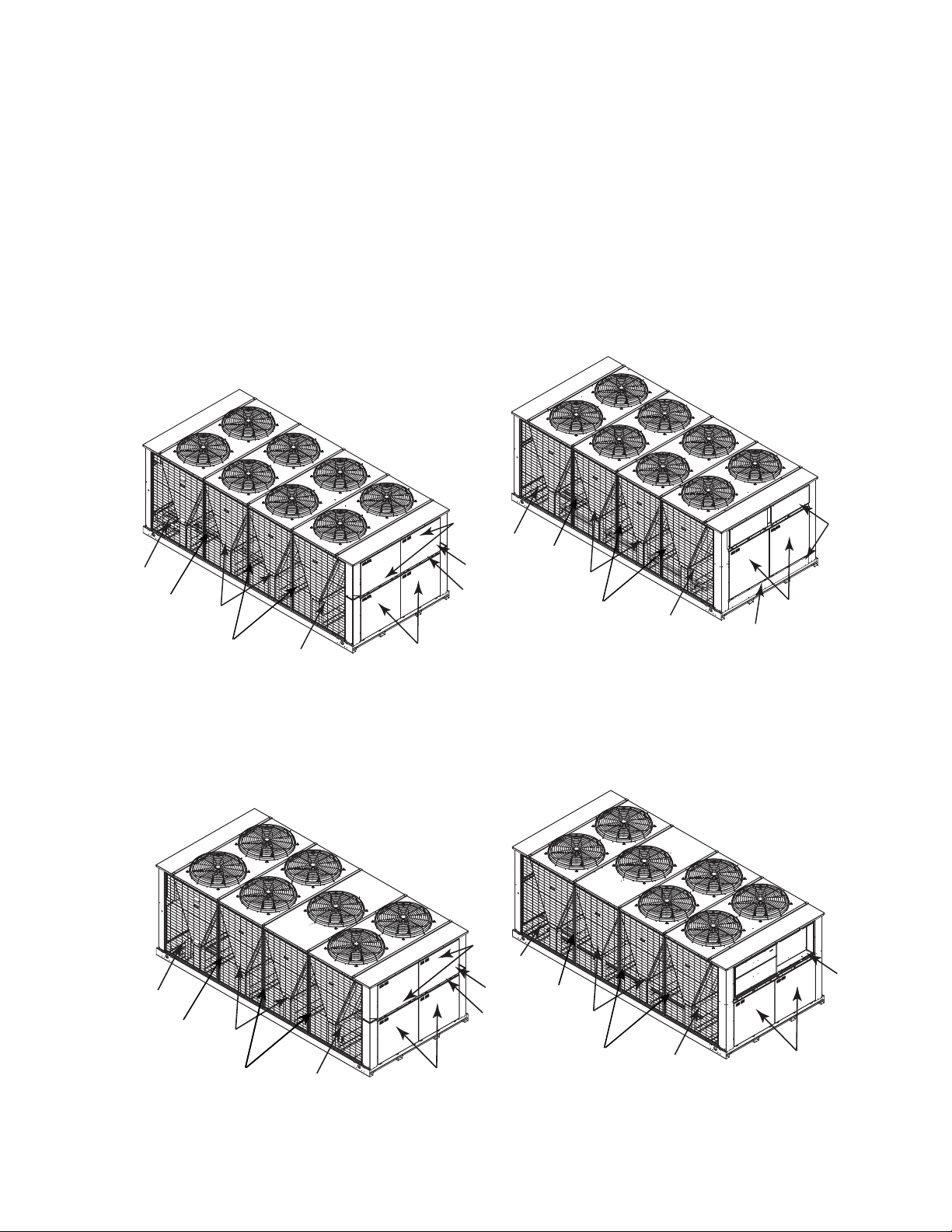

Fig. 1 — Security Grille/Hail Guard Installation — 09DP Units (09DPM130 Unit Shown)

3

a09-582

ITEM 2

ITEM 2

ITEM 19

ITEM 5

ITEM 1

ITEM 3

ITEM 6

ITEM 24

ITEM 3

ITEM 6

ITEM 25

ITEM 23

ITEM 26

ITEM 3

ITEM 4

ITEM 6

ITEM 3

ITEM 22

ITEM 5

OPPOSITE OF CONTROL BOX END

CONTROL BOX END

ITEM 19

ITEM 3

ITEM 6

ITEM 5

ITEM 4

ITEM 25

ITEM 23

ITEM 26

ITEM 6

NOTES:

1. Item numbers refer to parts listed in Table 2.

2. All parts are labeled. Be sure to check the part number on the
label against the part description and part number listed in Table 2.

3. Item 27 not shown.

ITEM 24

OPPOSITE OF CONTROL BOX END

ITEM 5

ITEM 1

ITEM 6

ITEM 3

CONTROL BOX END

Fig. 3 — Security Grille/Hail Guard Installation — 30RAP070-090 Units (30RAP090 Unit Shown)

ITEM 22

a30-5370

A30-5474

NOTES:

1. Item numbers refer to parts listed in Table 2.

2. All parts are labeled. Be sure to check the part number on the
label against the part description and part number listed in Table 2.

3. Item 27 not shown.

Fig. 4 — Security Grille/Hail Guard Installation — 30RAP100-150 Units (30RAP130 Unit Shown)
