Carrier 33CSPREMLK User Manual

PremierLink™

Retrofit Split System

Installation, Start-Up and

Configuration Instructions

Controller

Part Number 33

CONTENTS

Page

SAFETY CONSIDERATIONS
GENERAL
INSTALLATION

Inspection
PremierLink Controller Hardware
Field-Supplied Hardware

• SPACE TEMPERATURE (SPT) SENSOR

• SUPPLY AIR TEMPERATURE (SAT) SENSOR

• INDOOR AIR QUALITY CO

• OUTDOOR AIR QUALITY CO2 SENSOR

• OUTDOOR AIR TEMPERATURE SENSOR

• OUTDOOR AIR ENTHALPY SWITCH

• RETURN AIR ENTHALPY SENSOR

Mount PremierLink Control

•LOCATION

• MOUNTING

PremierLink Controller Inputs and Outputs
Control Wiring
Install Sensors

• SPACE TEMPERATURE (SPT) SENSOR
INSTALLATION

• SUPPLY AIR TEMPERATURE (SAT) SENSOR
INSTALLATION

• INDOOR AIR QUALITY CO
INSTALLATION

• OUTDOOR AIR QUALITY CO
INSTALLATION

• OUTDOOR AIR TEMPERATURE SENSOR

Connect to CCN Communication Bus

• COMMUNICATIONS BUS WIRE SPECIFICATIONS

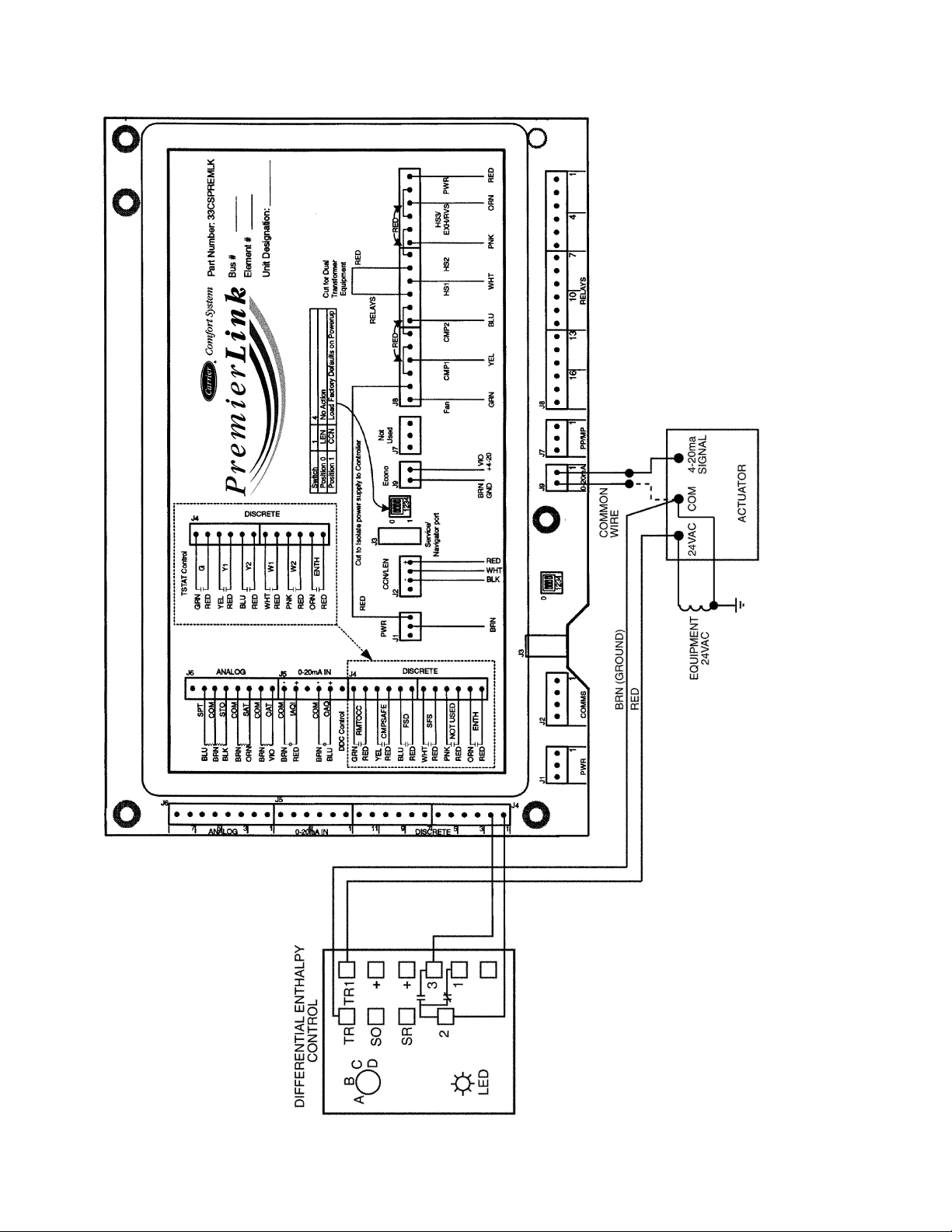

Enthalpy and Differential Enthalpy Control

• ENTHALPY SWITCH/RECEIVER

• OUTDOOR AND RETURN AIR ENTHALPY
SENSOR

Economizer

• Q769B

• Q769C

Economizer with Johnson 4 to 20 mA

Actuator

• DRIVE DIRECTION

• SWITCH SELECTION

•WIRING

START-UP
Perform System Check-Out
Initial Operation and Test
Install Navigator™ Display Module
Password Protection
Forcing Values and Configuring Items

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . . . . . 1

. . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . 2

SENSOR

2

. . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . 3

SENSOR

2

SENSOR

2

. . . . . . . . . . . 18

. . . . . . 18

. . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . 26

. . . . . . . . . . 28

CSPREMLK

Page

CONFIGURATION
Points Display Screen
Thermostat Control Input Screen
Alarm Service Configuration Screen
Controller Identification Screen
Holiday Configuration Screen
Occupancy Configuration Screen
Set Point Screen
Service Configuration Selection Screen
PremierLink Configuration Screen
Occupancy Maintenance Screen
Maintenance Screen

SAFETY CONSIDERATIONS

Air-handling equipment will provide safe and reliable service
when operated within design specifications. The equipment
should be operated and serviced only by authorized person­nel who have a thorough knowledge of system operation,
safety devices and emergency procedures.

Good judgement should be used in applying any manufac­turer’s instructions to avoid injury to personnel or damage to
equipment and property.

Disconnect all power to the unit before performing mainte­nance or servic e. Unit may automati cally start if pow er is
not disconnected. Electrical shock and personal injury
could result.

Damage to equipment may result. An individual field­supplied 24-vac power transformer is required for each
PremierLink controller. The transformer must be less than
100 va to meet UL (Underwriters’ Laboratories) Class 2.

The PremierLink Controller is a field re trofit split system
control compatibl e with the Carr ier Comfort Network (CCN ).
This control is designed to allow users the access and ability to
change factory-defined settings thus expanding the function of
the standard unit control board. The complete PremierLink
package (part number 33CSPREMLK) consists of a control
circuit board with plastic cover and label, wire harnesses, spade
connectors, wire nuts and 4 mounting screws.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-42

. . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . 33

. . . . . . . . . . . . . . 37

. . . . . . . . . . . . . . . . 39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SAFETY NOTE

GENERAL

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4
Ta b 3 a 2 a

PC 111 Catalog No. 533-80072 Printed in U.S.A. Form 38-54SI Pg 1 11-02 Replaces: 38-52SI

IMPORTANT: PremierLink™ part number
33CSPREMLK should only be used in applications
where the integrity of the Underwriters Laboratories rat­ing will be maintained.

Carrier’s diagnostic standard tier display tools such as
Navigator or Scrolling Marquee can be used with the Premier­Link controller. Access is available via an RJ-11 connection or
a 3-wire connection to the communication bus. User interfaces
available for use with the CCN system are PC’s equipped with
Carrier user interface software such as Service Tool, Comfort­VIEW™, or ComfortWORKS® soft ware. When used as part
of the CCN, other devices such as the CCN data transfer,
Linkage Thermostat, or Comfort Controller can read data from
or write data to the PremierLink retrofit controller.

INSTALLATION

Inspection —

that may have occurred during shipping. If there is any dam­age, contact your local representative before proceeding.

PremierLink Controller Hardware —

Link package consists of the following hardware:

• control module (with plastic cover and label)

• 7 wire harnesses

• 10 spade connectors

• wire nuts

• 4 no. 6x1-in. self-drilling P hillips pan head mounting screws

Field-Supplied Hardware —

configurable with the following field-supplied sensors:

• space temperature sensor (33ZCT55SPT, 33ZCT56SPT, or

33ZCT58SPT) in sensor mode or thermostat mode for

economizer control

• supply air temperature sensor (33ZCSENSAT) required for

all applications

• indoor air quality sensor (33ZCSENCO2, 33ZCT55CO2,

33ZCT56CO2) required only for demand control ventilation

• outdoor air quality sensor (33ZCTSENCO2) required only

for demand control ventilation

• outdoor air temperature sensor (HH79NZ017)

• outdoor air enthalpy switch (33CSENTHSW)

• return air enthalpy sensor (33CSENTSEN)

For specific details about sensors, refer to the literature
supplied with the sensor.

SP AC E TEMPERATURE (SP T ) SENSOR — A field-suppl ied
Carrier space temp erature sensor is required to maintain space
temperature in sensor mode. There are three sensors available for
this application:

• 33ZCT55SPT, Space Temperature Sensor with Override

Button

• 33ZCT56SPT, Space Temperature Sensor with Override

Button and Set Point Adjustment

• 33ZCT58SPT, T58 Communicating Room Sensor with

Override Button, Set Point Adjustment, and Manual Fan

control

If controlling an economizer in the thermostat mode, a duct
sensor must be mounted in the return air duct and wired to SPT
input.

SUPPLY AIR TEMPERATURE (SAT) SENSOR — The
PremierLink controller must be connected to a field-supplied
supply air temperature (SAT) sensor (part number
33ZCSENSAT) to monitor the temperature of the air delivered.

The SAT consists of a the rmist or enca sed within a stainles s
steel probe. The probe is 6 in. nominal length. The SAT sensor
has 114 in. of unshielded, plenum-rated cable (2 conductors,
22 AWG [American Wire Gage]). The sensor range is –40 to
185 F with a nominal resistance of 10,000 ohms at 77 F. The
sensor measures temperature with an accuracy of ±0.36 F.

Inspect package contents for visual defects

The Premier-

PremierLink controller is

Ideally, the SAT sensor should be located in the supply air

duct downstream from unit heat source to control.
INDOOR AIR QUALITY CO

quality sensor is required for CO2 level monitoring. Three
different CO

sensors are available for this application:

2

SENSOR — An indoor air

2

• 33ZCSENCO2 sensor is an indoor, wall-mounted sensor
with an LED (light-emitting diode) display

• 33ZCT55CO2 sensor is an indoor, wall-mounted sensor
without display. The CO
perature sensor with override button

sensor also includes a s pace tem-

2

• 33ZCT56CO2 sensor is an indoor, wall-mounted sensor
without display. The CO
perature sensor with override button and temperature offset

OUTDOOR AIR QUALITY CO

sensor also includes a s pace tem-

2

SENSOR — The outdoor

2

air CO2 sensor (33ZCTSENCO2) is designed to monitor car­bon dioxide (CO2) levels found in diesel exhaust and control
ventilation systems. It comes with an outdoor enclosure. This
sensor provides an outdoor baseline for differential DCV (De­mand Control Ventilation) control.

OUTDOOR AIR TEMPERA TURE SENSOR — The outdoor
air temperature sensor (HH79NZ017) monitors the tempera­ture outside of the outside air entering the equipment.

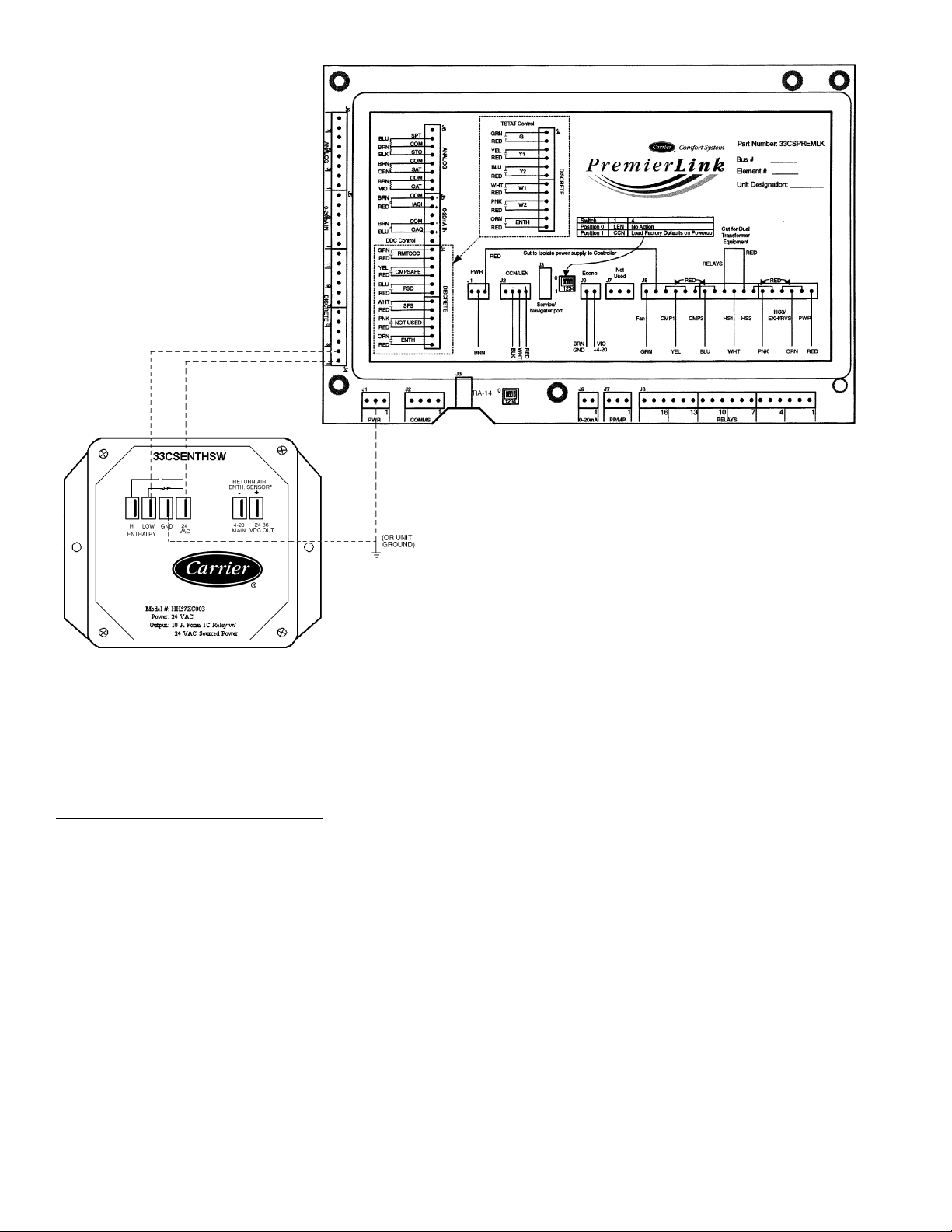

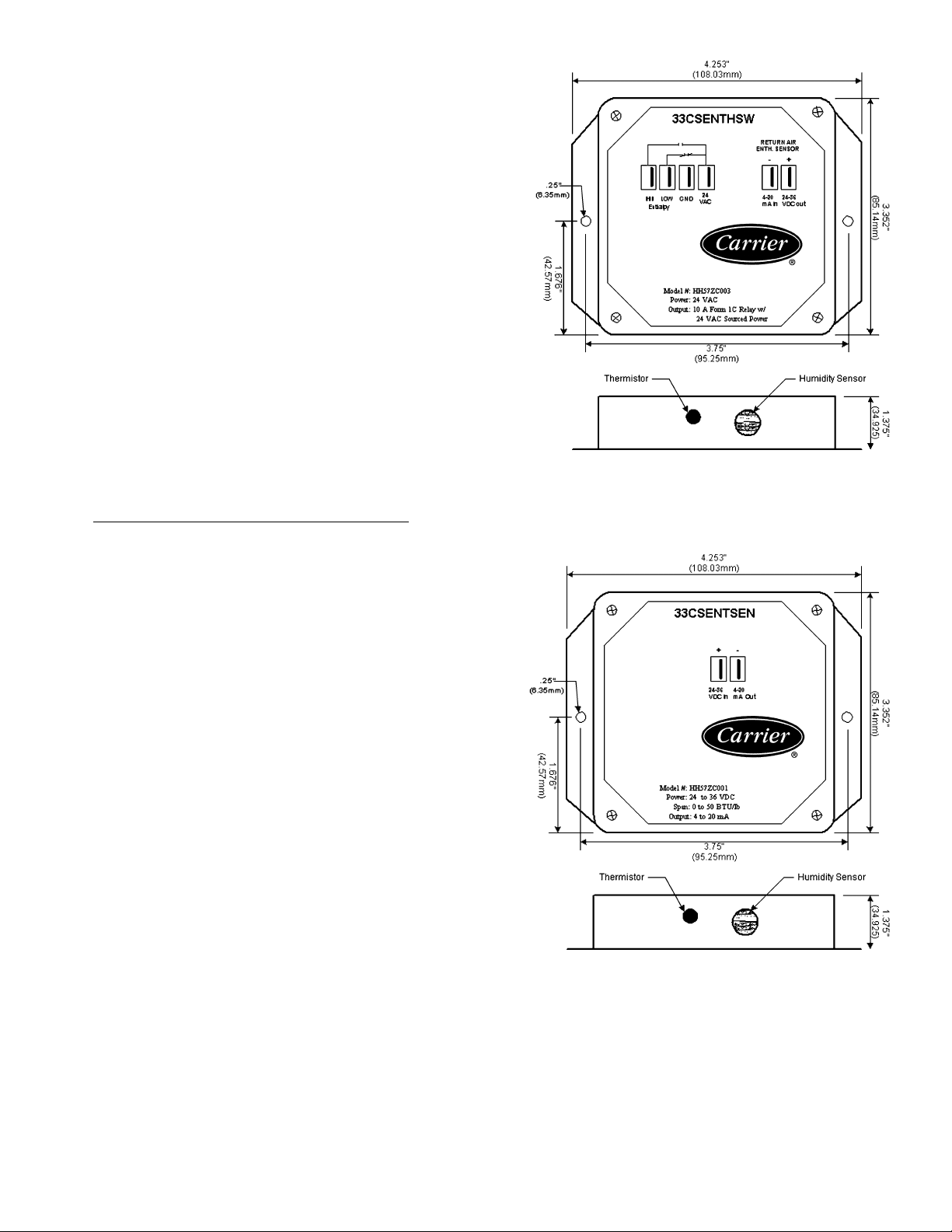

OUTDOOR AIR ENTHALPY SWITCH — The outdoor air
enthalpy switch (33CSENTHSW) monitors outdoor air
enthalpy and dry bulb temperature to determine when free
cooling can be used.

RETURN AIR ENTHLAPY SENSOR — The return air en­thalpy sensor (33CSENTSEN), when used in conjunction with
the outdoor air enthalpy switch, compares the outdoor air and
return air to determine when free cooling can be used.

Mount PremierLink Control

LOCATION — The PremierLink controller should be
located inside one of the available service acces s panels of the
indoor unit. Be sure the l ocat ion selec ted prev ents mois ture
and rain from coming into contact with the circuit board.

Select a location which will be safe from water damage and

allow sufficient access for service and wiring. For service
access, there should be at least 6 in. of clearance between the
front of the PremierLink controller and adjacent surfaces. Be
sure to leave
for attaching RJ-14 cable from CCN or Navigator™ display
module. A field-supplied right angle 6-pin RJ-14 connector can
be attached if necessary.

NOTE: If the PremierLink controller m ust be installed in a
location where there is not easy access to CCN connectors,
a remote connection kit (part number 33CSREMCCN) can
be ordered.

MOUNTING — Refer to Mounting Sheet included with
controller for additional detailed mounting instructions.

1. Ensure all power to unit is removed.

2. Locate a space in the unit control panel or a space inside
the equipment that is free from dirt and dust.

3. Remove plastic cover by gently squeezing the middle of
longer sides of the cover and pull away from the board.
This will rel ease the lock ing tabs ins ide.

4. Mount the PremierLink controller to the desired location
by holding the controller firmly in place. Be sure all
standoffs are in contact with mounting surface and board
DOES NOT flex! Attach controller to unit using 4 screws
provided ensuring a secure grip to unit surface. See Fig. 1.

5. Provide 24 v power to the circuit board from the unit
transformer or an isolated power transformer. Use the
appropriate conductors for voltage per base unit name­plate. See Fig. 2A-2I. Board will require 10 va at 24 vac.

6. Replace plastic cover to protect circuit board.

7. Restore power to unit.

1

/2-in. clearance in front of RJ-14 connector

2

*To restore factory default settings, the unit must be in the unpowered state. Move Switch 4 to Position 1 and then restore unit power.

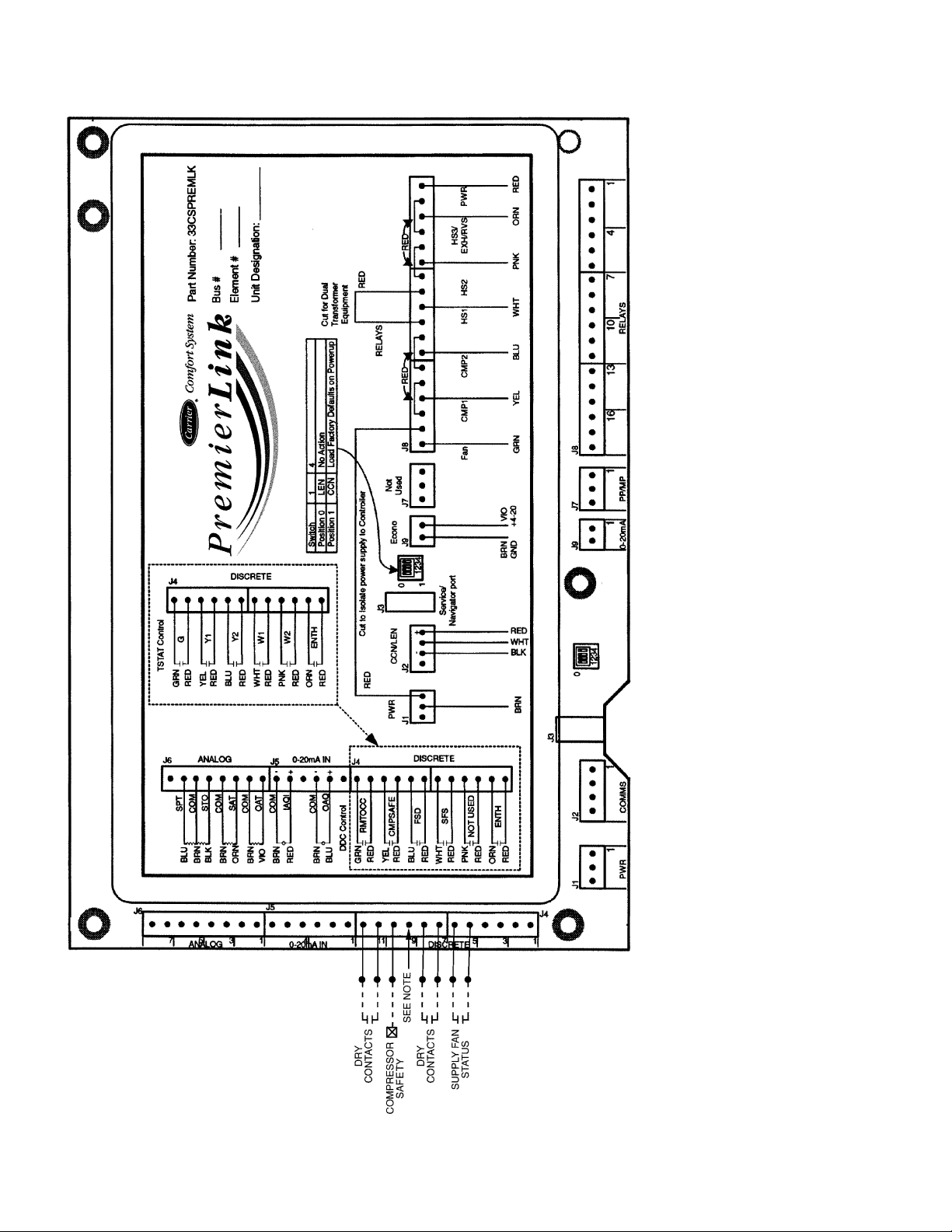

Fig. 1 — PremierLink™ Control Module

PremierLink Controller Inputs and Outputs —

The PremierLink controller inputs and outputs are shown in
T able 1.

Disconnect electrical power before wiring the Premier­Link controller. Electrical shock, personal injury, or
damage to the PremierLink controller can result.

Control Wiring —

connected to either a Carrier-approved thermostat or CCN
compatible temperature sensor.

1. Turn off power to the control box.

2. Strip the ends of the red, white, and black conductors of
the communication bus cable.

The PremierLink controller can be

NOTE: When connecting the communication bus cable, a
color code system for the entire network is recommended to
simplify installation and checkout. See Table 2 for the
recommended color code.

3. Use 4-connector Molex with red, white and black wires
to connect the communication wires. Verify the color
codes in Table 2 to ensure the Red (+) wire connects to
T erminal 1. Connect the White (ground) wire to Terminal

2. Connect the Black (–) wire to Terminal 3.

4. Secure all connections in Step 3 with wire nuts.

5. Insert the plug into the existing 4-pin mating connector
on the base module in the main c ontrol box (Terminal
J-2).

6. Restore power.

3

PremierLink Connections

RED

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

J8

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

J1

LEGEND

CCR —
CCSV —
IFC —
LLSV —

Capacity Control Relay (If Equipped)
Capacity Control Valve, Indoor Coil (If Equipped)
Indoor-Fan Contactor
Liquid Line Solenoid Valve

NOTE: Configure AC to “0”.

Fig. 2A — Typical PremierLink™ Control Wiring — 38AK,AKS,ARZ,ARS007-012 Units

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

40RM Connections

R

Y1

Y2

W1

W2

C1

G

WHT

WHT

C

X

IFC

CCR

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C

LLSV

CCSV

38AK, AKS, ARZ, ARS

Terminal

Board (TB)

R

Y1

Y2

W1

W2

G

C

X

CCR

PremierLink Connections

RED

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

J8

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

J1

LEGEND

CCR —
CCSV —
CR2 —
IFC —
LLSV —

Capacity Control Relay (If Equipped)
Capacity Control Valve, Indoor Coil (If Equipped)
Control Relay No. 2 (Liquid Line Solenoid Valve)
Indoor-Fan Contactor
Liquid Line Solenoid Valve

40RM Connections

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

Y1

Y2

W1

W2

R

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C1

G

WHT

WHT

C

X

CCR

IFC

CR2

C

CCSV

LLSV

Fig. 2B — Typical PremierLink Control Wiring — 38AKS013-024 Units

38AKS

Terminal

Board (TB2)

10

9

8

4

3

2

1

CCR

CR2

4

PremierLink Connections

RED

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

J8

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

J1

LEGEND

CCR —
CCSV —
IFC —
LLSV —

NOTE: Configure AC to “0”.

Capacity Control Relay (If Equipped)
Capacity Control Valve, Indoor Coil (If Equipped)
Indoor-Fan Contactor
Liquid Line Solenoid Valve

40RM Connections

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

Y1

Y2

W1

W2

R

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C1

G

WHT

WHT

C

X

IFC

CCR

C

LLSV

CCSV

Fig. 2C — Typical PremierLink™ Control Wiring — 38ARD012 Units

38ARD

Terminal

Board (TB)

R

Y1

Y2

W1

W2

G

C

X

CCR

PremierLink Connections

RED

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

J8

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

J1

LEGEND

CCR —
CCSV —
IFC —

Capacity Control Relay (If Equipped)
Capacity Control Valve, Indoor Coil (If Equipped)
Indoor-Fan Contactor

40RM Connections

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

Y1

Y2

W1

W2

R

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C1

G

WHT

WHT

C

X

IFC

CCR

C

CCSV

Fig. 2D — Typical PremierLink Control Wiring — 38AKS028-044 Units

38AKS

Terminal

Board (TB3)

R

Y1

Y2

W1

W2

G

C

X

CCR

5

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RED

CUT TO

POWER

ISOLATE

CONTROLLER

LEGEND

Indoor-Fan Contactor

IFC —

PremierLink Connections

PWR

HS3/EXH/RVS

HS2

RED

RELAYS

RED

PWR

J8

J1

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

40RM Connections

R

Y1

Y2

W1

W2

C1

G

WHT

WHT

C

X

IFC

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C

Fig. 2E — Typical PremierLink™ Control Wiring — 38AH024-034 Units

38AH

Terminal

Board (TB2)

5

4

3

2

1

PremierLink Connections

RED

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

LEGEND

CR —
IFC —
IFR —
LLS —
TB —

Control Relay
Indoor-Fan Contactor
Indoor-Fan Relay
Liquid Line Solenoid
Terminal Block

J8

J1

38AH Connections

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

TB3

1

ACCESSORY
RELAY
PACKAGE

1

2

3

4

5

CR1

CR2

IFR

24V

IFR

CR1

CR2

VIO

BRN

RED

2

3 4 5 6 7 8

IFC

LLS

YEL

-A1

TB4

1

Fig. 2F — Typical PremierLink Control Wiring — 38AH004-104 Units

2

3 4 5 6 7 8

LLS

-B1

6

PremierLink Connections

40RMQ Connections

38AQ007

Control

Connections

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RED

CUT TO

POWER

ISOLATE

CONTROLLER

RED

RELAYS

RED

PWR

J8

J1

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

CR

Y1

Y2

W1

W2

LEGEND

Control Relay (Field-Supplied)

CR —

Indoor-Air Quality

IAQ —

Indoor-Fan Contactor

IFC —

NOTES:

1. Configure AC to “1” for heat pump units.

2. Configure AUXOUT to “3’ for reversing valve.

3. Configure PremierLink control for 2-stage heat and single-stage cool.

4. If IAQ is high priority, wire HS2 to W1. If not, wire HS1 to W1.

Fig. 2G — Typical PremierLink™ Control Wiring — 38AQ007 Units

R

R

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C1

G

WHT

WHT

C

X

IFC

C

O

W

Y

BL

CR

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RED

CUT TO

POWER

ISOLATE

CONTROLLER

PremierLink Connections

PWR

HS3/EXH/RVS

HS2

RED

RELAYS

RED

PWR

J8

J1

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

CR

40RM Connections

R

Y1

Y2

W1

W2

C1

G

WHT

WHT

C

X

IFC

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C

38AQS008

Board (TB)

Y1

Y2

W1

W2

LLSV

LEGEND

CR —
IFC —
IAQ —
LLSV —

Control Relay (Field-Supplied)
Indoor-Fan Contactor
Indoor-Air Quality
Liquid LIne Solenoid Valve

NOTES:

1. Configure AC to “1” for heat pump units.

2. Configure AUXOUT to “3” for reversing valve.

3. Configure PremierLink control for 2-stage heat and single-stage cool.

4. When using controller for DCV, if IAQ priority is set to HIGH, the controller will use a stage of heat for temperature tempering.
If priority is set to LOW, no tempering will occur. If IAQ is high priority, wire HS2 to W1. If not, wire HS1 to W1.

Fig. 2H — Typical PremierLink Control Wiring — 38AQS008 and 38ARQ008,012 Units

Terminal

R

CR

G

C

X

7

PremierLink Connections

RED

CAPORREMOVE

THIS END OF

JUMPER

RED

EQUIPTMENT

CUT FOR DUAL

TRANSFORMER

RELAYS

RED

RED

CUT TO

POWER

ISOLATE

CONTROLLER

PWR

J8

J1

PWR

HS3/EXH/RVS

HS2

HS1

CMP2

CMP1

FAN

RED

ORN

PNK

WHT

BLU

YEL

GRN

BRN

40RMQ Connections

R

Y1

Y2

W1

W2

C1

G

WHT

WHT

C

X

IFC

40RM, 40RMQ, 40RMS

HEAT ACCESSORY

W1

W2

C2

C

38AQS012-016

Board (TB2)

W1

Y2

LEGEND

Indoor-Air Quality

IAQ —

Indoor-Fan Contactor

IFC —

NOTES:

1. Configure AC to “1” for heat pump or “0” for air conditioner.

2. When using controller for DCV, if IAQ priority is set to HIGH, the controller will use a stage of heat for temperature tempering.
If priority is set to LOW, no tempering will occur.

3. For air conditioners, use HS1 for IAQ tempering.

4. For heat pumps, use HS2 for IAQ tempering.

Fig. 2I — Typical PremierLink™ Control Wiring — 38AQS012-016 Units

Terminal

R

B

Y1

G

C

Table 1 — PremierLink Controller Inputs and Outputs

INPUTS POWER TERMINAL(S)
SPACE TEMPERATURE (SPT)
SET POINT ADJUSTMENT (STO)
SUPPLY AIR TEMPERATURE (SAT)
OUTDOOR AIR TEMPERATURE (OAT)
IAQ SENSOR (IAQI)
OUTDOOR AQ SENSOR (OAQ)
REMOTE TIME CLOCK (RMTOCC)
COMPRESSOR LOCKOUT (CMPSAFE)
FIRE SHUTDOWN (FSD)
SUPPLY FAN STATUS (SFS)
NOT USED
ENTHALPY STATUS (ENTH)

OUTPUTS POWER TERMINAL(S)
ECONOMIZER (ECONPOS)
FAN (SF)
COOL STAGE 1 (CMP1)
COOL STAGE 2 (CMP2)
HEAT STAGE 1 (HS1)
HEAT STAGE 2 (HS2)
HEAT 3/EXHAUST/REVERSING VALVE (HS3/EXH/RVS)

LEGEND

Analog Input

AI —

Digital Input

DI —

Digital Output

DO —

AI (10K Thermistor) J6-7, J6-6
AI (10K Thermistor) J6-5, J6-6
AI (10K Thermistor) J6-3, J6-4
AI (10K Thermistor) J6-1, J6-2
(4-20 mA) J5-5, J5-6
(4-20 mA) J5-2, J5-3
DI (24 VAC) J4-11, J4-12
DI (24 VAC) J4-9, J4-10
DI (24 VAC) J4-7, J4-8
DI (24 VAC) J4-5, J4-6

DI (24 VAC) J4-1, J4-2

4-20 mA J9-1, J9-2
DO Relay (24 VAC, 1A) J8-18
DO Relay (24 VAC, 1A) J8-15
DO Relay (24 VAC, 1A) J8-12
DO Relay (24 VAC, 1A) J8-9
DO Relay (24 VAC, 1A) J8-6
DO Relay (24 VAC, 1A) J8-3

8

Table 2 — Color Code Recommendations

SIGNAL TYPE

+

Ground

–

CCN BUS WIRE

COLOR

Red 1
White 2
Black 3

Install Sensors (See Fig. 3-10) —

CCN PLUG PIN

NUMBER

The PremierLink™
controller can be used with either the T58 Communicating sen­sor or any combination of CO

and space temperature sensors.

2

Refer to the instructions supplied with each sensor for electrical
requirements.

NOTE: All sensors are field-installed accessories.
SPACE TEMPERATURE (SPT) SENSOR INSTALLA-

TION — There are three types of SPT sensors available from
Carrier: The 33ZCT55SPT space temperature sensor with
timed override button, the 33ZCT56SPT space temperature
sensor with timed override button and set point adjustment, and
the 33ZCT58SPT T58 communicating room sensor with
timed override button, set point adjustment, and manual fan
control.

The space temperature sensors are used to measure the
building interior temperature. The T58 communicating room
sensors measure and maintain room temperature by communi­cating with the controller. Sensors should be located on an
interior building wall. The sensor wall plate accommodates the
NEMA (National Electrical Manufacturers Association)
standard 2 x 4 junction box. The sensor can be mounted direct­ly on the wall surface if acceptable by local codes.

Do not mount the sensor in drafty locations such as near air
conditioning or heating ducts, over heat sources such as base­board heaters, radiators, or directly above wall-mounted light­ing dimmers. Do not mount the sensor near a window which
may be opened, near a wall corner, or a door. Sensors mounted
in these areas will have inaccurate and erratic sensor readings.

The sensor should be mounted approximately 5 ft from the
floor, in an area representing the average temperature in the
space. Allow at least 4 ft between the sensor and any corner
and mount the sensor at least 2 ft from an open doorway. The
SPT sensor wires are to be connected to terminals in the unit
main control board.

Install the sensor as follows:

1. Locate the two Allen type screws at the bottom of the
sensor.

2. Turn the two screws clockwise to release the cover from
the sensor wall mounting plate.

3. Lift the cover from the bottom and then release it from
the top fas te ner s.

4. Feed the wires from the electrical box through the open­ing in the center of the sensor mounting plate.

5. Using two no. 6-32 x 1 mounting screws (provided with
the sensor), secure the sensor to the electrical box.

NOTE: Sensor may also be mounted directly on the
wall using 2 pl astic anchors and 2 sheet met al screws
(field-supplied).

6. Use 20 gage wire to connect the sensor to the controller.
The wire is suitable for distances of up to 500 ft. Use a
three-conductor shielded cable for the sensor and set
point adjustment connections. The standard CCN
communication cable may be used. If the set point adjust­ment (slidebar) is not required, then an unshielded, 18 or
20 gage, two-conductor, twisted pair cable may be used.

The CCN network service jack requires a separate,
shielded CCN communication cable. Always use sepa­rate cables for CCN communication and sensor wir­ing. (Refer to Fig. 5 for wire terminations.)

7. Replace the cover by inserting the cover at th e top of t he
mounting plate first, then swing the cover down ove r th e
lower portion. Rotate the two Allen head screws counter­clockwise until the cover is secured to the mounting plate
and locked in position.

NOTE: See Table 3 for thermistor resistance vs temperature
values.

Wiring the Space Temperature Sensor

— To wire the sensor,

perform the following (see Fig. 3-5):

1. Identify which cable is for the sensor wiring.

2. Strip back the jacket from the cables for at least 3 inches.

1

Strip

/4-in. of insulation from each conductor. Cut the

shield and drain wire from the sensor end of the cable.

3. Connect the sensor cable as follows:
a. Connect one wire from the cable to (BLU) wire on

J6-7 analog connector on the controller. Connect
the other end of the wire to t he left term inal on the
SEN terminal block of the sensor.

b. Connect another wire from the cable to (BRN)

J6-6 analog connector on the controller. Connect
the other end of the wire to the remaining open ter­minal on the SEN terminal block.

c. On 33ZCT56SPT thermostats, connect the remain-

ing wire to the (BLK) STO on J6-5 connector on
the controller. Connect the other end of the wire to
the SET terminal on the sensor.

d. In the control box, install a no. 10 ring type crimp

lug on the shield drain wire. Inst all this lug under
the mounting screw of the PremierLink controller.

e. On 33ZCT56SPT thermostats install a jumper

between the two center terminals (right SEN and
left SET). See Fig. 4.

f. Refer to Fig. 5 for 33ZCT58SPT thermostat wir-

ing. Once the T58 sensor is powered up, all of the
graphic icons on the LCD (liquid crystal display)
display will be energized for a few seconds. The
graphical icons will then turn off and the T58 sen­sor will energize the three-digit numeric display.
The value “58” will be displayed for two seconds.
After 2 seconds, the LCD will display the default
space temperature value.

NOTE: See Fig. 6 for space temperature sensor averaging.

9

Table 3 — Thermistor Resistance vs Temperature

Fig. 4 — Space Temperature Sensor

Typical Wiring (33ZCT56SPT)

Values for Space Temperature Sensor,

Supply Air Temperature Sensor, and

Outdoor Air Temperature Sensor

TEMP

(C)

–40 –40 335,651
–35 –31 242,195
–30 –22 176,683
–25 –13 130,243
–20 –4 96,974
–15 5 72,895
–10 14 55,298

–5 23 42,315

0 32 32,651

5 41 25,395
10 50 19,903
15 59 15,714
20 68 12,494
25 77 10,000
30 86 8,056
35 95 6,530
40 104 5,325
45 113 4,367
50 122 3,601
55 131 2,985
60 140 2,487
65 149 2,082
70 158 1,752

2

3

SEN

SW1

45

TEMP

(F)

61

RED(+)

WHT(GND)

BLK(-)

BRN (GND)
BLU (SPT)

RESISTANCE

(Ohms)

CCN COM

SENSOR WIRING

Fig. 3 — Space Temperature Sensor

Typical Wiring (33ZCT55SPT)

2

3

SEN

SW1

Cool Warm

45

61

RED(+)

WHT(GND)

BLK(-)

SET

BLK
(T56)

BRN (GND)
BLU (SPT)

CCN COM

SENSOR WIRING

JUMPER
TERMINALS
AS SHOWN

SUPPLY AIR TEMPERATURE (SAT) SENSOR INSTAL­LATION — The 33ZCSENSAT supply air temperature sensor
is required for controller operation. The sensor consists of a
thermistor encased within a stainless steel probe. The SAT
sensor probe is 6-in. nominal length with 114 in. of unshielded,
2-conductor 18 AWG twisted-pair cables. The sensor tempera­ture range is –40 to 245 F with a nominal resistance of
10,000 ohms at 77 F . The sensor measures accuracy of ±0.36 F .
The SAT sensor is supplied with a gasket and 2 self-drilling
mounting screws.

NOTE : The sensor must be mounted in the discharge of the
unit, downstream of the cooling coil and heat exchanger. Be
sure the probe tip does not come in contact with any of the
unit surfaces. See Fig. 11 for mount ing location.

Do not run sensor or relay wires in the same conduit or race­way with Class 1 AC service wiring. Do not abrade, cut, or
nick the outer jacket of the cable. Do not pull or draw cable
with a force that may harm the physical or electrical properties.
A void splices in any control wiring.

Perform the following steps to connect the SAT sensor to
the PremierLink™ controller:

1. Locate the opening in the control box. Pass the sensor
probe through the hole.

2. Drill or punch a

1

/2-in. hole in the supply air duct.

3. Use two field-supplied, self-drilling screws to secure the
sensor probe to the duct.

4. Connect the sensor leads to the PremierLink controller’s
wiring harness J6-3,4 board at the terminals labeled SAT
(ORN) and GND (BRN).

10

FIELD WIRING

T58 SENSOR

VAC

COM

CCN-

GND

CCN+

24 VAC

BLACK (-)

WHITE (GND)

RED (+)

BLACK (-)

WHITE (GND)

RED (+)

J4-3 (24 VAC)

J6-6 SDT (COM)

CCN
COM

J2

(COM)

Fig. 5 — T58 Communicating Sensor

Typical Wiring (33ZCT58SPT)

Perform the following steps if state or local code requires
the use of conduit, or if your installation requires a cable length
of more than 8 ft:

1. Secure the probe to the duct with two field-supplied self­drilling screws.

2. If you are extending cable length beyond 8 ft, use plenum
rated, 20 A WG, twisted pair wire.

3. Connect the sensor leads to the PremierLink™ control­ler’s wiring harness terminal board at the terminals la­beled SAT (ORN) and GND (BRN).

4. Neatly bundle and secure excess wire.

INDOOR AIR QUALITY CO

SENSOR INSTALLATION

2

(IAQ) — The indoor air quality sensor accessory monitors
carbon dioxide (CO2) levels. This information is used to moni­tor IAQ levels. Three types of sensors are provided. The w all
sensor can be used to monitor the conditioned air space.
Sensors use infrared technology to measure the levels of CO
present in the air. The wall sensor is available with or without
an LCD readout to display the CO2 level in ppm.

The CO
2000 ppm and a linear mA output of 4 to 20. Refer to the
instructions supplied with the CO

sensors are all factory set for a range of 0 to

2

sensor for electrical require-

2

ments and terminal locations.

To accurately monitor the quality of the air in the condi­tioned air space, locate the sensor near a return air grille (if
present) so it senses the concentration of CO

leaving the

2

space. The sensor should be mounted in a location to avoid
direct breath contact.

Do not mount the IAQ sensor in drafty areas such as near
supply ducts, op en window s, fans , or over hea t sources . Allow
at least 3 ft between the sensor and any cor ner. Avoid mo unting
the sensor where it is influenced by the supply air; the sensor
gives inaccurate readings if the supply air is blown directly onto
the sensor or if the supply air does not have a chance to mix
with the room air before it is drawn into the return airstream.

Wiring the Indoor Air Quality Sensor

— To wire the sensors
after they are mounted in the conditioned air space or outdoor
location, see Fig. 7 and 8 and the instructions shipped with the
sensors. For each sensor, use two 2-conductor 18 AWG

(American Wire Gage) twisted-pair cables (unshielded) to con­nect the separate isolated 24 vac power source to the sensor and
to connect the sensor to the control board terminals. T o connect
the sensor to the control, identify the positive (4 to 20 mA) and
ground (SIG COM) terminals on the sensor. Connect the
4-20 mA terminal to terminal IAQ (RED) and connect the
SIG COM terminal to ter mina l GND ( BRN).

OUTDOOR AIR QUALITY CO

SENSOR INSTALLA-

2

TION (OAQ) — T h e Outdoor Air CO2 sensor is designed to
monitor carbon dioxide (CO2) levels in th e air and interface
with the ventilation damper in an HVAC system. The OAQ
sensor is packaged with an outdoor cover. See Fig. 12 and 13.

The outdoor air CO

sensor must be placed in an area that is

2

representative of the entire conditioned space. A mounting
height of 6 feet is recommended. For installation where it is not
necessary to reach the control, it may be mounted higher on the
wall or on the ceiling, provided the location represents a good
sampling of air.

Wiring the Outdoor Air CO

Sensor — Power requirements

2

are 18 to 36 vac RMS 50/60 Hz; 18 to 42 vdc polarity protected/
dependent; and 70 mA average, 100 mA peak at 24 vdc. All
system wiring must be in compliance with all applicable local
and national codes. A dedicated power supply is required for
this sensor. A two-wire cable is required to wire the dedicated
power supply for the sens or . The two wires s hould be connected
to the power supply and terminals 1 and 2. To connect the sen­sor to the control, identify the positive (4 to 20 mA) and ground
(SIG COM) terminals on the sensor. Connect the 4 to 20 mA
terminal OAQ (BLU) terminal J5-2. Connect the SIG COM ter­minal to terminal GND (BRN) terminal J5-3. See Fig. 12.

OUTDOOR AIR TEMPERATURE SENSOR (Fig. 14-17) —
The OAT sensor must be located properly. The sensor must be
installed immediately upstream from outdoor air damper
where it will accurately sense th e temperature of the outdoor
air entering the mixing box. See Fig. 14 and 15. For applica­tions without economizer, the sensor may be located in the out­door air duct near the outdoor air intake (Fig. 15) or on the
exterior of the building. The thermistor has a range of –40 to
245 F and a resistance of 10,000 ohms at 77 F.

Do not mount the sensor in direct sunlight. Inaccurate read-

ings may result. Do not mount the sensor near the exhaust from

2

air-handling units or compressors, near leakage drafts of indoor
air, or near shrubbery or trees, or under direct water runoff.

If the sensor is to be mounted in the outdoor air duct, a field-

supplied 2 x 4-in. by 1

1

/2-in. deep electrical box is required.
Remove the cover and enter the knockout from the rea r of the
box. Install the sensor through the opening so that the sensor
leads are inside the electrical box. Secure the sensor to the elec­trical box using a field-supplied

1

/2-in. conduit nut. Drill a
13/16-in. hole in the outdoor air duct about a foot upstream of
the outdoor air damper. Apply a 1/4-in. bead of silicone type
sealer around the opening and install the sensor through the
hole. Secure the electrical box to the duct using 2 field­supplied, No. 10 sheet metal screws. See Fig. 17.

If the sensor is installed outdoors, a field-supplied

1

/2-in. LB
type conduit body, gasket, cover , and 1/2-in. EMT compression
connector are required. Install the OAT sensor into the opening
at the end of the LB conduit body. Install the

1

/2-in. EMT
connector into the rear opening. Tighten each securely to
prevent water leakage into the assembly. Mount the assembly
onto the

1

/2-in. EMT conduit and secure by tightening the
compression connector nut. After the sensor wiring is complet­ed, secure the gasket and cover in place using the screws
provided with the cover. See Fig. 16.

11

RED

BLK

RED

BLK

J6

6

7

RED

BLK

RED

BLK

RED

BLK

SENSOR 1 SENSOR 2 SENSOR 3 SENSOR 4

SPACE TEMPERATURE AVERAGING — 4 SENSOR APPLICATION

J6

6

7

RED

BLK

SENSOR 1

BLK

RED

SENSOR 4

BLK

RED

RED

BLK

RED

BLK

SENSOR 2

SENSOR 5

RED

BLK

SENSOR 3

RED

BLK

SENSOR 6

LEGEND

Factory Wiring

Field Wiring

RED

BLK

SENSOR 7

SENSOR 8

SPACE TEMPERATURE AVERAGING — 9 SENSOR APPLICATION

Fig. 6 — Space Temperature Averaging

RED

BLK

SENSOR 9

12

13

Outdoor Air Temperature Sensor

Supply Air Temperature Sensor

LEGEND

OAT —

SAT —

Space Temperature Sensors; 33ZCSENSAT Supply Air Temperature Sensor;

33ZCSENCO2 (Outdoor), and 33ZCT55CO2, 33ZCT56CO2 (Indoor) Air Quality Sensors

Fig. 7 — PremierLink™ Controller and Sensor Wiring — 33ZCT55SPT, 33ZCT56SPT, 33ZCT58SPT

Space Temperature Sensor

SPT —

NOTE: No wire is connected to connector J-5 pin 4. You must relocate a wire from

an unused terminal. Typically one of the red wires from connector J-4 may be used

Sensor —

2

for this purpose. This pin on J-5 provided 24 VDC power to the combo sensor.

33ZCT55CO2, 33ZCT56CO2

14

Fig. 8 — PremierLink™ Controller Wiring — Combination Temperature and CO
