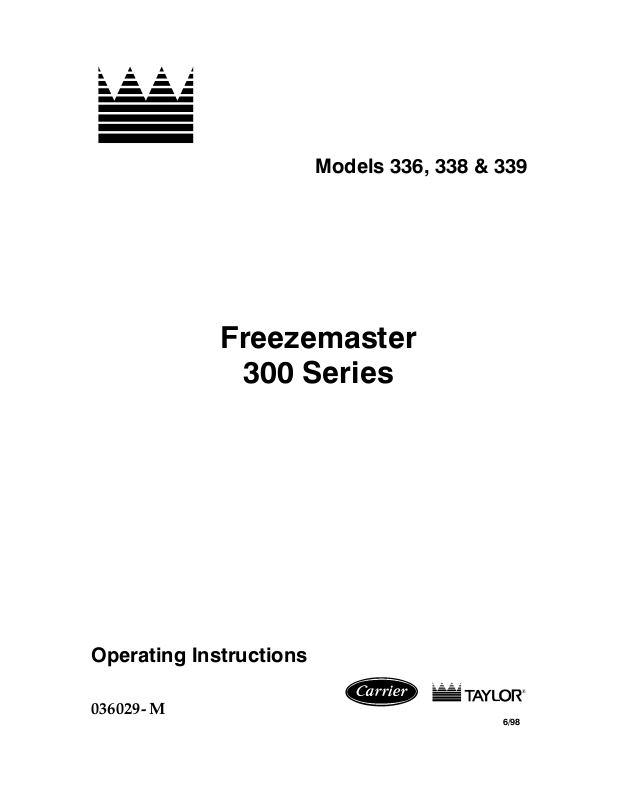

Carrier 338, 339, 336 User Manual

Models 336, 338 & 339

Freezemaster

300 Series

Operating Instructions

036029-M

6/98

Complete this page for quick reference when service is required:

Taylor Distributor:

Address:

Phone:

Service:

Parts:

Date of Installation:

Information found on the data label:

Model Number:

Serial Number:

Electrical Specs: Voltage Cycle

Phase

Maximum Fuse Size: A

Minimum Wire Ampacity: A

E June, 1998 Taylor

All rights reserved.

036029--M

Tayl o r

The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.

a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents

______________________________________________________________________________

Section 1 To the Installer 1............................................

Water Connections (Water Cooled Units Only) 1............................

Air Cooled Units 1.......................................................

Electrical Connections 1.................................................

Section 2 To the Operator 2...........................................

Compressor Warranty Disclaimer 2.......................................

Section 3 Safety 3....................................................

Section 4 Operator Parts Identification 4...............................

Model 336 4............................................................

Model 338 5............................................................

Model 339 6............................................................

Three Spout Door 7.....................................................

Accessories 8..........................................................

Section 5 Important: To the Operator 9.................................

Symbol Definitions 9....................................................

Power Switch 10.........................................................

Indicator Light - “Mix Low” 10..............................................

Mix Refrigeration Button 10...............................................

“Standby” 10............................................................

“Wash” 10...............................................................

“Auto” 10................................................................

Reset Button 10.........................................................

Air Tube 11.............................................................

Adjustable Draw Handle 11...............................................

Section 6 Operating Procedures 12.....................................

Assembly 12............................................................

Sanitizing 16............................................................

Priming 18..............................................................

Closing Procedure 19....................................................

Draining Product From The Freezing Cylinder 19............................

Rinsing 19..............................................................

Cleaning 20.............................................................

Disassembly 20..........................................................

Brush Cleaning 20.......................................................

Table of Contents Models 336, 338 & 339

Section 7 Important: Operator Checklist 22..............................

During Cleaning and Sanitizing 22.........................................

Troubleshooting Bacterial Count 22........................................

Regular Maintenance Checks 22...........................................

Winter Storage 23........................................................

Section 8 Troubleshooting Guide 24....................................

Section 9 Parts Replacement Schedule 27...............................

Section 10 Parts List 28.................................................

Wiring Diagrams 36......................................................

Note: Continuing research results in steady improvements; therefore, info rmation
in this manual is subject to change without notice.

Models 336, 338 & 339 Table of Contents

Section 1 To the Installer

These machines are designed for indoor use only.

DO NOT install the machines in an area where

a water jet could be used. Failure to follow this
instruction may result in serious electrical shock.

Water Connections

(Water Cooled Units Only)

An adequate cold water supply must be provided with
a hand shut-off valve. On the underside rear of the
base pan, two 1/2” I.P.S. water connections for inlet
and outlet have been provided for easy hook-up. 1/2”
inside diameter water lines should be connected to the
machine. (Flexible lines are recommended, if local
codes permit.) Depending on local water conditions, it
may be advisable to install a water strainer to prevent
foreign substances from clogging the automatic water
valve. There will be only one water “in” and one water
“out” connection for both single-head and double-head
units. DO NOT install a hand shut-off valve on the
water “out” line! Water should always flow in this order:
first, through the automatic water valve; second,
through the condenser; and third, through the outlet
fitting to an opentrapdrain.

Electrical Connections

Each freezer requires one power supply for each data
label. Check the data label(s) on the freezer for fuse,
circuit ampacity and electrical specifications. Refer to
the wiring diagram provided inside of the electrical box,
for proper power connections.

In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70--1987. The purpose of
the NEC code is the practical safeguarding of persons
and property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. Compliance therewith and
proper maintenance will result in an installation
essentially free from hazard!

In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.

Stationary appliances which are not equipped with a
power cord and a plug or other device to disconnect
the appliance from the power source must have an
all--pole disconnecting device with a contact gap of at
least 3 mm installed in the external installation.

CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!

Beater rotation must be clockwise as viewed looking
into the freezing cylinder of any model freezer.

Note: The following procedures should be performed
by a trained service technician.

Air Cooled Units

Air cooled units require a minimum of 3” (76 mm) of
clearance around all sides of the freezer to allow for
adequate air flow across the condenser(s). Failure to
allow adequate clearance can reduce the refrigeration
capacity of the freezer and possibly cause permanent
damage to the compressor.

Models 336, 338 & 339 To the Installer

To correct rotation on a three-phase unit, interchange
any two incoming power supply lines at freezer main
terminal block only.

To correct rotation on a single-phase unit, change the
leads inside the beater motor. (Follow diagram printed
on motor.)

Electrical connections are made directly to the
terminal block provided in the main control box located
behind the service panel.

031030

1

Section 2 To the Operator

The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor soft-serve models covered in
this manual consist of the following: 336, 338 and 339.

These units, when properly operated and cared for, will
produce a consistent quality product. Like all
mechanical products, they will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.

This Operator’s Manual should be read before
operating or performing any maintenance on your
equipment.

Your Taylor freezer will NOT eventually compensate
for and correct any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment’s operation, both assembly and
disassembly, go through these procedures together in
order to be properly trained and to make sure that no
confusion exists.

In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.

If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste.

The user is responsible for returning the product to the
appropriate collection facility, as specified by your local
code.

For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.

Compressor Warranty Disclaimer

The refrigeration compressor(s) on this machine are
warranted for the term indicated on the warranty card
accompanying this machine. However, due to the
Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should be
noted that, in the event of ordinary service to this
machine’s refrigeration system, only the refrigerant
specified on the affixed data label should be used.
The unauthorized use of alternate refrigerants will void
your compressor warranty . It will be the owner’s
responsibility to make this fact known to any technician
he employs.

It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor .

Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should a
new alternate prove, through our testing, that it would
be accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor
Distributor or the Taylor Factory. Be prepared to
provide the Model/Serial Number of the unit in
question.

061031

2

Models 336, 338 & 339To th e Operator

Section 3 Safety

We at Taylor are concerned about the safety of the
operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme
efforts to design and manufacture built-in safety
features to protect both you and the servicetechnician.
As an example, warning labels have been attached to
the freezer to further point out safety precautions to the
operator.

IMPORTANT -- Failure to adhere to the
following safety precautions may result in severe
personal injury or death. Failure to comply with
these warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.

To Operate Safely:

DO NOT operate the freezer without reading

this operator’s manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.

S DO NOT allow untrained personnel to

operate this machine.

S DO NOT operate the freezer unless all

service panels and access doors are
restrained with screws.

S DO NOT remove the door, beater and

blades, or drive shaft unless all control
switches are in the OFF position.

S DO NOT put objects or fingers in door

spout.
Failure to follow these instructions may result in
contaminated product or severe personal injury to
fingers or hands from hazardous moving parts.

USE EXTREME CAUTION when removing
the beater assembly. The scraper blades are very
sharp and may cause injury .

This freezer must be placed on a level
surface. Failure to comply may result in personal injury
or equipment damage.

DO NOT obstruct air intake and discharge openings:

S DO NOT operate the freezer unless it is

properly grounded.

S DO NOT attempt any repairs unless the

main power supply to the freezer has been
disconnected.

S DO NOT operate the freezer with larger

fuses than specified on the freezer data

label.
Failure to follow these instructions may result in
electrocution or damage to the machine. Contact your
local authorized Taylor Distributor for service.

DO NOT use a water jet to clean or rinse the
freezer. Failure to follow this instruction may result in
serious electrical shock.

Models 336, 338 & 339 Safety

3” (76 mm) minimum air space on sides and rear, and
7-1/2” (191 mm) on the bottom. The Model 338
requires 4-1/4” (108 mm) on the bottom.

Failure to follow this instruction may cause poor
freezer performance and damage to the machine.

These freezers are designed to operate indoors, under
normal ambient temperatures of 70_-- 7 5 _F
(21_-- 2 4 _C). The freezers have successfully per­formed in high ambient temperatures of 104_F(40_C)
at reduced capacities.

NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

061031

3

Section 4 Operator Parts Identification

Model 336

Item Description Part No.

1 Cover A.-Hopper X37963

2 Pan-Drip 17-1/4” Long 027504

3 Panel-Upper Side Left 028740

4 Orifice 022465-100

5 O-Ring 3/8 OD x .070 W 016137

6 Tube-Feed 5/32 Dia. Hole 043461-2

7 O-Ring .563 OD x .070 043758

8 Panel-Rear 029816

9 Louver-Side (Right & Left) 017471

10 Panel-Upper Side Right 028741

Item Description Part No.

11 Panel A.-Lower Side (R & L) X24424

12 Adaptor A.-Caster X18915

13 Caster-Swivel 5/8 Stem 4” Wheel 018794

14 Panel-Service *336* 042824

15 Tray-Drip 16-7/8 L x 5-1/8 020157

16 Shield-Splash 022765

17 Stud-Nose 022822

18 Panel A.-Front X42821-SP1

19 Gasket-Hopper Cover-8 Qt. 037042

4

Models 336, 338 & 339Operator Parts Identification

Model 338

Item Description Part No.

1 Cover A.-Hopper-Standard X38458

2 Gasket-Hopper Cover 20 Qt. 038474

3 Orifice 022465-100

4 O-Ring 3/8 OD x .070 W 016137

5 Tube A.-Feed SS 5/32 Hole X29429-2

6 O-Ring .643 OD x .077 W 018572

7 Panel-Rear 051600

8 Louver-Side (Left) 017471

9 Panel A.-Side Upper Right X48596

Models 336, 338 & 339 Operator Parts Identification

Item Description Part No.

10 Panel-Side (Lower Right) 048487

11 Panel A.-Side Left X51596

12 Stud-Nose Cone 022822

13 Panel A.-Front X51590

14 Pan A.-Drip-15-1/8 Long X51601

15 Shield-Splash 23 Long 022766

16 Tray-Drip 22-7/8 L x 5-1/8 W 014533

17 Leg-4” SS w/O-Ring 013458

18 Skirt-Air Flow 048489

5

Model 339

Item Description Part No.

1 Cover A.-Hopper-Standard X38458

2 Gasket-Hopper Cover 20 Qt. 038474

3 Orifice 022465-100

4 O-Ring 3/8 OD x .070 W 016137

5 Tube A.-Feed SS 5/32 Hole X29429-2

6 O-Ring .643 OD x . 077 W 018572

7 Panel-Rear 017563

8 Louver-Side (Right & Left) 017471

9 Panel-Upper Side Right 028741

10 Panel A.-Lower Side (R & L) X24424

Item Description Part No.

11 Pan-Drip 17-1/4” Long 027504

12 Panel-Upper Side Left 028740

13 Stud-Nose Cone 022822

14 Panel A.-Front X32956

15 Adaptor A.-Caster X18915

16 Shield-Splash 23 L 022766

17 Tray-Drip 22-7/8 L x 5-1/8 W 014533

18 Panel-Service 024439

19 Caster-Swivel 5/8 Stem 4” Wheel 018794

6

Models 336, 338 & 339Operator Parts Identification

Three Spout Door

Item Description Part No.

1 Seal-Drive Shaft 032560

2 Shaft-Beater 033235

3 Beater A.-2.8 Qt. Helicore X35466

4 Blade-Scraper-Plastic 035480

5 Bearing-Front 050216

6 Gasket-Door HT 4” Double 048926

7 O-Ring 3/8 OD x .070 W 016137

8 Plug-Prime 028805

9 Handle A.-Adj. Stainless Screw X33687

9a Handle-Adjustable 028804

9b Screw-Adjustment-Stainless 033662

Models 336, 338 & 339 Operator Parts Identification

Item Description Part No.

9c O-Ring 1/4 OD x .070 W 015872

10 Nut-5/16-24 18-8 SS Jam 029639-BLK

11 Nut-Stud Long 034382

12 Nut-Stud Short 034383

13 Va lve A.-Dra w X18303

14 O-Ring 7/8 OD x .103 W 014402

15 Cap-Design 1.010” ID-6 Point 014218

16 O-Ring 5/16 OD x .070 W 016272

17 Rod A.-Pivot X20683

18 Door A.-3 Spout SH BAF W/PRG X51532-15

7

Accessories

9

1

048260

10

2

7

3

CAUTION

1OZ (28.4 g)

®

6

SS

TERA HEEN

GREEN LABEL

SANITIZER& CLEANER
(MILKSTONEREMOVER)

8

4

KAY-5

Sanitizer/Cleaner

5

KEEPOUTOF REACH OF CHILDREN

FORINSTITUTIONAL USE ONLY

12

11

ITEM DESCRIPTION PART NO.

1 TOOL-O-RING

048260-WHT

REMOVAL-FREEZER

2 BRUSH -REAR BRG

013071

1IN.DX2IN.LGX

3 BRUSH -DOUBLE

013072

ENDED-PUMP&FEED

4 BRUSH -DRAW VALVE

013073

1”ODX2”X17”

5 BRUSH-MIX PUMP

023316

BODY-3”X7”WHITE
SANITIZER KAY-5 125 PKTS 041082

6

SANITIZER-STERA SHEEN 065293*

071018

ITEM DESCRIPTION PART NO.

7 PAIL-MIX 10 QT.

M336,339,751,754,774,794
8 PAIL-6 QT. M338,750 023348
9 DEFLECTOR -BLOWER

EXHAUST M794

10 SKIRT-AIR FLOW M338 048489
11 DEFLECTOR-BLOWER

EXHAUST M336

12 DEFLECTOR-BLOWER

EXHAUST M339,751,754,774

*MODEL 336 IS SHIPPED WITH STERA SHEEN.
OTHER MODELS ARE SHIPPED WITH KAY-5.

8

Models 336, 338 & 339Operator Parts Identification

013163

047912

048345

046586

Section 5 Important: To the Operator

Item Description

1 Power Switch
2 Mix Refrigeration Button
3 Standby Button
4 Wash Button
5 Auto Button
6 Indicator Light “MIX LOW”
7 Reset Button

Symbol Definitions

The following chart identifies the symbol definitions used on the operator switches.

=ON

=OFF

=MIX

= WASH

=MIXLOW

= STANDBY

Models 336, 338 & 339 Important: To the Operator

9

Power Switch

When placed in the “ON” position, the power switch
allows SOFTECHR control panel operation.

Indicator Light - “Mix Low”

Located on the front of the machine is a mix level
indicating light. When the light is flashing, it indicates
that the mix hopper has a low supply of mix and should
be refilled as soon as possible. Always maintain at
least 3” (76 mm) of mix in the hopper. If you neglect to
add mix, a freeze-up may occur. This will cause
eventual damage to the beater, blades, drive shaft,
and freezer door.

When the “STANDBY” button is pressed, the light
comes on, indicating the CTR (Cylinder Temperature
Retention System) feature has been activated. In the
“STANDBY” mode, the “WASH” and “AUTO” functions
are automatically cancelled. The mix refrigeration
function is automatically locked in to maintain the mix
in the hopper.

To resume normal operation, press the “AUTO” button.
When the unit cycles off, the product in the freezing
cylinder will be at serving viscosity. At this time, place
the air tube (end with the hole) into the mix inlet hole
and install the air orifice.

“Wash”

Mix Refrigeration Button

When the mix refrigeration button is pressed, the light
comes on indicating the mix hopper refrigeration
system is operating. The mix refrigeration is controlled
by the left side of the freezer as viewed from the
operator end. The mix refrigeration function cannot be
cancelled unless the “AUTO” or “STANDBY” modes
are cancelled first.

“Standby”

The Separate Hopper Refrigeration System (SHR)
and the Cylinder T emperature Retention System
(CTR) are standard features. The SHR feature
incorporates the use of a separate small refrigeration
system to maintain the mix in the hopper below
40_(4.4_C) to assure bacteria control. The CTR
feature works with the SHR to maintain a good quality
product. During long “No Sale” periods, it is necessary
to warm the product in the freezing cylinder to
approximately 35_Fto40_F(1.7_Cto4.4_C) to
prevent overbeating and product breakdown.

When the “WASH” button is pressed, the light comes
on. This indicates beater motor operation. The
“STANDBY” or “AUTO” modes must be cancelled first
to activate the “WASH” mode.

Note: The Model 336 cannot be operated in
the “WASH” mode if the opposite side of the freezer is
in “AUTO”. Failure to comply with this instruction will
cause the rinse or sanitizing solution to freeze.

“Auto”

When the “AUTO” button is pressed, the light comes
on. This indicates that the main refrigeration system
has been activated. In the “AUTO” mode, the “WASH”
or “STANDBY” functions are automatically cancelled.
The mix refrigeration function is automatically locked
in to maintain the mix in the mix hopper.

To activate the SHR and CTR features, press the
“STANDBY” button. Remove the air orifice and place
the air tube (end without the hole) into the mix inlet
hole.

Note: An indicating light and an audible tone will
sound whenever a mode of operation has been
pressed. To cancel any function, press the button
again. The light and mode of operation will shut off.

10

Models 336, 338 & 339Important: To the Operator

Reset Button

The reset button is located in the service panel. The
reset protects the beater motor from an overload
condition. If an overload occurs, the reset mechanism
will trip. To properly reset the freezer, press the
“AUTO” button to cancel the cycle. Place the power
switch to the “OFF” position. Press the reset button
firmly.

Note: Do not use metal objects to press the
reset button. Failure to follow this instruction may
result in electrocution.

Turn the power switch to the “ON” position. Press the
“WASH” button and observe the freezer’s
performance. Open the side access panel. Make sure
the beater motor is turning the drive shaft in a
clockwise direction (from the operator end) without
binding.

If the beater motor is turning properly, press the
“WASH” button to cancel the cycle. Press the “AUTO”
button (on both sides of the unit) to resume normal
operation. If the freezer shuts down again, contact a
service technician

Air Tube

The air tube serves two purposes. One end of the tube
has a hole and the other end does not.

1. After priming the machine, lubricate the o-rings
on the air tube (the end with the hole) and
place it into the mix inlet hole. Every time the
draw handle is raised, new mix and air from the
hopper will flow down into the freezing cylinder.
This will keep the freezing cylinder properly
loaded and will maintain overrun.

2. During long “No Sale” periods, remove the air
orifice. Lubricate the o-rings on the air tube (the
end without the hole), and place it into the
mix inlet hole. This will prevent any mix from
entering the freezing cylinder.

The air orifice is used to meter a certain amount
of air into the freezing cylinder. The air orifice
maintains overrun and allows enough mix to enter
the freezing cylinder after a draw.

Adjustable Draw Handle

These units feature an adjustable draw handle to
provide the best portion control. The draw handle
should be adjusted to provide a flow rate of 5 to 7-1/2
oz. of product per 10 seconds. To INCREASE the flow
rate, turn the screw COUNTERCLOCKWISE. Turn
the screw CLOCKWISE to DECREASE the flow rate.
During “Sanitizing” and “Rinsing”, the flow rate can be
increased by removing the pivot pin and placing the
restrictive bar on the TOP. When drawing product,
always place the restrictive bar on the bottom.

Figure 1

Models 336, 338 & 339 Important: To the Operator

11

Figure 2

Section 6 Operating Procedures

Each unit stores mix in a hopper. The mix then flows
by gravity through an air tube down into the freezing
cylinder. They all have 2.8 quart (2.6 liter) capacity
freezing cylinders. All models have 20 quart (18.9 liter)
mix hoppers.

Duplicate the following procedures, where they apply,
for the second freezing cylinder.

We begin our instructions at the point where we enter
the store in the morning and find the parts
disassembled and laid out to air dry from the previous
night’s cleaning.

These opening procedures will show you how to
assemble these parts into the freezer, sanitize them,
and prime the freezer with fresh mix in preparation to
serve your first portion.

If you are disassembling the machine for the first time
or need information to get to this starting point in our
instructions, turn to page 20, “Disassembly”, and start
there.

Assembly

shaft. Fill the inside portion of the seal with 1/4” more
lubricant and lubricate the flat side of the seal that fits
onto the rear shell bearing.

Insert the drive shaft into the freezing cylinder, hex end
first, and into the rear shell bearing until the seal fits
securely over the rear shell bearing. Engage the hex
end firmly into the drive coupling. Be sure the drive
shaft fits into the drive coupling without binding.

DO NOT lubricate the hex end of the drive

Figure 3

Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).

MAKE SURE THE CONTROL SWITCH IS

IN THE “OFF” POSITION.

Step 1

Install the drive shaft. Lubricate the groove and shaft
portion that comes in contact with the bearing on the
beater drive shaft. Slide the seal over the shaft and
groove until it snaps into place.

Figure 4

12

Models 336, 338 & 339Operating Procedures

Step 2

Take one of the scraper blades and slip it under the
hook at the front of the beater. Wrap the blade around
the beater following the helix and pushing the blade
down onto the helix as you wrap. At the back end of the
beater, slip the blade under the hook. Repeat this
step for the second scraper blade.

Figure 5

Holding the beater securely , slide the beater one third
of the way into the freezing cylinder. Looking into the
freezing cylinder, align the hole at the rear of the beater
with the flats on the end of the drive shaft.

Step 3

Assemble the freezer door. Place the large rubber
gaskets into the grooves on the back side of the
freezer door.

Slide the white plastic front bearings over the baffle
rods onto the bearing hubs making certain that the
flanged end of the bearing is resting against the freezer
door.

DO NOT LUBRICATE THE GASKETS OR
THE FRONT BEARINGS. Damage to components
may occur.

Figure 6

Slide the beater the remainder of the way into the
freezing cylinder and over the end of the drive shaft.
The beater should fit snugly, but not so tightly that the
beater cannot be turned slightly to engage the drive
shaft. If the beater slides in too easily with little or no
resistance, there will not be enough force against the
beater to hold the blades in place. If this is the case,
contact your authorized Taylor service agent.

Repeat Steps 1 and 2 for the other side of the freezer.

Figure 7

Slide the two o-rings into the grooves on the prime
plugs. Apply an even coat of Taylor Lube to the o-rings
and shafts.

Figure 8

Models 336, 338 & 339 Operating Procedures

13

Insert the prime plugs into the holes in the top of the
freezer door, and push down.

Figure 9

Step 4

Install the freezer door. Insert the baffle rods through
the opening in the beaters and seat the door flush with
the freezing cylinder. With the door seated on the
freezer studs, install the handscrews. Tighten equally
in a crisscross pattern to insure the door is snug.

Step 5

Install the three draw valves. Slide the two o-rings into
the grooves on the draw valves, and lubricate.

Figure 11

Lubricate the inside of the freezer door spouts, top and
bottom, and insert the draw valves from the bottom
until the slot in the draw valves comes into view.

Note: The short handscrews go on the bottom

and the long handscrews go on top.

Figure 10

Figure 12

Step 6

Install the adjustable draw handles. Slide the o-ring
into the groove on the pivot pin, and lubricate.

Figure 13

14

Models 336, 338 & 339Operating Procedures

Slide the fork over the bar in the slot of the draw valve.
Secure with pivot pin.

Note: The Models 336, 338 and 339 have three draw
handles. Slide the fork of the draw handle in the slot of
the draw valve, starting from the right. Slide the pivot
pin through each draw handle as you insert them into
the draw valves.

Step 8

Install the front drip tray and the splash shield under
the door spouts.

Figure 16

Step 9

Slide the rear drip pan into the hole in the side panel
(front panel on a Model 338).

Figure 14

Note: These units feature adjustable draw handles to
provide the best portion control. The draw handles can
be adjusted for different flow rates. See page 11 for
more information on adjusting these handles.

Step 7

Snap the design caps over the end of the door spouts.

Figure 17

Step 10

Slide two o-rings on one end of the air tube. Slide two
o-rings on the other end of the air tube.

Figure 15

Models 336, 338 & 339 Operating Procedures

15

Figure 18

Slide the small o-ring into the groove of the air orifice.
Do not lubricate the o-ring.

Figure 19

Note: Make sure the hole in the air orifice is clean and
is not clogged. If the hole in the air orifice should
become clogged, use soap and hot water to clear the
hole.

Sanitizing

Step 1

Prepare two gallons (7.6 liters) of an approved 100
PPM sanitizing solution (example: Kay-5R). USE
WARM WATER AND FOLLOW THE MANUFACTUR­ER’S SPECIFICATIONS.

Step 2

Pour the two gallons (7.6 liters) of sanitizing solution
into the hopper and allow it to flow into the freezing
cylinder.

Do not enlarge the hole in the air orifice.

Install the air orifice into the hole in the top of the air
tube (in the end without the small hole on the side).

Figure 20

Step 11

Lay the air tube (with the air orifice installed) and the
hopper gasket in the bottom of the mix hopper for
sanitizing.

Figure 21

Step 3

While the solution is flowing into the freezing cylinder,
brush clean the mix hopper. When cleaning the
hopper, take particular care in brushing the mix level
sensing probe on the rear wall of the hopper, the mix
inlet hole, the air tube, and the hopper gasket.

Repeat Steps 10 and 11 for the other side of the
freezer.

16

Figure 22

Models 336, 338 & 339Operating Procedures

Figure 23

Step 4

Place the power switch in the “ON” position.

Step 6

Place an empty pail beneath the door spout and raise
the prime plug.

Figure 26

Step 7

When a steady stream of sanitizing solution is flowing
from the prime plug opening in the bottom of the
freezer door, lower the draw handle. Draw off all the
sanitizing solution.

Figure 24

Step 5

Press the “WASH” button. This will cause the
sanitizing solution in the freezing cylinder to agitate.
Allow it to agitate for five minutes.

Figure 25

Figure 27

Note: Momentarily pull the center draw handle down
to sanitize the center door spout.

Step 8

Once the sanitizer stops flowing from the door spout,
raise the draw handle and press the “WASH” button,
cancelling the beater motor operation.

Note: You have just sanitized the freezer. Be

sure your hands are sanitized before continuing

these instructions.

Models 336, 338 & 339 Operating Procedures

17

Step 9

Assemble the hopper gasket around the top edge of
the mix hopper. Stand the air tube in the corner of the
hopper.

Figure 28

Repeat Steps 1 through 9 for the other side of the
freezer.

Priming

Step 2

Once a steady stream of mix starts to flow from the
prime plug opening in the bottom of the freezer door,
push down the prime plug.

Figure 30

Step 1

With a pail beneath the door spout, lower the draw
handle. Be sure the prime plug is still in the UP
position. Pour two gallons (7.6 liters) of fresh mix into
the mix hopper and allow it to flow into the freezing
cylinder. This will force out any remaining sanitizing
solution. When full strength mix is flowing from the
door spout, raise the draw handle.

Note: Use only fresh mix when priming the freezing
cylinder.

Step 3

Lubricate the o-rings on the air tube on the end with the
small hole on the side.

Step 4

Install the air tube in the “AUTO” position.

Figure 29

18

Figure 31

Models 336, 338 & 339Operating Procedures

Step 5

Press the “AUTO” button. The “AUTO” light will come
on indicating the main refrigeration system is
operating. When the unit cycles off, the product will be
at serving viscosity.

Figure 32

Note: The mix refrigeration light will come on,
indicating the mix refrigeration system is operating to
maintain the mix in the mix hopper.

Step 6

Fill the hopper with mix. As the mix level comes in
contact with the mix level sensing probe on the rear
wall of the hopper, the “MIX LOW” light will shut off.

Draining Product From the
Freezing Cylinder

Step 1

Press the “AUTO” button, cancelling compressor and
beater motor operation.

Press the mix refrigeration button, cancelling the mix
hopper refrigeration system.

Step 2

Remove the hopper cover, hopper gasket and air tube.
Take these parts to the sink for cleaning.

Step 3

With a sanitized pail beneath the door spout, press the
“WASH” button. Lower the draw handle and drain the
remaining product from the freezing cylinder and the
mix hopper.

Step 4

When the flow of product stops, press the “WASH”
button, and raise the draw handle. If local health codes
permit, empty the rerun into a sanitized stainless steel
can. Cover the container and place it in the walk-in
cooler.

Repeat Steps 1 through 4 for the other side of the
freezer.

Note: For the Model 336, both sides must be in
WASH. If one side is in AUTO and the other is in
WASH, the side that is in WASH will continue to freeze.

Step 7

Place the mix hopper cover in position over the mix
hopper.

Repeat Steps 1 through 7 for the other side of the
freezer.

Closing Procedure

To disassemble your unit, the following items will be
needed:

S Two cleaning pails
S Sanitized stainless steel rerun can with lid
S Necessary brushes (provided with freezer)
S Cleaner
S Single service towels

ALWAYS FOLLOW LOCAL HEALTH CODES.

Rinsing

Step 1

Pour two gallons (7.6 liters) of cool clean water into the
mix hopper. With the brushes provided, scrub the mix
hopper, mix inlet hole and mix level sensing probe.

Step 2

With a pail beneath the door spout, raise the prime plug
and press the “WASH” button.

Step 3

When a steady stream of rinse water is flowing from
the prime plug opening in the bottom of the freezer
door, lower the draw handle. Drain all the rinse water
from the freezing cylinder, raise the draw handle and
press the “WASH” button, cancelling the “WASH”
mode.

Repeat Steps 1 through 3 for the other side of the
freezer.

Models 336, 338 & 339 Operating Procedures

19

Cleaning

Brush Cleaning

Step 1

Prepare two gallons (7.6 liters) of an approved clean­ing solution (example: Kay-5R). USE WARM WATER
AND FOLLOW THE MANUFACTURER’S SPECIFI ­CATIONS.

Step 2

Push down the prime plug. Pour the two gallons (7.6
liters) of cleaning solution into the mix hopper.

Step 3

While the solution is flowing into the freezing cylinder,
brush clean the mix hopper, mix level sensing probe,
and the mix inlet hole.

Step 4

Press the “WASH” button. This will cause the cleaning
solution in the freezing cylinder to agitate.

Step 5

Place an empty pail beneath the door spout and raise
the prime plug.

Step 6

When a steady stream of cleaning solution is flowing
from the prime plug opening in the bottom of the
freezer door, lower the draw handle. Draw off all of the
solution.

Step 7

Once the cleaner stops flowing from the door spout,
raise the draw handle and press the “WASH” button,
cancelling the “WASH” mode.

Repeat Steps 1 through 7 for the other side of the
freezer.

Disassembly

Step 1

BE SURE THE POWER SWITCH IS IN THE
“OFF” POSITION. MAKE SURE NO LIGHTS ARE
LIT ON THE CONTROL PANEL.

Step 2

Remove the handscrews, freezer door, beaters,
scraper blades, and drive shafts from the freezing
cylinders. Take these parts to the sink for cleaning.

Step 3

Remove the front drip tray and the splash shield.

Step 1

Prepare a sink with an approved cleaning solution
(example: Kay-5R). USE WARM WATER AND
FOLLOW THE MANUFACTURER’S SPECIFI­CATIONS. If another approved cleaner is used, dilute
it according to the label instructions. (IMPORTANT:
Follow the label directions. Too STRONG of a solution
can cause parts damage, while too MILD of a solution
will not provide adequate cleaning.) Make sure all
brushes provided with the freezer are available for
brush cleaning.

Step 2

Remove the seals from the drive shafts.

Step 3

From the freezer door remove:

S gaskets
S front bearings
S pivot pins
S adjustable draw handles
S design caps
S draw valves
S prime plugs

Remove all o-rings.

Note: To remove o-rings, use a single service towel to
grasp the o-ring. Apply pressure in an upward direction
until the o-ring pops out of its groove. With the other
hand, push the top of the o-ring forward and it will roll
out of the groove and can be easily removed. If there
is more than one o-ring to be removed, always remove
the rear o-ring first. This will allow the o-ring to slide
over the forward rings without falling into the open
grooves.

20

Models 336, 338 & 339Operating Procedures

Step 4

Remove the o-rings from the air tubes and air orifices.

Step 5

Return to the freezer with a small amount of cleaning
solution. Brush clean the rear shell bearings at the
back of the freezing cylinders with the black bristle
brush.

Figure 33

Step 6

Remove the rear drip pan and take it to the sink for
cleaning.

Note: If the drip pan is filled with an excessive amount
of mix, refer to the Troubleshooting Guide.

Step 7

Thoroughly brush clean all disassembled parts in the
cleaning solution making sure all lubricant and mix film
is removed. Take particular care to brush clean the
draw valve cores in the freezer door. Place all the
cleaned parts on a clean, dry surface to air dry
overnight.

Step 8

Wipe clean all exterior surfaces of the freezer.

Models 336, 338 & 339 Operating Procedures

21

Section 7 Important: Operator Checklist

During Cleaning and Sanitizing

Cleaning and sanitizing schedules are governed by
your State or local regulatory agencies and must be
followed accordingly. The following check points
should be stressed during the cleaning and sanitizing
operations.

WE RECOMMEND DAILY CLEANING AND
SANITIZING.

ALWAYS FOLLOW LOCAL HEALTH CODES.

T roubleshooting Bacterial Count

j 1. Thoroughly clean and sanitize machine

regularly, including complete disassembly and
brush cleaning.

j 2. Use all brushes supplied for thorough cleaning.

The brushes are specially designed to reach all
mix passageways.

j 3. Use the white bristle brush to clean the mix inlet

hole which extends from the mix hopper down
to the rear of the freezing cylinder.

j 4. Use the black bristle brush to thoroughly clean

the rear shell bearing located at the rear of the
freezing cylinder. Be sure to have a generous
amount of cleaning solution on the brush.

j 5. IF LOCAL HEALTH CODES PERMIT THE

USE OF RERUN, make sure the mix rerun is
stored in a sanitized, covered stainless steel
container and used the following day . DO NOT
prime the machine with rerun. When using
rerun, skim off the foam and discard. Mix the
rerun with fresh mix in a ratio of 50/50 during the
days operation.

j 6. On a designated day of the week, run the mix as

low as feasible and discard it after closing. This
will break the rerun cycle and reduce the
possibility of high bacteria and coliform counts.

j 7. Properly prepare the cleaning and sanitizing

solutions. Read and follow label directions
carefully. Too strong of a solution may damage
the parts and too weak of a solution will not do
an adequate job of cleaning or sanitizing.

j 8. The temperature of the mix in the mix hopper

and walk-in cooler should be below 40_F.
(4.4_C.).

Regular Maintenance Checks

j 1. Replace scraper blades that are nicked or

damaged. Before installing the beater
assembly, be certain that scraper blades are
properly attached to the helix.

j 2. Check the rear shell bearing for signs of wear

(excessive mix leakage in rear drip pan) and be
certain it is properly cleaned.

j 3. Using a screwdriver and cloth towel, keep the

rear shell bearing and the female hex drive
socket clean and free of lubricant and mix
deposits.

j 4. Dispose of o-rings and seals if they are worn,

torn, or fit too loosely, and replace with new
ones.

j 5. Follow all lubricating procedures as outlined in

“Assembly”.

j 6. If your machine is air cooled, check the

condensers for accumulation of dirt and lint.
Dirty condensers will reduce the efficiency and
capacity of the machine. Condensers should be
cleaned monthly with a soft brush. Never use
screwdrivers or other metal probes to clean
between the fins.
Note: For machines equipped with an air filter,
it will be necessary to vacuum clean the filters
on a monthly schedule.

Caution: Always disconnect
electrical power prior to cleaning the
condenser.

051215

22

Models 336, 338 & 339Important: Operator Checklist

j 7. If your machine is equipped with an auxiliary

refrigeration system, check the auxiliary
condenser for accumulation of dirt and lint. Dirty
condensers will reduce the refrigeration
capacity of the mix hopper. Condensers must
be cleaned monthly with a soft brush. Never
use screwdrivers or other metal probes to clean
between the fins.

Caution: Always disconnect
electrical power prior to cleaning the
condenser.

j 8. If your machine is water cooled, check the water

lines for kinks or leaks. Kinks can occur when
the machine is moved back and forth for
cleaning or maintenance purposes.
Deteriorated or cracked water lines should be
replaced only by an authorized Taylor
distributor.

Winter Storage

If the place of business is to be closed during the winter
months, it is important to protect the freezer by
following certain precautions, particularly if the
building is subject to freezing conditions.

Disconnect the freezer from the main power source to
prevent possible electrical damage.

On water cooled freezers, disconnect the water
supply. Relieve pressure on the spring in the water
valve. Use air pressure on the outlet side to blow out
any water remaining in the condenser, and then add a
liberal amount of permanent type auto anti-freeze.
This is extremely important. Failure to follow this
procedure may cause severe and costly damage to the
refrigeration system.

Your local Taylor Distributor can perform this winter
storage service for you.

Wrap detachable parts of the freezer such as beater ,
blades, drive shaft, and freezer door, and place them
in a protected dry place. Rubber trim parts and gaskets
can be protected by wrapping them with
moisture-proof paper. All parts should be thoroughly
cleaned of dried mix or lubrication which attract mice
and other vermin.

Models 336, 338 & 339 Important: Operator Checklist

23

Section 8 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

1. No product is being
dispensed with draw valve
open and the machine in
the “AUTO” mode.

2. The product is too stiff. a. The viscosity needs

a. Freeze-up in mix inlet

hole.

b. Beater motor out on reset. b. Reset the freezer. 11

c. The beater is rotating

counterclockwise from the
operator end.

d. The circuit breaker is off

or the fuse is blown.

e. There is inadequate mix in

the mix hopper.

f. The air orifice is not

installed.

g. Air tube is installed in the

“STANDBY” position.

adjustment.

b. The air orifice is not

installed.

a. Call service technician to

adjust the mix hopper
temperature.

c. Contact service technician

to correct rotation to
clockwise from operator
end.

d. Turn the breaker on, or

replace the fuse.

e. Fill the mix hopper with

mix.

f. Install air orifice in air

tube.

g. Install the air tube in the

“AUTO” position.

a. Contact service

technician.

b. Install air orifice in air

tube.

-- -- --

-- -- --

-- -- --

19

18

18

-- -- --

18

3. The product is too soft. a. Viscosity needs

adjustment.

b. Not enough air space

around unit. (Air cooled
units)

c. Worn scraper blades. c. Replace regularly. 27

d. Dirty condenser (A/C) d. Clean monthly. 22

e. Mix is out of date. e. Use only fresh mix. -- -- --

f. Loss of water. (W/C) f. Locate cause of water

g. Loss of refrigerant. g. Call a service technician. -- -- --

4. The mix in the mix hopper
is too cold.

a. The temperature is out of

adjustment.

24

a. Contact service

technician.

b. Allow for adequate air flow

across the condenser.

loss and correct.

a. Call service technician to

adjust the mix hopper
temperature.

Models 336, 338 & 339Troubleshooting Guide

-- -- --

1

23

-- -- --

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

5. The mix in the mix hopper
is too warm.

6. The drive shaft is stuck in
the drive coupling.

7. The freezing cylinder walls
are scored.

a. The temperature is out of

adjustment.

b. Missing or defective mix

hopper gasket.

c. The mix hopper cover is

not in position.

d. The mix refrigeration light

is not lit.

e. The condenser is dirty. e. Clean the condenser. 22

a. Rounded corners of drive

shaft, coupling, or both.

b. Mix and lubricant collected

in the drive coupling.

a. The beater assembly is

bent.

a. Call service technician to

adjust the mix hopper
temperature.

b. Replace/install the gasket

around the mix hopper.

c. Place the cover in

position.

d. Press mix refrigeration

button.

a. Call service technician to

correct cause, and to
replace the necessary
components. Do not
lubricate the hex end of
the drive shaft.

b. Brush clean the rear shell

bearing area regularly.

a. Call service technician to

repair or replace the
beater and to correct the
cause of insufficient mix
in the freezing cylinder.

-- -- --

18

19

19

-- -- --

21

-- -- --

8. Excessive mix leakage
into the rear drip pan.

9. Excessive mix leakage
from door spout.

b. The front bearing is

missing or worn on the
freezer door.

a. Missing or worn drive

shaft seal on drive shaft.

b. The rear shell bearing is

worn.

a. Missing or worn draw

valve o-rings.

b. Inadequate lubrication of

draw valve o-rings.

c. Wrong type of lubricant is

being used (example:
petroleum base lubricant).

b. Install or replace the front

bearing.

a. Install or replace regularly. 12 / 27

b. Call service technician to

replace rear shell bearing.

a. Install or replace regularly. 14 / 27

b. Lubricate properly. 14

c. Use the proper lubricant

(example: Taylor Lube).

13

-- -- --

12

Models 336, 338 & 339 Troubleshooting Guide

25

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

10. No freezer operation after
pressing the “AUTO”
button.

1 1. Product is not feeding into

the freezing cylinder.

a. Unit is unplugged. a. Plug into wall receptacle. -- -- --

b. The circuit breaker is off

or the fuse is blown.

c. The beater motor is out on

reset.

d. The unit has gone off on

high pressure cut-out.

a. Inadequate level of mix in

the mix hopper.

b. The mix inlet hole is

frozen up.

c. The air tube is installed

incorrectly.

d. The air orifice is not

installed.

b. Turn the breaker on, or

replace the fuse.

c. Reset the freezer. 11

d. Allow the unit to cool and

reset. Check for dirty
condenser (air cooled) or
loss of water (water
cooled).

a. Fill the mix hopper with

mix.

b. The mix hopper

temperature needs
adjustment. Call service
technician.

c. Install the air tube in the

mix inlet hole, using the
end with the small hole in
the side.

d. Install the air orifice in the

air tube.

-- -- --

22/ 23

-- -- --

18

18

19

26

Models 336, 338 & 339Troubleshooting Guide

Section 9 Parts Replacement Schedule

PART DESCRIPTION EVERY 3 MONTHS EVERY 6 MONTHS ANNUALLY

Drive Shaft Seal X

Scraper Blade X

Freezer Door Gasket X

Front Bearing X

Draw Valve O-Ring X

Pivot Pin O-Ring X

Prime Plug O-Ring X

Air Tube O-Ring X

Air Orifice O-Ring X

White Bristle Brush, 3” x 7” Inspect & Replace

if Necessary

White Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Black Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Double-Ended Brush Inspect & Replace

if Necessary

Minimum

Minimum

Minimum

Minimum

Models 336, 338 & 339 Parts Replacement Schedule

27

Section 10 Parts List

UPDATE

REMARKS PARTS

WARR.

CLASS

339

QTY.

338

336

DESCRIPTION PART

QTY.

QTY.

NUMBER

+GUIDE--DRIP SEAL 028992 2 2 2 000

+NUT--BRASS BEARING 028991 2 2 2 000

+WASHER--BEARING LOCK 012864 2 2 2 000

ACCUMULATOR--COPPER 2”DIA 10” 047062 1 103

ADAPTOR A.--CASTER X18915 4 4 103

BEARING--FRONT 050216 2 2 2 000

BEARING--REAR SHELL *NICK.PLATE 031324 2 2 2 000

BEATER A.--2.8QT--HELICORE X35466 2 2 2 103

+BLADE--SCRAPER--PLASTIC 13--1/4L 035480 4 4 4 000

BELT--AX33 024396 4 000

BELT--AX35 022848 4 000

BELT--AX38 023873 4 000

BLOCK--TERMINAL 2P 039422 1 1 2 103

BLOCK--TERMINAL 5 POLE 024329 1 103

BLOWER A. X46573-- 1 103

BOOT--CAPACITOR INSULATING 031314 1 000

CAPACITOR--RUN-- 10 UF/370V 033047 1 103

HOUSING A.--W/WHEEL X30160 1 103

MOTOR--BLOWER-- 208/230V 50/60 HZ 046536-- 1 103

BLOWER A. X47833-- 1 103

BOOT--CAPACITOR INSULATING 031314 1 000

CAPACITOR--RUN-- 10 UF/370V 033047 1 103

HOUSING A.--W/WHEEL X30160 1 103

MOTOR--BLOWER-- 208/230V 50/60 HZ 046536-- 1 103

SCREEN--BLOWER *X30153* 030158 1 103

CLIP 030159 4 103

BOARD--LOGIC--GEN 2.6 W/SEL DIFF X36641SER1 2 2 2 212

BOARD--POWER--GEN 1 & 2 X32326--SER 2 2 2 212

BRUSH--DOUBLE ENDED--PUMP & FEED TUBE 013072 1 1 1 000

BRUSH--DRAW VALVE 1”ODX2”X17”L 013073 1 1 1 000

BRUSH--MIX PUMP BODY--3”X7”WHITE 023316 1 1 1 000

BRUSH--REAR BRG 1IN.DX2IN.LGX14 013071 1 1 1 000

CABLE A.--2 COND--24 IN--PUSH ON X34464 1 1 103

+ Available Separately

Parts List Models 336, 338 & 339

28

CABLE--RIBBON--14C--30”L--DIP/DIL 035683 1 103

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

CABLE--RIBBON--14C--40”L--DIP/DIL 042931 1 103

CABLE--RIBBON--PWR/RELAY--60 IN 032445 2 2 103

CAP--DESIGN--1.010”ID--6 POINT 014218 3 3 3 000

CASTER--SWV 5/8 STEM 4IN WHEEL 018794 4 4 103

COMPRESSOR L63A113BBCA 048259-- 1 512 MAIN

+ Available Separately

+CAPACITOR--RUN-- 20UF/440V 012906 1 103 208--230/60/1

+CAPACITOR--START--161--193UF/250V 031790 1 103 208--230/60/1

+RELAY--START--COMPRESSOR 038145 1 103 208--230/60/1

+RELAY--START--COMPRESSOR 036047 1 103 208--230/60/1

+CAPACITOR--STAR T--135--155UF/33 036048 1 103 208--230/60/1

+CAPACITOR--RUN-- 35UF/440V 048132 1 103 208--230/60/1

+CAPACITOR--START--161--193UF/250V 031790 2 103 208--230/60/1

+RELAY--START--COMPRESSOR 037430 2 103 208--230/60/1

+CAPACITOR--RUN-- 25 UF/440V 037431 2 103 208--230/60/1

CAPACITOR--START--60UF--220/275V 047703 1 1 1 103 208-- 230/60/1

+KIT--MOUNTING--COMPRESSOR 047704 1 1 1 103

+RELAY--START--COMPRESSOR--TL3G 047702-- 1 1 1 103 208--230/60/1

+COVER--TERMINAL 047739 1 1 1 103

COMPRESSOR AHA2490ZXD--AH556ET 047519-- 1 512 MAIN

COMPRESSOR--M65B163BBCA 048258-- 2 512 MAIN

COMPRESSOR TL3G--R134A 047701-- 1 1 1 512 SHR

CONDENSER--AC--12LX18HX2.6T--3ROW 048233 1 2 103

CONDENSER--AC--19X14X2.5--4ROW 048623 1 103

+SCREW--5/16--18 X 5/16 ALLEN SET 042511 4 4 4 000

+GASKET--HOPPER COVER--8QT 037042 1 000

+KNOB--MIX COVER 025429 1 103

+GASKET--HOPPER COVER--20 QT--TWIN 038474 1 1 000

+KNOB--MIX COVER 025429 2 2 103

CONDENSER--AC--7X6X1.25--2 ROW 027155 1 1 1 103 SHR

COUPLING--DRIVE 3/4 HEX X 1--7/8 012721 2 2 2 103

COVER A.--HOPPER * 162--168* X37963 1 103

COVER A.--HOPPER--STD X38458 2 2 103

DECAL--CLEAN INST.--HOPPER 019029 1 1 1 000

DECAL--DEC-- 336 SOFTECH 038337 1 000

DECAL--DEC--TWIN--SS 032919 1 1 000

Models 336, 338 & 339 Parts List

29

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

DECAL--POWER SWITCH 032484 1 1 1 000

DECAL--TROUBLESHOOTING 038374 1 1 1 000

DEFLECTOR--BLOWER EXHAUST 048345 1 103

DEFLECTOR--BLOWER EXHAUST 046586 1 103

DIAGRAM--WIRING 038333 1 000

+ Available Separately

DIAGRAM--WIRING 051624-- 1 000

DIAGRAM--WIRING 046585-- 1 000

DOOR A.--3 SPOUT X51532--15 1 1 1 103

+HANDLE A.--DRAW--ADJ.--STAINLESS X33687 3 3 3 103

+HANDLE--ADJUSTABLE 028804 3 3 3 103

+O--RING--1/4 OD X .070W 50 DURO 015872 3 3 3 000

+SCREW--ADJUSTMENT 026592 3 3 3 000

+PLUG--PRIME 028805 2 2 2 103

+O--RING--3/8 OD X .070W 016137 4 4 4 000

+ROD A.--PIVOT X20683 1 1 1 103

+O--RING--5/16 OD X .070W 016272 1 1 1 000

+VALVE A.--DRAW X18303 3 3 3 103

+O--RING--7/8 OD X .103W 014402 6 6 6 000

BEARING--FRONT 050216 2 000

CAP--DESIGN--1.010”ID--6 POINT 014218 3 000

DRYER--CAP. TUBE--HP62/R134A 047699 1 1 1 000 SHR

DRYER--FILTER--HP62--3/8 X 1/4S 047521 1 2 000

DRYER--FILTER--HP62--3/8 X 1/4S 048901 1 000

EYELET--RESET BUTTON 013739 2 2 000

FASTENER--CLIP 1/4--20 U--TYPE 045865 8 8 8 000 BASE PAN/PANELS

GASKET--DOO R HT 4” --DOUBLE 048926 2 2 2 000

GEAR A.*REDUCER 021286 2 2 2 212

GUARD--FAN 028534--1 1 103

GUIDEA.--DRIPPAN X51567 1 103

GUIDEA.--DRIPPAN X27554 1 103

GUIDEA.--DRIPPAN X28699 1 103

HOOD 041026 1 103

HOOD 042866 1 103

HOOD 035434 1 103

KIT A.--TUNE UP--3 SPOUT--NON HT X49463--6 1 000

Parts List Models 336, 338 & 339

30

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

GASKET--DOO R HT 4” --DOUBLE 048926 2 000

O--RING--.563 OD X .070W--#013 043758 8 000

O--RING--3/8 OD X .070W 016137 6 000

O--RING--5/16 OD X .070W 016272 1 000

O--RING--7/8 OD X .BW 014402 7 000

+ Available Separately

SEAL--DRAW VALVE 034698 1 000

SEAL--DRIVE SHAFT 032560 2 000

TOOL--CLEANING 0--RING REMOVAL 048260 1 000

KIT A.--TUNE UP--3 SPOUT--NON HT X49463--4 1 1 000

BEARING--FRONT 050216 2 2 000

CAP--DESIGN--1.010”ID--6 POINT 014218 3 3 000

GASKET--DOO R HT 4” --DOUBLE 048926 2 2 000

O--RING--.643 OD X .077W 018572 8 8 000

O--RING--3/8 OD X .070W 016137 6 6 000

O--RING--5/16 OD X .070W 016272 1 1 000

O--RING--7/8 OD X .103W 014402 7 7 000

SEAL--DRAW VALVE 034698 1 1 000

SEAL--DRIVE SHAFT 032560 2 2 000

TOOL--CLEANING 0--RING REMOVAL 048260 1 1 000

LABEL--DOOR CAUTION 032749 1 1 1 000

LABEL--MOVING PARTS WARN 024315 3 3 3 000

LABEL--WARNING PANEL 036529 3 3 3 000

LEG--4” SS--W/ORING 013458 4 103

+CAPACITOR--RUN-- 4UF--440V 051785 1 103

+FAN--5 BLADE 12”PUSH 32DEG CC 047279 1 103

LOUVER--SIDE 017471 2 1 2 103 MODEL 338 -- LEFT SIDE

LUBRICANT--TAYLOR 4 OZ. 047518 1 1 1 000

MAN--OPER 300 SERIES SOFTECH 036029--M 1 1 1 000

MOTOR-- 1.0 HP 013102-- 2 2 2 212

MOTOR--FAN 80 W 208/230V 60HZ 051744-- 1 103 MAIN SYSTEM

MOTOR--FAN 105CFM 3000RPM 027309-- 1 1 1 103 SHR

NUT--STUD *460--664--754--56*LONG 034382 2 2 2 103

NUT--STUD *460--664--754--56*SHORT 034383 2 2 2 103

+O--RING--3/8 OD X .070W 016137 2 2 2 000

ORIFICE 022465--100 2 2 2 103

Models 336, 338 & 339 Parts List

31

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

PAIL--MIX 6 QT. 023348 1 000

PAIL--MIX 10 QT . 013163 1 1 000

PAN A. --DRIP -- 17--1/4” LONG 027504 1 1 103 SIDE PANEL MOUNT

PAN A. --DRIP -- 15--1/8” LONG X51601 1 103 FRONT PANEL MOUNT

PAN A. -- DRIP HINGED X41844 1 103 INTERNAL MOUNT

PANEL A.--FRONT X42821--SP1 1 103

PANEL A.--FRONT X51590 1 103

PANEL A.--FRONT X32956 1 103

PANEL A.--LOWER SIDE X24424 2 2 103 RIGHT & LEFT

PAN EL A.- -SIDE LEFT X51596 1 103

PANEL A.--SIDE RIGHT X48596 1 103 UPPER

PANEL--SIDE--RIGHT 048487 1 103 LOWER

PANEL--REAR 029816 1 103

PANEL--REAR 017563 1 103

PANEL--REAR 051600 1 103

PANEL--SERVICE 042824 1 103

PANEL--SERVICE 024439 1 103

PANEL--UPPER SIDE LEFT 028740 1 1 103

PANEL--UPPER SIDE RIGHT 028741 1 1 103

PLATE--DEC --336* 038081 1 103

PLATE--DEC --754--755 032961 1 1 103

PLUG--DRIP TRAY HOLE 029595 1 1 000

PROBE A.--MIX *SQUARE* X30922 2 2 2 103

PROBE A.--THERMISTOR X31602 2 2 2 103 BARREL

PROBE A.--THERMISTOR X34466 1 103 HOPPER

PROBE A.--THERMISTOR/RESISTOR X50717 1 1 103 HOPPER

PULLEY--2AK20 X 5/8 BORE 034238 2 2 2 103 BEATER MOTOR

PULLEY--2AK64--5/8 BORE 039695 2 2 2 103 GEAR

RECEPTACLE A.--QUICK CONNECT X33321 2 2 103 DRAW SWITCH

RELAY--3 POLE--20A--208/240 50/60 012725-- 1 1 2 103 COMPRESSOR

RELAY--SPDT--30 A--240 V 032607-- 1 1 103 BLOWER MOTOR

SANITIZER KAY--5 125 PACKETS 041082 1 1 000

SANITIZER--STERA SHEEN--GREEN 065293 1 000

SHAFT--BEATER 033235 2 2 2 103

+ Available Separately

071018

Parts List Models 336, 338 & 339

32

+SEAL--DRIVE SHAFT 032560 2 2 2 000

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

+STUD--NOSE CONE 022822 4 103

+STUD--NOSE CONE 022822 4 4 103

SHELL A.--INSULATED X37091--SP 1 512

SHELL A.--INSULATED X50770 1 1 512

SHIELD--SPLASH 23 L 022766 1 1 1 103

+ Available Separately

SKIRT--AIR FLOW 048489 1 103

+COLLAR--HOLDING 019481 3 103

+SCREW--HOLDING COLLAR (10--32x3/4 OVAL) 001086 3 000

STARTER 041950-- 2 2 2 103

SWITCH A.--DRAW *336*SELF CLOSE X43417--SER 1 103

ARM--SWITCH--DRAW--LEFT 038649 1 103

ARM--SWITCH--DRAW--RIGHT 038650 1 103

BRACKET A.--SPRING RETURN X38257 1 103

E--RING 1/4 032190 4 000

PIN--PIVOT--DRAW SWITCH 038484 1 103

SPRING--EXTENSION.375X.045X1.00 038922 2 103

SPRING--RETURN--LEFT--TWIN TWIST 038923 1 103

SPRING--RETURN--RIGHT--TWIN TWIST 038924 1 103

SWITCH A.--DRAW--TWIN TWIST X39269 1 103

BRACKET--DRAW SWITCH--TWIN TWIST 039264 1 103

SWITCH--LEVER--SPDT--11A--125--277V 039252 2 103

SWITCH A.--DRAW *SELF CLOSING* X38547 1 1 103

ARM--SWITCH--DRAW--LEFT 038649 1 1 103

ARM--SWITCH--DRAW--RIGHT 038650 1 1 103

BRACKET A.--SPRING RETURN X38257 1 1 103

BRACKET A.--SWITCH *338--39--754 X38252 1 1 103

E--RING 1/4 032190 4 4 000

PIN--PIVOT--DRAW SWITCH 038484 1 1 103

ROD--SPRING RETAINER 038254 1 1 103

SCREW--8--32X3/8 HEX HD TYPE 23 039267 2 2 000

SPRING--EXTENSION.375X.045X1.00 038922 2 2 103

SPRING--RETURN--LEFT--TWIN TWIST 038923 1 1 103

SPRING--RETURN--RIGHT--TWIN TWIST 038924 1 1 103

BRACKET--DRAW SWITCH--TWIN TWIST 039264 1 1 103

SWITCH A.--DRAW--TWIN TWIST X39269 1 1 103

Models 336, 338 & 339 Parts List

33

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

SCREW--4--40 X1/2”TAPTITE PAN HD 042604 4 4 000

SWITCH--LEVER--SPDT--11A--125--277V 039252 2 2 103

SWITCH--PRESSURE 440 PSI--SOLDER 048230 1 1 2 103

SWITCH--TOGGLE-- 4PDT*ON--NONE--ON 037394 1 1 1 103

TRAY--DRIP 16--7/8L X 5--1/8 020157 1 103

+ Available Separately

TRAY--DRIP 22--7/8L X 5--1/8W 014533 1 1 103

TRIM--FRONT 051595 1 103

TRIM--REAR CORNER LEFT 013761 1 1 103

TRIM--REAR CORNER LEFT 044280 1 103

TRIM--REAR CORNER RIGHT 013663 1 1 103

TRIM--REAR CORNER RIGHT 044281 1 103

TUBE--FEED 5/32 DIA. HOLE 043461--2 2 103

+O--RING--.563 OD X .070W--#013 043758 8 000

TUBE A.--FEED--SS--5/32 HOLE DIA X29429--2 2 2 103

+O--RING--.643 OD X .077W 018572 8 8 000

VALVE --ACCESS 1/4 X 3/8 SOLDER 029406 1 1 103

VALVE --ACCESS 1/4FL X 1/4SOLDER 044404 1 1 1 103

VALVE --ACCESS 1/4FL X 3/8SOLDER 043232 1 2 103

VALVE--ACCESS--1/4 MFLX1/4 S--90 047016 1 2 2 103

VALVE --EPR 1/4S 022665 1 1 1 103

VALVE--EXP--AUTO--1/4S X1/4 FPT 046365 2 2 103

VALVE--EXP--AUTO--1/4S X 1/4FPT 047232 2 103

VALVE--SOLENOID 7/16 ORF 5/8ODF 048626-- 2 2 103

VALVE--SOLENOID 7/64ORF X 1/4S 043449-- 2 2 103

VIDEO--TRAIN FILM--SS--SOFTECH 038047-- V 1 1 1 000

WASHER--PLASTIC PIVOT 013808 4 4 000

+FAN--5 BLADE 10 ” PUSH 013043 1 103

WATER COOLED

BLOWER--100 CFM 012796-- 1 1 103

CONDENSER--W/C COAX 047540 1 103

CONDENSER--WC--SPIRAL 11--1/2 049309 1 103

CONDENSER--W/C COAX 048287 2 103

GUARD--BLOWER 022505 1 1 103

MOTOR--FAN--25W 230V 015184-- 1 103

OUTLET A.--TEE X25900 1 103

Parts List Models 336, 338 & 339

34

UPDATE

REMARKSWARR.

CLASS

339

QTY.

338

QTY.

336

QTY.

PART

NUMBER

DESCRIPTION PARTS

SWITCH--PRESSURE 350PSI--SOLDER 048231 1 1 2 103

VALVE--WATER 3/8 REG\HEAD PRESS 008363 103

VALVE--WATER 3/8 REG/HEAD PRESSURE 046686 1 1 2 013

50Hz

BELT--AX33 024396 4 000

+ Available Separately

BELT--AX39 023874 4 000

CAPACITOR--RUN 25UF/370VOLT 023739 1 103 220--240V 50HZ 1PH

CAPACITOR--START 031790 1 103 220--240V 50HZ 1PH

RELAY--START--COMPRESSOR 038146 1 103 220--240V 50HZ 1PH

CAPACITOR--RUN-- 35UF/370V 029439 1 103 220--240V 50HZ 1PH

CAPACITOR--START--135-- 155UF/33 036048 1 013 220-- 240V 50HZ 1PH

RELAY--START--COMPRESSOR 036047 1 103 220-- 240V 50HZ 1PH

CAPACITOR--RUN 035734 2 103 220--240V 50HZ 1PH

CAPACITOR--START 031790 2 103 220--240V 50HZ 1PH

RELAY--START COMPRESSOR 048764 2 103 220--240V 50HZ 1PH

BLOCK-- TERMINAL 2 POLE 039421 2 103 220--240/50/1

BLOCK-- TERMINAL-- 2 POLE 039422 2 103

BLOCK-- TERMINAL-- 7 POLE GREEN 024156 1 103

COMPRESSOR COMPONENTS

DIAGRAM--WIRING 038333-- 34 1 000

DIAGRAM--WIRING 051624-- 40 1 000

DIAGRAM--WIRING 046585-- 34 1 000

PULLEY 2AK25 X .625 021076 2 2 2 103 BEATER MOTOR

VIDEO--TRAIN FILM--SS--SOFTECH 038047--P AL 1 1 1 000

Models 336, 338 & 339 Parts List

35

Model 336
038333
Rev . 11/02

Model 336
038333-33
Rev . 11/02

Model 336
038333-62
Rev . 11/02

Model 338
051624--27
Rev . 11/02

Model 338
051624--33
Rev . 11/02

Model 338
051624--40
Rev . 11/02

Model 338
051624--58
Rev . 11/02

Model 339
046585--27
Rev . 11/02

Model 339
046585--33
Rev . 11/02

Model 339
046585-62
Rev . 11/02
